Technika LCD40-920 User Manual

OPERATING INSTRUCTIONS

LCD40-920

COLOUR TELEVISION WITH REMOTE CONTROL

For assistance, please call our Tesco Electrical Helpline on 0845 4566767

Contents

Features ................................................................. 2

Accessories ............................................................ 2

Introduction ............................................................. 2

Preparation ............................................................. 2

Safety Precautions ................................................. 3

Power Source ..................................................... 3

Power Cord ......................................................... 3

Moisture and Water ............................................ 3

Cleaning.............................................................. 3

Ventilation ........................................................... 3

Heat and Flames ................................................ 3

Lightning ............................................................. 3

Replacement Parts ............................................. 3

Servicing ............................................................. 3

Waste Disposal ................................................... 3

Information for Users in European Union

Countries ............................................................ 3

Disconnecting the Device ................................... 3

Headphone Volume ............................................ 4

Installation........................................................... 4

LCD Screen ........................................................ 4

Warning .............................................................. 4

Overview of the Remote Control ............................ 5

LCD TV and Operating Buttons .............................. 6

Viewing the Connections- Back Connectors .......... 6

Viewing the Connections - Side Connectors .......... 8

Aerial Connection ................................................... 8

Power Connection .................................................. 9

Connecting the LCD TV to a PC ............................. 9

Connecting to a DVD Player................................... 9

Using Side AV Connectors ..................................... 9

Using Other Connectors ....................................... 10

Connecting Other Equipment via Scart ................ 10

Inserting Batteries in the Remote Control

Handset ................................................................ 10

Switching the TV On/Off ....................................... 10

To Switch the TV On ......................................... 10

To Switch the TV Off ......................................... 10

Input Selection .......................................................11

Basic Operations ...................................................11

Operation with the Buttons on the TV ................11

Operation with the Remote Control ...................11

Initial Settings ........................................................11

General Operation ................................................ 12

Information Banner ........................................... 12

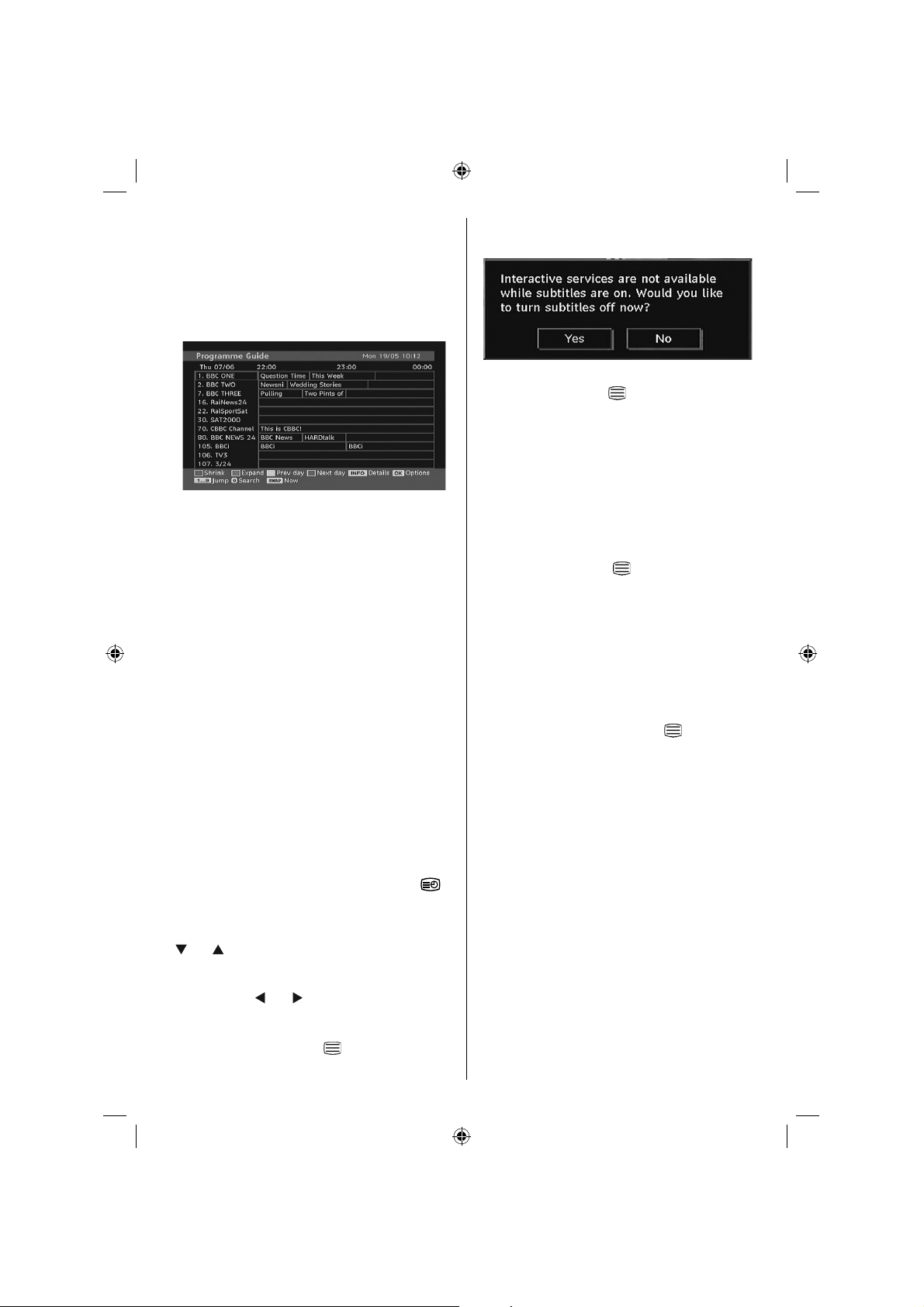

Electronic Programme Guide (EPG) .................... 12

Displaying Subtitles .......................................... 13

Digital Teletext (** for UK only) ......................... 13

Analogue Teletext ............................................. 13

Widescreen ....................................................... 13

IDTV Menu System .............................................. 14

Channel List ...................................................... 14

English - 1 -

Timers ............................................................... 15

Conditional Access ........................................... 16

TV Setup ........................................................... 16

Setup ................................................................ 16

Analogue TV Menu System .................................. 21

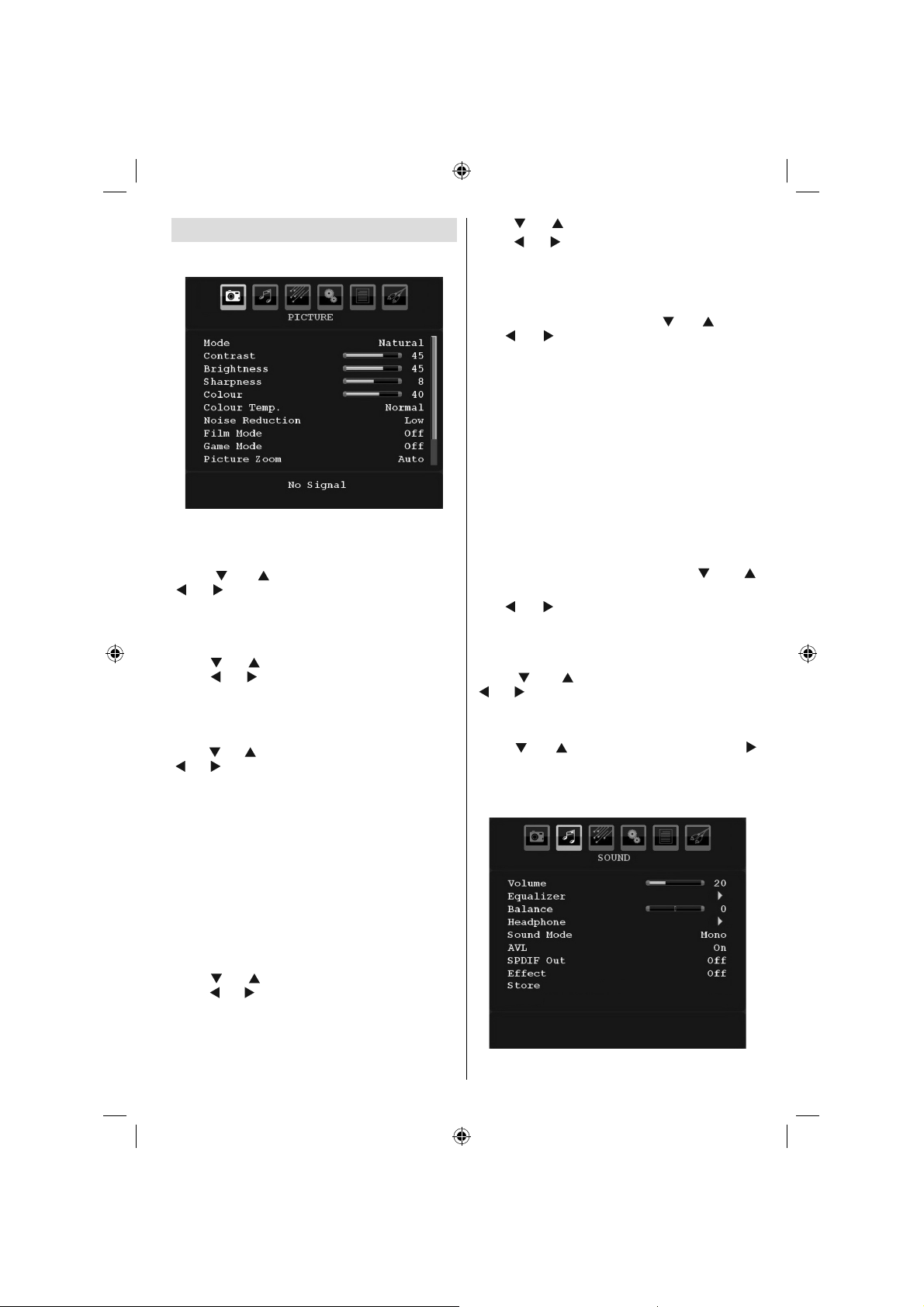

Picture Menu..................................................... 21

Sound Menu ..................................................... 21

Feature Menu ................................................... 22

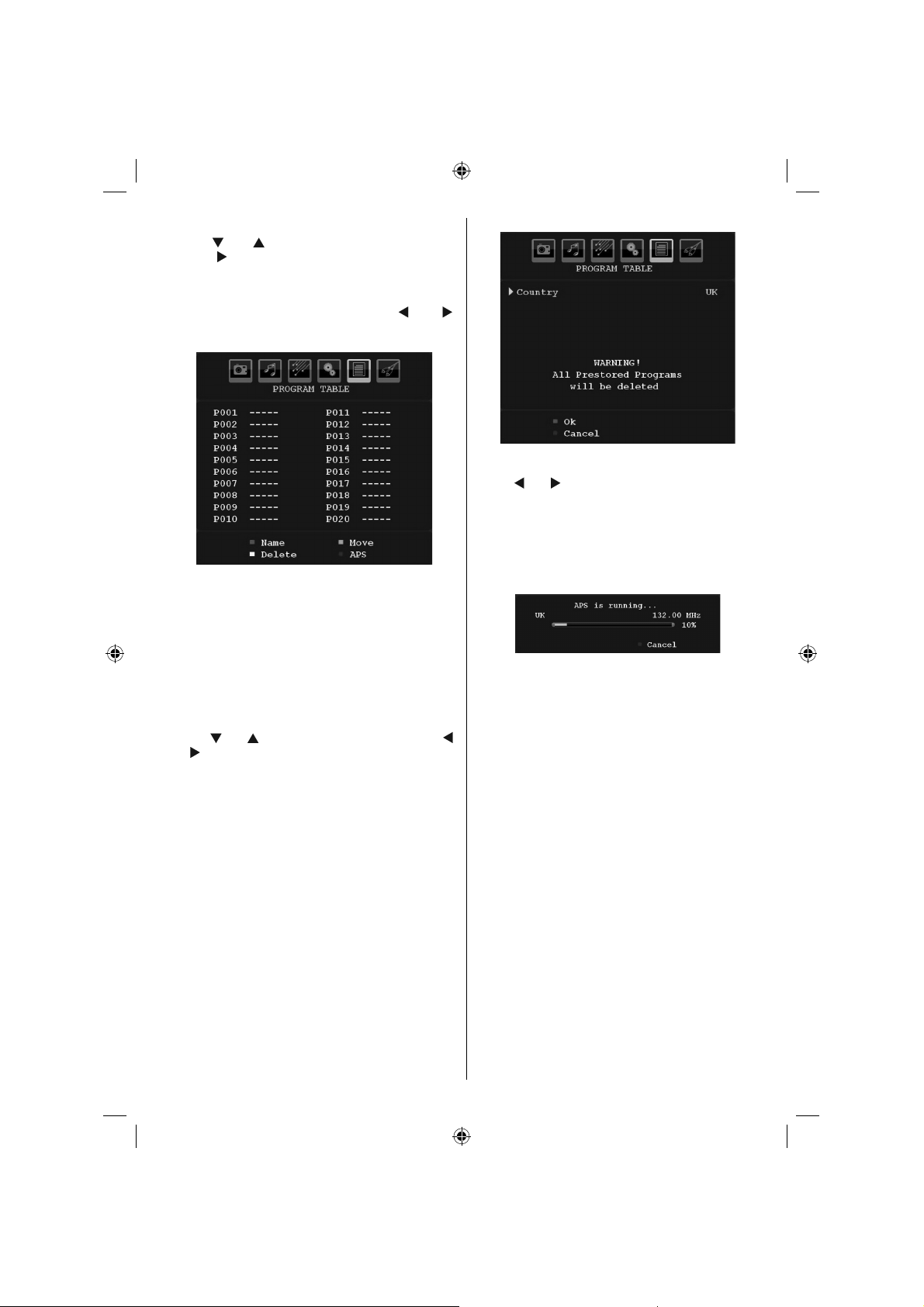

Install Menu ...................................................... 24

PC Mode Menu System........................................ 26

PC Position Menu ............................................. 26

Displaying TV Information .................................... 27

Mute Function ....................................................... 27

PIP (Picture-in-Picture) and PAP (Picture-and-

Picture) Modes ..................................................... 27

Picture Mode Selection......................................... 27

Freezing Picture ................................................... 27

Zoom Modes......................................................... 27

Teletext ................................................................. 28

Tips ....................................................................... 29

Appendix A: PC Input Typical Display Modes ....... 30

Appendix B: AV and HDMI Signal Compatibility

(Input Signal Types) .............................................. 30

Appendix C: Supported DVI Resolutions.............. 31

Appendix D: PIP/PAP Mode Combinations .......... 31

Specifi cations ....................................................... 32

Important Instruction ............................................. 33

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 1[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 1 17.02.2010 14:17:0517.02.2010 14:17:05

Features

• Remote controlled colour LCD TV.

• Fully integrated digital TV (DVB-T).

• HDMI connectors for digital video and audio. This
connection is also designed to accept high defi nition
signals.

• 200 programmes from VHF, UHF(analogue).

• 300 programmes for digital mode (IDTV).

• OSD menu system.

• Two scart sockets for external devices (such as
video, video games, audio set, etc.).

• Stereo sound system. (German+Nicam)

• Teletext, fastext, TOP text.

• Headphone connection.

• Automatic programming system.

• Forward or backward manual tuning.

• Sleep timer.

• Child lock.

• Automatic sound mute when no transmission.

• NTSC playback.

• PIP / PAP / PAT functions.

• AVL (Automatic Volume Limiting).

• When no valid signal is detected, after 5 minutes the
TV switches itself automatically to standby mode.

• PLL (Frequency Search).

• PC input.

• Plug&Play for Windows 98, ME, 2000, XP, Vista.

• Audio line out.

• Game Mode (optional) .

• Active antenna power (optional).

Accessories

EPG

SCREEN

LANG

SUBTITLE SLEEP

GHI

ABC

DEF

2

3

1

PQR

JKL

MNO

4

6

5

YZ

STU

VWX

7

8

9

DTV

TV

FAV

0

V

P

S

O

R

U

E
C

I
N

F

ST

O

E

/

RE

P

RETUR

PW

A

S

M

N

OK

Remote

Controller

Introduction

Thank you for choosing this product. This manual will
guide you for the proper operation of your TV.
Before operating the TV, please read this
manual thoroughly.

Please do keep this manual in a safe place for
future references.

Preparation

For ventilation, leave a free space of at least 10 cm
all around the set. To prevent any fault and unsafe
situations, please do not place any objects on top
of the set.

Use this device in moderate climates.

Batteries: 2 X AAA

Instruction Book

10 cm

10 cm

10 cm

English - 2 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 2[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 2 17.02.2010 14:17:0617.02.2010 14:17:06

Safety Precautions

Please read the following recommended safety
precautions carefully for your safety.

Power Source

The TV set should be operated only from a 220-240
V AC, 50 Hz outlet. Ensure that you select the correct
voltage setting for your convenience.

Power Cord

Do not place the set, a piece of furniture, etc. on the
power cord (mains lead) or pinch the cord. Handle the
power cord by the plug. Do not unplug the appliance
by pulling from the power cord and never touch the
power cord with wet hands as this could cause a short
circuit or electric shock. Never make a knot in the cord
or tie it with other cords. The power cords should be
placed in such a way that they are not likely to be
stepped on. A damaged power cord can cause fi re or
give you an electric shock. When it is damaged and
needs to be replaced, it should be done by qualifi ed
personnel.

Moisture and Water

Do not use this device in a humid
and damp place (avoid the bathroom,
the sink in the kitchen, and near the
washing machine). Do not expose this
device to rain or water, as this may be
dangerous and do not place objects
filled with liquids, such as flower
vases, on top. Avoid from dripping
or splashing.

If any solid object or liquid falls into the cabinet, unplug
the TV and have it checked by qualifi ed personnel
before operating it any further.

Cleaning

Before cleaning, unplug the TV set
from the wall outlet. Do not use
liquid or aerosol cleaners. Use soft
and dry cloth.

Ventilation

The slots and openings on the TV
set are intended for ventilation and to ensure reliable
operation. To prevent overheating, these openings
must not be blocked or covered in anyway.

Heat and Flames

The set should not be placed near
to open flames and sources of
intense heat such as an electric
heater. Ensure that no open fl ame
sources, such as lighted candles,
are placed on top of the TV.

Batteries should not be exposed to excessive heat
such as sunshine, fi re or the like.

Lightning

In case of storm and lightning or when
going on holiday, disconnect the power
cord from the wall outlet.

Replacement Parts

When replacement parts are required, make sure that
the service technician has used replacement parts,
which are specifi ed by the manufacturer or have the
same specifi cations as the original one. Unauthorized
substitutions may result in fi re, electrical shock or
other hazards.

Servicing

Please refer all servicing to qualifi ed
personnel. Do not remove the cover
yourself as this may result in an
electric shock.

Waste Disposal

Instructions for waste disposal:

• Packaging and packaging aids are recyclable and
should principally be recycled. Packaging materials,
such as foil bag, must be kept away from children.

• Batteries, including those which are heavy metal­free, should not be disposed of with household
waste. Please dispose of used battery in an
environment friendly manner. Find out about the
legal regulations which apply in your area.

• Cold cathode fluorescent lamp in LCD PANEL
contains a small amount of mercury; please follow
the local laws or regulations for disposal.

Information for Users in European Union
Countries

This symbol on the product or on its
packaging means that your electrical
and electronic device should be
disposed at the end of its service
life separately from your household
wastes. There are separate collection
systems for recycling in EU.

For more information, please contact the local
authority or the dealer where you purchased the
product.

Disconnecting the Device

The mains plug is used to disconnect TV set from
the mains and therefore it must remain readily
operable.

English - 3 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 3[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 3 17.02.2010 14:17:0717.02.2010 14:17:07

Headphone Volume

Excessive sound pressure from
earphones and headphones can
cause hearing loss.

Installation

To prevent injury, this device must be
securely attached to the wall in accordance with the
installation instructions when mounted to the wall (if
the option is available).

LCD Screen

The LCD panel is a very high technology product with
about a million thin fi lm transistors, giving you fi ne
picture details. Occasionally, a few non-active pixels
may appear on the screen as a fi xed blue, green or
red point. Please note that this does not affect the
performance of your product.

Warning

Do not leave your TV in standby or operating mode
when you leave your house.

English - 4 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 4[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 4 17.02.2010 14:17:0717.02.2010 14:17:07

Overview of the Remote Control

Standby1.

Yellow / Feature menu / Current language 2.
(*) (in DTV mode)

Blue / Install menu / Favourite mode (*) (in 3.
DTV mode)

PIP / PAP mode4.

Guide (in DTV mode)5.

Sleep timer6.

Subtitle on-off / TXT subtitle7.

Numeric buttons8.

TV – Digital TV mode9.

Volume up10.

Programme up / Page down (in DTV 11.
mode)

AV / Source selection12.

Info / Reveal (in TXT mode)13.

Return / Exit (in DTV mode) / Index page 14.
(in TXT mode)

Cursor up / Page up (in TXT mode)15.

Cursor right16.

OK / Select / Freeze picture / Hold (in TXT 17.
mode)

Cursor down / Page down (in TXT mode)18.

Menu on-off19.

Cursor left / Subpage (in TXT mode)20.

Previous Programme / Swap21.

Picture mode selection22.

Programme down / Page up (in DTV 23.
mode)

Mute24.

Volume down25.

Favourite mode (in DTV mode)26.

Mono-Stereo / Dual I-II / Current language 27.
(in DTV mode) (*)

Image size / Expand (in TXT mode)28.

Teletext / Mix / PAT 29.

Update (in TXT mode)30.

Red / Sound menu / Channel list (in DTV 31.
mode)

Green / Picture menu / Subtitle on-off (in 32.
DTV mode) (*)

English - 5 -

EPG

SCREEN

LANG

SUBTITLE SLEEP

ABC

1

JKL

4

STU

7

FAV

GHI

DEF

2

3

PQR

MNO

VWX

6

5

YZ

8

9

DTV

TV

0

V

P

S

O

R

U

E

C

I

NO

F

RE

PEST

APW

S

/

R

ETU

OK

M

(*) Only for EU country options.

RN

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 5[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 5 17.02.2010 14:17:0817.02.2010 14:17:08

LCD TV and Operating Buttons

Viewing the Connections- Back Connectors

Standby button1.

TV/AV button2.

Programme Up/Down buttons3.

Volume Up/Down buttons4.

Note: Press
buttons at the same time to view
main menu.

“ ” / “ ”

12

1. S/PDIF Digital Out outputs digital audio signals of the currently watched source.
Use a digital optic cable to transfer audio signals to a device that has S/PDIF input.

2. Subwoofer Out is for connecting an external, active subwoofer to the set to give a much deeper bass
effect.
Use an appropriate RCA cable to connect the set to a subwoofer unit.

Audio Line Outs 3. output audio signals to an external device such as an optional sound system.
To connect the external speakers to your TV, use AUDIO LINE OUTS of the TV with an audio cable.

4. SCART 2 inputs or outputs for external devices.

English - 6 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 6[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 6 17.02.2010 14:17:0817.02.2010 14:17:08

5. SCART 1 inputs or outputs for external devices.
Connect the SCART cable between SCART sockets on TV and SCART socket on your external
device (such as a decoder, a VCR or a DVD player).
Note: If an external device is connected via the SCART sockets, the TV will automatically switch to

AV mode. If both sockets are employed at the same time, SCART 1 will override SCART 2 unless
manually selected.
Note: You should connect the decoder to EXT-1, if you are planning to watch a scrambled channel.
The decoder might not function properly if you do not connect the decoder to the Scart 1 (Ext-1) socket
Note: Picture state can be affected by scart cable quality.

6. Component Video Inputs (YPbPr) are used for connecting component video.
You can connect the component video and audio sockets with a device that has component output.
Connect the component video cables between the COMPONENT VIDEO INPUTS on on the TV and
the component video outputs of your device. While connecting, be sure that the letters on your TV, “ Y ”,
“ Pb ”, “ Pr ” correspond with your device’s connectors.

7. PC/YPbPr Audio Inputs are used for connecting audio signals of a PC or a device that connects to the
TV via YPbPr.
Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output of your PC to
enable PC audio.
Connect the audio cable between AUDIO INPUTS on the TV and audio outputs of your device to
enable component audio.

8. S/PDIF Coaxial Out outputs digital audio signals of the currently watched source.
Use an SPDIF coaxial cable to trasfer audio signals to a device that has S/PDIF input.

9. RF Input connects to an antenna or a cable.
Note that if you use a decoder or a media recorder, you should connect the aerial cable through the
device to the television with an appropriate antenna cable, as shown in the illustrationin the following
pages.

10. PC Input is for connecting a personal computer to the TV set.
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.

11. HDMI 2: HDMI Input

HDMI 1: 12. HDMI Input

HDMI Inputs are for connecting a device that has an HDMI socket. Your LCD Television is capable of

displaying High Defi nition pictures from devices such as a High Defi nition Satellite Receiver or DVD Player.
These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept
either 720p or 1080i signals. No sound connection is needed for an HDMI to HDMI connection.

When you use the wall mount kit (optional) with the LCD TV, we would defi nitely recommend to plug all your
cables into the back of the LCD before mounting to the wall.

English - 7 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 7[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 7 17.02.2010 14:17:0917.02.2010 14:17:09

Viewing the Connections - Side Connectors

CI Slot is used for inserting a CI card. A CI card allows you to 1.
view all the channels that you subscribe to. For more information,
see “Conditional Access” section.

Headphone jack is used for connecting an external headphone to 2.
the system. Connect to the HEADPHONE jack to listen to the TV
from headphones (optional).

Video Input is used for connecting video signals of external 3.
devices.Connect the video cable between the VIDEO IN socket
on the TV and the VIDEO OUT jack on your device.

Audio Inputs are used for connecting audio signals of external 4.
devices. Connect the audio cable between the AUDIO INPUTS
on the TV and the AUDIO OUTPUT jacks on your device. Note: If
you connect a device to the TV via the VIDEO INPUT, you should
also connect your device with an audio cable to the AUDIO
INPUTS of the TV to enable audio.

Aerial Connection

• Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.

English - 8 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 8[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 8 17.02.2010 14:17:0917.02.2010 14:17:09

Power Connection

IMPORTANT : The TV set is designed to operate on
220-240V AC, 50 Hz.

• After unpacking, allow the TV set to reach the
ambient room temperature before you connect the
set to the mains.

• Plug the power cable to the mains socket outlet.

Connecting the LCD TV to a PC

For displaying your computer’s screen image on
your LCD TV, you can connect your computer to the
TV set.

• Power off both computer and display before making
any connections.

• Use 15-pin D-sub display cable to connect a PC to
the LCD TV.

• When the connection is made, switch to PC source.
See “Input selection” section.

• Set the resolution that suits your viewing requirements.
Resolution information can be found in the appendix
parts.

PC audio cable

(not supplied)

to AUDIO INPUTS

on the TV

Audio
Inputs

PC Input

PC RGB cable
(not supplied)
to PC input

• You may also connect through the SCART 1 or
SCART 2. Use a SCART cable as shown below.

Note : These three methods of connection perform the
same function but in different levels of quality. It is not

necessary to connect by all three methods.

Component

Scart sockets

Component

video

inputs

audio
inputs

DVD Player

inputs

HDMI

REAR VIEW

Using Side AV Connectors

You can connect a range of optional equipment
to your LCD TV. Possible connections are shown
below. Note that cables shown in the illustration are
not supplied.

• For connecting a camcorder, connect to the VIDEO
IN socket and the AUDIO SOCKETS. Do not connect
the camcoder to VIDEO IN socket at the same time
since it can cause noise in the picture. For selecting
the related source, see the section “Input selection”
in the following parts.

• To listen the TV sound from headphones, connect
to the HEADPHONE jack of theTV.

Connecting to a DVD Player

Headphone

Camcorder

If you want to connect a DVD player to your LCD
TV, you can use connectors of the TV set. DVD
players may have different connectors. Please refer
to your DVD player’s instruction book for additional
information. Power off both the TV and the device
before making any connections.

Note: Cables shown in the illustration are not
supplied.

• If your DVD player has an HDMI socket, you can
connect via HDMI. When you connect to DVD player
as illustrated below, switch to HDMI source. See,
“Input Selection” section.

• Most DVD players are connected through
COMPONENT SOCKETS. Use a component video
cable to connect video input. For enabling audio,
use a component audio cable as illustrated below.
When the connection is made, switch to YPbPr
source. See, “Input selection” section.

English - 9 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 9[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 9 17.02.2010 14:17:1117.02.2010 14:17:11

Using Other Connectors

You can connect a range of optional equipment
to your LCD TV. Possible connections are shown
below. Note that cables shown in the illustration are
not supplied.

• To connect external speakers, use an audio cable.
Do not reverse the AUDIO LEFT and AUDIO RIGHT
jacks. Turn on the LCD TV and external speaker set
after all connections are made. Refer to your speaker
set’s manual for further queries.

• For connecting a to a device that has SPDIF support,
use an appropriate SPDIF cable to enable sound
connection.

External Speakers

A device that

supports

SPDIF signal.

Connecting Other Equipment via
Scart

Most devices support SCART connection. You can
connect a; DVD recorder, a VCR or a decoder to your
LCD TV by using the SCART sockets. Note that cables
shown in the illustration are not supplied.

Power off both the TV and the devices before making
any connections.

For more information, refer to your device’s own
instruction book.

Scart sockets

DVD Recorder

Video Recorder

Decoder

Inserting Batteries in the
Remote Control Handset

• Remove the battery cover located on the back of
the handset by gently pulling backwards from the
indicated part.

• Insert two AAA/R3 or equivalent type batteries
inside. Place the batteries in the right directions and
replace the battery cover.

Note : Remove the battery from remote control
handset when it is not to be used for a long period.
Otherwise it can be damaged due to any leakage of
batteries.

Remote range is approximately 7m/23ft.

Switching the TV On/Off

To Switch the TV On

• Connect the power cord to the 220-240V AC, 50
Hz.

• Press STANDBY switch. Then the standby LED
lights up.

• To switch on the TV from standby mode either:

• Press the “
on the remote control.

• Press the -P/CH or P/CH+ button on the TV. The TV
will then switch on.

Note : If you switch on your TV via PROGRAMME
UP/DOWN buttons on the remote control or on the
TV set, the programme that you were watching last
will be reselected.

By either method the TV will switch on.

To Switch the TV Off

• Press the “ ” button on the remote control or
press the STANDBY switch, so the TV will switch
to standby mode.

• To power down the TV completely, unplug the
power cord from the mains socket.

Note: When the TV is switched to standby mode,
standby LED can blink to indicate that features such
as Standby Search, Over Air Download or Timer is
active.

” button, P+ / P- or a numeric button

English - 10 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 10[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 10 17.02.2010 14:17:1217.02.2010 14:17:12

Input Selection

Once you have connected external systems to your
TV, you can switch to different input sources.

• Press “SOURCE” button on your remote control for
directly changing sources.

or,

• Select “Source” option from the main menu
by using “
“ ” button to highlight an input and press “ ” button
to select.

Note : You can mark desired source options by
pressing the OK button. Therefore, when

button is pressed, only the marked source options will
be available (except for the TV source).

” or “ ” button. Use then “ ” or

“SOURCE”

Basic Operations

You can operate your TV using both the remote
control and onset buttons.

Operation with the Buttons on the TV

Volume Setting

• Press “ ” button to decrease volume or “
” button to increase volume, so a volume level scale
(slider) will be displayed on the screen.

Programme Selection

• Press “ P/CH + ” button to select the next programme or
“ P/CH - ” button to select the previous programme.

Viewing Main Menu

• Press “ ” / “ ” buttons at the same time
to view main menu. In the Main menu select sub­menu using “ P/CH - ” or “ P/CH + ” buttons and enter
the sub-menu using “
To learn the usage of the menus, refer to the menu
system sections.

AV Mode

• Press the “ TV/AV ” button in the control panel on the
TV to switch between AV modes.

” or “ ” buttons.

Operation with the Remote Control

• The remote control of your TV is designed to control
all the functions of the model you selected. The
functions will be described in accordance with the
menu system of your TV.

• Functions of the menu system are described in the
following sections.

Volume Setting

• Press “V +” button to increase the volume. Press “V

-” button to decrease the volume. A volume level

scale (slider) will be displayed on the screen.

Programme Selection (Previous or Next
Programme)

• Press “ P - ” button to select the previous programme.

• Press “ P + ” button to select the next programme.

Programme Selection (Direct Access)

• Press numeric buttons on the remote control to select
programmes between 0 and 9. The TV will switch
to the selected programme. To select programmes
between 10 - 299 (for IDTV) or 10-199 (for analogue),
press the numeric buttons consecutively. The limit
of the delay time is 3 seconds.

• Press directly the programme number to reselect
single digit programmes.

Initial Settings

When the TV is turned on for the fi rst time, the menu
for the language selection appears on the screen. The
message “Welcome please select your language!”
is displayed in all language options sequentially in
the OSD.

By pressing the “
language you want to set and press OK button. After
then, “First time installation” OSD will appear on the
screen.

By pressing “ ” or “ ” buttons, select the country
you want to set and press OK button. button (** for
EU countries).

Note: Country selection OSD will not be available
for UK.

After then, the active antenna selection OSD appears
on the screen:

By pressing “
mode as on or off.

” or “ ” buttons highlight the

” or “ ” buttons, set active antenna

English - 11 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 11[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 11 17.02.2010 14:17:1217.02.2010 14:17:12

If an active antenna is connected to your TV, you
can select this option as On. Antenna power should
be “Off” when standard antenna is used instead of
the active antenna. See Confi guration Menu in the
following sections for more information.

Press OK button on the remote control to continue
and the following message will be displayed on the
screen:

• To select the “Yes” or “No” option, highlight the
item by using “ ” or “ ” buttons and press the OK
button.

The IDTV will automatically tune to the UHF or VHF
(** for EU countries) transmission channels, searching
for digital terrestrial TV broadcasts and displaying the
names of channels found. This process will take about
a few minutes. To cancel searching, you can press the
“M” button at any time during the process.

Select your Country, Language and Text language
by using “ ” or “ ” and “ ” or “ ” buttons. Press
OK or RED button to continue. To cancel, press the
BLUE button.

For more information on this process, see “Install
Menu” section.

Note : For proper functioning of digital teletext in DTV
mode, you should set country as UK in analogue
AUTO PROGRAM (for UK only).

General Operation

Pressing the “TV/DTV” button at any time while
watching television programmes will switch the TV set
between the digital terrestrial television broadcasting
and its normal analogue broadcasting.

Information Banner

• Whenever you change channel, using the P- / P+
button or the numeric buttons, the TV displays the
broadcast picture along with an information banner
at the bottom of the screen (available only in DTV
mode). This will remain on the screen for a few
seconds.

• The information banner can also be displayed at any
time while watching TV by pressing the INFO button
on the remote control:

After Automatic Search is completed, the following
message asking for analogue channel search appears
on the screen:

To search for analogue channels, select “Yes”. TV
switches to the analogue TV mode. The menu below
is displayed to search for analogue channels:

Hint: Not all channels broadcast the programme
data. If the name and time of the programme are not
available, then information banner will be displayed
with blanks.

If the selected channel is locked, you must enter the
correct four numeric code to view the channel. “ Enter

PIN ” will be displayed on the screen in such a case:

Electronic Programme Guide
(EPG)

• Some, but not all, channels send information about
the current and next events.

• Please note that event information is updated
automatically. If there is no event information data

English - 12 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 12[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 12 17.02.2010 14:17:1317.02.2010 14:17:13

available in channels, EPG will be displayed with
blanks.

• Press EPG button to view the EPG menu.

• Electronic Programme Guide appears on the screen.
It is able to get Information of the channel - programs
weekly by means of 7-DAY-EPG. All programs of
channels are displayed. On the bottom of the screen;
info bar, showing all the available commands, will
be displayed.

RED button (Shrink) : makes the info boxes
smaller.

GREEN button (Expand) : makes the info boxes
larger.

YELLOW button (Prev. Day) : displays the
programmes of previous day.

BLUE button (Next day) : displays the programmes
of the next day.

INFO (Details): displays the programmes in detail.

Numeric buttons (Jump) : go to preferred channel
directly via numeric buttons.

OK : views options for future programmes.

SWAP : jumps to the current boradcast.

• Press “0” button to view Guide Search menu. Using
this feature, you can search the programme guide
database in accordance with the genre selected or
with name match.

Note: Searching process can be performed by the
desired date rate or by the channel basis.

Displaying Subtitles

With digital terrestrial broadcasting (DVB-T), some
programmes are broadcast with subtitles.

Note: You can enable subtitles by pressing the (**
for UK) or GREEN (* for EU countries)buttons.

Press the “ M ” button to display the main menu,
highlight the Setup and then Language menu using

” or “ ” button and press the OK button to display

“
the “Language settings” menu.

Highlight the “Subtitle” item in “Language settings”
menu and use
desired language.

If “Subtitle” is on and a language option is set,
pressing the TELETEXT (

” or “ button to set Subtitle to the

) button causes the

following warning message display on the screen (*
for UK only):

Digital Teletext (** for UK only)

• Press the TELETEXT ( ) button.

• The digital teletext information appears.

• Operate it with the coloured buttons, cursor buttons
and OK button.

The operation method may differ depending on the
contents of the digital teletext.

Follow the instructions displayed on digital teletext
screen.

• When Press “SELECT” button or similar message
appears on the screen, press the OK button.

• When the TELETEXT (
TV returns to television broadcasting.

• With digital terrestrial broadcasting (DVB-T), in
addition to digital teletext broadcasting together with
the normal broadcasting, there are also channels
with just digital teletext broadcasting.

• The aspect ratio (picture shape) when watching
a channel with just digital teletext broadcasting is
the same as the aspect ratio of the picture viewed
previously.

• When you press the TELETEXT ( ) button again,
the digital teletext screen will be displayed.

) button is pressed, the

Analogue Teletext

Use of teletext and its functions are identical to
the analogue text system. Please do refer to the
“TELETEXT” explanations.

Widescreen

Depending on the type of the broadcast being
transmitted, programmes can be viewed in a number
of formats. Press the “SCREEN” button repeatedly to
select between to change zoom mode.

When Auto is selected, the format being displayed is
determined by the picture being broadcast.

PLEASE NOTE : Menu size changes depending on
the chosen image size.

English - 13 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 13[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 13 17.02.2010 14:17:1317.02.2010 14:17:13

IDTV Menu System

The IDTV menu can only be viewed when watching

digital terrestrial broadcasting. Press the “
” button to turn IDTV on while the TV is in analogue
mode.

Press the “ M ” button. The menu below appears on
the screen:

Channel List

Using the “ ” or “ ” button on the remote control,
make sure that the first item, Channel List, is
highlighted and press the OK button to display the
Channel List.

Channel List is the place where the channels are
managed.

Moving the channels in the channel list

• Press “ ” or “ ” buttons to select the channel that
will be moved.

• Press “
on Channel List menu.

” or “ ” buttons to select the “ Move ” item

Note: If you enter the same programme number

of the channel that you want to move, “.... channel

services will be replaced. Do you want to continue?”
OSD will be displayed. Press OK to confi rm or select
“No” to cancel.

Deleting the Channels in the Channel List

• Press “ ” or “ ” button to select the channel that
will be deleted.

• Press “
on Channel List menu.

” or “ ” button to select the “Delete’’ item

Press the OK button to delete the highlighted channel
in the channel list. Then the message below appears
on the screen:

Navigating the Entire Channel List

Press “ ” or “ ” button for selecting the previous or
next channel. You can press P+ or P- button to move
page up or page down.

To watch a specifi c channel, highlight it using “
or “

” button and then press “ OK ” button, while the
“Select” item on Channel List menu is highlighted by
using “ ” or “ ” button.

Then the name and number of the selected channel
will be displayed in the top-left and top-right of
the channel display at the top-right of the screen,
respectively.

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 14[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 14 17.02.2010 14:17:1417.02.2010 14:17:14

”

Press “ ” or “ ” button to highlight the desired option.
If OK button is pressed while “ Yes ” is highlighted, the
highlighted channel is deleted. Selecting “ No ” cancels
the deletion.

English - 14 -

Renaming Channels

To rename a specifi c channel, the channel must
be highlighted by pressing “ ” or “ ” button. Then
highlight the Edit Name item by pressing “ ” or “
” button as illustrated below. Press the OK button to
activate the rename feature.

Now pressing “ ” or “ ” button moves to the previous/
next character. Pressing “ ” or “ ” button toggles
the current character, i.e., ‘b’ character becomes ‘a’
by “ ” and ‘c’ by “ ”. Pressing the numeric buttons
‘0...9’ replaces the highlighted character with the
characters printed above the button one by one as
the button is pressed.

Press the “M” button to cancel the editing or OK button
to save the new name.

Adding Locks to Channels

Channel locking provides a password-protected
access to channels selected by parents. In order to
lock a channel you should know the parental lock
password (default value is set to 0000 in the factory
and can only be changed from the Confi guration
menu).

Select the channel to be locked by highlighting it and
select the Lock option by pressing “
When the OK button is pressed, a dialog OSD asking
for the password will be displayed.

” or “ ” button.

Setting Favourites

To set a favourite you should highlight the “Favourites”
item at the bottom of the Channel List menu. Then
press OK button and Edit Favourite List menu appears
on the screen.

How to Add a Channel to a Favourites List

• By pressing “
that you want to add to the favourite list.

• By pressing OK button, the highlighted channel is
added to the Favourite List.

• F icon indicates that a channel is added to Favourite
List.

Removing a Channel from Favourite List

• Highlight the channel that you want to remove from
the favourite list and press OK button to remove.You
can press OK button again to re-add a channel.

• To activate Favourites, go to the Confi guration menu
and select Favourite mode. Use “
Favourite mode as on. To cancel Favourites, set
Favourite Mode to Off.

On Screen Help

For all menus, press the INFO/
the help information about the menu functions.

” or “ ” buttons, highlight the channel

” / “ ” to set

button to display

Program Guide

This section is same with the instructions given in
the General Operations page. Please see Electronic
Programme Guide (EPG) section in the General
Operations part.

Timers

Enter the password by using the numeric buttons on

the remote control. The lock icon “
displayed next to the selected channel. Repeat the
same operation to cancel the lock.

” will now be

To display timers window, activate the item from the
main menu. To add a timer, press the YELLOW button

English - 15 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 15[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 15 17.02.2010 14:17:1417.02.2010 14:17:14

on the remote control. Then “Add Timer” window
appears.

Channel : “
through the TV or Radio list.

Date : Starting date is entered via the Left/Right or the
numeric buttons.

Start : Starting time is entered via the Left/Right or
the numeric buttons.

End : Ending time is entered via the Left/Right or the
numeric buttons.

Duration: Duration between Start and End time.

Repeat: You can set a timer to be repeated as Once,

Daily or Weekly.

Change/Delete : permits or prohibits any modifi cations
for other users.

You can save the adjustments by pressing the GREEN
key or cancel the process by pressing the RED button.
You can edit the list via GREEN key and delete with
the RED button.

” or “ ” keys will navigate the user

Conditional Access

• Press the M button to display the main menu and use
the “ ” or “ ” button to highlight the “Conditional
Access” line and press the OK button:

• Some CAMs may require the following set up. Please
set the CAM by entering the IDTV menu, Conditional
Access then pressing the OK button. (CAM set up
menu is not displayed when it is not required.)

• To see the viewing contract information: enter IDTV;
press the “ M ” button, then highlight Conditional
Access and press the OK button.

• When no module is inserted, “No Conditional
Access module detected” message appears on
the screen.

• Refer to the module instruction manual for details
of the settings.

NOTE: Insert or remove the CI module only when the
TV is in STAND-BY mode or SWITCHED OFF.

TV Setup

You can use this item to display the TV functions.

The digital TV Setup menu screen is accessed from
the main menu. Press the “M” button to display the
main menu and use “
“TV Setup”, press the OK button to display TV Setup
menu screen.

” or “ ” button to highlight

Some Digital Terrestrial channels operate on a Pay
Per View basis. These require a subscription and a
hardware decoder.

Obtain the Conditional Access Module (CAM) and
the viewing card by subscribing to a pay channel
company, then insert those to the TV using the
following procedure.

• Switch off the TV and unplug from the mains.

• Insert the CAM and then the viewing card to the slot
that is located in the terminal cover at the left-hand
side of the TV (from front view).

• The CAM should be correctly inserted, it is impossible
to insert fully if reversed. The CAM or the TV terminal
may be damaged if the CAM is forcefully inserted.

• Connect the TV to the mains supply, switch on
and then wait for few moments until the card is
activated.

English - 16 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 16[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 16 17.02.2010 14:17:1517.02.2010 14:17:15

You can fi nd detailed information for all menu items
in “Analogue TV Menu System” section.

Setup

The adjustments in this menu are given as the
following:

Confi guration

You can confi gure the settings of your TV. Select
Confi guration from Setup menu and press OK to view
this menu. Press the RETURN button on the remote
control to exit.

Dolby D Digital (* for EU countries only)
(optional)

In the Configuration Menu, highlight the Dolby D
item by pressing “
“

” buttons to set the Dolby D Digital as On or Off.
If the channel that you are watching supports Dolby
Digital,you can turn this setting on.

Hard of Hearing (* for EU countries only)

Use “

” or “ ” button to select Hard of Hearing and
then press “ ” or “ ” button to set this setting as
On or Off.

If the broadcaster enables any special signal
concerning the audio, you can set this setting as On
to receive such signals.

Favourite Mode

Use this function to enable or disable favourite
mode. Press “ ” / “ ” button to set this function as
on or off.

Channel List

” or “ ” buttons to go to Channel List option.

Use “
Use “ ” or “ ” buttons to toggle Channel List Mode.
If you select “TV Only”, with the “ ” or “ ” buttons,
you navigate through only TV channels. If you select
“Radio Only”, with the “ ” or “ ” buttons, you navigate
through only radio channels. If you select “Text Only”,
with the “ ” or “ ” buttons, you navigate through only
text channels. To save the recent changes and exit;
press the “M” button.

Active Antenna

” or “ ” buttons to highlight Active Antenna

Use “
option.

When antenna power option is set as On by pressing

” or “ ” button, +5V will be transmitted to the

“
antenna output.

This feature enables the use of active antenna.

Note: Antenna power should be “Off” when standard
antenna is used instead of the active antenna.

Scan Encrypted (**)

(**) For UK only.

Scan Encrypted Channel feature will always be ON
after performing first time installation. When this
setting is on, search process will locate the encrypted

” or “ ” buttons. Use the “ ” or

English - 17 -

channels as well. If it is set as OFF manually, encrypted
channels will not be located while in automatic search
or manual search.

” or “ ” button to select Scan Encrypted and

Use “
then press “ ” or “ ” button to set this setting as
On or Off.

Receiver Upgrade

Over Air Download (OAD)

To ensure that your TV always has the most update
information, use this setting. Please ensure that the TV
is set to standby mode. The TV automatically powers
up at 3.00 A.M. each day and searches for any new
information which may be broadcast and will download
this to your receiver automatically. This operation will
normally take approximately 30 minutes. If you have
an important recording to be carried out at 3.00 A.M.
and you do not want to interrupt it, disable auto OAD
search by performing the following:

• Press “M” button and using the “ ” or “ ” buttons
to choose Setup and press the OK button.

• Highlight Confi guration menu with “
and press OK .

• Use “

” or “ ” buttons to choose “RECEIVER

UPGRADE” and press OK button.

” or “ ” keys

• Using the“ ” or “ ” button change “Automatic
scanning” from Enabled to Disabled.

• Highlight “Scan for upgrade” menu with

” or “ ” keys and pres OK to commence

“
upgrade.

• After the search progress is completed, the message
“ Completed searching for upgrade. No new software
was found” appears on the screen if no new software
is found.

• Do not forget to re enable the automatic OAD
function after you have made your recording by
repeating the above instructions but this time
selecting ENABLE.

Note: Your TV may start in First Time Installation mode
after OAD update.

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 17[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 17 17.02.2010 14:17:1517.02.2010 14:17:15

Parental Control

Use “

” or “ ” buttons to go to Parental Lock option.
Press OK button to enter the menu. A dialog box
asking for the lock key will be displayed. The key is set
to “0000” initially. Enter PIN. If it is incorrect, “Wrong
Pin” OSD will be displayed. If it is correct, the Parental
Control menu will be displayed:

Maturity Lock (**)

(**) If you set Country option as UK in the fi rst time
installation, Maturity Lock option will not be visible.

When set, this option gets the maturity information
from the broadcast and if this maturity level is disabled,
does not show video-audio.

Menu Lock

In menu lock you can set locking for all menus, or the
Installation Menu to restrict access to these menus.
If the menu lock is disabled, there will be free access
to the menu system. Use “
Menu Lock option. Use “ ” or “ ” buttons to choose
Menu Lock Mode.

DISABLED : All menus are unlocked.

ALL MENUS : All Menus are accessible only with
the correct lock key. So the user cannot add, delete,
rename, channels, cannot set timers.

INSTALLATION MENU : Installation menu is locked.
So the user can’t add channels. Changes will be
updated after exiting ‘Confi guration Menu’.

Set PIN

” or “ ” buttons to go to “Set PIN” option. Press

Use “
OK to display the “Set PIN” window. Use numeric
buttons to enter new pin number you will need to
input your new pin a second time for verifi cation
purposes. The factory default pin number is 0000,
if you change the pin number make sure you write it
down and keep it safe.

” or “ ” buttons to go to

Time Settings (**) (Optional)

(**) If you set Country option as UK in the fi rst time
installation, Time Settings option will not be visible.

In the configuration menu, highlight the Time Settings
item by pressing “
Time Settings sub menu will be displayed on the

” or “ ” buttons. Press OK and

screen. Current Time,Time Zone Setting and Time
Zone will be available.

Use “

” or “ ” buttons to highlight the Time Zone
Setting. Time Zone Setting is set using “ ” or “ ”
buttons. It can be set to AUTO or MANUAL. When
AUTO is selected, Current Time and Time Zone
options will not be available to be set. If MANUAL
option is selected as the Time Zone Setting, Time
Zone can be altered:

• By pressing “

Use “ ” or “ ” buttons to change the Time Zone
between GMT-12 or GMT+12. Current Time on the
top of the menu list will then change according to
the selected Time Zone.

” or “ ” buttons select Time Zone.

Audio Description (Optional)

Audio description refers to an additional narration
track for blind and visually impaired viewers of visual
media. You can use this feature, only if the broadcaster
supports that additional narration track. Use “ ” or
“ ” buttons to select an item. Then use “ ” or “ ”
buttons to set.

Audio Description (Optional)

This function enables or disables the audio description
feature by pressing the “

Preferred Language (Optional)

By pressing the “
description language is being changed.

This setting can be used, only if it is available.

Relative Volume (Optional)

Using this option, the Audio Description volume level
can be increased or decrased relatively, according to
the general volume.

” or “ ” buttons.

” or “ ” buttons the preferred audio

Standby Search (*) (Optional)

(*) This setting is visible only when the Country option
is set to Denmark, Sweden, Norway or Finland.

” or “ ” button to select Standby Search and

Use “
then press “ ” or “ ” button to set this setting as On or
Off. If you change Standby Search to Off, this function
will be unavailable.

To use Standby search please make sure that

you select Standby Search as On.

Language

In this menu the user can adjust the preferred
language. Language is changed by pressing OK
button.

English - 18 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 18[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 18 17.02.2010 14:17:1617.02.2010 14:17:16

Menu : shows the language of the system

Preferred

These settings will be used if available. Otherwise the
current settings will be used.

• Audio : by pressing “
audio language.

• Subtitle : alter the subtitle language with “

” keys. The chosen language will be seen in

subtitles.

Movie Subtitle (optional)

• In order to display subtitles properly, use this setting
to select a movie subtitle language.

• By pressing “ ” or “ ” button, select the desired
language option.

• Guide : By pressing “
guide language.

Current

• Audio : if audio language is supported change the
audio language by pressing “

• Subtitle : if subtitle is backed up, alter the subtitle
language with “
language will be seen in subtitles.

Note: If the Country option is set to Denmark, Sweden,
Norway or Finland, the Language Settings menu will
function as described below:

Language Settings

” or “ ” keys change the

” or “

” or “ ” buttons change the

” or “ ” buttons

” or “ ” buttons. The chosen

In the confi guration menu, highlight the Language
Settings item by pressing “ ” or “ ” buttons. Press
OK and Language Settings submenu will be displayed
on the screen:

Use “

” or “ ” buttons to highlight the menu item
that will be adjusted and then press “
to set.

Notes:

• System Language determines the on-screen menu

language.

• Audio Language is used for selecting the soundtrack

of a channels.

• Primary settings are the first priority when multiple

choices are available on a broadcast. Secondary
settings are the alternatives when the first options
are not available.

” or “ ” button

Installation

The Installation menu is mainly intended to help you
for creating a Channel Table in the most effi cient way.
Select Installation from the Confi guration menu by
pressing “ ” or “ ” buttons.

Automatic Channel Scan

Automatic channel scan is started by pressing
OK button while Automatic channel scan item is
highlighted.

The following message appears on the screen:

Highlight Yes or No by using “ ” or “ ” buttons and
press OK button to confi rm.

If Yes is selected, automatic search starts.

Selecting No cancels automatic search.

After search is completed for digital channels, a
message asking whether to search for analogue
channels appears on the screen:

Press the OK button to search for analogue channels.
The following menu appears on the screen for
analogue channel search:

English - 19 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 19[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 19 17.02.2010 14:17:1717.02.2010 14:17:17

Select your Country , Language and Text language
by using “ ” or “ ” and “ ” or “ ” buttons. Press
OK or RED button to continue. To cancel, press BLUE
button. The following menu will be displayed during
the automatic tuning:

After APS is fi nalized, the programme table will appear
on the screen. In the programme table you will see
the programme numbers and names assigned to the
programmes.

If you do not accept the locations and/or the
programme names, you can change them via the
program table.

Manual Channel Scan

In manual channel scan, the number of the multiplex is
entered manually and only that multiplex is searched
for the channels. For every valid channel number,
signal level and signal quality are shown on the
screen.

In both manual and auto search any existing channel
in the database is not re-stored to avoid redundant
duplicates of that channel.

Clear Service List (*)

(*) This setting is visible only when the Country option
is set to Denmark, Sweden, Norway or Finland.

Use this setting to clear channels stored. Press “
“ ” button to select Clear Service List and then press
OK. The following OSD message will be displayed
on the screen:

” or

First Time Installation

The user can use this item to load default settings,
which were loaded to the receiver at the factory.

To install factory settings, highlight “First Time
Installation” menu item and press OK button, then
you will be asked whether or not to delete the settings.
Selecting “Yes” by pressing OK button while the “Yes”
is highlighted will delete the existing channel table.

Then you will be asked to confi rm for deleting all
channels and settings:

By selecting Yes and pressing the OK button, the
existing channel table will be deleted.

After factory settings are loaded, “First Time
Installation” menu will be displayed.

The menu which is displayed for language selection
appears on the screen at fi rst. By using “
buttons, select the desired language option, and press
OK button to activate.

After then, “First time installation” OSD will appear on
the screen. By pressing “
Country you want to set and press OK button (* only
for EU countries).

- Next, active antenna mode selection OSD will appear
on the screen.Use “
to continue.See the section, “Initial Settings” for
more information.

After active antenna mode option is selected, a
message asking for automatic search appears on
the screen:

” or “ ” buttons, select the

” or “ ” to set and press OK

” or “ ”

Press the OK button to start installation. After search
is completed for digital channels, a message asking
whether to search for analogue channels appears
on the screen: This process is same as described in
Automatic Search section.

Press OK to cancel. Select Yes by pressing “ ” or “ ”
button and press OK to delete all of the channels.

English - 20 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 20[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 20 17.02.2010 14:17:1817.02.2010 14:17:18

Analogue TV Menu System

Picture Menu

Mode

For your viewing requirements, you can set the related
mode option.

Press “
“
Cinema , Dynamic and Natural .

” or “ ” button to select Mode . Press

” or “ ” button to choose from one of these options:

Brightness/Contrast/Colour/Sharpness/
Hue

Press “ ” or “ ” button to select the desired option.
Press “ ” or “ ” button to set the level.

Note : Hue option can only be visible when the TV
receives an NTSC signal.

Colour Temp

Press “ ” or “ ” button to select Colour Temp . Press
“ ” or “ ” to choose from one of these options: Cool ,
Normal and Warm .

Note :

• Setting Cool option gives white colours a slight
blue stress.

• Setting Warm option gives white colours a slight
red stress.

• For normal colours, select Normal option.

Noise Reduction

If the broadcast signal is weak and the picture is
noisy, use Noise Reduction setting to reduce the
noise amount.

Press “
Press “
Low , Medium , High or Off .

” or “ ” button to select Noise Reduction.

” or “ ” to choose from one of these options:

Film Mode

Films are recorded at a different number of frames per
second to normal television programmes.

Press “

Press “

Turn this feature on when you are watching.

fi lms to see the fast motion scenes clearly.

” or “ ” button to select Film Mode .

” or “ ” button to set this feature On or Off.

Game Mode

Select Game Mode by pressing “ ” or “ ” button.

” or “ ” button to set Game Mode as On or

Use “
Off . When Game Mode is set to On, specifi c game
mode settings, which are optimized for better video
quality, will be loaded.

Also; Picture Mode, Contrast, Brightness, Sharpness,
Colour and Colour Temp settings will be invisible and
disabled while Game Mode is on.

Note :

Picture mode selection button on the remote control
will have no function while Game Mode is on.

If the TV is switched to PIP/PAP mode, Game Mode
setting will be disabled and be removed from the
Picture menu.

Picture Zoom

Select Picture Zoom by pressing “ ” or “ ”
button.

” or “ ” buttons, to change picture zoom to

Use “
Auto , 16:9 , 4:3 , Panoramic , 14:9 , Cinema , Subtitle
or Zoom .

Reset

Press “ ” or “ ” button to select Reset . Press
“ ” or “ ” or OK button to reset the picture modes to
factory default settings.

Store

Press “ ” or “ ” button to select Store. Press “ ”
or OK button to store the settings. “ Stored... ” will be
displayed on the screen.

Sound Menu

English - 21 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 21[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 21 17.02.2010 14:17:1817.02.2010 14:17:18

Volume

Press “ ” or “ ” button to select Volume . Press “ ”
or “ ” button to change the level of the Volume.

Equalizer

Press “ ” or “ ” button to select Equalizer . Press
“ ” button to view equalizer menu.

Press “ ” or “ ” button to change the preset. In
equalizer menu, the preset can be changed to Music ,
Movie , Speech , Flat , Classic and User .

Select the desired frequency by pressing “
button and increase or decrease the frequency gain
by pressing “ ” or “ ” button.

Press the “ M ” button to return to the previous menu.

Note : Equalizer menu settings can be changed only
when the Equalizer Mode is in User .

” or “ ”

Balance

This setting is used for emphasizing left or right
speaker balance.

Press “

Balance level can be adjusted between -32 and +

32.

” or “ ” button to select Balance. Press “

” or “ ” button to change the level of the balance.

Headphone

Press “ ” or “ ” button to select Headphone . Press
“ ” button to view the headphone menu.

Headphone sub-menu options are described below:

Volume

Press “ ” or “ ” button to select Volume . Press
“ ” button to increase headphone volume level. Press
“ ” button to decrease headphone volume level.
Headphone volume level can be adjusted between
0 and 63 .

Headphone Sound (optional)

Press “
Using “ ” or “ ” button, you can select Main, PIP/PAP,
Active or Inactive.

Main : Main window sound.

” or “ ” button to select Headphone Sound .

English - 22 -

PIP/PAP : PIP/PAP window sound.

Active : Sound of the current selection.

Inactive : Sound of the currently inactive window.

Sound Mode (optional)

Press “ ” or “ ” button to select Sound Mode . Using
“ ” or “ ” button, you can select Mono, Stereo, Dual I
or Dual II mode, only if the selected channel supports
that mode.

AVL

Automatic Volume Limiting (AVL) function adjusts the
sound to obtain fi xed output level between programmes
(For instance, volume level of advertisements tend to
be louder than programmes).

Press “
“ ” button to set the AVL as On or Off .

” or “ ” button to select AVL . Press “ ” or

Spdif Out

Press “ ” or “ ” button to select Spdif Out .
Press “ ” or “ ” button to set the Spdif Out . as
On or Off .

Note : If Spdif Out is set to On, headphone will be
disabled.

Store

Press “ ” or “ ” button to select Store. Press
“ ” or OK button to store the settings. “ Stored... ” will
be displayed on the screen.

Feature Menu

Pip-Pap

In the Feature menu, highlight PIP item by pressing
“ ” or “ ” buttons. Press “ ” button to enter PIP
submenu:

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 22[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 22 17.02.2010 14:17:1917.02.2010 14:17:19

Using “ ” or “ ” button, you can switch to PIP, PAP
mode or turn off the feature.

If the TV is switched to PIP or PAP mode, Pip-Pap
submenu will change accordingly and the following
settings will appear on the same menu screen.

Note that if you switch to PAP mode by using Pip-Pap
setting, only Source and Swap options will be active
among the menu settings.

Pip-Pap

This line controls Pip/Pap modes. Use “
buttons to switch the TV to Pip , Pap or Off .

Pip Size

Using this setting, you can set the size of the Pip
window. Press “
Size item. Use “ ” or “ ” button to set Pip Size to
Small or Large.

Note : This setting will be inactive if the TV is set to
Pap mode.

PIP Position

This setting is used for moving the sub picture.

Select PIP Position item by using “
“ ” button. Use “ ” or “ ” button to adjust PIP
position.

Positions available are: Bottom Right,Bottom Left, Top
Left and Top Right.

Source

PIP Source setting enables you to select the source
of the sub picture.

Select PIP Source item by using “
button. Use “ ” or “ ” button to set PIP source.

Program

This setting will be unavailable to be used.

Swap

Select Swap item by using “

” or “ ” button to set. This function enables to swap

between the main and the PIP picture.

” or “ ” button to highlight Pip

” or “ ” button. Use “

” or “ ”

” or

” or “ ”

English - 23 -

Note : See Appendix E for all PIP/PAP modes.

Sleep Timer

Press “ ” or “ ” button to select Sleep Timer . Use
“ ” or “ ” button to set the Sleep Timer.

The timer can be programmed between Off and 120
minutes in steps of 10 minutes.

If Sleep Timer is activated, at the end of the selected
time, the TV goes automatically to standby mode.

Child Lock

Press “ ” or “ ” button to select Child Lock .

” or “ ” button to set the Child Lock On or Off .

Use “
When On is selected, the TV can only be controlled
by the remote control handset. In this case the control
panel buttons (except for the STANDBY button) will
not work.

Hence, if one of those buttons is pressed, Child Lock
On will be displayed on the screen when the menu
screen is not visible.

Language

Press “ ” or “ ” button to select Language . Use
“ ” or “ ” button to select the Language .

Default Zoom

While zoom mode is set as AUTO , the TV will set
the zoom mode in accordance with the signal of
the broadcast. If there is no WSS or aspect ratio
information, the TV will then use this setting to
adopt. Press “ ” or “ ” button to select Default
Zoom . You can set Default Zoom to Panoramic ,
16:9 , 4:3 or 14:9 by pressing “ ” or “ ” button.

Blue Background

If the signal is weak or absent, the TV will automatically
change to a blue screen. To enable this, set Blue
Background to On .

By pressing “

Background . Press “ ” or “ ” button to set Blue
Background as On or Off .

” or “ ” button, select Blue

Menu Background

Press “ ” or “ ” button to select Menu Background .
You can set menu background level by pressing
“ ” or “ ” button.

Backlight

This setting controls the backlight level. Select
Backlight by pressing “ ” or “ ” button.
Press“ ” or “ ” button to set Backlight to Auto,

Medium , Maximum or Minimum .

Menu Timeout

To set a specifi c display timeout for menu screens,
set a value for this option.

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 23[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 23 17.02.2010 14:17:2017.02.2010 14:17:20

Press “ ” or “ ” button to select Menu Timeout . Use
“ ” or “ ” button to change menu timeout to 15 sec ,
30 sec or 60 sec .

Teletext Language

Press “ ” or “ ” button to select Teletext Language .
Use “ ” or “ ” button to change Teletext Language to
West, East , Turk/Gre , Cyrillic, Arabic or Persian .

Ext Out

Press “ ” or “ ” button to select Ext Out. Use “ ” or
“ ” button to set the Ext Out as On or Off.

Note :

For copying from a DVD or VCR device, you should
choose desired source from source menu and turn
“On” to EXT Out from feature menu.

HDMI PC Full Mode (optional)

If you want to view PC screen in HDMI mode by using
external connection, HDMI PC FULL MODE option
should be On to adjust the screen ratio correctly. This
item might be inactive in some resolutions.

Note: If you connect an HDMI device and switch the
TV to HDMI mode, this feature will be visible (except
for 1080i/1080P resolution).

Full Mode (optional)

If you connect a device via HDMI or YPbPr connectors
and set 1080i/1080P resolutions, Full Mode item will
be visible.You can set Full Mode as 1:1 or Normal
by using “ ” or “ ”.If you select 1:1, screen ratio will
be adjusted correctly. If you set Normal, screen ratio
may expand.

Install Menu

Band

Band can be selected either C or S. Press “ ” or
“ ” button to set Band.

Channel

Channel can be changed by “ ” or “ ” button or
numeric buttons.

Colour System

Press “ ” or “ ” button to select Colour System. Use
“ ” or “ ” button to change the colour system to PAL,
PAL 60, SECAM or AUTO.

Sound System

Press “ ” or “ ” button to select Sound System.
Press “ ” or “ ” button to change the sound system
to BG,DK, I, L or L’.

Fine Tune

Press “ ” or “ ” button to select Fine Tune. Press “

” or “ ” button to adjust the tuning.

Search

Press “ ” or “ ” button to select Search. Use “ ”
or “ ” button to start programme searching. You can
also enter the desired frequency using the numeric
buttons while Search item is highlighted.

Store

Press “ ” or “ ” button to select Store. Press “ ”
or OK button to store the settings. “ Stored... ” will be
displayed on the screen.

Install Menu in AV Modes

The following screen appears in the install menu when
the TV is in AV modes. Note that limited options will
be available. Switch to TV mode for viewing complete
version of the Install menu.

Program

Press “ ” or “ ” button to select Program. Use “ ”
or “ ” button to select the program number. You can
also enter a number using the numeric buttons on the
remote control. There are 200 programme storage
between 0 and 199.

English - 24 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 24[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 24 17.02.2010 14:17:2117.02.2010 14:17:21

Colour System

Press “
“ ” or “ ” button to change the colour system to PAL,
SECAM, PAL60, AUTO, NTSC 4,43 or NTSC 3,58.

” or “ ” button to select Colour System . Use

Store

Press “ ” or “ ” button to select Store Program .
Press “ ” or OK button to store the settings.
“ Stored... ” will be displayed on the screen.

Program Table

Select Program Table by pressing “ ” or “ ”
button.

By moving the cursor in four directions you can reach
20 programmes in the same page. You can scroll the
pages up or down by pressing the navigation buttons
to see all the programmes in TV mode (except for the
AV modes). By cursor action, programme selection is
done automatically.

Name

To change the name of a programme, select the
programme and press the RED button.

The fi rst letter of the selected name will be highlighted.
Press “
or “ ” button to select the other letters. By pressing
the RED button, you can store the name.

Move

Select the programme which you want to insert by
navigation buttons. Press the GREEN button. By
navigation buttons move the selected programme to
the decided programme space and press the GREEN
button again.

Delete

To delete a programme, press the YELLOW button.
Pressing the YELLOW button again erases the
selected programme from the programme list, and
the following programmes shift one line up.

APS (Auto Programming System)

When you press the BLUE button for starting
automatic tuning, Auto Programming System menu
will appear on the screen:

” or “ ” button to change that letter and “ ”

Country

Press “
want to exit from A.P.S. function, press the BLUE
button.

When you press OK or RED button for starting
automatic tuning, all stored programmes will be erased
and the TV will search for available channels. During
the search, the following OSD will be displayed:

” or “ ” button to select your country. If you

Whenever you press the BLUE button, APS function
stops and Program Table appears on the screen.

If you wait until the end of APS, Program Table will be
displayed with the programmes found and located.

English - 25 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 25[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 25 17.02.2010 14:17:2217.02.2010 14:17:22

Source Menu

Press “ ” or “ ” button and select the sixth icon.
Then press “ ” or OK button. Source menu appears
on the screen:

In source menu, highlight a source by pressing “ ”
or “ ” button and switch to that mode by pressing “
” button. Source options are; TV , DTV , EXT-1 , EXT-2 ,
FAV , HDMI-1 , HDMI-2 , YPbPr or PC-VGA .

Note : Once you have connected optional equipment
systems to your TV, you should select the required
input to view pictures from that source.

PC Mode Menu System

See “Connecting the LCD TV to a PC” section for
connecting a PC to the TV set.

For switching to PC source, press “SOURCE” button
on your remote control and select PC input. You can
also use “Source” menu to switch to PC mode.

Note that PC mode menu settings are available only
while the TV is in PC source.

PC Position Menu

Select the first icon by pressing “ ” or
“ ” button. PC Position menu appears on the screen:

Select Autoposition item by using “
Press OK or “ ”, “ ” button.

Warning : Please ensure auto adjustment is performed
with a full screen image to ensure best results.

” or “ ” buttons.

H (Horizontal) Position

This item shifts the image horizontally to right hand
side or left hand side of the screen.

Select H Position item by using “
“ ” or “ ” button to adjust the value.

” or “ ” button. Use

V (Vertical) Position

This item shifts the image vertically towards the top
or bottom of the screen.

Select V Position item by using “

” button. Use “ ” or “ ” button to adjust

the value.

” or “

Phase

Depending on the resolution and scan frequency that
you input to the TV set, you may see a hazy or noisy
picture on the screen. In such a case you can use this
item to get a clear picture by trial and error method.

Select Phase item by using “
“ ” or “ ” button to adjust the value.

” or “ ” buttons. Use

Dot Clock

Dot Clock adjustments correct the interference
that appear as vertical banding in dot intensive
presentations like spreadsheets or paragraphs or
text in smaller fonts.

Select Dot Clock item by using “
“ ” or “ ” button to adjust the value.

” or “ ” buttons. Use

PC Picture Menu

For adjusting PC picture items, do the following:

Press “
Picture menu appears on the screen.

Brightness, Contrast, Colour and Colour
Temperature settings in this menu are identical to

settings defi ned in TV picture menu under “Analogue
TV Menu System”.

Note : If you set Colour Temp as User, you can defi ne
R, G, B settings manually.

Sound, Feature and Source settings are identical
to the settings explained in Analog TV menu
system.

” or “ ” button to select the second icon. PC

Autoposition

If you shift the picture horizontally or vertically to an
unwanted position, use this item to put the picture
into correct place automatically. This setting therefore
automatically optimizes the display.

English - 26 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 26[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 26 17.02.2010 14:17:2217.02.2010 14:17:22

Displaying TV Information

Programme Number , Programme Name , Sound
Indicator and Zoom Mode information is displayed

on the screen when a new programme is entered or
“INFO/

Mute Function

Press “ ” button to disable sound. Mute indicator will
be displayed in the upper side of the screen.

To cancel mute, there are two alternatives; the fi rst
one is pressing the “
is increasing the volume level.

PIP (Picture-in-Picture) and PAP
(Picture-and-Picture) Modes

Press the “ / ” button once to switch to PIP
mode.

At PIP Mode, a small picture (PIP picture) is displayed
on the main picture. There are 1 size and 4 positions
(upper left, upper right, bottom left and bottom right)
available for the PIP window.

When PIP Mode is entered, the default active window
is the PIP window and the active window is indicated
by a yellow frame around it. The active window can
be changed by pressing “
status info OSD belongs to active window. The place
of the status OSDs are same for both windows.

Press the “
mode.

At PAP Mode, two pictures with equal sizes are
displayed on the screen. Aspect Ratios of the windows
are fi xed.

When you switch to PAP Mode, main window in PAP
Mode will be displayed on the right side of the screen.
The active window can be changed by pressing “
” or “ ” button.

Press the “
mode.

Picture Mode Selection

By pressing PRESET button, you can change Picture
Mode settings in accordance with your viewing

requirements. Available options are Dynamic, Natural
and Cinema.

Freezing Picture

You can freeze the picture on the screen by pressing
the “ OK ” button on the remote control. Press the
“ OK ” button to freeze picture. Press again to quit
freeze mode.

Note: This feature is available for analogue TV mode
only.

” button is pressed.

” button and the second one

” or “ ” button. The

/ ” button again to activate PAP

/ ” button again to exit the PAP

Zoom Modes

You can change the aspect ratio (image size) of the TV
for viewing the picture in different zoom modes.

Press “SCREEN” button to directly change the zoom
mode.

Available zoom modes are listed below.

Note:

In YPbPr and HDMI modes, while in 720p-1080i
resolutions, only 16:9 mode is available.

In PC mode, only 16:9 mode is available.

Auto

When a WSS (Wide Screen Signalling) signal, which
shows the aspect ratio of the picture, is included in
the broadcast signal or the signal from an external
device, the TV automatically changes the ZOOM
mode according to the WSS signal.

• When the AUTO mode does not function correctly

due to poor WSS signal quality or when you want to
change the ZOOM mode, change to another ZOOM
mode manually.

16:9

This uniformly stretches the left and right sides of a
normal picture (4:3 aspect ratio) to fi ll the wide TV
screen.

• For 16:9 aspect ratio pictures that have been

squeezed into a normal picture (4:3 aspect ratio),
use the 16:9 mode to restore the picture to its
original shape.

4:3

Use to view a normal picture (4:3 aspect ratio) as this
is its original size.

Panoramic

This stretches the left and right sides of a normal
picture (4:3 aspect ratio) to fi ll the screen, without
making the picture appear unnatural.

The top and bottom of the picture are slightly cut off.

English - 27 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 27[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 27 17.02.2010 14:17:2317.02.2010 14:17:23

14:9

This zooms up the wide picture (14:9 aspect ratio) to the
upper and lower limits of the screen.

Cinema

This zooms up the wide picture (16:9 aspect ratio) to
the full screen.

Subtitle

This zooms up the wide picture (16:9 aspect ratio)
with subtitles to the full screen.

Zoom

This option zooms to the picture.

Note: You can shift to screen up or down by pressing
“ ” / “ ” buttons while picture zoom is selected as
panaromic, 14:9, Cinema or Subtitle.

Teletext

Teletext system transmits information such as news,
sports and weather on your TV. Note that is the signal
degrades, for example in poor/adverse weather
conditions, some text errors may occur or the teletext
mode may be aborted.

Teletext function buttons are listed below:

“

” Teletext / Mix / PAT Mode

Activates teletext mode when pressed once.

Press again to place the teletext screen over the
programme (mix). Pressing this button again will
split the screen into two windows, one displaying the
teletext and the other displaying the current channel.
Pressing again will quit the teletext mode.

“RETURN” Index

Selects the teletext index page.

“SCREEN” Expand

Press once to enlarge top half of the page, press again
to enlarge the bottom half of the page. Press again to
revert back to normal size.

” Reveal

“

Shows hidden information (e.g. solutions of games).

“OK” Hold

Holds a text page when convenient. Press again to
resume.

“

” Subcode Pages

Selects subcode pages if available when the teletext
is activated.

P+ / P- and numbers (0-9)

Press to select a page.

Note : Most TV stations use code 100 for their index
pages.

Coloured Buttons

(RED/GREEN/YELLOW/BLUE)

Your TV supports both FASTEXT and TOP text
systems. When these systems are available, the
pages are divided into groups or topics.

When FASTEXT system is available, sections in a
teletext page will become colour-coded and can be
selected by pressing the coloured buttons. Press
a coloured button that corresponds to with your

needs.

The coloured writings will appear, showing you which
coloured buttons to use when TOP text transmission
is present. Pressing “
request the next or previous page respec tively.

” or “ ” commands will

English - 28 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 28[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 28 17.02.2010 14:17:2317.02.2010 14:17:23

Tips

Screen Care

Clean the screen with a slightly damp, soft cloth. Do
not use abrasive solvents as they may damage the
coating layer of the TV screen.

For your safety, unplug the mains plug when cleaning
the set. When moving the TV, hold it properly from
the bottom part.

Image Persistence

Please note that ghosting may occur while displaying
a persistent image. LCD TVs’ image persistence may
disappear after a short time. Try turning off the TV
for a while.

To avoid this, do not leave the screen in still picture
for extended periods.

No Power

If your TV system has no power, please check the
main power cable and connection to the mains
socket outlet.

Poor Picture

Have you selected the correct TV system? Is your TV
set or house aerial located too close to a non-earthed
audio equipment or neon lights, etc.?

Mountains or high buildings can cause double pictures
or ghost images. Sometimes you can improve the
picture quality by changing the direction of the
aerial.

Is the picture or teletext unrecognisable? Check if you
have entered the correct frequency. Please retune
the channels.

The picture quality may degrade when two peripherals
are connected to the TV at the same time. In such a
case, disconnect one of the peripherals.

No Picture

Is the aerial connected properly? Are the plugs
connected tightly to the aerial socket? Is the aerial
cable damaged? Are suitable plugs used to connect
the aerial? If you are in doubt, consult your dealer.

No Picture means that your TV is not receiving a
transmission. Have you selected the correct button
on the remote control? Try once more.

Also make sure the correct input source has been
selected.

Sound

You can not hear any sound. Did you perhaps interrupt
the sound, pressing the

Sound is coming from only one of the speakers. Is the
balance set to one extreme? See Sound Menu .

button?

Remote Control

Your TV no longer responds to the remote control.
Perhaps the batteries are exhausted. If so you can still
use the local buttons at the bottom of the TV.

Input Sources

If you cannot select an input source, it is possible that
no device is connected.

Check the AV cables and connections if you have tried
to connect a device.

English - 29 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 29[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 29 17.02.2010 14:17:2317.02.2010 14:17:23

Appendix A: PC Input Typical
Display Modes

The display has a maximum resolution of 1920 x
1200 . The following table is an illustration of some of
the typical video display modes.

Your TV may not support different resolutions.
Supported resolution modes are listed below.

If you switch your PC to an unsupported mode, a
warning OSD will appear on the screen.

Note: Resolution modes indicated with (*) are not
available for PIP/PAP modes.

Index

Resolution Frequency

Hor Ver Ver (Hz)

1 640 350 85 37.9 VESA

2 640 400 85 37.9 VESA

3 640 400 70 31.5 IBM VGA

4 640 480 60 31.5 VESA

5 640 480 66 35.0 MAC

6 640 480 72 37.9 VESA

7 640 480 75 37.5 VESA

8 640 480 85 43.3 VESA

9 800 600 56 35.2 VESA

10 800 600 60 37.9 VESA

11 800 600 70 43.8

12 800 600 72 48.1 VESA

13 800 600 75 46.9 VESA

14 800 600 85 53.7 VESA

15 832 624 75 49.7 MAC

16 1024 768 43 35.5

17 1024 768 60 48.4 VESA

18* 1024 768 70 56.5 VESA

19* 1024 768 72 57.7

20* 1024 768 75 60.0

21* 1024 768 85 68.3

22 1152 864 60 53.8

23* 1152 864 70 64.2 VESA

24* 1152 864 75 67.5 VESA

25* 1152 864 85 77.1 VESA

26* 1152 870 75 68.9 MAC

27 1280 768 60 47.7 VESA

28 1360 768 60 47.7

29* 1280 768 75 60.2 VESA

30 1280 960 60 60.0 VESA

31* 1280 960 75 75.0 VESA

32* 1280 960 85 85.9 VESA

33 1280 1024 60 64.0 VESA

34* 1280 1024 75 80.0 VESA

35* 1280 1024 85 91.1 VESA

36 1400 1050 60 65.3

37* 1400 1050 75 82.3

38 1440 900 60 55.9

39* 1440 900 75 70.6

40* 1600 1200 60 75.0 VESA

41 1680 1050 60 65.3

42* 1920 1200 60 74.5

Hor

(KHz)

Standard

VESA

(interlace)

Appendix B: AV and HDMI Signal
Compatibility (Input Signal Types)

Source Supported Signals Available

EXT-1

(SCART

1)

EXT-2

(SCART-2)

FAV

YPbPr

HDMI1
HDMI2

(X: Not Available, O: Available)

Note : In some cases a signal on the LCD TV may
not be displayed properly. The problem may be
an inconsistency with standards from the source
equipment (DVD, Set-top box, etc.). If you do
expereince such a problem please contact your dealer
and also the manufacturer of the source equipment.

PAL 50/60 O

NTSC 60 O

RGB 50 O

RGB 60 O

PAL 50/60 O

NTSC 60 O

RGB 50 X

RGB 60 X

PAL 50/60 O

NTSC 60 O

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

1080P 50Hz O

1080P 60Hz O

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

1080P 50Hz O

1080P 60Hz O

1080P 24 HZ O

English - 30 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 30[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 30 17.02.2010 14:17:2317.02.2010 14:17:23

Appendix C: Supported DVI Resolutions

When connecting devices to your TV’s connectors by using DVI converter cables (not supplied), you can refer
to the following resolution information.

24Hz 25Hz 30Hz 50Hz 60Hz

480i

480p

576i

576p

720p

1080i

1080p

;;;; ;

;

;

;;

;;

;

;

Appendix D: PIP/PAP Mode Combinations

MAIN

TV

DTV

TV DTV Scart1 Scart2 FAV HDMI1 HDMI2 YPbPr

88

9

(RGB)

8 89999

8 8 9999999

PC-

VGA

Scart1

Scart2

FAV

HDMI1

HDMI2

YPbPr

PC-VGA

( RGB ): This indicates that, selection is possible only if Scart-1 has a RGB signal.

Restrictions : Scart-1 source must have RGB signal to perform PIP\PAP with sources TV, Scart-2, FAV.

If these sources are set to main window, and Scart-1 does not have a RGB signal, Pip\Pap source can not
be switched to the Scart-1 source.

If scart-1 source is set to main window, and scart-1 does not have a RGB signal, Pip\Pap source can not be
switched to TV, Scart-2 and FAV sources.

9

(RGB)

89

89

98

(RGB)

(RGB)

9 9 9998 899

9 9 9998 899

9 9 999998 9

9 9 9999998

Information for Users on Disposal of Old Equipment and
Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not
be disposed of as general household waste. If you want to dispose
of the product or battery, please consider the collection systems or
facilities for appropriate recycling.

Battery

Notice: The sign Pb below the symbol for batteries indicates that

Products

9

(RGB) 9 (RGB)

9

9

8 89999

8 89999

this battery contains lead.

9999

English - 31 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 31[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 31 17.02.2010 14:17:2317.02.2010 14:17:23

Specifi cations

TV BROADCASTING

PAL/SECAM B/G D/K K’ I/I’ L/L’

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

MHEG-5 ENGINE compliant with ISO/IEC 13522-5 UK engine Profi le 1

Object carousel support compliant with ISO/IEC 135818-6 and UK DTT profi le

Digital

Reception

NUMBER OF PRESET CHANNELS

200

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER (W

2 x 8

POWER CONSUMPTION (W)

190 W (max)

< 1 W (Standby)

PANEL

16:9 display, 40” Screen Size

DIMENSIONS (mm)

DxLxH (With foot):246 x 970 x 653

Weight (Kg): 15,1

DxLxH (Without foot): 99 x 970 x 613

Weight (Kg):14,4

) (10% THD)

RMS.

Frequency range: 474-850 MHz for UK models

170-862 MHz for EU models

Transmission standard: DVB-T. MPEG-2

Demodulation: COFDM with 2K/8K FFT mode

FEC: all DVB modes

Video: MP@ML, PAL, 4:3/16:9

Audio: MPEG Layer I&II 32/44.148kHz.

for UK

English - 32 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 32[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 32 17.02.2010 14:17:2417.02.2010 14:17:24

Important Instruction

For your own safety read following instruction carefully before attempting to connect this unit to the mains
supply.

MAINS (AC) OPERATION

The wires in the mains lead are coloured in accordance with the following code :

GREEN

&

YELLOW

(Earth)

(if there is earth cable)

BLUE

(Neutral)

IMPORTANT

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the terminal which is marked with
the letter E, or by the earth symbol, or coloured green or green and yellow.

The wire which is coloured blue or black must be connected to the terminal which is marked with the
letter N or coloured Black.

The wire which is coloured brown or red must be connected to the terminal which is marked with the
letter L or coloured Red.

For continued protection against risk of fi re, replace only with same type and rating of fuse (ASTA
approved 5A 250VAC fuse).

FUSE

BROWN

(Live)

CAUTION

TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE REMOVING
COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

SAFETY PRECAUTION

THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN USE. DO NOT
ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.

English - 33 -

[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 33[GB]_MB35_COST_40882W-1810UK_PANEUIDTV_BRONZE2_10064946_50164710..indd 33 17.02.2010 14:17:2417.02.2010 14:17:24

50164710
