Technika LCD22-218 User Manual

HD Ready LCD TV with Freeview, DVD & iPod Docking

User Guide

Model No

LCD22-218

2

Important information regarding the digital TV switchover

Television in the UK is going digital, bringing us all more choice and new services. Starting late
2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region.

How the switchover affects your TV equipment.

Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply
connecting it into your aerial socket (you can check if you can get digital TV through your aerial now or
whether you will have to wait until the switchover at www.digitaluk.co.uk)

When the TV switchover happens in your area, there are at least two occasions when you will need to re-tune
your TV in order to continue receiving your existing TV channels and also to pick up new ones. Digital UK, the
body leading the digital switchover, will advise you when you need to retune during the switchover.

How to retune.

Retuning your TV is a very quick and simple process. We recommend that you retune every few months to
ensure you are receiving the very latest TV and radio channels that are broadcast.

• In digital/freeview mode, on the remote control press ‘LCD menu’ quickly followed by 8-8-8-8 (so
press the number 8 four times)

• You will now enter the ‘First time installation’ mode. (if you do not, please refer to the section
called ‘getting started’ later in this user guide)

First Time Installation

Country

Language

Please ensure that the aerial is connected to the connector

labelled ‘ RF In ’ on the rear of the TV .Ensure that OK is
highlighted in yellow and press ‘OK’ on your remote .If after
this scan ,not all digital channels are found ,your aerial may

require a signal booster .alternatively ,upgrade your aerial

to a high gain digital version .

OK Cancel

English

UK

• Simply press ‘OK’ or ‘Enter’ on the remote control and your TV will retune.

If you do not retune your TV when advised to do so by Digital UK, you may lose some or all of your channels
until you do re-tune.

If you are missing any channels, it may be that they are not available in your area, or that your TV aerial
needs upgrading.

For help and support regarding the digital switchover, please contact Digital UK:

Telephone: [phone]
Digital UK website: www.digitaluk.co.uk

If you require technical or warranty support on this television, please contact the manufacturer helpline, do
not contact Digital UK unless your query is regarding the digital switchover.

3

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

Warnings

Caution

This television contains no user serviceable parts. Please refer to the manufacturer or authorised
repair agent in the event of malfunction. Do not remove the back cover from the television.

Warning

To reduce the risk of fire, electric shock or damage to the television, do not expose it to dust, rain or
moisture, or place any objects filled with liquids on or near the television.

Do not place the television in a confined space, ensure that nothing can obstruct the ventilation
openings at the rear of the television.

Do not place naked flames on or near the television.

Dispose of this television and any components including batteries in an environmentally friendly
manner. If in doubt, please contact your local authority for details of recycling.

Your LCD TV should be cleaned using a dry or slightly damp cloth. You should not use an alcohol
based cleaner

Safety

For your safety, this appliance is fitted with a fused moulded 3 pin mains plug. Should the fuse need
to be replaced, ensure that any replacement is of the same amperage and approved with
the BSI mark. ( )

Never try and replace the mains plug unless you have adequate qualifications and are legally
authorised to do so. In the event that a replacement Mains cable is required, contact
the manufacturer for a suitable replacement.

Never use the television if it is damaged in any way.

Always place the television on a flat level surface avoiding anywhere which may be subject to strong
vibration. Ensure the television is not placed on top of the power cable as the weight of the television
may damage the cable and cause a safety hazard.

Never place mobile phones, speakers or any other device which may cause magnetic or radio
interference with the television. If interference is apparent, move the device causing the interference
away from the television.

Specifications

4

Warnings

Screen Burn

A characteristic of LCD TV Panels is that displaying the same image for a long
time may cause a permanent after - image to remain on the screen. This is called screen
burn. Most pictures shown on your TV will be constantly moving and fill the screen.

Examples of images that you need to watch out for are as follows
(this is not an all-inclusive list):

TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially
if they are bright and stationary. Moving or low-contrast graphics are less likely
to cause ageing of the screen.
Time Displays
Teletext: Do not view a stationary page for long periods of time.
TV/DVD Menus: e.g. Listings of DVD disk content.
Pause Mode: Do not leave the TV in pause mode for long periods of time,
e.g. When watching DVDs or videos.

Note: To prevent screen burn, if viewing any of the above for long periods of time,
reduce contrast and brightness when viewing. Once burn-in occurs it will never
disappear completely.

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

5

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

Specifications

6

Chapter 1 Introducing the LCD TV

Getting Started

Chapter 2 Installing the LCD TV

Remote Control Buttons
TV Buttons
Source Menu
Inputs & Connections

Chapter 3 Using The Features

Picture Menu
Sound Menu
Tuning Menu
Timer Menu
General Menu
7 day TV Guide
Digital Text
Analogue TV Text
iPod Operation
Connecting to a PC
VGA (PC) Menu
DVD Menu
Wall Mounting
Using with Sky Digital
Connecting a Games Console

Contents

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

8 - 9

10
11
11
12

13 - 16
17 - 18
19 - 20
21
22 - 23
24
25
26
27 - 30
31 - 32
33 - 34
35 - 38
39
40 - 41
42

Troubleshooting

Frequently Asked Questuions

Specifications

Technical Specification
Index

If you experience any problems with this Television,

Please contact the helpline.

Customer Support/Technical Helpline

Sky Media UK LTD

Telephone: [phone]

Email: [e-mail]

43

44
45

7

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

What is included in the box

Accessories

Included with this TV are the following accessories:

1x - User Guide Book 1x - Remote control

1x - RF lead 2x - AAA batteries

1x - Quick Start Guide 1x - TV

ATV DVB

1 2 3 4

5 6 7 8

9 0

TEXT HOLD

SIZE

FAV

D.TITLE

SUBTITLE

SUBT.

SOURCE

VOL-

ASPECT

PMODE

DVD IPOD

PROGRAM

REVEAL

INDEX

GOTO

SUBPAGE

FAV-

NICAM

FAV+

D.MENU

ZOOM

DVB-LANG

DVB-INFO

EPG

-/--

AUDIO

REPEAT

A-B

MENU

OK

EXIT

DISPLAY

IPODMENU

PC-AUTO

CH+

VOL+

LIST

CH-

SLEEP

BASS-

SMODE

BASS+

ANGLE

INTRO

1x - AC Mains lead 4 x iPod Dock inserts to hold
your iPod safely in the iPod dock

Specifications

8

Getting Started - Initial Set Up

IMPORTANT - AFTER TUNING DO NOT PRESS ANY BUTTONS FOR 20 SECONDS SO THE

CHANNEL INFORMATION CAN BE STORED.

TUNING IN

1) Using the RF Cable supplied, connect the TV to the TV Aerial socket (Fig A)

IMPORTANT: If your TV signal is inadequate to receive a good Digital signal, you will need to connect
a 'Signal booster' between your TV and TV Aerial Socket. See section 5.

Fig B

Fig A

It is highly unlikely you will receive any/all of the digital channels using an indoor/portable TV aerial.
You should use a Digital/Hi Gain outdoor aerial for optimum signal reception.

2) Connect the Power cable to your electrical outlet and the Television (Fig B above)

3) Switch on the television using the power switch located next to the DVD player

4) Insert the batteries supplied into the Remote control and press the Power/Standby button to power on the TV

ATV DVB

1 2 3 4

DVD

IPOD

You will now be welcomed with the initial set-up screen. Follow the on screen instructions:

5) A) Select country - default is UK
B) Select language - default is English
C) Ensure TV aerial is connected and press OK on the remote control to Tune in the Television

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

5) If the TV finds some but not all, of the Digital channels the TV is functioning correctly but the signal being
received is not strong enough. (The signal strength needs to be above 85% - you can see the signal strength the
TV is receiving when you change channels/ programmes) you will need to increase the signal strength in order to
recieve all of the channels available. The most economical way to do this is by purchasing and connecting a 'signal
booster' in between the TV and the TV aerial socket. If this does not solve the problem, you will need to upgrade
the TV aerial to a digital hi-gain compatible aerial

Connect between TV and TV

Aerial socket

Signal Booster

Once you have connected a 'Signal booster' you will need to retune the TV in order to receive all of the channels.

9

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

Remote Control Buttons

1

Press to switch on LCD when on standby mode or
vice versa

Press to mute the sound and press again to restore

ATV

Press to change to analogue TV mode

DVB

Press to change to digital TV/Freeview mode

DVD

Press to change to DVD mode

iPOD

Press to change to iPOD mode

NUMBER BUTTONS

Press 0 – 9 to select a TV channel directly when you
are watching TV. The channel will change after
2 seconds.

Return to the previous channel viewed

2
TEXT

Teletext mode: Press to enter the teletext
DVD/iPOD mode: Press to play or pause

HOLD

Teletext mode: Press hold on or off for current page
display
DVD/iPOD mode: Press to replay the current action
from the previous chapter/track

REVEAL

Teletext mode: Press to reveal or hide the hidden
words
DVD/iPOD mode: Press to advance forward to the
next chapter/track

INDEX / GO TO

Teletext mode: Press to request the index page
DVD mode: Press to Go To a specific chapter on a DVD

SIZE

Teletext mode: Press to change the display size

SUBPAGE

Teletext mode: Press to enter sub coded page access
DVD/iPOD mode: Press to play a DVD program or
iPOD track in fast rewind mode

DVD/iPOD mode: Press to play a DVD program or
iPOD track in fast forward mode

DVD/iPOD mode: Press to play or pause the DVD or
iPOD playing

FAV / D.TITLE

Digital mode: Press to display favourite menu
DVD mode: Press to display the disc menu (if available
on DVD disc)

FAV- / D.MENU

Digital mode: Press to decrease favourite channel
DVD mode: Press to display the disc menu (if available
on DVD disc)

FAV+ / ZOOM

Digital mode: Press to increase favourite channel
DVD mode: Press to select the zoom to change picture
size

NICAM /

Digital mode: Press to select NICAM
DVD mode: Press to eject disc

SUBTITLE / SUBT.

Press to switch between the different subtitle languages

Specifications

ATV DVB

1 2 3 4

5 6 7 8

9 0

TEXT HOLD

SIZE

FAV

D.TITLE

SUBTITLE

SUBT. AUDIO

SOURCE

VOL-

ASPECT

PMODE

SUBPAGE

FAV-

D.MENU

DVB-LANG

OK

DISPLAY

BASS-

CH+

LIST

CH-

DVD

-/--

REVEAL

FAV+

ZOOM

GUIDE

REPEAT

IPODMENU

BASS+

ANGLE

IPOD

PROGRAM

GOTO

NICAM

INFO

MENU

VOL+

SMODE

INTRO

INDEX

A-B

EXIT

PC-AUTO

SLEEP

DVB-LANGUAGE / AUDIO

Digital mode: Press to select the digital language
DVD mode: Press to select DVD audio channels

GUIDE/REPEAT

Digital Mode: Press to show the TV Guide menu
DVD Mode: Press to set repeat

INFO/A-B

Digital Mode: Press to display channel information
and help information in TV Guide
DVD Mode: Press to A-B playback

3
NAVIGATION BUTTONS ( , , , , OK)

Allows you to navigate the on-screen menus and
adjust the system settings to your preference

MENU

Press to display OSD menu

EXIT

Press to exit OSD menu

4
SOURCE

Press to open the source menu

DISPLAY

Press to display the source and channel’s
information
IPOD MODE: Press to show software version

iPOD MENU

Press to open the iPOD OSD menu

PC-AUTO

Press to automatically set up the screen in PC
mode

CH+

Press to increase the channel by one

CH-

Press to decrease the channel by one

VOL+

Press to increase the volume

VOL-

Press to decrease the volume

LIST

Press to open the OSD track and song information
in iPOD mode

ASPECT

Switches the TV between the different picture
formats

SLEEP

Activates the sleep mode

5
PMODE

Press repeatedly to cycle through the available
video picture modes

BASS-

Press to decrease the sub bass

BASS+

Press to increase the sub bass

SMODE

Press to cycle through the different sound modes

ANGLE

Press to select different angle of DVD when available
on disc

INTRO

Press to play a short introduction to each chapter
when available on disc

COLOUR BUTTONS

For operating digital and analogue teletext

10

TOP PANEL BUTTONS

DVD - Eject

1

DVD - Play/Pause

2

Select the input source

3

Displays Menu/OSD

4

Volume down and menu left

5

Volume up and menu right

6

7

Program/Channel down and menu down

Program/Channel up and menu up

8

9

Standby ON/OFF

SIDE PANEL

TV Buttons

1 2 3 4 5 6 7 8 9

SOURCE MENU V- V+ CH- CH+ STANDBY

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

Choosing Mode/Source

To switch between the different connections is very easy.

Using the buttons on the remote control:

1) Press [SOURCE] - The following will appear

2) Press [\/] or [/\] to select the input you require.

3) Press [OK]

Using the buttons on the Television:

1) Press [SOURCE]

2) Scroll up/down using CH+/CH- buttons to the
input/source you require

3) Press Vol+ to change input/source to the one selected

TV/ANALOGUE

DIGITAL/FREEVIEW

IPOD

HDMI

SCART

YPBPR/COMPONENT

VIDEO

VGA/PC

DVD

11

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

Inputs & Connections

REAR CONNECTIONS

COAX Audio Out

A

RF IN

B

VGA/PC Audio In

C

YPbPr/Video

D

Audio In

COMPONENT

E

F

VIDEO

G

SCART

CI Port

Audio output to connecting
to an external amplifier

A B C D E F G H I

H

VGA(PC)

I

HDMI

Digital Audio Out (DVD)

RF input

PC Audio input

Video/Component Audio input

Component input

Video input

Scart input

VGA-PC input

HDMI input

CONNECTING A DVD RECORDER OR VIDEO RECORDER

Source should be set to SCART

CONNECTING A HIGH DEFINITION DEVICE

OPTION A – HDMI OPTION B – COMPONENT & AUDIO CABLES

Specifications

12

L/R

Note - Connect into

3.5mm Audio Input

3.5mm Audio input

* optional accessories

Source should be set to HDMI Source should be set to YPbPr/COMPONENT

CONNECTING A CAMERA OR CAMCORDER

SCART Adaptor

Source should be set to SCART

Note - SCART to AV Adaptor
– often included with some devices,
alternatively, these can be purchased
from the helpline/website

on TV

3.5mm jack to phono
adapter or cable

TV Menu Operation

PICTURE SETTINGS MENU

Lets you adjust picture mode, contrast, brightness, colour, tint and sharpness to
enhance the viewing experience.

PLEASE NOTE – YOU CAN ONLY MAKE ADJUSTMENTS TO CONTRAST,
BRIGHTNESS & COLOUR WHEN PICTURE MODE IS SET TO ‘PERSONAL’.

Selecting Picture Mode Presets

Switch between different preset picture options

Standard All settings are set to 50

Personal Lets you manually alter all the settings

Movie Set to enhance when watching a movie

Sport Set to enhance when watching a sport

Mild Set to be lighter in colour and less bright

Game Set to enhance when playing a games console

1) Press [MENU] to enter menu

2) Press [\/] to highlight Picture Mode

3) Press [>] to navigate through the various options

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

4) Press [EXIT] to exit

Adjusting Contrast (Only available when Picture Mode is set to Personal)
Switch the balance between black and white

1) Press [MENU] to enter menu

2) Press [\/] to highlight Contrast

3) Press [>] to increase the contrast or [<] to decrease the contrast

4) Press [EXIT] to exit

13

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

TV Menu Operation

PICTURE SETTINGS MENU

Adjusting Brightness (Only available when Picture Mode is set to Personal)

Increase or decrease the brightness of the picture

1) Press [MENU] to enter menu

2) Press [\/] to highlight Brightness

3) Press [>] to increase the brightness or [<] to decrease the brightness

4) Press [EXIT] to exit

Adjusting Colour (Only available when Picture Mode is set to Personal)
Increase the colour from black and white to vivid

1) Press [MENU] to enter menu

2) Press [\/] to highlight Colour

3) Press [>] to increase the colour or [<] to decrease the colour

4) Press [EXIT] to exit

Specifications

14

TV Menu Operation

PICTURE SETTINGS MENU

Adjusting Tint (only available in VGA/PC Mode)

Lets you increase or decrease the level of tint within the picture

1) Press [MENU] to enter menu

2) Press [\/] to highlight Tint

3) Press [>] to increase the tint or [<] to decrease the tint

4) Press [EXIT] to exit

Adjusting Sharpness

You can change the sharpness between the different preset options

Normal For standard use

Sharp For pictures with little movement

Sharpest For pictures with nearly no movement

Soft For pictures with large amount of movement

Softest For pictures with lots of movement

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

1) Press [MENU] to enter menu

2) Press [\/] to highlight Sharpness

3) Press [>] to navigate through the various options

4) Press [EXIT] to exit

15

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

TV Menu Operation

PICTURE SETTINGS MENU

Colour Temperature (Only available in VGA/PC Mode)

There are 3 presets for colour temperature

1) Press [MENU] to enter menu

2) Press [\/] to highlight Colour Temperature

3) Press [>] to navigate through the various options

4) Press [EXIT] to exit

Dynamic Noise Reduction

Reduces the interference in the picture.

Normal Standard setting

Warm Increased red within the picture

Cold Increased blue within the picture

1) Press [MENU] to enter menu

2) Press [\/] to highlight DNR

3) Press [>] to switch between OFF, LOW, MILD and HIGH.

4) Press [EXIT] to exit

Specifications

16

TV Menu Operation

SOUND SETTINGS MENU

Adjusting Volume

Lets you adjust the volume of the television

1) Press [MENU] to enter menu

2) Press [>] to move to Sound Settings Menu

3) Press [\/] to highlight Volume

4) Press [>] to increase the volume or [<] to decrease the volume

5) Press [EXIT] to exit

Selecting Sound Mode

Switch between different preset sound options

Voice Emphasises voice over other sounds

Music Emphasises music over voices

Theatre Provides liver and full sound for movies

Personal Selects your personal sound settings

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

1) Press [MENU] to enter menu

2) Press [>] to move to Sound Settings Menu

3) Press [\/] to highlight Sound Mode

4) Press [>] to navigate through the various options

5) Press [EXIT] to exit

17

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

TV Menu Operation

SOUND SETTINGS MENU

Adjusting Bass

To adjust the amount of bass within the sound

1) Press [MENU] to enter menu

2) Press [>] to move to Sound Settings Menu

3) Press [\/] to highlight Bass

4) Press [>] to increase the bass or [<] to decrease the bass

5) Press [EXIT] to exit

Adjusting Treble

To adjust the amount of treble within the sound

1) Press [MENU] to enter menu

2) Press [>] to move to Sound Settings Menu

3) Press [\/] to highlight Treble

4) Press [>] to increase the treble or [<] to decrease the treble

5) Press [EXIT] to exit

Adjusting Balance

To switch the sound between the left and right speakers

1) Press [MENU] to enter menu

2) Press [>] to move to Sound Settings Menu

3) Press [\/] to highlight Balance

4) Press [>] to increase the balance or [<] to decrease the balance

5) Press [EXIT] to exit

Volume Boost

This is to boost the volume level in all modes (except iPod Mode) to bring to a higher level.

1) Press [MENU] to enter menu

2) Press [>] to move to Sound Settings Menu

3) Press [\/] to highlight Volume Boost

4) Press [>] to switch ON or OFF

Specifications

5) Press [EXIT] to exit

18

TV Menu Operation

TUNING SETTINGS MENU (Only Freeview & Analogue TV modes)

Adjusting Country

If you are moving country you may wish to change the Country Settings

1) Press [MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Country

4) Press [>] to alter the chosen country

5) Press [EXIT] to exit

Auto Tuning

Scan for all channels based on the current settings

1) Press [MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Auto Tuning

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

4) Press [>] to enter Auto tuning

5) Press [OK] to start the tuning

6) Press [EXIT] to exit

Manual Tuning

You may wish to manual search if you can’t find a certain channel or if you wish to connect to
a Satellite/Cable box via RF/Aerial connector

1) Press [MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Manual Tuning

4) Press [>] to enter manual tuning

4) Press [>] to start the tuning

5) Press [EXIT] to exit

19

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

TV Menu Operation

TUNING SETTINGS MENU

Program Edit / Changing Channel Position (Only Freeview & Analague TV modes)

You can change the analogue channel position to suit your requirements.

1) Press [MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Program Edit

4) Press [>] to enter the program edit menu
5a) Freeview mode – Press the [Green] button to add the selected channel to your favorite,
press it a second time to remove. Press the [Yellow] to delete the channel from the list.
WARNING – this will remove the channel complete from the TV. Press [Blue] to lock a
channel (to do this the Child Lock function must be set “ON”)
5b) Analogue TV mode – Press the [>] to select the change you wish to move. Move to the
new location and press [OK]

6) Press [EXIT] to exit

Common Interface Slot (Only in Freeview Mode)

Pay per view services require a “smartcard” to be inserted into the TV. If you subscribe to
a pay per view service the provider will issue you with a ‘CAM’ card “smartcard”. The CAM
can then be inserted into the COMMON INTERFACE PORT (see page 8). To access the card
follow the steps below.

1) Press [MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Common Interface

4) Press [>] to enter the menu

Specifications

5) Press [EXIT] to exit

20

715.Magic

716.Q

718.SMOOTH RADIO

722.Kerrang!

723.talkSPORT

725. Premier Radio

727.Absolute Radio

728.Heart

1.

2.

3.

4.

5.

6.

7.

Toswap channel press on remote
move tothe desired locationand press

8.

TV Menu Operation

TIMER SETTINGS MENU

Lets you adjust the OSD timing and the sleep timer

Sleep Timer

Lets you set the sleep timer so the television automatically switches off after a certain
amount of time.

1) Press [MENU] to enter menu

2) Press [>] to move to Timer Settings Menu

3) Press [\/] to highlight Sleep Timer

4) Press [>] to increase the time to the required amount

5) Press [EXIT] to exit

On Screen Display Timer

Lets you adjust the amount of time the On Screen Menu stays on the screen before
disappearing.

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

1) Press [MENU] to enter menu

2) Press [>] to move to Timer Settings Menu

3) Press [\/] to highlight OSD Timer

4) Press [>] to increase the time and [<] to reduce the time

5) Press [EXIT] to exit

21

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

TV Menu Operation

GENERAL SETTINGS MENU

Lets you adjust the language, picture size, blue screen, add child lock, complete first time
installation and reset the television.

On Screen Menu Language

Lets you change the on screen menu language.

1) Press [MENU] to enter menu

2) Press [>] to move to General Settings Menu

3) Press [\/] to highlight Language

4) Press [>] to change the language

5) Press [EXIT] to exit

Picture Format

Lets you adjust the picture format

1) Press [MENU] to enter menu

2) Press [>] to move to General Settings Menu

3) Press [\/] to highlight Picture Format

4) Press [>] to change the picture format

5) Press [EXIT] to exit

Blue Screen

Changes the background when there is no input between clear and a blue background

1) Press [MENU] to enter menu

2) Press [>] to move to General Settings Menu

3) Press [\/] to highlight Blue Screen

4) Press [>] to switch between on and off

5) Press [EXIT] to exit

Child Lock/Key Lock

Allows you to lock certain channels and content so that it can not be viewed by children

1) Press [MENU] to enter menu

2) Press [>] to move to General Settings Menu

Specifications

3) Press [\/] to highlight Child Lock

4) To switch on child lock or key lock press [>]

22

TV Menu Operation

GENERAL SETTINGS MENU

5) To change Pin Code enter menu. Enter the old pin code (Default is blank), then enter the
new pin code and enter it again. Press [OK], the pin is now changed

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

Old PIN Code

New PIN Code

Enter PIN Code

Change PIN Code

6) Press [EXIT] to exit

First Time Installation

Allows you to reset the television for first time tuning.

1) Press [MENU] to enter menu

2) Press [>] to move to General Settings Menu

3) Press [\/] to highlight First Time Installation

4) Press [>] and First time install screen will appear

5) Press [OK] and tuning will commerce.

First Time Installation

Country

Language

Please ensure that the aerial is connected to the connector

labelled ‘ RF In ’ on the rear of the TV .Ensure that OK is
highlighted in yellow and press ‘OK’ on your remote .If after
this scan ,not all digital channels are found ,your aerial may

require a signal booster .alternatively ,upgrade your aerial

to a high gain digital version .

OK Cancel

Reset Television

You may wish to reset the menus to factory settings e.g. if you have forgotten a changed
password

1) Press [MENU] to enter menu

2) Press [>] to move to General Settings Menu

3) Press [\/] to highlight Reset

4) Press [OK] to reset the television

English

UK

5) Press [EXIT] to exit

23

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

7 day TV Guide

7 DAY TV GUIDE

TV Guide is available in Digital TV mode. It provides information about forthcoming

programmes (where supported by the bradcasted channel).

You can vi ew the st art and end tim e of all programs and on all channels for the next 7 days.
It is very simple to operate.

1) Press [GUIDE]. The following now and next menu will appear.

2) Navigate through the now and next menu using the [>], [<], [V] and [/\] buttons

3) Press the [BLUE] button to enter the 7 day menu. Reminders can now be added by
pressing [OK].

2. BBC2

3. ITV1

4. Channel 4

5. Channel 5

4) Press [EXIT] to exit the 7 day TV Guide.

Specifications

24

2. BBC2

3. ITV1

4. Channel 4

5. Channel 5

Digital Teletext

Digital TV Teletext

With Digital TV (Freeview) there is also digital teletext available on some channels. Simply follow
the on screen commands. Here is an example of the BBC digital teletext service.

1) To start digital teletext press the RED button (BBC channels) or the TEXT buttons (Other
channels)

2) To select the information you require you can scroll using [\/] or [/\] and press [OK] alternatively
you can key the page number for example [3][0][0] followed by [OK]

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

You can then navigate using the colours buttons (Red, Green, Yellow, Blue), the [/\] [\/]
buttons and numbers.

If you wish to exit at anytime press [EXIT]

25

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

TV Mode Teletext Operation

Teletext is a service offered by some broadcasters.

Teletext Operation

1) Press [TEXT], after a few seconds teletext page 100 should appear.

Here is an example of BBC1

2) You can now navigate to the page you require in a number of ways:

a) Press the page you require using the number buttons i.e. page 302, by
pressing [3][0][2]
b) Press the colour buttons, these will take you to the page indicated on screen
for each colour

3) To exit Teletext press [TEXT] twice at any time

Other buttons

[SIZE] this increases or decreases the size of the text on screen
[INDEX] some pages are more than one page long this button displays the number
of pages
[REVEAL] if there is an answer or something hidden this will display it
[SUBPAGE] displays the sub page if it exists
[HOLD] This stops the pages changing when there are multiple pages

Specifications

26

Connect iPod to TV-Dock

iPod Operation

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

1. Insert your iPod to the TV-dock on the sound base. The TV will detect the insertion of the iPod and
automatically switch to iPod mode. You can also manually switch to iPod mode by pressing

IPOD

button or selecting “iPod” in the source menu.

2. Wait about 3-5 seconds while the screen displays a message “iPod connecting”, and then the iPod
Menu OSD will appear on the TV screen, and meanwhile the screen of iPod will change to
the “OK to Disconnect” picture.

iPod Connecting

If the TV screen continues to display the 'iPod Connecting' message for more than 20 seconds,
its becuase the software/firmware on your iPod is not the latest version as released by Apple.
Please refer to the trouble shooting section at the rear of this user guide or visit the helpline
web site for details how to upgrade your iPod to the latest version.

3) The below menu will appear (This menu comes from the iPod so it may vary based on your settings
on your iPod)

TV screen display

SUPERPB

Main Menu 1/5

1Music

2 Videos

3 Shuffle Songs

4 Settings

5 Now Playing

Pg Up/Down

Select

IPODMENU

Back

Operate ViaiPod

IPod screen display

13 06:

OK todisconnect

OK

Enter

4) Press the [RED] button and the menu on the TV will disappear and the iPod Menu will come on

5) Using the [/\] & [\/] you can navigate through the menus and press [OK] to select.

OK

"Made for iPod" means that an electronic accessory has been designed to connect specifically to iPod
and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety
and regulatory standards.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

27

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

iPod Operation

Key Buttons

VOL- Decrease the volume

VOL+ Increase the volume

BASS- Decrease the sub bass

BASS+ Increase the sub bass

Play/pause

Next track

TEXT HOLD

SIZE

FAV

D.TITLE

SUBTITLE

SUBT.

SUBPAGE

FAV-

D.MENU

DVB-LANG

AUDIO

Back a track

Fast forward through current track

Rewind through current track

OK

Stop

Recharge for iPod

iPod is automatically recharged when it is inserted to the TV-dock.

iPod

Main Menu

1 Music

2 Videos

3 ShuffleSongs

4 Settings

5 NowPlaying

Select

IPODMENU

Back

PgUp/Down

OperateVia Ipod

1/5

OK

Enter

Charged

Charging

Operate the iPod via the screen of iPod

Press RED button to switch to the iPod Control Mode. When in iPod control
mode, the iPod menu doesn’t appear on the TV screen, but the normal picture
appears on the screen of iPod. You can operate iPod via the screen of iPod.

Note:

- You can directly operate iPod or using remote control.

- TV will display a blue blank screen when in iPod control mode.

- When in iPod control mode, press RED button to switch to TV Control Mode

REVEAL

FAV+

ZOOM

GUIDE

REPEAT

Music

Videos

Photos

Podcasts

Extras

Games

Settings

Shuffle Songs

INDEX

GOTO

NICAM

INFO

A-B

MENU

EXIT

iPOD

Set Sleep Timer

Press the button on the remote control called ‘Sleep’ to select the required value (in minutes).

The TV won’t switch off automatically when the iPod stop playing. However you can set Sleep Timer
to turn the TV off after a period of time.

Specifications

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

28

Now Playing Interface

iPod Operation

Track Title

Artist

Album Name

Shuffle State

Shuffle Off
Shuffle On

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

Repeat State

Elapsed time

Repeat Off

Repeat One Song

Repeat All

Track Time

Volume Level

Scrubber bar

Bass Level

Shuffle and Repeat Songs

Please note - Both the repeat and shuffle mode will default to the iPod settings on the
iPod player

iPod

Main Menu

4/5

1Music

2 Videos

3 Shuffle Songs

4 Settings

5 Now Playing

OK

Select

IPOD MENU

Back

Pg Up/Down

Operate ViaIpod

Enter

Shuffle Off

iPod is set to play in order

Shuffle Songs

iPod is set to shuffle all the songs in ipod

Shuffle Album

iPod is set to shuffle albums in iPod.

Repeat Off

iPod is not set to repeat songs

Repeat One

iPod play sone song repeatedly

Repeat All

iPod repeats songs in current album or list.

1Shuffle Off

2 Repeat Off

IPOD MENU

Main Menu

Select

Back

iPod

Pg Up/Down

Operate ViaIpod

1/2

OK

Enter

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

29

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

iPod Operation

Watch Videos from iPod

iPod

Main Menu

1Music

2 Videos

3 Shuffle Songs

4 Settings

5 NowPlaying

4/5

Select

IPOD MENU

Pg Up/Down

Back

Operate ViaIpod

OK

Enter

For iPod nano 3Gen, iPod Classic, iPod 5Gen, you can select a video program and play in the iPod
Menu OSD.

Display on TV?

Yes No

For iPod touch, you can not select videos and play in the iPod Menu OSD, due to the nature of iPod
touch. To watch videos, please do as following:

1. Insert the iPod touch to the TV-Dock.
2 .Press the Red button to switch to iPod Control Mode.

3. Tap the screen to select video programs and play.

4. When a dialog pops up and ask: “Display On TV?”, Please tap the “Yes”.

Browse Photos from iPod

To browse photos from iPod

1. Press the Red button to switch to iPod Control Mode

2. For iPod nano 3Gen and iPod Classic, select a photo and press button on the remote control or
button on the iPod to start photo slide-show.

3. For iPod photo and iPod 5Gen, you can only press button on the iPod to start photo slide-show.

4. For iPod touch, you can only tap the on the screen to start photo slide-show.

Specifications

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

30

Connecting to a PC - Windows XP

IMPORTANT – Before connecting the computer to the television you must ensure
the computer settings are correct for the television. You MUST do this using your
old monitor.

WINDOWS XP, WINDOWS VISTA

1) Switch on your computer

2) When finishing booting up right click your mouse anywhere on the screen

XP Screen VISTA Screen

3) Left click your mouse on Properties/Personalise

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

XP Screen VISTA Screen

4) Left click your mouse on Setting/Display Settings. Ensure the screen resolution
is set to what is shown in the technical specifications section toward the rear of
this user guide. To correct the resolution to that of the television move the slider.

XP Screen VISTA Screen

31

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

Connecting to a PC - Windows XP

5) Left click your mouse on Advance/Advance Settings and left click on Monitor

6) Left click on the drop down for Screen refresh rate and select 60 Hertz.

7) Click on Apply, then click Yes and the settings will be saved.

8) Now switch off your computer and connect the television (as shown below)

9) Re-start your computer and switch the source to VGA

CONNECTING A LAPTOP

XP Screen VISTA Screen

In addition to the above if you are connecting a laptop to the television you will also need to
activate the VGA connection on the laptop.

This can vary based on the brand of laptop you have.

1) Connect the laptop to the television

2) On the Laptop push buttons

The screen will now switch to the television.

Specifications

32

Fn F5

+

For Windows Vista operating system the process is very similar to the above.

If you require additional support please contact the helpline.

PC Menu Operation (VGA)

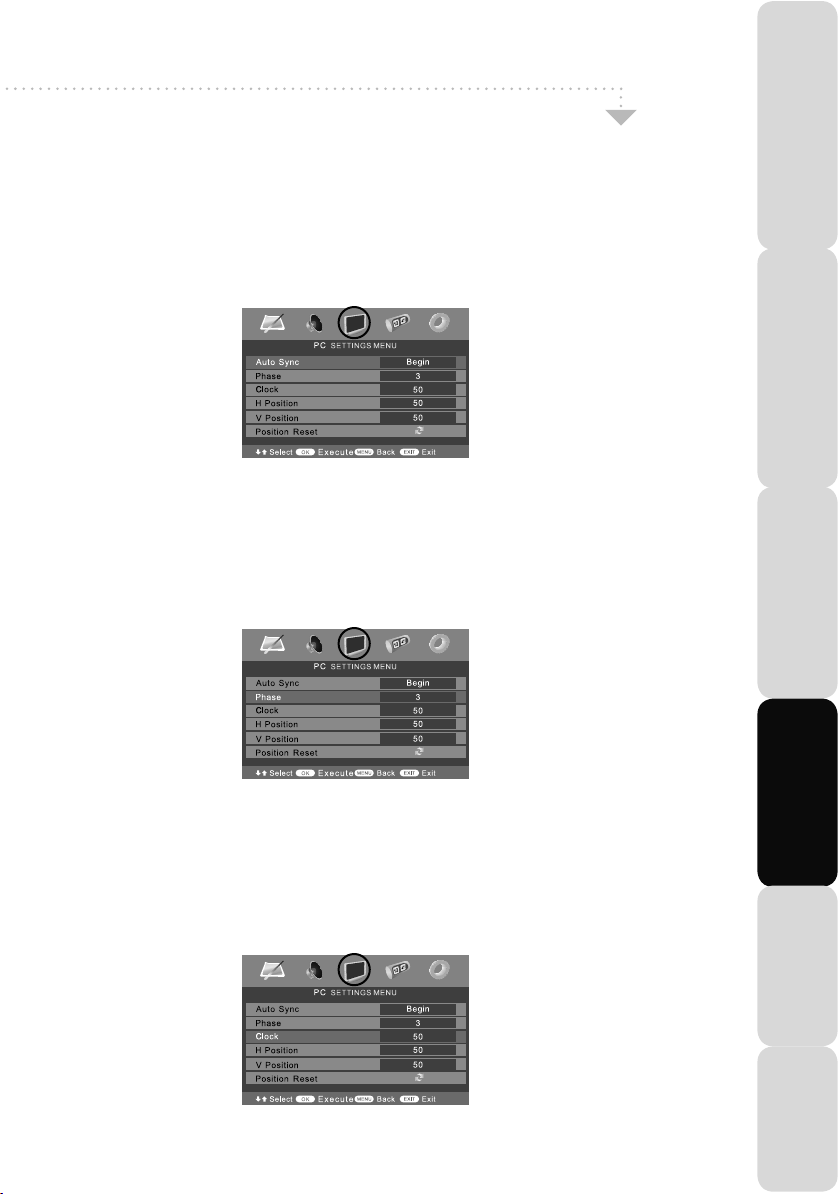

VGA MENU

Auto Configuration of Screen

Lets you automatically configure the television to be used as a computer monitor

1) Press [MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select Auto Sync

4) Then press [>] for the TV to automatically configure itself

5) Press [EXIT] to exit

Phase

To adjust delay time of phase in order to reduce the noise of picture

1) Press [MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select Phase

4) Then press [>] or [<] to increase or decrease the phase

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

5) Press [EXIT] to exit

Clock

Alter this in order to reduce the noise within the picture

1) Press [MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select Clock

4) Then press [>] or [<] to increase or decrease the clock

5) Press [EXIT] to exit

33

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

PC Menu Operation (VGA)

Horizontal Position

Changes the horizontal position of the picture

1) Press [MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select H-Position

4) Then press [>] or [<] to move the picture to left or right

5) Press [EXIT] to exit

Vertical Position

Changes the vertical position of the picture

1) Press [MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select V-Position

4) Then press [>] or [<] to move the picture up or down

5) Press [EXIT] to exit

Position Reset

To position of the picture to the factory settings

1) Press [MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select Position Reset

4) Then press [>] or [<] to move the picture up or down

Specifications

5) Press [EXIT] to exit

34

DVD Menu Operation

HOW TO PLAY DVD’S

The DVD player has an automatic DVD feature which means when you insert a disc it will
automatically switch source and start to play.

If you disc does not play please refer to frequently asked questions section of the user guide.

DVD SETTINGS MENU

Adjusting Parental Control

You may wish to block certain DVDs being played, for example if you have young children. This can
be done via limiting the age rating of the DVD.

1) Press [MENU] to enter menu

2) Press [>] to move to DVD Setting Menu

3) Press [\/] to highlight Parental Control

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

Parental Control

Language

Audio Setup

Digital Setup

SETUP

4) Press [>] to enter Parental Control

Parental Control KIDS SAFE

SETUP

5) Press [<] or [>] to change between the different options

6) Press [EXIT] to exit

35

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

DVD Menu Operation

Adjusting Language

Lets you adjust the Audio Language, Menu Language, Subtitle Language within DVD mode

1) Press [MENU] to enter menu

2) Press [>] to move to DVD Setting Menu

3) Press [\/] to highlight Language

Parental Control

Language

Audio Setup

Digital Setup

SETUP

4) Press [>] to enter Language

Audio Language English

Menu Language French

Subtitle Language English

SETUP

You can now adjust the Audio Language, Menu Language, Subtitle Language within DVD mode

5) Press [<] or [>] to change between the different options

6) Press [EXIT] to exit

Specifications

36

Adjusting Audio Set Up

Lets you adjust the Audio Setup within DVD mode

1) Press [MENU] to enter menu

2) Press [>] to move to DVD Setting Menu

3) Press [\/] to highlight Audio Setup

DVD Menu Operation

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

Parental Control

Language

Audio Setup

Digital Setup

SETUP

4) Press [>] to enter Audio Setup

SPDIF RAW

Downmix Virtual Stereo

SETUP

You can now adjust the Audio Output from the Coax connection and the Downmix.

Audio Out options:

SPDIF / RAW – Select this option if you are connecting to a Dolby Digital 5.1 surround sounds
amplifier via coax cable SPDIF / PCM – Select this option if you are connecting to a Stereo Hi-fi
via composite video cable

5) Press [<] or [>] to change between the different options

6) Press [EXIT] to exit

37

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

DVD Menu Operation

Adjusting Digital Set Up

Lets you adjust the Audio Setup within DVD mode

1) Press [MENU] to enter menu

2) Press [>] to move to DVD Setting Menu

3) Press [\/] to highlight Digital Setup

Parental Control

Language

Audio Setup

Digital Setup

SETUP

4) Press [>] to enter Digital Setup

Dynamic Range Off

Dual Mono Stereo

SETUP

You can now adjust the Dynamic Range and Balance.

Dynamic range works only with DVD discs recorded in Dolby digital.

FULL: Set this to listen with the range recorded on the disc.
4/8: Set this to listen with a range equivalent to a normal television.
2/8: Set this to listen with a smaller difference between the maximum and minimum volume.

5) Press [<] or [>] to change between the different options

6) Press [EXIT] to exit

Changing Regions

This TV/DVD player is pre-set to play Region 2 DVDs. In the event you wish to use the TV/DVD in
another country that uses different region discs, please visit www.skymediauk.co.uk.
Select ‘product support’, ‘Changing Region’

Specifications

38

Wall Mounting

WARNING

The speakers for this TV are built

into the base stand, therefore, the speaker

base

cannot be removed. If you wish to wall mount,

only use the screws already provided in the

wallmounting holes. Using longer screws could

cause damage to internal parts.

THIS TV REQUIRES A CANTILEVER TYPE VESA 100 WALL MOUNT, OR EQUIVALENT

100

To provide improved sound this television has speakers built into the stand of the
TV. The stand should therefore not be removed. For best performance the television
should be put on a hard flat surface, however if you do wish to wall mount the
television this can done using a cantilever type wall mount.

Wall Mounting the TV.

1) Remove the four screws highlighted below.

2) The wall mount can now be easily attached to the mounting holes on the rear of the
TV. These holes are indicated in the picture below

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

39

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

Using with Sky Digital / Virgin Media

You may wish to use your TV with Sky Digital, Virgin Media or another cable or satellite box.

There are a number of connection options, the best being connecting via SCART cable.

Connecting via SCART

1) Connect the SCART cable from the cable/satellite box to the SCART Input on the TV

2) Press [SOURCE]

3) Press [\/] or [/\] to select SCART

4) Press [OK]

The channel your cable/satellite box is displaying will now be shown on the TV.

You may wish to share your Sky Digital signal around the home by using an RF connection. If this TV
is to be connected in this way, please follow the below.

Connecting via RF

Ensure the Sky signal is switched on, before you start the below.

1) Connect the RF cable from the RF output socket of the sky/cable box to the ‘RF IN’ of the TV.

2) Switch the TV into analogue TV mode

3) Press [MENU] to enter menu.

4) Press [>] twice to select Tuning Settings Menu

5) Press [\/] to select Manual Tuning

6) Press [>] to enter Auto tuning

7) Press [OK] to start tuning

Once tuning is complete the first channel will appear. Press [CH+] to move through the channel until
you find the Sky channel. The channel can then be moved to an alternative position if you wish, please
refer to the Program Edit section of the manual.

Specifications

40

Using a Sky / Universal Remote Control

USING WITH SKY DIGITAL REMOTE CONTROL (BSKYB) OR UNIVERSAL REMOTE CONTROL

You may wish to use your Sky Digital or a universal remote control to operate some of the functions of this
TV. For this you require a ‘code’ that needs to be programmed into your Sky Digital or universal remote
control.

For codes for universal remote controls, please visit our website where you will find the very latest
information and codes.

For codes for Sky/Sky+Sky HD, please note that at the point of manufacture, BSkyB have not launched the
code required for this model of TV. They are due to launch a new remote control which should include the
necessary code to operate the functions of the TV during 2010 (called revision 9).

Please check our website for updates, alternatively, see below some alternative options of remote controls
that are available.

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

One for All Sky Originals

The One for All remote controls shown above will operate all of the functions of the Sky box in the same
way the original remote control will, in addition, they will also operate the functions of this model of TV.
The One for All versions are available to purchase from the helpline/website. The original Sky remote
controls are shown for comparison purposes

If you require any further information, you can contact us:

www.skymediauk.co.uk
email - [e-mail]

Tel - 0871 2000 463

41

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

CONNECTING A GAMES CONSOLE

Connecting a games console can sometimes seem very difficult. We have simplified it to four
options depending on the cables that you have.

Option 1 – Connecting via Scart to AV adapter

If you are supplied with a cable from the console which has YELLOW, RED & WHITE
connectors you can connect via a SCART to AV adapter (Some console include this)

TV source should be set to SCART.

Option 2 - Connecting via Composite Video and Phono cables

If you are supplied with a cable from the console which has YELLOW, RED & WHITE connectors.

TV source should be set to Video

Option 3 – Connecting via HDMI cable

If you are supplied with a HDMI cable this is the easiest option. A HDMI cable can output both
video and audio and enables you to enjoy digital-quality video and audio with minimal loss
of picture quality.

TV Source should be set to HDMI.

SCART to
AV adapter

3.5mm Audio input
on TV

3.5mm jack to phono
adapter or cable

* optional accessories

Option 4 – Connecting via Component cable

If you are supplied with a cable from the console which has RED, GREEN, BLUE,
RED & WHITE connectors you must connect via Component (for picture) and by 3.5mm
to phono cable (for sound).

TV Source should be set to Component.

Specifications

42

3.5mm Audio input
on TV

3.5mm jack to phono
adapter or cable

* optional accessories

Frequently Asked Questions

Question:

I have tuned in Digital TV but
I am not receiving any or all of the
channels and/or the channels I receive
are breaking up

I would like to connect an external
amplifier

I have inserted a disc but it is not playing

I have connected the TV to my VCR via
SCART but it is not recording

I have inserted my iPod but the iPod
menu is not being displayed (iPod
Connecting remains on screen)

If you experience any problems with this Television,

Please contact the helpline.

Customer Support/Technical Helpline

Email: [e-mail]

Sky Media UK LTD

Telephone: [phone]

Solution:

1) Check you are in an area that can
receive Freeview. Visit
www.freeview.co.uk or call
08701 111 270.

2) Check you are using an aerial that is
able to receive a good digital signal. In
most cases, you will need an outdoor
digital hi-gain/wideband aerial. In areas
that have excellent Freeview coverage,
you may be able to use a loft type aerial
but it is highly likely that you will also
need to connect a booster between the
back of the TV and the TV aerial wall
socket. Unfortunately, to receive a good
enough digital signal, it is not possible to
use a portable/indoor type aerial.
This may change once the analogue
signal is switched off in 2012 and the
Digital signal strength is increased.

You require a 3.5mm audio cable to phono
(Red & White connections), this can be
connected into the rear of the TV stand and
to the external amplifier

1) Ensure you have inserted put the disc
in facing the correct way forward

2) Ensure the disc is clean and is not
scratched

3) Some copied discs will not play.

4) Check the DVD is a region 2 disc – to change
the region of the DVD player, refer to section
‘Changing Regions’.

In addition to connecting via SCART, you
should connect the aerial cable from the
wall socket to VCR and another aerial
cable from the VCR to the TV

1) Remove the iPod from dock, switch off and
then on both the iPod and television in turn.
Then re-insert the iPod into the docking station.

2) Update the firmware on the iPod.
a) Connect your computer to the Internet (if you
have broadband, it's probably already connected).
b) Connect your iPod to your computer.
c) Go to Start | All Programs | iPod | iPod Updater
20xx-xx-xx (it'll have the date Apple released it
in the title).
d) Run iPod Updater.
If you try to update your iPod's firmware and get
an error message, chances are that means you
need to go to apple.com/ipod/download and get
the latest version of the iPod Updater software

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

43

Satety Warnings Introducing the LCD TV Installing the LCD TV Using The Features Troubleshooting

g

Technical Specification

19" IPOD TV

Size (Inches) 19"

Panel

Resolution 1440 x 900
Contrast Ratio 1000:1 1000:1

htness cd/m

Bri

2

300 300

PC RGB

75 ohm Antenna / PAL-SECAM

Input Signal

RF

Video

Sound

1 x SCART, 1 x S-Video, 1 x Component (YPbPr -

1 x 3.5mm jack for PC audio input, 1 x 3.5mm

jack, shared for S-Video & YPbPr (component)

audio input

HDMI

1 (up to 1080i)
Speaker Output Watts (RMS)
DVD player DVD

Power Voltage

110-240v 50/60Hz 67W

(standby <1W)
Dimensions Inc Stand (mm) 470W x 440H x 225D
Weight Net (Kgs) 5,3

22" IPOD TV

22"

1680 x 1050

Yes

1080i)

2 x 3

Yes

110-240v 50/60Hz 72W

(standby <1W)

540W x 480H x 225D

6,5

Specifications

44

Index

Analogue TV teletext 26
Audio Set up 37
Auto Configuration of Screen 33
Auto Tuning 19
Balance 18
Basic iPod Operation 27
Bass 18
Blue Screen 22
Brightness 14
Browse photos from iPod 30
Changing Regions 38
Child Lock 22 - 23
Choosing Mode/Source 12
Clock 33
Colour 14
Colour Temperature 16
Common Inferface Slot 20
Connecting iPod to TV-dock 27
Connecting to a PC 31 - 32
Contrast 13
Country 19
Digital Set Up 38
Digital Switchover Re-Tune 9
Digital TV teletext 25
DVD Language 36
Dynamic Noise Reduction 16
Electronic Program Guide 24
First Time Installation 23
Frequently Asked Questions 43
Horizontal Position 34

Index 45
Inputs and Connections 12
Manual Tuning 19
On Screen Display Timer 21
On Screen Menu Language 22
Parental Control 35
Phase 33
Picture Format 22
Picture Mode Preset 13
Position Reset 34
Program Edit / Changing Channel
Position 20
Remote control buttons and their
functions 10
Reset Television 23
Sharpness 15
Shuffle and repeat songs 28
Sleep Timer 21
Sound Mode Preset 17
Technical Specifications 44
Tint 15
Treble 18
Tuning in TV 9
TV buttons 11
Using with Sky Digital / Virgin Media 40
Using a Sky / Universal Remote Control 41
Vertical Position 39
Volume 17
Wall mounting the TV 39
Watch videos from iPod 31
What is included in the box 8

Satety WarningsIntroducing the LCD TVInstalling the LCD TVUsing The FeaturesTroubleshootingSpecifications

OPTIONAL ACCESSORIES AND SPARE PARTS

If you need to order replacement parts for your TV, please visit our web site or call the helpline.

If you wish to wall mount your TV, we have a range of fully tested and compatible wall mounts available
to order from the helpline or via our web site.

If you wish to purchase a Sky or Sky+ remote control that includes the latest software/codes to operate
both your Sky Box as well as this TV, these are available to order from the helpline or web site. Our
Sky / Sky+ remote controls operate your Sky or Sky+ box in exactly the same way your current
Sky / Sky+ remote does and our versions also look very similar to the Sky equivalent models, albeit
slightly smaller in size, they will also operate many of your TV’s functions including Power on/off,
channel up/down, volume up/down as well as many other functions.

ATV DVB

DVD IPOD

1 2 3 4

5 6 7 8

PROGRAM

9 0

TEXT HOLD

REVEAL

INDEX

GOTO

SUBPAGE

SIZE

FAV-

NICAM

FAV+

FAV

D.MENU

D.TITLE

ZOOM

DVB-LANG

SUBTITLE

DVB-INFO

EPG

-/--

SUBT. AUDIO

REPEAT

A-B

MENU

OK

EXIT

IPODMENU

DISPLAY

PC-AUTO

SOURCE

CH+

VOL-

VOL+

LIST

CH-

ASPECT

SLEEP

PMODE

BASS-

SMODE

BASS+

ANGLE

INTRO

Replacement

remote control

Our Sky/Sky+ Remote controls Cantilever Wall Mount

45

TESCO Stores Ltd, Cheshunt, EN8 9SL, UK.
