Technika LCD19-208 User Manual

HD Ready LCD TV with Freeview & DVD

User Guide

Model No

LCD19-208

2

Important information regarding the digital TV switchover

Television in the UK is going digital, bringing us all more choice and new services. Starting late
2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region.

How the switchover affects your TV equipment.

Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply
connecting it into your aerial socket (you can check if you can get digital TV through your aerial now or
whether you will have to wait until the switchover at www.digitaluk.co.uk)

When the TV switchover happens in your area, there are at least two occasions when you will need to re-tune
your TV in order to continue receiving your existing TV channels and also to pick up new ones. Digital UK, the
body leading the digital switchover, will advise you when you need to retune during the switchover.

How to retune.

Retuning your TV is a very quick and simple process. We recommend that you retune every few months to
ensure you are receiving the very latest TV and radio channels that are broadcast.

• In digital/freeview mode, on the remote control press ‘LCD menu’ quickly followed by 8-8-8-8 (so
press the number 8 four times)

• You will now enter the ‘First time installation’ mode. (if you do not, please refer to the section
called ‘getting started’ later in this user guide)

First Time Installation

Country

Language

Please ensure that the aerial is connected to the connector

labelled ‘ RF In ’ on the rear of the TV .Ensure that OK is
highlighted in yellow and press ‘OK’ on your remote .If after
this scan ,not all digital channels are found ,your aerial may

require a signal booster .alternatively ,upgrade your aerial

to a high gain digital version .

OK Cancel

English

UK

• Simply press ‘OK’ or ‘Enter’ on the remote control and your TV will retune.

If you do not retune your TV when advised to do so by Digital UK, you may lose some or all of your channels
until you do re-tune.

If you are missing any channels, it may be that they are not available in your area, or that your TV aerial
needs upgrading.

For help and support regarding the digital switchover, please contact Digital UK:

Telephone: [phone]
Digital UK website: www.digitaluk.co.uk

If you require technical or warranty support on this television, please contact the manufacturer helpline, do
not contact Digital UK unless your query is regarding the digital switchover.

3

WARNINGS

Caution

This television contains no user serviceable parts. Please refer to the manufacturer
or authorised repair agent in the event of malfunction. Do not remove the back cover
from the television.

Warning

To reduce the risk of fire, electric shock or damage to the television, do not expose
it to dust, rain or moisture, or place any objects filled with liquids on or near the television.

Do not place the television in a confined space, ensure that nothing can obstruct
the ventilation openings at the rear of the television.

Do not place naked flames on or near the television.

Dispose of this television and any components including batteries in an environmentally
friendly manner. If in doubt, please contact your local authority for details of recycling.

Your LCD TV should be cleaned using a dry or slightly damp cloth. You should not use
an alcohol based cleaner

Safety

For your safety, this appliance is fitted with a fused moulded 3 pin mains plug. Should
the fuse need to be replaced, ensure that any replacement is of the same amperage
and approved with the BSI mark. ( )

Never try and replace the mains plug unless you have adequate qualifications and are
legally authorised to do so. In the event that a replacement Mains cable is required,
contact the manufacturer for a suitable replacement.

Never use the television if it is damaged in any way.

Always place the television on a flat level surface avoiding anywhere which may
be subject to strong vibration. Ensure the television is not placed on top of the power
cable as the weight of the television may damage the cable and cause a safety hazard.

Never place mobile phones, speakers or any other device which may cause magnetic
or radio interference with the television. If interference is apparent, move the device
causing the interference away from the television.

Packaging

Please save the packaging for the television as you will need this in the event
of warranty/service repair or support. We are unable to carry out warranty/service
if you are unable to package it correctly. The safest way to package your item in the
event of warranty/service repair is in its original box/packaging

4

Examples of images that you need to be aware of are as follows

5

6

CONTENTS

SETTING UP YOUR TV

- What is included in the box 8

- Attaching/Removing
the stand & wall mounting 9

- Tuning in TV 10

- Digital Switchover Re-Tune 10

- Remote control buttons and their
functions 11

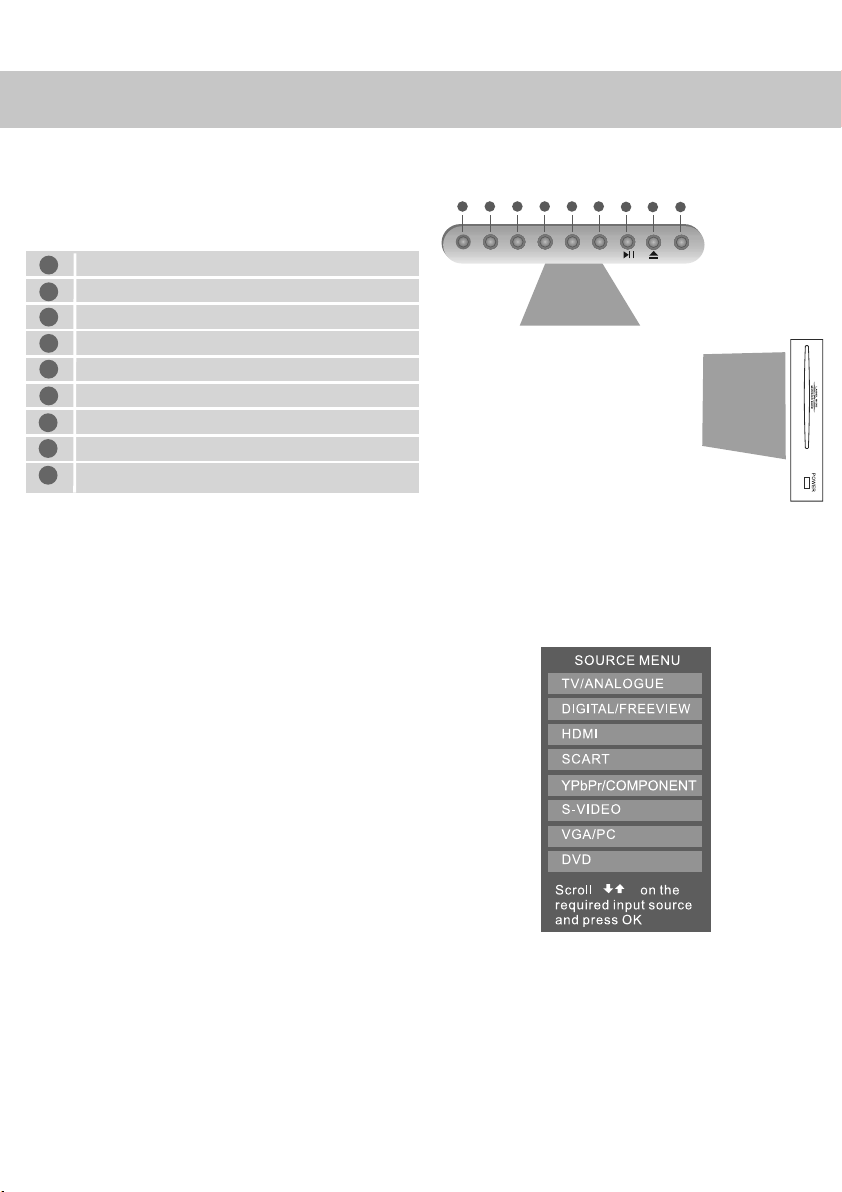

- TV buttons and their functions 12

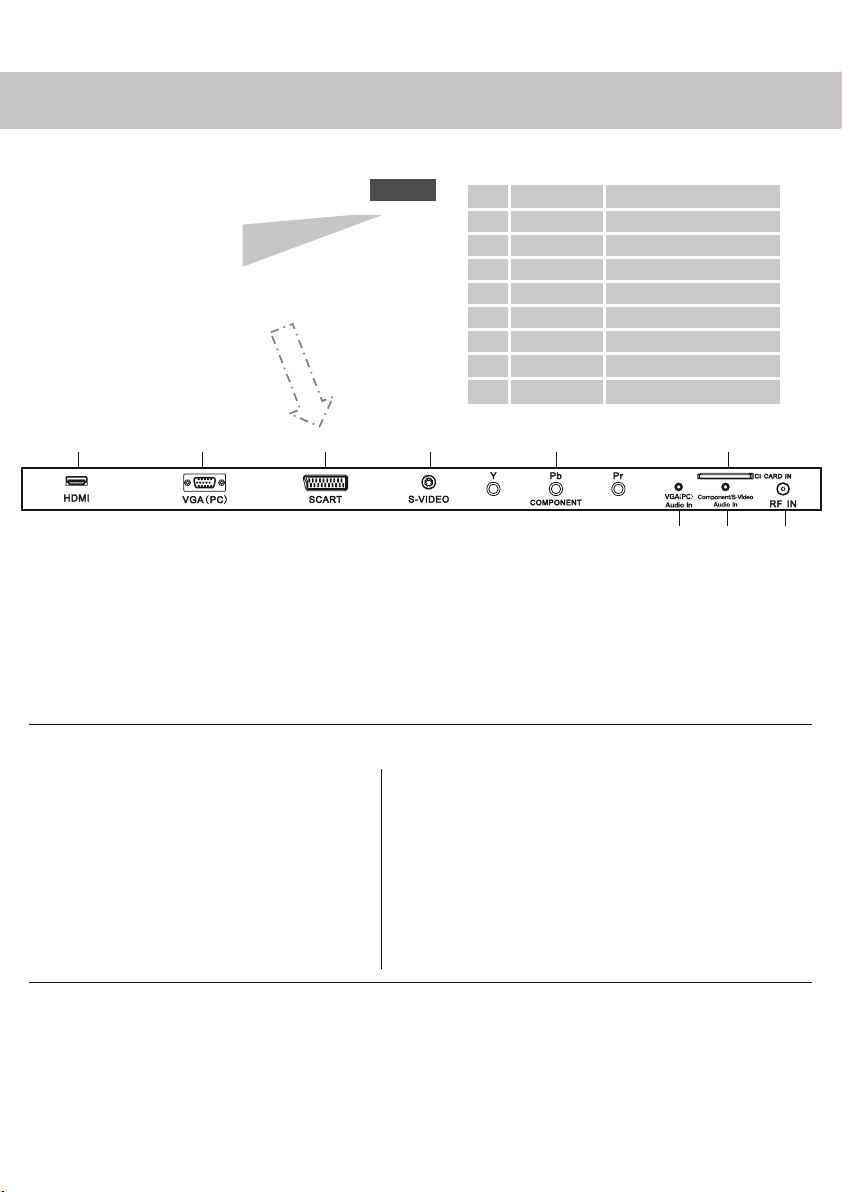

- Inputs and Connections 13

- Choosing Mode/Source 13

TV MENU OPERATION

PICTURE SETTINGS MENU 14 - 15

- Selecting Picture Mode Preset 14

- Adjusting Contrast 14

- Adjusting Brightness 14

- Adjusting Colour 14

- Adjusting Tint 15

- Adjusting Sharpness 15

- Adjusting Colour Temperature 15

- Dynamic Noise Reduction 15
SOUND SETTINGS MENU 16

- Adjusting Volume 16

- Selecting Sound Mode Preset 16

- Adjusting Bass 16

- Adjusting Treble 16

- Adjusting Balance 16

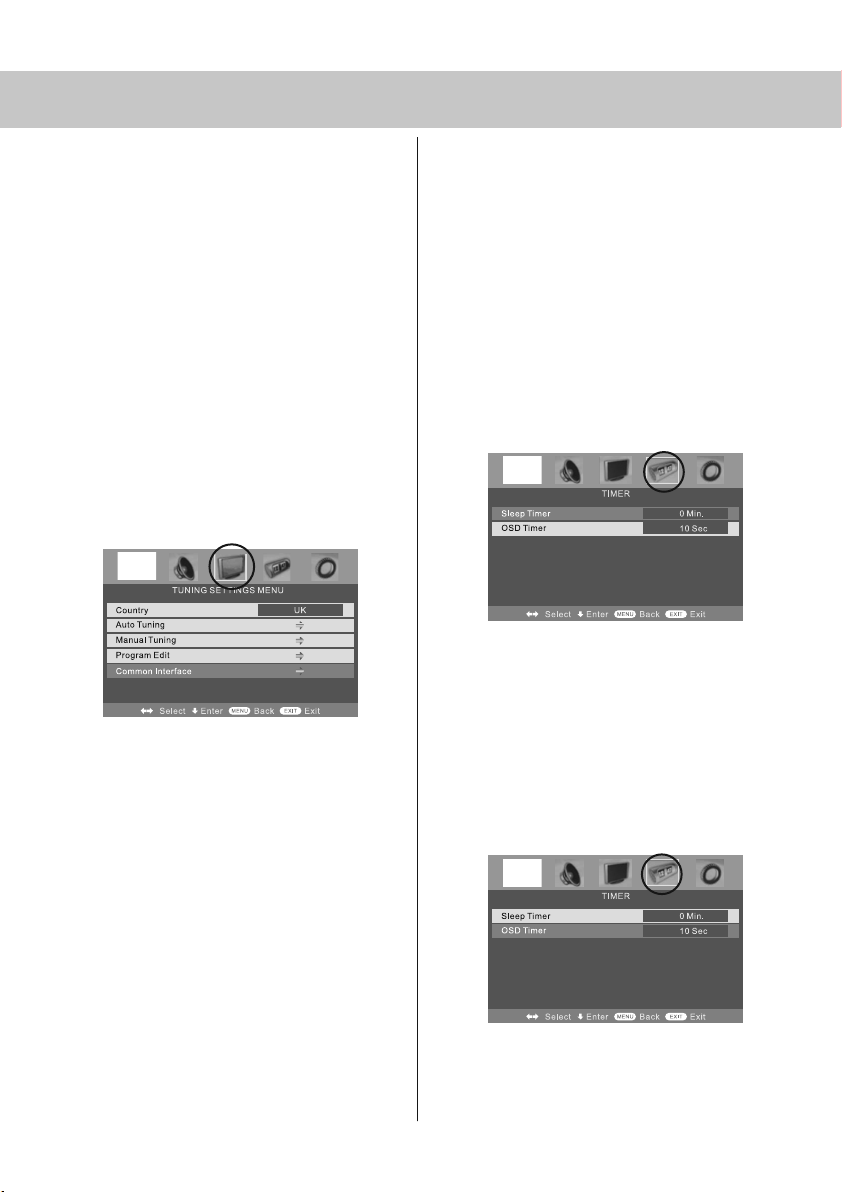

TUNING SETTINGS MENU 17

- Adjusting Country 17

- Auto Tuning 17

- Manual Tuning 17

- Program Edit / Changing Channel
Position 17

- Common Inferface Slot 18
TIMER SETTINGS MENU 18

- Sleep Timer 18

- On Screen Display Timer 18
GENERAL SETTINGS MENU 19 - 20

- On Screen Menu Language 19

- Adjusting Picture Format 19

- Blue Screen 19

- System Lock 19

- First Time Installation 20

- Reset television to factory settings 20

CHANNEL SERVICES

- Using Digital TV teletext 20

- Using 7 day TV Guide 20

- Using Analogue TV teletext 21

PC OPERATION

- Connecting to a PC 22

- Auto Configuration of Screen 23

- Phase 23

- Clock 23

- Horizontal Position 23

- Vertical Position 23

- Position Reset 23

DVD MENU OPERATION

- System Set Up 24

- Adjusting TV System 24

- Adjusting Picture Format 24

- Return to Default 24

- Audio Set Up 25

- Adjusting Tone 25

- Digital Set Up 25

- Adjusting Dynamic Range 25

- Adjusting the sound 25

- Changing Regions 25

USING WITH SKY DIGITAL 27

CONNECTING A GAMES CONSOLE

Connecting a games console 28

GENERAL INFORMATION

- Trouble Shooting 29

- Technical Specifications 30

- Index 31

If you experience any problems with this Television,

Please contact the helpline.

Customer Support/Technical Helpline

Sky Media UK LTD

Telephone: [phone]

Email: [e-mail]

7

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories:

1x - User Guide Book 1x - Remote control

INFO

FORMAT

1x - RF lead 2x - AAA batteries

1x - Quick Start Guide 1x - TV

1x - 3.5mm jack to phono cable

Please save your packaging as you will need this in the event

of warranty/service repair or support. We are unable to carry out

warranty/service if you are unable to package it correctly. The safest way

to package your item in the event of warranty/service repair

is in it’s original box/packaging.

8

ATTACHING/REMOVING THE STAND & WALL MOUNTING

Removing the stand for wall mounting

Attaching the stand

1) Remove the screws shown

2) The stand will now come off

Fig 1

Fig 2

IMPORTANT— BEFORE DRILLING
ANY HOLES IN THE WALL ENSURE
YOU ARE NOT DRILLING WHERE
THERE COULD BE ANY ELECTRIC
WIRES, WATER OR GAS PIPES

Fig 3

THIS TV REQUIRES A VESA
100 WALL MOUNT, OR EQUIVALENT

100

Fig 4

1) Remove the four screws highlighted
below.

Fig 5

2) The wall mount can now be easily attached
to the mounting holes on the rear of the TV.
These holes are indicated in the picture below

Important – If wallmounting this TV,

only use the screws already

provided in the wallmounting holes.

Using other screws which are longer

could cause irreparable damage to

internal parts.

9

GETTING STARTED - INITIAL SET UP

IMPORTANT - AFTER TUNING DO NOT PRESS ANY BUTTONS FOR 20 SECONDS SO THE CHANNEL

INFORMATION CAN BE STORED.

TUNING IN

IMPORTANT — Please ensure the TV has
reached room temperature before
connecting the power for the first time

1) Connect the mains lead to your electrical outlet

2) Connect the RF cable supplied to the
'RF IN' on the rear of the TV and connect

the other end of the cable to your TV Aerial outlet

5) Press [OK] on the remote control whilst ‘OK’
is highlighted on screen.

First Time Installation

Country

Language

Please ensure that the aerial is connected to the connector

labelled ‘ RF In ’ on the rear of the TV .Ensure that OK is
highlighted in yellow and press ‘OK’ on your remote .If after
this scan ,not all digital channels are found ,your aerial may

require a signal booster .alternatively ,upgrade your aerial

to a high gain digital version .

OK Cancel

English

UK

Tuning will now take place.

RF IN

If no channels are found the following screen will appear,
please refer to additional information below.

3) Switch on the television using the rocker switch
located on the side of the TV

4) Install batteries in the remote control and press
the [STANDBY] button to turn on the TV.

INFO

Unfortunately the TV did not find any channels

Please check your aerial connection

and refer to the user manual
DoyouwishtoretuneyourTV

TYPICAL SET-UP

First Time Installation

Yes Do it next time

No

Connect between TV and TV

The ‘First Time Installation’ menu should

Aerial socket

now appear. If it does not, please press
[LCD-MENU] then 8-8-8-8 and the menu will
appear.

Signal Booster

Once you have connected a 'Signal booster' you will need
to retune the TV in order to receive all of the channels.

If the TV finds some, but not all, of the Digital channels, the TV is

functioning correctly but the signal being received is not strong enough.

(The signal strength needs to be above 85% - you can see the signal strength

the TV is receiving when you change channels/ programmes) you will

need to increase the signal reception in order to recieve all of the channels

available. The most economical way to do this is by purchasing

and connecting a 'signal booster' in between the TV and the TV aerial socket.

If this does not solve the problem, you will need to upgrade the TV

10

aerial to a digital hi-gain compatible aerial

REMOTE CONTROL BUTTONS

STANDBY

Switch on TV when on standby or vice versa

EJECT / INFO

DVD mode: To eject disc
Digital/analogue mode: To display channel
information

NUMBER BUTTONS

Digital/analogue mode: 0 – 9 to select a
TV channel directly.
The channel will change after 2 seconds.
Teletext mode: To enter a page number

-/--

Analogue mode: To enter a channel of 2 digits
i.e. channel 15

Digital/analogue mode: To return to the previous
channel viewed

VOL+/-

To increase / decrease the sound level

TITLE/LANG

DVD mode: To display the DVD title menu
Digital mode: To change the audio language
(if available)

D.DISP/GUIDE

DVD mode: To display the current disc
information
Digital mode : To open the TV Guide menu

CH +/-

To increase or decrease the channel being
watched

NAVIGATION BUTTONS

Allows you to navigate the on-screen menus
and adjust the system settings to your preference

LCD MENU

To display OSD menu

DVD SETUP/PICTURE FORMAT

DVD mode: To display the DVD setup menu
All other modes: to switch the screen between
the different picture formats

VOL

GUIDE

FORMAT

INFO

CH

Digital mode: Exit the Digital menu.
DVD mode: Stop the DVD playing.

SLEEP

Press repeatedly to cycle through the sleep options

15min 45min30min

Digital mode: press to select NICAM.
DVD mode: press to select DVD audio channels.

Teletext mode: press to enter the teletext mode.
DVD mode: press to play a DVD program in fast
rewind mode.

Digital mode: press to display FAV menu.
Teletext mode: press hold on or off for current page
display.
DVD mode: press to play a DVD program in fast
forward mode

Digital mode: decrease fav channel.
DVD mode: press to go to DVD.

Digital mode: increase fav channel.
DVD mode: select different angle of DVD

Teletext mode: request the index page.
DVD mode: press to replay the current program from
the previous chapter.

Teletext mode: change the display size.
DVD mode: press to advance forward to the next
chapter.

Teletext mode: To reveal or hide the hidden words.
DVD mode: select the zoom to change picture size.

Teletext mode: Sub coded page access.
Digital mode: To switch the dialogue at the bottom
off the screen

75min60min

90min 105min 120min

Press to display the source menu

PMODE

Press repeatedly to cycle through the available
picture modes

Standard MoviePersonal

SMODE

Press repeatedly to cycle through the available
sound modes

Voice

Press to mute the sound and press again to
restore

Music

Theatre

MildSport

Personal

Game

11
