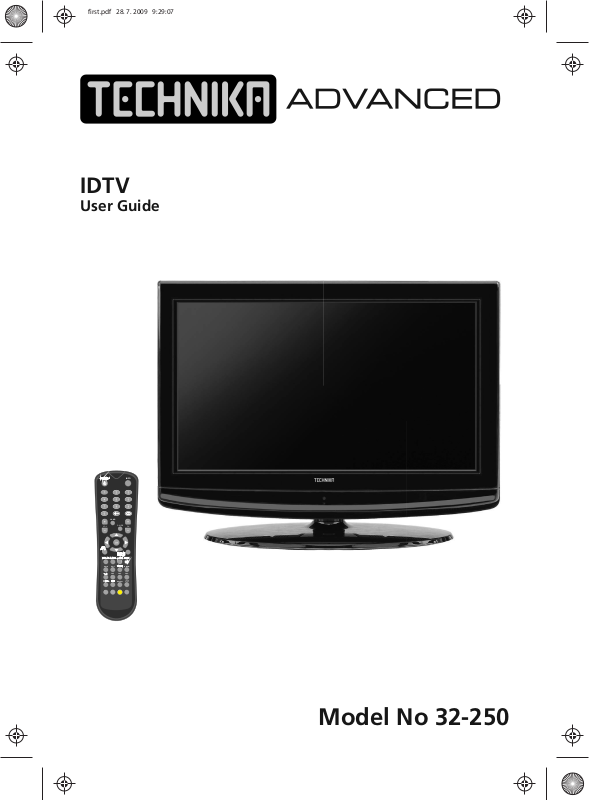

first.pdf 28. 7. 2009 9:29:07

IDTV

User Guide

VOL

HOLD

LANG

GUIDE

PICTURE FORMAT

EXIT NICAM

REVEAL

INFO

FAV

FAVFAV

SUBPAGE SUBTITLE

Model No 32-250

blank.pdf 22. 7. 2009 12:49:15

tesco english manual 32-250 pagePage 1 22. 7. 2009 10:47:06

Important Guarantee Information.

Congratulations on purchasing this television. We hope you have many

years of trouble free enjoyment from your purchase.

Your product is covered under the manufacturers guarantee for 12 months

from date of purchase.

In the event of a fault being diagnosed, please refer to the frequently

asked questions/troubleshooting section at the rear of this user guide.

If you are still unable to remedy the fault, try resetting the TV

to factory settings, (details in this user guide) or contact the helpline.

In the event that a fault is diagnosed, the helpline will arrange to collect

the TV from your home or work address, return it to our service centre,

repair the item and then return it to you.

If we believe we cannot offer a permanent repair, we will replace the item.

Sky Media UK LTD – Helpline Information

Telephone 0871 2000 463

Email: service@skymediauk.co.uk

The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.

On the web site, you can register your product and guarantee, if you

do it within 7 days of purchase, you will also receive an extra FREE

3 months warranty, making the warranty 15 months from date of purchase.

You must retain all packaging materials as you will need these in the event of

If you need to call the helpline, you will need the following information.

Model Number __________________________ (Can be found on rear of TV)

Serial Number __________________________ (Can be found on rear of TV)

Date of purchase __________________________ (Can be found on sales receipt)

Internet: www.skymediauk.co.uk

warranty/service support.

tesco english manual 32-250 pagePage 1 22. 7. 2009 10:47:30

tesco english manual 32-250 pagePage 1 22. 7. 2009 10:47:48

Important information regarding the digital TV switchover

Television in the UK is going digital, bringing us all more choice and new services. Starting late 2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region.

How the switchover affects your TV equipment.

Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply connecting it into your aerial socket (you can check if you can get digital TV through your aerial now or whether you will have to wait until the switchover at www.digitaluk.co.uk)

When the TV switchover happens in your area, there are at least two occasions when you will need to re-tune your TV in order to continue receiving your existing TV channels and also to pick up new ones. Digital UK, the body leading the digital switchover, will advise you when you need to retune during the switchover.

How to retune.

Retuning your TV is a very quick and simple process. We recommend that you retune every few months to ensure you are receiving the very latest TV and radio channels that are broadcast.

• In digital/freeview mode, on the remote control press ‘menu’ quickly followed by 8-8-8-8 (so press the number 8 four times)

• You will now enter the ‘First time installation’ mode. (if you do not, please refer to the section called ‘getting started’ later in this user guide)

First Time Installation

Country

Language

Please ensure that the aerial is connected to the connector

labelled ‘ RF In ’ on the rear of the TV .Ensure that OK is highlighted in yellow and press ‘OK’ on your remote .If after this scan ,not all digital channels are found ,your aerial may

require a signal booster .alternatively ,upgrade your aerial

to a high gain digital version .

OK Cancel

English

• Simply press ‘OK’ or ‘Enter’ on the remote control and your TV will retune.

If you do not retune your TV when advised to do so by Digital UK, you may lose some or all of your channels until you do re-tune.

If you are missing any channels, it may be that they are not available in your area, or that your TV aerial needs upgrading.

For help and support regarding the digital switchover, please contact Digital UK:

Telephone: 08456 50 50 50 (calls charged at local call rate, approx 3p per minute daytime or 1p per minute evenings from a BT landline) Digital UK website: www.digitaluk.co.uk

If you require technical or warranty support on this television, please contact the manufacturer helpline, do not contact Digital UK unless your query is regarding the digital switchover.

tesco english manual 32-250 pagePage 1 22. 7. 2009 10:48:04

WARNINGS

Caution

This television contains no user serviceable parts. Please refer to the manufacturer or authorised repair agent in the event of malfunction. Do not remove the back cover from the television.

Warning

To reduce the risk of fire, electric shock or damage to the television, do not expose it to dust, rain or moisture, or place any objects filled with liquids on or near the television.

Do not place the television in a confined space, ensure that nothing can obstruct the ventilation openings at the rear of the television.

Do not place naked flames on or near the television.

Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling.

Your LCD TV should be cleaned using a dry or slightly damp cloth. You should not use an alcohol based cleaner

Safety

For your safety, this appliance is fitted with a fused moulded 3 pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and approved with the BSI mark. ( )

Never try and replace the mains plug unless you have adequate qualifications and are legally authorised to do so. In the event that a replacement Mains cable is required, contact the manufacturer for a suitable replacement.

Never use the television if it is damaged in any way.

Always place the television on a flat level surface avoiding anywhere which may be subject to strong vibration. Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable and cause a safety hazard.

Never place mobile phones, speakers or any other device which may cause magnetic or radio interference with the television. If interference is apparent, move the device causing the interference away from the television.

Packaging

Please save the packaging for the television as you will need this in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service repair is in its original box/packaging

tesco english manual 32-250 pagePage 1 28. 7. 2009 9:18:29

tesco english manual 32-250 pagePage 1 22. 7. 2009 10:48:42

tesco english manual 32-250 pagePage 1 28. 7. 2009 9:19:11

CONTENTS

SETTING UP YOUR TV

- Digital Switchover Re-Tune 2

- What is included in the box 8

Attaching/Detaching the

Stand & Wall mounting 9

- Tuning in TV 10

- Remote control buttons and their functions 11

- TV buttons and their functions 12

- Inputs and Connections 13

TV MENU OPERATION

- Picture Settings Menu 14 - 15

- Sound Setttings Menu 16

- Tuning Settings Menu 17

- Common Inferface Slot 18

- Timer Settings Menu 18

- Sleep Timer 18

- On Screen Display Timer 18

- General Settings Menu 19

- On Screen Menu Language 19

- Adjusting Picture Format 19

- Blue Screen 19

- System Lock 19

- First Time Installation 20

- Reset Television to Factory Settings 20

CHANNEL SERVICES

- Using TV Guide 20

- Using Digital TV teletext 21

- Using Analogue TV teletext 21

PC OPERATION

- Using with a PC or Laptop 22 - 23

GENERAL INFORMATION

- Using with Sky Digital/Virgin Media 24

- Connecting a Games Console 25

- Frequently Asked Questions 26

- Technical Specifications 27

- Index 28

If you experience any problems with this Television,

Please contact the helpline.

Customer Support/Technical Helpline

Sky Media UK LTD

Telephone: 0871 2000 463

Email: service@skymediauk.co.uk

tesco english manual 32-250 pagePage 1 28. 7. 2009 9:30:42

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories:

1x - User Guide Book 1x - Remote control

INFO

LANG

GUIDE

VOL

PICTURE FORMAT

EXIT NICAM

HOLD

FAV

FAVFAV

SUBPAGE

REVEAL

SUBTITLE

1x - RF cable 2x - AAA batteries

1x - Quick Start Guide 1x - TV

1x - Blank plate (Used when removing stand in the event of wallmounting)

Please save your packaging as you will need this in the event

of warranty/service repair or support. We are unable to carry out

warranty/service if you are unable to package it correctly. The safest way

to package your item in the event of warranty/service repair

is in it’s original box/packaging.

tesco english manual 32-250 pagePage 1 29. 7. 2009 8:39:11

REMOVING THE STAND & WALL MOUNTING

Removing the stand

1) Remove the four screws highlighted below

2) The stand will now come off

2) Although there are no live parts exposed when removing the stand, (in the event of wall mounting the TV) for aesthetic purposes, included in the accessory pack is a cover plate which can be clipped into the underside of the TV.

IMPORTANT— BEFORE DRILLING ANY HOLES IN THE WALL ENSURE YOU ARE NOT DRILLING WHERE THERE COULD BE ANY ELECTRIC WIRES, WATER OR GAS PIPES

This TV requires a universal wall mount with mounting holes of 400mm(H) x 200mm(V) (VESA – 400x200)

1) The wall mount can now be easily attached to the mounting holes on rear of the TV. These holes are indicated in the picture below

Important – If wallmounting this TV,

only use the screws already

provided in the wallmounting holes.

Using other screws which are longer

could cause irrepable damage to

internal parts.

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:54:17

GETTING STARTED - INITIAL SET UP

IMPORTANT - AFTER TUNING DO NOT PRESS ANY BUTTONS FOR 20 SECONDS SO THE CHANNEL

INFORMATION CAN BE STORED.

TUNING IN

IMPORTANT — Please ensure the TV has reached room temperature before connecting the power for the first time

1) Connect the mains lead to your electrical outlet

2) Connect the RF cable supplied to the 'RF IN' on the rear of the TV and connect

the other end of the cable to your TV Aerial outlet

RF IN

5) Press [OK] on the remote control whilst ‘OK’ is highlighted on screen.

First Time Installation

Country

Language

Please ensure that the aerial is connected to the connector

labelled ‘ RF In ’ on the rear of the TV .Ensure that OK is highlighted in yellow and press ‘OK’ on your remote .If after this scan ,not all digital channels are found ,your aerial may

require a signal booster .alternatively ,upgrade your aerial

to a high gain digital version .

OK Cancel

English

Tuning will now take place.

3) Switch on the television using the rocker switch located on the rear of the TV

4) Install batteries in the remote control and press the [STANDBY] button to turn on the TV.

INFO

If no channels are found the following screen will appear, please refer to additional information below.

First Time Installation

Unfortunately the TV did not find any channels

Please check your aerial connection

and refer to the user manual DoyouwishtoretuneyourTV

Yes Do it next time

TYPICAL SET-UP

The ‘First Time Installation’ menu should now appear. If it does not, please press [LCD-MENU] then 8-8-8-8 and the menu will appear.

Connect between TV and TV

Aerial socket

Signal Booster

Once you have connected a 'Signal booster' you will need to retune the TV in order to receive all of the channels.

If the TV finds some, but not all, of the Digital channels, the TV is

functioning correctly but the signal being received is not strong enough.

(The signal strength needs to be above 85% - you can see the signal strength

the TV is receiving when you change channels/ programmes) you will

need to increase the signal reception in order to recieve all of the channels

available. The most economical way to do this is by purchasing

and connecting a 'signal booster' in between the TV and the TV aerial socket.

If this does not solve the problem, you will need to upgrade the TV

aerial to a digital hi-gain compatible aerial

tesco english manual 32-250 pagePage 1 28. 7. 2009 9:25:40

REMOTE CONTROL BUTTONS

STANDBY

Switch on TV when on standby or vice versa

INFO

Digital/analogue mode: To display channel information

NUMBER BUTTONS

Digital/analogue mode: 0 – 9 to select a TV channel directly. The channel will change after 2 seconds. Teletext mode: To enter a page number

-/--

Analogue mode: To enter a channel of 2 digits i.e. channel 15

Digital/analogue mode: To return to the previous channel viewed

VOL+/-

To increase / decrease the sound level

LANG

Digital mode: To change the audio language (if available)

GUIDE

Digital mode : To open the TV Guide menu

CH +/-

To increase or decrease the channel being watched

NAVIGATION BUTTONS

Allows you to navigate the on-screen menus and adjust the system settings to your preference

LCD MENU

To display OSD menu

PICTURE FORMAT

Switch the screen between the different picture formats

VOL

HOLD

LANG

GUIDE

PICT URE FORM AT

EXIT NICAM

REVEAL

FAV

SUBPAGE SUBTITLE

INFO

SOURCE

Press to display the source menu

PMODE

Press repeatedly to cycle through the available picture modes

Standard MoviePersonal

SMODE

Press repeatedly to cycle through the available sound modes

Voice

MUTE

Press to mute the sound and press again

FAVFAV

to restore

HOLD

Teletext mode: press hold on or off for current page display.

EXIT

Digital mode: Exit the Digital menu.

SLEEP

Press repeatedly to cycle through the sleep options

15min 45min30min

NICAM

Digital mode: press to select NICAM.

TEXT

Teletext mode: press to enter the teletext mode.

FAV

Digital mode: press to display FAV menu.

FAV-

Digital mode: decrease fav channel.

FAV+

Digital mode: increase fav channel.

INDEX

Teletext mode: request the index page.

SIZE

Teletext mode: change the display size.

REVEAL

Teletext mode: To reveal or hide the hidden words.

SUBTITLE

Digital Mode: To switch the dialogue at the bottom off the screen

SUBPAGE

Teletext Mode: Displays the subpage if it exists

COLOURED BUTTONS

For navigating as prompted on screen

Music

Theatre

75min60min

MildSport

Game

Personal

90min 105min 120min

tesco english manual 32-250 pagePage 1 24. 7. 2009 13:30:53

TV BUTTONS & THEIR FUNCTIONS

SIDE PANEL BUTTONS

Volume up and menu right

Volume down and menu left

Program/Channel up and menu up

Program/Channel down and menu down

Displays Menu/OSD

Select the input source

Switch between standby and television on

Choosing Mode/Source

To switch between the different connections is very easy.

Using the buttons on the remote control:

1) Press [SOURCE] - The following will appear

2) Press [\/] or [/\] to select the input you require.

3) Press [OK]

Using the buttons on the Television:

1) Press [SOURCE]

2) Scroll up / down using CH+/ CH- buttons to the input/source you require

3) Press Vol+ to change input/source to the one selected.

TV/ANALOGUE

FREEVIEW

HDMI 1

HDMI 2

SCART 1

SCART 2

COMPONENT

VIDEO

S-VIDEO

VGA/PC

tesco english manual 32-250 pagePage 1 29. 7. 2009 8:46:50

INPUTS & CONNECTIONS

REAR CONNECTIONS

CI Port

A B C D E F G

H I J K L M

CONNECTING A DVD RECORDER OR VIDEO RECORDER

HDMI 1

HDMI 2

VGA(PC)

VGA (PC) Audio In

YPbPr

L/R (Component) Audio In

CI PORT

S-VIDEO

VIDEO

L/R (Video) Audio In

SCART 1

SCART 2

RF IN

HDMI input

VGA-PC input

Audio input

Component input

Audio input for YPbPr

CI Port input

S-Video input

Video input

Audio input for Video & S-Video

SCART input

RF input

Source should be set to SCART

CONNECTING A HIGH DEFINITION DEVICE

OPTION A – HDMI OPTION B – COMPONENT & AUDIO CABLES

L/R

L/R Audio Input

Source should be set to HDMI Source should be set to YPbPr/COMPONENT

CONNECTING A CAMERA OR CAMCORDER

SCART Adaptor

Source should be set to SCART

Note - SCART to AV Adaptor – often included with some devices, alternatively, these can be purchased from the helpline/website

tesco english manual 32-250 pagePage 1 27. 7. 2009 16:02:39

TV MENU OPERATION

To access the OSD menu, press ‘LCD-Menu’ on the remote control. Use the scroll up/down/right/left to navigate through the menus.

PICTURE FORMAT

PICTURE SETTINGS MENU

Lets you adjust picture mode, contrast, brightness, colour, tint and sharpness to enhance the viewing experience.

PLEASE NOTE – YOU CAN ONLY MAKE ADJUSTMENTS TO CONTRAST, BRIGHTNESS & COLOUR WHEN PICTURE MODE IS SET TO ‘PERSONAL’.

Selecting Picture Mode Preset

Switch between different preset picture options

Standard Default settings

Personal Lets you manually alter all the settings

Movie Set to enhance when watching a movie

Sport Set to enhance when watching a sport

Mild Set to be lighter in colour and less bright

Game Set to enhance when playing a games console

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight Picture Mode

3) Press [>] to navigate through the various options

Adjusting Contrast (Only available when Picture Mode is set to Personal) Switch the balance between black and white

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight Contrast

3) Press [>] to increase the contrast or [<] to decrease the contrast

4) Press [EXIT] to exit

Adjusting Brightness (Only available when Picture Mode is set to Personal) Increase or decrease the brightness of the picture

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight Brightness

3) Press [>] to increase the brightness or [<] to decrease the brightness

4) Press [EXIT] to exit

Adjusting Colour (Only available when Picture Mode is set to Personal) Increase the colour from black and white to vivid

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight Colour

3) Press [>] to increase the colour or [<] to decrease the colour

4) Press [EXIT] to exit

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:08:04

TV MENU OPERATION

PICTURE SETTINGS MENU

Adjusting Tint (only available on some sources)

Lets you increase or decrease the level of tint within the picture

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight Tint

3) Press [>] to increase the tint or [<] to decrease the tint

4) Press [EXIT] to exit

Adjusting Sharpness

You can change the sharpness between the different preset options

Normal For standard use

Sharp For pictures with little movement

Sharpest For pictures with nearly no movement

Soft For pictures with large amount of movement

Softest For pictures with lots of movement

Adjusting Colour Temperature (only available on some sources)

There are 3 presets for colour temperature

Normal Standard setting

Warm Increased red within the picture

Cold Increased blue within the picture

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight Colour Temperature

3) Press [>] to navigate through the various options

4) Press [EXIT] to exit

Dynamic Noise Reduction

Reduces the interference in the picture.

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight DNR

3) Press [>] to switch between OFF, LOW, MID & HIGH

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight Sharpness

3) Press [>] to navigate through the various options

4) Press [EXIT] to exit

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:08:24

TV MENU OPERATION

SOUND SETTINGS MENU

Adjusting Volume

Lets you adjust the volume of the television

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Sound Settings Menu

3) Press [\/] to highlight Volume

4) Press [>] to increase the volume or [<] to decrease the volume

5) Press [EXIT] to exit

Selecting Sound Mode Preset

Switch between different preset sound options

Voice Emphasises voice over other sounds

Music Emphasises music over voices

Theatre Provides liver and full sound for movies

Personal Selects your personal sound settings

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Sound Settings Menu

3) Press [\/] to highlight Sound Mode

4) Press [>] to navigate through the various options

Adjusting Bass

To adjust the amount of bass within the sound

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Sound Settings Menu

3) Press [\/] to highlight Bass

4) Press [>] to increase the bass or [<] to decrease the bass

5) Press [EXIT] to exit

Adjusting Treble

To adjust the amount of treble within the sound

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Sound Settings Menu

3) Press [\/] to highlight Treble

4) Press [>] to increase the treble or [<] to decrease the treble

5) Press [EXIT] to exit

Adjusting Balance

To switch the sound between the left and right speakers

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Sound Settings Menu

3) Press [\/] to highlight Balance

4) Press [>] to increase the balance or [<] to decrease the balance

5) Press [EXIT] to exit

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:08:44

TV MENU OPERATION

TUNING SETTINGS MENU

(Only Freeview & Analogue TV modes)

Adjusting Country

If you are moving country you may wish to change the Country Settings

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Country

4) Press [>] to alter the chosen country

5) Press [EXIT] to exit

Auto Tuning

Scan for all channels based on the current settings

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Auto Tuning

6) Press [>] to start

7) Press [EXIT] to exit

Program Edit / Changing Channel Position (Only Freeview & Analague TV modes)

You can change the analogue channel position to suit your requirements.

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Program Edit

4) Press [>] to enter Auto tuning

5) Press [OK] to start the tuning

6) Press [EXIT] to exit

Manual Tuning

You may wish to manual search if you can’t find a certain channel or if you wish to connect to a Satellite/Cable box via RF/Aerial connector

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Manual Tuning

4) Press [>] to enter manual tuning

5) Press [>] to highlight Start Screen

4) Press [>] to enter the program edit menu 5a) Freeview mode – Press the [Green] button to add the selected channel to your favorite, press it a second time to remove. Press the [Yellow] to delete the channel from the list. WARNING – this will remove the channel complete from the TV. Press [Blue] to lock a channel (to do this the Child Lock function must be set “ON”) 5b) Analogue TV mode – Press the [>] to select the change you wish to move. Move to the new location and press [OK]

715.Magic

716.Q

718.SMOOTH RADIO

722.Kerrang!

723.talkSPORT

725. Premier Radio

727.Absolute Radio

728.Heart

Toswap channel press on remote move tothe desired locationand press

6) Press [EXIT] to exit

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:09:02

TV MENU OPERATION

Common Interface Slot (Only in Freeview Mode)

Pay per view services require a “smartcard” to be inserted into the TV. If you subscribe to a pay per view service the provider will issue you with a ‘CAM’ and a “smartcard”. The CAM can then be inserted into the COMMON INTERFACE PORT. To access the card follow the steps below.

CAM and smartcard

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Common Interface

4) Press [>] to enter the menu

TIMER SETTINGS MENU

Lets you adjust the OSD timing and the sleep timer

Sleep Timer

Lets you set the sleep timer so the television automatically switches off after a certain amount of time.

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Timer Settings Menu

3) Press [\/] to highlight Sleep Timer

4) Press [>] to increase the time to the required amount

5) Press [EXIT] to exit

On Screen Display Timer

Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing.

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Timer Settings Menu

3) Press [\/] to highlight OSD Timer

4) Press [>] to increase the time and [<] to reduce the time

5) Press [EXIT] to exit

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:09:19

TV MENU OPERATION

GENERAL SETTINGS MENU

Lets you adjust the language, picture size, blue screen, add child lock, complete first time installation and reset the television.

On Screen Menu Language

Lets you change the on screen menu language.

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to General Settings Menu

3) Press [\/] to highlight Language

4) Press [>] to change the language

GENERAL SETTINGS MENU

5) Press [EXIT] to exit

Picture Format

Lets you adjust the picture format

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to General Settings Menu

3) Press [\/] to highlight Picture Format

4) Press [>] to change the picture format

GENERAL SETTINGS MENU

5) Press [EXIT] to exit

Blue Screen

Changes the background when there is no input between clear and a blue background

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to General Settings Menu

3) Press [\/] to highlight Blue Screen

4) Press [>] to switch between on and off

GENERAL SETTINGS MENU

5) Press [EXIT] to exit

English

Auto

Off

English

Auto

Off

English

Auto

Off

System Lock

This menu allows you to lock certain features of the television so that they can not be used or viewed. For example if you don’t want certain channels viewed by children or if the television is to be used in a hotel and you want to limit the volume.

You can lock any of the following - TV buttons, TV source, set default start up source and limit the maximum volume.

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to General Settings Menu

3) Press [\/] to highlight System Lock

GENERAL SETTINGS MENU

English

Auto

Off

4) Press [>] to enter System Lock menu

System Lock

Key Lock

Source Lock

Default Source

Max Volume

Change PIN Code

5) To enter this menu you will be asked for your pin code (Default is blank so you just need to press [OK]).

6) To set locks you first need to switch System Lock to ON, this will un grey the options.

You can now select the following: Key Lock – Off/On – This stops the buttons on the television working. Source Lock – Press [>] to enter then apply On to lock the source so it can’t be used Default Source – You can set the default start up source, so when the television is turned on it goes to this source. Maximum Volume – You can limit the maximum volume Change Pin Code – Press [>] to enter, first enter the current code (default is blank so just press OK), then enter your new code.

7) Once you happy with the settings press [EXIT] to exit menu.

Channel Lock – please refer to Program Edit section to select the channels that you require to lock. Once locked you can temporarily unlock a channel by entering the pin code, the lock will be re-applied by switching off the TV to standby and then back on.

SYSTEM LOCK

Off

ATV

tesco english manual 32-250 pagePage 1 29. 7. 2009 8:42:43

TV MENU OPERATION & 7 DAY TV GUIDE

First Time Installation

Allows you to reset the television for first time tuning.

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to General Settings Menu

3) Press [\/] to highlight First Time Installation

4) Press [>] and First time install screen will appear

GENERAL SETTINGS MENU

Welsh

Auto

Off

5) Press [OK] and tuning will commerce.

First Time Installation

Country

Language

Please ensure that the aerial is connected to the connector

labelled ‘ RF In ’ on the rear of the TV .Ensure that OK is highlighted in yellow and press ‘OK’ on your remote .If after this scan ,not all digital channels are found ,your aerial may

require a signal booster .alternatively ,upgrade your aerial

to a high gain digital version .

OK Cancel

Reset television to factory settings

You may wish to reset the menus to factory settings e.g. if you have forgotten a changed password

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to General Settings Menu

3) Press [\/] to highlight Reset

4) Press [OK] to reset the television

GENERAL SETTINGS MENU

Welsh

Auto

Off

English

7 DAY TV GUIDE

TV Guide is available in Digital TV mode. It provides information about forthcoming

programmes (where supported by the broadcasted channel).

You can view the start and end time of all programs and on all channels for the next 7days.

It is very simple to operate.

1) Press [GUIDE]. The following now and next menu will appear.

TV Guide

(News/CA) Nick Knowles presents dramatic events from the day-to-day work of the emergency services, The series is out on call with the dedicated crews, answering 999 calls as they protect the public. [S]

Channels

1. BBC ONE Real Rescues Put your Money Where Y...

2. BBC TWO

3. ITV 1

4. Channel 4

Current Event Next Event

Balamory The Jeremy Kyle Show Impressionism: Revenge...

Navigate

7 Day Guide

EXIT OK

Tues 14/10 09:42

00:01-51:90seucseRlaeR

Little Red Tractor This Morning Freshly Squeezed Shorts

Quit Watch Help

INFO

2) Navigate through the now and next menu using the [>], [<], [V] and [/\] buttons

3) Press the [BLUE] button to enter the 7 day menu. Reminders can now be added by pressing [OK].

7 Day TV Guide

Essential Electricals

(Undefined) Join us for the pick of bid tv’s quality kitchen appliances, vacuum cleaners, irons, home telephones and many other essential electricals.

Thur 31/5 14:00 14:45 15:30

23. bid tv Essential Electric

24. price-drop tv

26. UKTV Style

33. Eurosport UK

34. Setanta SP...

Handbag Heaven Extreme Makeover: Home Edition Closedown Top 14: SPL Sna NRL on Fox

Navigate

Quit Change Day Reminder

Tues 31/5 14:29

14:00-14:30

Quality Products Quality Products Quality Products a

Extreme Makeove

KOEXIT

4) Press [EXIT] to exit the 7 day TV Guide.

5) Press [EXIT] to exit Please note – If you have applied the system lock to reset the television you must press [LCD-MENU] then 8-8-8-8, to start the first time installation sequence.

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:09:59

DIGITAL TELETEXT & ANALOGUE TELETEXT

Digital TV Teletext

With Digital TV (Freeview) there is also digital teletext available on some channels. Simply follow the on screen commands. Here is an example of the BBC digital teletext service.

1) To start digital teletext press the RED button (BBC channels) or the TEXT buttons (Other channels)

BBC i

Tuesday 18 Dec

Press SELECT for Live Crecket

Eng v SL Radio Concert

News Multiscreen 1001 Sport 300 Weather 400 BBCi INDEX 199

Did Bee Movie Leave you buzzing? BBC Movies - 540

To exit, press TEXT

100

2) To select the information you require you can scroll using [\/] or [/\] and press [OK] alternatively you can key the page number for example [3][0][0] followed by [OK]

BBC

SPORT

BBC ONE

To exit, press TEXT For full screen TV, press 0

HOME SHORTCUTS BACK INDEX

BBC i

Sport

Sport in Video Main Headlines

Football

Cricket

Rugby Union

Rugby League

Tennis

Golf

more...

11:15 18 Dec

300

You can then navigate using the colours buttons (Red, Green, Yellow, Blue), the [/\] [\/] buttons and numbers.

If you wish to exit at anytime press [EXIT]

Teletext is a service offered by some broadcasters.

Teletext Operation

1) Press [TEXT], after a few seconds teletext page 100 should appear. Here is an example of BBC1

2) You can now navigate to the page you require in a number of ways:

a) Press the page you require using the number buttons i.e. page 302, by pressing [3][0][2] b) Press the colour buttons, these will take you to the page indicated on screen for each colour

3) To exit Teletext press [TEXT] twice at any time

Other buttons

[SIZE] this increases or decreases the size of the text on screen [INDEX] some pages are more than one page long this button displays the number of pages [REVEAL] if there is an answer or something hidden this will display it [SUBPAGE] displays the sub page if it exists [HOLD] This stops the pages changing when there are multiple pages

tesco english manual 32-250 pagePage 1 29. 7. 2009 8:41:32

USING THE TELEVISION AS A COMPUTER MONITOR

IMPORTANT – Before connecting the computer to the television you must ensure the computer settings are correct for the television. You MUST do this using your old monitor.

WINDOWS XP, WINDOWS VISTA

1) Switch on your computer

2) When finishing booting up right click your mouse anywhere on the screen

XP Screen VISTA Screen

3) Left click your mouse on Properties/Personalise

5) Left click your mouse on Advance/Advance Settings and left click on Monitor

XP Screen VISTA Screen

6) Left click on the drop down for Screen refresh rate and select 60 Hertz.

7) Click on Apply, then click Yes and the settings will be saved.

8) Now switch off your computer and connect the television (as shown below)

9) Re-start your computer and switch the source to VGA

CONNECTING A LAPTOP

XP Screen VISTA Screen

4) Left click your mouse on Setting/Display Settings. Ensure the screen resolution is set to what is shown in the technical specifications section toward the rear of this user guide. To correct the resolution to that of the television move the slider.

XP Screen VISTA Screen

In addition to the above if you are connecting a laptop to the television you will also need to activate the VGA connection on the laptop.

This can vary based on the brand of laptop you have.

1) Connect the laptop to the television

2) On the Laptop push buttons

Fn F5

The screen will now switch to the television.

tesco english manual 32-250 pagePage 1 28. 7. 2009 9:28:14

PC MENU OPERATION (VGA)

VGA MENU

Auto Configuration of Screen

Lets you automatically configure the television to be used as a computer monitor

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select Auto Sync

4) Then press [>] for the TV to automatically configure itself

5) Press [EXIT] to exit

Phase

To adjust delay time of phase in order to reduce the noise of picture

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select Phase

4) Then press [>] or [<] to increase or decrease the phase

Horizontal Position

Changes the horizontal position of the picture

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select H-Position

4) Then press [>] or [<] to move the picture to left or right

5) Press [EXIT] to exit

Vertical Position

Changes the vertical position of the picture

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select V-Position

4) Then press [>] or [<] to move the picture up or down

5) Press [EXIT] to exit

Clock

Alter this in order to reduce the noise within the picture

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select Clock

4) Then press [>] or [<] to increase or decrease the clock

5) Press [EXIT] to exit

Position Reset

To position of the picture to the factory settings

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select Position Reset

4) Then press [>] or [<] to move the picture up or down

5) Press [EXIT] to exit

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:11:05

USING WITH SKY DIGITAL / VIRGIN MEDIA

You may wish to use your TV with Sky Digital, Virgin Media or another cable or Satellite box

There are a number of connection options, the best being connecting via SCART cable.

Connecting via SCART

1) Connect the SCART cable from the Cable/Satellite Box to SCART of the TV

2) Press [SOURCE]

3) Press [\/] or [/\] to select SCART

4) Press [OK]

The channel your Cable/Sattelite box is displaying will now be shown on the TV.

You may wish to share your Sky Digital signal around the home by using an RF connection.

Connecting via RF

1) Connect the RF cable from the RF output socket of the sky/cable box to the ‘RF IN’ of the TV.

2) Switch the TV to analogue TV mode

3) Press [LCD-MENU] to enter menu

4) Press [>] twice to select Tuning Settings Menu

5) Press [\/] to select Manual Tuning

USING WITH SKY DIGITAL REMOTE CONTROL (BSKYB) OR UNIVERSAL REMOTE CONTROL

You may wish to use your Sky Digital or a universal remote control to operate some of the functions of this TV. For this you require a ‘code’ that needs to be programmed into your Sky Digital or universal remote control.

For codes for universal remote controls, please visit our website where you will find the very latest information and codes.

For codes for Sky/Sky+Sky HD, please note that at the point of manufacture, BSkyB have not launched the code required for this model of TV. They are due to launch a new remote control which should include the necessary code to operate the functions of the TV during 2010 (called revision 9).

Please check our website for updates, alternatively, see below some alternative options of remote controls that are available.

6) Press [>] to enter Auto tuning

7) Press [OK] to start tuning

Once tuning is complete the first channel will appear. Press [CH+] to move through the channel until you find the Sky channel. The channel can then be moved if you wish, please refer to the Tuning Setting

menu – Program Edit section of the manual.

One for All Sky Originals

The One for All remote controls shown above will operate all of the functions of the Sky box in the same way the original remote control will, in addition, they will also operate the functions of this model of TV. The One for All versions are available to purchase from the helpline/website. The original Sky remote controls are shown for comparison purposes

If you require any further information, you can contact us:

www.skymediauk.co.uk email - service@skymediauk.co.uk

Tel - 0871 2000 463

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:12:04

CONNECTING A GAMES CONSOLE

Connecting a games console can sometimes seem very difficult. We have simplified it to three options depending on the cables that you have.

Option 1 – Connecting via Scart to AV adapter

If you are supplied with a cable from the console which has YELLOW, RED & WHITE connectors you must connect via a SCART to AV adapter (Some console include this)

TV source should be set to SCART.

Option 2 – Connecting via HDMI cable

If you are supplied with a HDMI cable is the easiest option. A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of picture quality.

Option 3 – Connecting via Component cable

If you are supplied with a cable from the console which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono (for sound).

Inputs (YPbPr)

L/R Audio Input

TV Source should be set to HDMI.

tesco english manual 32-250 pagePage 1 22. 7. 2009 12:13:48

FREQUENTLY ASKED QUESTIONS

Question:

I have tuned in Digital TV but I am not receiving any or all of the channels and/or the channels I receive are breaking up

The sound quality is high pitched?

I have connected the TV to my VCR via SCART but it is not recording

Solution:

1) Check you are in an area that can receive Freeview. Visit www.freeview.co.uk or call 08701 111 270.

2) Check you are using an aerial that is able to receive a good digital signal. In most cases, you will need an outdoor digital hi-gain/wideband aerial. In areas that have excellent Freeview coverage, you may be able to use a loft type aerial but it is highly likely that you will also need to connect a booster between the back of the TV and the TV aerial wall socket. Unfortunately, to receive a good enough digital signal, it is not possible to use a portable/indoor type aerial. This may change once the analogue signal is switched off in 2012 and the Digital signal strength is increased.

Go into the sound settings menu as shown earlier in the manual and increase the level of the bass and decrease the treble

In addition to connecting via SCART, you should connect the aerial cable from the wall socket to VCR and another aerial cable from the VCR to the TV

If you are still experiencing problems please contact the Helpline

Customer Support/Technical Helpline

Sky Media UK LTD

Telephone: 0871 2000 463

Email: service@skymediauk.co.uk

Visit our web site www.skymediauk.co.uk for further Trouble shooting

and frequently asked questions.

tesco english manual 32-250 pagePage 1 24. 7. 2009 13:34:58

TECHNICAL SPECIFICATION

Panel

Input Signal

Resolution Contrast Ratio

Brightness cd/m

Video

Sound

LCD32-250

"23)sehcnI(eziS

1920 x 1080

3000:1

450

seYBGRCP

MACES-LAP/annetnAmho57FR

2 x SCART, 1 x S-Video, 1 x Video, 1 x

Component (YPbPr - 1080p)

1 x 3.5mm jack for PC, 1 x pair RCA for YPbPr, 1

x pair RCA for Video

)80p01otpu(2IMDH

Speaker Output

Power

Dimensions

Weight

8x2)SMR(sttaW

Voltage 100-240v 47-63Hz 1.5A 140W (<3W Standby)

D532xH285xW597dnatScnI

W597dnatScxE

D801xH145x

4.01)sgK(teN

6.51)sgK(ssorG

tesco english manual 32-250 pagePage 1 24. 7. 2009 13:37:33

INDEX

Analogue TV teletext 21 Attaching/Detaching the Stand & Wall mounting 9 Auto Tuning 17 Balance 16 Bass 16 Blue Screen 19 Brightness 14 System Lock 19 Colour 14 Colour Temperature 15 Common Inferface Slot 18 Connecting to a PC 22 Connecting a Games Console 25 Contrast 14 Country Settings 17 Digital Switchover Re-Tune 7 Digital TV teletext 21 Dynamic Noise Reduction 15 Electronic Program Guide 20 First Time Installation 10 Frequently Asked Questions 26 Horizontal Position 23 Inputs and Connections 13

Manual Tuning 17

On Screen Display Timer 18 On Screen Menu Language 19 Phase 23 Picture Format 19 Picture Mode Preset 14 Position Reset 23 Program Edit / Changing Channel Position 17 Remote control buttons and their functions 11 Reset Television 20 Sharpness 15 Sleep Timer 18 Sound Mode Preset 16 Technical Specifications 27 Tint 15 Treble 16 Tuning in TV 10 TV buttons and their functions 12 Using with Sky Digital / Virgin Media 24 Vertical Position (PC) 23 Volume 16 What is included in the box 8

OPTIONAL ACCESSORIES AND REPLACEMENT PARTS

If you need to order replacement parts for your TV, please visit our web site or call the helpline.

If you wish to wall mount your TV, we have a range of fully tested and compatible wall mounts available to order from the helpline or via our web site.

If you wish to purchase a Sky or Sky+ remote control that includes the latest software/codes to operate both your Sky Box as well as this TV, these are available to order from the helpline or web site. Our Sky / Sky+ remote controls operate your Sky or Sky+ box in exactly the same way your current Sky / Sky+ remote does and our versions also look very similar to the Sky equivalent models, albeit slightly smaller in size, they will also operate many of your TV’s functions including Power on/off, channel up/down, volume up/down as well as many other functions.

INFO

LANG

GUIDE

VOL

PICTURE FORMAT

EXIT NICAM

HOLD

FAVFAV

FAV

SUBPAGE

REVEAL

SUBTITLE

Replacement

remote control

Our Sky/Sky+ Remote controls Wall Mounts

blank.pdf 22. 7. 2009 12:49:15

last.pdf 22. 7. 2009 13:46:37

TESCO Stores Ltd, Cheshunt, EN8 9SL, UK.

Technika 32-250 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
