Technika 32-2011 User Manual

OPERATING INSTRUCTIONS

32-2011

COLOUR TELEVISION WITH REMOTE CONTROL

For assistance, please call our Tesco Electrical Helpline on 0845 4566767

Contents

Accessories ............................................................ 2

Features ................................................................. 2

Introduction ............................................................. 2

Preparation ............................................................. 2

Safety Precautions ................................................. 2

Power Source ..................................................... 2

Power Cord ......................................................... 2

Moisture and Water ............................................ 2

Cleaning.............................................................. 3

Heat and Flames ................................................ 3

Lightning ............................................................. 3

Replacement Parts ............................................. 3

Servicing ............................................................. 3

Waste Disposal ................................................... 3

Information for Users in European Union

Countries ............................................................ 3

Disconnecting the Device ................................... 3

Headphone Volume ............................................ 3

Installation........................................................... 3

LCD Screen ........................................................ 3

Warning .............................................................. 3

Connection to a Television Distribution System

(Cable TV etc.) from Tuner ................................. 3

Environmental Information ..................................... 4

Repair Information .............................................. 4

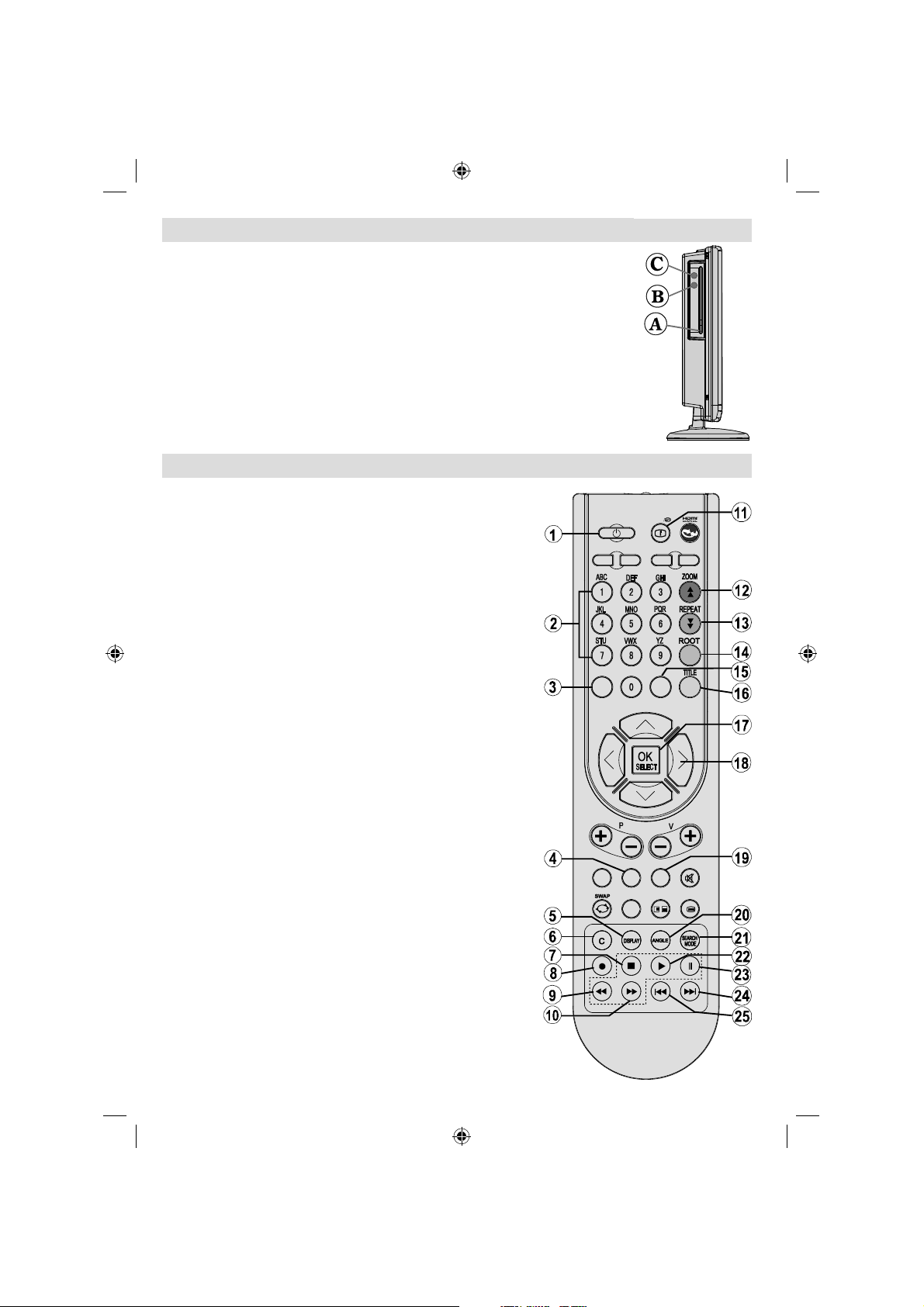

Overview of the Remote Control ............................ 5

LCD TV and Operating Buttons .............................. 6

Viewing the Connections- Back Connectors .......... 6

Viewing the Connections - Side Connectors .......... 7

Power Connection .................................................. 7

Aerial Connection ................................................... 7

Connecting the LCD TV to a PC ............................. 8

Connecting to a DVD Player................................... 8

Using Side AV Connectors ..................................... 9

Connecting Other Equipment via Scart .................. 9

Inserting Batteries into the Remote Control

Handset ................................................................. 9

Switching the TV On/Off ......................................... 9

To Switch the TV On ........................................... 9

To Switch the TV Off ........................................... 9

Input Selection ...................................................... 10

Basic Operations .................................................. 10

Operation with the Buttons on the TV ............... 10

Initial Settings ....................................................... 10

General Operation .................................................11

Electronic Programme Guide (EPG) .....................11

Displaying Subtitles ...........................................11

Digital Teletext (** for UK only) ......................... 12

Analogue Teletext ............................................. 12

Widescreen ....................................................... 12

IDTV Menu System .............................................. 12

Channel List ...................................................... 12

Timers ............................................................... 14

Conditional Access ........................................... 14

TV Setup ........................................................... 14

Setup ................................................................ 15

Analogue TV Menu System .................................. 18

Picture Menu..................................................... 18

Sound Menu ..................................................... 19

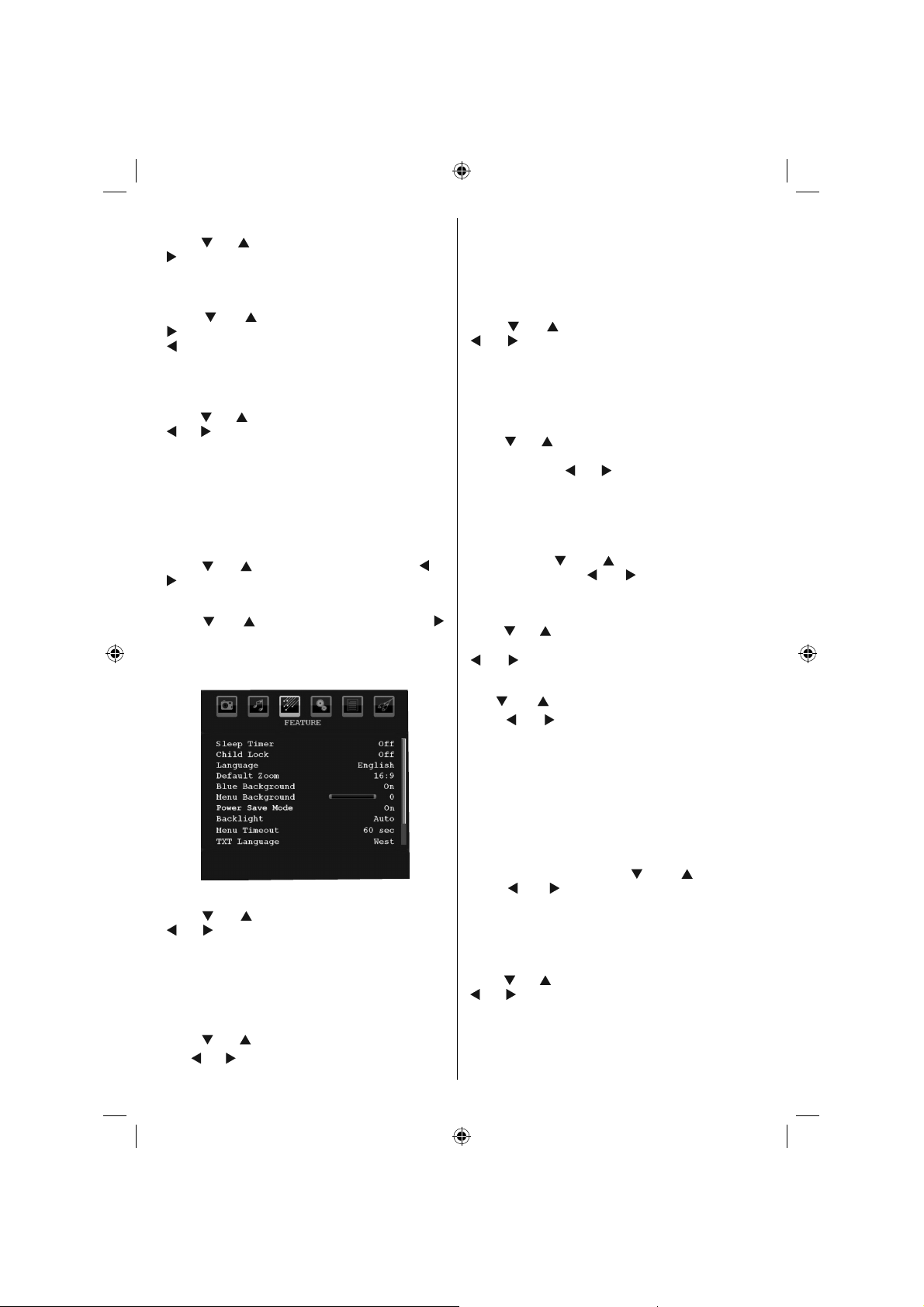

Feature Menu ................................................... 20

Install Menu ...................................................... 21

Source Menu .................................................... 22

PC Mode Menu System........................................ 23

PC Position Menu ............................................. 23

Displaying TV Information .................................... 23

Mute Function ....................................................... 23

Picture Mode Selection......................................... 23

Freezing Picture ................................................... 23

Zoom Modes......................................................... 24

Auto .................................................................. 24

16:9 ................................................................... 24

4:3 ..................................................................... 24

Panoramic......................................................... 24

14:9 ................................................................... 24

Cinema ............................................................. 24

Subtitle .............................................................. 24

Zoom................................................................. 24

Teletext ................................................................. 25

Tips ....................................................................... 25

Image Persistence ............................................ 25

No Power .......................................................... 25

Poor Picture ...................................................... 25

No Picture ......................................................... 25

Sound ............................................................... 25

Remote Control................................................. 25

Input Sources.................................................... 25

Appendix A: PC Input Typical Display Modes ....... 26

Appendix B: AV and HDMI Signal Compatibility

(Input Signal Types) .............................................. 27

Specifi cations ....................................................... 28

Important Instruction ............................................. 29

English - 1 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 100_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 1 18.08.2010 09:13:4918.08.2010 09:13:49

Accessories

INFO

SLEEP

PRESETS

SOURCE

SCREEN

RETURN

MENU

Batteries: 2 X AAA

SUBTITLE

LANG.

FAV

EPG

/

Instruction Book

Remote

Controller

Features

• Remote controlled colour LCD TV.

• Fully integrated digital TV (DVB-T).

• HDMI connectors for digital video and audio. This
connection is also designed to accept high defi nition
signals.

•

200 programmes from VHF, UHF(analogue).

500 programmes for digital mode (IDTV).

•

• On Screen Display (OSD) menu system.

• Scart socket for external devices (such as video,

video games, audio set, etc.).

• Stereo sound syste

• Teletext, fastext, TOP text.

• Headphone connection.

• Automatic programming system.

• Forward or backward manual tuning.

• Sleep timer.

• Child lock.

• Automatic sound mute when no transmission.

• NTSC playback.

• AVL (Automatic Volume Limiting).

• When no valid signal is detected, after 5 minutes the

TV switches automatically to standby mode.

• PLL (Frequency Search).

• PC input.

• Plug&Play for Windows 98,ME,2000,XP, Vista.

• Game Mode.

m.

English - 2 -

Introduction

Thank you for choosing this product. This manual will
guide you for the proper operation of your
TV. Before operating the TV, please read
this manual thoroughly.

Please do keep this manual in a safe place
for future references.

Preparation

For ventilation, leave a free space of at least 10 cm
all around the set. To prevent any fault and unsafe
situations, please do not place any objects on top
of the set.

Use this device in moderate climates.

10 cm

10 cm

10 cm

Safety Precautions

Please read the following recommended
safety precautions carefully for your
safety.

Power Source

The TV set should be operated only from a 220-240
V AC, 50 Hz outlet. Ensure that you select the correct
voltage setting for your convenience.

Power Cord

Do not place the set, a piece of furniture, etc. on the
power cord (mains lead) or pinch the cord. Handle the
power cord by the plug. Do not unplug the appliance
by pulling from the power cord and never touch the
power cord with wet hands as this could cause a short
circuit or electric shock. Never make a knot in the cord
or tie it with other cords. The power cords should be
placed in such a way that they are not likely to be
stepped on. A damaged power cord can cause fi re or
give you an electric shock. When it is damaged and
needs to be replaced, it should be done by qualifi ed
personnel.

Moisture and Water

Do not use this device in a humid and
damp place (avoid the bathroom, the
sink in the kitchen, and near the washing
machine). Do not expose this device to
rain or water, as this may be dangerous
and do not place objects fi lled with liquids,
such as fl ower vases, on top. Avoid from
dripping or splashing.

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 200_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 2 18.08.2010 09:13:5018.08.2010 09:13:50

If any solid object or liquid falls into the cabinet, unplug
the TV and have it checked by qualifi ed personnel
before operating it any further.

Cleaning

Before cleaning, unplug the TV set
from the wall outlet. Do not use liquid or
aerosol cleaners. Use soft and dry cloth.

Ventilation

The slots and openings on the TV set are intended for
ventilation and to ensure reliable operation. To prevent
overheating, these openings must not be blocked or
covered in anyway.

Heat and Flames

The set should not be placed near to open
fl ames and sources of intense heat such
as an electric heater. Ensure that no open
fl ame sources, such as lighted candles,
are placed on top of the TV. Batteries
should not be exposed to excessive heat
such as sunshine, fi re or the like.

Lightning

In case of storm and lightning or when
going on holiday, disconnect the power
cord from the wall outlet.

Replacement Parts

When replacement parts are required, make sure that
the service technician has used replacement parts,
which are specifi ed by the manufacturer or have the
same specifi cations as the original one. Unauthorized
substitutions may result in fi re, electrical shock or
other hazards.

Servicing

Please refer all servicing to qualified
personnel. Do not remove the cover
yourself as this may result in an electric
shock.

Waste Disposal

Instructions for waste disposal:

• Packaging and packaging aids are recyclable and

should principally be recycled. Packaging materials,
such as foil bag, must be kept away from children.

• Batteries, including those which are heavy metal-

free, should not be disposed of with household
waste. Please dispose of used battery in an
environment friendly manner. Find out about the
legal regulations which apply in your area.

• Cold cathode fluorescent lamp in LCD PANEL

contains a small amount of mercury; please follow
the local laws or regulations for disposal.

Information for Users in European
Union Countries

This symbol on the product or on its
packaging means that your electrical
and electronic device should be
disposed at the end of its service life
separately from your household wastes.
There are separate collection systems
for recycling in EU.

For more information, please contact
the local authority or the dealer where you purchased
the product.

Disconnecting the Device

The mains plug is used to disconnect TV set from the
mains and therefore it must remain readily operable.

Headphone Volume

Excessive sound pressure from earphones
and headphones can cause hearing loss.

Installation

To prevent injury, this device must be securely
attached to the wall in accordance with the installation
instructions when mounted to the wall (if the option
is available).

LCD Screen

The LCD panel is a very high technology product with
about a million thin fi lm transistors, giving you fi ne
picture details. Occasionally, a few non-active pixels
may appear on the screen as a fi xed blue, green or
red point. Please note that this does not affect the
performance of your product.

Warning

Do not leave your TV in standby or operating mode
when you leave your house.

Connection to a Television Distribution
System (Cable TV etc.) from Tuner

Device connected to the protective earthing of the building
installation through the mains connection or through other
apparatus with a connection to protective earthing-and to
a television distribution system using coaxial cable, may
in some circumstances create a fi re hazard.

Connection to a cable distribution system has
therefore to be provided through a device providing
electrical isolation below a certain frequency range
(galvanic isolator, see EN 60728-11).

English - 3 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 300_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 3 18.08.2010 09:13:5118.08.2010 09:13:51

Environmental Information

• This television is designed to consume less energy to save environment.

You not only help to save the environment but also you can save money by reducing electricity bills thanks to the
energy effi ciency feauture of this TV. To reduce energy consumption, you should take the following steps:

• You can use Power Save Mode setting, located in the Feature menu. If you set Power Save Mode as On,

the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level.
Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

• When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce

energy consumption.

• Disconnect power when going away for longer time.

• Note that annually, using the TV set in Power Save Mode has more power effi ciency than disconnecting

the TV from the mains plug instead of keeping stand-by mode. Therefore disconnect the TV from the mains
plug to save energy when you do not use. However it is highly recommended to activate Power Save Mode
setting to reduce your annual power consumption.

• Please helps us to save environment by following these steps.

Repair Information

Please refer all servicing to qualifi ed personnel. Only qualifi ed personnel must repair the TV. Please contact
your local dealer, where you have purchased this TV for further information.

English - 4 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 400_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 4 18.08.2010 09:13:5118.08.2010 09:13:51

Overview of the Remote Control

Standby1.

Image size2.

Sleep timer3.

Numeric buttons4.

Return / Exit / TXT Index5.

Cursor up / TXT up page6.

Cursor left 7.

Programme up / Page down (in DTV mode)8.

Programme down / Page up (in DTV mode)9.

Mono-Stereo / Dual I-II10.

Swap11.

Electronic programme guide (in DTV mode)12.

Info / TXT reveal13.

Picture mode selection14.

Source selection15.

Red / Sound 16.

Green / Picture 17.

Yellow / Feature / Current language (in DTV 18.
mode) (*)

Menu19.

Blue / Install 20.

OK / Select / Freeze Picture (analogue TV 21.
mode) / Hold (in TXT mode) / Channel List
(DTV mode)

Cursor right / TXT Subpage22.

Cursor down / TXT Downpage23.

Volume up24.

Volume down 25.

Mute26.

Teletext / Mix / PAT mode 27.

Subtitle (in DTV mode) / TXT Subtitle (analague 28.
TV mode)

FAV (*) (Favourite Selection)(in DTV mode)29.

Media Player buttons30.

29

SLEEP

RETURN

FAV

SCREEN

LANG.

EPG

INFO

SOURCE

MENU

SUBTITLE

/

PRESETS

28

30

(*) Only available for EU country options.
Note: Buttons that are not indicated with a
number on the remote control illustration are
not functional in TV mode.
Remote range is approximately 7m/23ft

English - 5 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 500_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 5 18.08.2010 09:13:5118.08.2010 09:13:51

LCD TV and Operating Buttons

FRONT and REAR VIEW SIDE VIEW Control Buttons

Standby button1.

TV/AV button2.

Programme Up/Down 3.
buttons

Volume Up/Down buttons4.

Note: Press “

” /“ ”
buttons at the same time to view
main menu.

Viewing the Connections- Back Connectors

SCART socket inputs or outputs for external devices.1.
Connect the SCART cable between SCART socket on TV and SCART
socket on your external device (such as a decoder, a VCR or a DVD
player).

Note: If an external device is connected via the SCART socket, the TV
will automatically switch to AV mode.

SPDIF

Coax.OUT

PC Input is for connecting a personal computer to the TV set. 2.
Connect the PC cable between the PC INPUT on the TV and the PC
output on your PC. Please do not connect a device to YPbPr socket
while using PC input.

SPDIF Coaxial Out3. outputs digital audio signals of the currently watched source.

RF Input connects to an antenna or a cable.4.
Note that if you use a decoder or a media recorder, you should connect the aerial cable through the
device to the television with an appropriate antenna cable, as shown in the illustration in the following
pages.

HDMI5. 2: HDMI input

HDMI6. 1: HDMI input

HDMI Input is for connecting a device that has an HDMI socket.
Your LCD Television is capable of displaying High Defi nition pictures from devices such as a High
Defi nition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or
Component Socket. These sockets can accept either 480i, 480p, 576p, 576i, 720p signals. No sound
connection is needed for an HDMI to HDMI connection.

HDMI 1

HDMI 2

VGA

SCART

When you use the wall mount kit (optional) with the LCD TV, we would defi nitely recommend to plug all your cables into the
back of the LCD before mounting to the wall.

English - 6 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 600_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 6 18.08.2010 09:13:5218.08.2010 09:13:52

Viewing the Connections - Side Connectors

CI Slot is used for inserting a CI card. A CI card allows you to view all the 1.
channels that you subscribe to. For more information, see “Conditional
Access” section.

Component Video Inputs (YPbPr)2. are used for connecting component
video.You can connect the component video and audio sockets with a device
that has component output. Connect the component video cables between
the COMPONENT VIDEO INPUTS on on the TV and the component video
outputs of your device. While connecting, be sure that the letters on your TV,
“ Y ”, “ Pb ”, “ Pr ” correspond with your device’s connectors.

IMPORTANT:Please do not connect a device to PC socket while using
YPbPr input.

Video Input is used for connecting video signals of external devices.Connect 3.
the video cable between the VIDEO IN socket on the TV and the VIDEO
OUT jack on your device.

Audio Inputs are used for connecting audio signals of external devices. 4.
Connect the audio cable between the AUDIO INPUTS on the TV and the
AUDIO OUTPUT jacks on your device.
Also to enable PC/YPbPr sound connection in such a case, use an
appropriate audio cable between the connected device’s audio outputs and
the TV’s audio inputs

Note: If you connect a device to the TV via the VIDEO or PC/YPbPr cable you should also connect
your device with an audio cable to the AUDIO INPUTS of the TV to enable audio.

Headphone jack is used for connecting an external headphone to the system. Connect to the 5.
HEADPHONE jack to listen to the TV from headphones.

Power Connection

IMPORTANT : The TV set is designed to operate on 220-240V AC, 50 Hz.

• After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the
mains.

• Plug the power cable to the mains socket outlet.

Aerial Connection

• Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.

HDMI 1

HDMI 2

VGA

SPDIF

Coax.OUT

SCART

English - 7 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 700_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 7 18.08.2010 09:13:5318.08.2010 09:13:53

Connecting the LCD TV to a
PC

For displaying your computer’s screen image on
your LCD TV, you can connect your computer to the
TV set.

• Power off both computer and display before making
any connections.

• Use 15-pin D-sub display cable to connect a PC
to the LCD TV.Use an audio cable between audio
inputs of the TV (side) and audio output of your PC
to enable sound connection.

• When the connection is made, switch to PC source.
See “Input selection” section.

• Set the resolution that suits your viewing requirements.
Resolution information can be found in the appendix

parts.

HDMI 1

HDMI 2

VGA

SPDIF

Coax.OUT

SCART

Connecting to a DVD Player

If you want to connect a DVD player to your LCD
TV, you can use connectors of the TV set. DVD
players may have different connectors. Please refer
to your DVD player’s instruction book for additional
information. Power off both the TV and the device
before making any connections.

Note: Cables shown in the illustration are not supplied.

• If your DVD player has an HDMI socket, you can
connect via HDMI. When you connect to DVD player
as illustrated below, switch to HDMI source. See,
“Input Selection” section.

• Most DVD players are connected through
COMPONENT SOCKETS. Use a component
video cable to connect video input. To enable sound
connection, use AUDIO IN located side of the TV
(YPbPr cable is not supplied).

• When the connection is made, switch to YPbPr
source. See, “Input selection” section.

• You may also connect through the SCART socket.
Use a SCART cable as shown below.

PC audio cable

(not supplied)

to AUDIO INPUTS

on the TV

Audio
Inputs

PC Input

PC RGB cable
(not supplied)
to PC input

Note : These methods of connection perform the same
function but in different levels of quality. It is not necessary

to connect by all three methods.

English - 8 -

Scart socket

YPbPr to PC

cable (optional)

Component

audio
inputs

DVD Player

HDMI
input

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 800_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 8 18.08.2010 09:13:5418.08.2010 09:13:54

Using Side AV Connectors

SCART socket

Decoder

DVD Recorder

Video Recorder

You can connect a range of optional equipment
to your LCD TV. Possible connections are shown
below. Note that cables shown in the illustration are
not supplied.

• For connecting a camcorder, connect to the VIDEO
IN socket and the AUDIO SOCKETS. For selecting
the related source, see the section “Input selection”
in the following parts.

• To listen the TV sound from headphones, connect
to the HEADPHONE jack of theTV .

Headphone

Camcorder

Connecting Other Equipment
via Scart

Most devices support SCART connection. You can
connect a; DVD recorder, a VCR or a decoder to
your LCD TV by using the SCART socket. Note that
cables shown in the illustration are not supplied.
Power off both the TV and the devices before making
any connections.

For more information, refer to your device’s own
instruction book.

Inserting Batteries into the
Remote Control Handset

• Remove the battery cover located on the back of
the handset by gently pulling backwards from the
indicated part.

• Insert two AAA/R3 or equivalent type batteries
inside. Please ensure the correct polarity is observed
and replace the battery cover.

Note : Remove the battery from remote control handset when
it is not to be used for a long period. Otherwise it can be
damaged due to any leakage of batteries.

Switching the TV On/Off

To Switch the TV On

• Connect the power cord to the 220-240V AC 50
Hz.

• Press STANDBY switch. Then the standby LED
lights up.

• To switch on the TV from standby mode either:

• Press the “
on the remote control.

• Press the -P/CH or P/CH+ button on the TV. The TV
will then switch on.

Note: If you switch on your TV via standby button on the
remote control, the programme/source that you were watching
last will be reselected.

By either method the TV will switch on.

To Switch the TV Off

• Press the “ ” button on the remote control or
press the STANDBY switch, so the TV will switch
to standby mode.

• To power down the TV completely, unplug the
power cord from the mains socket.

Note: When the TV is switched to standby mode,
standby LED can blink to indicate that features such
as Standby Search, Over Air Download or Timer is
active.

” button, P+ / P- or a numeric button

English - 9 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 900_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 9 18.08.2010 09:13:5418.08.2010 09:13:54

Input Selection

Once you have connected external systems to your TV,
you can switch to different input sources.

• Press “SOURCE” button on your remote control for
directly changing sources.

or

• Select “Source” option from the main menu by
using “
“ ” button to highlight an input and press “ ” button
to select.

Note : You can mark desired source options by pressing the
OK button. Therefore, when

only the marked source options will be available (except for
the TV source).

” or “ ” button. Use then “ ” or

“SOURCE” button is pressed,

Basic Operations

You can operate your TV using both the remote
control and onset buttons.

Operation with the Buttons on the TV

Volume Setting

• Press “ ” button to decrease volume or
button to increase volume, so a volume level scale (slider)
will be displayed on the screen.

Programme Selection

• Press “ P/CH + ” button to select the next programme or “ P/
CH - ” button to select the previous programme.

Viewing Main Menu

•Press “ ”/ “ ” buttons at the same time to view
main menu. In the Main menu select sub-menu using “ P/

CH - ” or “ P/CH + ” buttons and enter the sub-menu using
“

” or “ ” buttons. To learn the usage of the

menus, refer to the menu system sections.

AV Mode

• Press the “ TV/AV ” button in the control panel on the TV
to switch between AV modes.

Operation with the Remote Control

• The remote control of your TV is designed to control all
the functions of the model you selected. The functions
will be described in accordance with the menu system
of your TV.

English - 10 -

• Functions of the menu system are described in the
following sections.

Volume Setting

• Press “V+” button to increase the volume. Press “V-”
button to decrease the volume. A volume level scale
(slider) will be displayed on the screen.

Programme Selection (Previous or Next
Programme)

• Press “ P - ” button to select the previous programme.

• Press “ P + ” button to select the next programme.

Programme Selection (Direct Access)

• Press numeric buttons on the remote control to select
programmes between 0 and 9. The TV will switch
to the selected programme. To select programmes
between 10-500 (for IDTV) or 10-199 (for analogue),
press the numeric buttons consecutively

• Press directly the programme number to reselect
single digit programmes.

Initial Settings

When the TV is turned on for the fi rst time, the menu
for the language selection appears on the screen. The
message “Welcome please select your language!” is
displayed in all language options sequentially in the On
Screen Display (OSD).

By pressing the “
you want to set and press OK button. After then, “First
time installation” On Screen Display (OSD) will appear
on the screen. By pressing “ ” or “ ” buttons, select
the country you want to set and press OK button (* for
EU countries).

Note: Country selection On Screen Display (OSD) will not be available
for UK.

Press OK button on the remote control to continue and the
following message will be displayed on the screen:

• To select the “Yes” or “No” option, highlight the item by
using “ ” or “ ” buttons and press the “OK” button.

The IDTV will automatically tune to the UHF or VHF(*)
(* for EU countries) transmission channels, searching
for digital terrestrial TV broadcasts and displaying the
names of channels found. This process will take about
a few minutes.

” or “ ” buttons highlight the language

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 1000_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 10 18.08.2010 09:13:5518.08.2010 09:13:55

After Automatic Search is completed, the following
message asking for analogue channel search appears
on the screen:

To search for analogue channels, select “Yes”. TV
switches to the analogue TV mode. The menu is
displayed to search for analogue channels.

Select your Country, Language and Text language by
using “
RED button to continue. To cancel, press the BLUE
button.

For more information on this process, see “Install Menu”
section.

Note : For proper functioning of digital teletext in DTV mode, you
should set country as UK in analogue AUTO PROGRAMME (for
UK broadcasts only).

Do not turn off the TV while initializing fi rst time installation.

” or “ ” and “ ” or “ ” buttons. Press OK or

General Operation

Press the “SOURCE” button on the remote control
and select DTV to switch the TV set to digital terrestrial
television broadcasting.

Information Banner

• Whenever you change channel, using the P- / P+ button
or the numeric buttons, the TV displays the broadcast
picture along with an information banner at the bottom
of the screen (available only in DTV mode). This will
remain on the screen for a few seconds.

• The information banner can also be displayed at any
time while watching TV by pressing the “INFO” button
on the remote control:

If the selected channel is locked, you must enter the
correct four numeric code to view the channel. “Enter
PIN” will be displayed on the screen in such a case:

Electronic Programme Guide (EPG)

• Some, but not all, channels send information about
the current and next events. Press EPG button
to view the EPG menu. EPG appears on the
screen. It is able to get Information of the channel

- programmes weekly by means of 7-DAY-EPG.
All programmes of channels are displayed. On
the bottom of the screen; info bar, showing all the
available commands, will be displayed.

RED button (Shrink) : makes the info boxes smaller.

GREEN button (Expand) : makes the info boxes larger.

YELLOW button (Prev. Day) : displays the programmes
of previous day.

BLUE button (Next day) : displays the programmes of
the next day.

INFO (Details): displays the programmes in detail.

Numeric buttons (Jump) : go to preferred channel
directly via numeric buttons.

OK : view for current broadcast/reminders for future
programmes.

SWAP : jumps to the current broadcast.

• Press “0” button on the remote control to view Guide
Search menu. Using this feature, you can search the
programme guide database in accordance with the
genre selected or with name match.

Displaying Subtitles

With digital terrestrial broadcasting (DVB-T), some
programmes are being broadcasted with subtitles.

Press the “ M ENU” button to display the main menu,
highlight the Setup and then Language menu using “

” or “ ” button and press the OK button to display the

“Language settings” menu.

Highlight the “Subtitle” item in “Language settings”
menu and use
desired language.

If “Subtitle” is on and a language option is set, pressing

” button causes the following warning message

the “
display on the screen (** for UK only):

” or “ button to set Subtitle to the

English - 11 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 1100_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 11 18.08.2010 09:13:5518.08.2010 09:13:55

Digital Teletext (** for UK only)

• Press the “ ” button.

• The digital teletext information appears.

• Operate it with the coloured buttons, cursor buttons
and OK button.

The operation method may differ depending on the
contents of the digital teletext.

Follow the instructions displayed on digital teletext
screen.

• When Press “SELECT” button or similar message
appears on the screen, press the OK button.

• When the “
television broadcasting.

• With digital terrestrial broadcasting (DVB-T), in
addition to digital teletext broadcasting together with
the normal broadcasting, there are also channels
with just digital teletext broadcasting.

• The aspect ratio (picture shape) when watching
a channel with just digital teletext broadcasting is
the same as the aspect ratio of the picture viewed
previously.

• When you press the “
teletext screen will be displayed.

” button is pressed, the TV returns to

” button again, the digital

Analogue Teletext

Use of teletext and its functions are identical to
the analogue text system. Please do refer to the
“TELETEXT” explanations.

Widescreen

Depending on the type of the broadcast being
transmitted, programmes can be viewed in a number
of formats. Press the “SCREEN” button repeatedly to
change screen format.

When Auto is selected, the format being displayed is
determined by the picture being broadcasted.

PLEASE NOTE : Menu size changes depending on the
chosen image size.

Notice !

AC3 audio type is not supported. In this case, Tv
sound will be muted. If the broadcast includes AC3
stream, the following warning message will be
displayed on the screen:

If there is no audio available, the following warning
message will be displayed on the screen:.

IDTV Menu System

Press the “ M ” button. Main menu will be displayed.

Channel List

Using the “ ” or “ ” button on the remote control, make
sure that the fi rst item, Channel List, is highlighted and
press the “OK” button to display the Channel List.

Navigating the Entire Channel List

Press “ ” or “ ” button for selecting the previous or next
channel. You can press “RED” or “GREEN” button to
move page up or page down.

To watch a specifi c channel, highlight it using “
” button and then press “ OK ” button, while the “Select”
item on Channel List menu is highlighted by using “
” or “ ” button.

Then the name and number of the selected channel will
be displayed in the top-left and top-right of the channel
display at the top-right of the screen, respectively.

Moving the channels in the channel list

• Press “ ” or “ ” buttons to select the channel that
will be moved.

• Press “

Following On Screen Display (OSD) will be displayed
next to “ OK ” item to indicate that enter a number by
using the numeric buttons on the remote control and
press “ OK ” to confi rm.

” or “ ” buttons to select the “ Move ” item on

Channel List menu.

” or “

English - 12 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 1200_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 12 18.08.2010 09:13:5518.08.2010 09:13:55

Note: If you enter the same programme number of the channel

that you want to move, “.... channel services will be replaced.

Do you want to continue?” On Screen Display (OSD) will be
displayed. Press OK to confi rm or select “No” to cancel.

Deleting the Channels in the Channel List

• Press “ ” or “ ” button to select the channel that
will be deleted.

• Press “
on Channel List menu.

• Press the “ OK ” button to delete the highlighted
channel in the channel list. Then the message below
appears on the screen:

” or “ ” button to select the “Delete’’ item

Now pressing “ ” or “ ” button moves to the previous/
next character. Pressing “ ” or “ ” button toggles
the current character, i.e., ‘b’ character becomes ‘a’
by “ ” and ‘c’ by “ ”. Pressing the numeric buttons
‘0...9’ replaces the highlighted character with the
characters printed above the button one by one as
the button is pressed.

Press the “MENU” button to cancel the editing or OK
button to save the new name.

Adding Locks to Channels

Channel locking provides a password-protected
access to channels selected by parents. In order to
lock a channel you should know the parental lock
password (default value is set to 0000 in the factory
and can only be changed from the Confi guration
menu).

Select the channel to be locked by highlighting it
and select the Lock option by pressing “
button. When the “OK” button is pressed, a dialog
On Screen Display (OSD) asking for the password
will be displayed.

” or “ ”

• Press “ ” or “ ” button to highlight the desired
option. If “ OK ” button is pressed while “ Yes ” is
highlighted, the highlighted channel is deleted.
Selecting “ No ” cancels the deletion.

Renaming Channels

To rename a specifi c channel, the channel must
be highlighted by pressing “ ” or “ ” button. Then
highlight the Edit Name item by pressing “ ” or “ ”
button as illustrated below. Press the “OK” button to
activate the rename feature.

Enter the password by using the numeric buttons on

the remote control. The lock icon “ ” will now be
displayed next to the selected channel. Repeat the
same operation to cancel the lock.

Setting Favourites

To set a favourite you should highlight the “Favourites”
item at the bottom of the Channel List menu. Then
press “OK” button and Edit Favourite List menu
appears on the screen.

English - 13 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 1300_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 13 18.08.2010 09:13:5618.08.2010 09:13:56

How to Add a Channel to a Favourites List

• By pressing “ ” or “ ” buttons, highlight the channel
that you want to add to the favourite list.

• By pressing “OK” button, the highlighted channel is
added to the Favourite List.

• F icon indicates that a channel is added to Favourite
List.

Removing a Channel from Favourite List

• Highlight the channel that you want to remove from
the favourite list and press OK button to remove.You
can press “OK” button again to re-add a channel.

• To activate Favourites, go to the Confi guration menu
and select Favourite mode. Use “
Favourite mode as on. To cancel Favourites, set
Favourite Mode to Off.

On Screen Help

For all menus, press the INFO button to display the
help information about the menu functions.

” / “ ” to set

Programme Guide

This section is same with the instructions given in
the General Operations page. Please see Electronic
Programme Guide (EPG) section in the General
Operations part.

Timers

To display timers window, activate the item from the
main menu. To add a timer, press the YELLOW button
on the remote control. Then “Add Timer” window
appears.

Channel : “
through the TV or Radio list.

Date : Starting date is entered via the Left/Right or the
numeric buttons.

Start : Starting time is entered via the Left/Right or
the numeric buttons.

End : Ending time is entered via the Left/Right or the
numeric buttons.

” or “ ” keys will navigate the user

Change/Delete : permits or prohibits any modifi cations
for other users.

Duration: Duration between Start and End time.

Repeat: You can set a timer to be repeated as Once,

Daily or Weekly.

You can save the adjustments by pressing the GREEN
key or cancel the process by pressing the RED button.
You can edit the list via GREEN key and delete with
the RED button.

Conditional Access

• Press the “ MENU ” button to display the main menu and
use the “ ” or “ ” button to highlight the “Conditional
Access” line and press the “ OK ” button:

Some Digital Terrestrial channels operate on a Pay
Per View basis. These require a subscription and a
hardware decoder.

Obtain the Conditional Access Module (CAM) and the
viewing card by subscribing to a pay channel company,
then insert those to the TV using the following procedure.

• Switch off the TV and unplug from the mains.

• The CAM should be correctly inserted, it is impossible
to insert fully if reversed. The CAM or the TV terminal
may be damaged if the CAM is forcefully inserted.

• Connect the TV to the mains supply, switch on and then
wait for few moments until the card is activated.

• Some CAMs may require the following set up. Please
set the CAM by entering the IDTV menu, Conditional
Access then pressing the “OK” button. (CAM set up
menu is not displayed when it is not required.)

• To see the viewing contract information: enter IDTV;
press the “ M ENU” button, then highlight Conditional
Access and press the “ OK ” button.

• When no module is inserted, “No Conditional Access
module detected” message appears on the screen.

• Refer to the module instruction manual for details of
the settings.

Note: Insert or remove the CI module only when the TV is
switched off or in standby mode.

TV Setup

You can use this item to display the TV functions.

The digital TV Setup menu screen is accessed from
the main menu. Press the “ MENU ” button to display
the main menu and use “
“TV Setup”, press the “ OK ” button to display TV Setup
menu screen.

You can fi nd detailed information for all menu items in
“Analogue TV Menu System” section.

” or “ ” button to highlight

English - 14 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 1400_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 14 18.08.2010 09:13:5618.08.2010 09:13:56

Setup

This feature helps to keep your TV updated. It works
automatically and searches for new information
when available. Note that this setting is inactive to be
modifi ed

The adjustments in this menu are given as the following:

Confi guration

You can confi gure the settings of your TV. Select
Confi guration from Setup menu and press “ OK ” to
view this menu. Press the “RETURN” button on the
remote control to exit.

Dolby D Digital (* for EU countries only)
(optional)

In the Configuration Menu, highlight the Dolby D
item by pressing “ ” or “ ” buttons. Use the “ ” or
“ ” buttons to set the Dolby D Digital as On or Off.
If the channel that you are watching supports Dolby
Digital,you can turn this setting on.

Hard of Hearing (* for EU countries only)

Use “ ” or “ ” button to select Hard of Hearing and
then press “ ” or “ ” button to set this setting as
On or Off.

If the broadcaster enables any special signal
concerning the audio, you can set this setting as On
to receive such signals.

Favourite Mode

Use this function to enable or disable favourite
mode. Press “ ” / “ ” button to set this function as
on or off.

Channel List

Use “ ” or “ ” buttons to go to Channel List option.
Use “ ” or “ ” buttons to toggle Channel List Mode.
If you select “TV Only”, with the “ ” or “ ” buttons,
you navigate through only TV channels. If you select
“Radio Only”, with the “ ” or “ ” buttons, you navigate
through only radio channels. If you select “Text Only”,
with the “ ” or “ ” buttons, you navigate through only
text channels.

English - 15 -

Scan Encrypted

Scan Encrypted Channel feature will always be ON
after performing first time installation. When this
setting is on, search process will locate the encrypted
channels as well. If it is set as OFF manually, encrypted
channels will not be located while in automatic search
or manual search.

Use “

” or “ ” button to select Scan Encrypted and
then press “
On or Off.

” or “ ” button to set this setting as

Receiver Upgrade

Over Air Download (OAD)

This feature helps to keep your TV updated. It works
automatically and searches for new information
when available. Note that this setting is inactive to be
modifi ed.. Please ensure that the TV is set to standby
mode. The TV automatically powers up at 3.00 A.M.
each day and searches for any new information which
may be broadcasted and will download this to your
receiver automatically. This operation will normally
take approximately 30 minutes.

Note: Your TV may start in First Time Installation mode after
OAD update.

Parental Control

Use “ ” or “ ” buttons to go to Parental Lock option.
Press OK button to enter the menu. A dialog box
asking for the lock key will be displayed. The key
is set to “0000” initially. Enter PIN. If it is incorrect,
“Wrong Pin” On Screen Display (OSD) will be
displayed. If it is correct, the Parental Control menu
will be displayed:

Maturity Lock (*)

(*) If you set Country option as UK in the fi rst time
installation, Maturity Lock option will not be visible.
This setting is available only for EU countries.

When set, this option gets the maturity information
from the broadcast and if this maturity level is disabled,
does not show video-audio.

Menu Lock

In menu lock you can set locking for all menus, or the
Installation Menu to restrict access to these menus.
If the menu lock is disabled, there will be free access
to the menu system. Use “ ” or “ ” buttons to go to
Menu Lock option. Use “ ” or “ ” buttons to choose
Menu Lock Mode.

DISABLED : All menus are unlocked.

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 1500_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 15 18.08.2010 09:13:5718.08.2010 09:13:57

ALL MENUS : All Menus are accessible only with
the correct lock key. So the user cannot add, delete,
rename, channels, cannot set timers.

INSTALLATION MENU : Installation menu is locked.
So the user can’t add channels. Changes will be
updated after exiting ‘Confi guration Menu’.

Set PIN

Use “ ” or “ ” buttons to go to “Set PIN” option.
Press “OK” to display the “Set PIN” window. Use
numeric buttons to enter new pin number you will need
to input your new pin a second time for verifi cation
purposes.The factory default pin number is 0000, if
you change the pin number make sure you write it
down and keep it safe.

Time Settings (Optional)

In the configuration menu, highlight the Time Settings
item by pressing “ ” or “ ” buttons.

Press “OK” and Time Settings sub menu will be

displayed on the screen. Current Time,Time Zone
Setting and Time Zone will be available.

Use “ ” or “ ” buttons to highlight the Time Zone
Setting. Time Zone Setting is set using “ ” or “ ”
buttons. It can be set to AUTO or MANUAL.

When AUTO is selected, Current Time and Time Zone
options will not be available to be set. If MANUAL
option is selected as the Time Zone Setting, Time
Zone can be altered:

• By pressing “

Use “ ” or “ ” buttons to change the Time Zone
between GMT-12 or GMT+12. Current Time on the
top of the menu list will then change according to the
selected Time Zone.

” or “ ” buttons select Time Zone.

Audio Description (Optional)

Audio description refers to an additional narration
track for blind and visually impaired viewers of
visual media, including television and movies. The
description narrator talks through the presentation,
describing what is happening on the screen during the
natural pauses in the audio (and sometimes during
dialogue, if deemed necessary). You can use this
feature, only if the broadcaster supports that additional
narration track. Use “ ” or “ ” buttons to select an
item. Then use “

” or “ ” buttons to set.

Audio Description (Optional)

This function enables or disables the audio description
feature by pressing the “ ” or “ ” buttons.

Preferred Language (Optional)

By pressing the “ ” or “ ” buttons the preferred audio
description language is being changed.

This setting can be used, only if it is available.

Relative Volume (Optional)

Using this option, the Audio Description volume level
can be increased or decreased relatively, according
to the general volume.

Standby Search (optional) (*)

(*) This setting is visible only when the Country option
is set to Denmark, Sweden, Norway or Finland.

” or “ ” button to select Standby Search and

Use “
then press “ ” or “ ” button to set this setting as On or
Off. If you change Standby Search to Off, this function
will be unavailable.

To use Standby search please make sure that

you select Standby Search as On.

Language

In this menu the user can adjust the preferred
language. Language is changed by pressing “OK”
button.

Menu : shows the language of the system

English - 16 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 1600_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 16 18.08.2010 09:13:5718.08.2010 09:13:57

Preferred

These settings will be used if available. Otherwise the
current settings will be used.

• Audio : by pressing “
audio language.

• Subtitle : alter the subtitle language with “ ” or “

” keys. The chosen language will be seen in

subtitles.

Movie Subtitle (optional)

• In order to display subtitles properly, use this setting
to select a movie subtitle language.

• By pressing “
language option.

• Guide : By pressing “ ” or “ ” buttons change the
guide language.

” or “ ” keys change the

” or “ ” button, select the desired

Current

• Audio : if audio language is supported change the
audio language by pressing “ ” or “ ” buttons

• Subtitle : if subtitle is backed up, alter the subtitle
language with “
language will be seen in subtitles.

Note: If the Country option is set to Denmark, Sweden,
Norway or Finland, the Language Settings menu will function
as described below:

” or “ ” buttons. The chosen

Language Settings

Installation

The Installation menu is mainly intended to help you
for creating a Channel Table in the most effi cient way.
Select Installation from the Confi guration menu by
pressing “ ” or “ ” buttons.

This menu includes the following items:

(*) For Denmark, Sweden, Norway or Finland.

Automatic Channel Scan

Automatic channel scan is started by pressing
“OK” button while Automatic channel scan item is
highlighted.

The following message appears on the screen:

Highlight Yes or No by using “ ” or “ ” buttons and
press “OK” button to confi rm.

If Yes is selected, automatic search starts.

Selecting No cancels automatic search.

After search is completed for digital channels, a
message asking whether to search for analogue
channels appears on the screen:

In the confi guration menu, highlight the Language
Settings item by pressing “ ” or “ ” buttons. Press
“OK” and Language Settings submenu will be
displayed on the screen:

” or “ ” buttons to highlight the menu item

Use “
that will be adjusted and then press “ ” or “ ” button
to set.

Notes:

• System Language determines the on-screen menu
language.

• Audio Language is used for selecting the soundtrack
of a channels.

• Primary settings are the first priority when multiple
choices are available on a broadcast. Secondary
settings are the alternatives when the first options
are not available.

Press the “OK” button to search for analogue
channels. The following menu appears on the screen
for analogue channel search:

English - 17 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 1700_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 17 18.08.2010 09:13:5818.08.2010 09:13:58

Select your Country , Language and Text language
by using “ ” or “ ” and “ ” or “ ” buttons. Press
“OK” or RED button to continue. To cancel, press
BLUE button. The following menu will be displayed
during the automatic tuning:

After APS is fi nalized, the programme table will appear
on the screen. In the programme table you will see
the programme numbers and names assigned to the
programmes.

Manual Channel Scan

In manual channel scan, the number of the multiplex is
entered manually and only that multiplex is searched
for the channels. For each valid channel number, signal
level and signal quality are shown on the screen.

In both manual and auto search any existing channel
in the database is not re-stored to avoid redundant
duplicates of that channel.

Clear Service List (*)

(*) This setting is visible only when the Country option
is set to Denmark, Sweden, Norway or Finland.

Use this setting to clear channels stored. Press “
“ ” button to select Clear Service List and then press
OK. The following On Screen Display (OSD) message
will be displayed on the screen:

” or

By selecting Yes and pressing the “OK” button, the
existing channel table will be deleted. After factory
settings are loaded, “First Time Installation” menu
will be displayed.

The menu which is displayed for language selection
appears on the screen at fi rst. By using “
buttons, select the desired language option, and press
OK button to activate.

After then, “First time installation” On Screen Display
(OSD) will appear on the screen. By pressing “
“ ” buttons, select the Country you want to set and
press “OK” button (* only for EU countries).

” or “ ”

” or

Press the “OK” button to start installation. After search
is completed for digital channels, a message asking
whether to search for analogue channels appears
on the screen.This process is same as described in

Automatic Search section. .

Analogue TV Menu System

Picture Menu

Press OK to cancel. Select Yes by pressing “ ” or “ ”
button and press OK to delete all of the channels.

First Time Installation

The user can use this item to load default settings,
which were loaded to the receiver at the factory.

To install factory settings, highlight “First Time
Installation” menu item and press “OK” button,
then you will be asked whether or not to delete the
settings. Selecting “Yes” by pressing “OK” button
while the “Yes” is highlighted will delete the existing
channel table.

Then you will be asked to confi rm for deleting all
channels and settings:

Mode

For your viewing requirements, you can set the related
mode option.

Press “
Press “ ” or “ ” button to choose from one of these
options: Cinema , Dynamic and Natural .

” or “ ” button to select Mode .

Brightness/Contrast/Colour/Sharpness/
Hue

Press “ ” or “ ” button to select the desired option.
Press “ ” or “ ” button to set the level.

English - 18 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 1800_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 18 18.08.2010 09:13:5818.08.2010 09:13:58

Note : Hue option can only be visible when the TV receives
an NTSC signal.

Colour Temp

Press “ ” or “ ” button to select Colour Temp . Press

” or “ ” to choose from one of these options: Cool ,

“
Normal and Warm .

Note :

• Setting Cool option gives white colours a slight blue

stress.

• Setting Warm option gives white colours a slight red

stress.

• For normal colours, select Normal option.

Noise Reduction

If the broadcast signal is weak and the picture is
noisy, use Noise Reduction setting to reduce the
noise amount.

Press “
Press “
Low , Medium , High or Off .

” or “ ” button to select Noise Reduction.

” or “ ” to choose from one of these options:

Game Mode (optional)

Select Game Mode by pressing “ ” or “ ” button.
Use “ ” or “ ” button to set Game Mode as On or
Off . When Game Mode is set to On, specifi c game
mode settings, which are optimized for better video
quality, will be loaded.

Also; Picture Mode, Contrast, Brightness, Sharpness,
Colour and Colour Temp settings will be invisible and
disabled while Game Mode is on.

Note :

Picture mode selection button on the remote control will have
no function while Game Mode is on.

Picture Zoom

Select Picture Zoom by pressing “ ” or “ ” button.

” or “ ” buttons, to change picture zoom to

Use “
Auto , 16:9 , 4:3 , Panoramic , 14:9 , Cinema , Subtitle
or Zoom .

Store

Press “ ” or “ ” button to select Store. Press “ ”
or OK button to store the settings. “ Stored... ” will be
displayed on the screen.

Reset

Press “ ” or “ ” button to select Reset . Press
“ ” or “ ” or OK button to reset the picture modes to
factory default settings.

English - 19 -

Sound Menu

Volume

Press “ ” or “ ” button to select Volume . Press “ ”
or “ ” button to change the level of the Volume.

Equalizer

Press “ ” or “ ” button to select Equalizer . Press
“ ” button to view equalizer menu.

Press “ ” or “ ” button to change the preset. In
equalizer menu, the preset can be changed to Music ,
Movie , Speech , Flat , Classic and User .

Select the desired frequency by pressing “
button and increase or decrease the frequency gain
by pressing “ ” or “ ” button.

Press the “ MENU ” button to return to the previous
menu.

Note : Equalizer menu settings can be changed only when
the Equalizer Mode is in User .

Balance

This setting is used for emphasizing left or right
speaker balance.

Press “
“ ” or “ ” button to change the level of the balance.
Balance level can be adjusted between -32 and +

32.

” or “ ” button to select Balance. Press

” or “ ”

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 1900_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 19 18.08.2010 09:13:5918.08.2010 09:13:59

Headphone

Press “ ” or “ ” button to select Headphone . Press
“ ” button to view the headphone menu.

Headphone sub-menu options are described below:

Volume

Press “ ” or “ ” button to select Volume . Press
“ ” button to increase headphone volume level. Press
“

” button to decrease headphone volume level.
Headphone volume level can be adjusted between
0 and 63 .

Sound Mode

Press “ ” or “ ” button to select Sound Mode . Using
“ ” or “ ” button, you can select Mono, Stereo, Dual I
or Dual II mode, only if the selected channel supports
that mode.

AVL

Automatic Volume Limiting (AVL) function adjusts the
sound to obtain fi xed output level between programmes
(For instance, volume level of advertisements tend to
be louder than programmes).

Press “
“ ” button to set the AVL as On or Off .

” or “ ” button to select AV L . Press “ ” or

Store

Press “ ” or “ ” button to select Store. Press “ ”
or OK button to store the settings. “ Stored... ” will be
displayed on the screen.

Feature Menu

Sleep Timer

Press “ ” or “ ” button to select Sleep Timer . Use
“ ” or “ ” button to set the Sleep Timer.

The timer can be programmed between Off and 120
minutes in steps of 10 minutes.

If Sleep Timer is activated, at the end of the selected
time, the TV goes automatically to standby mode.

Child Lock

Press “ ” or “ ” button to select Child Lock .

” or “ ” button to set the Child Lock On or Off .

Use “
When On is selected, the TV can only be controlled

English - 20 -

by the remote control handset. In this case the control
panel buttons will not work.

Hence, if one of those buttons is pressed, Child Lock
On will be displayed on the screen when the menu
screen is not visible.

Language

Press “ ” or “ ” button to select Language . Use
“ ” or “ ” button to select the Language .

Default Zoom

While zoom mode is set as AUTO , the TV will set
the zoom mode in accordance with the signal of
the broadcast. If there is no WSS or aspect ratio
information, the TV will then use this setting to adopt.
Press “ ” or “ ” button to select Default Zoom . You
can set Default Zoom to Panoramic , 16:9 , 4:3 or
14:9 by pressing “ ” or “ ” button.

Blue Background

If the signal is weak or absent, the TV will automatically
change to a blue screen. To enable this, set Blue
Background to On .

By pressing “

Background . Press “ ” or “ ” button to set Blue
Background as On or Off .

” or “ ” button, select Blue

Menu Background

Press “ ” or “ ” button to select Menu Background .
You can set menu background level by pressing
“ ” or “ ” button.

Power Save Mode

Use “ ” or “ ” button to select Power Save Mode.

Press “
On or Off.

See the section, “Environmental Information” in
this manual for further information on Power Save
Mode.

Note : Backlight function will be invisible if Power Save
Mode is set to on.

” or “ ” button to set Power Save Mode as

Backlight

This setting controls the backlight level. Select
Backlight by pressing “ ” or “ ” button.
Press“ ” or “ ” button to set Backlight to Auto,

Medium , Maximum or Minimum .

Menu Timeout

To set a specifi c display timeout for menu screens,
set a value for this option.

Press “
“ ” or “ ” button to change menu timeout to 15 sec ,
30 sec or 60 sec .

” or “ ” button to select Menu Timeout . Use

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 2000_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 20 18.08.2010 09:14:0018.08.2010 09:14:00

Teletext Language

Press “ ” or “ ” button to select Teletext Language .
Use “ ” or “ ” button to change Teletext Language to
West, East , Turk/Gre , Cyrillic, Arabic or Persian .

HDMI PC Full Mode (optional)

If you want to view PC screen in HDMI mode by using
external connection, HDMI PC FULL MODE option
should be On to adjust the screen ratio correctly. This
item might be inactive in some resolutions.

Note: If you connect an HDMI device and switch the
TV to HDMI mode, this feature will be visible (except for
1080i/1080P (optional) resolution).

Full Mode (optional)

If you connect a device via HDMI or YPbPr connectors
and set 1080i/1080P (optional) resolutions, Full Mode
item will be visible.You can set Full Mode as 1:1 or
Normal by using “ ”or “ ”.If you select 1:1, screen
ratio will be adjusted correctly. If you set Normal,
screen ratio may expand.

Ext Out

Press “ ” or “ ” button to select Ext Out. Use “ ” or
“ ” button to set the Ext Out as On or Off.

Note :

For copying from a DVD or VCR device, you should choose
desired source from source menu and turn “On” to EXT Out
from feature menu.

Ext Out should be On in order to use Timers function in the

DTV mode.

Install Menu

Channel

Channel can be changed by “ ” or “ ” button or
numeric buttons.

Colour System

Press “ ” or “ ” button to select Colour System. Use
“ ” or “ ” button to change the colour system to PAL,
PAL 60, SECAM or AUTO.

Sound System

Press “ ” or “ ” button to select Sound System.
Press “ ” or “ ” button to change the sound system
to BG,DK, I, L or L’.

Fine Tune

Press “ ” or “ ” button to select Fine Tune. Press
“ ” or “ ” button to adjust the tuning.

Search

Press “ ” or “ ” button to select Search. Use “ ”
or “ ” button to start programme searching. You can
also enter the desired frequency using the numeric
buttons while Search item is highlighted.

Store

Press “ ” or “ ” button to select Store. Press “ ”
or OK button to store the settings. “ Stored... ” will be
displayed on the screen.

Install Menu in AV Modes

The following screen appears in the install menu when
the TV is in AV modes. Note that limited options will
be available. Switch to TV mode for viewing complete
version of the Install menu.

Programme

Press “ ” or “ ” button to select Programme. Use “

” or “ ” button to select the programme number. You
can also enter a number using the numeric buttons on
the remote control. There are 200 programme storage
between 0 and 199.

Band

Band can be selected either C or S. Press “ ” or
“ ” button to set Band.

Colour System

Press “ ” or “ ” button to select Colour System . Use
“ ” or “ ” button to change the colour system to PAL,

SECAM, PAL60, AUTO, NTSC 4,43 or NTSC 3,58.

Store

Press “ ” or “ ” button to select Store Programme .
Press “ ” or “OK” button to store the settings.
“ Stored... ” will be displayed on the screen.

English - 21 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 2100_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 21 18.08.2010 09:14:0018.08.2010 09:14:00

Programme Table

Select Programme Table by pressing “ ” or “ ”
button. Press “ ” to display Programme Table:

By moving the cursor in four directions you can reach
20 programmes in the same page. You can scroll the
pages up or down by pressing the navigation buttons
to see all the programmes in TV mode (except for the
AV modes). By cursor action, programme selection is
done automatically.

Name

To change the name of a programme, select the
programme and press the RED button.

The fi rst letter of the selected name will be highlighted.
Press “
or “ ” button to select the other letters. By pressing
the RED button, you can store the name.

” or “ ” button to change that letter and “ ”

Move

Select the programme which you want to move by
navigation buttons. Press the GREEN button. By
navigation buttons move the selected programme to
the decided programme space and press the GREEN
button again.

Delete

To delete a programme, press the YELLOW button.
Pressing the YELLOW button again erases the
selected programme from the programme list, and
the following programmes shift one line up.

APS (Auto Programming System)

When you press the BLUE button for starting
automatic tuning, Auto Programming System menu
will appear on the screen:

Press “ ” or “ ” button to select your country. If you
want to exit from A.P.S. function, press the BLUE button.

When you press OK or RED button for starting
automatic tuning, all stored programmes will be
erased and the TV will search for available channels.
During the search, the following On Screen Display
(OSD) will be displayed:

Whenever you press the BLUE button, APS function
stops and Programme Table appears on the screen.

If you wait until the end of APS, Programme Table
will be displayed with the programmes found and
located.

Source Menu

Press “ ” or “ ” button and select the sixth icon.
Then press “ ” or “OK” button. Source menu appears
on the screen:

In source menu, highlight a source by pressing “ ”
or “ ” button and switch to that mode by pressing “
” button. Source options are; TV , DTV , DVD, EXT-1 ,
FAV , HDMI-1, HDMI-2 , YPbPr and PC-VGA .

Note : Once you have connected optional equipment systems
to your TV, you should select the required input to view
pictures from that source.

English - 22 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 2200_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 22 18.08.2010 09:14:0118.08.2010 09:14:01

PC Mode Menu System

See “Connecting the LCD TV to a PC” section for
connecting a PC to the TV set.

For switching to PC source, press “SOURCE” button
on your remote control and select PC input. You can
also use “Source” menu to switch to PC mode.

Note that PC mode menu settings are available only while
the TV is in PC source.

PC Position Menu

Select the first icon by pressing “ ” or
“ ” button. PC Position menu appears on the screen:

Autoposition

If you shift the picture horizontally or vertically to an
unwanted position, use this item to put the picture
into correct place automatically. This setting therefore
automatically optimizes the display.

Select Autoposition item by using “
Press “OK” or “ ”, “ ” button.

Warning : Please ensure auto adjustment is performed
with a full screen image to ensure best results.

H (Horizontal) Position

This item shifts the image horizontally to right hand
side or left hand side of the screen.

Select H Position item by using “
Use “ ” or “ ” button to adjust the value.

V (Vertical) Position

This item shifts the image vertically towards the top
or bottom of the screen.

Select V Position item by using “
Use “ ” or “ ” button to adjust the value.

Phase

Depending on the resolution and scan frequency that
you input to the TV set, you may see a hazy or noisy
picture on the screen. In such a case you can use this
item to get a clear picture by trial and error method.

” or “ ” buttons.

” or “ ” button.

” or “ ” button.

Select Phase item by using “ ” or “ ” buttons. Use
“ ” or “ ” button to adjust the value.

Dot Clock

Dot Clock adjustments correct the interference
that appear as vertical banding in dot intensive
presentations like spreadsheets or paragraphs or
text in smaller fonts.

Select Dot Clock item by using “
Use “ ” or “ ” button to adjust the value.

” or “ ” buttons.

PC Picture Menu

For adjusting PC picture items, do the following:

Press “
Picture menu appears on the screen.

Brightness, Contrast, Colour and Colour
Temperature settings in this menu are identical to

settings defi ned in TV picture menu under “Analogue
TV Menu System”.

Note : If you set Colour Temp as User, you can defi ne R, G,
B settings manually.

Sound,Feature and Source settings are identical to the
settings explained in Analogue Tv menu system.

” or “ ” button to select the second icon. PC

Displaying TV Information

Programme Number , Programme Name , Sound
Indicator and Zoom Mode information is displayed

on the screen when a new programme is entered or
“INFO” button is pressed.

Mute Function

Press “ ” button to disable sound. Mute indicator will
be displayed in the upper side of the screen.

To cancel mute, there are two alternatives; the fi rst
one is pressing the “
is increasing the volume level.

” button and the second one

Picture Mode Selection

By pressing PRESETS button, you can change
Picture Mode settings in accordance with your
viewing requirements. Available options are Dynamic,
Natural and Cinema.

Note: This feature cannot be set while in PC mode.

Freezing Picture

You can freeze the picture on the screen by pressing
the “ OK ” button on the remote control. Press the
“ OK ” button to freeze picture. Press again to quit
freeze mode.

Note: This feature will not be available while in PC
mode or watched movie from DVI source .

English - 23 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 2300_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 23 18.08.2010 09:14:0118.08.2010 09:14:01

Zoom Modes

You can change the aspect ratio (image size) of the TV
for viewing the picture in different zoom modes.

Press “SCREEN” button to directly change the zoom
mode.

Available zoom modes are listed below.

Note:

In YPbPr and HDMI modes, while in 720p-1080i resolutions,
only 16:9 mode is available.

Zoom mode cannot be changed while in PC mode.

Auto

When a WSS (Wide Screen Signalling) signal, which
shows the aspect ratio of the picture, is included in
the broadcast signal or the signal from an external
device, the TV automatically changes the ZOOM
mode according to the WSS signal.

• When the AUTO mode does not function correctly
due to poor WSS signal quality or when you want to
change the ZOOM mode, change to another ZOOM
mode manually.

16:9

This uniformly stretches the left and right sides of a
normal picture (4:3 aspect ratio) to fi ll the wide TV
screen

.

• For 16:9 aspect ratio pictures that have been
squeezed into a normal picture (4:3 aspect ratio),
use the 16:9 mode to restore the picture to its
original shape.

4:3

Use to view a normal picture (4:3 aspect ratio) as this
is its original size

Cinema

This zooms up the wide picture (16:9 aspect ratio) to
the full screen.

Subtitle

This zooms up the wide picture (16:9 aspect ratio)
with subtitles to the full screen.

Zoom

This option zooms to the picture.Note: You can shift
to screen up or down by pressing “ ” / “ ” buttons
while picture zoom is selected as panaromic, 14:9,
Cinema or Subtitle.

.

Panoramic

This stretches the left and right sides of a normal
picture (4:3 aspect ratio) to fi ll the screen, without
making the picture appear unnatural. The top and
bottom of the picture are slightly cut off.

14:9

This zooms up the wide picture (14:9 aspect ratio) to
the upper and lower limits of the screen.

English - 24 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 2400_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 24 18.08.2010 09:14:0218.08.2010 09:14:02

Teletext

Teletext system is available if your broadcaster
supports

Teletext function buttons are listed below:

“ ” Teletext / Mix / PAT Mode

Activates teletext mode when pressed once.

Press again to place the teletext screen over the
programme (mix). Pressing this button again will
split the screen into two windows, one displaying the
teletext and the other displaying the current channel.
Pressing again will quit the teletext mode.

“RETURN” - Index

Selects the teletext index page.

“ ” Subcode Pages

Selects subcode pages if available when the teletext
is activated.

“INFO” - Reveal

Shows hidden information (e.g. solutions of games).

“SCREEN” - Expand

Press once to enlarge top half of the page, press again
to enlarge the bottom half of the page. Press again to
revert back to normal size.

P+ / P- and numbers (0-9)

Press to select a page.

Note : Most TV stations use code 100 for their index
pages.

Coloured Buttons

You can use coloured buttons in accordance with
the displayed functions. When TOP text system is
available, sections in a teletext page will become
colour-coded and can be selected by pressing the
coloured buttons. Press a coloured button that
corresponds to with your needs. The coloured writings
will appear, showing you which coloured buttons to
use when FASTEXT transmission is present.

Teletext Subtitle

If you press “SUBTITLE” button, teletext subtitle
information will be displayed on the bottom right part
of the screen (if available). You can set the desired
option by highlighting it using “ ” or “ ” button and
then by pressing OK button.

Tips

Image Persistence

Please note that ghosting may occur while displaying
a persistent image. LCD TVs’ image persistence may
disappear after a short time. Try turning off the TV for
a while. To avoid this, do not leave the screen in still
picture for extended periods.

No Power

If your TV system has no power, please check the
main power cable and connection to the mains
socket outlet.

Poor Picture

Have you selected the correct TV system? Is your TV
set or house aerial located too close to a non-earthed
audio equipment or neon lights, etc.?

Mountains or high buildings can cause double pictures
or ghost images. Sometimes you can improve the
picture quality by changing the direction of the aerial.
Is the picture or teletext unrecognisable? Check if you
have entered the correct frequency. Please retune the
channels. The picture quality may degrade when two
peripherals are connected to the TV at the same time.
In such a case, disconnect one of the peripherals.

No Picture

Is the aerial connected properly? Are the plugs
connected tightly to the aerial socket? Is the aerial
cable damaged? Are suitable plugs used to connect
the aerial? If you are in doubt, consult your dealer.

No Picture means that your TV is not receiving a
transmission. Have you selected the correct button on
the remote control? Try once more. Also make sure
the correct input source has been selected.

Sound

You can not hear any sound. Did you perhaps interrupt
the sound, pressing the “ ” button?

Sound is coming from only one of the speakers. Is the
balance set to one extreme? See Sound Menu .

Remote Control

Your TV no longer responds to the remote control.
Perhaps the batteries are exhausted. If so you can still
use the local buttons at the bottom of the TV.

Input Sources

If you cannot select an input source, it is possible that
no device is connected.

Check the AV cables and connections if you have tried
to connect a device.

English - 25 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 2500_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 25 18.08.2010 09:14:0218.08.2010 09:14:02

Appendix A: PC Input Typical Display Modes

The display has a maximum resolution of 1600 X 1200 . The following table is an illustration of some of the
typical video display modes.

Your TV may not support different resolutions. Supported resolution modes are listed below.

If you switch your PC to an unsupported mode, a warning On Screen Display (OSD) will appear on the
screen.

Resolution Frequency

Index

1 640 480 60 31.5 VESA

2 640 480 72 37.9 VESA

3 640 480 75 37.5 VESA

4 800 600 56 35.2 VESA

5 800 600 60 37.9 VESA

6 800 600 70 43.8

7 800 600 72 48.1 VESA

8 800 600 75 46.9 VESA

9 832 624 75 49.7 MAC

10 1024 768 60 48.4 VESA

11 1024 768 70 56.5 VESA

12 1024 768 72 57.7

13 1024 768 75 60.0

14 1152 864 70 64.2 VESA

15 1152 864 75 67.5 VESA

16 1152 870 75 68.9 MAC

17 1280 768 60 47.7 VESA

18 1366 768 60 47.7

19 1280 960 60 60.0 VESA

20 1280 1024 60 64.0 VESA

21 1280 1024 75 80.0 VESA

22 1600 1200 60 75.0 VESA

Hor Ver Ver (Hz)

Hor

(KHz)

Standard

Resolutions above 60Hz may not be displayed.

English - 26 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 2600_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 26 18.08.2010 09:14:0218.08.2010 09:14:02

Appendix B: AV and HDMI Signal Compatibility (Input Signal
Types)

Source Supported Signals Available

PAL 50/60 O

EXT-1

(SCART)

FAV

YPbPr

HDMI1

HDMI2

(X: Not Available, O: Available)

Note : In some cases a signal on the LCD TV may not be displayed properly. The problem may be an
inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such
a problem please contact your dealer and also the manufacturer of the source equipment.

NTSC 60 O

RGB 50 O

RGB 60 O

PAL 50/60 O

NTSC 60 O

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

1080P 50Hz O

1080P 60Hz O

480I 60Hz O

480P 60Hz O

576I 50Hz O

576P 50Hz O

720P 50Hz O

720P 60Hz O

1080I 50Hz O

1080I 60Hz O

1080P 24Hz O

1080P 25Hz O

1080P 30HZ O

1080P 50HZ O

1080P 60HZ O

English - 27 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 2700_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 27 18.08.2010 09:14:0218.08.2010 09:14:02

Specifi cations

TV BROADCASTING

PAL/SECAM B/G D/K K’ I/I’ L/L’

RECEIVING CHANNELS VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

MHEG-5 ENGINE compliant with ISO/IEC 13522-5 UK engine Profi le 1

Frequency range: 474-850 MHz for UK models

Digital

Reception

Demodulation: COFDM with 2K/8K FFT mode

170-862 MHz for EU models

Transmission standard: DVB-T. MPEG-2

FEC: all DVB modes

Video: MP@ML, PAL, 4:3/16:9

Audio: MPEG Layer I&II 32/44.148kHz.

NUMBER OF PRESET CHANNELS 200

CHANNEL INDICATOR On Screen Display

RF AERIAL INPUT 75 Ohm (unbalanced)

OPERATING VOLTAGE 220-240V AC, 50 Hz.

AUDIO German+ Nicam Stereo

AUDIO OUTPUT POWER (W

) (10% THD) 2 x 6

RMS.

POWER CONSUMPTION (W) 150 W (max)

< 1 W (Standby)

PANEL 32” wide display

DIMENSIONS (mm)

DxLxH (With foot): 212 x 776 x 567

Weight (Kg): 12,3

DxLxH (Without foot): 94 x 776 x 524

Weight (Kg): 11,6

for UKObject carousel support compliant with ISO/IEC 135818-6 and UK DTT profi le

Information for Users on Disposal of old Equipment and
Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not
be disposed of as general household waste. If you want to dispose
of the product or battery, please consider the collection systems or
facilities for appropriate recycling.

Battery

Notice: The sign Pb below the symbol for batteries indicates that this battery

contains lead.

Products

English - 28 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 2800_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 28 18.08.2010 09:14:0218.08.2010 09:14:02

Important Instruction

For your own safety read following instruction carefully before attempting to connect this unit to the mains
supply.

MAINS (AC) OPERATION

The wires in the mains lead are coloured in accordance with the following code :

GREEN

&

YELLOW

(Earth)

(if there is earth cable)

BLUE

(Neutral)

IMPORTANT

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green and yellow must be connected to the terminal which is marked with
the letter E, or by the earth symbol, or coloured green or green and yellow.

The wire which is coloured blue or black must be connected to the terminal which is marked with the
letter N or coloured Black.

The wire which is coloured brown or red must be connected to the terminal which is marked with the
letter L or coloured Red.

For continued protection against risk of fi re, replace only with same type and rating of fuse (ASTA
approved 5A 250VAC fuse).

Note: Earth connection is used only for classI applications.

This symbol means this appliance is a class II appliance and therefore, an earth connection is

not required.

FUSE

BROWN

(Live)

CAUTION

TO PREVENT ELECTRIC SHOCK DISCONNECT FROM THE MAINS BEFORE REMOVING
COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

SAFETY PRECAUTION

THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN USE. DO NOT
ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.

English - 29 -

00_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 2900_MB45M_[GB]_(01-TV)_1900UK_IDTV_NICKEL13_(Powersave)_32882W_10068534_50174932.indd 29 18.08.2010 09:14:0318.08.2010 09:14:03

Contents

Features ............................................................... 30

General Properties............................................ 30

Safety Information ................................................ 31

Notes on Discs ..................................................... 31

On handling discs ............................................. 31

On cleaning....................................................... 31

Licence Notifi cation .............................................. 31

How to Watch a DVD ............................................ 31

DVD Control Panel Buttons .................................. 32

Overview of the Remote Control .......................... 32

General Operation ................................................ 33

General Playback ................................................. 34

Basic Play ......................................................... 34

For your reference: ....................................... 34

Notes on Playback: ........................................... 34

Setup Menu Items ................................................ 34

Vıdeo Setup Page............................................. 34

TV Type ......................................................... 34

Language Setup ............................................... 34

On Screen Display (OSD) LANG .................. 34

AUDIO .......................................................... 34

DISC MENU .................................................. 34

SUBTITLE ..................................................... 34

Preferences ...................................................... 35

DEFAULT ...................................................... 35

DOWNMIX .................................................... 35

PASSWORD (Change Password): ............... 35

Troubleshooting .................................................... 35

The picture quality is poor (DVD)...................... 35

Disc does not play ............................................ 35

Wrong On Screen Display (OSD) language ..... 35

Some functions (Angle, Zoom etc) do not

work .................................................................. 35

No picture ......................................................... 35

No sound .......................................................... 35

Distorted sound................................................. 35

No response from remote control ..................... 36

If nothing works................................................. 36

Defi nition of Terms ................................................ 36

Disc Types Compatible with This Unit .................. 37

Specifi cations ....................................................... 37

Features

General Properties

• DVD / CD / CD-R / CD-RW / MP3 / JPEG / MPEG
playback.

• NTSC/PAL playback (according to disc content)

• LPCM audio via coaxial digital audio output.
(optional)

• Multi-Audio (up to 8) support (According to disc
content)

• Multi-Subtitle (up to 32) support (According to disc
content)

• Multi-Angle (up to 9) support (According to disc
content)

• 8 level parental control

• Fast forward and rewind in 5 different speeds. (2x,
4x, 8x, 16x, 32x)

• Slow motion playback in 4 different speeds. (1/2x,
1/4x, 1/8x, 1/16x forward)

• Frame by frame forward playback.

• Search Mode

• Repeat

• Coaxial audio output (optional)

• Copied disks may be incompatible.

Note

• This DVD player may not support some MP3
recordings due to differences in recording formats
or disc type.

• Please read the owner’s manual about MP3 playback.

• CD-R/CD-RW discs recorded by CD-DA method
can be played. Some CD-R/CD-RW discs may be
incompatible due to laser pick-up and disc design.

• DVD-R/RW discs recorded by DVD-Video method
can be played . Some DVD-R/RW discs may be
incompatible due to laser pick-up and disc design.

• Some discs may be incompatible with JPEG Viewer
function due to different recording format or

condition of the discs.

English - 30 -

00_MB45M_[GB]_(02-DVD)_1900UK_WODIVX_10068534_50174932.indd 3000_MB45M_[GB]_(02-DVD)_1900UK_WODIVX_10068534_50174932.indd 30 18.08.2010 09:14:3518.08.2010 09:14:35

Safety Information

CAUTION

DVD Player is a class 1 laser product. However this
product uses a visible laser beam which could cause
hazardous radiation exposure. Be sure to operate the
player correctly as instructed.

CLASS 1

LASER PRODUCT

• Manufactured under license from Dolby Laboratories.
“Dolby”, and the double-D symbol are trademarks of
Dolby Laboratories.

RISK OF ELECTRIC SHOCK

The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated “dangerous voltage” within
the product’s enclosure that may be of
suffi cient magnitude to constitute a risk
of electric shock of persons.

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions
in the literature accompanying the
appliance.

On cleaning

• Before playing, clean the disc with a cleaning cloth.
Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner,
commercially available cleaners or anti-static spray
intended for vinyl LPs.

Licence Notifi cation

• This product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Rovi Corporation, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Rovi Corporation. Reverse
engineering and disassembly are prohibited.

How to Watch a DVD

When placing a disc into the loader, labeled side of
the disc should be on the front:

Notes on Discs

On handling discs

• To keep the disc clean, handle the disc by its edge.
Do not touch the surface.

• Do not stick paper or tape on the disc.

• If the disc is contaminated with any substance like
glue remove before using it.

When TV set is turned on, fi rst switch to DVD source
by using the SOURCE button on the remote control.
Press play on the remote control, or directly press play
button at the front panel. If there is no disc inside the

• Do not expose the disc to direct sunlight or heat
sources such as hot air ducts, or leave it in a car
parked in direct sunlight as the temperature can rise
quickly and damage the disc.

• After playing, store the disc in its case.

English - 31 -

00_MB45M_[GB]_(02-DVD)_1900UK_WODIVX_10068534_50174932.indd 3100_MB45M_[GB]_(02-DVD)_1900UK_WODIVX_10068534_50174932.indd 31 18.08.2010 09:14:3618.08.2010 09:14:36

loader, place a DVD fi rst and press play.

DVD Control Panel Buttons

A. Disc loader

B. Play / Pause

Plays/pauses the disc. When DVD menu (root menu) is active, this button functions
as “button select” (selects the highlighted item in menu) if this is not prohibited by the
disc.

C. Stop / Eject

Stop playing disc / Eject or Load the disc Note:

• You cannot eject the disc via the remote control.

• While playing a fi le, you should press STOP button three times to eject.

Overview of the Remote Control

Standby1.

Numeric buttons2.

Return back3.

Language selection (Set language)4.

Display time / DVD menu5.

Clear6.

Stop7.

No function8.

Rapid Reverse9.

Rapid advance10.

Info11.

Zoom12.

Repeat13.

Root14.

Menu15.

Title16.

OK / Select17.

Navigation Buttons18.

Subtitle19.

Angle20.

Search mode21.

Play22.

Pause23.

Skip next24.

Skip previous25.

SLEEP

RETURN

FAV

SCREEN

LANG.

EPG

INFO

SOURCE

MENU

SUBTITLE

/

PRESETS

English - 32 -

00_MB45M_[GB]_(02-DVD)_1900UK_WODIVX_10068534_50174932.indd 3200_MB45M_[GB]_(02-DVD)_1900UK_WODIVX_10068534_50174932.indd 32 18.08.2010 09:14:3618.08.2010 09:14:36







/

e/f

/

/

General Operation

You can operate DVD, movie CD, music or picture CD’s content by using the proper buttons on your remote
control. Below are main functions of commonly used remote control buttons.

Buttons on the
Remote Control



ANGLE

C Clears digit (if available).

DISPLAY

INFO Time counter mode selection (during playback). Press repeatedly to switch

LANG. Audio language. X X
MENU

OK / SELECT Enter / View / Play

REPEAT

RETURN

ROOT

SEARCH MODE (*)

SUBTITLE Subtitle on-off. Press repeatedly to switch

SWAP

TITLE

ZOOM Zooms picture. Press repeatedly to switch between zoom options.

DVD

Playback

Play Play Play Play

Pause Pause Pause Pause

Stop Stop Stop Stop

Skip

backward/forward

Shifts the zoomed picture left or right (if available).

Highlights a menu item. / Shifts the zoomed picture up or down (if available).

Views the scene from different angles (if

available).

Displays time / Views main setup menu

Returns back to the previous menu (if available).

Goes back to the root folder (if available).

Direct selection of scenes or time.

between subtitle options.

Displays disc menu

(if available).

Movie

Playback

Skip

backward/forward

Rapid advance / Rapid reverse

between modes.

Displays TV menu.

Displays repeat options.

Media source selection.

Displays disc menu

(if available).


Playback

Previous / Next Previous / Next

Changes slide

effect (depends

on the

content).

Selects the

desired file.

Music

Playback

X

Selects the
desired file.

X X

X X

Other Functions – Button Combinations

 + 

[ + ] + 

 + 
 + 
 + 

 + 

(*) You can switch to title by pressing numeric keys directly. You need to press 0 and then digit key to
switch one digit titles (example: to select 5, press 0 and 5.

(During playback)

Slow forward.
Sets slow forward speed.

Sets rapid advance speed.
Sets rapid reverse speed.
Confirms stop command.
Press  repeatedly to advance manually.

English - 33 -

00_MB45M_[GB]_(02-DVD)_1900UK_WODIVX_10068534_50174932.indd 3300_MB45M_[GB]_(02-DVD)_1900UK_WODIVX_10068534_50174932.indd 33 18.08.2010 09:14:3718.08.2010 09:14:37

General Playback

Basic Play

Press on the power button1.

Please insert a disc to the loader.2.

The disc will be automatically loaded and play
commences if the disc does not have any menus
recorded on it.

A menu may appear on the TV screen after a few
moments or the fi lm may start immediately after the
introduction of the Film Company. This behaviour
depends on the disc content and may change.

Note: Step 3 and 4 is available only when a menu is
recorded on the disc.

Press “3.
(s) to select the preferred title.

Press SELECT.4.

Play of the selected items now starts.The played item
may be a motion picture, a still picture or another
submenu depending on the disc.

For your reference:

If an action corresponding to a button is prohibited the

“

” symbol appears.

Notes on Playback:

No sound will be heard during Rapid advance 1.
or Rapid reverse.

No sound will be heard during Slow motion play.2.

Reverse slow motion play is not available.3.

In some cases, the subtitle language is not 4.
changed immediately to the selected one.

When the preferred language is not selected even 5.
after pressing the button several times, it means
that the language is not available on the disc.

When the player is restarted or the disc is 6.
changed, the subtitle selection is automatically
changed back to the initial settings.

If a language is selected, not supported by the 7.
disc, the subtitle language will automatically be
set to the disc’s priority language.

Usually a circulation will happen while switching 8.
to another language, that is you can cancel
the subtitle by pressing this button a number of
times until “Subtitle Off” appears on the screen.

When the power is turned on or the disc is 9.
removed, the language heard is the one
selected at the initial settings. If this language
is not recorded on the disc, only the available
language on the disc will be heard.

Some DVDs may not contain root and/or title 10.
menus.

” / “ ” / / or the number button

Reverse stepping is not available.11.

For your convenience:12.

If you attempt to enter a number greater than the total
time of the current title, the time search box disappears

and “
corner of screen.

Input Invalid” message appears on up-left

Slide Show is disabled when the ZOOM mode 13.
is on.

Setup Menu Items

Vıdeo Setup Page

TV Type

TV Type is only available as ‘PAL’. The TV set also
supports NTSC signal; however, the signal will be
converted to PAL when it appears on the screen.

Language Setup

On Screen Display (OSD) LANG

You can select the default On Screen Display (OSD)
language of the player menus

AUDIO

You can select the default audio language if supported
by the DVD disc.

DISC MENU

You can select the DVD’s disc menu language among
these languages. Disc menu appears in the selected
language, if supported by the DVD disc.

SUBTITLE

You can select the default subtitle language if
supported by the DVD disc.

English - 34 -

00_MB45M_[GB]_(02-DVD)_1900UK_WODIVX_10068534_50174932.indd 3400_MB45M_[GB]_(02-DVD)_1900UK_WODIVX_10068534_50174932.indd 34 18.08.2010 09:14:3718.08.2010 09:14:37

Preferences

DEFAULT

If you choose RESET and press SELECT, the factory­presets are loaded. Parental level and parental
password does not change.

DOWNMIX

This mode can be selected when the digital audio
output of the TV is used.

SURROUND: Surround sound output.

STEREO: Two channels stereo.

PARENTAL (Parental Level)

Playing some DVDs can be limited depending on the
age of users. The “Parental Control” function allows
playback limitation level to be set by the parent.

Parental Level can be adjusted to one of the eight
levels. Level “8 ADULT” adjustment let you watch all of
the DVD titles ignoring the DVD disc’s parental level.
You can watch the DVD discs, which has the same or
lower parental level than the player’s level only.

PASSWORD (Change Password):

Using this item you can change the current
password.

To change the password you will be prompted to
enter your old password. After you have entered
your old password, you can now enter the new 4-digit
password.

You can use C key to delete the incorrect entry.

Note: Factory preset of the password is “0000”. You
have to enter XXXX digital password every time you
want to change the parental level. If you forget your
password please contact technical service.

English - 35 -

Troubleshooting

The picture quality is poor (DVD)

• Make sure the DVD disc surface is not damaged.
(Scratch, fi ngerprint etc.)

• Clean the DVD disc and try again.

See instructions described in “Notes on Discs” to clean
your disc properly.

• Ensure that the DVD disc is in the drawer with the
label uppermost.

• A damp DVD disc or condensation may effect the
equipment. Wait for 1 to 2 hours in Stand-by to dry
the equipment.

Disc does not play

• No disc in the machine.

Place a disc into the loader.

• Disc incorrectly loaded.

Ensure that the DVD disc is in the drawer with the
label uppermost.

• Wrong type of disc. The machine cannot play CD­ROMS etc.

• The region code of the DVD must match the
player.

Wrong On Screen Display (OSD)
language

• Select the language in the set-up menu.

• The language for the sound or subtitles on a DVD
cannot be changed.

• Multilingual sound and/or subtitles not recorded on
the DVD.

• Try to change the sound or subtitles using DVD’s title
menu. Some DVD’s do not allow the user to change
these settings without using the disc’s menu

Some functions (Angle, Zoom etc) do
not work

• These functions are not available on the DVD.

• Angle can only be changed when the angle symbol
is displayed.

No picture

• Have you pressed the correct buttons on the remote
control? Try once more.

No sound

• Check the volume is set to an audible level.

• Make sure you have not switched the sound off
accidentally.

Distorted sound

• Check that the appropriate listening mode setting
is correct.

00_MB45M_[GB]_(02-DVD)_1900UK_WODIVX_10068534_50174932.indd 3500_MB45M_[GB]_(02-DVD)_1900UK_WODIVX_10068534_50174932.indd 35 18.08.2010 09:14:3718.08.2010 09:14:37

No response from remote control

• Make sure the remote control is in the correct
mode.

• Check batteries are fi tted correctly.

• Change the batteries.

If nothing works

If you have tried the above solutions and none seem
to work, try switching your TV-DVD off and on again.
If this does not work, contact your supplier or TV-DVD
repair technician. Never attempt to repair a defective
TV-DVD yourself.

Defi nition of Terms

Angle

Recorded onto some DVD discs are scenes, which
have been simultaneously shot from a number of
different angles (the same scene is shot from the
front, from the left side, from the right side, etc.). With
such discs, the ANGLE button can be used to view
the scene from different angles.

Chapter Number

These numbers are recorded on DVD discs. A title
is subdivided into many sections, each of which are
numbered, and specifi c parts of video presentations
can be searched quickly using these numbers.

DVD

This refers to a high-density optical disc on which
high-quality pictures and sound have been recorded
by means of digital signals. Incorporating a new video
compression technology (MPEG II) and high-density
recording technology. DVD enables aesthetically
pleasing full-motion video to be recorded over long
periods of time (for instance, a whole movie can be
recorded).

DVD has a structure consisting of two 0.6-mm thin
discs, which are adhered to each other. Since the
thinner the disc, the higher the density at which the
information can be recorded, a DVD disc has a greater
capacity than a single 1.2 mm thick disc. Since the
two thin discs are adhered to each other, there is the
potential to achieve double-sided play sometime in
the future for even longer duration play.

Subtitles

These are printed lines appearing at the bottom of
the screen, which translate or transcribe the dialogue.
They are recorded on the DVD discs.

Time Number

This indicates the playtime, which has elapsed from
the start of a disc or a title. It can be used to fi nd a
specifi c scene quickly. (Not all discs permit the time
search feature to be used. Availability is determined
by the disc’s manufacturer.)

English - 36 -

Title Number

These numbers are recorded on DVD discs. When a
disc contains two or more movies, these movies are
numbered as title 1, title 2, etc.

Track Number

These numbers are assigned to the tracks, which are
recorded on AudioCDs. They enable specifi c tracks
to be located quickly.

LPCM

LPCM stands for Pulse Code Modulation and is
digital audio.

MPEG

Short for Moving Picture Experts Group. This is an
international standard for compression of moving
images. On some DVDs digital audio has been
compressed and recorded in this format.

00_MB45M_[GB]_(02-DVD)_1900UK_WODIVX_10068534_50174932.indd 3600_MB45M_[GB]_(02-DVD)_1900UK_WODIVX_10068534_50174932.indd 36 18.08.2010 09:14:3818.08.2010 09:14:38

Disc Types Compatible with This Unit

Disc Types

(Logos)

DVD

AUDIO-CD

DIGITAL AUDIO

MP3-CD

READABLE

PICTURE-CD

JPEG

READABLE

Specifi cations

Recording

Ty p e s

Audio

+

Video

Audio

Audio

(xxxx.m p3)

Video

(still picture)

Disc Size Max.

12 cm

8cm

12 cm

8cm

12 cm

8cm

12 cm

8cm

Playing

Tim e

Single -

sided;240m in.

Double-

sided;480m in.

Single -

sided; 80 min.

Double-

sided;160m in.

74 m in.

20 m in.

Ch aracter istics

DVD co ntain s exc ellent so un d and video

•

due to Dolby Digital and MPEG-2 System.

Various sc reen an d au dio fu nctio ns c an be

•

easily selected th rou gh th e on s cr een

menu .

An LP is r ecord ed as an analog sig nal w ith

•

more d istortion.CD is recorded as a

Digital Signal w ith better au dio q uality,

less disto rtion and less d eterioratio n of

audioquality overtime.

MP3is r ecor ded as a Dig ital S ign al with

•

better audio q uality, less disto rtion an d

less deterioration of audio quality

over tim e.

JPEG is rec ord ed as a Digital Sign al with

•

better picture quality over time.

Types of Discs

Supported

DVD: SS/SL 4.7” (DVD-5)

SS/DL 4.7” (DVD-9)

DS/SL 4.7” (DVD-10)

DS/DL 4.7” (DVD-18)

CD-DA

CD-R

CD-RW

MP-3/JPEG

MPEG-2 Video Standard Decoding (MPEG-1 supported)

Full-Screen Video Display of 720 x 576 (PAL) & 720 x 480 (NTSC) pixels

Video Type

50 and 60 Hz frame refresh rates (PAL & NTSC)

Digital bit-stream processing rate up to 108Mbits/sec

Line resolution more than 500 lines

Audio Type

Audio Output

MPEG Multichannel Decoding

LPCM

Analogue Outputs:

24 bit /48, 44.1kHz down-sampling DAC

English - 37 -

00_MB45M_[GB]_(02-DVD)_1900UK_WODIVX_10068534_50174932.indd 3700_MB45M_[GB]_(02-DVD)_1900UK_WODIVX_10068534_50174932.indd 37 18.08.2010 09:14:3818.08.2010 09:14:38

50174932
