HD Ready LED TV with Freeview, DVD & USB Media Player
User Guide
Model No
19-248COM
22-248COM
24-E231COM
24-E242COM
3
Manufacturers Guarantee
IMPORTANT GUARANTEE INFORMATION
IMPORTANT GUARANTEE INFORMATION
Congratulations on purchasing this television. We hope you have many years of trouble free
enjoyment from your purchase.
Your product is covered under the manufacturers guarantee for 12 months from date of
purchase.
In the event of a fault being diagnosed, please refer to the frequently asked questions/
troubleshooting section at the rear of this user guide.
If you are still unable to remedy the fault, try resetting the TV to factory settings, (details in this
user guide) or contact the helpline.
In the event that a fault is diagnosed, the helpline will arrange to collect the TV from your home
or work address, return it to our service centre, repair the item and then return it to you.
If we believe we cannot offer a permanent repair, we will replace the item.
Helpline Information
Telephone UK 0871 2000 463, ROI 01443 3940
Web support: www.umc-uk.co.uk
The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.
You must retain all packaging materials, in addition to your proof of purchase/receipt, as you will need
these in the event of warranty/service support.
This guarantee is in addition to and does not affect your statutory rights.
If you need to call the helpline, you will need the following information.
1) Model Ref ______________________________________ (You can fi nd this on the rear of the TV)
2) Date of purchase ______________________________________ (You can fi nd this on your sales receipt)
3) Serial Number ______________________________________ (You can fi nd this on the rear of the TV)
Model Ref
EXAMPLE OF LABEL ON REAR OF TV
Serial No.
3
IMPORTANT SAFETY INSTRUCTIONS
Please read these instructions. All the safety and operating instructions should be read before the
appliance is operated.
Warnings
• To reduce the risk of fi re, electric shock or damage to the television, do not expose it to
dust, rain or moisture, or place any objects fi lled with liquids on or near the television.
• Do not place the television in a confi ned space, ensure that nothing can obstruct the
ventilation openings at the rear of the television.
• Dispose of this television and any components including batteries in an environmentally
friendly manner. If in doubt, please contact your local authority for details of recycling.
To prevent spread of fi re, keep candles or
other open fl ames away from this product at all times
Safety
• For your safety, this appliance is fi tted with a fused moulded 3 pin mains plug. Should
the fuse need to be replaced, ensure that any replacement is of the same amperage and
approved with the BSI mark.
• Never try and replace the mains plug unless you have adequate qualifi cations and are
legally authorised to do so. In the event that a replacement Mains cable is required,
contact the manufacturer for a suitable replacement.
• Never use the television if it is damaged in any way.
• Always place the television on a fl at level surface avoiding anywhere which may be subject
to strong vibration.
• Ensure the television is not placed on top of the power cable as the weight of the
television may damage the cable and cause a safety hazard.
• Never place mobile phones, speakers or any other device which may cause magnetic or
radio interference with the television. If interference is apparent, move the device causing
the interference away from the television.
• To disconnect the apparatus from the mains, please use the all pole mains switch located on the side,
underside or rear of the TV. The switch shall remain readily operable.
• Install the product keeping the specifi ed distance (more than 5 cm) from the wall
Maintenance
• To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped
in a soap and water solution or a weak detergent solution.
• Use eyeglass cleaner to remove stubborn dirt from the LCD/LED Screen.
• Never use alcohol, paint thinner or benzene to clean this unit.
• Before using a chemically treated cloth, read the instructions that
came with the cloth carefully.
CAUTION: If water or other liquid enters the television through the display panel surface,
a malfunction may occur.
Packaging
• The safest way to transport your item is in the original box/packaging - please save your
packaging for this.
• You will need original box/packaging in the event of warranty/service repair or support. We are unable
to carry out warranty/service if you are unable to package it correctly.
IMPORTANT SAFETY INSTRUCTIONS
Please read these instructions. All the safety and operating instructions should be read before the
appliance is operated.
Important Information Regarding Use of Video Games, Computers,
Captions or Other Fixed Image Displays
The extended use of fi xed image program material can cause a permanent “shadow image” on the LCD
panel.
This background image is viewable on normal programs in the form of a stationary fi xed image. This type
of irreversible LCD/LED panel deterioration can be limited by observing the following steps:
1. Reduce the brightness/contrast setting to a minimum viewing level.
2. Do not display the fi xed image for extended periods of time.
3. Turn the power off when not in actual use.
Examples of images that you need to watch out for are as follows (this is not an exhaustive list):
• TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially if they are
bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.
• Time Displays
• Teletext: Do not view a stationary page for long period of time
• TV/DVD Menus: e.g. Listings of DVD disk content
• Pause Mode: Do not leave the TV in pause mode for long periods of time, e.g. When watching DVDs or
videos.
Important - Once ‘shadow image/screen burn’ occurs, it will never disappear and is not repairable under
warranty.
How do I dispose of this product?
UK: Waste electrical products should not be disposed of with household waste. Separate
disposal facilities exist. For your nearest facilities, please see www.recycle-more.co.uk or in
store for details.
ROI: Waste electrical products should not be disposed of with household waste. Separate
disposal facilities exist. Check with your Local Authority or retailer for recycling advice.
Batteries
• Do not expose batteries to high temperatures, excessive heat, prolonged sunshine, fi re
etc as may casue leakage, explosion or ignition.
• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way.
• Certain regions may regulate the disposal of batteries.
Please consult your local authority.
CAUTION:
THIS UNIT IS A CLASS 1 LASER PRODUCT. HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE
HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE PLAYER CORRECTLY AS INSTRUCTED.
WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENINGS TO LOOK
INTO THE INSIDE OF THIS UNIT.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
CLASS 1
LASER PRODUCT
This caution label is located on the rear panel of the unit
Cd
7
CONTENTS
Manufacturers Guarantee Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
What is included in the box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Attaching/Detaching the stand and wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
Getting Started - Initial Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
TV Buttons and Input Source Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
TV Menu Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-21
Channel Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Picture Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Sound Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Time Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Feature Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Option Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
DVD Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7 Day TV Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
USB Mode / Media Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-29
Using your TV with a digital set top box . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Technical Specifi cations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7
What is included in the box
WHAT IS INCLUDED IN THE BOX
Accessories
Included with this TV are the following accessories
1 x User Guide
User Guide
1 x Quick Start Guide
Quick Start
Guide
1 x Stand
1 x Remote Control
2 x AAA Batteries
1 x TV
1 x RF Cable
Please save your packaging as you will need this in the event of warranty/service repair or support. We
are unable to carry out warranty/service if you are unable to package it correctly. The safest way to
package your item in the event of warranty/service repair is in it’s original box/packaging.
8
1 x Stand neck plus screws
9
Attaching / Detaching the stand and wall mountingAttaching / Detaching the stand and wall mounting
ATTACHING/DETACHING THE STAND
Attaching the Stand
To complete stand installation you will need a Philips screwdriver.
(fi g.1)
( g.1) Attach the stand neck (b) to the body of TV (a). ( g.2) Secure the stand neck to the TV with the 4 screws
(fi g.3)
(fi g.2)
supplied.
( g.3) Insert the TV into the stand (d) at 45 degrees then gently twist the TV into the CLOSE position until it clicks
into place
9
ATTACHING/DETACHING THE STAND
Detaching the Stand
To detach the stand please remove the 4 screws highlighted.
Wall mounting the TV
IMPORTANT - Before drilling any holes in the wall ensure you are not drilling
where there could be any electric wires, water or gas pipes.
1) Remove the four screws highlighted below.
2) The wall mount can now be easily attached to the mounting holes on the rear
of the TV. These holes are indicated in the picture below.
fi g 1
Important – If wall mounting this TV, only
use the screws already provided in the wall
mounting holes. Using other screws which
are longer could cause irreparable damage to
internal parts.
For optimum viewing, if wall mounting the TV
higher than eye level, the TV should be tilted
downwards so that the TV’s screen is ‘face on’.
See fi g 1 and 2
INCORRECT
Viewing angle
TV
10
CORRECT
fi g 2
Viewing angle
11
Getting Started - Initial Set Up
GETTING STARTED - INITIAL SET UP
1) Using the RF cable supplied, connect the TV
to the TV Aerial wall socket (Fig A)
Fig A
3) Switch on the television using the
power on/off switch located on the side
of the TV.
Power on/off
2) Connect the power cable to the Electrical
outlet (Fig B)
Fig B
4) Insert the batteries supplied into the
Remote control and press the Standby
button to power on the TV
5) You will now be welcomed with the initial
set-up screen.
If it does not appear, on the remote control,
please press [MENU] then 8-8-8-8 and the
menu will appear.
Press OK on the remote control and tuning
will start.
If you are missing channels, the reason for this is likely to be signal strength, you should
consider connecting signal booster and re-tuning the TV.
Tip: If the TV fi nds some, but not all, of the Digital channels, the TV is functioning correctly but the
signal being received is not strong enough. (The signal strength needs to be above 85% - you can see the
signal strength the TV is receiving when you change channels/ programmes) you will need to increase
the signal reception in order to receive all of the channels available. The most economical way to do
this is by purchasing and connecting a ‘signal booster’ in between the TV and the TV aerial socket. If this
does not solve the problem, you will need to upgrade the TV aerial to a digital hi-gain compatible aerial
6) After tuning the following screen will
appear.
11

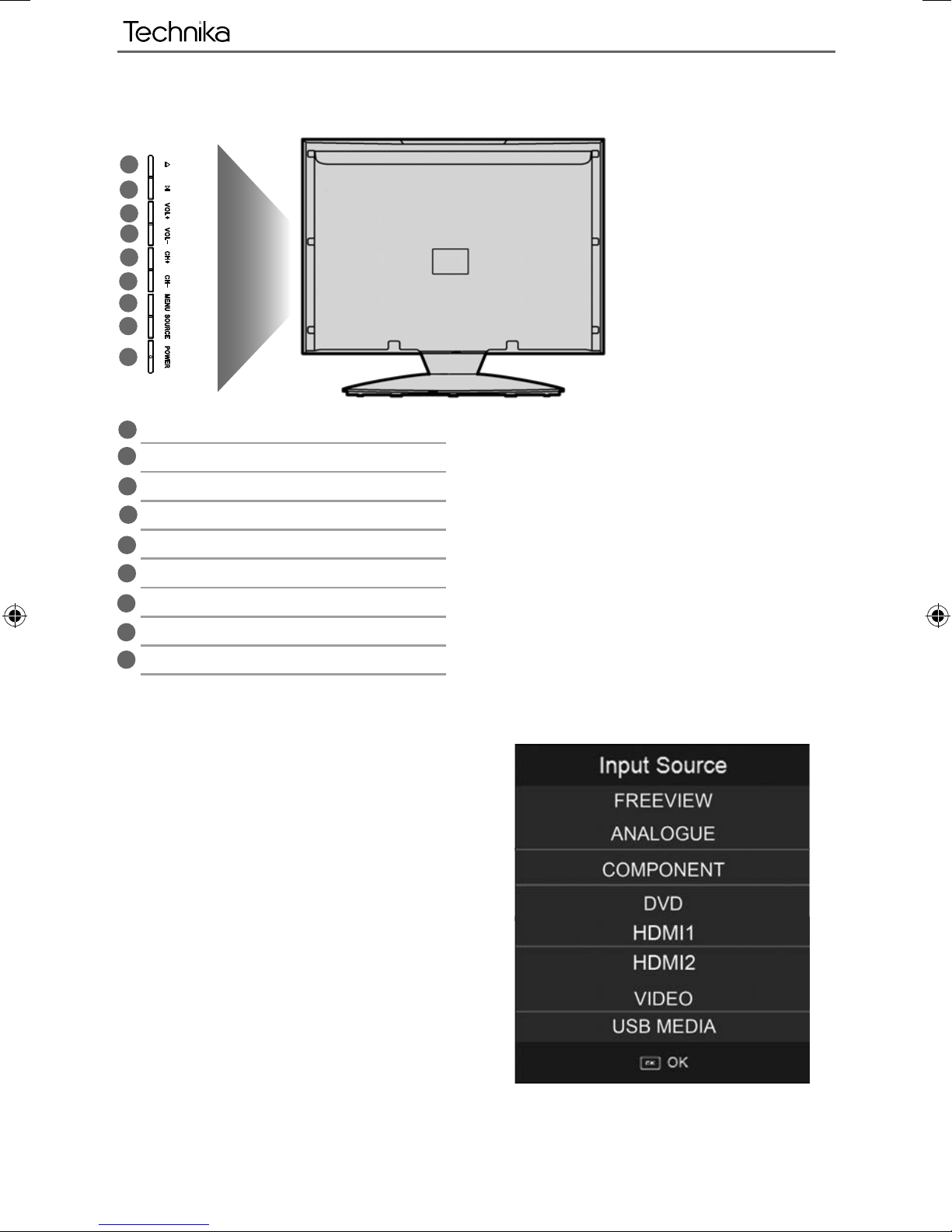

TV BUTTONS & SOURCE MENU
1
2
3
4
5
6
7
8
9
Eject Disc
1
2
Play/Pause Disc
3
Volume up and menu right
4
Volume down and menu left
Programme/Channel up and menu up
5
6
Programme/Channel down and menu down
Displays Menu/OSD
7
Displays the input source menu
8
9
Standby Power On/Off
Choosing Mode Input/Source
To switch between the different input/
connections.
A) Using the buttons on the remote control:
1) Press [SOURCE/ AV] - The source menu will
appear
2) Press [\/] or [/\] to select the input you
require.
3) Press [OK]
B) Using the buttons on the Television:
1) Press [SOURCE]
2) Scroll up / down using CH+/ CH- buttons to
the input/source you require
3) Press Vol+ to change input/source to the
one selected.
12
13

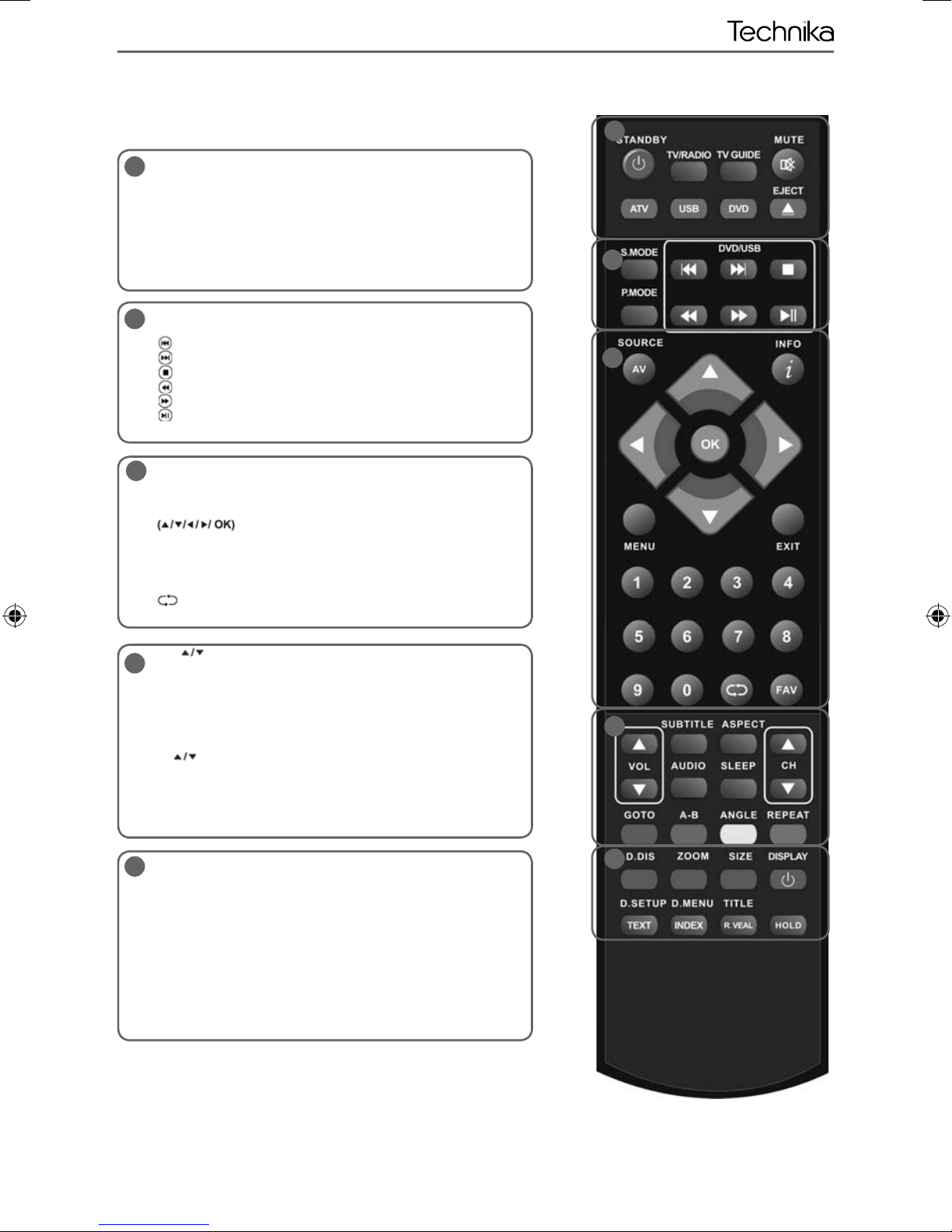

Remote Control
STANDBY - Switch on TV when in standby or vice versa
1
MUTE - Mute the sound or vice versa
TV/RADIO - Switch to Digital and switch between TV and radio
in Digital mode
TV GUIDE - Opens the 7 Day TV Guide (Digital mode)
ATV - Switch to analogue TV source
USB - Switch to USB Source
DVD - Switch to DVD source
EJECT - Eject disc in DVD mode
S.MODE - Scrolls through sound mode options
2
P.MODE - Scrolls through picture mode options
- To restart the current chapter
- To advance forward to the next chapter
- To stop the playback
- To play in fast rewind mode
- To play in fast forward mode
- To play/pause
SOURCE/AV - To display the input/source menu
3
INFO - Press once for now/next channel information
Press twice for programme information about current
programme
adjust the system settings to your preference
MENU - To display OSD menu
EXIT - To exit all menus
NUMBER BUTTONS - 0 – 9 to select a TV channel directly.
- To return to the previous channel viewed
FAV - To display favourites menu
- Allows you to navigate the on-screen menus and
1
2
3
VOL - To increase / decrease the sound level
4
SUBTITLE - To switch the dialogue at the bottom of the screen
(on/off)
ASPECT - To switch the screen between the different picture
formats
AUDIO - To change the audio language (if available)
SLEEP - Press repeatedly to cycle through the sleep options
CH To increase or decrease the channel being watched
GOTO - DVD mode - To go to a specifi c chapter
A-B Repeat - DVD mode - Press once to set point, press a second
time to return to point
ANGLE - DVD mode - Select different angle of DVD (if available)
REPEAT - DVD mode - To repeat playback
D.DIS - DVD mode - To display the current disc information
5
ZOOM - DVD mode - To zoom in
**SIZE - Teletext mode - To change the display size in Teletext
mode
DISPLAY - To switch off the screen when listening to radio
DVD SETUP/TEXT - DVD mode - To display the DVD setup menu
**Teletext mode - To enter Teletext
D.MENU/INDEX - DVD mode - To display the DVD disc menu
**Teletext mode - To display the index page
TITLE/REVEAL - DVD mode - To display the DVD title menu
**Teletext mode - To reveal or hide the hidden words.
HOLD - Teletext mode - Hold current page which is displayed
** Teletext function is only available in analogue
4
5
13
CONNECTIONS
Connections
I
H
G
F
A
A
HDMI 1 HDMI input
B
Video Component / Video input
C
R/L Audio in Audio input for Video & Ypbpr
D
Component HD HD input (Ypbpr)
E
RF IN RF / TV Aerial Input
B
C D
E
USB USB port
F
HDMI 2 HDMI input
G
CI CARD IN Common Interface Card Input
H
Earphones Earphone Input
I
Connecting a DVD Player/Recorder, Video Recorder or
Cable/Satellite Box
TVs Input/Source should be set to Analogue
RF IN
D VD or VCR
TV Aerial
Wall Socket
14
RF
RF
IN
OUT
15
Connections
CONNECTIONS
Connecting a Camcorder, Camera or Games Console
Source should be set to Video
Camera or
C amcorder
Connecting a High Defi nition (HD) Device
Option 1 - via HDMI to HDMI cable
A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio
with minimal loss of quality.
Yellow
White
Red
Video
Audio
In L/R
TVs Input/Source should be set to HDMI.
HDMI OUT
HDMI
Note: This model TV can not be used as a PC/laptop monitor via HDMI input. The HDMI Input is provided
to view digital content with compatible external devices.
Option 2 - via Component cable
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors
you must connect via Component (for picture) and by phono cable (for sound).
TV Source should be set to Component.
Red
Component (HD)
Green
Blue
Audi o L/ R
Component
Red
White
Audio
In L/R
15
TV Menu Operation
CHANNEL MENU
AV
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll
any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and
analogue channels.
Freeview Manual Tuning- Allows you to manually tune your digital signal
Analogue Manual Tuning - Allows you to manually tune your analogue signal
Programme Edit - Allows you to delete, skip and add favourite channels.
buttons. To confi rm
Tip: If you do not press any buttons for 10 seconds, the menu will automatically exit. You can change
the length of time before the menu exits automatically - see ‘Menu Duration’ section.
16
17
TV Menu Operation

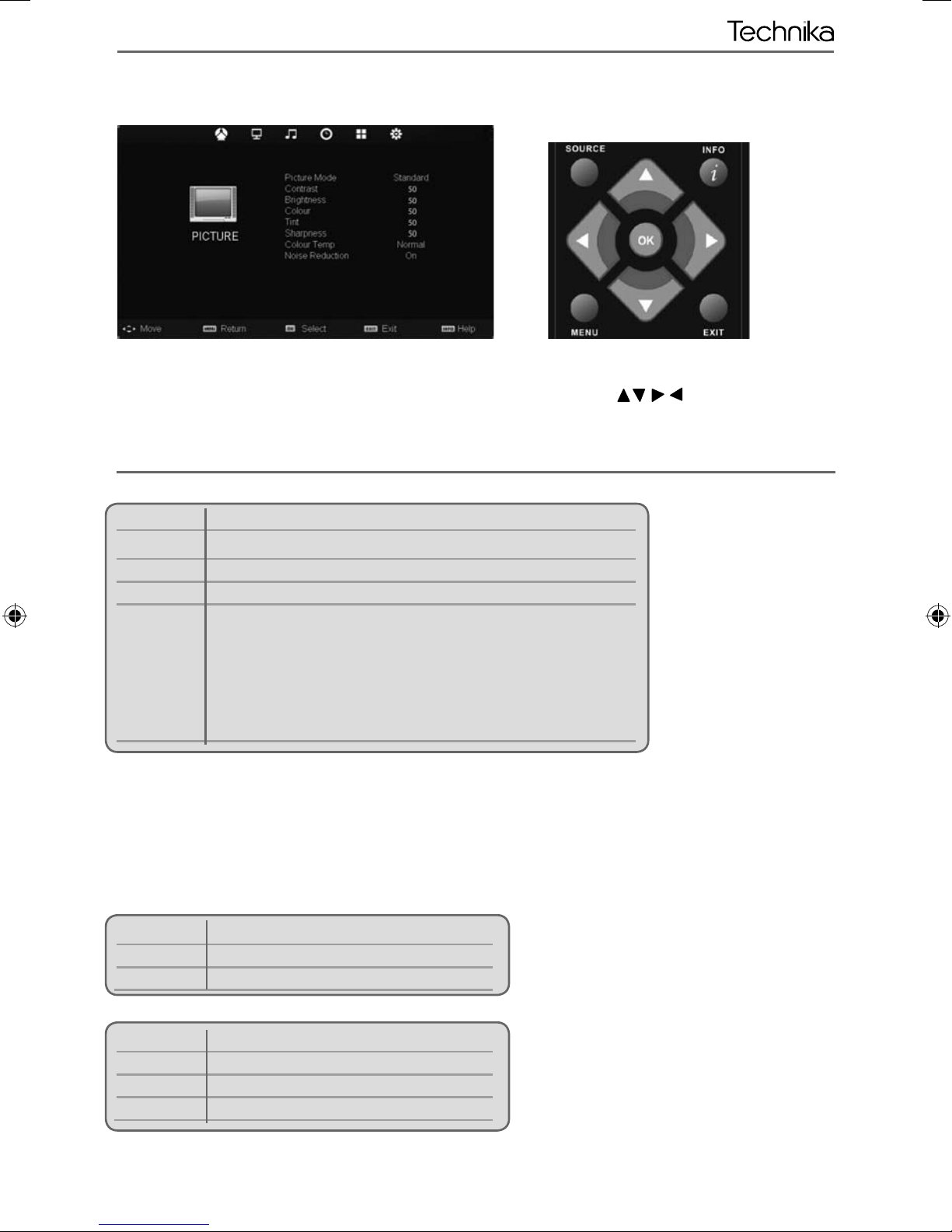

PICTURE MENU
AV
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll
To confi rm any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Picture Mode - Choose from the following presets
Standard Default settings
Dynamic Recommended settings for fast moving pictures
Mild Set to be lighter in colour and less bright
User Lets you manually alter all the settings
Ecohome Power saving mode which reduces the energy used by up to
25% (by reducing the power to the LED/LCD panel).
In Ecohome mode, the TV will switch itself to Standby mode
after 4-5 hours in the event that the TV buttons or remote
control buttons are not pressed (see the time menu to
de-activate this function).
Contrast - Switch the balance between black and white
Brightness - Increase or decrease the brightness of the picture
Colour - Increases the colour from black and white
Tint - Lets you increase or decrease the level of tint within the picture
Sharpness - Increase or decrease the sharpness of the picture
buttons.
Colour Temperature Choose from the following presets
Normal Default settings
Warm Increases red within the picture
Cool Increases blue within the picture
Noise Reduction - Choose from the following presets
Off Turns noise reduction off
Low Minor system adjustment
Middle Medium system adjustments
High Maximum system adjustments
17
SOUND MENU
AV
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll
To confi rm any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Sound Mode - Choose from the following presets
Standard Default settings
Music Emphasises music over voices
Movie Provides live and full sound for movies
Personal Selects your personal sound settings
Sports Emphasises sound for sports
Tip: Treble and bass levels can only be adjusted when the sound mode ‘Personal’ is selected.
Treble - To adjust the amount of high frequency within the sound
Bass - To adjust the amount of low frequency within the sound
Balance - To switch the sound between the left and right speakers
Auto Volume Level (AVL) - When ‘on’ is selected, the volume will stay at a constant level regardless of
input/source
Digital Output - This is the digital COAX Audio output. Choose from the following options:
buttons.
Off Off
Auto Selects the best settings automatically
PCM Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code
modulation (PCM) is a digital representation of an analogue signal)
AD Volume - Increase or decrease the Audio Description volume
18
19
TV Menu Operation
TIME MENU
AV
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll
any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Clock - Shows the date and time
Off Time - Allows you to set a specifi c time for your TV to turn off
On Time - Allows you to set a specifi c time for your TV to turn on, the channel it will then display, the
source it will be on and also the volume. This function can then be toggled to repeat every day or a
certain day.
Time Zone - Change your current time zone
Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount of
time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min
Auto standby - Toggle the Function on and off
buttons. To confi rm
19
TV Menu Operation

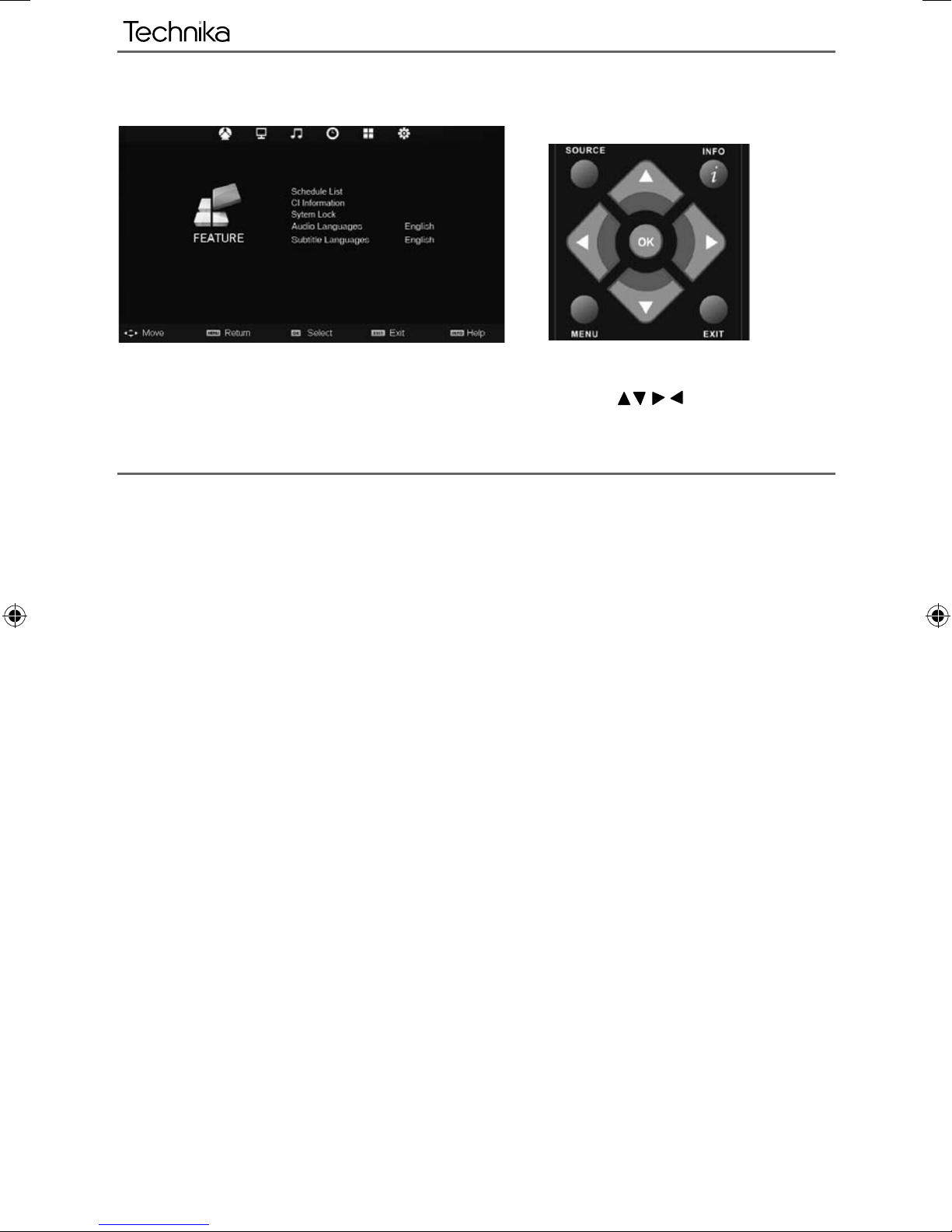

FEATURE MENU
AV
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll
any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Schedule List - Lists your programme reminders
CI Information - Pay per view services require a “smartcard” to be inserted into the TV.
If you subscribe to a pay per view service the provider will issue you with a ‘CAM’ and a “smartcard”. The
CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).
System Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password use
the button to quit the password input. Use the button to clear. Default password is 0000
Audio Language - Shows the current audio language
Subtitle Language - Shows the current subtitle language
buttons. To confi rm
20
21
TV Menu Operation
OPTION MENU
AV
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll
any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Menu Language - Allows you to change the language of the menu
4:3
Aspect Ratio - Within the UK the picture format
varies depending on the channel/broadcast.
There are a number of different options to best
meet your needs
Auto
Automatically displays the best picture format. So the
picture is in the correct position. May have black lines
At the top/bottom and/or sides.
Original
Will display the picture from the broadcaster
without any change
Zoom
The picture
is the correct
proportion
but zoomed
in to fi ll the
screen
16:9
14:9
buttons. To confi rm
Displays the 4:3
picture in its
original size.
Side bars are
shown to fi ll the
16:9 screen
Fills the screen
with a regular
16:9 signal and
4:3 picture
format will be
stretched to fi ll
the screen
Displays the
14:9 picture
in the correct
proportion. As
a result side
bars are shown
on the screen
Blue Screen - Changes the background when there is no input between clear and a blue background (Only
available on some sources)
Menu Duration - Lets you adjust the amount of time the On Screen Menu stays on the screen before
disappearing
Reset to default
Reset Menu System
Reset TV Channels - This clears all the TV channels from the television.
Software Update (USB) - From time to time we may release new fi rmware to improve the operation of
the television (available to download). This menu lets you install the new software/fi rmware onto the
television. Further details of how to do this will be issued with the fi rmware. Contact the helpline or refer
to the ‘product support’ section of the website.
- This resets the menus to factory settings.
21
23
DVD Menu Operation
DVD MENU
AV
If you wish to make changes to any of the default settings, use the scroll buttons.
To confi rm any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
TV Display - Choose from the following options
16:9 Full screen picture format
4:3 Pan scan PS Traditional picture format, often used on old fi lm
4:3 Letter box LB Traditional picture which has been adapted for widescreen
Wide Widescreen picture format
TV Type - Choose from the following options
PAL The standard for discs from UK/Europe, most of Asia, Australia etc
Multi The standard for discs from UK/Europe, most of Asia, Australia etc
NTSC Normally used for discs from North America, Japan etc
Default - This option allows you reset all DVD settings to factory settings.
Downmix- - Choose from the following options
LT/RT Converts from multi-channel sound to mono
Stereo Converts from multi-channel sound to stereo
Dynamic Range - This is the difference between the quietest and loudest sounds. This setting works only
with DVD discs recorded in Dolby digital.
Full Set this to listen with the range recorded on the disc
3/4 Set this to listen with a range equivalent to a normal television
1/2 Set this to listen with a smaller difference between the maximum and minimum volume
1/4 Set this to listen with a smaller difference between the maximum and minimum volume
Off Set dynamic range to off
Dual Mono
Stereo Outputs 2 channels of sound both left and right
Mono L Outputs left side sound
Mono R Outputs right side sound
Mix Mono Outputs a single channel of sound but mix between right and left
Tip: This TV/DVD player is pre-set to play Region 2 DVDs. In the event you wish to use the TV/DVD
in another country that uses different region discs, please visit www.umc-uk.co.uk. Select ‘Product
Support’, ‘Changing Region’.
23
7 Day TV Guide
7 DAY TV GUIDE
TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where
supported by the freeview channel). You can view the start and end time of all programmes and on all
channels for the next 7 days and set reminders.
1) Press [TV GUIDE]. The following 7 Day TV Guide will appear.
2) Navigate through the menu using
You can now:
Set a reminder by pressing GREEN
View a previous day by pressing YELLOW
View the next day by pressing BLUE
3) Press [EXIT] to exit the 7 day TV Guide.
24
25
USB Mode / Media Player
USB MODE / MEDIA PLAYER
USB mode offers playback of various different types of content that you have saved on your USB Memory
Stick.
On switching to USB source the above menu screen will appear. The content will be divided into Photo,
Music, Movie and Text based on fi le type.
1) You can navigate through the menus using the
scroll
wish to play/view press [OK] button.
3) You can now access the item. Press OK to view. 4) While viewing you control the item using
buttons. To confi rm the item you
2) Select the drive you require. (If your drive only
has 1 partition you will only see 1 item).
or by pressing ( i ) and using and (OK)
25
General Information
USING YOUR TV WITH A SKY DIGITAL SET TOP BOX
Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located
in the same room)
Depending on your Sky Box & TV model, connect either by SCART or HDMI cables
(available separately)
If connecting by SCART, select the ‘Input source’ on the TV as SCART.
If connecting by HDMI, select the ‘Input source’ on the TV as HDMI (if the TV has more
than 1 HDMI port, ensure you select the input source to match the HDMI numbered port
on the rear of the TV)
If you wish to use your Sky remote to operate the TV’s functions, you will need a Sky
remote control (Revision 9 or later) and you will need to programme a 4 digit code into it.
See bottom of this page.
Option 2) Connecting your TV to your Sky box (when your Sky box is located in a different
room to the TV)
Please note, if you are adding a ‘Magic
Eye/TV Link’ to your system so that
you can use your Sky remote control
to change the Sky channel in the room
where the 2nd TV is located, please
refer to the instructions included
with the TV link/magic eye in order to
ensure the RF or RF2 output on your
Sky box is powered on. (The red LED
light on the TV link/magic eye will light
up if the RF / RF2 output is correctly set
up) If you do not have the instructions
that came with the TV link/magic eye,
instructions on how to do it can be
found on our web site.
SCART
or HDMI
cable
Sky Box
RF/COAX cable from
Sky Box to 2nd TV
Connect to RF
or RF2 output
on the Sky box
Connect to the
Aerial/RF input
on the 2nd TV
TV Link/Magic Eye
(optional)
SCART
or HDMI
cable
Sky Box
2nd TV in
another room
1) To tune the TV to the Sky box, on the 2nd TV, select the ‘Analogue’ input source.
2) Select the channel that you wish to store the Sky box/channel on. (If you do not use channels 1-5 because you
no longer have analogue terrestrial channels after digital switchover, you may choose to select channel 1 to store
the Sky box/channel, if you still have and use analogue channels 1-5, you may for example decide that channel 6 is
the best option for you)
3) Press the corresponding number on the remote control to select the desired analogue channel chosen as per
point 2 above.
4) On the TV remote control, press Menu. Now navigate through the menus to select Manual Tuning or Analogue
Manual tuning (refer to the Tuning/Channel menu section of this user guide if necessary)
5) Manually tune in the channel (usually, the Sky box is at a frequency between 800Mhz and 850Mhz) once the
Sky box/channel is found, press ‘OK’ to store it.
If you wish to use your Sky remote to operate the TV’s functions, you will need a Sky remote control (Revision 9 or
later) and you will need to programme a 4 digit code into it. See below.
Using a Sky Remote or a Universal Remote to operate your TV
Sky Remote Control, If you wish to use your Sky remote to operate the basic functions of your TV, you need to
programme a 4 digit code into it. Please note. you will need the latest Sky Revision 9 remote control as this is
the only version that includes the latest software/fi rmware necessary to operate this model of TV. All codes can
be found on our website. If you wish to upgrade/replace your existing Sky remote control to the latest version,
you can do so on our web site.
Universal Remote Control, If you wish to use a Universal remote control to operate your TV, please refer to the
web site for a full list of codes. (Please note we only have codes for One for All branded remote controls, if you
have an alternative brand of Universal remote, please refer to the manufacturer for the code.)
26
27
General Information
FREQUENTLY ASKED QUESTIONS
General I would like to have louder
General Why are some options in
General Can I stop my TV turning off
TV I have tuned in Digital TV
TV I have re-tuned my television
VCR/DVD
Recorder
General Can I stop my TV turning off
DVD I have inserted a disc but it is
Game Consoles I have connected my PS3 to
Game Consoles I have connected my
USB Mode I have inserted a USB
USB Mode Using a USB portable hard
System Lock I have changed the password
sound by connecting
additional speakers
the menu unavailable and
greyed out
after 4hrs?
but I am not receiving any
or all of the channels and/
or the channels I receive are
breaking up
but when I switch it off it is
not storing the channels
I have connected the TV to
my VCR or DVD Recorder via
SCART but it is not recording
after 4hrs?
not playing
the TV via HDMI, but I am
not receiving any pictures or
sound on my Television
Xbox 360 to the TV via
Component Cables (Red,
Green & Blue) but I am not
receiving any sound
Memory Key, but the TV
does not recognise it
drive
on the television and now
forgotten it
Use the 3.5mm headphone output and a 3.5mm to phono cable (available
separately) to connect to an amplifi er/surround sound system
Some options are only available in certain sources, i.e. HDMI. They are
unavailable in the other sources where they have no affect.
Yes
1) In the picture settings menu, de-select Eco-home
2) In the time settings menu, scroll down to Auto standby and select OFF
1) Check you are in an area that can receive Freeview.
Visit www.freeview.co.uk
2) Check you are using an aerial that is able to receive a good digital
signal. In most cases, you will need an outdoor digital hi-gain/wideband
aerial. In areas that have excellent digital coverage, you may be able
to use a loft type aerial but it is highly likely that you will also need to
connect a booster between the back of the TV and the TV aerial wall
socket. Unfortunately, to receive a good enough digital signal, it is not
possible to use a portable/indoor type aerial. This may change once the
analogue signal is switched off in 2012 and the Digital signal strength is
increased.
Complete a fi rst time installation, please refer to the set-up menu section
of the manual of how to do this
In addition to connecting via SCART, you should connect the aerial cable
from the wall socket to your VCR/DVD Recorder and another aerial cable
from the VCR/DVD Recorder to the TV
Yes
1) In the picture settings menu, de-select Eco-home
2) In the time settings menu, scroll down to Auto standby and select OFF
1) Ensure you have inserted put the disc in facing the correct way forward
2) Ensure the disc is clean and is not scratched
3) Some copied discs will not play.
4) Check the DVD is a region 2 disc – to change the region of the DVD
player, refer to section ‘Changing Regions’.
1) Ensure the TVs source is on HDMI
2) Check your settings on your PS3 are as per the PS3 instruction manual
Component cables only provide HD Pictures. For the sound you will need
to connect the Red & White audio cables on the Xbox to the Red & White
phono inputs on the rear of the TV. Please refer to the ‘Connections’
pages.
Ensure the USB Memory Key is formatted to type FAT32.
If you wish to use a portable hard drive larger than 32GB, please note
that it must be formatted to the FAT32 fi le system in order to operate on
this TV. Windows XP/Vista computers are only capable of formatting up
to 32GB, therefore, you will need a software programme/utility to format
larger hard drives. Please refer to the web site for more information.
There is a master password of 4711, to gain access to the TV menu and
reset the normal password
Note: TV supplier may change the software without notice which may adjust menu graphics
27
General Information
TECHNICAL SPECIFICATION
Model 19-248COM 22-248COM 24-E231COM 24-E242COM
Screen size
18.5"/47cm 21.5”/55cm 23.6"/60cm 23.6"/60cm
(diagonal)
Resolution 1366 x 768 1920 x 1080 1366 x 768 1920 x 1080
Contrast Ratio 1000:1 1000:1 3000:1 1000:1
Brightness cd/m2 250 cd/m
2
250 cd/m
2
250 cd/m
2
280 cd/m
RF 75 ohm Antenna / PAL-SECAM
Video Inputs 1 x Video, 1 x Component (YPbPr - 1080i)
2 x HDMI (upto 1080P)
Sound Inputs 1 x L/R Audio input shared for Video&Component(YPbPr)
Sound Outputs 1 x Headphone output
Sound power,
2 x 3
watts (RMS)
Voltage
and power
consumption
Dimensions including
stand (mm)
110 - 240V ~
50/60Hz
17W/45W
(ecomode/max)
/<0,5W inStandBy
457W x 360H x
170D
110 - 240V ~
50/60Hz
20/50W
(ecomode/max)
/<0,5W inStandBy
530W x 395H x
170D
110 - 240V ~
50/60Hz
25/50W
(ecomode/max)
/<0,5W inStandBy
583W x 410H x
195D
110 - 240V ~
50/60Hz
25/50W
(ecomode/max)
/<0,5W inStandBy
583W x 410H x
195D
Net weight (Kgs) 3.6 4.0 4.7 4.7
2
Compatible fi les in USB Mode
Media File Ext. Codec
Movie .mpg Mpeg-1, Mpeg-2
.avi Xvid, MJPEG,
.ts Mpeg-2 Max Resolution: 1920x1080
.mov Mpeg-4 SP/ASP
.mkv
.dat Mpeg-1
.mp4 Mpeg-1, Mpeg-2 Max Resolution: 1024x768
Music .vob Mpeg-2
.mp3 - MP3 Sample Rate 16K-48KHz
.wma - WMA
Picture .jpg Progressive JPEG Max Resolution: 1024x768
.jpeg Baseline JPEG Max Resolution: 8192x8192
.bmp BMP Max Resolution: 6500x6500
Video Audio
MPEG-4 SP/ASP
MP3, WMA
Max Resolution: 1920x1080
Max Data rate: 40Mbps
Max Data rate: 40Mbps
Max Data rate: 40Mbps
Bit rate: 32K - 442Kbps
28
29
General Information
INDEX
Aspect Ratio .................................................................... 21
Attaching the stand ....................................................... 9
Auto Tuning .................................................................... 16
Auto Volume Level ........................................................ 18
Balance ........................................................................... 18
Bass ................................................................................. 18
Blue Screen .................................................................... 21
Brightness ...................................................................... 16
Clock ................................................................................ 19
Colour ............................................................................ 17
Colour Temperature ...................................................... 17
Common Interface ........................................................ 20
Connections .................................................................... 14-15
Contrast .......................................................................... 17
Detaching the base/stand .............................................. 10
Digital Output ............................................................... 18
Dual Mono (DVD) ........................................................... 23
Dynamic Range (DVD) .................................................... 23
First Time Installation .................................................... 11
Frequently Asked Questions .......................................... 28
Getting Started ............................................................... 11
Language ....................................................................... 20
Manual Search ................................................................ 16
Noise Reduction ............................................................ 17
Picture Mode ................................................................. 17
Remote control .............................................................. 13
Reset to default .............................................................. 21
Returning to default (DVD) .......................................... 23
Sharpness ....................................................................... 17
Sleep Timer .................................................................... 19
Sound Mode .................................................................. 18
Source Menu ................................................................... 12
System Lock ................................................................... 20
Technical Specifi cations ................................................. 28
Tone (DVD) .................................................................... 23
Treble ............................................................................. 19
TV buttons ..................................................................... 12
TV System (DVD) ............................................................ 23
TV Type (DVD) ................................................................ 23
TV Guide ........................................................................ 24
USB Mode / Media Player .............................................. 26
Using your TV with a Sky Digital set top box ............... 26
Wall mounting ............................................................... 10
What is included in the box .......................................... 8
29
TEC/MAN/0058
Loading...
