Full HD LED TV with Freeview & USB PVR
Model No
User Guide
24E21B-FHD
24E21B-FHD/DVD
24E21W-FHD/DVD
3
Manufacturers Guarantee
IMPORTANT GUARANTEE INFORMATION
IMPORTANT GUARANTEE INFORMATION
Congratulations on purchasing this television. We hope you have many years of trouble free
enjoyment from your purchase.
Your product is covered under the manufacturers guarantee for 12 months from date of
purchase.
In the event of a fault being diagnosed, please refer to the frequently asked questions/
troubleshooting section at the rear of this user guide.
If you are still unable to remedy the fault, try resetting the TV to factory settings, (details in this
user guide) or contact the helpline.
In the event that a fault is diagnosed, the helpline will arrange to collect the TV from your home
or work address, return it to our service centre, repair the item and then return it to you.
If we believe we cannot offer a permanent repair, we will replace the item.
Helpline Information
Telephone UK 0871 2000 463, ROI 01443 3940
Web support: www.umc-uk.co.uk
The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.
You must retain all packaging materials, in addition to your proof of purchase/receipt, as you will need
these in the event of warranty/service support.
This guarantee is in addition to and does not affect your statutory rights.
If you need to call the helpline, you will need the following information.
1) Model No ______________________________________ (You can fi nd this on the rear of the TV)
2) Date of purchase ______________________________________ (You can fi nd this on your sales receipt)
3) Serial Number ______________________________________ (You can fi nd this on the rear of the TV)
Model No
EXAMPLE OF LABEL ON REAR OF TV
Serial No.
3
IMPORTANT SAFETY INSTRUCTIONS
Please read these instructions. All the safety and operating instructions should be read before the
appliance is operated.
Warnings
• To reduce the risk of fi re, electric shock or
damage to the television, do not expose it to
dust, rain or moisture, or place any objects fi lled
with liquids on or near the television.
• Do not place the television in a confi ned space,
ensure that nothing can obstruct the ventilation
openings at the rear of the television.
To prevent spread of fi re,
keep candles or other open
fl ames away from this
product at all times
• Dispose of this television and any components
including batteries in an environmentally friendly
manner. If in doubt, please contact your local
authority for details of recycling.
Safety
• For your safety, this appliance is fi tted with a
fused moulded 3 pin mains plug. Should the
fuse need to be replaced, ensure that any
replacement is of the same amperage and
approved with the BSI mark.
• Never try and replace the mains plug unless
you have adequate qualifi cations and are
legally authorised to do so. In the event that a
replacement Mains cable is required, contact the
manufacturer for a suitable replacement.
• Never use the television if it is damaged in
any way.
• Always place the television on a fl at level surface
avoiding anywhere which may be subject to
strong vibration.
• Ensure the television is not placed on top of the
power cable as the weight of the television may
damage the cable and cause a safety hazard.
• Never place mobile phones, speakers or any
other device which may cause magnetic or radio
interference with the television. If interference
is apparent, move the device causing the
interference away from the television.
• To disconnect the apparatus from the mains,
please use the switch located on the underside/
rear of the TV. The switch shall remain readily
operable.
• When installing on a wall, ensure the TV is at
least 5cm from the wall for ventilation
• Ensure that the power switch on the unit and the
power plug are always easily accessible.
WARNING: Excessive noise when using earphones
and headphones can cause a loss of hearing.
Maintenance
• To clean this unit, wipe with a soft, dry cloth. If
the surfaces are extremely dirty, use a soft cloth
dipped in a soap and water solution or a weak
detergent solution.
• Never use alcohol, paint thinner or benzene to
clean this unit.
• Before using a chemically treated cloth, read the
instructions that came with the cloth carefully.
CAUTION: If water or other liquid enters the
television through the display panel surface, a
malfunction may occur.
Packaging
• The safest way to transport your item is in
the original box/packaging - please save your
packaging for this.
• You will need original box/packaging in the
event of warranty/service repair or support.
We are unable to carry out warranty/service if
you are unable to package it correctly.
4
5
IMPORTANT SAFETY INSTRUCTIONS
Please read these instructions. All the safety and operating instructions should be read before the
appliance is operated.
Important Information Regarding Use of
Video Games, Computers, Captions or Other
Fixed Image Displays
The extended use of fi xed image program material
can cause a permanent “shadow image” on the
LCD/LED panel.
This background image is viewable on normal
programs in the form of a stationary fi xed
image. This type of irreversible LCD/LED panel
deterioration can be limited by observing the
following steps:
1. Reduce the brightness/contrast setting to a
minimum viewing level.
2. Do not display the fi xed image for extended
periods of time.
3. Turn the power off when not in actual use.
Examples of images that you need to watch out
for are as follows (this is not an exhaustive list):
• TV Channel Logos: e.g. Shopping channel logos
and pricing displays-especially if they are
bright and stationary. Moving or low-contrast
graphics are less likely to cause ageing of the
screen.
• Time Displays
• Teletext: Do not view a stationary page for a
long period of time
• TV/DVD Menus: e.g. Listings of DVD disc content
• Pause Mode: Do not leave the TV in pause mode
for long periods of time, e.g. When watching
DVDs or videos.
How do I dispose of this product?
UK: Waste electrical products should not be
disposed of with household waste. Separate
disposal facilities exist. For your nearest facilities,
please see www.recycle-more.co.uk or in store for
details.
ROI: Waste electrical products should not be
disposed of with household waste. Separate
disposal facilities exist. Check with your Local
Authority or retailer for recycling advice.
Batteries
• Do not expose batteries to high
temperatures, excessive heat,
prolonged sunshine or fi re
as this may cause leakage,
explosion or ignition.
• Observe the correct polarity when
inserting batteries.
• Do not use different types of
batteries together or mix old and
new batteries.
• Dispose of batteries in an
environmentally friendly way.
• Certain regions may regulate the
disposal of batteries.
Please consult your local authority.
Cd
Important - Once ‘shadow image/screen burn’
occurs, it will never disappear and is not repairable
under warranty.
TV Models with built in DVD players
CAUTION:
THIS UNIT IS A CLASS 1 LASER PRODUCT. THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS
RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE PLAYER CORRECTLY AS INSTRUCTED.
WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENINGS TO LOOK
INTO THE INSIDE OF THIS UNIT.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
CLASS 1
LASER PRODUCT
This caution label is located on the rear panel of the unit
5
7
CONTENTS
Manufacturers Guarantee Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
What is included in the box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Attaching the stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Detaching the stand/ Securing the TV to a wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
TV Buttons and Input Source Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-17
TV Menu Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-25
Channel Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Picture Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Sound Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Time Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
System/Hotel Lock Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25
DVD Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7 Day TV Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
USB Record - Digital / Freeview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
USB Mode / Media Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-33
Using your TV with a Sky digital set top box . . . . . . . . . . . . . . . . . . . . . . . . 30
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31-32
Technical Specifi cation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited.
DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a
trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
7
What is included in the box
WHAT IS INCLUDED IN THE BOX
Accessories
Included with this TV are the following accessories
1 x User Guide
User Guide
1 x Quick Start Guide
Quick Start
Guide
1 x Remote Control
2 x AAA Batteries
1 x Mini Component / YPbPr
1 x TV
1 x RF Cable
1 x Mini Composite / Video
1 x Stand plus screws
Please save your packaging as you will need this in the event of warranty/service repair or support. We
are unable to carry out warranty/service if you are unable to package it correctly. The safest way to
package your item in the event of warranty/service repair is in it’s original box/packaging.
8
9
Attaching the stand
6)
ATTACHING THE STAND
Attaching the stand
Attaching the stand
To complete the stand installation you will require a cross head screw driver
To complete the stand installation you will require a cross head screw driver
Screws that are included.
3 x ST (4x16)3 x M (4x12)
Used for attaching the stand neck
to the TV ( g.1)
Used for attaching the stand base
to the stand neck ( g.3)
1
2
3 x
M (4x12)
11/2
3 x ST (4x16)
(fi g.1) Attach the stand neck to the rear of the TV set
using the 3 x M(4x12) screws provided.
(fi g.2) Peel off the protective plastic cover then attach
the stand base to the stand neck.
When securing the self-tapping screws into the base of the stand (on fi rst
installation) the screws will be naturally tight as they are creating a thread
in the plastic of the stand neck in order to support a TV of this size.
a) Ensure the cross head screw driver tip fi ts correctly into the head of the
screw and that it is not too big or small.
b) Screw in all screws individually and partially before tightening all of the
screws individually and partially until they are fully inserted.
c) If they become very tight try loosening them slightly and then retightening them once again as this will continue the process of creating the
thread for the screws.
3
(fi g.3) Secure the base to the neck by using the
3 x ST(4x16) screws provided.
9
Detaching the Stand / Securing the TV to a Wall
DETACHING THE STAND
Detaching the stand
Remove the screws highlighted then remove the stand base and neck from the rear of the TV set.
Securing the TV to a Wall
For maximum security in the home when using a TV with its stand anti-tip straps should be fi tted. These
are available from supermarket websites and other websites and are an easy, inexpensive and effective
way of ensuring your TV stays safely upright. Straps are designed to be attached to the rear of the TV
and then tethered to the wall of the furniture the TV is stood on, if wood. (The 2 images should appear
underneath this text).
Note - Please ensure that children do not climb on the TV set.
A) Using one or both of the top wall-mounting
holes and screws (the screws are already supplied
in the wall mounting holes) fasten one end of the
fastening cord/s to the TV.
B) Secure the other end of the fastening cord/s to
your wall. (you will need screws/fi xings suitable
for your wall type - available separately from most
DIY stores).
The Royal Society for the Prevention of Accidents is urging people to take care with fl at-screen televisions.
RoSPA stated in 2010 that “Toddlers are particularly at risk of pulling fl at-screen televisions on to
themselves. They are unsteady on their feet and are attracted by colourful television images.”
The risk is increased as televisions become lighter.
10
11
Wall mounting
WALL MOUNTING
Wall mounting the TV
IMPORTANT - Before drilling any holes in the wall ensure you are not drilling
where there could be any electric wires, water or gas pipes.
1) Remove the four screws highlighted that are supplied in the wall
mounting holes.
2) The wall mount can now be easily attached to the mounting holes on
the rear of the TV.
For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards
so that the TV’s screen is ‘face on’. See fi g 1 and 2
For VESA wall mounting information please refer to the Technical Specifi cation page.
Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes.
Using other screws which are longer could cause irreparable damage to internal parts.
fi g 1 fi g 2
INCORRECT
TV
Viewing angle
CORRECT
TV
Viewing angle
11

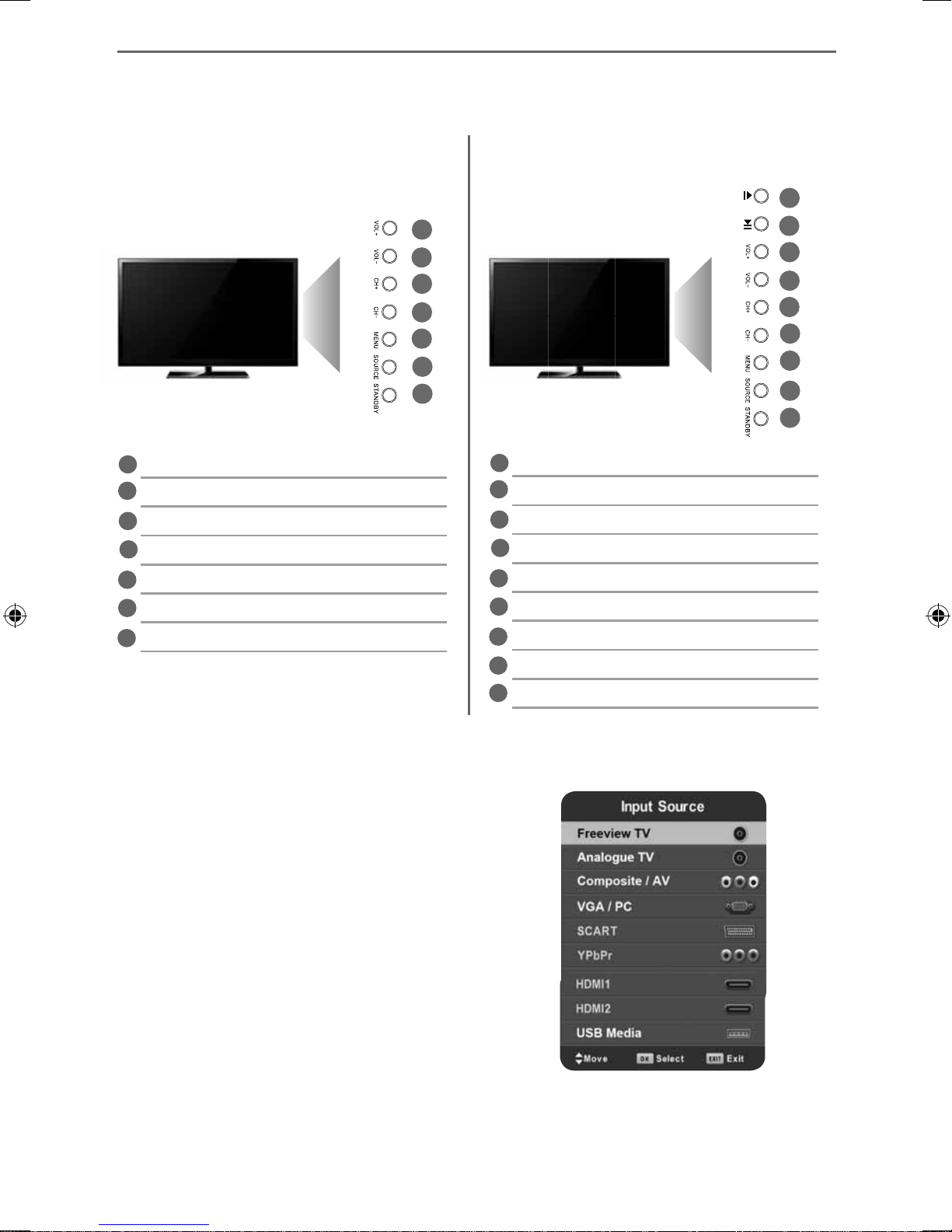

TV BUTTONS & SOURCE MENU
This information is for models
without built in DVD players
Volume up and menu right
1
2
Volume down and menu left
3
Programme/Channel up and menu up
4
Programme/Channel down and menu down
Displays Menu/OSD
5
6
Displays the input source menu
This information is for models
with built in DVD players
1
1
2
3
4
5
6
7
Stop/Eject Disc
1
2
Play/Pause Disc
3
Volume up and menu right
4
Volume down and menu left
Programme/Channel up and menu up
5
6
Programme/Channel down and menu down
2
3
4
5
6
7
8
9
Standby Power On/Off
7
Choosing Mode Input/Source
To switch between the different input/
connections.
A) Using the buttons on the remote control:
1) Press [SOURCE] - The source menu will appear.
2) Press [\/] or [/\] to select the input you require.
3) Press [OK].
B) Using the buttons on the Television:
1) Press [SOURCE].
2) Scroll up / down using CH+/ CH- buttons to
the input/source you require.
3) Press Vol+ to change input/source to the
one selected.
Displays Menu/OSD
7
Displays the input source menu
8
9
Standby Power On/Off
12
Example of Source menu
depending on the TV model
13
REMOTE CONTROL
STANDBY - Switch on TV when in standby or vice versa
1
MUTE - Mute the sound or vice versa
DTV - Switch to Freeview source
RADIO - Switch to radio whilst in Freeview source
USB - Switch to USB source
DVD - Switch to DVD source
NUMBER BUTTONS - 0 – 9 to select a TV channel directly.
2
TV GUIDE - Opens the 7 Day TV Guide (Freeview mode)
- To return to the previous channel viewed
VOL (+/-) - To increase / decrease the sound level
3
P.MODE - Scrolls through picture mode options
S.MODE - Scrolls through sound mode options
FAV - To display favourites menu
CH (+/-) - To increase or decrease the channel being watched
MENU - To display OSD menu
EXIT - To exit all menus
and adjust the system settings to your preference
SOURCE - To display the input/source menu
INFO - Press once for now/next channel information
Press twice for programme information about current
programme
- Allows you to navigate the on-screen menus
Remote Control
1
2
3
ASPECT - To switch the screen between the different picture
4
formats
SLEEP - Press repeatedly to cycle through the sleep options
AUDIO - To change the audio language (if available)
SUBTITLE - To switch the dialogue at the bottom of the screen
(on/off)
TEXT - To enter/exit Teletext (Analogue TV)
TEXT HOLD - Teletext mode - Hold current page which is
displayed (Analogue TV)
DISPLAY - To switch off the screen when listening to radio
TEXT/DVD ZOOM - Zoom function for Teletext and DVD
DVD MENU/RECORD - Access the DVD root menu and USB
record function
- To restart the current chapter
- To advance forward to the next chapter
- To stop the playback/Eject Disc
(To EJECT the disc press/hold the
- To play in fast rewind mode
- To play in fast forward mode
- To play/pause
DVD SETUP/REC LIST - Opens up DVD Menu or Opens the list
of what has been previously recorded
GOTO - To go to a specifi c chapter
A-B - Press once to set point, press a second time to return
to point
ANGLE - Select different angle of DVD
REPEAT - To repeat playback
button for 4 seconds)
4
For Models with Integrated DVD players
For Models with PVR Function
For Models with USB Playback
13
15
Connections
CONNECTIONS
I
K
CI CARD IN
J
EARPHONE
VGA/PC IN
A
A
HDMI 1 HDMI input
B
VGA PC VGA-PC input
C
VGA PC Audio In 3.5mm PC audio input
D
YPbPr/Component HD input (Ypbpr)
E
AV IN Input for Composite/Video and
B
VVGA A/P C( Au di o i n)
C
Audio for Composite / Video
and Component / Y Pb Pr
YPbPr
D
USB
I
H
COAX
E
F
RF IN RF / TV Aerial Input
COAX Audio Out Digital Coax output
HDMI 2 HDMI input
USB USB port
Earphones Earphone Input
CI CARD IN Common Interface module
G
F
G
H
I
J
K
15
Connections
CONNECTIONS
Note: Connecting cables are shown for example only and may not be included. Please check ‘What Is
Included In The Box’ page.
Connecting to a device with Composite AV/Video output
TV Source should be set to Video
L (white)
R (red)
IN
AV
Connecting to a device with SCART output (using SCART to AV cable)
TV Source should be set to Video
AV (Yellow)
IN
AV
SCART
Connecting to a device with HDMI output
A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio
with minimal loss of quality.
TV Source should be set to the corresponding HDMI port (HDMI 1, HDMI 2 etc)
Note: To use this model TV as a PC/laptop monitor it will need to be connected via the VGA input, it
can not be used as a PC/laptop monitor via the HDMI input. The HDMI Input is provided to view digital
content with compatible external devices.
16
17
Connections
CONNECTIONS

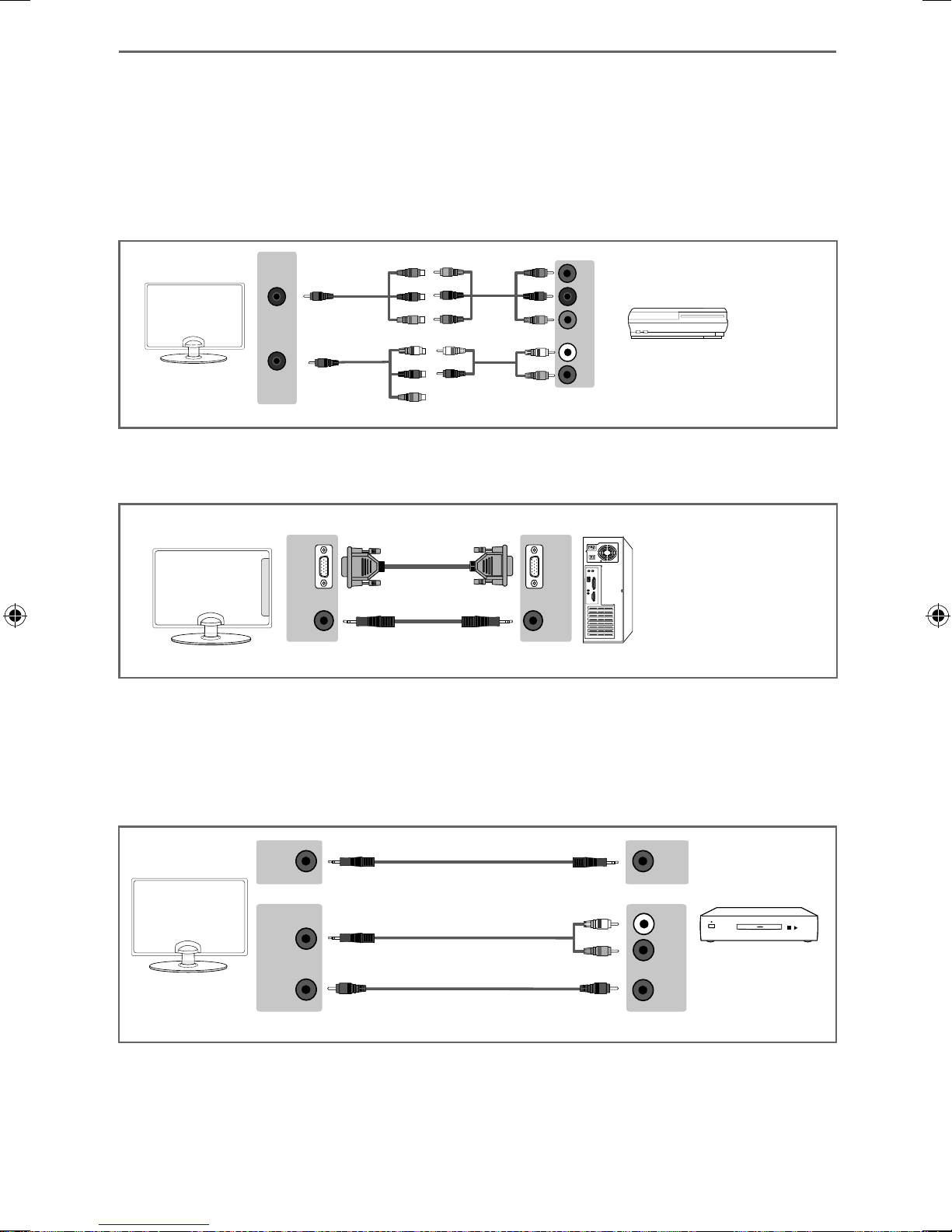

Connecting to a device with Component/YPbPr output
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors
you must connect via Component (for picture) and by phono cable (for sound).
TV Source should be set to Component.
Y
PB
Mini
YPbPr
Mini
AV IN
Video (yellow)
is not connected
Connecting to a device with VGA/PC output (Laptop or Desktop Computer)
TV Source should be set to VGA/PC
PR
L
R
VGA/PC
IN
VGA/PC
(AUDIO
IN)
VGA/PC
OUT
AUDIO
OUT
Connecting to an external audio device (Amplifi ers, Surround Sound,
Sound Bars etc)
When connecting via the TV’s 3.5mm Earphone output, this will disable the TV speakers.
There are two options to connect a device via the 3.5mm Earphone Output.
3.5mm
EARPHONE
3.5mm
EARPHONE
COAXIAL
OUT
OPTION 1 for 3.5mm EARPHONE Output
OPTION 2 for 3.5mm EARPHONE Output
3.5mm
AUDIO
IN
L
R
COAXIAL
IN
17
19
TV Menu Operation
CHANNEL MENU
To access this menu, press [MENU] button on the remote control.
To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.
Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and
analogue channels
Analogue Manual Tuning - Allows you to manually tune your analogue signal
Freeview Manual Tuning - Allows you to manually tune your digital signal
Channel Edit - Allows you to delete, move, skip and add favourite channels
buttons.
Schedule List - Lists your programme reminders
Signal Information - Allows you to view signal frequency, signal quality and signal strength
CI Information - Pay per view services require a “smartcard” to be inserted into the TV. If you subscribe to
a pay per view service the provider will issue you with a ‘CAM’ and a “smartcard”. The CAM can then be
inserted into the COMMON INTERFACE PORT (CI Card In).
Tip: If you do not press any buttons for 30 seconds, the menu will automatically exit. You can change
the length of time before the menu exits automatically - see ‘Menu Duration’ in the Setup Menu
19
TV Menu Operation
PICTURE MENU
Economy
To access this menu, press [MENU] button on the remote control and scroll right.
To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.
Picture Mode - Choose from the following presets:
Dynamic Recommended settings for fast moving pictures
Standard Standard settings
Mild Set to be lighter in colour and less bright
Personal Lets you manually alter all the settings
Economy Power saving mode which reduces the energy used by up to
25% (by reducing the power to the LED/LCD panel).
In Economy mode, the TV will switch itself to Standby mode
after 3-5 hours in the event that the TV buttons or remote
control buttons are not pressed (change the picture mode
to another setting to de-activate this function)
You can make the following adjustments in
Contrast - Switch the balance between black and white.
Brightness - Increase or decrease the brightness of the picture.
Colour - Increases the colour from black and white.
Tint - Lets you increase or decrease the level of tint within the picture
(only available in VGA/PC source mode).
Sharpness - Increase or decrease the sharpness of the picture.
Personal mode:
buttons.
Colour Temperature Choose from the following presets:
Normal Default settings
Warm Increases red within the picture
Cold Increases blue within the picture
Noise Reduction - Choose from the following presets:
Off Turns noise reduction off
Low Minor system adjustment
Middle Medium system adjustments
High Maximum system adjustments
20
21
TV Menu Operation
SOUND MENU
Audio Description
To access this menu, press [MENU] button on the remote control and scroll right.
To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.
Sound Mode - Choose from the following presets
Standard Default settings
Music Emphasises music over voices
Movie Provides live and full sound for movies
Sports Emphasises sound for sports
Personal Selects your personal sound settings
Treble - To adjust the amount of high frequency within the sound
Bass - To adjust the amount of low frequency within the sound
Balance - To switch the sound between the left and right speakers
Auto Volume Level (AVL) - When ‘on’ is selected, the volume will attempt to stay at a constant level
regardless of TV programme and advertisements
Digital Output - This is the digital COAX Audio output. Choose from the following options:
Off To turn off Digital Output
Auto Selects the best settings automatically
PCM Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code
modulation (PCM) is a digital representation of an analogue signal)
Tip: Treble and bass levels can only be
adjusted when the sound mode ‘Personal’
is selected.
buttons.
Audio Description - This allows the user to turn Audio Description on or off (Audio Description is a service
available on certain programmes. It provides a description of what is happening during the selected
programme for a person who is visually impaired)
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing
Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and
DTS TruSurround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
21
TV Menu Operation
TIME MENU
To access this menu, press [MENU] button on the remote control and scroll right.
To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.
Clock - Shows the date and time
Off Time - Allows you to set a specifi c time for your TV to turn off
On Time - Allows you to set a specifi c time for your TV to turn on, the channel it will then display, the
source it will be on and also the volume. This function can then be toggled to repeat every day or a
certain day (the TV must be in standby mode for this to be effective)
Time Zone - Change your current time zone
Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount of
time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min
Auto standby - Set Auto standby between 3 hours, 4 hours and 5 hours ( to turn off this function you must
exit Home Mode in the Picture Menu)
OSD Timer - Lets you adjust the amount of time the On Screen Menu stays on the screen before
disappearing
buttons.
22
23
TV Menu Operation

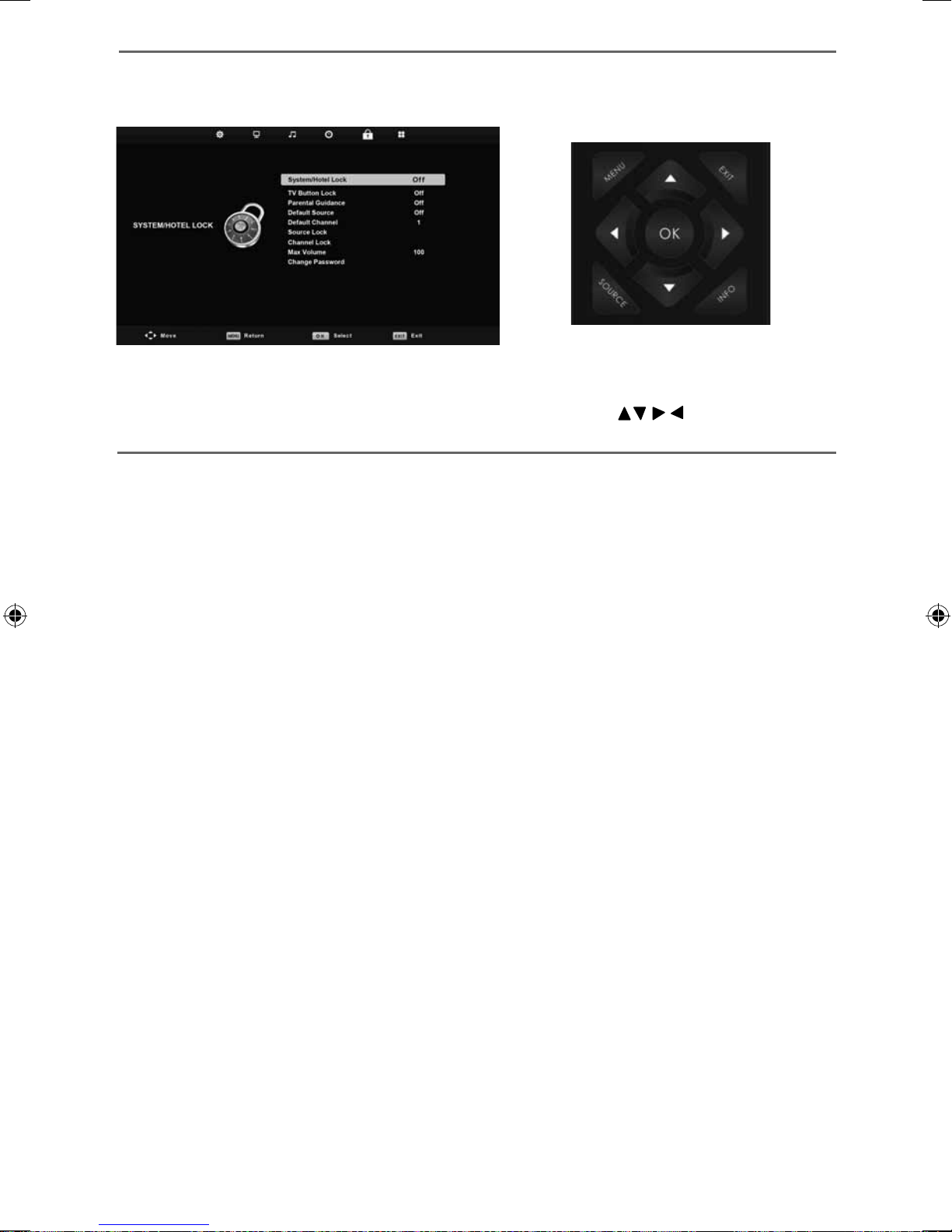

SYSTEM/HOTEL LOCK MENU
To access this menu, press [MENU] button on the remote control and scroll right.
To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.
System/Hotel Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password
Use the
TV Button Lock - Allows you to lock the buttons on the side of the TV set
Parental Guidance - Allows you to set the rating to block certain content based on age information
Default Source - Allows the user to set the default source. The default source is the source the TV starts on
when fi rst switched on
Default Channel - Allows the user to set a channel as the default channel on the Digital source. The
default channel is the channel the TV starts on when fi rst switched on
Source Lock - Allows you to lock the source menu
Channel Lock - Allows you to lock certain channels manually
Max Volume - Allows you to adjust and set the maximum volume
Change Password - Allows you to change the password
◄ button to quit the password input or use the ► button to clear. Default password is 0000.
buttons.
23
TV Menu Operation
SETUP MENU
To access this menu, press [MENU] button on the remote control and scroll right.
To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll
buttons.
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.
Language - Allows you to change the language of the menu
Audio Language - Shows the current audio language
Subtitle Language - Shows the current subtitle language
Hearing Impaired - This allows the user to turn on the Hearing Impaired function, this produces subtitles
on the screen which provide a description of what is happening during the selected program.
PVR File System - Allows you to view the format and performance of a USB key
Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a
number of different options to best meet your needs
Auto
Automatically displays the best picture format. So the
picture is in the correct position. May have black lines
at the top/bottom and/or sides.
Original
Will display the picture from the broadcaster
without any change
4:3
16:9
Displays the 4:3
picture in its
original size.
Side bars are
shown to fi ll the
16:9 screen
Fills the screen
with a regular
16:9 signal and
4:3 picture
format will be
stretched to fi ll
the screen
Zoom
24
The picture
is the correct
proportion
but zoomed
in to fi ll the
screen
Stretch
Displays the
14:9 picture
in the correct
proportion. As
a result side
bars are shown
on the screen
25
TV Menu Operation
SETUP MENU
To access this menu, press [MENU] button on the remote control and scroll right.
To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll
To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button.
Blue Screen - Changes the background when there is no input between clear and a blue background (Only
available on some sources)
First Time Installation - Allows you to access the First Time Installation menu and retune the TV set
Reset - This resets the menus to factory settings and clears all the TV channels from the television.
Software Update (USB) - From time to time we may release new fi rmware to improve the operation of
the television (available to download). This menu lets you install the new software/fi rmware onto the
television. Further details of how to do this will be issued with the fi rmware. Contact the helpline or refer
to the ‘product support’ section of the website
HDMI CEC (Consumer Electronic Control) - Allows HDMI devices to control each other and allows the user
to operate multiple devices with one remote control. (only available with compatible devices)
buttons.
25
DVD Menu Operation

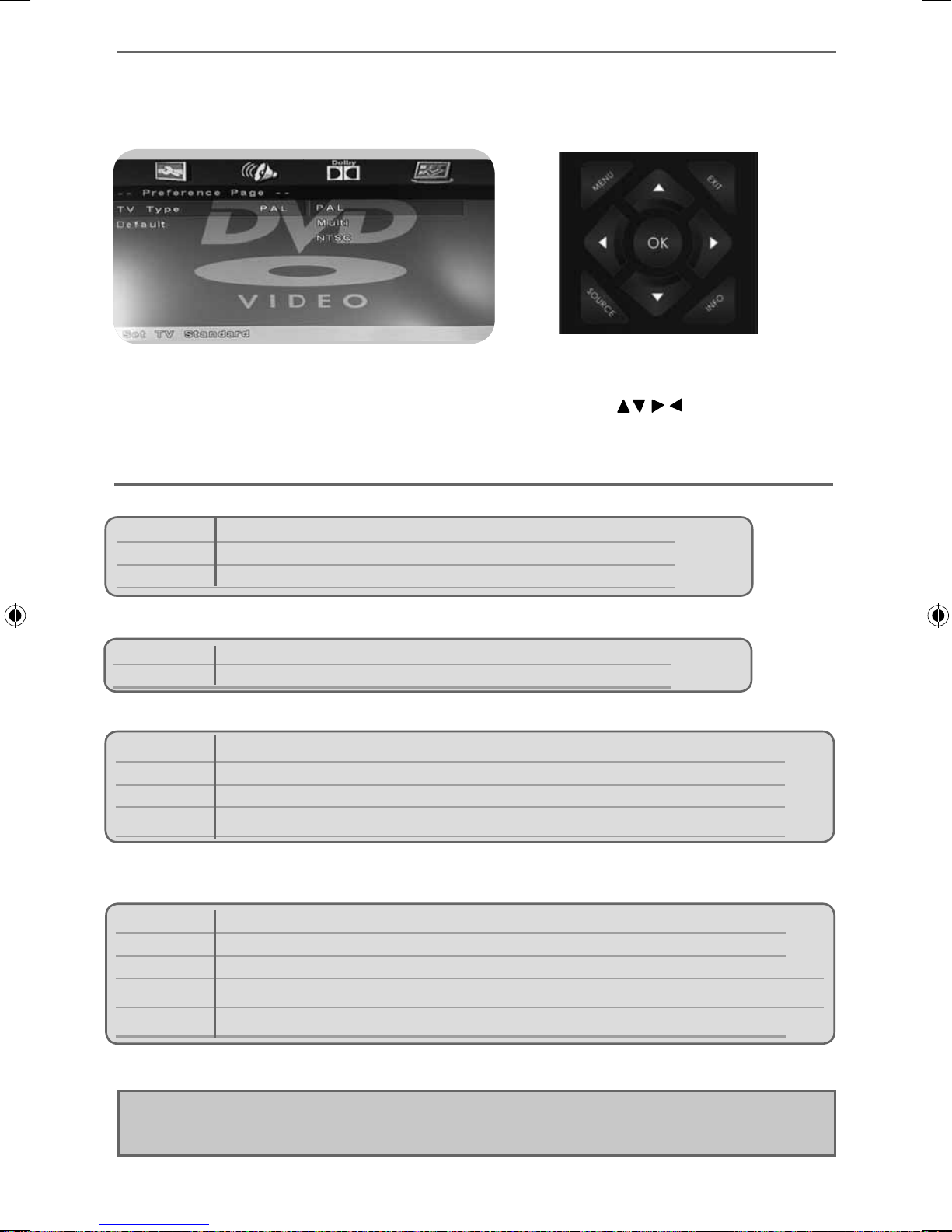

DVD SETUP
(Applies to models with built in DVD player)
To enter this menu please ensure the TV is in DVD source & press [DVD SETUP]
If you wish to make changes to any of the default settings, use the scroll
To confi rm any settings press [OK] button.
To exit this menu at anytime, press [DVD SETUP] button.
TV Display - Choose from the following options
4:3 Pan scan PS Traditional picture format, often used on old fi lm
4:3 Letter box LB Traditional picture which has been adapted for widescreen
Wide 16:9 Widescreen picture format
Speaker Setup - Choose from the following options
LT/RT Converts from multi-channel sound to mono
Stereo Converts from multi-channel sound to stereo
Dual Mono - Choose from the following options
Stereo Outputs 2 channels of sound both left and right
Mono L Outputs left side sound
Mono R Outputs right side sound
Mix Mono Outputs a single channel of sound but mix between right and left
buttons.
Dynamic Range - This is the difference between the quietest and loudest sounds. This setting works only
with DVD discs recorded in Dolby digital.
Full Set this to listen with the range recorded on the disc
3/4 Set this to listen with a range equivalent to a normal television
1/2 Set this to listen with a smaller difference between the maximum and minimum volume
1/4 Set this to listen with a smaller difference between the maximum and minimum volume
Off Set dynamic range to off
Tip: This TV/DVD player is pre-set to play Region 2 DVDs. In the event you wish to use the TV/DVD
in another country that uses different region discs, please visit www.umc-uk.co.uk. Select ‘Product
Support’, ‘Changing Region’.
26
27
7 Day TV Guide
7 DAY TV GUIDE
TV Guide is available in Freeview/Saorview TV mode. It provides information about forthcoming
programmes (where supported by the Freeview/Saorview channel). You can view the start and end time of
all programmes and on all channels for the next 7 days and set reminders.
1) Press [TV GUIDE]. The following 7 Day TV Guide will appear..
2) Navigate through the menu using
You can now:
Record a programme by pressing RED (USB device must be connected)
Set a reminder by pressing GREEN
View a previous day by pressing YELLOW
View the next day by pressing BLUE
3) Press [EXIT] to exit the 7 day TV Guide.
EXIT
27
USB Record
USB RECORD - DIGITAL/FREEVIEW MODE
USB RECORD – DIGITAL/FREEVIEW MODE
Built into this television is a USB record facility. This function is available in Digital/Freeview mode when
used in conjunction with a compatible USB memory stick or USB hard drive. The benefi ts of this are as
follows:
• Pause live TV and then playback, fast forward and rewind (up to live TV)
• One button record, if you decide you want to record the current programme
• Easy programmable recording from the 7 day TV Guide
• Record TV and watch/listen back on your computer/laptop
Due to the nature of the product, it is necessary to use a high speed USB memory stick (as the TV reads
from and writes to the memory stick at the same time, some memory sticks may not be suitable)
You can purchase high speed memory sticks from some computer stores, alternatively, we have a selection
of tested and compatible memory sticks available to purchase directly from the helpline/web site.
Minimum Specifi cation - USB Memory Stick
Read Speed 20 MB/s (Mega Byte Per Second)
Write Speed 6 MB/s (Mega Byte Per Second)
If you wish to use a USB portable hard drive larger than 32GB, please refer to the FAQ section at the rear
of this user guide.
Pause Live TV (Time Shift)
Pausing Live TV is very simple.
- Press the play/pause button and the television will pause and the live
content will be recorded. To resume watching press play/pause again.
- Press fast forward to go forward in a recording (i.e. to skip adverts)
- Press fast rewind to go back in a recording (i.e. if you fast forwarded
too far)
Tip: When you switch the TV to standby or change channel the Time Shift memory is wiped. To restart
time shift you must press play/pause button.
One Button Record
At any point in time you may decide to record the current channel that you are watching. To do this you
need to press the red button highlighted below.
Tip: This television contains one TV tuner, therefore it can only record the channel you are watching or
record one channel while the television is in standby mode.
Note: USB record function is only avilable in Digital/Freeview TV mode. Due to copyright laws and
illegal copying/recording it is not possible to record to/from any other input/output source.
28
29
USB Mode / Media Player
USB MODE/MEDIA PLAYER
USB mode offers playback of various different types of content that you have saved on your USB
Memory Stick.
On switching to USB source the above menu screen will appear. The content will be divided into Photo,
Music, Movie and Text based on fi le type.
1) You can navigate through the menus using the
scroll
wish to play/view press [OK] button.
3) You can now access the item. Press OK to view. 4) While viewing you control the item using
buttons. To confi rm the item you
2) Select the drive you require. (If your drive only
has 1 partition you will only see 1 item).
or by pressing ( i ) and using and (OK)
Tip: If you experience a playback issue, please ensure the fi les being used are the correct format
(example - the picture plays but no sound) See technical specifi cation page for compatible fi le types
29
General Information
USING YOUR TV WITH A SKY DIGITAL SET TOP BOX
Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located
in the same room)
Depending on your Sky Box & TV model, connect either by SCART or HDMI cables
(available separately)
If connecting by SCART, select the ‘Input source’ on the TV as SCART.
If connecting by HDMI, select the ‘Input source’ on the TV as HDMI (if the TV has more
than 1 HDMI port, ensure you select the input source to match the HDMI numbered port
on the rear of the TV)
If you wish to use your Sky remote to operate the TV’s functions, you will need a Sky
remote control (Revision 9 or later) and you will need to programme a 4 digit code into it.
See bottom of this page.
Option 2) Connecting your TV to your Sky box (when your Sky box is located in a different
room to the TV)
Please note, if you are adding a ‘Magic
Eye/TV Link’ to your system so that
you can use your Sky remote control
to change the Sky channel in the room
where the 2nd TV is located, please
refer to the instructions included
with the TV link/magic eye in order to
ensure the RF or RF2 output on your
Sky box is powered on. (The red LED
light on the TV link/magic eye will light
up if the RF / RF2 output is correctly set
up) If you do not have the instructions
that came with the TV link/magic eye,
instructions on how to do it can be
found on our web site.
SCART
or HDMI
cable
Sky Box
RF/COAX cable from
Sky Box to 2nd TV
Connect to RF
or RF2 output
on the Sky box
Connect to the
Aerial/RF input
on the 2nd TV
TV Link/Magic Eye
(optional)
SCART
or HDMI
cable
Sky Box
2nd TV in
another room
1) To tune the TV to the Sky box, on the 2nd TV, select the ‘Analogue’ input source.
2) Select the channel that you wish to store the Sky box/channel on. (If you do not use channels 1-5 because you
no longer have analogue terrestrial channels after digital switchover, you may choose to select channel 1 to store
the Sky box/channel, if you still have and use analogue channels 1-5, you may for example decide that channel 6 is
the best option for you)
3) Press the corresponding number on the remote control to select the desired analogue channel chosen as per
point 2 above.
4) On the TV remote control, press Menu. Now navigate through the menus to select Manual Tuning or Analogue
Manual tuning (refer to the Tuning/Channel menu section of this user guide if necessary)
5) Manually tune in the channel (usually, the Sky box is at a frequency between 800Mhz and 850Mhz) once the
Sky box/channel is found, press ‘OK’ to store it.
If you wish to use your Sky remote to operate the TV’s functions, you will need a Sky remote control (Revision 9 or
later) and you will need to programme a 4 digit code into it. See below.
Using a Sky Remote or a Universal Remote to operate your TV
Sky Remote Control - If you wish to use your Sky remote to operate the basic functions of your TV, you need to
programme a 4 digit code into it. Please note - you will need the latest Sky Revision 9 remote control as this is
the only version that includes the latest software/fi rmware necessary to operate this model of TV.
The code required for this television is 2134. If you wish to upgrade/replace your existing Sky remote control to
the latest version, you can do so on our web site.
Universal Remote Control - If you wish to use a Universal remote control to operate your TV, please refer to the
website for a full list of codes. (Please note we only have codes for One for All branded remote controls, if you
have an alternative brand of Universal remote, please refer to the manufacturer for the code.)
30
31
General Information
FREQUENTLY ASKED QUESTIONS
General I would like to have louder
General Why are some options in
General Can I stop my TV automatically
TV I have tuned in Digital TV
TV I have re-tuned my television
VCR/DVD
Recorder
DVD I have inserted a disc but it is
DVD I have pressed the eject
Game Consoles I have connected my PS3 to
Game Consoles I have connected my
System Lock I have changed the password
sound by connecting
additional speakers
the menu unavailable and
greyed out
turning off after 4hrs?
but I am not receiving any
or all of the channels and/
or the channels I receive are
breaking up
but when I switch it off it is
not storing the channels
I have connected the TV to
my VCR or DVD Recorder via
SCART but it is not recording
not playing
button but the disc is not
coming out
the TV via HDMI, but I am
not receiving any pictures or
sound on my Television
Xbox 360 to the TV via
Component Cables (Red,
Green & Blue) but I am not
receiving any sound
on the television and now
forgotten it
1) Use the 3.5mm headphone output and a 3.5mm to phono cable
(available separately) to connect to an amplifi er/surround sound system.
Please note this will deactivate the TV’s built in speakers.
2) Connect a COAX cable from the TV’s COAX output to your
amplifi er/surround systems COAX input.
Some options are only available in certain sources, i.e. HDMI. They are
unavailable in the other sources where they have no affect.
Yes, in the time settings menu, scroll down to Auto standby and select
OFF.
1) Check you are in an area that can receive Freeview/Saorview
Visit www.freeview.co.uk or www.saorview.ie
2) Check you are using an aerial that is able to receive a good digital
signal. In most cases, you will need an outdoor digital hi-gain/wideband
aerial. In areas that have excellent digital coverage, you may be able
to use a loft type aerial but it is highly likely that you will also need to
connect a booster between the back of the TV and the TV aerial wall
socket. Unfortunately, to receive a good enough digital signal, it is not
possible to use a portable/indoor type aerial.
Complete a fi rst time installation, please refer to the set-up menu section
of the manual of how to do this.
In addition to connecting via SCART, you should connect the aerial cable
from the wall socket to your VCR/DVD Recorder and another aerial cable
from the VCR/DVD Recorder to the TV.
1) Ensure you have inserted the disc facing the correct way.
2) Ensure the disc is clean and is not scratched.
3) Some copied discs will not play.
4) Check the DVD is a region 2 disc – to change the region of the DVD
player, refer to www.umc-uk.co.uk select ‘product support’, ‘changing
region’.
To eject the disc hold the stop/eject button for 4 seconds.
1) Ensure the TVs source is on HDMI.
2) Check your settings on your PS3 are as per the PS3 instruction manual.
Component cables only provide HD Pictures. For the sound you will need
to connect the Red & White audio cables on the Xbox to the Red & White
phono inputs on the rear of the TV. Please refer to the ‘Connections’
pages.
There is a master password of 4711, to gain access to the TV menu and
reset the normal password.
31
General Information
FREQUENTLY ASKED QUESTIONS
USB Mode I have inserted a USB
USB Mode Using a USB portable hard
USB Record /
TV models only
USB Record /
TV models only
Memory Key, but the TV
does not recognise it
drive / larger than 32GB
I cannot change the channel,
access the menu or use the
red button
When using the USB to
record the picture ‘breaks
up’ or experience loss of
sound.
Ensure the USB Memory Key is formatted to type FAT32.
If you wish to use a portable hard drive larger than 32GB, please note
that it must be formatted to the FAT32 fi le system in order to operate on
this TV. Windows XP/Vista computers are only capable of formatting up
to 32GB, therefore, you will need a software programme/utility to format
larger hard drives. Please refer to the web site for more information.
During Time Shift you cannot change the channel, access the menu or use
the red button
Check the USB Memory Stick meet the minimum requirements of Read
Speed - 20 MB/s (Mega Byte Per Second), Write Speed - 6 MB/s (Mega Byte
Per Second)
32
33
General Information
TECHNICAL SPECIFICATION
Model 24” models 24” Models with
inbuilt DVD player
24E21B-FHD
Screen size
(diagonal)
Resolution 1920 x 1080
RF 75 ohm Antenna / Analog / DVB
Inputs 2 x HDMI, 1 x USB,
1 x Mini Composite/Video and Audio for Composite / Video and Component / Y Pb Pr,
Sound Outputs 1 x 3.5mm Headphone/Audio out, 1 x COAX out
Sound power,
watts (RMS)
Voltage and power
consumption
(<0,5W inStandBy) (0W in OFF mode)
Annual Energy
Consumption
Energy Rating (EEI) AA
Dimensions including
stand (mm)
23.6"/60cm 23.6”/60cm
1 x Mini Component / Y Pb Pr, 1 x VGA/PC Input, 1 x VGA/PC Audio in
2 x 3
110 - 240V ~ 50/60Hz
25/40W
(ecomode/max)
(<0,5W inStandBy) (0W in OFF mode)
36.5 kWh 36.5 kWh
560W x 386H x 140D 560W x 386H x 140D
24E21B-FHD/DVD
24E21W-FHD/DVD
110 - 240V ~ 50/60Hz
25/50W
(ecomode/max)
Net weight (Kgs) 4.55 4.95
Wall Mounting VESA 100 x 100 (mm)
Compatible fi les in USB Mode
Media File Ext. Codec
Video Audio
Movie .mpg Mpeg-1, Mpeg-2
.avi Xvid, MJPEG,
MPEG-4 SP/ASP
.ts Mpeg-2 Max Resolution: 1920x1080
.dat Mpeg-1
.mp4 Mpeg-1, Mpeg-2 Max Resolution: 1024x768
Music .vob Mpeg-2
.mp3 - MP3 Sample Rate 16K-48KHz
.wma - WMA
Picture .jpg Progressive JPEG Max Resolution: 1024x768
.jpeg Baseline JPEG Max Resolution: 8192x8192
.bmp BMP Max Resolution: 6500x6500
MP3, WMA
Max Resolution: 1920x1080
Max Data rate: 40Mbps
Max Data rate: 40Mbps
Max Data rate: 40Mbps
Bit rate: 32K - 442Kbps
33
Loading...
