IDTV

User Guide

Model No. 23-230

blank.pdf 10. 10. 2008 13:49:40

216_17 full hd english manual 01Page 1 14. 7. 2009 8:19:01

User Guide

Important Guarantee Information.

Congratulations on purchasing this television. We hope you have many

years of trouble free enjoyment from your purchase.

Your product is covered under the manufacturers guarantee for 12 months

from date of purchase.

In the event of a fault being diagnosed, please refer to the frequently

asked questions/troubleshooting section at the rear of this user guide.

If you are still unable to remedy the fault, try resetting the TV

to factory settings, (details in this user guide) or contact the helpline.

In the event that a fault is diagnosed, the helpline will arrange to collect

the TV from your home or work address, return it to our service centre,

repair the item and then return it to you.

If we believe we cannot offer a permanent repair, we will replace the item.

Sky Media UK LTD – Helpline Information

Telephone UK 0871 2000 463 ROI 01443 3940

Email: service@skymediauk.co.uk

The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.

On the web site, you can register your product and guarantee, if you

do it within 7 days of purchase, you will also receive an extra

3 months warranty, making the warranty 15 months from date of purchase.

You must retain all packaging materials as you will need these in the event of

If you need to call the helpline, you will need the following information.

Internet: www.skymediauk.co.uk

FREE

warranty/service support.

Model Number ___________________ (Can be found on the front of this user guide)

Serial Number __________________________ (Can be found on rear of TV)

Date of purchase __________________________ (Can be found on sales receipt)

216_17 english manual 02.pdf 3. 11. 2008 13:57:03

IDTV

216_17 english manual 03 new.pdfPage 1 3. 11. 2008 14:03:08

User Guide

Important information regarding the digital TV switchover

Television in the UK is going digital, bringing us all more choice and new services. Starting late 2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region.

How the switchover affects your TV equipment.

Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply connecting it into your aerial socket (you can check if you can get digital TV through your aerial now or whether you will have to wait until the switchover at www.digitaluk.co.u

When the TV switchover happens in your area, there are at least two occasions when you will need to re-tune your TV in order to continue receiving your existing TV channels and also to pick up new ones. Digital UK, the body leading the digital switchover, will advise you when you need to retune during the switchover.

How to retune.

Retuning your TV is a very quick and simple process. We recommend that you retune every few months to ensure you are receiving the very latest TV and radio channels that are broadcast.

• In digital/freeview mode, on the remote control press ‘menu’ quickly followed by 8-8-8-8 (so press the number 8 four times)

• You will now enter the ‘First time installation’ mode. (if you do not, please refer to the section called ‘getting started’ later in this user guide)

First Time Installation

Country

Language

Please ensure that the aerial is connected to the connector

labelled ‘ RF In ’ on the rear of the TV .Ensure that OK is highlighted in yellow and press ‘OK’ on your remote .If after this scan ,not all digital channels are found ,your aerial ma y

require a signal booster .alternatively ,upgrade your aerial

to a high gain digital version .

OK Cancel

English

• Simply press ‘OK’ or ‘Enter’ on the remote control and your TV will retune.

If you do not retune your TV when advised to do so by Digital UK, you may lose some or all of your channels until you do re-tune.

If you are missing any channels, it may be that they are not available in your area, or that your TV aerial needs upgrading.

For help and support regarding the digital switchover

Telephone: 08456 50 50 50

(calls charged at local call rate, approx 3p per minute daytime or 1p per minute evenings from a BT landline)

, please contact Digital UK:

Digital UK website: www.digitaluk.co.uk

If you require technical or warranty support on this television, please contact the manufacturer helpline, do not contact Digital UK unless your query is regarding the digital switchover.

216_17 english manual 04 new.pdfPage 1 3. 11. 2008 15:26:23

IDTV

WARNINGS

Cautio n

This t elevision co ntains n o user s ervi ceable part s. Pleas e ref er to t he manuf acturer or a uthorise d repair agen t in the even t of malfunction . Do not remove the back cover from t he television.

Warning

To r educe t he ri sk of fire , electri c sho ck or d amage t o the televi sion, d o not expo se it t o dus t, rain or m oi stu re , o r place a ny objects filled w ith liquid s o n or near th e telev is ion.

Do not place t he telev is ion in a confined space, ens ure that nothing ca n obstruct the ventilation openings at the rear of th e t elevision.

Do not place naked flames on or near th e television.

Dispose of t his television and any components including batteries i n an environmentally friendly manner. If i n doubt , please cont act your loc al authorit y for details o f recycling.

Your LCD TV should be cleaned using a dry o r slightly damp clot h. Yo u should not use an alcohol base d cleaner

Safety

For your safety, t his applianc e is fitted with a fused moulded 3 pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and appr ove d wit h the BSI ma rk. ( )

Never try and r eplace t legally authorised to do s o. In the event that a replacement Mains cable is required, contact the manufa ct urer for a suitable replacement.

Never us e the television if i t is damaged i n any way .

Always pla ce the tele vision on a fl at level su rf ace a voiding anywhe re which ma y be subjec t to strong vibrat ion. E nsure the t elevision is not place d o n top o f the power cable as the weight of th e t elevi sion may damage t he cable and cause a saf et y hazard.

Never place mobile phones, speakers or any other devic e which may cause magnetic or r adio int er feren ce wi th the televis ion. If i nterf erenc e is appar ent, move th e d ev ice causing th e interferenc e away f rom the t elevision.

Packaging

Please sav e the pac kaging f or th e television as y ou will need this in the event of warrant y/service repair or support. We are unable t o carry out warranty/service if you are unable to package it correctly. The s afest way to package your item in th e event of warranty/service repair is in it s original box/ packaging

he m ains plug unles s you h ave adequa te qualific at ions and ar e

216_17 english manual 05 new.pdfPage 1 5. 11. 2008 10:12:06

User Guide

216_17 english manual 06 new.pdfPage 1 3. 11. 2008 14:10:10

IDTV

216_17 full hd english manual 07Page 1 20. 7. 2009 13:23:16

CONTENTS

User Guide

SETTING UP YO UR TV

- Digital Switchover Re-Tune 2

- What is included in the box 8

Attaching/Detaching the

Stand & Wall mounting

- Tuning in TV 10

- Remote control buttons and their functions 11

- TV buttons and their functions 12

- Inputs and Connections 13

TV MENU OPERATION

- Picture Settings Menu 14 - 15

- Sound Setttings Menu 16

- Tuning Settings Menu 17

- Common Inferface Slot 18

- Timer Settings Menu 18

- Sleep Timer 18

- On Screen Display Timer 18

- General Settings Menu 19

- On Screen Menu Language 19

- Adjusting Picture Format 19

- Blue Screen 19

- System Lock 19

- First Time Installation 20

- Reset Television to Factory Settings 20

CHANNEL SERVICES

- Using Electronic Program Guide 20

- Using Digital TV teletext 21

- Using Analogue TV teletext 21

PC OPERATION

- Using with a PC or Laptop 22 - 23

DVD MENU OPERATION

- System Setup 24

- Changing Regions 25

- Audio Setup 25

- Digital Setup 25

GENERAL INFORMATION

- Using with Sky Digital/Virgin Media 26

- Connecting a Games Console 27

- Frequently Asked Questions 28

- Technical Specifications 29

- Index 30

If you experience any problems with this Television,

Please contact the helpline.

Customer Support/Technical Helpline

Sky Media UK LTD

Telephone UK ROI: 01443 3940: 0871 2000 463

Email: service@skymediauk.co.uk

X23_50 full hd english manual paPage 1 1. 10. 2009 13:28:17

Model No. 23-230

User Guide

IDTV

Quick Start Guide – Model 23-230

Onlinesupport:www.skymediauk.co.uk email: service@skymediauk.co.uk

y@ypp

RF cable supplied, connect the TV to the TV Aerial wall socket (Fig A) then connect the Power cable to your TV and Electrical outlet (Fig B)

Insertthebatteries supplied into the Remote control and press thePower/Standbybutton to power on the TV

FigB

FigA

FigB

IMPORTANT:-If yourTV signal is inadequate to receive a goodDigitalsignal, you will need to connect a 'Signal booster' betweenyourTV and TV Aerial Socket. See section

You willnowbe welcomed with the initial set-up screen. Press OK ontheremote control and tuning will start. If after tuning somechannelsare missing, please refer to section 6.

Remotecontrol

FigA

FigB

Switchonthe television using the power on/off switch locatedonthe side or underside of the TV.

Connecta'Si

nal booster'asshown below.

Remotecontrol

buttons

FigA

FigB

Remotecontrol

buttons

FigA

FigB

On/OffSwitch

Oncethe'Signal booster' is connected, retune the TV in order to receiveallof the channels.

Remotecontrol

buttons

FigA

FigB

On/OffSwitch

Remotecontrol

buttons

FigA

FigB

On/OffSwitch

Remotecontrol

buttons

FigA

FigB

On/OffSwitch

X23/MAN/0009

Fault Cause Solution

LED/Power on indicator light on TV not working No power being received to TV Ensure power outlet is switched on, check Power on/off switch on TV is switched on

No channels found or screen displays ‘no signal’ TV not receiving any signal Connect to loft/external aerial and retune TV

Some channels missing or picture appears ‘blocky’ Signal too weak If signal reception is below 85%, connect a signal booster (15-20Db) and retune (see section 6). If signal reception below is 70%, an aerial upgrade may be necessary

If after checking the above you are unable to solve the problem, in the first instance contact the helpline as most problems

can be solved by the technical support team

TROUBLE SHOOTER:

IDTV

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories:

1x - User Guide Book 1x - Remote control + AAA batteries

INFO

VOL

GUIDE

PICTURE FORMAT

1x - Quick Start Guide 1x - TV

UKTECHNICALSUPPORTHELPLINE

087

12000463 (Open Monday - Friday 8.30am - 6pm, Saturday 9am - 5pm)

ROI

Base of stand

Insert the TV into the stand

Twist the TV into the CLOSE position until it clicks into place at 45 degrees

01443 3940

1x - Stand 1x - 3.5mm jack to phono cable

1x - RF lead

Please save your packaging as you will need this in the event

of warranty/service repair or support. We are unable to carry out

warranty/service if you are unable to package it correctly. The safest way

to package your item in the event of warranty/service repair

is in it’s original box/packaging.

X23_50 full hd english manual paPage 1 5. 10. 2009 10:26:17

Attaching/Detaching the Stand & Wall mounting

User Guide

Attachin g the S tand

Base of stand

Insert the TV into the stand

Twist the TV into the CLOSE position until it clicks into place at 45 degrees

IMPOR TANT— BEFOR E DRILLING ANY H OLES IN THE WA LL ENSURE YOU A RE NOT DRIL LING WHERE THERE COULD BE A NY ELECTRIC WIRES, WATER OR GA S PIPES

THIS TV R EQUIR ES A VESA 100 WA LL MO UNT, OR EQUI VA LENT

100

To r em ove t he stan d

1) Remove base as shown opposite

2) R e

move the four s crews highli ght ed

be low

3) Remove the two screws in the neck of the stand.

4) T he stan d will now c om e off

Wall M ounting the TV .

1) Remo ve th e four sc rews highlighted belo w.

2) T he wall mou nt ca n now b e eas il y att ached to t he mo un ting holes o n Th ese hol es ar e indicat ed in t he pi ct ure

the re ar of the

TV.

Important – If wallmounting this TV, only use the screws already provided in the wallmounting holes. Using other screws which are longer could cause irreparable damage to internal parts.

19_17 english manual 10.pdf 21. 7. 2009 14:03:09

IDTV

GETTING STARTED - INITIAL SET UP

IMPORTANT - AFTER TUNING DO NOT PRESS ANY BUTTONS FOR 20 SECONDS SO THE CHANNEL

INFORMATION CAN BE STORED.

TUNING IN

IMPORTANT — Please ensure the TV has reached room temperature before connecting the power for the first time

1) Connect the mains lead to your electrical outlet

2) Connect the RF cable supplied to the 'RF IN' on the rear of the TV and connect

the other end of the cable to your TV Aerial outlet

5) Press [OK] on the remote control whilst ‘OK’ is highlighted on screen.

First Time Installation

Country

Language

Please ensure that the aerial is connected to the connector

labelled ‘ RF In ’ on the rear of the TV .Ensu re that OK is highlighted in yellow and press ‘OK’ on your remote .If after this scan ,not all digital channels are found ,your aerial may

require a signal booster .alternatively ,upgrade your aerial

to a high gain digital version .

OK Cancel

English

Tuning will now take place.

RF IN

3) Switch on the television using the rocker switch located on the side of the TV

4) Install batteries in the remote control and press the [STANDBY] button to turn on the TV.

INFO

The ‘First Time Installation’ menu should now appear. If it does not, please press [LCD-MENU] then 8-8-8-8 and the menu will

If no channels are found the following screen will appear, please refer to additional information below.

Fir st Time Inst allation

Unf ortunat ely th e T V d id not find an y channels

Pleas e c heck you r aerial connec tion

and re fer to th e u ser manual Do you wi sh to re tune yo ur TV

Yes D o i t ne xt t ime

TYPICAL SET-UP

appear.

Once you have connected a 'Signal booster' you will need to retune the TV in order to receive all of the channels.

If the TV finds some, but not all, of the Digital channels, the TV is

functioning correctly but the signal being received is not strong enough.

(The signal strength needs to be above 85% - you can see the signal strength

the TV is receiving when you change channels/ programmes) you will

need to increase the signal reception in order to recieve all of the channels

available. The most economical way to do this is by purchasing

and connecting a 'signal booster' in between the TV and the TV

aerial socket.

If this does not solve the problem, you will need to upgrade the TV

aerial to a digital hi-gain compatible aerial

19_17 english manual 11.pdf 28. 7. 2009 16:12:18

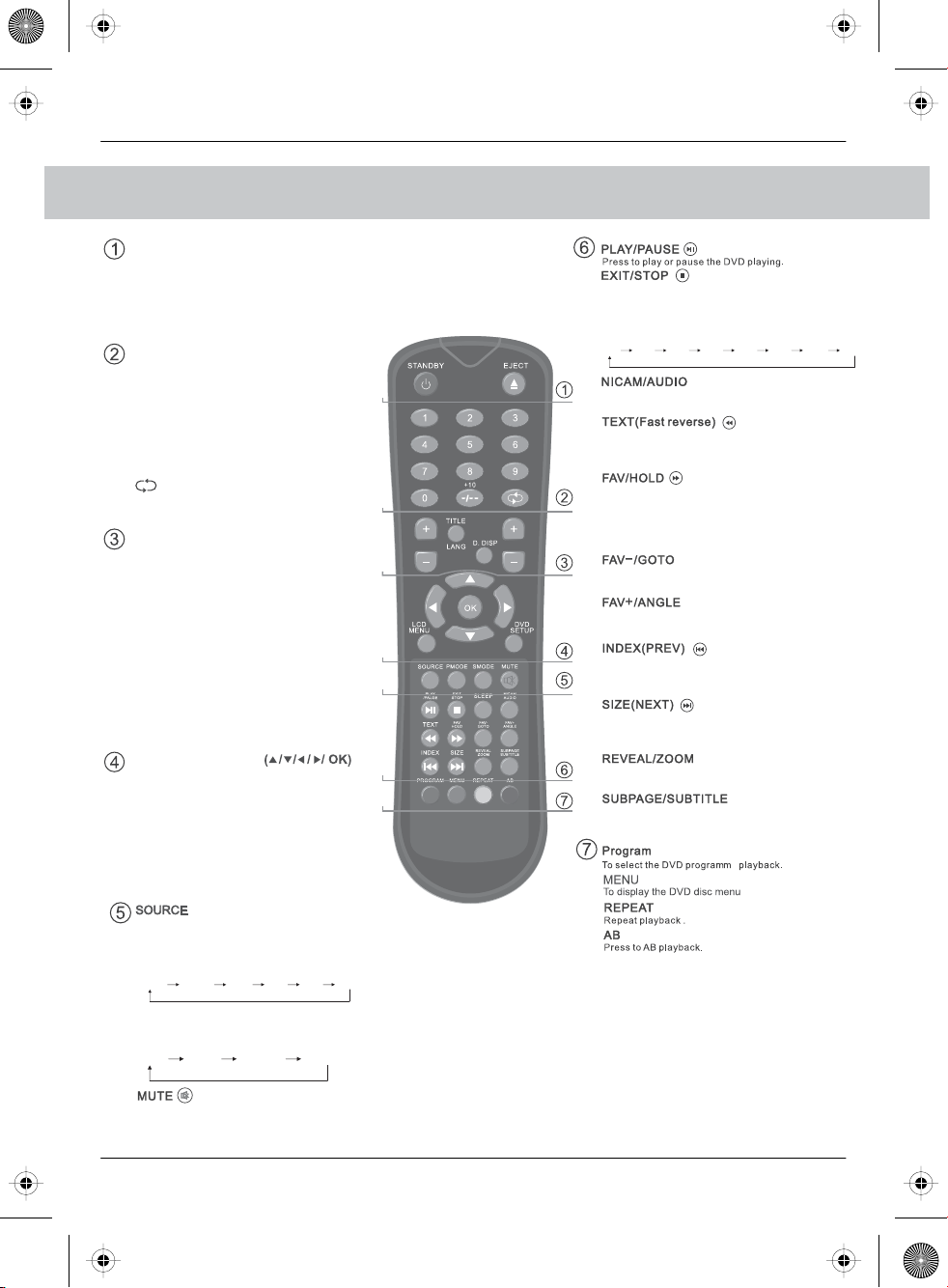

REMOTE CONTROL BUTTONS

STANDBY

Switch on TV when in standby or vice versa

EJECT / INFO

DVD mode: To eject disc Digital/analogue mode: To display channel information

NUMBER BUTTONS

Digital/analogue mode: 0 – 9 to select a TV channel directly. The channel will change after 2 seconds. Teletext mode: To enter a page number

-/--

Analogue mode: To enter a channel of 2 digits i.e. channel 15

Digital/analogue mode: To return to the previous channel viewed

VOL+/-

To increase / decrease the sound level

TITLE/LANG

DVD mode: To display the DVD title menu Digital mode: To change the audio language (if available)

D.DISP/GUIDE

DVD mode: To display the current disc information Digital mode : To open the TV Guide menu

CH +/-

To increase or decrease the channel being watched

NAVIGATION BUTTONS

Allows you to navigate the on-screen menus and adjust the system settings to your preference

LCD MEN

To display OSD menu

DVD SETUP/PICTURE FORMAT

DVD mode: To display the DVD setup menu All other modes: to switch the screen between the different picture formats

- TV/AV

Press to display the source menu

PMODE

Press repeatedly to cycle through the available picture modes

Standard MoviePersonal

MildSport

Game

VOL

TV/AV

GUIDE

PICT URE FORM AT

INFO

User Guide

Digital mode: Exit the Digital menu. DVD mode: Stop the DVD playing.

SLEEP

Press repeatedly to cycle through the sleep options

15min 45min30min

Digital mode: press to select NICAM. DVD mode: press to select DVD audio channels.

Teletext mode: press to enter the teletext mode. DVD mode: press to play a DVD programme rewind mode.

Digital mode: press to display FAV menu. Teletext mode: press hold on or off display. DVD mode: press to play a DVD programme in fast forward mode

Digital mode: decrease fav channel. DVD mode: press to go to DVD.

Digital mode: increase fav channel. DVD mode: select different angle of DVD

Teletext mode: request the index page. DVD mode: press to replay the current programme from the previous chapter.

Teletext mode: change the display size. DVD mode: press to advance forward to the next chapter.

Teletext mode: To reveal or hide the hidden words. DVD mode: select the zoom to change picture size.

Teletext mode: Sub coded page acceses. Digital mode: To switch the dialogue at the bottom off the screen

75min60min

90min 105min 120min

for current page

fast

SMODE

Press repeatedly to cycle through the available sound modes

Voice

Press to mute the sound and press again to restore

Music

Theatre

Personal

X23_50 full hd english manual paPage 1 1. 10. 2009 12:12:09

IDTV

TV BUTTONS & THEIR FUNCTIONS

SIDE PANEL BUT TONS

DVD - Eject

DVD – Play/Pause

Volume up and menu right

Volume down and menu left

Programme/Channel up and menu up

Programme/Channel down and menu down

Displays Menu/OSD

Select the input source

Standby Power On/Off

Choosing Mode/Source

To switch between the different connections is very easy.

Using the buttons on the remote control:

1) Press [SOURCE] - The following will appear

2) Press [\/] or [/\] to select the input you require.

3) Press [OK]

Using the buttons on the Television:

1) Press [SOURCE]

2) Scroll up / down using CH+/ CH- buttons to the input/source you require

3) Press Vol+ to change input/source to the one selected.

VOL +

VOL -

CH+

CH-

MEN U

SOU RCE

STAND BY

19_17 english manual 13.pdf 2. 9. 2009 11:27:17

INPUTS & CONNECTIONS

REAR C ONNEC TIONS

CI Port

A B C D E F

HDMI

VGA (PC)

SCART

S-VIDEO

YPbPr

CI CARD IN

VGA(PC) AUDIO IN

Component/ S-Video Audio In

RF IN

CONNECTING A DVD RECORDER OR VIDEO RECORDER

HDMI input

VGA-PC input

SCART input

S-Video input

Component input

CI Port input

3.5mm PC Audio input

3.5mm Component/S-Video Audio input

RF input

User Guide

G H I

Source should be set to SCART

CONNECTING A HIGH DEFINITION DEVICE

OPTION A – HDMI OPTION B – COMPONENT & AUDIO CABLES

Audio

Note – you will need the Phono to 3.5mm Audio cable included

to connect into the 3.5mm Audio

3.5mm

YPbPr/S-Video

Source should be set to HDMI Source should be set to YPbPr/COMPONENT

CONNECTING A CAMERA OR CAMCORDER

Source should be set to SCART

SCART Adaptor

Note - SCART to AV Adaptor – often included with some devices, alternatively, these can be purchased from the helpline/website

Input on the TV

19_17 english manual 14.pdf 28. 7. 2009 10:43:35

IDTV

TV MENU OPERATION

To access t he OSD menu, press ‘LCD-Menu’ on the remot e c ontrol . Use th e scroll up/down/r ight /left t o navi ga te th rough the me nus.

PICTURE FORMAT

PICTURE SETTI NGS MEN U

Lets y ou adjust picture mode, contrast , brightness, colour, tint and sharpness to enhan ce the viewing ex perienc e.

PLEASE NOTE – YOU CA N ONLY MAKE ADJU STME NTS T O CON TR AST, BRIG HT NESS & CO LOUR WH EN PICTURE MO DE IS SET TO ‘ PERSONAL’ .

Selecting Pictu re Mode Preset

Switch bet ween different pres et picture options

Standard Def ault settings

Personal Let s you manually alter all the s ettings

Movie Set to enhanc e when watching a mov ie

Sport Se t to enhance when watching a sport

Mild Set to be lighter in colou r and l ess b right

Game Set to enhanc e when play ing a games c onsole

1) P ress [LCD-ME NU] to ente r menu

2) P ress [\/] to highlight P ic ture Mod

3) P ress [>] to navigat e t hrough the v ariou s options

Adjusting Co ntrast ( Only available when Picture Mode is s et to P ersonal) Switch t he balanc e between black and white

1) P ress [LCD-ME NU] to ente r menu

2) P ress [\/] to highlight Contras t

3) P ress [>] to increase th e cont rast or [<] to decrease t he c ontrast

4) P ress [EXIT] to exit

Adjusting Br ight ness ( Only av ailable when Pi cture Mode is set to P ersonal) Increase o r decreas e the brigh tn es s of t he pic tu re

1) P ress [LCD-ME NU] to ente r menu

2) P ress [\/] to highlight Bright ness

3) P ress [>] to increase th e brightnes s or [< ] to decrease t he brightness

[EX IT] to exit

4) P ress

Adjust ing Colou r (O nly av ailable when Picture Mode is set to P ersonal) Increase t he c olour from black and white to v ivid

1) P ress [LCD-ME NU] to ente r menu

2) P ress [\/] to highlight Colour

3) P ress [>] to increase th e colour or [< ] to decrease t he colour

4) P ress [EXIT] to exit

4) P re ss [EXIT] to exi t

216_17 full hd english manual 15Page 1 20. 7. 2009 8:54:32

TV MENU OPERATION

User Guide

PICTURE SETTINGS MENU

Adjusting Tint (only available on some sources)

Lets you increase or decreas e the lev el of tint within the picture

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight Tint

3) Press [>] to increase the tint or [<] to decrease the tint

4) Press [EXIT] to exit

Adjusting Sharpness

You can change the sharpness between the different preset options

Normal For standard use

Sharp F or pict ures wit h little movement

Sharpest For pictures with nearly no movement

Soft For pictures with large amount of movement

Softest For pictur es wit h lots o f mov em ent

Adjusting Colour Temperature (only available on some sources)

There are 3 presets for colour temperature

Normal Standard setting

Warm Increased red within the picture

Cold Increased blue within the picture

1) Press [LCD-MENU] to enter menu

2) Pre ss [\/] to highlight Colour T emper at ure

3) Press [>] to navigate through the various options

4) Press [EXIT] to exit

Dynamic Noise Reduction

Reduces the interferenc e in the pictur e.

1) Press [LCD-MENU] to enter menu

2) Press [\/] to highlight DNR

3) Press [>] to switch between OFF, LOW, MID & HIGH

1) Press [LCD-MENU] to enter menu

2) Pre ss [\/] to highlight S harpnes s

3) Press [>] to navigate through the various opt ions

4) Press [EXIT] to exit

216_17 english manual 16 new.pdfPage 1 3. 11. 2008 14:22:39

IDTV

TV MENU OPERATION

SOUND SETTINGS MENU

Adjusting Volum e

Lets you adjust the volume of t he televis ion

1) P ress [ LCD-MENU ] to ent er menu

2) P ress [ >] to move to Sound Se ttings Menu

3) P ress [\/] to highlight Volum e

4) P ress [> ] t o increase the volume o r [<] t o decreas e t he volume

5) P ress [EXIT] to exi t

Sele cting Sound Mo de Prese t

Switch bet ween different prese t sound options

Voice E mphasises v oice over ot her sounds

Music Emphasises music over v oices

Theatre Provide s li ve r and full s ound fo r mov ie s

Per sonal S elects y our per sonal s ound se tt ings

1) P ress [ LCD-MENU ] to ent er menu

2) P ress [ >] to move to Sound Se ttings Menu

3) P ress [\/] to highligh t S ound Mod e

4) P ress [>] to navigate through t he va rious o ption s

Adjusting Bass

To adju st th e am ount of b ass w it hin t he s ound

1) P ress [LCD-ME NU] to ente r men u

2) P ress [>] to move to Sound S ettings Menu

3) P re ss [\/] to highlight Bass

4) P ress [>] to increase t he bass or [<] t o decrease t he bass

5) P re ss [EXIT] to exit

Adjusting T rebl e

To adju st th e am ount of t reble wi thin th e sound

1) P ress [LCD-ME NU] to ente r men u

2) P ress [>] to move to Sound S ettings Menu

3) P ress [\/] to highlight Trebl e

4) P re ss [>] to in crea se th e treble or [<] t o decrease t he treble

5) P ress [EXIT] to exit

sting Ba la nc e

Adju

To s witch the s ound between th e left and right s peakers

1) P ress [LCD-ME NU] to ente r men u

2) P ress [>] to move to Sound S ettings Menu

3) P ress [\/] to highlight Balanc e

4) P ress [>] to increase t he balance or [<] t o de cre as e t he balanc e

5) P ress [EXIT] t

o exit

5) P ress [EXIT] t o exit

19_17 english manual 17.pdf 22. 7. 2009 10:14:28

TV MENU OPERATION

TUNING SETTING S MENU

(Only Freevi ew & Analogue TV mode s)

Adjusting Country

If you are moving country you may wish to change the Country Settings

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Country

4) Press [>] to alter the chosen country

5) Press [EXIT] to exit

Auto Tuning

Scan for all channels based on the current settings

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Auto Tuning

User Guide

6) Press [>] to start

7) Press [EXIT] to exit

Programme Edit / Changing Channel Position (Only Freeview & Analague TV modes)

You can change the analogue channel position to suit your requirements.

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Programme Edit

4) Press [>] to enter Auto tuning

5) Press [OK] to start the tuning

6) Press [EXIT] to exit

Manual Tuning

You may wish to manual search if certain channel or if you wish to connect to a Satellite/Cable box via RF/Aerial connector

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Manual Tuning

4) Press [>] to enter manual tuning

5) Press [>] to highlight Start Screen

you can’t find a

4) Press [>] to enter the program edit menu 5a) Freeview mode – Press the [Green] button to add the selected channel to your favorite, press it a second time to remove. Press the [Yellow] to delete the channel from the list. WARNING – this will remove the channel complete from the TV. Press [Blue] to lock a channel ( do this the Child Lock function must be set “ON”) 5b) Analogue TV mode – Press the [>] to select the change you wish to move. Move to the new location and press [OK]

715.Magic

716.Q

718.SMOOTH RADIO

722.Kerrang!

723.talkSPORT

725. Premier Radio

727.Absolute Radio

728.Heart

To swap channe l press on remote move to th e desired locatio n and press

6) Press [EXIT] to exit

216_17 full hd english manual 18Page 1 20. 7. 2009 8:55:45

IDTV

TV MENU OPERATION

Common Interface Slot (Only in Freeview Mode)

Pay per view services require a “smartcard” to be inserted into the TV. If you subscribe to a pay per view service the provider will issue you with a ‘CAM’ and a “smartcard”. The CAM can then be inserted into the COMMON INTERFACE PORT. To access the card follow the steps below.

CAM and smartcard

1) Press [LCD-MENU] to enter menu

2) Press [>] to move to Tuning Settings Menu

3) Press [\/] to highlight Common Interface

4) Press [>] to enter the menu

TIMER SETTINGS MEN U

Lets you adjus t the OSD timing and the sleep time r

Sleep Time r

Lets y ou set the s leep timer so the television automat ically swi tches of f after a cert ain amount of t ime.

1) P ress [LCD-MENU] to ent er menu

2) P ress [>] t o move t o T imer Settings Men u

3) P ress [\/] to highligh t S leep T imer

4) P ress [ >] to increase th e time to the required amount

5) Press [EXIT] to exit

5) P ress [EXIT] t o exi t

On S creen Displ ay Ti mer

Lets you adjust the amount o f t ime the On Screen Menu st ay s o n the screen before disappearing .

1) P ress [LCD-MENU] to ent er me

2) P ress [>] t o move t o T imer Settings Menu

3) P res s [\/] t o highligh t O SD Ti mer

4) P ress [>] to increas e t he time and [<] t o reduce the time

5) P ress [EXIT] t o exi t

216_17 full hd english manual 19Page 1 20. 7. 2009 8:56:23

TV MENU OPERATION

User Guide

GENERAL SETTINGS MEN U

Lets y ou adjus t the language , pict ure size, blue sc reen, add child lock, complet e firs t time installat ion and reset the television .

On S creen Menu Languag e

Lets you c hange th e on s creen menu language.

1) P ress [LCD-ME NU] to ente r menu

2) P ress [>] to move to G eneral Settings Men u

3) P re ss [\/] to highligh t Language

4) P ress [>] t o change the language

GENERAL SETTINGS MENU

English

Auto

Off

5) P ress [EXIT] to exit

Picture Format

Lets y ou adjus t th e picture f ormat

1) P ress [LCD-ME NU] to ente r menu

2) P ress [>] to move to G eneral Settings Men u

3) P ress [\/] to highlight Pict ure Forma t

4) P ress [>] format

to change t he picture

GENERAL SETTINGS MENU

English

Auto

Off

5) P ress [EXIT] to exit

Blue S creen

Changes th e background when there is no inpu t be tween clear and a blue backgroun d

1) P ress [LCD-ME NU] to ente r menu

2) P ress [>] to move to G eneral Settings Men u

3) P ress [\/] to highlight B lue Scree n

4) P ress [> ] to swit ch b et ween on and of f

GENERAL SETTINGS MENU

English

Auto

Off

5) P ress [EXIT] to exit

System Loc k

This menu allows you to lock cert ain features o f th e television s o that they can not be used o r viewed. For example if you don’t want certain channels viewed by children or i f th e television is t o be used in a hot el and you want t o limit the v

You ca n lo ck a ny of t he f ollowing - TV bu tt on s, TV source, set def ault start u p source and limit t he maximum volume.

1) P ress [LCD-ME NU] to ente r menu

2) P ress [>] to move to G eneral Settings Men u

3) P ress [\/] to highlight Syst em Loc k

olume.

GENERAL SETTINGS MENU

English

Auto

Off

4) P ress [>] to enter Syst em Lock menu

System Lock

Key Lock

Source Lock

Default Source

Max Volume

Change PIN Code

5) T o ente r this menu you will be asked fo r your pin cod e (De faul t is blank s o yo u just need to press [OK]) .

6) T o se t locks y ou f irst need to swit ch S ys tem L oc k to ON, t his will un grey th e options.

You can now sele ct t he f ollowing: Key Lock television working . Source Lock – P ress [>] t o ente r then apply On t o lock the source so it can’t b e used Default So ur ce – You ca n se t th e default s ta rt u p source, so when t he television i s turned on i t goes to this source . Maximum V olume – Yo u ca n limit the maximum v olume Change Pi n Code – Press [>] t o enter, first ent er t he current code (default is blank s o just press OK), t hen enter your new code.

7) O nce you happy with th e settings press [EXIT] to exi t menu .

Channel Lock – please refer to P rogramme select th e channels that you require to lock. O nce locke d you can temporarily unloc k a channel b y en tering t he pin code, th e lo ck will be re-applied by s wi tc hing off the T V to s tandby and t hen back o n.

– Off/O n – This stops th e bu tt ons on th e

SYSTEM LOCK

Off

ATV

Edit section t o

19_17 english manual 20.pdf 29. 7. 2009 8:50:40

IDTV

TV MENU OPERATION & 7 DAY TV GUIDE

Firs t Ti me Inst al la ti on

Allows y ou t o reset the t elevision for first t im e tuning.

1) P re ss [ LCD-MENU] t o

2) P ress [ >] to mov e to G eneral Set tings Men u

3) P ress [\/] t o highlight Firs t Time In st allat io n

4) P ress [>] and First time inst all screen wil l appear

ent er men u

GENERAL SETTINGS MENU

Welsh

Auto

Off

5) Press [OK] and tuning will c ommerc e.

First Time Installation

Country

Language

Please ensure that the aerial is connected to the connector

labelled ‘ RF In ’ on the rear of the TV .Ensure that OK is highlighted in yellow and press ‘OK’ on your remote .If after this scan ,not all digital channels are found ,your aerial may

require a signal booster .alternatively ,upgrade your aerial

to a high gain digital version .

OK Cancel

Reset televi sion t o factory setting s

You may settings e. g. i f you hav e forgotte n a changed password

1) P ress [ LCD-MEN U] to e nt er menu

2) P ress [>] t o move to G eneral Settings Men u

3) P ress [\/] t o highlight Res et

4) P ress [OK] t o reset t he t elevisi on

wish to reset the menus to f actory

GENERAL SETTINGS MENU

Welsh

Auto

Off

English

7 DAY TV GUID E

TV Guide is available i n Digita l TV mode. It provides information about f or th co mi ng

programmes (where supported by t he

broadcasted channel).

You can vie w the start and end tim e of all programs and on all channels for t he next 7 days.

It is ver y simple to operate.

1) Press [GUIDE]. The following now and next menu will appear.

TV Guide

(News/CA) Nick Knowles presents dramatic events from the day-to-day work of the emergency services, The series is out on call with the dedicated crews, answering 999 calls as they protect the public. [S]

Channels

1. BBC ONE Real Rescues Put your Money Where Y...

2. BBC TWO

3. ITV 1

4. Channel 4

Current Event Next Event

Balamory The Jeremy Kyle Show

Impressionism: Revenge...

Navigate

7 Day Guide

EXIT OK

Tues 14/10 09:42

00:01-51:90seucseRlaeR

Little Red Tractor This Morning

Freshly Squeezed Shorts

Quit Watch Help

INFO

2) Navigate through the now and next menu using the [>], [<], [V] and [/\] buttons

3) Press the [BLUE] button to enter the 7 day menu. Reminders can now be added by pressing [OK].

7 Day TV Guide

Essential Electricals

vacuum cleaners, irons, home telephones and many other essential electricals.

Thur 31/5 14:00 14:45 15:30

23. bid tv Essential Electric

24. price-drop tv

26. UKTV Style

33. Eurosport UK

34. Setanta SP...

Handbag Heaven

Extreme Makeover: Home Edition Closedown

Top 14: SPL Sna NRL on Fox

Navigate

Quit Change Day Reminder

Tues 31/5 14:29

14:00-14:30

Quality Products

Quality Products Quality Products a

Extreme Makeove

KOEXIT

4) Press [EXIT] to exit the 7 day TV Guide.

5) P re ss [EXIT] to e xi t Please note – I f you have applied th e lock t o re se t the t elev is ion you must pres s [LCD-MEN U] t hen 8-8-8-8, to s ta rt the fi rs t time installat ion sequence .

syste m

216_17 full hd english manual 21Page 1 20. 7. 2009 8:57:30

DIGITAL TELETEXT & ANALOGUE TELETEXT

User Guide

Digital TV Teletext

With Digital TV (Freeview) there is also

teletext available on some channels.

digital Simply follow the on screen commands. Here is an example of the BBC digital teletext service.

1) To start digital teletext press the RED button (BBC channels) or the TEXT buttons (Other channels)

B B C i

Tuesday 18 Dec

Press SELECT for

Live Crecket Eng v SL

Radio Concert News Multiscreen 1001 Sport 300 Weather 400 BBCi INDEX 199

Did Bee Movie Leave you buzzing? BBC Movies - 540

To exit, press TEXT

100

2) To select the information you require you can scroll using [\/] or [/\] and press [OK] alternatively you can key the page number for example [3][0][0] followed by [OK]

B B C

SPORT

BBC ONE

To exit, press TEXT For full screen TV, press 0

HOME SHORTCUTS BACK INDEX

B B C i

Sport

Sport in Video

Main Headlines

Football

Cricket

Rugby Union

Rugby League

Tennis

Golf

more...

11:15 18 Dec

300

You can then navigate using the colours buttons (Red, Green, Yellow, Blue), the [/\] [\/] buttons and numbers.

If you wish to exit at anytime press [EXIT]

Teletext is a service offered by some broadcasters.

Teletext Operation

1) Press [TEXT], after a few seconds teletext page 100 should appear. Here is an example of BBC1

2) You can now navigate to the page you require in a number of ways:

a) Press the page you require using the number buttons i.e. page 302, by pressing [3][0][2 ] b) Press the colour buttons, these will take you to the page indicated on screen for each colour

3) To exit Teletext press [TEXT] twice at any time

Other buttons

[SIZE] this increases or decreases the size of the text on screen [INDEX] some pages are more than one page long this button displays the number of pages [REVEAL] if ther e is an answer or something hidden this will display it [SUBPAGE] displays the sub page if it exists [HOLD] This stops the pages changing when there are multiple pages

216_17 full hd english manual 22Page 1 20. 7. 2009 13:37:18

IDTV

USING THE TELEVISION AS A COM PUTER MONITOR

IMPORT ANT – Befo re connecting th e computer to t he televi sion you m ust ensu re th e com puter settings a re correct for t he television. You MUST do this u sing your old monito r.

WINDOWS XP, WINDOWS VISTA

1) S witch on your compute r

2) W hen finishing booting up right click your mous e any where o n the screen

XP Screen VISTA Screen

3) Lef t click your mous e o n Properties/Personalis e

5) Left click your mouse on Advance/Advance Settings and left click on Monitor

XP Screen VISTA Screen

6) Left click on the drop down for Screen refresh rate and select 60 Hertz.

7) Click on Apply, then click Yes and the settings will be saved.

8) Now switch off your computer and connect the television (as shown below)

9) Re-start your computer and switch the source to VGA

CONNECTING A LAPTOP

XP Screen VISTA Screen

4) Lef t click y our mouse on S etting/Display Settings. En sure th e screen resolutio n is set to wha t i s shown i n t he te chnical specific ations section t oward t he rear of this us er guide. T o c or rect t he resolu the slider .

tion to t hat o f the television move

XP Screen VISTA Screen

In addition to the above if you are connecting a laptop to the television you will also need to activate the VGA connection on the laptop.

This can vary based on the brand of laptop you have.

1) Connect the laptop to the television

2) On the Laptop push buttons

Fn F5

The screen will now switch to the television.

216_17 full hd english manual 23Page 1 14. 7. 2009 8:29:45

PC MENU OPERATION (VGA)

User Guide

VGA MENU

Auto C onfiguration of Screen

Lets you automatically configure the television to be used as a computer monitor

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select Auto Sync

4) Then pres s [>] for the TV t o automa ti cally conf igure itself

5) Press [EXIT] to exit

Phase

To adjust delay time of phase in order to reduce the noise of picture

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] t o select Phase

4) Then press [>] or [<] to increase or decrease the phase

Hori zontal Posi tion

Changes the horizontal position of the picture

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select H-Position

4) Then press [> ] or [< ] to move t he picture to left or right

5) Press [EXIT] to exit

Vertical P os ition

Changes the vert ical posit ion of t he picture

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select V-Position

4) Then press [> ] or [< ] to move t he picture up or down

5) Press [EXIT] to exit

Clock

Alter this in order to reduce the noise within the picture

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select Clock

4) Then press [>] or [<] to increase or decrease the clock

5) Press [EXIT] to exit

Position Reset

To position of the picture to the factory settings

1) Press [LCD-MENU] to enter menu

2) Press [>] to select PC settings

3) Press [\/] to select Position Reset

4) Then press [>] or [<] to move the picture up or down

5) Press [EXIT] to exit

19_17 english manual 24.pdf 21. 7. 2009 15:01:32

IDTV

DVD MENU OPERATION

HOW TO PLAY DVD’S

The DVD player has an automatic DVD feature which means when you insert a disc it will automatically switch source and start to play.

If you disc does not play please refer to frequently asked questions section of the user guide.

SYSTEM SET UP

Adjusting TV System

Lets you adjust between NTSC, PAL, AUTO (PAL is default for the UK)

1) Press [DVD-SETUP] to enter menu

2) Press [>] to select TV System

3) Press [>] to enter menu

4) Press [\/] or [/\] to highlight NTSC, PAL or AUTO

5) Press [OK] to confirm

6) Press [DVD-SETUP] to exit

Adjusting Picture Format

This lets you select the format of the picture that is being shown between 16:9, 4:3 LetterBox and 4:3.

1) Press [DVD-SETUP] to enter menu

2) Press [>] to select TV System

3) Press [\/] to select TV Type

4) Press [>] to enter menu

5) Press [\/] or [/\] to highlight 4:3PS, 4:3LB or 16:9

6) Press [OK] to confirm

7) Press [DVD-SETUP] to exit

Returning to Default

This lets you switch the DVD menus show above back to Default settings

1) Press [DVD-SETUP] to enter menu

2) Press [>] to select TV System

3) Press [\/] to select Default

4) Press [>] to enter menu

5) Press [>] to highlight Yes

6) Press [OK] to confirm

7) Press [DVD-SETUP] t

o exit

[ ]

X216_84 full hd english manual pPage 1 28. 9. 2009 8:37:07

DVD MENU OPERATION

User Guide

AUDIO SET UP

Adjusting Tone

Lets you increase or decrease the Tone of the sound

1) Press [DVD-SETUP] to enter menu

2) Press [\/] to select Audio Set Up

3) Press [>] to enter menu

4) Press [\/] to select Tone

5) Press [>] to enter menu

6) Press [\/] or [/\] to increase or decrease the tone

7) Press [OK] to confirm

8) Press [DVD-SETUP] to exit

DIGITAL SET UP

Adjusting Dynamic Range

This is the difference between the quietest and loudest sounds. This setting works only with DVD discs recorded in Dolby digital. FULL: Set this to listen with the range recorded on the disc. 4/8: Set this to listen with a range equivalent to a normal television. 2/8: Set this to listen with a smaller difference

between the maximum and minimum volume.

1) Press [DVD-SETUP] to enter menu

2) Press [\/] twice to select Digital Set Up

3) Press [>] to select Dynamic Range

4) Press [>] to enter menu

5) Press [\/] or [/\] to increase or decrease the Dynamic range

6) Press [OK] to confirm

Adjusting the Sound

Lets you change the sound between Stereo, Mono Left, Mono Right and Mixed Mono.

1) Press [DVD-SETUP] to enter menu

2) Press [\/] twice to select Digital Set Up

3) Press [>] to enter menu

4) Press [\/] to select Dual Mono

5) Press [>] to enter menu

6) Press [\/] or [/\] to switch between Stereo, Mono L, Mono R and Mix Mono

7) Press [OK] to confirm

8) Press [DVD-SETUP] to exit

Changing Regions

This TV/DVD player is pre-set to play Region 2 DVDs. In the event you wish to use the TV/DVD in another country that uses different region discs, please visit www.skymediauk.co.uk. Select ‘product support’, ‘Changing Region’

7) Press [DVD-SETUP] to exit

19_17 english manual 26.pdf 2. 9. 2009 11:23:58

IDTV

USING WITH SKY DIGITAL / VIR GIN ME DIA

You may wish t o use your TV wit h Sky Digital , Virgin Media or anot her cable or S at ellite bo x

There are a number of connection options, the best being connecting via SCART cable.

Connecting v ia SCAR T

1) Connect the SCART cable from t he Cable/Satellit e B ox to S CART of th e TV

2) P ress [SOURCE]

3) P ress [\/] or [/\] to sele ct SC ART

4) P ress [OK]

The channel your Cable/Sat ellite box is displaying will now be shown on th e TV.

You may wish to share your Sky Digit al signal around the home by using an RF connection.

ting v ia RF

Connec

1) Connect the RF cable from th e RF output socket o f the sky/ cable box t o the ‘RF IN ’ of th e T V.

2) S witc h t he TV t o analogue T V mode

3) P ress [LCD-MENU] to ent er menu

4) P ress [>] t wice to select Tuning Settings Menu

5) P ress [\/] t o select Manual Tuning

USING WITH SKY DIGITAL REMOTE CONTROL (BSKYB) OR UNIVERSAL REMOTE CONTROL

You may wish to use your Sky Digital or a universal remote control to operate some of the functions of this TV. For this you require a ‘code’ that needs to be programmed into your Sky Digital or universal remote control.

For codes for universal remote controls, please visit our website where you will find the very latest information and codes.

For codes for Sky/Sky+Sky HD, please note that at the point of manufacture, BSkyB have not launched the code required for this model of TV. They are due to launch a new remote control which should include the necessary code to operate the functions of the TV during 2010 (called revision 9).

Please check our website for updates, alternatively, see some alternative options of remote controls that are available.

6) P ress [>] t o enter A uto t uning

7) P ress [OK] t o start t uning

Once t uning is complete th e first channel will appear . Pre ss [CH+ ] to move th rough the channel until yo u find the Sky c hannel. The channel can then be m oved if you wish , please re fer t o the T uning S

menu – P rogra m Edit se ct ion of th e manual.

etti ng

One for All Sky Originals

The One for All remote controls shown will operate all of the functions of the Sky box in the same way the original remote control will, in addition, they will also operate the functions of this model of TV. The One for All versions are available to helpline/website. The original Sky remote controls are shown for comparison purposes

If you require any further information, you can contact us:

purchase from the

www.skymediauk.co.uk email - service@skymediauk.co.uk

Tel

ROI

-- 0871

2000 463

01443 3940

X23_50 full hd english manual paPage 1 1. 10. 2009 12:15:13

CONNECTING A GAMES CONSOLE

User Guide

Connecting a games cons ole can sometimes seem very diffic ult. We have simplified i t to three opt ions depending on the c ables t hat you hav e.

Option 1 – Connecting v ia Scart to AV adapter

If you are supplied with a cable from the console which has YELLOW, RED & W HITE connectors you must connect via a SCART to AV adapt er (Some consoles include this)

TV source should be set t o SCA RT.

Option 2 – Connecting v ia HDMI cable

If you are supplied with a HDMI cable is the easiest option. A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of picture quality.

Option 3 – Connecting via Compone nt cable

If you are supplied with a cable from the console which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (f or picture) and by 3.5mm to phono cable (for sound).

TV Source should be set to Component .

3.5mm jack to phono

cable adaptor

TV Source should be set to HDMI .

216_17 full hd english manual 28Page 1 20. 7. 2009 14:50:07

IDTV

FREQUENTLY ASKED QUESTIONS

Question :

I hav e tune d in Digital TV bu t I am not rec eiving a ny o r al l of t he channels and/or the channel s I receiv e are b reaking u p

The s ound quali ty i s high pitched?

Solution:

1) Check y ou are in a n area that can receive Freeview. V isit www .f reeview.co. uk or cal l 0870 1 11 1 270.

2) Check you are using an aerial t hat is able t o rec ei ve a good digital signal . In most ca ses, yo u will need a n outdoor digital hi-gain/wideband aerial. In areas that have excellent F reeview co verage, you may b e able t o use a lof t type aerial but i t is highly like ly that y ou will al so need t o connec t a boost er between t he back of the TV and th e TV aerial wall socket . Unfortunately, to receive a good enough digit al signal, it is not use a port able/indoor type aerial. This may change once t he analogue signal i s switched of f in 2012 and the Digital signal strength i s increased.

Go in to t he s ound set ting s menu as shown earlier i n th e manual and increas e the l evel o f the bass an d decrease the t reble

possible to

I have inserte d a disc but it is not playing

I have connect ed the TV to my V CR v ia SCAR T but i t is n ot re cordin g

I have connected my PS3 to the TV via HDMI, but I am not receiving any pictures or sound on my Console

I have connected my Xbox 360 to the TV via Component Cables (Red, Green & Blue) but I am not receiving any sound

Why are some options in the menu unavailable and greyed out

1) Ensure y ou h ave inserte d put the disc in facing t he correct w ay

2) Ensure t he scratched

3) Some copied discs will not play.

4) Check the DVD is a region 2 disc – to change the region of the DVD player, refer to section ‘Changing Regions’.

In addit ion to connec ti ng via SCART, you should connect t he aeria l cable from wall socket t o VCR a nd anot he r aerial cable f rom the VCR t o the T V

disc is c lean a nd is not

the

1) Ensure the TVs source is on HDMI

2) Check your settings on your PS3 are as per the PS3 instruction manual

Component cables only provide HD Pictures. For the sound you will need to connect the Red & White audio cables on the Xbox to the 3.5mm YPbPR/S-video Audio in on the TV. Please refer to the ‘Connecting a games console’ page.

Some options are only available in certain sources, i.e. HDMI, PC/VGA. They are unavailable in the other sources where they have no affect.

TECHNICAL SPECIFICATION

X23_50 full hd english manual paPage 1 5. 10. 2009 12:01:37

User Guide

LCD23-230

Panel

)sehcnI(eziS

noituloseR

oitaRtsartnoC

htness cd/m

Bri

BGRCP

1 x SCART, 1 x S-Video, 1 x Component

(YPbPr - 1080p)

Input Signal

Video

1 x 3.5mm jack for PC audio input, 1 x 3.5mm

Sound

jack, shared for S-Video & YPbPr

(component) audio input

IMDH

tuOrekaepS

reyalpDVD

DVD

)SMR(sttaWtup

Power Voltage 110-240v 50/60Hz 1.5A 90W (standby <1W) Dimensions Inc Stand 561W x 402H x 178D

Weight

)sgK(teN

)sgK(ssorG

3”2

0801x0291

1:0001

300

seY

MACES-LAP/annetnAmho5

)80p01otpu(1

3x2

seY

3,6 7,7

19_17 english manual 30.pdf 29. 7. 2009 8:54:06

IDTV

INDEX

Analogue TV teletext 21 Attaching/Detaching the Stand & Wall mounting 9 Auto Tuning 17 Balance 16 Bass 16 Blue Screen 19 Brightness 14 Changing DVD Regions 25 Colour 14 Colour Temperature 15 Common Inferface Slot 18 Connecting to a PC 22 Connecting a Games Console 27 Contrast 14 Country Settings 17 Digital Switchover Re-Tune 2-3 Digital TV teletext 21 Dynamic Noise Reduction 15 Dynamic Range 25 First Time Installation 20 Frequently Asked Questions 28 Horizontal Position (PC) 23 Inputs and Connections 13 Manual Tuning 17

On Screen Display Timer 18

On Screen Menu Language 19

Phase (PC) 23 Picture Format 19 Picture Format - (DVD) 24 Picture Mode Preset 14 Position Reset (PC) 23 Program Edit / Changing Channel Position 17 Remote control buttons and their functions 11 Reset Television 20 Returning to Default (DVD) 24 Sharpness 15 Sleep Timer 18 Sound Mode Preset 16

System Lock 19

Technical Specifications 29 Tint 15 Tone (DVD) 25 Treble 16 Tuning in TV 10 TV buttons and

their functions 12 TV Guide 20 TV System (DVD) 24 Using with Sky Digital / Virgin Media 26 Vertical Position (PC) 23 Volume 16 What is included in the box 8

OPTIONAL ACCESSORIES AND REPLACEMENT PARTS

If you need to order replacement parts for your TV, please visit our web site or call the helpline.

If you wish to wall mount your TV, we have a range of fully tested and compatible wall mounts available to order from the helpline or via our web site.

If you wish to purchase a Sky your Sky Box as well as this TV, these are available to order from the helpline or web site. Our Sky remote controls operate your Sky or Sky+ box in exactly the same way your current Sky / Sky+ remote does and our versions also look very similar to the Sky equivalent models, albeit slightly smaller in size, they will also operate many of your TV’s functions including Power on/off, channel up/down, volume up/down as well as many other functions.

or Sky+ remote control that includes the latest software/codes to operate both

/ Sky+

INFO

VOL

GUIDE

PICTURE FORMAT

Replacement

remote control

stnuoM llaW slortnoc etomeR +ykS/ykS ruO
