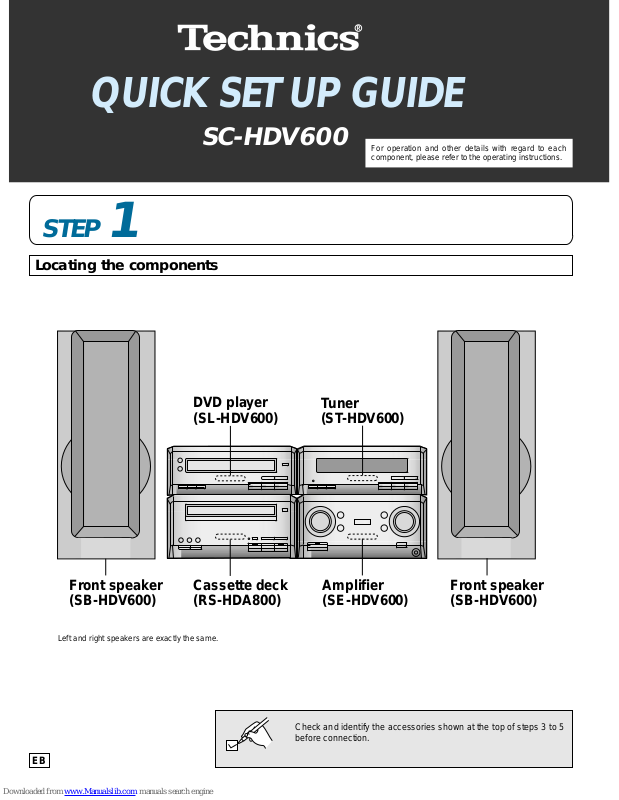

Page 1
DVD player
(SL-HDV600)
Tuner
(ST-HDV600)
Front speaker
(SB-HDV600)
Cassette deck
(RS-HDA800)
Amplifier
(SE-HDV600)
Front speaker
(SB-HDV600)
SC-HDV600
For operation and other details with regard to each
component, please refer to the operating instructions.
Locating the components
Check and identify the accessories shown at the top of steps 3 to 5
before connection.
EB
Left and right speakers are exactly the same.
STEP 1
QUICK SET UP GUIDE
Page 2
HF : High Frequency
LF : Low Frequency
Incorrect connection can
damage unit.
Be sure to connect only
positive (red or gray) wires to
positive (+) terminals and
negative (black or blue) wires
to negative (–) terminals.
L
R
A
B1
B2
Connect the cables to the terminals of the same color.
STEP 2
STEP 3
Flat
cables
Disconnecting
HF LF
On the amplifier
Gray
Blue
Red
HF LF
Black
Gray
Blue
Red
Black
HF
LF
Speaker
cables
On the speakers
R (Right)
L (Left)
Page 3
D1
D2
VIDEO OUT
(a page 47 in the
operating instructions)
(a page 11 in the operating instructions)
AC IN
Household
mains socket
Attach to a wall (using tape) facing in the
direction of best reception.
AM loop
antenna
FM indoor
antenna
Surround
cable
Disconnecting
VIDEO IN
Connect the AC mains lead after you have
connected all other cables.
TV (not included)
Video
connection
cable
AC mains
lead
STEP 4
STEP 5
Place on a flat
surface
Press
down
Page 4
RQCA0843
H0301BB0
2
1
Remote control operation
VOLUME
+
–
4
Press [
q
].
The disc tray closes automatically.
5
Adjust the volume.
To stop play
3
Press [
;
OPEN/CLOSE] and load a disc.
2
Turn on the unit.
1
Turn on the TV and select the appropriate video input on the TV.
Check installation by playing a DVD
Battery installation
To adjust the volume
