Technics SA-GX910 User Manual
Specifications and Main Features
- Model: SA-GX910
- Type: Stereo Receiver
- Power Supply: 110V or 115V AC Electric Input Switch
- Output Power: Do not have specification details on output power.
- Speaker Impedance: Selectable to either between 4-6Ω or 8-16Ω.

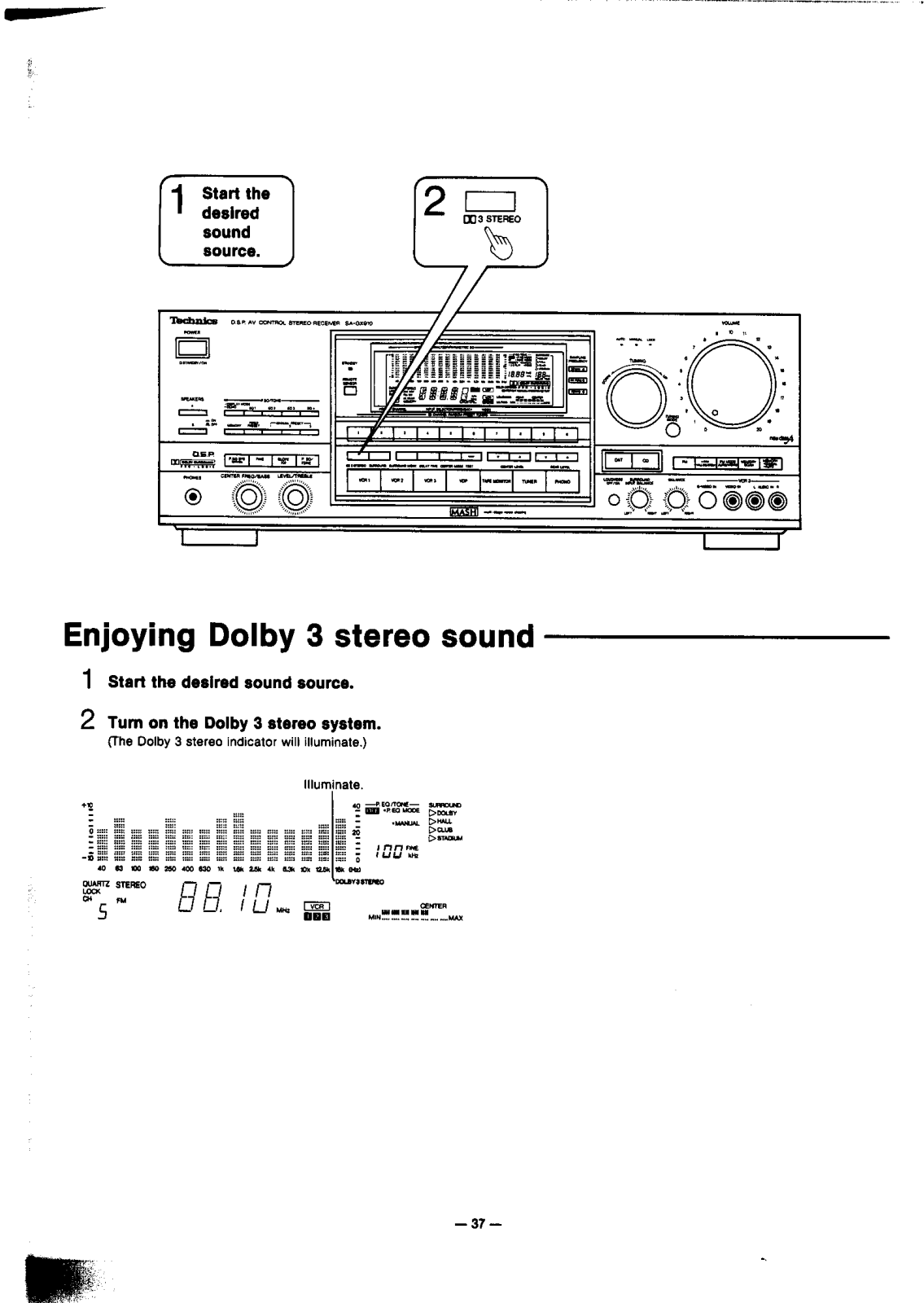

- Supported Surround Modes: Dolby Pro-Logic, Dolby 3 Stereo, HALL, CLUB and STADIUM.

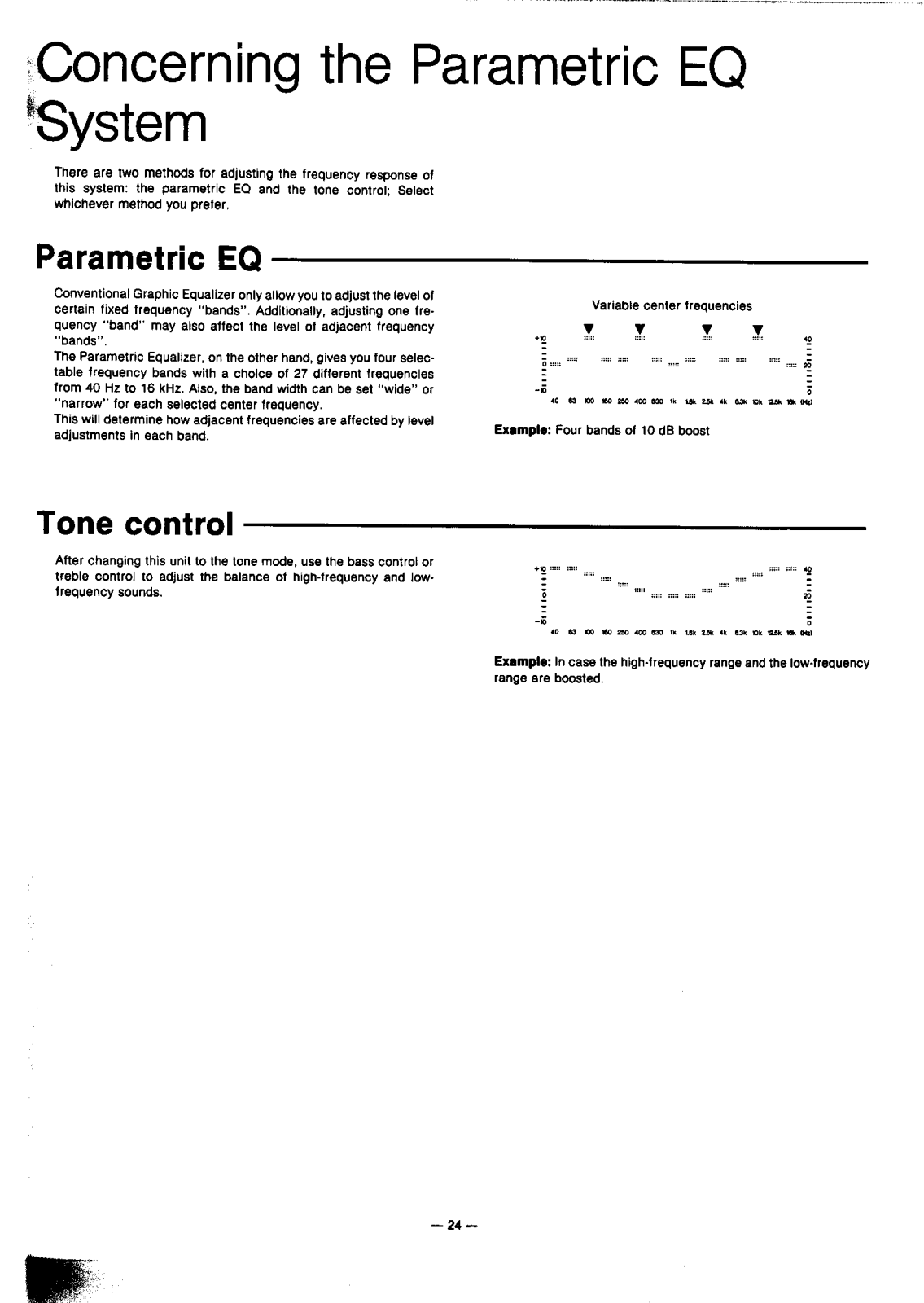

- Parametric Equalizer: Comes with 4 selectable frequency bands in 27 frequencies (40Hz to 16kHz).
- Tuner Capability: FM And AM with memory presetting up to 30 stations.

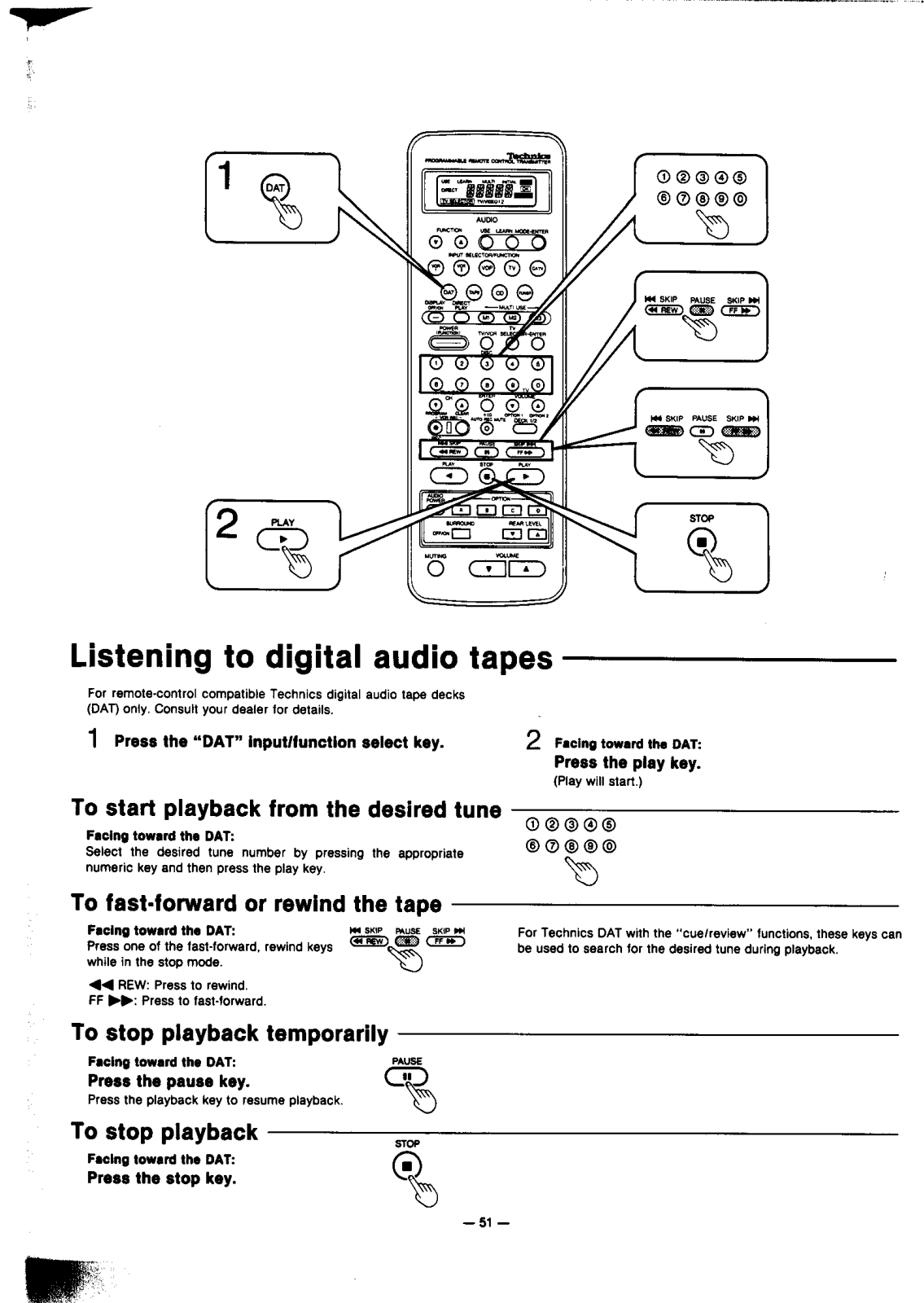

- Audio Inputs: Digital (optical CD and DAT), Tape, Phono, L3 VCR (3X IN) and Video Disc Player -VDP.

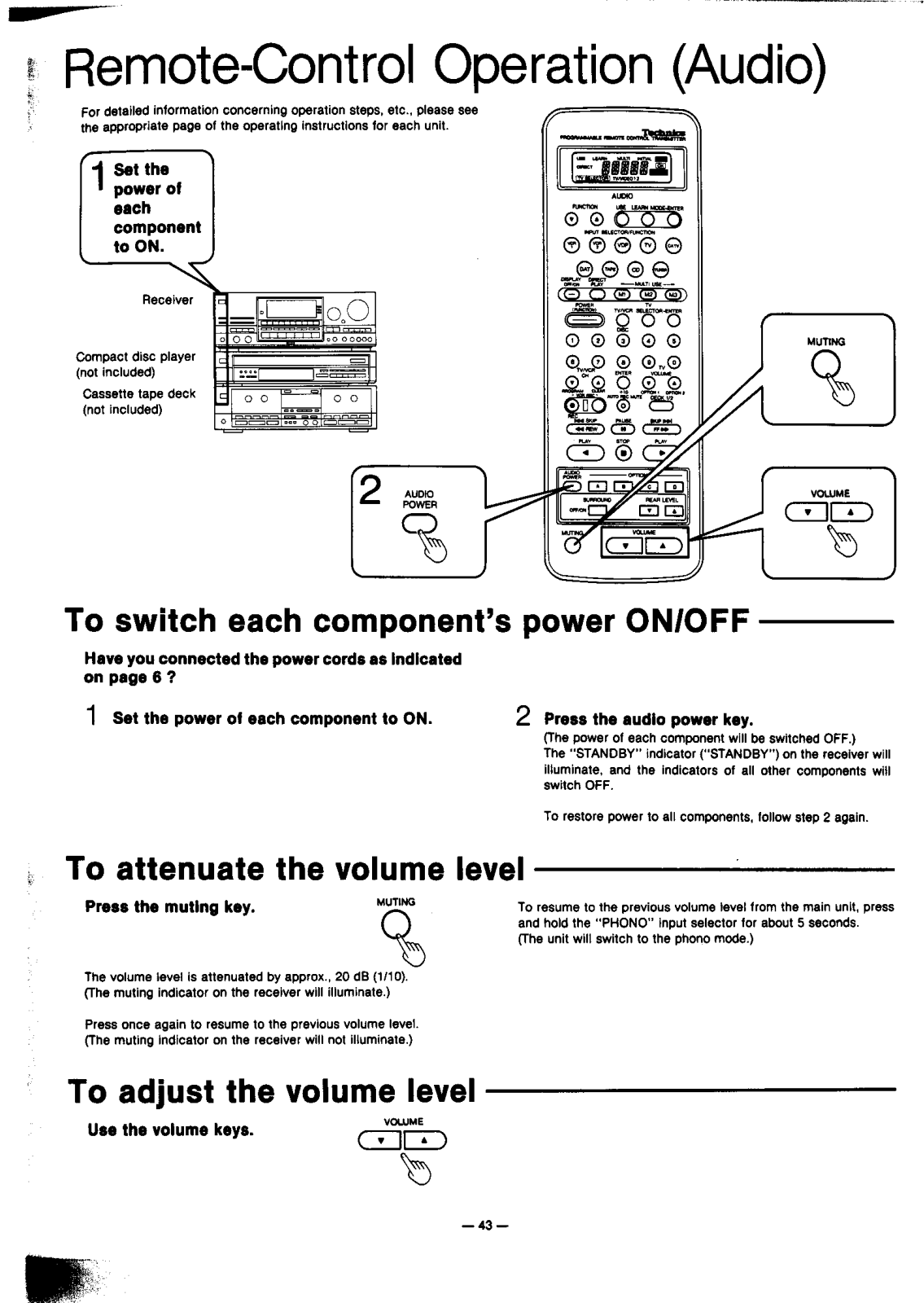

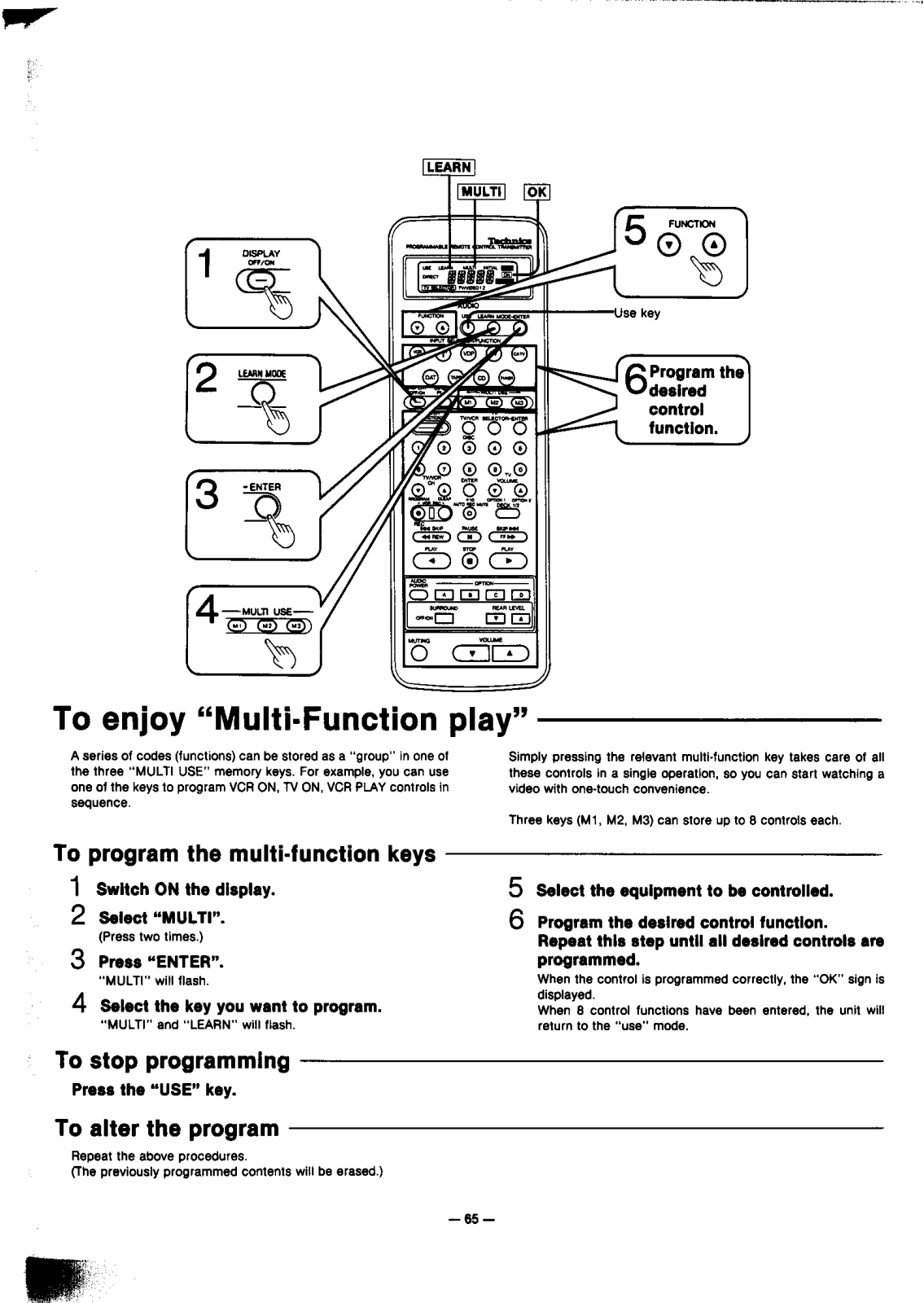

- Remote Control: Remote control, with programmable function keys.
- Antenna: Hardware Includes FM indoor antenna and AM lip antenna.
- Dimensions: Not Provided
- Weight: Not Provided
- Other Features: As other useful features, volume and tone control, microphone input, headphone jack and the test signal function for adjusting speaker balance are also available.
Frequently Asked Questions
Q: What impedance speakers are compatible with the SA-GX910?
A: The SA-GX910 supports speakers with 4-6Ω and 8-16Ω impedance.
Q: Am I able to save AM radio and FM on different channels?
A: yes, Am and FM memories can be limited to 30 radio stations, simply find the frequency, press the memory button and enter the number of the channel to be used for storage.
Q: What are the surround sound modes available?
A: There are various surround sound modes offered on the device such as, Dolby Pro-Logic, Dolby 3 Stereo, HALL, CLUB, and STADIUM.
Q: Does the SA-GX910 come with a remote control?
A: The SA-GX910 has a remote control that can be programmed to perform different functions.
Q: Will I be able to connect to a turntable with the SA-GX910?
A: Yes, to the receiver’s turntable PHONO input connection, a turntable can be attached.
Q: Is it possible to adjust the speaker output levels?
A: There are buttons on the remote control and the front panel that allow adjustment of the volume level of both the center and rear speakers
