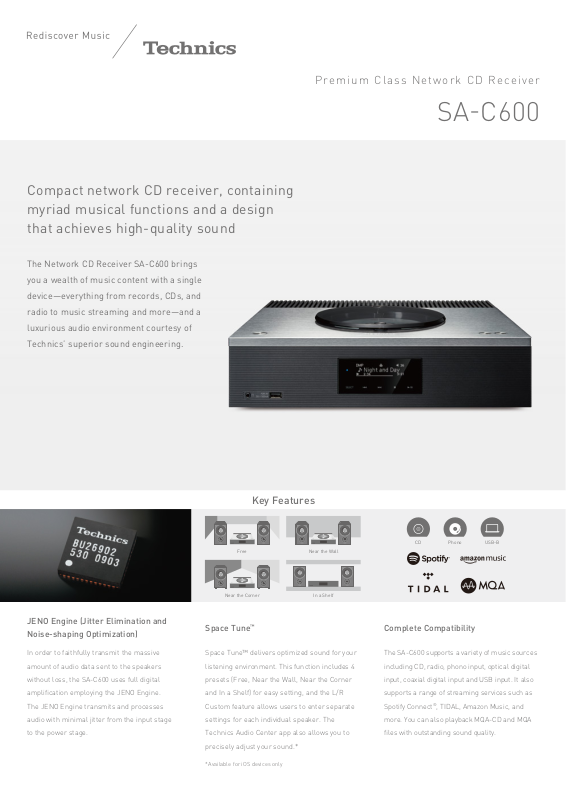

Compact network CD receiver, containing
myriad musical functions and a design
that achieves high-quality sound
The Network CD Receiver SA-C600 brings
you a wealth of music content with a single
device—everything from records, CDs, and
radio to music streaming and more—and a
luxurious audio environment courtesy of
Technics’ superior sound engineering.
Premium Class Network CD Receiver
SA-C600
JENO Engine (Jitter Elimination and
Noise-shaping Optimization)
In order to faithfully transmit the massive
amount of audio data sent to the speakers
without loss, the SA-C600 uses full digital
amplification employing the JENO Engine.
The JENO Engine transmits and processes
audio with minimal jitter from the input stage
to the power stage.
Key Features
Free Near the Wall
Near the Corner
Space Tune
Space Tune™ delivers optimized sound for your
listening environment. This function includes 4
presets (Free, Near the Wall, Near the Corner
and In a Shelf) for easy setting, and the L/R
Custom feature allows users to enter separate
settings for each individual speaker. The
Technics Audio Center app also allows you to
precisely adjust your sound.*
*Available for iOS devices only
™
In a Shelf
CD Phono USB-B
Complete Compatibility
The SA-C600 supports a variety of music sources
including CD, radio, phono input, optical digital
input, coaxial digital input and USB input. It also
supports a range of streaming services such as
®
Spotify Connect
more. You can alsoplayback MQA-CD and MQA
files with outstanding sound quality.
, TIDAL, Amazon Music, and
Page 2
Premium Class Network CD Receiver
SA-C600
Specifications
-Silver -Black
Output Power
FTC Output Power
Load Impedance
Frequency Response
Input Sensitivity / Input Impedance
Analogue Input Terminal
Digital Input Terminal
Analogue Output Terminal
Headphone Output
Disc Compatibility
USB-A
PC (USB-B)
MQA Decorder
LAN (DMR)
Ethernet Interface
Wi-Fi
Chromecast built-in
AirPlay 2
Bluetooth® (Support codec)
Tuner
Power Supply
Power Consumption
Dimensions (W×H×D)
Weight
Accessories
PHONO (MM)
LINE
DIGITAL
PHONO (MM)
LINE
iPod / iPhone / iPad
Support Codec
USB Audio Class Specification
Support Codec
DSD Contol Mode
60 W + 60 W (1 kHz, T.H.D. 1.0 %, 4 Ω, 20 kHz LPF)
40 W + 40 W (1 kHz, T.H.D. 1.0 %, 4 Ω, 20 kHz LPF)
4 Ω - 16 Ω
20 Hz - 20 kHz (RIAA DEVIATION ±1 dB, 8 Ω)
20 Hz - 80 kHz (-3 dB, 8 Ω)
20 Hz - 90 kHz (-3 dB, 8 Ω)
2.5 mV / 47 kΩ
200 mV / 22 kΩ
PHONO (MM) ×1, LINE × 1
Optical Digital ×1, Coaxial Digital ×1, USB-A ×1, USB-B ×1 (PC)
Sub Woofer ×1
(Stereo Ø3.5 mm)
•
Audio CD, CD-R / CD-RW (CD-DA, Discs recorded and finalized on recording devices)
—
(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
WAV
(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
FLAC
(2.8 MHz, 5.6 MHz, 11.2 MHz)
DSD
(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
AIFF
(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
ALAC
(32, 44.1, 48, 88.2, 96 kHz / 16-320kbps)
AAC
(32, 44.1, 48 kHz / 16-320 kbps)
MP3
USB 2.0 high-speed, USB Audio Class 2.0, Asynchronous mode
LPCM (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit), DSD (2.8 MHz, 5.6 MHz)
ASIO Native mode, DoP mode
•
(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
WAV
(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
FLAC
(2.8 MHz, 5.6 MHz, 11.2 MHz)
DSD
(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
AIFF
(32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
ALAC
(32, 44.1, 48, 88.2, 96 kHz / 16-320kbps)
AAC
(32, 44.1, 48 kHz / 16-320 kbps)
MP3
(100 Base-TX / 10 Base-T)
LAN
IEEE 802.11 a/b/g/n/ac, 2.4 GHz / 5 GHz Band
•
•
(AAC, SBC)
•
FM
AC 120 V, 60 Hz
46 W
340 mm × 94 mm × 341 mm (13-25/64 × 3-45/64 × 13-7/16 inch)
Approx. 4.8 kg (Approx. 10.6 lbs)
AC Cord, Remote Control, Batteries for Remote Control, Owner's Manual
Technics is a brand name of the Panasonic Corporation
Panasonic Consumer Electronics Company
Division of Panasonic Corporation of North America
Two Riverfront Plaza
Newark, NJ 07102-5490
(201) 348-7000
www.panasonic.com
www.technics.com
Design and specifications subject to change without notice.
