Techne UCAL400+ Operator's Manual

4/02 Issue 1

TECHNE is a registered Trademark of Techne Incorporated.

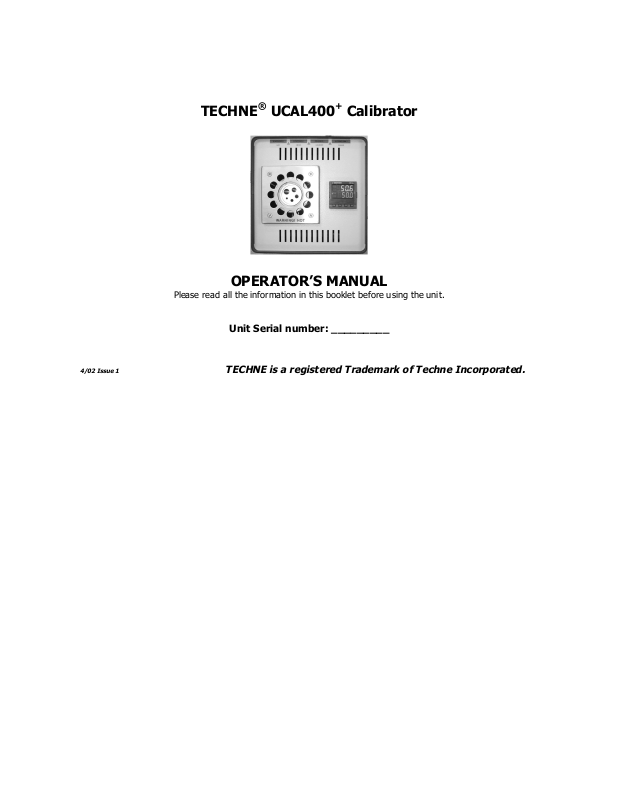

TECHNE

®

UCAL400+ Calibrator

OPERATOR’S MANUAL

Please read all the information in this booklet before using the unit.

Unit Serial number: _________

THE UCAL 400+

Introduction

Techne’s UCAL400+ calibrator heater provides a safe, dry, constant temperature source. It is fast and economical
and can be used either on a bench top or as a portable field unit. The weight of the unit is only nine pounds/four
kilograms. The unit covers the temperature range from 5°C above ambient up to 430°C using a machined
aluminum insert block as the heat transfer medium. The temperature control circuit is built into the unit.

Features include:

• 10 insert formats available

• Maximum temperature of 430°C/806°F

• An independent over-temperature cutout

• Temperature sensor burnout protection

Even though the unit heats up rapidly, highly efficient insulation ensures that the case remains cool enough to
handle even at maximum operating temperatures. Techne’s calibrator has been designed to comply with all
relevant Radio Frequency interference and electrical safety regulations.

-1-

Specification

Figures quoted are at the base of the well at the time of calibration.

Temperature range: 5°C/9°F above ambient to 430°C/806°F
Over-temperature limit: 450°C/842°F (approximately)
Display resolution: 0.1°

200 degrees C 400 degrees C
Accuracy ±0.3°C ±0.5°C
Stability (after 15 minutes) ±0.03°C ±0.05°C
Well to well uniformity 0.015°C 0.025°C

Heat up time 20° C to 400°C: 12 minutes
Cool down 400°C to 100°C: 21 minutes
Immersion Depth: 4.5" (114.3mm)
Fan Cooling: Automatic
Weight: 9 lbs (4 Kg)
Dimensions* (H x W x D): 8.75 x 8 x 8 inches/222.25 x 203.2 x 203.2 mm
*excluding the carrying strap

Electrical supply

Voltage Cycles Power

230V 50/60Hz 900W
120V 50/60Hz 900W

Note: The above specifications are quoted for an ambient temperature range of 10°C/50°F to 30°C/86°F.

Outside this range, the quoted figures may deteriorate but the unit will still work safely.

-2-

Working environment

The calibrator units are designed to work safely under the following conditions:

Ambient temperature range: 5°C/9°F to 40°C/104°F

Humidity: Up to 95% relative humidity, non-condensing

Warning

Warning: HIGH TEMPERATURES ARE DANGEROUS
Avertissement: DANGER DE TEMPERATURES ELEVEES
Warnung: HOHE TEMPERATUREN SIND GEFÄHRLICH
Aviso: LAS TEMPERATURAS ELEVADAS SON PELI

HIGH TEMPERATURES ARE DANGEROUS: They can cause serious burns to operators and ignite combustible
material. Techne has taken great care in the design of these units to protect operators from hazards, but
operators should pay attention to the following points:

• USE CARE AND WEAR PROTECTIVE GLOVES TO PROTECT HANDS

• DO NOT put hot objects on or near combustible objects

• DO NOT operate the unit close to inflammable liquids or gases

• DO NOT place any liquid directly in your unit

• At all times USE COMMON SENSE

Operator Safety

All operators of Techne® equipment must have available the relevant literature needed to ensure their safety. It
is important that only suitably trained personnel operate this equipment in accordance with the instructions
contained in this manual and with general safety standards and procedures. If the equipment is used in a manner
not specified by Techne, the protection provided by the equipment to the operator may be impaired. All Techne
units have been designed to conform to international safety requirements and are fitted with a preset over­temperature cutout. If a safety problem is encountered, switch off at the mains socket and remove the plug from
the supply.

-3-

®

Installation

1. All Techne units are supplied with a power cable.

2. Before connecting the mains supply, check the voltage against the rating plate. Connect the mains

cable to a suitable plug according to the table below. Note that the unit must be earth grounded
to ensure proper electrical safety.

Electrical connections:

Live Brown Black
Neutral Blue White
Earth ground Green/yellow Green

The fused plug supplied with the mains lead for use in the UK is fitted with the following value fuse to
protect the cable: 230V UK 4 AMP
The fuse in the unit protects the unit and the operator
Note that units marked 230V on the rating plate work at 220V; units marked 120V work at 110V. In
both cases, however, the heating rate will degrade by approximately 8%. The rating plate is on the
rear of the unit.

3. Plug the mains cable into the socket on the rear of the unit.

4. Place the unit on a suitable bench or flat workspace, or in a fume cupboard if required, ensuring that

the air inlet vents on the underside are free from obstruction.
After use, when you have finished heating samples, remember that parts of the unit may be very hot.
Take the precautions listed earlier.

220V-240V 110V-120V

-4-

OPERATION

Preparation

1. The heater design, temperature sensor and control circuit give good temperature control and
uniformity, but make sure that there is a close fit of the probes in the block to allow efficient heat
transfer.

2. Plug the power cable into the socket in the back of the unit. Connect the mains cable to the

electricity supply.

-5-

Setting the operating temperature

1. To set the temperature required, press and hold either the up or down button depending on the

direction you need to take the set point.

2. When you have the correct set temperature displayed, release the up or down button and the unit

will start to heat or cool to the set point.

3. Once the process value/actual temperature reaches the set point, allow the block to stabilize for 15

minutes before performing a calibration.

4. The controller is factory pre-set and only the set-temperature should be changed.

THE CONTROLLER MUST NOT BE SET TO CONTROL ABOVE 430°C/806°F OR DAMAGE TO THE UNIT
MAY RESULT.

After use

1. When you have finished calibrating, remember that parts of the unit and the probe may be very hot,

so precautions should be taken to prevent injury.

2. For safety, set the set temperature and allow the unit to cool to below 50°C/122°F before placing

the unit in a carrying case or shipping carton.

Changing from °C to °F

The controller is preset to display/operate in degrees C; however it may be changed to read in Degrees F. Refer
to section 5-2 of the 2216E Eurotherm Controller manual for instructions on changing from

Be careful not to change any of the other settings in the configuration menu as performance will be
affected and/or damage to the unit will occur!

-6-

°C to °F.

Operator maintenance

NOTE THAT THIS EQUIPMENT SHOULD ONLY BE DISMANTLED BY PROPERLY TRAINED PERSONNEL. REMOVING
THE FRONT OR REAR PANELS EXPOSES POTENTIALLY LETHAL MAINS VOLTAGES. THERE ARE NO OPERATOR
MAINTAINABLE PARTS WITHIN THE EQUIPMENT.

In the unlikely event that you experience any problems with your unit which cannot easily be remedied, you
should contact your supplier and return the unit if necessary. Please include any details of the fault observed and
remember to return the unit in its original packing. Techne will accept no responsibility for any damage to units
that are improperly packed for shipment. If in doubt, contact your supplier. See the Decontamination Certificate
supplied with your unit.

Cleaning: Before cleaning your unit, ALWAYS disconnect it from the power supply and allow it to

1.

cool below 50° C. Your unit can be cleaned by wiping with a damp soapy cloth. Care should be
exercised to prevent water from running inside the unit. Do not use abrasive cleaners.

Fuses: Your unit is protected by two fuses. They should only be changed by suitably qualified

2.

personnel. If the fuses blow persistently, a serious fault is indicated and you may need to return the
unit to your supplier for repair.

ADDITIONAL INFORMATION

The controller is factory preset. See the Controller book for further details.
For safety reasons, the configuration settings of the controller are password protected.
Please contact your dealer for further information.
Listed below are important control parameters for the unit with the serial number listed on the first page
of this manual.

Pb = _____ Lcb = ____

Ti = _____ Hcb = ____

Td = _____ RelC= ____

-7-

Replacement Parts

The following parts may be obtained from your Techne dealer if replacements or alternatives are required:

Part Number Description

FCABLEUK UK 240 volt Mains cable with 13amp UK plug (5 amp fuse)
FCABLEEU Euro style 240 volt Mains cable with R/A Schuko plug
7002705 US 120 volt Mains cable
7032722 insert extractor
7002712 UCAL instruction manual
7032718 Carrying case

Available inserts

Part Number Insert well Sizes

7022533 insert 5 x 1/4”
7032534 insert 1 each 1/8”, 3/16”, 1/4”, 5/16”, 3/8”
7032535 insert 2 x 1/4” & 2 x 3/8”
7032536 insert 2 x 1/4” & 2 x 1/2”
7032537 insert 1 x 1/4”
7032538 insert blank
7032574 insert 1 x 9/16” & 1 x 1/4”
7032575 insert 1 x 5/8” & 1 x 1/4”
7032576 insert 1 x 11/16” & 1 x 1/4”
7032577 insert 1 x 3/4” & 1 x 1/4”

Spare Parts

Part Number Description

7002695 225 watt, 120 volt heater
7002694 2216E Eurotherm controller
7032725 RS232 Coms Module
7002697 PRT
7002698 Solid state relay
7007201 8 amp fuse (120 volt units)
6500131 4 amp fuse (240 volt units)

-8-

Contact Information

For technical, sales or servicing information, contact your local Techne agent or, Techne (Cambridge) Limited or
Techne Inc. in North and South America.

Techne Inc. Techne (Cambridge) Limited
743 Alexander Road Duxford, Cambridge CB2 4PZ
Princeton, NJ 08540-6328 England
USA
Phone: [phone] Phone: [phone]
Fax: [phone] Fax: [phone]
E-Mail: [e-mail]

Joint web site: http://www.techne.com/

E-Mail: [e-mail]

GUARANTEE

The unit is guaranteed against any defect in material or workmanship for the period specified on the enclosed
guarantee card. This period is from the date of purchase, and within this period, all defective parts will be
replaced free of charge provided that the defect is not the result of misuse, accident or negligence. Servicing
under this guarantee should be obtained from the supplier. Not withstanding the description and specification(s)
of the units contained in the Operator’s Manual, Techne Inc. hereby reserves the right to make such changes as it
sees fit to the units or to any component of the units. This manual has been prepared solely for the convenience
of Techne Inc customers and nothing in this Instruction Book shall be taken as a warranty, condition or
representation concerning the description, merchantability, fitness for purpose or otherwise of the units or
components.
