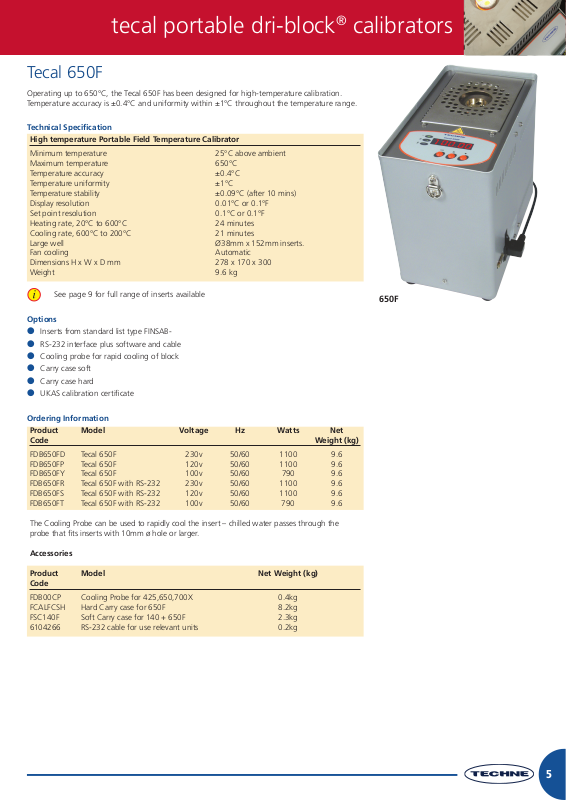

Techne Tecal 650F Data Sheet

tecal portable dri-block® calibrators

Tecal 650F

Operating up to 650°C, the Tecal 650F has been designed for high-temperature calibration.
Temperature accuracy is ±0.4°C and uniformity within ±1°C throughout the temperature range.

Technical Specification

High temperature Portable Field Temperature Calibrator

Minimum temperature 25°C above ambient
Maximum temperature 650°C
Temperature accuracy ±0.4°C
Temperature uniformity ±1°C
Temperature stability ±0.09°C (after 10 mins)
Display resolution 0.01°C or 0.1°F
Set point resolution 0.1°C or 0.1°F
Heating rate, 20°C to 600°C 24 minutes
Cooling rate, 600°C to 200°C 21 minutes
Large well Ø38mm x 152mm inserts.
Fan cooling Automatic
Dimensions H x W x D mm 278 x 170 x 300
Weight 9.6 kg

See page 9 for full range of inserts available

Options

● Inserts from standard list type FINSAB-

● RS-232 interface plus software and cable

● Cooling probe for rapid cooling of block

● Carry case soft

● Carry case hard

● UKAS calibration certificate

Ordering Information

Product Model Voltage Hz Watts Net
Code Weight (kg)

FDB650FD Tecal 650F 230v 50/60 1100 9.6
FDB650FP Tecal 650F 120v 50/60 1100 9.6
FDB650FY Tecal 650F 100v 50/60 790 9.6
FDB650FR Tecal 650F with RS-232 230v 50/60 1100 9.6
FDB650FS Tecal 650F with RS-232 120v 50/60 1100 9.6
FDB650FT Tecal 650F with RS-232 100v 50/60 790 9.6

The Cooling Probe can be used to rapidly cool the insert – chilled water passes through the
probe that fits inserts with 10mm ø hole or larger.

Accessories

650F

Product Model Net Weight (kg)
Code

FDB00CP Cooling Probe for 425,650,700X 0.4kg
FCALFCSH Hard Carry case for 650F 8.2kg
FSC140F Soft Carry case for 140 + 650F 2.3kg
6104266 RS-232 cable for use relevant units 0.2kg
