Technalogix TAVD-500 User Manual

TAVD-500

POWER AMPLIFIER

You’ve already unpacked it, haven’t you? You’ve unpacked
it and plugged it in and turned it on and fiddled with the
knobs. No? Okay, good. Please take a few minutes to read
the manual and familiarize yourself with your new
Technalogix power amplifier.

We believe that this manual, and of course our equipment,
should be everything you need to get on the air with superb
broadcast quality video. We understand that a capable and
confident user will get the most out of our product and we
have made every attempt to educate readers of all technical
levels. If there is something that is not clear, or you require
further information, please do not hesitate to contact us and
we’ll be glad to help out.

Technalogix Ltd.
#4, 8021 Edgar Industrial Place
Red Deer, Alberta, Canada
T4P 3R3
Phone: [phone]
Fax: [phone]
URL: www.technalogix.ca
Email: [e-mail]

[e-mail]

We truly appreciate that you have chosen us as your
television broadcast system supplier. Happy viewing.

Table of Contents

SECTION I- SAFEGUARDS................................................................................................................. I-1

S

AFETY AND FIRST AID.................................................................................................................... I-2

OPERATING SAFEGUARDS ............................................................................................................... I-3

S

ECTION II - WARRANTY ................................................................................................................ II-1

S

ECTION III - OVERVIEW................................................................................................................. III-1

S

TANDARD FEATURES ...................................................................................................................III-1

PRINCIPLE OF OPERATION ............................................................................................................. III-2

B

LOCK DIAGRAM (TAVD-500)....................................................................................................... III-3

RF SIGNAL PATH...........................................................................................................................III-4

BLOCK DIAGRAM (TAVD-500)....................................................................................................... III-3

S

PECIFICATIONS ............................................................................................................................ III-5

S

ECTION IV - RF COMPONENTS......................................................................................................IV-1

A

MPLIFIER PALLETS ......................................................................................................................IV-1

SPLITTER/COMBINER .....................................................................................................................IV-4

DIRECTIONAL COUPLER .................................................................................................................IV-4

I

SOLATOR......................................................................................................................................IV-4

FILTER ..........................................................................................................................................IV-4

S

ECTION V - POWER SUPPLY SECTION ............................................................................................V-1

S

ECTION VI - MONITOR AND CONTROL SYSTEM ..............................................................................VI-1

C

ONTROL BOARD OVERVIEW (INSIGHT)..........................................................................................VI-1

USER INTERFACE MODULE .............................................................................................................VI-2

COUPLER CONDITIOING MODULE ....................................................................................................VI-3

RF

CONDITIONING MODULE ...........................................................................................................VI-3

TEMPERATURE SENSOR MODULE...................................................................................................VI-3

T

XNET MODULE.............................................................................................................................VI-3

EMOTE PORT...............................................................................................................................VI-4

R
F

AULT SHUTDOWN.........................................................................................................................VI-5

B

ILL OF MATERIALS ......................................................................................................................VI-6

SCHEMATICS ...............................................................................................................................VI-12

S

ECTION VII - MECHANICAL SECTION ............................................................................................VII-1

S

ECTION VIII - INSTALLATION .......................................................................................................VIII-1

B

UILDING RECOMMENDATIONS.....................................................................................................VIII-1

HEATING AND COOLING REQUIREMENTS.......................................................................................VIII-2

E

LECTRICAL SERVICE RECOMMENDATIONS ..................................................................................VIII-3

A

NTENNA AND TOWER RECOMMENDATIONS .................................................................................VIII-4

SHELTER SECURITY.....................................................................................................................VIII-5

U

NPACKING AND INSPECTION.......................................................................................................VIII-6

L

OCATION AND FUNCTION OF CONTROLS AND CONNECTORS (TAVD-500 POWER AMPLIFIER).......VIII-7

L

OCATION AND FUNCTION OF CONTROLS AND CONNECTORS (COMBINER ENCLOSURE .................VIII-11

INITIAL HOOK UP……………………………………………………………………………………… VIII-13
S

ECTION IX - OPERATING PROCEDURE...........................................................................................IX-1

S

ECTION X - MAINTENANCE AND TROUBLESHOOTING.......................................................................X-1

T

ROUBLESHOOTING........................................................................................................................X-2

Section I - Safeguards

General Safeguards

This section is written as a general guide to keep all 5 fingers on your hand and is intended for
those having previous knowledge and experience with these kinds of equipment. It is not intended
to contain a complete statement of all safety precautions, which should be observed by personnel
using this or other electronic equipment.

DOCUMENTATION - Read, retain and follow instructions before operating the equipment.
There is a lot of useful information in the manual, and besides, we spent a lot of time
writing it!

ENVIRONMENT - To reduce the risk of fire or electric shock, do not expose this
equipment to rain, moisture, or rye and sodas at the company Christmas party. Refer all
servicing to qualified service personnel.

SERVICING - Do not attempt to service this equipment yourself as opening or removing
covers can result in a warm tingly feeling and will void the warranty. Refer all servicing to
qualified service personnel.

Technalogix Ltd TAVD-500 Transmitter

I-1

Safety and First Aid

Personnel engaged in the installation, operation, maintenance, or servicing of electronic equipment
are exposed to the hazard of high voltage. It is imperative that all safety regulations and
precautions are consistently observed. Knowledge of first aid procedures is recommended. The
following information is presented as a reference only.

• At all times, avoid placing any part of the body in series between ground and circuit points,
whether power is on or off.

• Dangerous voltage may be present in equipment even though power is off. Do not open the
cabinet. Refer servicing to qualified service personnel.

• It is the duty of all personnel to be prepared to give adequate emergency first aid treatment and
thereby prevent avoidable loss of life.

• There are three principle degrees of burns, recognizable as follows:

• a first-degree burn reddens the skin.

• a second-degree burn blisters the skin.

• a third degree burn chars the flesh and frequently places the victim in a state of shock

accompanied by respiratory paralysis.

• Respiratory paralysis can cause death by suffocation within seconds. It is imperative that the
approved methods of artificial respiration are initiated immediately and continue until the victim’s
breathing is normal.

• A muscular spasm of unconsciousness may render the victim unable to break free of the
electric power. If this is the case, turn the power off immediately.

DO NOT TOUCH THE VICTIM OR YOU MAY SHARE THE SAME
PREDICAMENT.

• If the power cannot be turned off immediately, very carefully loop a dry rope, article of clothing,
length of strong cloth or a rolled-up newspaper around the victim and pull the victim free of the
power source. Carefully avoid touching the victim or clothing.

• Once free of the power source, the victim must be placed in a reclining position and covered
with a blanket or newspapers to keep warm. At the first opportunity, enlist help in
summoning a doctor. If a doctor cannot be summoned, transport the victim to the doctor or
a hospital. Be sure the victim is kept well covered and warm while awaiting professional
treatment.

Technalogix Ltd TAVD-500 Transmitter

I-2

Operating Safeguards

It is a known fact that our broadcast transmitters and translators enjoy 50-ohm load
impedances. So much so, that it is imperative you maintain 50-ohm impedances throughout
your system. In return, your equipment will provide you with maximum power transfer to the
antenna and decreased reflected power heading back towards the amplifier pallets, reducing
the amount of magic smoke that gets let out of the power amplifier. Before anything is turned
on, ensure that there is a 50-ohm path from the output of each stage to the input of the next, all
the way to the antenna.

In addition to maintaining proper 50-ohm impedances throughout the signal chain, it is also
important, whenever possible, to make sure the RF drive going to the input of the power
amplifier is removed before turning on or turning off the DC power supply. This is because all of
the RF transistors used in the individual amplifier pallets are fabricated with LDMOS (Laterally
Diffused Metal Oxide Semiconductor) technology. Nice and linear yes, but they do not like to
make any RF power when their supply voltages are not within a specific range. When you first
turn your power amplifier on or off, the DC power supply’s output voltage may take a while to
stable out to a safe operating voltage. Ten seconds wait before applying the RF drive will
ensure no issues arise.

Our power amplifiers are designed to reliably generate a specific RF output power. Failing to
adhere to overdriven amplifier warnings can decrease the reliability of your system, and frankly,
makes our repair department busy and grumpy. If you need to transmit to a little larger
coverage, you are better off increasing antenna gain, and more importantly, antenna height
above average terrain. On TV and FM broadcast frequencies, insufficient antenna height puts
an upper limit on your range, regardless of power levels, as the distance from your antenna to
the radio horizon is limited.

Technalogix Ltd TAVD-500 Transmitter

I-3

Section II - Warranty

Our legalese is straightforward. It is simply designed to give you peace of mind and helps you resist
the temptation to have your electronics friend try to repair your Technalogix product.

Technalogix Ltd. products have been completely tested and found to meet specifications and be in
proper operating condition. They are warranted to be free from defects in materials and
workmanship for a period of one year from the date of shipment. If the system becomes damaged in
shipment and there are obvious signs of damage to the outside of the packaging, notify your courier
immediately before that courier walks out the door.

Technalogix Ltd. will not be liable for damages of whatever nature arising out of or in connection
with the equipment or its use thereof. Technalogix does not assume responsibility for injury or
damage resulting from the practices of untrained or unqualified personnel in the handling of this
equipment.

Technalogix Ltd. warranty does not include:

• misuse, neglect or accident.

• incorrect wiring and /or improper installation.

• unauthorized repairs, modifications or use in violation of instructions issued by Technalogix.

• incidental or consequential damages as a result of any defect.

• reshipment cost or insurance of the unit or replacement units or parts.

• acts of nature or terrorism.

Technalogix agrees, at our option, to remedy warranted defects or furnish a new part in exchange
for any part of a unit which, under normal installation, use and service, becomes defective. The user
will pay for transportation costs to and from the repair center. If you require technical service on the
site, the cost to you will be $800.00 US per day plus air fare and meals.

Technalogix Ltd TAVD-500 Transmitter

II-1

To claim your rights under this warranty:

• Contact Technalogix and describe the problem in as much detail as possible. See
troubleshooting section in this manual. If a solution cannot be found at this time, it may be
determined that the unit will have to be returned to Technalogix for repair, once a Return
Materials Authorization (RMA) number is provided. Please look under our web site
(www.technalogix.ca

• Package equipment carefully for prepaid shipment to Technalogix. Include a written description
of the problem experienced, a copy of the original invoice establishing warranty status, and the
RMA.

Technalogix reserves the right to make revisions in current production of the equipment and
assumes no obligation to incorporate these changes in earlier models.

Shipping Address:
Technalogix Ltd.

ATTN: RMA#
#4, 8021 Edgar Industrial Place
Red Deer, Alberta, Canada
T4P 3R3
Ph: 403.347.5400
Made in Canada, returned for repairs

) for the RMA form (Service) and fill it out. Either fax it to us or email to us.

Technalogix Ltd TAVD-500 Transmitter

II-2

Terms & Conditions of Sale

Sales by Technalogix Ltd (“Seller”) are made only on the terms which are contained in this
Terms and Conditions of Sale Policy. Seller hereby gives notice of its objection to any different
or additional terms and conditions. All sales are expressly conditional upon Buyers’ assent to
the terms and conditions set forth below. These terms and conditions may be modified or
supplemented only by a written document sighed by the authorized representative of Seller.
These terms and conditions supersede any prior and/or contemporaneous agreements or
correspondence between Buyer and Seller. Any order received and accepted by Technalogix
Ltd (Seller) shall be construed as an acceptance of Seller’s offer to sell its products to the
purchaser (Buyer) in accordance with the terms and conditions of sale set forth herein. No
waiver, whether express or implied, by Seller of any of the terms or conditions hereof shall be
deemed a continuing waiver or trade custom between the parties, but shall apply solely to the
instance to which the waiver is directed.

Ordering Information

All orders must be in writing and/or accompanied by a PO. 50% down payment is required with
all orders. No orders are considered an order until the down payment has been paid.

Order Confirmation

A purchase order is not binding on Seller until Buyer has received Seller’s order confirmation or
acknowledgement.

Pricing Policy

Prices for products do not include taxes or any additional charges. All prices are FOB shipping
point and prices do not include freight/handling charges and insurance charges. All prices are
in U.S. currency.

All prices published or quoted by Seller may be changed at any time without notice. Unless
otherwise specified, written quotations expire thirty (30) days from the date issued and are
subject to change or termination by notice during this period.

Taxes

Prices for all products do not include any sales, use, excise or other taxes. Buyer agrees to pay
all applicable federal, state, and local taxes, duties and other fees on product and services
ordered. If Buyer claims an exemption form any tax, Buyer shall submit to Seller the
appropriate exemption certificates.

Shipping

Shipping is the responsibility of the Buyer. This includes all freight, custom and brokerage
charges and duties.

Technalogix Ltd TAVD-500 Transmitter

II-3

Terms of Payment

Seller will provide credit terms to Buyer at its discretion. Such terms are subject to change at all
times. If credit is provided, Seller will invoice Buyer on the date the product is ordered. Such
invoices will be due and payable net thirty (30) days from date of invoice, subject to credit
approval. If credit is not established or maintained, terms shall be net cash on or prior to the
Delivery Date. Seller reserves the right, at its sole discretion at any time to revoke any credit
previously extended.

Past due accounts shall be charged two percent (2%) per month, or the highest rate permitted
by Alberta law, whichever is less, and will be added to the outstanding balance. In the event
Buyer defaults on payment, Buyer shall be liable for all collection cost, including reasonable
attorney’s fees and costs.

Changes and Cancellation

Purchase orders that have been accepted by Seller may not be changed or cancelled, in whole
or in part, without written consent of Seller. All changes must be include in a change order
reflecting the purchase order number and submitted to the Seller. All other changes will not be
accepted or acknowledged. Changes may affect delivery dates. Expenses incurred because of
the changes shall be charged to the Buyer. Buyer will be liable for Seller’s costs incurred, plus
a reasonable profit, for the portion of the work terminated, in accordance with generally
accepted accounting principle, together with cancellation charges.

Orders for standard product may be changed by Buyer, with no penalty to the Buyer, provided
that Buyer provides Technalogix notification at least 30 days prior to the scheduled ship date.
Order changes received within 30 days of the scheduled ship date may be subject to an order
change charge; a schedule detailing these charges will be forwarded to Buyer when Buyer’s
change order is acknowledged. In no event can any aspect of the order be changed after
product shipment has occurred.

Orders for custom product may be canceled by Buyer, provided that Buyer pays Seller for
completed work allocated to Buyer’s order at the time of termination of the work at the unit
selling price and all costs, direct and indirect for work-in-progress as well as costs resulting from
cancellation and a reasonable profit therein. Specific cancellation charges will be dependent on
the type of custom product ordered; a schedule detailing these charges will be forwarded to
Buyer when Buyer’s cancellation is acknowledged. Orders for custom product are subject to a
cancellation fee of up to 100% of the order, depending on the stage of completion of the order
at the date the cancellation or revision is accepted.

Custom Products Policy

Custom items are not returnable; items other than “off the shelf” products are considered
custom. Custom products, by their nature, are products and materials which have been altered,
modified, cut, amended and customized to your order, and are not resalable or returnable.

Technalogix Ltd TAVD-500 Transmitter

II-4

Orders for custom product are subject to a cancellation fee of up to 100% of the order,
depending on the stage of completion of the order at the date the cancellation or revision is
accepted.

Returns

The return of Products without a written authorization by Seller will not be accepted. Returns
are accepted only with a valid Return Material Authorization (RMA) number for items to be
returned. To receive authorization for Product return, please call customer service. There is a
standard 25% restocking cost assessed on most returns.

All returned products must be unused, and in original condition. No refund or credit shall be
given for damaged products.

We do not accept return packages without a valid RMA number and we do not accept postage­due or C.O.D. packages at any time for any reason.

Excusable Delay

Seller shall not be liable for any loss or damage resulting from any delay in delivery or failure to
deliver which is due to any cause beyond Seller’s control, including, without limitation, acts of
nature, unavailability of supplies or sources of energy, riots, wars, fires, floods, epidemics,
lockouts, strikes and slowdowns, delays in delivery by supplies, or acts or omissions of the
Buyer. The Buyer shall be liable for stage charges, including but not limited to all third party
costs and expenses incurred by Seller, in holding or storing products for the Buyer or at the
Buyer’s request.

Assignment

Buyer shall not assign any duties nor assign any order or any interest therein without the written
consent of the Seller. Any such actual or attempted assignment shall entitle Seller to cancel the
order upon written notice to Buyer.

Installation

Seller assumes no obligation to install any product sold or to place any products in working
order at Buyer’s premises

Validity of Separate Clauses

If any provisions of this agreement shall be held invalid, illegal, or unenforceable, the validity,
legality or enforceability of the remaining provisions shall not be affected or impaired thereby.

Technalogix Ltd TAVD-500 Transmitter

II-5

Section III – Overview

Standard Features

• Narrow output bandpass filter allows adjacent channel operation

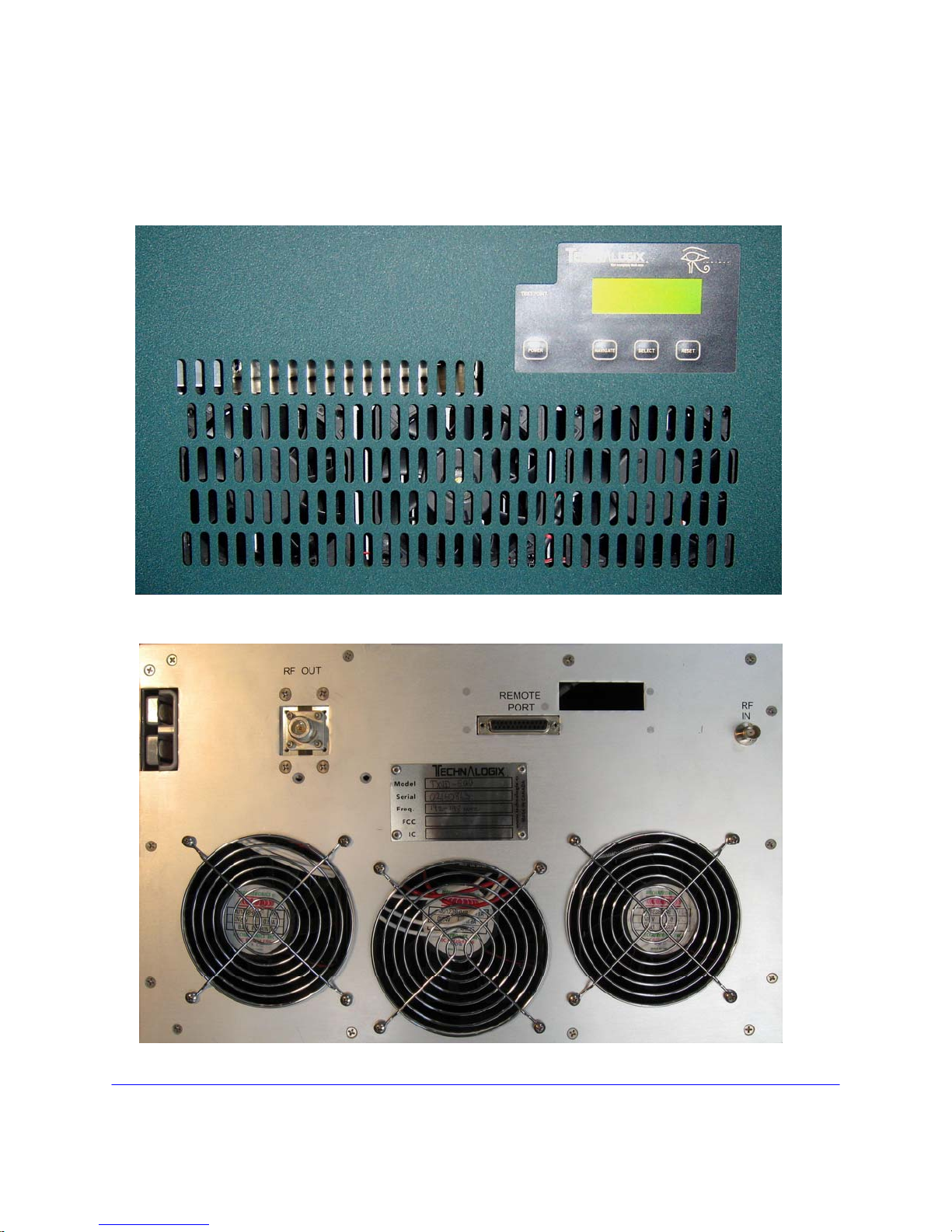

• Front panel Liquid Crystal Display (LCD) to monitor forward and reflected RF power, and DC

voltage

• Microcontroller-based monitoring and control ensures amplifier will never be overdriven and
high VSWR will not damage amplifier

• AC circuit breaker on back panel to eliminate replacement of fuses

• All aluminium enclosure maintains power amplifier’s light weight

• Simple design using commonly available parts ensures reliable operation

Technalogix Ltd TAVD-500 Transmitter

III-1

Principle of Operation

The TAVD-500 power amplifier supplies a 500-watt (rms) 8VSB television signal on any of the VHF
television channels 2 through 13. Please note that channel selection must be made at time of
order, as the transmitter or translator is calibrated and tested to the channel requested and is not
field tuneable. The TAVD-500 power amplifier is a modular solid-state system comprised a TAVD­500 500-watt broadcast amplifier utilizing readily available RF components wherever possible, thus
enhancing the serviceability of the equipment.

Each TAVD-500 is comprised of a VHFTV-25 and a VHFTV-200 driver pallet and (4) VHFTV-400
final pallets that are combined to create 500 watts (rms) 8VSB power. The amplifier modules are
stable for high reliability and long service life.

The TAVD-500 features ultra linear amplification and individual channel RF output bandpass
filtering.

The following block diagram illustrates the 500-watt system.

Technalogix Ltd TAVD-500 Transmitter

III-2

FILTER

TAVD -50 0 AM PL IFI ER

Modulator or
Processor

External
power
supply

RF Out

TAVD-500 BLOCK DIAGRAM

Date: May 21, 2009 Page: 1 of 1

Rev ID

TAVD-500 Block Diagram

The RF signal enters through the RF Input connector on the power amplifier enclosure from the
modulator or processor. It then passes through an RF attenuator to limit the output power level
of the power amplifier and to help buffer any transients that may come into the power amplifier.
After attenuation, the signal gets preamplified through the two driver pallets before the signal
gets split into (4) signals for final amplification. The output of the (4) final amplifier pallets get
combined and passes through an isolator. Finally, the signal passes through a dual directional
coupler for monitoring purposes before heading out to the combiner/filter enclosure and then
through to the antenna.

Technalogix Ltd TAVD-500 Transmitter

III-4

VHFTV-200 Driver
Pallet

VHFTV-25 Driver
Pallet

A=-0.05 dB typical

A=-0.5dB t ypi cal

To W attmete r
and Ant en n a

VHFTV-40 0H FINAL
AMPLIFI ER PAL LET

VHFTV-40 0H FINAL
AMPLIFI ER PAL LET

4 WAY SPL IIT ER

4 WAY COM BIN ER

RF INPUT RF OUT

Directional C

TERMINATION

50 OHM

ATTENUATION

TAVD-500 Power Amplifier Block Diagram

Date: May 21, 2009 Page: 1 of 1

Rev ID

Specifications

Electrical specifications that are specific to the unit are included with the shipment in addition to
being kept on file at Technalogix.

Physical Characteristics

Power Requirements

Power Supply

Operating Temperature

220 VAC, 11 A

0 - 50°C

Dimensions

TAVD-500 Power Amplifier

Filter

Power Supply

W-19" flange (17” encl.), D-25-

W-19" flange (17” encl.), D-25-

W-19" flange (17” encl.), D-25-

¼", H-101/2”

(6U)

¼", H-8-¾”

(5U)

¼", H-5-1/4”

(3U)

AC

Technalogix Ltd TAVD-500 Transmitter

III-6

Section IV – RF Components

Amplifier Pallets

The VHFTV-25 pallet is a two stage ultra linear class-A linear pallet. The VHFTV-25-L has a typical
gain of 36dB and the VHFTV-25-H has a typical gain of 34dB. These pallets draw no more than

3.5Adc total drain current (the exact bias and drain currents of your system are found in the spec

sheet supplied with each manual). The quiescent and drain currents can be measured on the
VHFTV-25 pallet by measuring the voltage drop across the current sense resistor found directly at
the DC power supply lead input to the pallet. This resistance is 0.01-ohms, providing a 10mV per
ampere ratio.

The VHFTV-200 pallet is a two stage ultra linear class-A linear pallet. The VHFTV-200-L and –H
pallets have a typical gain of 20dB and the VHFTV-200-H has a typical gain of 18dB. These pallets
draw no more than 4 Adc total drain current (the exact bias and drain currents of your system are
found in the spec sheet supplied with each manual).

The final amplifier stage is comprised of a VHFTV-400-L or VHFTV-400-H amplifier pallet and
are characterized with typical gains of 18 dB (low band) or 16dB (high band) and maximum
drain currents of 17 A (low and high band) for 8VSB systems.

Each of the amplifier pallets is connectorized. All amplifier pallets must have the transistor drain
voltages reach at least 26Vdc before the RF drive is applied.

Technalogix Ltd TAVD-500 Transmitter

IV-1

Filter

The passive bandpass filter rejects spurious and harmonic output products and passes the VHF
channel RF output. The cavity resonator uses aperture coupling and is a linear resonator design.
Typical insertion loss is 0.6 dB to 1.0 dB depending on channel frequency. Average roll off is –33
dBc at a point 4.5 MHz below the peak visual carrier frequency and –30 dBc 9.0 MHz above the
peak visual carrier frequency. The filter is DC grounded on both the input and output for additional
lightning protection.

Directional Coupler

The Technalogix dual directional couplers provide DC voltages proportional to forward and reflected
RF power monitoring. These analog voltages are converted for processing using analog-to-digital
converters and provide the control system with valuable data for monitoring purposes. Output
power should be set following the operating procedure found elsewhere in this manual. The
directional coupler has a typical insertion loss of 0.5dB and its Type N connectors can handle
1,500-watts peak while the 7/16” DIN connectors can handle over 3,000-watts peak.

Isolator

The power amplifier pallets are protected in part by the isolator located in the power amplifier
enclosures. It is actually made up of a circulator and 50-ohm dump resistor. The circulators’
specifications include an insertion loss of less than 0.2dB with an isolation rating better than 20dB.
Any reflected power gets dumped into the flanged power resistor. Even though the flanged power
resistor is rated for only 150-watts, and there could potentially be 500-watts being reflected back
into the circulator, the software will recognize quickly that reflected power is present and turn the
carrier off. This way, there is instantaneous protection due to the isolator setup and long term
protection due to the software.

Technalogix Ltd TAVD-500 Transmitter

IV-5

Section V – Power Supply

Switching AC-DC power supplies are used to power the amplifier pallets, the control circuits, and all
of the fans. The power supply is set at 30.0 Vdc nominally. All fans run off this same supply, though
they pass through a series dropping resistor to lower the supply voltage, as the fans are 24Vdc.

The (2) power supplies found in the power supply enclosure are Mean Well RSP-1500-27. The
switching power supplies are fully protected against short circuit and output overload. Short circuit
protection is a cycling type power limit. The internal AC fuse is designed to blow only on a
catastrophic failure in the unit – the fuse does not blow on overload or short circuit. The thermal
shutdown automatically recovers when the power supply chassis cools down.

AC (220Vac) is fed into the power supply enclosure via a filtered AC entry and then through a circuit
breaker.

Technalogix Ltd TAVD-500 Transmitter

V-1

Stock No. Model No. Output Tol. Effi.R&N

11231
11232
11233
11234
11235
11236

RSP-1500-5
RSP-1500-12
RSP-1500-15
RSP-1500-24
RSP-1500-27
RSP-1500-48

5V, 0~240A
12V, 0~125A
15V, 0~100A
24V, 0~63A
27V, 0~56A
48V, 0~32A

²2%

²1%

²1%

²1%

²1%

²1%

150mV
150mV
150mV
150mV
150mV
200mV

80%
87%
87%
90%
90%
91%

ƤUniversal AC input / Full range

ƤPF>0.98@115VAC; >0.95@230VAC

ƤUsing ZVS te chn ology to reduce power

dissipation

ƤHigh power d ens ity 8.3W/in

3

ƤBuilt-in 12V / 0. 1A auxiliary output

ƤAlarm signal output

ƤDC output vo lta ge adjustment 70~100%

by external r esi stor

ƤActive current sharing up to 6000W (3+1)

ƤBuilt-in remote sense f unc tion

ƤBuilt-in remote ON/OFF control

ƤProtections: Short circuit / Overload

Over voltage / Ove r temp.

ƤForced air c ool ing by built-in DC fan

Ƥ3 years w arrant y

AC input voltage range
DC adjustment range
Overload protection

Over voltage protection
Setup, rise, hold up time
Withstand voltage
Working temperature
Safety standards
EMC standards

Packing

90~264VAC; 127~370VDC

-30~+10% rated output voltage
105%~135% constant current limiting ,
shut off after 5 sec.
115%~140% rated output voltage
1500ms, 100ms, 10ms at ful l load and 230VAC
I/P-O/P:3KVAC, I/P-FG:1.5KVAC, 1 minute

-20~70OC (refer to output deratin g curve)
UL60950-1, TUV EN60950-1 approved
EN55022 class B conducted, EN610 00-3-2,3,
EN61000-4-2,3,4,5,6,8,11, ENV50204

2.6kg ; 6pcs / 16.6kg / 1.75CUFT

1500W with PFC and Parallel Function1500W with PFC and Parallel Function

. . . .

. . . . . .

. . . . . . . .

. . . .

. .

. . . . . . . . .

. . . . . .

. . . . . . . . . . .

. . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . .

278x 127x 83.5 mm

CA SE: 943

²

Section VI – Monitor and Control System

Control System Overview (Insight)

The Insight control system is used for a variety of functions, the most important of which is
ensuring that the transmitter continues to operate in a safe manner. The control system also
allows the user to monitor and control the transmitter from both the front panel and the remote
access port.

Five modules comprise the Insight control system. These modules work together to provide all
the functions of the control system. The modules are: User Interface, Coupler Conditioning, RF
Conditioning, Temperature Sensor, and the TxNET modules. The operation of each module is
outlined in the following sections.

For the TAUD-20-3 only, all three Power Amplifier chains are controlled by one User Interface
Board and all three Power amplifiers are monitored on one LCD screen. In case of an alarm,
the unit number and the fault will be displayed on the front panel (i.e. PA2 High Reflected
Power). During the alarm situation only the error screen will be displayed while the other two
units continue to run normally. The alarm buzzer will sound different on PA1, PA2 and PA3.

User Interface Module
The primary function of the User Interface module is, as the name suggests, providing the user

interface for the control system. This circuit board is mounted to the front panel of the
transmitter, directly behind the LCD display. The membrane switch on the front panel is also
connected to the User Interface module. These components together provide the user with the
ability to monitor the transmitter from the front panel.

The following parameters can be monitored from the front panel:

• Forward (incident) power at the transmitter output.

• Reflected (reverse) power at the transmitter output.

• DC voltage of the transmitter power supply.

• DC current for each pallet in the transmitter.

• Digital attenuation for input signal.

• Temperature of the heat sink of the transmitter.

• The time since the transmitter was last shut down.

Technalogix Ltd TAVD-500 Transmitter

VI-1

The hardware of the User Interface module is based around a microcontroller (U112). This
microcontroller interfaces directly with the LCD and the membrane switch to provide output and
receive input from the user. The microcontroller also communicates with the Coupler
Conditioning board over a Controller Area Network (CAN) bus. This communication is
facilitated by two ICs, U113 and U114, and passes through a CAT5 cable attached to connector
J106. The communication link with the Coupler Conditioning module allows the User Interface
module to receive information about the forward power, reflected power, and temperature of the
transmitter, as well as relay commands from the user to the rest of the system. If the transmitter
includes more than one amplifier enclosure, a second CAN connection will be present between
the User Interface module (J105) and the TxNET board to facilitate communication between
enclosures.

Other elements of the User Interface module are also controlled by the microcontroller. A
buzzer (BZ101), a status LED (D113), and a relay to control the backlight of the LCD (RL101),
are all controlled through a buffer (U116). In order for the User Interface module to monitor the
current draw of each pallet in the system, the DC supply wires pass through the User Interface
module on their way from the power supply to the pallets. The DC enters through connector
J101 (6-position) from the power supply, and exits through J102 (10-position) to go to the
pallets. As the current passes through shunt resistors (R117/R118, R120/R121, R123/R124,
R126/R127, R129/R130), the voltage drop is monitored by U101 through U105, buffered by
U106 through U108, and sent to the analog to digital converter integrated into the
microcontroller. There are up to five circuits for which the current is monitored by this system.

As the DC supply passes through the User Interface module, it undergoes filtering to ensure
that the supply to the pallets is as clean as possible. Each of the five circuits passes through a
network of transient voltage suppressors, capacitors, and inductors. Each connection is also
fused at the input to insure an over-current condition does not persist. The fuses are a
replaceable mini blade type fuse with a 42V voltage rating, and a current rating depending on
application.

Coupler Conditioning Module
The Coupler Conditioning module serves to monitor the output of the directional coupler which

provides a voltage proportional to the forward and reflected power at the output of the
transmitter. The Coupler Conditioning module also interfaces with each of the other boards in
the control system, acting as the hub of communications for the system. Lastly, the Coupler
Conditioning board sends and receives signals through the remote access port, via the TxNET
board.

The analog signals produced by the coupler for forward and reflected power are passed onto
the Coupler Conditioning module by connectors J206 and J207, respectively. Each signal is
then filtered by LC networks. The analog signals are converted to digital by an analog-to-digital
converter integrated into the microcontroller U202.

Technalogix Ltd TAVD-500 Transmitter

VI-2

Aside from taking readings from the coupler, the microcontroller on the coupler conditioning
module also interfaces with the RF Conditioning module (through J201) and the Temperature
Sensor (through J202). The microcontroller interfaces with the system CAN bus using U203
and U204. Through the CAN bus, the Coupler Conditioning board is able to communicate with
the User Interface module, and any other amplifier enclosures that are in the system.

The last task of the Coupler Conditioning board is to send and receive remote access signals to
and from the TxNET board. Two analog outputs, proportional to forward and reflected power
and produced by the digital-to-analog converter U207 after it receives input from the
microcontroller. The analog outputs are then buffered by U206 before being sent through J208
and J209 to the TxNET board. J208, along with J209, also bring the digital inputs and outputs
from the TxNET board to the Coupler Conditioning module. The digital signals are then
connected to the microcontroller through the opto-isolators U209 through U213.

RF Conditioning Module

The RF Conditioning board is located at the RF input of the amplifier. Its main function is to act
as a variable attenuator, so that the control system can add attenuation to the input of the
amplifier in order to limit the output power of the transmitter. The RF signal comes in to the RF
Conditioning module through J301 before it passes through a fixed attenuator (Pi-network)
made up of R301, R302, and R303. The signal then passes through the digitally-controlled
variable attenuator U302 before exiting through J303. The input control for the digital attenuator
comes from the Coupler Conditioning module through J304. The input signals are passed
through the opto-isolators U302, U303, and U304 before being sent to the digital attenuator. In
total, five control signals go to the digital attenuator, allowing for attenuations of up to 31dB in
1dB steps.

Temperature Sensor Module

The Temperature Sensor module is a small board mounted to the main heatsink of the amplifier.
The main purpose of the temperature sensor module is to take temperature readings of the
heatsink. The temperature sensor IC is U701 which, after it has taken a reading, relays the
digital information to the Coupler Conditioning module through J702. Also passing through
J702 is a driver disable signal coming from the Coupler Conditioning module. The Temperature
Sensor module simply takes this signal and passes it through to a pad, where a wire connects it
to the driver pallet.

Technalogix Ltd TAVD-500 Transmitter

VI-3

TxNET module

The TxNET module is simply a passive board that acts as an interface between the wiring on
the inside of the amplifier enclosure and connections on the outside of the enclosure. There is
a high power version for systems that have more than one amplifier enclosure and a low power
version, which does not have external enclosures aside from the modulator. The DB-25
connector for the remote port (J602) is attached to the TxNET module. The signals travelling
through this port are connected to the Coupler Conditioning module through J601 and J603.
The TxNET module also includes up to three straight through RJ45 connection pairs: J604 to
J605, J606 to J607, and J608 to J609. These connections are only used on systems with
multiple enclosures, to pass control signals between enclosures; otherwise a low power TxNET
is used.

Technalogix Ltd TAVD-500 Transmitter

VI-4

Remote Port

The remote port allows external control of the transmission system via the DB25. The Power
Amplifier enclosure does not include all the pins in the remote port like the Combiner/Filter
enclosure. The overall functions of each pin on the remote port are indicated in the following
table (see the Installation section for the specifics to each enclosure):

Pin Number Description

1 Ground
2 Forward power sample1
3 Reflected power sample1
4 Carrier off2
5 Carrier on2
6 Increase carrier level (level must have been decreased) 2
7 Decrease carrier level (1dB increments) 2

9 Reset2
11 High temperature flag3
12 High VSWR flag3
13 Amplifier overdriven flag3
14 +5Vdc
15 +3.3Vdc
16 Ground
17 Ground

Notes: 1. Analog output with voltage ranging from 0 to 5Vdc.

2. TTL level digital input, active on rising edge.

3. TTL level digital output, active high.
All other pins are not to be connected. Please see the Installation section for the specific pins

that are used for each enclosure.

Technalogix Ltd TAVD-500 Transmitter

VI-5

Fault Shutdowns

On the LCD (Liquid Crystal Display) the following messages may appear:

The Amplifier overdrive shutdown is set to 115%. If the Amplifier is being overdriven (the RF
output level is too high) the control system will automatically attenuate the RF input signal to the
PA. It will continue attenuating this signal until the RF output is below 115% total power.

If Reflected Power has been detected at the output of the transmitter, the unit will shut down for
4 seconds. This occurs 5 times – If the fault is clear the PA enables itself. If the fault still exists
after 5 times, the PA disables the carrier for 10 minutes and cycles until the fault clears. During
the disable time (10 minutes) the unit will still alarm with a High Reflected message on the front
panel.

Technalogix Ltd TAVD-500 Transmitter

VI-6

The control system monitors the temperature of a specific location of the heat sync. If this
temperature exceeds a threshold the control system will turn the RF output level down until this
temperature level is reached. The RF output level will automatically be brought back when it is
safe to do so.

Technalogix Ltd TAVD-500 Transmitter

VI-7

Monitor and Control System (Insight) Bills of Materials

Technalogix Ltd TAVD-500 Transmitter

VI-8

Page 1

Item Designations Qty Bin # Description Package

1 U112 1

ICT 32001

IC MICROCONTROLLER 256 BYTE RAM 64QFP

2

C106, C107, C117, C118, C128, C129,

C141, C142, C148, C149, C163 11

CAP 14902

CAPACITOR 0.01 uF 50V 10% SMD 0805

3

C108-116, C119-127, C130-140, C143-

145, C161 33

CAP 17202

CAPACITOR 0.1uF 50V 10% SMD 0805

4 C146, C147 2

CAP 07202

CAPACITOR 33pF 50V 5% SMD 0805

5 R101, R104, R107 R110, R113 5

RES 5012

RESISTOR 2.7KΩ SMD 0805

6 C162 1

CAP 19602

CAPACITOR 1uF, 50V SMD 0805

7 R132 1

RES 6492

RESISTOR 37.4KΩ SMD 0805

8 R133 1

RES 5112

RESISTOR 3.3KΩ SMD 0805

9

R140, R141, R144 R145, R146, R147

R150, R151, R156 9

RES 5802

RESISTOR 10KΩ SMD 0805

10

R134, R135, R136, R137, R138, R139,

R142, R143, R148 R149, R154, R155 12

RES 4502

RESISTOR 1KΩ SMD 0805

11 R152 1

RES 3212

RESISTOR 100Ω SMD 0805

12 R119, R122, R125, R128, R131, R153 6

RES 7042

RESISTOR 100KΩ SMD 0805

13 R158 1

RES 4002

RESISTOR 430Ω SMD 0805

14 R160 1

RES 4662

RESISTOR 1.4KΩ SMD 0805

15 R161 1

RES 6312

RESISTOR 27KΩ SMD 0805

16 R162 1

RES 5512

RESISTOR 6.2KΩ SMD 0805

17 R157 1

RES 1575

RESISTOR 4.7Ω SMD 2010

18

R117, R118, R120 R121, R123, R124

R126, R127, R129 R130 10

RES 0086

RESISTOR 0.006Ω 1% 1W SMD 2512

19 R159 1

POT 0843

POTENTIOMETER 10KΩ 4mm SMD

20

R102, R103, R105 R106, R108, R109

R111, R112, R114 R115 10

RES 2346

RESISTOR 20

Ω 1W SMD 2512

21 RN101 1

RES 5810

RESISTOR NETWORK 10KΩ SMT

22 F107 1

FUS 2901

RESETTABLE FUSE, POLYFUSE, 2A SMD

23 F108 1

FUS 1651

RESETTABLE FUSE, POLYFUSE, .5A SMD

24 L106, L107, L108, L109, L110 5

IND 0221

INDUCTOR 0.01uH 1210

25 Y101 1

CLK 0002

6.00 MHz CRYSTAL SMT

26 U111 1

ICT 56001

IC SUPERVISOR 2.70V LOW SOT23

27 U114 1

ICT 12000

IC TXRX 3.3V CAN 8-SOIC

28 U113 1

ICT 12001

IC CAN CONTROLLER W/SPI 18-SOIC

29 U115 1

ICT 48003

IC REG SIMPLE SWITCHER TO-263-5

30 U116 1

SEM 69000

IC DARL TRANS ARRAY 16-SOIC

31 U117 1

ICT 48004

IC REG LINEAR LDO SOT223

32 U118 1

ICT 16000

IC VOLTAGE COMVERTER 8-SOIC

Bill of Materials

Modified: 08/03/06

Circuit: User Interface Module (TV)
Revision: 1.03

CAP 22271

CAP 07202

SEM 29006

SEM 29005

SEM 09005

SEM 09010

SEM 14001

SEM 24000

R219

POT 0841

ICT 32033

ICT 12000

SEM 69000

ICT 04003

ICT 18000

ICT 46001

SWT 4003

SWT 0001

CON 31502

PCB 129

Bill of Materials - ASY129A
Circuit: Coupler Conditioning (D-Attn)
Revision: 1.10
Modified: 12/1/08

Item Designations Qty Bin # Description Package

C201, C202, C203,

1

C208, C209, C210,

C212, C214-C223

2 C204, C211, C213 3
3 C205 1
4 C206, C207 2

L201, L202, L203,

5

L204, L205, L206,

6 D201 1
7 D202, D203, D204 3
8 D205 1
9 D206 1

10

11 D211 1
12 D212 1

13

14 R210 1

15

16 R215, R217 2

17

18 RN202, RN204 2

19 VR201, VR202 2

20 U201 1

21 U202 1
22 U203 1

23 U204 1

24 U205 1
25 U206 1
26 U207 1
27 U208 1

28

29 K201 1

30 Y201 1

31 S201 1

32

33 J205 1

34 J206, J207 2

35 1

L207, L208

D207, D208, D209,

D210

R201, R203, R205,

R206, R207, R209,

R213

R212, R216, R218,

RN201, RN203,

RN205 3

U209, U210, U211,

U212, U213

J201, J202, J203,

J204, J208, J209

17

8 IND 0221 Inductor, 0.01uH, Imax=0.45A, DCR=0.13 omhs SMD 1210

4

7 RES 0002 Resistor, thick film, 5%, 0ohm, 1/8W SMD 0805

4 RES 4502 Resistor, thick film, 5%, 1kohm, 1/8W SMD 0805

5

6

CAP 14902

CAP 17202

SEM 09008

RES 3292

RES 4872

RES 5810

RES 4510

ICT 56001

ICT 12001

ICT 36001

CLK 0001

CON 45020

CON 31521

Capacitor, ceramic, 0.01uF, 50Vdc, +/-20% SMD 0805

Capacitor, ceramic, 0.1uF, 50Vdc, +/-20% SMD 0805
Capacitor, Tantalum, 10uF 16V SMD 3528
Capacitor, ceramic, 33pF, 50Vdc, 5% SMD 0805

Diode Low ESD Protection 5.0V SOD 323
Diode Low ESD Protection 3.3V SOD 323
Diode, LED, Green SMD 0603
Diode, LED, Red SMD 0603

Diode, LED, Yellow SMD 0603

Diode, rectifier, 200V, 1A SMA
Diode, zener, dual, 10V SOT-23

Resistor, thick film, 5%, 120ohm, 1/8W SMD 0805

Resistor, thick film, 5%, 2.15k, 1/8W SMD 0805
Resistor network, 10kohm, 8-resistors, 10-terminations,
bussed, 5% SMD 2512
Resistor network, 1kohm, 8-resistors, 10-terminations,
bussed, 5%
Potentiometer, 10kohm, 11-turn, 5mm, top SMT
IC, supervisor, 2.7V, internal pull-up resistor, open drain,
active low
IC, microcontroller, 16-bit, 16k X 8 program, 48 I/O, flash 64-QFP
IC, CAN transceiver, 3.3V SOIC-8
IC, CAN controller, industrial temp, 3 transmit buffers, 2
receive buffers
IC, buffer, Darlington, array SOIC-16
IC, op-amp, dual, single supply SOIC-8
IC, DAC, dual, 8-bit, serial SOIC-8
IC, voltage reference, 2.50V, +/- 0.2% SOT-23

IC, optoisolator, dual, transistor o/p, Vceo=30V SOIC-8

Relay, SPST, 4.5Vdc coil, SMT SMT

Crystal, 6.000MHz SMT

Switch, DIP, 7-position, SPST SMD 0.1"

Connector, modular, female, 8-position, vertical, Shielded Through Hole

Connector, header, IDC, 0.1" spacing, 14-pos Through Hole

Header, recept. 4pos, dual row, pass thru

Printed circuit board, FR4, rev 1.10 -

SMD 2512

SOT-23

18-SOIC

CAP 22271

CAP 07202

SEM 29006

SEM 29005

SEM 09005

SEM 09010

SEM 14001

R219

POT 0841

ICT 12000

SEM 69000

ICT 04003

ICT 18000

ICT 46001

SWT 4003

SWT 0001

CON 31502

PCB 129

Bill of Materials - ASY129B
Circuit: Coupler Conditioning (V-Attn)
Revision: 1.10
Modified: 12/1/08

Item Designations Qty Bin # Description Package

C201, C202, C203,

1

C208, C209, C210,

C212, C214-C223

2 C204, C211, C213 3
3 C205 1
4 C206, C207 2

L201, L202, L203,

5

L204, L205, L206,

6 D201 1
7 D202, D203, D204 3
8 D205 1
9 D206 1

10

11 D211 1
12 D212 1

13

14 R210 1

15

16 R215, R217 2

17

18 RN202, RN204 2

19 VR201, VR202 2

20 U201 1

21 U202 1
22 U203 1

23 U204 1

24 U205 1
25 U206 1
26 U207 1
27 U208 1

28

29 K201 1

30 Y201 1

31 S201 1

32

33 J205 1

34 J206, J207 2

35 1

L207, L208

D207, D208, D209,

D210

R202, R208, R209,

R213,

R212, R216, R218,

RN201, RN203,

RN205 3

U209, U210, U211,

U212, U213

J201, J202, J203,

J204, J208, J209

17 CAP 14902 Capacitor, ceramic, 0.01uF, 50Vdc, +/-20% SMD 0805

8 IND 0221 Inductor, 0.01uH, Imax=0.45A, DCR=0.13 omhs SMD 1210

4

4

4 RES 4502 Resistor, thick film, 5%, 1kohm, 1/8W SMD 0805

5

6

CAP 17202

SEM 09008

SEM 24000

RES 5802

RES 3292

RES 4872

RES 5810

RES 4510

ICT 56001

ICT 32033

ICT 12001

ICT 36001

CLK 0001

CON 45020

CON 31521

Capacitor, ceramic, 0.1uF, 50Vdc, +/-20% SMD 0805
Capacitor, Tantalum, 10uF 16V SMD 3528
Capacitor, ceramic, 33pF, 50Vdc, 5% SMD 0805

Diode Low ESD Protection 5.0V SOD 323
Diode Low ESD Protection 3.3V SOD 323
Diode, LED, Green SMD 0603
Diode, LED, Red SMD 0603

Diode, LED, Yellow SMD 0603

Diode, rectifier, 200V, 1A SMA
Diode, zener, dual, 10V SOT-23

Resistor, thick film, 5%, 0ohm, 1/8W SMD 0805

Resistor, thick film, 5%, 120ohm, 1/8W SMD 0805

Resistor, thick film, 5%, 2.15k, 1/8W SMD 0805
Resistor network, 10kohm, 8-resistors, 10-terminations,
bussed, 5% SMD 2512
Resistor network, 1kohm, 8-resistors, 10-terminations,
bussed, 5%
Potentiometer, 10kohm, 11-turn, 5mm, top SMT
IC, supervisor, 2.7V, internal pull-up resistor, open drain,
active low
IC, microcontroller, 16-bit, 16k X 8 program, 48 I/O, flash 64-QFP
IC, CAN transceiver, 3.3V SOIC-8
IC, CAN controller, industrial temp, 3 transmit buffers, 2
receive buffers
IC, buffer, Darlington, array SOIC-16
IC, op-amp, dual, single supply SOIC-8
IC, DAC, dual, 8-bit, serial SOIC-8
IC, voltage reference, 2.50V, +/- 0.2% SOT-23

IC, optoisolator, dual, transistor o/p, Vceo=30V SOIC-8

Relay, SPST, 4.5Vdc coil, SMT SMT

Crystal, 6.000MHz SMT

Switch, DIP, 7-position, SPST SMD 0.1"

Connector, modular, female, 8-position, vertical, Shielded Through Hole

Connector, header, IDC, 0.1" spacing, 14-pos Through Hole

Header, recept. 4pos, dual row, pass thru

Printed circuit board, FR4, rev 1.10 -

SMD 2512

SOT-23

18-SOIC

CAP 15702

CAP 14902

CAP 17202

SEM 09005

IND 0832

RES 0002

ICT 50003

ICT 36001

SWT 0016

CON 64532

CON 57017

CON 45020

TRM 0006

PCB 0009

Bill Of Materials - ASY 0009B

Circuit:
Revision:
Modified:

RF Conditioning (DC Filter, VHF)

1.12
1-Dec-08

Item Designations Qty Bin # Package

1 C301
2 C302, C305
3 C303 1
4

5
6
7

8

9

10

11 U301 1
12
13
14
15
16
17
18 PCB 1

D302

D303, D304, D305,

D306, D307

L301 1
R301 1

R304, R309, R310,

R315, R316, R319

R305, R306, R311,

R312, R317

R307, R308, R313,

R314, R318

U302, U303, U304

S301

J303

J301, J302

J304

C304

1
2

1

5 SEM 09008 Diode, LED, yellow, Vf=2.0V SMD 0603

6 RES 4502 Resistor, thick film, 1%, 1k, 1/8W SMD 0805

5 RES 4582 Resistor, thick film, 1%, 1.2k, 1/8W SMD 0805

5 RES 5802 Resistor, thick film, 1%, 10k, 1/8W SMD 0805

3
1
1
2
1
1

Capacitor, ceramic, 0.022uF, 50Vdc, +/-10%
Capacitor, ceramic, 0.01uF, 50Vdc, +/-10% SMD 0805
Capacitor, ceramic, 0.1uF, 50Vdc, +/-20% SMD 0805
Diode, LED, green, Vf=2.1V

Inductor, 0.1uH, 5% (VHF only) SMD 1008
Resistor, thick film, 0-ohm, 1/8W SMD 0805

IC, 5 Bit,Digital attenuator, LSB 1 dB w/Driver 20-SSOP
IC, optoisolator, dual, transistor o/p, Vceo=30V
Switch dip low pro, 1 pos Gold
Connector, high rel socket, 2mm, SMM series
Connector, SMA, female,PCB vertical mount
Connector, 8-8 mod jack, shielded
Trimmer, variable, 9pF-90pF, 50V
Printed circuit board, FR4, 0.031", 1oz -

SMD 0805

SMD 0603

SOG.050/8B

7188VSANF(THT)

SMD

CAP 15702

CAP 14902

CAP 17202

SEM 09005

RES 0002

ICT 50003

ICT 36001

CON 57017

CON 45020

PCB 0009

Bill Of Materials - ASY0009A

Circuit:
Revision:
Modified:

RF Conditioning (no DC filter)

1.12
1-Dec-08

Item Designations Qty Bin # Package

1 C301
2 C302, C305
3 C303 1
4

5
6

7

8

9

10 U301 1
11
12
13
14 PCB 1

D302

D303, D304, D305,

D306, D307

R301 1

R304, R309, R310,

R315, R316, R319

R305, R306, R311,

R312, R317

R307, R308, R313,

R314, R318

U302, U303, U304

J301, J302

J304

1
2

1

5 SEM 09008 Diode, LED, yellow, Vf=2.0V SMD 0603

6 RES 4502 Resistor, thick film, 1%, 1k, 1/8W SMD 0805

5 RES 4582 Resistor, thick film, 1%, 1.2k, 1/8W SMD 0805

5 RES 5802 Resistor, thick film, 1%, 10k, 1/8W SMD 0805

3
2
1

Capacitor, ceramic, 0.022uF, 50Vdc, +/-10%
Capacitor, ceramic, 0.01uF, 50Vdc, +/-10% SMD 0805
Capacitor, ceramic, 0.1uF, 50Vdc, +/-20% SMD 0805
Diode, LED, green, Vf=2.1V

Resistor, thick film, 0-ohm, 1/8W SMD 0805

IC, 5 Bit,Digital attenuator, LSB 1 dB w/Driver 20-SSOP
IC, optoisolator, dual, transistor o/p, Vceo=30V
Connector, SMA, female, PCB vertical mount
Connector, 8-8 mod jack, shielded
Printed circuit board, FR4, 0.031", 1oz -

SMD 0805

SMD 0603

SOG.050/8B

7188VSANF(THT)

CAP 15702

CAP 14902

CAP 17202

SEM 09005

IND 0831

RES 0002

ICT 50003

ICT 36001

SWT 0016

CON 64532

CON 57017

CON 45020

TRM 0006

PCB 0009

Bill Of Materials - ASY 0009C

Circuit:
Revision:
Modified:

RF Conditioning (DC Filter, UHF)

1.12
1-Dec-08

Item Designations Qty Bin # Package

1 C301
2 C302, C305
3 C303 1
4

5
6
7

8

9

10

11 U301 1
12
13
14
15
16
17
18 PCB 1

D302

D303, D304, D305,

D306, D307

L301 1
R301 1

R304, R309, R310,

R315, R316, R319

R305, R306, R311,

R312, R317

R307, R308, R313,

R314, R318

U302, U303, U304

S301

J303

J301, J302

J304

C304

1
2

1

5 SEM 09008 Diode, LED, yellow, Vf=2.0V SMD 0603

6 RES 4502 Resistor, thick film, 1%, 1k, 1/8W SMD 0805

5 RES 4582 Resistor, thick film, 1%, 1.2k, 1/8W SMD 0805

5 RES 5802 Resistor, thick film, 1%, 10k, 1/8W SMD 0805

3
1
1
2
1
1

Capacitor, ceramic, 0.022uF, 50Vdc, +/-10%
Capacitor, ceramic, 0.01uF, 50Vdc, +/-10% SMD 0805
Capacitor, ceramic, 0.1uF, 50Vdc, +/-20% SMD 0805
Diode, LED, green, Vf=2.1V

Inductor, 0.01uH, 10% (UHF only) SMD 0805
Resistor, thick film, 0-ohm, 1/8W SMD 0805

IC, 5 Bit,Digital attenuator, LSB 1 dB w/Driver 20-SSOP
IC, optoisolator, dual, transistor o/p, Vceo=30V
Switch dip low pro, 1 pos Gold
Connector, high rel socket, 2mm, SMM series
Connector, SMA, female,PCB vertical mount
Connector, 8-8 mod jack, shielded
Trimmer, variable, 9pF-90pF, 50V
Printed circuit board, FR4, 0.031", 1oz -

SMD 0805

SMD 0603

SOG.050/8B

7188VSANF(THT)

SMD

ICT 52000

TRM 0006

CAP 17202

CAP 08402

IND 0832

CON 31525

CON 45021

SWT 0016

PCB 180

Modified: 11/13/08

Bill of Materials - ASY 180B
Circuit: Temperature Sensor (DC Filter VHF)
Revision: 1.10

Item Designations Qty Bin # Description Package

1
3
4 C704 1
5 C705 1
6 L701 1
7 J701 1
8 J702 1
9 S701 1

10 1

U701
C701

1
1

IC, temperature sensor, SPI 8-MSOP
TRIMMER CAPACITOR, 9-90pF THT
CAPACITOR 0.1uF, 50V, 10% SMD 0805
CAPACITOR 100pF, 50V, 10% SMD 0805
INDUCTOR, 0.1uH, 10%, 175mA, 0.80ohm SMD 0805
CONNECTOR, header, 0.1", 3-position SMD
CONNECTOR, modular, jack, 8-8 R/A, shielded
SWITCH, 1-position, SPST SMD
PRINTED CIRCUIT BOARD, FR4, 0.062"

ICT 52000

CAP 17202

CAP 11502

CAP 08402

PCB 180

Modified: 11/13/08

Bill of Materials - ASY 180A
Circuit: Temperature Sensor (no DC filter)
Revision: 1.10

Item Designations Qty Bin # Description Package

1
2 C702, C704 2
3 C703 1
4 C705 1
6 J702 1 CON 45021
7 1

U701

1

IC, temperture sensor, SPI 8-MSOP
CAPACITOR 0.1uF, 50V, 10% SMD 0805
CAPACITOR 0.001uF (1000pF), 50V, 10% SMD 0805
CAPACITOR 100pF, 50V, 5% SMD 0805
CONNECTOR, modular, jack, 8-8 R/A, shielded
PRINTED CIRCUIT BOARD, FR4, 0.062"

ICT 52000

TRM 0006

CAP 17202

CAP 08402

IND 0831

CON 31525

CON 45021

SWT 0016

PCB 180

Modified: 11/13/08

Bill of Materials - ASY180C
Circuit: Temperature Sensor (w/ DC Filter UHF)
Revision: 1.10

Item Designations Qty Bin # Description Package

1
2
3 C704 1
4 C705 1
5 L701 1
6 J701 1
7 J702 1
8 S701 1
9 1

U701
C701

1
1

IC, temperature sensor, SPI 8-MSOP
TRIMMER CAPACITOR, 9-90pF THT
CAPACITOR 0.1uF, 50V, 10% SMD 0805
CAPACITOR 100pF, 50V, 10% SMD 0805
INDUCTOR, 0.01uH, 10%, 540mA, 180mohm SMD 0805
CONNECTOR, header, 0.1", 3-position SMD
CONNECTOR, modular, jack, 8-8 R/A, shielded
SWITCH, 1-position, SPST SMD
PRINTED CIRCUIT BOARD, FR4, 0.062"

Bill of Materials: ASY 206
Circuit: TxNET LP
Revision: 1.10
Modified:12/1/08

Item Designations Qty Bin # Description Package

1 F601, F602, F603, F604 4 FUS 0801 Fuse, resettable, Ihold=0.14A, Itrip=0.34A, Vmax=60V SMD

2 J601, J603 2 CON 45020 Connector, 8-8 mod jack, shielded 7188VSANF(THT)

3 J602 1 CON 21000 Connector, D-sub, 25 position, female, vertical, PCB mount THT

4 PCB 1 PCB 206 PCB, FR4, 0.062", red solder mask, white silk screen

Insight System Schematics
The following pages contain the schematics for the Insight system.

Technalogix Ltd TAVD-500 Transmitter

VI-23

DC Supply Conditioning

V1 Input

V2 Input

V3 Input

V4 Input

V5 Input

J101A

J101B

J101C

J101D

J101E

F101

TAC 58V

see table

SMBJ30A TV
SMBJ48A FM

F102

TAC 58V

see table

SMBJ30A TV
SMBJ48A FM

F103

TAC 58V

see table

SMBJ30A TV
SMBJ48A FM

F104

TAC 58V

see table

SMBJ30A TV
SMBJ48A FM

F105

TAC 58V

see table

SMBJ30A TV
SMBJ48A FM

User Interface Module

Vin

+

D101

D103

D105

D107

D109

C101
100uF
63V

+

C102
100uF

63V

+

C103
100uF
63V

+

C104
100uF
63V

+

C105
100uF
63V

R101

2.7k TV

4.87k FM

D102
Green
SML-LX1206GW

R104

2.7k TV

4.87k FM

D104
Green
SML-LX1206GW

R107

2.7k TV

4.87k FM

D106
Green
SML-LX1206GW

R110

2.7k TV

4.87k FM

D108
Green
SML-LX1206GW

R113

2.7k TV

4.87k FM

D110
Green
SML-LX1206GW

L101

ETQ-P6F1R3LFA

R102

20

R103

20

L102

ETQ-P6F1R3LFA

R105

20

R106

20

L103

ETQ-P6F1R3LFA

R108

20

R109

20

L104

ETQ-P6F1R3LFA

R111

20

R112

20

L105

ETQ-P6F1R3LFA

R114

20

R115

20

V1 Cond

V2 Cond

V3 Cond

V4 Cond

V5 Cond

F106

TAC 58V

tbd

SMBJ30A TV
SMBJ48A FM

GND IN

J101F

Fuse Table

PA5-UHF 4 A

2 A

3 A
P50-UHF
P150-UHF
U60LD UHF
U200LD UHF
P350-FM

10 A

10 A/side

3 A

7.5 A/side

15 A

15 A/sideP750-FM

PA25-VHF-L
PA25-VHF-H

P200-VHF-H
P400-VHF-L
P400-VHF-H

1

D111

5 APA10-UHF
15 AP200-VHF-L
15 A
15 A/side
10 A/side

VgenCond

A. Sivacoe, N. Hendrickson

User Interface Module

Rev ID

1.03 (ii) Insight Control System

Date: November 13, 2008 Page: 1 of 6

User Interface Module

Current Monitoring

R117

0.012

V1 Cond V1 Out

C108

0.1uF

C113

0.1uF

R118

0.012

U101

INA168

R120

0.012

R121

0.012

U102

INA168

R119
100k

R122

100k

U106A

OPA2340UA

U106B

OPA2340UA

+

C109

0.1uF

+

C107

0.01uF

C110

0.1uF

C114

0.1uF

L106

0.01uH

C111

0.1uF

C115

0.1uF

C106

0.01uF

J102A

C112

0.1uF

J102B

C116

0.1uF

+3.3 Vdc

I1 Buff

V2 Out V2 Cond

I2 Buff

L107

0.01uH

C118

0.01uF

R123

0.012

R124

0.012

U107A

U107B

+

C120

0.1uF

+

C121

0.1uF

C125

0.1uF

U103

INA168

R125

C119

0.1uF

R126

0.012

V4 Cond V4 Out

C124

0.1uF

R127

0.012

U104

INA168

100k

R128
100k

OPA2340UA

OPA2340UA

C122

0.1uF

C126

0.1uF

C117

0.01uF

J102C

C123

0.1uF

J102D

C127

0.1uF

+3.3 Vdc

V3 Out V3 Cond

I3 Buff

I4 Buff

2

A. Sivacoe, N. Hendrickson

User Interface Module

Rev ID

1.03 (ii) Insight Control System

Date: November 13, 2008 Page: 2 of 6

Voltage/Current Monitoring

V5 Cond

C130

0.1uF

R129

0.012

R130

0.012

U105

INA168

User Interface Module

+

R131
100k

U108A

OPA2340UA

C129

0.01uF

C131

0.1uF

L108

0.01uH

C128

0.01uF

C132

0.1uF

C133

0.1uF

J102E

C134

0.1uF

+3.3 Vdc

V5 Out

I5 Buff

U108B

+

R135

1k

C136

0.1uF

R136

1k

C137

0.1uF

R137

1k

C138

0.1uF

R138

1k

C139

0.1uF

R139

1k

C140

0.1uF

Vin

I1 Buff I1 ADC

I2 Buff I2 ADC

I3 Buff I3 ADC

R132

37.4k - TV

68.1k - FM
R133

3.3k

OPA2340UA

R134

1k

C135

0.1uF

V1 ADC

I4 ADC I4 Buff

I5 ADC I5 Buff

Membrane Switch Inputs

+3 Vdc

R140

R141

10k

R147

10k

R1421kR143

1k

R149

R148

300

Pow-IN

Nav-IN

+3 Vdc

Sel-IN

Res-IN

GND

J103D

J103A

J103B

J103E

J103C

10k

R146

10k

3

1k

MOCD211M

U109

MOCD211M

U110

R144

10k

R150

10k

R145

10k

R151

10k

A. Sivacoe, N. Hendrickson

User Interface Module

Rev ID

1.03 (ii) Insight Control System

Date: November 13, 2008 Page: 3 of 6

Pow-uPC

Nav-uPC

Sel-uPC

RESET

User Interface Module

Microcontroller

I1 ADC

I2 ADC

I3 ADC

I4 ADC

I5 ADC

V1 ADC

C146
30pF

C147
30pF

0.01uH

C141

0.01uF

Y101

6.00MHZ

L109

C142

0.01uF

C144

0.1uF

C145

tbd

C143

0.1uF

U111

MCP130-450

Vcc Reset

GND

P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16

P60

P61

P62

P63

P64

MSP430F133/5

P17

P18

P19

P20

P21

RESET +3.3 Vdc

TCK

TMS

TDI

TDO

CAN CLK

LED1

Buzzer

BkLtCtrl

Pin15LCD

J104

LED A

LED K

U112

P50

P51

P52

P53

P54

P55

P56

P57

P58

P59

P48
P47
P46
P45
P44
P43
P42
P41
P40
P39
P38
P37
P36
P35
P34
P33

P22

P23

P24

P25

P26

P27

P28

P29

P30

P31

P32 P49

LCD D7

LCD D6

LCD D5

LCD D4

LCD D3

LCD D2

LCD D1

LCD D0

LCD E

LCD R/*W

LCD RS

LCD Vo

LCD Vdd

LCD Vss

Pow-uPC

Nav-uPC

Sel-uPC

- DIP SWITCH 7,6,5 SET ID

- DIP SWITCH 2 SETS CALIBRATION MODE

- DIP SWITCH 1 ENABLES CAN BUS TERMINATION

S101

7

1

P14

6

P13

2

5

P12

3

4

4

P11

3

5

P10

2

6

P9

1

7

RN101 10k

CANterm1

CANterm2

P1
P2
P3
P4
P5
P6
P7 P8

+5 Vdc

Pin3LCD

SCK

SOMI

SIMO

CAN CS

+3.3 Vdc

A. Sivacoe, N. Hendrickson

4

User Interface Module

Rev ID

1.03 (ii) Insight Control System

Date: November 13, 2008 Page: 4 of 6

User Interface Module

CAN and Programmer Interface

+3.3Vdc

C148

0.01uF

CAN CLK

L110

0.01uH

U113

P1
P2
P3
P4
P5
P6
P7
P8
P9 P10

MCP2510

C149

0.01uF

P18
P17
P16
P15
P14
P13
P12
P11

U114

P1
P2
P3
P4 P5

SN65HV232

R152

100

J105D

J106D

J105F

J106F

J105E

J106E

J106A

J105H

J106H

J105G

J106G

+5V-1

+5V-2

+3.3V-1

+3.3V-2

GND-1

GND-2

CANH-1

CANH-2

CANL-1

CANL-2

CANterm1

CANterm2

RESET

+5Vdc

+3.3Vdc

RESET RESET-2

P8
P7
P6

SCK

SIMO

SOMI

CAN CS

TDO

TDI

TMS

TCK

R153
100k

J107

JTAG Header

+3.3Vdc

5

A. Sivacoe, N. Hendrickson

User Interface Module

Rev ID

1.03 (ii) Insight Control System

Date: November 13, 2008 Page: 5 of 6

User Interface Module

Power Supplies

VgenCond

LED1

Buzzer

BkLtCtrl

+5 Vdc

+
C150

100uF

R156

10k

C152

10uF

10V tantalum

U115

LM2576S-5.0

U116

P1
P2
P3
P4
P5
P6
P7
P8 P9

ULN2003

P16
P15
P14
P13
P12
P11
P10

U117

LM1117MP-3.3

IN

OUT

COM

30BQ060

SML-LX1206GW

D116

S1D-13

L111

100uH

D114

D113

Green

G6L-1F 5Vdc

RL101

Littlefuse 1812L

C153

100uF

F107

Littlefuse 1812L

+

C151

1000uF

R155

1k

BZ101

F108

R154

tbd

R157

4.7

R158

430

D117

+3.3V LED

D115

+5V LED

+5 Vdc

Pin15LCD

+3.3 Vdc

VgenCond

C154

100uF

C156

22uF

U118

P1

+

C157

22uF

P2
P3
P4 P5

LM2660M

C158

22uF

C161

0.1uF

P8
P7
P6

C155

100uF

R160

1.4k

LM2576

R162

6.2k

+

C162

1uF

S102

R161

C163

27k

0.01uF

D118

DIODE

L112
33uH

R159

10k 40%

C159

22uF

C160

22uF

J108

Pin3LCD

FanOut

6

A. Sivacoe, N. Hendrickson

User Interface Module

Rev ID

1.03 (ii) Insight Control System

Date: November 13, 2008 Page: 6 of 6

Coupler Conditioning Module

Microcontroller

U201

L201

0.01uH

MCP130-450

Vcc Reset

GND

DVcc

P1

A3

P2

A4

P3

A5

P4

A6

P5

A7

P6
P7

Xin

P8

Xout

P9
P10
P11

P1 0

P12

P1 1

P13
P14
P15
P16

CAR DOWN

CAR UP

CAR OFF

CAR ON

SOFT RES

C201

0.01uF

L202

0.01uH

C203

0.01uF

AVcc

P64

P17

AVss

DVss

P62

P63

MSP430F149

P18

P19

P20

TCK

TMS

TDI

TDO

CAN CLK

P50

P51

P52

P53

P29

P30

P31

P28

SIMO0

SOMI0

UCLK0

PSU

LED 3

TEMP

LED 4

U202

P32 P49

P48
P47
P46
P45
P44
P43
P42
P41
P40
P39
P38
P37
P36
P35
P34
P33

MCLK

- DIP SWITCH 3,2,1 SET ID

- DIP SWITCH 7 ENABLES CAN
TERMINATION

S201

1
2
3

4
5
6
7

DIP SW7

91348

7

RN201 10k

J202

2

4

3

8

TDO

TDI

TMS

TCK

Reset

P54

P55

P56

P57

P58A0P59A1P60A2P61

P21

P23

P24

P25

P26

P27

P22

P2 2

1

VSWR

LED 5

OVERDRV

LED 6

+3.3 Vdc RESET

FWD-POW

RFL-POW

C202

0.01uF

DRVR DIS

LED 1

LED 2

C204

0.1uF

C205
10uF

+

C206
33pF

C207
33pF

C208

0.01uF

Y201

6.00MHZ

0.01uF

L203

0.01uH

C209

+5 Vdc

ATEN-Vcc

ATEN1

SCK

ATEN2

SOMI

ATEN3

ATEN4

DAC2 CS

ATEN5

SIMO

GROUND

J201 4

R201

1

R202

1

R203

2

R204

2

R205

3

R206

5

6

R207

7

R208

7

8

CANterm2

CANterm1

+3.3 Vdc

DAC CS

SCK

SOMI

SIMO

CAN CS

TMP VCC

TMP SCK

TMP SO

TMP CS

TMP GND

1

A. Sivacoe

Coupler Conditioning

Rev ID

1.10 Insight Control System

Date: November 13, 2008 Page: 1 of 4

CAN and Programmer Interface

+5Vdc

Coupler Conditioning Module

C210

0.01uF

C211

0.1uF

D201

J203

J204

4

4

+5V-1

+5V-2

+3.3Vdc

CAN CLK

+3.3Vdc

C214

0.01uF

0.01uH

0.01uF

C215

U204

P1

P18

P2

P17

P3

P16

P4

P15

P5

P14

P6

P13

P7

P12

P8

P11

P9 P10

MCP2510

C212

0.01uF

J203

J204

C213

0.1uF

RESET RESET-1

GND
Vcc

D202

R209

0

U203 J203

D

P1
P2
P3

R

P4 P5

SN65HV232

P8

CANH

P7

CANL

P6

R210

100

J203

J204

J203

J204

J203

J204

J204

6

6

2

2

1L204

1

8

8

7

7

+3.3V-1

+3.3V-2

GND-1

GND-2

RESET-2

CANH-1

CANH-2

CANL-1

CANL-2

CANterm1

CANterm2

RESET

SCK

SIMO

SOMI

CAN CS

TDO

TDI

TMS

TCK

2

JTAG

J205

+3.3Vdc

A. Sivacoe

Coupler Conditioning

Rev ID

1.10 Insight Control System

Date: November 13, 2008 Page: 2 of 4

Coupler Input

+5Vdc

+3.3 Vdc

FWD GND

FWD+3.3

FWD+5V

FWD In

RFL GND

RFL+3.3

RFL +5V

RFL In

J206

J206

J206

J206

J207

J207

J207

J207

Coupler Conditioning Module

4

3

2

1

4

3

2

1

D203

D204

L205

0.01uH

C216

0.01uF

L206

0.01uH

C218

0.01uF

C217

0.01uF

C219

0.01uF

FWD-POW

RFL-POW

Interface

+3.3 Vdc

DRVR DIS

LED 1

LED 2

LED 3

LED 4

LED 5

LED 6

U205

P1
P2
P3
P4
P5
P6
P7
P8 P9

ULN2003

P16
P15
P14
P13
P12
P11
P10

RN202

RN202

1k

7 10

D205 D207 D208 D209

RN202

RN202

1k

1k

6 10

1 10

D206 D210

RN202

1k

1k

2 10

3 10

RN202
1k

4 10

D211

R2111kR212

K201

R2130R214
0

A. Sivacoe

1k

+5 Vdc

0.01uF

C220

L207

0.01uH

C221

0.01uF

J202

7

DISABLE

3

Coupler Conditioning

Rev ID

1.10 Insight Control System

Date: November 13, 2008 Page: 3 of 4

RF Power Output

+5 Vdc

SIMO

SCK

DAC CS

Remote Access Port

C222

0.01uF

L208

0.01uH

U207

P1
P2
P3
P4 P5

TLV5625

P8
P7
P6

C223

0.01uF

LM4040-2.5

U208

R216
1k

R217

2.15k

R215

2.15k

+

+

VR201

U206B
LM358

VR202

U206A
LM358

10k

10k

1 3

1 2

FWD-OUT

D212A

RFL-OUT

D212B

+3.3 Vdc

+5 Vdc

VSWR

OVERDRV

TEMP

PSU

RFL-OUT

FWD-OUT

RN204

1k

RN204

1k

MOCD211M

CAR OFF

MOCD211M

U210

U212

RN203

10k

RN203

10k

RN204
1k

10 9

10 8

MOCD211M

RN204

1k

10 6

10 7

RN203
10k

10 6

10 7

RN203
10k

10 9

10 8

J208

8
7
6
5
4
3
2
1

J209

1
2
3
4
5
6
7
8

10 1

10 4

10 8

RN
203
10k

RN
203
10k

RN
205
10k

10 2

10 3

10 9

RN
203
10k

RN
203
10k

RN
205
10k

10 4

10 2

RN
204
1k

RN
204
1k

R
218
1k

RN
204
1k

10 3

RN
204
1k

10 1

R219
1k

U209

MOCD211M

U211

MOCD211M

U213

10 3

10 7

RN
205
10k

RN
205
10k

RN
205
10k

10 4

RN
205
10k

10 6

RN
205
10k

10 2

CAR ON

CAR UP

CAR DOWN

SOFT RES

RESET

4

A. Sivacoe

Coupler Conditioning

Rev ID

1.10 Insight Control System

Date: November 13, 2008 Page: 4 of 4

Digital Attenuation

RF 2

RF OUT

J301

J302

R301

RF Conditioning

U301

J1

N/C

GND

R303R302

CTL1

GND

CTL2

GND

CTL4

GND

CTL8

GND

CTL16

GND

Vss
GND
GND
J2 Vcc

C2
C1

C301

C303

CTL 1dB

CTL 2dB

CTL 4dB

CTL 8dB

CTL 16dB

C302

Opto-Isolation

Ext 5Vdc

1dB in

2dB in

8dB in

4dB in

J304

4

D301

J304

1

2

J304

5

3

S301

R304

D302

J303

C305

R305 R306

R311 R312

L301

U302

P1
P2
P3
P4 P5

U303

P1
P2
P3
P4 P5

C304

P8
P7
P6

R308R307

P8
P7
P6

R314R313

D303 D304

R309 R310

D306D305

CTL 1dB

CTL 2dB

CTL 8dB

CTL 4dB

16dB in

16dB in

J304

7

R317

J304

8

1

U304

P1
P2
P3
P4 P5

R316R315

P8
P7
P6

R318

D307

R319

CTL 16dB

A. Sivacoe

RF Conditioning

Rev ID

1.12 Insight Control System

Date: November 4, 2008 Page: 1 of 1

+3.3Vdc

TMP Vcc

TMP CS

L701

J701

S701

2J702

8J702

C701

TMP SO

TMP SCK

TMP GND

Disable

U701

3J702

4J702

1J702

7J702

P1
P2
P3
P4 P5

LM70CIMM

J703

P8
P7
P6

Disable

C702

C703

From CTRL To amp pallet

C704

C705

1

A. Sivacoe

Temperature Sensor Board

Rev ID

1.10 Insight Control System

Date: June 4, 2007 Page: 1 of 1

PSUflag

RFL samp

TEMPflag

FWD samp

VSWRflag

ODRVflag

ground

CAR on

CAR off

CAR up

+5 Vdc

CAR down

+3.3 Vdc

Soft RES

RESET

1J601

2

3

4

5

7

8

1J603

2

3

4

5

6

7

8

F601

F602

F603

F604

13
12
11
10

J602

9
8
7
6
5
4
3
2
1

25
24
23
22
21
20
19
18
17
16
15
14

1

TxNET

Rev ID

1.10 LP

Date: July 16, 2008 Page: 1 of 1

PSUflag

RFL samp

TEMPflag

FWD samp

VSWRflag

ODRVflag

ground

CAR on

CAR off

CAR up

+5 Vdc

CAR down

+3.3 Vdc

Soft RES

RESET

1J601

2

F601

3

4

F602

5

7

8

1J603

2

13
12
11
10

9
8
7
6
5
4
3
2
1

J602

25
24
23
22
21
20
19
18
17
16
15
14

3

4

F603

5

6

F604

7

8

IN 1

IN 2

IN 3

IN 4

IN 5

IN 6

IN 7

IN 8

IN 1

IN 2

IN 3

IN 4

IN 5

IN 6

IN 7

IN 8

IN 1

IN 2

IN 3

IN 4

IN 5

IN 6

IN 7

IN 8

1J604

2

3

4

5

6

7

8

1J606

2

3

4

5

6

7

8

1J608

2

3

4

5

6

7

8

1J605

2

3

4

5

6

7

8

1J607

2

3

4

5

6

7

8

1J609

2

3

4

5

6

7

8

OUT 1

OUT 2

OUT 3

OUT 4

OUT 5

OUT 6

OUT 7

OUT 8

OUT 1

OUT 2

OUT 3

OUT 4

OUT 5

OUT 6

OUT 7

OUT 8

OUT 1

OUT 2

OUT 3

OUT 4

OUT 5

OUT 6

OUT 7

OUT 8

TxNET

Rev ID

1.10 HP

Date: July 16, 2008 Page: 1 of 1

Section VII – Mechanical Section

The heat sinks allow the amplifiers to operate at a cooler temperature and prevent overheating,
which helps the longevity of the entire system. Each heat sink has hollow fins, which help
dissipate the heat from the amplifiers faster than a conventional serrated or corrugated fin.

In addition to the cooling effects of the heat sinks, within the 500-watt power amplifier enclosure,
there are six fans that each provide 170 cubic feet per minute (CFM) of air flow (into zero static
pressure). There are three fans mounted at the front of the heat sink and three mounted at the
back end of the heat sink. The fans are mounted side-by-side to produce the best cooling for
the system and are operating in a push-pull configuration to assist with heat dissipation. The
fans are a 24Vdc variety, so there are series dropping resistors to drop the higher power supply
voltage down to a safe level.

Technalogix Ltd TAVD-500 Transmitter

VII-1

Section VIII - Installation

This section contains installation recommendations, unpacking, inspection, and installation
instructions for the power amplifier. We are sure that you are chomping at the bit to install your new
system, so we recommend that you read the following sections very carefully.

Building Recommendations

The quality of the building is of great importance if you are to expect long life and continued
performance from the power amplifier. The building must be clean, dry, temperature controlled and
secure. Don’t forget to allow space in the building for any additional racks to house test equipment,
a workbench area, line regulating transformers, ladders, equipment and parts storage, first aid kit,
emergency generator if used, as well as heating and cooling devices that may be unique to your
installation. A sloping roof will tend to develop leaks less rapidly. The building should be well roofed
with good material. The cooling load will be lowered with reflective or light colored roofing material.

Technalogix Ltd. TAVD-500 Transmitter

VIII-1

Heating and Cooling Requirements

The environment’s temperature will contribute greatly to the length of the power amplifier’s life.
Technalogix recommends that the building’s filtered air intake must have capacity for all air-flow in
the building plus an additional 20%. Keep the intake below the roofline to avoid intake of solar
heated air. Please ensure that the intake and exhaust areas are on the same side of the building to
avoid pressure differentials during windy conditions. Also, do not position intake near exhaust’s
preheated air. If air conditioning is required to cool the shelter, discuss the situation with a qualified
HVAC technician. Under average conditions, 12,000 BTUs will cool approximately 500 square feet
to a comfortable level.

The TAVD-5000 contains (3) DC ball bearing fans in each PA (push-pull configuration) and (2)
fans in each of the combiner/filter and power supply enclosure.

Technalogix Ltd. TAVD-500 Transmitter

VIII-2

Electrical Service Recommendations

Technalogix recommends that a qualified, licensed local electrician be consulted for the required
electrical service. We suggest local electricians because:

• The personnel knows the local codes

• The personnel can be on site readily

• You are apt to get better overall support if you give what business you can to local suppliers

Technalogix recommends that proper AC line conditioning and surge suppression be provided on
the primary AC input to the power amplifier. All electrical service should be installed with your
national electrical code in your area, any applicable provincial or state codes, and good engineering
practice. Special consideration should be given to lightning protection of all systems in view of the
vulnerability of most transmitter or translator sites to lightning. Lightning arrestors are recommended
in the service entrance. Straight and short grounds are recommended. The electrical serviced must
be well grounded. Do not connect the unit to an open delta primary power supply, as voltage
fluctuations could harm the unit. Branch your circuits. Do not allow your lights, your workbench
plugs, and your transmitting or translating equipment to operate on one circuit breaker. Each
transmitter or translator should have its own circuit breaker, so a failure in one does not shut off the
whole installation.

Technalogix Ltd. TAVD-500 Transmitter

VIII-3

Antenna and Tower Recommendations

Your preliminary engineering workgroup should establish your antenna and tower requirements,
both for receiving and transmitting antennas. Construction of sturdy, high quality antenna/tower
systems will pay off in terms of coverage of your service area, the overall quality and saleability of
your radiated signal, and reduced maintenance expenses. Technalogix provides complete turnkey
antenna systems if needed. If your site is serving as a translator, your receiving antenna should be
in line of sight to the originating station all year round. The foliage will change with season.
Transmitting antennas can enhance or seriously impair the transmitter/translator output.

The selection, routing, and length of coaxial cable are extremely important in the installation. If ther e
is a 3 dB line loss in the cable between your unit’s output and the transmitting antenna, a 1,000-watt
unit will only deliver 500 watts to the antenna. Buy the best cable you can obtain, route it via the
shortest way to the antenna, and keep it straight. Do not form it into sharp bends on its way. Do not
use any more cable fittings for the installation than absolutely necessary. All cautions here apply
equally to all coaxial cables in the system - input and output.

Pay attention to radial ice accumulation when designing the transmission system. It is not
uncommon for at least an inch of ice to build up on the tower and antenna. This in turn significantly
increases the weight, cross section, and wind loading of the system.

Attaching the transmission line to the tower is crucial to maintain a safe and reliable operation.
Nylon wire ties and electrical tape will breakdown in the sunlight and ultimately fail, creating a
potentially dangerous situation. It is important to use proper clamps and hoisting grips and also
ensure that the transmission line is grounded to the tower in several locations. When high currents
flow through the tower in the event of lightening strikes, some of that current will through the outer
conductors of the transmission lines. Due to the resistance difference between the steel tower and
copper transmission line, a significant voltage can be developed, often resulting in arcing between
the outer jacket and outer conductor, thus pitting the conductor.

Preventative maintenance is crucial in ensuring that safety is maintained. Specifically, check that
transmission line grounds are tight and are not missing any hardware. Frequently inspect support
clamps or spring hangers. Consider investing in an ice break, if you haven’t already done so, as
shards of falling ice can damage the transmission line – and if it is going to happen, it will happen at
an important time. Check the tower light photocells and conduit.

The better-known tower manufacturers offer complete technical and safety documentation with their
towers. Be sure that you have this information as it regards wind loading, guying, etc. The best­designed antenna system will function poorly if shortcuts and compromises are used during
installation. Follow the manufacturer’s instructions exactly, along with any engineering data
prepared for the site. Be absolutely safe and certain about this aspect as human lives may be at
stake.

Technalogix Ltd. TAVD-500 Transmitter

VIII-4

Shelter Security
The FCC requires that the transmitter or translator be secure from entry or control by unauthorized

persons, and that any hazardous voltages or other dangers (including most tower bases) be
protected by locks or fences as necessary to protect personnel and prevent unauthorized tampering
or operation. Security of the building further implies that it be secure from wildlife. Use sturdy
construction materials, including sheet metal if necessary. Holes around conduit, cable, and other
similar entry points should be stuffed with steel wool and caulked to prevent entry of wildlife. Other
features of security for your shelter may include its location with respect to the prevailing wind
conditions. A location leeward of some natural topographical feature will prevent wind damage and
snowdrifts. Check the soil runoff conditions that may slow or hasten wind or water erosion and other
concerns that may be unique to your location.

Technalogix Ltd. TAVD-500 Transmitter

VIII-5

Unpacking and Inspection

Check the outside of the container. Carefully open the container and remove the power amplifier.
Retain all packing material that can be reassembled in the event that the equipment must be
returned to the factory.

Exercise care in handling equipment during inspection to prevent damage
due to rough or careless handling.

Visually inspect the enclosure of the power amplifier for damage that may have occurred during
shipment. Check for evidence of water damage, bent or warped chassis, loose screws or nuts, or
extraneous packing material in connectors or fan failures. Inspect all connectors for bent connector
pins. If the equipment is damaged, a claim should be filed with the carrier once the extent of the
damage is assessed. Technalogix cannot stress too strongly the importance of immediate careful
inspection of the equipment and subsequent immediate filing of the necessary claims against the
carrier if necessary. If possible, inspect the equipment in the presence of the delivery person. If the
equipment is damaged, the carrier is your first area of recourse. If the equipment is damaged and
must be returned to the factory, phone for a return authorization. Claims for loss or damage may not
be withheld from any payment to Technalogix, nor may any payment due be withheld pending the
outcome thereof. Technalogix cannot guarantee the carrier’s performance.

Technalogix Ltd. TAVD-500 Transmitter

VIII-6

Location and Function of Controls and Connectors (TAVD-500 Power Amplifier)

The following illustration depicts the location of the connectors when installing the 500-watt power
amplifier.

Technalogix Ltd. TAVD-500 Transmitter

VIII-7

POWER - Tactile button to turn carriers on and off.
NAVIGATE - Tactile button to move between menu items, or to refresh the screen after it

has timed out.

SELECT- Tactile button to select menu item, or to refresh the screen after it has timed

out.

RESET - Tactile button to reset microcontroller in control board. Also clears existing

faults. The amplifier will come back on with the soft start feature.

RF IN – RF input from modulator or processor. BNC connector, 50 ohm.
RF OUT – 500-watt (rms) RF output. Connects to combiner/filter enclosure. N

connector, 50 ohm.

REMOTE PORT - Port to monitor and control the amplifier externally. See “ Monitor and

Control” section for pin-out. Power amplifier has fault alarms only and
filter/combiner has fault alarms and controls.

Technalogix Ltd. TAVD-500 Transmitter

VIII-8

Location and Function of Controls and Connectors (Filter Enclosure)

The following illustration depicts the location of the connectors when installing the filter
enclosure.

Technalogix Ltd. TAVD-500 Transmitter

VIII-9

RF IN - RF inputs (500-watts each) from the power amplifier. N female connector,

50 ohm.

RF OUT – 500-watt (rms) RF output. Connects to inline wattmeter (not supplied) and

antenna. 7/16”DIN female connector, 50 ohm.

Technalogix Ltd. TAVD-500 Transmitter

VIII-10

Initial Hook Up

1. Ensure that the antenna has been swept and has a return loss of greater than 20dB (VSWR
= 1.2:1). This should be done before connecting the antenna cable to the transmitter output.

2. Check that your video source is present.

3. Place the transmitter/translator in its permanent location near a receptacle supplying
required AC voltage.

DO NOT APPLY AC POWER AND TURN ON POWER TO THE
TRANSMITTER / TRANSLATOR AT THIS TIME SINCE THE RF OUTPUT
MUST BE PROPERLY LOADED BEFORE OPERATION.

4. Place an appropriate AC power line protector, conditioner, and/or surge suppressor across
the AC supply line.

5. Hook up the modulator or processor as shown in their respective manuals for a transmitter or
translator. Do not connect the modulated signal from the RF OUT on the modulator or
processor to RF IN on the power amplifiers at this time. Because of the characteristics of
transistor devices, the RF drive should not be connected to the power amplifier until after the
power supply and bias voltages are present and stable.

6. Ensure that modulator or processor RF output level is turned down as far as possible.

7. Hook up the PA out to the Filter in.

8. Connect the RF Output on the filter enclosure to the wattmeter directly (no cable in between)
and then the output of the inline wattmeter to the transmitting antenna cable.

9. Plug power supply into AC mains (220 Vac, single phase).

10. Leave the AC rocker switch to “off” position.

Technalogix Ltd. TAVD-500 Transmitter

VIII-11

Section IX - Operating Procedure

Assuming the previous installation instructions have been completed and cautions noted, and the
TAVD-500 power amplifier is ready to receive a properly modulated video and audio signal, proceed
with the following steps to place the system in operation. The TAVD-500 power amplifier has been
factory aligned for channel frequency (per system specification), signal levels and optimum
performance.

IT IS HIGHLY RECOMMENDED THAT YOU RUN YOUR SYSTEM INTO A DUMMY LOAD
BEFORE INSTALLING TO MAKE SURE THERE ARE NO DAMAGES CAUSED IN SHIPPING AND
THE UNIT IS RUNNING PROPERLY

1. Do not apply RF drive signal to the power amplifier at this time.

2. Verify that all control and RF cables are tight and properly seated in or on the mating connector.

3. Plug the modulator or processor into AC mains.

4. With the PA output loaded, plug the 3U power supply enclosure into 220V AC mains.

5. Switch AC rocker switch to “ON” position.

6. Verify that the power amplifier fans are all on.

7. Ensure that the modulator/processor is turned on and set up according to its instructions.
Depress the POWER tactile button to turn the unit on.

8. The internal soft start circuitry will turn the bias voltages off until the power supply to the
amplifier pallets is fully stable. The message on the LCD indicates when the soft start is running.
Once complete, the Forward and Reflected Power and Power Supply readings will appear on
the LCD in the filter and power amplifier enclosures.

9. After the soft start is complete, apply the RF drive signal (which still should be turned down)
between the modulator or processor and the power amplifier RF In. This ensures that the RF
drive signal is applied only after the power supply is stable and the bias voltages are applied to
the amplifier.

Technalogix Ltd TAVD-500 Transmitter

IX-1

10. The TAVD-500 LCDs show the user the present status of the amplifiers. Adjust RF output
power to desired level (see Important RF Power Notice in previous section). Verify that the FWD
Power reads 400 to 500 Watts on the PA enclosure. The output power level can be adjusted
using the modulator or processor’s RF output level adjust. Keep in mind that the system will
shut down should the forward RF output power level be exceeded.

11. Ideally, the RFL Power should read zero. However, should a high VSWR be detected, the
system will automatically shut down and cycle as previously described.

12. Verify that the power supply reads approximately 30 Volts DC (see supplied final inspection
sheet for factory settings of power supply levels) on the LCD of the power amplifier.

13. Look at the transmitted output using a suitable monitor. The picture and sound quality should be
clean and sharp. If the output picture and sound quality is unsatisfactory, check the input
signals, connections to the antenna system, antenna and transmission line VSWR, and the
physical condition of the antenna.

If reception problems are encountered, and the quality of transmission is satisfactory, the difficulty is
often with the receiving antenna or with obstructions in the path between the transmitter/translator
and receiver.

Technalogix Ltd TAVD-500 Transmitter

IX-2

Section X – Maintenance and Troubleshooting

Periodic Maintenance

If your unit employs a filter on the air inlet for the fans, the filter should be cleaned every 30 days. If
the equipment is operated in a severe dust environment, the filters on the inlet fan may need to be
cleaned more regularly. Turn the system off and unplug all of the AC inlet cords. The filter can be
lifted off the fan and cleaned using an air compressor at low pressure. While the filter is out, clean
the fan blades themselves with a small brush. The fans themselves do not need lubrication.

The interior of the cabinets should be cleaned and inspected annually. Turn the system off and
unplug all of the AC inlet cords. Remove the top lid by unscrewing the 6-32 machine screws.

Use extreme caution when working near the AC input terminal. The power
amplifier and power supply store hazardous capacitances and voltages.

Using either compressed air or a brush with soft bristles, loosen accumulated dust and dirt and then
vacuum the interior of the cabinet. Complete a visual inspection of the interior, making sure there
are no loose connections or discolorations on any components from heat. Nothing inside the power
amplifier enclosure exceeds a temperature that is not comfortable to the touch under normal
operating conditions, so any signs of discoloration indicate potential damage.

All modular components inside the enclosure are attached to aluminium mounting plates for easy
removal and replacement. Ensure that plates are secured and the mounting hardware is tight.

Technalogix Ltd TAVD-500 Transmitter

X-1

Troubleshooting

The first and most important aspect of troubleshooting anything is to be systematic. Note where
you have looked and what you found.

Look first for the obvious.

• Make a physical inspection of the entire facility. Are all necessary connections properly made?
Do you see any signs of obvious damage within the equipment?

• Is the AC power ‘ON’ to the site and the equipment? (Check fuses and circuit breakers if
necessary.)

• Are all the switches in the correct operating position?

• Is the input signal present?

• Check LCD readings for presence of forward and reflected power and 31 V DC supply levels.

The above is an aid in determining the fault if some aspect of the system is not operating. The
following table deals with quality of operation:

Symptom Possible

Correction

Fault

Horizontal bars in picture
(may roll either way
depending on phase)
Ensure modulator/processor

Diagonal lines in picture Interference Install EMI/RFI filter in AC line
Determine source and

AC grounding / AC
interference

Technalogix Ltd TAVD-500 Transmitter

X-2

Install EMI/RFI filter in AC line

and power amplifier share a
common ground

frequency of interfering signal
(spectrum analyzer may be
required)

Symptom Possible

Correction

Fault

High reflected power Incorrect load Ensure amplifier connected to

transmission line

Ensure correct antenna

impedance (50 ohms)

Check antenna tuning and

VSWR. Verify correct cable
for transmission line length

Check all cables for visible

damage (kinks, nicks or cuts)

Check all connectors for poor

connections, water or corrosion
Check alignment of antenna
Check for physical damage of

antenna, including ice build-up

Technalogix Ltd TAVD-500 Transmitter

X-3

Thank you

for choosing

Technalogix Ltd.
