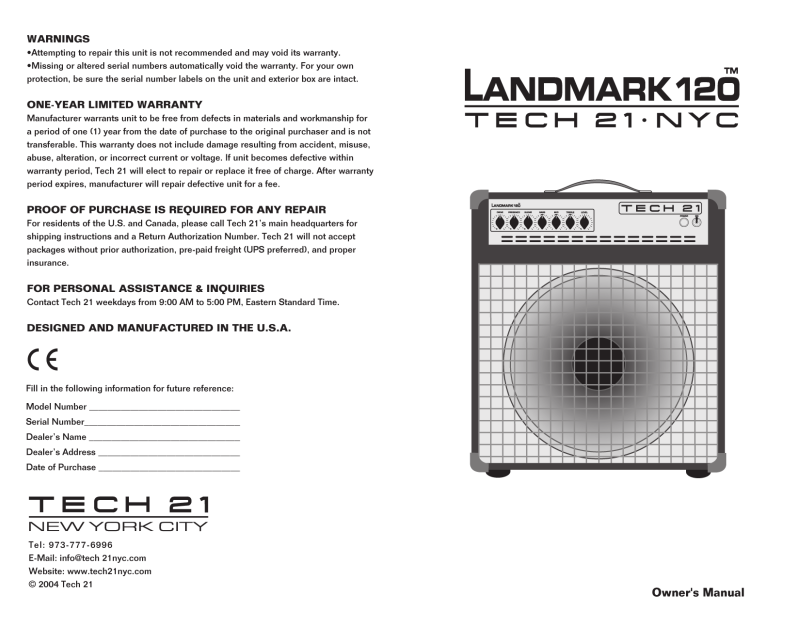

Tech 21 Landmark 120 Owner's Manual
IMPORTANT SAFETY INSTRUCTIONS.
READ AND SAVE THESE INSTRUCTIONS.
HEED ALL WARNINGS.
This symbol, wherever it appears, alerts the user to the presence of uninsulated dangerous
voltage within the product’s enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol, wherever it appears, alerts the user to important operating and maintenance
instructions in the accompanying literature. Read the manual.
This unit is powered by potentially hazardous voltage. Therefore, observe
the following safety precautions:
1.
Read and follow all instructions before using
product.
2. Do not use product near water (such as near
a bathtub, washbowl, kitchen sink, swimming
pool, in a wet basement, etc.).
3. Unit should be located so that its location or
position does not impede the flow of air through
the ventilation openings.
4. Product should be located away from heat
sources such as radiators, heat registers, or
other products, including amplifiers, that produce heat.
5. Product should be connected to a power
supply only of the type described in the operating instructions or as marked on the product.
6. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the unit.
7. Do not allow objects or liquids to penetrate the enclosure through openings.
8. During heavy use, chassis may get hot to the touch. Handle with care.
9. Protect unit from strong impact.
10. Unplug product before cleaning. Never spray liquid cleaners into the amp: wipe
with a clean, lint-free cloth to remove dirt and film.
11. Only use attachments/accessories specified by the manufacturer.
12. This product should be used only with a cart or stand that is recommended by the
manufacturer. When a cart is used, use caution when moving the cart/product combination to avoid injury from tipping over.
13. Amplifiers may be capable of producing high volume levels that could cause permanent hearing loss or damage, if the exposure to such levels is prolonged. Such damage is progressive and irreversible! If you experience any hearing loss or ringing in the
ears, consult an audiologist.
14. Unplug unit during lightning storms or when unused for long periods of
time.
15. This unit must be earth grounded. To reduce the risk of electric shock, NEVER
remove or otherwise attempt to defeat the ground pin of the power cord. If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
WARNING: To avoid the risk of fire, electric shock or injury, do not expose this unit
to rain or moisture. Do not remove the chassis from its cabinet, or remove metal covering from chassis parts. Removing the chassis from its cabinet exposes extremely
dangerous high voltages. There are no user-serviceable parts inside. Hazardous voltages are present inside the chassis. Refer all servicing to qualified personnel.
CAUTION: Never modify the power cord. If original power cord becomes damaged,
frayed, or has exposed wires, replace immediately with same rating and gauge, or
higher. Replacements are commercially available or you can contact Tech 21 directly.
WARNING: Attempting to repair this unit is not recommended and may void its
warranty. NOTE: In the U.S. and Canada, servicing is performed at factory only. In
other countries, please refer repairs to the local Tech 21 authorized distributor.
FUSE
Fuse holder is located inside A/C cord receptacle. You must unplug and
remove power cord to change fuse.
same value: 100V and 117V units: use F 6A L
230V and 240V units: use F 3.15A L
Replace with similar type and
QUICK START INSTRUCTIONS
Here’s how you can get your Landmark 120 up and running before you read the rest
of the manual. By not reading the entire manual, however, you’ll miss out on how to
get the most out of your new investment!

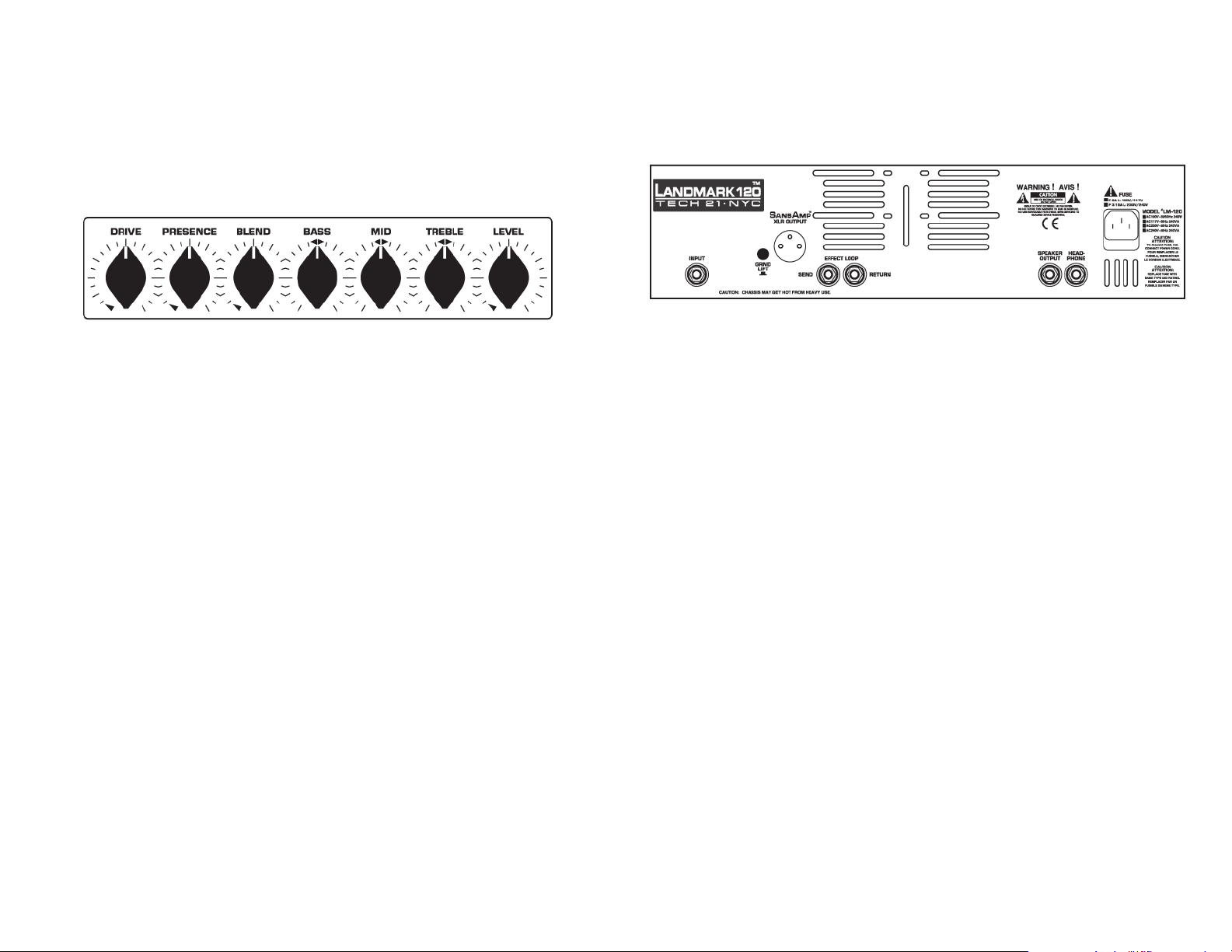

1. Plug your instrument into the top-panel Input jack (on the left side).
2. Attach the AC cord to the amp and plug into a wall socket.
3. Be sure the Level control on the Landmark 120 is down and then turn on the amp.

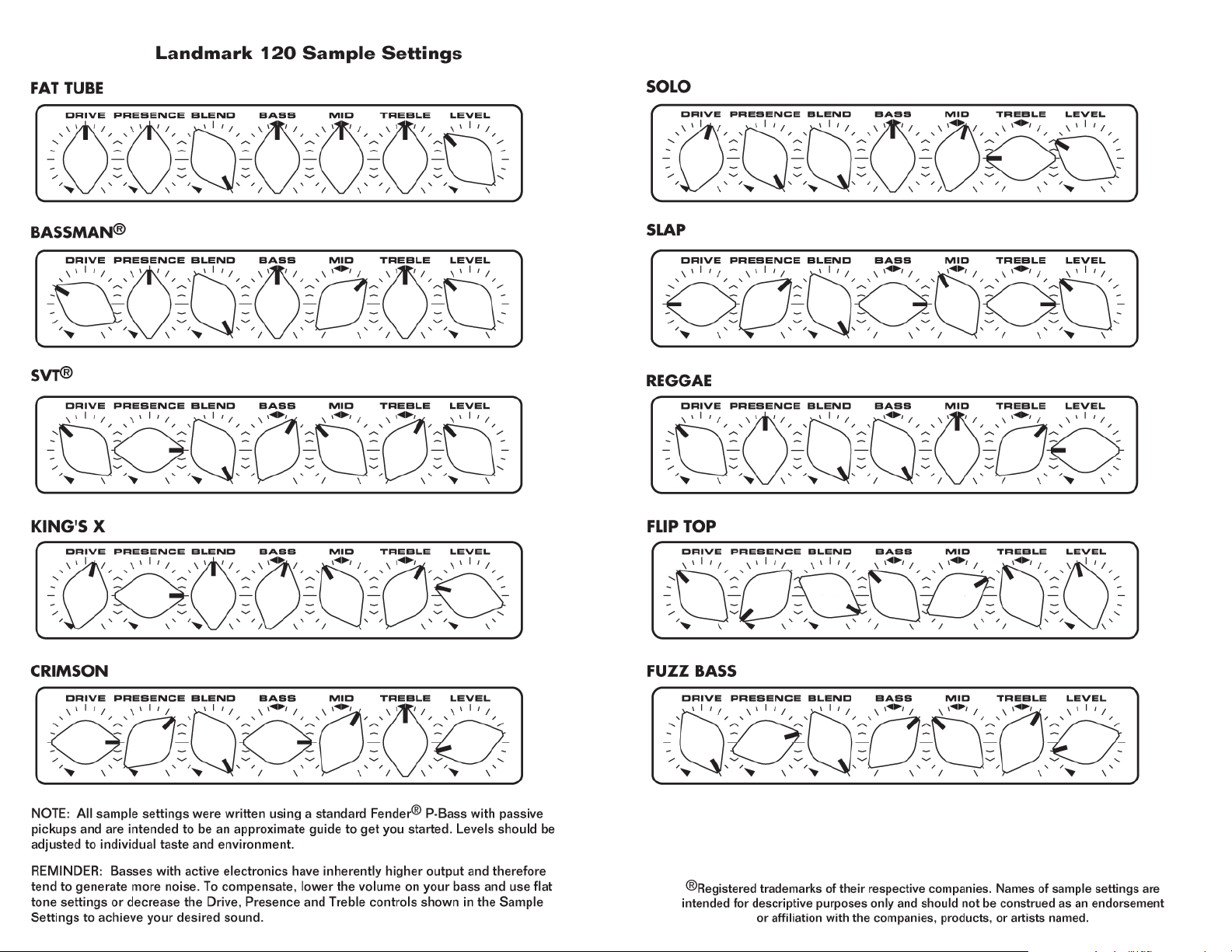

4. Refer to the sample settings provided in this manual.
5. Adjust the Level control on the Landmark 120 and play your bass. If you do not hear
sound coming through the amp, check that your guitar’s volume control is turned up,
recheck your connections, and be sure your cable isn’t faulty. If there is still no sound,
refer to factory or qualified technician.
1
2
TECH 21, THE COMPANY
LANDMARK BASS SERIES, AN OVERVIEW
Tech 21 was formed by a guitarist possessing the unusual combination of a
trained ear and electronics expertise. In 1989, B. Andrew Barta incorporated
Tech 21 and made his invention commercially available to players and studios
around the world. His highly-acclaimed SansAmp™ pioneered Tube Amplifier
Emulation in professional applications for recording direct and performing live,
and created an entirely new category of signal processing. While there have
since been many entries into this niche, SansAmp continues to maintain its
reputation as the industry standard.
After developing a full line of SansAmp models, Tech 21 expanded its offerings
to include effect pedals; a compact, battery operable MIDI footcontroller, the
MIDI Mouse;
product is thoughtfully and respectfully designed by B. Andrew Barta himself
with the player in mind.
Our goal is to provide you with flexible, versatile tools to cultivate, control,
refine and redefine your own individual sound. Tech 21 takes great pride in
delivering consistent professional quality sound, studio to studio, club to club,
arena to arena.
as well as “traditional” style amplifiers for guitar and bass. Each
The 100% analog Landmark Bass Amplifier Series reconfigures the preamp
format of our exceptionally popular SansAmp Bass Driver DI pedal into selfcontained head and combo amplifiers in various wattages. These configurations also offer you an entire sound spectrum of the most coveted traditional
and modern bass amp systems, including mega overdriven tones that usually
require a complex mass of gear --most of which weren’t designed for bass in
the first place.
Each Landmark bass amp delivers a truckload of professional bass rigs from
one source. Each offers such styles as Fender®,SVT®, King Crimson and
King’s X, to name a few --and does so even at low volume. The interactive
controls give you access to specific tone shaping characteristics to create
your own custom sounds as well.
For studio and live applications, our SansAmp Tube Amplifier Emulation
technology enables you to go straight into the mixer of a recorder or PA
system via the XLR Direct Output.
As is typical with all Tech 21 products, the Landmark 120 is a versatile,
multi-functional, super cost-effective package suitable for any player’s
repertoire.
