Teamco SNOWBLAST 9600A Operator's Manual

SNOWBLAST

Published 04/08

9600A

SNOW BLOWER

OPERATOR’S MANUAL

This Operator's Manual is an integral part of the safe operation of this machine and must be maintained with the unit at all times. READ, and Operation Instructions contained in this manual before operating the equipment. C01-

Cover

UNDERSTAND, and FOLLOW the Safety

Teamco Inc.

27050 S. Katie Rd. Suite 400 Tea, SD 57064 605-498-0610

[email protected]

$0.00

To the Owner/Operator/Dealer

All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents.

BEFORE YOU START!! Read the safety messages on the implement and shown in your manual. Observe the rules of safety and common sense!

WARRANTY INFORMATION:

Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration Form in full and return it to within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card and on the Warranty Form that you retain

DEALER’S PREDELIVERY SERVICE GUIDE

for the 9600A

DETAILS OF ITEMS LISTED BELOW ARE COVERED IN THIS OPERATOR’S MANUAL

______ Set up machine as outlined in the shipping instructions attached to these instructions. ______ Check that all safety decals are in good condition, replace if necessary. ______ Check that gearboxes have been filled with oil. ______ Check that all grease fittings have been lubricated.

DEALER’S DELIVERY GUIDE

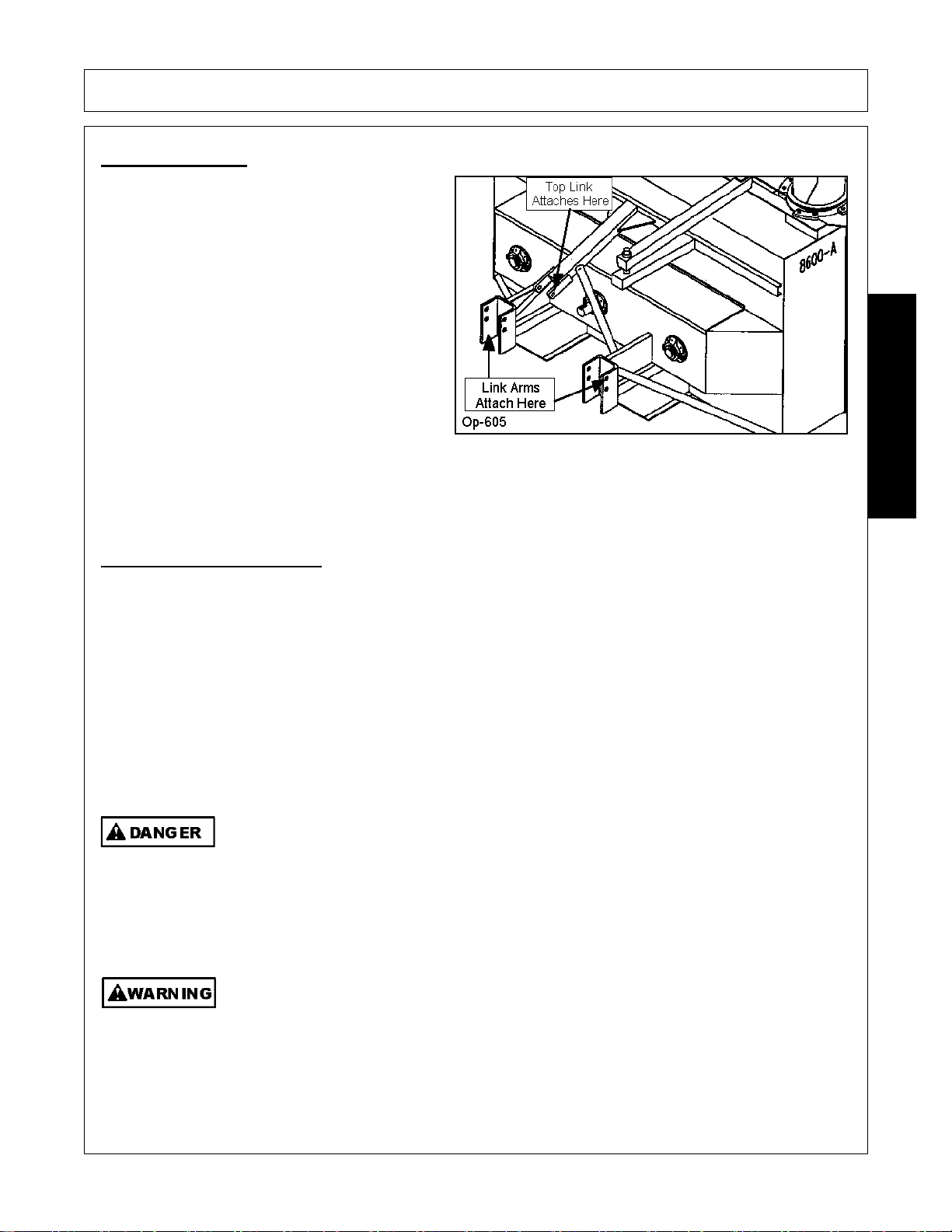

______ Mounting and removal from tractor ______ Operation ______ Adjustments ______ Lubrication ______ Maintenance ______ Operator’s safety precautions ______ User’s responsibility and warranty ______ Operator’s manual delivered to owner ______ Operator’s instructed on contents of owner’s manual

SAFETY SECTION

Safety Section 1-1

SAFETY

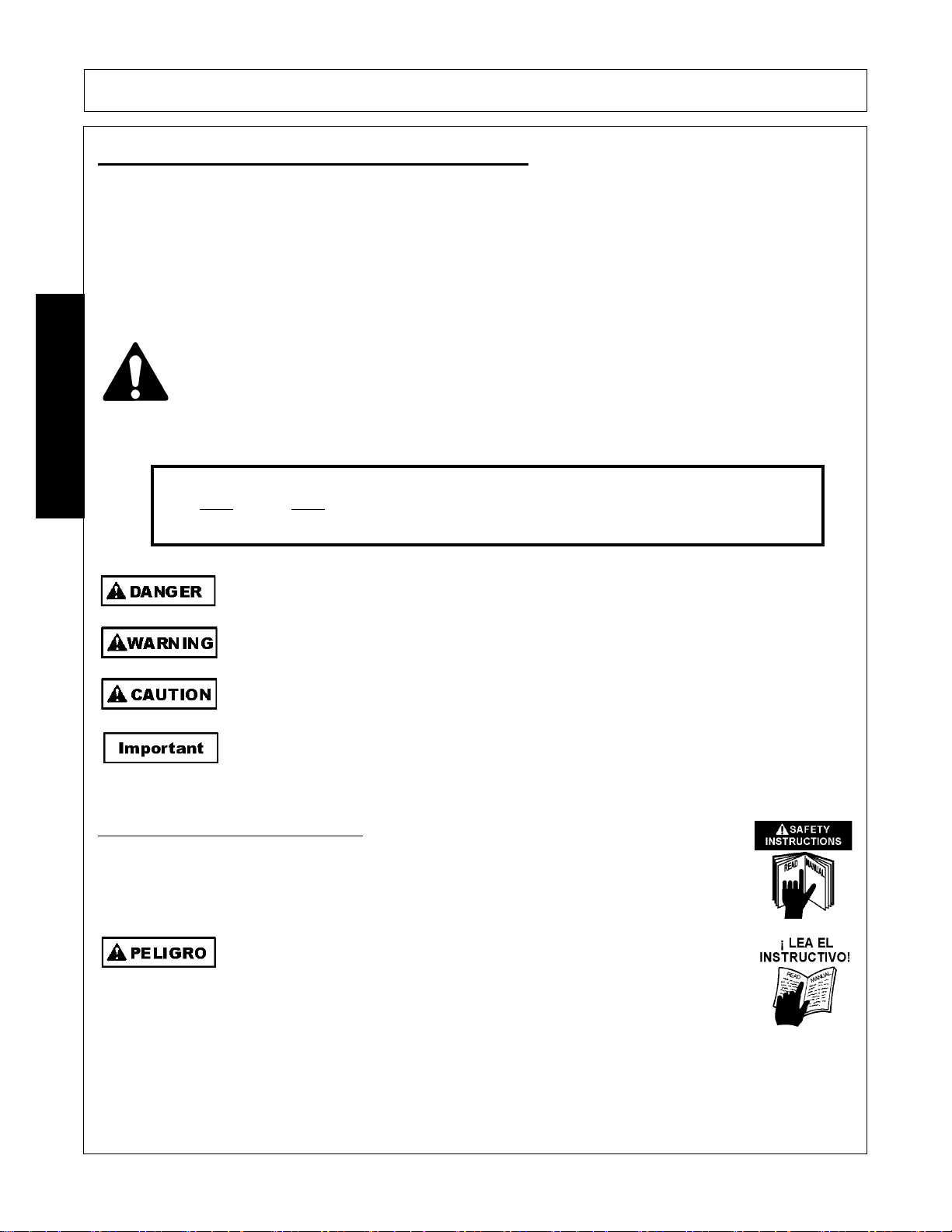

General Safety Instructions and Practices

A careful operator is the best operator. Safety is of primary importance to the manufacturer and should be to the owner/operator. Most accidents can be avoided by being aware of your equipment, your surroundings, and observing certain precautions. The first section of this manual includes a list of Safety Messages that, if followed, will help protect the operator and bystanders from injury or death. Read and understand these Safety Messages before assembling, operating or servicing this Implement. This equipment should only be operated by those persons who have read the Manual, who are responsible and trained, and who know how to do so responsibly.

The Safety Alert Symbol combined with a Signal Word, as seen below, is used throughout this manual and on decals which are attached to the equipment. The Safety Alert Symbol means: “ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” The Symbol and Signal Word are intended to warn the owner/operator of impending hazards and the degree of possible injury faced when operating this equipment.

SAFETY

Practice all usual and customary safe working precautions and above all---remember safety is up to YOU

. Only YOU can prevent serious injury or death from unsafe practices.

Indicates an imminently hazardous situation that, if not avoided, WILL result in DEATH OR VERY SERIOUS INJURY.

Indicates an imminently hazardous situation that, if not avoided, COULD result in DEATH OR SERIOUS INJURY.

Indicates an imminently hazardous situation that, if not avoided, MAY result in MINOR INJURY.

Identifies special instructions or procedures that, if not strictly observed, could result in damage to, or destruction of the machine, attachments or the environment.

NOTE: Identifies points of particular interest for more efficient and convenient operation or repair.

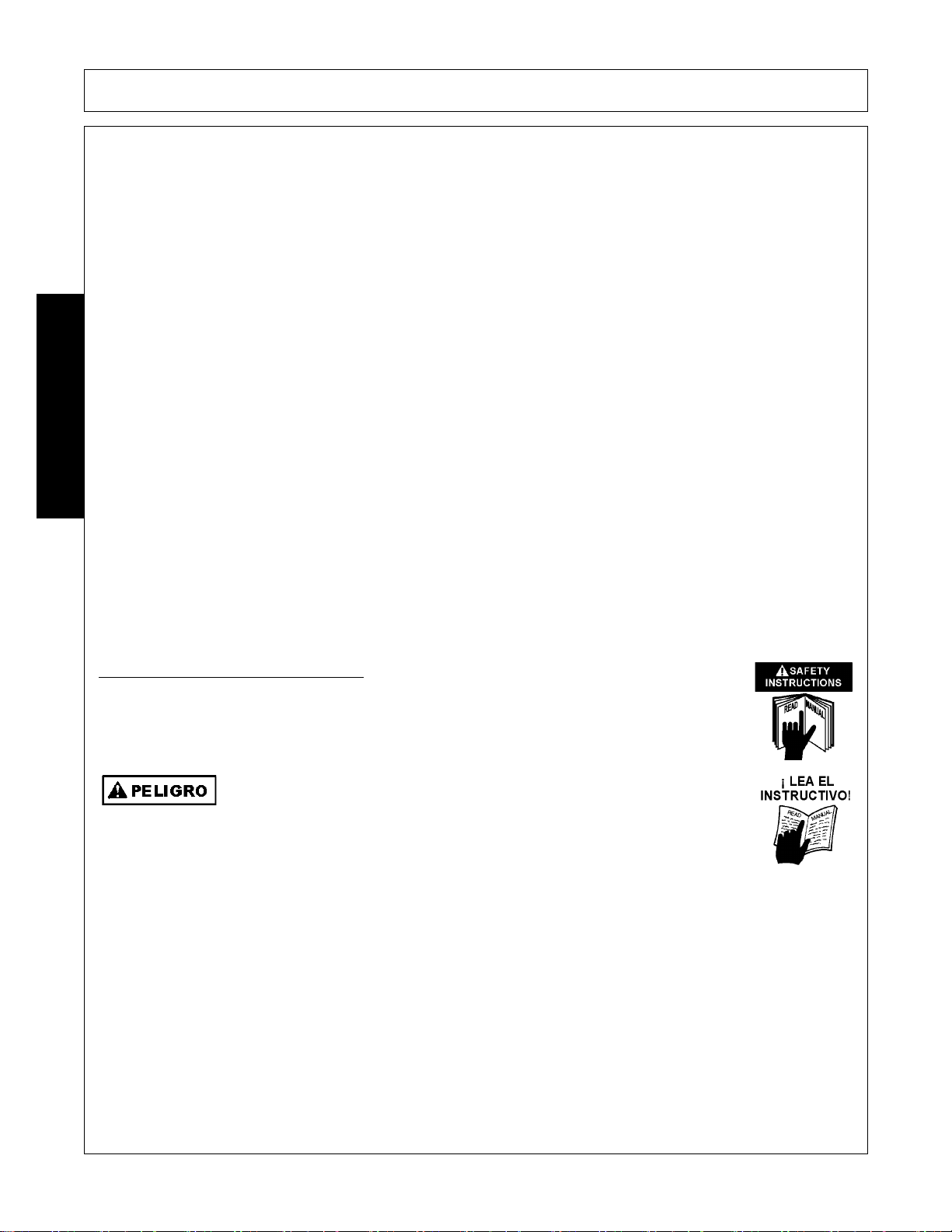

READ, UNDERSTAND, and FOLLOW the following Safety Messages. Serious injury or death may occur unless care is taken to follow the warnings and instructions stated in the Safety Messages. Always use good common sense to avoid hazards.

Si no lee ingles, pida ayuda a alguien que si lo lea para que le traduzca las medidas de seguridad.

(SG-3)

(SG-2)

(SG-1)

9600A 04/08 Safety Section 1-2

2008 Teamco Inc.

SAFETY

Engine Exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the state of California to cause cancer and birth defects or other reproductive harm.

Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the state of California to cause cancer, birth defects or other reproductive harm.

(SG-30)

(SG-31)

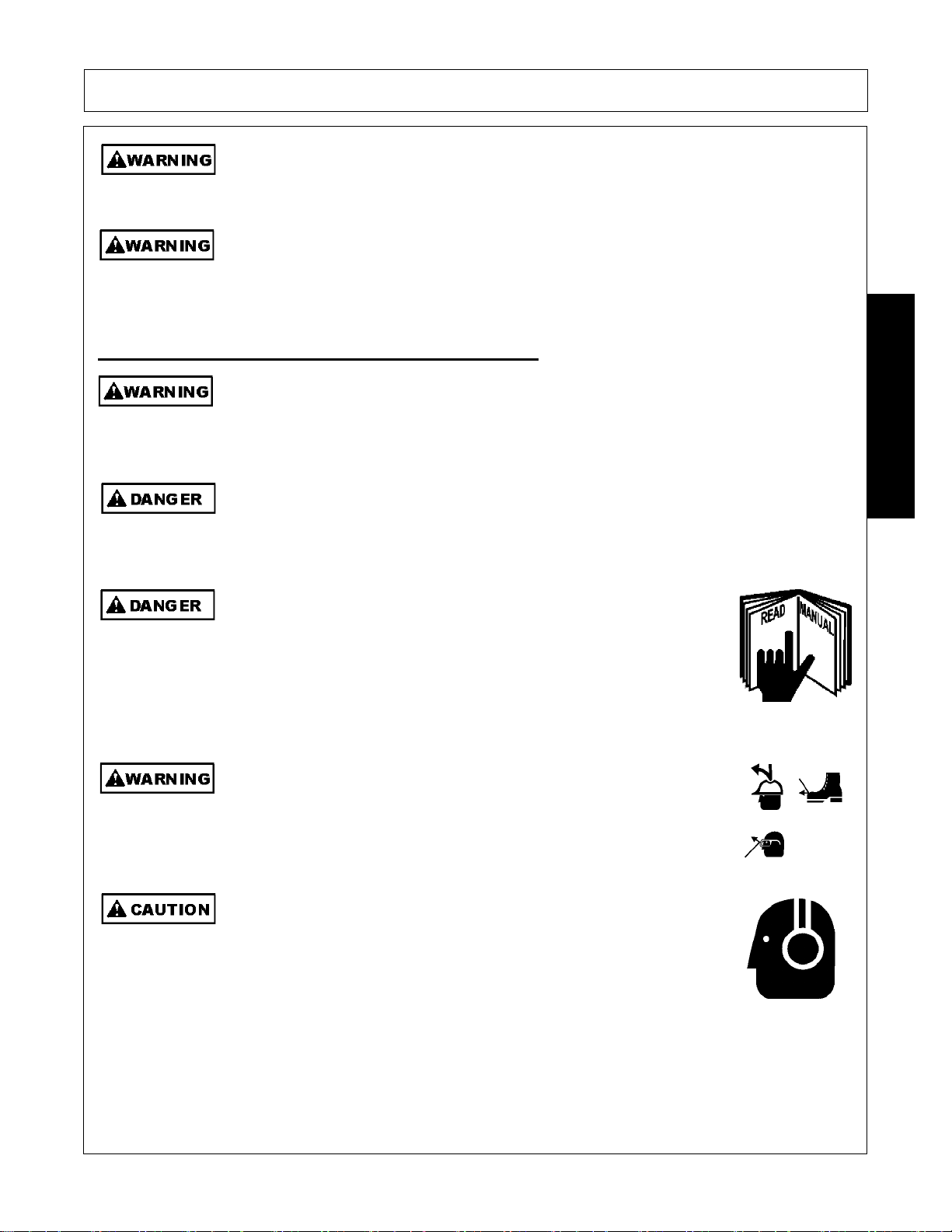

Operator Safety Instructions and Practices

The rotating parts of this machine continue to rotate even after the PTO has been turned off. The operator should remain in his seat for 60 seconds after the brake has been set, the

PTO disengaged, the tractor turned off, and all evidence of rotation has ceased.

“Wait a minute...Save a life!”

Never crawl under a raised Implement supported solely by the Tractor 3-Point hitch. Release of the control lever or mechanical failure will result in the Implement falling and possible injury or death. Always securely block up the Implement before crawling underneath to perform repairs and service.

Never operate the Tractor or Implement until you have read and completely understand this Manual, the Tractor Operator’s Manual, and each of the Safety Messages foun

d in the Manual or on the Tractor and Implement. Learn how to stop the tractor engine suddenly in an emergency. Never allow inexperienced or untrained personnel to operate the Tractor and Implement without supervision. Make sure the operator has fully read and understood the manuals prior to operation.

(SG-4)

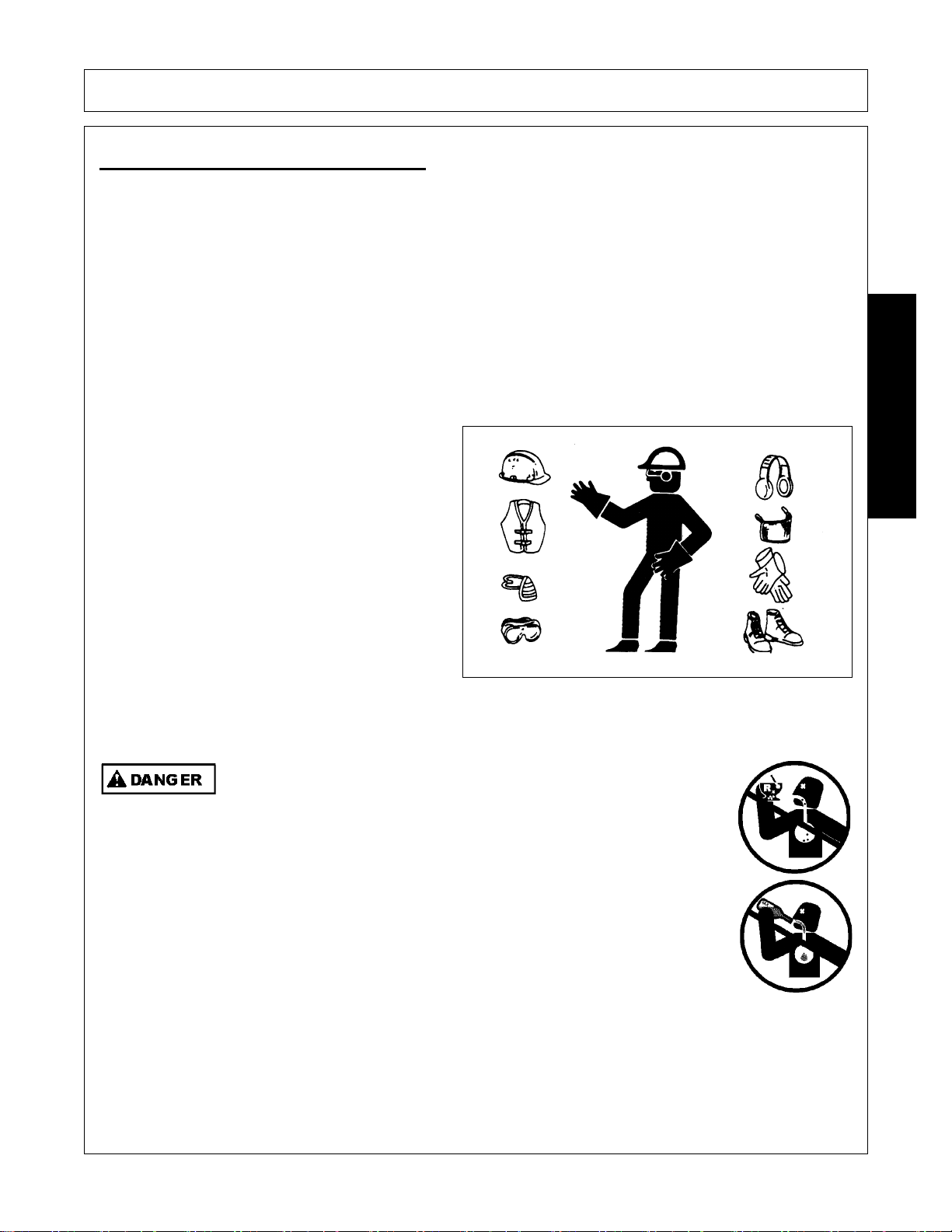

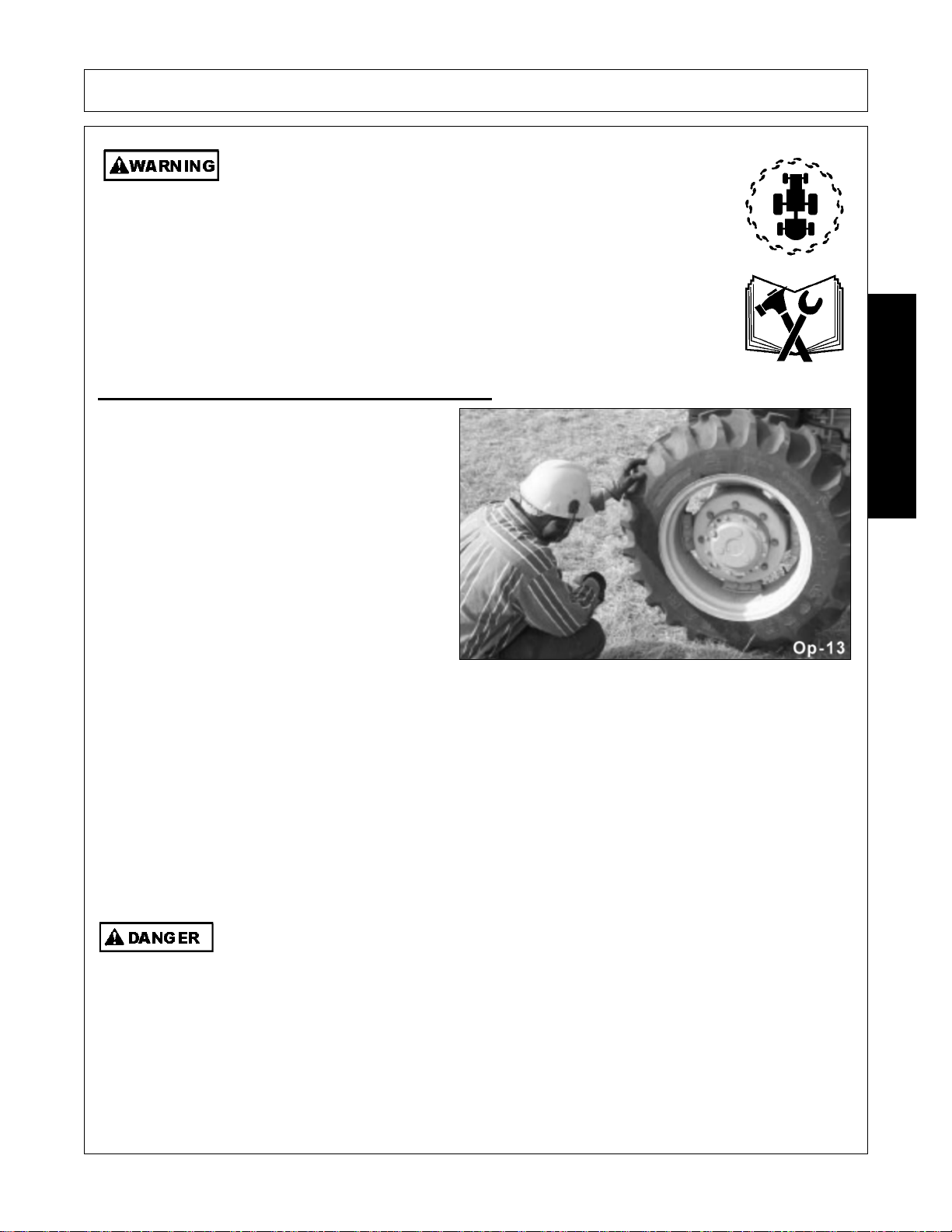

The operator and all support personnel should wear hard hats, safety shoes, safety glasses, and proper hearing protection at all times for protection from injury including injury from items that may be thrown by the equipment.

(SG-16)

(S3PT-19)

SAFETY

(S3PT-10)

PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT HEARING LOSS! Tractors with or without an Implement attached can often be noisy enough to cause permanent hearing loss. We recommend that you always wear hearing protection if the noise in the Operator’s position exceeds 80db. Noise over 85db over an extended period of time will cause severe hearing loss. Noise over 90db adjacent to the Operator over an extended period of time will cause permanent or total hearing loss. NOTE: Hearing loss from loud noise

[from tractors, chain saws, radios, and other such sources close to the ear] is cumulative over a lifetime without hope of natural recovery.

9600A 04/08 Safety Section 1-3

2008 Teamco Inc.

(SG-I7)

SAFETY

Always read carefully and comply fully with the manufacturer’s instructions when handling oil, solvents, cleansers, and any other chemical agent.

KEEP AWAY FROM ROTATING ELEMENTS to prevent entanglement and possible serious injury or death.

Never allow children to play on or around Tractor or Implement. Children can slip or fall off the Equipment and be injured or killed. Children can cause the Implement to shift or fall crushing themselves or others.

(SG-22)

(SG-24)

(SG-25)

SAFETY

NEVER use drugs or alcohol immediately before or while operating the Tractor and Implement. Drugs and alcohol will affect an operator’s alertness and coordination and therefore affect the operator’s ability to operate the equipment safely. Before operating the Tractor or Implement, an operator on prescription or over-the-counter medication must consult a medical professional regarding any side effects of the medication that would hinder their ability to operate the Equipment safely. NEVER knowingly allow anyone to operate this equipment when their alertness or coordination is impaired.

Serious injury or death to the

operator or others could result if the operator is under the influence of drugs or alcohol.

(SG-27)

Prolonged operation may cause operator boredom and fatigue affecting safe operation. Take scheduled work breaks to help prevent these potentially impaired operating conditions. Never operate the Implement and Tractor in a fatigued or bored mental state which impairs proper and safe operation.

(SG-32)

DO NOT operate this Implement on a Tractor that is not properly maintained. Should a mechanical or Tractor control failure occur while operating, immediately shut down the Tractor and perform repairs before resuming operation. Serious injury and possible death could occur from not maintaining this Implement and Tractor in good operating condition.

(SG-36)

Do not approach the front of the snow blower while the fan is rotating. Contact with the rotating fan can result in serious injury or even death. Stay away until all motion has stopped and the snow blower is securely blocked up before removing material, performing service, and making repairs.

(SSB-05a)

9600A 04/08 Safety Section 1-4

2008 Teamco Inc.

SAFETY

Do not put hands or feet near the rotating fan. Fan contact can result in serious injury or even death. Stay away until all motion has stopped and

the snow blower is securely blocked up before removing material, performing service, and making repairs.

Do not operate the implement while wearing loose fitting clothing. Entanglement of the clothing with the rotating elements can result in serious injury or even d all rotating elements at all times.

(SSP-3)

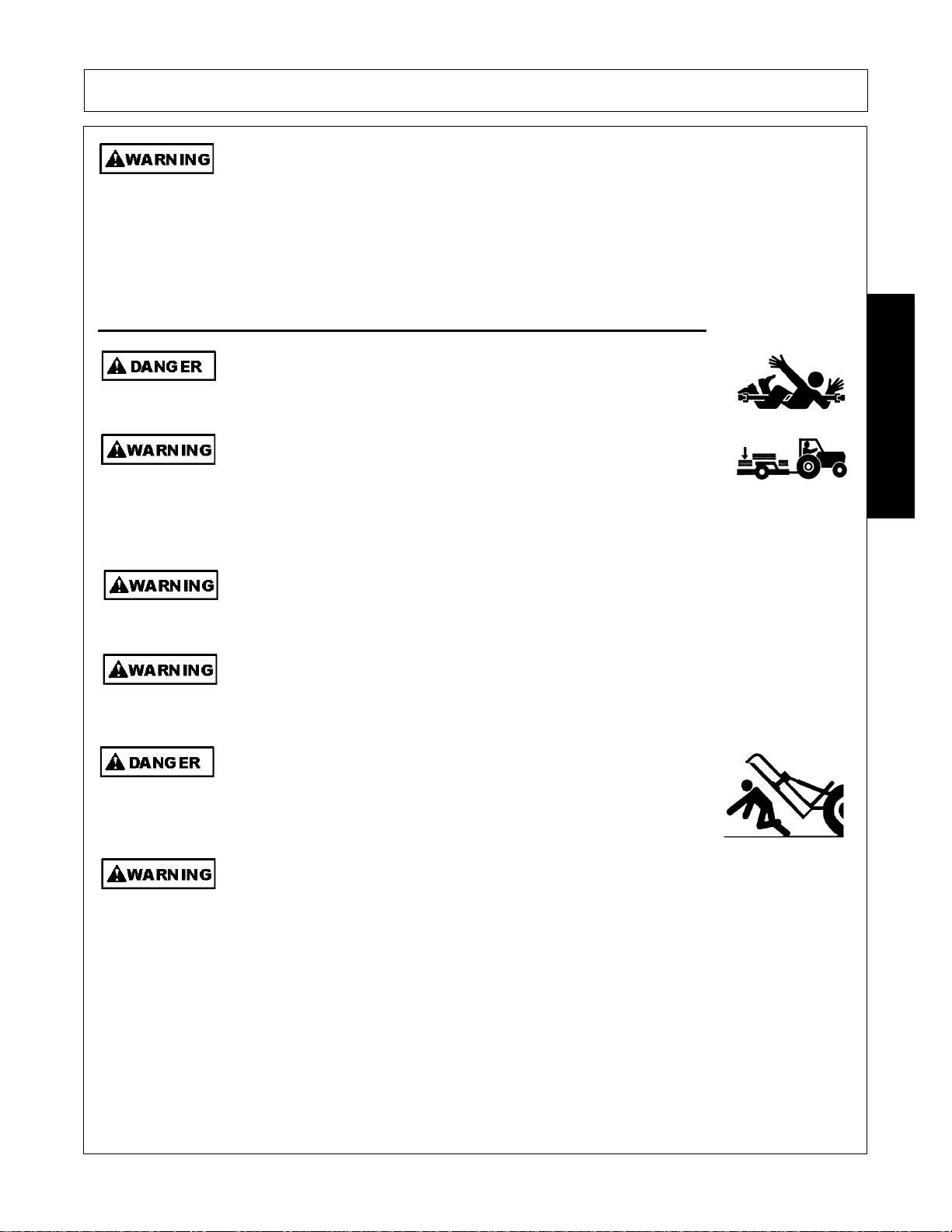

Connecting or Disconnecting Implement Safety Instructions and Practices

DO NOT use a PTO adapter to attach a non-matching Implement driveline to a Tractor

PTO. Use of an adapter can double the operating speed of the Implement resulting in excessive vibration, thrown objects, and blade and implement failure. Adapter use will also change the working length of the driveline exposing unshielded driveline areas. Serious bodily injury and/or equipment failure can result from using a PTO adapter. Consult an authorized dealer for assistance if the Implement driveline does not match the Tractor PTO.

(S3PT-14)

(SSB-6)

eath. Stay clear of

SAFETY

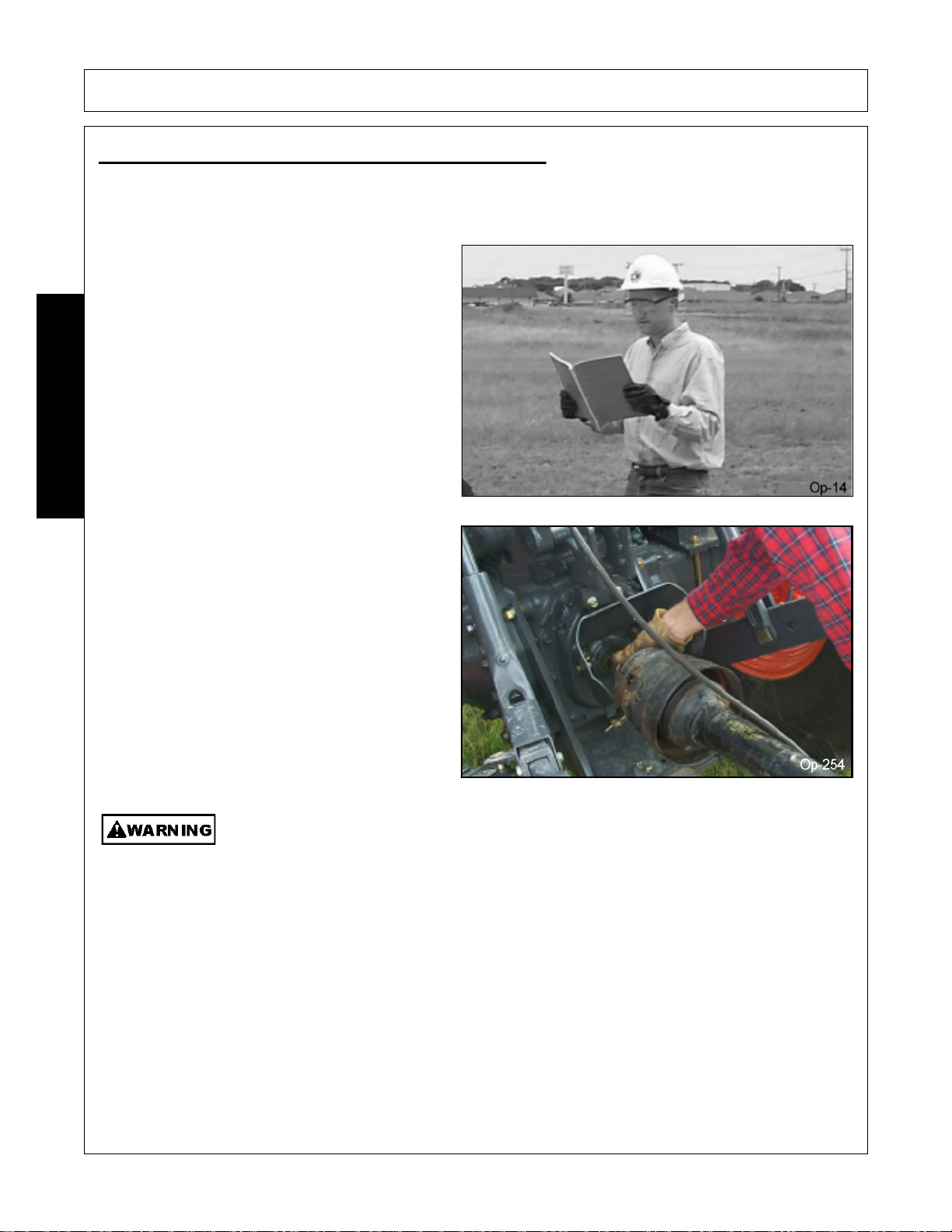

Always shut the Tractor completely down, place the transmission in park, and set the parking brake before you or anyone else attempts to connect or disconnect the Implement and Tractor hitches.

(S3PT-15)

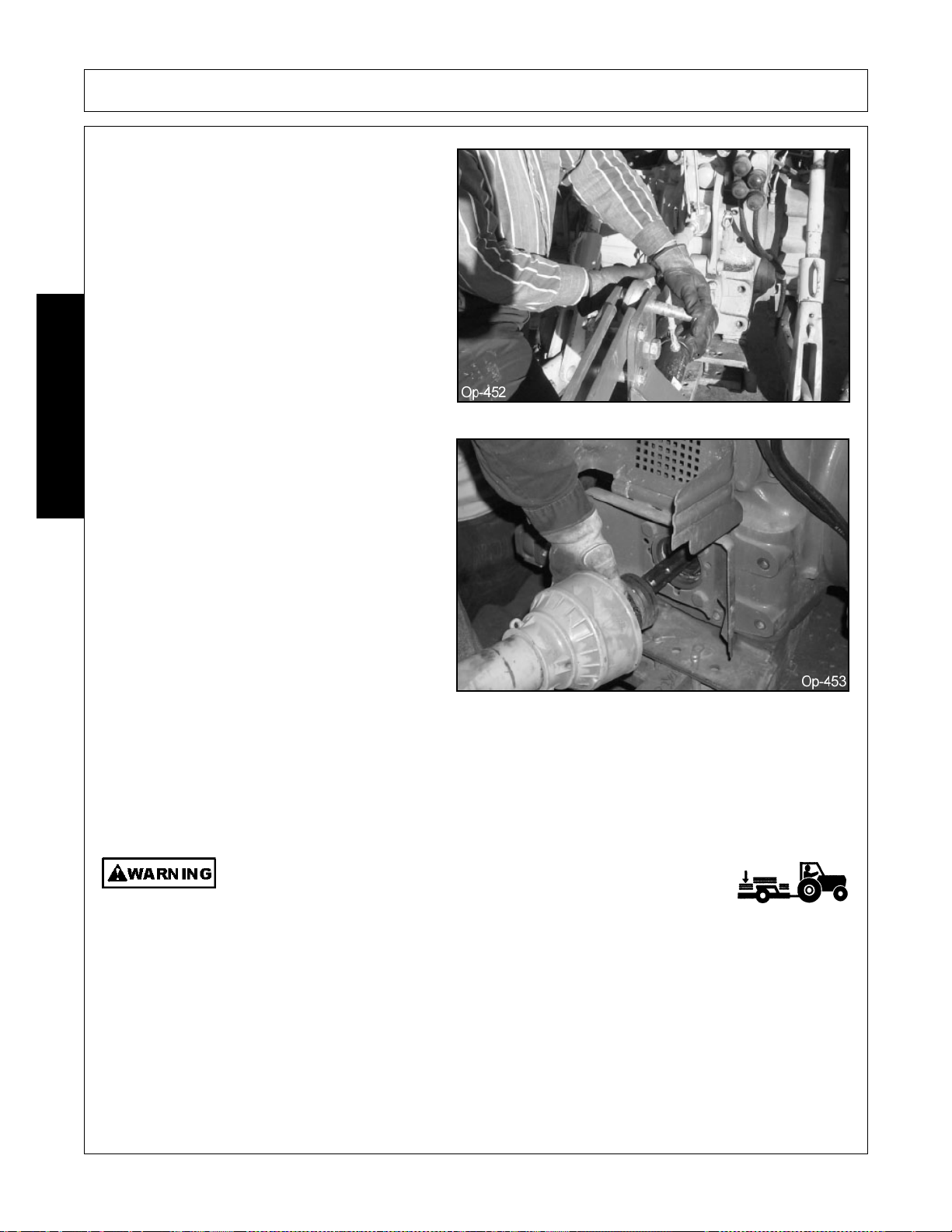

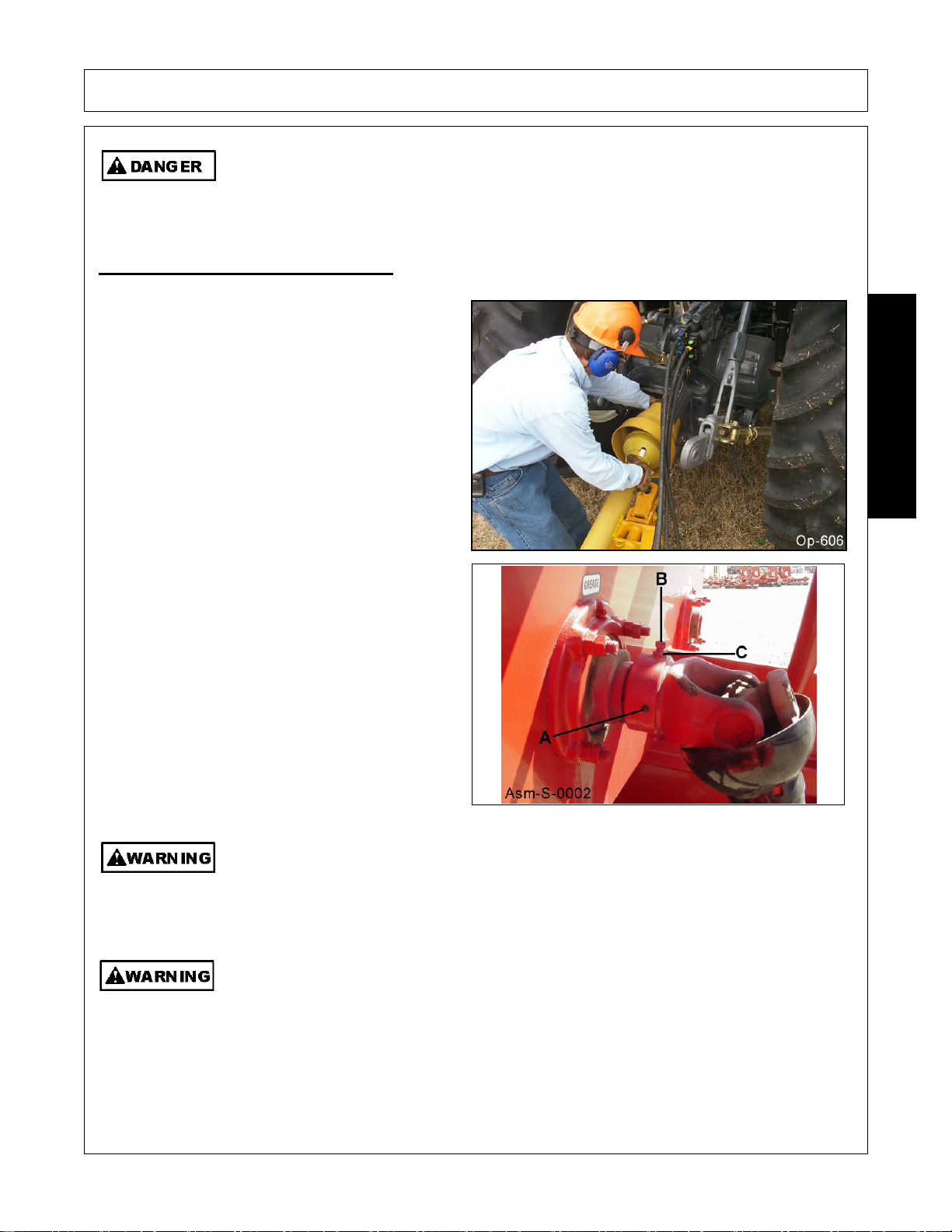

When attaching the Implement input driveline to the Tractor PTO, it is important that the connecting yoke spring activated locking collar slides freely and the locking balls are seated securely in the groove on the Tractor PTO shaft. A driveline not attached correctly to the Tractor PTO shaft could come loose and result in personal injury and damage to the Implement.

(S3PT-17)

Before operating the Implement, check to make sure the Implement input driveline will not bottom out or become disengaged. Bottoming out occurs when the inner shaft penetrates

the outer housing until the assembly becomes solid-it can shorten no more. Bottoming out can cause serious damage to the Tractor PTO by pushing the PTO into the Tractor and through the support bearings or downward onto the PTO shaft, breaking it off. A broken driveline can cause personal injury.

(S3PT-18)

Only use Tractors equipped with a ROPS cab and seatbelt with this equipment. Always wear your seat belts. Serious injury or even death could result from loss of control of the tractor or falling off.

(SSB-18)

9600A 04/08 Safety Section 1-5

2008 Teamco Inc.

SAFETY

Equipment Operation Safety Instructions and Practices

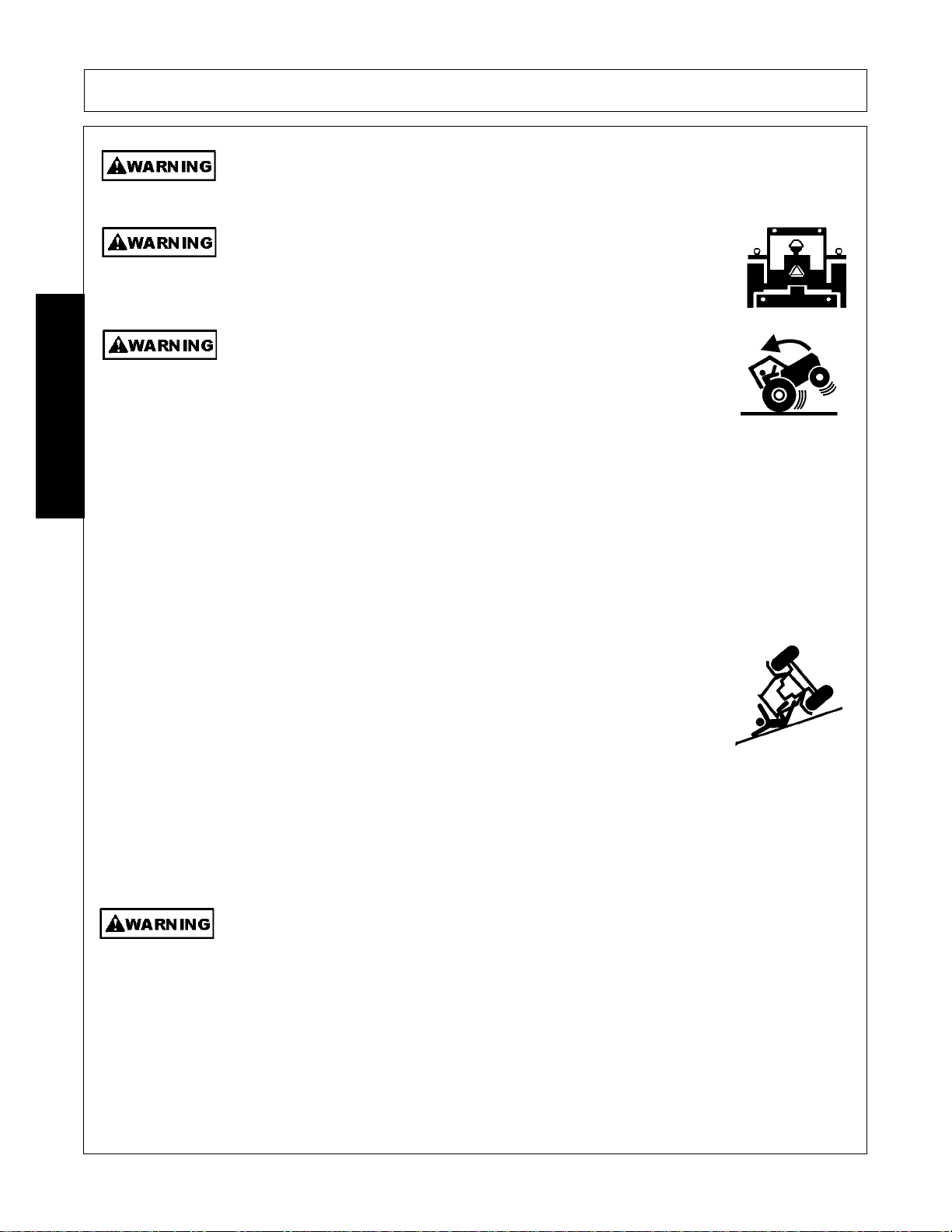

This Implement is wider than the Tractor. Be careful when operating or transporting this equipment to prevent the Implement from running into or striking sign posts, guard rails, concrete abutments or other solid objects. Such an impact could cause the Implement and Tractor to pivot violently resulting in loss of steering control, serious injury, or even death. Never allow the Implement to contact obstacles.

Operate this Equipment only with a Tractor equipped with an approved rollover-protective system (ROPS). Always wear seat belts. Serious injury or even death could result from falling off the tractor--particularly during a turnover when the operator could be pinned under the ROPS.

(S3PT-12)

(SG-7)

SAFETY

BEFORE leaving the tractor seat, always engage the brake and/or set the tractor transmission in parking gear, disengage the PTO, stop the engine, remove the key, and wait for all moving parts to stop. Place the tractor shift lever into a low range or parking gear to prevent the tractor from rolling. Never dismount a Tractor that is moving or while the engine is running. Operate the Tractor controls from the tractor seat only.

(SG-9)

Never allow children or other persons to ride on the Tractor or Implement. Falling off can result in serious injury or death.

(SG-10)

Never allow children to operate, ride on, or come close to the Tractor or Implement. Usually, 16-17 year-old children who are mature and responsible can operate the implement with adult supervision, if they have read and understand the Operator’s Manuals, been trained in proper operation of the tractor and Implement, and are physically large enough to reach and operate the controls easily.

(SG-11)

Do not mount the Tractor while the tractor is moving. Mount the Tractor only when the Tractor and all moving parts are completely stopped.

(SG-12)

9600A 04/08 Safety Section 1-6

2008 Teamco Inc.

SAFETY

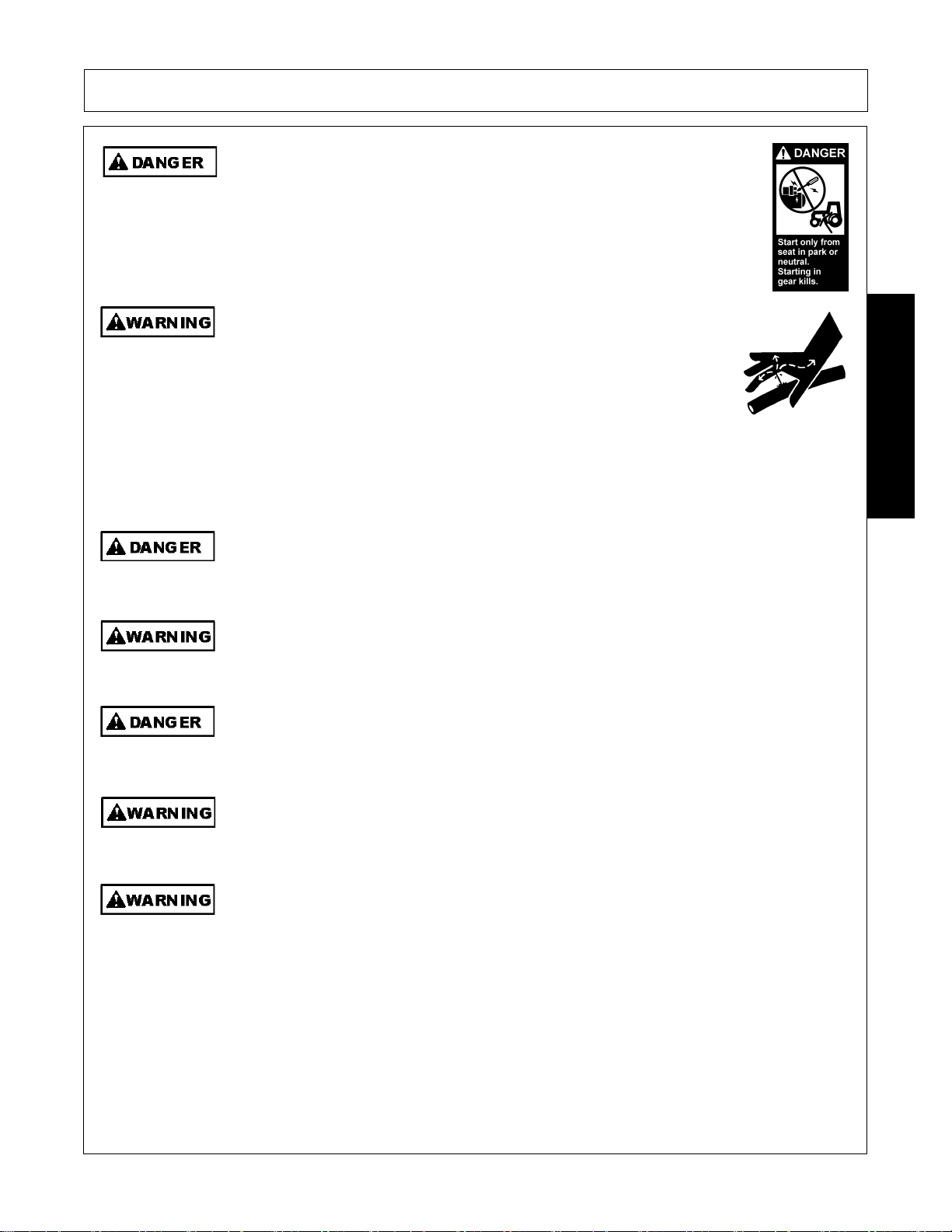

Start tractor only when properly seated in the Tractor seat. Starting a tractor in gear can result in injury or death. Read the Tractor operators manual for proper starting instructions.

Do not operate this Equipment with hydraulic oil or fuel leaking. Oil and fuel are explosive and their presence could present a hazard. Do not check for leaks with your hand! High-pressure oil streams from breaks in the line could penetrate the skin and cause tissue damage including gangrene. To check for a hose leak, SHUT the unit ENGINE OFF and remove all hydraulic pressure. Wear oil impenetrable gloves, safety glasses and use Cardboard to check for evidence of oil leaks. If you suspect a leak, REMOVE the HOSE and have it tested at a Dealer. If oil does penetrate the skin, have the injury treated immediately by a physician knowledgeable and skilled in this procedure.

Never run the Tractor engine in a closed building or without adequate ventilation. The exhaust fumes can be hazardous to your health.

(SG-13)

(SG-15)

(SG-23)

SAFETY

Do not exceed the rated PTO speed for the Implement. Excessive PTO speeds can cause Implement driveline or blade failures resulting in serious injury or death.

(SG-26)

Operate the Tractor and/or Implement controls only while properly seated in the Tractor seat with the seat belt securely fastened around you. Inadvertent movement of the Tractor or Implement may cause serious injury or death.

(SG-29)

In case of mechanical difficulty during operation, place the transmission in the park position, set the parking brake, shut down all power, including the PTO and the engine and remove the key. Wa

it until all rotating motion has stopped before dismounting.

(SG-39)

Never leave the Implement and Power Unit unattended while the Implement is in the raised position. Accidental operation of a lifting lever or a hydraulic failure may cause the implement to suddenly fall causing serious injury or possible death to anyone who might inadvertently be under the Implement. Lower the implement carefully to the ground. Do not put hands or feet under lifted components.

(SPU-3)

9600A 04/08 Safety Section 1-7

2008 Teamco Inc.

SAFETY

Only operate the snow blower in conditions were you have clear visibility in daylight or with

adequate artificial lighting. Never snow blow in darkness or in conditions where you cannot clearly see at least 100 yards in front and to the sides of the Tractor and Snow Blower. Make sure that you can clearly see and identify passersby, steep slopes, ditches, drop-offs, overhead obstructions, power lines, debris and foreign objects. If you are unable to clearly see these types of items, discontinue snow blowing.

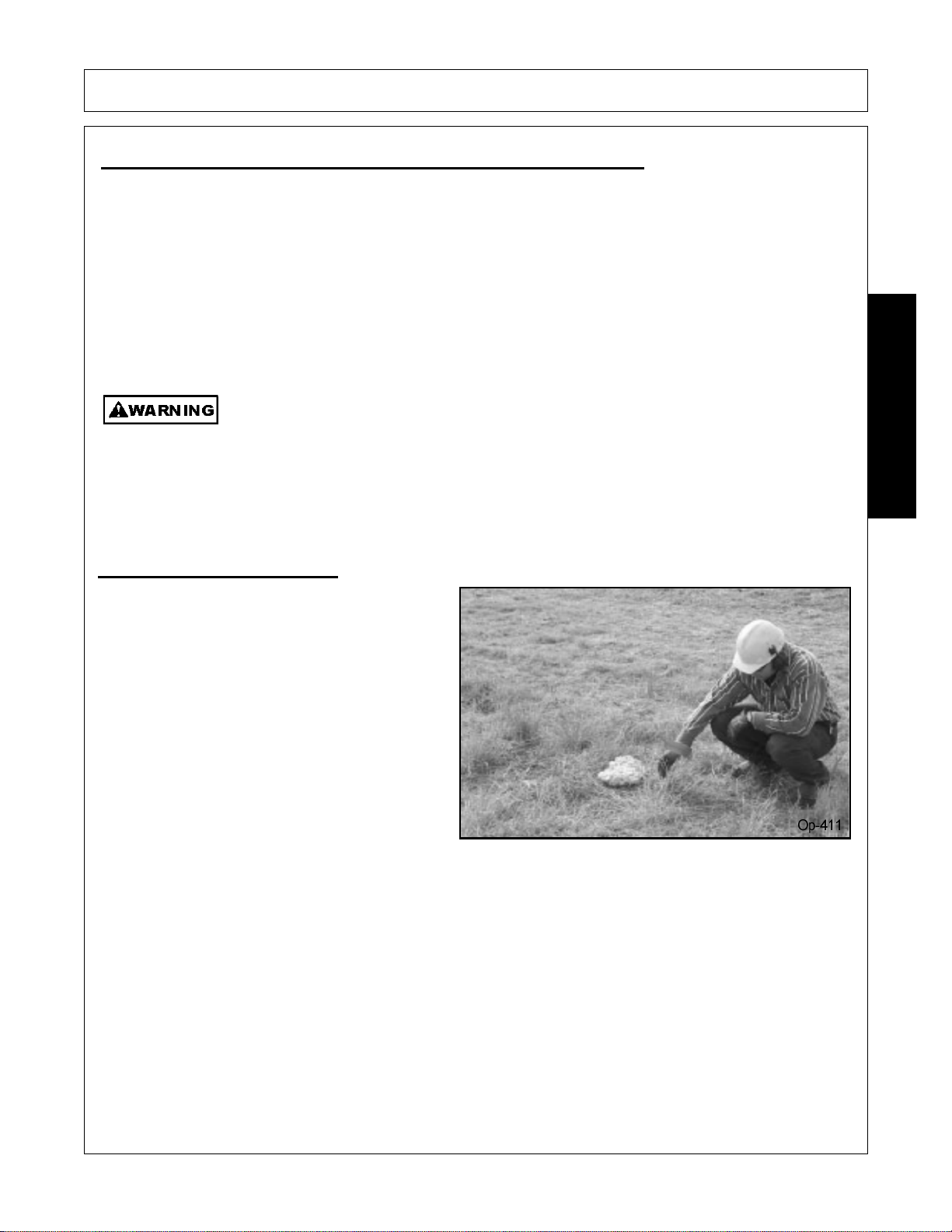

Extreme care should be taken when operating near loose objects such

as gravel, rocks, wire, and other debris. Inspect the area before snowblowing. Foreign objects should be removed from the site to prevent machine damage and/or bodily injury or be clearly marked and carefully avoided by the operator. Stop snowblowing immediately if fans strike a foreign object. Repair all damage and make certain fans are balanced before resuming mowing.

Many varied objects, such as wire, cable, rope, or chains can become entangled in the

SAFETY

operating parts of the Snow Blower. These items could then swing outside the housing at

high speeds. Such a situation is extremely hazardous and could result in serious injury or

even death. Inspect the work area for such objects before snow blowing. Remove any like

object from the site. Never allow the

even death. Any objects that cannot be removed must

(SGM-5)

fans to contact such items.

(SSB-3)

(SSB-1)

Blow snow at the speed that you can safely operate and control the Tractor and Snow Blower. Safe speed depends on terrain and snow conditions. Normal ground speed range is from 0 to 5 mph. Use slow speeds when operating on or near steep slopes, ditches, dropoffs, overhead obstructions, power lines, or when debris and foreign objects are to be avoided.

(SSB-4)

Snow Blowers are capable under adverse conditions of throwing objects for great distances (200 feet or more). Do not allow the snow stream to fall on passersby. Ice, debris and heavy snow thrown from the snow blower can cause serious injury or death.

(SSB-7)

STOP SNOW BLOWING IF PASSERSBY ARE WITHIN 200 FEET.

When blowing snow with two machines in the same area be sure that windows are closed.

(SSB-10)

There are obvious and hidden potential hazards in the operation of this Snow Blower. REMEMBER! This machine is often operated in deep snow where vision is reduced. The fans of this Snow Blower can throw objects for great distances Serio death

may occur unless care is taken to insure

the safety of the operator, bystanders, or

us injury or even

passersby in the area. Do not operate this machine with anyone in the immediate area. Stop Snow Blowing if anyone is within 200 feet of Snow Blower.

(SSB-11)

9600A 04/08 Safety Section 1-8

2008 Teamco Inc.

SAFETY

Do not operate Snow Blower if excessive vibration exists. Shut down PTO and the Tractor engine. Inspect the Snow Blower to determine the source of the vibration. If fans are damaged replace them have been replaced and the Blower operates smoothly. Operating the Snow Blower with excessive vibration can result in component failu outward at very high velocities. To reduce the possibility of property damage, serious injury, or even death, never allow the Snow Blower to be operated with fan paddles missing.

The rotating parts of this machine have been designed and tested for rugged use. However, the fans and rotating members could fail upon impact with heavy, solid objects such as metal guard rails and concrete structures. Such impact could cause the broken objects to be thrown outward at very high velocities. To reduce the possibility of property damage, serious injury, or even death, never allow the rotating obstacles.

(SSB-13)

Always keep a careful lookout and use extreme care when working around utility lines. Heavy snow or ice storms can cause utility lines to sage or drop to the ground. Never allow

the Snow Bower within 10 feet of any Utility power or gas line. When working close to Utility lines consult your electric or gas company for a safe code of operation.

Before dismounting to clear a clogged machine, place the transmission in the park position, set the parking brake, shut down all power, including the PTO and the engine and remove the key. Wait until all rotating motion has stop before dismounting. (SSB-16)

immediately. Do not operate the Snow Blower until the fans

re and broken objects to be thrown

(SSB-12)

fans to contact such

(SSB-15)

SAFETY

Snow can cover and hide solid objects such as guard rails, curbs, concrete structures, large rocks, utility boxes, fir hydrants, etc. DO NOT allow the rotating parts of the Snow Blower to contact such items. Inspect the area before operating the Snow Blower. Mark all solid items clearly with a pole or flag. To reduce the possibility of property damage, serious injury, or even death, never allow the rotating

fans to contact such obstacles.

(SSB-20)

The Snow Blower can block the operators vision directly in front of the Snow Blower. Inspect the area before operating the Snow Blower and make sure that there are no obstacles, passersby, or coworkers in the path of the Snow Blower.

(SSB-22)

Transporting Safety Instructions and Practices

Be particularly careful when transporting the Implement with the Tractor. Turn curves or go up hills only at a low speed and using a gradual steering angle. Rear mounted implements

move the center of gravity to the rear and remove weight from the front wheels. Make certain, by adding front ballast, that at least 20% of the tractor’s weight is on the

front wheels to prevent rearing up control or Tractor tip-over. Slow down on rough or uneven surfaces to prevent loss of steering control which could result in property damage or possible injury. Do not transport unless 3-Point lift lever is fully raised and in the latched transport position. Dropping implement in transport can cause serious damage to the tractor and/or Implement and possibly cause the operator or

others to be injured or killed.

(S3PT-2)

, loss of steering

9600A 04/08 Safety Section 1-9

2008 Teamco Inc.

SAFETY

Allow sufficient clearance for the Implement to swing outward while turning. Implements carried behind the Tractor will swing outside the tire path when making turns. Contacting a solid object while turning will cause equipment damage and possible injury.

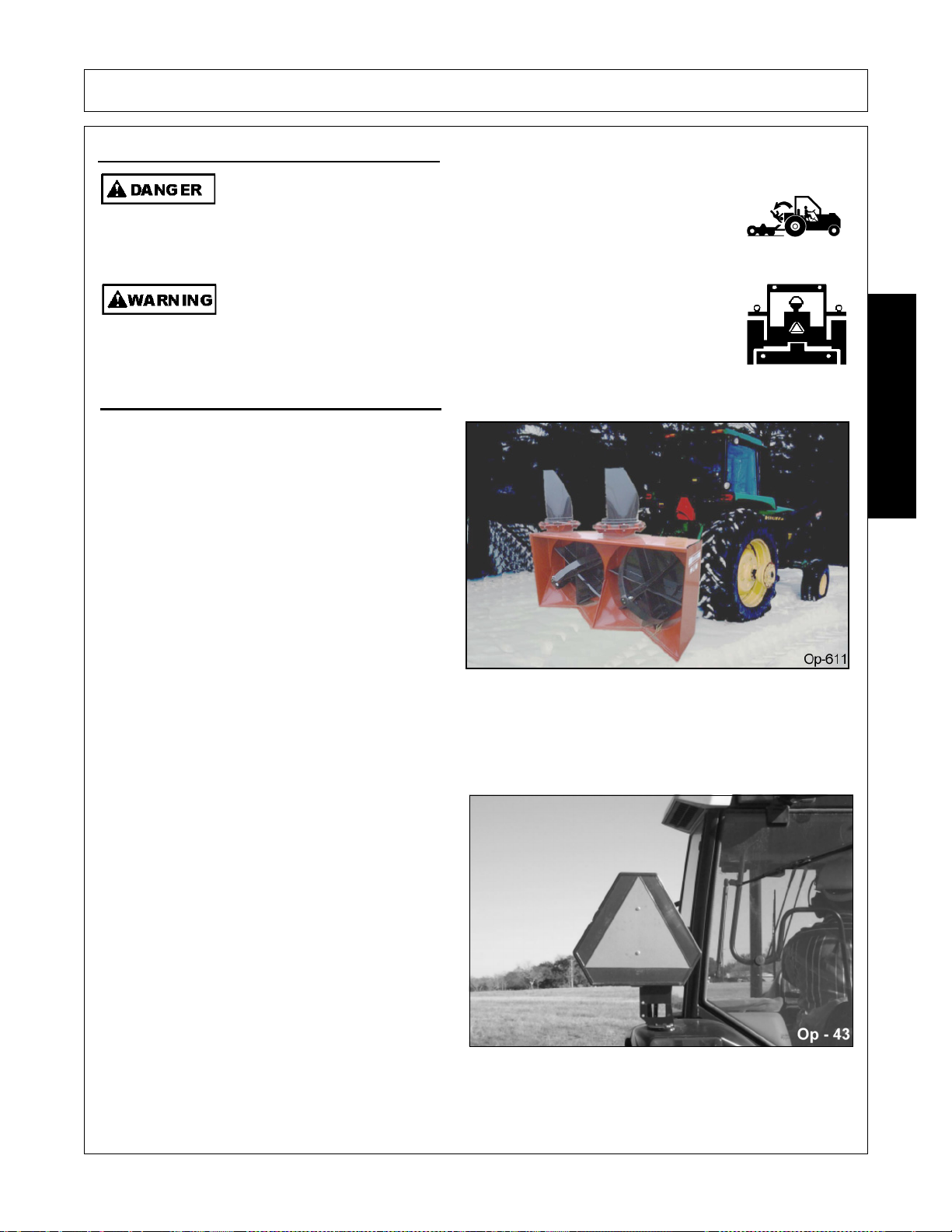

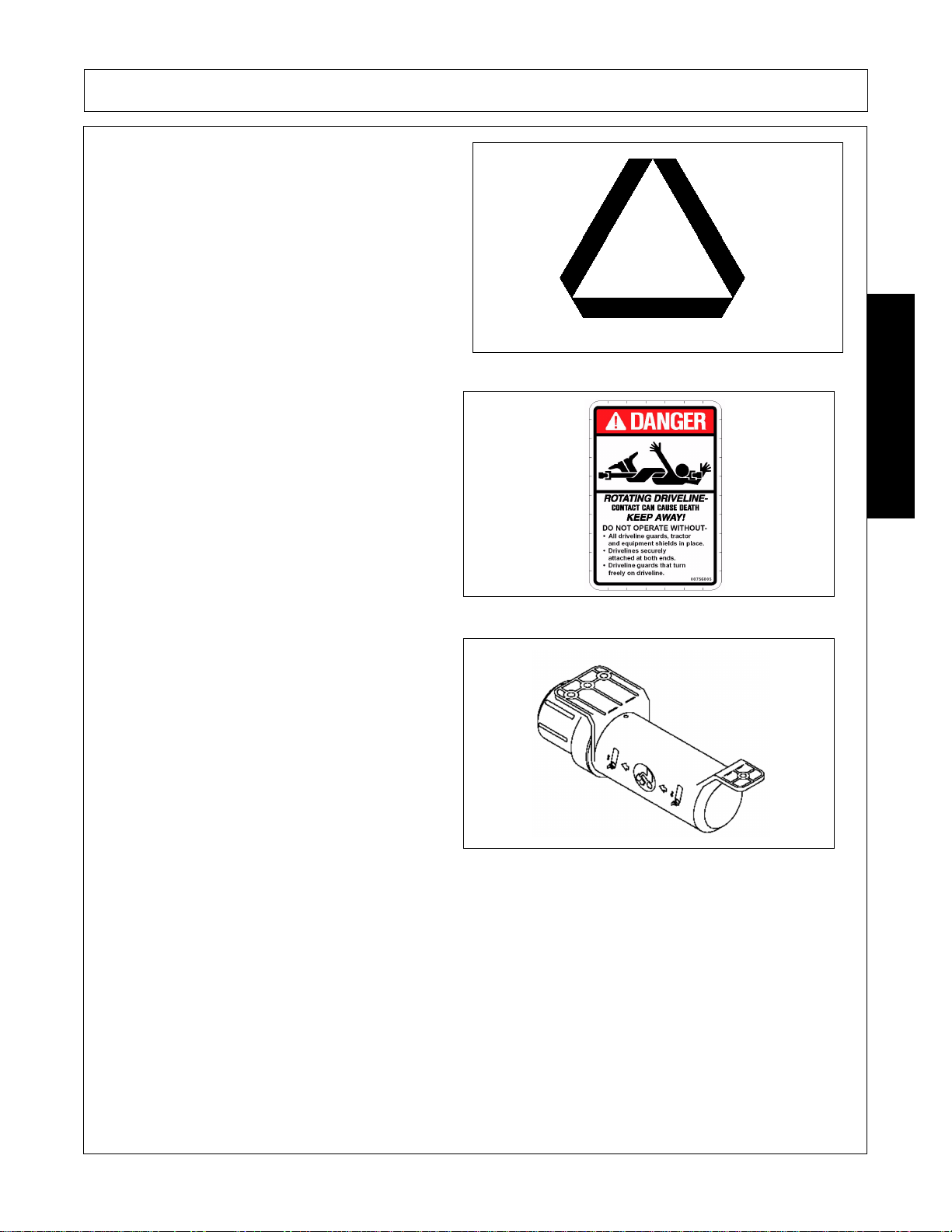

Make certain that the “Slow Moving Vehicle” (SMV) sign is installed in such a way as to be clearly visible and legible. When transporting the Equipment use the Tractor flashing warning lights and follow all local traffic regulations.

Transport only at speeds where you can maintain control of the

equipment. Serious accidents and injuries can result from operating this equipment at high speeds. Understand the Tractor and Implement and how it handles before transporting on streets and highways. Make sure the Tractor steering and brakes are in good condition and operate properly.

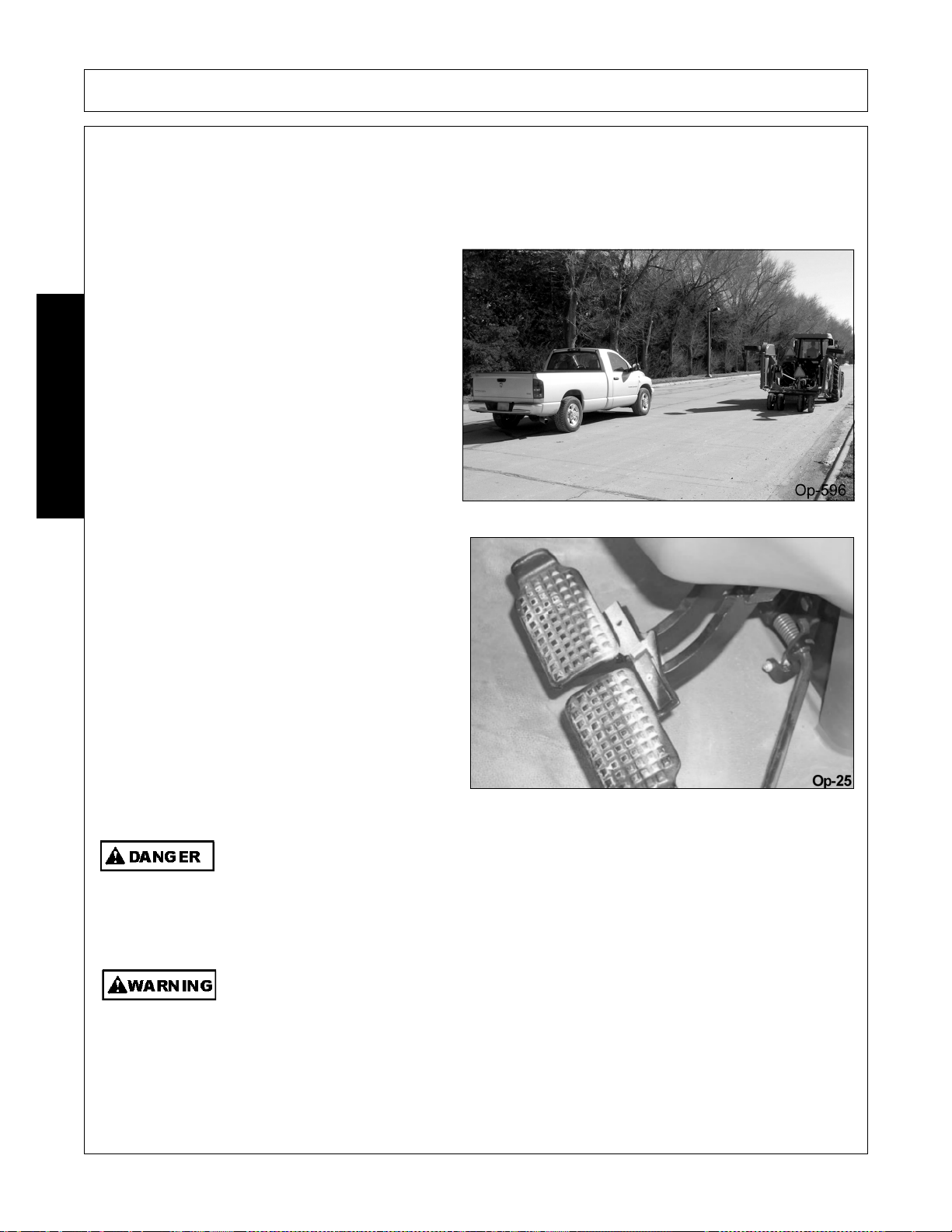

Before transporting the Tractor and Implement, determine the proper transport speeds for

SAFETY

you and the equipment. Make sure you abide by the following rules:

• Test the tractor at a slow speed and increase the speed slowly. Apply the Brakes

smoothly to determine the stopping characteristics of the Tractor and Implement. As you increase the speed of the Tractor the stopping distance increases. Determine the maximum transport speed not to exceed 20 mph (30 kph) for transporting this equipment.

(SG-6)

(S3PT-20)

• Test the equipment at a slow speed in turns. Increase the speed through the turn only

after you determine that the equipment can be operated at a higher speed. Use extreme care and reduce your speed when turning sharply to prevent the tractor and implement from turning over. Determine the maximum turning speed for you and this equipment before operating on roads or uneven ground.

• Only transport the Tractor and Implement at the speeds which allow you to properly

control the equipment.

Be aware of the operating conditions. Do not operate the Tractor with weak or faulty brakes or worn tires. When operating down a hill or on wet or rain slick roads, the braking distance increases: use extreme care and reduce your speed. When operating in traffic always use the Tractor’s flashing warning lights and reduce your speed. Be aware of traffic around you and watch out for the other guy.

Before transporting the Snow Blower, position the snow discharge shoot in the center position to reduce the possibility of blocking the operators vision.

(SG-19)

(SSB-21)

9600A 04/08 Safety Section 1-10

2008 Teamco Inc.

SAFETY

Your driving vision may be reduced or impaired by the tractor, cab, or implement. Before driving on public roadways identify any limited vision areas, and make adjustments to your operating position, mirrors, and the implement transport position so that you can clearly see the area where you will be traveling, and any traffic that may approach you. Failure to maintain adequate vision of the public roadway and traffic can result in serious injury or even death.

(STI-10)

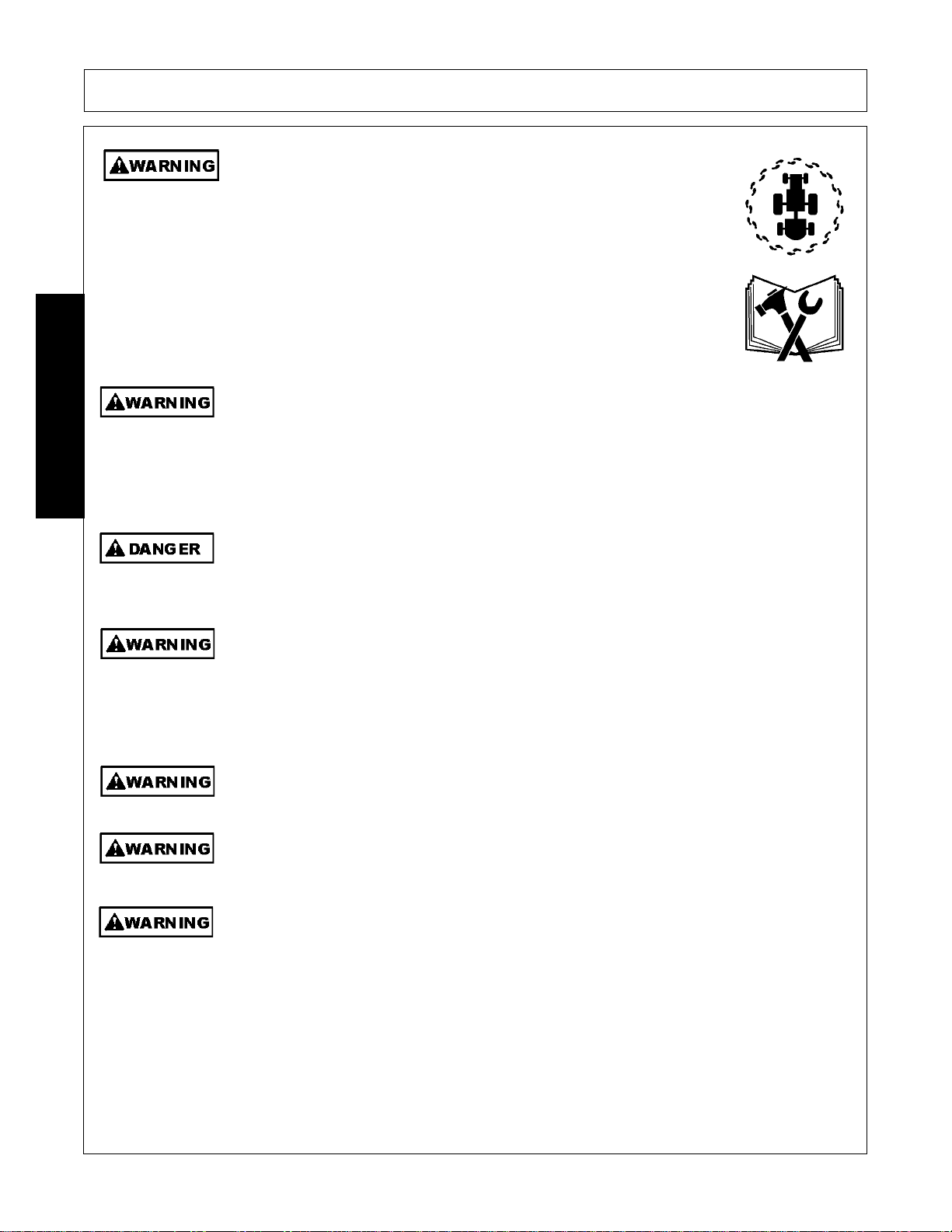

Maintenance and Service Safety Instructions and Practices

Make sure the PTO shield, integral driveline shields, and input shields are is installed when using PTO-driven equipment. Always replace any shield if it is damaged or missing.

Relieve hydraulic pressure prior to doing any maintenance or repair work on the Implement. Place the Implement on the ground or securely blocked up, disengage the PTO, and turn off the tractor engine. Push and pull the Remote Cylinder lever in and out several times prior to starting any maintenance or repair work.

Always maintain the safety signs in good readable condition. If the safety signs are missing, damaged, or unreadable, obtain and install replacement safety signs immediately.

(SG-5)

Do not modify or alter this Implement. Do not permit anyone to modify or alter this

Implement, any of its components or any Implement function.

Never work under the Implement, the framework, or any lifted component unless the Implement is securely supported or blocked up to prevent sudden or inadvertent falling which could cause serious injury or even death.

(SG-14)

(S3PT-8)

(S3PT-9)

(SG-8)

SAFETY

Never attempt to lubricate, adjust, or remove material from the Implement while it is in motion or while tractor engine is running.

(SG-20)

9600A 04/08 Safety Section 1-11

2008 Teamco Inc.

SAFETY

Periodically inspect all moving parts for wear and replace when necessary with authorized service parts. Look for loose fasteners, worn or broken parts, and leaky or loose fittings. Make sure all pins have cotter pins and washers. Serious injury may occur from not maintaining this machine in good working order.

Perform service, repairs and lubrication according to the maintenance section. Ensure the

unit is properly lubricated as specified in the lubrication schedule and all bolts and nuts are

properly torqued. Failure to properly service, repair and maintain this Implement in good

operating condition could cause component failure and possible serious injury or even

death.

(SG-35)

Always disconnect the main PTO Driveline from the Tractor before performing service on the Snow Blower. Never work on the Snow Blower with the Tractor PTO driveline connected and running. The Fan, Auger or Drivelines could turn without warning and cause immediate entanglement, injury or death.

(SG-21)

(SSB-8)

All Safety Shields, Guards and Safety devices including (but not limited to) - the Chain Shield, Cross Shaft Shield, Gearbox Shields, and PTO integral shields must be used and maintained in good working condition. All safety devices should be inspected carefully at least daily for missing or broken components. Missing, broken, or worn items must be replaced at once to reduce the possibility of injury or death from entanglement.

(SSB-9)

DO NOT weld or repair rotating Blower components. Welds and other repairs may cause severe vibration and/or component failure resulting in parts being thrown from the blower causing serious bodily injury. See your Authorized Dealer for proper repairs.

(SSB-14)

Ensure any remote starting system is inoperative before servicing or cleaning the machine. Inadvertent engine start up could result in entanglement or runover causing serious injuries or death.

(SSB-17)

Use only OEM specified shear pins as replacement pins. The use of incorrect shear pins can cause failures in the Snow Blower rotating components resulting in property damage and/or serious bodily injuries.

(SSB-19)

9600A 04/08 Safety Section 1-12

2008 Teamco Inc.

SAFETY

Concluding Safety Instructions and Practices

In addition to the design and configuration of this Implement, including Safety Signs and Safety Equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also to Safety Messages and operation instruction in each of the appropriate sections of the Tractor and Equipment Manuals. Pay close attention to the Safety Signs affixed to the Tractor and Equipment.

(SG-18)

SAFETY

9600A 04/08 Safety Section 1-13

2008 Teamco Inc.

SAFETY

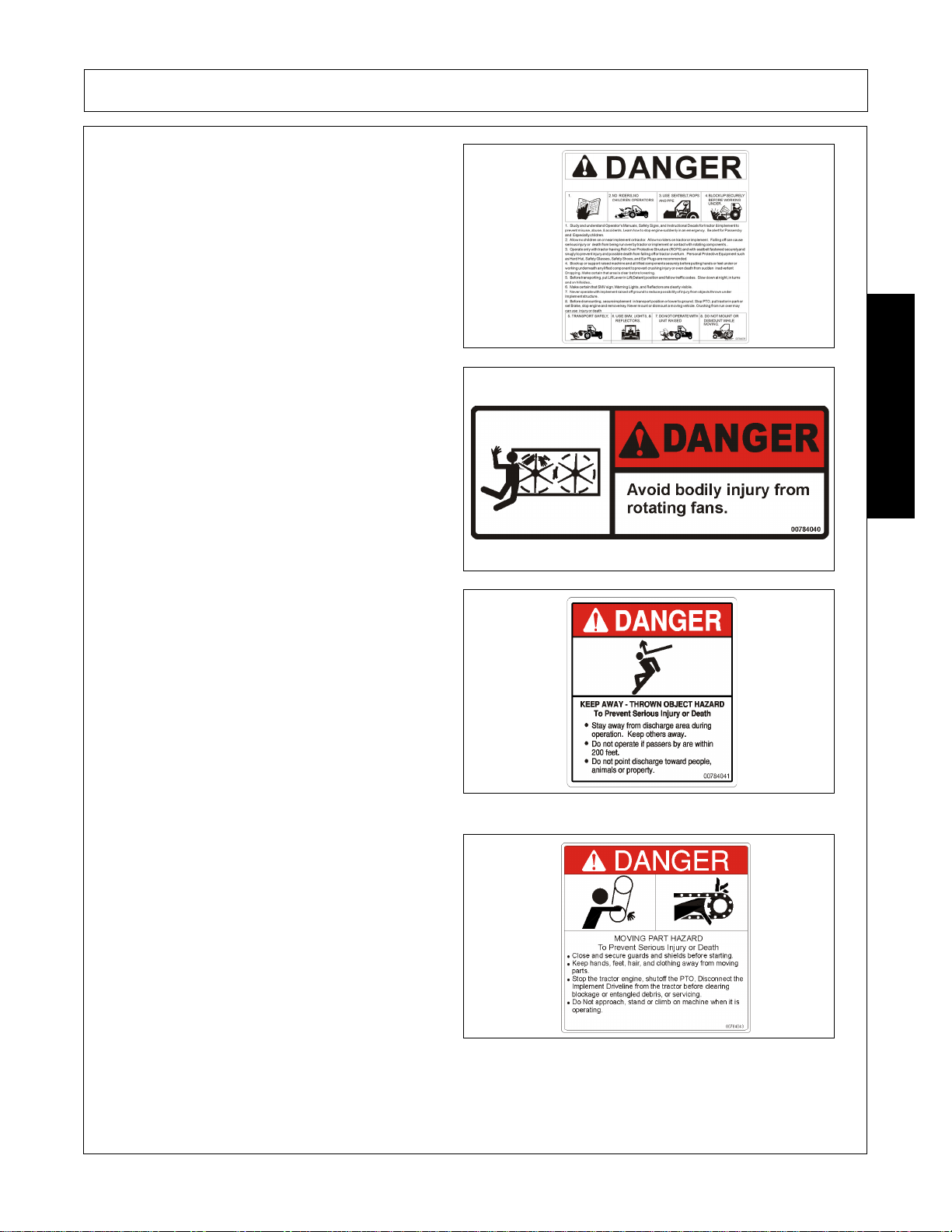

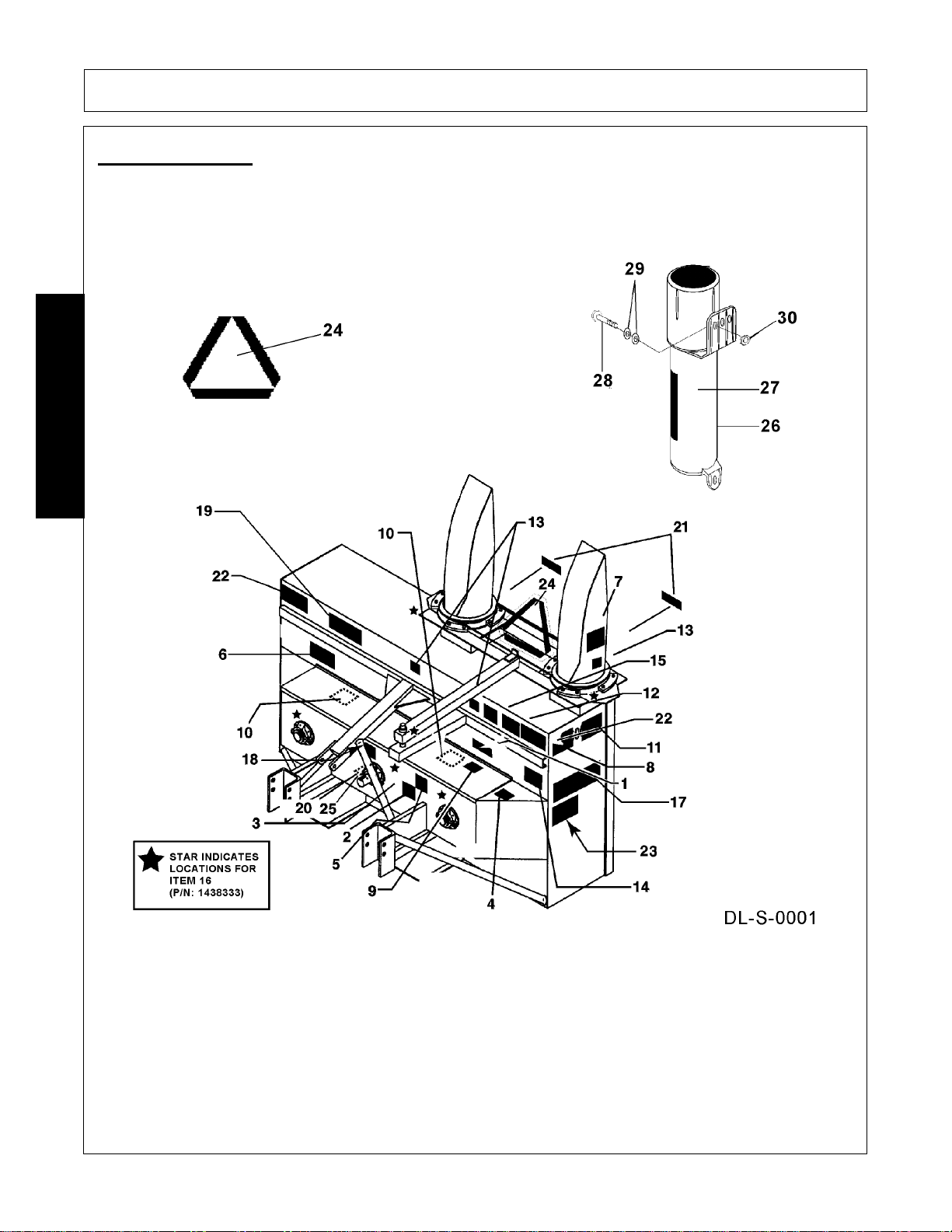

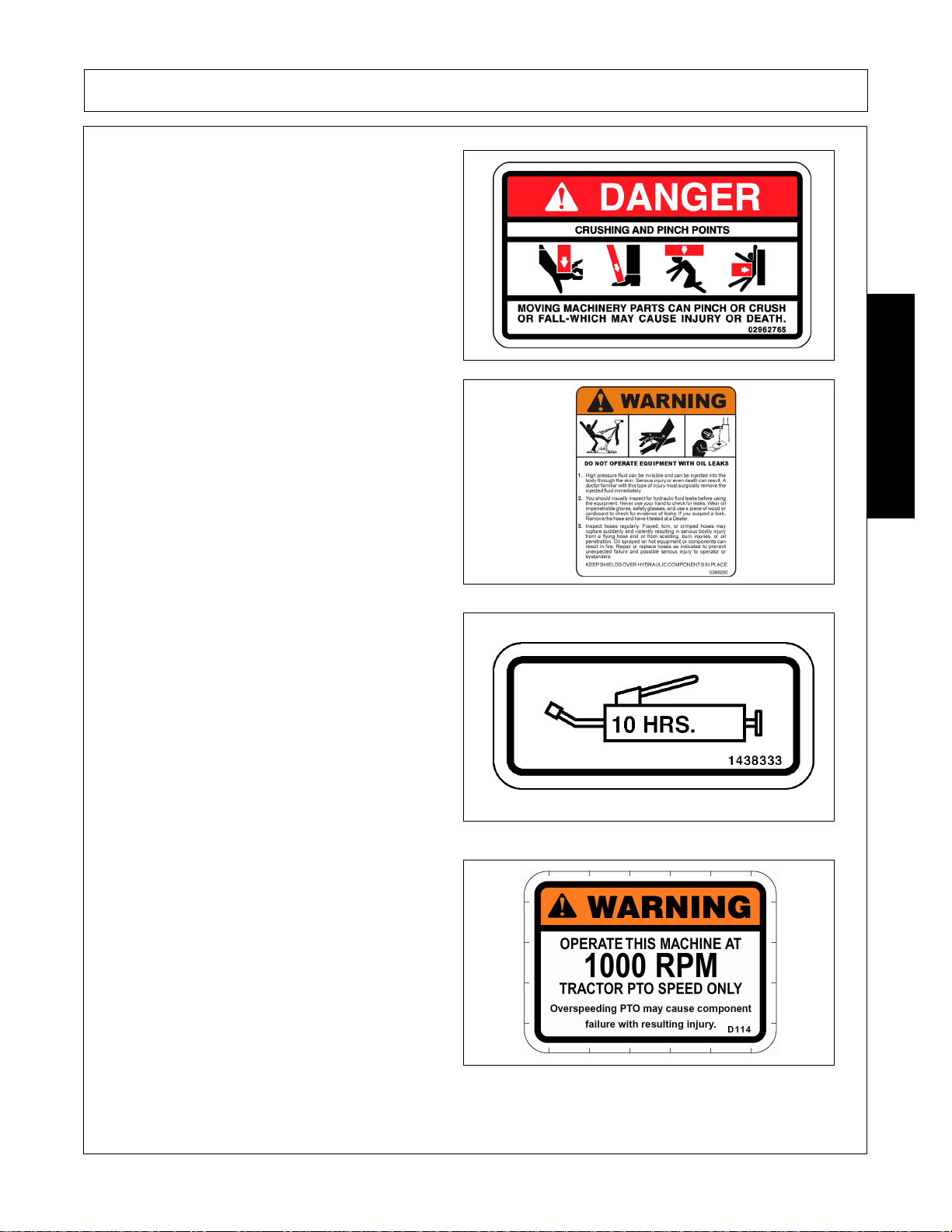

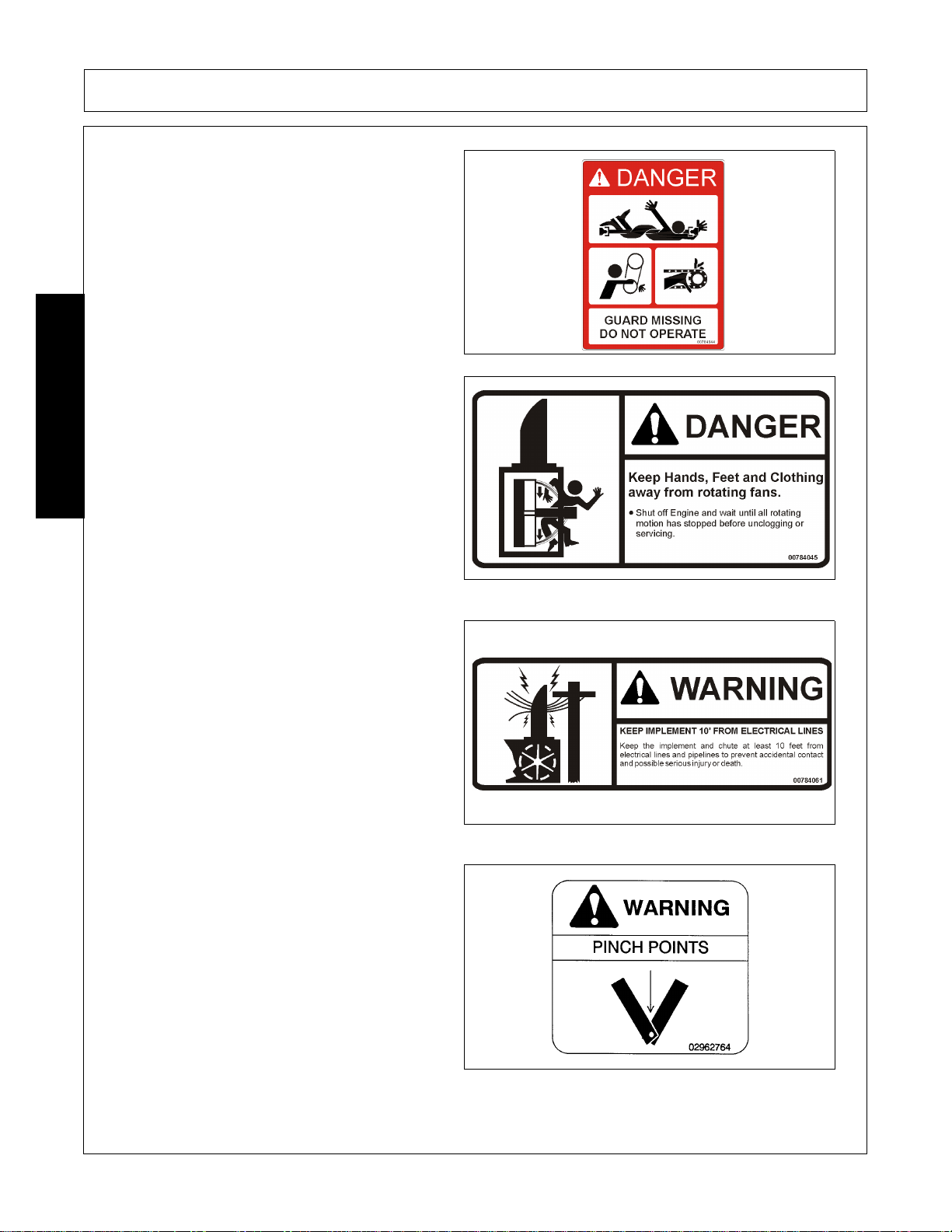

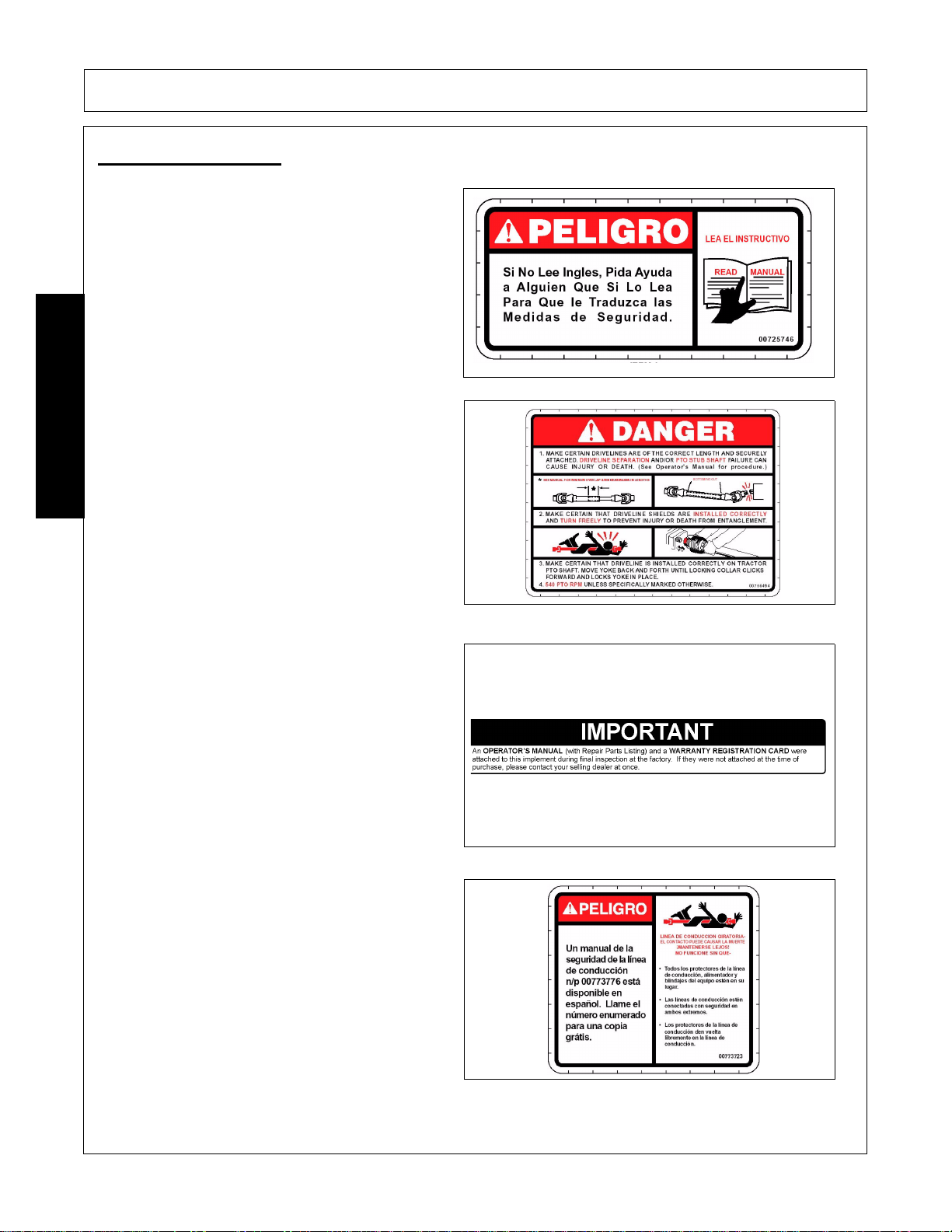

Decal Location

NOTE: Safety decals on this product promote safe operation. .

SAFETY

9600A 04/08 Safety Section 1-14

2008 Teamco Inc.

SAFETY

ITEM PART NO. QTY TYPE DESCRIPTION

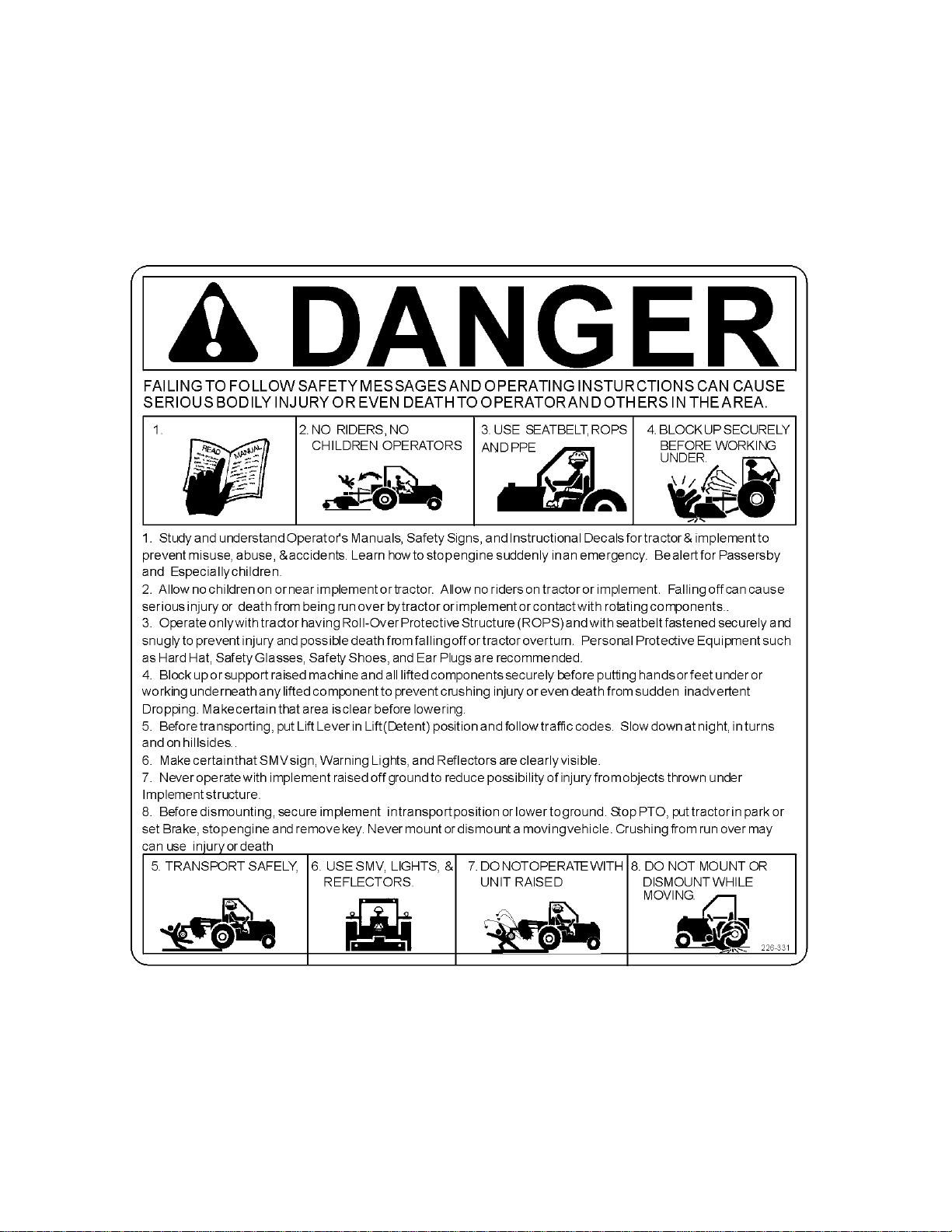

1. 00725746 1 DANGER Peligro

2. 00756494 1 DANGER Driveline Installation

3. 1 INSTRUCT Genuine Parts

4. 00763977 1 INSTRUCT Notice to Owner

5. 00773723 1 DANGER Peligro Driveline

6. 226-331 1 WARNING Multi-Hazard

7. 00784040 2 DANGER Avoid Bodily Injury from Rotating Fans

8. 00784041 2 WARNING Thrown Objects

9. 00784043 1 DANGER Moving Parts

10. 00784044 2 DANGER Guard Missing

11. 00784045 2 DANGER Stay Back from Snowblower Intake

12. 00784061 1 WARNING Snowblower Contact Electrical Wires

13. 02962764 4 WARNING Pinch Points

14. 02962765 2 DANGER Multi-Hazard Pinch Points

15. 02965262 1 WARNING Hose Burst

16. 1438333 6 INSTRUCT Grease every 10 Hours

17. 2 LOGO Logo

18. D114 1 WARNING 1000 RPM

19. 2 LOGO Logo

20. 00756004 2 DANGER Shield Missing

21. 1458392 2 REFLCTR Red Reflector

22. 1458393 2 REFLCTR Yellow Reflector

23. 2 NAME 9600A

24. 03200347 1 REFLCTR SMV Sign

25. 00756005 1 DANGER Rotating Driveline

26. 00776031 1 ________ Canister, Operator’s Manual

27. 5047C 1 ________ Operator’s Manual Inside

28. 10058000 1 ________ Bolt

29. 00024100 2 ________ Flatwasher

30. 02959924 1 ________ Locknut

SAFETY

9600A 04/08 Safety Section 1-15

2008 Teamco Inc.

Decal Description

Peligro Translation, If you do not know how to read English, please find someone who knows how to read English.

P/N 00725746

DANGER! Make certain that drivelines are correct length and are securely attached.

SAFETY

P/N 00756494

Operator's Manual (with repair parts) and warranty was attached to this implement during final inspection.

P/N 00763977

PELIGRO! Spanish Translation for Driveline Safety

P/N 00773723

9600A 04/08 Safety Section 1-16

2008 Teamco Inc.

DANGER! Multi-Hazard Safety

SAFETY

P/N 00784039

DANGER! Avoid bodily injury from rotating fans.

P/N 00784040

WARNING! Thrown Objects.

P/N 00784041

SAFETY

DANGER! Moving Parts.

P/N 00784043

9600A 04/08 Safety Section 1-17

2008 Teamco Inc.

DANGER! Guard Missing.

P/N 00784044

DANGER! Stay Back from Snowblower Intake.

SAFETY

P/N 00784045

WARNING! Do Not Let Blower Spout Contact Electrical Power Lines

P/N 00784061

WARNING! Pinch Points

P/N 02962764

9600A 04/08 Safety Section 1-18

2008 Teamco Inc.

SAFETY

DANGER! Crushing and Pinch Points - Moving machinery parts can pinch or crush or fall - which may cause injury or death.

P/N 02962765

WARNING! Failure to INSPECT and REPAIR or REPLACE Hoses may allow worn Hoses to rupture SUDDENLY and VIOLENTLY with resulting serious BODILY INJURY from SCALDING or FIRE with resulting BURN INJURY or DEATH.

P/N 02965262

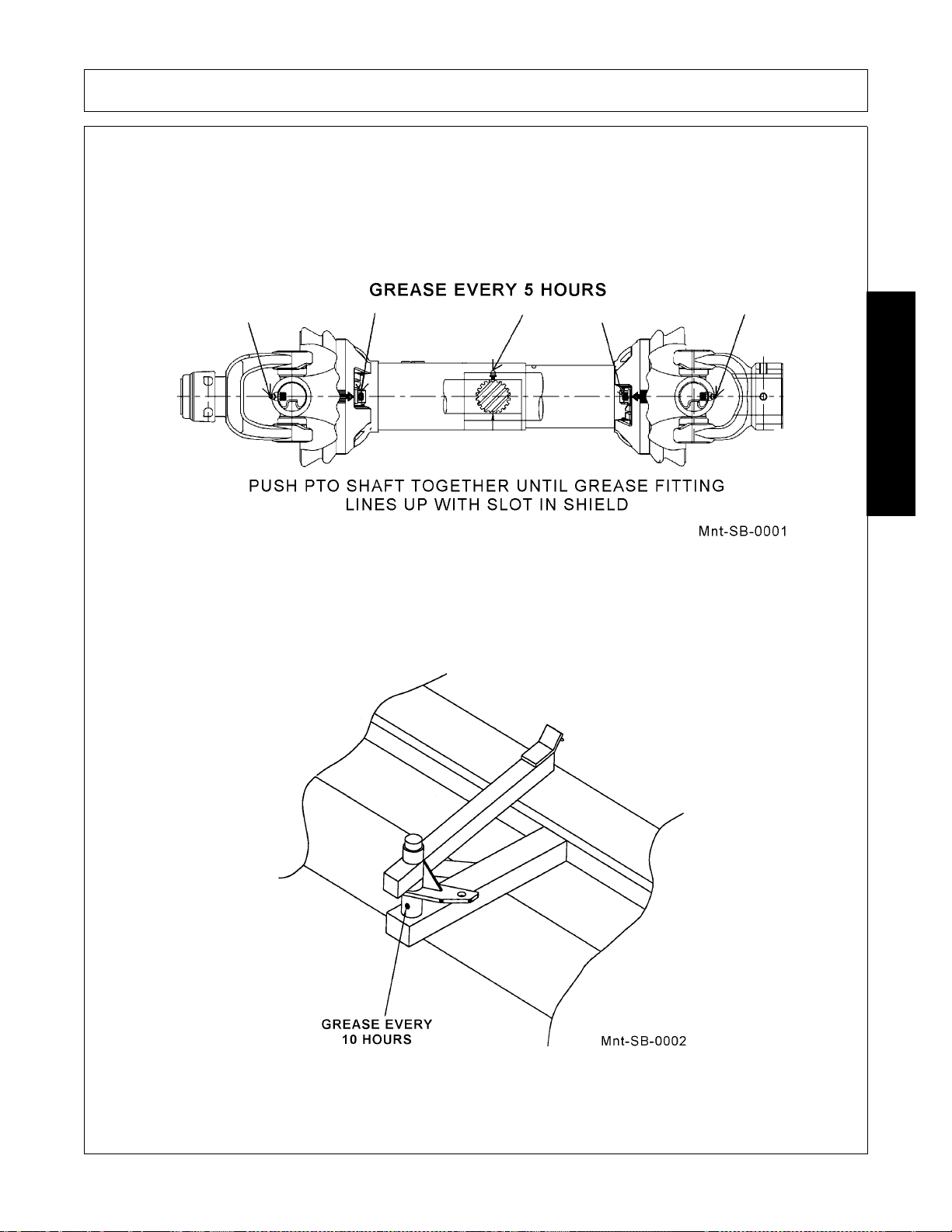

Grease 10 Hrs SV37

SAFETY

P/N 1438333

WARNING! Avoid Bodily Injury, Use 1000 RPM PTO Speed Only.

P/N D114

9600A 04/08 Safety Section 1-19

2008 Teamco Inc.

DANGER! Guard Missing, Do Not Operate. If you see this decal, Do Not Operate the mower until the shield has been replaced.

P/N 00756004

Red Reflector. Keep reflectors clean and visible.

SAFETY

P/N 1458392

Amber Reflector. Keep reflectors clean and visible.

P/N 1458393

9600A LOGO.

P/N 00783764

9600A 04/08 Safety Section 1-20

2008 Teamco Inc.

SAFETY

Slow Moving Vehicle Decal. Keep SMV reflector clean and visible. DO NOT transport or operate without the SMV. Provided by Tractor Manufacturer. Replace if missing on tractor.

P/N 03200347

DANGER! Rotating Driveline Keep Away, Contact can cause death.

P/N 00756005

Read Operator’s Manual! The operator’s manual is located inside this canister. If the manual is missing order one from your dealer.

SAFETY

P/N 00776031

9600A 04/08 Safety Section 1-21

2008 Teamco Inc.

SAFETY

Federal Laws and Regulations

This section is intended to explain in broad terms the concept and effect of federal laws and regulations concerning employer and employee equipment operators. This section is not intended as a legal interpretation of the law and should not be considered as such.

Employer-Employee Operator Regulations

U.S. Public Law 91-596 (The Williams-Steiger Occupational and Health Act of 1970) OSHA

This Act Seeks:

“...to assure so far as possible every working man and woman in the nation safe and healthful working conditions and to preserve our human resources...”

DUTIES

Sec. 5 (a) Each employer-

(1) shall furnish to each of his employees employment and a place of employment which are free from recognized hazards that are causing or are likely to cause death or serious physical harm to his employees;

(2) shall comply with occupational safety and health standards promulgated under this Act.

SAFETY

Employer Responsibilities:

To ensure employee safety during Tractor and Implement operation, it is the employer’s responsibility to:

1. Train the employee in the proper and safe operation of the Tractor and Implement.

(b) Each employee shall comply with occupational safety and health standards and all rules,regulations and orders issued pursuant to this Act which are applicable to his own actions and conduct.

OSHA Regulations

OSHA regulations state in part: “At the time of initial assignment and at least annually thereafter, the employer shall instruct every employee in the safe operation and servicing of all equipment with which the employee is, or will be involved.”

2. Require that the employee read and fully understand the Tractor and Implement Operator’s manual.

3. Permit only qualified and properly trained employees to operate the Tractor and Implement.

4. Maintain the Tractor and Implement in a safe operational condition and maintain all shields and guards on the equipment.

5. Ensure the Tractor is equipped with a functional ROPS and seat belt and require that the employee operator securely fasten the safety belt and operate with the ROPS in the raised position at all times.

6. Forbid the employee operator to carry additional riders on the Tractor or Implement.

7. Provide the required tools to maintain the Tractor and Implement in a good safe working condition and provide the necessary support devices to secure the equipment safely while performing repairs and service.

8. Require that the employee operator stop operation if bystanders or passerbys come within 25 feet.

Child Labor Under 16 Years of Age

Some regulations specify that no one under the age of 16 may operate power machinery. It is your responsibility to know what these regulations are in your own area or situation. (Refer to U.S. Dept. of Labor, Employment Standard Administration, Wage & Home Division, Child Labor Bulletin #102.)

9600A 04/08 Safety Section 1-22

2008 Teamco Inc.

INTRODUCTION SECTION

Introduction Section 2-1

INTRODUCTION

This snow blower is designed with care and built with quality materials by skilled workers. Proper assembly, maintenance, and operating practices, as described in this manual, will help the owner/operator get years of satisfactory service from the machine. The purpose of this manual is to familiarize, instruct, and train. The Assembly Section instructs the owner/ operator in the correct assembly of the implement using standard and optional equipment. The Parts Listing section is designed to familiarize the owner/operator with replaceable parts on the implement. This section provides exploded assembly drawings of each implement component illustrating each piece and the corresponding part number. Careful use and timely service save extensive repairs and costly downtime losses. The Operation and Maintenance Sections of the manual train the owner/operator how to work the implement correctly and attend to appropriate maintenance. The Trouble Shooting Guide helps diagnose difficulties with implement and offers solution to the problems. Safety is of primary importance to the owner/operator and to the manufacturer. The first section of this manual includes a list of Safety Messages, that, if followed, will help protect the operator and bystanders from injury or death. Many of the Safety Messages will be repeated throughout the manual. The owner/operator/dealer should know these Safety Messages before assembly and be aware of the hazards of operating this implement during assembly, use, and maintenance. The Safety Alert Symbol combined with a Signal Word, as seen below, is intended to warn the owner/operator of impending hazards and the degree of possible injury

INTRODUCTION

faced when operating this machine.

Indicates an imminently hazardous situation that, if not avoided, WILL result in DEATH OR VERY SERIOUS INJURY.

Indicates an imminently hazardous situation that, if not avoided, COULD result in DEATH OR SERIOUS INJURY.

Indicates an imminently hazardous situation that, if not avoided, MAY result in MINOR INJURY.

Identifies special instructions or procedures that, if not strictly observed, could result in damage to, or destruction of the machine, attachments or the environment.

9600A 04/08 Introduction Section 2-2

2008 Teamco Inc.

INTRODUCTION

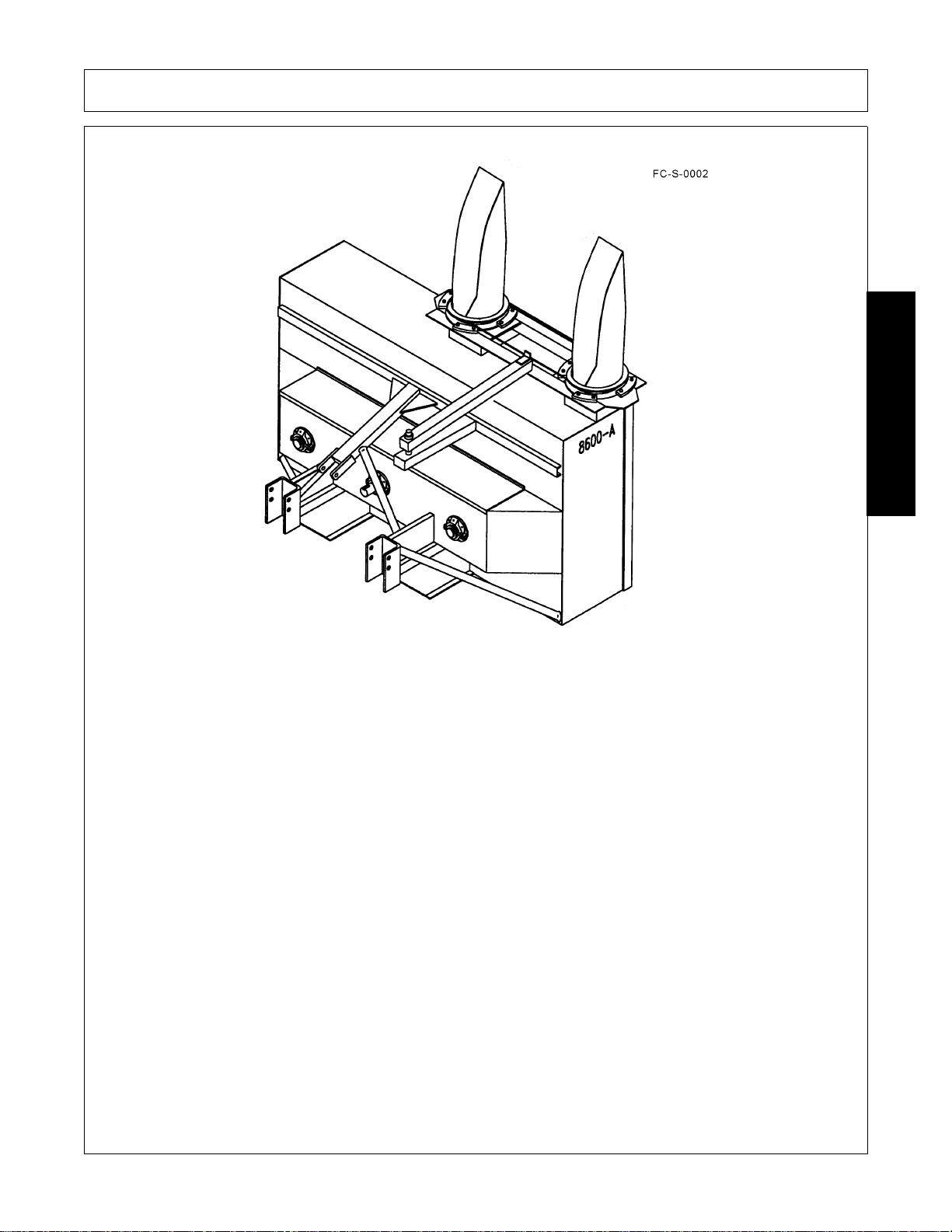

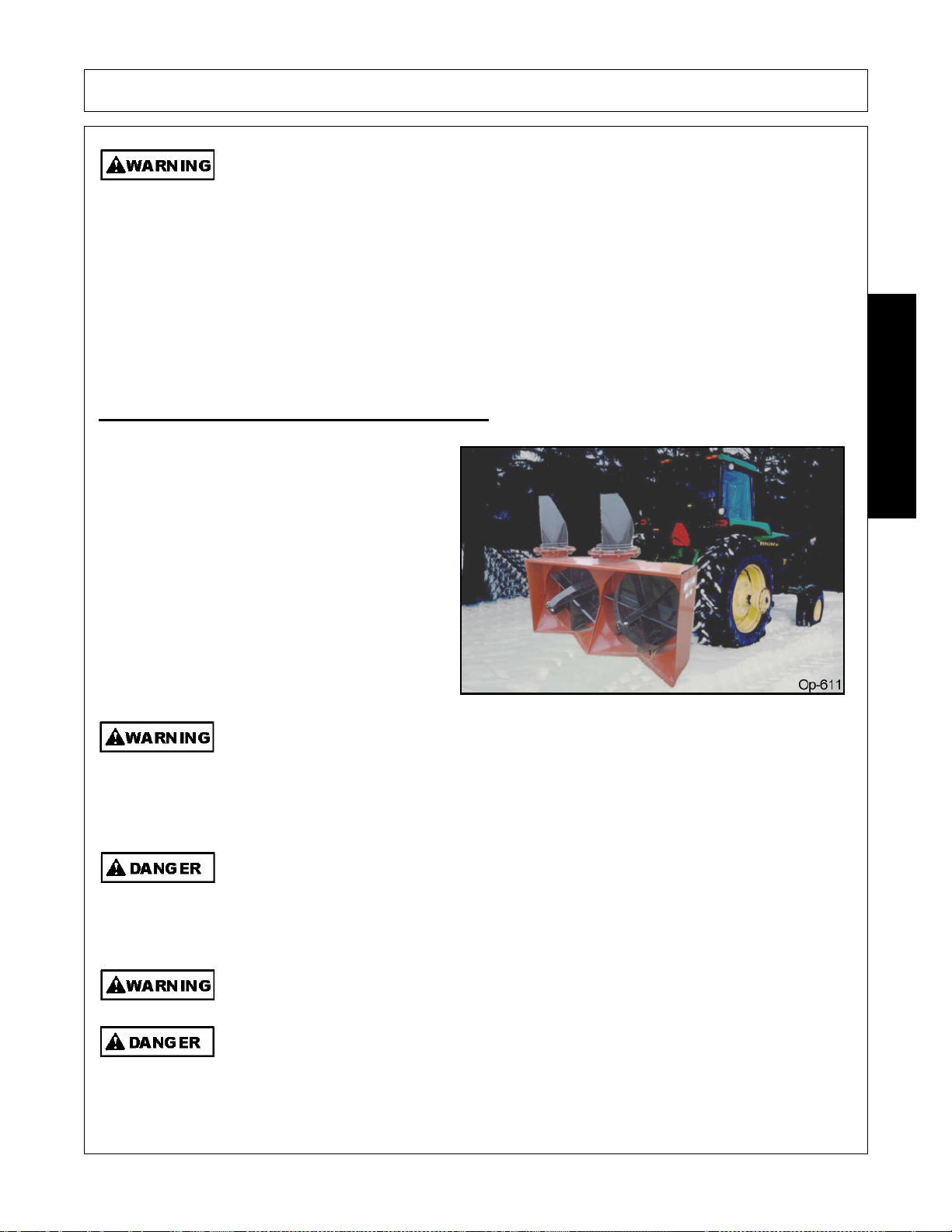

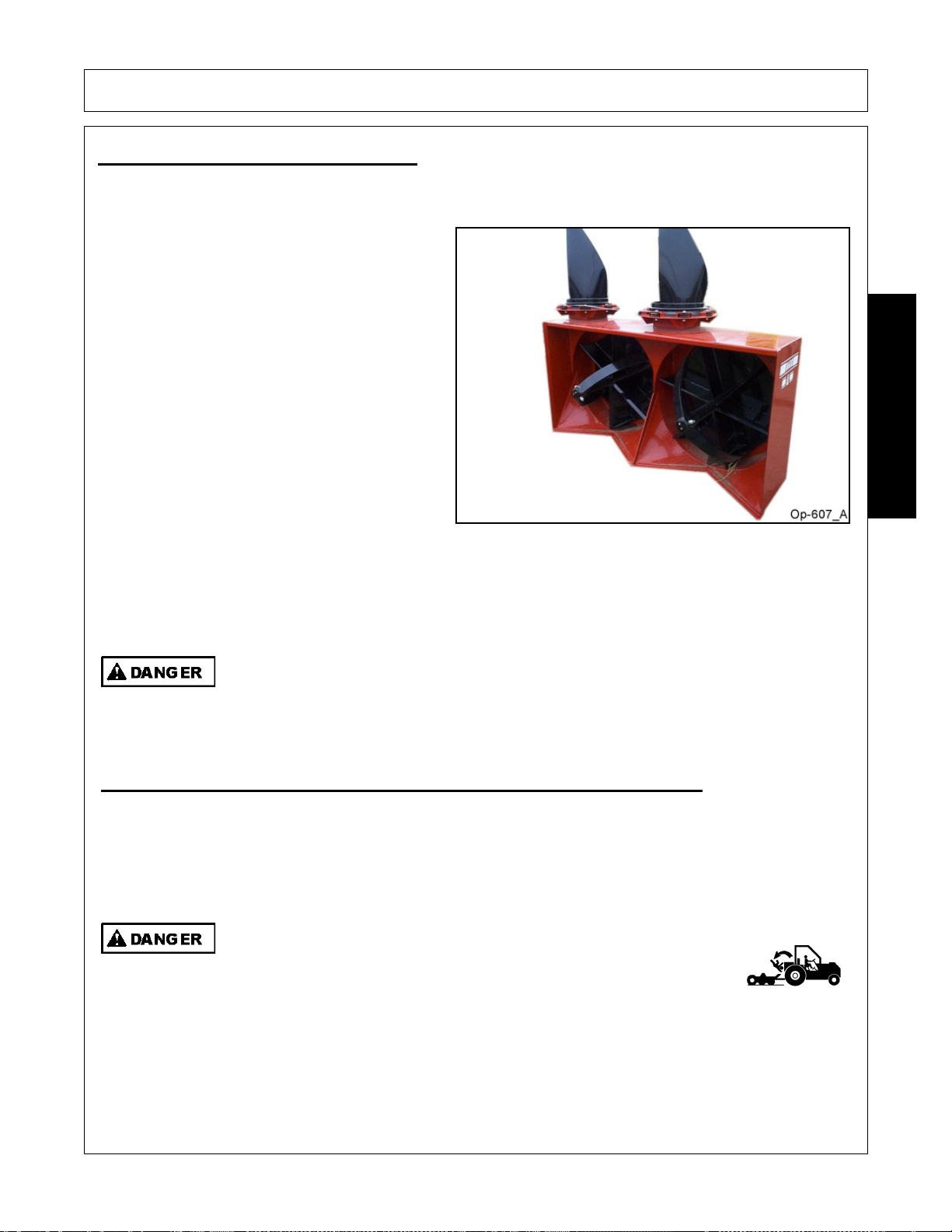

The 9600A Snow Blowers are designed for removing accumulations of snow from driveways, barnyards, roadways and parking lots. Check total regulations before operating on roadways. With proper maintenance as described in this manual, your Snow Blower will provide you with years of dependable service with a minimum of repairs. It is recommended that all operators of this implement read this manual or be instructed of its contents as to safety, proper operation and maintenance before beginning operation. For the purpose of this equipment, the following definitions apply. Left Hand Side: Side which is to the left when the operator is facing in the normal forward direction of the tractor. Right Hand Side: Side which is to the right when the operator is facing in the normal forward direction of the tractor.

9600A 04/08 Introduction Section 2-3

2008 Teamco Inc.

INTRODUCTION

ATTENTION OWNER/OPERATOR

BEFORE OPERATING THIS MACHINE:

1. Carefully read the Operator’s Manual, completely understand the Safety Messages and instructions, and know how to operate correctly both the Tractor and Implement.

2. Fill out the Warranty Card in full. Be sure to answer all questions, including the Serial Number of the Snow Blower. Mail promptly using the return envelope included with the Operator’s Manual.

NOTE: Warranties are honored only if completed “Owner Registration and Warranty” forms are received by within thirty days of delivery of the implement.

3. Record the Snow Blower Model and Serial Numbers on the Warranty page at the end of the Operator’s Manual. Keep this as part of the permanent maintenance file for the Snow Blower.

INTRODUCTION

9600A 04/08 Introduction Section 2-4

2008 Teamco Inc.

ASSEMBLY SECTION

Assembly Section 3-1

ASSEMBLY

HYDRAULIC CHUTE ROTATION CYLINDER

1. A standard 3 x 8 inch stroke hydraulic cylinder, 20-1/4 closed pin centers, must be fitted to the chute rotation mechanism. DO NOT install any longer stroke, or non-standard hydraulic cylinders as damage to the chute rotation mechanism will result.

ASSEMBLY

2. A hydraulic restrictor is required to limit hydraulic flow.

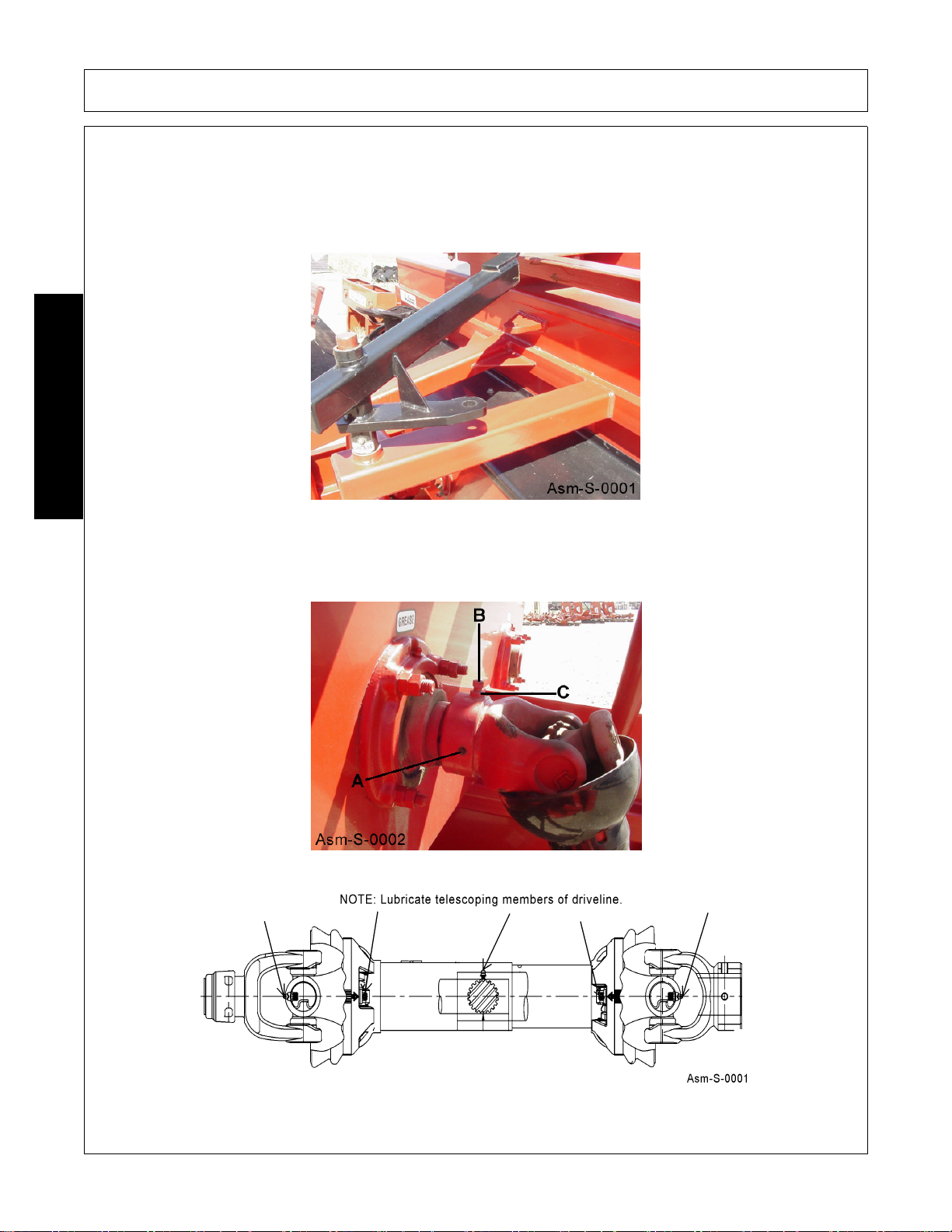

3. Attach PTO shaft to snow blower. Install key in shaft, slide yoke over shaft and fasten with setscrew (A). Tighten setscrew (B) at 90 degrees to keyway and lock down with jam nut (C).

9600A 04/08 Assembly Section 3-2

2008 Teamco Inc.

ASSEMBLY

4. The Snow Blower is easily adaptable to all standard Category 2 and 3 Hitch arrangements. These illustrations will detail which pins and bushings you will need for your tractor hitch.

ASSEMBLY

9600A 04/08 Assembly Section 3-3

2008 Teamco Inc.

ASSEMBLY

5. Attach the snow blower to the tractor and level the snow blower.

Precautions must be taken when mounting the snow blower to your tractor to ensure that there is adequate clearance to allow the universal joint assembly to operate within its designed slip range. Failure to properly install the universal joint may cause the universal joint to separate during operation possibly resulting in personal injury or damage to equipment.

6. Carefully raise and lower the snow blower.

7. Attach the universal joint assembly to the tractor. Slide slidelock collar back and slide on tractor PTO shaft until locking collar engages.

Pulll and push on the quick disconnect yokes several times to ensure that the yokes are properly connected to their respective shafts.

8. Check for correct overlap of driveline and ensure driveline is not bottoming out. Raise and lower machine to make sure. Main drive overlap is 5 inches.

9. Check that the snow blower is level side to side. Adjust tractor lift link if necessary.

10. Check that the tractor three point hitch check chains are snug but not overly tight. Side sway should be

ASSEMBLY

kept to a minimum.

9600A 04/08 Assembly Section 3-4

2008 Teamco Inc.

OPERATION SECTION

Operation Section 4-1

OPERATION

9600A SNOW BLOWER

OPERATION INSTRUCTIONS

Snow Blowers are manufactured with quality material by skilled workers. These snow blowers are designed for removing accumulations of snow from driveways, barnyards, roadways and parking lots. The implement is equipped with protective gear to maintain the objects being thrown from the Snow Blower to prevent injury to bystanders and others, however, no shielding is 100% effective. All shields and guards must be maintained in good operational condition. It is the operator’s responsibility to be knowledgeable of all potential operating hazards and to take every reasonable precaution to ensure oneself, others, animals, and property are not injured or damaged by the implement, tractor, or a thrown object. Do not operate the implement if passersby, pets, livestock, or property are within 300 feet of the unit. This section of the Operator’s Manual is designed to familiarize, instruct, and educate safe and proper snow blower use to the operator. Pictures contained in this section are intended to be used as a visual aid to assist in explaining the operation of a SNOW BLOWER and are not necessarily of a SNOWBLOWER 9600A. Some pictures may show shields removed for purposes of clarity. NEVER OPERATE this implement without all shields in place and in operational condition. The operator must be familiar with snow blower operation and all associated safety practices before operating the snow blower and tractor. Proper operation of the SNOW

OPERATION

BLOWER, as detailed in this manual, will help ensure years of safe and satisfactory use of the implement.

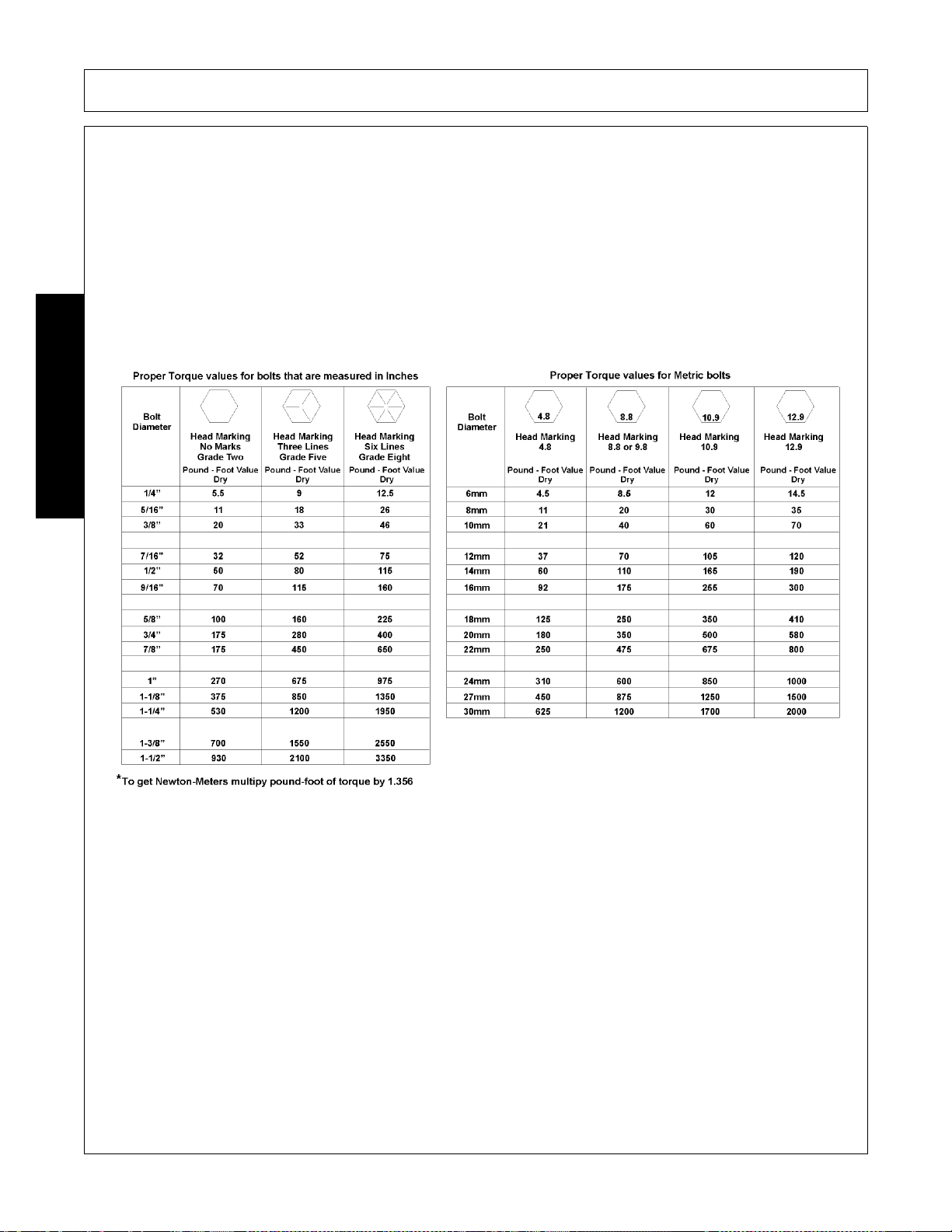

IMPORTANT: To avoid implement damage, retorque all bolts after the first 10 hours of operation.

READ AND UNDERSTAND THE ENTIRE OPERATING INSTRUCTIONS AND SAFETY SECTION OF THIS MANUAL AND THE POWER UNIT MANUAL BEFORE ATTEMPTING TO USE THE POWER UNIT AND IMPLEMENT. If you do not understand any of the instructions, contact your nearest authorized dealer for a

full explanation. Pay close attention to all safety signs and safety messages contained in this manual and those affixed to the implement and power unit. OPS-UPI- 0001

READ, UNDERSTAND, and FOLLOW death may occur unless care is taken to follow the warnings and instructions stated in the Safety Messages. Always use good common sense to avoid hazards.

Si no lee ingles, pida ayuda a alguien que si lo lea para que le traduzca las medidas de seguridad.

the following Safety Messages. Serious injury or

(SG-2)

(SG-3)

9600A 04/08 Operation Section 4-2

2008 Teamco Inc.

OPERATION

1. OPERATOR REQUIREMENTS

Safe operation of the unit is the responsibility of a qualified operator. A qualified operator has read and understands the implement and power unit’s Operator’s Manuals and is experienced in implement and power unit operation and all associated safety practices. In addition to the safety messages contained in this manual, safety decals are affixed to the implement and power unit. If any part of the operation and safe use of this equipment is not completely understood, consult an authorized dealer for a complete explanation. If the operator cannot read the manuals for themselves or does not completely understand the operation of the equipment, it is the responsibility of the supervisor to read and explain the manuals, safety practices, and operating instructions to the operator. Safe operation of equipment requires that the operator wear approved Personal Protective Equipment (PPE) for the job conditions when attaching, operating, servicing, and repairing the equipment. PPE is designed to provide operator protection and includes the following safety wear:

PERSONAL PROTECTIVE EQUIPMENT (PPE)

• Protective Eye Glasses, Goggles, or Face Shield

•Hard Hat

• Steel Toe Safety Footwear

• Gloves

• Hearing Protections

• Close Fitting Clothing

• Respirator or Filter Mask (depends on conditions) OPS-UPI-0002

snow

OPERATION

NEVER use drugs or alcohol immediately before or while operating the Tractor and Implement. Drugs and alcohol will affect an operator’s alertness and coordination and therefore affect the operator’s ability to operate the equipment safely. Before operating the Tractor or Implement, an operator on prescription or over-the-counter medication must consult a medical professional regarding any side effects of the medication that would hinder their ability to operate the Equipment safely. NEVER knowingly allow anyone to operate this equipment when their alertness or coordination is impaired. operator or others could result if the operator is under the influence of drugs or alcohol.

9600A 04/08 Operation Section 4-3

2008 Teamco Inc.

(SG-27)

Serious injury or death to the

OPERATION

2. TRACTOR REQUIREMENTS

Tractor Requirements and Capabilities

• ASAE approved Roll-Over Operator Protective Structure (ROPS) and Seatbelt.

• Tractor Safety Devices ............................. Slow Moving Vehicle (SMV) emblem, lighting,

PTO master shield

• Tractor Horsepower - Recommended...... SNOW BLOWER 9600A 120-275 hp

• Front End Weights.................................... As needed to maintain 20% weight on front axle

• Power Take Off......................................... Operating speed and shaft size should be 1000 RPM

• Tire Spacing ............................................. Set tires minimum width of 60” inside to inside of tires

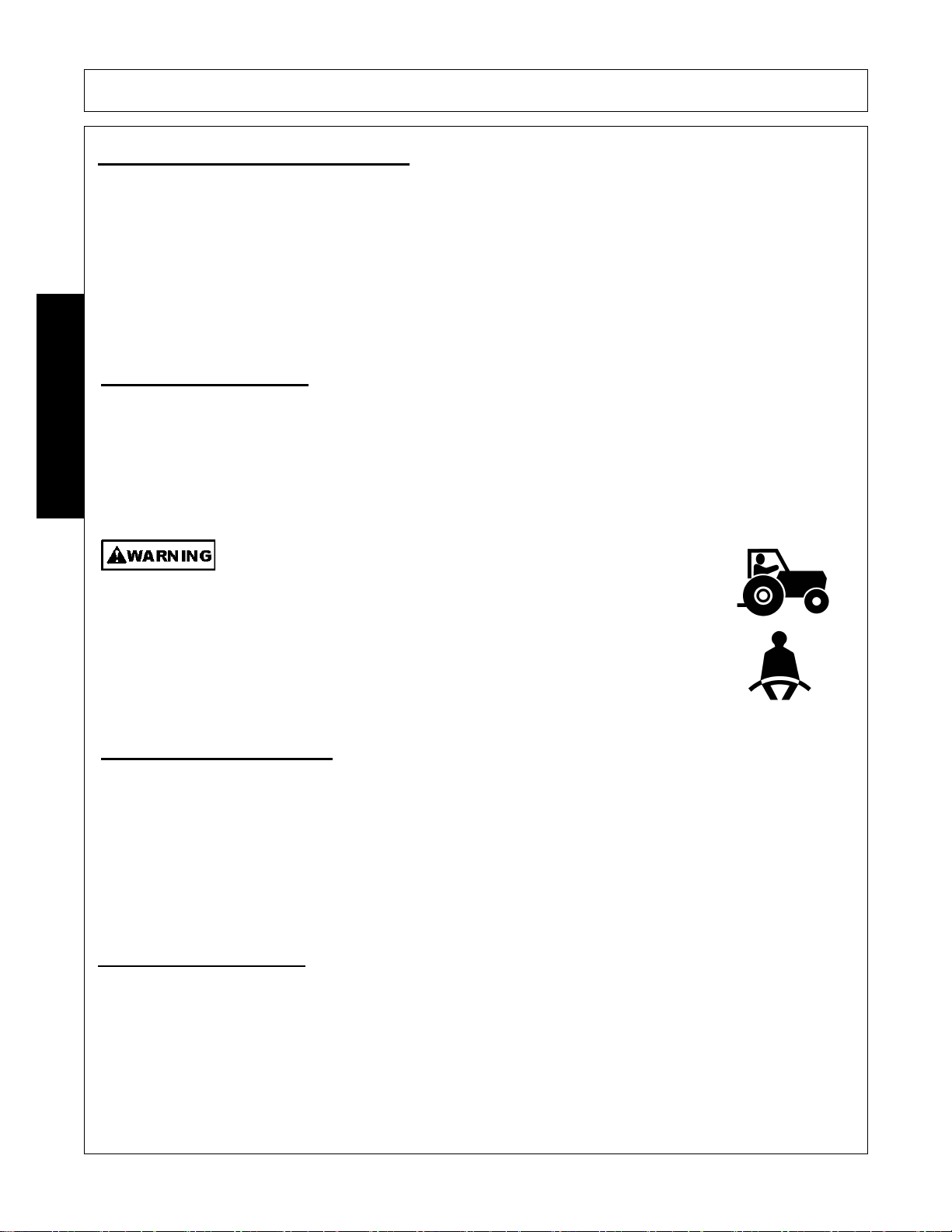

2.1 ROPS and Seat Belt

The power unit must be equipped with a Roll-Over-Protective-Structure (ROPS) and seat belt to protect the operator from falling off the power unit, especially during a roll over where the driver could be crushed and killed. Only operate the power unit with the ROPS in the raised position and seat belt fastened. Power units not equipped with a ROPS and seat belt should have these life saving features installed by an authorized dealer. OPS-UPI- 0003

OPERATION

Operate this Equipment only with a Power Unit equipped with an approved operator Roll-Over Protective Structure (ROPS). Always wear seat belts. Serious injury or even death could result from falling off the Power Unit--particularly during a could be pinned under the Operator Protective Structure.

rollover when the operator

(SPU-14)

2.2 Tractor Safety Devices

If transporting or operating the tractor and implement near a public roadway, the tractor must be equipped with proper warning lighting and a Slow Moving Vehicle (SMV) emblem which are clearly visible from the rear of the unit. Lights and a SMV emblem must be equipped directly on implements if the visibility of the tractor warning signals are obscured. Maintain all manufacturer equipped safety shields and guards. Always replace shields and guards that were removed for access to connect, service, or repair the tractor or implement. Never operate the tractor PTO with the PTO master shield missing or in the raised position. OPS-U- 0004

2.3 Tractor Horsepower

The horsepower required to operate the implement depends on several operating factors including terrain condition, operator experience, condition of the implement and tractor, and other factors. The recommended tractor HP for SNOW BLOWER 9600A is 120-275 hp (90-205 KW). Operating the implement with a larger tractor will greatly increase the risk of damaging the implement.

9600A 04/08 Operation Section 4-4

2008 Teamco Inc.

OPERATION

2.4 3-Point Hitch

The tractor 3-point hitch must be rated to lift the Snow Blower. The Snow Blower can attach to tractor’s with a 3point hitch frame. The Snow Blower is easily adaptable to all standard Category 2 and 3 hitch arrangements. Refer to the parts manual of the Snow Blower to get more details of which pins and bushings you will need for your tractor. Refer to the operator’s manual for the category of the tractor used. If the hitch does not conform to ASAE dimensions, the implement may not fit or raise properly. Consult an authorized dealer for possible modification procedures to mount nonconforming hitches. Use the correct hitch pins for the hitch being used. OPS-SB-0001

OPERATION

2.5 Power Take Off (PTO)

The implement is designed to operate at a PTO speed of 1000 RPM. Most tractors operate at either 540, or a combination of 540 and 1000 RPM PTO speeds. The operating speed of the implement and tractor can be determined by the number of splines on the driveline yoke and PTO output shaft. Those operating at 540 RPM will have a 1-3/8” diameter 6-spline shaft and those operating at 1000 RPM will have a 1-3/8” 21-spline shaft or a 1-3/4” 20 spline shaft. Refer to the tractor owner’s manual for instructions to change PTO speeds

on models that operate at more than one speed.

If operating an older model tractor where the tractor’s transmission and PTO utilize one master clutch, an over-running clutch must be used between the PTO output shaft and the driveline of the implement. An authorized tractor dealer can provide the over-running clutch and its installation if needed. OPS-SB-0002

DO NOT use a PTO adapter to attach a non-matching Implement driveline to a Tractor PTO. Use of an adapter can double the operating speed of the Implement resulting in excessive vibration, thrown objects, and blade and implement failure. Adapter use will also change the working length of the driveline exposing unshielded driveline areas. Serious bodily injury and/or equipment failure can result from using a PTO adapter. Consult an authorized dealer for assistance if the Implement driveline does not match the Tractor PTO.

(S3PT-14)

Never operate the Tractor and Snowblower if the Implement input driveline is directly connected to the Tractor transmission. Tractor braking distances can be substantially increased by the momentum of the rotating fans driving the Tractor transmission even though the Tractor clutch has been disengaged. Install an over running clutch between the Tractor PTO and snowblower driveline to prevent this potentially dangerous situation.

(S3PT-16)

9600A 04/08 Operation Section 4-5

2008 Teamco Inc.

OPERATION

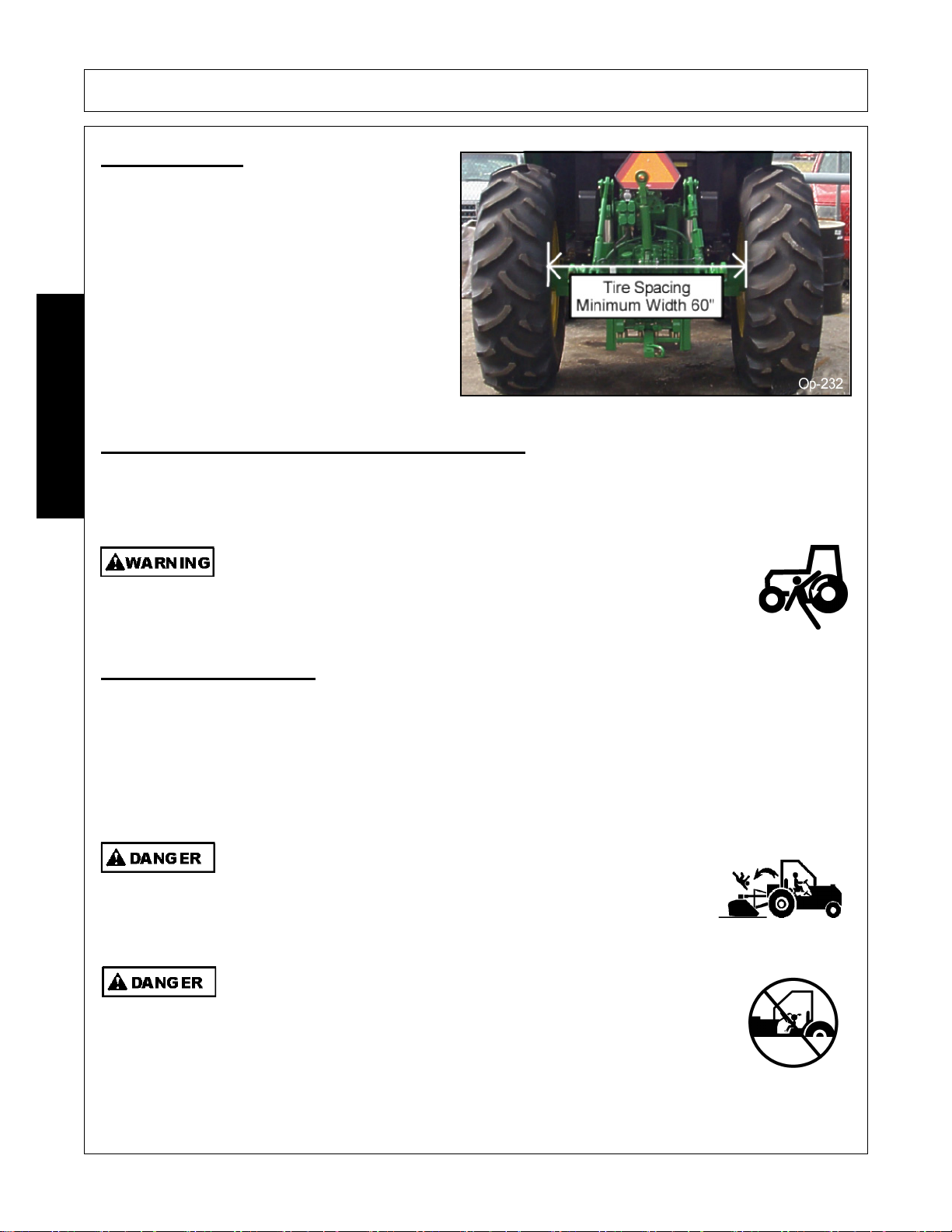

2.6 Tire Spacing

Tractor tires should be set a minimum of 60” apart measured from inside of tire to inside of tire. Refer to the tractor Operator’s Manual or consult an authorized dealer for instructions to change tractor tire spacing. OPS-R- 0062

3. GETTING ON AND OFF THE TRACTOR

Before getting onto the tractor, the operator must read and completely understand the implement and tractor

OPERATION

operator manuals. If any part of either manual is not completely understood, consult an authorized dealer for a complete explanation. OPS-U- 0007

Do not mount the Tractor while the tractor is moving. Mount the Tractor only when the Tractor and all moving parts are completely stopped.

(SG-12)

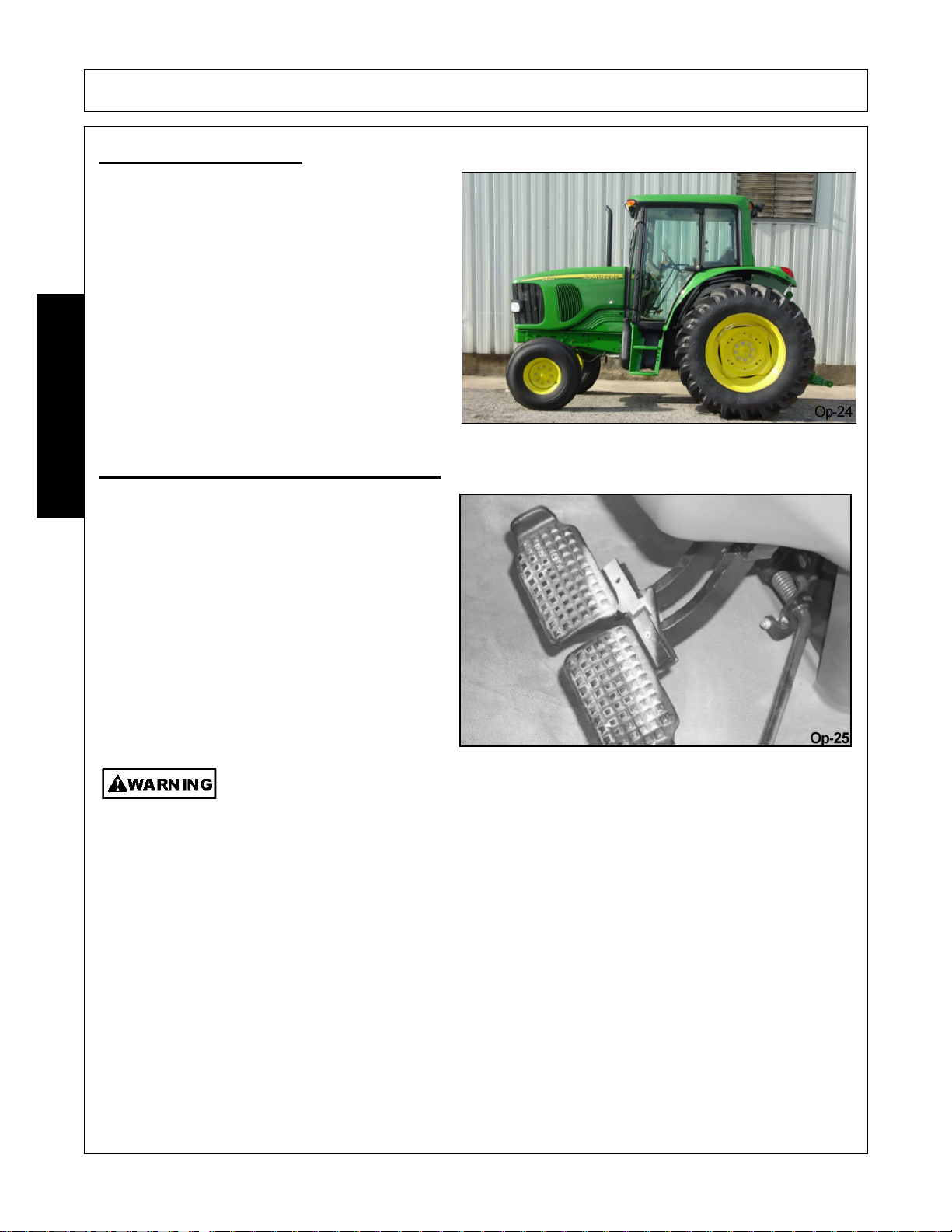

3.1 Boarding the Tractor

Use both hands and equipped handrails and steps for support when boarding the tractor. Never use control levers for support when mounting the tractor. Seat yourself in the operator’s seat and secure the seat belt around you. Never allow passengers to ride on the tractor or attached equipment. Riders can easily fall off and be seriously injured or killed from falling off and being ran over. It is the operator’s responsibility to forbid all extra riders at all times. OPS-U- 0008

Never allow children or other persons to ride on the Power Unit or Implement. Falling off can result in serious injury or death.

Never allow children to operate or ride on the Power Unit or Implement.

(SPU-17)

(SPU-16)

9600A 04/08 Operation Section 4-6

2008 Teamco Inc.

OPERATION

3.2 Dismounting the Tractor

Before dismounting, park the tractor and implement on a reasonably level surface, apply the parking brake, idle the engine down, disengage the PTO, and lower the implement to the ground. Shut down the tractor engine according to the operator’s manual, remove the key, and wait for all motion to completely stop. Never leave the seat until the tractor, its engine and all moving parts have come to a complete stop. Use hand rails and steps when exiting the tractor. Be careful of your step and use extra caution when mud, ice, snow or other matter has accumulated on the steps or hand rails. Use all handrails and steps for support and never rush or jump off the tractor. OPS-U- 0009

BEFORE leaving the Power Unit seat, always engage the brake and set the Power Unit transmission in parking gear, disengage the auxiliary hydraulics, stop the engine, remove the key, and wait for all moving parts to stop. Place the Power Unit shift lever into a low range or parking gear to prevent the tractor from rolling. Never dismount a Power Unit that is moving or while the engine is running. Operate the Power Unit controls from the operator seat only.

4. STARTING THE TRACTOR

(SPU-15)

OPERATION

The operator must have a complete understanding of the placement, function, and operational use of all tractor controls before starting the tractor. Review the tractor operator’s manual and consult an authorized dealer for tractor operation instructions if needed. Essential Tractor Controls:

• Locate the light control lever.

• Locate the engine shut off control.

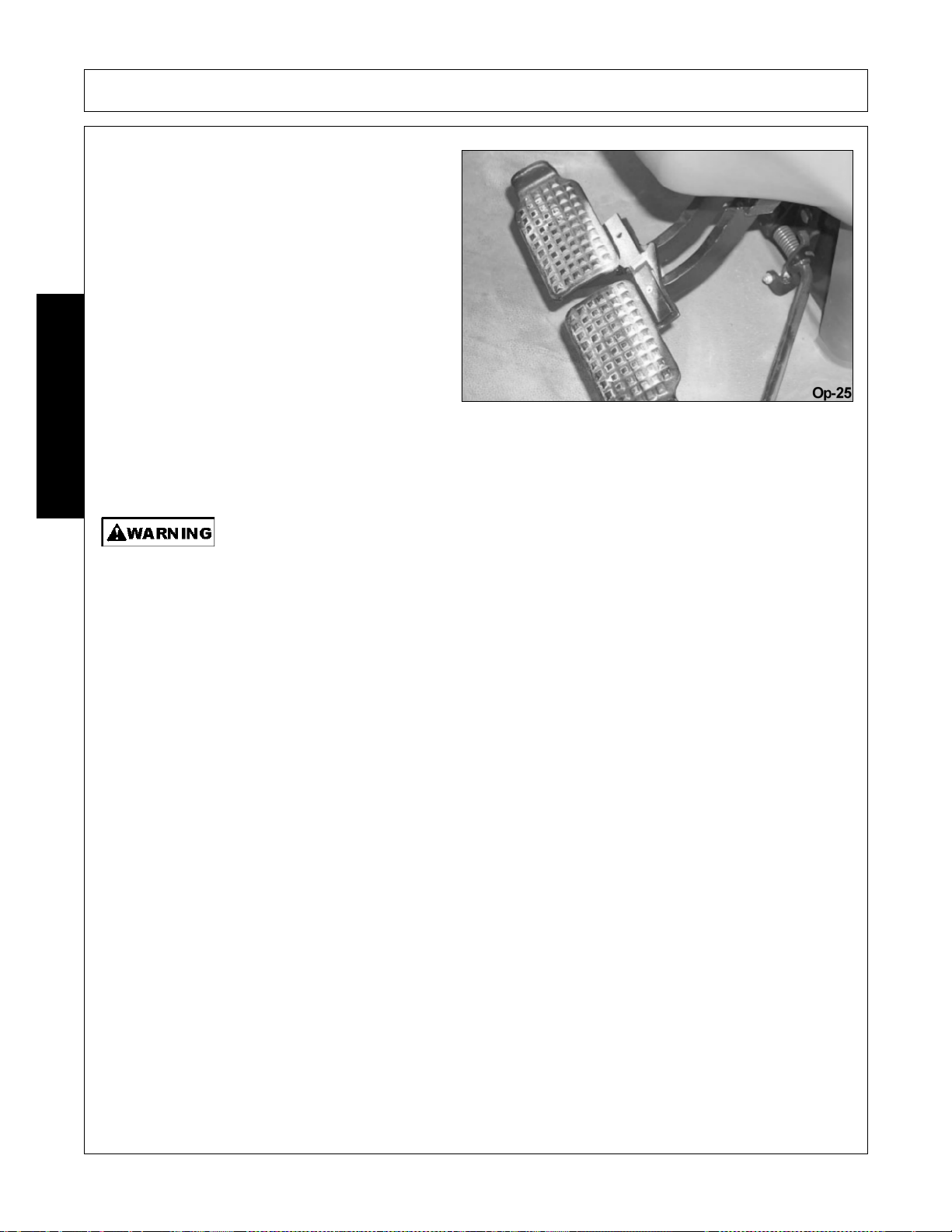

• Locate the brake pedals and the clutch.

• Locate the PTO control.

• Locate the 3-point hitch control lever.

• Locate the hydraulic remote control levers.

Before starting the tractor ensure the following:

• Conduct all pre-start operation inspection and service according to the tractor operator’s manual.

• Make sure all guards, shields, and other safety devices are securely in place.

• The parking brake is on.

• The PTO control lever is disengaged.

• The 3-point hitch control lever is in the lowered position.

• The hydraulic remote control levers are in the neutral position.

• The tractor transmission levers are in park or neutral.

Refer to the tractor owner’s manual for tractor starting procedures. Only start the tractor while seated and belted in the tractor operator’s seat. Never bypass the ignition switch by short circuiting the starter solenoid. After the tractor engine is running, avoid accidental contact with the tractor transmission to prevent sudden and unexpected tractor movement. OPS-U-0028

9600A 04/08 Operation Section 4-7

2008 Teamco Inc.

OPERATION

Never run the Power Unit engine in a closed building or without adequate ventilation. The exhaust fumes can be hazardous to your health.

Start the Power Unit only when properly seated in the Power Unit seat. Starting a Power Unit in gear can result in injury or death. Read the Power Unit Operator’s Manual for proper starting instructions.

5. CONNECTING THE SNOW BLOWER TO THE TRACTOR

Use extreme caution when connecting the snowblower to the tractor. The snowblower should be securely resting at ground level or on blocks. Keep hands and feet out from under the snowblower and clear of pinch points betweenthe snow blower and tractor. OPS-SB-0003

OPERATION

Always shut the Tractor completely down, place the transmission in park, and set the parking brake before you or anyone else attempts to connect or disconnect the Implement and Tractor hitches.

(S3PT-15)

(SPU-23)

(SPU-19)

5.1 Connecting the Snow Blower to the Tractor

1. Make sure the tractor is equipped with the correct PTO shaft. Change shafts if needed.

2. Shorten or remove the tractor drawbar to avoid interference when raising and lowering the snow blower.

3. Board the tractor and start the engine. Position the tractor to the snow blower with the 3-point lift arms

positioned between the respective set of snow blower A-frame lift lugs. Note: Set the 3-point lift arms

positioned between the respective set of snow blower. See the tractor Operator’s Manual for correct settings when attaching 3-point equipment.

4. Turn off the tractor engine and dismount.

5. One lift arm at a time, align arm end hole between the set of A-frame lift lugs. Insert hitch pin through the

lug and arm holes and insert retaining pin into hitch pin.

6. Walk around to opposite side and repeat procedure for remaining lift arm and hitch pin.

7. Extend or retract 3-point top link to align its end hole with the holes of the snow blowers top link. Insert the

top link hitch pin and insert retaining pin into hitch pin.

8. Adjust any lower link check chains, guide blocks or sway blocks to prevent the snow blowers from swaying

side to side and possible contact with tractor rear tires.

Never work under the Implement, the framework, or any lifted component unless the Implement is securely supported or blocked up to prevent sudden or inadvertent falling which could cause serious injury or even death.

(SG-14)

9600A 04/08 Operation Section 4-8

2008 Teamco Inc.

OPERATION

Never crawl under a raised Implement supported solely by the Tractor 3-Point hitch. Release of the control lever or mechanical failure will result in the Implement falling and possible injury or death. Always securely block up the Implement before crawling underneath to perform repairs and service.

6. DRIVELINE ATTACHMENT

The driveline yokes, gearbox drive shafts and tractor PTO shaft must be dirt free and greased for attachment. To connect the rear driveline to the tractor PTO output shaft, slide the driveline yoke collar and align the grooves and splines of the yoke with those of the PTO shaft. Push the driveline yoke onto the PTO shaft, release the locking collar, and position the yoke until the locking collar balls are seated onto the PTO shaft. Push and pull the driveline back and forth several times to ensure a secure attachment. Attach PTO shaft to snow blower. Install key in shaft, slide yoke over shaft and fasten with setscrew (A). Tighten setscrew (B) at 90 degrees to keyway and lock down with jam nut (C). OPS-

SB-0004

(S3PT-19)

OPERATION

When attaching the Implement input driveline to the Tractor PTO, it is important that the connecting yoke spring activated locking collar slides freely and the locking balls are seated securely in the groove on the Tractor PTO shaft. A driveline not attached correctly to the Tractor PTO shaft could come loose and result in personal injury and damage to the Implement.

Before operating the Implement, check to make sure the Implement input driveline will not bottom out or become disengaged. Bottoming out occurs when the inner shaft penetrates

the outer housing until the assembly becomes solid-it can shorten no more. Bottoming out can cause serious damage to the Tractor PTO by pushing the PTO into the Tractor and through the support bearings or downward onto the PTO shaft, breaking it off. A broken driveline can cause personal injury.

9600A 04/08 Operation Section 4-9

2008 Teamco Inc.

(S3PT-17)

(S3PT-18)

OPERATION

6.1 Connecting Snow Blower Hydraulic Lines to the Tractor

With the tractor shut down and secured in position, relieve hydraulic pressure from the tractor by moving the control levers back and forth several times or placing the levers in the float position. Keep implement hydraulic lines, hoses, quick couplers, and swivels free of contamination. Never leave a disconnected hose end open and cap the tractor hydraulic outlet ports when not in use. If the tractors ports, Snow Blower ports and hydraulic hose ends become contaminated, wipe clean with a rag before connecting. OPS-SB-0005

Do not operate this Equipment with hydraulic oil or fuel leaking. Oil and fuel are explosive and their presence could present a hazard. Do not check for leaks with your hand! High-pressure oil streams from breaks in the line could penetrate the skin and cause tissue damage including gangrene. To check for a hose leak, SHUT the unit ENGINE OFF and remove all hydraulic pressure. Wear oil impenetrable gloves, safety glasses and use Cardboard to check for evidence of oil leaks. If you suspect a leak, REMOVE the HOSE and have it tested at a Dealer. If oil does penetrate the skin, have the injury treated immediately by a

OPERATION

physician knowledgeable and skilled in this procedure.

(SG-15)

Hydraulic Cylinder Priming

Hydraulic Cylinder must be filled with hydraulic oil before operating. Hydraulic cylinders and lines are filled by holding the valve control levers in the extended position until the cylinder fully retracts and extends. Place control levers in the float position and repeat process several more times to purge all air from system.

7. PRE-OPERATION INSPECTION AND SERVICE

Before each use, a pre-operation inspection and service of the implement and power unit must be performed. This includes routine maintenance and scheduled lubrication, inspecting that all safety devices are equipped and functional, and performing needed repairs. Do not operate the implement and power unit it the preoperation inspection reveals any condition affecting safe operation. Perform repairs and replacement of damaged and missing parts as soon as noticed. By performing a thorough pre-operation inspection and service, valuable down time and repair cost can be avoided. OPS-UPI-0008

Never work under the Implement, the framework, or any lifted

component unless the Implement is securely supported or blocked up

to prevent sudden or inadvertent falling which could cause serious

injury or even death.

Always disconnect the main PTO Driveline from the Tractor before performing service on the Implement. Never work on the Implement with the tractor PTO driveline connected and running. Rotating Parts, ate ent

anglement, injury or death.

(SG-14)

Fans or Drivelines could turn without warning and cause immedi-

(S3PT-11)

9600A 04/08 Operation Section 4-10

2008 Teamco Inc.

OPERATION

Periodically inspect all moving parts for wear and replace when necessary with authorized service parts. Look for loose fasteners, worn or broken parts, and leaky or loose fittings. Make sure all pins have cotter pins and washers. Serious injury may occur from not maintaining this machine in good working order.

7.1 Tractor Pre-Operation Inspection/Service

Refer to the tractor operator’s manual to ensure a complete pre-operation inspection and scheduled service is performed according to the manufacturers recommendations. The following are some of the items that require daily service and inspection:

• Tire condition/air pressure

• Wheel lug bolts

• Steering linkage

• PTO shield

• SMV sign is clean and visible

• Tractor’s lights are clean and functional

• Tractor Seat belt is in good condition

• Tractor ROPS is in good condition

• ROPS is in the raised position

• No tractor oil leaks

• Radiator free of debris

• Engine oil level and condition

• Engine coolant level and condition

• Power brake fluid level

• Power steering fluid level

• Fuel condition and level

• Sufficient lubrication at all lube points

• Air filter condition OPS-U-0030

(SG-21)

OPERATION

All Safety Shields, Guards and Safety devices including (but not limited to) - the Deflectors, Chain Guards and Height Limiting Safety Chain should be used and maintained in good working condition. All safety devices should be inspected carefully at least daily for missing or broken components. Missing, broken, or worn items must be replaced at once to reduce the possibility of injury or death from thrown objects, entanglement, or blade contact.

9600A 04/08 Operation Section 4-11

2008 Teamco Inc.

(SPU-28)

OPERATION

7.2 Snow Blower Pre-Operation Inspection/Service

Before each implement use, a complete inspection and service is required to ensure the implement is in a good and safe working condition. Damaged and/or broken parts should be repaired and/or replaced immediately. To ensure the implement is ready for operation, conduct the following. OPS-SB-0006

The operator’s manual and safety signs affixed on the unit contain important instructions on the safe and proper use of the equipment. Maintain these important safety features on the implement in good condition to ensure the information is available to the operator at all times.

• Ensure the manual canister is secured to the equipment with the operator’s manual inside.

• Ensure all safety signs are in place and legible. Replace missing, damaged, and illegible decals. OPS-U- 0011

OPERATION

• Check that the main driveline is securely attached to the tractor and the locking collar is seated in the groove of the PTO Shaft.

• Check that the snow blower driveline is securely attached.

• Inspect that the snow blower pivot pins are the proper size, correctly installed, and secured to the tractor lift arms with retaining pins inserted.

OPS-SB-0007

When attaching the Implement input driveline to the Tractor PTO, it is important that the connecting yoke spring activated locking collar slides freely and the locking balls are seated securely in the groove on the Tractor PTO shaft. A driveline not attached correctly to the Tractor PTO shaft could come loose and result in personal injury and damage to the Implement.

9600A 04/08 Operation Section 4-12

2008 Teamco Inc.

(S3PT-17)

OPERATION

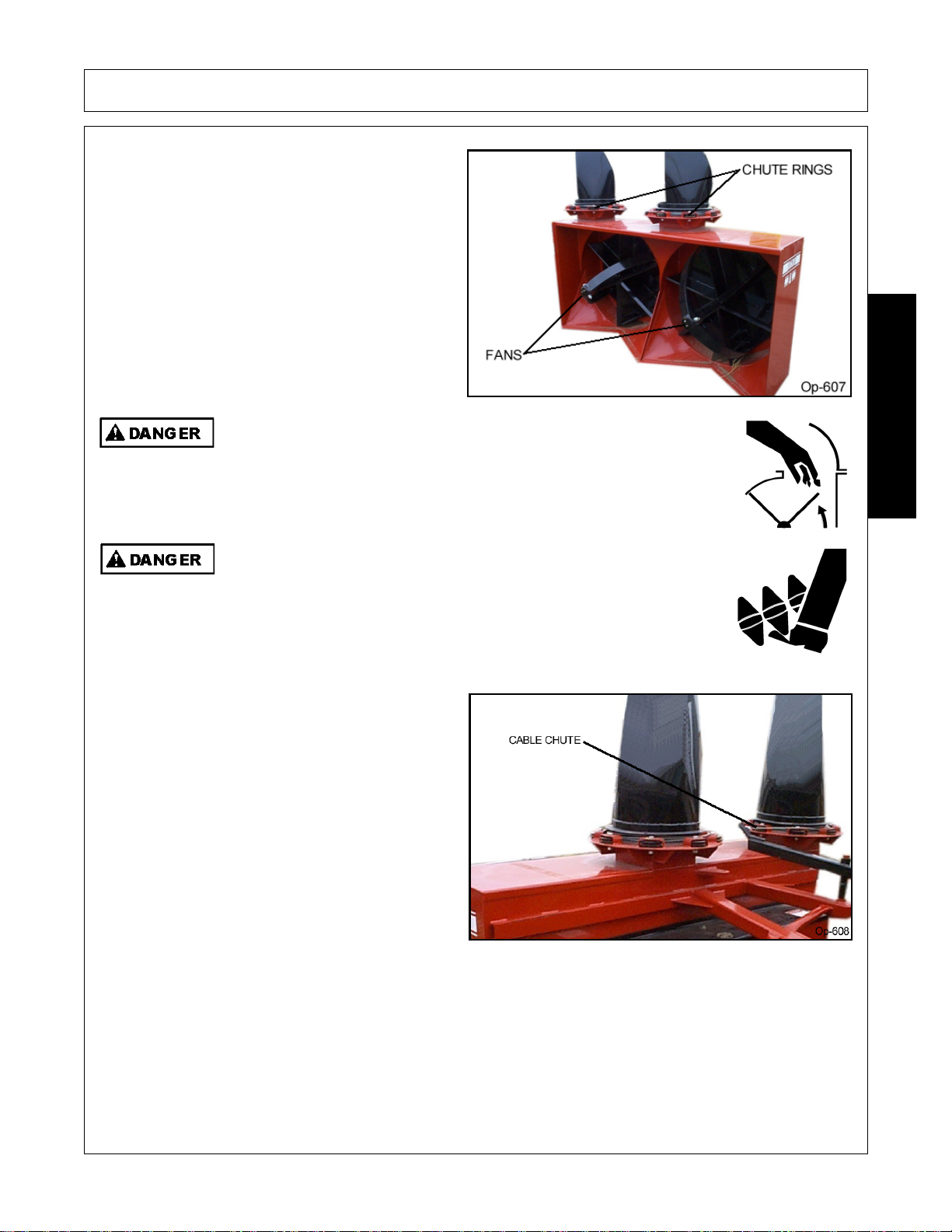

• Ensure fans are in good working condition and

rotate freely.

• Ensure chute ring is rotating freely.

• Ensure the driveline integral shields are in good

condition and rotate freely.

• Inspect that all bolts and screws are in position

and are properly torqued. OPS-SB-0008

Do not put hands or feet near the rotating fan. Fan contact can result in serious injury or even death. Stay away until all motion has stopped and the snow blower is securely blocked up before removing material, performing service, and making repairs.

Do Not put hands or feet near the rotating auger. Auger contact can result in serious injury or even death. Stay away until all motion has stopped and the snow blower is securely blocked up before removing material, performing service, and making repairs.

OPERATION

(SSB-6)

(SSB-5)

• Ensure the drive chain shield is in place and in

good repair.

• Ensure the tractor PTO master shield is in

place, lowered and in good condition.

• Inspect that the chute cable is not excessively

frayed or worn out.

• Inspect the condition of the drive chain.

Retighten if slack exceeds 3/4”. OPS-SB-0009

9600A 04/08 Operation Section 4-13

2008 Teamco Inc.

• Perform scheduled lubrication as specified in

the maintenance section.

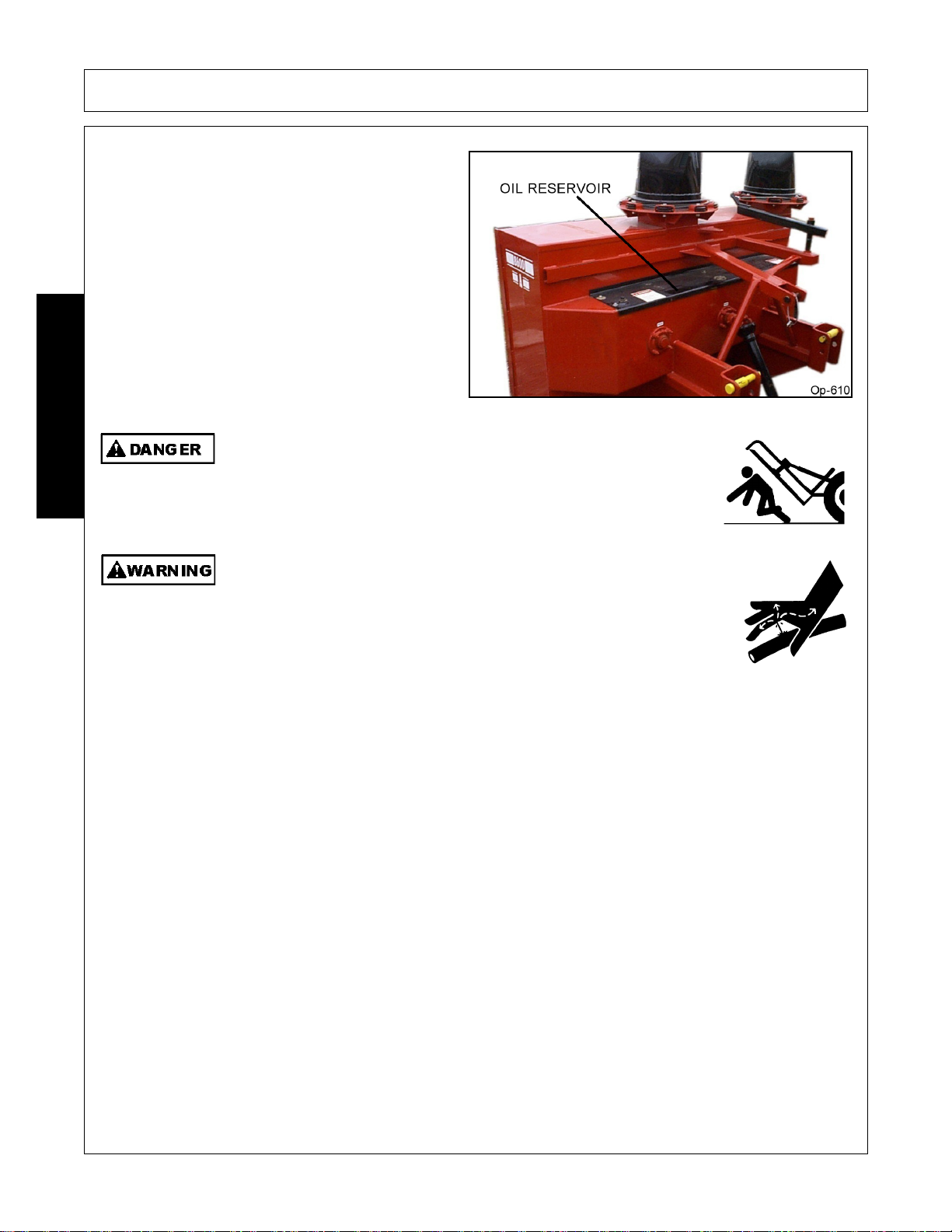

• Inspect the oil level and condition of oil

reservoir and replenish if needed. (Add specific type oil if low.)

• Ensure there are no leaks and fittings are

properly connected. OPS-SB-0010

Never work under the Implement, the framework, or any lifted component unless the Implement is securely supported or blocked up

OPERATION

to prevent sudden or inadvertent falling which could cause serious injury or even death.

(SG-14)

OPERATION

Do not operate this Equipment with hydraulic oil or fuel leaking. Oil and fuel are explosive and their presence could present a hazard. Do not check for leaks with your hand! High-pressure oil streams from breaks in the line could penetrate the skin and cause tissue damage including gangrene. To check for a hose leak, SHUT the unit ENGINE OFF and remove all hydraulic pressure. Wear oil impenetrable gloves, safety glasses and use Cardboard to check for evidence of oil leaks. If you suspect a leak, REMOVE the HOSE and have it tested at a Dealer. If oil does penetrate the skin, have the injury treated immediately by a physician knowledgeable and skilled in this procedure.

(SG-15)

9600A 04/08 Operation Section 4-14

2008 Teamco Inc.

OPERATION

Tractor PRE-OPERATION Inspection

Implement ID# ________________ Make ____________________

Date: ________________ Shift ____________________

Before conducting the inspection, make sure the tractor engine is off, all rotation has stopped and the tractor is in park with the parking brake engaged. Make sure the implement is resting on the ground or securely blocked up and all hydraulic pressure has been relieved.

OPERATION

Item

The flashing lights function properly The SMV Sign is clean and visible The tires are in good condition with proper pressure The wheel lug bolts are tight The tractor brakes are in good condition The steering linkage is in good condition There are no visible oil leaks The hydraulic controls function properly The ROPS or ROBS Cab is in good condition The seatbelt is in place and in good condition The 3-point hitch is in good condition The drawbar pins are securely in place The PTO master shield is in place The engine oil level is full The brake fluid level is full The power steering fluid level is full The fuel level is adequate The engine coolant fluid level is full The radiator is free of debris The air filter is in good condition

Condition at

Start of Shift

Specific Comments if

not O.K.

Operator’s Signature:

DO NOT OPERATE THE TRACTOR OR IMPLEMENT UNLESS ALL

CONDITIONS SHOWN ABOVE ARE OK.

9600A 04/08 Operation Section 4-15

2008 Teamco Inc.

OPERATION

Operation and Service

1. Before operating each season, grease the blower completely as per lubrication chart.

2. To prevent damage to the driveline, before operating the blower raise the three-point lift and check the PTO knuckle. DO NOT exceed 30 degrees. Set the stop on the three-point lift to prevent accidental overlift.

3. For best operation, travel at speeds that will let the blower efficiently handle the load. Speeds may vary with depth and conditions of the snow. DO NOT move the blower at speeds that will push the snow. Avoid bulldozing into snowbanks as this may possibly plug the spouts and put undue stress to all driveline components.

4. If the blower becomes overloaded in deep snow, raise the machine and remove the upper layer, move ahead and lower the blower for another pass.

5. After the first ten hours of operation, check and retighten all setscrews and bolts. Check the roller chain for tightness and adjust the idler sprockets accordingly.

6. The oil bath housign for the drive assembly contains 5 gallons of standard SAE #5 wt. oil. The oil bath assures long sprockets, chain life and dissipates heat caused by moving parts. Periodically check the oil level and add if necessary.

7. Each fan is protected by a shear bolt located at the back of the fan shaft. Replace as required.

OPERATION

Using a higher grade bolt may damage snowblower.

8. DRIVING THE TRACTOR AND SNOW BLOWER

Safe tractor transport requires the operator possess a thorough knowledge of the model being operated and precautions to take while driving with an attached implement. Ensure the tractor has the capacity to handle the weight of the implement and the tractor operating controls are set for safe transport. To ensure safety while driving the tractor with an attached implement, review the following. OPS-U- 0012

9600A 04/08 Operation Section 4-16

2008 Teamco Inc.

OPERATION

Transport only at speeds where you can maintain control of the

equipment. Serious accidents and injuries can result from operating this equipment at high speeds. Understand the Tractor and Implement and how it handles before transporting on streets and highways. Make sure the Tractor steering and brakes are in good condition and operate properly.

Before transporting the Tractor and Implement, determine the proper transport speeds for you and the equipment. Make sure you abide by the following rules:

• Test the tractor at a slow speed and increase the speed slowly. Apply the Brakes

smoothly to determine the stopping characteristics of the Tractor and Implement. As you increase the speed of the Tractor the stopping distance increases. Determine the maximum transport speed not to exceed 20 mph (30 kph) for transporting this equipment.

• Test the equipment at a slow speed in turns. Increase the speed through the turn only

after you determine that the equipment can be operated at a higher speed. Use extreme care and reduce your speed when turning sharply to prevent the tractor and implement from turning over. Determine the maximum turning speed for you and this equipment before operating on roads or uneven ground.

• Only transport the Tractor and Implement at the speeds which allow you to properly

control the equipment.

Be aware of the operating conditions. Do not operate the Tractor with weak or faulty brakes or worn tires. When operating down a hill or on wet or rain slick roads, the braking distance increases: use extreme care and reduce your speed. When operating in traffic always use the Tractor’s flashing warning lights and reduce your speed. Be aware of traffic around you and watch out for the other guy.

This Implement is wider than the Tractor. Be careful when operating or transporting this equipment to prevent the Implement from running into or striking sign posts, guard rails, concrete abutments or other solid objects. Such an impact could cause the Implement and Tractor to pivot violently resulting in loss of steering control, serious injury, or even death. Never allow the Implement to contact obstacles.

(SG-19)

(S3PT-12)

OPERATION

9600A 04/08 Operation Section 4-17

2008 Teamco Inc.

OPERATION

8.1 Starting the Tractor

The procedure to start the tractor is model specific. Refer to the tractor operator’s manual for starting procedures for your particular tractor. Consult an authorized dealer if the starting procedure is unclear. Ensure the 3-point control lever is in the lowered position and the PTO is disengaged before starting the tractor. OPS-U-0033

8.2 Brake and Differential Lock Setting

OPERATION

Make sure the tractor brakes are in good operating condition. Tractor brakes can be set to operate independently allowing single rear wheel braking action or locked together to provide simultaneous rear wheel braking. FOR MOST DRIVING AND OPERATING CONDITIONS, THE BRAKE PEDALS SHOULD BE LOCKED TOGETHER TO PROVIDE THE MOST EFFECTIVE BRAKING ACTION. Always disengage the tractor differential lock when turning. When engaged the differential lock will prevent or limit the tractor from turning. During

l blowing conditions, locking the differential

norma provides no benefit and should not be used.

OPS-U- 0013

Be aware of the operating conditions. Do not operate the Tractor with weak or faulty brakes. When operating down a hill or on wet or rain slick roads, the braking distance increases; use extreme care and reduce your speed in these conditions. When operating in traffic, always use the Tractor’s flashing warning lights and reduce your speed. Be aware of traffic around you and watch out for the other guy.

9600A 04/08 Operation Section 4-18

2008 Teamco Inc.

OPERATION

8.3 Driving the Tractor and Snow Blower

Start off driving at a slow speed and gradually increase your speed while maintaining complete control of the tractor and snow blower. Moving slowly at first will also prevent the tractor from rearing up and loss of steering control. The tractor should never be operated at speeds that cannot be safely handles or which will prevent the operator from stopping quickly during an emergency. If the power steering or engine ceases operating, stop the tractor immediately as the tractor will be difficult to control. OPS-SB-0011

Allow sufficient clearance for the Implement to swing outward while turning. Implements carried behind the Tractor will swing outside the tire path when making turns. Contacting a solid object while turning will cause equipment damage and possible injury.

Perform turns with the tractor and snow blower at slow speeds to determine how the tractor with the attached implement handles a turn. When operating the snow blower when turning. Extra precaution should be taken to avoid hitting parked vehicles, sign, road structures, bystanders, and animals due to the overall length and width of the implement.

To avoid at safe speeds, especially when operating over rough ground, crossing ditches or slopes, and turning corners. Rear tractor tire spacing should be increased when working on inclines or rough ground to reduce the possibility of tipping.

Use extreme caution when operating on steep slopes. Keep the tractor in a low gear when going downhill. DO

NOT coast or free-wheel downhill. OPS-SB-0012

rollovers, drive the tractor with care and

(S3PT-20)

OPERATION

9600A 04/08 Operation Section 4-19

2008 Teamco Inc.

OPERATION

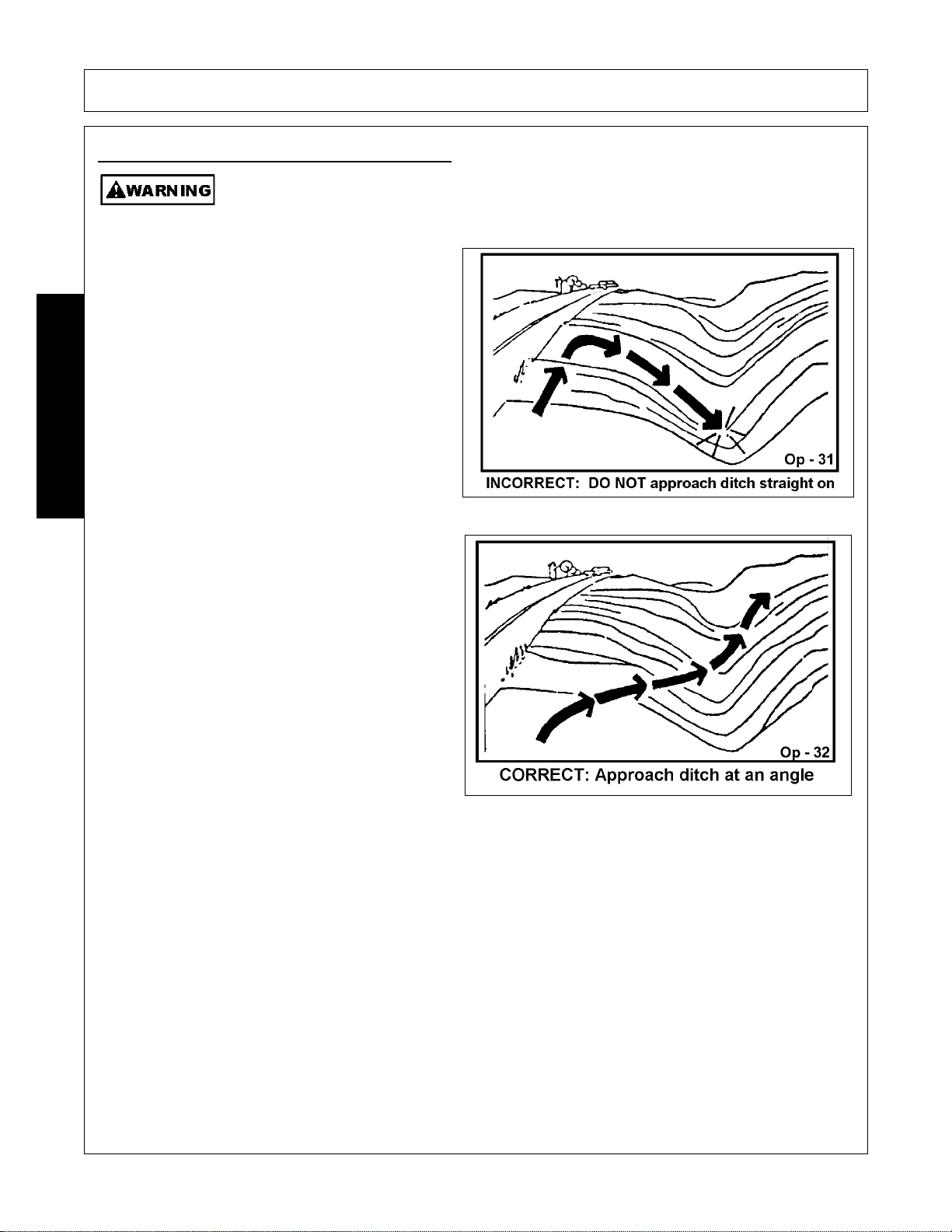

8.4 Crossing Ditches and Steep Inclines

Damage resulting from over-collapse of the driveline’s inner profile and its outer housing may allow the driveline to come loose from the Tractor which could cause bodily injury to the operator or bystanders and/or extensive damage to the Tractor or Implement.

When confronted with an incline or ditch, do not approach from an angle which is perpendicular or straight on as damage to or over-collapse of the driveline may occur. When crossing such terrain, the implement should be fully lowered for a lower center of gravity and added stability. OPS-SB-0013

OPERATION

Inclines and ditches should be approached along a line which is at an angle as shown. This type of path will reduce the possibility of over-collapse of the driveline and resulting damage. If the gradient is so steep that such an approach increases the possibility of a tractor roll-over, select an alternate crossing path. When operating the tractor and implement across slopes and inclines, through ditches, and other uneven terrain conditions, it is important to maintain sufficient deck to ground clearance. If too much snow is being carried in to the snow blower, reduce the working depth. Ground contact also produces a severe shock load on the snow blower drive and

resulting in possible damage and premature wear.

OPS-SB-0014

9600A 04/08 Operation Section 4-20

2008 Teamco Inc.

OPERATION

9. OPERATING THE TRACTOR AND SNOW BLOWER

THE OPERATOR MUST COMPLETELY UNDERSTAND HOW TO OPERATE THE TRACTOR AND SNOW BLOWER AND ALL CONTROLS BEFORE ATTEMPTING TO OPERATE. The operator must read and

understand the Safety and Operation Sections of the snow blower and tractor operator’s manuals. These manuals must be read and explained to any operator who cannot read. Never allow someone to operate the snow blower and tractor without complete operating instructions. Before starting any blowed and any obst equipment. Special attention should be paid to foreign debris, rough terrain, steep slopes, and passersby and animals in the area. OPS-SB-0015

snowblowing operation, the operator must become familiar with the area to be snow

acles and hazards contained within to ensure safety to the operator, bystanders, and

Many varied objects, such as wire, cable, rope, or chains, can become entangled in the rotating parts of the Implement. These objects could then swing outside the housing at greater velocities than the fans. Such a situation is extremely hazardous and could result in serious injury or even death. Inspect the area for such objects before working in the area. Remove any such objects from the site. Never allow the implement to contact such objects.

(STL-6)

OPERATION

9.1 Foreign Debris Hazards

Remove all foreign objects and debris. If objects are too big to remove, mark them clearly and be sure to prevent the implement from contacting them. OPS-SB-0016

If you hit a solid object or foreign debris, stop the implement and tractor at once. Immediately idle the engine speed and disengage PTO. Wait for all rotating motion to stop, then raise the implement and move the tractor and implement off the object. Inspect the area and remove, or mark the location of the debris. Inspect the condition of the implement and make any needed repairs immediately. Make sure the before resuming o Always wea the raised position. If the tractor or snow blower hits a tree stump or bump, a sudden movement could throw you off of the seat and under the tractor and snow blower. The seat belt is your best protection from falling off the tractor and the ROPS provides protection from being crushed during a tractor roll-over.

peration.

r your seat belt securely fastened and only operate the tractor and snowblower with the ROPS in

fans are not damaged

9600A 04/08 Operation Section 4-21

2008 Teamco Inc.

OPERATION

Be sure you have adequate knowledge of the property you will be working on. Take time to make yourself aware of any area underground lines or cables. Contact with buried lines or cable could result in serious injury or death.

There are obvious and hidden potential hazards in the operation of this Snow Blower.

REMEMBER! This machine is often operated in deep snow where vision is reduced. The

fan blades of this Snow Blower can throw objects for great distances Serious injury or even

death may occur unless care is taken to insure the safety of the operator, bystanders, or

passersby in the area. Do not operate this machine with anyone in the immediate area.

Stop Snow Blowing if anyone is within 200 feet of Snow Blower.

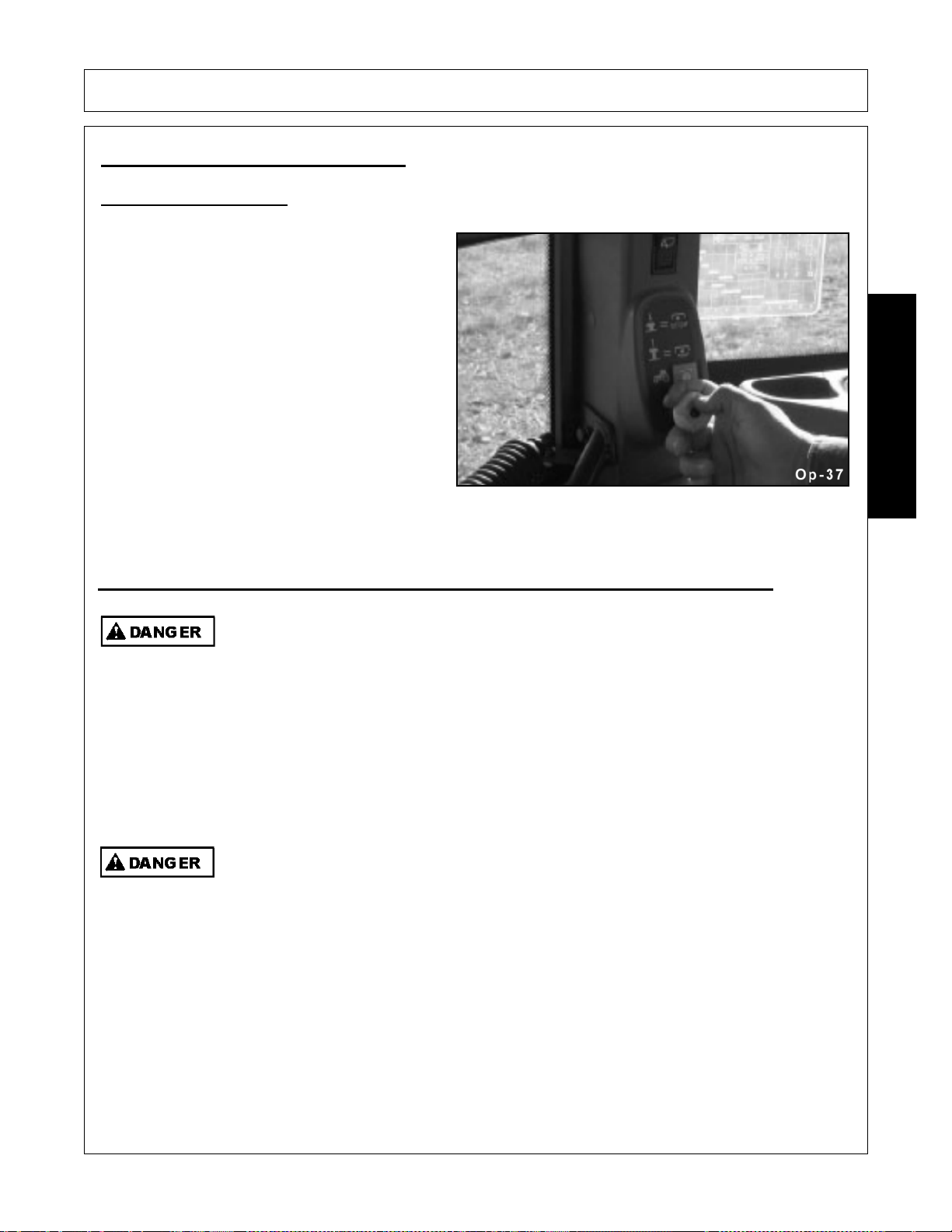

9.2 Engaging the Power Take Off (PTO)

Before engaging the PTO, make certain that the area is clear of bystanders and passersby. Set the tractor engine speed at approximately 1,000 RPM before engaging the PTO. Shift the PTO control to the ON position, and slowly increase the engine speed until the PTO is operating at the rated speed. If you here unusual noises or feel abnormal vibrations, disengage the PTO immediately. Inspect the snow blower to determine the cause

OPERATION

of the noise or vibration and repair the abnormality. OPS-SB-0017

(STL-1)

(SSB-11)

Do not put hands or feet in serious injury or even death. S and the decks are securely blocked up.

Make sure the PTO shield, integral driveline shields, and input shields are installed when using PTO-driven equipment. Always replace any shield if it is damaged or missing.

into snowblower housing. Fan Contact can result

tay away until all motion has stopped

(STL-3)

(S3PT-8)

9.3 PTO RPM and Ground Speed

Ground speed for snow blower will depend upon the condition of the area to be snow blown. Travel at speeds that will let the blower efficiently handle the load. Do not move the blower at speeds that will push the snow. Operate the implement at its full rated PTO speed to maintain speed for snowblower operation. Refer to the tractor operator’s implement or the tractor instrument panel for the engine speed and gear to provide the required PTO and desired ground speed. Make sure that the snow blower is operating at its full rated speed, increase or decrease the throttle gradually. Ground speed is achieved by transmission speed and not by the engine speed. The operator may be required to experiment with several gear range combinations to determine the best gear and range which provides the most ideal performance from the snow blower and most efficient tractor operation. As the severity of blowing conditions increase, the ground speed should be decreased by selecting a lower gear to maintain the proper operating speed. OPS-SB-0018

9600A 04/08 Operation Section 4-22

2008 Teamco Inc.

OPERATION

Blow snow at the speed that you can safely operate and control the Tractor and Snow Blower. Safe speed depends on terrain and snow conditions. Normal ground speed range is from 0 to 5 mph. Use slow speeds when operating on or near steep slopes, ditches, dropoffs, overhead obstructions, power lines, or when debris and foreign objects are to be avoided.

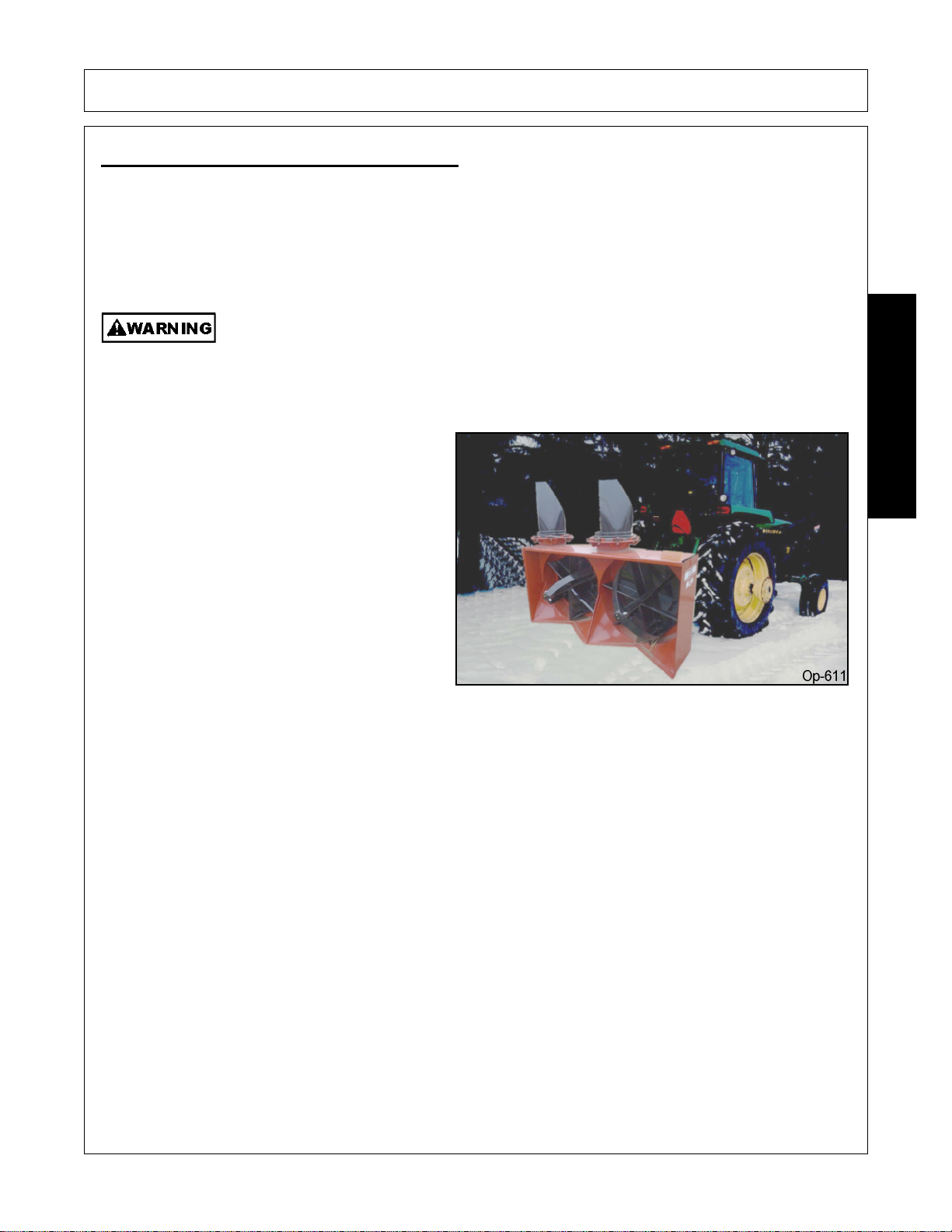

10. OPERATING THE SNOWBLOWER

Before operating the snow blower recheck that all fasteners, nuts, bolts, screws and cotter pins are in place and all bolts are torqued to specification.

OPS-SB-0019

(SSB-4)

OPERATION

Only operate the snow blower in conditions were you have clear visibility in daylight or with

adequate artificial lighting. Never snow blow in darkness or in conditions where you cannot

clearly see at least 100 yards in front and to the sides of the Tractor and Snow Blower.

Make sure that you can clearly see and identify passersby, steep slopes, ditches, drop-offs, overhead obstructions, power lines, debris and foreign objects. If you are unable to clearly see these types of items, discontinue snow blowing.

DO NOT operate this Implement on a Tractor that is not properly maintained. Should a mechanical or Tractor control failure occur while operating, immediately shut down the Tractor and perform repairs before resuming operation. Serious injury and possible death could occur from not maintaining this Implement and Tractor in good operating condition.

(SG-36)

When blowing snow with two machines in the same area be sure that windows are closed. (SSB-10)

Never direct discharge of snow towards people, pets and property.

9600A 04/08 Operation Section 4-23

2008 Teamco Inc.

(SSB-1)

OPERATION

Excessive speed of drop may cause damage or injury. Fully lowering implement should require at least two seconds.

Do not operate the snow blower PTO drive in the fully raised position.

Stop engine, disengage power take-off, and remove ignition key whenever leaving tractor operating position.

When implement is ready to snow blow, do not use the snow blower to PUSH SNOW! Let the machine work its way through deep drifts and hard packed snow. For best results, keep the snow blower fan running at rated PTO speed. If the tractor engine starts to labor, gear down. Do not continuously operate the snow blower in transport position, as this will shorten the life of the universal joints. Tractor chains and weighted tires will increase traction and improve performance especially in icy conditions. The casting chute should not plug during normal operation. However, if fan RPM is allowed to drop drastically in wet, sticky conditions, or if a shear bolt breaks in the fan, the casting chute may plug. If the chute should plug, try raising the snow blower to transport position and dropping suddenly. If this fails to clear blockage, the casting chute will have to be manually cleared.

OPERATION

Do not allow snow or ice to build up around the chute rotation mechanism as this may cause damage to snow blower chute or the chute rotator mechanism.

When operating the snow blower occasionally rotate the chute left then right to clear the front housing of snow.

Snow Blowers are capable under adverse conditions of throwing objects for great distances (200 feet or more). Do not allow the snow stream to fall on passersby. Ice, debris and heavy snow thrown from the snow blower can cause serious injury or death.

(SSB-7)

STOP SNOW BLOWING IF PASSERSBY ARE WITHIN 200 FEET.

When blowing snow with two machines in the same area be sure that windows are closed.

(SSB-10)

Operate the Tractor and/or Implement controls only while properly seated in the Tractor seat with the seat belt securely fastened around you. Inadvertent movement of the Tractor or Implement may cause serious injury or death.

Use extreme care when transporting the snow blower on public highways and roads. The combination of snow blower and the tractor is longer in length. The implement is also wider than the tractor. Allow ample clearance when transporting the tractor and implement to ensure that they do not contact any bystanders, signs, road structures, or other vehicles.

(SG-29)

9600A 04/08 Operation Section 4-24

2008 Teamco Inc.

OPERATION

10.1 Shutting Down the Implement

Tractor and Snow Blower

To shut down the implement, first, bring the tractor to a complete stop then slow down the snow blower by reducing the engine speed before disengaging the PTO. Wait for all rotating motion to stop before proceeding to drive or shut down the tractor. Park the tractor on a level surface, place the transmission in park or neutral and apply the parking brake, lower the attached implement to the ground, shut down the engine, remove the key, and wait for all motion to come to a complete stop before exiting the tractor. OPS-SB-0020

OPERATION

11. DISCONNECTING THE SNOW BLOWER FROM THE TRACTOR

Always shut the Tractor completely down, place the transmission in park, and set the

parking brake before you or anyone else attempts to connect or disconnect the Implement

and Tractor hitches.

Before disconnecting the implement, the PTO must be disengaged and auger rotation at a complete stop. Move the implement to a level storage location and lower the implement to the ground. If the implement is not resting securely on the ground, block the implement up securely before attempting to disconnect it from the tractor. Use extreme care to keep feet and hands out from under the implement and clear of any pinch points when disconnecting the implement from the tractor.

Never stand or allow another person to stand between a running Tractor and the Unit when disconnecting the Implement from the Tractor 3-point hitch. Always shut the Tractor off completely and set the parking brake before attempting to disconnect the Implement pins from the Tractor hitch.

(S3PT-15)

9600A 04/08 Operation Section 4-25

2008 Teamco Inc.

To disconnect the implement, first extend the tractor 3-point hitch top link to remove tension on the top link hitch pin. When the pin is loose and easy to rotate, remove the pin from the mower. Next remove both lower hitch pins. OPS-SB-0021

After disconnecting the 3 lift points, remove the mower driveline from the tractor PTO shaft. Lay the driveline down carefully to avoid damaging the

OPERATION

driveline or its shield. Do not let the driveline fall into mud or dirt, which can contaminate the bearing and shorten the life of the driveline.

OPS-F-0056

OPERATION

Relieve hydraulic pressure prior to doing any maintenance or repair work on the Implement. Place the Implement on the ground or securely blocked up, disengage the PTO, and turn off the tractor engine. Push and pull the Remote Cylinder lever in and out several times prior to starting any maintenance or repair work.

9600A 04/08 Operation Section 4-26

2008 Teamco Inc.

(S3PT-9)

OPERATION

12. SNOW BLOWER STORAGE

Properly preparing and storing the implement at the end of the season is critical to maintaining its appearance and to help ensure years of dependable service. The following are suggested storage procedures:

1. Thoroughly clean all debris off the implement

to prevent damage from rotting grass and standing water.

2. Lubricate all implement grease points and fill

spindle oil level as detailed in the maintenance section.

3. Tighten all bolts and pins to the recommended

torque.

4. Check the implement for worn and damaged

parts. Perform repairs and make replacements immediately so that the implement will be ready for use at the start of the next season.

5. Store the implement in a clean, dry place with

the implement resting securely on blocks or at ground level..

6. Keep the driveline yokes or hydraulic hoses

from sitting in water, dirt and other contaminants.

7. Use spray touch-up enamel where necessary

to prevent rust and to maintain the appearance of the implement.

OPERATION

Never allow children to play on or around Tractor or Implement. Children can slip or fall off

the Equipment and be injured or killed. Children can cause the Implement to shift or fall

crushing themselves or others.

(SG-25)

13. TRANSPORTING THE TRACTOR AND SNOW BLOWER

Inherent dangers of operating the tractor and implement and the possibility of accidents are not left behind when you finish snow blowing an area. Therefore, the operator must employ good judgement and safe operation practices when transporting the tractor and implement between locations. By using good judgement and following safe transport procedures, the possibility of accidents while moving between locations can be substantially minimized. OPS-SB-0022

Never allow children or other persons to ride on the Tractor or Implement. Falling off can result in serious injury or death.

(SG-10)

9600A 04/08 Operation Section 4-27

2008 Teamco Inc.

OPERATION

Before transporting the tractor on a public roadway or boarding a trailer for transport, the tractor brake pedals should be locked together. Locking the pedals ensures that both wheels brake simultaneously while stopping, especially when making an emergency stop.

Use extreme caution and avoid hard applications of the tractor brakes when towing heavy loads at road speeds. Never tow the implement at speeds greater than 20 MPH (25 kph). OPS-U- 0018

If the tractor’s hydraulic pump is not independent of the tractor PTO, or if the tractor PTO has to be run to have hydraulic power, disconnect the snow blower driveline from the tractor PTO output shaft. Secure the driveline

OPERATION

to the implement deck to prevent driveline damage or loss during transport.

In wet conditions where there is a likelihood of material collecting on the Implement, make certain that this material is removed before traveling on public roadways.

(STL-7)

9600A 04/08 Operation Section 4-28

2008 Teamco Inc.

OPERATION

13.1 Transporting on Public Roadways

Never allow children or other persons to ride on the Tractor or Implement. Falling off can result in serious injury or death.

Make certain that the “Slow Moving Vehicle” (SMV) sign is installed in such a way as to be clearly visible and legible. When transporting the Equipment use the Tractor flashing warning lights and follow all local traffic regulations.

13.2 Transporting on Public Roadways

Extreme caution should be used when transporting the tractor and implement on public roadways. The tractor must be equipped with all required safety warning features including a SMV emblem and flashing warning lights to alert drivers of the tractor’s presence. Remember that roadways are primarily designed for automotive drivers and most drivers will not be looking out for you, therefore, you must look out for them. Check your side view mirrors frequently and remember that vehicles will approach quickly because of the tractor’s slower speed. Be extremely cautious when the piece of equipment that you are towing is wider than the tractor tire width and/or extends beyond your lane of the road. OPS-SB- 0023

(SG-6)

(SG-10)

OPERATION

The SMV (Slow-Moving Vehicle) emblem is universal symbol used to alert drivers of the presence of equipment traveling on roadways at a slow speed. SMV signs are a triangular bright orange with reflective red trim for both easy day and night visibility. Make sure the SMV sign is clean and visible from the rear of the unit before transporting the tractor and implement on a public roadway. Replace the SMV emblem if faded, damaged, or no longer reflective. OPS-U- 0020

9600A 04/08 Operation Section 4-29

2008 Teamco Inc.

OPERATION

Make sure that all tractor flashing warning lights, headlights, and brake/taillights are functioning properly before proceeding onto public roads. While new model tractors have plenty of lighting to provide warning signals and operating lighting, most older models were only equipped with operating lights. Consult an authorized tractor dealer for lighting kits and modifications available to upgrade the lighting on older tractor models.

When operating on public roads, have consideration for other road users. Pull to the side of the road occasionally to allow all following traffic to pass. Do not exceed the legal speed limit set in your country for agricultural tractors. Always stay alert when transporting the tractor and implement on public roads. Use caution and reduce speed if other vehicles or pedestrians are in the area. OPS-

U- 0022

OPERATION

Reduce speed before turning or applying the brakes. Ensure that both brake pedals are locked together when operating on public roads. OPS-U- 0023

This Implement is wider than the Tractor. Be careful when operating or transporting this

equipment to prevent the Implement from running into or striking sign posts, guard rails,

concrete abutments or other solid objects. Such an impact could cause the Implement and

Tractor to pivot violently resulting in loss of steering control, serious injury, or even death.

Never allow the Implement to contact obstacles.

Allow sufficient clearance for the Implement to swing outward while turning. Implements

carried behind the Tractor will swing outside the tire path when making turns. Contacting a

solid object while turning will cause equipment damage and possible injury.

9600A 04/08 Operation Section 4-30

2008 Teamco Inc.

(S3PT-12)

(S3PT-20)

OPERATION

Be particularly careful when transporting the Implement using the tractor. Turn curves or go up or down hills only at a low speed and at a gradual steering angle. Make certain that at least 20% of the tractor’s weight is on the front wheels to maintain safe steerage. Slow down on rough or uneven surfaces.

Secure the Implement for transport before traveling on public roads. For pull-type

Implements, secure the center axle using cylinder stops or transport pin and properly attach

a safety chain between the Implement and Tractor. Secure wings in upright position on

folding Implements using wing transport locks.

Transport only at speeds where you can maintain control of the

equipment. Serious accidents and injuries can result from operating this equipment at high speeds. Understand the Tractor and Implement and how it handles before transporting on streets and highways. Make sure the Tractor steering and brakes are in good condition and operate properly.

Before transporting the Tractor and Implement, determine the proper transport speeds for you and the equipment. Make sure you abide by the following rules:

• Test the tractor at a slow speed and increase the speed slowly. Apply the Brakes

smoothly to determine the stopping characteristics of the Tractor and Implement. As you increase the speed of the Tractor the stopping distance increases. Determine the maximum transport speed not to exceed 20 mph (30 kph) for transporting this equipment.

(STI-1)

(STI-7)

OPERATION

• Test the equipment at a slow speed in turns. Increase the speed through the turn only

after you determine that the equipment can be operated at a higher speed. Use extreme care and reduce your speed when turning sharply to prevent the tractor and implement from turning over. Determine the maximum turning speed for you and this equipment before operating on roads or uneven ground.

• Only transport the Tractor and Implement at the speeds which allow you to properly

control the equipment.

Be aware of the operating conditions. Do not operate the Tractor with weak or faulty brakes or worn tires. When operating down a hill or on wet or rain slick roads, the braking distance increases: use extreme care and reduce your speed. When operating in traffic always use the Tractor’s flashing warning lights and reduce your speed. Be aware of traffic around you and watch out for the other guy.

(SG-19)

9600A 04/08 Operation Section 4-31

2008 Teamco Inc.

OPERATION

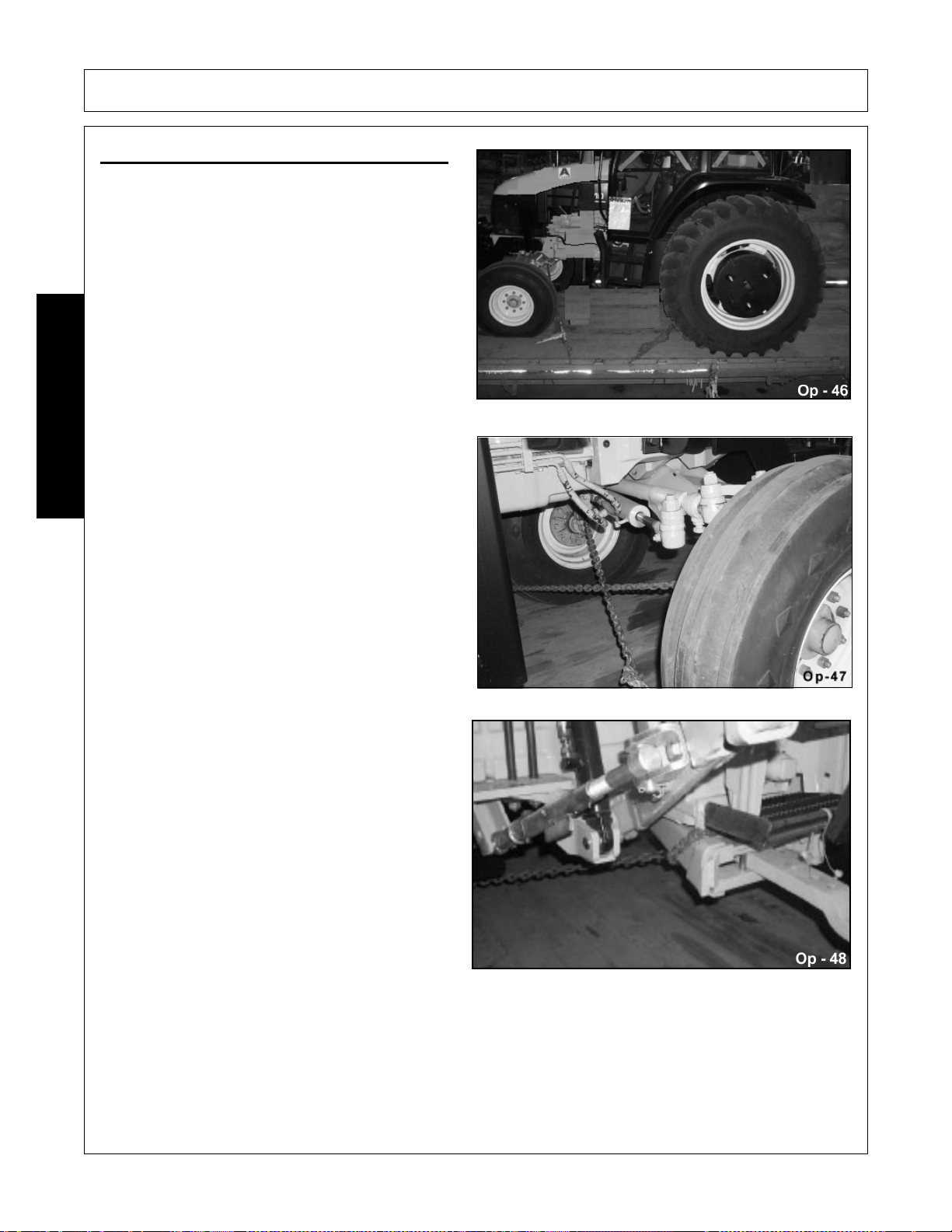

13.3 Hauling the Tractor and Implement

Before transporting a loaded tractor and implement, measure the height and width dimensions and gross weight of the complete loaded unit. Ensure that the load will be in compliance with the legal limits set for the areas that will be traveled through. OPS-U- 0024

Use adequately sized and rated trailers and equipment to transport the tractor and implement. Consult an authorized dealer to determine the proper

OPERATION

equipment required. Using adequately sized chains, heavy duty straps, cables and/or binders, securely tie down both the front and rear of the tractor utilizing the proper tie down locations as specified by the tractor manufacturer. OPS-U- 0025

Arrange the chains so that when tightened, the chains are pulling downward and against themselves. Carefully tighten the securing chains or other fasteners using boomers or binders to apply maximum tension. Use extreme care when attaching and removing the securing devices as the extreme tension involved when released has the potential to inflict serious injury. While hauling the tractor and implement, make occasional stops to check that the tractor and implement have not moved or shifted and that the securing chains have maintained tension. If during transport a hard braking, sharp turning, or swerving action was performed, stop at the next safe location to inspect the security of the load. OPS-U- 0026

9600A 04/08 Operation Section 4-32

2008 Teamco Inc.

OPERATION

14. TROUBLESHOOTING GUIDE

TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY

Excessive power required Operate in too high a gear Gear down the tractor to operate snow blower

Blade scraping ground Increase unit height

Tractor wheel slippage Ballast or traction Install chains

Loose bolt Tighten bolts

Excessive mechanical noise and or vibration

orn universal joints See your

W bearings Worn bearings See your dealer

d

ealer

OPERATION

Does not throw snow

Fan does not work Fan shear bolt broken Replace shear bolt

PTO not engaged

One of shear bolts in fan Replace shear bolt is sheared

Engage PTO or see your dealer

9600A 04/08 Operation Section 4-33

2008 Teamco Inc.

MAINTENANCE SECTION

Maintenance Section 5-1

MAINTENANCE

NUTS AND BOLTS

Check all nuts and bolts for tightness after the first 5 hours of operation, then check yearly after that.

Shear bolts should not be overtightened as this may cause unpredictable shearing action.

DRIVE CHAIN

1. Retighten the fan drive chain when slack exceeds 3/4 inch at the center of the bottom chain section.

2. The drive chain is tightened by loosening the bolts on the idler roller plate and forcing the idler against the chain, then retightening the bolts.

3. DO NOT OVERTIGHTEN as this will increase wear of the idler roller. Allow approximately 3/8 inch of slack up or down at the center of the bottom chain section.

MAINTENANCE

SHEAR BOLTS

1. IMPORTANT : If a shear bolt breaks during operation, immediately shut down the tractor and replace the shear bolt.

2. The shear bolts used on these snow blower fans are P/N 00783436. This shear bolt is machined around the shank to facilit

. Specified shear bolt and their locations are listed below:

3

NOTE: Special machined bolt required for fan shear.

ate shear at the protected fan load.

Tighten nut only enough to draw the shear plates together. Do not overtighten nut. Occasionally apply grease to the shear plates.

Replacement of the shear bolt with one of any other grade or size will be considered an unauthorized modification and the warranty will be void.

9600A 04/08 Maintenance Section 5-2

2008 Teamco Inc.

LUBRICATION

PTO Shaft

MAINTENANCE

Spout Bracket

9600A 04/08 Maintenance Section 5-3

2008 Teamco Inc.

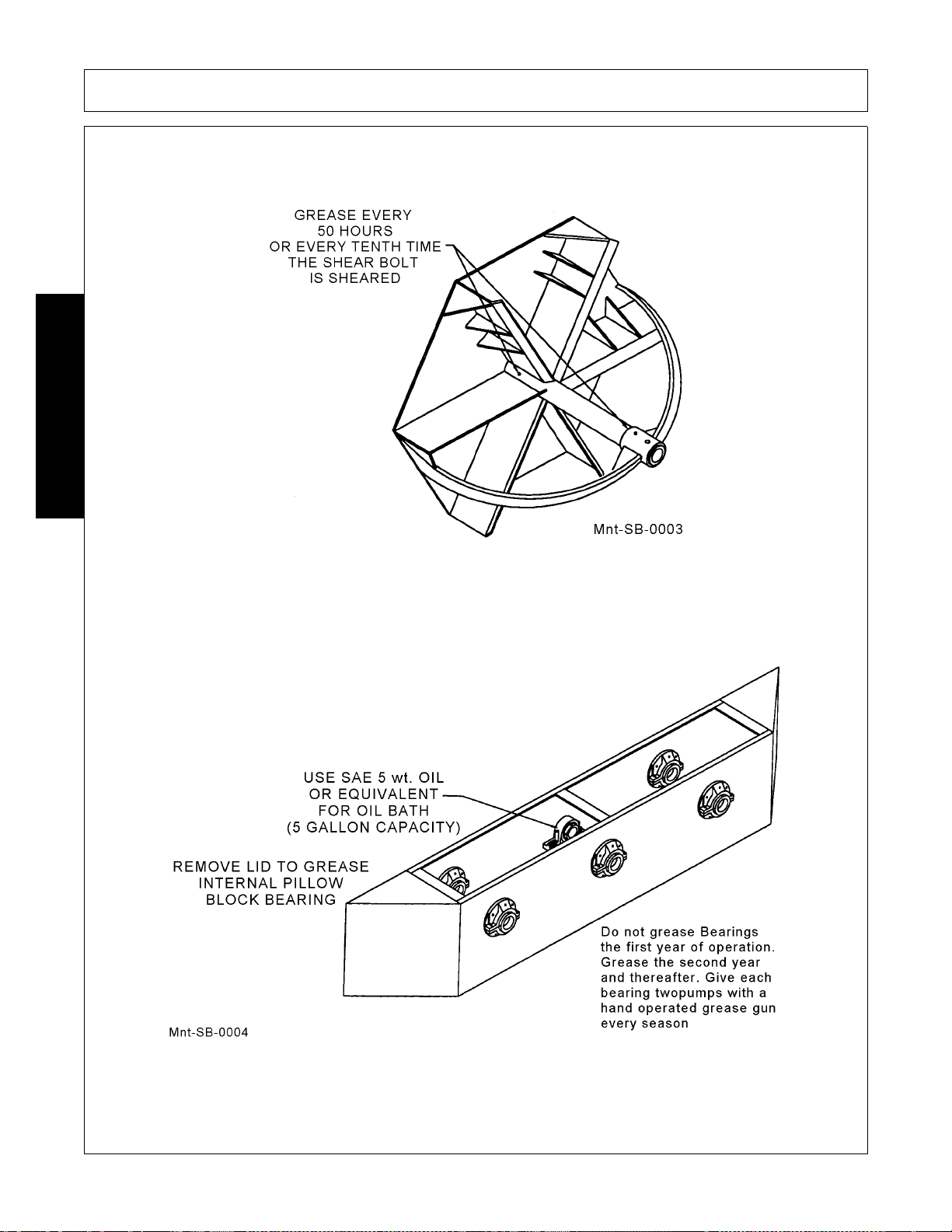

Fans

MAINTENANCE

Oil Reservoir

9600A 04/08 Maintenance Section 5-4

2008 Teamco Inc.

MAINTENANCE

GREASE SCHEDULE

1. Grease should meet the following recommendations:

SAE Multi-purpose grease SAE Multi-purpose grease containing 3 to 5 percent molybdenum disulfide Below 0 degrees C (32 degrees F) use SAE (NGLI) # 0 or #1 Above 0 degrees C (32 degrees F) use SAE (NGLI) #2

2. Drive Chain

The drive chain is operating in an oil bath. Check level using a dip stick. Complete assembly con tain s 5 gallons of SAE #5 wt. oil. Add if necessary.

3. Universal Joint Assemblies

Apply grease to the grease nipple on the slip sleeve of the universal assembly every 5 hours of operation.

NOTE: The snow blower may have to be raised or lowered and the safety shields rotated to fully expose the grease nipple.

Occasionally pull the driveline halves apart and apply grease to all sides of the spline shaft.

If the universal joint sliding members are allowed to dry out to the point where two halves cannot slip freely, damage to the snow blower or tractor may occur.

MAINTENANCE

4. Universal Joint Cross Kits

Every 10 hours of operation (minimum), lubricate the grease fittings on the universal joint cross kits. If grease is seen leaking out of the cross kit bearings, it is an indication that bearings are running hot. Under these conditions, regrease the cross kits more frequently. Apply only one or two strokes from a hand type grease gun. If fitting are over lubricated, seals may be damaged. Grease to the entire under side of the chute.

STORAGE

Your snow blower represents an investment from which you should get the greatest possible benefit. Therefore, when the season is over, the snow blower should be thoroughly checked and prepared for storage so that a minimum amount of work will be required to put it back into operation for the next season. The following are suggested storage procedures:

1. Thoroughly clean the snow blower, wash any dirt or salt off the blower.

2. Remove drive chains and submerse in oil.

3. Smear grease over any exposed hydraulic cylinder shafts.

4. Check the implement for worn or damaged parts. Make replacements immediately.

5. Store the implement in a clean, dry place.

6. Use spray touch-up enamel where necessary to prevent rust and maintain the appearance of the implement.

9600A 04/08 Maintenance Section 5-5

2008 Teamco Inc.

MAINTENANCE

PROPER TORQUE FOR FASTENERS

The chart lists the correct tightening torque for fasteners. When bolts are to be tightened or replaced, refer to this chart to determine the grade of bolts and the proper torque except when specific torque values are assigned in manual text. RECOMMENDED TORQUE IN FOOT POUNDS UNLESS OTHERWISE STATED IN THE MANUAL*

NOTE: These values apply to fasteners as received from supplier, dry or when lubricated with normal engine oil. They do not apply if special graphited or molydisulphide greases or other extreme pressure lubricants are used. This applies to both UNF fine and UNC coarse threads.

MAINTENANCE

9600A 04/08 Maintenance Section 5-6

2008 Teamco Inc.

SNOW BLOWER

9600A-SOM-04/08 Printed U.S.A

9600A

Teamco SNOWBLAST 9600A Operator's Manual

SNOW BLOWER

OPERATOR’S MANUAL

To the Owner/Operator/Dealer

TABLE OF CONTENTS

DEALER’S PREDELIVERY SERVICE GUIDE

DEALER’S DELIVERY GUIDE

SAFETY SECTION

General Safety Instructions and Practices

Operator Safety Instructions and Practices

Connecting or Disconnecting Implement Safety Instructions and Practices

Equipment Operation Safety Instructions and Practices

Transporting Safety Instructions and Practices

Maintenance and Service Safety Instructions and Practices

Concluding Safety Instructions and Practices

Decal Location

1. 00725746 1 DANGER Peligro

2. 00756494 1 DANGER Driveline Installation

3. 1 INSTRUCT Genuine Parts

4. 00763977 1 INSTRUCT Notice to Owner

5. 00773723 1 DANGER Peligro Driveline

6. 226-331 1 WARNING Multi-Hazard

7. 00784040 2 DANGER Avoid Bodily Injury from Rotating Fans

8. 00784041 2 WARNING Thrown Objects

9. 00784043 1 DANGER Moving Parts

10. 00784044 2 DANGER Guard Missing

11. 00784045 2 DANGER Stay Back from Snowblower Intake

12. 00784061 1 WARNING Snowblower Contact Electrical Wires

13. 02962764 4 WARNING Pinch Points

14. 02962765 2 DANGER Multi-Hazard Pinch Points

15. 02965262 1 WARNING Hose Burst

16. 1438333 6 INSTRUCT Grease every 10 Hours

17. 2 LOGO Logo

18. D114 1 WARNING 1000 RPM

19. 2 LOGO Logo

20. 00756004 2 DANGER Shield Missing

21. 1458392 2 REFLCTR Red Reflector

22. 1458393 2 REFLCTR Yellow Reflector

24. 03200347 1 REFLCTR SMV Sign

25. 00756005 1 DANGER Rotating Driveline

26. 00776031 1 ________ Canister, Operator’s Manual

27. 5047C 1 ________ Operator’s Manual Inside

28. 10058000 1 ________ Bolt

29. 00024100 2 ________ Flatwasher

30. 02959924 1 ________ Locknut

Decal Description

Federal Laws and Regulations

INTRODUCTION SECTION

ATTENTION OWNER/OPERATOR

ASSEMBLY SECTION

HYDRAULIC CHUTE ROTATION CYLINDER

2. A hydraulic restrictor is required to limit hydraulic flow.

3. Attach PTO shaft to snow blower. Install key in shaft, slide yoke over shaft and fasten with setscrew (A). Tighten setscrew (B) at 90 degrees to keyway and lock down with jam nut (C).

4. The Snow Blower is easily adaptable to all standard Category 2 and 3 Hitch arrangements. These illustrations will detail which pins and bushings you will need for your tractor hitch.

5. Attach the snow blower to the tractor and level the snow blower.

6. Carefully raise and lower the snow blower.

7. Attach the universal joint assembly to the tractor. Slide slidelock collar back and slide on tractor PTO shaft until locking collar engages.

8. Check for correct overlap of driveline and ensure driveline is not bottoming out. Raise and lower machine to make sure. Main drive overlap is 5 inches.

9. Check that the snow blower is level side to side. Adjust tractor lift link if necessary.

OPERATION SECTION

1. OPERATOR REQUIREMENTS

2. TRACTOR REQUIREMENTS

Tractor Requirements and Capabilities

2.1 ROPS and Seat Belt

2.2 Tractor Safety Devices

2.3 Tractor Horsepower

2.4 3-Point Hitch

2.5 Power Take Off (PTO)

2.6 Tire Spacing

3. GETTING ON AND OFF THE TRACTOR

3.1 Boarding the Tractor

3.2 Dismounting the Tractor

4. STARTING THE TRACTOR

5. CONNECTING THE SNOW BLOWER TO THE TRACTOR

5.1 Connecting the Snow Blower to the Tractor

1. Make sure the tractor is equipped with the correct PTO shaft. Change shafts if needed.

2. Shorten or remove the tractor drawbar to avoid interference when raising and lowering the snow blower.

4. Turn off the tractor engine and dismount.

6. Walk around to opposite side and repeat procedure for remaining lift arm and hitch pin.

6. DRIVELINE ATTACHMENT
