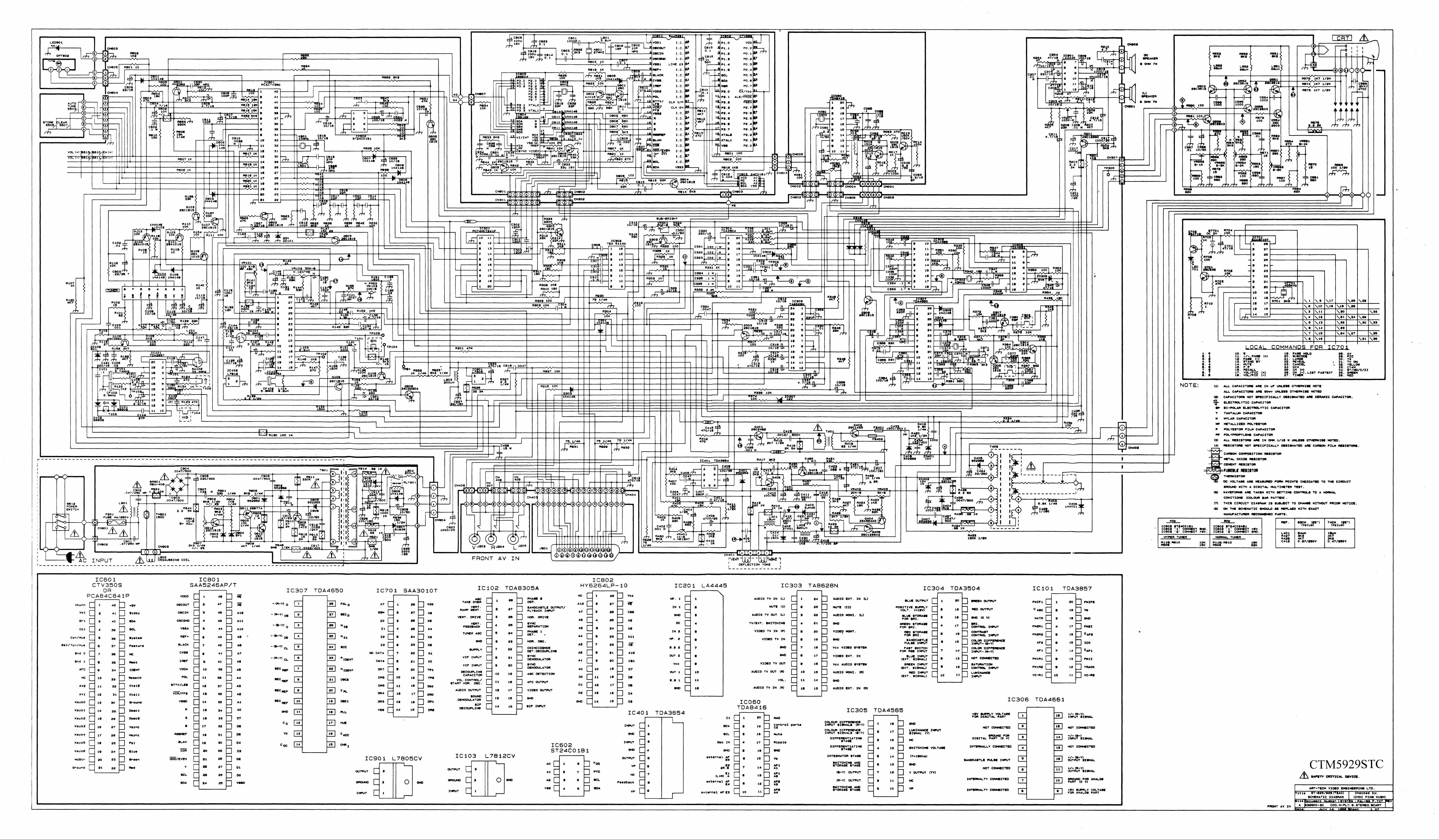

TEAC CTM-5929-STC Service manual

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

155-R63308-05-04 HANDSET ASS'Y RC:R633 CCD/F.TT/FINE TUNE
BATT.DOOR-TEAC DESIGN RC-717 CT-M5929STC
180-825B00-01-MP COM PART FOR 825B MECH ASS'Y
(MATCH GOLDSTAR,SAMSUNG CRT)
180-825BT3-26-03 NON-COM PA RT ASS'Y (PAL/BG W/SCART/CCD/
F.TXT/G.STEREO/FRONT AV IN) 40PROG.
180-825BT3-26-CP COM PART ASS'Y (PAL/BG W/SCART/CCD/F.TT/
G.STEREO/FRONT AV IN)
183-825B00-00-CD COM PART FOR (FASTEXT FOR SAA5281 P/E W/
CCD) ASS'Y

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

155-R63308-05-04 HANDSET ASS'Y RC:R633 CCD/F.TT/FINE TUNE
BATT.DOOR-TEAC DESIGN RC -717 CT-M5929STC
107-800455-46 455K HZ RESONATOR "KYOCERA" 1
CF701
113-101005-17 CARBON FILM RESISTOR 100 OHM 1/16W +-5% 2
R704,706
113-102005-17 CARBON FILM RESISTOR 1K OHM 1/16W +-5% 1
R705
113-103005-17 CARBON FILM RESISTOR 10K OHM 1/16W +-5% 1
R702
113-109005-17 CARBON FILM RESISTOR 1 OHM 1/16W +-5% 1
R709
113-473005-17 CARBON FILM RESISTOR 47K OHM 1/16W +-5% 1
R703
113-682005-17 CARBON FILM RESISTOR 6.8K OHM 1/16W +-5% 1
R701
127-476042-03 ELECT. CAP. 47 MFD 16V + -20% 1
C701
130-600101-00 INFRARED EMITTER EL-1L1 KODENSHI 1
LED701
131-210719-19 TRANSISTOR 2SA719S FO SHAN 1
Q702
131-230945-00 TRANSISTOR 2SC945 NEC 1
Q701
133-803010-33 I.C. SAA3010T PHILIPS 1
IC701
172-726000-99 BARE WIRE 54MM 0
W701
190-R63301-P2 REMOTE P.C.B. (050896) 1
516-260408-10 SELF-TAPPING SCREW 2.6 X 8 P/T (HARDEN) 2
FOR HANDSET
774-R63301-00 BATTERY SPRING (+VE) 1
774-R63302-00 BATTERY SPRING (-VE) 1
774-R63303-00 BATTERY SPRING (+ -VE) 1
810-041104-13 POLYBAG 4" X 11" X 0.04MM W/RE-CYCLING MARK 1
FOR HANDSET
849-R63301-00 KEY PAD {FULL 40 KEYS} 1
892-R63301-07 DIAL KEY PLATE - W/FASTEXT/CCD /FINE-TUNE/EFFECT 1
(15 KEYS)
900-R63302-03 HANDSET TOP CABINET -MATT BLK. SPRAYED W/SILVER 1
{MATCH W/902-R63302-03}
8001C S.S.
902-R63302-03 HANDSET BOTTOM CABINET - MATT BLACK SPRAYED 1
{MATCH W/900-R63302-03}
910-R63301-90 BATTERY DOOR - TEAC DESIGN 1
(RC-717)(CT-M5929STC)(BLK)
973-R63301-00 VOLUME/CHANNEL KNOB - MOULDED BLACK 1

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

180-825B00-0 1-MP COM PART FOR 825B MECH ASS'Y
(MATCH GOLDSTAR,SAMSUNG CRT)
509-305010-00 MACHINE SCREW 3 X 10 KM (BLACK) 2
JACK PLATE MTG.
514-400425-10 SELF-TAPPING SCREW 4 X 25 B/T (HARDEN) 10
FOR CABINET MTG.
514-400435-10 SELF-TAPPING SCREW 4 X 35 B/T (HARDEN) 3
FOR CAB.MTG.(BOTTOM)
515-303408-10 SELF-TAPPING SCREW 3 X 8 W/B/T (HARDEN) 1
FOR AC LINE CORD
515-303410-10 SELF-TAPPING SCREW 3 X 10 W/B/T (HARDEN) 14
6-POWER BOARD,8 -SPK.MTG.
515-303410-10 SELF-TAPPING SCREW 3 X 10 W/B/T (HARDEN) 6
2 FOR FUNCTION PCB,2 FOR REMOTE SENSOR PCB
515-303410-10 SELF-TAPPING SCREW 3 X 10 W/B/T (HARDEN) 0
1 FOR VOLUME KNOB
515-303410-10 SELF-TAPPING SCREW 3 X 10 W/B/T (HARDEN) 0
1 FOR FRONT CABINET & LENS
515-303412-10 SELF-TAPPING SCREW 3 X 12 W/B/T (HARDEN) 14
FOR MAIN PCB
524-962502-00 CRT MTG. SCREW 7 X 25 VP *** NARROW PITCH *** 4
FOR GOLDSTAR,SAMSUNG CRT
622-825F01-00 FELT L240 X W17 X T0.3MM W/TAPE 7
7 FOR FRONT CABINET
622-882802-00 FELT L240 X W17 X T0.5MM W/TAPE 5
5 FOR BETWEEN CRT AND FRONT CAB.
630-238010-00 FIBRE WASHER OD=23 , ID=8 T=1MM 4
FOR CRT MTG.
748-206515-00 WASHER 4
FOR CRT MTG.
777-932501-00 POWER KNOB SPRING IN DIM 10MM X L12MM 1
FOR POWER KNOB
810-052204-14 POLYBAG 5" X 22" X 0.04MM W/RE-CYCLING MARK {P/O 1
FOR AC LINE CORD
MAT}
834-230801-00 RUBBER WASHER OD=23 , ID=8 , T=1.0 8
FOR CRT MTG.
840-051030-11 RUBBER PAD (ONE SIDE W/TAPE) 10
4 FOR SPEAKER SIDE,6 FOR CRT MTG.
920-932901-U0 P.C.B. MTG. BRACKET 1
929-821B01-00 LED BRACKET 1
939-892001-00 POWER KNOB ADAPTER 1
954-729A01-00 STUD POST BLACK ABS 6
954-882100-00 AC LINE CORD CLIP 1
954-882804-00 HIGH VOLTAGE CABLE SPACER 3
FOR FBT
977-829B02-00 FUNCTION KNOB (FOR VOLUME CHANNEL FUNCTION) 1
977-829B11-00 FUNCTION KNOB (FOR CHANNEL SETTING) 1

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

180-825BT3-26-03 NON-COM PART ASS'Y (PAL/BG W/SCART/CCD/
F.TXT/G.STEREO/FRONT AV IN) 40PROG.
107-731500-00 SAW FILTER TSB-5308U (SANYO) 1
SA102
107-738916-00 SAW FILTER TSF-5316 SANYO 1
SA101
113-153105-17 CARBON FILM RESISTOR 15K OHM 1/4W +-5% 2
R116,610
113-223101-67 METAL FILM RESISTOR 22K OHM 1/4W +-1% 1
R606
166-281922-40 SPEAKER 2-1/4" X 5" 8 OHM 10W #YDP-613-2B-SP "TCL" 2
186-624500-11 HI-WATT SUPER HEAVY DUTY 1.5V 0% MERCURY 3A ER03X 2
ALUM.CASE
191-401005-07 4 PIN SOCKET ASS'Y L=450MM 1
FOR CRT
514-300410-00 SELF-TAPPING SCREW 3 X 10 B/T (HARDEN) {BLACK} 4
4 FOR AV PCB & FRONT CABINET
610-962521-67 GIFT BOX - TEAC DESIGN (CT-M5929STC) 1
618-825B01-00 PACKING PAD 2
663-230469-98 SERIAL NO.LABEL - OC:GT -469/98 0
663-230539-98 SERIAL NO.LABEL - OC:GT -539/98 2
1PC STUCK ON CTN & 1PC STUCK ON RATING LABEL
669-825B01-05 RATING LABEL - TEAC DESIGN (CT-M5929STC) 240V 1
670-825B00-08 I/MANUAL - TEAC DESIGN (CT-M5929STC) W/CCD,CLEAR 1
40P.
678-825B01-03 SCREEN STICKER - TEAC DESIGN (CT-M5929STC) 1
678-825B02-01 EASY TUNE CARD (A1) - TEAC DESIGN 1
678-825B02-02 CB NO.LABEL(I)-TEAC (A) DESIGN (CT-M5928TXT)(LARGE 2
STUCK ON CTN
SIZE)
678-931315-07 TOTAL CARE LAEBL - TEAC (B) DESIGN 1
690-942039-02 WARRANTY CARD -TEAC (C) DESIGN 1
693-825B01-02 EAN CODE LABEL - 9313060009847 1
703-825B11-03 SPK.GRILLE - METALLIC GREY (8403C)SPY 0.5MM THK 2
í1.0 HOLE
710-932901-01 NAME PLATE - TEAC (B) DESIGN (BIG SIZE) 1
SUPPLIED BY VIDEO EPOCH
(ELECTROFORMED)
800-825B05-00 POLYFAOM - TOP LEFT (W/O WOOFER AND W/WOOFER) 1
800-825B06-00 POLYFOAM - TOP RIGHT (W/O WOOFER AND W/WOOFER) 1
800-825B07-00 POLYFOAM - BOTTOM LEFT (W/O WOOFER AND W/WOOFER) 1
800-825B08-00 POLYFOAM - BOTTOM RIGHT (W/O WOOFER AND W/WOOFER) 1
810-091504-13 POLYBAG 9" X 15" X 0.04MM W/ RE -CYCLING P.E.MARK 1
FOR I/MANUAL
810-455304-60 POLYBAG 45"X53"X0.04MM (TEAC DESIGN CT-M596SR) 1
FOR UNIT
826-432005-00 FOAM SHEET - 43" X 20" X 0.5MM THK 1
FOR TOP
834-230802-00 RUBBER WASHER OD=23, ID=8, T=2 4
FOR CRT MTG.
884-932934-02 JACK COVER PLATE - TEAC DESI GN 1
900-825B01-06 FRONT CABINET (B) - METALLIC GREY (8403C) 1

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

917-829B02-12 FUNCTION LENS - TEAC DESIGN (CT-M5929STC) W/CLEAR 1
FUNCTION
980-932923-U0 JACK PLATE W/BRASS INSERT (521 -882001-00 1
2PCS/SET) UL 94V0
991-829B01-01 POWER KNOB - METALLIC GREY (8403C) 1
002-125226-48 25" CRT #A59KYL220X06S S/H DY# 153-144R 1
(AUSTRALIA) GOLDSTAR
002-125260-48 25" CRT S/H #A59KYL220X06V (AUSTRIALIA) "LG CHEUNG 0
# (REF:GTVM98-004)
SHA"
008-600251-05 DEGAUSSING COIL 60T (W/FIVE LAYERS OF TAPE) 1
# L903
171-550084-B0 7" SAA APP LINE CORD 2-PIN PLUG 0
171-550084-D0 84" AC LINE CORD W/SAA APP. 10A 250V 1
171-550084-D1 7' SAA APP. LINE CORD W/PLUG E-CUTTING 45MM,15MM 0
PVC HOLDER
902-942511-U6 BACK CABINET - METALLIC GREY (8403C) 1
003-131372-07 TUNER OSCAR 2900KKC 3X1 772 "TELEFUNKEN" (HIGH 1
# TUNER
JACK)
003-131769-07 TUNER HYPER BAND (3300 KHC 3 X 5 569)"TELEFUNKEN" 0
# TUNER (REF:GTSS-772)
(HIGH JACK)

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

180-825BT3-26-CP COM PART ASS'Y (PAL/BG W/SCART/CCD/F.TT/
G.STEREO/FRONT AV IN)
012-102340-06 SEMI-FIXED RESISTOR EVND8AA 03B13 1KB 2
VR401,901
012-104340-06 SEMI-FIXED RESISTOR EVND8AA 03B15 100KB 1
VR101
012-202330-06 SEMI-FIXED RESISTOR EVND2AA 03B23 2KB 5
VR551,552,553,554,555
012-203340-06 SEMI-FIXED RESISTOR EVND8AA 03B24 20KB 2
VR402,103
012-502340-06 SEMI-FIXED RESISTOR EVND8AA 03B53 5KB 2
VR403,060
012-503340-06 SEMI-FIXED RESISTOR EVND8AA 03B54 50KB 2
VR102,301
101-191009-96 HORIZONTAL DRIVE TRANSFORMER (R1009) 1
T401
102-370600-02 TANK COIL / AFC COIL COILS 707851 1
T101
102-671300-02 SOUND IF COIL. COILS 710256 2
T104,102
102-671600-02 SOUND IF COIL KHC-823087 "COILS" 1
T103
102-770310-02 CHROMA FILTER KH -814657 "COILS" 1
T305
105-100103-08 FIXED INDUCTOR COIL 10 UH +-10% AXIAL 2
L102,601
105-150103-08 FIXED INDUCTOR COIL 15 UH +-5% AXIAL 1
L104
105-201106-02 CHOKE COIL 200UH 10% CH9012- 201K (ELEC PRODUCT) 2
L903,904
105-250102-35 LINEARITY COIL 25UH LX142242A HIGHLIGHT 1
L401
105-479103-08 FIXED INDUCTIVE COIL 4.7 UH 1
L60A
105-560103-08 FIXED INDUCTIVE COIL 56 UH +-10% AXIAL 3
L551,552,553
105-689103-08 FIXED INDUCTOR COIL 6.8 UH + -10% AXIAL 1
L103
105-821156-06 CHOKE COIL 820UH 0.37 OHM HIGHLIGHT 1
L402
105-828103-08 FIXED INDUCTIVE COIL 0.82 UH +-10% AXIAL 1
L101
105-829103-08 FIXED CONDUCTOR COIL 8.2 UH +-10% AXIAL 3
L301,302,303
106-210012-01 RELAY 12V OMIT-SS-112LM ORIGINAL 1
RLY901
107-104430-66 CHROMA TRAP CERAMIC FILTER 4.43 MHZ WEI HAW 1
CF302
107-105500-66 SOUND TRAP CERAMIC FILTER 5.5MHZ WEI HAW 1
CF103
107-305500-16 SOUND BYPASS CERAMIC FILTER 5.5MHZ WEI HAW 1
CF102

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

107-305740-16 SOUND BYPASS CERAMIC FILTER 5.74MHZ SFE-5.74MC 1
CF101
MURATA
113-100105-17 CARBON FILM RESISTOR 10 OHM 1/4W +-5% 4
R601,119,108,140
113-100205-12 CARBON FILM RESISTOR 10 OHM 1/2W +-5% 1
R593
113-100505-75 METAL OXIDE FILM RESISTOR 10 OHM 3W +-5% 1
R429
113-101105-17 CARBON FILM RESISTOR 100 OHM 1/4W +-5% 6
R309,317,318,319,322,613
113-101105-17 CARBON FILM RESISTOR 100 OHM 1/4W +-5% 11
R624,625,643,644,638,343,351,934,342,061,062
113-101105-17 CARBON FILM RESISTOR 100 OHM 1/4W +-5% 3
R580,579,581
113-101305-75 METAL OXIDE FILM RESISTOR 100 OHM 1W + -5% 1
R130
113-102105-17 CARBON FILM RESISTOR 1K OHM 1/4W +-5% 11
R422,922,201,329,331,402,107,325,330,935,157
113-102105-17 CARBON FILM RESISTOR 1K OHM 1/4W +-5% 12
R619,617,607,608,618,620,621,634,641,012,017,134
113-102105-17 CARBON FILM RESISTOR 1K OHM 1/4W +-5% 8
R109,143,153,320,302,328,354,637
113-102305-75 METAL OXIDE FILM RESISTOR 1K OHM 1W +-5% 1
R414
113-103101-67 METAL FILM RESISTOR 10K OHM 1/4W +-1% 1
R609
113-103105-17 CARBON FILM RESISTOR 10K OHM 1/4W +-5% 10
R612,623,635,649,632,103,110,104,111,605
113-103105-17 CARBON FILM RESISTOR 10K OHM 1/4W +-5% 8
R303,304,315,407,352,373,374,823
113-103105-17 CARBON FILM RESISTOR 10K OHM 1/4W +-5% 9
R154,321,339,927,437,353,364,380,335
113-103105-17 CARBON FILM RESISTOR 10K OHM 1/4W +-5% 1
R905
113-104105-17 CARBON FILM RESISTOR 100K OHM 1/4W +-5% 3
R136,003,014
113-104305-75 METAL OXIDE FILM RESISTOR 100K OHM 1W +-5% 1
R918
113-105101-67 METAL FILM RESISTOR 1M OHM 1/4W +-1% 1
R358
113-109305-75 METAL OXIDE FILN RESISTOR 1 OHM 1W +-5% 1
R410
113-120305-75 METAL OXIDE FILM RESISTOR 12 OHM 1W +-5% 1
R909
113-120405-75 METAL OXIDE FILM RESISTOR 12 OHM 2W +-5% 1
R917
113-121105-17 CARBON FILM RESISTOR 120 OHM 1/4W +-5% 3
R567,568,569
113-122105-17 CARBON FILM RESISTOR 1.2K OHM 1/4W +-5% 9
R602,344,121,122,064,063,564,565,566
113-122205-12 CARBON FILM RESISTOR 1K2 OHM 1/2W +-5% 1
R420

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

113-123105-17 CARBON FILM RESISTOR 12K OHM 1/4W +-5% 2
R132,408
113-150105-17 CARBON FILM RESISTOR 15 OHM 1/4W +-5% 4
R102,570,571,572
113-151205-12 CARBON FILM RESISTOR 150 OHM 1/2W +-5% 2
R936,411
113-152105-17 CARBON FILM RESISTOR 1.5K OHM 1/4W +-5% 7
R150,152,423,636,639,642,831
113-153105-17 CARBON FILM RESISTOR 15K OHM 1/4W +-5% 3
R616,401,604
113-153405-75 METAL OXIDE FILM RESISTOR 15K OHM 2W + -5% 1
R137
113-154105-17 CARBON FILM RESISTOR 150K OHM 1/4W +-5% 3
R133,002,013
113-154205-12 CARBON FILM RESISTOR 150K OHM 1/2W +-5% 1
R433
113-158405-75 METAL OXIDE FILM RESISTOR 0.15 OHM 2W +-5% 1
R912
113-159905-51 WIRE WOUND CEMENT RESISTOR 1.5 OHM 10W +-5% 1
R924
113-181105-17 CARBON FILM RESISTOR 180 OHM 1/4W +-5% 1
R310
113-182105-17 CARBON FILM RESISTOR 1.8K OHM 1/4W +-5% 11
R904,628,629,630,631,148,306,308,311,350,349
113-182105-17 CARBON FILM RESISTOR 1.8K OHM 1/4W +-5% 2
R205,207
113-183105-17 CARBON FILM RESISTOR 18K OHM 1/4W +-5% 3
R424,340,615
113-184105-17 CARBON FILM RESISTOR 180K OHM 1/4W +-5% 3
R151,156,431
113-202605-75 METAL OXIDE FILM RESISTOR 2K OHM 5W +-5% 1
R416
113-221105-17 CARBON FILM RESISTOR 220 OHM 1/4W +-5% 5
R112,106,305,307,313
113-221305-75 METAL OXIDE FILM RESISTOR 220 OHM 1W + -5% 1
R413
113-222101-67 METAL FILM RESISTOR 2.2K OHM 1/4W +-1% 1
R146
113-222105-17 CARBON FILM RESISTOR 2.2K OHM 1/4W +-5% 5
R141,652,332,066,067
113-223105-17 CARBON FILM RESISTOR 22K OHM 1/4W +-5% 9
R129,312,314,406,208,209,346,365,646
113-224105-17 CARBON FILM RESISTOR 220K OHM 1/4W +-5% 1
R653
113-229105-17 CARBON FILM RESISTOR 2.2 OHM 1/4W +-5% 3
R125,327,334
113-229205-12 CARBON FILM RESISTOR 2.2 OHM 1/2W +-5% 1
R139
113-229405-42 FUSING RESISTOR 2.2 OHM 2W +-5 % 1
R576
113-229505-75 METAL OXIDE FILM RESISTOR 2.2 OHM 3W + -5% 1
R203

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

113-229605-51 WIRE WOUND CEMENT RESISTOR 2.2 OHM 5W +-5% 1
R944
113-270105-17 CARBON FILM RESISTOR 27 OHM 1/4W +-5% 1
R115
113-270405-75 METAL OXIDE FILM RESISTOR 27 OHM 2W +-5% 1
R910
113-271105-17 CARBON FILM RESISTOR 270 OHM 1/4W +-5% 1
R147
113-272105-17 CARBON FILM RESISTOR 2.7K OHM 1/4W +-5% 1
R142
113-272205-12 CARBON FILM RESISTOR 2.7K OHM 1/2W +-5% 5
R415,428,573,574,575
113-273105-17 CARBON FILM RESISTOR 27K OHM 1/4W +-5% 3
R155,603,657
113-274105-17 CARBON FILM RESISTOR 270K OHM 1/4W +-5% 1
R430
113-331105-17 CARBON FILM RESISTOR 330 OHM 1/4W +-5% 4
R901,336,337,338
113-332102-17 CARBON FILM RESISTOR 3.3K OHM 1/4W +-2% 5
R907,582,583,584,426
113-332105-17 CARBON FILM RESISTOR 3.3K OHM 1/4W +-5% 5
R611,645,647,363,367
113-333105-17 CARBON FILM RESISTOR 33K OHM 1/4W +-5% 8
R118,127,128,114,117,144,421,655
113-334101-67 METAL FILM RESISTOR 330K OHM 1/4W +-1% 1
R138
113-334105-17 CARBON FILM RESISTOR 330K OHM 1/4W +-5% 1
R131
113-334305-75 METAL OXIDE FILM RESISTOR 330K OHM 1W +-5% 1
R911
113-390505-75 METAL OXIDE FILM RESISTOR 39 OHM 3W +-5% 1
R926
113-390605-75 METAL OXIDE FILM RESISTOR 39 OHM 5W +-5% 1
R913
113-391105-17 CARBON FILM RESISTOR 390 OHM 1/4W +-5% 3
R557,558,559
113-392105-17 CARBON FILM RESISTOR 3.9K OHM 1/4W +-5% 1
R404
113-393105-17 CARBON FILM RESISTOR 39K OHM 1/4W +-5% 2
R316,341
113-470105-17 CARBON FILM RESISTOR 47 OHM 1/4W +-5% 2
R204,206
113-471105-17 CARBON FILM RESISTOR 470 OHM 1/4W +-5% 4
R412,123,366,124
113-472105-17 CARBON FILM RESISTOR 4.7K OHM 1/4W +-5% 11
R908,149,120,158,159,060,417,345,348,371,427
113-473105-17 CARBON FILM RESISTOR 47K OHM 1/4W +-5% 5
R622,301,405,651,648
113-479105-17 CARBON FILM RESISTOR 4.7 OHM 1/4W +-5% 2
R210,211
113-511105-17 CARBON FILM RESISTOR 510 OHM 1/4W +-5% 1
R563

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

113-561105-17 CARBON FILM RESISTOR 560 OHM 1/4W +-5% 6
R347,326,554,555,556,825
113-562105-17 CARBON FILM RESISTOR 5.6K OHM 1/4W +-5% 5
R403,105,202,357,324
113-563105-17 CARBON FILM RESISTOR 56K OHM 1/4W +-5% 2
R160,614
113-681105-17 CARBON FILM RESISTOR 680 OHM 1/4W +-5% 3
R135,425,824
113-682102-17 CARBON FILM RESISTOR 6.8K OHM 1/4W +-2% 1
R902
113-682105-17 CARBON FILM RESISTOR 6.8K OHM 1/4W +-5% 2
R906,419
113-688405-42 FUSEBLE RESISTOR 0.68 2W + -5% 1
R914
113-750105-17 CARBON FILM RESISTOR 75 OHM 1/4W +-5% 5
R929,930,931,932,928
113-820105-17 CARBON FILM RESISTOR 82 OHM 1/4W +-5% 2
R418,101
113-821105-17 CARBON FILM RESISTOR 820 OHM 1/4W +-5% 1
R126
113-822105-17 CARBON FILM RESISTOR 8.2K OHM 1/4W +-5% 4
R923,903,626,460
113-822505-77 METAL OXIDE FILM RESISTOR 8.2K OHM 3W +-5% 3
R551,552,553
113-823105-17 CARBON FILM RESISTOR 82K OHM 1/4W +-5% 2
R145,432
113-829605-75 METAL OXIDE FILM RESISTOR 8.2 OHM 5W + -5% 1
R436
123-101350-60 CERAMIC CAP. 100 PF 50V +-10% (SL TYPE) "SMART 3
C612,335,336
GOOD"
123-102350-90 CERAMIC CAP. 0.001 MFD 50V +-10% (B TYPE) 9
C138,614,348,349,103,148,554,555,556
123-103370-90 CERAMIC CAP. 0.01 MFD 50V +80 -20% 12
C102,117,126,330,147,118,361,363,358,359,357,360
123-103370-90 CERAMIC CAP. 0.01 MFD 50V +80 -20% 2
C352,110
123-104270-90 CERAMIC CAP. 0.1 MFD 25V +80 -20% 7
C623,139,306,309,307,101,00A
123-104270-90 CERAMIC CAP. 0.1 MFD 25V +80 -20% 1
C065
123-104350-90 CERAMIC CAP. 0.1 MFD 50V +-10% (B TYPE) 2
C567,568
123-121350-60 CERAMIC CAP. 120 PF 50V +-10% (SL TYPE) 3
C301,302,303
123-122551-90 CERAMIC CAP. 0.0012 MFD 500V +-10% (B TYPE) 1
C415
MATSUSHITA
123-130340-93 CERAMIC CAP. 13PF 50V +-5% (NPO) 1
C374
123-151350-60 CERAMIC CAP 150 PF 50V + -10% (SL TYPE) 1
C137

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

123-152850-10 CERAMIC CAP. 0.0015 MFD 2KV +-10% MATSUSHITA 1
C433
123-220340-60 CERAMIC CAP. 22 PF 50V +-5% (SL TYPE) 4
C616,617,618,620
123-221350-60 CERAMIC CAP. 220 PF 50V +-10% (SL TYPE) 6
C353,354,365,551,552,553
123-221551-90 CERAMIC CAP. 220 PF 500V +-10% MATSUSHITA 1
C916
123-222850-10 CERAMIC CAP. 0.0022 MFD 2KV +-10% MATSUSHITA 1
C912
123-223370-90 CERAMIC CAP. 0.022 MFD 50V +80 -20% 12
C109,131,124,122,128,129,135,331,332,105,344,369
123-240340-93 CERAMIC CAP 24PF 50V + -5%(NPO) 1
C373
123-270340-60 CERAMIC CAP. 27 PF 50V +-5% (SL -TYPE) 1
C114
123-270340-93 CERAMIC CAP. 27PF 50V +-5% (NPO) 2
C613,628
123-271350-60 CERAMIC CAP. 270 PF 50V +-10% (SL TYPE) 2
C342,343
123-330340-60 CERAMIC CAP. 33 PF 50V +-5% (SL TYPE) 1
C366
123-331350-60 CERAMIC CAP. 330 PF 50V +-10% (SL TYPE) 2
C341,605
123-390340-93 CERAMIC CAP. 39PF 50V +-5% (NPO) 2
C630,C1
123-391350-60 CERAMIC CAP. 390PF 50V +-10% (SL TYPE) 1
C367
123-472350-90 CERAMIC CAP. 0.0047 MFD 50V +-10% (B TYPE) 2
C918,920
123-472550-90 CERAMIC CAP. 0.0047 MFD 500V +-10% (B TYPE) 2
C432,427
123-472552-90 CERAMIC CAP. 0.0047 MFD 500V +-10% (B TYPE) SMALL 3
C904,903,906
SIZE
123-472650-90 CERAMIC CAP. 4700 PF 1 KV 1
C914
123-472850-10 CERAMIC CAP. 0.0047MFD 2KV +-10% MATSUSHITA 1
C569
123-681350-90 CERAMIC CAP. 680 PF 50V +-10% (B TYPE) 1
C407
123-821850-10 CERAMIC CAP. 820 PF 2KV +-10% (SL TYPE) MATSUSHITA 2
C913,440
124-224061-03 TANTALIUM CAP. 0.22 MFD 35V +-10% 2
C603,115
125-361120-11 POLYSTYRENE CAP. 360PF 125V +-5% 1
C150
125-391120-11 POLYSTYRENE CAP. 390 PF 125V +-5% 1
C149
126-102071-01 MYLAR CAP. 0.001 MFD 50V +-10% 3
C130,402,426
126-103071-01 MYLAR CAP. 0.01 MFD 50V +-10% 3
C413,207,208

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

126-104071-01 MYLAR CAP. 0.1 MFD 50V + -10% 12
C602,304,305,308,310,324,325,326,133,371,333,334
126-104071-01 MYLAR CAP. 0.1 MFD 50V + -10% 9
C409,214,216,420,347,355,356,911,811
126-104101-31 POLYPROPYLENE CAP. 0.1 MFD 100V +-10% 1
C425
126-222071-01 MYLAR CAP. 0.0022 MFD 50V +-10% 2
C610,624
126-223071-01 MYLAR CAP. 0.022 MFD 50V +-10% 5
C321,322,323,375,376
126-223401-31 POLYPROPYLENE CAP. 0.022MFD 400V +-10% 2
C431,434
126-224071-01 MYLAR CAP 0.22 MFD 50V + -10% 5
C140,346,327,438,064
126-272070-31 POLYPROPYLENE CAP. 0.0027 MFD 50V +-5% 1
C141
126-333071-01 MYLAR CAP. 0.033 MFD 50V +-10% 1
C907
126-334071-01 MYLAR CAP. 0.33 MFD 50V +-10% 4
C143,145,368,372
126-364211-31 POLYPROPYLENE CAP. 0.36 MFD 250V +-10% 1
C412
126-472071-01 MYLAR CAP. 0.0047 MFD 50V +-10% 2
C403,405
126-472160-41 METALLIZED POLYPROPYLENE CAP. 0.0047 MFD 1600V 2
C430,414
+-5%
126-473071-01 MYLAR CAP. 0.047 MFD 50V +-10% 2
C134,370
126-683071-01 MYLAR CAP. 0.068 MFD 50V +-10% 1
C423
127-105072-03 ELECT. CAP. 1 MFD 50V +-20% 4
C107,142,350,132
127-106042-03 ELECT. CAP. 10 MFD 16V + -20% 8
C202,621,601,615,619,626,622,351
127-106042-03 ELECT. CAP. 10 MFD 16V + -20% 10
C203,312,329,316,317,315,314,318,338,340
127-106072-03 ELECT. CAP. 10 MFD 50V + -20% 2
C909,566
127-106104-03 ELECT CAP. 10 MFD 100V +-20% 105øC 1
C908
127-107042-03 ELECT. CAP. 100 MFD 16V +-20% 8
C125,119,625,209,210,311,364,066
127-107062-03 ELECT. CAP. 100 MFD 35V +-20% 2
C408,418
127-107132-03 ELECT. CAP. 100 MFD 160V +-20% "NICHICON" 3
C417,927,926
127-108042-03 ELECT. CAP. 1000 MFD 16V +-20% 2
C213,215
127-108052-03 ELECT. CAP. 1000 MFD 25V +-20% 5
C217,201,429,923,436
127-225042-23 ELECT. CAP. BIPOLAR 2.2MFD 16V +-20% 2
C062,063

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

127-225072-03 ELECT. CAP 2.2 MFD 50V +-20% 9
C113,106,108,111,116,010,042,060,061
127-226042-03 ELECT. CAP. 22 MFD 16V + -20% 1
C609
127-227042-03 ELECT. CAP. 220 MFD 16V +-20% 3
C320,121,205
127-227062-03 ELECT. CAP. 220 MFD 35V +-20% 1
C410
127-227402-03 ELECT CAP. 220 MFD 400V +-20% (í22MM -26MM) 1
C905
127-228052-03 ELECT. CAP. 2200 MFD 25V +-20% 2
C428,925
127-335071-05 ELECT CAP. 3.3UF 50V +-10% (TIME CONSTANT) 1
C404
127-335072-03 ELECT CAP. 3.3 MFD 50V + -20% 1
C127
127-336042-03 ELECT. CAP. 33 MFD 16V + -20% 2
C144,921
127-336042-23 ELECT. CAP. BIPOLAR 33 MFD 16V +-20% 1
W113
127-336252-03 ELECT CAP. 33 MFD 250V +-20% 1
C424
127-338062-03 ELECT CAP. 3300 MFD 35V +-20% 1
C411
127-475072-03 ELECT CAP 4.7 MFD 50V 7
C607,608,604,136,337,211,212
127-475102-23 ELECT CAP.BIPOLAR 4.7MFD 100V +-20% 1
C419
127-476042-03 ELECT. CAP. 47 MFD 16V + -20% 4
C401,204,206,345
127-476052-03 ELECT. CAP. 47 MFD 25V + -20% 1
C328
127-476072-07 ELECT.CAP. 47 MFD 50V +-20% NICHICON 1
C422
127-476094-07 ELECT CAP. 47 MFD 63V +-20% 105øC "NICHICON" 1
C910
127-477042-03 ELECT. CAP. 470 MFD 16V +-20% 7
C146,922,120,313,919,416,421
127-478052-03 ELECT. CAP. 4700MFD 25V +-20% 1
C406
130-134148-01 SILICON DIODE IN4148 12
D301,302,303,305,908,103,104,105,307,311,312,313
130-134148-01 SILICON DIODE IN4148 11
D602,601,606,607,608,609,603,304,614,612,616
130-134148-01 SILICON DIODE IN4148 1
D618
130-240809-50 VERIABLE CAPACITANCE DIODE BB809 2
D102,101
130-310341-00 RECTIFIER DIODE 3TH41 TOSHIBA 1
D402
130-310345-00 RECTIFIER DIODE 3JH45 TOSHIBA 2
D403,906

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

130-310406-00 BRIDGE RECTIFIER RBV-406 SANKEN 1
BR901
130-311545-60 RECTIFIER DIODE 1R5JH45 2
D404,907
130-314001-01 RECTIFIER DIODE 1N4001 1
D406
130-315295-00 RECTIFIER DIODE S5295G TOSHIBA 7
D902,901,401,405,408,407,905
130-410051-01 ZENER DIODE 5.1V 1/2W +-5% 1
ZD102
130-410056-01 ZENER DIODE 5.6V 1
ZD306
130-410082-01 ZENER DIODE 8.2V 1
ZD903
130-410100-01 ZENER DIODE 10V 1/2W 1
ZD401
130-410120-02 ZENER DIODE 12V HZ12A2 1
ZD307
130-410574-00 ZENER DIODE UPC 574J NEC 1
ZD101
130-411091-01 ZENER DIODE 9.1V 1
ZD904
130-422120-00 ZENER DIODE 1W 12V 1
ZD402
130-512044-00 LED 3MM RED 204HDC 1
LED601 (ON SENSOR PCB)
131-211015-00 TRANSISTOR 2SA1015 TOSHIBA 4
Q101,102,108,802
131-211015-0A TRANSISTOR 2SA1015 TOSHIBA 1
Q404
131-220774-0A TRANSISTOR 2SB774/Q/R/S MATSUSHITA 1
Q911
131-231809-0A TRANSISTOR 2SC1809 ROHM 1
Q105
131-231815-0A TRANSISTOR 2SC1815 TOSHIBA 8
Q103,107,912,910,602,302,004,005
131-231815-0A TRANSISTOR 2SC1815 TOSHIBA 9
Q603,605,106,109,304,403,303,306,801
131-231815-0A TRANSISTOR 2SC1815 TOSHIBA 4
Q554,555,556,604
131-232230-00 NPN-TR 2SC2230A-Y (TOSHI) TO92 VCE=180V IC=.1A 1
Q905
HFE=120-240
131-232482-0A TRANSISTOR 2SC2482 TOSHIBA 1
Q401
131-233619-00 TRANSISTOR 2SC3619 3
Q551,552,553
131-234706-00 TRANSISTOR 2SC4706 SHIN HO 1
Q909
131-241406-25 TRANSISTOR 2SD1406-Y TOSHIBA 1
Q405
131-241406-27 TRANSISTOR 2SD1406-GR TOSHIBA 1
Q201

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

131-242500-00 TRANSISTOR 2SD2500 TOSHIBA 1
Q402
131-462369-0A TRANSISTOR PH2369 PHILIPS 1
Q601
133-100353-33 I.C. CTV350GW2.1/PCA84C841/259 PHILIPS 1
IC601
133-102421-31 I.C. ST24C02AB1 SGS 1
IC602
133-103504-33 I.C. TDA3504 PHILIPS 1
IC304
133-103857-33 IC TDA3857 PHILIPS 1
IC101
133-104565-33 I.C. TDA4565 PHILIPS 1
IC305
133-104650-33 I.C. TDA 4650 PHILIPS 1
IC307
133-108305-33 IC TDA8305A PHILIPS 1
IC102
133-108416-33 I.C. TDA8416 PHILIPS 1
IC060
133-108628-14 IC TA8628N TOSHIBA 1
IC303
133-114665-33 I.C. TDA4665(V5) PHILIPS 1
IC306
133-203654-33 I.C. TDA3654 (PHILIPS) 1
IC401
133-204445-16 I.C. LA4445 (SANYO) 1
IC201
133-207812-31 IC L7812CV SGS-THOMSON 1
IC103
133-304241-31 I.C. M74HCT241B1 SGS 1
IC301
133-305114-31 I.C. TEA5114A SGS 1
IC302
133-517805-61 I.C. KA7805 SAMSUNG 1
IC901
136-504251-00 REMOTE CONTROL RECEIVER SPS-425-1G SANYO 1
OPT601 (ON SENSOR PCB)
137-100000-31 CRYSTAL 10 MHZ HOORAY 2
X601,060
137-886723-20 CRYSTAL 8.86 MHz KDS 1
X302
146-104102-02 TACT SWITCH 5 PIN L=5MM #1102PB "PROMOTION" 3
S603,606,607 (ON FUNCTION PCB)
146-104105-00 TACT SWITCH KPT-1105S "UNITRONIC" 4
S615,616,617,618
160-101001-08 PIN CONNECTOR 1 PIN PLUG STRAIGHT 3
FOR CN501,901,902
160-102255-27 PIN CONNECTOR 2 PINS PLUG STRAIGHT (UL) (S.H.S) 7
CN201,601,407,408,603,808,809
160-102805-08 PIN CONNECTOR 2 PIN PLUG STRAIGHT 1
CN903

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

160-103255-27 PIN CONNECTOR 3 PINS PLUG 11
CN202,002,004,005,304,306,602,302,405,406,605
160-103805-08 PIN CONNECTOR 3 PIN PLUG STRAIGHT 1
CN402
160-104255-27 PIN CONNECTOR 4 PINS PLUG (SHS) 2
CN001,303
160-104805-08 PIN CONNECTOR 4 PIN PLUG STRAIGHT 2
CN401,904
160-105255-27 PIN CONNECTOR 5 PINS WAFER 2.5 PITCH 1
CN307
160-106255-27 PIN CONNECTOR 6 PINS WAFER (SHS) S11 -W 3
CN403,301,604
160-110255-27 PIN CONNECTOR 10 PINS PLUG 1
CN404
161-471002-02 RAC JACK 3 PIN BLACK #UIC -032-04AB "CHINA 1
J205
LANDMARK"
161-473003-00 RCA JACK 3 PIN YELLOW SC-8.4-6A "HONG YIP" 1
J203
161-473204-00 RCA JACK 3 PIN UIC-032-04AR RED "UNITRONIC" 1
J204
161-480105-32 RF CONNECTOR #KP-JJ (PAL) MIKI 1
FOR ANT INPUT
161-682102-22 21 PIN SCART SOCKET 1
J901
172-620010-40 UL 1007 TOP COAT WIRE AWG 20 100MM BLACK 10 X 10 1
MAIN P.C.B. `Q' TO `Q'
MM
172-620014-40 UL 1007 TOP COAT WIRE AWG 20 140MM BLACK 10 X 10 2
`D1' TO `D1',`B1' TO `B1'
MM
172-620014-43 UL 1007 TOP COAT WIRE AWG 20 140MM ORANGE 10 X 1
MAIN P.C.B. `J' TO `J'
10MM
172-622007-40 UL 1007 TOP COAT WIRE #22 70 MM BLACK 5 X 5 MM 2
FOR ZD401 GND TO CN202 GND
172-622007-40 UL 1007 TOP COAT WIRE #22 70MM BLACK 5 X 5 MM 0
CRT SOCKET PIN 12 TO CN501 GND
172-626008-40 UL 1007 TOP COAT WIRE AWG 26 80MM BLACK 10 X 10 MM 2
IC401 LUG TO MAIN PCB `M',`H' TO `H'
172-626008-40 UL 1007 TOP COAT WIRE AWG 26 80MM BLACK 10 X 10 MM 2
Q909 LUG TO POWER PCB `Z',Q402 LUG TO MAIN PCB `K'
172-626014-42 UL 1007 TOP COAT WIRE AWG 26 140MM RED 10 X 10 MM 1
MAIN P.C.B. `Z' TO `Z'
172-626014-42 UL 1007 TOP COAT WIRE AWG 26 140MM RED 10 X 10 MM 1
MAIN P.C.B. `O' TO `O'
172-626014-43 UL 1007 TOP COAT WIRE AWG 26 140MM ORANGE 10 X 10 3
MAIN PCB `S' TO `S',`T' TO `T',`U' TO `U'
MM
172-626016-43 UL 1007 TOP COAT WIRE AWG 26 160MM ORANGE 10 X 10 1
MAIN P.C.B.`W' TO `W'
MM

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

172-626016-43 UL 1007 TOP COAT WIRE AWG 26 160MM ORANGE 10 X 10 1
FOR C441 GND TO CN202 GND
MM
172-626024-41 UL 1007 TOP COAT WIRE AWG 26 240MM BROWN 10 X 10 4
MAIN PCB `P'TO`P',`I'TO`I',`N'TO`N',`W2'TO`W2'
MM
172-726000-99 BARE WIRE 54MM 10
W001 -024,026-027,029-061,063-065,067-112,114-129
172-726000-99 BARE WIRE 54MM 0
W131-136,140-141,143-144,146-148,150-153
172-726000-99 BARE WIRE 54MM 0
W155-159,161,163-165,167,168,170,230-231,
172-726000-99 BARE WIRE 54MM 0
W021A,W021B,WA08,W501,502,901,902,904-906
172-726000-99 BARE WIRE 54MM 0

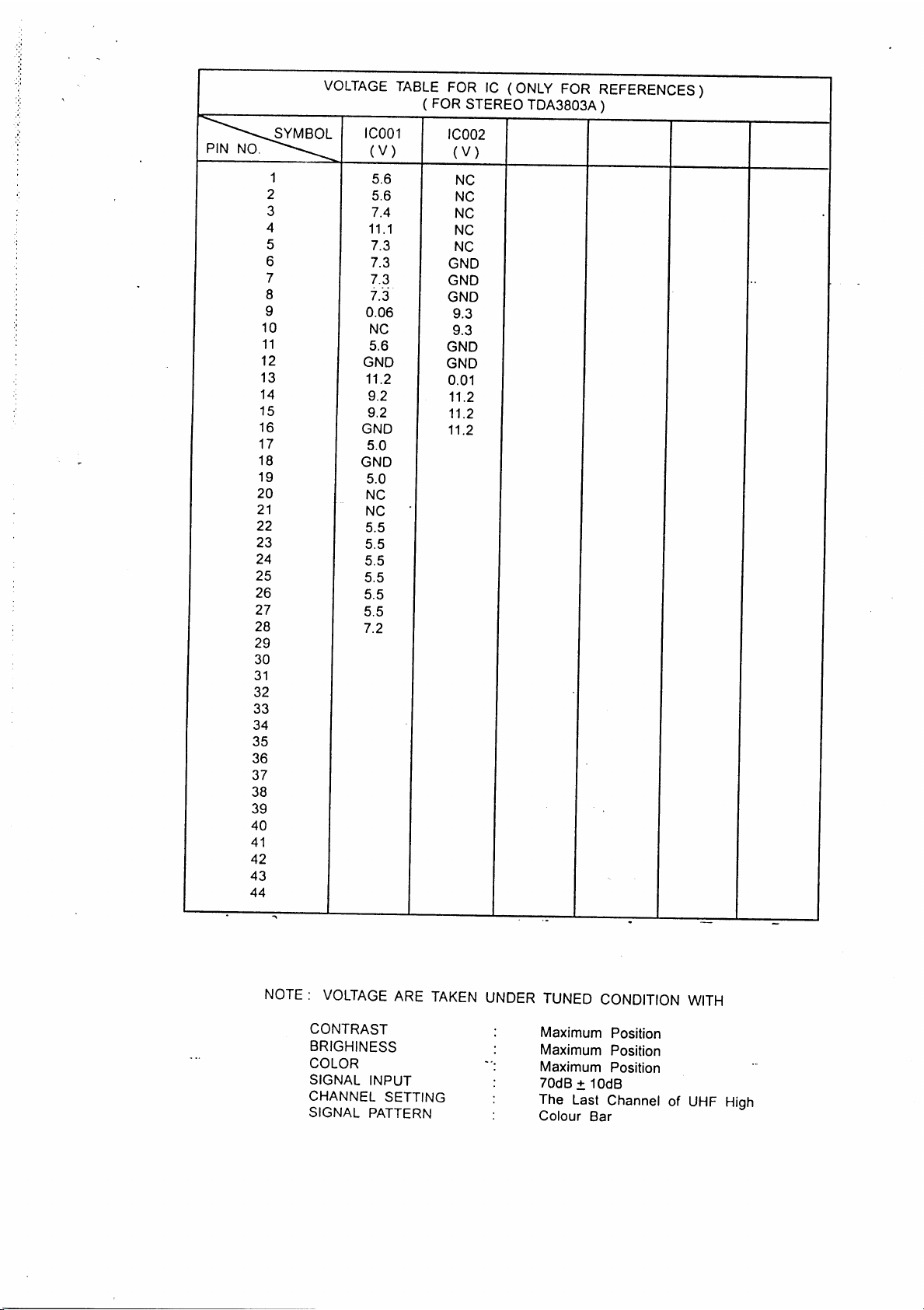

FOR G.STEREO PCB (IC001 PIN `12'TO`14',`21'TO`23'
172-726000-99 BARE WIRE 54MM 0
R044,045,C002,023,W002,004-006,010,014,016-020)
172-830120-99 FLAT BRIDED WIRE 2
CRT GROUND
174-833026-50 DOUBLE SHIELD WIRE UL 2547 AWG 28 260MM BLACK 1
MAIN P.C.B. `A.B' TO `A.B'
177-655053-02 2 PIN FLAT CABLE WIRE AWG 26 50MM 1
MAIN P.C.B. `C.D' TO `C.D'
179-001010-00 OIL SLEEVING 1 mm DIA. 0
40MM-R416,20MM-ZD402,10MM-C907,50MM FOR `Y'TO`Y'
179-001010-00 OIL SLEEVING 1 mm DIA. 0
20MM-D402,20MM-D403,20MM-D906,10MM-C143,10MM-C120
179-001010-00 OIL SLEEVING 1 mm DIA. 0
10MM FOR D907,R436,C150,R914
179-001010-00 OIL SLEEVING 1 mm DIA. 0
60MM FOR R551,552,553
179-001010-00 OIL SLEEVING 1 mm DIA. 0
20MM FOR R926,20MM FOR R913
179-101400-00 UL/CSA PVC TUBE 14MM DIA. (UL APP'D ES8072) 0
130MM FOR 191-601007-07,130MM FOR 191-011001-07
179-105000-00 UL PVC TUBE 5mm DIA 0
240MM FOR POWER SWITCH
179-105000-00 UL PVC TUBE 5mm DIA 1
500MMF OR LEFT SPK.,700MM FOR RIGHT SPK.
179-107300-00 UL PVC TUBE 7.3MM DIA. 0
220MM FOR DOUBLE INSOLATION WIRE
179-107300-00 UL PVC TUBE 7.3MM DIA. 0
350MM FOR FRONT AV CABLE (CN405,406,407,408)
179-110500-00 UL PVC TUBE 11MM DIA. 0
FOR POWER CORD
179-403030-00 3MM DIA. SHRINKABLE TUBE 0
FOR 130MM SOLDERING LUG,160MM FOR POWER SWITCH
184-350805-08 AXIAL LEAD BEAD INDUCTORS "COILS" 3
FB401,402,901
190-829B00-04 FUNCTION P.C.B.(280897) 1
190-829B00-07 SENSOR P.C.B.(121197) 1

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

190-829B01-08 AV JACK BOARD (111297) 1
190-88200A-XE POWER SWITCH P.C.B. (131196) 1
190-882803-00 CRT P.C.B. (071197) 1
190-932502-07 POWER P.C.B. (280595) 1
190-932904-08 21 PIN SOCKET P.C.B. (140295) 1
190-93290A-XB MAIN P.C.B. (290798) 1
190-942003-09 NICAM/STEREO P.C.B. (140998) 1
191-011001-07 10 PINS SOCKET ASS'Y L=210MM (1 -6 FLT CABLE,7-10 1
CN404,`1' TO 21 PIN PCB `G',2 TO H,3 TO I,4 TO J
S.S.CABLE)
191-011001-07 10 PINS SOCKET ASS'Y L=210MM (1 -6 FLT CABLE,7-10 0
5 TO K,6 TO L,7 TO M,8 TO N,9 TO O,10 TO P
S.S.CABLE)
191-101007-07 1 PIN SOCKET ASS'Y L=350MM 1
FOR CN501 TO CRT GND
191-201001-07 2 PINS SOCKET ASS'Y L=160MM 1
FOR CN601 TO POWER SWITCH PCB
191-201001-07 2 PINS SOCKET ASS'Y L=160MM 1
CN603 `1' TO `E',`2' TO `D'
191-201004-07 2 PINS SOCKET ASS'Y L=500MM 1
CN202 `2' TO LEFT SPK.`+',`3' TO LEFT SPK.`-'
191-201006-07 2 PINS SOCKET ASS'Y L=700MM 1
CN201 `1' TO RIGHT SPK.`+',`2' TO RIGHT `-'
191-201011-07 2 PIN SOCKET ASSM'Y L=440MM 1
FROM AV JACK BOARD `D' TO CN407 `2',`C' TO `1'
191-201040-10 2 PIN SOCKET ASS'Y L=450MM #26 UL1185 W/SHIELDING 1
FROM AV JACK BOARD `B' TO CN408 `1',`A' TO `2'
CABLE
191-301003-07 3 PINS SOCKET ASS'Y L=450MM 1
CN402 `1' TO CRT P.C.B. `J'
191-301003-07 3 PINS SOCKET ASS'Y L=450MM 0
CN402 `2' TO CRT P.C.B. `I'
191-301003-07 3 PINS SOCKET ASS'Y L=450MM 0
CN402 `3' TO CRT P.C.B. `H'
191-301021-07 3 PIN SOCKET ASSM'Y L=180MM 1
CN605 `1' TO SENSOR PCB `C',`2'TO`B',`3'TO`A'
191-301032-10 3 PIN SOCKET ASS'Y L=420MM (W/SINGLE SHIELD WIRE) 1
FROM AV JACK BOARD `J' TO CN405 PIN `3',`I' TO `2'
191-301032-10 3 PIN SOCKET ASS'Y L=420MM (W/SINGLE SHIELD WIRE) 0
`H' TO `1'
191-301054-07 3 PIN SOCKET ASS'Y L=420MM #28 UL2547 (SHIELD 1
FROM AV JACK BOARD `E' TO CN406 PIN `1',`F' TO `2'
CABLE BROWN)
191-301054-07 3 PIN SOCKET ASS'Y L=420MM #28 UL2547 (SHIELD 0
`G' TO `3'
CABLE BROWN)
191-301202-07 3 PIN SOCKET ASSM'Y 1
CN004 `1' TO CN306 `1',`2' TO `2',`3' TO `3'
191-301205-07 3 PINS SOCKET ASS'Y L=100MM 1
CN002`1' TO CN602`1',`2' TO `2',`3' TO `3'
191-401014-07 4 PINS SOCKET ASS'Y L=3 50MM 1
CN904 `1' TO POWER PCB `1',`2' TO `2',`3' TO `3'

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

191-401014-07 4 PINS SOCKET ASS'Y L=350MM 0
`4' TO `4'
191-401201-07 4 PINS SOCKET ASS'Y L=60MM 1
CN001`1' TO CN303 `1',`2'TO`2',`3'TO`3',`4'TO`4'
191-500048-09 5 PIN SOCKET ASSM'Y L=480MM 1
CN307 `1' TO CRT BOARD `1',`2' TO`2',`3' TO `3'
191-500048-09 5 PIN SOCKET ASSM'Y L=480MM 0
`4' TO `4',`5' TO `5'
191-600036-10 6 PIN SOCKET ASS'Y L=360MM 1
CN604 `1' TO FUNCTION PCB`A',`2' TO `B',`3' TO `E'
191-600036-10 6 PIN SOCKET ASS'Y L=360MM 0
`4' TO `F',`5' TO `D',`6' TO `C'
191-601007-07 6 PINS SOCKET ASS'Y L=210MM (1-6 PIN W/FLAT CABLE) 1
CN403`1' TO 21PIN PCB `A',`2' TO `B',`3' TO `C'
191-601007-07 6 PINS SOCKET ASS'Y L=210MM (1-6 PIN W/FLAT CABLE) 0
`4' TO `D',`5' TO `E',`6' TO `F'
402-522001-11 COAXIAL CABLE W/DIN, RCA 250MM W/3 SOLDERING POINT 1
FOR TUNER TO RF CONNECTOR
"MIKI"
504-305006-10 MACHINE SCREW 3 X 6 B/M (WHITE) 6
2-POWER SWITCH MTG.,2-IC201,1-IC901,1-IC103
514-400312-10 SELF-TAPPING SCREW 4 X 12 B/A (HARDEN) 1
FOR HEAT SINK (A) TO FBT
515-303410-10 SELF-TAPPING SCREW 3 X 10 W/B/T (HARDEN) 1
FOR 750-063102-01
515-303410-10 SELF-TAPPING SCREW 3 X 10 W/B/T (HARDEN) 2
2 FOR SCART
517-303312-10 SELF-TAPPING SCREW 3 X 12 W/A W/H=7MM (HARDEN) 6
2 FOR IC401,1 FOR Q402,1 FOR BR901,1 FOR Q405
517-303312-10 SELF-TAPPING SCR EW 3 X 12 W/A W/H=7MM (HARDEN) 0
1 FOR Q909
540-020030-01 EYELET 2 X 3 MM 8
T402 PIN `1'`5'`10',L401,Q402 `C',2 FOR L402
580-101004-01 "EZ" TWIST LOCK SUPPORTS #23EZ0625N0028 1
FOR CN904
580-101261-01 CABLE TIE L=100MM 16
2-CN402,2-CN307,10-DEGAUSSING COIL,2 -FOR CN401
580-101261-01 CABLE TIE L=100MM 3
1 FOR FBT,1 FOR AC LINE CORD,1-FRONT AV IN CABLE
580-101261-01 CABLE TIE L=100MM 4
3 - PW.SW.PCB,1 - SPK.CN201,202
580-101261-01 CABLE TIE L=100MM 7
2 FOR CN904,4 FOR MAIN PCB WIRE,1 FOR 21PIN CABLE
580-102261-00 CABLE TIE L=200MM W=3.5MM 4
FOR DEGAUSSING COIL MTG.
580-103261-00 CABLE TIE L=300MM W=3.5MM 2
FOR DEGAUSSING COIL MTG.
622-882802-00 FELT L240 X W17 X T0.5MM W/TAPE 2
2 FOR SPK.SIDE
630-114520-00 FIBRE WASHER 1
1 FOR FBT P/N:001-229901-05
630-115512-00 FIBRE WASHER 11 X 5.5 X 1.2 mm 4
FOR STEREO BOARD

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

661-932501-01 FUSE LABEL - ATAKI DESIGN (T4A/250V) 1
744-881301-00 SPRING FOR C.R.T. MOUNTING 5.2 X 42 X 0.6MM 2
746-063101-00 TEST PIN:TOTAL LENGTH 18.6mm THK:0.8mm 2
TP104,103
746-063101-01 AC LINE CORD PIN 4
FOR POWER SW.PCB
750-063101-00 SOLDERING LUG LEG:8X4MM 3
FOR IC401,Q402,Q904
750-063102-01 35MM SOLDERING LUG OD:7 ID:3.2 LEG:4X35MM 5
FOR AC LINE CORD, SPK. CONNECTOR
766-686801-00 FUSE HOLDER 2
F901
779-932501-00 IRON HEAT SINK 1
FOR IC901,IC103
779-932904-02 IRON HEAT SINK 1
FOR IC201
781-932501-02 ALUMINIUM HEAT SINK (POWER) 1
FOR Q909,BR901
781-932903-01 ALUMINIUM HEAT SINK (A) 1
FOR Q402
781-932909-01 ALUMINIUM HEAT SINK (L) 1
FOR Q405
781-932910-01 ALUMINIUM HEAT SINK (M) 1
FOR IC401
783-881306-02 SHIELD CAN COVER (OUT DATE) 1
783-881313-01 SHIELD CAN 1
889-829B01-U0 AV PCB COVER PLATE (UL) 1
896-882101-00 POWER BOARD COVER (UL) 1
938-882001-00 SECAM BOARD HOLDER 4
FOR STEREO BOARD
001-228026-10 FLYBACK TRANSFORMER BSC26-1 0
# T402 (REF:GTVM94-004)
001-229279-05 FLYBACK TRANSFORMER 154-279C (C) LG BEIJING 0
# T402 (REF:GTVM94-004)
001-229901-05 FLYBACK TRANSFORMER F27901-02/ 154-279C GOLDSTAR 1
# T402
101-288270-95 LINE FILTER LB28T270 1
# L901
101-288280-95 LINE FILTER 50MH FOR 28" 0
# L901
101-490260-94 SWITCH POWER TRANSFORMER 28" KB49C260 "HIGHLIGHT" 1
# T901
101-490501-94 SWITCH POWER TRANSFORMER #BCK -4025B-501 "SHEKOU 0
# T901
JEWEL"
113-565210-92 CARBON COMPOSITION RESISTOR 5.6M OHM 1/2W +-10% 2
# R948,921
113-565210-92 CARBON COMPOSITION RESISTOR 5.6M OHM 1/2W +-10% 0
# R948,921
113-688305-42 FUSING RESISTOR 0.68 OHM 1W +-5% 3
# R435,434,916
113-688305-49 FUSING RESISTOR 0.68 OHM 1W + -5% "KOA" 0
# R435,434,916

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

114-210262-00 THERMISTOR PTH451C262B 1
# TH901
114-210270-02 THERMISTOR 18 OHM 270V #2322 662 96524 "PHILIPS" 0
# TH901
114-210270-12 THERMISTOR 18 OHM 276V #2322 662 96724 "PHILIPS" 0
# TH901
114-210290-00 THERMISTOR 18 OHM +-20% #PTH451C234BG180M290A 0
# TH901
"MURATA"
123-222466-47 CERAMIC CAP. 0.0022 MFD 400VAC +-20% W/IEC384 -14 0
# C917
APP. "TDK"
123-222466-50 CERAMIC CAP. 0.0022 MFD 400VAC +-20% ECKDNA222ME 1
# C917
"MATSUSHITA"
123-222466-51 CERAMIC CAP. 0.0022 MFD 400V +-20% W/IEC 384-14 0
# C917
APP. MURATA
126-473222-41 METALIZED POLYPROPYLENE CAP. 0.047 MFD 275V +-20% 2
# C902,980
"OKAYA"
126-473222-42 METALIZED POLYPROPYLENE CAP. 0.047 MFD 275V +-20% 0
# C902,980
"TEAPO"
126-474222-41 METALIZED POLYPROPYLENE CAP. 0.47 MFD 275VAC +-20% 1
# C901
"OKAYA"
126-474222-42 METALIZED POLYPROPYLENE CAP. 0.47 MFD 275V +-20% 0
# C901
"TEAPO"
146-100001-14 POWER SWITCH (ESB-99957S COST COST REDUCTION) 0
146-100006-14 POWER SWITCH PS5E-B "CHINA LANDMARK" 1
161-540004-01 CRT SOCKET ISH-01 IN CHANG 0
161-540105-00 CRT SOCKET ISL-01 IN CHANG 0
161-540105-01 CRT SOCKET HPS0199 -01-020 (HOSIDEN) 29MM THICK 1
182-224000-03 FUSE T4A 250V 1
# F901
182-224000-23 FUSE T4A/250V 5 X 20 MM TIME- LAG #50T040H 0
# F901
"UNITRONIC"
182-224000-33 FUSE 4A/250V 5 X 20MM SLO-BLO #218004 LITTELFUSE 0
# F901
191-101012-07 1 PIN DOUBLE INSOLATION WIRE AWG 18 L=400MM BLUE 1
# FROM POWER SWITCH TO CN901 ON POWER P.C.B.
191-101012-10 1 PIN DOUBLE INSOLATION WIRE AWG 18 L=400MM BLUE 0
# FROM POWER SWITCH TO CN901 ON POWER PCB
191-101013-07 1 PIN DOUBLE INSOLATION WIRE AWG 18 L=400MM BROWN 1
# FROM POWER SWITCH TO CN902 ON POWER P.C.B.
191-101013-10 1 PIN DOUBLE INSOLATION WIRE AWG 18 L=400MM BROWN 0
# FROM POWER SWITCH TO CN902 ON POWER PCB

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

183-825B00-00-CD COM PART FOR (FASTEXT FOR SAA5281 P/E W/ CCD)
ASS'Y
105-399103-08 FIXED INDUCTIVE COIL 3.9 UH +-10% (WITTIS) 1
L801
113-100105-17 CARBON FILM RESISTOR 10 OHM 1/4W +-5% 1
R803
113-101105-17 CARBON FILM RESISTOR 100 OHM 1/4W +-5% 3
R801,R802,D806
113-102105-17 CARBON FILM RESISTOR 1K OHM 1/4W +-5% 7
R817,820,807,844,842,843,819
113-103101-67 METAL FILM RESISTOR 10K OHM 1/4W +-1% 1
R836
113-103105-17 CARBON FILM RESISTOR 10K OHM 1/4W +-5% 2
R835,834
113-152105-17 CARBON FILM RESISTOR 1.5K OHM 1/4W +-5% 1
R818
113-223105-17 CARBON FILM RESISTOR 22K OHM 1/4W +-5% 2
R815,816
113-273105-17 CARBON FILM RESISTOR 27K OHM 1/4W +-5% 1
R810
113-332105-17 CARBON FILM RESISTOR 3.3K OHM 1/4W +-5% 2
R822,809
113-333105-17 CARBON FILM RESISTOR 33K OHM 1/4W +-5% 1
R840
113-391105-17 CARBON FILM RESISTOR 390 OHM 1/4W +-5% 1
R821
113-471105-17 CARBON FILM RESISTOR 470 OHM 1/4W +-5% 2
R813,832
113-472105-17 CARBON FILM RESISTOR 4.7K OHM 1/4W +-5% 2
R811,812
113-512105-17 CARBON FILM RESISTOR 5.1K OHM 1/4W +-5% 1
R841
113-681105-17 CARBON FILM RESISTOR 680 OHM 1/4W +-5% 3
D807,808,809
113-682105-17 CARBON FILM RESISTOR 6.8K OHM 1/4W +-5% 1
R833
123-100340-93 CERAMIC CAP. 10 PF 50V +-5% (NPO) 1
C802
123-104270-90 CERAMIC CAP. 0.1 MFD 25V +80 -20% 9
C830,821,803,823,807,810,822,815,813
123-150340-60 CERAMIC CAP. 15 PF +-5% (SL TYPE) 1
C808
123-330340-93 CERAMIC CAP. 33 PF 50V +-5% (NPO) 2
C832,819
123-561350-60 CERAMIC CA P. 560 PF 50V +-10% (SL TYPE) 2
C820,837
126-102071-01 MYLAR CAP. 0.001 MFD 50V +-10% 1
C801
126-104071-01 MYLAR CAP. 0.1 MFD 50V + -10% 3
C809,804,835
126-223071-01 MYLAR CAP. 0.022 MFD 50V +-10% 1
C806

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

126-332071-01 MYLAR CAP. 0.0033 MFD 50V +-10 % 1
C812
126-682071-01 MYLAR CAP. 0.0068 MFD 50V +-10% 1
C834
126-683071-01 MYLAR CAP. 0.068 MFD 50V +-10% 1
C836
127-105072-03 ELECT. CAP. 1 MFD 50V +-20% 1
C816
127-107042-03 ELECT. CAP. 100 MFD 16V +-20% 2
C818,805
127-336042-03 ELECT. CAP. 33 MFD 16V + -20% 1
C833
130-134148-01 SILICON DIODE IN4148 5
D810,811,812,813,805
131-231815-0A TRANSISTOR 2SC1815 TOSHIBA 3
Q804,805,806
133-100988-33 I.C. CTV988V2.4 PHILIPS 1
IC802
133-102421-31 I.C. ST24C02AB1 SGS 1
IC803
133-115281-33 I.C. SAA5281P/E PHILIPS 1
IC801
133-301866-48 I.C. Z86E0408PSC1866 "ZILOG" 1
IC805
133-386129-48 I.C. Z86129 "ZILOG" FOR CCD 1
IC804
137-270000-33 CRYSTAL 27 MHZ 16PF "GIC" 1
X801
137-800000-20 CRYSTAL 8.0 MHZ KITRONICS 1
X802
160-102255-27 PIN CONNECTOR 2 PINS PLUG STRAIGHT (UL) (S.H.S) 2
CN807,(CN803 `1',`2')
160-103255-27 PIN CONNECTOR 3 PINS PLUG 2
CN802,803 (`3' TO `5' PIN)
160-106255-27 PIN CONNECTOR 6 PINS WAFER (SHS) S11 -W 1
CN801
161-381802-23 I.C. SOCKET 18 PINS "TRI-MARK" 2
FOR IC804,805
172-726000-99 BARE WIRE 54MM 0
W801-807,809-811,814-819,R814,L802
190-932903-05 TELETEXT P.C.B (160798) 1
191-201202-02 2 PINS SOCKET ASS'Y L=180MM 1
FOR CN808 `1' TO CN807 `1',`2' TO `2'
191-201206-07 2 PINS SOCKET ASS'Y L=100MM 1
CN809 `1' TO CN803 `1',`2' TO `2'
191-301205-10 3 PIN SOCKET ASS'Y L=100MM 1
FOR CN803 TO CN005
191-301214-07 3 PIN SOCKET ASS'Y L=240MM 1
CN802 TO CN302
191-601201-00 6 PIN SOCKET ASS'Y 1
CN801 TO CN301
514-303408-10 SELF-TAPPING SCREW 3 X 8 B/T (HARDEN) 2
FOR TXT BOARD MTG.

MODEL NO: CT-M5929STC
SYSTEM: PAL/BG W/SCART/CCD/F.TXT/G. STEREO/FRONT
AV IN 240V SAA

PART NUMBER DESCRIPTION QTY.

580-101261-01 CABLE TIE L=100MM 1
FOR CN804,805,806,807
630-083216-00 FIBRE WASH ER 1
FOR TXT BOARD MTG.
