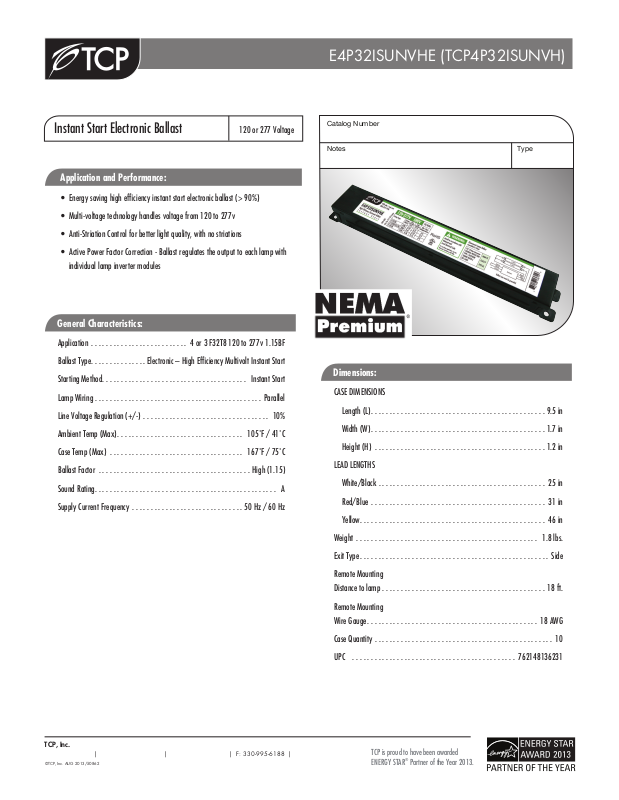

E4P32ISUNVHE (TCP4P32ISUNVH)
Instant Start Electronic Ballast
120 or 277 Voltage
Application and Performance:
• Energy saving high efficiency instant start electronic ballast (> 90%)
• Multi-voltage technology handles voltage from 120 to 277v
• Anti-Striation Control for better light quality, with no striations
• Active Power Factor Correction - Ballast regulates the output to each lamp with
individual lamp inverter modules
General Characteristics:
Application . . . . . . . . . . . . . . . . . . . . . . . . . . 4 or 3 F32T8 120 to 277v 1.15BF
Ballast Type. . . . . . . . . . . . . . . Electronic – High Efficiency Multivolt Instant Start
Starting Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Instant Start
Lamp Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Parallel
Line Voltage Regulation (+/-) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10%
Ambient Temp (Max). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105˚F / 41˚C
Case Temp (Max) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167˚F / 75˚C
Ballast Factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . High (1.15)
Sound Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A
Supply Current Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Hz / 60 Hz
Catalog Number
Notes Type
Dimensions:
CASE DIMENSIONS
Length (L). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.5 in
Width (W). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.7 in
Height (H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 in
LEAD LENGTHS
White/Black . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 in
Red/Blue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 in
Yellow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 in
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8 lbs.
TCP, Inc.
| | | F: 330-995-6188 |
©TCP, Inc. AUG 2013/50862
Exit Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Side
Remote Mounting
Distance to lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 ft.
Remote Mounting
Wire Gauge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 AWG
Case Quantity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
UPC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 762148136231
TCP is proud to have been awarded
ENERGY STAR
®
Partner of the Year 2013.
E4P32ISUNVHE (TCP4P32ISUNVH)
Lamp Type
F32T8
F28T8
F25T8
F17T8
Line
Volt.
120
277
120
277
120
277
120
277
Num.
of
Lamps
4 32 0/-18 1.24 147 10 0.99 1.18 1.70 0.80
3 32 0/-18 1.03 122 10 0.99 1.27 1.70 1.04
4 32 0/-18 0.53 145 15 0.99 1.18 1.70 0.81
3 32 0/-18 0.44 120 15 0.99 1.27 1.70 1.06
4 28 0/-18 1.09 130 10 0.99 1.18 1.70 0.91
3 28 0/-18 0.88 104 10 0.99 1.27 1.70 1.22
4 28 0/-18 0.47 128 15 0.99 1.18 1.70 0.92
3 28 0/-18 0.38 105 15 0.99 1.27 1.70 1.21
4 25 0/-18 0.99 118 10 0.99 1.18 1.70 1.00
3 25 0/-18 0.81 96 10 0.99 1.27 1.70 1.32
4 25 0/-18 0.43 116 15 0.99 1.18 1.70 1.02
3 25 0/-18 0.35 95 15 0.99 1.27 1.70 1.34
4 17 0/-18 0.67 80 10 0.99 1.18 1.60 1.47
3 17 0/-18 0.56 67 10 0.99 1.27 1.60 1.91
4 17 0/-18 0.30 80 15 0.96 1.18 1.60 1.48
3 17 0/-18 0.26 67 19 0.93 1.27 1.60 1.91
Rated
Lamp
Watts
Min.
Start
Temp.
(°F/°C)
Input
Current
(Amps)
Input
Power
(Watts)
MAX.
THD%
Power
Factor
Ballast
Factor
MAX. Lamp
Current
Crest Factor
Note: the above data is tested at 60Hz.
Application and Performance Specification Information Subject to Change without Notification.
Fully meets UL&cUL safety standards.
B.E.F.
Performance:
• Meets ANSI Standard C82.11-1993
• Meets ANSI Standard C62.41-1991
• Meets FCC 18 Non CONSUMER Limits
• NEMA Premium
TCP, Inc.
| | | F: 330-995-6188 |
©TCP, Inc. AUG 2013/50862
Line
black
white
Lamp
Lamp
Lamp
Lamp
yellow
yellow
Ballast
Safety:
• No PCB’s
• UL Listed (Class P, Type 1 Outdoor)
• OCV 600V
red
red
blue
blue
Note: For three lamps application, cap any blue/red lead. Insulate to 600 volts.
