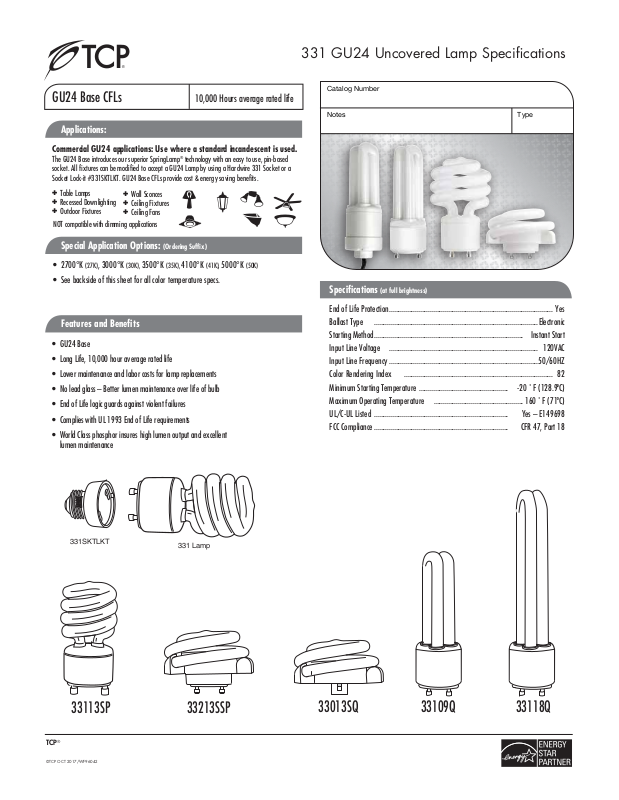

331 GU24 Uncovered Lamp Speciﬁcations

GU24 Base CFLs

10,000 Hours average rated life

Applications:

Commercial GU24 applications: Use where a standard incandescent is used.

The GU24 Base introduces our superior SpringLamp® technology with an easy to use, pin-based socket. All ﬁxtures can be modiﬁed to accept a GU24 Lamp by using a Hardwire 331 Socket or a Socket Lock-it #331SKTLKT. GU24 Base CFLs provide cost & energy saving beneﬁts.

✚

Table Lamps

✚

Recessed Downlighting

✚

Outdoor Fixtures

NOT compatible with dimming applications

✚

Wall Sconces

✚

Ceiling Fixtures

✚

Ceiling Fans

Special Application Options: (Ordering Sufﬁx)

• 2700°K (27K), 3000°K (30K), 3500°K (35K), 4100°K (41K), 5000°K (50K)

• See backside of this sheet for all color temperature specs.

Features and Beneﬁts

• GU24 Base

• Long Life, 10,000 hour average rated life

• Lower maintenance and labor costs for lamp replacements

• No lead glass – Better lumen maintenance over life of bulb

• End of Life logic guards against violent failures

• Complies with UL 1993 End of Life requirements

• World Class phosphor insures high lumen output and excellent lumen maintenance

Catalog Number

Notes Type

Speciﬁcations (at full brightness)

End of Life Protection........................................................................................ Yes

Ballast Type ........................................................................................Electronic

Starting Method................................................................................ Instant Start

Input Line Voltage ................................................................................ 120VAC

Input Line Frequency ................................................................................50/60HZ

Color Rendering Index ................................................................................ 82

Minimum Starting Temperature ................................................ -20 ˚ F (128.9ºC)

Maximum Operating Temperature ................................................ 160 ˚ F (71ºC)

UL/C-UL Listed ........................................................................ Yes – E149698

FCC Compliance ........................................................................ CFR 47, Part 18

331SKTLKT

33113SP

TCP

©TCP OCT 2017/WF96042

331 Lamp

33213SSP

33013SQ

33118Q33109Q

Page 2

331 GU24 Uncovered Lamp Speciﬁcations

13W

18W

23W

27W

Incandescent

Item #Wattage

Description

Wattage

Comparison

Initial

Lumens

Color

Temperature

CRI

M.O.L.

(inches)

Diameter

(inches)

SpringLamps

33109SP 9W SpringLamp GU24 Base 40 550 2700 82 3.4 1.8 .15A 33109SP41K 9W SpringLamp GU24 Base 41K 40 550 4100 82 3.4 1.8 .15A

33113SP 13W SpringLamp GU24 Base 60 850 2700 82 3.6 1.8 .22A 33113SP30K 13W SpringLamp GU24 Base 30K 60 800 3000 82 3.6 1.8 .22A 33113SP35K 13W SpringLamp GU24 Base 35K 60 800 3500 82 3.6 1.8 .22A 33113SP41K 13W SpringLamp GU24 Base 41K 60 800 4100 82 3.6 1.8 .22A 33113SP50K 13W SpringLamp GU24 Base 50K 60 800 5000 82 3.6 1.8 .22A 33113SPY 13W SpringLamp GU24 Base YELLOW 60 – – 82 3.6 1.8 .22A

33118SP 18W SpringLamp GU24 Base 75 1200 2700 82 3.8 2.3 .30A 33118SP30K 18W SpringLamp GU24 Base 30K 75 1200 3000 82 3.8 2.3 .30A 33118SP35K 18W SpringLamp GU24 Base 35K 75 1200 3500 82 3.8 2.3 .30A 33118SP41K 18W SpringLamp GU24 Base 41K 75 1200 4100 82 3.8 2.3 .30A 33118SP50K 18W SpringLamp GU24 Base 50K 75 1150 5000 82 3.8 2.3 .30A

33123SP 23W SpringLamp GU24 Base 100 1600 2700 82 4.4 2.4 .43A 33123SP30K 23W SpringLamp GU24 Base 30K 100 1600 3000 82 4.4 2.4 .43A 33123SP35K 23W SpringLamp GU24 Base 35K 100 1600 3500 82 4.4 2.4 .43A 33123SP41K 23W SpringLamp GU24 Base 41K 100 1600 4100 82 4.4 2.4 .43A 33123SP50K 23W SpringLamp GU24 Base 50K 100 1500 5000 82 4.4 2.4 .43A

33127SP 27W SpringLamp GU24 Base 100 1800 2700 82 4.8 2.4 .45A 33127SP30K 27W SpringLamp GU24 Base 30K 100 1800 3000 82 4.8 2.4 .45A 33127SP35K 27W SpringLamp GU24 Base 35K 100 1800 3500 82 4.8 2.4 .45A 33127SP41K 27W SpringLamp GU24 Base 41K 100 1750 4100 82 4.8 2.4 .45A 33127SP50K 27W SpringLamp GU24 Base 50K 100 1750 5000 82 4.8 2.4 .45A

Input Line

Current

32W

42W

13W

18W

26W

33132SP 32W SpringLamp GU24 Base 120 2200 2700 82 5.1 2.7 .53A 33132SP41K 32W SpringLamp GU24 Base 41K 120 2200 4100 82 5.1 2.7 .53A

33142SP 42W SpringLamp GU24 Base 150 2600 2700 82 5.9 2.8 .70A 33142SP41K 42W SpringLamp GU24 Base 41K 150 2600 4100 82 5.9 2.8 .70A

Low Proﬁle SpringLamps

33213SSP 13W SpringLamp Squat GU24 Base 60 850 2700 82 2.0 3.2 .22A 33213SSP30K 13W SpringLamp Squat GU24 Base 30K 60 800 3000 82 2.0 3.2 .22A

Low Proﬁle 4-pin SpringLamps

33013SQ 13W Low Proﬁle 4-Pin Springlamp 60 900 2700 82 1.8 2.9 .22A

PL Lamps

33113Q 13W Quad PL Lamp GU24 Base 60 750 2700 82 4.5 1.5 .22A 33113Q30K 13W Quad PL Lamp GU24 Base 30K 60 750 3000 82 4.5 1.5 .22A 33113Q35K 13W Quad PL Lamp GU24 Base 35K 60 750 3500 82 4.5 1.5 .22A 33113Q41K 13W Quad PL Lamp GU24 Base 41K 60 700 4100 82 4.5 1.5 .22A

33118Q 18W Quad PL Lamp GU24 Base 75 1150 2700 82 6.1 1.5 .30A 33118Q30K 18W Quad PL Lamp GU24 Base 30K 75 1150 3000 82 6.1 1.5 .30A 33118Q35K 18W Quad PL Lamp GU24 Base 35K 75 1100 3500 82 6.1 1.5 .30A 33118Q41K 18W Quad PL Lamp GU24 Base 41K 75 1100 4100 82 6.1 1.5 .30A

33126Q 26W Quad PL Lamp GU24 Base 100 1500 2700 82 7.1 1.8 .43A 33126Q30K 26W Quad PL Lamp GU24 Base 30K 100 1500 3000 82 7.1 1.8 .43A 33126Q35K 26W GU PL Lamp GU24 Base 35K 100 1450 3500 82 7.1 1.8 .43A 33126Q41K 26W GU PL Lamp GU24 Base 41K 100 1450 4100 82 7.1 1.8 .43A
