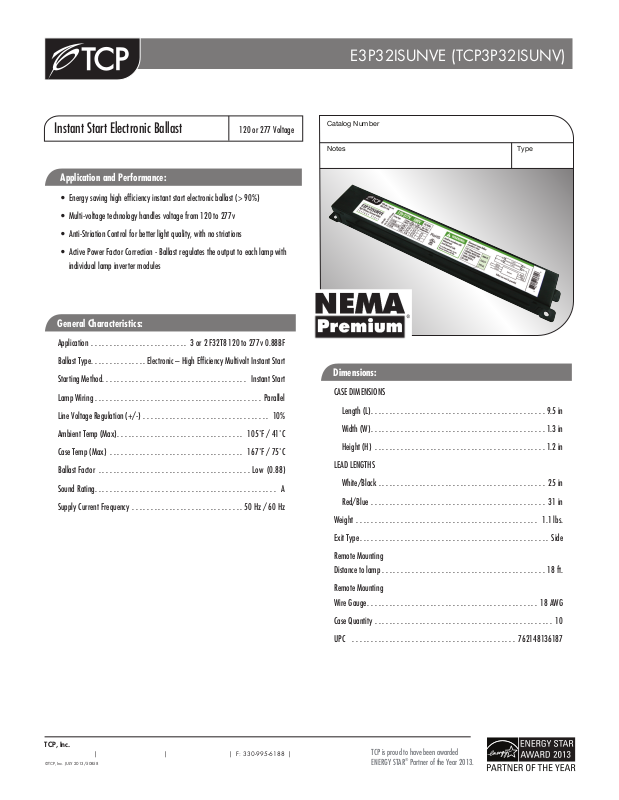

E3P32ISUNVE (TCP3P32ISUNV)
Instant Start Electronic Ballast
120 or 277 Voltage
Application and Performance:
• Energy saving high efficiency instant start electronic ballast (> 90%)
• Multi-voltage technology handles voltage from 120 to 277v
• Anti-Striation Control for better light quality, with no striations
• Active Power Factor Correction - Ballast regulates the output to each lamp with
individual lamp inverter modules
General Characteristics:
Application . . . . . . . . . . . . . . . . . . . . . . . . . . 3 or 2 F32T8 120 to 277v 0.88BF
Ballast Type. . . . . . . . . . . . . . . Electronic – High Efficiency Multivolt Instant Start
Starting Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Instant Start
Lamp Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Parallel
Line Voltage Regulation (+/-) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10%
Ambient Temp (Max). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105˚F / 41˚C
Case Temp (Max) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167˚F / 75˚C
Ballast Factor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Low (0.88)
Sound Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A
Supply Current Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Hz / 60 Hz
Catalog Number
Notes Type
Dimensions:
CASE DIMENSIONS
Length (L). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.5 in
Width (W). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3 in
Height (H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 in
LEAD LENGTHS
White/Black . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 in
Red/Blue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 in
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1 lbs.
TCP, Inc.
| | | F: 330-995-6188 |
©TCP, Inc. JULY 2013/50858
Exit Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Side
Remote Mounting
Distance to lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 ft.
Remote Mounting
Wire Gauge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 AWG
Case Quantity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
UPC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 762148136187
TCP is proud to have been awarded
ENERGY STAR
®
Partner of the Year 2013.
E3P32ISUNVE (TCP3P32ISUNV)
Lamp Type
F32T8
F28T8
F25T8
F17T8
Line
Volt.
120
277
120
277
120
277
120
277
Num.
of
Lamps
3 32 0/-18 0.71 84 10 0.99 0.88 1.70 1.05
2 32 0/-18 0.52 62 10 0.99 0.99 1.70 1.60
3 32 0/-18 0.30 83 15 0.99 0.88 1.70 1.06
2 32 0/-18 0.52 62 15 0.99 0.99 1.70 1.60
3 28 0/-18 0.61 73 10 0.99 0.88 1.70 1.21
2 28 0/-18 0.47 56 10 0.99 0.99 1.70 1.77
3 28 0/-18 0.26 72 15 0.99 0.88 1.70 1.22
2 28 0/-18 0.20 55 15 0.99 0.99 1.70 1.80
3 25 0/-18 0.57 68 10 0.99 0.90 1.70 1.32
2 25 0/-18 0.42 50 10 0.99 1.00 1.70 2.00
3 25 0/-18 0.24 67 15 0.99 0.90 1.70 1.34
2 25 0/-18 0.18 50 15 0.99 1.00 1.70 2.00
3 17 0/-18 0.38 45 10 0.99 0.92 1.70 2.05
2 17 0/-18 0.29 35 10 0.99 1.00 1.70 2.86
3 17 0/-18 0.17 45 15 0.97 0.92 1.70 2.05
2 17 0/-18 0.13 35 18 0.95 1.00 1.70 2.84
Rated
Lamp
Watts
Min.
Start
Temp.
(°F/°C)
Input
Current
(Amps)
Input
Power
(Watts)
MAX.
THD%
Power
Factor
Ballast
Factor
MAX. Lamp
Current
Crest Factor
Note: the above data is tested at 60Hz.
Application and Performance Specification Information Subject to Change without Notification.
Fully meets UL&cUL safety standards.
B.E.F.
Performance:
• Meets ANSI Standard C82.11-1993
• Meets ANSI Standard C62.41-1991
• Meets FCC 18 Non CONSUMER Limits
• NEMA Premium
TCP, Inc.
| | | F: 330-995-6188 |
©TCP, Inc. JULY 2013/50858
Line
black
white
Lamp
Lamp
Lamp
Ballast
Safety:
• No PCB’s
• UL Listed (Class P, Type 1 Outdoor)
• OCV 600V
red
blue
blue
blue
Note: For two lamps application, cap any blue/red lead. Insulate to 600 volts.
