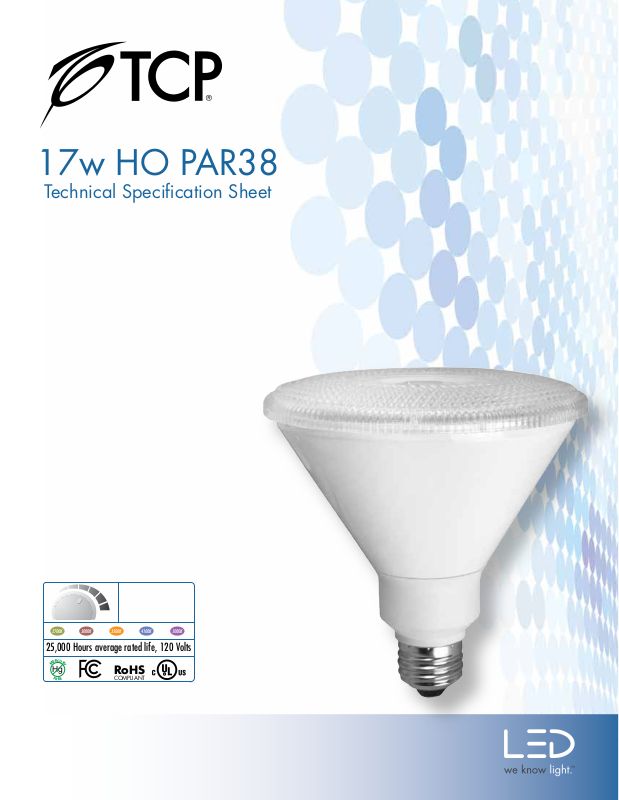

17w HO PAR38
R
C
U
Y
F
R
E
E
Technical Specification Sheet
2700K 4100K 5000K3000K
3500K
25,000 Hours average rated life, 120 Volts
R
E
M
Hg
RoHS
COMPLIANT
Features & Benefits
Height
✧
Energy Efficient: Up to 80% less energy than halogen and CMH alternatives
17W HO PAR38
Applications
✧
25,000 hour rated life for ENERGY STAR qualified lamps
✧
Very Durable: Solid state lighting technology significantly reduces lighting
service & maintenance due to robust lighting design—shatter resistant
Ideal for high output PAR38 flood and spot applications.
✧
✧
High Ceiling Applications where Maximum Light is Required
✧
Track Lights
✧
Recessed Downlights
✧
Display Lights
Very low heat generation—excellent for sensitive display lighting
✧
Excellent Color consistency and high color rendering (CRI)
✧
Dimming from 100%-10%
Specifications
CBCP
Item Number Description Voltage Wattage Equiv Lumens LPW
LED17HOP38D27KSP 17W HO PAR38 2700K - Dimmable, Spot 120 17 150 1500 88.2 15,762 15 2700K 80 5.3 4.8 0.9 12 MTO
LED17HOP38D27KNFL 17W HO PAR38 2700K - Dimmable, Narrow Flood 120 17 150 1500 88.2 7,035 25 2700K 80 5.3 4.8 0.9 12 STK
LED17HOP38D27KFL 17W HO PAR38 2700K - Dimmable, Flood 120 17 150 1500 88.2 2,916 40 2700K 80 5.3 4.8 0.9 12 STK
est. min.
Beam
CCT CRI MOL Dia
Angle
Power
Factor
Case Qty STK/MTO
LED17HOP38D30KSP 17W HO PAR38 3000K - Dimmable, Spot 120 17 90 1700 100 8,285 15 3000K 80 5.3 4.8 0.9 12 MTO
LED17HOP38D30KNFL 17W HO PAR38 3000K - Dimmable, Narrow Flood 120 17 120 1700 100 5,382 25 3000K 80 5.3 4.8 0.9 12 STK
LED17HOP38D30KFL 17W HO PAR38 3000K - Dimmable, Flood 120 17 120 1700 100 2,231 40 3000K 80 5.3 4.8 0.9 12 STK
LED17HOP38D35KSP 17W HO PAR38 3500K - Dimmable, Spot 120 17 150 1750 102.9 15,762 15 3500K 80 5.3 4.8 0.9 12 MTO
LED17HOP38D35KNFL 17W HO PAR38 3500K - Dimmable, Narrow Flood 120 17 150 1750 102.9 7,035 25 3500K 80 5.3 4.8 0.9 12 MTO
LED17HOP38D35KFL 17W HO PAR38 3500K - Dimmable, Flood 120 17 150 1750 102.9 2,916 40 3500K 80 5.3 4.8 0.9 12 MTO
LED17HOP38D41KSP 17W HO PAR38 4100K - Dimmable, Spot 120 17 150 1800 105.9 15,762 15 4100K 80 5.3 4.8 0.9 12 MTO
LED17HOP38D41KNFL 17W HO PAR38 4100K - Dimmable, Narrow Flood 120 17 150 1800 105.9 7,035 25 4100K 80 5.3 4.8 0.9 12 MTO
LED17HOP38D41KFL 17W HO PAR38 4100K - Dimmable, Flood 120 17 150 1800 105.9 2,916 40 4100K 80 5.3 4.8 0.9 12 MTO
LED17HOP38D50KSP 17W HO PAR38 5000K - Dimmable, Spot 120 17 150 1800 105.9 15,762 15 5000K 80 5.3 4.8 0.9 12 MTO
LED17HOP38D50KNFL 17W HO PAR38 5000K - Dimmable, Narrow Flood 120 17 150 1800 105.9 7,035 25 5000K 80 5.3 4.8 0.9 12 MTO
LED17HOP38D50KFL 17W HO PAR38 5000K - Dimmable, Flood 120 17 150 1800 105.9 2,916 40 5000K 80 5.3 4.8 0.9 12 MTO
High CRI PAR38
LED17HOP38D27KSP95 High CRI 17W HO PAR38 2700K - Dimmable, Spot 120 17 120 1200 70.6 12,059 15 2700K 90 5.3 4.8 0.9 12 MTO
LED17HOP38D27KNFL95 High CRI 17W HO PAR38 2700K - Dimmable, Narrow Flood 120 17 120 1200 70.6 5,382 25 2700K 90 5.3 4.8 0.9 12 MTO
LED17HOP38D27KFL95 High CRI 17W HO PAR38 2700K - Dimmable, Flood 120 17 120 1200 70.6 2,231 40 2700K 90 5.3 4.8 0.9 12 MTO
LED17HOP38D30KSP95 High CRI 17W HO PAR38 3000K - Dimmable, Spot 120 17 120 1300 76.5 12,059 15 3000K 90 5.3 4.8 0.9 12 MTO
LED17HOP38D30KNFL95 High CRI 17W HO PAR38 3000K - Dimmable, Narrow Flood 120 17 120 1300 76.5 5,382 25 3000K 90 5.3 4.8 0.9 12 MTO
LED17HOP38D30KFL95 High CRI 17W HO PAR38 3000K - Dimmable, Flood 120 17 120 1300 76.5 2,231 40 3000K 90 5.3 4.8 0.9 12 MTO
Specifications
Height
Input Line Voltage: ................................................................................ 120 VAC
Input Line Frequency ................................................................................ 50/60HZ
Lamp Life (Rated) ................................................................................ 25,000 hrs
Minimum Starting Temp ................................................................................ -30ºC
Maximum Operating Temp................................................................................ 40ºC
CRI ................................................................................................................90/80
Illuminance Cones
Flux out:938.2 lm
1m
2m
3m
4.8"
5.3"
Polar Diagram
4m
5m
Eavg, Emax
Note:The Curves indicate the illuminated area and the average
illumination when the luminaire is at different distance.
Angle:40.71deg Diameter
LUMINOUS INTENSITY DISTRIBUTION DIAGRAM
-/+180
0
700
1400
2100
2800
3500
AVERAGE BEAM ANGLE(50%) : 41.1 DEG
150-150
30-30
120-120
90-90
60-60
UNIT:cd
C0/180, 40.7deg
C90/270, 41.4deg
Application Notes
Only install in dry, indoor environments in open fixtures with an E26 base that offer sufficient space
Dimmable with most of leading edge dimmers in North American market (Refer to the recommended dimmer list on
Not intended for use with emergency light fixtures or exit lights
For use in fixtures that can structurally support a lamp weighing one pound or more
17w HO PAR38
Technical Specification Sheet
2700K 4100K 5000K3000K
RoHS
COMPLIANT
M
E
R
C
U
R
Y
F
R
E
E
Hg
25,000 Hours average rated life, 120 Volts
3500K
©TCP FEB 2017 –WF37008
