TCL L32E9A-MS91AP Service Manual

CA UTION: TO RE DU CE THE RIS K OF
ELECTR ICAL SHOCK , DO NOT RE MOVE
COVER (OR BACK). NO USER SERVICEABLE
PAR TS INS IDE . RE FE R SE R VIC ING TO
QUALIFIE D SERVICE PERSONNEL.

The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.

The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servici ng) instructions in the
literature accompanying the appliance.

CAUTION:

Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.

CA U T IO N

RISK

RISK

OF ELECTRI

ELECTRI

C

SHOCK

SHOCK

DO NOT

NOT

OPEN.

OPEN.

2

dangerous

WARNING: TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

SCHNEIDER ELECTRONICS GMBH-GERMANY

1. CAUTION

2

1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.

2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.

3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.

4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.

5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.

6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.

7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.

8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.

9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.

10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance. Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.

10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.

CAUTION:

Read all of these instructions. Sa ve these instructions for later use . Follo w all W arnings and
Instructions marked on the audio equipment.

1. Read Instructions-All the safety and operatinginstructionsshouldbe read before the productis operated.

2. Retain Instructions- The safety and operating instructions should be retained for future reference.

3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions- All operating and use instructions should be followed.

3

SCHNEIDER ELECTRONICS GMBH-GERMANY

IMPORTANT SAFETY INSTRUCTIONS

FOR YOUR PERSONAL SAFETY

3

11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.

12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.

13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.

14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to

protect it from overheating. These openings must not be blocked or covered.

Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.

15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some

protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supportingstructure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.

15.2. Note to CATV system installer : (Only for the television set with CATV reception)

This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.

16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power

circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long

periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.

ANTENNA
LEAD- IN WIRE

ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)

GROUNDING
CONDUCTORS
(NECSECTION 810-21)

GROUND CLAMPS

POWER SER VICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)

ELECTRIC SERVICE

EQUIPMENT

GROUND CLAMP

NEC-NATIONAL ELECTRICALCODE

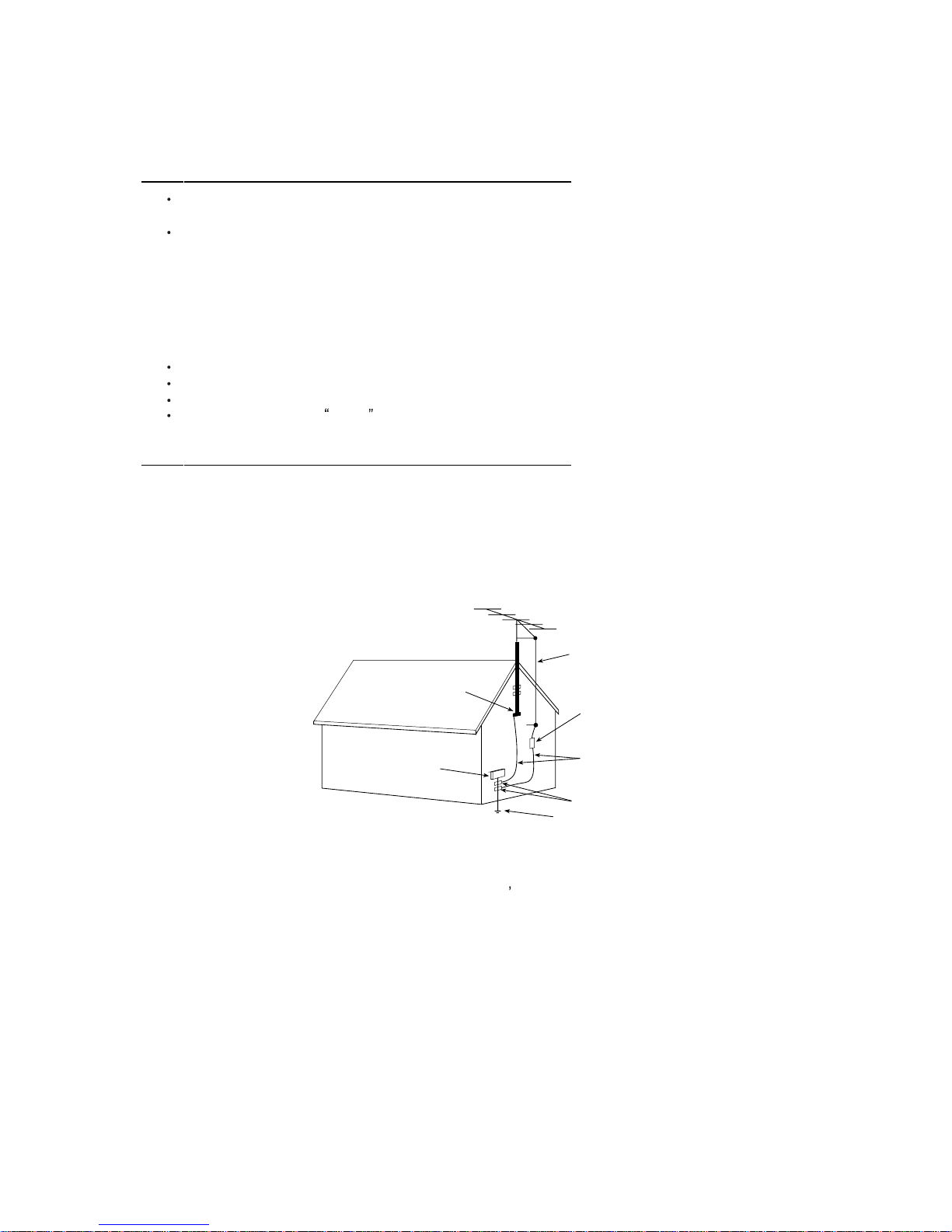

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICALCODE

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTR UCTIONS

a built-in

installer s

4

SCHNEIDER ELECTRONICS GMBH-GERMANY

PROTECTION AND LOCATION OF YOUR SET

PROTECTION AND LOCATION OF YOUR SET

4

18.

This television set should be operated only from the type of power source indicated on the marking label.If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.

19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.

20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.

21. If youare unable to restorenor maloperation by following the detailedprocedure inyouroperatinginstructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.

22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional ser vice technician.

23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off . If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.

24. Do not use attachments not recommendedby the television set manufacturer as they may cause hazards.

25. When replacementparts are required,be sure the service technician has used replacement parts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.

26. Upon completion of any service or repairs to the television set, ask the ser vice technician to perform
routine safety checks to determine that the television is in safe operating condition.

off

5

SCHNEIDER ELECTRONICS GMBH-GERMANY

OPERATION OF YOUR SET

IF THE SET DOES NOT OPERATE PROPERLY

FOR SERVICE AND MODIFICATION

5

EM BUSINESS CENTER
FTV PRODUCT MANAGEMENT DEPT.

SPECIFICATION RELEASE

Version: V1.0 Issued Date: 2008.06.03


Panel Size (inch) 32"

Category

LCDTV

Aspect Ratio 16:9
Color Temperature Cool/ Normal / Warm SIGNAL FORMAT CAPABILITY

Backlight Adjustable Yes Component Video Format Y,Pb/Cb,Pr/Cr:up to 1080P(see note 3)
Scaler Mode 4:3、14:9、16:9 、FULL DVI Video Format -­Picture Effect 4 picture effects preset (Standard 、Bright、Soft、User) HDMI Video Format Up to 1080P(see note3)

Film Mode (3:2 pull down) Yes PC Compatibility see note 3

Picture Enhancement TERMINALS

Comb Filter 3D

Audio/CVBS Input (Composite)

3 R/L+3 Video: AV1、AV2、AV3(side)

Core Technology

High-quality scaling engine&3-D video de-interlace

r

S-Video Input 1

CCS -- Audio Input for S-Video Share with Audio for AV2

DCDi

TM

Edge-oriented adaptive algorithm for smooth low-angle
edges YPbPr Input

1

Blue Stretch Yes Audio Input for YPbPr

1

Black Stretch Yes YCbCr Input

Share with "YPbPr"

Motion Compensation Yes Audio Input for YCbCr

Share with Audio for "YPbPr"

DLTI Yes VGA Input(RGB)

1 (D-Sub,15 Pins)

DCTI Yes Audio Input for RGB

Share with Audio for "YPbPr"

Dynamic Skin Correction Yes DVI

--

DNR Yes Audio Input for DVI

--

Other Feature

DBC(Dynamic Backlight Control)
DCC(Dynamic Contrast Control) HDMI

2

Panel Specification

Audio/CVBS Output (Composite) 1 (R/L+CVBS) (RCA)

Panel supplier SAMSUNG

SPDIF Output

1 (Optical sound out,RCA)

Viewing Technology PVA Headphone Output

1 (Φ3.5mm )

Display Resolution 1366×768 RF Input(Antenna)

1 (IEC Type)

Brightness (cd/m2) 450 USB

1 Standard

Contrast Ratio 2000:1 BASIC INFO.

Response Time

8ms (G to G)

TV System PAL B/G、/K、I ；SECAM B/G、D/K

Viewing Angle (H/V)

178°/178°

AV System

PAL、NTSC

Life Time 60,000hrs Channels

199(1~199)

Color

16.7M

Chassis

MS91-AP

SOUND Certification

CB

Speakers Integrated speakers (Bottom side) Power Supply

AC 100V-240V 50/60Hz

Audio Power Output 5W*2+8W(Woofer) Power Consumption-TV on

130W

Sound Processing NICAM B/G ,D/K,I,Stereo;A2

Power Consumption-Standby

<3W

DVSS (Dolby Virtual Surround) -- Default Color of Front Cabinet

Black

DDAS (Digital Dynimic Audio System)

Yes

Keyboard Position

Touch keyboard on the left side

AVC (Auto Volume Control)

Yes

Base Stand Detachable

Yes

BBE

No

Unpackaged Dimension for Main Body (L*H*D) (mm)

SRS

Yes

With Base Stand (mm)

796*584*231

Without Base Stand (mm)

796*534*104

Packaged Dimension (L*H*D)

Main Body (mm)

915*652*260

Speaker Box

--

FUNCTION Base Stand

Packaged with Main Body

V-Chip -- Net Weight (Kg)

13.3

CCD (Closed Caption) -- Gross Weight (Kg)

16

Teletext -- Container Loading
PIP/POP Yes see note 1 20 feet

188

Macro Vision TBD 40 feet

396

Calendar -- 40 feet high

440

Clock/Timers Yes ACCESSORIES
Lock Yes(Child Lock to lock keys)

Operation Manual English(Default)

OSD Language English/French/Farsi/Russian/Arabic Remote Control For TV control (with two 7# batteries)

OSD Features -- Base Stand

Integrated Packaging

Card Reader -- Speaker Box

Integrated

DVD Combo -- Wall Mount

Optional

USB Connection Yes. Support Mp3、JPEG see note 2 Others AC Power Cord

Game --

Screen Saver --

Demo Function --

Picture Freeze Yes

Design and specifications are subject to change without notice! Page 1 of 1

Note:

1. PiP POP

2. USB

3. HDMI,VGA,YPbPr format

:

Model: L32E9A/MS91-AP

AV Stereo、AVC、NICAM、 Equalizer

A

pproved by:

Sound Control

Sound Features

Drafted by: 张勇 2008-06-03

Volume、 Balance、 5 Sound Mode (Standard ，
Movie，News，Music，User)

Detail information refer to relevant file

In PIP/POP mode,all the sources are divided into two groups. Group 1 includes TV,AV1~AV3,S-Video,Group 2 includes Y,Pb,Pr,VGA,HDMI1~HDMI2. If the
Main window display one of the source in Group 1, the Sub window can only display one of the source in Group 2, vice versa. The source in different group
displayed at the same time can not be supported.

The standard USB port can only be used for picture display and audio play.The file in JPEG and MP3 format can be supported.

TCL Multimedia Technology Holdings Ltd.
R&D Center

Alignment Procedure

MODEL

：

L42E77F/MS91AP LCDTV

Version 1.0

PREPARED BY : Wise Zhang DATE : 2008-5-7

APPROVED BY: DATE:

O

verview：

L

CDTV features by its small size, low weight, perfect display effects as well

as energy saving and low radiation. It can not only be used to receive TV program,
but also as PC monitor.

Note:

Factory Menu(FM) is designed for factory. R&D Menu (RDM) is for R&D purpose and
should not be changed in the process of production.

H

ow to access to Factory Menu?

1. Firstly, in TV mode, press MUTE button of remote control to mute the set.

Secondly, press MENU button to enter user main menu. Then choose CONTRAST item in
PICTURE menu and press 9,7,3,5 buttons in series. Factory Menu will appear in the
left top of screen.

2. Press RETURN button when FACHOTKEY is enabled (ON).

Note: After upgrading the software for the first time. Restart the set (power off

then power on) should be made to ensure the correct EEPROM data.

F

M(Factory Menu) menu

Item Default Description Status

FAC HOTKEY OFF Shortcut button to enter Factory Menu.（OFF：disable；ON：

enable），After production, the item must be disabled.

OK

WARM UP OFF OFF：normal mode，the set will turn to standby mode

when no signal inputted

ON：Aging mode，the set will display blue screen

when no signal inputted. Usually the value should

be set to off when aging test.

OK

ADC Calibration of ADC data OK

WHITE
BALANCE

White balance data adjustment OK

SHOP DO Reset the set after production to remove all unnecessary

factory debug information and the Factory Menu will can
not access for users.

OK

NVM RESET DO Restore the system to default value. This operation

will remove the white balance data. This function

only designed for R&D.

OK

SET FAC CH DO Preset the channel list of factory to provide convenience

for production.

OK

Power on LAST STB: The set will turn to standby mode when switch on.

LAST：remember the status of last switch off.

ON: power on when switch on.

OK

PVR UPGRADE DO OK

VERSION Display the version of software. OK

PVR VERSION OK

ADC calibration：

Item Default Description Status

SOURCE Current source OK

R OFFSET 127 R offset, manually adjustable. Should not be changed

after automatic adjustment.

OK

G OFFSET 127 G offset, manually adjustable. Should not be changed

after automatic adjustment.

OK

B OFFSET 127 B offset, manually adjustable. Should not be changed

after automatic adjustment.

OK

R GAIN 127 R gain, manually adjustable. Should not be changed after

automatic adjustment.

OK

G GAIN 127 G gain, manually adjustable. Should not be changed after

automatic adjustment.

OK

B GAIN 127 B gain, manually adjustable. Should not be changed after

automatic adjustment.

OK

AUTO TUNE Before calibration, first, please input

corresponding pattern according to the

instruction at the bottom of the menu. Second,

select AUTO TUNE, Then press vol- button in remote
control to calibrate ADC automatically. The result will
be displayed.

OK

WHITE BALANCE adjustment:

Item Default Description Status

SOURCE AV1 current source. Only AV1, HDTV, VGA need be

adjusted.

OK

COLOR TEMP NORMAL NORMAL/COOL/WARM OK

R GAIN 129 R offset, manually adjustable. Should not be changed

after automatic adjustment.

OK

G GAIN 128 G offset, manually adjustable. Should not be changed

after automatic adjustment.

OK

B GAIN 126 B offset, manually adjustable. Should not be changed

after automatic adjustment.

OK

R OFFSET 126 R gain, manually adjustable. Should not be changed

after automatic adjustment.

OK

G OFFSET 126 G gain, manually adjustable. Should not be changed

after automatic adjustment.

OK

B OFFSET 128 B gain, manually adjustable. Should not be changed

after automatic adjustment.

OK

H

ow to access to R&D Menu?

1. Firstly, in TV mode, press MUTE button of remote control to mute the set.

Secondly, press MENU button to enter user main menu. Then choose CONTRAST item in
PICTURE menu and press 1,9,5,0 buttons in series. R&D Menu will appear in the left
top of screen.

2. Press RETURN button when Design Menu->DESIGNKEY is enabled (ON).

3. Press MENU button of remote control under FM.

R&D Menu(RDM)

Item Default Description Status

DESING KEY OFF Shortcut key control switch of Design Menu

(ON: enable, OFF: disable)

OK

FAC MENU To enter Factory Menu OK

SHOP INIT Should not be adjusted by factory. OK

OTHERE Other settings. NG

SERVICER
MENU

Product information NG

PARAM
SETTING

Parameter settings OK

HOTEL MENU Hotel menu NG

SHOP INIT Function

Item Default Description Status

VOLUME 30 Volume default value(0~100) OK

PIC MODE STANDARD Picture mode(Soft, Standard, Bright, User) OK

SOUND MODE STEREO Sound Effect（Stereo，Movie，News，Music Hall，Personal） OK

CH NUMBER 199 Channel number（0-199） OK

LANGUAGE ENGLISH Language（English/French/Farsi/Russian） OK

COLOR SYS AUTO TV Color system（AUTO, PAL, SECAM） OK

SOUND SYS D/K Sound system（D/K,B/G,I） OK

PRESET CH 1 Channel preset（0-199） OK

COLOR TEMP NORMAL Color temperature（NORMAL，WARM，COOL） OK

PARAM SETTING

Item Default Description Status

VOLUME Sound curve adjustment OK

BRIGHTNESS Luminance curve adjustment OK

CONTRAST Contrast curve adjustment OK

SATURATION Saturation curve adjustment OK

SHARPNESS Sharpness curve adjustment OK

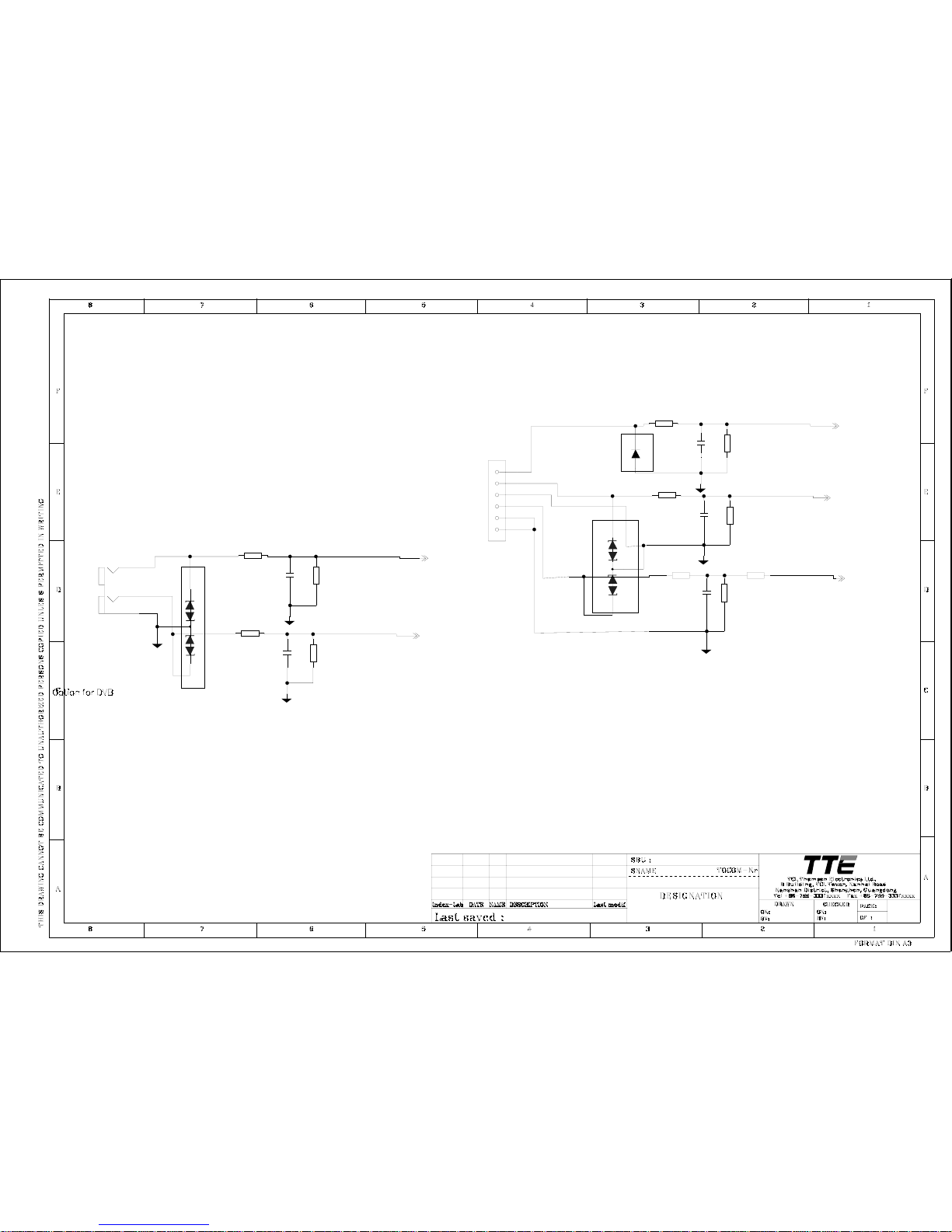

DEBUG BOARD:

During production the Debug Board will be used to upgrading software, adjust White
Balance. The function of the board is transfer TTL Voltage to 232 Voltage. 12V DC
power supply should be provided through CON1/CON2.

T

he steps of debug during production:

Manually adjustment of White Balance and ADC calibration:

1) ADC calibration

Input dual 16 grey scale signal 1024*768/60Hz(Chroma2225 Pattern47,Timing38 or
Chroma2327 Pattern47, Timing14) from VGA socket

Input 8 color bar with 100% saturation(2327 Pattern37, Timing33 or BSG360A Timing79,
Pattern85), PAL system from Y,Pb,Pr socket.

Enter ADC item of Factory Menu, select the source which you are going to calibrate.
Then select AUTO TUNE and press Vol- button in remote control.

Note: First confirm the input signal pattern and format are correct. After
calibration, If the grey scale can not be distinguished, calibrate again until it
is distinguished.

Color Temperature adjustment.

Before adjustment you should confirm the color analyzer has been calibrated. During
the process, only AV1 Y,Pb,Pr,VGA source should be adjusted. We recommend you use
CA210 color analyzer(0 channel),because it is more accurate.

Connection of devices:

1) connect CON3 of Debug Board to CA210(input VGA signal to CON6 when adjust VGA

source. Connect CON5 of Debug Board to the set through VGA cable. Input
corresponding pattern required, then select GAIN AUTO,press Vol+ button of
remote control.

2) Input 8 grey scale signal of 5418 from AV1/Y,Pb,Pr/VGA source. Point the optical

lens to the fourth brightest scale. Then enter Factory Menu and select WHITE
BALANCE page, select GAIN AUTO, press Vol+ button of remote control.

Note: In the process of adjustment, you can press MUTE button of remote control
to cancel.

U303

13-EN25B1-6TB (EN25B16)

16Mbit serial flash memory

AP market use:

13-MST6E1-9GBS1

Ordering: MST6E19GL-

LF-S1

LA market use:

13-MST6M1-9GBS1

Ordering: MST6M19GL-

LF-S1

The MST6*19GL is a
high performance and

fully integrated IC for

multi-function LCD

monitor/TV with

resolutions up to full HD

(1920x1080). It is
configured with an

integrated triple-ADC/
PLL, an integrated DVI/
HDCP/HDMI receiver, a
multi-standard TV video
and audio decoder, two

video de-interlacers, two

scaling engines, the

MStarACE-3 color

engine, an on-screen
display controller, an 8-

bit MCU and a built-in

output panel interface.

By use of external frame

buffer, PIP is provided

for multimedia

applications.

Furthermore, 3-D video

decoding and processing

are fulfilled for high-

quality TV applications.

To further reduce system

costs, the MST6*19GL

also integrates intelligent

power management
control capability for

green-mode

requirements and

spread-spectrum support

for EMI management.

Q400
Q401
Q402

U301

EEPROM

24C64

U305(NC)
EEPROM

24C64

U305

HDCP KEY

24C02

I2 C

I2 S

RESET

IR

KEY

PH-L/PH-R

U301

13-281622-FTB4

HY5DU281622FTP-4

DDR,8Mx16, Max clock is 250MHz

STA333BW Power on sequence

U700

13-STA333-BWB

STA333BW

2.1 channels high
efficiency digital

audio system

OUT1A
OUT1B

LC

Low Pass Filter

OUT2A
OUT2B

LC

Low Pass Filter

PLL

P300

ISP

PORT

`

P1

VGA PORT

UART (RXD TXD)

U400

VGA DDC

24C02

ISP SW

R G B HS VS

U503(NC)

EDID

24C02

U509(NC)

EDID

24C02

`

DDC2

DDC2

TMDS2

HDMI HPD CONTROL
HDMI DDC I2C

HDMI TMDS

Q501

DDC1

TMDS1

U507

13-0PS321-

00B

PS321 is

integrates

3-to-1

HDMI/DVI

switch

DDC1

YPBPR L4/R4(Share with VGA)

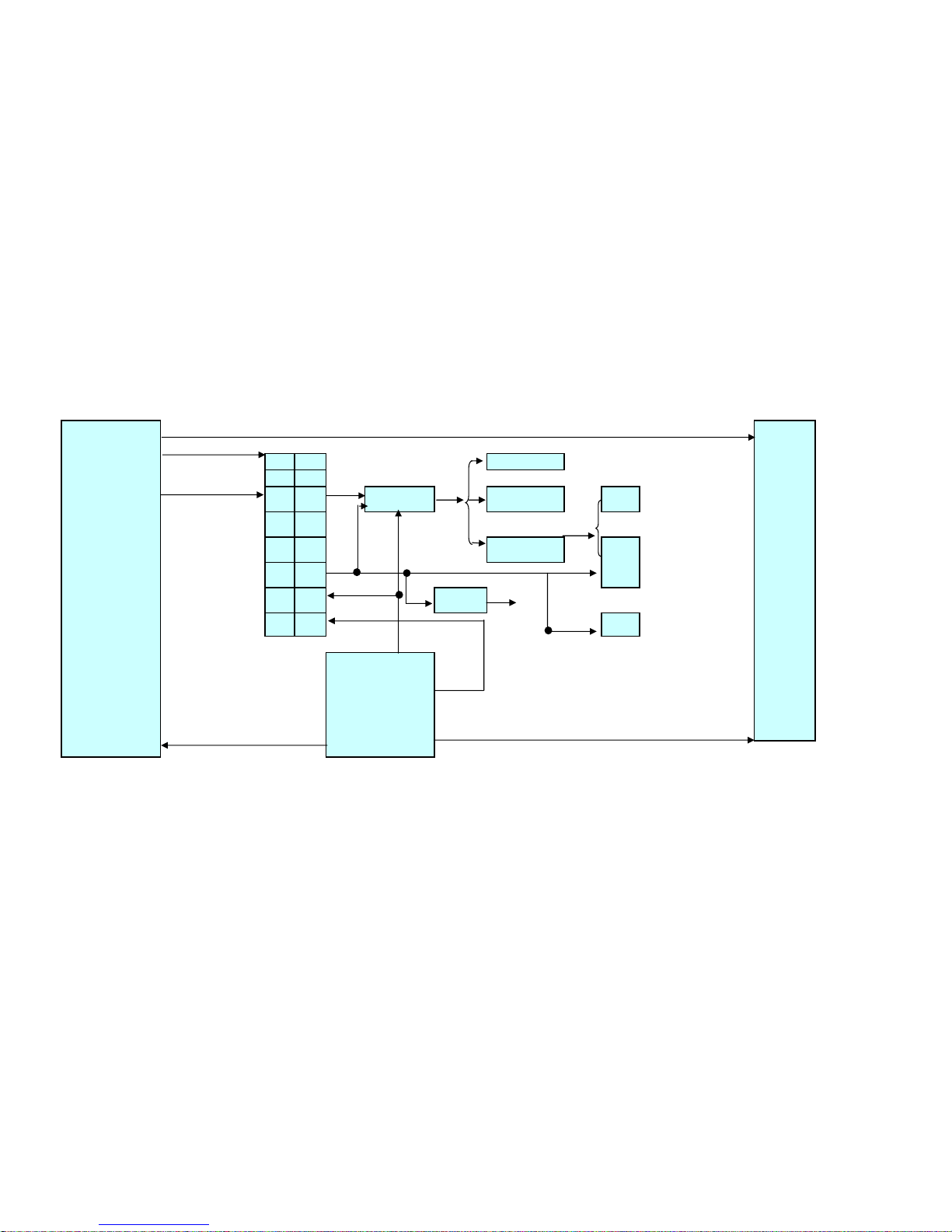

MS91-EM Chassis Block Diagram

U702

13-TDA130-8TB

USB D+/D-

CH1—5VSTB
CH2— HWRESET
CH3— VCC_1.26V

CH1—12V
CH2— 5VSTB
CH3— HWRESET
CH4— +5V

47-EAR005-XX0
Or 47-EAR002-XX0

47-USB002-XX0

P500

P501

SIF

TUNER I2 C

Z600

AP market use:

07-380FI5-NA7G

AP market use:

07-457FF5-NA1G

Z602

SAWF (Picture)

AP: 45-SAWK62-74D

LA: 45-SAWF39-530

Z601

SAWF (Sound)

AP: 45-SAWK93-52M

LA: 45-SAWF93-700

U600

AP market: 13-TDA988-TSB

TDA9886,support PAL,SECAM and

NTSC

LA market: 13-TDA988-5TBS

TDA9885,support PALand NTSC

I2C-bus controlled single and

multistandardalignment-free IF-PLL

demodulators

For LA market

For AP market

Q601

MONO--SET NC FOR EM

TV-V

Q605

SIF 4M5 Trap

Odd Pixel LVDS Signal
Even Pixel LVDS Signal

12V or 5V
LVDS_SEL
RPF(CMO)

TV CVBS、 L/R Output

SPDIF

P203

P210

X300

14M3

HWRESET

45-OSC14M-3Y2

Y/C Audio share with L1/R1

AV3 L3/R3

AV2 L2/R2

AV1 L1/R1

P200

P200

Side AV

Board P5

P202

P203
P204

First Issued V1.0
ZCX 2008-07-07

DC/DC

L800

C886

U804

12-13N03L-0BX

PHKD13N03LT

U805

13-RT8110-00B

RT8110

12V

U601

LD0

13-LD1117-50B

5V-IF

For Tuner,U600

For LCD Panel TCON,Use F801

12V(or 18V)

For U700, Audio Power Supply

U800

LD0

13-IC1084-CMB

3.3VSTB

For U300,Such as

AVDD_AU,AVDD_3

3,VDDP,PLL etc.

U803

DC/DC

13-MP1411-DHB

VCC_1.26V

For U300 VDDC

U802

LDO

13-LD1117-25B

U801

LD0

13-LD1117-33B

+3.3AVDD

2.6VM

For I/O

AVC33,For U507

For DDR

For USB Module

For LCD Panel TCON,Use F800

5VSTB

24V

For Panel Inverter Board

+5V

+5V

+5V

Power Supply Block Diagram

D806

D805

LCD Panel

DC Power On Sequencie MST6*19GL Power On Sequence

L42E77F(MS91-AP)

原理图

版本：V1.0

制作日期：2008-4-17

制作：张睿 批准：

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

VDD_DIG2

GND_DIG

SCL

SDA

INT_LINE

RESET

SDI

LRCKL

BICKL

XT1

PLLGND

PLL_FILTER

PLL_VDD

POWERDN

VSS_DIG

VDD_DIG

OUT4B

OUT3A

OUT3B

CONFIG

VDD

GND_REG

OUT1A

GND1

VCC1

OUT1B

OUT2A

VCC2

GND2

OUT2B

VCC_REG

VSS

TESTMODE

SA

GND_SUB

OUT4A

AGND

AGND

Single point to DGND

Single point to DGND

Single point to GND

As close as possible to the pin

loudspeaker circuit

headphone circuit

SPR+

SPR-

SPL+

SPL-

OUT1B

OUT2A

PLLGND

+3.3VSTB

6R8

R724

R725
22R

R723
22R

HP_AMUTE

HP_DET

HP_DET

HP_AMUTE

R720

10K

10K

R717

R733

4K7

AMP-MUTE

R726
6R8

6R8

R727

R728
6R8

R747
22R

RESET#

C723

4700P

C755

0.1U

R707

10K

RESET

C744

4U7

25V

C4

47U

25V

C709

47U

25V

R746

0R

R748

0R

C754

330P

C734

330P C702

0.47U

1000P/100N

C748 C747

1000P

1000P/470N

C749

R730
3K3

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

19

U700

STA333BW

C745

1U

R715

33K

C710

100U

16V

33K

R714

100R

R739

C713

100U

16V

C712

47U

16V

C731

0.1U

3V3

C746

1U

C718

0.1U

C717

0.1U

C700

220U

25V

C701

220U

25V

PLL_FILT

L713

120R

L701

22UH

L705

30R

AGND

AMP_12V

R1051

1R

2W

AMP_+12V

C708

470U

25V

C707

470U

25V

C705

470U

25V

C706

470U

25V

C704

10U

E

C

B

C144ET

Q981

R731
3K3

AMP_+12V

AMP_+12V

AMP_+12V

AMUTE1

AMUTE1

AGND

AGND

2U2

C1011

E

C

B

C144ET

Q980

2U2

C1010

2U2

C726

5V-IF

5V-IF

AMP_+12V

AMP_+12V

L712

120R

R1050

1R

2W

C743

0.1U

R735

330

R734

2K

R963

1K

D702
LL4148

R962

10K

B

C

E

Q915

BT3906

R960

10K

12V_IN

B

C

E

Q701

BT3906

1

2

3

4

5

6

7

P700

1

2

3

4

5

6

P702

AOMCLK

R706
2K2

OUT1A

L702

22UH

L700

22UH

L703

22UH

R745

0R

NC

R722
0R

10K

R711

B

C

E

Q700

BT3904

C725

2200P

NC

C724

2200P

NC

16V

47U

C711

100P

C728

C732

100P

R718

10K

C727

0.1U

C729

2U2

220R

L50

L49

220R

3V3

3V3

NC

R743

0R

R741

0R

0R

R742

NC

R740
100K

I2C_SCL

I2C_SDA

C703

0.47U

3V3

3V3

3V3

3V3

AOSDATA

AOLRCLK

AOLRCLK

3V3

4K7

R738

PH-R

PH-L

I2C_SCL

I2C_SDA

AOSDATA

AOBCLK

AOMCLK

C722

680P

R705

33R

C721

1000P

C720

0.1U

D700

LL4148

L711

600R

L710

600R

R704

3R3

R703
3R3

C719

0.1U

R702

33R

R701

33R

R700

33R

C716

0.1U

C715

0.1U

AOBCLK

OUT1A

OUT1B

OUT2A

OUT2B

PWDN

PHONE_L

8

7

6453

2

1

U701

TDA1308T

R719
10K

C730

0.1U

PHONE_R

R710
2K2

R709
10K

R708

2K2

PHONE_R

PHONE_L

R721 0R

PHONE_L

PHONE_R

R732
3K3

R729
3K3

C742

0.1U

C741

0.1U

C740

0.22U

C739

0.1U

C738

0.22U

C737

0.22U

C736

0.1U

C735

0.22U

C733

330P

R737
10K

R736

10K

D701
LL4148

PWDN

3V3

AGND

AGND

AGND

AGND

AGND

AGND

AGND

0R

R744

3V3

3V3

PH-L

PH-R

PH-LIN

PH-RIN

PHONE_L

PHONE_R

1000P

C752 C751

1000P

1000P

C750

C753

0.47U

R749

0R

OUT2B

R750 0R

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

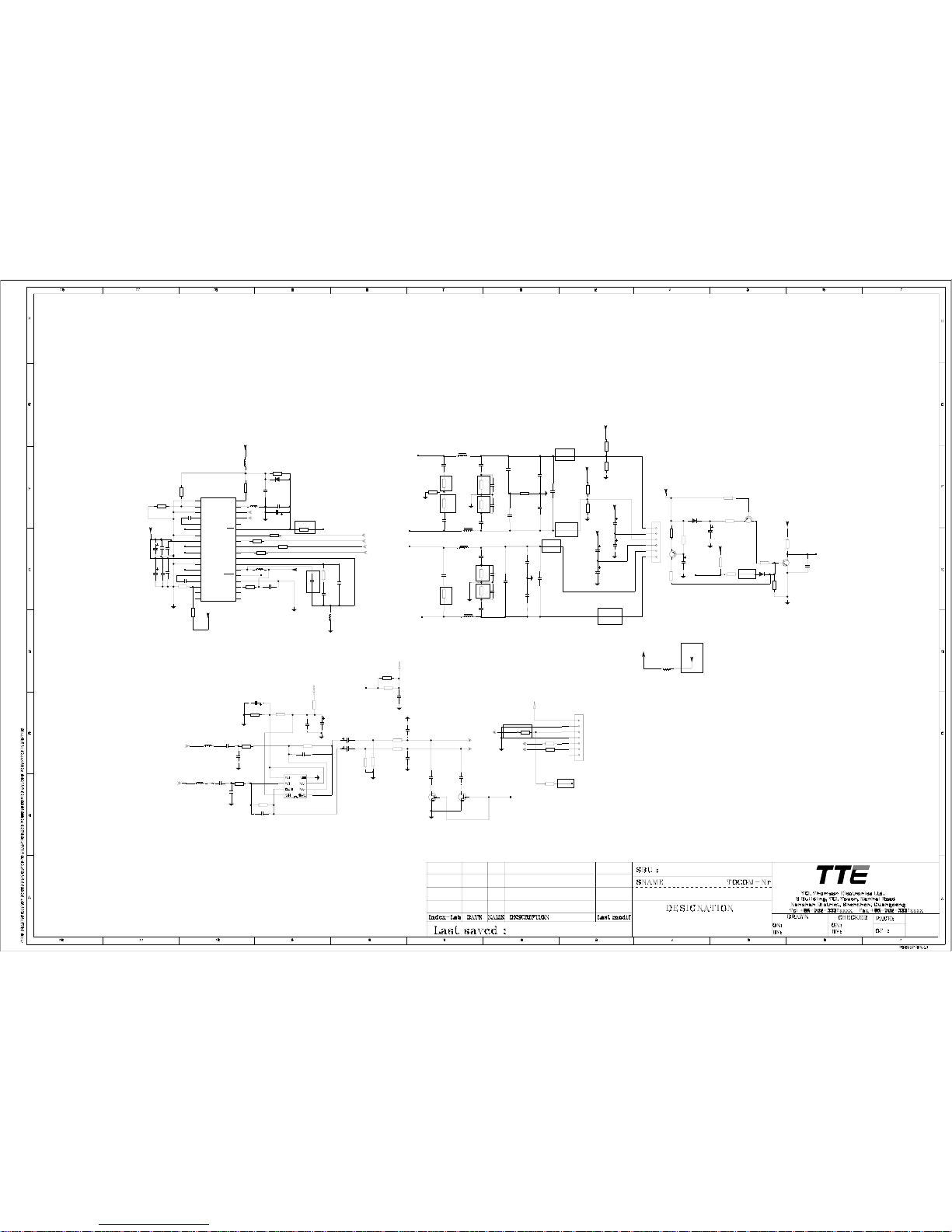

NC

TAGC

REF

VAGC

VIF1

VIF2

OP1

FMPLL

DEEM

AFD

DGND

AUD CVBS

AGND

VPLL

VP

AFC

SIF1

SIF2

OP2

TOP

SDA

SCL

SIOMAD

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

4

AGND

BP

BT

IF1

AGC

SCL

AS

SDA

NC

oscillate frequency is about 440Khz

Pre IF amplify

6

7

8

1

3

2

4

5

Z600

R625

NC

R609

39R

L602

1UH

12V_IN

C652

0.01U

C653

0.01U

R608

680R

L603

0.82UH

R603

4K7

R607

56R

R604

1K

R605

56R

R606

1K2

C654

0.01U

B

C

E

Q604
SC3779

C624

0.01U

0.1U

C648

C639

10U

16V

R631

0R

NC

4

123

U601

LD1117S50

R600

15R

2W

R670

0R

TAGC

5V-IF

5V-IF

R637

0R

NC

R633

0R

NC

R632

0R

NC

10K

R623

560P

C604

SIFM

C627

0.1U

C625

0.1U

SIFP

R664

100R

NC

C623

0.01U

L611

1UH

R669

51R

6K8
R656

R658

10K

R657

10K

D603

LL4148

D601

BA982

R628

12K

SIF_SW

SIFM

SIFP

VIFM

VIFP

L613

1UH

L612

1UH

R629

NC

312 45

Z602

SAW-K6274D

312 45

Z601

SAW-K9352M

E

C

B

C144ET

Q602

R610NCR611

0R

L607

1000U

5V-IF

C626

4.7U

16V

C601

4.7U

16V

330P

C605

0R

R622

TAGC

C650

0.1U

R672

2.2K

L606

1000U

R667

5K6

R666

2K

NC

R662

100R

R661

100R

TUNER_SDA

TUNER_SCL

TV1-V

R649

75R

R647

220R

R645

22K

R644

22K

R643

22K

R641

330R

R640

100K

5V-IF

12V_IN

C621

0.1U

10U

C638

0.1U

C635

16V

10U

C647

0.1U

C646

470NFC640

0.01UFC641

C613

0.1U

R634

22K

C614

0.01U

R636

47K

132

D604
0BAV99

C612

0.1U
C610

270P

C609

4700P

B

C

E

Q600
BC846B

C611

200P

R635

100K

600R

L601

5V-IF

470NF

C619

131415

16

1234567

817

18192021232422

9

101112

TDA9885T

U600

X600

4M

22PF

C618

SIF_SW

NC

R639

1.5NF

C617

220NF

C616

1K

R663

NC

C649

1NF

B

C

E

Q601

BT3904

TUNER_SDAR627 100R

R626
100R

5V-IF

600R

L610

C642

390PF

C643

0.01UF

C622

0.1U

C602

47U

16V

5V-IF

0.1U

C620

TUNER_SCL

100P

C636

100P

C637

L605
1000UR

D600

33V

33V

33V

SIFPOUT

R614

10K

R612

2K2

6K8

R1013

R613

10K

47R

R620

330P

C606

TV1-VIN-

75R

R621

47R

R619

TV1-V

TV1-L/RIN

TV1-VIN+

12K

R624

312 45

Z604

SAW-K6274D

312 45

Z603

SAW-K9352M

D602

BA982

E

C

B

C144ET

Q603

R630

0R

R638

2K2

R648

0R

R602

100R

C651

10U

16V

RED

GREEN

BLUE

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

RED

RED

YELLOW

YELLOW

WHITE

WHITE

GREEN

RED

BLUE

RED

GREEN

BLUE

AGND

signal is 1Vp-p, so

0.5Vp-p when input

CVBSOUT level is

Location
Near RCA.

input,R339(net SC_SOG,from AV input)must

Note: The IC's

Near RCA.

0.5Vp-p when input

S-VIDEO

SCB+ as HDTV input, R305(net SC_SOG,from

Note:when SCR+，SCG+，SCB+ as scart RGB

be 470ohm,R305must be NC,else SCR+，SCG+，

HDTV input)must be 470ohm,R339 must be NC.

AVOUT AND YPBPR CIRCUIT

AV2 AND AV1 CIRCUIT

X 4) for 2Vp-p output

signal by four (GAIN

signal is 1Vp-p, so

Note: The IC's

signal is 1Vp-p, so

0.5Vp-p when input

CVBSOUT level is

NOTE: THE IC'S CVBSOUT LEVEL IS 0.5VP-P WHEN INPUT SIGNAL IS 1VP-P, SO IT MUST MULTIPLYSIGNAL BY FOUR (GAINX 4) FOR 2VP-P OUTPUT

it must multiply

Location

BACKUP FOR P200 and TCL#ON is 47-RCA248-XX1G

R244

NC

AV1-R

1

3

2

D2

D5V0S2

2

3

1

D5V0S2

D5

D8
D5V0S1

D7
D5V0S1

D3
D5V0S1

D1
D5V0S1

2

3

1

D5V0S2

D4

1

3

2

D9

D5V0S2

132

D6

D5V0S2

1

4

2

5

3

6

7

8

9

P203

1

4

2

5

3

6

7

8

9

P200

R212

75R

75R

R201

R200

220R

B

E

C

Q203

BT3906

B

C

E

Q200
BT3904

DVD/R

DVD/L

0R

R243

0R

R242

0R

R241

AV1-L

AV2-RIN

AV2-LIN

AV1-RIN

R227

47R

E

C

B

BT3904

Q202

B

C

E

Q201

BT3904

47R

R222

SCART2_L

SCART2_L

R207

0R

R206

75R

C222

330P

NC

C229

2U2

R217

100R

R215

100R

C227

2U2

AV1-LIN

R267

0R

R266

47R

C237

330P

NC

AV1-VIN+

AV2-VIN-AV2-VIN-

AV2-LIN

AV2-VIN+

47R

R228

SC2-R

2U2

C233

SC2-R

SC2-L

C230

2U2

SC2-L

R224

10K

R223

8K2 47K

R221

R220

47R

R218

0R

C231

0.1U

12V_IN

R2370RR236

47R

R2340RR233

47R

C234

330P

NC

SV1-YIN

4

3

1

7

5

2

6

P202

C225

0.1U
R203

68K

C255

47U

16V

C200

10U

16V

R213

22K

C221

47P

NC

CVBSOUT

C203

10U

R202

330R

470R

R12

PR+

PR+

47R

R11

R252

47R

PB+

PB+

5V-IF

R214

10K

SV1-CIN

SV1-CIN

AV2-RIN

SV1-YIN

AV1-RIN

12V_IN

AV1-LIN

AV1-VIN+

R271

10K

R269

12K

C239

560P

16V

10U

C201

R216

10K

R204

47R

R219

4K7

C226

1000P

R211

10K

R208

10K

R209

12K

C223

560P

R210

12K

C224

560P

C228

1000P

0R

R231

4K7

R230

47K

R229

8K2

R226

10K

R225

0.1U

C232

R232

75R

C235

330P

NC

R235

75R

R240

75R

R239

75R

R238

75R

0R

R247

R265

75R

47R

R268

R272

10K

R270

12K

C238

560P

AV2-VIN+

SCART2_R

SCART2_R

SOY

Y+

47R

R253

SOY

Y+

AV1-R

AV1-L

AV1-V

HD1_PR1

SCART2_ROUT

HD1_PB1

SCART2_LOUT

HD1_Y

SCART2_VOUT

AV2-L

HD1_PB1 HD1_PB1 HD1_PB1

HD1_PR1HD1_PR1HD1_PR1

SCART2_LOUT

SCART2_ROUT

AV1-V

AV2-V

HD1_Y HD1_YHD1_Y

SCART2_VOUT

AV2-R

AV2-R

AV2-L

AV2-V

1

4

2

5

3

6

P2

AGND

AGND

AGND

AGND

AGND

WHITE

RED

AGND

AV3 IN

VGA AUDIO IN

2

3

1

D5V0S2

D10

D11

D5V0S1

AV3-V

2

3

1

D5V0S2

D12

R286

47R

R287

0R

3

1

2

P204

C245

560P

AV3-VIN+

MUX-RIN

MUX-LIN

PC-RIN

PC-LIN

1

2

3

4

5

6

P206

MUX-RIN

MUX-LIN

PC-RIN

PC-LIN

R278

10K

C243

560P

R277

12K

R280

10K

C244

560P

R279

12K

R282

10K

R281

12K

R284

10K

C246

560P

R283

12K

C247

330P

NC

R285

75R

AV3-VIN+

AGND

AGND

AGND

AGND

AGND

SDA

SCL

WC

VCC

VSS

E2/NC

E1/NC

E0/NC

AGND

AGND

AGND

AGND

D15
D5V0S1

1

3

2

D16

D5V0S2

2

3

1

D5V0S2

D14

1

3

2

D13

D5V0S2

VGA-HS

R

G

6

4

11

14

15

7

12

8

5

13

3

10

9

1

2

17

16

P1

VGA-SCL

B

C

E

Q400

C143ZT

PWM0

5VSTB

5VSTB

0R

R409

R407

0R

0R

R438

5VSTB

C414

2U2

VGA-HS

VGA-SDA

VGA-SCL

PRO

VGA-VS

G

VGA/5V

B

R

1

10

11

12

2

3

4

5

6

7

8

9

P401

R442 NC

R439 NC

SOG

RIN+

GIN+

BIN+

PROTECT

R980

4K7

NC

R403

4K7

R441

NC/1K

R408

1K

B

C

E

Q402

C143ZT

C410

0.1U

B

C

E

Q401

C143ZT

+3.3VSTB

R410

10K

R406

10R

R405

10R

VGA-DDC-5V

R404

4K7

R402

4K7

R401

2K2

R400

2K2

0R

R437

TXD0

TXD0

RXD0

RXD0

TXD0

TXD0

R440

NC

HS_RGB

VS_RGB

0R

R414

R431

0R

5

6

7

8

4

3

2

1

U400

M24C02MN

C409

0.1U

+5V

R430

10K

R429

1K

R428

1K

C408

0.1U

C407

0.1U

0R

R416

0R

R419

PROTECT

R427

100R

10R

R421

R420

10R

10R

R422

0R

R417

0R

R415

R412

0R

R423

75R

75R

R424

75R

R425

R426

330R

NC

R432

D404

LL4148

D405

LL4148

RXD0

RXD0

R411

10K

PROTECT

R443 NC

VGA-SCL

VGA-SDA

B

VGA-SDA

VGA/5V

VGA-VS

AGND

AGND AGND AGND AGND

AGND

AGND

AGND

AGND

AGND

AGND

T

T

AGND

AGND

AGND

AGND

AGND

AGND

SDA

SCL

WC

VCC

VSS

E2/NC

E1/NC

E0/NC

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND AGND

4

SDA

SCL

WC

VCC

VSS

E2/NC

E1/NC

E0/NC

AGND

RX2+

GND1

RX2-

RX1+

GND2

RX1-

RX0+

GND3

RX0-

RXC+

GND4

RXC-

NC1

NC2

DDCCLK

DDCDA

GND5

VCC

HPD

RX2+

GND1

RX2-

RX1+

GND2

RX1-

RX0+

GND3

RX0-

RXC+

GND4

RXC-

NC1

NC2

DDCCLK

DDCDA

GND5

VCC

HPD

PC0/I2C_RST

SDA1

SCL1

GND

B11

A11

VCC

B12

A12

GND1

B13

A13

VCC1

B14

A14

GND2

VCC2

REXT

NC

PC1/POWDN

S1/SDA_CTL

S2/SCL_CTL

S3/I2C_ADDR

GND3

Y4

Z4

VCC3

Y3

Z3

GND4

Y2

Z2

VCC4

Y1

Z1

GND5

GND/I2C_CTL_EN

SCL_SINK

SDA_SINK

HPD_SINK

NC/POW_SINK

OE#

VCC/POW3

HPD3

SDA3

SCL3

GND6

B31

A31

VCC5

B32

A32

GND7

B33

A33

VCC6

B34

A34

GND8

CEXT

HPD2
SDA2
SCL2
GND/EDID_BRG_EN
GND9
B21
A21
VCC7
B22
A22
GND10
B23
A23
VCC8
B24
A23_1
GND11

HPD1

VCC/POW1

VCC/POW2

AGND

For CEC Leakage Protect

24C02=>EDID code must be upto 256byte space for hdmi interface

24C02=>EDID code must be upto 256byte space for hdmi interface

HDMI_VCC2

HDMI5V2

R2X2-

R544
500R

DSDA_1

AVCC33

R566

37K

RPWR1

R3XC-

R3X0+

HDMI-DDC-SDA

HDMI-DDC-SDA

AVCC33

G1_TX1-

G1_TX1-

TX1CLK+

TX1CLK+

HDMI-DDC-SCL

61

79
80

78

77

76

75

74

73

72

71

70

69

68

67

66

65

64

63

62

60595857565554535251504948474645444342

41

40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21

2019181716151413121110

987654321

U507

PS321

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

P501

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

P500

R569

0R

HDMI_VCC3

HDMI5V3

0R

R570

R510

0R

HDMI5V3

HDMI5V2

HDMI_VCC2

NC

R527

C511

2U2

B203

NC

R567

4K7

R549

4K7

NC

R550

4K7

NC

R552

100R

NC

R551

100R

NC

R506

4K7

NC

R504

100R

NC

R503

100R

NC

5

6

7

8

4

3

2

1

U503

M24C02MN

R505

4K7

NC

AVCC33

R545

4K7

NC

R543

4K7

NC

1

3

2

D508

1

3

2

D501

2N7002

Q503

C507

0.1U

L501

30R

123

4

U508

LD1117S33

12

3

D503

BAT54C

R555
37K

R1X2-

CEC
DSCL_1
DSDA_1

HPD1

HDMI_VCC1

R1XC+

AVCC33

R1X0-

R1X0+

R1X1-

R1X1+

R1X2+

R1XC-

12

4

6

8

12

14

16

18

10

3

5

7

9

11

13

15

17

P503

C516

0.1U

C517

0.1U

C518

0.1U

C519

0.1U

C520

0.1U

C515

0.1U

C514

0.1U

C512

0.1U

C513

0.1U

DSDA_1

DSCL_1

HDMI_VCC1

R554

4K7

R553

4K7

HDMI_VCC1

R502

4K7

R501

4K7

R507
1K

NC

R558

1K

NC

DSCL_3

R565
10K

R556
10K

12

3

D511

BAT54C

DSCL_2

EDID_BRG_EN

EDID_BRG_EN

+5V

R512

27K

R531NC

NCR530

NCR529

NCR528

DSDA_3

B1_TX0-

B1_TX0+

R3X1+

C509

0.1U

1

3

2

D509

1

3

2

D510

R3XC-R3XC+

R3X0-R3X0+

R3X1-R3X1+

R3X2-R3X2+

R2XC-R2XC+

R2X0-R2X0+

R2X1-R2X1+

R2X2-R2X2+

+5V+5V+5V+5V

5

6

43

2

1

U506

PRTR5V0U4D

5

6

43

2

1

U505

PRTR5V0U4D

5

6

43

2

1

U502

PRTR5V0U4D

5

6

43

2

1

U501

PRTR5V0U4D

5

6

7

8

4

3

2

1

U509

M24C02MN

DSDA_2

DSCL_2

DSCL_2
DSDA_2

CEC

AVCC33

AVCC33

R557
1K

+5V

+5V

CEC

AVCC33

R541NC4K7

R534
47K

HDMI_HPDCTRL

AVCC33

R509

1K

AVCC33

40-LTV522-MAB4XG

FAMILY

30-07-2007
TIGER&MARCUS

FPD DESIGN CENTER

29

2

TV522

HDMI INTERFACE

1-14-2008_21:08

R538
10K
NC

R536
4K7

R535
4K7

R537
4K7

AVCC33

R564
37K

R532
4K7

HOT-PLUG

AVCC33

R533
47K

+3.3AVDD

R1_TX2+

R1_TX2-

G1_TX1+

B1_TX0+

B1_TX0-

TX1CLK-

AVCC33

AVCC33

AVCC33

HDMI-DDC-SCL

R539 0R
R540 0R

I2C_SCL
I2C_SDA

AVCC33

AVCC33

HDMI_CEC

CEC

+3.3VSTB5VSTB

R511

27K

B

C

E

Q501
C144ET

R559

1K

R508

1K

C510

47U
10V

C508

22U

10V

Z814

Z816

C503

0.1U

C502

0.1U

C505

0.1U

C506

0.1U

C501

0.1U

D504

RLZ5B6

D505

RLZ5B6

RPWR1

RPWR3

RPWR2

R2XC­R2XC+

HPD3

R2X2+

HOT-PLUG

HOT-PLUG

TX1CLK-

R1_TX2+

I2C_SDA

I2C_SCL

DSCL_1

RPWR3

RPWR3

HPD3

DSDA_3

DSCL_3

R3XC+

R3X0-

R3X1-

R3X2-

R3X2+

R1X1-

R1X2+

R1X2-

R1X1+

R1X0+

R1X0-

R1XC+

R1XC-

HPD1

R2X1+

R2X1-

R2X0+

HPD2

RPWR2

G1_TX1+

R1_TX2-

DSDA_2

HPD2

R2X2+

R2XC-

R2X2-

R2X1+

R2X1-

R2X0+

R2X0-

R2XC+

RPWR2

R3XC-

R3XC+

R3X0-

R3X0+

R3X1-

R3X1+

R3X2-

R3X2+

HDMI_VCC3

C504

0.1U

D507

RLZ5B6

D506

RLZ5B6

DSCL_3
DSDA_3

R2X0-

R568

4K7

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND AGND

AGNDAGND

AGND

AGND

AGND

AGNDAGND

SDA

SCL

WC

VCC

VSS

E2/NC

E1/NC

E0/NC

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

SDA

SCL

WC

VCC

VSS

E2/NC

E1/NC

E0/NC

AGND

AGND

AGND

A0
A1
A2
A3 A4

A5

A6

A7

A8

A9

A10/AP

A11

DQ0

DQ1
DQ2

DQ3
DQ4

DQ5
DQ6

DQ7 DQ8

DQ9

DQ10

DQ11

DQ12

DQ13

DQ14

DQ15

BA0
BA1

CS

RAS

CAS

WE

LDM UDM

LDQS UDQS

CKE

CLK

CLK

MVDD

MVDD1

MVDD2

VDDQ

VDDQ1

VDDQ2

VDDQ3

VDDQ4

VSS

VSS1

VSS2

VSSQ

VSSQ1

VSSQ2

VSSQ3

VREF

VSSQ4

NC

NC1

NC2

NC3

NC4

NC5

NC6

NC7

AGND

SI

SK

HOLD

VDD

VSS

WP

SO

CE

AGND

SDA

SCL

WC

VCC

VSS

E2/NC

E1/NC

E0/NC

AGND

AGND

GND

RXCKP

GND1

RXCKN

TAGC

RX0N
RX0P

AVDD_33

RX1N
RX1P

GND_VIFPLL

HPLUG

REXT

DDCD_SDA
DDCD_SCK

HSYNC1
VSYNC1

VCLAMP
REFP
REFM

BIN1P
SOGIN1
GIN1P
RIN1P

VCOM2

BIN0P

VCOM3

RIN0P

AVDD_33_1GND_RXS

HSYNC0
VSYNC0

VSYNC2
BIN2P
SOGIN2
GIN2P
RIN2P

C1
Y1
C0
Y0
CVBS3
CVBS2
CVBS1
VCOM1
CVBS0
VCOM0

AVDD_33_2

CVBSOUT1

GPIOD[0]/ICLK

GPIOD[1]/DI0

GPIOD[2]/DI1

GPIOD[3]/DI2

GPIOD[4]/DI3

GPIOD[5]/DI4

GPIOD[6]/DI5

GPIOD[7]/DI6

VR27

GND2

DQS[1]
MDATA[15]
MDATA[14]

GND3

MDATA[12]

AVDD_MI

MDATA[11]
MDATA[10]

BADR[1]

GND4

AVDD_MI1

MDATA[7]
MDATA[6]

MDATA[4]

AVDD_MI2

MDATA[3]
MDATA[2]
MDATA[1]
MDATA[0]

DQS[0]

DQM0

MVREF
MCLKE

MCLKZ

MCLK

TAFC

GND5

AVDD_MI3

AVDD_MIPLL

CASZ

WEZ

MADR[0]
MADR[1]
MADR[2]
MADR[3]
MADR[4]

AVDD_MI4

VDDC

MADR[8]

VDDP

SPI_SCK

ALE

GND6

SPI_SDI

SPI_SCZ

SPI_SDO

SAR1

SAR2

SAR3

PWM0

PWM1

DDCR_SDA

DDCA_SDA

MADR[6]

VDDP1

VDDP2

GND7

VDDC1

USB_DM

USB_DP

PWM3

VDDC2

VDDP3

LVA3P

LVA3M

LVACKP

LVACKM

LVA2P

LVA2M

LVA1P

LVA1M

LVA0P

LVA0M

VDDP4

INT

LVB3P

LVB3M

LVBCKP

LVBCKM

LVB2P

LVB2M

LVB1P

LVB1M

LVB0P

LVB0M

VDDP5

RDZ

VDDP6

DI[4]

DI[6]

DI[7]

VDDC3

HWRESET

XOUT

XIN

AVDD_MPLL

VR12

VIFP

RX2P

RX2N

PWM2

GPIOE[1]

GPIOE[0]

GIN0P
SOGIN0

CVBSOUT0

SIFP

GND_RXV

AVDD_AU

VIFM
SIFM

GND_TAGC

AUVRM

AUVRP

AUVAG

AVDD_AU1

LINE_IN_0L
LINE_IN_0R
LINE_IN_1L
LINE_IN_1R
AUCOM
LINE_IN_2L
LINE_IN_2R
LINE_IN_3L
LINE_IN_3R

LINE_OUT_3L
LINE_OUT_3R
LINE_OUT_2L
LINE_OUT_2R
LINE_OUT_1L
LINE_OUT_1R
LINE_OUT_0L
LINE_OUT_0R

DDCR_SCL

DDCA_SCL

SAR0

IRIN

LINE_IN_MONO

GND8

GND9

GND10

GND11

WRZ

AD[1]
AD[2]

AD[3]

GPIOB[1]

MADR[5]

MADR[7]

MADR[9]
MADR[10]
MADR[11]

BADR[0]

RASZ

MDATA[13]

MDATA[9]
MDATA[8]

MDATA[5]

LVA4P

LA4M

LVB4P

LVB4M

GPIOE[3]

GPIOE[2]

DI[5]

ICLK

DI[0]

USB_VBUS

USB_CID

DQM1

GPIOB[0]

GPIOL[1]

GPIOL[0]

GPIOL[2]

GPIOL[4]

GPIOL[3]

GPIOT[0]

DI[1]

DI[2]

DI[3]

GPIOR[0]

AVDD_RXS

AVDD_TAGC

AVDD_RXV

AVDD_MI5

AVDD_MI6

VDDC4

GND12

GND13

GND14

AD[0]/DI7

GND15

USB20_REXT

AVDD_USB

USB20_DM

USB20_DP

GND16

GNDPAD

T

AGND

AGND

AGND

AGND

AGND

SPDIF OUT:C13=0,R213=0,R488=NC;SPDIF RCA OUT AS BLOW

1

AUOUS

CL=20pf of XTAL

Only 196 PIN can

Mode

Not 5V-tolerant

Not 5V-tolerant

Not 5V-tolerant

2

1

USB OTG

Not 5V-tolerant

Not 5V-tolerant

can used for

Not 5V-tolerant

FOR compatibility

used for ON USB.

Only 184 PIN

Interface

Not 5V-tolerant

Not 5V-tolerant

PWM1PWM0=10

FOR U12,+2.6V_DMQ,+2.6V_DMC must be 2.6V

not 5v-tolerant

Interface

FOR U47,+2.6V_DMQ,+2.6V_DMC must be 3.3V

Only 129 Pin can used for
HDMI CEC funciton control.

Selection

SOGIN0

NC/1000PC372

NC/0.047U

C943

0.1U

C373

NC/0.047U

C941

NC/0.047U

C942

R388

0R

0.1UC352

DVD/V

DVD/Y

VCOM3

0.1U

C374

VCOM2

DVD/U

GIN1P

0.047U

C375

RIN1P

C376

0.047U

1000PC378

SOGIN1

VS_RGB

0.047U

C377

BIN1P

VCOM0

0.047U

C364

C363

0.047U

CVBS0

0.047U

C939

0.047U

C940

0.047U

C360

0.047U

C358

0.047U

C357

C1

CVBS1

C361

0.047U

0.047U

C362

VCOM1

CVBS3
CVBS2

C359

0.047U

AV3-VIN+

SV1-CIN

Y1

SV1-YIN

CAMERA/Y

CVBSOUT

AUVRADP

AUVREF

TV1-VIN-

SV1-YIN

DVD/U

DVD/SOG

DVD/V

SPI_DO

AISD

AUMUTE

AUMCK

54

72

1

36

8

R3114

100R

54

72

1

36

8

R3113

22R

D17
D5V0S1

AIWS

AISCK

+3.3VSTB

R7
1K

R3

0R

R10
3K3

R5

220R

R6

200R

R2
100K

2

1

J3

100K

R4

2

1

J1

1

2

J2

C521

22P

1

2

P210

KEY1-IN

PWM2

CVBSOUT1

I2C_SDA

I2C_SCL

KEY0-IN

CECT

REV

FORWARD

+3.3VSTB

WP_KEY

I2C_SCL

1

2

3

4

5

P305

R343100R

R344

100R

Z815

R560

4K7

R303

4K7

ATV_RESET#

54

72

1368

R3104
100R

R22

100R

R561

100R

99

100
101

102

105

74

68

66

67

24537186469

143

138

132

127

111

149

154

12848525961

162

107
106

13

8

23

29

27

112

35

33

32

31

39

38

183

182

256

255

181

180

198

199

200

201

203

204

205

206

130

156

131

155

15

10

25

1

40

248

251

110

13519172

165

65

97

126

146

208

223

167

237

257

535862

49

191

192

88

89

90

91

92

93

94

95

241
240
239
238

414243

44

45

129

196

254

20

3

207

197

184

185

211

70
71
72
73

75
76
77
78
79

86
87

84
85

82
83

80
81

221
220
219
218
217
216

213
212

210

215
214

235
234
233
232
231
230

227
226
225
224

229
228

125

115
114

124
123
122
121
120
119
118
117
116

158

159

157

133

147

148

150

151

152

153

134

136

137

139

140

141

142

144

145

160

178

179

193

194

108

104

7

6

2

17

11

26

246
247
249
250
252
253

243
244

174

175

176

177

55
54

16

9

24

168

170

169

171

60

63

163

164

161

190

188

189

187

5

36

34

12
14

209

173

10998242

222

236

202

195

186

166

96

56

57

51
50

21

4

22

113

103

47

46

30

28

U300

MST6M19GL

R563

220R

SPDIF-OUT

C522

0.01U

SPDIF-OUT

TUNER_SCL

SPDIF

R521

100R

VDDC

CTRL-2

CTRL-1

R522

100R

R523

100R

R520

100R

100R

R335

TUNER_SCL

HDMI_CEC

100R

R367

R366100R

R340

0R

IR_SYNC

+3.3VSTB

R341

0R

5V-IF

AV2-LIN

DVD/SOG

DVD/Y

DVD/U

DVD/V

DVD/SOG

DVD/Y

BIN2P

TUNER_SDA

RESET

4K7

R947

TXD1

SIF_SW

+3.3VSTB

4K7

R339

TXD0

RXD0

R355
10R

R352

8K2

1

2

3

4

5

6

7

8

9

10

P303

5

6

7

8

4

3

2

1

U305

M24C64

NC

R351

4K7

5VSTB

5VSTB

5VSTB

R946

4K7

4K7

R308

2K7

R307

R306

2K7

5V-IF

AUSD0

RXO0-

WP_FLASH

SPI_DI

SPI_DI

SPI_CK

SPI_CK

SPI_DO

SPI_CZ

SPI_CZ

5

6

7

8

4

3

2

1

U303

F25L008A

C301

10U

+5V_USB2

R330

100K

C300

10U

R345

910R

USB2_D-

C338

4U7

NC

4K7

R397

NC

C390

10P

NC

C324

10P

NC

B

E

C

Q302

BT3906

R320

4K7

PWM0

IR_SYNC

1

2

3

45

6

7

8

R3116

100R

8

7

6543

2

1

100R

R3117

29
30
31
32 35

36

37

38

39

40

28

41

2

4
5

7
8

10
11

13 54

56

57

59

60

62

63

65

26
27

24

23

22

21

20 47

16 51

44

45

46

1

18

33

3

9

15

55

61

34

48

66

6

12

58

64

49

52

14

17

19

25

43

53

50

42

U304HY5DU281622ETP

R309

100R

R310

100R

TAFC

MSTAGC

R1001

0R

NC

TAGC

0.1U

C335

SIFP

PH-L

SC1-L

TV1-L/RIN

MUX-LIN

54

72

1

36

8

R3110

33R

CVBSOUT

BIN+

VS_RGB

HDMI_HPDCTRL

HDMI-DDC-SCL

HDMI-DDC-SDA

R1_TX2+

G1_TX1+

G1_TX1-

B1_TX0+

B1_TX0-

TX1CLK+

TX1CLK-

HS_RGB HS_RGB

R395

150R

MDATA15

MDATA11

22K R378

0.01UC344

100R

R382

AMP-R

SC2-R
AMP-L

AGND

C305

10U

SOG

REFM

REFP

C381 0.1U

C382

0.1U

NC

C379 0.1U

0.1UC380

R337

390R

X300

14M3

OTG_HOST_DET

ESD-CAP

C384

C391

10P

NC

C323

10P

C303

10U

0.1U

C336

VR12

C304

10U

USB2_D+

C389

10P

C386

10P

C3

10U

TXD

RXD

RXD0

TXD0

R314

4K7

R313

4K7

R312

100R

100R

R311

WP_EEP2

WP_EEP

+3.3VSTB

+3.3VSTB

+3.3VSTB

5

6

7

8

4

3

2

1

U301

M24C64

4K7

R334

0.1U

C315

B

C

E

Q300

C144ET

R350

4K7

PB+

PR+

5VSTB

5VSTB

R354
10R

4K7

R396

NC

SENSOR

R391

0R

NC

8

7

6543

2

1

100R

R3107

NC

0R

R930

+3.3AVDD

NC

0R

R931

NC

0R

R394

RXE0-RXE0+

RXO0-RXO0+

RXO1-RXO1+

RXO2-RXO2+

RXOC-RXOC+

RXO3-RXO3+

RXE1-RXE1+

RXE2-RXE2+

RXEC-RXEC+

RXE3-RXE3+

RXO4-RXO4+

RXE4-RXE4+

OTG_HOST_DET
OTG_HOST_DET

USB1_D+

R328

0R

+5V_USB1

+5V_USB1

R358
100R

NC

R357

100R

NC

5VSTB

NC

0.1U

C6

100R

R28

NC

100R R29

NC

47P C7

NC

47P C8

NC

NC

R27

4K7

WP_EEP2

TUNER_SDA

I2C_SDA

I2C_SCL

TUNER_SDA

TUNER_SCL

I2C_SDA

I2C_SCL

R389

100R

NC

+3.3VSTB

R321
22K

C2

2U2

R1

100K

C1

10U

16V

1K

R3102

2

3

1

0BAV99

D206

R336

4K7

R322

1K

ESD-CAP

C385

R349
4K7

AVDD_33

I2C_SDA

I2C_SCL

R390100R

NC

100R

R399

R383

100R

+3.3VSTB

SENSOR

CKE

TUNER_SDA

TUNER_SCL

+2.6V_DMQ

10K

R315

NC10K

R302R300

10K

NC

10K

R301

R398
1K

+3.3VSTB

R353

8K2

+2.6V_DMQ+2.6V_DMC

+2.6V_DMQ

+2.6V_DMC

R393

0R

NC

0R

R392

+3.3AVDD

C383

0.1U

C306

10U

16V

VCC_PANEL

12

4

6

8

12

14

16

18

20

10

22

24

26

28

3

5

7

9

11

13

15

17

19

21

23

25

27

29 30

32

34

36

38

40

31

33

35

37

39

P302

100R R332

100R

R333

R304

2K7

0.1U

C334

R364

33K

12

4

6

8

12

10

3

5

7

9

11

P304

+5V_USB2

+5V_USB1

HDMI_HPDCTRL

HDMI-DDC-SCL

RIN+

GIN+

SOG

BIN+

VS_RGB

HS_RGB

G1_TX1+

C371 1000P

0.047U

C369
C368

0.047U

C370

0.047U

TAGC

0.1U

C365

C3661UC367

4U7

TV1-L/RIN

MUX-RIN

MUX-LIN

AV1-LIN
AV1-RIN

AV2-RIN

AV2-LIN

PC-RIN

PC-LIN

C351 2U2

2U2C350

C349 2U2

2U2C348

C347 2U2

2U2C356

C355 2U2

2U2C354

C353 2U2

R387

100R

100R

R386

R385

100R

100R

R384

R381

100R

0.01UC346

C3450.01U

C3430.01U

22K R380

R37922K

R37722K

22K R376

R37522K

22K R374

R37322K

C3392200P

2200P

C340

2200P

C342

C3412200P

5V-IF

R3721K

R3714K7

0.1U

C337

SIFM

VIFP

R37022R

22R R369

R36822R

AVDD_33

VDDC

R329

51K

+3.3VSTB

0.1U

C333

0.1U

C326

+2.6MVDD

10K

R316

AMP-MUTE

HP_DET

ON_PBACK

PW_CTL

ON_PANEL

SIF_SW

1

2

3

45

6

7

8

R3106

100R

8

63

1

27

45

22R

R3112

54

72

1

36

8

R3111

22R

8

7

6543

2

1

100R

R3109

100R R363

R362100R

100R R360

1

2

3

45

6

7

8

R3108

100R

100R

R361

C325

0.1U

C308

0.1U

NC

LED

KEY1

5VSTB

10K

R348

1000P

C320

C319

1000P

R347

100K

R346

51K

C318

0.1U

C316 47P

C317

47P

5

6

7

8

4

3

2

1

U302

M24C04MN

AVDD_USB2

AVDD_RXV

AVDD_TAGC

AVDD_RXS

AVDD_MPLL

AVDD_MEMPLL

+2.6MVDD

VDDP

AVDD_33

AVDD_AU

47P C313

47P C314

C312

1U

R331

15K

0R

R327

R3260R0R

R325

R324

0R

C311

1000P

C310

27P

C309

27P

R323

1M

10K

R319

C307

0.1U

NC

R318

10K

R317

10K

1

2

3

4

P300

2K7

R305

AOSDATA

AOMCLK

AOLRCLK

AOBCLK

4K7 R342

SENSOR

KEY1

C322
100P

C321
100P

R356
10R

IR_SYNC

KEY0

KEY0

4K7

R359

C327

0.1U

C328

0.1U

0.1U

C329

C330

0.1U

0.1U

C331

C332

0.1U

R365

0R

SIFP

G1_TX1-

R1_TX2­R1_TX2+

HDMI-DDC-SDA

SV1-CIN

AV3-VIN+
AV1-VIN+

PB+

Y+

SOY

PR+

TV1-VIN+

AV2-VIN-

AV2-VIN+

CVBSOUT

R1_TX2-

SC2-L

PH-R

SIFP

RASZ

CASZ

WEZ

LDQM

DQS0

DQS1

HDMI_HPDCTRL

AOLRCLK

AOBCLK

AOSDATA

AOMCLK

UDQM

MCLK+

DATA15

DATA11

DATA10

DATA9

DATA8

DATA0

DATA1

DATA2

DATA3

DATA4

DATA5

DATA6

DATA7

AR0

AR1

AR2

AR3

AR4

AR5

AR6

AR7

AR8

AR9

AR10

AR11

MCLK-

DATA14

DATA13

DATA12

VIFP

SIFM

I2C_SDA

I2C_SCL

SC1-R

AV1-VIN+
AV2-VIN+
AV2-VIN­TV1-VIN+
TV1-VIN-

PC-LIN
PC-RIN

AV2-RIN

AV1-LIN
AV1-RIN

MUX-RIN

TAGC

SOY
Y+

BIN+

RIN+

SOG

GIN+

RIN+

PWM0
PWM1

TXD1
RXD1

MVREF

FSVREF

MCLK-

MCLK+

DATA7

DATA6
DATA5

DATA4
DATA3

DATA2
DATA1

DATA0

DQS0

LDQM
WEZ
CASZ

RASZ

BA0
BA1

AR10

AR0
AR1
AR2
AR3

DATA8

DATA9

DATA10

DATA11
DATA12

DATA13
DATA14

DATA15

DQS1

FSVREF

UDQM

CKE

AR11

AR9
AR8

AR7
AR6
AR5
AR4

B1_TX0+

B1_TX0-

TX1CLK+

TX1CLK-

USB1_D-

R23

4K7

DAC_OUT_1R

DAC_OUT_1L

DAC_OUT_0R

DAC_OUT_0L

LINE_OUT_1R

LINE_OUT_1L

LINE_OUT_0R

LINE_OUT_0L

AUMONO

AUR3

AUL3

AUR2

AUL2

AUCOM

AUR1

AUL1

AUR0

AUL0

RIN2P

GIN2P

SOGIN2

VCLAMP

USB2_OC_DET

OTG_OC_DET

INT

USB1_CID

USB1_DP

USB1_DM

VBUS

MCLKE
MCLK

MCLKZ

DQM1

MDATA14
MDATA13
MDATA12

MDATA10
MDATA9
MDATA8
MDATA7
MDATA6
MDATA5
MDATA4
MDATA3
MDATA2
MDATA1
MDATA0
MDQS0
DQM0

MADR0
MADR1
MADR2
MADR3
MADR4
MADR5
MADR6
MADR7
MADR8
MADR9
MADR10
MADR11
MWEZ
MCASZ
MRASZ

IR-IN

LED-R

132

D409

D5V0S2

RXD

TXD

USB2_D-

USB1_D-

USB1_D+

USB2_D+

RXD1

RXO4­RXO4+

RXE4­RXE4+

BA0

KEY0

SIFM

VIFM

PWM2

R1_TX2­R1_TX2+

VIFP

RXO0+
RXO1­RXO1+
RXO2­RXO2+
RXOC­RXOC+
RXO3­RXO3+

RXE0­RXE0+
RXE1­RXE1+
RXE2­RXE2+
RXEC­RXEC+
RXE3­RXE3+

PWM1

PWM0

PANEL_CH

KEY1

MVREF

BA1

HDMI-DDC-SCL

HDMI-DDC-SDA

HDMI_HPDCTRL

G1_TX1+

G1_TX1-

B1_TX0+

B1_TX0-

TX1CLK­TX1CLK+

MDQS1

SCK

SDI

SCZ

SDO

4K7

R338

RXD0

TXD0

CAMERA/Y

R562

100R

AGND

I2C_SDA

4K7

R433

NC

+3.3VSTB

SPDIF-RCA

C5

0.1U

PANEL_CH

3K3

R9

R8
3K3

+3.3VSTB

ON_PANEL

PW_CTL

ON_PBACK

LED

AUSCK

AUWS

HP_DET

AMP-MUTE

WP_EEP

WP_KEY

8

63

1

27

45

100R

R3115

Y+

SOY

PB+

PR+

SV1-CIN
SV1-YIN

TV1-VIN-

AV3-VIN+
AV1-VIN+
AV2-VIN+
AV2-VIN­TV1-VIN+

CAMERA/Y

GIN+

AGND

AGND

AGND

AGND

AGND

T

T

T

TT

4

T

4

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

VOUTVIN

ADJ/GND

backup for SP8J3

30mA

13

2007-01-10

E

Hengtao Hiu

2006-10-08

262mA

1.32V>VDDC>1.26V,VDDV>1.26V more better

Panel power supply

10mA

backup to prevent rush current

23

1

U800

AIC1084

+5V

R851

10K

ON_PANEL

R805

10K

C802

10U

NC

C801

10U

R807

22K

R806

0R

7

8

4

2

356

1

Q805

A04411

2

1

F800

2

1

F801

C858

10U

C856

10U

C854

10U

C852

10U

C850

10U

C848

10U

C846

10U

C838

10U

C822

10U

L819

120R

L816

120R

L818

120R

L921

30R

L920

30R

C897

0.1U

C844

0.1U

C845

0.1U

C849

0.1U

L811

120R

L814

120R

L815

120R

VCC_PANEL

L813

120R

C812

0.1U

C813

0.1U

C818

1U

C821

0.1U

C816

0.1U

C807

47U

10V

C804

47U
10V

C806

22U

10V

C805

22U

10V

C809

0.1U

VCC_1.26V

+3.3VSTB

C810

6800P

C817

6800P

C820

0.1U

C814

0.1U

C815

0.1U

L812

120R

L810

120R

+2.6V_DMQ

L808

120R

+2.6V_DMC

+2.6MVDD

L803

30R

L802

30R

220R

R804

R803

200R

+5V

123

4

U802

LD1117S25

Z803

123

4

U801

LD1117S33

C883

220U 16V

Z801

C800

100U10V

Z800

Z802

Z805

Z804

C811

6800P

L809

120R

C819

1U

L817

120R

B

C

E

Q800

BT3904

AVDD_MPLL

C859

0.1U

0.1U

C857

C855

0.1U

C851

0.1U

C842

0.1U

C837

0.1U

C836

0.1U

C833

0.1U

C829

0.1U

C824

0.1U

C827

0.1U

C826

0.1U

C828

0.1U

C831

0.1U

C830

0.1U

C825

0.1U

C832

0.1U

C834

0.1U

C823

2U2

C835

0.1U

C841

0.1U

C843

0.1U

C853

0.1U

C847

0.1U

C860

0.1U

C861

0.1U

VDDP

AVDD_33

VDDC

AVDD_RXV

AVDD_USB2

AVDD_RXS

AVDD_AU

AVDD_TAGC

AVDD_MEMPLL

AGND

AGND

AGND

T

T

T

T

T

T

AGND

AGND

AGND

AGNDAGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

BOOT

DRIVE

FB GND

LGATE

PHASE

VCC

UGATE

AGND

AGND

AGND

AGND

T

AGND

2006-10-08

Hengtao Hiu

E

2007-01-10

13

Backup for +5VUSB,

about 1mm

Backup for disturb

If want 1.26V,must adjust R&C

C875

0.1U

0.27R

R811R810

0.27R
R839

0R

1

A78

24V_IN

8V2

D805

NC

D804

8V2

12V_IN

+5V

0R

R850

0R

R849

C262

220U

25V

R853

10K

R856

20K

B

C

E

Q807

BT3904

B

E

C

Q806

BT3906

R857

4K7

L804

30R

C871

47U

16V

L820

30R

L800

15UH

VCC_1.26V

L830
30R

30R

L821

+5V

C873

1U

10K

R830

C880

0.1U

NC

+5V/DVD

L822

30R

R824
NC/0R

5VSTB

5VSTB

INT

R818

10K

NC

PWM1

12

4

6

8

12

14

16

10

3

5

7

9

11

13

15

P803
BL_ON

5VST

Z812

120R

L826

12V

L805

30R

C896

0.47U

AMP_12V +18V

C899

220U

25V

L831

30R

PW_CTL

C874

0.1U

L823

30R

L824

30R

PW_CTL

C898

10U

10K

R840

/NC

+3.3AVDD

R819

10K

+5V

R834

10K

R835

10K

R844
220R

R845

1K2

NC

C891

1000P

NC

R846
10R

NC

R842
20K

Q804

2N7002

7

8

4

2

3

5

6

1

U804

PHKD13N03LT

5VSTB

1

2

36

5

8

4

7

U805

RT8110

2

8

7

6

4

10

5

3

1

9

U803

NC/MP1411

+5V_USB2

+5V_USB1

C895

1U

100K

R848

NC

10K

R837

NC

R836
10K

NC

C888

0.01U

NC

C881

0.1U
NC

C882

0.01U
NC

C887

NC/330U

10V

C877

0.1U
NC

NC?2K26

R838

NC

R831
NC/10K

NC

C878

3900P

NC

C879

0.01U
NC

R847

100K

NC

C894

0.1U

C893

220U

16V

C890

4U7

C889

10U

C885

0.1U

R833
NC/2K26

R843
10R

12V_IN

C865

0.1U

C808

NC/330U

16V

L806

30R

D801

NC/SR23

L807

NC/10UH

C886

330U

10V

D803
LL4148

R841

NC/0R

D802

LL4148

R814

4K7

/NC1K

R829

R823

10K

E

C

B

Q803

E

C

B

C144ET

Q801

R822

4K7

B

C

E

Q802

BT3904

C876

1U

Z809

Z806

C870

0.1U

R817
100R

Z807

Z808

R813

10K

Z811
L825
120R

Z813

ON_PBACK

L832

30R

L833

30R

12V

12V

+18V

+18V

5VST

P_ON

DIM

12V

+3.3VSTB

R858

4K7

R855

4K7

R854

0R

12V_IN

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

AGND

for camera

FOR DVD-COMB OR PVR

For PVR(NC)

IR

PVR-L

NC/560P

C265

NC/75R

R289

NC/75R

R290R288

NC/75R

D18
D5V0S1

12V_IN

SC1-L

5V-IF

12V_IN

L212

30R

L206

30R

R465

4K7

R466

4K7

R463

4K7

R461

4K7

CECT C_CECT

REV REV_T

FORWARD

1

2

3

4

5

6

P211

1

12V

2

GND

3 CVBS

P209

1

2

3

4

5

6

7

8

9

10

11
12

P208

1

2

3

4

5

6

7

8

9

10

11

12

13

P207

8

7

6453

2

1

U702

TDA1308T

R446

330R

C272

47U

16V

100P

C281

10K

R460

RXD1-1

TXD1-1

ATV_RESET#

CTRL-2

PVR-CVBS

PVR-L

PVR-R

C282

100P

R457

10K

R458

10K

C274

100U

16V

C275

0.1U

100R

R454

5V-IF

R456

33K

C276

100U

16V

AGND

C280

0.1U

10K

R459

C279

2U2

SC1-R

PVR-R

PVR-CVBS

C267

0.1U

C266

47U

16V

R444

75R

R445

220R

C269

47P

NC

R448
22K

75R

R447

CVBSOUT1

R250

1K

L208

30R

R248

4K7

R249

4K7

B

C

E

Q206

BT3904

G

D

S

Q205

ML6401

DVD-COMB/CAMERA

V

Y

C259

330P

NC

500R

L201

R299

NC/0R

R298

NC/0R

R294

NC/470R

CAMERA/Y

R275

75R

+5V/DVD

5VSTB

IR_SYNC

R296

4K7

R297

4K7

C261

100P

B

C

E

Q204

BT3904

SPDIF

+5V/DVD

RXD1

TXD1

12V-DVD

DVD/L

V

U

DVD/V

DVD/SOG

DVD/U

DVD/Y

C263

NC/560P

R291

NC/0R

R293

NC/47R

NC/47R

R292

500R

L207

V/R

U/B

Y/G

AGND

AUDIO-L

AUDIO-R

L205

500R

500R

L204

500R

L203

500R

L202

NC/47R

R295

NC/560P

C264

DVD/R

R273

47R

500R

L209

12V_IN

CTRL-1

B

E

C

Q208

BT3906

B

C

E

Q207
BT3904

R449

68K

C268

10U

5V-IF

33K

R455

16V

47U

C273

C278

0.1U

AGND

AGND

AGND

L211

220R

2U2

C277

220R

L210

AGND

R452
10K

R453

10K

AGND

C271

2200P

NC

C270

2200P

NC
R450
2K2

R451

2K2

AGND

R462

4K7

R464

4K7

Y

U

Power Logic Sequence

inverter 24v

P803

+18v 1 2 +18v for Audio

+5V_USB1/2

GND 3 4 GND

12V 5 6 12V

U805/U804 +5V/DVD

U801 3.3V AVDD

GND 7 8 12V

GND 9 10 GND

+5V

2.6V VM

5VST 11 12 5VST 5VSTB

GND 13 14 P-ON

U800

+3.3VSTB

ADPP/AVDD/VDD-MPLL

DIM

15 16 BL-ON U803 1.26V

PW_CTL

on-pback

ON_Panel vcc_panel

Power Supply Unit

Panel

U300

CPU/DECODER/SCA

NNER

U802

No Working

YN

NY N

I2C BUS

wokring if

OK

Power supply if

OK

LED if Lighting

check 3 control
voltages(power-

on/off,panel-on/off,on-

pback,) if OK,

check 5vstb voltage

if OK

Check the relevant

circuitry,e.g.power

supply B.D

check

relevant

circuitry

check working conditions of U300 if OK

crystal/Reset

circuitry working if

OK

U301/U302/U305 power

supply and SCL/SDA

Fig1. No Working

Defect Picture

Check LVDS

interface

assembly if OK

check if all

signal resources

have defect


Check

relevant

signal

channel

Y

replace the panel

or U300

Replace the LVDS line, if the

defect picture still have

all signal channel defect

Fig2. Defect Picture

No Picture

NY

YYN

Replace

U300

YYN

check

waveform

of Z600's

Pin8 if
regular

Replace

U600

NN

Y

Fig3. No Picutre

check Q801 and U300's
working conditions if

regular.

Test waveform of
Pin54/55 of U300 if
have regular signal

input

check waveform of
pin1/2 of U600 if

regular

replace Tuner Z600

Replace U300

AV input if have picture

check P302 if assemble

regular

check Q805 Vcc-panel

power supply and

relevant if regular

Check P803's Pin16

BL_ON if high level,

over 3V is regular.

YN

YN YN

Replace
U300

NY

check

Z600/Z601

replace

U600

if 3.3V/12V no voltage

or low voltage,check

relevant circuitry

Fig4.Picture OK, but No Sound

Check the

speakers

Check the power supply

voltage of U700 and mute

control circuitry if

regular

Check voltage of Pin23 of

U700 and Q700/Q701 and

relevant mute circuitry

check the pin23/24

of U600 input if

normal

Picture Good,but No Sound

increase the volume and press the

mute key on remote control

test waveform of Pin27/28/29/30 of

U700 if OK

Test waveform of

Pin6/9/10/11 of u700 if

OK

test waveform of

Pin54/Pin55 of U300 if

regular

3.Test waveform of LVDS if OK, LVDS OK but no display, replace the panel.

1. check the inverter voltage 24V if supply for Panel,also view the panel if
have backlight. If have backlight,it shows that have inverter voltage supply.

2. Check if have voltage of Vcc-panel for CMO panel. LG-PHILIPS L32OW 12V. Some
other small size panel is 3.3V.

attention: Do no remove off the LVDS connector when the TV working or contact
U300 only time,to avoid shock U300.

MST6M19GL

UXGA/WSXGA+ LCD TV Controller with VIF

Preliminary Data Sheet Version 0.1

Version 0.1 - 1 - 8/20/2007

Copyright © 2007 MStar Semiconductor, Inc. All rights reserved.

Attention Please: Under the technology license agreement between MStar and Dolby/SRS/BBE, MStar is obliged not to
provide samples that incorporate Dolby/SRS/BBE technology to any third party who is not a qualified licensee of
Dolby/SRS/BBE respectively.

FEATURES

Ÿ Single display LCD TV controller with PC &

multimedia display functions

Ÿ Input supports up to SXGA & 1080P
Ÿ Panel supports up to UXGA(1600x1200) /

WSXGA+(1680x1050)

Ÿ TV decoder with 3-D comb filter
Ÿ Multi-standard TV sound demodulator and

decoder

Ÿ 10-bit triple-ADC for TV and RGB/YPbPr
Ÿ 10-bit video data processing
Ÿ Integrated DVI/HDCP/HDMI compliant

receiver

Ÿ High-quality scaling engine & 3-D video

de-interlacer

Ÿ MStarACE-3 picture/color processing engine
Ÿ Embedded On-Screen Display (OSD) controller

engine

Ÿ Built-in MCU supports PWM & GPIO
Ÿ Built-in dual-link 8/10-bit LVDS transmitter
Ÿ 5-volt tolerant inputs
Ÿ Low EMI and power saving features
Ÿ 256-pin LQFP

n NTSC/PAL/SECAM Video Decoder

Ÿ Supports NTSC M, NTSC-J, NTSC-4.43, PAL

(B,D,G,H,M,N,I,Nc), and SECAM

Ÿ Automatic TV standard detection
Ÿ Motion adaptive 3-D comb filter for NTSC/PAL
Ÿ 8 configurable CVBS & Y/C S-video inputs
Ÿ Supports Closed-caption, and V-chip
Ÿ Macrovision detection
Ÿ CVBS video output

n Video IF for Multi-Standard Analog TV

Ÿ Digital low IF architecture
Ÿ Stepped-gain PGA with 26 dB tuning range

and 1 dB tuning resolution

Ÿ Maximum IF analog gain of 37 dB in additional

to digital gain

Ÿ Programmable TOP to accommodate different

tuner gain to optimize noise and linearity
performance

n Multi-Standard TV Sound Decoder

Ÿ Supports BTSC/A2/EIA-J demodulation and

decoding

Ÿ FM stereo & SAP demodulation
Ÿ L/Rx4, mono, and SIFx2 audio input
Ÿ L/Rx3 loudspeaker and line output
Ÿ Supports sub-woofer output
Ÿ Built-in audio output DAC’s
Ÿ Audio processing for loudspeaker channel,

including volume, balance, mute, tone, EQ,
and virtual stereo/surround

Ÿ Optional advanced surround available

(Dolby1, SRS2, BBE3… etc)

Note

n Digital Audio Interface

Ÿ I2S digital audio input & output
Ÿ S/PDIF digital audio input & output
Ÿ HDMI audio channel processing capability
Ÿ Programmable delay for audio/video

synchronization

n Analog RGB Compliant Input Ports

Ÿ Three analog ports support up to 150MHz
Ÿ Fast blanking and function selection switch

support full SCART functions

Ÿ Supports HDTV RGB/YPbPr/YCbCr up to 1080P
Ÿ Supports Composite Sync and SOG

(Sync-on-Green) separator

Ÿ Automatic color calibration

n DVI/HDCP/HDMI Compliant Input Port

Ÿ Supports TMDS clock up to 225MHz @ 1080P

60Hz with 12-bit deep-color resolution

Ÿ Single link on-chip DVI 1.0 compliant receiver
Ÿ High-bandwidth Digital Content Protection

(HDCP) 1.1 compliant receiver

1

Trademark of Dolby Laboratories

2

Trademark of SRS Labs, Inc.

3

Registered trademark of BBE Sound, Inc.

Mstar Confidential

for TCL

Internal Use Only

MST6M19GL

UXGA/WSXGA+ LCD TV Controller with VIF

Preliminary Data Sheet Version 0.1

Version 0.1 - 2 - 8/20/2007

Copyright © 2007 MStar Semiconductor, Inc. All rights reserved.

Ÿ High Definition Multimedia Interface (HDMI)

1.3 compliant receiver with CEC support

Ÿ Long-cable tolerant robust receiving
Ÿ Support HDTV up to 1080P

n Auto-Configuration/Auto-Detection

Ÿ Auto input signal format and mode detection
Ÿ Auto-tuning function including phasing,

positioning, offset, gain, and jitter detection

Ÿ Sync detection for H/V Sync

n Digital Video Input

Ÿ One 4:2:2 ITU-R BT.656 8-bit digital video

input port

n High-Performance Scaling Engines

Ÿ Fully programmable shrink/zoom capabilities
Ÿ Nonlinear video scaling supports various

modes including Panorama

n Video Processing & Conversion

Ÿ 3-D motion adaptive video de-interlacer
Ÿ Edge-oriented adaptive algorithm for smooth

low-angle edges

Ÿ Automatic 3:2 pull-down & 2:2 pull-down

detection and recovery

Ÿ MStar 3rd Generation Advanced Color Engine

(MStarACE-3) automatic picture enhancement
gives:

Ÿ Brilliant and fresh color
Ÿ Intensified contrast and details
Ÿ Vivid skin tone
Ÿ Sharp edge
Ÿ Enhanced depth of field perception
Ÿ Accurate and independent color control

Ÿ sRGB compliance allows end-user to

experience the same colors as viewed on CRTs
and other displays

Ÿ Programmable 12-bit RGB gamma CLUT
Ÿ 3-D video noise reduction
Ÿ Frame rate conversion

n On-Screen OSD Controller

Ÿ 16/256 color palette
Ÿ 256/512 1-bit/pixel font
Ÿ 128/256 4-bit/pixel font

Ÿ Supports texture function
Ÿ Supports 4K attribute/code
Ÿ Horizontal and vertical stretch of OSD menus
Ÿ Pattern generator for production test
Ÿ Supports OSD MUX and alpha blending

capability

Ÿ Supports blinking and scrolling for closed

caption applications

n LVDS/TTL Panel Interface

Ÿ Supports 8/10-bit dual link LVDS up to

UXGA(1600x1200) / WSXGA+(1680x1050)

Ÿ Supports 8-bit single TTL panel
Ÿ Supports 2 data output formats: Thine & TI

data mappings

Ÿ Compatible with TIA/EIA
Ÿ With 6/8 bits options
Ÿ Reduced swing for LVDS for low EMI
Ÿ Supports flexible spread spectrum frequency

with 360Hz~11.8MHz and up to 25%
modulation

n Integrated Micro Controller

Ÿ Embedded 8032 micro controller
Ÿ Configurable PWM’s and GPIO’s
Ÿ Low-speed ADC inputs for system control
Ÿ SPI bus for external flash
Ÿ Supports external MCU option controlled

through 4-wire double-data-rate direct MCU
bus or 8-bit direct MCU bus

n External Connection/Component

Ÿ SD/MMC/MS/MSPro card reader interface to

support JPEG playback

Ÿ Two USB controllers (1.1 OTG and 2.0 host)

with the flexibility for connecting external
storage devices or PictBridge

Ÿ 16-bit data bus for external frame buffer (SDR

or DDR DRAM)

Ÿ All system clocks synthesized from a single

external clock

Note: Please see Ordering Guide for details on advanced
surround.

Mstar Confidential

for TCL

Internal Use Only

MST6M19GL

UXGA/WSXGA+ LCD TV Controller with VIF

Preliminary Data Sheet Version 0.1

Version 0.1 - 3 - 8/20/2007

Copyright © 2007 MStar Semiconductor, Inc. All rights reserved.

GENERAL DESCRIPTION

The MST6M19GL is a high performance and fully integrated IC for multi-function LCD monitor/TV with
resolutions up to UXGA(1600x1200) / WSXGA+(1680x1050). It is configured with an integrated
triple-ADC/PLL, an integrated DVI/HDCP/HDMI receiver, a multi-standard TV video and audio decoder, a video
de-interlacer, a scaling engine, the MStarACE-3 color engine, an on-screen display controller, an 8-bit MCU and
a built-in output panel interface. By use of external frame buffer, 3-D video decoding and processing are
fulfilled for high-quality TV applications. To further reduce system costs, the MST6M19GL also integrates
intelligent power management control capability for green-mode requirements and spread-spectrum support for
EMI management.

Mstar Confidential

for TCL

Internal Use Only

MST6M19GL

UXGA/WSXGA+ LCD TV Controller with VIF

Preliminary Data Sheet Version 0.1

Version 0.1 - 4 - 8/20/2007

Copyright © 2007 MStar Semiconductor, Inc. All rights reserved.

PIN DIAGRAM (MST6M19GL)

Pin 1

13

14

17

18

21

23

25

27

28

30

32

34

36

39

41

43

15

16

19

20

22

24

26

29

31

33

35

37

38

40

42

44

45

46

47

48

50

51

52

49

REXT
HSYNC1
VSYNC1
VCLAMP

REFP

REFM

BIN1P

RIN1P

BIN0P

GIN0P

RIN0P

AVDD_33

HSYNC0

VSYNC2

SOGIN1

GIN1P

VCOM2

VCOM3

SOGIN0

GND

VSYNC0

BIN2P

SOGIN2

GIN2P
RIN2P

C1
Y1
C0

Y0
CVBS3
CVBS2
CVBS1

VCOM1

AVDD_33
CVBSOUT1
CVBSOUT0

GND
GPIOL[0]
GPIOL[1]

GPIOL[4]

XOUT

AVDD_MPLL

GND_VIFPLL

VR27
VR12

1

2

3

4

5

7

9

11

6

8

10

12

53

54

55

56

57

59

61

63

58

60

62

64

GND_RXS

SIFP
SIFM
VIFM
VIFP

AVDD_RXV

TAFC

AVDD_TAGC

GND_TAGC

TAGC

AVDD_AU

77

78

81

82

85

87

899192

94

96

98

100

103

105

107

79

80

838486

88

90

93

95

97

99

101

102

104

106

108

109

110

111

112

114

115

116

113

AUVAG

AVDD_AU

LINE_IN_0L

LINE_IN_0R

LINE_IN_1L

LINE_IN_1R

AUCOM

LINE_IN_3L

LINE_IN_MONO

LINE_OUT_3R

LINE_OUT_2R

LINE_OUT_1R

LINE_OUT_0R

GPIOD[0]

LINE_IN_2L

LINE_IN_2R

LINE_IN_3R

LINE_OUT_3L

LINE_OUT_2L

LINE_OUT_1L

LINE_OUT_0L

GPIOD[1]

GPIOD[2]

GND

VDDC

WRZ

RDZ

ALE

BADR[1]

BADR[0]

RASZ

VDDC

GND

AVDD_MI

CASZ

WEZ

MADR[11]

MADR[10]

6566676869

71

737570

72

74

76

117

118

119

120

121

123

125

127

122

124

126

128

MADR[9]

MADR[8]

MADR[7]

MADR[6]

MADR[5]

MADR[4]

MADR[1]

MADR[3]

MADR[2]

MADR[0]

180

179

176

175

172

170

168

166

165

163

161

159

157

154

152

150

178

177

174

173

171

169

167

164

162

160

158

156

155

153

151

149

148

147

146

145

143

142

141

144

192

191

190

189

188

186

184

182

187

185

183

181

140

139

138

137

136

134

132

130

135

133

131

129

244

243

240

239

236

234

232

230

229

227

225

223

221

218

216

214

242

241

238

237

235

233

231

228

226

224

222

220

219

217

215

213

212

211

210

209

207

206

205

208

DDCD_SCL

DDCD_SDA

HPLUG

RX2P

RX2N

GND

RX0P

RX0N

AVDD_33

256

255

254

253

252

250

248

246

251

249

247

245

204

203

202

201

200

198

196

194

199

197

195

193

MST6M19GL

XXXXXXXX

XXXXX

AUVRP

AVDD_RXS

GND

GND

LVB4P

DI[7]

DI[6]

DI[5]

DI[4]

VDDP

DI[3]

DI[2]

DI[1]

DI[0]

VDDP

PWM2

PWM3

RXCKN

RXCKP

RX1N

VDDC

ICLK

GPIOT[0]

AUVRM

GND

CVBS0

VCOM0

AVDD_MI

PWM0

SAR2

SAR0

GND

SPI_SCZ

SPI_SCK
GND

SAR3

SAR1

VDDC

SPI_SDO

SPI_SDI

USB20_DM
AVDD_USB
USB20_REXT
MVREF
MCLKE
MCLK
MCLKZ
DQM1
DQS1

MDATA[15]

MDATA[11]
MDATA[10]

AVDD_MI
MDATA[3]
MDATA[2]
GND
MDATA[1]
MDATA[0]
AVDD_MI
DQS0
DQM0

INT
DDCA_SCL
DDCA_SDA
DDCR_SCL
DDCR_SDA
PWM1

GPIOR[0]

GPIOD[3]

GPIOD[5]

GPIOD[7]

GPIOD[4]

GPIOD[6]

VDDP

AVDD_MIPLL

GND_RXV

GND

USB20_DP

VDDP
GND

IRIN

VDDP

USB_DM
USB_VBUS

USB_DP

USB_CID

GPIOB[0]

GPIOB[1]

RX1P

GND

XIN

MDATA[9]
MDATA[8]
AVDD_MI
MDATA[7]
MDATA[6]
MDATA[5]
MDATA[4]

MDATA[14]
MDATA[13]
MDATA[12]
AVDD_MI

GPIOL[2]
GPIOL[3]

AD[0]

AD[1]

AD[2]

AD[3]

GND

VDDP

LVB0M

LVB0P

LVB1M

LVB1P

LVB2M

LVB2P

LVBCKM

LVBCKP

LVB3M

LVB3P

LVB4M

AVDD_MI

GND

VDDP

LVA0M

LVA0P

LVA1M

LVA1P

LVA2M

LVA2P

LVACKM

LVACKP

LVA3M

LVA3P

LVA4M

LVA4P

VDDC

GND

HWRESET

GPIOE[2]

GPIOE[0]

GPIOE[1]

GPIOE[3]

Mstar Confidential

for TCL

Internal Use Only

08-PW37C03-PWYA

TV EQU - ASS Y - POWER

BD(PWL37C03A) R=N
H3-HE9AN5B-YM0A L32E9A/MS91-AP/SS5
ASS PART NO. SEPC LOCATION
08-PW37C03-PWYA 10-0001H8-FBX DIODE 1H8 (FAST RECOVERY) DB1
08-PW37C03-PWYA 10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) DB3;DB2

08-PW37C03-PWYA 10-0RL255-EBX

DIODE RL255 OR RL206(POWER

RECTIFIER)

D3;D1

08-PW37C03-PWYA 10-1N4007-EBX DIODE IN4007 DB7
08-PW37C03-PWYA 13-000TL4-31T IC-REGSPECKT TL431ACLP R=N IC7;IC8;IC9
08-PW37C03-PWYA 18-CD0102-JNX RES. C.F. 1K OHM 1/4W +/-5% RF10

08-PW37C03-PWYA 18-CD0684-JNX

RES. C.F. 680K OHM 1/4W +/-

5%

RW13

08-PW37C03-PWYA 18-DB0474-FNX

RES. M.F. 470K OHM 1/6W +/-

1%

RF12

08-PW37C03-PWYA 18-KE0106-JN3

RES. GLASS GLAZE 10M OHM

1/2W +/-5%

R2;R1

08-PW37C03-PWYA 18-KE0684-JNX

RES.GLASS GLAZE 680K 1/2W

+/-5%

R5

08-PW37C03-PWYA 25-GFB220-M1X

CAP.ELEC 22UF/50V

RGA220M1HTA-0511

CB6;CB5;CB12;C11;

C10
08-PW37C03-PWYA 35-LB1011-0IX FERR BEAD BF-I40110Z-719 L3
08-PW37C03-PWYA 40-5PL37C-PWC1XG TV PCB PW BD R=Y

08-PW37C03-PWYA 41-WJ0050-B00

TCL41-WJ0050-B00= WIRE BARE
JUMPER 5MM R

J4;J10

08-PW37C03-PWYA 41-WJ0060-B00 WIRE-BARE JW1
08-PW37C03-PWYA 41-WJ0075-B00 WIREBAREJUMPER7.5MM J9;J16
08-PW37C03-PWYA 41-WJ0080-B00 WIREBAREJUMPER8MM J18
08-PW37C03-PWYA 41-WJ0100-B00 WIREBAREJUMPER10MM J5;J13
08-PW37C03-PWYA 41-WJ0135-B00 WIREBAREJUMPER13.5MM J23
08-PW37C03-PWYA 41-WJ0140-B00 WIREBAREJUMPER14MM J11
08-PW37C03-PWYA 41-WJ0150-B00 WIREBAREJUMPER15MM J7;J8;J1;J15
08-PW37C03-PWYA 41-WJ0165-B00 WIREBAREJUMPER16.5MM J24
08-PW37C03-PWYA 41-WJ0175-B00 WIREBAREJUMPER17.5MM L2;J2;J3

08-PW37C03-PWYA 66-343730-0B0

HOLLOW RIVET

1.6MMX3.0MMX3.2MM

FOR L1;FOR T1

08-PW37C03-PWYA 66-343740-0B0

HOLLOW RIVET
(2.3MMX4.0MMX3.5MM)

FOR C5;FOR P1

08-PW37C03-PWYA 10-865C08-S7X D-SCH 80V 20A DS2;DS1

08-PW37C03-PWYA 10-BYV296-F7X

DIODE 9A 600V FORPFC BYV29­600

D2

08-PW37C03-PWYA 10-P6KE6V-8AX TVS DIODE P6KE6.8A DB4
08-PW37C03-PWYA 10-RS605M-H7X D-BR 600V 6A BD1
08-PW37C03-PWYA 10-SR3100-S0X RECTIFYING TUBE SR3100 DB11
08-PW37C03-PWYA 10-YG865C-S7X DIODE YG865C06R DS4
08-PW37C03-PWYA 11-SK3561-0CX MOSFET 500V 8A QW10;QW9
08-PW37C03-PWYA 11-SK3568-0CX TRANSISTOR 2SK3568 QF6;QF5

08-PW37C03-PWYA 13-PS2561-WFP

TCL13-PS2561-WFP=
PHOTOCOUPLER PS2561L1-

IC10;IC5;IC6

08-PW37C03-PWYA 13-VIPER2-2AP IC VIPER22ADIP-E IC1

08-PW37C03-PWYA 18-DF0224-JGX1

METAL FILM FIXED RESISTOR
1WS 220KΩ

RB3

08-PW37C03-PWYA 18-NH0108-JLX RES.C.C NKN3W +/-5% 0R1 M15 RF23
08-PW37C03-PWYA 18-P40804-00Y R-WIRE 5MOHM +/-10% 0W RS4;RS6
08-PW37C03-PWYA 22-NTC309-XX1 NTC.RES 3D2-14 TH1

08-PW37C03-PWYA 22-VDR561-XG2

VARISTOR RESISTANCE
14D561K-M

VR1

08-PW37C03-PWYA 25-GCA102-M1X

CAP. ELEC 1000 UF 16V +/-20%
105

CS7;CS6;CB8;CS5

08-PW37C03-PWYA 25-GEA102-M1X CAP. ELEC 1000UF 35V +/-20% CS1;CS2
08-PW37C03-PWYA 25-GEA471-M1X CAP. ELEC 470 UF 35V +/-20% CS3

08-PW37C03-PWYA 25-GNJ151-M1X

CAP. ELEC 150UF 450V +/-20%
(30X30)

C5

08-PW37C03-PWYA 25-KNA220-M1X CAP.ELEC 450V 22UF CB1

08-PW37C03-PWYA 25-NCA102-M1X

CE 105 HIGH RIPPLE & LR

0.001F 16V

CB7

08-PW37C03-PWYA 26-AIL103-MEX CAP.CER 10NF 500V +/-20% CB13
08-PW37C03-PWYA 26-AKL103-MFX CAP. CER 10 NF 1KVDC +/-20% CB2
08-PW37C03-PWYA 26-AKM101-KRX CAP.CER 100PF 1KV +/-10% CB3
08-PW37C03-PWYA 26-AKM221-KRX CAP. CER 220 PF 1KV +/-10% CW7
08-PW37C03-PWYA 26-AMM221-KRX CAP.CER 220PF 2KV +/-10% CF11

08-PW37C03-PWYA 26-APK102-ME3

CAP. CER 1000PF 400VAC+/-20%
E

CY4

08-PW37C03-PWYA 26-APK471-KB4

TCL26-APK471-KB4= CAP. CER
470 PF 250VAC

CY1;CY2;CY3

08-PW37C03-PWYA 27-AKQ333-J0B CAP.PP 33N/1KV+/_5% CW6
08-PW37C03-PWYA 27-AQQ474-KV3 FILM CAP. 0.47UF 275VAC CX2
08-PW37C03-PWYA 27-AQQ684-KV6 CFS 0.68UF 275V X2 CX1
08-PW37C03-PWYA 27-AWQ474-J0X CAP.PP 470NF 450V +/-5% C3;C4

08-PW37C03-PWYA 27-MHW104-K0X

CAP. M.P.E 0.1 UF 400V +/­10%

CF10

08-PW37C03-PWYA 35-FB1690-304 MAGNETIC CORE

FOR D2 正负极;FOR

QF5 D极;FOR QF6 D

极
08-PW37C03-PWYA 36-LIF152-XX0 PFC COIL. JLC3574 L1
08-PW37C03-PWYA 36-LIF153-XX0 LINE FILTER LGH-(9X2)MH LF3;LF2

08-PW37C03-PWYA 36-TRF301-LX0

TRANSFORMER CONV. BCK-25­002T

T2

08-PW37C03-PWYA 36-TRF315-LX0 TRANSFORMER CONV BCK-35-499D T1
08-PW37C03-PWYA 36-WID229-XX0 COIL WIDTH LC-2R2-TCL LB1
08-PW37C03-PWYA 36-WID249-XX0 COIL WIDTH 2.4UH FLC0514 LS2
08-PW37C03-PWYA 36-WID629-XX0 COIL WIDTH LC-6R2-TCL LS3
08-PW37C03-PWYA 46-35087W-01XG PIN BASE *1 187 H06;H05;H07
08-PW37C03-PWYA 46-38604W-16XG PIN BASE TU2005WNR-2X8 P4
08-PW37C03-PWYA 46-38604W-28XG CONN EH 28 2.54MM FEMALE R P5
08-PW37C03-PWYA 46-39219W-03XG PIN BASE VH-3AW P1
08-PW37C03-PWYA 50-05000D-6GS3G FUSE 5A 250V F1

08-PW37C03-PWYA 64-B30080-104G M/C SCREW B 3 X 8

FOR QW10;FOR

BD1;FOR QW9;FOR

DS4

08-PW37C03-PWYA 64-B30080-104G M/C SCREW B 3 X 8

FOR D2;FOR

DS1;FOR DS2;FOR

QF5;FOR QF6
08-PW37C03-PWYA 64-Z30080-112G MACHINE SCREW FOR HS
08-PW37C03-PWYA 66-20516X-0B0 FUSE HOLDER FOR F1
08-PW37C03-PWYA 67-H83829-0A0 RAW HEATSINK -- 00 00 R=Y FOR DS4

08-PW37C03-PWYA 67-H83829-1A0 RAW HEATSINK -- 01 00 R=Y

FOR QF5 & QF6 &

D2
08-PW37C03-PWYA 67-H83829-2A0 RAW HEATSINK -- 02 00 R=Y FOR DS1 & DS2
08-PW37C03-PWYA 67-H83829-3A0 RAW HEATSINK -- 03 00 R=Y FOR QW9 & QW10
08-PW37C03-PWYA 67-H83829-4A0 RAW HEATSINK -- 04 00 R=Y FOR BD1
08-PW37C03-PWYA 67-M60442-0E0 METAL PART H04;H03;H02;H01
08-PW37C03-PWYA 71-268390-0A0AF LABEL (QC) GREEN
08-PW37C03-PWYA 71-PHIBAR-NUL1A TV PRI LABEL BARCODE -- R=Y
08-PW37C03-PWYA 09-55C13V-DTX SMD.DIODE 13V Z1;ZS4;DB8
08-PW37C03-PWYA 09-55C27V-DTX SMD.DIODE 27V/SOD80 ZS5
08-PW37C03-PWYA 09-55C33V-DTX SMD.DIODE BZV55-C33 DB10
08-PW37C03-PWYA 09-GLZ20B-DTX SMD Diode GLZ20B DB5

08-PW37C03-PWYA 09-LL4148-ATX SMD. SWITCHING DIODE LL4148

DB9;DS9;DS8;DS7;D

S11;DF5;DF4;DS10;

DW7
08-PW37C03-PWYA 09-LL4148-ATX SMD. SWITCHING DIODE LL4148 DW4;DW3;DW6
08-PW37C03-PWYA 09-MBRX14-STX DIODE MBRX140 D4
08-PW37C03-PWYA 12-2N7002-0BX SMD TRANSISTOR 2N7002 Q1

08-PW37C03-PWYA 12-BT3904-0BX

SMD. TRANSISTOR
MMBT3904LT1(NPN)

QS2;QS3

08-PW37C03-PWYA 12-BT3906-0BX

SMD. TRANSISTOR
MMBT3906LT1(PNP)

QS4;QS1

08-PW37C03-PWYA 12-S4160T-0BX SMD.TRANSISTOR PBSS4160T Q12;QF3
08-PW37C03-PWYA 12-S5160T-0BX SMD.TRANSISTOR PBSS5160T Q11;QF4
08-PW37C03-PWYA 13-0L6563-00B IC L6563 IC2
08-PW37C03-PWYA 13-0LM393-M0B IC LM393M IC4
08-PW37C03-PWYA 13-L6599D-00B IC L6599D IC3

08-PW37C03-PWYA 19-AB0102-FTX

RES SMD 1K OHM 1/10W +/-1%
0603

RB11;RB10

08-PW37C03-PWYA 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603

RS2;RS10;RB8;RS34

;RS29;RS35;RS20
08-PW37C03-PWYA 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 RS18;RS17
08-PW37C03-PWYA 19-AB0105-JTX RES SMD 1M OHM 1/10W 0603 RS8

08-PW37C03-PWYA 19-AB0106-JTX

SMD. RES 10M OHM 1/10W +/-5%
0603

RS36

08-PW37C03-PWYA 19-AB0163-FTX

SMD.RES 16K OHM 1/6W +/-1%
0603

RS12

08-PW37C03-PWYA 19-AB0202-FTX

SMD. RES 2K OHM 1/10W +/-1%
0603

RS14

08-PW37C03-PWYA 19-AB0202-JTX

SMD. RES 2K OHM 1/10W +/-5%
0603

RS16

08-PW37C03-PWYA 19-AB0203-FTX

0603 RES. SMD 20K OHM 1/16W
+/-1%

RS25;RS26

08-PW37C03-PWYA 19-AB0222-JTX RES SMD 2.2K OHM 1/10W 0603 RS21;RS22

08-PW37C03-PWYA 19-AB0333-FTX

SMD. RES 33K OHM 1/10W +/-1%
0603

RS13

08-PW37C03-PWYA 19-AB0333-JTX RES. SMD 33K OHM 1/10W 0603 RB9
08-PW37C03-PWYA 19-AB0391-JTX SMD RES 390 OHM 1/10W 0603 RS23;RS28
08-PW37C03-PWYA 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 RS1;RS19
08-PW37C03-PWYA 19-AB0621-FTX SMD.RES 620 OHM +/-1% 1/10W RS24
08-PW37C03-PWYA 19-BC0000-JTX SMD.RES 0 OHM 1/8W +/-5% RS33
08-PW37C03-PWYA 19-BC0101-JTX SMD.RES100 OHM 1/8W +/-5% RB7;RW11
08-PW37C03-PWYA 19-BC0102-JTX SMD.RES 1K OHM 1/8W +/-5% R18;RS15
08-PW37C03-PWYA 19-BC0103-FTX SMD.RES 10K OHM 1/8W +/-1% RF6
08-PW37C03-PWYA 19-BC0103-JTX SMD. RES 10K OHM 1/8W +/-5% RS11
08-PW37C03-PWYA 19-BC0123-JTX SMD.RES 12K OHM 1/8W +/-5% RF9
08-PW37C03-PWYA 19-BC0202-JTX SMD.RES 2K OHM 1/8W +/-5% RW10
08-PW37C03-PWYA 19-BC0225-JTX SMD.RES 2.2M OHM 1/8W +/-5% RW14
08-PW37C03-PWYA 19-BC0241-JTX SMD.RES 240 OHM 1/8W +/-5% RW15
08-PW37C03-PWYA 19-BC0331-JTX SMD.RES 330 OHM 1/8W +/-5% RW18
08-PW37C03-PWYA 19-BC0332-JTX SMD.RES 3.3K OHM 1/8W +/-5% RW12
08-PW37C03-PWYA 19-BC0393-FTX SMD.RES 39K OHM 1/8W +/-1% RF3
08-PW37C03-PWYA 19-BC0393-JTX SMD.RES 39K OHM 1/8W +/-5% RF8
08-PW37C03-PWYA 19-BC0394-JTX SMD.RES 390K OHM 1/8W +/-5% RF7

08-PW37C03-PWYA 19-BC0472-JTX

SMD. RES 4.7K OHM 1/8W +/­5%

R17;R16

08-PW37C03-PWYA 19-BC0621-FTX SMD.RES 620 OHM 1/8W +/-1% RS27
08-PW37C03-PWYA 19-BC0822-FTX SMD.RES 8.2K OHM 1/8W +/-1% RW7

08-PW37C03-PWYA 19-BC0912-FTX

SMD.RES 0805,1/8W,±1%,9.1K
Ω

RF16

08-PW37C03-PWYA 19-BC1272-FTX

SMD.RES 12.7K OHM 1/8W +/­1%

RF13;RW9

08-PW37C03-PWYA 19-CD0000-JTX RES.SMD 0 OHM 1206 RF24;RF25
08-PW37C03-PWYA 19-CD0100-JTX RES. MELF 10 OHM 1/4W +/-5% RF18

08-PW37C03-PWYA 19-CD0103-JTX

SMD. RES 10KOHM 1/4W +/-5%
1206

RW3;RF22;RW4;RF21

08-PW37C03-PWYA 19-CD0105-FTX

SMD.RES 1M OHM 1/4W +/-1%
1206

RF1;RF32;RF31;RF2

7;RF26;RF5;RF4;RF

2
08-PW37C03-PWYA 19-CD0123-JTX SMD.RES 12K OHM 1/4W +/-5% RW5

08-PW37C03-PWYA 19-CD0152-JTX

SMD. RES 1500 OHM 1/4W +/-5%
1206

RS5;RS7

08-PW37C03-PWYA 19-CD0153-JTX

SMD. RES 15 KOHM 1/4W +/-5%
1206

RW16

08-PW37C03-PWYA 19-CD0279-JTX

SMD. RES 2.7 OHM 1/4W +/-5%
1206

RB5;RB2;RB13;RB1;

R7;R15
08-PW37C03-PWYA 19-CD0330-JTX SMD. RES 33 OHM 1/4W +/-5% RF19;RF20;RW1;RW2
08-PW37C03-PWYA 19-CD0331-JTX SMD. RES 330 OHM 1/4W +/-5% RB6
08-PW37C03-PWYA 19-CD0470-JTX SMD. RES 47 OHM 1/4W 5% RB17;RB4

08-PW37C03-PWYA 19-CD0472-JTX SMD. RES 4.7K OHM 1/4W 5%

RS3;RS9;R14;RS31;

RS30
08-PW37C03-PWYA 19-CD0473-JTX SMD. RES 47K OHM 1/4W 5% RB16;RB15
08-PW37C03-PWYA 19-CD0479-JTX SMD.RES 4.7 OHM 1/4W +/-5% RF17
08-PW37C03-PWYA 19-CD0514-FTX SMD.RES 510K OHM 1/4W +/-1% RF11;RF30;RF29

08-PW37C03-PWYA 19-CD0564-FTX 1206 REC 560K OHM 1/4W +/-1% RW6
08-PW37C03-PWYA 19-CD0684-FTX SMD.RES 680K OHM 1/4W +/-1% RW17
08-PW37C03-PWYA 19-CD0824-FTX SMD.RES 820k OHM 1/4W +/-1% RF28;RF15;RF14

08-PW37C03-PWYA 28-AB0104-KBX

SMD. CAP 50VDC 0.1UF +/-10%06CS13;CS14;CS10;CS

22;CS9

08-PW37C03-PWYA 28-AB0104-ZFX

CAP. SMD 0.1UF 50V +80%~-20%
F

CS16;CS21;CS20;CS

15;CS12;CS11;CS19

;CS18

08-PW37C03-PWYA 28-AB0104-ZFX

CAP. SMD 0.1UF 50V +80%~-20%
F

CS17

08-PW37C03-PWYA 28-BA0475-KBX

SMD.CAP 4.7UF +/-10%10V
(188605656)

CW21

08-PW37C03-PWYA 28-BB0103-KBX

SMD. CAP 10NF 50V +/-10%
0805

CW20;CF9;CF2

08-PW37C03-PWYA 28-BB0104-KBX

SMD. CAP 0.1UF 50VDC +/-10%
0805

CW4;CW5;CW22;CF7;

CB9;CW9

08-PW37C03-PWYA 28-BB0104-ZFX

SMD CAP. 0.1 UF 50V +80/-20%
0805

CS8;CB10;CS4;CB11

08-PW37C03-PWYA 28-BB0105-ZFX SMD. CAP 1UF 50V +80%-20% CS23;CS24
08-PW37C03-PWYA 28-BB0471-JCX SMD. CAP 470PF 50V +/-5% CW23
08-PW37C03-PWYA 28-BB0473-KBX CAP.SMD 0.047UF 50V B +/-10% CB4
08-PW37C03-PWYA 28-BB0681-JCX SMD CAP 680PF 50V +/-5% 0805 CF4

08-PW37C03-PWYA 28-BC0474-KBX

SMD. CAP 470 NF 16VDC +/-10%
0805

CF3

08-PW37C03-PWYA 28-BD0105-KBX SMD.CAP. 25V 1UF +/-10% CF8
08-PW37C03-PWYA 28-BD0105-ZFX SMD CAP 1UF 25V +80-20% CF5;CF1;CW3;CF6

T8-HE9AN5B-LE1 18-CB0472-JNX

CARBON RES. C.F. 4.7K OHM
1/6W +/-5%

R375

T8-HE9AN5B-LE1 18-CB0560-JNX RES. C.F. 56 OHM 1/6W +/-5% R364
T8-HE9AN5B-LE1 40-LM46E9-LEA1XG TV PCB LE BD R=Y

T8-HE9AN5B-LE1 41-WJ0050-B00

TCL41-WJ0050-B00= WIRE BARE
JUMPER 5MM R

J301

T8-HE9AN5B-MA1 25-BBB470-M1X CAP. ELEC 47 UF 10V +/-20% C804;C807

T8-HE9AN5B-MA1 25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20%

C1;C200;C201;C306

;C638;C639;C647
T8-HE9AN5B-MA1 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% C710;C713;C800
T8-HE9AN5B-MA1 25-BCB220-M1X CAP. ELEC 22 UF 16V +/-20% C806;C805
T8-HE9AN5B-MA1 25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% C883;C893
T8-HE9AN5B-MA1 25-BCB331-M1X CAP. ELEC 330 UF 16V +/-20% C886;C887;C808

T8-HE9AN5B-MA1 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20%

C712;C711;C871;C6

02;C255;C626;C601

T8-HE9AN5B-MA1 25-BDB221-M1X CAP. ELEC 220UF 25V +/-20%

C899;C262;C701;C7

00
T8-HE9AN5B-MA1 25-BDB470-M1X CAP. ELEC 47 UF 25V +/-20% C709

T8-HE9AN5B-MA1 25-BDB471-M1X CAP. ELEC 470 UF 25V +/-20%

C708;C707;C706;C7

05
T8-HE9AN5B-MA1 25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% C744

T8-HE9AN5B-MA1 34-R102K2-0EX

COIL CHOKE 1000UH/+/-10%
EL0606RA-102K-P

L606;L607

T8-HE9AN5B-IR1 02-IRR002-XX1

TCL02-IRR002-XX1= IR
RECEIVER MODULE FPS

U29

T8-HE9AN5B-IR1 25-HCB101-M1X CAP. ELEC 100 UF 16V +/-20% C118
T8-HE9AN5B-IR1 46-35135W-03XG PIN BASE PH-03AW P1
T8-HE9AN5B-IR1 59-829580-000 RUBBER PAD FOR U29
T8-HE9AN5B-LE1 11-SA1015-YBX TRANSISTOR ST2SA1015Y (PNP) Q301
T8-HE9AN5B-LE1 46-35135W-04XG PIN BASE PH-04AW P302
T8-HE9AN5B-LE1 46-38604W-12XG PIN BASE TU2005WNR-2X6 P301

T8-HE9AN5B-MA1 07-380FI5-NA7G

TUNER TCL F07WP-3DR-E D% PAL
38MHZ

Z600

T8-HE9AN5B-MA1 18-FG0150-JHX RES. M.O. 15 OHM 2W +/-5% R600

T8-HE9AN5B-MA1 18-RG0109-JHX

RES. WIRE ROUND 1 OHM 2W +/­5%

R1050;R1051

T8-HE9AN5B-MA1 18-RG0278-JHX

RES. WIRE ROUND 0.27 OHM 2W
+/-5%

R811;R810

T8-HE9AN5B-MA1 45-OSC14M-3Y2 CRYSTAL 14.31818MHZ X300
T8-HE9AN5B-MA1 45-OSC4M0-0N1 CRYSTAL 4MHZ X600
T8-HE9AN5B-MA1 45-SAWK62-74D SAW FILTER K6274D Z602
T8-HE9AN5B-MA1 45-SAWK93-52M SAW FILTER K9352M Z601
T8-HE9AN5B-MA1 46-33079W-06XG PIN BASE *6 TJC3-6A P702
T8-HE9AN5B-MA1 46-35014H-02XG JUMPER WIRE CAP F801
T8-HE9AN5B-MA1 46-35017W-02XG PIN BASE 1*2 PITCH=2.54MM F800;F801
T8-HE9AN5B-MA1 46-35199W-06XG .PH-6A 6PIN PITCH-2.0MM P206
T8-HE9AN5B-MA1 46-35199W-07XG CONN.PH-7A PITCH=2.0MM 7PIN P700

T8-HE9AN5B-MA1 46-35199W-10XG

CONN. PH-10 10PIN
PITCH=2.0MM

P303（NEAR PIN1

INSERT）
T8-HE9AN5B-MA1 46-38605W-12XG PIN BASE TU2005WNV-2X6 P304
T8-HE9AN5B-MA1 46-38605W-16XG PIN BASE TU2005WNV-2X8 P803
T8-HE9AN5B-MA1 46-38605W-40XG PIN BASE TU2005WNV-2X20 P302
T8-HE9AN5B-MA1 47-RCA068-XX2G AV SOCKET AV-3.2-2WB-09 P204

T8-HE9AN5B-MA1 47-RCA117-XX2G

SOCKET-RCA 6 GN-BL-RD-YW-WH­RD R

P203

T8-HE9AN5B-MA1 47-RCA156-XX2G SOCKET-RCA 2 RD-WH-YE R P200
T8-HE9AN5B-MA1 47-RCA202-XX0G SOCKET RCA AV-3.2-1WB41 P210
T8-HE9AN5B-MA1 47-SVI008-XX1 SOCKET DSW-506WT-L P202
T8-HE9AN5B-MA1 47-VGA018-XX0 SOCKET-VGA 15 R FEMALE P1
T8-HE9AN5B-MA1 67-387190-0A0 HEAT SINK FOR U300

T8-HE9AN5B-MA1 67-S84390-2E0

TV RAW SHIELDING -- -- 02 00
00 R=Y

FOR U300

T8-HE9AN5B-MA1 67-T21456-090 HEAT SINK FOR U800
T8-HE9AN5B-MA1 71-268390-0A0AF LABEL (QC) GREEN
T8-LE9BS5B-SI1 25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% C190
T8-LE9BS5B-SI1 46-35199W-03XG PIN BASE *3 PITCH=2.0MM P4
T8-LE9BS5B-SI1 46-35199W-05XG CONN.PH-5A 5PIN PITCH=2.0MM J902
T8-LE9BS5B-SI1 46-38605W-06XG 6PIN BASE P1

T8-LE9BS5B-SI1 47-EAR005-XX0

EARPHONE SOCKET CK3-3.5-3WK­E

P2

T8-LE9BS5B-SI1 47-RCA009-XX4G AV SOCKET P5
T8-LE9BS5B-SI1 47-USB002-XX0 USB SOCKET USB-1W-B P3

T8-LE9BS5B-SI1 56-841040-0HN1A

TV DEC SUPPORT SIDE AV -- 00
00 00 R=N

T8-LE9BS5B-SI1 58-842490-CUI1B

TV PRI OVERLAY PLATE MODEL

NO 00 R=Y
H3-HE9AN5B-YM0A 09-00SR23-STX SMD.DIODE 30V/2A SR23 SMT SPARE
H3-HE9AN5B-YM0A 09-0BA982-ATX SMD.DIODE BA982-GS08 SMT SPARE

H3-HE9AN5B-YM0A 09-0BAV99-ATX

HIGH SPEED DOUBLE DIODE

BAV99

SMT SPARE

H3-HE9AN5B-YM0A 09-4148WS-ATX SMD. DIODE 1N4148WS SMT SPARE
H3-HE9AN5B-YM0A 09-55C33V-DTX SMD.DIODE BZV55-C33 SMT SPARE
H3-HE9AN5B-YM0A 09-D5V0S1-BAB SMD.DOIDE PESD5V0S1BA SMT SPARE
H3-HE9AN5B-YM0A 09-D5V0S2-BTB SMD.DOIDE PESD5V0S2BT SMT SPARE
H3-HE9AN5B-YM0A 09-LL4148-ATX SMD. SWITCHING DIODE LL4148 SMT SPARE
H3-HE9AN5B-YM0A 09-RLZ5B6-DTX SMD DIODE RLZ5.6BTE11 SMT SPARE
H3-HE9AN5B-YM0A 09-STZ6V2-NTX SMD.DIODE STZ6.2N SMT SPARE
H3-HE9AN5B-YM0A 12-13N03L-0BX SMD.TRANSISTOR PHKD13N03LT SMT SPARE
H3-HE9AN5B-YM0A 12-2N7002-0BX SMD TRANSISTOR 2N7002 SMT SPARE
H3-HE9AN5B-YM0A 12-A04411-0BX PCHANNEL MOSFET A04411 SMT SPARE
H3-HE9AN5B-YM0A 12-BC846B-0BX TRANSISTOR BC846B SMT SPARE

H3-HE9AN5B-YM0A 12-BT3904-0BX

SMD. TRANSISTOR

MMBT3904LT1(NPN)

SMT SPARE

H3-HE9AN5B-YM0A 12-BT3906-0BX

SMD. TRANSISTOR

MMBT3906LT1(PNP)

SMT SPARE

H3-HE9AN5B-YM0A 12-C143ZT-0BX TRA SIG SM PDTC143ZT SMT SPARE
H3-HE9AN5B-YM0A 12-C144ET-0BX SMD. TRANSISTOR PDTC144ET SMT SPARE

H3-HE9AN5B-YM0A 19-AB0000-JTX

RES SMD 0 OHM 1/10W +/-5%

0603

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% SMT SPARE
H3-HE9AN5B-YM0A 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603 SMT SPARE
H3-HE9AN5B-YM0A 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 SMT SPARE

H3-HE9AN5B-YM0A 19-AB0103-FTX

RES SMD 10K OHM 1/10W +/-1%

0603

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 SMT SPARE
H3-HE9AN5B-YM0A 19-AB0104-JTX SMD. RES 100K OHM 1/10W 0603 SMT SPARE
H3-HE9AN5B-YM0A 19-AB0105-JTX RES SMD 1M OHM 1/10W 0603 SMT SPARE
H3-HE9AN5B-YM0A 19-AB0121-JTX SMD. RES 120 OHM 1/10 J 0603 SMT SPARE

H3-HE9AN5B-YM0A 19-AB0123-FTX

SMD. RES 12K OHM 1/10W +/-1%

0603

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0123-JTX SMD. RES 12K OHM 1/10 J 0603 SMT SPARE

H3-HE9AN5B-YM0A 19-AB0151-FTX

SMD. RES 150 OHM 1/10W +/-

1% 0603

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0182-FTX SMD.RES 1.8K OHM 1/10W +/-1% SMT SPARE

H3-HE9AN5B-YM0A 19-AB0201-JTX

SMD. RES 200 OHM 1/10W +/-5%

0603

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0202-JTX

SMD. RES 2K OHM 1/10W +/-5%

0603

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0203-JTX RES. SMD 20K OHM 1/10W 0603 SMT SPARE
H3-HE9AN5B-YM0A 19-AB0220-JTX SMD RES 22 OHM 1/10W 0603 SMT SPARE
H3-HE9AN5B-YM0A 19-AB0221-JTX RES SMD 220 OHM 1/10W 0603 SMT SPARE
H3-HE9AN5B-YM0A 19-AB0222-JTX RES SMD 2.2K OHM 1/10W 0603 SMT SPARE

H3-HE9AN5B-YM0A 19-AB0223-JTX

SMD. RES 22K OHM 1/10W +/-5%

0603

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0271-JTX

SMD. RES 270 OHM 1/10W +/-5%

0603

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0272-JTX RES SMD 2.7K OHM 1/10W 0603 SMT SPARE

H3-HE9AN5B-YM0A 19-AB0273-FTX

RES.SMD 27K OHM 1/10W +/-1%

0603

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0303-JTX RES SMD 30K OHM 1/10W 0603 SMT SPARE

H3-HE9AN5B-YM0A 19-AB0330-JTX

RES SMD 33 OHM 1/10W +/-

5%0603

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0331-JTX RES. SMD 330 OHM 1/10W 0603 SMT SPARE
H3-HE9AN5B-YM0A 19-AB0332-JTX SMD RES 3.3K OHM 1/10W 0603 SMT SPARE
H3-HE9AN5B-YM0A 19-AB0333-JTX RES. SMD 33K OHM 1/10W 0603 SMT SPARE

H3-HE9AN5B-YM0A 19-AB0334-JTX

RES SMD 330K OHM 1/10W +/-5%

0603

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0339-JTX RES.SMD 3.3 OHM 1/10W +/-5% SMT SPARE
H3-HE9AN5B-YM0A 19-AB0363-JTX RES. SMD 36K OHM 1/10W +/-5% SMT SPARE

H3-HE9AN5B-YM0A 19-AB0391-FTX

SMD. RES 390 OHM 1/10W +/-

1% 0603

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0392-FTX

SMD. RES 3.9K OHM 1/10W +/-

1%

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0470-JTX

RES SMD 47 OHM 1/10W +/-

5%0603

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0471-JTX SMD. RES 470 OHM 1/10W +/-5% SMT SPARE
H3-HE9AN5B-YM0A 19-AB0472-FTX SMD.RES 4.7K OHM 1/10W +/-1% SMT SPARE
H3-HE9AN5B-YM0A 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603 SMT SPARE
H3-HE9AN5B-YM0A 19-AB0473-JTX SMD. RES 47K OHM 1/10W 0603 SMT SPARE
H3-HE9AN5B-YM0A 19-AB0513-JTX SMD. RES 51K OHM 1/10W +/-5% SMT SPARE

H3-HE9AN5B-YM0A 19-AB0562-JTX

SMD. RES 5.6K OHM 1/10W +/-

5% 0603

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0682-JTX RES SMD 6.8K OHM 1/10W 0603 SMT SPARE
H3-HE9AN5B-YM0A 19-AB0683-JTX RES SMD 68K OHM 1/10W 0603 SMT SPARE
H3-HE9AN5B-YM0A 19-AB0750-JTX SMD. RES 75 OHM 1/10W 0603 SMT SPARE

H3-HE9AN5B-YM0A 19-AB0821-FTX

SMD. RES 820 OHM 1/10W +/-1%

0603

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0822-JTX

SMD. RES 8.2K OHM 1/10W +/-

5% 0603

SMT SPARE

H3-HE9AN5B-YM0A 19-AB0911-JTX SMD RES. 910 OHM 1/10W +/-5% SMT SPARE

H3-HE9AN5B-YM0A 19-AB4990-FTX

SMD. RES 499 OHM 1/10W +/-1%

0603

SMT SPARE

H3-HE9AN5B-YM0A 19-CD0220-JTX

SMD. RES 22 OHM 1/4W +/-5%

1206

SMT SPARE

H3-HE9AN5B-YM0A 19-CD0689-JTX SMD. RES 6.8OHM 1/4W 5% SMT SPARE
H3-HE9AN5B-YM0A 19-GA0000-JTX SMD. RES 0 OHM 1/16W +/-5% SMT SPARE
H3-HE9AN5B-YM0A 19-GA0102-JTX SMD. RES 1K OHM 1/16W +/-5% SMT SPARE

H3-HE9AN5B-YM0A 19-GA0104-JTX

SMD. RES 100K OHM 1/16W +/-

5%

SMT SPARE

H3-HE9AN5B-YM0A 19-GA0223-JTX SMD. RES 22K OHM 1/16W +/-5% SMT SPARE

H3-HE9AN5B-YM0A 19-GA0472-JTX

SMD. RES 4.7K OHM 1/16W +/-

5%

SMT SPARE

H3-HE9AN5B-YM0A 23-A08101-JBX NETWORK RES. 100 OHM +/-5% SMT SPARE
H3-HE9AN5B-YM0A 23-A08220-JBX NETWORK RES. 22 OHM +/-5% SMT SPARE
H3-HE9AN5B-YM0A 23-A08330-JBX NETWORK RES. 33 OHM +/-5% SMT SPARE
H3-HE9AN5B-YM0A 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% SMT SPARE
H3-HE9AN5B-YM0A 28-AB0100-JCX SMD. CAP 10 PF 50VDC +/-5% SMT SPARE
H3-HE9AN5B-YM0A 28-AB0101-JCX SMD. CAP 100 PF 50VDC +/-5% SMT SPARE

H3-HE9AN5B-YM0A 28-AB0102-KBX

SMD. CAP 1000 PF 50V +/-10%

B

SMT SPARE

H3-HE9AN5B-YM0A 28-AB0103-KBX

SMD. CAP 0.01 UF 50V +/-10%

0603

SMT SPARE

H3-HE9AN5B-YM0A 28-AB0104-KBX

SMD. CAP 50VDC 0.1UF +/-10%

06

SMT SPARE

H3-HE9AN5B-YM0A 28-AB0104-ZFX

CAP. SMD 0.1UF 50V +80%~-20%

F

SMT SPARE

H3-HE9AN5B-YM0A 28-AB0152-KBX

SMD. CAP 1500 PF 50V +/-10%

B

SMT SPARE

H3-HE9AN5B-YM0A 28-AB0201-JCX CAP.SMD 200PF 50V +/-5% 0603 SMT SPARE
H3-HE9AN5B-YM0A 28-AB0220-JCX CAP. SMD 22PF 50V +/-5% C SMT SPARE

H3-HE9AN5B-YM0A 28-AB0221-JCX

CAP.SMD 220PF 50V C 0603 +/-

5%

SMT SPARE

H3-HE9AN5B-YM0A 28-AB0222-KBX

CAP.SMD 2200PF 50V +/-10%

0603

SMT SPARE

H3-HE9AN5B-YM0A 28-AB0224-ZFX

CAP.SMD 0.22UF 50V +80-

20%0603

SMT SPARE

H3-HE9AN5B-YM0A 28-AB0271-JCX SMD. CAP 270 PF 50V +/-5% C SMT SPARE

H3-HE9AN5B-YM0A 28-AB0331-JCX

SMD. CAP 330 PF 50V +/-5%

0603

SMT SPARE

H3-HE9AN5B-YM0A 28-AB0391-JCX CAP.SMD 390P 50V +/-5% 0603 SMT SPARE

H3-HE9AN5B-YM0A 28-AB0392-KBX

SMD. CAP 3900 PF 50VDC +/-

10% 0603

SMT SPARE

H3-HE9AN5B-YM0A 28-AB0470-JCX CAP.SMD 47PF 50V +/-5% 0603 SMT SPARE

H3-HE9AN5B-YM0A 28-AB0472-KBX

CAP.SMD 4700PF 50V +/-10%

0603

SMT SPARE

H3-HE9AN5B-YM0A 28-AB0473-KBX

SMD CAP 0.047UF 50V +/-

10%0603

SMT SPARE

H3-HE9AN5B-YM0A 28-AB0562-KBX SMD. CAP 5600 PF 50V +/-10% SMT SPARE
H3-HE9AN5B-YM0A 28-AB0681-KBX SMD. CAP 680PF 50VDC +/-10% SMT SPARE
H3-HE9AN5B-YM0A 28-AB0682-KBX SMD. CAP 6800PF 50VDC +/-10% SMT SPARE

H3-HE9AN5B-YM0A 28-AC0104-KBX

CAP. M.PE 100NF 16V +/-10%

20947390

SMT SPARE

H3-HE9AN5B-YM0A 28-AC0104-ZFX

SMD. CAP 16VDC/100NF/+80%/-

20%

SMT SPARE

H3-HE9AN5B-YM0A 28-AC0105-ZFX

SMD. CAP 1 UF 16VDC +80%/-

20%

SMT SPARE

H3-HE9AN5B-YM0A 28-AC0225-KBX

SMD.CAP 2.2UF +/-10% 16V SP

(188605643)

SMT SPARE

H3-HE9AN5B-YM0A 28-AC0474-KBX SMD.CAP 0.47UF 16V +/-10% SMT SPARE

H3-HE9AN5B-YM0A 28-AD0474-ZFX

SMD. CAP 0.47 UF 25V +80/-

20%

SMT SPARE

H3-HE9AN5B-YM0A 28-AF0475-KBX SMD.CAP 4.7UF 6.3V +/-10% SMT SPARE

H3-HE9AN5B-YM0A 28-BA0106-ZFX SMD. CAP 10UF 10V +80% -20% SMT SPARE
H3-HE9AN5B-YM0A 28-BA0225-ZFX SMD.CAP 10V 2.2UF +80% -20% SMT SPARE

H3-HE9AN5B-YM0A 28-BB0104-KBX

SMD. CAP 0.1UF 50VDC +/-10%

0805

SMT SPARE

H3-HE9AN5B-YM0A 28-BB0474-ZFX

SMD. CAP 0.47UF 50V +80%  -

20%

SMT SPARE

H3-HE9AN5B-YM0A 28-BC0105-ZF4

SMD. CAP 1 UF 16VDC +80/-20%

0805

SMT SPARE

H3-HE9AN5B-YM0A 28-BC0475-ZFX

SMD. CAP. 4.7 UF 16V +80/-

20%

SMT SPARE

H3-HE9AN5B-YM0A 28-BF0106-KBX SMD. CAP 10UF/6.3V/+/-10% SMT SPARE

H3-HE9AN5B-YM0A 28-HB0100-JCX

SMD. CAP 10 PF 50V +/-5%

0402

SMT SPARE

H3-HE9AN5B-YM0A 28-HC0104-ZFX SMD.CAP 100NF 16V +80% -20% SMT SPARE
H3-HE9AN5B-YM0A 33-ELE900-NTX SMD.COIL ACM2012H-900-2P SMT SPARE
H3-HE9AN5B-YM0A 33-ELN102-NTX SMD.COLL CBG201209U 102B SMT SPARE
H3-HE9AN5B-YM0A 33-ELN121-NTX SMD.COLL SMT SPARE
H3-HE9AN5B-YM0A 33-ELN300-NTX CHIP BEAD 30 OHM +/-25% SMT SPARE
H3-HE9AN5B-YM0A 33-GLN300-NTX CHIP BEAD 30 OHM +/-25% SMT SPARE

H3-HE9AN5B-YM0A 33-GLN501-NTA

CHIP BEAD 1206 500OHMA

100MHZ 189144016

SMT SPARE

H3-HE9AN5B-YM0A 33-GLN601-NTX CHIP BEAD 600 OHM +/-25% SMT SPARE
H3-HE9AN5B-YM0A 33-KLN121-NTX CHIP BEAD 120 OHM +/-25% SMT SPARE
H3-HE9AN5B-YM0A 33-KLN221-NTX CHIP BEAD 0603 220 OHM SMT SPARE
H3-HE9AN5B-YM0A 33-KLN300-NTX CHIP BEAD 30 OHM SMT SPARE
H3-HE9AN5B-YM0A 33-KLN601-NTX CHIP BEAD 600 OHM +/-25% SMT SPARE
H3-HE9AN5B-YM0A 33-PLL150-MBX SMD.COLL L1207-150 SMT SPARE
H3-HE9AN5B-YM0A 33-YLL100-MTX SMD.COIL 10uH NR8040T100M SMT SPARE
H3-HE9AN5B-YM0A 33-YLL220-MTX COIL. 22U NR8040T220M SMT SPARE

T8-HE9AN5B-IR1 28-AB0104-ZFX

CAP. SMD 0.1UF 50V +80%~-20%

F

C253;C254

T8-HE9AN5B-IR1 40-LM46E9-IRB1XG TV PCB IR BD R=Y

T8-HE9AN5B-KE1 09-4148WS-ATX SMD. DIODE 1N4148WS

D806;D805;D804;D8
03;D802;D801

T8-HE9AN5B-KE1 13-C21434-LFB IC CAPSENSE IC U801

T8-HE9AN5B-KE1 15-LED32R-XX0 LED-SMD 2V 0.08A

LED804;LED805;LED
806;LED807;LED808

T8-HE9AN5B-KE1 15-LED32R-XX0 LED-SMD 2V 0.08A LED803

T8-HE9AN5B-KE1 19-AB0000-JTX

RES SMD 0 OHM 1/10W +/-5%

0603

R832;R835

T8-HE9AN5B-KE1 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R829
T8-HE9AN5B-KE1 19-AB0182-FTX SMD.RES 1.8K OHM 1/10W +/-1% R836;R833

T8-HE9AN5B-KE1 19-AB0201-JTX

SMD. RES 200 OHM 1/10W +/-5%

0603

R822;R824;R825;R8
26;R827;R828

T8-HE9AN5B-KE1 19-AB0392-FTX

SMD. RES 3.9K OHM 1/10W +/-

1%

R837;R834

T8-HE9AN5B-KE1 28-AB0562-KBX SMD. CAP 5600 PF 50V +/-10% C1

T8-HE9AN5B-KE1 28-AC0104-KBX

CAP. M.PE 100NF 16V +/-10%

20947390

C803

T8-HE9AN5B-KE1 28-AC0474-KBX SMD.CAP 0.47UF 16V +/-10% C802

T8-HE9AN5B-KE1 28-BA0225-ZFX SMD.CAP 10V 2.2UF +80% -20% C805
T8-HE9AN5B-KE1 33-KLN121-NTX CHIP BEAD 120 OHM +/-25% FB801
T8-HE9AN5B-KE1 40-M46K73-KEE2XG TV PCB KE BD R=Y
T8-HE9AN5B-KE1 46-40300W-06XG CONN SMT 6 FEMALE R P801
T8-HE9AN5B-MA1 09-00SR23-STX SMD.DIODE 30V/2A SR23 D801
T8-HE9AN5B-MA1 09-0BA982-ATX SMD.DIODE BA982-GS08 D601

T8-HE9AN5B-MA1 09-0BAV99-ATX

HIGH SPEED DOUBLE DIODE

BAV99

D206;D604

T8-HE9AN5B-MA1 09-55C33V-DTX SMD.DIODE BZV55-C33 D600

T8-HE9AN5B-MA1 09-D5V0S1-BAB SMD.DOIDE PESD5V0S1BA

D7;D1;D11;D8;D3;D
17;D15

T8-HE9AN5B-MA1 09-D5V0S2-BTB SMD.DOIDE PESD5V0S2BT

D6;D14;D16;D4;D40
9;D5;D13;D12;D10;
D2;D9

T8-HE9AN5B-MA1 09-LL4148-ATX SMD. SWITCHING DIODE LL4148

D603;D700;D702;D8
02;D803;D703;D404
;D405

T8-HE9AN5B-MA1 09-RLZ5B6-DTX SMD DIODE RLZ5.6BTE11

D506;D507;D504;D5

05
T8-HE9AN5B-MA1 09-STZ6V2-NTX SMD.DIODE STZ6.2N D509;D510
T8-HE9AN5B-MA1 12-13N03L-0BX SMD.TRANSISTOR PHKD13N03LT U804
T8-HE9AN5B-MA1 12-2N7002-0BX SMD TRANSISTOR 2N7002 Q401;Q402
T8-HE9AN5B-MA1 12-A04411-0BX PCHANNEL MOSFET A04411 Q805
T8-HE9AN5B-MA1 12-BC846B-0BX TRANSISTOR BC846B Q600

T8-HE9AN5B-MA1 12-BT3904-0BX

SMD. TRANSISTOR
MMBT3904LT1(NPN)

Q800;Q700;Q601;Q2

02;Q201;Q200

T8-HE9AN5B-MA1 12-BT3906-0BX

SMD. TRANSISTOR
MMBT3906LT1(PNP)

Q302;Q203;Q701

T8-HE9AN5B-MA1 12-C143ZT-0BX TRA SIG SM PDTC143ZT Q400

T8-HE9AN5B-MA1 12-C144ET-0BX SMD. TRANSISTOR PDTC144ET

Q803;Q501;Q602;Q8

01;Q802;Q300
T8-HE9AN5B-MA1 13-0PS321-00B IC 3 TO 1 HDMI SWITCH U507
T8-HE9AN5B-MA1 13-281622-FTB4 DDR HY5DU281622FTP-4 U304

T8-HE9AN5B-MA1 13-IC1084-CMB

IC AIC1084-33CM 3.3V (TO-

263)

U800

T8-HE9AN5B-MA1 13-LD1117-25B

IC-REGPOSFXD LD1117S25TR LOW
VOLTAGE DRO

U802

T8-HE9AN5B-MA1 13-LD1117-33B

IC-REGPOSFXD LD1117S33TR
SOT223 NORMAL R

U801

T8-HE9AN5B-MA1 13-LD1117-50B

IC-REGPOSFXD LD1117S50C
NORMAL R=Y

U601

T8-HE9AN5B-MA1 13-M24C64-W6B IC-EEPROM M24C64-WMN6T R=Y U301
T8-HE9AN5B-MA1 13-MP1411-DHB IC MP1411DH-LF-Z U803
T8-HE9AN5B-MA1 13-MST6E1-9GBS1 IC DECODER,SCALER,PIP,SRS等 U300

T8-HE9AN5B-MA1 13-RT8110-00B

IC 12V TO 5V CONVERTER
RT8110

U805

T8-HE9AN5B-MA1 13-STA333-BWB IC STA333BW U700
T8-HE9AN5B-MA1 13-TDA130-8TB IC TDA1308T/N2 U701
T8-HE9AN5B-MA1 13-TDA988-5TBS IC(NTSC/PAL) TDA9885 TS U600

T8-HE9AN5B-MA1 13-TR5V0U-4DB IC-PROTECT PRTR5VOU4D R=Y

U506;U505;U502;U5

01

T8-HE9AN5B-MA1 19-AB0000-JTX

RES SMD 0 OHM 1/10W +/-5%
0603

R312;R880;R440;R2

84;R432;R287;R670

;R663

T8-HE9AN5B-MA1 19-AB0000-JTX

RES SMD 0 OHM 1/10W +/-5%
0603

R648;R639;R622;R6

11;R748;R570;R804

;R749

T8-HE9AN5B-MA1 19-AB0000-JTX

RES SMD 0 OHM 1/10W +/-5%
0603

R744;R741;R282;R1

8;R439;R416;R415;

R414

T8-HE9AN5B-MA1 19-AB0000-JTX

RES SMD 0 OHM 1/10W +/-5%
0603

R412;R409;R407;R3

96;R388;R365;R431

;R231

T8-HE9AN5B-MA1 19-AB0000-JTX

RES SMD 0 OHM 1/10W +/-5%
0603

R218;R207;R311;R3

91;R746;R14;R16;R

672

T8-HE9AN5B-MA1 19-AB0000-JTX

RES SMD 0 OHM 1/10W +/-5%
0603

R417;R267;R247;R2

43;R241;R237;R234

;R419

T8-HE9AN5B-MA1 19-AB0000-JTX

RES SMD 0 OHM 1/10W +/-5%
0603

R850;R722;R569;R7

21;R824

T8-HE9AN5B-MA1 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5%

R420;R406;R405;R8

46;R843;R422;R421

;R356
T8-HE9AN5B-MA1 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R355;R354

T8-HE9AN5B-MA1 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603

R662;R562;R626;R6

27;R363

T8-HE9AN5B-MA1 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603

R520;R366;R367;R3

82;R381;R817;R739

;R664

T8-HE9AN5B-MA1 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603

R362;R361;R333;R3

60;R344;R343;R387

;R399

T8-HE9AN5B-MA1 19-AB0101-JTX RES SMD 100 OHM 1/10W 0603

R383;R386;R215;R3

10;R22;R217;R661;

R332

T8-HE9AN5B-MA1 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603

R372;R398;R963;R8

13;R818;R428;R429

;R508

T8-HE9AN5B-MA1 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603

R509;R835;R559;R5

57

T8-HE9AN5B-MA1 19-AB0103-FTX

RES SMD 10K OHM 1/10W +/-1%
0603

R316;R315;R317;R3

18
T8-HE9AN5B-MA1 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R319;R348

T8-HE9AN5B-MA1 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603

R522;R430;R719;R7

36;R737;R805;R411

;R410

T8-HE9AN5B-MA1 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603

R216;R718;R565;R2

71;R720;R717;R823

;R556

T8-HE9AN5B-MA1 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603

R278;R208;R211;R2

14;R272;R834;R225

;R224

T8-HE9AN5B-MA1 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603

R711;R709;R614;R6

13;R851;R300;R280

;R831

T8-HE9AN5B-MA1 19-AB0104-JTX SMD. RES 100K OHM 1/10W 0603

R635;R740;R347;R6

40
T8-HE9AN5B-MA1 19-AB0105-JTX RES SMD 1M OHM 1/10W 0603 R323;R707
T8-HE9AN5B-MA1 19-AB0121-JTX SMD. RES 120 OHM 1/10 J 0603 R710;R708

T8-HE9AN5B-MA1 19-AB0123-FTX

SMD. RES 12K OHM 1/10W +/-1%
0603

R836

T8-HE9AN5B-MA1 19-AB0123-JTX SMD. RES 12K OHM 1/10 J 0603

R209;R210;R269;R2

70;R277;R279;R628

;R645

T8-HE9AN5B-MA1 19-AB0151-FTX

SMD. RES 150 OHM 1/10W +/­1% 0603

R395

T8-HE9AN5B-MA1 19-AB0202-JTX

SMD. RES 2K OHM 1/10W +/-5%
0603

R734

T8-HE9AN5B-MA1 19-AB0203-JTX RES. SMD 20K OHM 1/10W 0603 R842
T8-HE9AN5B-MA1 19-AB0220-JTX SMD RES 22 OHM 1/10W 0603 R370;R369;R368
T8-HE9AN5B-MA1 19-AB0221-JTX RES SMD 220 OHM 1/10W 0603 R647;R563

T8-HE9AN5B-MA1 19-AB0222-JTX RES SMD 2.2K OHM 1/10W 0603

R706;R666;R612;R4

00;R401

T8-HE9AN5B-MA1 19-AB0223-JTX

SMD. RES 22K OHM 1/10W +/-5%
0603

R634;R380;R375

T8-HE9AN5B-MA1 19-AB0223-JTX

SMD. RES 22K OHM 1/10W +/-5%
0603

R376;R377;R378;R6

43;R644;R379;R374

;R373

T8-HE9AN5B-MA1 19-AB0271-JTX

SMD. RES 270 OHM 1/10W +/-5%
0603

R200

T8-HE9AN5B-MA1 19-AB0272-JTX RES SMD 2.7K OHM 1/10W 0603

R304;R305;R306;R3

07

T8-HE9AN5B-MA1 19-AB0273-FTX

RES.SMD 27K OHM 1/10W +/-1%
0603

R833

T8-HE9AN5B-MA1 19-AB0303-JTX RES SMD 30K OHM 1/10W 0603 R213

T8-HE9AN5B-MA1 19-AB0330-JTX

RES SMD 33 OHM 1/10W +/­5%0603

R701;R702;R705;R7

00
T8-HE9AN5B-MA1 19-AB0331-JTX RES. SMD 330 OHM 1/10W 0603 R202;R426;R641

T8-HE9AN5B-MA1 19-AB0332-JTX SMD RES 3.3K OHM 1/10W 0603

R731;R730;R729;R7

32
T8-HE9AN5B-MA1 19-AB0333-JTX RES. SMD 33K OHM 1/10W 0603 R364;R714;R715

T8-HE9AN5B-MA1 19-AB0334-JTX

RES SMD 330K OHM 1/10W +/-5%
0603

R807

T8-HE9AN5B-MA1 19-AB0339-JTX RES.SMD 3.3 OHM 1/10W +/-5% R703;R704
T8-HE9AN5B-MA1 19-AB0363-JTX RES. SMD 36K OHM 1/10W +/-5% R555;R564

T8-HE9AN5B-MA1 19-AB0391-FTX

SMD. RES 390 OHM 1/10W +/­1% 0603

R337

T8-HE9AN5B-MA1 19-AB0470-JTX

RES SMD 47 OHM 1/10W +/­5%0603

R268;R286;R619;R6

20;R266;R11;R233

T8-HE9AN5B-MA1 19-AB0470-JTX

RES SMD 47 OHM 1/10W +/­5%0603

R228;R227;R222;R2

20;R253;R252;R236

;R204
T8-HE9AN5B-MA1 19-AB0471-JTX SMD. RES 470 OHM 1/10W +/-5% R12
T8-HE9AN5B-MA1 19-AB0472-FTX SMD.RES 4.7K OHM 1/10W +/-1% R845

T8-HE9AN5B-MA1 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603

R822;R341;R404;R9

80;R230;R371;R359

;R351

T8-HE9AN5B-MA1 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603

R350;R219;R303;R3

08;R946;R402;R334

;R336

T8-HE9AN5B-MA1 19-AB0472-JTX RES SMD 4.7K OHM 1/10W 0603

R338;R530;R532;R8

14;R339;R349;R342
T8-HE9AN5B-MA1 19-AB0473-JTX SMD. RES 47K OHM 1/10W 0603 R501

T8-HE9AN5B-MA1 19-AB0473-JTX SMD. RES 47K OHM 1/10W 0603

R229;R221;R534;R6

36;R554;R553;R533

;R502
T8-HE9AN5B-MA1 19-AB0513-JTX SMD. RES 51K OHM 1/10W +/-5% R346

T8-HE9AN5B-MA1 19-AB0562-JTX

SMD. RES 5.6K OHM 1/10W +/­5% 0603

R667

T8-HE9AN5B-MA1 19-AB0682-JTX RES SMD 6.8K OHM 1/10W 0603 R1013
T8-HE9AN5B-MA1 19-AB0683-JTX RES SMD 68K OHM 1/10W 0603 R203;R806

T8-HE9AN5B-MA1 19-AB0750-JTX SMD. RES 75 OHM 1/10W 0603

R425;R621;R649;R2

40;R424;R423;R285

T8-HE9AN5B-MA1 19-AB0750-JTX SMD. RES 75 OHM 1/10W 0603

R265;R239;R238;R2

35;R232;R212;R206

;R201

T8-HE9AN5B-MA1 19-AB0821-FTX

SMD. RES 820 OHM 1/10W +/-1%
0603

R844

T8-HE9AN5B-MA1 19-AB0822-JTX

SMD. RES 8.2K OHM 1/10W +/­5% 0603

R353;R352;R226;R2

23
T8-HE9AN5B-MA1 19-AB0911-JTX SMD RES. 910 OHM 1/10W +/-5% R345

T8-HE9AN5B-MA1 19-AB4990-FTX

SMD. RES 499 OHM 1/10W +/-1%
0603

R544

T8-HE9AN5B-MA1 19-CD0220-JTX

SMD. RES 22 OHM 1/4W +/-5%
1206

R725;R747;R723

T8-HE9AN5B-MA1 19-CD0689-JTX SMD. RES 6.8OHM 1/4W 5% R727;R728
T8-HE9AN5B-MA1 19-GA0000-JTX SMD. RES 0 OHM 1/16W +/-5% R540;R539
T8-HE9AN5B-MA1 19-GA0102-JTX SMD. RES 1K OHM 1/16W +/-5% R322

T8-HE9AN5B-MA1 19-GA0104-JTX

SMD. RES 100K OHM 1/16W +/­5%

R1

T8-HE9AN5B-MA1 19-GA0223-JTX SMD. RES 22K OHM 1/16W +/-5% R321

T8-HE9AN5B-MA1 19-GA0472-JTX

SMD. RES 4.7K OHM 1/16W +/­5%

R537;R320

T8-HE9AN5B-MA1 23-A08101-JBX NETWORK RES. 100 OHM +/-5%

R3104;R3117;R3116

;R3115;R3106;R311

4
T8-HE9AN5B-MA1 23-A08101-JBX NETWORK RES. 100 OHM +/-5% R3109;R3108;R3107
T8-HE9AN5B-MA1 23-A08220-JBX NETWORK RES. 22 OHM +/-5% R3113;R3112;R3111
T8-HE9AN5B-MA1 23-A08330-JBX NETWORK RES. 33 OHM +/-5% R3110
T8-HE9AN5B-MA1 28-AA0225-ZFX SMD CAP 2.2UF/10V/+80/-20% C2;C414;C511
T8-HE9AN5B-MA1 28-AB0100-JCX SMD. CAP 10 PF 50VDC +/-5% C323;C324

T8-HE9AN5B-MA1 28-AB0101-JCX SMD. CAP 100 PF 50VDC +/-5%

C636;C637;C728;C7

32

T8-HE9AN5B-MA1 28-AB0102-KBX

SMD. CAP 1000 PF 50V +/-10%
B

C752;C751

T8-HE9AN5B-MA1 28-AB0102-KBX

SMD. CAP 1000 PF 50V +/-10%
B

C371;C749;C750;C3

19;C320;C321;C322

;C891

T8-HE9AN5B-MA1 28-AB0102-KBX

SMD. CAP 1000 PF 50V +/-10%
B

C748;C226;C228;C3

11;C747;C721;C649

;C378

T8-HE9AN5B-MA1 28-AB0103-KBX

SMD. CAP 0.01 UF 50V +/-10%
0603

C623;C641;C643;C6

14;C522;C346;C343

;C879

T8-HE9AN5B-MA1 28-AB0103-KBX

SMD. CAP 0.01 UF 50V +/-10%
0603

C882;C888;C345;C3

44

T8-HE9AN5B-MA1 28-AB0104-KBX

SMD. CAP 50VDC 0.1UF +/-10%
06

C715;C650;C627;C7

16;C625;C719;C739

;C720

T8-HE9AN5B-MA1 28-AB0104-KBX

SMD. CAP 50VDC 0.1UF +/-10%06C410;C894;C755;C7

41

T8-HE9AN5B-MA1 28-AB0104-ZFX

CAP. SMD 0.1UF 50V +80%~-20%
F

C409;C519;C380;C3

81;C613;C383;C813

;C812

T8-HE9AN5B-MA1 28-AB0104-ZFX

CAP. SMD 0.1UF 50V +80%~-20%
F

C308;C315;C379;C3

52;C365;C373;C814

;C374

T8-HE9AN5B-MA1 28-AB0104-ZFX

CAP. SMD 0.1UF 50V +80%~-20%
F

C730;C731;C743;C8

09;C620;C504;C512

;C307

T8-HE9AN5B-MA1 28-AB0104-ZFX

CAP. SMD 0.1UF 50V +80%~-20%
F

C875;C513;C621;C6

22;C635;C612;C520

;C727

T8-HE9AN5B-MA1 28-AB0104-ZFX

CAP. SMD 0.1UF 50V +80%~-20%
F

C328;C327;C337;C3

18;C325;C326;C815

;C816

T8-HE9AN5B-MA1 28-AB0104-ZFX

CAP. SMD 0.1UF 50V +80%~-20%
F

C225;C231;C232;C3

31;C334;C335;C336

;C329

T8-HE9AN5B-MA1 28-AB0104-ZFX

CAP. SMD 0.1UF 50V +80%~-20%
F

C718;C717;C648;C6

46;C332;C333;C407

;C501

T8-HE9AN5B-MA1 28-AB0152-KBX

SMD. CAP 1500 PF 50V +/-10%
B

C617

T8-HE9AN5B-MA1 28-AB0201-JCX CAP.SMD 200PF 50V +/-5% 0603 C611
T8-HE9AN5B-MA1 28-AB0220-JCX CAP. SMD 22PF 50V +/-5% C C606;C618;C521

T8-HE9AN5B-MA1 28-AB0220-JCX CAP. SMD 22PF 50V +/-5% C

C310;C309;C222;C2

47;C237;C235;C234

;C605

T8-HE9AN5B-MA1 28-AB0221-JCX

CAP.SMD 220PF 50V C 0603 +/­5%

C246;C245;C238;C2

39;C243;C244;C224

;C223

T8-HE9AN5B-MA1 28-AB0222-KBX

CAP.SMD 2200PF 50V +/-10%
0603

C340;C342;C341;C7

25;C724;C339

T8-HE9AN5B-MA1 28-AB0224-ZFX

CAP.SMD 0.22UF 50V +80­20%0603

C735;C740;C616

T8-HE9AN5B-MA1 28-AB0271-JCX SMD. CAP 270 PF 50V +/-5% C C610

T8-HE9AN5B-MA1 28-AB0331-JCX

SMD. CAP 330 PF 50V +/-5%
0603

C733;C754;C734

T8-HE9AN5B-MA1 28-AB0391-JCX CAP.SMD 390P 50V +/-5% 0603 C642

T8-HE9AN5B-MA1 28-AB0392-KBX

SMD. CAP 3900 PF 50VDC +/­10% 0603

C878

T8-HE9AN5B-MA1 28-AB0470-JCX CAP.SMD 47PF 50V +/-5% 0603

C314;C313;C316;C3

17;C7

T8-HE9AN5B-MA1 28-AB0472-KBX

CAP.SMD 4700PF 50V +/-10%
0603

C723;C609

T8-HE9AN5B-MA1 28-AB0473-KBX

SMD CAP 0.047UF 50V +/­10%0603

C375;C370;C369;C3

68;C357;C358;C359

;C939

T8-HE9AN5B-MA1 28-AB0473-KBX

SMD CAP 0.047UF 50V +/­10%0603

C364;C363;C362;C3

61;C360;C940;C376

;C377
T8-HE9AN5B-MA1 28-AB0681-KBX SMD. CAP 680PF 50VDC +/-10% C722
T8-HE9AN5B-MA1 28-AB0682-KBX SMD. CAP 6800PF 50VDC +/-10% C811;C810;C817

T8-HE9AN5B-MA1 28-AC0104-ZFX

SMD. CAP 16VDC/100NF/+80%/­20%

C824;C821;C820;C8

47;C833;C834;C835

;C843

T8-HE9AN5B-MA1 28-AC0104-ZFX

SMD. CAP 16VDC/100NF/+80%/­20%

C844;C874;C877;C8

81;C885;C897;C857

;C855

T8-HE9AN5B-MA1 28-AC0104-ZFX

SMD. CAP 16VDC/100NF/+80%/­20%

C853;C859;C860;C8

61;C826;C825;C836

;C865

T8-HE9AN5B-MA1 28-AC0104-ZFX

SMD. CAP 16VDC/100NF/+80%/­20%

C870;C873;C845;C8

49;C831;C832;C851

T8-HE9AN5B-MA1 28-AC0105-ZFX

SMD. CAP 1 UF 16VDC +80%/­20%

C819;C818;C366;C8

98

T8-HE9AN5B-MA1 28-AC0225-KBX

SMD.CAP 2.2UF +/-10% 16V SP
(188605643)

C347;C227;C348;C8

23;C726;C356;C729

T8-HE9AN5B-MA1 28-AC0225-KBX

SMD.CAP 2.2UF +/-10% 16V SP
(188605643)

C355;C354;C353;C2

30;C233;C350;C229

;C349

T8-HE9AN5B-MA1 28-AC0474-KBX SMD.CAP 0.47UF 16V +/-10% C896

T8-HE9AN5B-MA1 28-AD0474-ZFX

SMD. CAP 0.47 UF 25V +80/­20%

C640

T8-HE9AN5B-MA1 28-AF0475-KBX SMD.CAP 4.7UF 6.3V +/-10% C338;C367

T8-HE9AN5B-MA1 28-BA0106-ZFX SMD. CAP 10UF 10V +80% -20%

C303;C848;C304;C3

05;C846;C301;C822

;C858

T8-HE9AN5B-MA1 28-BA0106-ZFX SMD. CAP 10UF 10V +80% -20%

C850;C838;C852;C8

89;C854;C856;C3

T8-HE9AN5B-MA1 28-BB0104-KBX

SMD. CAP 0.1UF 50VDC +/-10%
0805

C704

T8-HE9AN5B-MA1 28-BB0474-ZFX

SMD. CAP 0.47UF 50V +80%  ­20%

C702;C703;C753

T8-HE9AN5B-MA1 28-BC0105-ZF4

SMD. CAP 1 UF 16VDC +80/-20%
0805

C801;C895

T8-HE9AN5B-MA1 28-BC0475-ZFX

SMD. CAP. 4.7 UF 16V +80/­20%

C890

T8-HE9AN5B-MA1 28-BF0106-KBX SMD. CAP 10UF/6.3V/+/-10% C203

T8-HE9AN5B-MA1 28-HB0100-JCX

SMD. CAP 10 PF 50V +/-5%
0402

C19;C20;C21;C22;C

23;C24;C25

T8-HE9AN5B-MA1 28-HB0100-JCX

SMD. CAP 10 PF 50V +/-5%
0402

C34;C11;C386;C389

;C12;C15;C16;C17;

C18

T8-HE9AN5B-MA1 28-HB0100-JCX

SMD. CAP 10 PF 50V +/-5%
0402

C13;C14;C26;C27;C

28;C29;C30;C31;C3

2;C33

T8-HE9AN5B-MA1 28-HC0104-ZFX SMD.CAP 100NF 16V +80% -20%

C382;C518;C515;C5

14;C516;C517;C837

;C827

T8-HE9AN5B-MA1 28-HC0104-ZFX SMD.CAP 100NF 16V +80% -20%

C828;C830;C842;C8

29;C841

T8-HE9AN5B-MA1 33-ELE900-NTX SMD.COIL ACM2012H-900-2P

L11;L12;L13;L14;L

15;L16;L17;L18;L2

2;L19
T8-HE9AN5B-MA1 33-ELE900-NTX SMD.COIL ACM2012H-900-2P L20;L21
T8-HE9AN5B-MA1 33-ELN102-NTX SMD.COLL CBG201209U 102B L605

T8-HE9AN5B-MA1 33-ELN121-NTX SMD.COLL

L810;L811;L817;L8

12;L819;L814;L815

;L818

T8-HE9AN5B-MA1 33-ELN121-NTX SMD.COLL

L808;L809;L816;L8

13
T8-HE9AN5B-MA1 33-ELN300-NTX CHIP BEAD 30 OHM +/-25% L820;L821;L822

T8-HE9AN5B-MA1 33-GLN300-NTX CHIP BEAD 30 OHM +/-25%

L920;L803;L802;L7

05

T8-HE9AN5B-MA1 33-GLN501-NTA

CHIP BEAD 1206 500OHMA
100MHZ 189144016

L804;L831;L832;L8

05;L833;L806
T8-HE9AN5B-MA1 33-GLN601-NTX CHIP BEAD 600 OHM +/-25% L610;L601

T8-HE9AN5B-MA1 33-KLN121-NTX CHIP BEAD 120 OHM +/-25%

L712;L713;L825;L8

26
T8-HE9AN5B-MA1 33-KLN221-NTX CHIP BEAD 0603 220 OHM B203;L49;L50

T8-HE9AN5B-MA1 33-KLN300-NTX CHIP BEAD 30 OHM L824;L830;L823
T8-HE9AN5B-MA1 33-KLN601-NTX CHIP BEAD 600 OHM +/-25% L710;L711
T8-HE9AN5B-MA1 33-PLL150-MBX SMD.COLL L1207-150 L800
T8-HE9AN5B-MA1 33-YLL100-MTX SMD.COIL 10uH NR8040T100M L807

T8-HE9AN5B-MA1 33-YLL220-MTX COIL. 22U NR8040T220M

L700;L701;L702;L7

03
T8-HE9AN5B-MA1 40-02MS91-MAD2XG TV PCB MA BD R=Y
T8-HE9AN5B-MA1 47-HDI001-XX0 SMD HDMI SOCKET 1747981-1 P500;P501
T8-HE9AN5B-MA1 71-PHIBAR-NUL1A TV PRI LABEL BARCODE -- R=Y
T8-LE9BS5B-SI1 09-D5V0S1-BAB SMD.DOIDE PESD5V0S1BA D46
T8-LE9BS5B-SI1 13-TR5V0U-4DB IC-PROTECT PRTR5VOU4D R=Y U901

T8-LE9BS5B-SI1 19-AB0000-JTX

RES SMD 0 OHM 1/10W +/-5%
0603

R186;L61

T8-LE9BS5B-SI1 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R370;R369
T8-LE9BS5B-SI1 19-AB0123-JTX SMD. RES 12K OHM 1/10 J 0603 R189;R197
T8-LE9BS5B-SI1 22-PTC068-XX1S PPTC(SMD) KMC 5S200 R101

T8-LE9BS5B-SI1 22-VDR270-XX1

SMD VARISTOR RES.
EZJZ1V270RA

R104;R105

T8-LE9BS5B-SI1 28-AB0102-KBX

SMD. CAP 1000 PF 50V +/-10%
B

C193;C189

T8-LE9BS5B-SI1 28-AB0104-ZFX

CAP. SMD 0.1UF 50V +80%~-20%
F

C191

T8-LE9BS5B-SI1 40-MS91E9-SIB1XG TV PCB SI BD R=Y

H3-HE9AN5B-YM0A 08-PW37C03-PWYA

TV EQU - ASS Y - POWER
BD(PWL37C03A) R=N

H3-HE9AN5B-YM0A 4A-LCD32T-SS5

DISPLAY LCD PANEL-­LTA320AP02 32INCH

H3-HE9AN5B-YM0A 75-864270-EC0

TV RAW POLYFOAM LL -- 00 00
R=N

PRODUCTION SPARE

H3-HE9AN5B-YM0A 75-864280-EC0

TV RAW POLYFOAM LR -- 00 00
R=N

PRODUCTION SPARE

H3-HE9AN5B-YM0A 75-864290-EC0

TV RAW POLYFOAM UL -- 00 00
R=N

PRODUCTION SPARE

H3-HE9AN5B-YM0A 75-864300-EC0

TV RAW POLYFOAM UR -- 00 00
R=N

PRODUCTION SPARE

H3-HE9AN5B-YM0A 76-864310-0AT3E

PRI CARTON-BOX - PAPER 00
00 00 R=Y

PRODUCTION SPARE

T8-HE9AN5B-FC2 54-3M5526-JZ0

TAPE-ADH ADHESIVE TAPE 55256

0.128MM 12M

MTG SENSOR BOARD

& FRONT CABINET

T8-HE9AN5B-FC2 54-701940-00X FELT TAPE 870MMX20MMX0.3MM

MTG TO L & R & T

OF THE

CIRCUMSCRIBE

T8-HE9AN5B-FC2 54-808030-0U0 SPONGE BAR

ON FRONT CCOVER

L*R

T8-HE9AN5B-FC2 54-808050-0U0 SPONGE BAR

MTG TO DOWN OF

THE FC

CIRCUMSCRIBE

T8-HE9AN5B-FC2 55-839260-3CQ3A

PRI FRONTPANEL L32E9A -- 02
9F 00 R=N

T8-HE9AN5B-FC2 56-839280-0HA9A

TV DEC DECOR SHEET Q0001 00
9A 00 R=N

MTG TO FRONT

CABINET

T8-HE9AN5B-FC2 56-841110-1HH1A

TV DEC LENS IR L32E9A/MS91 -

- 01 1A 00 R

T8-HE9AN5B-FC2 57-842400-1UM

TV RAW DECOR FLARING BAR -­01 00 00 R=N

T8-HE9AN5B-FC2 62-840780-0HN1A

TV PAI BRACKET LIGHT BAR
BRACKET -- 02 0

T8-HE9AN5B-FC2 63-B30100-AB3G

SCREW-ST 3MM 10MM JIS B 1122
12 0 0 R=Y

MTG LENS & FRONT

CABINET

T8-HE9AN5B-FC2 63-P30100-AB3G SCREW-ST 3MM 10MM R=Y

MTG LENS & IR

BOARD

T8-HE9AN5B-FC2 63-S40150-AB3G S/T SCREW S 4 X 15 AB

MTG SPEAKER &

FRONT CABINET

T8-HE9AN5B-FC2 65-E42070-13EG WASHER 4.2MM 7.0MM 1.3MM R=Y

MTG TO SPEAKER

COLUMN

T8-HE9AN5B-FC2 71-THOMSN-SCR3C

TV PRI LABEL L46E9A WHITE &
BLACK R=N

T8-HE9AN5B-PA8 49-R03P80-BAT BATTERY 1.5V

T8-HE9AN5B-PA8 51-DC0180-0CR0FG

POWER CORD 1800MM LP-

21&H03VVH2-F 2C 6
T8-HE9AN5B-PA8 54-LCPVC6-000 INLAY
T8-HE9AN5B-PA8 70-271510-00A SERVICE CARD

T8-HE9AN5B-PA8 70-THOMYM-WAR9A

TV PRI GUIDE SHEET TX81 A5

R=N
T8-HE9AN5B-PA8 71-BAR006-0A9 TV PRI LABEL E001 -- R=N

T8-HE9AN5B-PA8 71-ELK900-031G3

TV PRI LABEL L32E9A WHITE &

BLACK R=N

ELK900031G-0001

TO 0120
T8-HE9AN5B-PA8 72-HE9A5B-E003E TV IB L32E9A/MS91 TCL R=Y
T8-HE9AN5B-PA8 74-026035-6WEEM DEC BAG 260X350MM R=N

T8-HE9AN5B-PA8 74-106072-3WDEM

PRI BAG -- RED 186C 01 00
00 R=N

T8-HE9AN5B-PA8 75-864270-EC0

TV RAW POLYFOAM LL -- 00 00
R=N

T8-HE9AN5B-PA8 75-864280-EC0

TV RAW POLYFOAM LR -- 00 00
R=N

T8-HE9AN5B-PA8 75-864290-EC0

TV RAW POLYFOAM UL -- 00 00
R=N

T8-HE9AN5B-PA8 75-864300-EC0

TV RAW POLYFOAM UR -- 00 00
R=N

T8-HE9AN5B-PA8 76-864310-0AT3E

PRI CARTON-BOX - PAPER 00

00 00 R=Y
T8-HE9AN5B-PA8 89-26772S-JZ001 SUNDRIES-TAPE ADHESIVE
T8-HE9AN5B-PA8 89-26772S-JZ002 SUNDRIES-TAPE ADHESIVE

T8-HE9AN5B-PB4 54-205140-000 SPACER CRT MOUNTING T=2MM

MTG TO TOP RIGHT
PANEL

T8-HE9AN5B-PB4 54-701940-00X FELT TAPE 870MMX20MMX0.3MM

STICK ON PANEL
LEFT&RIGHT STEEL

T8-HE9AN5B-PB4 54-808030-0U0 SPONGE BAR

STICK ON PANEL
UNDER STEEL

T8-HE9AN5B-PB4 59-377680-000 RUBBER PAD (22X22X5MM)

MTG TO TOP LEFT
PANEL

T8-HE9AN5B-PB4 62-839360-0HGG

TV RAW SUPPORT PANEL L -- 00

00 00 R=Y

T8-HE9AN5B-PB4 62-839370-0HGG

TV RAW SUPPORT PANEL

SUPPORTER R -- 01 0

T8-HE9AN5B-PB4 64-B40120-304G SCREW B4X12

MTG SUPPORTER FOR
PANEL&SUPPORTER
GIRDER

T8-HE9AN5B-PB4 64-B40160-102G SCREW 4MM 16MM ISO 53 R=Y

MTG SUPPORTER FOR
PANEL & PANEL

T8-HE9AN5B-PB4 67-M83938-0G0

TV RAW SUPPORT PANEL

SUPPORTER FRAME L -

T8-HE9AN5B-PB4 67-M83939-0G0

TV RAW SUPPORT PANEL

SUPPORTER FRAME R -

T8-HE9AN5B-PB4 67-M83942-3E4

TV RAW SUPPORT PANEL GIRDER

-- 03 00 00

T8-HE9AN5B-RC5 46-40299H-01XG WIRE UL1617#18 250MM 1 从电源板到主板

T8-HE9AN5B-RC5 46-FL050T-28B01G

WIRE UL1007#26 A2006-28Y/PH-

14 500MM 28
T8-HE9AN5B-RC5 46-LL070T-12X02G WIRE UL2725 700MM 12

T8-HE9AN5B-RC5 54-114000-00X

TV RAW FELT PAPER

150MMX19MMX0.3MM BK 01

MTG TO BELOW OF
THE CIRCUMSCRIBE

T8-HE9AN5B-RC5 54-701940-00X FELT TAPE 870MMX20MMX0.3MM

MTG AV BRACKET &
REAR CABINET

T8-HE9AN5B-RC5 54-EM2030-0U2

FOAM-CONDUCTIVE -- 80DB 800

R=Y

FOR POWER BRACKET

T8-HE9AN5B-RC5 54-EM2520-0U2

TAPE-ADH FOIL ALUMINUM FOIL

-- R=Y

FOR AV SOCKET

T8-HE9AN5B-RC5 54-EM2545-0U2

FOAM-CONDUCTIVE -- 80DB 800

R=Y

FOR SHIELD BOX

T8-HE9AN5B-RC5 55-839270-0CL1A

TV DEC BACKCOVER L32E9 -- 00

1A 00 R=Y

T8-HE9AN5B-RC5 56-839290-0HN1A

TV DEC LENS L32E9A/MS91 --

R=Y

T8-HE9AN5B-RC5 56-839300-0HN1A

TV PRI COVER STANDING HOLE

COVER -- 00 0

T8-HE9AN5B-RC5 57-80794X-0UG UNI-TIE

FOR SIDE AV
LINE;FOR AC LINE

T8-HE9AN5B-RC5 57-KYCL01-0HF UNI-TIE

FOR SIDE AV AND
HEADPHONE LINE

T8-HE9AN5B-RC5 57-KYCL01-0HF UNI-TIE FOR INVERTER LINE

T8-HE9AN5B-RC5 58-845120-0UI1C

TV PRI OVERLAY PLATE MODEL

NO R=N

T8-HE9AN5B-RC5 58-HE9AMP-JKL3D

TV PRI OVERLAY MODEL NO. --

00 R=N

T8-HE9AN5B-RC5 62-839350-0HG1A

TV PAI HOLDER VESA BOSS --

00 00 R=N

MTG TO REAR
CABINET

T8-HE9AN5B-RC5 62-842830-0UNG

TV RAW COVER BOSS -- 00 00

00 R=Y

MTG TO REAR
CABINET

T8-HE9AN5B-RC5 63-B30100-AB3G

SCREW-ST 3MM 10MM JIS B 1122

12 0 0 R=Y

MTG CHASSIS &
REAR CABINET

T8-HE9AN5B-RC5 63-B30100-AB3G

SCREW-ST 3MM 10MM JIS B 1122

12 0 0 R=Y

MTG SENSOR PCB &
REAR CABINET

T8-HE9AN5B-RC5 63-B30120-AB3G SCREW-ST 3MM 12MM ISO R=Y

MTG AC POWER
SOCKET & REAR
CABINET

T8-HE9AN5B-RC5 63-B30150-AB4G SCREW-ST 3MM 15MM ISO 53 R=Y

MTG POWER PCB
BRACKET & REAR
CABINET

T8-HE9AN5B-RC5 63-B40150-AB3G SCREW-ST 4MM 15MM ISO 62 R=Y

MTG FRONT CABINET
& REAR CABINET

T8-HE9AN5B-RC5 63-S40150-AB3G S/T SCREW S 4 X 15 AB

MTG WOOFER BOX &
REAR CABINET

T8-HE9AN5B-RC5 63-T40160-BF3G SCREW-ST 4MM 16MM ISO 69 R=Y

MTG FC & RC IN
THE RC BENEATH

T8-HE9AN5B-RC5 63-W40100-AB3G MACHINE SCREW

MTG SIDE AV
BRACKET & REAR
CABINET

T8-HE9AN5B-RC5 67-M84557-1G0

TV RAW HOLDER POWER -- 01 00

R=Y

FOR POWER BOARD

T8-HE9AN5B-RC5 89-SN5055-JZ1

SUNDRIES * OTHER SUNDRIES

(SOLID)

FOR LIGHT LINE

H3-HE9AN5B-YM0A 67-L80629-1N81A LOGO PRODUCTION SPARE
T6-019W49-AAA1X 06-019W49-A001X RCT PHILIPS

T8-HE9AN5B-FC2 54-3MDS15-JZ1

TAPE-ADH ADHESIVE TAPE

3MDS15P 0.4MM 6MM

MTG DECOR SHEET &
FRONT CABINET

T8-HE9AN5B-FC2 67-L80629-1N81A LOGO

T8-HE9AN5B-FC2 89-604792-JZ3

SUNDRIES-FILM SELF ADHESIVE

FILM

MTG TO FRONT
CABINET

T8-HE9AN5B-FC2 89-604810-JZ0 PROTECTING LABEL 60mm

MTG TO FRONT
CABINET

T8-HE9AN5B-RC5 54-857740-0U0

SPONGE -- 315.9MM X_6MM

20MM R=Y

FOR AV SOCKET

T8-HE9AN5B-RC5 63-B30100-AB3G

SCREW-ST 3MM 10MM JIS B 1122

12 0 0 R=Y

MTG TO AV BRACKET

T8-HE9AN5B-RC5 66-702620-0E2G SCREW POST FOR VGA SOCKET

T8-32E9EM-BS3 54-3M4941-JZA ADHESIVE TAPE 13MMX1.1MMX20M

MTG STANDING
SUPPORTER &
STANDING

T8-32E9EM-BS3 54-854980-004

TV RAW CUSHION PVC FOR STAND

00 00 00 R=

T8-32E9EM-BS3 54-854980-104

TV RAW CUSHION PVC FOR STAND

01 00 00 R=
T8-32E9EM-BS3 55-839680-0CQ9A PAI FRONTPANEL -- Q8257 R=N

T8-32E9EM-BS3 56-839670-0CQ1A

TV DEC SUPPORT STANDING NECK

-- 00 00 R=

T8-32E9EM-BS3 59-842480-001

TV RAW CUSHION FOOT 01 00 00

R=N

MTG TO STANDING
SUPPORTER

T8-32E9EM-BS3 62-865420-0HPG

TV RAW STAND WASHER TOP --

00 00 00 R=Y

T8-32E9EM-BS3 62-865430-0HPG

TV RAW STAND WASHER DOWN --

00 00 00 R=Y

T8-32E9EM-BS3 64-B50080-102G MACHINE SCREW

STAND SUP & STAN
FIXATION HALF
AXLE1/2

T8-32E9EM-BS3 64-H80150-102G MACHINE SCREW H 8 X 15

STAND
FIXATHALFAXLE
1FIXAT HALF AXLE
2

T8-32E9EM-BS3 64-Z80250-103G SCREW 8MM 25MM MB-FH 53 R=Y

STANDING & REAR
CABINET

T8-32E9EM-BS3 67-C84165-0A0

TV RAW HINGE STAND -- 00 00

R=N

T8-32E9EM-BS3 67-C84192-0A0

TV RAW SUPPORT STANDING

FIXATION HALF AX

T8-32E9EM-BS3 67-C84193-0A0

TV RAW SUPPORT STANDING

FIXATION HALF AX

T8-32E9EM-BS3 67-M85024-0G0

TV RAW STAND BASE SUPPORT --

00 00 00 R=

T8-32E9EM-BS3 74-004006-12C

RAW BAG 60X40X0.08MM -- 00

00 00 R=Y

PACK 4 SCREWS(M5)
& 1 SCREWS (M8)

T8-32E9EM-BS3 74-013026-60C

RAW BAG 130X260X0.06MM --

00 00 00 R=Y

PACK STANDING
NECK

T8-32E9EM-BS3 74-014016-20H RAW BAG -- -- 00 00 00 R=Y

PACK STANDING &
STANDING
SUPPORTER

T8-32E9EM-BS3 74-032065-20HEM DEC BAG 320X650MM R=Y

PACK STAND AXLE
ASS

T8-HE9AN5B-FC2 42-51304D-XX0G SPEAKER 4OHM 5W 170HZ

T8-HE9AN5B-FC2 46-SV015T-02H01G

WIRE UL2468#22 SMR-2Y 150MM

2

右喇叭线

T8-HE9AN5B-FC2 46-SV015T-02H02G

WIRE UL2468#22 SMP-2Y 150MM

2

左喇叭线

T8-HE9AN5B-FC2 54-114000-00X

TV RAW FELT PAPER

150MMX19MMX0.3MM BK 01

MTG TO SPEAKER
BRACKET

T8-HE9AN5B-FC2 62-839310-0HN

TV RAW BRACKET SPEAKER -- 00

00 00 R=N
T8-HE9AN5B-RC5 35-FB1329-009 FC 125OHM R=Y FOR SPEAKER LINE
T8-HE9AN5B-RC5 42-07008F-XX1G SPEAKER 8W 80HZ R=Y
T8-HE9AN5B-RC5 46-BB350B-SS4H1G WIRE N 350MM 40
T8-HE9AN5B-RC5 46-CV060T-06A01G WIRE TJC3 600/400MM 2 主板P702到喇叭

T8-HE9AN5B-RC5 46-FF065T-07M05G WIRE UL2547#26 650MM 7

从主板P700到耳机
板P4

T8-HE9AN5B-RC5 46-FF070T-06X01G HS 6PIN TCL1403

T8-HE9AN5B-RC5 46-FL060T-12X02G

WIRE UL2547#28/UL2584#28

A2006H00-2*6P/A

主板P303到转接板
和按键板遥控板

T8-HE9AN5B-RC5 46-KQ030F-02E01G HS Y0510026.2

从电源开关到电源
板

T8-HE9AN5B-RC5 46-LL035T-16B02G WIRE N 350MM 16 电源到主板P803

T8-HE9AN5B-RC5 46-SV040T-02A01G

WIRE UL1007#22 SMP-2Y L=400

400MM 2

重低音喇叭线

T8-HE9AN5B-RC5 47-PWS034-DX5 SOCKET-SF 电源线卡座 ST MALE
T8-HE9AN5B-RC5 48-POW016-XX0G POWER SWITCH PS8-12-C-045

T8-HE9AN5B-RC5 54-700770-000

SPEAKER AIRPROOF STRIP

6MMX1MMX2000MM

T8-HE9AN5B-RC5 54-703410-000

BLACK SPONGE

(154MMX15MMX2MM)

MTG TO REAR
CABINET

T8-HE9AN5B-RC5 57-00CM20-0UG

TV RAW HOLDER FASTENER -- 00

00 R=Y

FOR FERRITE CORE
OF SPEAKER

T8-HE9AN5B-RC5 57-29635X-00F CABLE TIES (4.8MMX160MM)

FOR FERRITE CORE
OF SPEAKER

T8-HE9AN5B-RC5 59-842690-000

TV RAW CUSHION SOUND BOX

RUBBER 00 00 R=

MTG TO WOOFER
COVER

T8-HE9AN5B-RC5 62-839320-0HN

TV RAW COVER WOOFER BOX --

01 00 00 R=N

MTG TO REAR
CABINET

T8-HE9AN5B-RC5 62-839340-0HN

TV RAW COVER WOOFER COVER --

01 00 00 R=

MTG TO WOOFER
COVER

T8-HE9AN5B-RC5 63-W30120-AB3G S/T SCREW W 3 X 12 AB

MTG WOOFER BOX &
WOOFER COVER

T8-HE9AN5B-RC5 63-W30120-AB3G S/T SCREW W 3 X 12 AB

MTG SPEAKER &
WOOFER BOX

H3-HE9AN5B-YM0A

V8-9P42CM3­LD1V001

SOFTWARE CODE FOR U400

H3-HE9AN5B-YM0A

V8-MS91L14­LF1V001

SOFTWARE SOFTWARE CODE FOR U303

T8-HE9AN5B-MA1 13-EN25F1-61B

IC 2M BYTE SERIAL FLASH

MEMORY

U303(CP)

T8-HE9AN5B-MA1 13-M24C02-MNB IC-EEPROM M24C02-WMN6TP R=Y U400(CP)
T8-HE9AN5B-MA1 13-M24C04-MNB 4K E2PROM M24C04-WMN6TG U302(CP)
