TCL 8111 User Manual
2.1 Dolby Atmos Sound Bar
with Built-in Subwoofers
8111 Series
User Manual
1 |
Before you begin ................................................ |
3 |
|
|
|
2 |
Welcome ............................................................. |
4 |
|
What’s in the box .......................................................... |
4 |
|
Overview of the Sound Bar .......................................... |
6 |
|
Set up your Sound Bar system .................................... |
8 |
|
Position Your Sound Bar .............................................. |
8 |
|
Mount your Sound Bar on the wall ............................... |
9 |
|

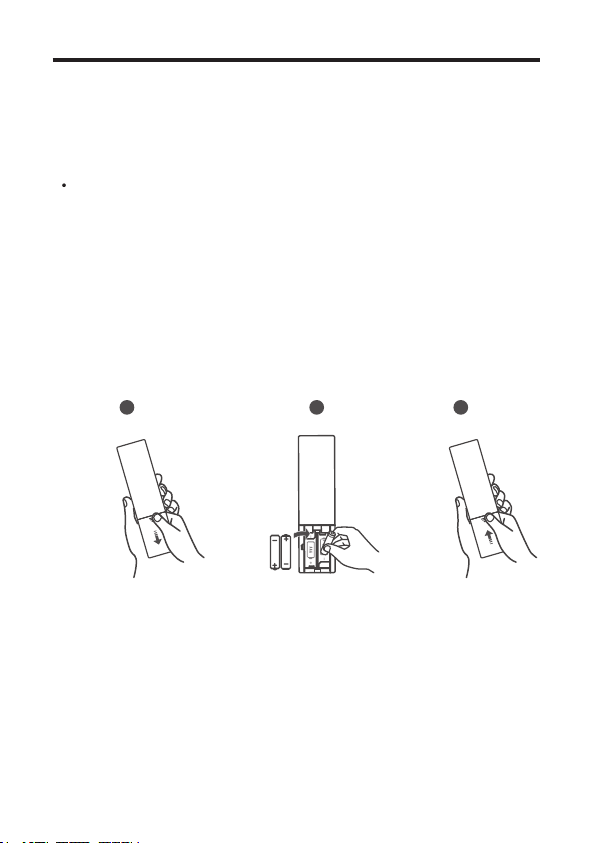

Install/replace the remote control batteries.................... |
13 |
|

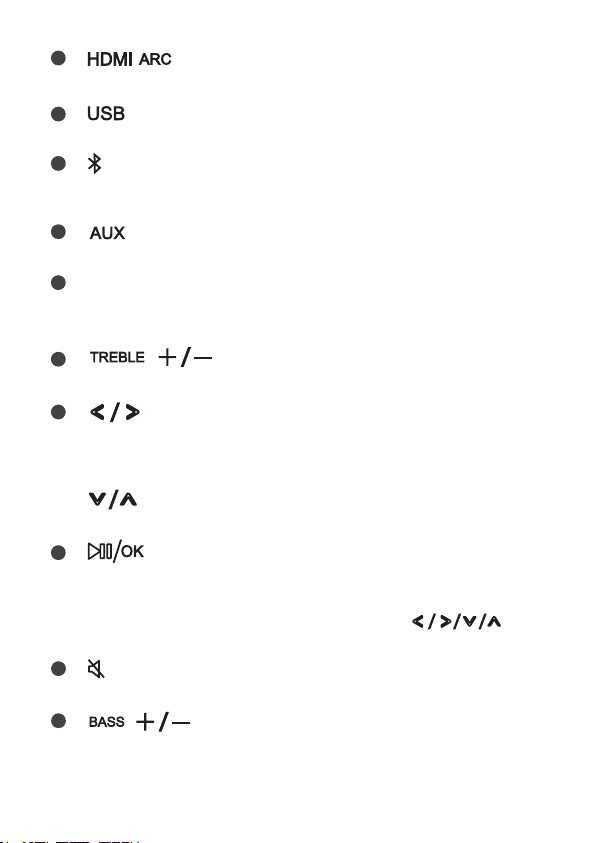

Overview of the Remote Control ................................... |
14 |
3 Connect your Sound Bar system ..................... |
16 |
Connect with the HDMI cable ...................................... |
16 |
Optional: Connect your Blu-ray player ........................ |
18 |

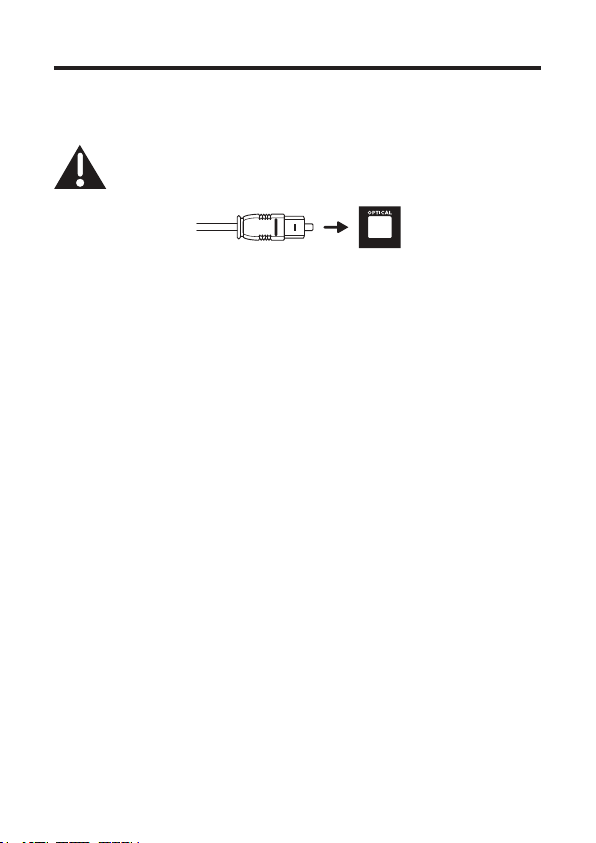

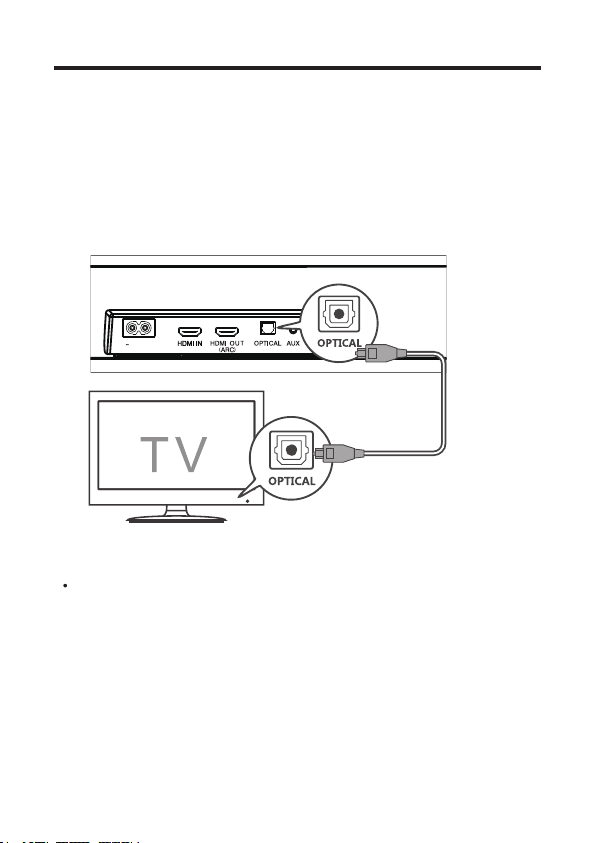

Connect with an optical cable ..................................... |
20 |
Direction for setting up your Sound Bar using an |
|
optical cable .................................................................. |
21 |
Connect with a 3.5mm-to-3.5mm audio cable ............. |
22 |
Connect your Sound Bar to power supply ................... |
23 |
Connect the Sound Bar with your Bluetooth device .... |
24 |
4 Use your Sound Bar system............................. |
26 |
Use your Sound Bar with the top panel or remote |
|
control .......................................................................... |
26 |
1 |
|
|
Listen to music from your Bluetooth device ............... |
29 |
|
Use the USB device for music playback ..................... |
30 |
5 |
Specifications .................................................... |
31 |
6 |
Notice ................................................................. |
32 |
|
Declaration of conformity ............................................. |
32 |
|
Disposal of your old product and battery ..................... |
32 |
|
Trademarks ................................................................... |
34 |
7 |
FAQ ..................................................................... |
35 |
2
1 Before you begin
•
•
•
•
•
•
•
as this may affect the performance.
•
for your listening comfort.
3
2 Welcome
Congratulations on the purchase of your new TCL Sound Bar! After it is set up and connected, you can experience a superb sound quality and state-of-the-art design to best fit your home entertainment system. You are recommended to read through this user manual which helps you set up, connect and operate the product easily and properly.
Let’s get started.
What’s in the box
Sound Bar
Remote control AAA battery x 2 |
AC power cord |
4
Wall mount bracket x 2
Wall mounting screw x 2
QSG
Quick Start Guide
Wall mount template
5
HDMI cable
Wall anchor x 2
Sleeve x 2
Safety instructions
Safety leaflet
Overview of the Sound Bar
1 |
2 |
|
3 |
4 |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HELLO |
6 |
|
|
|
5 |
|
AC IN |
~AC IN |
|
|
|
|
USB |
7 |
8 |
9 |
10 |
11 |
12 |
1
Short press to enter Sleep or Standby mode. Long press to enter Standby mode.
2
Press to switch the audio source among
HDMI ARC/HDMI IN/OPT/BT/AUX/USB modes.
3
Press to select the Bluetooth function. Press and hold to enter the pairing mode.
6
4
Press to increase or decrease the volume level.
5LED indicator
It indicates the Sound Bar status (e.g. volume level, sound bar status).
6White LED:
It indicates standby/sleep (solid/blinking) mode.
7AC input power connector
8HDMI IN connector
9HDMI OUT (ARC) connector
10Optical input connector
11AUX input connector
12USB Type A connector
7
Set up your Sound Bar system
Notes
Make sure you read all the safety information before you mount the Sound Bar main unit on the wall.
Make sure you use screws provided or specified by the authorized manufacturer.
TCL Overseas Marketing Limited bears no responsibility for accidents or damage caused by improper wall mounting and screws installation or insufficient wall strength, etc.
Additional tools (not supplied) are required for installation.
You can choose to place your Sound Bar on a cabinet under your TV or mount it on the wall.
Position Your Sound Bar
You are recommended to place the Sound Bar on the top of the cabinet and right below the center of your TV.
TV
8
Mount your Sound Bar on the wall
1Place the supplied wall mount template on the wall. Make sure the wall mount template is at least 5cm below the center of the TV.
2Use a level to make sure the wall mount template is positioned accurately.
3Use the tape to stick the wall mount template firmly on the wall.
4Mark on the wall using each marking on the template through the mounting holes.
5Take away the wall mount template.
6Drill a screw hole at each marking on the wall.
TV
9
TV
3
TV
> 5cm
5
|
1 |
6 |
4 |
|
|
|
2 |
|
|
|
780mm |

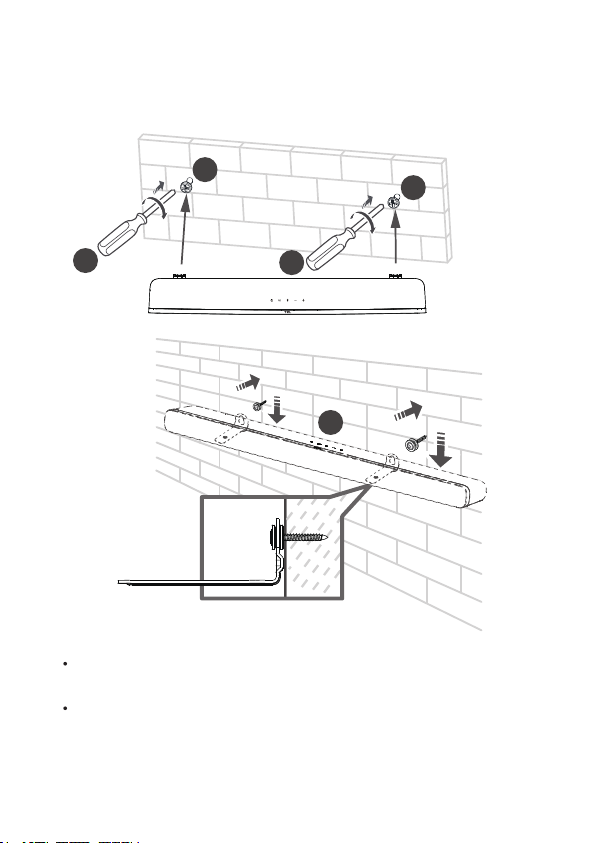

7Screw off the rubber feet from the soundbar and keep them for future use if the soundbar is placed on a solid surface.
8Screw on the wall mount brackets to the soundbar.
9Insert the supplied screws with the sleeves into the hole of the wall anchors.
10
7
7
8
8
11
