Taylor 8756 Installation Manual

OPERATOR'S
MANUAL

Model 8756

Single Stage Pump

Soft Serve Freezer

Original Operating Instructions

069071-M 11/15/10 (Original Publication)

(Updated 8/14/14)

Complete this page for quick reference when service is required:

Taylor Distributor:
Address:
Phone:
Fax:
E-mail:
Service:
Parts:
Date of Installation:

Information found on the data label:

Model Number:
Serial Number:
Electrical Specs: Voltage Cycle

Phase
Maximum Fuse Size: A
Minimum Wire Ampacity: A

E 2010 Carrier Commercial Refrigeration, Inc.

069071-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this

work may beaviolationofCopyright Law of the United States of Americaand other countries, could result
in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result
in further civil and criminal penalties. All rights reserved.

Taylor Company

a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

Table of Contents

Section 1 To the Installer 1............................................

Installer Safety 1........................................................

Site Preparation 1.......................................................

Air Cooled Units 1.......................................................

Water Connections (Water Cooled Units Only) 2............................

Electrical Connections 2.................................................

Beater Rotation 3.......................................................

Refrigerant 3...........................................................

Section 2 To the Operator 4...........................................

Section 3 Safety 5....................................................

Section 4 Operator Parts Identification 8...............................

Beater Door Assembly 10.................................................

Air/Mix Pump Assembly 11................................................

Accessories 12..........................................................

Section 5 Important: To the Operator 13.................................

Symbol Definitions 14....................................................

Power Switch 14.........................................................

Indicator Lights - MIX LOW and MIX OUT 14................................

Reset Button 14.........................................................

MIX REF 14.............................................................

Standby 14..............................................................

Wash 15................................................................

Auto 15.................................................................

Pump 15................................................................

Adjustable Draw Handle 15...............................................

Section 6 Operating Procedures 16.....................................

Assembly 16............................................................

Air/Mix Pump Assembly 21................................................

Sanitizing 25............................................................

Priming 28..............................................................

Model 8756 Table of Contents

Table of Contents - Page 2

Closing Procedure 29....................................................

Draining Product From the Freezing Cylinder 30.............................

Rinsing 30..............................................................

Cleaning 31.............................................................

Disassembly 32..........................................................

Brush Cleaning 33.......................................................

Section 7 Important: Operator Checklist 34..............................

During Cleaning and Sanitizing 34.........................................

Troubleshooting Bacterial Count 34........................................

Regular Maintenance Checks 34...........................................

The Air/Mix Pump 35.....................................................

Section 8 Troubleshooting Guide 36....................................

Section 9 Parts Replacement Schedu le 41...............................

Section 10 Limited Warranty on Equipment 42............................

Section 11 Limited Warranty on Parts 44.................................

Section 12 Parts List 47.................................................

Wiring Diagram 56.......................................................

Note: Continuing research results in stead y improvements; therefore, information
in this manual is subject to change without notice.

Note: Only instructions originating from the factory or its authorized translation
representative(s) are con sid ered to be th e o riginal set of in structions.

E 2010 Carrier Commercial Refrigeration, Inc. (Original Publication)

(Updated August, 2014)
069071-M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this

work may be a violation of Copyright Law of the United States of America and other countries, could result
in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result
in further civil and criminal penalties. All rights reserved.

Taylor Company

a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072

Table of Contents Model 8756

Section 1 To the Installer

The following information has been included in the
manual as safety and regulatory guidelines. For
complete installation instructions, please see the
Installation Checklist.

Installer Safety

In all areas of the world, equipment should
be installed in accordance with existing local codes.
Please contact your local authorities if you have any
questions.

Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and
servicing of Taylor equipment.

S Only authorized Taylor service personnel

should perform installation and repairs on
the equipment.

S Authorized service personnel should consult

OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the
industry standards on lockout/tagout
procedures before beginning any installation
or repairs.

S Authorized service personnel must ensure

that the proper PPE is available and worn
when required during installation and
service.

S Authorized service personnel must remove

all metal jewelry, rings, and watches before
working on electrical equipment.

Site Preparation

Review the area where the unit will be installed
before uncrating the unit. Make sure all possible
hazards to the user or equipment have been
addressed.

For Indoor Use Only: This unit is designed to
operate indoors, under normal ambient
temperatures of 70_-75_F(21_-24_C). The freezer
has successfully performed in high ambient
temperatures of 104_(40_C) at reduced capacities.

This unit must NOT beinstalledinanarea
where a water jet or hose can be used. NEVER use
a water jet or hose to rinse or clean the unit. Failure
to follow this instruction may result in electrocution.

This unit must be installed on a level surface
to avoid the hazard of tipping. Extreme care should
be taken when moving this equipment for any
reason. Two or more people are required to safely
move this unit. Failure to comply may result in
personal injury or equipment damage.

Uncrate the unit and inspect it for damage. Report
any damage to your Taylor Distributor.

This piece of equipment is made in the USA and has
USA sizes of hardware. All metric conversions are
approximate and vary in size.

The main power supply(s) to the freezer
must be disconnected prior to performing any
repairs. Failure to follow this instruction may result in
personal injury or death from electrical shock or
hazardous moving parts as well as poor
performance or damage to the equipment.

Note:Allrepairsmustbeperformedbyan
authorized Taylor Service Technician.

This unit has many sharp edges that can

cause severe injuries.

Model 8756 To the Installer

Air Cooled Units

DO NOT obstruct air intake and discharge openings:
Air cooled units require a minimum of 3” (76 mm) of

clearance around all sides of the freezer and 12”
(305 mm) on top to allow for adequate air flow
across the condenser(s). Failure to allow adequate
clearance can reduce the refrigeration capacity of
the freezer and possibly cause permanent damage
to the compressor.

131220

1

Water Connections

(Water Cooled Units Only)

An adequate cold water supply must be provided
with a hand shut-off valve. On the underside of the
base pan, two 3/8” I.P.S. (for single-head units) or
two 1/2” I.P.S. (for double-head units) water
connections for inlet and outlet have been provided
for easy hook-up. 1/2” inside diameter water lines
should be connected to the machine. (Flexible lines
are recommended, if local codes permit.) Depending
on local water conditions, it may be advisable to
install a water strainer to prevent foreign substances
from clogging the automatic water valve. There will
be only one water “in” and one water “out”
connection for both single-head and double-head
units. DO NOT install a hand shut-off valve on the
water “out” line! Water should always flow in this
order: first, through the automatic water valve;
second, through the condenser; and third, through
the outlet fitting to an opentrapdrain.

A back flow prevention device is
required on the incoming water connection side.

Please refer to the applicable National, State, and
local codes for determining the proper configuration.

Each unit requires one power supply for each data
label on the unit. Check the data label(s) on the
freezer for branch circuit overcurrent protection or
fuse, circuit ampacity, and other electrical
specifications. Refer to the wiring diagram provided
inside of the electrical box for proper power
connections.

CAUTION: THIS EQUIPMENT MUST BE
PROPERLY GROUNDED! FAILURE TO DO SO
CAN RESULT IN SEVERE PERSONAL INJURY
FROM ELECTRICAL SHOCK!

This unit is provided with an equipotential
grounding lug that is to be properly attached to the
rear of the frame by the authorized installer. The
installation location is marked by the equipotential
bonding symbol (5021 of IEC 60417-1) on both the
removable panel and the equipment's frame.

Electrical Connections

In the United States, this equipment is intended to
be installed in accordance with the National
Electrical Code (NEC), ANSI/NFPA 70-1987. The
purpose of the NEC code is the practical
safeguarding of persons and property from hazards
arising from the use of electricity. This code contains
provisions considered necessary for safety. In all
other areas of the world, equipment should be
installed in accordance with the existing local codes.
Please contact your local authorities.

FOLLOW YOUR LOCAL ELECTRICAL CODES!

S Stationary appliances which are not

equipped with a power cord and a plug or
another device to disconnect the appliance
from the power source must have an all-pole
disconnecting device with a contact gap of
at least 3 mm installed in the external
installation.

S Appliances that are permanently connected

to fixed wiring and for which leakage
currents may exceed 10 mA, particularly
when disconnected or not used for long
periods or during initial installation, shall
have protective devices such as a GFI, to
protect against the leakage of current,
installed by the authorized personnel to the
local codes.

2

Model 8756To the Installer

S Supply cords used with this unit shall be

oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or oth­er equivalent synthetic elastomer-sheathed
cord (Code designation 60245 IEC 57) in­stalled with the proper cord anchorage to
relieve conductors from strain, including
twisting, at the terminals and protect the in­sulation of the conductors from abrasion.

Refrigerant

In consideration of our environment, Taylor
uses only HFC refrigerants. The HFC refrigerant
used in this unit is R404A. This refrigerant is
generally considered non-toxic and non-flammable,
with an Ozone Depleting Potential (ODP) of zero (0).

If the supply cord is damaged, it must be
replaced by an authorized Taylor service
technician in order to avoid a hazard.

Beater Rotation

Beater rotation must be clockwise as viewed

looking into the freezing cylinder.

The following procedures must be
performed by an authorized Taylor service
technician.

To correct the rotation on a three-phase unit,
interchange any two incoming power supply lines at
freezer main terminal block only.

However, any gas under pressure is potentially
hazardous and must be handled with caution.

NEVER fill any refrigerant cylinder completely with
liquid. Filling the cylinder to approximately 80% will
allow for normal expansion.

Use only R404A refrigerant that conforms
to the AHRI standard 700 specification. The use of
any other refrigerant may expose users and
operators to unexpected safety hazards.

Refrigerant liquid sprayed onto the skin may
cause serious damage to tissue. Keep eyes and skin
protected. If refrigerant burns should occur, flush
immediately with cold water. If burns are severe,
apply ice packs and contact a physician
immediately.

Taylor reminds technicians to be cautious of
government laws regarding refrigerant recovery,
recycling, and reclaiming systems. If you have any
questions regarding these laws, please contact the
factory Service Department.

To correct rotation on a single-phase unit, change
the leads inside the beater motor. (Follow the
diagram printed on the motor.)

Electrical connections are made directly to the
terminal block provided in the main control box.

Model 8756 To the Installer

conjunction with polyolester oils is extremely
moisture absorbent. When opening a refrigeration
system, the maximum time the system is open must
not exceed 15 minutes. Cap all open tubing to
prevent humid air or water from being absorbed by
the oil.

3

WARNING: R404A refrigerant used in

131220

Section 2 To the Operator

The unit you have purchased has been carefully
engineered and manufactured to give you
dependable operation. This unit, when properly
operated and cared for, will produce a consistent
quality product. Like all mechanical products, it will
require cleaning and maintenance. A minimum
amount of care and attention is necessary if the
operating procedures outlined in this manual are
followed closely.

This Operator's Manual should be read before
operating or performing any maintenance on the
unit.

Your Taylor unit will NOT compensate for and/or
correct any errors made during the set-up or filling
operations. Thus, the initial assembly, set-up, and
priming procedures are of extreme importance. It is
strongly recommended that all personnel
responsible for the unit's operation, including
assembly and disassembly, go through these
procedures together in order to be properly trained
and to make sure that all understand their role in
using and maintaining the unit.

In the event you should require technical assistance,
please contact your local authorized Taylor
Distributor.

Note: Your Taylor warranty is valid only if the parts
are authorized Taylor parts, purchased from the
local authorized Taylor Distributor, and only if all
required service work is provided by an authorized
Taylor service technician. Taylor reserves the right
to deny warranty claims on units or parts if
non-Taylor approved parts or incorrect refrigerant
were installed in the unit, system modifications were
performed beyond factory recommendations, or it is
determined that the failure was caused by abuse,
misuse, neglect, or failure to follow all operating
instructions. For full details of your Taylor Warranty,
please see the Limited Warranty section in this
manual.

If the crossed out wheeled bin symbol is
affixed to this unit, it signifies that this unit is
compliant with the EU Directives as well as other
similar end of life legislation in effect after August
13, 2005. Therefore, it must be collected separately
after its use is completed, and cannot be disposed

as unsorted municipal waste. The user is
responsible for returning the unit to the appropriate
collection facility, as specified by your local code.

For additional information regarding applicable local
disposal laws, please contact the municipal waste
facility and/or local authorized Taylor distributor.

Compressor Warranty Disclaimer

The refrigeration compressor(s) on this unit are
warranted for the term stated in the Limited
Warranty section in this manual. However, due to
the Montreal Protocol and the U.S. Clean Air Act
Amendments of 1990, many new refrigerants are
being tested and developed, thus seeking their way
into the service industry. Some of these new
refrigerants are being advertised as drop-in
replacements for numerous applications. It should
be noted that in the event of ordinary service to this
unit's refrigeration system, only the refrigerant

specified on the affixed data label should be
used. The unauthorized use of alternate refrigerants

will void your Taylor compressor warranty. It is the
unit owner's responsibility to make this fact known to
any technician he employs.

It should also be noted that Taylor does not warrant
the refrigerant used in its equipment. For example, if
the refrigerant is lost during the course of ordinary
service to this unit, Taylor has no obligation to either
supply or provide replacement refrigerant either at
billable or unbillable terms. Taylor will recommend a
suitable replacement if the original refrigerant is
banned, obsoleted, or no longer available during the
five (5) year Taylor warranty of the compressor.

From time-to-time Taylor may test new refrigerant
alternates. Should a new refrigerant alternate prove,
through Taylor's testing, that it would be accepted as
a drop-in replacement for this unit, then the
disclaimer in this “Compressor Warranty Disclaimer”
section will not apply to the use of the alternate
refrigerant approved by Taylor.

To find out the current status of an alternate
refrigerant as it relates to your compressor warranty,
call Taylor or your local authorized Taylor distributor.
Be prepared to provide the Model/Serial Number of
the unit in question.

Note: Continuing research results in steady
improvements; therefore, information in this
Operator Manual is subject to change without
notice.

131220

4

Model 8756To the Operator

Section 3 Safety

We, at Taylor Company, are concerned about the
safety of the operator at all times when they are
coming in contact with the unit and its parts. Taylor
makes every effort to design and manufacture
built-in safety features to protect both operators and
service technicians.

Installing and servicing refrigeration equipment can
be hazardous due to system pressure and electrical
components. Only trained and qualified service
personnel should install, repair, or service
refrigeration equipment. When working on
refrigeration equipment, observe precautions noted
in the literature, tags and labels attached to the unit,
and other safety precautions that may apply. Follow
all safety code requirements. Wear safety glasses
and work gloves.

IMPORTANT - Failure to adhere to the
following safety precautions may result in
severe personal injury or death. Failure to
comply with these warnings may also damage
the unit and/or its components. Such damage
may result in component replacement and
service repair expenses.

DO NOT operate the unit without reading

this entire Operator Manual first. Failure to follow all
of these operating instructions may result in damage
to the unit, poor performance, health hazards,
personal injury, or death.

This unit is to be used only by trained
personnel. It is not intended for use by children or
people with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge.
Where limited equipment operation is allowed for
public use, such as a self-serve application,
supervision or instruction concerning the use of the
appliance by a person responsible for their safety is
required. Children should be supervised to ensure
that they do not play with the appliance.

S All repairs should be performed by an

authorized Taylor service technician.

S The main power supplies to the unit must be

disconnected prior to performing installation,
repairs, or maintenance.

S DO NOT operate the unit unless it is

properly grounded.

S DO NOT operate the unit with larger fuses

than specified on the unit's data label.

S Cord Connected Units: Only Taylor

authorized service technicians or licensed
electricians may install a plug or
replacement cord on these units.

S Units that are permanently connected to

fixed wiring and for which leakage currents
may exceed 10 mA, particularly when
disconnected or not used for long periods,
or during initial installation, shall have
protective devices such as a GFI, to protect
against the leakage of current, installed by
the authorized personnel to the local codes.

S Stationary units which are not equipped with

a power cord and a plug or another device
to disconnect the appliance from the power
source must have an all-pole disconnecting
device with a contact gap of at least 3 mm
installed in the external installation.

S Supply cords used with this unit shall be

oil-resistant, sheathed flexible cable not
lighter than ordinary polychloroprene or
other equivalent synthetic
elastomer-sheathed cord (Code designation
60245 IEC 57) installed with the proper cord
anchorage to relieve conductors from strain,
including twisting, at the terminals and
protect the insulation of the conductors from
abrasion.

If the supply cord is damaged, it must be
replaced by an authorized Taylor service
technician in order to avoid a hazard.

Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
Distributor for service.

131220

Model 8756 Safety

5

DO NOT use a water jet to clean or rinse

the unit. Failure to follow these instructions may
result in serious electrical shock.

S DO NOT allow untrained personnel to

operate this unit.

S DO NOT operate the unit unless all service

panels and access doors are restrained with
screws.

S DO NOT remove any internal operating

parts (including, but not limited to, freezer
door, beater, or scraper blades), unless all
control switches are in the OFF position.

Failure to follow these instructions may result in
severe personal injury, especially to fingers or
hands, from hazardous moving parts.

This unit has many sharp edges that can

cause severe injuries.

S DO NOT put objects or fingers in the door

spout. This may contaminate the product
and cause severe personal injury from blade
contact.

S USE EXTREME CAUTION when removing

the beater assembly. The scraper blades
are very sharp.

This unit must be placed on a level surface.
Extreme care should be taken when moving the unit
for any reason. Two or more persons are required to
safely move this unit. Failure to comply may result in
personal injury or damage to the unit.

Access to the service area of the unit must
be restricted to persons having knowledge and
practical experience with the unit, in particular as far
as safety and hygiene are concerned.

Cleaning and sanitizing schedules are
governed by your state or local regulatory agencies
and must be followed accordingly. Please refer to
the cleaning section of this Operator Manual for the
proper procedure to clean this unit.

This unit is designed to maintain product
temperature under 41°F (5°C). Any product being
added to this unit must be below 41°F (5°C). Failure
to follow this instruction may result in health hazards
and poor freezer performance.

DO NOT run the unit without product. Failure to
follow this instruction can result in damage to the
unit.

DO NOT obstruct air intake and discharge
openings:

Air cooled units require a minimum of 3” (76 mm) of
clearance around all sides of the freezer and 12”
(305 mm) on top to allow for adequate air flow
across the condenser(s). Failure to allow adequate
clearance can reduce the refrigeration capacity of
the freezer and possibly cause permanent damage
to the compressor.

For Indoor Use Only: This unit is designed to
operate indoors, under normal ambient
temperatures of 70°-75°F (21°-24°C). The unit has
successfully performed in high ambient
temperatures of up to 104°F (40°C) at reduced
capacities.

NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of

1.0 meter from the surface of the unit and at a
height of 1.6 meters from the floor.

131220

6

Model 8756Safety

Notes:

Model 8756 Safety

7

Section 4 Operator Parts Identification

Figure 1

8

Model 8756Operator Parts Identification

8756 Parts Identification

ITEM DESCRIPTION PART NO.

1 PANEL A.-FRONT X22879
2 STUD-NOSE CONE 068410
3 BOLT-CARRIAGE 012347
4 PANEL A.-LOWER SIDE (R & L) X23956
5 PANEL-UPPER SIDE LEFT 028599
6 HOOD 048526
7 PANEL-UPPER REAR 022015
8 PANEL-LOWER REAR 023598

9 PANEL-UPPER SIDE RIGHT 028600
10 PAN-DRIP 17-1/4” LONG 027504
11 CASTER-SWIVEL 3/4-10 3” WHL 021279
12 GASKET-CABINET MIX DOOR 024629
13 PROBEA.-MIX(2) X35981
14 BOOT-MIX COVER 037200
15 TANK A.-MIX W/DECALS X38755

15a* TANK (ONLY) 034928

ITEM DESCRIPTION PART NO.

16 COVER-MIX TANK 024590
17 FUNNEL-MIX 036637
18 TRAY-DRIP 22-7/8 X 5-1/8 014533
19 SHIELD-SPLASH 23” LONG 022766
20 COVER-LEFT MIX STORAGE 037138
21 COVER-RIGHT MIX STORAGE 037139
22 TRIM-CORNER-LEFT/RIGHT 022013
23 TRIM A.-SIDE LEFT/RIGHT X22424
24 TRIM A.-SHELF X24813
25 TRIM-FRONT-LEFT 024824-SP
26 TRIM-FRONT-RIGHT 024825
27 TRIM-BOTTOM CABINET 024826
28 STRIP-TOP TRIM 024827
29 CASTER 3” SWIVEL (FRONT) 030307
30 SCREW-6-32 X 3/8 SLOTTED 002201

*NOT SHOWN

Model 8756 Operator Parts Identification

9

Beater Door Assembly

ITEM DESCRIPTION PART NO.

1 HANDLEA.-DRAW ADJ X55096
1a HANDLE-ADJUSTABLE 028804
1b SCREW-ADJUSTMENT 055092
1c O-RING-1/4 OD X .070W 50 015872
1d NUT-5/16-24 FINISHED HEX 029639-BLK
2 RODA.-PIVOT-SHORT X22388
3 O-RING-3/8OD X .070W 016137
4 PLUG-PRIME 028805
5 GASKET-DOOR HT 4"-DOUBLE 048926
6 KIT A.-BEATER-FRONT SHOES X50350
6a SHOE-FRONT HELIX-REAR 050346
6b BEARING-FRONT-SHOE 050348
6c SHOE-FRONT HELIX-FRONT 050347

Figure 2

ITEM DESCRIPTION PART NO.

7 BEATERA.-3.4QT-1 PIN X46231
8 SHAFT-BEATER 032564

9 SEAL-DRIVE SHAFT 032560
10 BLADE-SCRAPER-PLASTIC 046235
11 CLIP-SCRAPER·BLADE-7.00·IN 046236
12 O-RING-5/16 OD X .070W 016272
13 ROD A.-PIVOT-LONG X22387
14 DOOR A.-3 SPOUT X51532-12
15 O-RING-7/8 OD X .103W 014402
16 CAP-DESIGN-1.010"ID-6 POINT 014218
17 VALVE A.-DRAW X18303
18 NUT-STUD-SHORT 034383
19 NUT-STUD-LONG 034382

10

Model 8756Operator Parts Identification

Air/Mix Pump Assembly

ITEM DESCRIPTION PART NO.

1 CAP-PUMP 021276-9

2 PIN-RETAINING 021276-8

*3 PUMP A.-SOFT SERVE

COMPLETE
3a CYLINDER A.-PUMP 022345-1
3b PIN-RETAINING 021276-8
3c PISTON 021276-2
3d RING-CHECK 2” OD x 1/2 020050
3e O-RING 2-1/8 OD x .139 W 020051
3f BODY A.-VALVE X22345-3
3g O-RING - 13/16 OD x .139 W 021278
3h ELBOW-INLET 90 DEGREE 022502-4

4 ORIFICE 023425-50
5 O-RING - 3/8 OD x .070 W 016137
6 LINE A.-FLARE 038299
7 LINE A.-PUMP PRESSUSRE X27139
8 DIAPHRAGM-PRESSURE

SWITCH

9 TUBE-VINYL 5/8 ID X 1/8 WALL 020945-18

10 COUNTERWEIGHT-SUCTION

TUBE

*INCLUDES ITEMS 3a-3h

X22345

020249

020452

Figure 3

Model 8756 Operator Parts Identification

11

Accessories

ITEM DESCRIPTION PART NO.

1 BRUSH-MIX PUMP BODY 023316
2 BRUSH-PRESSURE SWITCH 027647
3 BRUSH SET-LVB 050103
4 BRUSH-FEED TUBE 021101
5 BRUSH-DOUBLE ENDED 013072
6 BRUSH-REAR BEARING 013071

140814

Figure 4

12

ITEM DESCRIPTION PART NO.

7 BRUSH-DRAW VALVE 013073

*8 SANITIZER-STERA SHEEN

GREEN

9 LUBRICANT-TAYLOR 4 OZ. 047518
10 KIT A.-TUNE UP X49463-2
11 PAIL-10 QT. 013163

*Note: A sample container of sanitizeris sent with the
unit. For reorders,order Stera Sheen part no. 055492
(100 packs) or Kay-5 part no. 041082 (125 packs).

SEE NOTE

Model 8756Operator Parts Identification

Section 5 Important: To the Operator

Figure 5

ITEM DESCRIPTION

1 POWER SWITCH (TOGGLE)
2 RESET SWITCH
3 MIX REFRIGERATION CONTROL
4 STANDBY KEY
5 WASH KEY

Model 8756 Important: To the Operator

ITEM DESCRIPTION

6 AUTO KEY
7 PUMP KEY
8 MIX LOW INDICATOR
9 MIX OUT INDICATOR

13

Symbol Definitions

Reset Button

To better communicate in the International arena,
the words on many of our operator switches and
buttons have symbols to indicate their functions.
Your Taylor equipment is designed with these
International symbols.

=AUTO

=ON

=OFF

=MIXREF

= WASH

=PUMP

= STANDBY

=MIXLOW

= MIX OUT

Power Switch

The reset button is located in the decorative plate
above the SOFTECH controls. The reset protects
the beater motor from an overload condition. Should
an overload occur, the reset mechanism will trip. To
properly reset the freezer, press the AUTO key to
cancel the cycle. Turn the power switch to the OFF
position. Press the reset button firmly. Turn the
power switch to the ON position. Press the WASH
key and observe the freezer's performance. The
beater motor should be turning the drive shaft in a
clockwise (from operator end) direction without
binding.

If it is turning properly, press the WASH key to
cancel the cycle. Press the AUTO key on both sides
to resume normal operation. If the freezer shuts
down again, contact a service technician.

MIX REF

When the MIX REF key is pressed, the light comes
on, indicating the mix cabinet refrigeration system is
operating. There are two touch-tone panels, one for
each freezing cylinder. The mix refrigeration system
is controlled by the MIX REF key found on the left
panel. By pressing the AUTO key on either side of
the freezer, the MIX REF function is automatically
turned on. The MIX REF function cannot be
cancelled unless the AUTO or STANDBY mode is
cancelled first.

When placed in the ON position, the power switch
allows SOFTECH control panel operation.

Indicator Lights ­MIX LOW and MIX OUT

When the MIX LOW light begins to flash, the mix
tank has a low supply of mix and should be refilled
as soon as possible. When the MIX OUT light
begins to flash, it indicates the mix tank has been
almost completely exhausted and has an insufficient
supply of mix to operate the freezer. At this time, the
STANDBY and AUTO modes are locked out and the
freezer shuts down. To initiate the refrigeration
system, add mix to the tank and press the AUTO
key. The freezer will automatically begin operation.

Standby

During long “No Sale” periods it becomes necessary
to warm the product in the freezing cylinder to
approximately 35_ to 40_F(1.7_to 4.4_C) to prevent
overbeating and product breakdown.

When the STANDBY key is pressed, the light comes
on, indicating the CTR (Cylinder Temperature
Retention System) has been activated. In the
STANDBY mode, the WASH, PUMP, and AUTO
functions are automatically cancelled. The MIX REF
function is automatically locked in to maintain the
mix in the cabinet.

To resume normal operation, press the AUTO key.
When the unit cycles off, the product in the freezing
cylinder will be at serving viscosity.

14

Model 8756Important: To the Operator

Wash

Adjustable Draw Handle

When the WASH key is pressed, the light comes on,
indicating beater motor operation. The STANDBY or
AUTO modes must be cancelled first to activate the
WASH mode.

Auto

When the AUTO key is pressed, the light comes on,
indicating the main refrigeration system has been
activated. In the AUTO mode, the WASH or
STANDBY functions are automatically cancelled.
The MIX REF function is automatically locked in to
maintain the mix in the cabinet and the PUMP
function is locked in to allow air/mix pump operation
as required.

Pump

When the PUMP key is pressed, the light comes on
indicating the air/mix pump will operate as required.

Note: An indicating light and an audible tone will
sound whenever a mode of operation has been
pressed. To cancel any function, press the key
again and the light and mode of operation will shut
off.

This unit features an adjustable draw handle to
provide the best portion control, giving a better,
consistent quality to your product and controlling
costs. The draw handle should be adjusted to
provide a flow rate of 5 to 7-1/2 oz. of product by
weight per 10 seconds. To increase the flow rate,
turn the screw counterclockwise. To decrease the
flow rate, turn the screw clockwise.

In addition, for purposes of sanitizing and rinsing,
the flow rate can be increased by removing the pivot
pin and placing the restrictive bar on the top.

When drawing product, always have the restrictive
bar on the bottom.

IMPORTANT! When dispensing product, pull
only one draw handle at a time.

Model 8756 Important: To the Operator

15

Section 6 Operating Procedures

The Model 8756 has two freezing cylinders. The size
of each freezing cylinder is 3.4 quarts (3.2 liters).
Mix is stored in the lower front refrigerated
compartment and is pumped up to the freezing
cylinder by an air/mix pump.

Duplicate the following procedures, where they
apply, for the second freezing cylinder.

We begin our instructions at the point where we
enter the store in the morning and find the parts laid
out to air dry from the previous night's brush
cleaning.

If you are disassembling the machine for the first
time, or need information to get to this starting point
in our instructions, turn to page 32, “Disassembly”
and start there.

Assembly

Note: For ease of cleaning, the seal may be turned

inside out. Be sure to position the seal correctly
during assembly.

Figure 6

MAKE SURE THE POWER SWITCH IS IN

THE “OFF” POSITION. Failure to follow this

instruction may result in electrocution or injury to
fingers or hands from hazardous moving parts.

Step 1

Lubricate the groove and shaft portion that comes in
contact with the bearing on the beater drive shaft.
Slide the seal over the shaft and groove until it
snaps into place. DO NOT lubricate the hex end of
the drive shaft. Fill the inside portion of the seal
with1/4” more lubricant and evenly lubricate the end
of the seal that fits onto the rear shell bearing.

Figure 7

16

Model 8756Operating Procedures

Step 2

Install the drive shaft through the rear shell bearing
in the freezing cylinder and engage the hex end
firmly into the gear box coupling. Be sure the drive
shaft fits into the drive coupling without binding.

Figure 8

Step 3

Check the scraper blades for any nicks or signs of
wear. If any nicks are present, replace both blades.

If the blades are in good condition, install the
scraper blade clips on the scraper blades. Place the
rear scraper blade over the rear holding pin on the
beater.

Step 4

Holding the rear blade on the beater, slide it into the
freezing cylinder half way. Install the front scraper
blade over the front holding pin.

Figure 10

Step 5

Install the beater shoes. Slide the beater assembly
the rest of the way into the freezing cylinder.

Figure 11

Make sure the beater assembly is in position over
the drive shaft. Turn the beater slightly to be certain
that the beater is properly seated. When in position,
the beater will not protrude beyond the front of the

Figure 9

Note: The hole on the scraper blade must fit
securely over the pin to prevent costly damage.

Model 8756 Operating Procedures

freezing cylinder.

Repeat these steps for the other side of the
freezer.

17

Step 6

Place the large rubber gaskets in the grooves on the
back side of the freezer door.

Figure 12

Step 7

Slide the white plastic front bearings over the baffle
rods. Make certain that the flanged end of the
bearing is resting against the freezer door. DO NOT

lubricate the gaskets or the front bearings.

Figure 14

Step 9

Insert the prime plugs into the holes at the top of the
freezer door and push down.

Figure 13

Step 8

Slide the o-rings into the grooves on the prime
plugs. Apply an even coat of lubricant to the o-rings
and the shafts.

Figure 15

Step 10

Insert the baffle rods through the beaters in the
freezing cylinders.

Figure 16

18

Model 8756Operating Procedures

Step 11

With the door seated on the freezer studs, install the
short handscrews on the bottom and the long
handscrews on the top. Tighten the handscrews
equally in a criss-cross pattern until the door is snug.

Step 13

Lubricate the inside of the freezer door spouts, top
and bottom. Insert the draw valves from the bottom
of the door until the slot in the draw valves comes
into view.

Figure 17

Step 12

Slide the two o-rings into the grooves on the draw
valves. Lubricate the o-rings.

Figure 18

Figure 19

Step 14

Slide the o-rings into the grooves on the pivot pins.
Lubricate the o-rings.

Figure 20

Model 8756 Operating Procedures

19

Step 15

Slide the fork of each draw handle into the slot of the
draw valves, starting from the right. Slide the long
pivot pin through the right and middle draw handles.
Secure the left draw handle with the short pivot pin.

Figure 21

Step 17

Slide the rear drip pan into the hole in the side
panel.

Note: This unit features adjustable draw handles to
provide the best portion control, giving a better
consistency quality to your product and controlling
costs. The draw handles can be adjusted for
different flow rates. See page 15 for more
information on adjusting these handles.

Step 16

Snap the design caps over the bottom of each door
spout.

Figure 22

Figure 23

Step 18

Install the front drip tray and the splash shield
beneath the door spouts.

Figure 24

20

Model 8756Operating Procedures

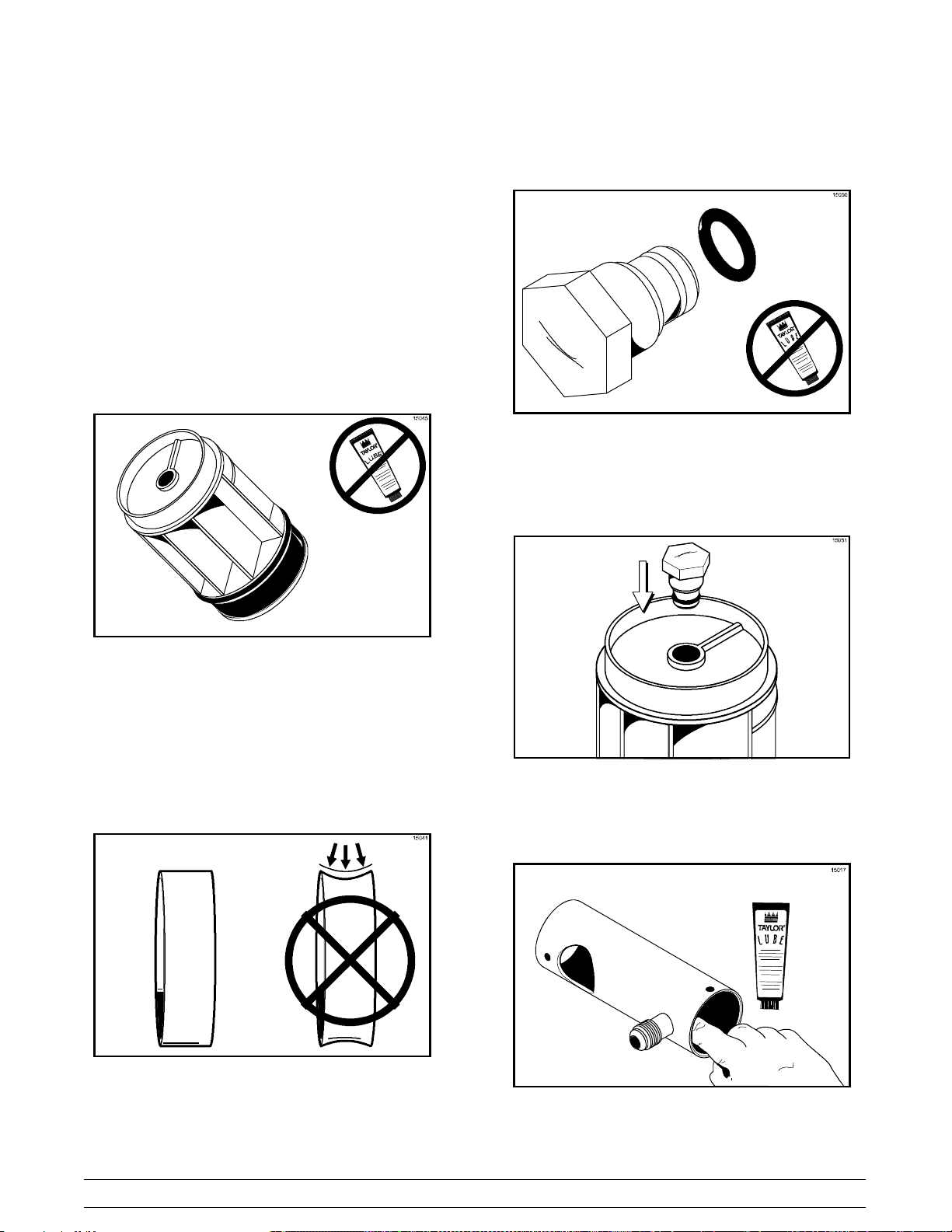

Air/Mix Pump Assembly

This Model 8756 uses a single-stage pump. The
purpose of the pump is to transfer specific amounts
of air and mix to the freezing cylinder.

Step 1

Assemble the piston by sliding the check band and
the o-ring into the grooves on the piston. Do not

lubricate the check band or o-ring.

Step 2

Slide the small o-ring into the groove in the air
orifice. DO NOT lubricate this o-ring.

Figure 27

Step 3

Check the small hole in the air orifice to insure that it
is not clogged. Place the air orifice into the top of the
piston.

Figure 25

Note: A concave shaped check band indicates an
incorrect assembly. Turn the check band inside out
to correctly expose the flat surface.

Figure 26

Figure 28

Step 4

Lightly lubricate the inside of the pump body, top
and bottom.

Figure 29

Model 8756 Operating Procedures

21

Step 5

Insert the piston, air orifice end first, into the pump
body and push upward.

Step 6

Slide the two check bands and the two o-rings into
the grooves on the liquid valve body. Do not
lubricate the check bands or o-rings.

Figure 30

Note: The drive hole in the piston must be visible
through the hole in the pump body.

Figure 31

Figure 32

Step 7

Insert the liquid valve body by aligning the steel
button at the base of the liquid valve body with the
cut-out groove at the bottom of the pump body.

Figure 33

22

Model 8756Operating Procedures

Step 8

Slide the o-ring into the groove on the mix inlet fitting
and lubricate the o-ring.

Step 10

Secure the pump parts in position by sliding the
keeper pin through the holes located at the bottom
of the pump body.

Figure 36

Figure 34

Step 9

Insert the mix inlet fitting into the holein the base of
the liquid valve body.

Figure 35

Step 11

Assemble the flare line and suction line. Attach the
suction line to the barbed end of the mix inlet fitting
and allow the weighted end to hang freely.

Attach one end of the flare line to the threaded fitting
on the lower side of the pump body. Allow the other
end to hang freely.

Figure 37

Model 8756 Operating Procedures

23

Step 12

To secure the air/mix pump, place the pump collar
over the pump body. (The cross holes of the pump
collar will be on top.)

Figure 38

Align the drive hole in the piston to the ball crank of
the motor reducer. At the same time, align the
locating pin on the face plate.

Figure 40

Step 14

Place the diaphragm into its groove in the pressure
switch cap.

Slide the pump collar upward into the grooves on the
side of the face plate and secure the air/mix pump in
place by slipping the keeper pin through the cross
holes of the pump collar.

Note: Alignment of the air/mix pump is extremely
important. Severe and costly damage may occur if it
is not properly aligned.

Figure 39

Step 13

Lubricate both sides of the pressure switch
diaphragm.

Figure 41

Step 15

Screw the cap securely onto the housing.

Figure 42

Repeat these steps for the other side of the
freezer.

24

Model 8756Operating Procedures

Sanitizing

Step 1

Prepare a pail of approved 100 PPM sanitizing solu­tion (examples: 2-1/2 gal. [9.5 liters] of Kay-5R or
2 gal. [7.6 liters] of Stera-SheenR). USE WARM
WATER AND FOLLOW THE MANUFACTURER'S
SPECIFICATIONS.

Step 2

Place the pail of sanitizing solution inside the mix
cabinet.

Step 3

Brush clean the mix inlet tube with the long brush
and the sanitizing solution.

Step 5

Attach the quick disconnect fitting of the pressure
line to the other fitting on the mix inlet tube, just
above the flare line. Allow the other end to hang
free.

Figure 45

Figure 43

Step 4

Connect the free end of the flare line to the threaded
fitting on the mix inlet tube.

Figure 44

Step 6

Insert the free end of the suction line and the
pressure line into the pail of sanitizing solution.

Figure 46

Step 7

Place the power switch in the ON position.

Model 8756 Operating Procedures

25

Step 8

Press the PUMP key. A light will illuminate,
indicating that the air/mix pump is operating. This
action will cause the sanitizing solution to be
pumped through the air/mix pump and out through
the pressure line. After approximately 15 seconds,
press the PUMP key. The light will extinguish and
the pump will stop operation.

Figure 47

Step 9

Drain the pressure line. Connect the free end of the
pressure line to the pressure switch.

Step 10

Place an empty pail beneath the door spout. Raise
the prime plug.

Figure 49

Step 11

Press the WASH and PUMP keys. The indicator
lights will illuminate, indicating pump and beater
motor operation.

Figure 48

26

Figure 50

Model 8756Operating Procedures

Step 12

When a steady stream of sanitizing solution is
flowing from the prime plug hole in the bottom of the
freezer door, press the PUMP key. This will
de-activate pump operation. Push down the prime
plug and allow the beater to agitate for 5 minutes.

Step 14

When the sanitizer stops flowing from the door
spout, close the draw valve. Press the WASH and
PUMP keys to stop operation.

Figure 51

Step 13

After 5 minutes, open the prime plug. Press the
PUMP key. Open the draw valve and draw off the
remaining sanitizer. Momentarily open the center
draw handle to sanitize the center door spout.

Figure 52

Figure 53

Step 15

Disconnect the pressure line from the pressure
switch. Drain the sanitizer. Reconnect the pressure
line to the pressure switch.

Repeat these steps for the second freezing
cylinder.

Step 16

Prepare a sink with an approved sanitizing solution
(examples: Stera SheenR or Kay-5R). USE WARM
WATER AND FOLLOW THE MANUFACTURER'S
SPECIFICATIONS.

Step 17

Take the following parts to the sink and sanitize:
mix tanks, mix tank covers, mix probes, mix storage
covers, and funnels.

Model 8756 Operating Procedures

27

Priming

Step 1

Place the mix tank and the cover in the mix cabinet.

Step 2

Insert the prongs of the mix probe inside the mix
tank. Connect the mix probe in the socket
receptacle.

Figure 54

Step 3

Place the free end of the suction line into the mix
tank.

Step 4

Install the funnel. Fill the mix tank with fresh mix.

Figure 56

Step 5

Remove the funnel and install the mix storage cover.
Close the mix cabinet door.

Step 6

Place an empty pail beneath the door spout and
open the draw valve. With the prime plug still in the
UP position, press the PUMP key. This will allow the
mix to be pumped through the freezing cylinder and
force out any remaining sanitizer. When full strength
mix is flowing from the door spout, close the draw
valve.

Figure 55

28

Figure 57

Model 8756Operating Procedures

Step 7

When a steady stream of mix is flowing from the
prime plug hole in the bottom of the freezer door,
press the PUMP key to stop operation.

Figure 60

Figure 58

Step 8

Once the stream of mix stops flowing from the prime
plug hole, push down the prime plug. Rinse the
prime plug hole area with water. Remove the pail
and discard the mix and sanitizer.

Figure 59

Step 9

Press the AUTO key. The MIX REF indicator will
illuminate to indicate the mix refrigeration system is
operating. The AUTO indicator will illuminate to
indicate that the main refrigeration system is
operating. The PUMP indicator will illuminate to
indicate that the air/mix pump will operate whenever
mix is needed in the freezing cylinder.

Repeat these steps for the other side of the
freezer.

When the unit cycles off, the product will be at the
correct viscosity.

Note: Keep the mix cabinet door closed except
when filling the mix tank and during cleaning and
sanitizing procedures. Leaving the door open while
the mix refrigeration system is active may cause the
evaporator to ice up and impair the mix cabinet
refrigeration.

Closing Procedure

To disassemble the Model 8756, the following items
will be needed:

S Two cleaning and sanitizing pails
S Necessary brushes (provided with freezer)
S Cleaner
S Single service towels

Model 8756 Operating Procedures

29

Draining Product From the
Freezing Cylinder

Step 1

Press the AUTO and MIX REF keys to cancel
freezer operation.

Step 2

Open the mix cabinet door and remove the mix
storage cover, the mix tank cover, the mix tank, and
the mix probe.

Step 3
If local health codes permit the use of rerun,

empty the mix from the mix tank into a sanitized,
NSF approved stainless steel rerun container. Place
a sanitized lid on the rerun container and place it in
the walk-in cooler.

Note: If local health codes DO NOT permit the
use of rerun, the product must be discarded.

Step 4

Placethesuctionlineinanemptypailinthemix
cabinet.

Rinsing

Step 1

Fill the empty pail in the mix cabinet with two gallons
(7.6 liters) of cool, clean water. Place the free end
of the suction line in the pail of water.

Step 2

Disconnect the pressure line from the pressure
switch and place it in the pail of water.

Step 3

Press the PUMP key. This action will cause the
rinse water to be pumped through the air/mix pump
and out through the pressure line. After
approximately 15 seconds, press the PUMP key to
stop operation.

Repeat these steps for the second freezing
cylinder.

ALWAYS FOLLOW LOCAL HEALTH CODES.

Figure 61

Step 4

Drain and connect the free end of the pressure line
to the pressure switch.

30

Model 8756Operating Procedures

Step 5

Place an empty pail beneath the door spout. Raise
the prime plug and press the WASH and PUMP
keys.

Figure 62

Step 6

When a steady stream of rinse water is flowing from
the prime plug hole in the bottom of the freezer door,
open the draw valve and drain all the rinse water.

Cleaning

Step 1

Prepare a pail of approved 100 PPM cleaning solu­tion (examples: 2-1/2 gal. [9.5 liters] of Kay-5R or
2 gal. [7.6 liters] of Stera-SheenR). USE WARM
WATER AND FOLLOW THE MANUFACTURER'S
SPECIFICATIONS.

Step 2

Place the pail of cleaning solution inside the mix
cabinet and insert the suction line.

Step 7

Once the rinse water stops flowing from the door
spout, close the draw valve and press the WASH
and PUMP keys to stop operation.

Figure 63

Step 8

Disconnect the pressure line from the pressure
switch. Drain the water and then reconnect.

Step 9

Repeat this procedure using clean warm water, until
the water being discharged is clear.

Repeat these steps for the second freezing
cylinder.

Figure 64

Step 3

Disconnect the pressure line from the pressure
switch and place it in the pail of cleaning solution.

Step 4

Press the PUMP key. This action will cause the
cleaning solution to be pumped through the air/mix
pump and out through the pressure line. After
approximately 15 seconds, press the PUMP key to
stop operation.

Figure 65

Step 5

Drain and connect the free end of the pressure line
to the pressure switch.

Model 8756 Operating Procedures

31

Step 6

Place an empty pail beneath the door spout. Raise
the prime plug and press the WASH and PUMP
keys.

Figure 66

Step 7

When a steady stream of solution is flowing from the
prime plug hole in the bottom of the freezer door,
open the draw valve and draw off the remaining
cleaning solution.

Step 8

Once the solution stops flowing from the door spout,
close the draw valve and press the WASH and
PUMP keys to stop operation.

Step 9

Place the power switch in the OFF position before
disassembling the machine.

Figure 68

Disassembly

MAKE SURE THE POWER SWITCH IS IN

THE “OFF” POSITION. Failure to follow this

instruction may result in electrocution or injury to
fingers or hands from hazardous moving parts.

Step 1

Remove the handscrews, freezer door, beaters,
shoes, scraper blades and the drive shafts from the
freezing cylinders. Take these parts to the sink for
cleaning.

Figure 67

Repeat these steps for the other side of the
freezer.

Step 2

Remove the air/mix pump. Unscrew the flare line
from the mix inlet tube. Disengage the pressure line
from the pressure switch and the mix inlet tube. Pull
the retaining pin out of the pump collar and slide the
collar down. Tilt the air/mix pump away from the
machine and take the entire assembly to the sink for
further disassembly and brush cleaning.

Step 3

Remove the pressure switch cap from the mix
cabinet. Remove the diaphragm from the cap.

Repeat Steps 3 and 4 for the other side of the
freezer.

Step 4

Remove the front drip tray and the splash shield.

32

Model 8756Operating Procedures

Brush Cleaning

Step 1

Prepare a sink with an approved cleaning solution
(examples: Kay-5R or Stera-SheenR). USE
WARM WATER AND FOLLOW THE
MANUFACTURER'S SPECIFICATIONS.

If an approved cleaner other than Kay-5r or
Sterar-Sheen is used, dilute it according to the label
instructions. IMPORTANT: Follow the label
directions. Too STRONG of a solution can cause
parts damage and too MILD of a solution will not
provide adequate cleaning. Make sure all brushes
provided with the freezer are available for brush
cleaning.

Step 2

Remove the seals from the drive shafts.

Step 3

Remove the scraper blade clips from the scraper
blades.

Step 4

From the freezer doors, remove the gaskets, front
bearings, pivot pins, draw handles, draw valves,
prime plugs, and design caps. Remove all o-rings.

Note: To remove the o-rings, use a single service
towel to grasp the o-ring. Apply pressure in an
upward direction until the o-ring pops out of its
groove. With the other hand, push the top of the
o-ring forward. It will roll out of the groove and can
be easily removed. If there is more than one o-ring
to be removed, always remove the rear o-ring first.
This will allow the o-ring to slide over the forward
rings without falling into the open grooves.

Step 5

Remove the flare lines, the suction lines, the
retaining pins and the mix inlet fittings from the
pump cylinders. Remove the liquid valve bodies
from the pump cylinders.

Remove the pistons from the pump cylinders.
Remove all o-rings and check bands.

Step 6

Return to the freezer with a small amount of
cleaning solution. Use the black bristle brush to
brush clean the rear shell bearings at the back of the
freezing cylinders.

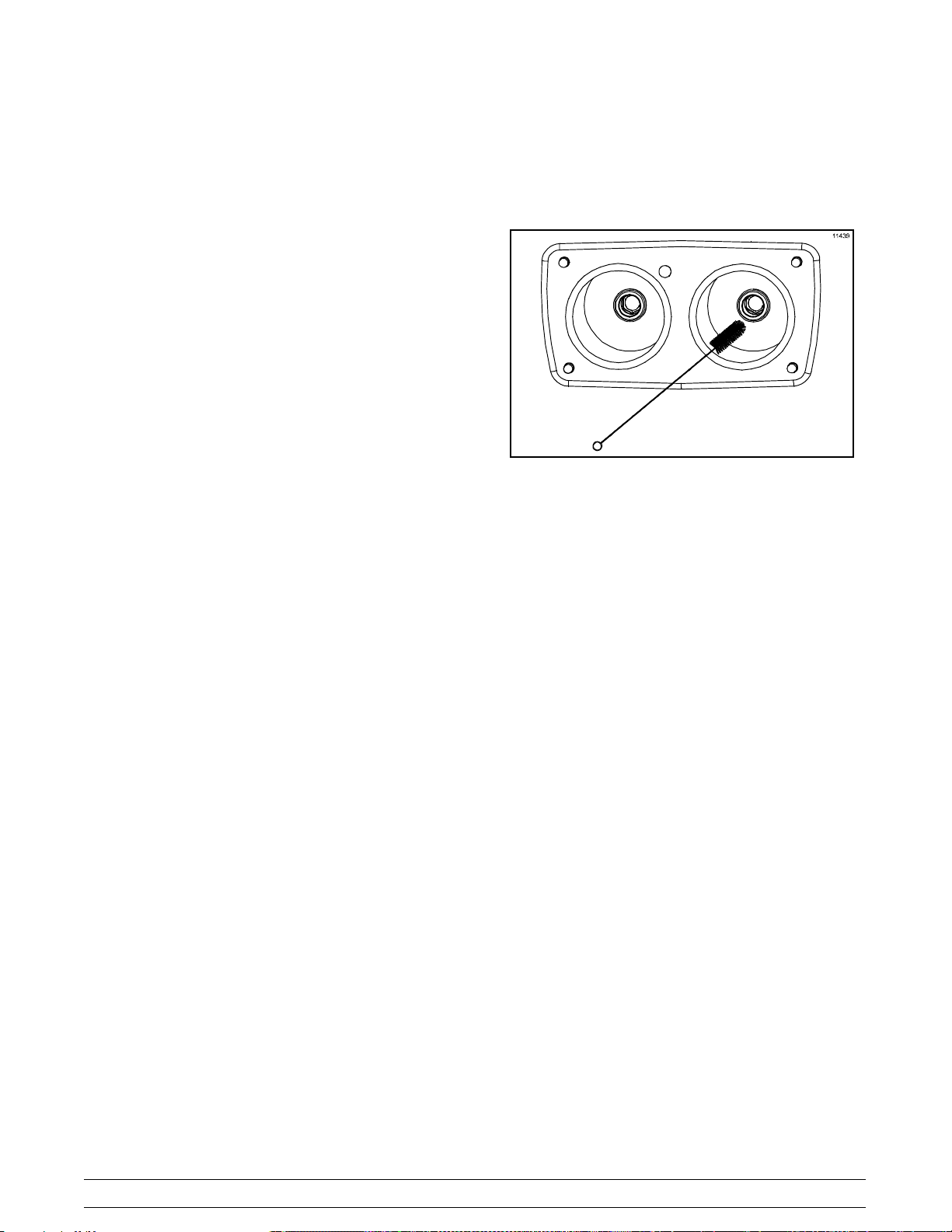

Figure 69

Step 7

Using the long, flexible brush and cleaning solution,
clean the mix inlet tubes located in the mix cabinet.
Thoroughly clean the tubes all the way up to the
freezing cylinder. This area needs special attention
because bacteria and milkstone can build up here.

Step 8

Remove the rear drip pan from the side panel and
take it to the sink for cleaning.

Note: If the rear drip pan is filled with an excessive
amount of mix, refer to the Troubleshooting Guide.

Step 9

Thoroughly brush clean all disassembled parts in the
cleaning solution. Make sure all lubricant and mix
film is removed. Take particular care to brush clean
the draw valve cores in the freezer door.

Step 10

Place the parts on a clean, dry surface to air dry
overnight.

Step 11

Wipe clean all exterior surfaces of the freezer and
the mix cabinet.

Model 8756 Operating Procedures

33

Section 7 Important: Operator Checklist

During Cleaning and Sanitizing

ALWAYS FOLLOW LOCAL HEALTH CODES.

Cleaning and sanitizing schedules are governed
by federal, state, or local regulatory agencies,
and must be followed accordingly. If the unit
has a “Standby mode”, it must not be used in
lieu of proper cleaning and sanitizing
procedures and frequencies set forth by the
ruling health authority. The following check
points should be stressed during the cleaning
and sanitizing operations.

CLEANING AND SANITIZING MUST BE

PERFORMED DAILY.

Troubleshooting Bacterial Count

j 1. Thoroughly clean and sanitize the machine

regularly, including complete disassembly and
brush cleaning.

j 2. Use all brushes supplied for thorough

cleaning. The brushes are specially designed
to reach all mix passageways.

j 3. Use the long white bristle brush to clean the

mix feed tube which extends from the mix
reservoir to the rear of the freezing cylinder.

j 4. Use the black bristle brush to thoroughly

clean the rear shell bearing located at the rear
of the freezing cylinder. Be sure there is a
generous amount of cleaning solution on the
brush.

j 5. Properly prepare the cleaning and sanitizing

solutions. Read and follow the label directions
carefully. Too strong of a solution may
damage the parts and too weak of a solution
will not do an adequate job of cleaning or
sanitizing. Sanitize the freezing cylinder for 5
minutes.

j 6. The temperature of the mix in the mix cabinet

and the walk-in cooler should be below 38_F
(3.3_C).

Regular Maintenance Checks

j 1. Replace scraper blades that are bent,

damaged or worn.

j 2. Before installing the beater, be certain that the

scraper blades are properly attached over the
pins and the beater assembly is straight.

j 3. Check the rear shell bearing for signs of wear

(excessive mix leakage in the rear drip pan)
and be certain it is properly cleaned.

j 4. Using a screwdriver and cloth towel, keep the

rear shell bearing and the female hex drive
socket clean and free of lubricant and mix
deposits.

j 5. Dispose of o-rings and seals if they are worn,

torn, or fit too loosely, and replace with new
ones.

j 6. Follow all lubricating procedures as outlined in

“Assembly”.

34

Model 8756Important: Operator Checklist

j 7. If your machine is air cooled, check the

condensers for accumulation of dirt and lint.
Dirty condensers will reduce the efficiency
and capacity of the machine. Condensers
should be cleaned monthly with a soft brush.
Never use screwdrivers or other metal probes
to clean between the fins.
Note: For machines equipped with an air
filter, it will be necessary to vacuum the filters
on a monthly schedule.

j 8. Your machine is equipped with an auxiliary

refrigeration system. Check the auxiliary
condenser for accumulation of dirt and lint.
Dirty condensers will reduce the refrigeration
capacity of the mix cabinet. Condensers must
be cleaned monthly with a soft brush. Never
use screwdrivers or other metal probes to
clean between the fins.

j 9. On water cooled units, check the water lines

for kinks or leaks. Kinks can occur when the
machine is moved back and forth for cleaning
or maintenance purposes.

The Air/Mix Pump

j 1. Dispose of the o-rings, the check bands and

the pressure switch diaphragm if they are
worn, torn or fit too loosely. Replace them
with new ones.

j 2. Follow lubricating procedures carefully.

Never lubricate check bands.

j 3. Handle plastic pump parts with care to avoid

nicks and cracks.

j 4. Be sure the pressure line is securely attached

to the pressure switch.

j 5. Clean, sanitize, and lubricate the pressure

switch diaphragm daily.

j 6. Be sure the air/mix pump is properly aligned

with the face plate of the motor reducer or
severe and costly damage may occur.

Model 8756 Important: Operator Checklist

35

Section 8 Troubleshooting Guide

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

1. No product is being
dispensed.

a. Low on mix. The MIX

OUT light is on.

b. The power switch is in the

OFF position.

c. The beater motor is out on

reset.

d. Insufficient mix in the

freezing cylinder.

e. Restriction in the door

spout.

f. Machine is unplugged. f. Plug machine into the wall

g. Circuit breaker is off or the

fuse is blown.

h. The mix probe was not

installed properly or was
damaged.

i. The beater assembly is

rotating counterclockwise.

a. Add mix to the mix tank

and press the AUTO key.

b. Place the power switch in

the ON position and press
the AUTO key.

c. Reset the freezer. 13

d. Refer to problem #2. ---

e. Disassemble and clean

the freezer. Never put
objects or fingers in the
door spout.

receptacle.

g. Turn the breaker on or

replace the fuse.

h. Check the mix probe

installation.

i. Contact a service

technician to correct the
rotation to clockwise.

28

---

---

---

---

28

---

2. Insufficient mix in the
freezing cylinder.

a. Suction line is not fully

submerged in the mix.

b. Improper seal of suction

line to the mix inlet fitting.

c. Worn or defective check

bands or o-rings in air/mix
pump assembly.

36

a. Arrange the suction line

so the weighted end is
fully submerged.

b. Remove the suction line

from the mix inlet fitting.
Place under hot running
water, allow tubing to
swell, then cool. Connect
suction line to barbed
fitting. Eventual
replacement will be
necessary.

c. Replace regularly. Never

lubricate check bands.

28

---

21 / 41

Model 8756Troubleshooting Guide

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

2. Insufficient mix in the
freezing cylinder. (Cont'd.)

d. Missing, defective, or no

lubrication on the mix inlet
fitting o-ring.

e. The pump motor is not

activated.

f. Pressure switch

diaphragm installed
incorrectly, or missing.

g. The mix inlet tube is

frozen or clogged.

h. The mix pump ball crank

is broken.

d. Replace or evenly

lubricate the o-ring on the
mix inlet fitting.

e. Place power switch in

OFF position. Push reset
button on pump drive
motor. Return power
switch to ON position.
Press the AUTO key.

f. Diaphragm must be

correctly installed in the
pressure switch cap.

g. Use the long flexible brush

and sanitizing solution to
clear the restriction in the
mix inlet tube. Contact a
service technician to
correct the cause of
over-refrigeration in the
mix cabinet.

h. Contact a service

technician to replace the
ball crank.

23 / 41

---

24

---

---

i. Defective air/mix pump

pressure switch.

3. Product is too stiff. a. Insufficient mix in the

freezing cylinder.

b. Improper priming

procedures.
c. Out-of-date mix. c. Use fresh mix. 28/ 41
d. Viscosity control is set too

cold.

i. Contact a service

technician to replace the
pressure switch.

a. Refer to problem #2.

b. Drain the freezing cylinder

and reprime the machine.

d. Contact a service

technician.

---

28

---

Model 8756 Troubleshooting Guide

37

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

4. Product is too soft. a. Worn scraper blades. a. Replace scraper blades
regularly.

5. Mix in the mix cabinet is

too warm.

b. Dirty condensers or air

filters on air cooled units.

c. Inadequate water supply

on water cooled units.

d. Inadequate air space

around air cooled units.

e. Viscosity control is set too

warm.

a. Warm mix was placed in

the tank.

b. The mix cabinet door was

left open.

b. Clean monthly. 35

c. Check the water supply.

Check water lines for
leaks or kinks.

d. Allow adequate room for

air flow across the
condensers. Minimum of
3” (76 mm) clearance on
all sides. Do not obstruct
air discharge on top. 12”
(305 mm) clearance on
top of freezer.

e. Contact a service

technician.

a. Mix added to the mix tank

should be below 40_F
(4.4_C).

b. The door must be kept

closed.

41

1/ 35

1

---

34

28

6. Mix in the mix cabinet is

too cold.

7. Excessive mix leakage

from the bottom of the
door spout.

c. The mix cabinet door

gasket is not sealing.

d. Dirty mix cabinet

condenser or air filter.

e. The mix cabinet

refrigeration system needs
adjustment.

a. The mix cabinet

refrigeration system needs
adjustment.

a. Worn, missing or incorrect

o-ring is on the draw
valve.

b. Improper lubrication on

the draw valve o-rings.

c. Repair or replace gasket. ---

d. Clean monthly. 35

e. Contact a service

technician.

a. Contact a service

technician.

b. Check the o-rings.

(Replace every 3 months.)

c. Lubricate properly. 19

---

---

41

38

Model 8756Troubleshooting Guide

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

8. Excessive mix leakage

into the rear drip pan.

9. The drive shaft is stuck in

the gear box coupling.

10. Freezing cylinder walls are

scored.

a. Worn or missing drive

shaft seal.

b. Improper lubrication of the

drive shaft.

c. Worn rear shell bearing. c. Contact a service

d. The gear box is out of

alignment.

a. Rounded corners on hex

end of drive shaft or gear
coupling.

b. The gear box is out of

alignment.

a. Broken pins on beater

assembly.

b. Missing front bearing. b. Install the front bearing on

a. Install or replace the seal. 16/ 41

b. Lubricate properly. 16

technician to replace the
rear shell bearing.

d. Contact a service

technician to align the
gear box.

a. Replace damaged

component.

b. Contact a service

technician to align the
gear box.

a. Repair or replace the

beater assembly. Be sure
the scraper blades are
properly seated on pins.

the back of the freezer
door.

---

---

---

---

17

18

11. The air/mix pump does

not operate.

c. The beater assembly is

bent.

a. The pump motor is not

activated.

b. The pressure switch

diaphragm was installed
incorrectly or is missing.

c. Defective air/mix pump

pressure switch.

c. Repair or replace the

beater assembly. Contact
a service technician to
correct the cause of
insufficient mix in freezing
cylinder.

a. Place power switch in

OFF position. Push reset
button on pump drive
motor. Place power switch
in ON position.

b. The diaphragm must be

correctly installed in the
pressure switch cap.

c. Contact a service

technician to replace the
pressure switch.

---

---

24

---

Model 8756 Troubleshooting Guide

39

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

12. The machine will not

operate in the AUTO
mode.

13. Overrun is too low. a. The air orifice is plugged. a. Use a soap solution to

a. The machine is

unplugged.

b. The circuit breaker is off

or the fuse is blown.

c. Low on mix. The MIX

OUT light is flashing.

d. The mix probe is not

installed properly or is
damaged.

e. The beater motor is out on

reset.

f. The power switch is in the

OFF position.

g. The unit is off on high

head pressure.

a. Plug the machine into the

wall receptacle.

b. Turn the breaker on or

replace the fuse.

c. Add mix to the mix tank

and press the AUTO key.

d. Check the mix probe

installation.

e. Reset the freezer. 13

f. Place the power switch in

the ON position.

g. Air cooled: clean the

condenser.
Water cooled: check the
water supply. Contact a
service technician.

clean the small hole in the
air orifice.

---

---

13

28

25

35

---

14 Air is “popping” during the

dispensing of product.

a. Incorrect assembly of the

air/mix pump.

b. The mix suction line is

losing its prime.

a. Assemble and lubricate

the air/mix pump
components according to
instructions.

b. The mix suction line is

cracked or has a loose fit
to the mix inlet fitting.
Replace the mix suction
line.

21

---

40

Model 8756Troubleshooting Guide

Section 9 Parts Replacement Schedule

PART DESCRIPTION EVERY 3 MONTHS EVERY 6 MONTHS ANNUALLY

Scraper Blades X
Drive Shaft Seal X
Freezer Door Gasket X
Front Bearing X
Beater Shoes X
Draw Valve O-Rings X
Prime Plug O-Rings X
Air/Mix Pump O-Rings X
Check Rings X
Mix Inlet Fitting O-Ring X
Pressure Switch Diaphragm X
Design Cap X
Black Bristle Brush, 1” x 2” Inspect & Replace

if Necessary

Double Ended Brush Inspect & Replace

if Necessary

White Bristle Brush, 1” x 2” Inspect & Replace

if Necessary

White Bristle Brush, 9/16” x 44” Inspect & Replace

if Necessary

White Bristle Brush, 3” x 7” Inspect & Replace

if Necessary

Small White Bristle Brush, 1/8” Inspect & Replace

if Necessary

Brush Set Inspect & Replace

if Necessary

Minimum

Minimum

Minimum

Minimum

Minimum

Minimum

Minimum

Model 8756 Parts Replacement Schedule

41

Section 10 Limited Warranty on Equipment

TAYLOR COMPANY LIMITED WARRANTY ON FREEZERS

Taylor Company, a division of Carrier Commercial Refrigeration, Inc. (“Taylor”) is pleased to provide this limited
warranty on new Taylor-branded freezer equipment available from Taylor to the market generally (the “Product”)
to the original purchaser only.

LIMITED WARRANTY

Taylor warrants the Product against failure due to defect in materials or workmanship under normal use and
service as follows. All warranty periods begin on the date of original Product installation. If a part fails due to
defect during the applicable warranty period, Taylor, through an authorized Taylor distributor or service agency,
will provide a new or re-manufactured part, at Taylor’s option, to replace the failed defective part at no charge for
the part. Except as otherwise stated herein, these are Taylor’s exclusive obligations under this limited warranty
for a Product failure. This limited warranty is subject to all provisions, conditions, limitations and exclusions listed
below and on the reverse (if any) of this document.

Product

Soft Serve
Frozen Yogurt
Shakes
Smoothies
Frozen Beverage
Batch Desserts

1. If the date of original installation of the Product cannot be verified, then the limited warranty period begins
ninety (90) days from the date of Product manufacture (as indicated by the Product serial number). Proof of
purchase may be required at time of service.

2. This limited warranty is valid only if the Product is installed and all required service work on the Product is
performed by an authorized Taylor distributor or service agency, and only if genuine, new Taylor parts are
used.

3. Installation, use, care, and maintenance must be normal and in accordance with all instructions contained in
the Taylor Operator’s Manual.

Insulated shell assembly Five (5) years
Refrigeration compressor

(except service valve)
Beater motors Two (2) years
Beater drive gear Two (2) years
Printed circuit boards and

Softech controls beginning
with serial number H8024200

Parts not otherwise listed in
this table or excluded below

LIMITED WARRANTY CONDITIONS

Part Limited Warranty Period

Five (5) years

Two (2) years

One (1) year

4. Defective parts must be returned to the authorized Taylor distributor or service agency for credit.

5. The use of any refrigerant other than that specified on the Product’s data label will void this limited warranty.

LIMITED WARRANTY EXCEPTIONS

This limited warranty does not

1. Labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of
defective parts, replacement parts, or new Products.

2. Normal maintenance, cleaning and lubrication as outlined in the Taylor Operator’s Manual, including cleaning
of condensers.

131220

cover:

42

Model 8756Limited Warranty on Equipment

3. Replacement of wear items designated as Class “000” parts in the Taylor Operator’s Manual.

4. External hoses, electrical power supplies, and machine grounding.

5. Parts not supplied or designated by Taylor, or damages resulting from their use.

6. Return trips or waiting time required because a service technician is prevented from beginning warranty
service work promptly upon arrival.

7. Failure, damage or repairs due to faulty installation, misapplication, abuse, no or improper servicing,
unauthorized alteration or improper operation or use as indicated in the Taylor Operator’s Manual, including
but not limited to the failure to use proper assembly and cleaning techniques, tools, or approved cleaning
supplies.

8. Failure, damage or repairs due to theft, vandalism, wind, rain, flood, high water, water, lightning, earthquake
or any other natural disaster, fire, corrosive environments, insect or rodent infestation, or other casualty,
accident or condition beyond the reasonable control of Taylor; operation above or below the electrical or
water supply specification of the Product; or components repaired or altered in any way so as, in the
judgment of the Manufacturer, to adversely affect performance, or normal wear or deterioration.

9. Any Product purchased over the Internet.

10. Failure to start due to voltage conditions, blown fuses, open circuit breakers, or damages due to the
inadequacy or interruption of electrical service.

11. Electricity or fuel costs, or increases in electricity or fuel costs from any reason whatsoever.

12. Damages resulting from the use of any refrigerant other than that specified on the Product’s data label will
void this limited warranty.

13. Any cost to replace, refill or dispose of refrigerant, including the cost of refrigerant.

14. ANY SPECIAL, INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY
NATURE WHATSOEVER. Some jurisdictions do not allow the exclusion of incidental or consequential
damages, so this limitation may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from
jurisdiction to jurisdiction.

LIMITATION OF WARRANTY

THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, CONDITIONS
AND/OR REMEDIES UNDER THE LAW, INCLUDING ANY IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE ORIGINAL OWNER'S SOLE
REMEDY WITH RESPECT TO ANY PRODUCTS SHALL BE REPAIR OR REPLACEMENT OF DEFECTIVE
COMPONENTS UNDER THE TERMS OF THIS LIMITED WARRANTY. ALL RIGHTS TO CONSEQUENTIAL
OR INCIDENTAL DAMAGES (INCLUDING CLAIMS FOR LOST SALES, LOST PROFITS, PRODUCT LOSS,
PROPERTY DAMAGES OR SERVICE EXPENSES) ARE EXPRESSLY EXCLUDED. THE EXPRESS
WARRANTIES MADE IN THIS LIMITED WARRANTY MAY NOT BE ALTERED, ENLARGED, OR CHANGED
BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHATSOEVER.

LEGAL REMEDIES

The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or
complaint with the Product, stating the defect or complaint and a specific request for repair, replacement, or other
correction of the Product under warranty, mailed at least thirty (30) days before pursuing any legal rights or
remedies.

Taylor Company

a division of Carrier Commercial Refrigeration, Inc.

750 N. Blackhawk Blvd.

Rockton, IL 61072, USA

Model 8756 Limited Warranty on Equipment

43

Section 11 Limited Warranty on Parts

TAYLOR COMPANY LIMITED WARRANTY ON TAYLOR GENUINE PARTS

Taylor Company, a division of Carrier Commercial Refrigeration, Inc. (“Taylor”) is pleased to provide this limited
warranty on new Taylor genuine replacement components and parts available from Taylor to the market generally
(the “Parts”) to the original purchaser only.

LIMITED WARRANTY

Taylor warrants the Parts against failure due to defect in materials or workmanship under normal use and service
as follows. All warranty periods begin on the date of original installation of the Part in the Taylor unit. If a Part fails
due to defect during the applicable warranty period, Taylor, through an authorized Taylor distributor or service
agency, will provide a new or re-manufactured Part, at Taylor’s option, to replace the failed defective Part at no
charge for the Part. Except as otherwise stated herein, these are Taylor’s exclusive obligations under this limited
warranty for a Part failure. This limited warranty is subject to all provisions, conditions, limitations and exclusions
listed below and on the reverse (if any) of this document.

Part's Warranty Class Code or Part

Class 103 Parts¹ Three (3) months
Class 212 Parts² Twelve (12) months
Class 512 Parts Twelve (12) months
Class 000 Parts No warranty
Taylor Part #072454 (Motor-24VDC *C832/C842*) Four (4) years

LIMITED WARRANTY CONDITIONS

1. If the date of original installation of the Part cannot be otherwise verified, proof of purchase may be required
at time of service.

2. This limited warranty is valid only if the Part is installed and all required service work in connection with the
Part is performed by an authorized Taylor distributor or service agency.

3. The limited warranty applies only to Parts remaining in use by their original owner at their original installation
location in the unit of original installation.

4. Installation, use, care, and maintenance must be normal and in accordance with all instructions contained in
the Taylor Operator’s Manual.

5. Defective Parts must be returned to the authorized Taylor distributor or service agency for credit.

6. This warranty is not intended to shorten the length of any warranty coverage provided pursuant to a separate
Taylor Limited Warranty on freezer or grill equipment.

Limited Warranty Period

7. The use of any refrigerant other than that specified for the unit in which the Part is installed will void this
limited warranty.

1, 2

Except that Taylor Part #032129SER2 (Compressor-Air-230V SERV) and Taylor Part #075506SER1
(Compressor-Air-115V 60HZ) shall have a limited warranty period of twelve (12) months when used in Taylor
freezer equipment and a limited warranty period of two (2) years when used in Taylor grill equipment.

131220

44

Model 8756Limited Warranty on Parts

LIMITED WARRANTY EXCEPTIONS

This limited warranty does not

1. Labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of
defective Parts, replacement Parts, or new Parts.

2. Normal maintenance, cleaning and lubrication as outlined in the Taylor Operator’s Manual, including cleaning
of condensers or carbon and grease buildup.

3. Required service, whether cleaning or general repairs, to return the cooking surface assemblies, including
the upper platen and lower plate, to an operational condition to achieve proper cooking or allow proper
assembly of release sheets and clips as a result of grease build-up on the cooking surfaces, including but
not limited to the platen and plate, sides of the shroud or top of the shroud.

4. Replacement of cooking surfaces, including the upper platen and lower plate, due to pitting or corrosion (or
in the case of the upper platen, due to loss of plating) as a result of damage due to the impact of spatulas or
other small wares used during the cooking process or as a result of the use of cleaners, cleaning materials
or cleaning processes not approved for use by Taylor.

5. Replacement of wear items designated as Class “000” Parts in the Taylor Operator’s Manual, as well as any
release sheets and clips for the Product’s upper platen assembly.

6. External hoses, electrical power supplies, and machine grounding.

7. Parts not supplied or designated by Taylor, or damages resulting from their use.

8. Return trips or waiting time required because a service technician is prevented from beginning warranty
service work promptly upon arrival.

cover:

9. Failure, damage or repairs due to faulty installation, misapplication, abuse, no or improper servicing,
unauthorized alteration or improper operation or use as indicated in the Taylor Operator’s Manual, including
but not limited to the failure to use proper assembly and cleaning techniques, tools, or approved cleaning
supplies.

10. Failure, damage or repairs due to theft, vandalism, wind, rain, flood, high water, water, lightning, earthquake
or any other natural disaster, fire, corrosive environments, insect or rodent infestation, or other casualty,
accident or condition beyond the reasonable control of Taylor; operation above or below the gas, electrical or
water supply specification of the unit in which a part is installed; or Parts or the units in which they are
installed repaired or altered in any way so as, in the judgment of Taylor, to adversely affect performance, or
normal wear or deterioration.

11. Any Part purchased over the Internet.

12. Failure to start due to voltage conditions, blown fuses, open circuit breakers, or damages due to the
inadequacy or interruption of electrical service.

13. Electricity, gas or other fuel costs, or increases in electricity or fuel costs from any reason whatsoever.

14. Damages resulting from the use of any refrigerant other than that specified for the unit in which the Part is
installed will void this limited warranty.

15. Any cost to replace, refill or dispose of refrigerant, including the cost of refrigerant.

16. ANY SPECIAL, INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY
NATURE WHATSOEVER. Some jurisdictions do not allow the exclusion of incidental or consequential
damages, so this limitation may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from
jurisdiction to jurisdiction.

Model 8756 Limited Warranty on Parts

45

LIMITATION OF WARRANTY

THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, CONDITIONS
AND/OR REMEDIES UNDER THE LAW, INCLUDING ANY IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE ORIGINAL OWNER'S SOLE
REMEDY WITH RESPECT TO ANY PRODUCTS SHALL BE REPAIR OR REPLACEMENT OF DEFECTIVE
PARTS UNDER THE TERMS OF THIS LIMITED WARRANTY. ALL RIGHTS TO CONSEQUENTIAL OR
INCIDENTAL DAMAGES (INCLUDING CLAIMS FOR LOST SALES, LOST PROFITS, PRODUCT LOSS,
PROPERTY DAMAGES OR SERVICE EXPENSES) ARE EXPRESSLY EXCLUDED. THE EXPRESS
WARRANTIES MADE IN THIS LIMITED WARRANTY MAY NOT BE ALTERED, ENLARGED, OR CHANGED
BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHATSOEVER.

LEGAL REMEDIES

The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or
complaint with the Part, stating the defect or complaint and a specific request for repair, replacement, or other
correction of the Part under warranty, mailed at least thirty (30) days before pursuing any legal rights or remedies.

Taylor Company

a division of Carrier Commercial Refrigeration, Inc.

750 N. Blackhawk Blvd.

Rockton, IL 61072, USA

46

Model 8756Limited Warranty on Parts

Section 12 Parts List

REMARKS

CLASS

QTY. WARR.

NUMBER

DESCRIPTION PART

ADAPTOR-PUMP-CABINET 024259 2 103

BEARING-REAR SHELL-NICKEL 031324 2 000

+ Available Separately

Model 8756

+GUIDE-DRIP SEAL 028992 2 000

+NUT-BRASS BEARING 028991 2 000

+WASHER-BEARING LOCK 012864 2 000

BEATER A.-3.4QT-1PIN-SUPPORT X46231 2 103

+BLADE-SCRAPER-PLASTIC 046235 4 000

+CLIP-SCRAPER BLADE 046236 4 103

CAPACITOR-RUN 7.5UF/370V 034749 1 103

BOOT-CAPACITOR-INSULATING 031314 1 000

MOTOR-FAN 208-230V 50/60 HZ 053481-27 1 103

BEARING-FRONT-SHOE 050348 --> 000 ORDER X50350 SHOE KIT

BELT-AX36 022849 4 000

BLOCK-TERMINAL 039423 4 103 208-230V 60HZ 3PH

BLOWER A.-STANDARD OUTPUT X53725-27 1 103

BOARD-LOGIC-GEN X36641SER2 2 212

BOARD-POWER-GEN 1 & 2 X32326-SER 2 212

47

BOOT-PRESSURE SWITCH 032624 2 000

BRACKET A.-RESET BUTTON X22004 2 103

+PIN-PIVOT 013592 2 103

+EYELET-RESET BUTTON 013739 2 103

BRUSH-REAR BRG 1“ D X 2” LONG X 14 013071 1 000

BRUSH-DOUBLE ENDED 013072 1 000

BRUSH-DRAW VALVE 1" OD X 2" X 17" L 013073 1 000

BRUSH-FEED TUBE 9/16 OD 021101 1 000

BRUSH-MIX PUMP BODY-3" X 7" WHITE 023316 1 000

BRUSH-PRESSURE SWITCH 027647 2 000

Parts List

BRUSH-SET 050103 1 000

CABLE A.-2 COND-24 IN-PUSH ON X34464 1 000

CABLE-RIBBON-POWER/RELAY-18 IN 032444 2 103

CLASS

QTY.PART

NUMBER

DESCRIPTION REMARKSWARR.

+CAPACITOR-RUN 7.5UF/370V 034749 1 103

+RELAY-START-COMPRESSOR 050106-27 1 103

+BRACKET-PUMP CIRCUIT MOUNT 065955 1 103

+RELAY-DPDT-24VAC-30A@277V 054703-03 1 103 LOW VOLTAGE CONTROL PUMP

CAP-DESIGN-1.010"ID-6 POINT 014218 3 000

CAP-PUMP 021276-9 2 103

CASTER-SWV-3/4-10 ST. 3IN WHEEL 021279 2 103

CASTER-3" SWV 3/4-10 STM W/BRAKE 030307 2 103

COMPRESSOR L63A113DBLA 048259-33 2 512 208-230V 60HZ 3PH - 3

COMPRESSOR AEA0415ZXD-AE580ET 048627-27 1 512 MIX CABINET 208-230V 60HZ 1PH & 208-230V 60HZ 3PH

CONTROL A.-LOW VOLTAGE PUMP X65954 1 103

+TRANS.-CONT.-ANTICIPATOR 20 016352-27 1 103 LOW VOLTAGE CONTROL PUMP

CONDENSER-AC-18LX14H-4ROW- NEW 050104 2 103 MAIN

Parts List Model 8756

CONDENSER-AC-9X8 -2 ROW 029797 1 103 MIX CABINET

48

COUPLING-DRIVE 3/4 HEX X 1-7/8 012721 2 103

+SCREW-5/16-18X 5/16 ALLEN SET 042511 4 000

COVER-PUMP CONTROL 065956 2 000

COVER-MIX TANK 024590 1 103

COVER-MIX STORAGE-LEFT 037138 1 103

COVER- MIX STORAGE-RIGHT 037139 1 103

+BOOT-MIX COVER 037200 2 000

+CAPACITOR-RUN 20UF/440V 012906 * 103 8756-PRIOR TO J9013732 - 230-60-1

COMPRESSOR L63A113BBC2 (BRISTOL-OLD) 048259-27 * 512 MAIN - 8752-PRIOR TO J9066372

+CAPACITOR-RUN- 35UF-370V 029439 * 103 230-60-1

+CAPACITOR-START-216-259UF-250V 031304 * 103 230-60-1

+CAPACITOR-START - 161-193UF/250V 031790 * 103 230-60-1 - BRISTOL

+RELAY-START COMPRESSOR 038145 * 103 230-60-1 - BRISTOL

COMPRESSOR CS18K6E-PFV (COPELAND) 052397- * 512 MAIN - 8752-J9066372/UP, 8756-J9013732/UP

+ Available Separately

+RELAY-START-COMPRESSOR 052401-27 * 103 230-60-1

+KIT-MOUNTING-COMPRESSOR 052197 * 000

DECAL-DEC-TAYLOR-TWIN-SS-CABINET 032424 1 000

CLASS

QTY.PART

NUMBER

DESCRIPTION REMARKSWARR.

DECAL-DOOR-3 SPOUT-TWIN TWIST 021521 1 000

DECAL-INST-CLN-CAB 024735 1 000

DECAL-MIX TANK-WRONG 038750 2 000

+ Available Separately

Model 8756

DECAL-TROUBLESHOOT 038374 1 000

DIAGRAM-WIRING 037807-33 1 000

DOOR A.-3 SPOUT X51532-12 1 103

DECAL-DOOR-3 SPOUT-TWIN TWIST 021521 1 000

+GASKET-DOOR-4" SHELL 048926 2 000

+HANDLE A.-DRAW ADJUSTABLE X55096 3 103

+O-RING-1/4 OD X .070 W 50 015872 3 000

+SCREW-ADJUSTMENT-STAINLESS 033662 3 000

+NUT-5/16-24 18-8 SS JAM 029639-BLK 3 000

+KIT A.-BEATER-FRONT SHOES X50350 2 000

BEARING-FRONT-SHOE 050348 2 000

49

SHOE-FRONT HELIX *REAR* 050346 2 000

SHOE-FRONT HELIX *FRONT* 050347 2 000

+PLUG-PRIME 028805 2 103

+O-RING-3/8 OD X .070W 016137 4 000 PRIME PLUG

+ROD A.-PIVOT X22388 1 103 SHORT

+O-RING-5/16 OD X .070W 016272 2 000 PIVOT ROD

+ROD A.-PIVOT X22387 1 103 LONG

+O-RING-5/16 OD X .070W 016272 2 000 PIVOT ROD

+VALVE A.-DRAW X18303 2 103

+O-RING-7/8 OD X .103W 014402 5 000 DRAW VALVE

DOOR A.-INS.MIX X24816 1 103

DRYER-CAP. TUBE 049346 1 000 MIX CABINET

DRYER-FILTER 048901 2 000 MAIN

DVD-OPS TRAIN VIDEO 038417-DVD 1 000

Parts List

EVAPORATOR-12L X 4H X 1-7/8T X30939 1 103 MIX CABINET

FASTENER-CLIP 1/4-20 U TYPE 8 045865 8 000 PANELS

FITTING DOOR INTERLOCK 065471 1 103

CLASS

QTY.PART

NUMBER

DESCRIPTION REMARKSWARR.

CAP-DESIGN 1.010"ID-6 POINT 014218 3

O-RING-7/8 OD X .103W 014402 7

O-RING-5/16 OD X .070W 016272 2

SEAL-DRAW VALVE 034698 1

KIT A.-BARREL *TWIN SS X56200-6 1

+BEARING A.-HINGE X20305 1 000

+CAP-DOOR 032934 1 000

+PIN A.-UPPER HINGE X20315 1 103

+PLATE-LOWER HINGE 020323 1 103

+SPACER-HINGE 020741 2 000

+SHIM-DOOR 036023 2 103

+SUPPORT A.-HINGE X32521 1 103

FITTING-INLET 013087 2 103

FUNNEL-MIX 036637 2 103

FUSE-15 AMP CARTRIDGE 027582 4 000

FUSE-.063A-250V-5X20MM 051272 2 103

FUSE-15 AMP CARTRIDGE 027582 2 000

GASKET-CAB MIX DOOR 024629 1 000

GASKET-DOOR HT 4"-DOUBLE 048926 2 000

GEAR A.*REDUCER 021286-SER 2 212

GUARD-FAN 028534-1 2 103 MIX CABINET

GUIDE A.-DRIP PAN X28628 1 103

HARNESS A.-TRANS/RELAY 068529-27 1

HINGE A.-MOTOR X25736 2 103

HINGE-SELF CLOSING DOOR 020143 1 103

Parts List Model 8756

50

HOLDER-FUSE 300 VOLT PANEL MOUNT 027581 4 103

HOOD 048526 1 103

KIT A.-BEATER-FRONT SHOES X50350 1 000

DIAPHRAGM-PRESSURE SWITCH 020249 2

KIT A.-MOTOR-FAN X62253-27 2 103 MIX CABINET

KIT A.-TUNE UP-3 SPOUT-CAB X49463-2 1 000

+ Available Separately

CLASS

QTY.PART

NUMBER

DESCRIPTION REMARKSWARR.

GASKET-DOOR HT 4"-DOUBLE 048926 2

SEAL-DRIVE SHAFT 032560 2

KIT A.-DRAW VALVE *TWIN SS* X56200-3 1

+ Available Separately

Model 8756

BEARING-FRONT-SHOE 050348 2

SHOE-FRONT HELIX *FRONT* 050347 2

SHOE-FRONT HELIX *REAR* 050346 2

KIT A.-BEATER-FRONT SHOES X50350 2

O-RING-13/16 OD X .139W 021278 2

O-RING-1-3/8 OD X .103W-#123 018664 2

O-RING-2-1/8 OD X .139W-#225 020051 6

O-RING-3/8 OD X .070W 016137 4

POPPET-RUBBER-BLACK 022473 2

RING-CHECK 1-1/4 OD X 3/8 033215 2

RING-CHECK 2 IN OD X 1/2 020050 4

51

TOOL-O-RING REMOVAL-FREEZER 048260-WHT 1

LABEL-CHECK MOTOR ROTATATION 020090 1 000 208-230V 60HZ 3PH

LABEL-DOOR-WARNING-MOVING PARTS 032749 1 000

LABEL-WARNING-COVER 051433 7 000

LABEL-SWITCH-POWER-OFF/ON 052632 1 000

LINE A.-PUMP PRESSURE X27139 2 103

FERRULE-3/8 OD BRASS 030553 4 000

SOCKET-QD. 3/16 BARB 020021 4 103

TUBE-VINYL 3/16 ID X 1/16 020940-16 2 000 R30314 TUBE-VINYL 3/16IDX5/16OD-100'R

LINE A.-FLARE 15" 038299 2 103

LUBRICANT-TAYLOR 4 OZ. 047518 1 000 36 TUBES PER CASE

MAN-OPER 8752/8756/8757 028752-M 1 000

MOTOR-1.5 HP 021522-33 2 212

+GUARD-FAN 028534-1 2 103

MOTOR-FAN 95.3 CFM 2700 RPM 062253-27 2 103 ORDER X62253-27 KIT A.-MOTOR-FAN KIT A.-MOTOR

MOTOR-FAN 208-230V 50/60 HZ 053481-27 1 103 BLOWER

MOTOR-REDUCER 54 RPM-SS 03091327AS 2 103

Parts List

CLASS

QTY.PART

NUMBER

DESCRIPTION REMARKSWARR.

BODY A.-VALVE X22345-3 2 103

CYLINDER A.-PUMP 022345-1 2 103

ELBOW-INLET 90 DEG. 022502-4 2 103

O-RING-13/16 OD X .139W 021278 2 000

O-RING-2-1/8 OD X .139W-#225 020051 6 000

PIN-RETAINING 021276-8 2 103

+O-RING-13/16 OD X .103W 019330 2 000

NUT-STUD *LONG 034382 2 103

NUT-STUD *SHORT 034383 2 103

ORIFICE 023425-50 2 103

PAIL-10 QT. 013163 2 000

PAN A.-DRIP X22811 1 103 EXPANSION VALVE

PAN-DRIP 17-1/4"LONG 027504 1 103

PANEL A.-FRONT X22879 1 103

PANEL A.-LOWER SIDE X23956 2 103 RIGHT & LEFT

PANEL-LOWER REAR 023598 1 103

PANEL-UPPER REAR 022015 1 103

140814

Parts List Model 8756

PANEL-UPPER SIDE LEFT 028599 1 103 HINGED

PANEL-UPPER SIDE RIGHT 028600 1 103 HINGED

+WASHER-PLASTIC PIVOT 013808 4 000

52

PIN-RETAINING 021276-8 2 103

PLATE A.-DEC. X32138 1 103

PLUG-DRIP TRAY HOLE 029595 1 000

PLUG-HOLE 1/2 034878 1 000

PROBE A.-MIX-W/BALL CONNECTORS X35981 2 103 MIX CABINET

PROBE A.-THERMISTOR X31602 2 103 BARREL

PROBE A.-THERMISTOR *SHORT* X36267 1 103 MIX CABINET

PULLEY-2AK22 X .625-.6265 016403 2 103

PULLEY-2AK74-5/8 027822 2 103 GEAR

PUMP A.-SOFT SERVE *CABINET* X22345 2 103

+ Available Separately

PISTON 021276-2 2 103

CLASS

QTY.PART

NUMBER

DESCRIPTION REMARKSWARR.

RING-CHECK 2 IN OD X 1/2 020050 6 000

+CAP-PUMP 021276-9 2 103

+PIN-RETAINING 021276-8 2 103

+ Available Separately

Model 8756

RELAY-3 POLE-20A-208/240 50/60 066795-33 2 103

RELAY-DPDT 100UA TO 7A 1/8HP 052111-03 1 103

RELAY-DPDT-24VAC-30A@277V 054703-03 2 103

RELAY-MTR START TI#4CR-2-645 042007-34 2 103

RELAY-SPST-30 A-240V 032607-27 1 103

RELAY-START-COMPRESSOR 050106-27 1 103

SANITIZER-STERA SHEEN-GREEN 055492 1 000 100/2OZ. PACKETS PER CASE

SANITIZER-STERA SHEEN GREEN 010425 1 000 64 OZ. PER JAR

SHAFT-BEATER 032564 2 103

+SEAL-DRIVE SHAFT 032560 2 000

SHELL A.-INSULATED X24347-SER 1 512

53

STUD-NOSE CONE 068410 4 103

SHIELD-SPLASH 23 INCH 022766 1 103

SHROUD-CONDENSER *REAR 048517 1 103

SHROUD-CONDENSER *TOP 048518 1 103

SHROUD-CONDENSER *FRONT 048519 1 103

SHROUD A.-EVAPORATOR X49124 1 103

SPRING-COMP.970X.115X2.00 025707 4 103

SPRING-RETURN RIGHT 023488 1 103

SPRING-RETURN LEFT 023487 1 103

SPRING-COMP.480X.047X1.00 032651 2 103

SPRING-INTERLOCK DOOR 065409 1 000

SOCKET A.-PROBE*BALL&SOCK*60IN X36615 2 103

CLIP-BALL CONNECTOR 035813 6 000

SCREW-5-40 X 1/4 SOCKET CAP SS 037843 6 000

Parts List

STARTER-3 PHASE 4 TO 6.5 AMP 066794-33J 2 103

OVERLOAD-THERMAL-3P-4.0/6.5A 067461-3J 2 103

STRIP-TOP TRIM 024827 1 103

CLASS

QTY.PART

NUMBER

DESCRIPTION REMARKSWARR.

BRACKET-DRAW SWITCH-TWIN TWIST 039264 1 103

SWITCH-LEVER-SPDT-11A-125-277V 039252 2 103

ARM-SWITCH-DRAW-LEFT 038649 1 103

ARM-SWITCH-DRAW-RIGHT 038650 1 103

BRACKET A.-SWITCH X38252 1 103

E-RING 1/4 032190 2 000

PIN-PIVOT-DRAWSWITCH 038484 1 103

SPRING-RETURN LEFT 023487 1 103

SPRING-RETURN RIGHT 023488 1 103

SWITCH A.-DRAW-TWIN TWIST X39269 1 103

SWITCH A.-DRAW *TWIN TWIST X38921 1 103

Parts List Model 8756

SWITCH A.-PRESSURE X32660 2 103

ACTUATOR-LEAF TYPE 032653 2 000

BODY-PRESSURE SWITCH 032633 2 103

54

CAP-SWITCH-PRESSURE 032635 2 103

DIAPHRAGM-PRESSURE SWITCH 020249 2 103

O-RING-1/2ID X 5/8 OD 017998 2 000

PISTON-PRESSURE SWITCH 032634 2 103

SPRING-COMP.480X.047X1.00 032651 2 103

SWITCH-PLUNGER-SPDT15A125-25 032260 2 103

SWITCH-LEVER-SPDT-11A-125-277V 039252 2 103

SWITCH-PLUNGER-SPDT15A125-250V 032260 2 103

DECAL-MIX TANK-WRONG SIDE OUT 038750 2 000

TANK-MIX 9-GALLON TAPERED BOTTOM 034928 2 103

SWITCH-PRESSURE 440 PSI-SOLDER 048230 2 103

SWITCH-TOGGLE-DPDT*ON-NONE-ON 037394 1 103 POWER

TANK A.-MIX W/DECALS X38755 2 103

+ Available Separately

TOOL-LIQ.VALVE BODY EXTRACTING 035793 1 000

TRANS.-240V PR1/24V SEC 10 VA 030132-27 1 103

TRANS.-CONT.-ANTICIPATOR 20 016352-27 2 103 LOW VOLTAGE CONTROL PUMP

TRAY-DRIP 22-7/8L X 5-1/8W 014533 1 103

CLASS

QTY.PART

NUMBER

DESCRIPTION REMARKSWARR.

TRIM A.-SHELF X24813 1 103 BELOW DRIP TRAY

TRIM A.-SIDE X22424 2 103

TRIM-BOTTOM MIX DOOR 024826 1 103

+ Available Separately

Model 8756

TRIM-FRONT LEFT 024824-SP 1 103

TRIM-FRONT RIGHT 024825 1 103

TRIM-REAR CORNER 022013 2 103 RIGHT & LEFT

TUBE A.-MIX INLET-SOFT SERVE X23124 2 103

+O-RING-13/16 OD X .103W 019330 2 000

+SEAL-INLET TUBE 032886 2 000

TUBE A.-SUCTION *18 INCH X37293 2 103

COUNTERWEIGHT-SUCTIONTUBE 020452 2 103

TUBE-VINYL 5/8 ID X 1/8 WALL 020945-18 2 000

TUBE-VINYL 1/4 ID X 3/8 OD R30312 7' 000

TUBE-VINYL 3/16IDX5/16OD-100'R R30314 3' 000

55

VALVE A.-ACCESS - CABINET X49653 1 103

VALVE A.-DRAW X18303 3 103

VALVE-ACCESS 1/4 X 3/8 SOLDER 029406 1 103

+BOOT-EXPANSION VALVE 050900 2 000

VALVE-ACCESS 1/4FL X 1/4SOLDER 044404 1 103 SUCTION LINE

VALVE-ACCESS 1/4FL X 3/8SOLDER 043232 2 103

VALVE-ACCESS-1/4 MFLX1/4 S-90 047016 2 103

VALVE-EPR 1/4S 022665 1 103 SUCTION LINE

VALVE-EXP-AUTO-1/4SX1/4 FPT 046365 2 103

WIRE A.-PRESSURE*LONG* X32663 2 103 FOR X51985 PRESSURE SWITCH

Parts List

MOTOR

CCW

MIX PUMP

FIG. 3

COMPRESSOR FIG. 2

WHT

BLK

RELAY

OVLD.

2
4

WHT

BLK

LINE

L1

L2 DR N

PUMP ROTATION

(SEE FIG. 3)

FROM FRONT

AS VIEWED

MIX REFRIGERATION

OVERLOAD

(MOTOR PROTECTOR)

PTC RELAY

WHITE

GRN/YEL

PRP

3

BLK

S

3

ALTERNATE WIRING

DIAGRAM

BLU

RED

MIX

PUMP

M

YEL

WHT

C

2

4

ENCLOSURES

ELECTRICAL

BLK

BLK/WHT

M

BLK

BLK

COM

BTR

ORN

RED

BLK

(WATER COOLED ONLY)

MIX CAB.COND.FAN

M

WHT

FUSE

BLK

BLK

BTR

RED

ORN

(SEE FIG. 3)

FROM FRONT

AS VIEWED

BLK

240V

BLK

TEMP. INDICATOR

TRANS.

WHT

WHT

BLK/WHT

BLK

L1

0L

FANPUMP

BLK

YEL

BLU/WHT

BLK

L1

0L

YEL

PUMP ROTATION

BLU

BLK

BLK

M

CONDENSATION PAN

HEATER OPTION

IN PHANTOM

40 WATT

HEATER

L1

LINE

L2

L3

BEATER

MOTOR

COMP

2

BLK

3

6

7

OVLD.

RESET

4

2

3

WHT

R

1

BROWN

L1

L2

L3

SW.

24VAC

MTR.

M

M

4

8

PRESSURE

BEATER

COMP

BLK

BLK

BLK/WHT

BLK

BLK

H.P.SW.

BLK

BLK

BLK

BLK

BLK

H.P.SW

BLK

BLK

BLK

BLK

WHT

ORN

RED

WHT

YEL

RED

FUSE

BLK/WHT

BLK

BLK/WHT

BLK

BLK/WHT

HEATER

YEL

BLU/WHT

BLK

PTC CRANKCASE

COMPRESSOR

BLK

WHT

RED

WHT

BLU

M

BLK

WHT

BLK

BLK

BLK

M

BLK

BLK

BLK

ENCLOSURES

ELECTRICAL

DIGITAL TEMP. INDICATOR

OPTION IN PHANTOM.

PROBE

MIX CABINET TEMP.

INDICATOR.

TEMP. INDICATOR

WHT

FUSE

ORN

ORN

RED

BLK

EVAP. FANS

BLK/WHT

(SEE FIG. 1)

ORN

PTC CRANKCASE

COMPRESSOR

HEATER

RED

MIX CAB.

M

WHT

WHT

BLK

GNDL2BEATER

POWER/RELAY

BOARD

LEFT

(AIR COOLED ONLY)

FAN RELAY

BLK

CORD

CONDENSOR BLOWER

(AIR COOLED ONLY)

BLK

M

WHT

BLK

CORD

BLU

WHT

BLK

GNDL2BEATER

POWER/RELAY

BOARD

RIGHT

RED

RED

BRN

YEL

12V

BRN

YEL

BLK

WHT

WHT

COM

A

MIX

B

MIXFANPUMP

RED

PUMP

BRN/WHT

MIX

YEL

WHT

WHT

FUSE

YEL

A

(SEE FIG. 2)

COMP.

BLU

B

OVLD.

RESET

4

2

3

BRN

MIX CAB

WHT

WHT

BRN

ON

ON

5

LEFT LOGIC

PANEL

SWITCH INTERVAL

7 8 TIME

SHK.TEMP/

VISCOSITY

COLDER

COLDER

MIX

STANDBY

COLDER

CAP

BRN

OFF

ON

8-INTERVAL

OFF

SWITCH INTERVAL

7 8 TIME

OFFONOFF

161411

SHK.TEMP/

VISCOSITY

COLDER

COLDER

MIX

STANDBY

COLDER

7-INTERVAL

5-FAN 2

6-STBY DIS

MEMBRANE

SWITCHES

WHT COM

BRN

2C

4-BTR 10

2

GRN/YEL

GRN/YEL

7-INTERVAL

8-INTERVAL

SWITCHES

2-COMP 10

3-BTR 5

MIX

STANDBY

WASH

AUTO

PUMP

MAIN

5-FAN 2

6-STBY DIS

MEMBRANE

PROBE

UP = OFF

1-COMP 5

4-BTR 10

2-COMP 10

3-BTR 5

1-COMP 5

MIX

STANDBY

WASH

AUTO

PUMP

MIX LEVEL

DIP SWITCH

LOW

MIX

OUT

MIX

DRAW

SET POINT

PUMP

SHK

MIX LOW

MIX 1

MIX OUT

PROBE

BRL

SOFTECH CONTROL

FAN

MIX 2

BLK 60 HZ

O.L.

4

1

START

3

MIX LEVEL

PROBE

UP = OFF

DIP SWITCH

SET POINT

MIX LOW

MIX OUT

SOFTECH CONTROL

BRN

RED

BRN

WHT

RED 50 HZ

6

EXTRA

MAIN

5

THERMAL

LOW

OUT

PUMP

PROBE

BLK

BRN

RED

BLK

BRN

MIX

BRN

MIX

RED

DRAW

BRN

SHK

A

A

MIX 1

BRL

WHT

FAN

BLK

MIX 2

BRN

RED

BLK

BRN

B

B

GRN/YEL

STANDBY

TEMP

208/240 50/60 HZ

TEMP

BLK

GRN/YEL STRIPE

STANDBY

BLK

C

BLK

SWITCH

GRN/YEL

BLK

NC

C

DRAW

SWITCH

NO

BRN

GRN/YEL

RED

MIX HOPPER

TEMP

BLK

BLK

BRN

NC

DRAW

NO

BRN

GRN/YEL

SWITCH

POWER

BLKBLK

BLK

BLK

4PDT

BLK/WHT

BLU

BLU/WHT

YEL

WHT

BLU

13

14

PUR/WHT

4

12

8

BLU/WHT

1

9

5

BLK

INTERLOCK

SWITCH

DOOR

N. O.

BLK/WHT

BLK/WHT

BLU/WHT

BLU/WHT

OFF

OFF

ON

4

8

PRESSURE

ON

OFFONOFF

ON

161411

5

RIGHT LOGIC

BLK

PANEL

BLK

YEL

BLK

YEL

2

3

6

7

SW.

24VAC

YEL

BLK

GE MOTOR SCHEMATIC

FIG 1

8756

037807-33

11/12/13
