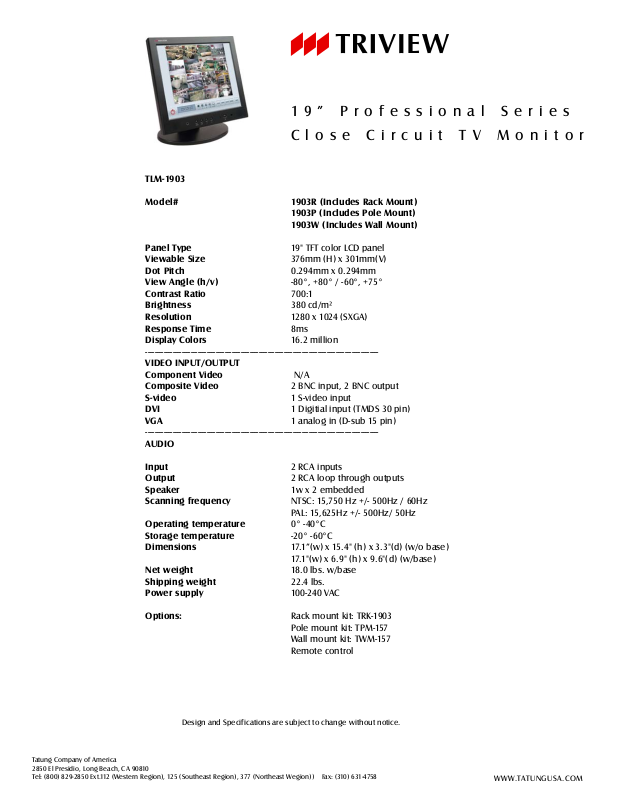

Tatung TLM-1903 User Manual

1 9 ” P r o f e s s i o n a l S e r i e s

C l o s e C i r c u i t T V M o n i t o r

TLM-1903

Model# 1903R (Includes Rack Mount)
1903P (Includes Pole Mount)
1903W (Includes Wall Mount)

Panel Type 19" TFT color LCD panel
Viewable Size 376mm (H) x 301mm(V)
Dot Pitch 0.294mm x 0.294mm
View Angle (h/v) -80°, +80° / -60°, +75°
Contrast Ratio 700:1
Brightness 380 cd/m²
Resolution 1280 x 1024 (SXGA)
Response Time 8ms
Display Colors 16.2 million

-------------------------------------------------------------------------------------------------------

VIDEO INPUT/OUTPUT
Component Video N/A
Composite Video 2 BNC input, 2 BNC output
S-video 1 S-video input
DVI 1 Digitial input (TMDS 30 pin)
VGA 1 analog in (D-sub 15 pin)

-------------------------------------------------------------------------------------------------------

AUDIO

Input 2 RCA inputs
Output 2 RCA loop through outputs
Speaker 1w x 2 embedded
Scanning frequency NTSC: 15,750 Hz +/- 500Hz / 60Hz

PAL: 15,625Hz +/- 500Hz/ 50Hz

Operating temperature 0° -40°C
Storage temperature -20° -60°C
Dimensions 17.1”(w) x 15.4" (h) x 3.3"(d) (w/o base)

17.1"(w) x 6.9" (h) x 9.6"(d) (w/base)

Net weight 18.0 lbs. w/base
Shipping weight 22.4 lbs.
Power supply 100-240 VAC

Options: Rack mount kit: TRK-1903

Pole mount kit: TPM-157
Wall mount kit: TWM-157
Remote control

Design and Specifications are subject to change without notice.
