Podcast Recording Console
Reference Manual
D01396920A
Contents
1 - Introduction ...................................................................................... 3
Features ........................................................................................................................3
Conventions used in this manual ........................................................................3
Trademarks ..................................................................................................................3
USB cables....................................................................................................................4
Bluetooth® ..................................................................................................................4
Profiles ......................................................................................................................4
Codecs ......................................................................................................................4
Content protection ..............................................................................................4
Transmission security .........................................................................................4
About SD cards...........................................................................................................4
TASCAM ID registration ...........................................................................................4
2 - Names and Functions of Parts ......................................................... 5
Top panel ......................................................................................................................5
Rear panel ....................................................................................................................6
Home Screen...............................................................................................................7
3 - Preparation ....................................................................................... 8
Making connections.................................................................................................8
Connecting audio equipment .........................................................................8
Connecting the power .......................................................................................9
Turning the power on and off .........................................................................9
Tutorial overview..................................................................................................9
Connecting microphones .............................................................................. 10
Connecting headphones ............................................................................... 10
Making USB connections ............................................................................... 11
Connecting smartphones, media players and similar devices ......... 11
Connecting recording devices and monitor speakers ........................11
Connecting with Bluetooth devices ........................................................... 11
SD card insertion, removal and write protection ....................................... 12
4 - Input Settings ................................................................................. 13
Adjusting input levels, audio characteristics and effects ........................13
Lowering knob and fader volumes .............................................................13
Making mic input settings ............................................................................. 13
Adjusting mic input levels ............................................................................. 13
Adjusting mic input audio characteristics (Voice Setting) ................. 14
Adjusting mic input effects (Effect Setting).............................................15
5 - Recording and Playback.................................................................17
Recording .................................................................................................................. 17
Adding effect sounds while recording ......................................................18
Adding marks while recording .....................................................................18
Playing recordings .................................................................................................18
Changing the names of podcasts ............................................................... 19
Deleting podcasts ............................................................................................. 19
Adding marks during playback .................................................................... 19
Advanced playback functions ...................................................................... 20
Overwrite recording .............................................................................................. 21
Overwrite recording from an added mark ............................................... 21
Using TALKBACK functions ................................................................................. 21
6 - Using TASCAM Podcast Editor ....................................................... 22
Sound settings when using with Windows OS.......................................22
Using with Mac OS (audio settings) ........................................................... 22
Using with iOS/iPadOS/Android devices ..................................................22
7 - Using Sound Pads ........................................................................... 23
Sound Pad overview ............................................................................................. 23
Explanation of Sound Pad Screen functions ........................................... 23
Playing Sound Pads ..........................................................................................24
Assigning effects to Sound Pads .................................................................24
Clearing Sound Pad effect functions ......................................................... 25
Recording sounds and assigning them to Sound Pads .......................25
8 - Touchscreen Functions ................................................................... 27
Explanation of functions ..................................................................................... 27
Menu Screen ....................................................................................................... 27
Input selection............................................................................................ 27
Playback settings ....................................................................................... 33
Sound pad settings ................................................................................... 34
Hardware Settings .....................................................................................35
SD Settings...................................................................................................37
9 - Error messages ................................................................................ 38
10 - Troubleshooting ........................................................................... 39
11 - Specifications and Ratings .......................................................... 41
Recorder specifications ........................................................................................ 41
Analog audio input ratings ................................................................................. 41
Analog audio output ratings ..............................................................................41
Control input/output ............................................................................................ 41
Audio performance ............................................................................................... 41
Recording times (in hours: minutes) ............................................................... 41
Bluetooth .................................................................................................................. 41
Computer system requirements .......................................................................42
Windows ...............................................................................................................42
Mac ......................................................................................................................... 42
iOS/iPadOS devices ..........................................................................................42
Android devices ................................................................................................. 42
Other ........................................................................................................................... 42
Dimensional drawings..........................................................................................43
Block diagram .......................................................................................................... 44
Level diagram ..........................................................................................................45
2 TASCAM Mixcast 4
1 - Introduction
Features
o Mixer that supports creation and distribution of podcasts with up to
4 participants
o 4 TRS/XLR combo jack mic inputs
o Phantom power can be activated for inputs individually
o Multitrack recording directly to SD cards possible with up to 14 tracks
o 14-in/2-out USB audio interface functions
o 4 headphone output jacks with independent volume controls
o Auto Mixer function can keep output levels uniform and regulate
volume without distortion
o Bluetooth connection enables wireless recording of call audio
o 8 large illuminated sound pads are easy to press and have 8 banks
o 5-inch color touchscreen enables easy and intuitive operation
o Included (downloadable) free TASCAM Podcast Editor app covers all
aspects of use
Conventions used in this manual
In this manual, we use the following conventions:
o SD/SDHC/SDXC memory cards are referred to as “SD cards”.
o Computers, portable audio devices and other equipment connected
to this unit using Bluetooth are called "Bluetooth devices".
o References to “iOS” in this document also include “iPad OS”.
o Information shown on the touchscreen is written like this: “OK”.
o Touchscreen operations are indicated as “tap” when a finger is used
to touch an icon and “swipe” when moving left or right on the screen.
o The “dedicated software” is TASCAM Podcast Editor.
o Additional information is introduced in the styles below when
needed:
TIP
These are tips about how to use the unit.
NOTE
These provide additional explanations and describe special cases.
ATTENTION
Failure to follow these instructions could result in damage to equipment or lost data, for example.
V
CAUTION
Failure to follow these instructions could result in injury.
Trademarks
o TASCAM is a registered trademark of TEAC Corporation.
o SDXC Logo is a trademark of SD-3C, LLC.
o The Bluetooth® word mark and logo are the property of Bluetooth
SIG, Inc. and are used by TEAC Corporation with permission.
o Microsoft and Windows are either registered trademarks or trade-
marks of Microsoft Corporation in the United States and/or other
countries.
o Apple, Mac, macOS, iPad, Lightning, App Store and iTunes are trade-
marks of Apple Inc.
o Apple, Mac, macOS, iPad, iPadOS and iTunes are trademarks of Apple
Inc. in the United States and other countries.
o Lightning is a trademark of Apple Inc.
o App Store is a service mark of Apple Inc.
o IOS is a trademark or registered trademark of Cisco in the U.S. and
other countries and is used under license.
o Android, Google Play and Google Play logo are trademarks of Google
Inc.
o ASIO is a trademark of Steinberg Media Technologies GmbH.
o Other company names, product names and logos in this document
are the trademarks or registered trademarks of their respective
owners.
Information is given about products in this manual only for the
purpose of example and does not indicate any guarantees against
infringements of third-party intellectual property rights and other
rights related to them. TEAC Corporation will bear no responsibility for infringements on third-party intellectual property rights or
other liabilities that occur as a result of the use of this product.
Properties copyrighted by third parties cannot be used for any
purpose other than personal enjoyment and the like without
the permission of the right holders recognized by copyright law.
Always use this equipment properly. TEAC Corporation will bear
no responsibility for rights infringements committed by users of
this product.
TASCAM Mixcast 4 3
1 - Introduction
USB cables
This unit has a USB Type-C port.
Use the included USB cable (Type-C to Type-C) to connect a computer or
smartphone to this unit.
If the USB port of the computer or smartphone being connected is not
Type-C, however, a different USB cable must be prepared.
o Connecting to an iOS device with a lightning port
A genuine Apple Lightning to USB Camera Adapter and a commercially-available Type-A to Type-C cable are necessary.
o Connecting to a computer or smartphone (that supports OTG)
with a USB micro-B port
A micro-B to Type-C cable (compatible with USB OTG) is necessary.
o Connecting to a computer with a USB Type-A port
A commercially-available Type-A to Type-C cable is necessary.
Bluetooth®
This unit has a built-in Bluetooth audio module. This allows input of
sound played on Bluetooth devices—computers and portable audio
devices that support Bluetooth (A2DP)—as well as output of sound from
this unit to other Bluetooth devices.
ATTENTION
The Bluetooth function of this unit is not guaranteed to enable connection or operation with all Bluetooth devices.
About SD cards
A card is necessary to record and play files with this unit. Prepare one for
use.
This unit can use SD cards that are Class 10 or higher and compatible
with SD, SDHC or SDXC standards.
A list of SD cards that have been confirmed for use with this unit can be
found by accessing the TEAC Global Site (http://teac-global.com).
Check the page for this product.
You can also contact TASCAM customer support.
TASCAM ID registration
To use the TASCAM Podcast Editor software designed for use with this
unit, please create an account on the TASCAM website.
https://tascamid.tascam.jp/int/login/
Profiles
This unit supports the following Bluetooth profiles.
o A2DP(Advanced Audio Distribution Profile)
In order to transfer audio by Bluetooth, the Bluetooth device must support A2DP.
Even if a Bluetooth device supports the same profiles, though, its functions might differ according to its specifications.
Codecs
This unit supports the following codecs. It will automatically select one
of them during audio transfer.
o SBC
o AAC
The unit will select the appropriate codec to use according to the
codec compatibility of the other Bluetooth device and communication
conditions.
NOTE
i You cannot select the codec to be used by pressing a button, for
example.
i Due to characteristics of Bluetooth wireless technology, playback
from this unit will be slightly delayed compared to playback from the
Bluetooth device.
Content protection
This unit supports SCMS-T as a form of content protection when transmitting audio, so it can play protected audio.
Transmission security
This unit supports security functions during Bluetooth transmission in
accordance with the Bluetooth standard specifications, but it does not
guarantee the privacy of such transmissions.
TEAC CORPORATION will bear no responsibility should an information
leak occur during transmission by Bluetooth.
4 TASCAM Mixcast 4
Top panel
2 - Names and Functions of Parts
1 MUTE buttons
Pressing a MUTE button mutes (silences) the signal input on that
channel.
o These light red when on.
2 SOLO buttons
Pressing a SOLO button enables the signal input on that channel to
be monitored by itself through the PHONES 1 jack on the back or the
PHONES (TRRS) jack on the front. (This does not affect recording.)
o These light blue when on.
3 TALKBACK button
While this button is being pressed, the signal input through MIC
INPUT 1 is output through the PHONES 2–4 jacks on the back.
(This sound will not be recorded when recording.)
o This button lights blue while being pressed.
4 Recording indicator
o This lights red while recording.
5 MONITOR OUT knob
Use this to adjust the output of the MONITOR OUT and LINE OUT
jacks on the back.
6 PHONES - knobs
Connect these to the PHONES - jacks on the back or the
PHONES (TRRS) jack on the front.
7 MARK button
When playing, recording or paused, press this button to add a mark
at the current point.
o This lights blue during playback and recording as well as when
recording is paused.
8 STOP button
Press this to stop playback or recording.
o This lights orange during playback and recording as well as when
recording is paused.
9 REC/PAUSE button
Press this to start recording. When recording, press this to pause.
o This lights red while recording and blinks red when recording is
paused.
0 Touchscreen
This allows input signals to be monitored and shows the operation
status of the unit. Various settings can be made by touch operation.
(See "8 - Touchscreen Functions" on page 27.)
q PHONES (TRRS) jack (CTIA standard)
Connect a headset, for example, here.
A headset mic can be input on channel 1 using a menu setting. (CTIA
standard)
(See "Switching the Mic 1 input (connecting a headset)" on page 10.)
w SOUND PAD buttons (1-8)
This allows input signals to be monitored and shows the operation
status of the unit. Use the TASCAM Podcast Editor software to set the
audio sources.
(See "Sound Pad overview" on page 23.)
e Channel faders
Use these to adjust the send levels of channel signals.
r Channel indicators
o The channel LEDs light red when input overloads are detected.
(Adjust input levels if they light frequently.)
TASCAM Mixcast 4 5
2 - Names and Functions of Parts
Rear panel
t Kensington Security Slot
y SD card slot
Use this slot to insert SD cards.
(See "Loading SD cards" on page 12.)
u USB port (Type-C)
This is a USB Type-C port. ( This supports USB 2.0.)
Use this to connect a computer, smartphone or tablet.
(See "Making USB connections" on page 11.)
i INPUT SELECT switch
Use this to switch between the LINE IN L/R and LINE IN (TRRS) inputs.
o POWER button
Press this to turn the unit on and off.
(See "Turning the power on and off" on page 9.)
p DC IN 12V connector
Connect the included AC adapter (PS-P1220E NUT) here.
(See "Connecting the power" on page 9.)
a PHONES - jacks
Use these standard 6.3mm stereo jacks to connect headphones.
Use adapters (3.5mm stereo mini jack) to connect headphones with
mini plugs.
(See "Connecting headphones" on page 10.)
V
CAUTION
Before connecting headphones, minimize the volumes with the
PHONES – knobs (6). Failure to do so might cause sudden loud
noises, which could harm your hearing or result in other trouble.
s MONITOR OUT L/R and LINE OUT jacks
Connect monitor speakers (powered speakers or an amplifier and
speaker system) to the SUB OUTPUT L/R jacks.
Use the MONITOR OUT knob (5) on the top to adjust the output
levels.
o MONITOR OUT L/R jacks
Connectors: 6.3mm (1/4") standard TRS jacks
o LINE OUT jack
Connector: 3.5mm (1/8") stereo mini jack
(See "Connecting recording devices and monitor speakers" on page 11.)
V
CAUTION
Before turning the power on and connecting monitor speakers,
minimize the volume with the MONITOR OUT knob (5) on the top.
Failure to do so might cause sudden loud noises, which could harm
your hearing or result in other trouble.
d LINE IN L/R jacks
Connect a media player or other audio device here.
o Set the INPUT SELECT switch to the LINE IN side to use these.
Connectors: 6.3mm (1/4") standard TRS jacks
(See "Connecting smartphones, media players and similar devices"
on page 11.)
f LINE IN (TRRS) jack (CTIA standard)
Connect a smartphone or other portable device here.
o Set the INPUT SELECT switch (i) to . (CTIA standard)
Connector: 3.5 mm (1/8") 4-pole mini jack
(See "Connecting smartphones, media players and similar devices"
on page 11.)
g MIC INPUT 1-4 jacks
Connect dynamic and condenser mics to these.
(For mic connection and mic type selection, See "Connecting microphones" on page 10 and See "1 Mic settings" on page 27.)
V
CAUTION
When “Condenser” is selected for a MIC INPUT jack in the mic settings, phantom power (+48V) will be turned on. Doing so could
damage dynamic mics if they are connected.
Be careful when connecting mics and selecting mic types.
6 TASCAM Mixcast 4
2 - Names and Functions of Parts
Home Screen
When the unit is turned on, the Home Screen appears on the touchscreen as shown below.
As a rule, touchscreen operations are either touching an icon with a finger (hereafter, “tap”) or moving left/right on the screen (hereafter, “swipe”). (If the
response to fingers is poor, operation using a stylus designed for smartphones and tablets is also possible.)
This screen allows input signal levels to be monitored and shows the operation status of the unit. In addition, various function settings can be accessed by
tapping the Menu icon on the screen.
Applause
Drumbeat
Alarm AirHorn Brass
Heartbeat Bleep Effect
1 Menu icon
Tap this icon to open the Menu Screen.
(See "Menu Screen" on page 27.)
2 Recorder operation status
This icon shows the recorder operation status.
Indicator Meaning
8
0
09
Stop
Recording
Recording paused
3 Recording counter
This shows the current elapsed time (in hours: minutes: seconds)
when recording.
4 SD counter
This shows the remaining time available for recording on the SD card
(in hours: minutes: seconds).
5 USB icon
The icon appears when connected by USB.
6 Bluetooth icon
The icon appears when a Bluetooth device is connected.
The icon blinks when waiting to pair.
7 SD card icon
When an SD card is loaded, the icon appears.
8 Level meters
These show the levels of the channels.
o 1 - 4, , , , 7
o L/R : Stereo mix levels
: Levels sent to the stereo mix
9 Input channel identifiers
Indicator Corresponding input jacks
1 – 4 MIC INPUT 1-4 jacks
USB port
LINE IN (TRRS) jack
Bluetooth input
Sound pads
L/R 2MIX
e SOUND PAD bank indicator
The position of the SOUND PAD bank currently shown is highlighted.
q Condenser mic selected indicator
Red dots will be shown next to mic channel numbers set to
“Condenser” in the mic settings.
w Sound Pad display
These show the names of the audio files that have been assigned to
the Sound Pads.*
Use the dedicated software to set audio sources.
(See "Sound Pad overview" on page 23.)
* Pre-assigned effect sounds (included audio sources) are set for the
Bank 0 Sound Pads.
e SOUND PAD bank switch( / ) icons
Tap the icon to switch to the lower bank. Tap the icon to switch to
the higher bank.
TASCAM Mixcast 4 7
3 - Preparation
Making connections
Connecting audio equipment
The following is an example of connections with this unit.
Precautions before making connections
o Carefully read the operation manuals of the devices to be connected and then connect them correctly.
o Before making connections, turn this unit and all equipment to be connected off (standby).
o Install all connected devices, including this unit, so that they are powered from the same line. When using a power strip or similar device, be sure to
use one that has high current capacity (thick cable) in order to minimize fluctuations in power voltage.
V
CAUTION
Before turning the power on or connecting audio equipment, set the following knobs and faders on this unit and the knobs and faders of the devices
being connected to their lowest values. Failure to do so could cause sudden loud noises from monitoring equipment, and this could damage the
equipment or harm hearing.
o Channel faders (e), PHONES – knobs (6), MONITOR OUT knob (5)
Connection example
Back
Front
Note: For details about q–g in the illustration above, See "Top panel" on page 5 and See "Rear panel" on page 6.
8 TASCAM Mixcast 4
3 - Preparation
Connecting the power
Use the included AC adapter (PS-P1220E NUT) to connect a power supply to the unit as shown below.
1. Connect the DC plug of the AC adapter to the DC IN 12V connector
on the back of the unit.
2. Turn the nut on the DC plug to secure it to the DC IN 12V connector.
3. Connect the AC adapter to an outlet.
V
CAUTION
Always connect the included AC adapter (PS-M1524A), which is specified for use with this unit.
Use of a different adapter could cause malfunction, fire or electric
shock.
Turning the power on and off
Turning the power on
1. Press and hold the POWER button (o) on the back to turn the unit
on. When the Mixcast 4 logo appears on the touchscreen, release
the POWER Button.
2. When startup completes, the Home Screen will appear on the
touchscreen as shown below.
Applause
Drumbeat
Alarm AirHorn Brass
Heartbeat Bleep Effect
Home Screen
Turning the power off
Press and hold the POWER button (o) to turn the unit off.
When a pop-up message appears on the touchscreen to confirm turning
the power off, release the POWER button.
Tap “Yes” to run the shutdown procedure and turn the unit off.
NOTE
i The unit will save various settings before it turns off.
i This unit has an
turn it off.
For details about the
ing section in See "6 AUTO POWER OFF" on page 36.
AUTO POWER OFF
AUTO POWER OFF
function that can automatically
function, see the correspond-
POWER button (o)
Startup Screen
NOTE
A tutorial that explains the unit simply will appear the first time it is
turned on after purchase. Then, the Others Screen will open on the
touchscreen so that language and Date/Time settings can be made.
(For language, date and time setting instructions, see "1 Date/ Time
Adjust" in See "4 Other settings" on page 36.)
Tutorial overview
o When the unit is turned on, a tutorial screen will open to explain the
basics of operating the unit.
o If the tutorial is unnecessary, tap the × at the top right to close the
screen.
o Put a check in the “Hide Tutorial” checkbox in the final tutorial screen
to prevent it from being shown in the future.*
* This tutorial will be shown again if the unit is restored to its default
settings.
(To restore the unit to its default settings, in See "4 Other settings"
on page 36.)
TASCAM Mixcast 4 9
3 - Preparation
Connecting microphones
Connect mics to the MIC INPUT 1–4 jacks on the back.
Point the mics at the sound sources and place the unit in a stable location where there is little vibration.
1. Select the mic type.
Tap the input icon on the Menu Screen to open the Input Screen
V
CAUTION
i Do not connect mics that are compatible with plug-in power.
Doing so could cause damage.
i When “Condenser” is selected as the mic setting for a MIC INPUT jack,
phantom power (+48V) will be turned on. Doing so could damage
dynamic mics if they are connected.
Be careful when connecting mics and selecting mic types.
i If “Condenser” has been selected, the following message will appear
the next time the unit is turned on.
Menu Screen
2. Select and tap a – mic icon.
Input Screen
3. This will open the Level Screen. Tap the Condenser or Dynamic
(default) button to set the mic type.
(The following illustration example shows “Mic1”.)
Tap “Yes” to supply phantom power (+48V) to mic inputs that have
been set to “Condenser”.
Tap “No” to change the settings of all mic inputs to “Dynamic”.
Connecting headphones
Connect headphones to the PHONES – jacks (a) on the back.
V
CAUTION
Before connecting headphones, minimize the volumes with the
PHONES – knobs (6). Failure to do so might cause sudden loud
noises from the headphones, which could harm hearing or result in
other trouble.
Switching the Mic 1 input (connecting a headset)
Connect a headset to the PHONES (TRRS) jack (q) on the front.
V
CAUTION
Before connecting a headset, minimize the level of the PHONES
knob (6) on the top.
Failure to do so might cause sudden loud noises from the headset,
which could harm hearing or result in other trouble.
1. Using a headset mic
To use the headset mic input as channel 1, set the input to “Front”
on the Mic 1 Level Screen.
Level Screen (MIC INPUT 1 example)
After selecting the mic type, tap the home icon at the top right
to return to the Home Screen.
Red dots will be shown on the Home Screen next to mic channel
numbers set to “Condenser” in the mic settings.
Applause
Drumbeat
Alarm AirHorn Brass
Heartbeat Bleep Effect
Home Screen
10 TASCAM Mixcast 4
Level Screen (MIC INPUT 1)
o To use the MIC INPUT 1 jack (g) on the back of the unit set the
input to “Rear” (default) on the Mic 1 Level Screen.
NOTE
Output volume could be reduced if both PHONES jacks (a) and
PHONES (TRRS) jack (q) are used at the same time.
3 - Preparation
Making USB connections
Using USB to connect a computer, smartphone or tablet makes the following possible.
o The SD card in this unit can be used as USB mass storage.
o Audio can be input and output by using it as a USB audio device.
1. Connect the included USB cable to the USB port (u) on the back of
this unit and to a computer, smartphone or tablet.
2. When this unit confirms USB connection, the USB icon will
appear at the top right of its Home Screen.
NOTE
The unit should be connected using the included USB cable* directly
to the smartphone, tablet or computer, not through a USB hub.
* When using a USB cable purchased elsewhere, use a high-quality
cable (that has USB certification) of the shortest length possible.
(See "USB cables" on page 4.)
Connecting smartphones, media players and similar devices
Connect smartphones and other portable devices as well as media players and other audio devices to the LINE IN (TRRS) or LINE IN jacks on the
back of the unit. Doing so allows input of these sound sources.
o Audio from a caller can be input by connecting a mobile phone or
smartphone to the LINE IN (TRRS) jack of this unit. Likewise, audio
from this unit can also be sent to the caller.
NOTE
The Mix Minus function is always used on audio output through
the LINE IN (TRRS) jack. This prevents the audio from callers being
returned to them.
1. Set the INPUT SELECT switch (i) on the back of the unit according
to the type of device being input.
o When connecting a smartphone or other portable device to the
LINE IN (TRRS) jack (f)
Set the INPUT SELECT switch (i) to (TRRS)
o When connecting a media player or other audio device to the LINE
IN L/R jacks (d)
Set the INPUT SELECT switch (i) to LINE IN
2. Tap the input icon on the Menu Screen to open the Input Screen.
Then, tap the smartphone icon to make voice settings, referring
to See "3 Smartphone settings" on page 33.
Connecting recording devices and monitor speakers
Sound mixed or played back on this unit can be output through the
MONITOR OUT L/R jacks (s) or LINE OUT jack (s) on its back to monitor
speakers (powered monitor speakers or an amp and speaker system).
o MONITOR OUT L/R jacks (s)
For example, connect a recording device or powered monitor
speakers that are compatible with standard 6.3mm (1/4") TRS
jacks.
o LINE OUT jack (s)
For example, connect headphones that are compatible with
3.5mm (1/8") stereo mini jacks.
Use the MONITOR OUT knob on the top to adjust the speaker volume.
NOTE
If the volume cannot be adjusted with the MONITOR OUT knob (5),
confirm that “Line Level Output” is set to “OFF” in the See "1 AUDIO"
on page 35.
Volume cannot be adjusted when set to “ON”.
V
CAUTION
Before turning the power on and connecting monitor speakers,
minimize the volume with the MONITOR OUT knob (5) on the top.
Failure to do so might cause sudden loud noises, which could harm
your hearing or result in other trouble.
Connecting with Bluetooth devices
This unit has a built-in Bluetooth audio module. This enables input of
sound played on computers and portable audio devices that support
Bluetooth (A2DP) as well as output of sound from this unit to other
Bluetooth devices.
Audio from a caller can be input by connecting a smartphone to this
unit by Bluetooth. Likewise, audio from this unit can also be sent to the
caller.
NOTE
The Mix Minus function is always used on audio output to Bluetooth
devices. This prevents the audio from callers being returned to them.
Pairing
Follow the procedures below to enable pairing with a Bluetooth device.
NOTE
Pairing also requires operation of the Bluetooth device.
Refer to the operation manual of the Bluetooth device being used for
instructions about how to use it.
1. Tap the input icon on the Menu Screen to open the Input Screen.
Then, tap the Bluetooth icon.
Input Screen
Input Screen
TASCAM Mixcast 4 11
3 - Preparation
2. This will open the
to start pairing with the Bluetooth device.
NOTE
After the unit is turned on, the unit will automatically activate pairing
mode for some time. Then, it will deactivate pairing mode.
3. While searching for Bluetooth devices, the “
highlighted and “
right.
NOTE
If connecting does not complete after some time, pairing mode will
be deactivated automatically. To reactivate pairing mode, tap the
“Pairing” button again.
4. Select “TASCAM Mixcast” on the Bluetooth device to be paired.
5. When Bluetooth connection is confirmed, “Connected” will appear
in the message field, and the Bluetooth icon will appear at the
top right of the Home Screen.
6. After completing the Bluetooth connection, set Voice Setting
options as explained in See "4 Bluetooth settings" on page 33.
Level
Screen shown below. Tap the
Level Screen
Searching…
” will appear in the message field to its
Pairing
Level Screen
Pairing
Searching...
Pairing
button
” button will be
SD card insertion, removal and write protection
Loading SD cards
This unit uses SD cards for recording and playback.
This unit can use SD cards that are Class 10 or higher and compatible
with SD, SDHC or SDXC standards.
NOTE
i This product does not include an SD card.
Please purchase any that you need for your uses.
i We recommend using SD cards with capacities of at least 64 GB
because multitrack recordings of all channel inputs use large
amounts of space.
i A list of SD cards that have been confirmed for use with this unit can
be found by accessing the TEAC Global Site (http://teac-global.com).
Check the page for this product. You can also contact TASCAM customer support.
1. Open the SD card slot cover on the back and insert the card in the
slot until it clicks into place.
2. Formatting is necessary if the pop-up message shown below
appears on the touchscreen when an SD card is inserted.
3. Tap “Yes” to start formatting.
4. When this unit confirms the SD card, the SD card icon will appear
at the top right of the Home Screen.
NOTE
SD cards formatted by this unit are optimized to improve performance during recording. Use this unit to format the SD cards to be
used with it.
Errors might occur when recording with this unit using an SD card
formatted by a computer or other device.
Removing SD cards
First, turn the unit off or stop operation. Then, gently press the SD card
in to eject it, and remove it
V
CAUTION
Never remove an SD card when the unit is operating (including
recording, playing back, or writing data to the SD card).
Doing so could cause proper recording to fail, data to be lost, and
sudden loud noises from monitoring equipment, which might damage the equipment, harm hearing or cause other trouble.
1. Open the SD card slot cover (y) on the back and push the card in
gently until it comes out.
2. Pull the SD card out.
3. The SD card icon at the top right of the touchscreen will
disappear.
SD card write protection switches
SD cards have write-protection switches that prevent writing new data
to them.
If you slide the write-protection switch to the “LOCK” position, writing
will not be possible. Move the write-protection switch to the unlocked
position in order to record, erase and otherwise edit data on the card.
12 TASCAM Mixcast 4
4 - Input Settings
Adjusting input levels, audio characteristics and effects
Adjust each input before starting recordings for podcasts.
Adjust the input levels, audio characteristics and effects to prevent
distortion by input volumes that are too high or inaudible recording by
levels that are too low.
Lowering knob and fader volumes
Before starting input adjustments, set the following knobs and faders
on this unit and the knobs and faders of the devices being connected to
their lowest values.
o Lower channel faders (e).
o Lower the MONITOR OUT (5) and PHONES – (6) knobs.
3. On the Input Screen, select and tap the – mic icon for the mic
input to adjust.
Input Screen
4. This opens the Level screen. (The following illustration uses MIC
INPUT 1 as an example.)
Making mic input settings
1. Tap the menu icon on the Home Screen to open the Menu
Screen.
Applause
Drumbeat
2. Tap the input icon.
Alarm AirHorn Brass
Heartbeat Bleep Effect
Home Screen
Level Screen (MIC INPUT 1 example)
Adjusting mic input levels
This is an example of procedures to adjust MIC INPUT 1.
1. While inputting sound through MIC INPUT 1, gradually raise the
MONITOR OUT knob (5) and channel fader 1 until sound can be
heard from the monitor speakers.
2. Use the slider to adjust the input level on the Level Screen. Adjust
the mic volume so that it is not too high or low and the volume peak
stays in the orange range on the level meter.
Level adjustment
Menu Screen
TASCAM Mixcast 4 13
4 - Input Settings
Adjusting mic input audio characteristics (Voice Setting)
After adjusting the volume peak, adjust the mic input audio characteristics as desired.
1. Tap the Voice Setting button.
Voice Setting selection screen
2. This opens the first page of the Voice Setting Screen.
The Voice Setting Screen has two pages.
Adjusting the Compressor
Voice Setting Screen page 1 (MIC INPUT 1 jack example)
Tap the Compressor switch to turn it on.
Two presets can be selected for the Compressor.
Select Manual to make adjustments instead of using a preset.
Tapping one of the Compressor setting icons selects it, highlighting it and turning the function on.
o Soft (default) : This naturally compresses loud parts of the
sound.
o Hard : This greatly compresses everything to even the
level.
o Manual : This allows detailed compressor adjustments.
Tap the Manual icon to show the settings
icon.
Voice Setting Screen page 1 (MIC INPUT 1 jack example)
Tap the [<] and [>] buttons at the bottom of the Voice Setting screen
to switch between the two pages.
Adjusting the Tone
Tap the Tone switch to turn it on.
Three presets can be selected for Tone. Select Manual to make
adjustments instead of using a preset.
Voice Setting Screen page 1 (MIC INPUT 1 jack example)
Tapping one of the Tone setting icons selects it, highlighting it
and turning the function on.
o Deep : This emphasizes deep low frequencies.
o Mid (default) : This emphasizes middle frequencies.
o Bright : This emphasizes bright high frequencies.
o Manual : This allows detailed tone adjustments.
Tap the Manual icon to show the settings
icon.
o Tapping another icon will make the set-
tings icon disappear.
Tap the settings icon to open the Tone Manual Setting Screen.
See "Tone Manual settings" on page 28.
o Tapping another icon will make the set-
tings icon disappear.

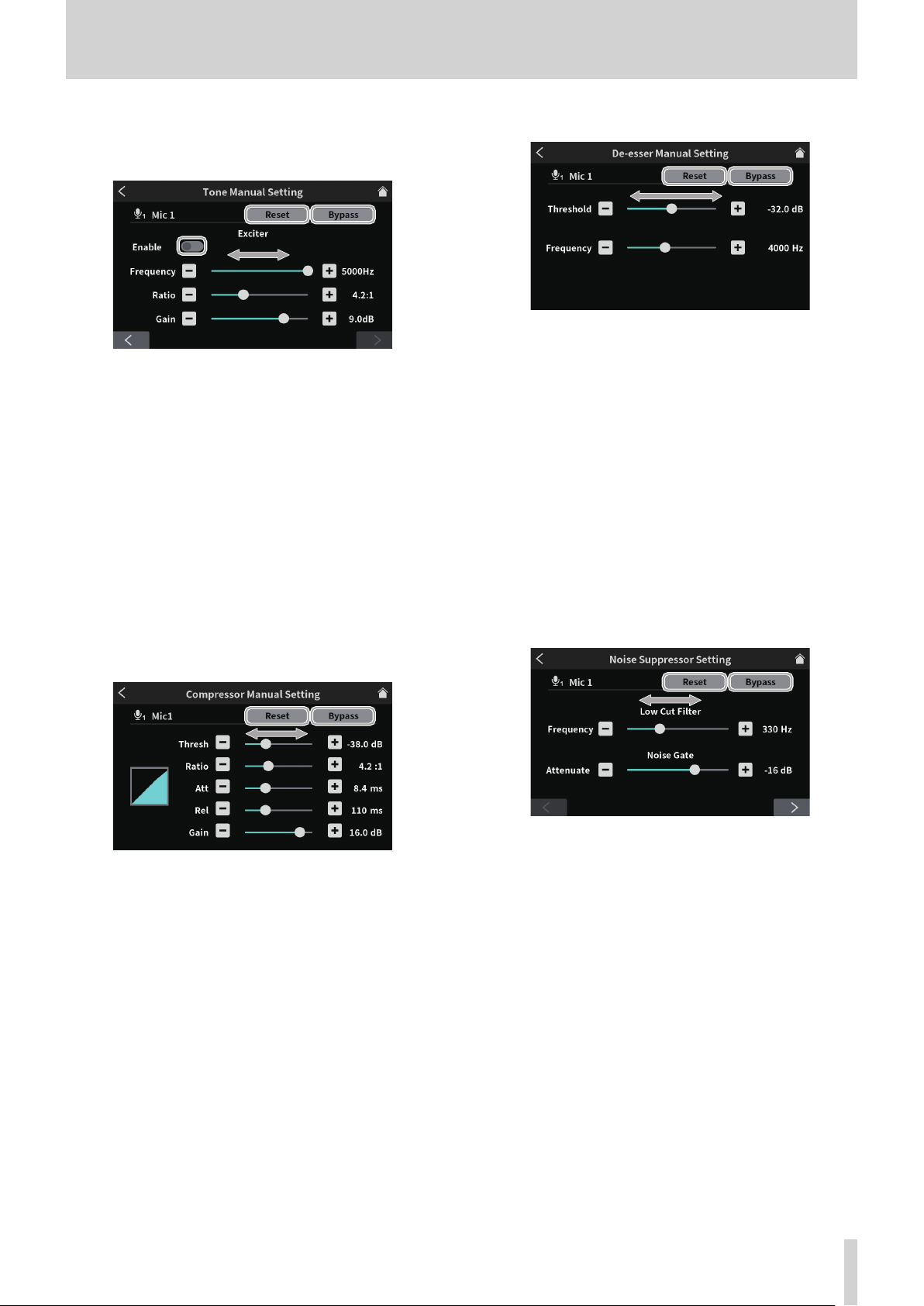

Tap the settings icon to open the Compressor Manual Setting
Screen. See "Compressor Manual settings" on page 29.
3. When done making settings on the first page of the Voice Setting
Screen, tap the [>]button at the bottom of the screen to open the
second page.
Adjusting the Processing
Voice Setting Screen page 2 (MIC INPUT 1 jack example)
Tap the Processing switch to turn it on.
Tapping one of the Processing setting icons selects it, highlighting it and turning the function on.
o De-esser : Adjust harsh high-frequency sibilant
sounds.
o Noise Suppressor : The range of noise that is blocked
can be adjusted.
o Ducking* : When a signal is input through MIC
INPUT 1, other signal levels will be
lowered and output after the adjustment made by MIC INPUT 1 ducking.
* The Ducking setting can only be used with MIC INPUT 1.
o Tapping one of the Processing setting icons highlights it and
shows the setting icon.
o Tapping the icon again will make the setting icon
disappear.
14 TASCAM Mixcast 4
The setting icons access detailed adjustments.
Tap the setting icons to open the following screens.
o See page 29 for details about De-esser manual settings.
o See page 29 for details about Noise Suppressor settings.
o See page 30 for details about Ducking manual settings.
Adjusting mic input effects (Effect Setting)
The following adjustments can be made to change the mic input sound
as desired.
The effect function is linked to the Sound Pad buttons (w).
By assigning an effect to a pad, its settings can be applied while the pad
is pressed.
NOTE
The effect functions that can be assigned to Sound Pads (w) are
“Reverb” and “ Voice Changer”.
1. Tap the Effect Setting button.
4 - Input Settings
Reverb adjustment
Use the Reverb function to adjust the reverberations and make
related settings.
Effect Setting Screen page 1
Tap the Reverb switch to open the following message.
Effect Setting selection screen
2. The following message will appear when the Effect Setting Screen is
opened. Tap “OK”.
3. This opens the first page of the Effects Setting Screen.
The Effect Setting Screen has two pages.
Voice Setting Screen page 1 (MIC INPUT 1 jack example)
Tap the [<] and [>] buttons at the bottom of the Effect Setting
Screen to switch between the first and second pages.
The following settings can be made on the first page of the Effect
Setting Screen.
Tap “OK” to turn the switch on and enable the Reverb function.
o The following three presets can be selected for Reverb. Select
Manual to make adjustments instead of using a preset.
o Tapping one of the Reverb setting icons selects it, highlighting it
and activating that setting.
o Small : This is equivalent to the “Room” manual reverb
setting and has the smallest amounts of reflec-
o Medium
(default)
o Large : This is equivalent to the “Hall” manual reverb
o DRY/WET : Move the slider to adjust the amount of the reverb
o Manual : This allows detailed reverb adjustments.
4. When done making settings on the first page of the Effect Setting
Screen, tap the [>] button at the bottom of the screen to open the
second page.
The following settings can be made on the second page of the
Effect Setting Screen.
tions and reverb sound.
: This is equivalent to the “Studio” manual reverb
setting and has medium amounts of reflections
and reverb sound.
setting and has the greatest amount of reflections
and reverb sound.
effect.
Tap the Manual icon to show the settings icon.
Tapping another icon will make the settings
icon disappear.
Tap the settings icon to open the Reverb Manual
Setting Screen.
See "Reverb manual settings" on page 31.
TASCAM Mixcast 4 15
4 - Input Settings
Adjusting the Voice Changer
The Voice Changer function can make voices sound lower or higher
by adjusting the pitch.
Effect Setting Screen page 2

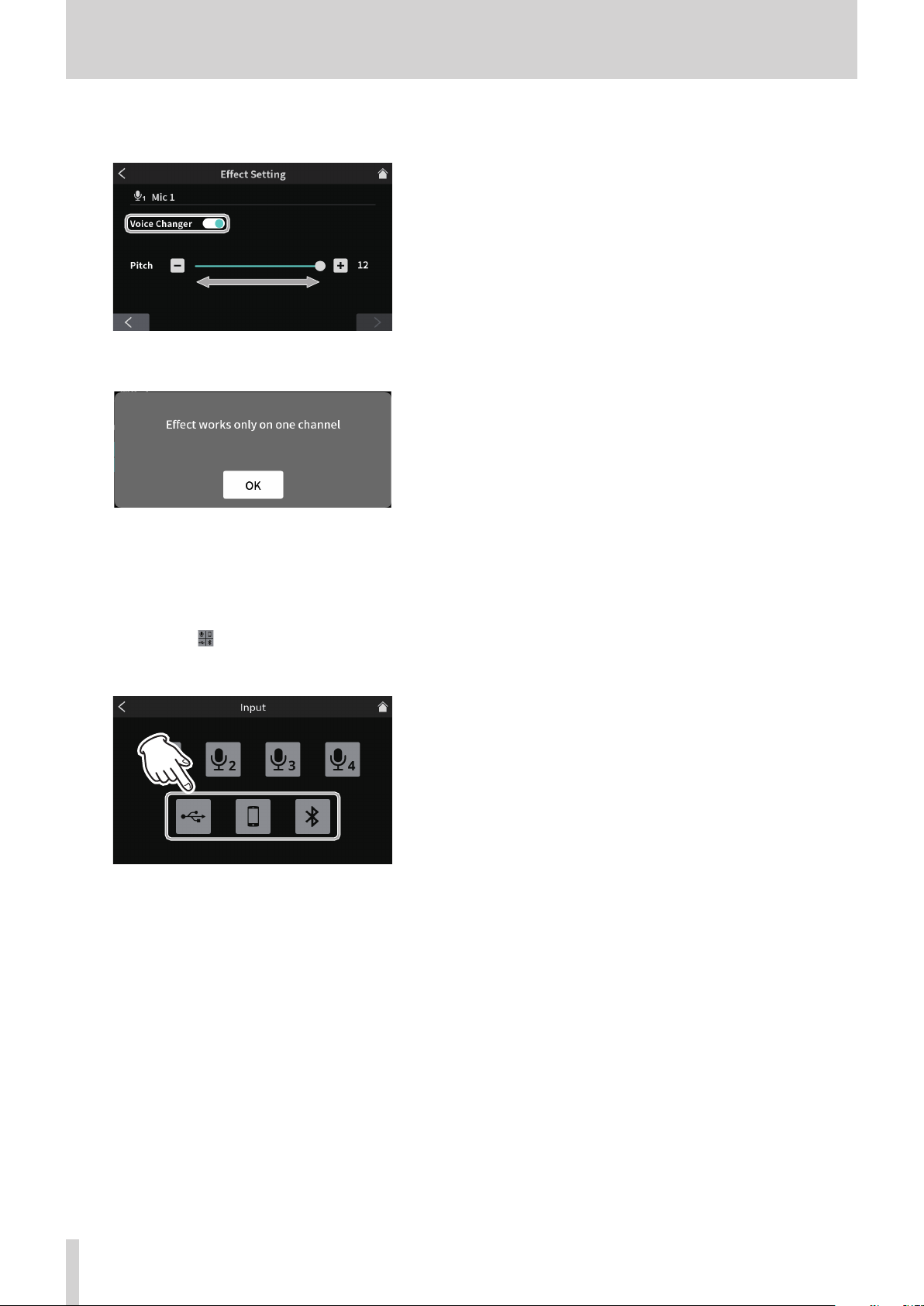

Tap the Voice Changer switch to open the following message.
Tap “OK” to turn the switch on and enable the Voice Changer
function.
Use the slider and the [-] and [+] buttons to change the voice by
setting the pitch.
5. This completes mic input settings for MIC INPUT 1.
6. Next, make mic input settings for MIC INPUT 2–4 in the same way as
for MIC INPUT 1.
As necessary, tap the input icon on the Menu Screen to open
the Input Screen, and make the following input adjustments and
settings.
Input Screen
o USB settings (see page 31)
o Smartphone settings (see page 33)
o Bluetooth settings (see page 33)
16 TASCAM Mixcast 4
5 - Recording and Playback
Recording
Start podcast recording after completing adjusting the input levels,
audio characteristics and effects for each channel.
1. Load an SD card.
2. If effect sounds and background music (BGM) assigned to Sound
Pads will be used while recording, on the Home Screen switch to
the Sound Pad bank that has the necessary sounds before starting
recording.
o See "Adding effect sounds while recording" on page 18 for pro-
cedures to switch banks.
o See "Sound Pad overview" on page 23 for procedures to add
effect sounds and BGM to Sound Pads.
NOTE
The Sound Pad bank cannot be changed while recording.
3. After preparation is complete, press the REC/PAUSE [0] button (9)
on the unit to start recording.
o While recording, the Recording Home Screen will be shown.
4. To stop recording, press the STOP [8] button (7) when recording
or paused.
The following message will appear.
5. Tap “Yes" to stop recording.
NOTE
Recording will continue while the message is shown until “Yes ” is
tapped.
6. After recording stops, the RENAME Screen will open.
The provisional name will be shown. Use the screen keyboard as
necessary to input a new name for the podcast, and tap “OK”.
PODCAST001
Recording Home Screen
o Press the press the REC/PAUSE [0] button (9) while recording to
pause recording.
(While recording is paused, the 9 paused icon will appear next
to the 0 recording icon.)
Screen when recording is paused
RENAME Screen
NOTE
o Tap “Aa” on the keyboard to switch between uppercase letters,
lowercase letters, and numbers and symbols.
o If wrong characters are input, tap “Del” to delete one character at
a time.
o Podcast files are saved in the PODCAST folder on the SD card.
o Saved files are named with the podcast name and “_01.wav”
added to the end.
If the file size exceeds 4 GB, additional files will be created and
named in order with “_02.wav” and “_03.wav” added to their ends.
NOTE

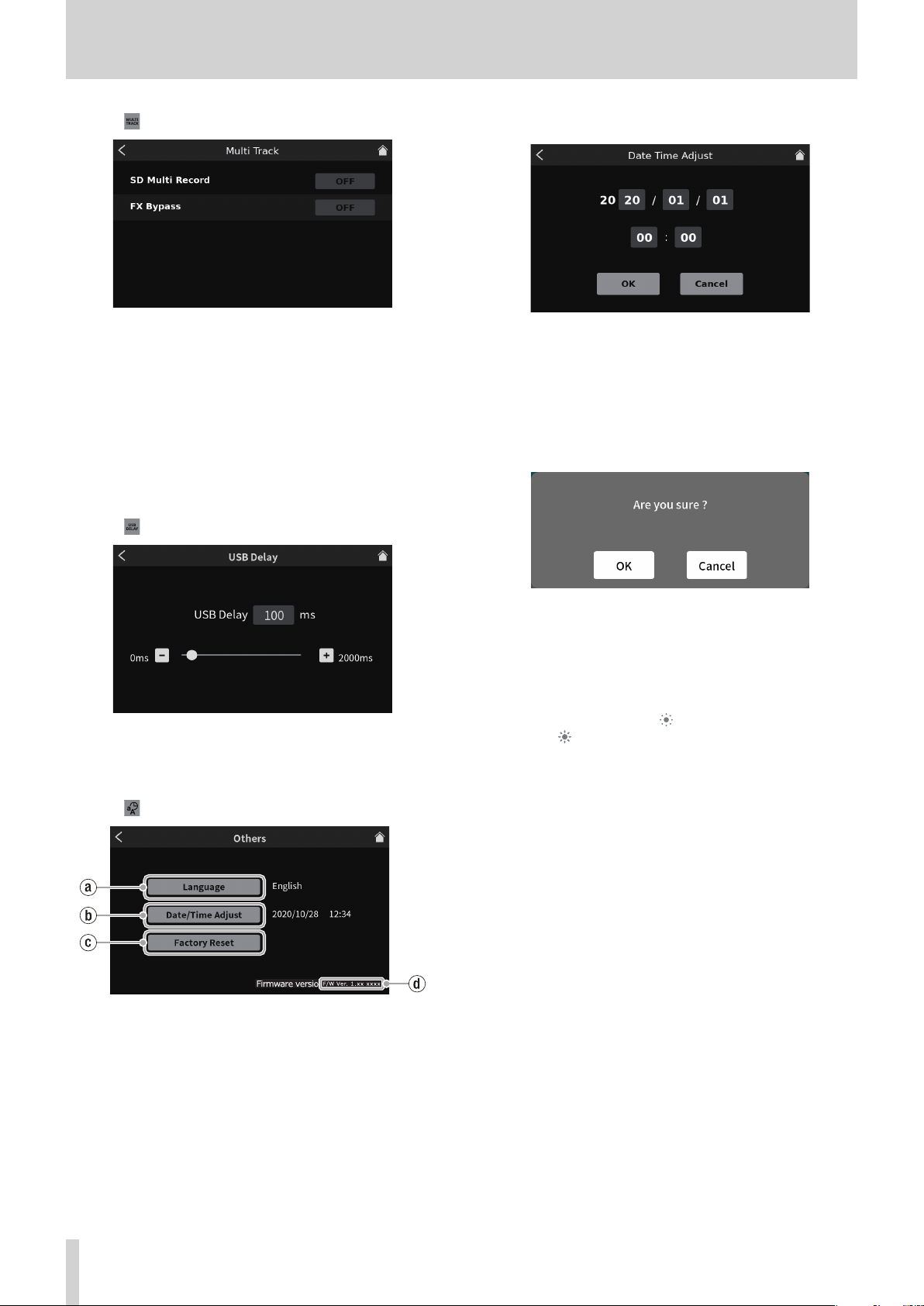

If SD Multi-Record is set to OFF in the MULTI TRACK settings of the
unit, this will be a stereo mix recording.
(See "2 MULTI TRACK" on page 36.)
TASCAM Mixcast 4 17
5 - Recording and Playback
Adding effect sounds while recording
Effect sounds and BGM assigned to Sound Pads can be added while
recording.
1. On the Home Screen, use the and icons to switch banks to open
the one with the Sound Pads that have the necessary sounds.
Applause
Drumbeat
2. After switching banks, press Sound Pads (w) to play the sounds
assigned to them.
NOTE
i Playing effect sounds and BGM while recording will cause those
sounds to also be recorded.
i The bank cannot be changed while recording. Switch to the neces-
sary bank before beginning recording.
Alarm AirHorn Brass
Heartbeat Bleep Effect
Home Screen (switching banks)
Playing recordings
This unit can play podcasts recorded on it.
1. Tap the menu icon on the Home Screen to open the Menu
Screen.
Applause
Drumbeat
2. Tap the play icon.
Alarm AirHorn Brass
Heartbeat Bleep Effect
Home Screen
Adding marks while recording
Press the MARK button (8) while recording at positions where events
occur to add marks at those points.
This is useful to check content if you want to change it after recording.
The necessary points can be found quickly when editing recorded content in the dedicated software or to overwrite it on the Advanced Screen
opened from the PLAY Screen.
Added marks can be checked on the Advanced Screen during playback.
(See "Checking added marks on the Advanced Screen" on page 20.)
NOTE
The maximum number of marks that can be added to a single podcast is 99.
Menu Screen
This opens the podcast PLAY Screen.
3. Tap the podcast you want to play to select it.
PODCAST_001 : 2021/4/1
PODCAST_002 : 2021/4/1
PODCAST_003 : 2021/4/1
PLAY Screen
The selected podcast will be highlighted.
4. Tap the 7 play icon to start playback.
Press the MARK button (8) while it is lit to add a mark at that point.
(See "Adding marks during playback" on page 19.)
18 TASCAM Mixcast 4
5 - Recording and Playback
5. During playback, the 7 play icon will change to the 9 pause icon.
Tap the 9 pause icon to pause playback.
o When paused, it changes to the 7 play icon.
Tap the 7 play icon again to resume playback.
PODCAST_001 : 2021/4/1
PODCAST_002 : 2021/4/1
PODCAST_003 : 2021/4/1
Screen when stopped
o Press the STOP [8] button (7) when paused to set the playback
starting position to the beginning of the podcast.
Selecting a different podcast or opening any screen other than
the PLAY Screen will stop playback of the podcast.
Changing the names of podcasts
Podcast names can be changed using the following procedure.
1. Tap the name of the podcast you want to change on the PLAY
Screen to select it.
3. After completing the podcast name change, tap “OK” on the screen
keyboard to confirm it.
Deleting podcasts
1. Tap the name of the podcast you want to delete on the PLAY Screen
to select it.
PODCAST_001 : 2021/4/1
PODCAST_002 : 2021/4/1
PODCAST_003 : 2021/4/1
PLAY Screen
2. Press the trash icon to open the following message.
PODCAST_001 : 2021/4/1
PODCAST_002 : 2021/4/1
PODCAST_003 : 2021/4/1
PLAY Screen
o The selected podcast will be highlighted.
2. Tap the rename icon to open the RENAME Screen.
Use the screen keyboard to input a new name for the podcast.
RENAME Screen
Tap “OK” to delete the podcast.
V
CAUTION
Deleted podcasts cannot be restored.
Be careful not to use this function mistakenly in order to avoid deleting important data.
Adding marks during playback
By adding marks, points can be found quickly when editing recorded
content in the dedicated software or overwriting on the Advanced
Screen.
o Press the MARK button (8) during playback to add marks at posi-
tions where you want them.
o The following message will appear when marks are added.
Added marks can be checked on the Advanced Screen.
o Tap “Aa” on the keyboard to switch between uppercase letters,
lowercase letters, and numbers and symbols.
o If wrong characters are input, tap “Del” to delete one character at
a time.
TASCAM Mixcast 4 19
5 - Recording and Playback
Advanced playback functions
Using advanced playback functions, podcasts can be recorded over and
checked. On the Playback Screen, tap the Advanced button.
PODCAST_001 : 2021/4/1
PODCAST_002 : 2021/4/1
PODCAST_003 : 2021/4/1
PLAY Screen
3. The Advanced Screen will open.
Checking added marks on the Advanced Screen
Added marks can be checked on the Advanced Screen.
Tap the Advanced button to open the Advanced Screen.
PODCAST_001 : 2021/4/1
PODCAST_002 : 2021/4/1
PODCAST_003 : 2021/4/1
PLAY Screen
o If a podcast has marks added to it, they will be shown above the
timeline.
Advanced Screen
` Play icon
Tap this to play the selected podcast. During playback, the t play
icon will change to the 9 pause icon.
1 Timeline and slider
The playback position can be changed as desired by moving the
slider on the timeline.
2 Time jumping controls
Tap the time display field to show and select from the following forward/backward jump times.
o 1s, 5s, 10s (default), 30s
After selecting the jump time, tap the and icons to find the
position where overwriting should start.
3 SET button
Tap this to move the mark (overwrite starting position) to the slider
position.
4 CLEAR button
This clears the mark (overwrite starting position) shown by the SET
button.
5 Mark jump controls
When playing a podcast that already has marks added to it, tap the
and icons to move the slider directly to them on the timeline.
Advanced Screen
o Tap the and jump icons to move the slider directly to marks on
the timeline.
Advanced Screen
Deleting added marks on the Advanced Screen
To delete a mark that has been added, when playback is stopped or
paused, use the and mark jump icons to move the slider to the
desired mark. Then, press the MARK button (8) to delete it
20 TASCAM Mixcast 4
Advanced Screen
The following message will appear when marks are deleted.
5 - Recording and Playback
Overwrite recording
A recorded podcast can be recorded over (overwritten) from a mark
point added to it or any desired position using the advanced playback
functions.
Overwrite recording from an added mark
Select the podcast to overwrite on the PLAY Screen, and tap the
Advanced button to open the Advanced Screen.
1. On the Advanced Screen, use the and MARK jump controls to
move the slider on the timeline to the point where you want overwrite recording to start. Then, tap the SET button.
Advanced Screen
2. Tapping the SET button will open the following confirmation message. Tap “OK” to close it.
4. After recording completes, press the STOP [8] button (7).
The following message will appear.
5. Tap “Yes" to stop recording and open the confirmation screen.
Advanced Screen
6. Tap the 7 play icon on the confirmation screen to check the con-
tent of the overwritten recording.
o If there are no issues, tap “OK”.
o Tap “Retry” if you want to redo overwrite recording. Since this will
open the confirmation message in step 2, press the REC/PAUSE
[0] button (9).
Overwrite recording from the same position can be conducted
again.
o To cancel overwriting, tap “DISCARD”.
This will set the recording starting position, which will be shown as
the Overwrite Position mark above the timeline.
Advanced Screen
NOTE
The overwrite recording starting position will be set before 00:00:01.
3. Press the REC [0] button (9) on the unit to start overwrite
recording.
o While overwriting, the Overwrite Recording Home Screen will be
shown.
Using TALKBACK functions
By using the TALKBACK function, speaking (from the director) through
Mic 1 can be output only to PHONES – (the participants) during
podcast recording, for example.
o To use the TALKBACK function, speak through Mic 1 while pressing
the TALKBACK button (3).
While the TALKBACK button (3) is being pressed, output is through
the PHONES – jacks.
Furthermore, unless the SOLO function is being used, it will also be
output through the PHONES and PHONES (TRRS) jacks.
o While the TALKBACK button (3) is being pressed, the Mic 1 input
audio will be muted and not recorded. It will not be output from the
MONITOR OUT L/R or LINE OUT jacks (s).
Overwrite Recording Home Screen
TASCAM Mixcast 4 21
6 - Using TASCAM Podcast Editor
This unit can be used with the functions of a 14-in/2-out USB audio
interface by connecting it to a computer, smartphone or tablet by USB.
In addition, the dedicated software* can be used to add effect sounds,
background music and other sounds to the Sound Pads as well as to edit
podcasts recorded on the unit.
Note: See the TASCAM Podcast Editor operation manual for details about
the software.
Sound settings when using with Windows OS
1. Open Settings > System > Sound, and open the Sound Control
Panel.
2. After selecting the Recording tab, and selecting “Mic (Mixcast 4)”,
click “Set Default (S)”.
Confirm that a check ( ) is next to “Mic (Mixcast 4)”, and click
“Properties (P)”.
Using with Mac OS (audio settings)
1. Open the Audio MIDI Setup ( ) app from the Applications folder.
2. Set “Mixcast 4” shown in the sidebar as the input/output (mic/
speaker) device.
o Do not enable “Play Alerts and Sound Effects Through This Device”.
3. Confirm that the “Input” setting is “14 ch” as shown in the illustration
below.
3. On the Mic Properties screen, open the Advanced tab and set the
“Default Format” to “14 channel, 24 bit, 48000 Hz”, and click the “OK”
button.
o To use TASCAM Podcast Editor or other software that supports
multiple channels, select a 14 channel setting.
o Select a 2-channel setting when using OBS Studio or another
application that supports 2-channel audio devices.
This completes Windows OS sound settings.
NOTE
By installing a dedicated ASIO driver when using Windows OS, it can
also be used with ordinary DAW software that supports ASIO. The
dedicated ASIO driver can be downloaded from the website for this
product.
This completes making audio settings for Mac OS.
Using with iOS/iPadOS/Android devices
No sound or audio settings are necessary for connecting and using with
iOS, iPadOS and Android devices.
22 TASCAM Mixcast 4
7 - Using Sound Pads
Sound Pad overview
o Effect sounds, background music (BGM) and other audio can be
assigned to each of the Sound Pads (w) on top of the unit.
o Groups of sound source settings for pad buttons (1–8) are called
“banks” in this document.
o This unit can switch between 9 banks (0–8), allowing a total of 72
different sounds to be played. Up to 8 sounds can be set for the
pads in banks 1–8.
o Bank 0 is preset with sound sources included in the unit.
Press the pads to play the sounds assigned to them.
During recording, assigned sounds can be played and various effects
can be applied to the recording.
o Using the dedicated software, sounds can be transferred to each pad.
(See the TASCAM Podcast Editor operation manual for details about
the software.)
o Use the Pad Settings on the Sound Pad Settings Screen to edit the
function assignments of each pad (including color, play method and
setting clearing).
( See "8 PAD Settings" on page 23.)
o Using PAD Advanced on the Sound Pad Settings Screen, a “Bleep”
sound or effect can be set.
(See "0 PAD Advanced" on page 23.)
* The mic effect setting can be assigned to a sound pad and applied.
(See "Adjusting mic input effects (Effect Setting)" on page 15.)
o Using PAD Rec in the Sound Pad settings, recorded sounds and effect
sounds can be assigned to each pad.
(See "9 PAD Rec" on page 23.)
Explanation of Sound Pad Screen functions
Tap the
Then, tap the sound pad icon to open the Sound Pad Screen.
menu icon on the Home Screen to open the Menu Screen.
4 Pad color setting
The color of the selected pad can be changed.
5 Trash icon
Tap this icon to clear the settings and functions assigned to the
selected pad.
6 Play Method
This shows how the effect sound or BGM of the selected pad will be
output.
The output mode can also be selected and changed.
Tap the button and select one of the following play methods.
o Latch : Press once to start playback, and once again to stop it.
Press again to play from the beginning. If nothing is
o Pause :
o RePlay : Press once to start playback. Press again to restart play-
o One Shot :
o Repeat : Press once to start playback, and once again to stop it.
o Touch : The sound will play only while the pad is being pressed.
done, the file will play to its end before stopping.
Press once to start playback, and once again to pause.
Press again to resume playback. If nothing is done, the
file will play to its end before stopping.
back from the beginning. If nothing is done, the file will
play to its end before stopping.
Press once to start playback. The file will play to its end.
To stop during playback, press and hold the pad button.
Press again to play from the beginning. If nothing is
done, the file will play repeatedly.
7 Sound source file name
This shows the name of the sound source file shown on the pad.
8 PAD Settings
o The desired color can be selected and set with the pad color set-
ting (4).
the unit (w).
o How effects and BGM are output can be set with the Play Method
button (6).
These colors are also applied the Sound Pad buttons on
9 PAD Rec
Effect sounds and BGM can be captured from each input signal.
(See "Recording sounds and assigning them to Sound Pads" on page 25.)
0 PAD Advanced
Apply mic effect settings.
(See "Assigning effects to Sound Pads" on page 24.)
Sound Pad Screen
1 Pads
Tap a pad to check or change the function assigned to it. These are
linked to the Sound Pad buttons on the unit (w).
2 Sound Pad Bank indicators
The number of the currently selected bank is highlighted.
3 Sound Pad Bank switch icons
Tap the icon to switch to the lower-numbered bank.
Tap the icon to switch to the higher-numbered bank.
TASCAM Mixcast 4 23

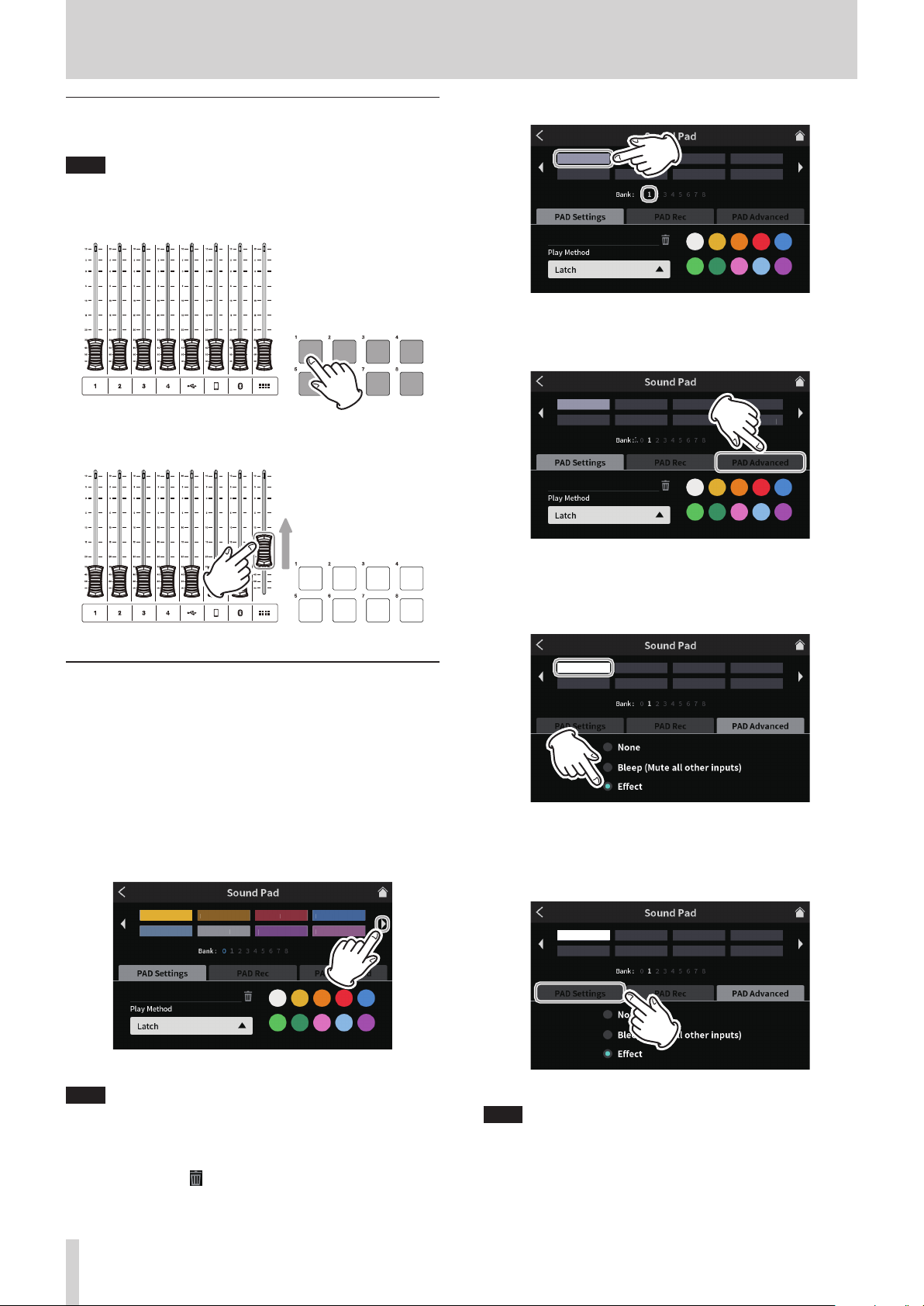

7 - Using Sound Pads
p
08W
Playing Sound Pads
Sound Pads can be played on the Home Screen and MENU Screen.
NOTE
Sound Pads cannot be used during podcast playback on the PLAY
Screen or Advanced Screen.
1. Press the Sound Pad buttons (w) to check their playback sounds
Pad playback
2. Use the channel faders (e) to adjust playback levels.
4. Open the Bank 1 screen and tap Pad 1.
Sound Pad Screen PAD Settings page
The desired color can be set.
5. Nex t, tap “PAD Advanced” to show advanced functions.
rongAns
Sound Pad Screen PAD Settings page
Fader adjustment
Assigning effects to Sound Pads
Mic input sounds can be changed by effects assigned to Sound Pads.
As an example, here we explain the procedure to add a sound that uses
the voice changer effect function to Pad 1 of Bank 1.
1. Load an SD card.
2. Turn on the Voice Changer function on the mic Effect Setting
Screen, and adjust the sound to the desired effect.
This effect will be applied when the pad is pressed.
(See "Adjusting mic input effects (Effect Setting)" on page 15.)
3. Open the PAD Settings page of the Sound Pad Screen and activate
Bank 1.
Applause
Drumbeat
Al
r
Heartbea
Blee
ir
orn
r
ff
6. When the advanced functions are shown, tap the round “Effect”
button.
“Effect” will be shown on Bank 1 Pad 1.
Effect
Advanced functions on Sound Pad Screen
o This adds the effect function to Pad 1 of Bank 1.
7. Nex t, tap “PAD Settings” to reopen the settings on the Sound Pad
Screen.
Effect
Sound Pad Screen PAD Settings page
Advanced functions on Sound Pad Screen
NOTE
i Since Bank 0 is preset with the sound sources included in the unit,
select Bank 1–8.
i If the pad in the bank you want to add the effect to already has an
NOTE
Pads that are set to Effectin the advanced settings have Play Method
fixed to “ Touch”.
assignment, tap the trash icon and clear that pad, or tap a differ-
ent pad that is empty.
24 TASCAM Mixcast 4

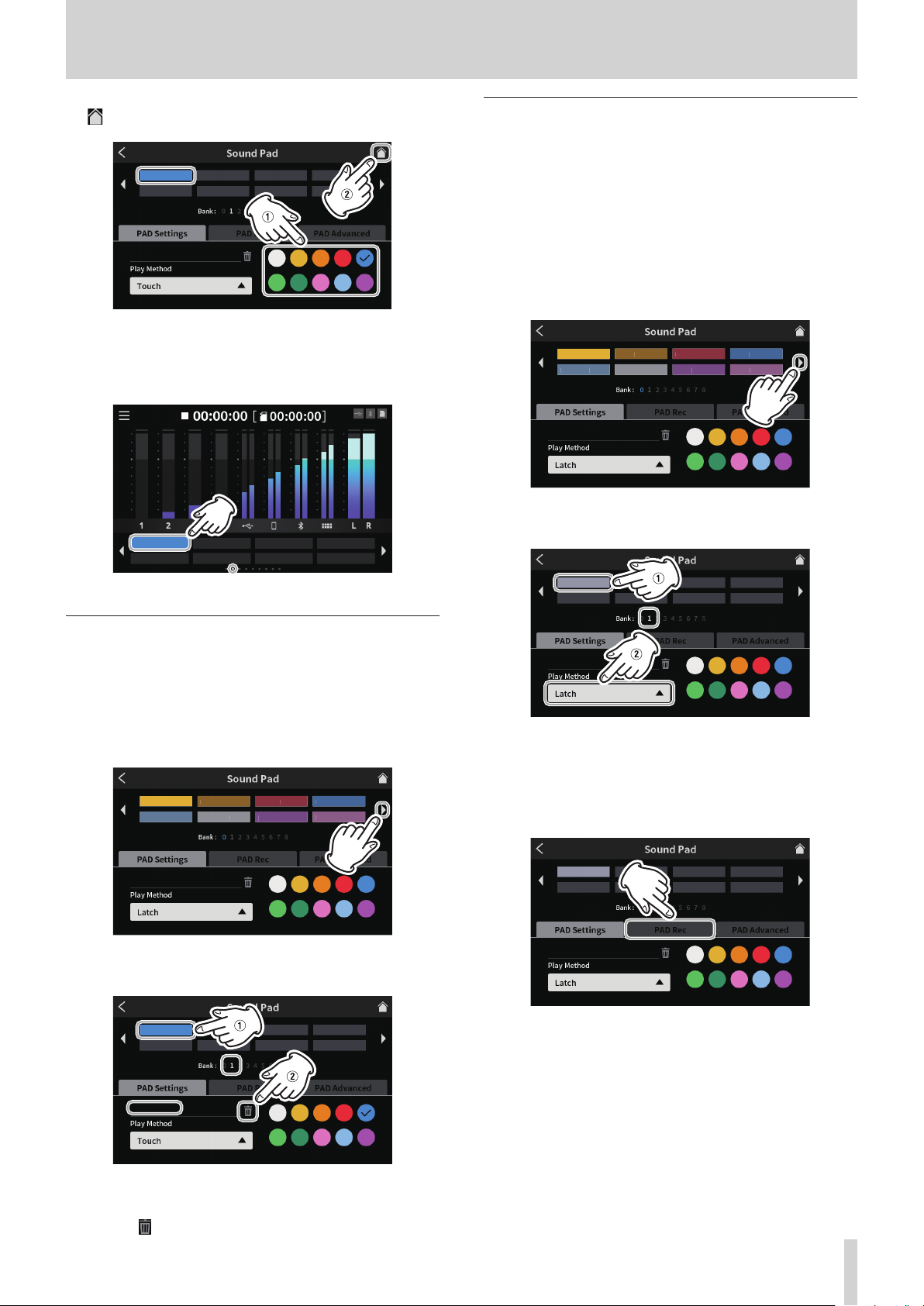

7 - Using Sound Pads
p
p
8. On the Pad Settings page, set the pad color as desired. Then, tap the
Home icon at the top right to return to the Home Screen
Effect
Sound Pad Screen PAD Settings page
9. On the Home Screen, press Sound Pad (w) button 1.
The effect will be applied to the mic input while the button is being
pressed
Effect
Recording sounds and assigning them to Sound Pads
Sound Pad audio sources can be recorded by this unit.
(The stereo mix of the unit is recorded.)
As an example, here we explain the procedure for recording and adding
a sound to Pad 1 of Bank 1.
1. Load an SD card.
2. Adjust the faders and other controls so you can hear the sound mix
that you want to record to the pad.
3. Open the PAD Settings page of the Sound Pad Screen and activate
Bank 1.
Applause
Drumbeat
4. When the Bank 1 screen is open, tap Pad 1.
Al
r
Heartbea
Blee
ir
orn
r
ff
Sound Pad Screen PAD Settings page
Home Screen
Clearing Sound Pad effect functions
Use the following procedures to clear effect functions assigned to Sound
Pads.
As an example, here we explain the procedure to remove an effect function assigned to Bank 1.
1. Open the PAD Settings page of the Sound Pad Screen and activate
Bank 1.
Applause
Drumbeat
2. Open the Bank 1 screen and tap Pad 1.
Effect
Al
r
Heartbea
Blee
ir
orn
r
ff
Sound Pad Screen PAD Settings page
Sound Pad Screen PAD Settings page
o The desired color can be set.
o As necessary, select the Play Method on the
Sound Pad
set how it plays back.
5. Nex t, tap “PAD Rec” to show the pad recording control.
Sound Pad Screen PAD Settings page
Screen to
Effect
Sound Pad Screen PAD Settings page
o “Effect” is shown in the audio source file name field.
o Tap the garbage icon to clear the assigned effect function.
TASCAM Mixcast 4 25
7 - Using Sound Pads
6. Tap the “0 Rec Start” button to start recording.
Sound Pad Screen ready to record
7. While recording, the button becomes “8 Rec Stop”.
Sound Pad Screen ready to stop recording
12. Next, tap “PAD Settings” to reopen the settings on the Sound Pad
Screen.
PAD11001
Sound Pad Screen ready to record
13. On the Pad Settings page, set the pad color as desired. Then, tap the
Home icon at the top right to return to the Home Screen
PAD11001
8. Tap the “8 Rec Stop” button to stop recording.
9. Next, the RENAME Screen will open.
The provisional name will be shown. Use the screen keyboard as
necessary to input a new name.
RENAME Screen
10. When complete, tap “OK” on the screen keyboard to confirm.
11. “PAD11_001” will be assigned to Bank 1 Pad 1, and the Sound Pad
Screen will reopen with PAD Rec activated.
PAD11001
Sound Pad Screen PAD Settings page
14. On the Home Screen, press Sound Pad (w) button 1 to play the
sound recorded using the Sound Pad Screen recording function.
PAD11001
Home Screen
NOTE
If the playback sound cannot be heard, adjust the Sound Pad fader.
Sound Pad Screen ready to record
This completes assigning the recorded sound to Pad 1 of Bank 1.
26 TASCAM Mixcast 4
Explanation of functions
8 - Touchscreen Functions
Menu Screen
Tap the Menu icon on the Home Screen to open the Menu Screen.
Tap the icons on this screen to access the operations and settings of
various functions.
1. Tap the Menu icon on the Home Screen to open the Menu
Screen.
Applause
Drumbeat
2. This opens the Menu Screen.
Alarm AirHorn Brass
Heartbeat Bleep Effect
Home Screen
Input selection
Tap the Input icon to open the Input Screen.
Input Screen
1 Mic settings
Tap Mic icon – to open the Level Screen.
(This is an example of procedures to adjust MIC INPUT 1.)
Menu Screen
1 < icon
Tap this icon to return to the screen that was open before this one.
2 Function name
This shows the function name of the screen being shown.
3 Function icons
Inputs
This opens the Input Screen (page 27).
Playback
This opens the podcast PLAY Screen (page 33).
Sound Pads
This opens the Sound Pad Settings Screen (page 34).
Hardware Settings
This opens the Hardware Settings Screen for the unit (page 35).
SD Settings
This opens the settings screen for SD cards (page 37).
4 Home icon
Tap this icon to open the Home Screen.
Level Screen
(Example: MIC INPUT 1 jack)
` Mic input level
Use the slider to adjust the level.
(Adjust the mic volume so that it is not too high or low and the volume peak stays in the orange range on the level meter.)
1 Condenser/Dynamic (mic type) selection
Set the types of mics connected to MIC INPUT 1–4 jacks (g) to
“Dynamic” (default) or “Condenser”.
NOTE
Red dots will be shown on the Home Screen next to the labels (9)
for channel numbers (1–4) of mic inputs set to “Condenser”.
V
CAUTION
When “Condenser” is selected, +48V power is provided to that MIC
input. Before disconnecting a condenser mic, change the setting to
“Dynamic” to turn +48V power off.
( If a dynamic mic is connected to a MIC INPUT 1-4 jack (g) that is set
to “Condenser”, it could be damaged.)
2 Front/Rear input switch (MIC INPUT 1 only)
Select “Front ” to use the mic input signal of a headset connected to
the PHONES (TRRS) jack (q)as the channel 1 input. (This does not
apply to MIC INPUT 2–4.)
Select “Rear” (default) to switch to the MIC INPUT 1 jack (g).
TASCAM Mixcast 4 27
8 - Touchscreen Functions
3 Voice Setting
The Voice Setting Screen has two pages.
(Tap the [<] and [>] buttons at the bottom of the Voice Setting
Screen to switch to the second page.)
Tapping opens the first page of the Voice Setting Screen.
Voice Setting Screen page 1
Voice Setting Screen page 2 (MIC INPUT 1 jack example)
Tone switch
Tap to select one of the following Tone settings.
o Deep : This emphasizes deep low frequencies.
o Mid : This emphasizes middle frequencies.
o Bright : This emphasizes bright high frequencies.
o Manual : This allows detailed tone adjustments.
Tap to show the settings icon. *
o Tapping another icon will make the settings
icon disappear.
Tap the settings icon to open the Tone Manual Setting Screen
(page 28).
Processing switch
Tap to select one of the following Processing settings.
o De-esser : Adjust harsh high-frequency sibilant sounds.
Tap to show the settings icon. **
o Tapping the icon again will make the
o Noise Suppressor
o Ducking* : When a signal is input through MIC INPUT 1,
*This only applies to MIC INPUT 1.
** Use the setting icons to access detailed adjustments. Tap them
to open the following screens.
o De-esser Manual Setting Screen (page 29)
o Noise Suppressor Setting Screen (page 29)
o Ducking Manual Setting Screen (page 30)
o Tone Manual settings
The Tone Manual Setting Screen has two pages.
(Tap the [>] button at the bottom of the Tone Manual Setting Screen
to switch to the second page (Exciter).)
This first page of the Tone Manual Setting Screen is shown first.
o Tone Manual Setting Screen page 1
setting icon disappear.
: The range of noise that is blocked can be
adjusted.
Tap to show the settings icon. **
o Tapping the icon again will make the
setting icon disappear.
other signal levels will be lowered and output
after the adjustment made by MIC INPUT 1
ducking.
Tap to show the settings icon. **
o Tapping the icon again will make the
setting icon disappear.
Compressor switch
Tap to select one of the following Compressor settings.
o Soft : This naturally compresses loud parts of the sound.
o Hard : This greatly compresses everything to even the
level.
o Manual : This allows detailed compressor adjustments.
Tap to show the settings icon. *
Tapping another icon will make the settings
icon disappear.
* Tap the settings icon to open the Compressor Manual Setting
Screen (page 29).
28 TASCAM Mixcast 4
Tone Manual Setting Screen page 1
o Highshelf/Lowshelf switch
Tap Highshelf (high frequency) or Lowshelf (low frequency) to select it.
o Reset
Tap this to restore changed settings to default values.
o Bypass
Tap to bypass tone adjustments.
Use the slider and the [-] and [+] buttons to adjust the levels of
the following setting values.
o Frequency
Switch to Highshelf (high frequency) or Lowshelf (low fre-
quency), and set each frequency.
o Gain
Use this to adjust the MIC INPUT input level.
8 - Touchscreen Functions
When done making settings on the first page of the Tone Manual
Setting Screen, tap the [>] button at the bottom of the screen to
open the second page (Exciter).
o Tone Manual Setting Screen page 2 (Exciter)
Tone Manual Setting Screen page 2 (Exciter)
o Reset
Tap this to restore changed settings to default values.
o Bypass
Tap to bypass tone adjustments.
o Enable switch
Tap this to enable the Exciter settings that have been set.
Use the slider and the [-] and [+] buttons to adjust the levels of
the following setting values.
o Frequency
Switch to Highshelf (high frequency) or Lowshelf (low fre-
quency), and set each frequency.
o Ratio
This sets the frequency ratio.
o Gain
This adjusts the input level.
o Compressor Manual settings
This shows the Compressor Manual Setting Screen.
o De-esser manual settings (MIC)
This shows the De-esser Manual Setting Screen.
De-esser Manual Setting Screen
o Reset
Tap this to restore changed settings to default values.
o Bypass
Tap to bypass de-esser adjustments.
Use the slider and the [-] and [+] buttons to adjust the levels of
the following setting values.
o Threshold
This sets the base value for input.
o Frequency
This sets the frequency used for de-essing.
o Noise suppressor settings (MIC)
The Noise Suppressor Setting Screen has two pages.
(Tap the [>] button at the bottom of the Noise Suppressor Setting
Screen to switch to the second page.)
The first page of the Noise Suppressor Setting Screen is shown first.
o The following settings can be made on the first page of the Noise
Suppressor Setting Screen.
Compressor Manual Setting Screen
o Reset
Tap this to restore changed settings to default values.
o Bypass
Tap to bypass compressor adjustments.
Use the slider and the [-] and [+] buttons to adjust the levels of
the following setting values.
o Threshold
This sets the base value for compression.
o Ratio
This sets the compression ratio.
o Attack
This sets the time before compression starts.
o Release
This sets the time until compression stops.
o Gain
Use this to adjust the MIC INPUT input level.
Noise Suppressor Setting Screen page 1
o Reset
Tap this to restore changed settings to default values.
o Bypass
Tap to bypass Noise Suppressor adjustments.
Use the slider and the [-] and [+] buttons to adjust the levels of
the following setting values.
o Low Cut Filter Frequency
The sets the low-frequency at which noise is suppressed.
o Noise Gate Attenuate
This sets the level that reverberation noise is attenuated.
TASCAM Mixcast 4 29
8 - Touchscreen Functions
When done making settings on the first page of the Noise
Suppressor Setting Screen, tap the [>] button at the bottom of the
screen to open the second page.
o The following settings can be made on the second page of the
Noise Suppressor Setting Screen.
Noise Suppressor Setting Screen page 2
o Reset
Tap this to restore changed settings to default values.
o Bypass
Tap to bypass Noise Suppressor adjustments.
Use the slider and the [-] and [+] buttons to adjust the levels of
the following setting values.
o Threshold
This sets the base noise level value.
o Attack
This sets the time before noise suppression starts.
o Release
This sets the time until noise suppression stops.
o Ducking manual settings (MIC)
This opens the Ducking Manual Setting Screen.
ATTENTION
The ducking function can only be used with MIC INPUT 1.
It is not available for MIC INPUT 2–4.
4 Effect Setting
Tapping this will open the following confirmation message. Tap “OK”
to close the message and open the Effect Setting Screen.
Tapping “OK” opens the first page of the Effect Setting Screen.
The Effect Setting Screen has two pages.
(Tap the [>] button at the bottom of the Effect Setting Screen to
switch to the second page.)
Effect Setting Screen page 1
Ducking Manual Setting Screen
o Reset
Tap this to restore changed settings to default values.
o Bypass
Tap to bypass ducking adjustments.
Use the slider and the [-] and [+] buttons to adjust the levels of
the following setting values.
o Threshold
Set the MIC INPUT 1 input level.
o Attack
This sets the time before MIC INPUT 1 ducking starts.
o Release
This sets the time until MIC INPUT 1 ducking stops.
o Attenuate
This adjusts the amount of level reduction for signals other
than MIC INPUT 1.
Effect Setting Screen page 2
Reverb switch
Tapping this will open a confirmation message. Tap “OK” to close
the message.
Tapping “OK” will turn the switch on and enable selecting from
the following
o Small : This has the smallest amounts of reections and
o Medium
(default)
o Large : This has the greatest amount of reections and re-
o DRY/WET : Move the slider to adjust the amount of the reverb
o Manual : This allows detailed reverb adjustments.
* Tap the settings icon to open the Reverb Manual Setting Screen
(page 31).
Reverb
settings.
reverb sound.
: This setting is between small and large.
verb sound.
eect.
Tap to show the settings icon. *
o Tapping another icon will make the set-
tings icon disappear.
30 TASCAM Mixcast 4
8 - Touchscreen Functions
Voice Changer switch
Tapping this will open a confirmation message. Tap “OK” to close
the message.
Tap “OK” to turn the switch on and enable the Voice Changer
settings.
The Voice Changer function can make voices sound lower or
higher by adjusting the pitch.
Use the slider and the [-] and [+] buttons to adjust the voice.
o Reverb manual settings
2 USB settings
Tap the icon to open the Level Screen.
Level Screen
` USB input level
Adjust the device connected by USB so that the volume is not too
high or low and the peak stays in the orange range on the level
meter.
1 Voice settings
Tap to open the Voice Setting Screen.
Reverb Manual Setting Screen
Tapping one of the Reverb Manual setting icons selects it,
highlighting it and activating that setting.
o Room Type selection
Tap the desired Room Type from among the following to
select it.
o Hall : Reverb sound like a concert hall
o Room : Reverb sound like being in a room
o Live : Reverb sound like being in a live perfor-
mance venue
o Studio : Reverb sound like being in a studio
o Plate : Reverb like that made by a plate reverb
o Reset
Tap this to restore changed settings to default values.
o Bypass
Tap to bypass the reverb effect.
Use the slider and the [-] and [+] buttons to adjust the levels of
the following setting values.
o Reverb Time
This sets the time reflections and reverb sound are output.
The larger the value, the longer they continue.
o Pre Delay
This adjusts the amount of time before the reflections and
reverb sound start. The larger the value, the larger the
reverberations make the room sound.
o Diffusion
This adjusts the density and width of the diffusion of the
reflections and reverb sound.
Voice Setting Screen
Processing switch
Tap to select one of the following Processing settings.
o De-esser : Adjust harsh high-frequency sibilant sounds.
Tap to show the settings icon. *
o Tapping the icon again will make the
o Noise Suppressor
* Tap the settings icon to open the De-esser Manual Setting
or
Noise Suppressor Setting
setting icon disappear.
: The range of noise that is blocked can be
adjusted.
Tap to show the settings icon. *
o Tapping the icon again will make the
setting icon disappear.
Screen (
page 32
).
Scene
Tap to select one of the following Scene settings.
o Off : The sound is not processed.
o Talk : This evens out the sound of voices to make speaking
easier to hear.
o Music : This provides clear music playback.
Screen
TASCAM Mixcast 4 31
8 - Touchscreen Functions
o De-esser manual settings (USB)
This shows the De-esser Manual Setting Screen.
De-esser Manual Setting Screen
o Reset
Tap this to restore changed settings to default values.
o Bypass
Tap to bypass de-esser adjustments.
Use the slider and the [-] and [+] buttons to adjust the levels of
the following setting values.
o Threshold
This sets the base value for input.
o Frequency
This sets the frequency used for de-essing.
o Noise suppressor settings (USB)
The Noise Suppressor Setting Screen has two pages.
(Tap the [>] button at the bottom of the Noise Suppressor Setting
Screen to switch to the second page.)
The first page of the Noise Suppressor Setting Screen is shown first.
o The following settings can be made on the first page of the Noise
Suppressor Setting Screen.
When done making settings on the first page of the Noise
Suppressor Setting Screen, tap the [>] button at the bottom of the
screen to open the second page.
o The following settings can be made on the second page of the
Noise Suppressor Setting Screen.
Noise Suppressor Setting Screen page 2
o Reset
Tap this to restore changed settings to default values.
o Bypass
Tap to bypass Noise Suppressor adjustments.
Use the slider and the [-] and [+] buttons to adjust the following
values of the effect.
o Threshold
This sets the base noise level value.
o Attack
This sets the time before noise suppression starts.
o Release
This sets the time until noise suppression stops.
Noise Suppressor Setting Screen page 1
o Reset
Tap this to restore changed settings to default values.
o Bypass
Tap to bypass Noise Suppressor adjustments.
Use the slider and the [-] and [+] buttons to adjust the levels of
the following setting values.
o Low Cut Filter Frequency
The sets the low-frequency at which noise is suppressed.
o Noise Gate Attenuate
This sets the level that reverberation noise is attenuated.
32 TASCAM Mixcast 4
8 - Touchscreen Functions
3 Smartphone settings
Tap the smartphone icon to open the Level Screen.
Level Screen
` Smartphone input level
Adjust the connected smartphone so that the volume is not too high
or low and the peak stays in the orange range on the level meter.
1 Voice settings
See "1 Voice settings" in See "2 USB settings" on page 31 for
details about the Voice Setting Screen.
4 Bluetooth settings
Tap the icon to open the Level Screen.
Level Screen
Playback settings
Tap the play icon to open the podcast PLAY Screen.
PODCAST_001 : 2021/4/1
PODCAST_002 : 2021/4/1
TestName_001 : 2021/4/1
PLAY Screen
1 Playback list
This shows the names of podcasts that have been recorded. Tap to
select the desired podcast.
2 Play icon
Tap this to play the selected podcast.
During playback, the t play icon will change to the 9 pause icon.
Tap the 9 pause icon during playback to stop playback. The icon will
become the t play icon again.
During playback, press the main STOP [8] button (7) to stop playback. In this case, the 9 pause icon becomes the t play icon again.
3 Advanced button
This allows overwrite recording of the selected podcast from the
desired position.
Tap it to open the following Advanced Screen.
` Bluetooth input level
Adjust the connected Bluetooth device so that the volume is not
too high or low and the peak stays in the orange range on the level
meter.
1 Pairing
Tap to start pairing. Make pairing settings on the other Bluetooth
device. (See "Connecting with Bluetooth devices" on page 11.)
o Device name of this unit: TASCAM Mixcast
2 Connection status
o Not connected with a Bluetooth device: “Not connected”
o Connecting with a Bluetooth device: “Connecting…”
o Connected with a Bluetooth device: “Connected”
3 Voice Setting
See "1 Voice settings" in See "2 USB settings" on page 31 for
details about the Voice Setting Screen.
Advanced Screen
` Play icon
Tap this to play the selected podcast. During playback, the t play
icon will change to the 9 pause icon.
1 Timeline and cursor
The playback position can be changed as desired by moving the
slider on the timeline.
2 Time jumping controls
Tap the time display field to show and select from the following forward/backward jump times.
o 1s, 5s, 10s (default), 30s
After selecting the jump time, tap the and icons to find the
position where overwriting should start.
TASCAM Mixcast 4 33
8 - Touchscreen Functions
3 SET button
Tapping this will open the following confirmation message. Tap “OK”
to close it.
When this message closes, the mark (overwrite starting position)
moves to the slider position.
Advanced Screen
4 CLEAR button
This clears the mark (overwrite starting position) shown by the SET
button.
5 Mark jump controls
When playing a podcast that already has marks* added to it, tap the
and icons to move the slider directly to them on the timeline.
Advanced Screen
* See "Adding marks during playback" on page 19 for information
about marks.
4 Rename icon
Tap to open the following screen keyboard.
Use the screen keyboard to change the podcast name.
Sound pad settings
Tap the Sound Pad icon to open the settings for Sound Pads
assigned in the dedicated software.
Sound Pad Screen
1 Pads
Tap a pad to check or change the function assigned to it. These are
linked to the Sound Pad buttons on the unit (w).
2 Sound Pad Bank indicators
The number of the currently selected bank is highlighted.
3 Sound Pad Bank switch icons
Tap the icon to switch to the lower-numbered bank.
Tap the icon to switch to the higher-numbered bank.
4 Pad color setting
The color of the selected pad can be changed.
5 Trash icon
Tap this icon to clear the settings and functions assigned to the
selected pad.
6 Play Method
This shows how the effect sound or BGM of the selected pad will be
output.
The output mode can also be selected and changed.
Tap the button and select one of the following play methods.
o Latch : Press once to start playback, and once again to stop it.
Press again to play from the beginning. If nothing is
o Pause :
o RePlay : Press once to start playback. Press again to restart play-
o One Shot :
o Repeat : Press once to start playback, and once again to stop it.
o Touch : The sound will play only while the pad is being pressed.
done, the file will play to its end before stopping.
Press once to start playback, and once again to pause.
Press again to resume playback. If nothing is done, the
file will play to its end before stopping.
back from the beginning. If nothing is done, the file will
play to its end before stopping.
Press once to start playback. The file will play to its end.
To stop during playback, press and hold the pad button.
Press again to play from the beginning. If nothing is
done, the file will play repeatedly.
RENAME Screen
o Tap “Aa” on the keyboard to switch between uppercase letters,
lowercase letters, and numbers and symbols.
o When input is complete, tap “OK” on the screen keyboard to
confirm.
o If wrong characters are input, tap “Del” to delete one character at
a time.
5 Trash icon
Tap the trash icon to delete the selected podcast.
34 TASCAM Mixcast 4
7 Sound source file name
This shows the name of the sound source file shown on the pad.
8 PAD Settings
o The desired color can be selected and set with the pad color set-
ting (4). These colors are also applied to the
on the unit (w).
o How effects and BGM are output can be set with the Play Method
button (6).
Sound Pad
buttons
8 - Touchscreen Functions
9 PAD Rec
Effect sounds and BGM can be captured from each input signal.
Operate the channel faders of the input signals you want to record
(e), and tap the “0 Rec Start” button to start recording.
Sound Pad Screen ready to record
o While recording, the “8 Rec Stop” button is shown. Tap this to
stop recording.
Hardware Settings
Tap the hardware settings icon to access the following settings.
Hardware Settings Screen
1 AUDIO
Tap the AUDIO icon to open the Audio Settings Screen.
Sound Pad Screen ready to stop recording
0 PAD Advanced
Apply mic setting effect settings.
(See "Assigning effects to Sound Pads" on page 24.)
Pad Screen showing advanced options
o None
No advanced option set.
o Bleep (Mute all other inputs)
This sets a bleep sound.
For example, when the bleep sound is assigned to a pad, sound
that you do not want to record can be overwritten for as long as
the pad is pressed.
NOTE
The beep sound is output at a fixed volume.
(It is not affected by the pad channel fader.)
o Effect
Settings made on the Effect Setting screen, as explained in See
"1 Mic settings" on page 27, can be assigned to pads.
For example, a sound adjusted with the Voice Changer function
on the Effect Setting Screen for Mic Input 1 can be assigned to
a pad, and that sound can be played for as long as the pad is
pressed during recording.
Audio Settings Screen
o USB Mix-Minus
Options: ON, OFF (default)
By turning this function on when conducting a telephone interview or remote recording using a smartphone or computer, the
return of sound being recorded and the generation of echo at the
other end can be prevented.
o Auto Mixer
Options: ON (default), OFF
By turning this function on, adjustments will be made automatically to keep the output sound at a fixed level while maintaining
the balance of the inputs.
o Feedback Prevention
Options: ON, OFF (default)
By turning this function on, MUTE switches are automatically
activated on channels when their inputs become saturated, suppressing feedback caused when sound from speakers is returned
to mics.
o Line Level Output
Options: ON, OFF (default)
Turning this function on keeps the output level of the MONITOR
OUT and LINE OUT jacks at a standard level and disables the
MONITOR OUT knob (5) on the top of the unit. This setting is
turned off when the unit is turned off.
o Solo Mode
Options: Pre-Fader, Post-Fader (default)
When Pre-Fader is selected, input sounds can be heard before
they are affected by fader and muting settings.
TASCAM Mixcast 4 35
8 - Touchscreen Functions
2 MULTI TRACK
Tap the MULTI TRACK icon to open the Multi Track Screen.
Multi Track Screen
o SD Multi Record
Options: ON (default), OFF
When on, 14 channels, including all inputs and the stereo mix,
will be recorded. When off, only the stereo mix will be recorded.
o FX Bypass
Options: ON, OFF (default)
When this function is on, the pre-fader audio will be multitrack
recorded. The stereo mix, however, will record the post-fader
audio, including effects.
3 USB DELAY
Tap the USB DELAY icon to open the USB Delay Screen.
1 Date/ Time Adjust
Tap this to open the Date/ Time Adjust Screen shown below.
Date/ Time Adjust Screen
Swipe the year (last two digits of Western calendar), month, date and
time up and down to set them.
After checking the input values, tap the “OK” button to confirm.
2 Factory Reset
Tap this to restore the various settings stored in the memory of the
unit to their factory default values.
Tapping this button will open the following message.
USB Delay Screen
o Use the slider and the [-] and [+] buttons to adjust the USB Delay
time. (The default value is "0".)
4 Other settings
Tap the other settings icon to open the Others Screen.
Others Screen
` Language
Tap the Language button to open the language list.
Swipe the list up and down and select the language.
English: Use English (default setting)
日本語: Use Japanese
Français: Use French
Español: Use Spanish
Deutsch: Use German
Italiano: Use Italian
Русский язык: Use Russian
中文: Use Chinese
한글: Use Korean
Tap “OK” to start initializing.
3 Firmware version
This shows the current firmware version.
5 Brightness adjustment
Move the slider left and right to change the brightness of the touchscreen and the unit LEDs.
o Move the slider left (toward ) to make them dimmer or right
(toward ) to make them brighter
6 AUTO POWER OFF
When the AUTO POWER OFF switch is on, the unit will turn itself off
automatically if no input signal* (above −60 dBFS) has been detected
and no operation has been conducted for 30 minutes.
o We recommend leaving the AUTO POWER OFF switch off normally
during use.
* Even when connected by Bluetooth or USB, the unit will turn off
automatically after the above time if no audio is input.
36 TASCAM Mixcast 4
8 - Touchscreen Functions
SD Settings
Tap the SD settings icon to access the following settings.
SD Settings Screen
1 SD card remaining capacity
This bar graph shows the amount of remaining capacity on the SD
card.
2 SD card available recording time
This shows the remaining time available for recording on the SD card.
3 SD REC
Options: ON (default), OFF
o When this function is on, podcasts will be recorded to the SD card.
When this is off, podcasts will not be recorded to the SD card.
o Turn this function off to record only to the dedicated software con-
nected to this unit.
4 Rec Stop confirmation message
Options: ON (default), OFF
If this function is on, a confirmation pop-up message will appear
when stopping podcast recording.
5 SD Device Mode
Options: ON, OFF (default)
If this function is on, the SD card in this unit can be used as USB mass
storage with another device connected by USB.
Tapping this button will open the following message.
6 Quick Erase
This formats the SD card quickly.
Tapping this button will open the following message.
Tap “OK” to begin quick formatting.
7 Full Erase
This formats the SD card completely.
Tapping this button will open the following message.
Tap “OK” to begin full formatting.
NOTE
i Both Quick Erase and Full Erase delete all data on the SD card.
i The writing speeds to SD cards and other storage media that use
flash memory tend to decrease after writing occurs repeatedly.
If the writing speed decreases, this could have a negative impact on
recording.
Using the Full Erase function of this unit should restore the writing
speed of the SD card. *
For this reason, we recommend using the Full Erase function at the
following times.
i Whenever the card has been written to until it became com-
pletely full
i On a regular schedule (about once per month)
i Before starting important recordings
* Writing speed might not be restored depending on the SD card
condition (including malfunction and age).
o Tap “Exit” to end SD Device Mode.
NOTE
i If use as USB mass storage does not work properly with an Android
device, turn on SD Device Mode on this unit before connecting with
the Android device.
i When connection is made, this unit will appear as the “Mixcast4”
drive on the device connected by USB.
i It will appear in Explorer on Windows OS and on the desktop in
Mac OS.
i It will appear inside the File app on iOS devices.
i This unit’s recording and playback functions cannot be used when it
is in SD Device Mode.
TASCAM Mixcast 4 37
9 - Error messages
The following is a list of pop-up messages that are shown when errors occur.
Refer to this list if one of these pop-up messages appears on the this unit and you want to check the meaning or determine a proper response.
Message Meaning and response
Invalid Card
Change Card
Something might be wrong with the card.
Change the card.
Protected Card
Change Card
Protected Card
MBR ERROR
Init CARD
Are you sure?
Format Error
Format Card
Are you sure?
No Card No SD card is loaded. Insert a recordable SD card.
Music Not Found
Are you sure?
File Not Found
File Not Found
Make Sys File
Are you sure?
Invalid SysFile
Make Sys File
Are you sure?
Write Timeout
Write error
REC continue
The SD card is write-protected.
Disable SD card write-protection.
The SD card is not formatted properly or the card is broken. Change the SD card, or press the OK
button while this message is being shown to format the card. Formatting will erase all the data on
the SD card.
The file cannot be found or the file may be damaged.
Check the relevant file.
A system file required to use this unit is missing.
A necessary system file might also be invalid.
If this message appears, press the OK button to create a system file.
Writing to the SD card timed out and recording stopped.
SD card writing performance has become worse.
Execute the erase format function or change the SD card.
Writing to the SD card timed out.
This has caused audio to be interrupted and noise to occur.
File Number Full
Card Full The SD card has no remaining capacity.
Max File Size Recording stopped because the recording time reached 24 hours.
File Name Error The file name is either invalid or too long. Change the file name.
Duplicate File Name A file with the same name already exists. Change the file name.
Card Error
FATAL
MARK FULL The number of marks has reached the limit of 99.
No USB Connection The recording button was pressed when there was no USB connection and SD REC was set to off.
System Rom Error
Initialize error
Are you sure?
Not Continued
File Error
Writing Failed
Player Error
System Error XX
FATAL
(XX is a number.)
Can't Enter
The total number of folders and files exceeds the limit of 5000.
Delete unnecessary folders and files or move them to a computer.
The SD card cannot be recognized properly. Replace the SD card.
If any of these errors occurs, turn the unit off and restart it.
If these error messages continue to appear frequently, please contact the store where you purchased this unit or TASCAM customer support service.
38 TASCAM Mixcast 4
10 - Troubleshooting
If you are having trouble with the operation of this unit, please try the following before seeking repair.
If these measures do not solve the problem, please contact the store where you bought the unit or TASCAM customer support service.
Power will not turn on
o Confirm that the power plug and other connectors are inserted
completely.
The SD card is not recognized
o Confirm that the SD card is inserted completely.
o Is an SD card supported by the unit loaded?
Confirm that SD cards are supported before using them.
o Confirm that the SD card being used is properly formatted.
Back up necessary data to a computer or other device and format the
SD card again.
o If the unit stops responding to operations after loading an SD card,
a problem is occurring with the SD card connection. Remove and
re-insert the SD card.
No sound is output
o Confirm that the MONITOR OUT and/or PHONES – knobs as well
as the faders are raised to suitable levels.
o Are any of the channel SOLO or MUTE buttons on?
o Confirm that mics and other audio sources are connected correctly
to the input jacks.
o Confirm the input level settings and audio source settings are
correct.
Check the settings of the inputs and the connected equipment
again.
o Is a monitoring system correctly connected to the MONITOR OUT or
LINE OUT jacks?
Is the monitoring system set up correctly?
(See "Connecting recording devices and monitor speakers" on page 11.)
The sound I want to record is distorted
o Confirm that the input levels of the channels are suitable.
Confirm that the input source levels are not too high.
o Confirm that the Voice Setting of each input is suitable.
o Confirm that the channel faders and the MONITOR OUT knob are not
raised too high.
o Is the monitoring level too high, causing the monitoring system to
distort?
Recording is not possible
o Confirm that the SD card has enough open space.
o Recording becomes impossible when the podcast name reaches
“PODCAST_999”.
Playback is not possible
o Confirm that the file uses the sampling frequency (48 kHz) and bit
depth (24-bit) supported by this unit.
There is noise
o Confirm that the connection cables do not have contact issues.
o If this unit is near a TV, radio, power amplifier or other device with a
large transformer, noise could occur with this unit or other devices
nearby. (See “Precautions for placement and use” in the Owner's
Manual.)
Sound via Bluetooth breaks up or is noisy
o Are there any wireless LAN devices, other Bluetooth devices, micro-
wave ovens or similar equipment nearby?
Keep such devices as far away as possible during use.
o Try reducing the distance between this unit and the other Bluetooth
device. Try changing the positions of this unit and the other
Bluetooth device.
o Depending on the settings of the device connected by smartphone,
the operation of apps other than for music playback could cause the
sound to break up. In this case, stop operation of apps other than the
one used for music playback.
Cannot connect or communication is interrupted
when using Bluetooth
o Confirm that the other Bluetooth device power is on and that its
Bluetooth function is on.
o Confirm that the other Bluetooth device is not too far away.
Are there walls or other obstacles, for example, between this unit and
the other Bluetooth device?
o Try changing the positions of this unit and the other Bluetooth
device.
o Turn the unit off once and restart it.
o Remove the “TASCAM Mixcast 4” pairing record from the other
Bluetooth device, and try pairing the unit with it again. (See
"Connecting with Bluetooth devices" on page 11.)
Cannot pair with another Bluetooth device
o Confirm that the other Bluetooth device supports A2DP.
o Confirm that the other Bluetooth device is in a state that allows
transmission. For details, check the operation manual of that
Bluetooth device.
o Turn the power off for both this unit and the other Bluetooth device
once. Then, turn them both on and try pairing them again.
o Turn off Bluetooth devices other than the one that you are trying to
pair with.
o Remove the “TASCAM Mixcast 4” pairing record from the other
Bluetooth device, and try pairing the unit with it again. (See
"Connecting with Bluetooth devices" on page 11.)
A computer does not recognize the unit when
connected by USB
o This unit cannot be used with USB 1.1. Use a USB 2.0 or USB 3.0 port.
o Do not use a USB hub with this unit. Always connect the unit directly
to a USB port on the computer.
o If the above methods do not resolve the problem, connect the unit
to a different USB port on the computer.
When connected by USB, sound breaks up or
noise occurs
o The processing load on the computer causes sound to break up and
noise to occur.
o If a wireless LAN or background software, including antivirus soft-
ware, is running, turn it off during use of this unit. In addition, set the
PC Control Panel "Power Options" to "High performance" (Windows).
o Use the included USB cable.*
* When using a USB cable purchased elsewhere, use a high-quality
cable (that has USB certification) of the shortest length possible.
(For information about USB cables, See "USB cables" on page 4.)
o When connecting to a computer by USB, connect directly to a USB
port built into the computer. Avoid using a USB hub, for example.
Noise occurs or sound drops out
When noise and dropouts occur while using this product, the cause is
often excessive CPU load on the connected computer. In particular, wireless LAN or antivirus software, for example, running in the background
can noticeably cause noise and sound drop outs.
Please try the following basic countermeasures.
TASCAM Mixcast 4 39
10 - Troubleshooting
NOTE
Depending on the system, compatibility issues with the computer
might prevent proper operation.
Please understand beforehand that there are no perfect solutions to
ensure problem-free use with every computer.
o Checklist when noise occurs or sound drops out
Connect this unit by USB directly to the computer.* Do not use a USB
hub.
Restart the computer before beginning.
*When using a desktop computer, disconnect all USB devices
other than this unit, a keyboard and a mouse. When using a laptop computer, disconnect all USB devices other than this unit.
1. Confirm that the operating system is compatible with this
product.
Always complete all operating system updates and use the latest
version.
2. Confirm that the product firmware is the latest version.
3. When using software that uses the ASIO driver on Windows,
confirm that the driver is the latest version.
4. When using Windows, disable all devices other than this one
for “Recording” and “Playback” in the Windows Sound settings
(Sound Control Panel).
5. When using Windows, check the power settings.
o In the “USB settings”, set the “USB selective suspend setting”
to “Disabled”.
o Set “Processor power management” “Minimum processor
state” to “100%”.
6. Adjust the buffer size.
Raise or lower the default setting value of 256 one step at a time,
With software that uses the ASIO driver, open the Settings Panel
from the software.
7. Change the USB port and USB cable.
Try connecting to a USB 2.0 port on the computer if it has one.
8. When using macOS, try resetting the NVRAM (or PRAM) and the
SMC.
o https://support.apple.com/ja-jp/HT204063
o https://support.apple.com/ja-jp/HT201295
9. Stop antivirus software and other software running in the background, and disable wireless LAN. Then, check whether the
problem continues to occur.
40 TASCAM Mixcast 4
11 - Specifications and Ratings
Recorder specifications
Recording media
SD cards (64 MB–2 GB)
SDHC cards (4 GB–32 GB)
SDXC cards (48 GB–512 GB)
Recording/playback formats
WAV : 48 kHz, 24-bit, 2-channel stereo/14-channel poly (BWF format)
Recordable Channel
14 channels maximum (12 channels + stereo mix)
Analog audio input ratings
MIC INPUT jacks (1-4)
Connectors : XLR/TRS combo jacks
XLR : XLR-3-31 (1: GND, 2: HOT, 3: COLD)
TRS : 6.3mm (1/4") standard TRS jacks (Tip: HOT,
Ring: COLD, Sleeve: GND)
Maximum input level : +10dBu(when LEVEL at min.)
Nominal input level : −10 dBu (when LEVEL at min.)
Minimum input level : −76.5 dBu (when LEVEL at max.)
Gain range : 66.5 dB
Input impedance : 2.1 kΩ
PHONES (TRRS) jack (CTIA standard)
Connector : 3.5 mm (1/8") 4-pole mini jack
Maximum input level : +4 dBV(when LEVEL at min.)
Nominal input level : −16 dBV (when LEVEL at min.)
Minimum input level : −82.5 dBV (when LEVEL at max.)
Gain range : 66.5 dB
Input impedance : 2 kΩ
LINE IN (TRRS) jack (CTIA standard)
Connector : 3.5 mm (1/8") 4-pole mini jack
Maximum input level : +8 dBV
Nominal input level : −12 dBV
Input impedance : 12 kΩ
LINE IN L/R (balanced) jacks
Connectors : 6.3mm (1/4") standard TRS jacks (Tip: HOT,
Ring: COLD, Sleeve: GND)
Maximum input level : +24 dBu
Nominal input level : +4 dBu
Input impedance : 11 kΩ
Analog audio output ratings
PHONES jacks ( – )
Connectors : 6.3mm (1/4") standard stereo jacks
Maximum output : 45 mW + 45 mW (0.1% THD+N or less, into
32Ω load)
MONITOR OUT L/R (balanced) jacks
Connectors : 6.3mm (1/4") standard TRS jacks (Tip: HOT,
Ring: COLD, Sleeve: GND)
Maximum output level : +20 dBu
Nominal output level : +0 dBu
Output impedance : 200 Ω
LINE OUT jack
Connectors : 3.5mm (1/8") stereo mini jacks
Maximum output level : +6 dBV
Nominal output level : −14 dBV
Output impedance : 200 Ω
Control input/output
USB port
Connector : USB Type-C
Formats : USB2.0 HIGH SPEED
USB AUDIO CLASS 2.0
USB MASS STORAGE CLASS
Audio performance
Mic amp EIN (equivalent input noise)
−125 dBu or less (150Ω termination, LEVEL at max.)
Frequency response
Mic input jacks (1-4)
20 Hz – 20 kHz : +0.3 dB/−0.3 dB (JEITA)
S/N ratio
101 dB
( Mic input jacks (1-4), channel faders at 0, 20kHz SPCL LPF
+A-Weight)
Distortion
0.003%
( Mic input jacks (1-4), 1kHz sine wave, channel faders at 0, 20kHz
SPCL LPF)
Crosstalk
95 dB or more
Note: Measurement conditions conform to JEITA CP-2905B.
Recording times (in hours: minutes)
Recording format
24-bit/48kHz WAV
o The recording times shown above are not continuous recording
times. They are total recordable times for SD/SDHC/SDXC cards.
14 ch. 0:35 1:10
2 ch. 4:07 8:15
SIZE
4 GB 8 GB
PHONES (TRRS) jack (CTIA standard)
Connector : 3.5 mm (1/8") 4-pole mini jack
o PHONES (TRRS) output splits from PHONES output.
LINE OUT (TRRS) jack (CTIA standard)
Connector : 3.5 mm (1/8") 4-pole mini jack
Maximum output level : -25 dBu
Nominal output level: : -45 dBu
Output impedance : 100 Ω
Bluetooth
Output class: 2 (about 10m* unobstructed transmission distance)
Supported profile: A2DP
Supported A2DP codecs: SBC, AAC
Supported A2DP content protection: SCMS-T
* The transmission distance is an estimate. The transmission distance
may vary depending on the surrounding environment and radio wave
conditions.
TASCAM Mixcast 4 41
11 - Specifications and Ratings
Computer system requirements
Check the TEAC Global Site (http://teac-global.com/) for the latest information about supported operating systems.
Operation with each OS was confirmed with standard system setups
that met the following conditions.
Operation is not guaranteed, however, with all systems that meet the
following conditions.
Windows
Supported operating systems
Windows 10 64-bit
Computer hardware requirements
Windows computer with a USB 2.0 (or higher)
Note: Operation is not guaranteed using the TASCAM driver with
ARM64 CPUs.
Mac
Supported operating systems
macOS Big Sur (11)
macOS Catalina (10.15)
Computer hardware requirements
Mac with a USB 2.0 (or higher)
Other
Power
Dedicated AC adapter (PS-P1220E NUT), DC12V
Power consumption
12.5 W (maximum)
Weight
2.55 kg
Operating temperature range
0–40ºC
Dimensions
374.8 × 56.5 × 263.6 mm
(width × height × depth, excluding protrusions)
374.8 × 71.2 × 266.7 mm
(width × height × depth, including protrusions)
iOS/iPadOS devices
iOS 14 / iPadOS 14
iOS 13 / iPadOS 13
Android devices
Android 11
Android 10
* Compatibility has been confirmed, but this does not guarantee
operation with all devices.
42 TASCAM Mixcast 4
Dimensional drawings
11 - Specifications and Ratings
374.8mm 71.2mm
56.5mm
263.6mm
266.7mm
TASCAM Mixcast 4 43
11 - Specifications and Ratings
Block diagram
2-4
PHONES 1 (Rear)
PHONES 1 (Front)
SOLO
PHONES
DAC
ON
OFFONOFF
DAC
OUTPUT
Exciter
REVERB
Exclusive selection
@EFFECT BLOCK1
LINE OUT L
LINE OUT R
Compressor
MIC IN 1
Level
Ducking
(EQ)
Noise
Suppressor
Tone
Audio Enhancement
ON
OFF
LCF
ONOFF
Voice Changer
Exclusive selection
Processing
EFFECT BLOCK
INPUT
@EFFECT BLOCK1
Other than “MIC IN 1"
Processing
MONITOR OUT /
Line Level Output
DAC
De-Esser
Meter
SOLOSTEREO
Meter
Meter
Level
Fader
SOLO
OFF
PRE
POST
Auto Mixer
Level
Feedback Prevention
MUTE
ON
OFF
TALKBACK
only “MIC IN 1"
1
EFFECT BLOCK
ON
OFF
FX Bypass
INPUT BLOCK (Mono)
Level
ADC
Meter
POST
SOLO
OFF
OFF
PRE
PRE
POST
ON
OFF
FX Bypass
ON
OFF
Fader
POST
Fader
SOLO
OFF
OFF
PRE
PRE
POST
MUTE
ON
OFF
ON OFF
Mix-Minus
for USB
2
EFFECT BLOCK
ON
OFF
ON
OFF
Level
L
R
L
for LINE / TRRS
FX Bypass
for Bluetooth
INPUT BLOCK (Stereo)
L
R
ADC
R
DAC
MIX
Level
INPUT BLOCK (PAD)
Mixcast 4
MIXER BLOCK DIAGRAM
44 TASCAM Mixcast 4
Rear
Front
only “MIC IN 1"
USB Delay
LINE / TRRS
48V
SD
MIC IN 1-4
USB
LINE IN R
LINE IN L
TRRS(CTIA)
Bluetooth
Sound Pad 1-8

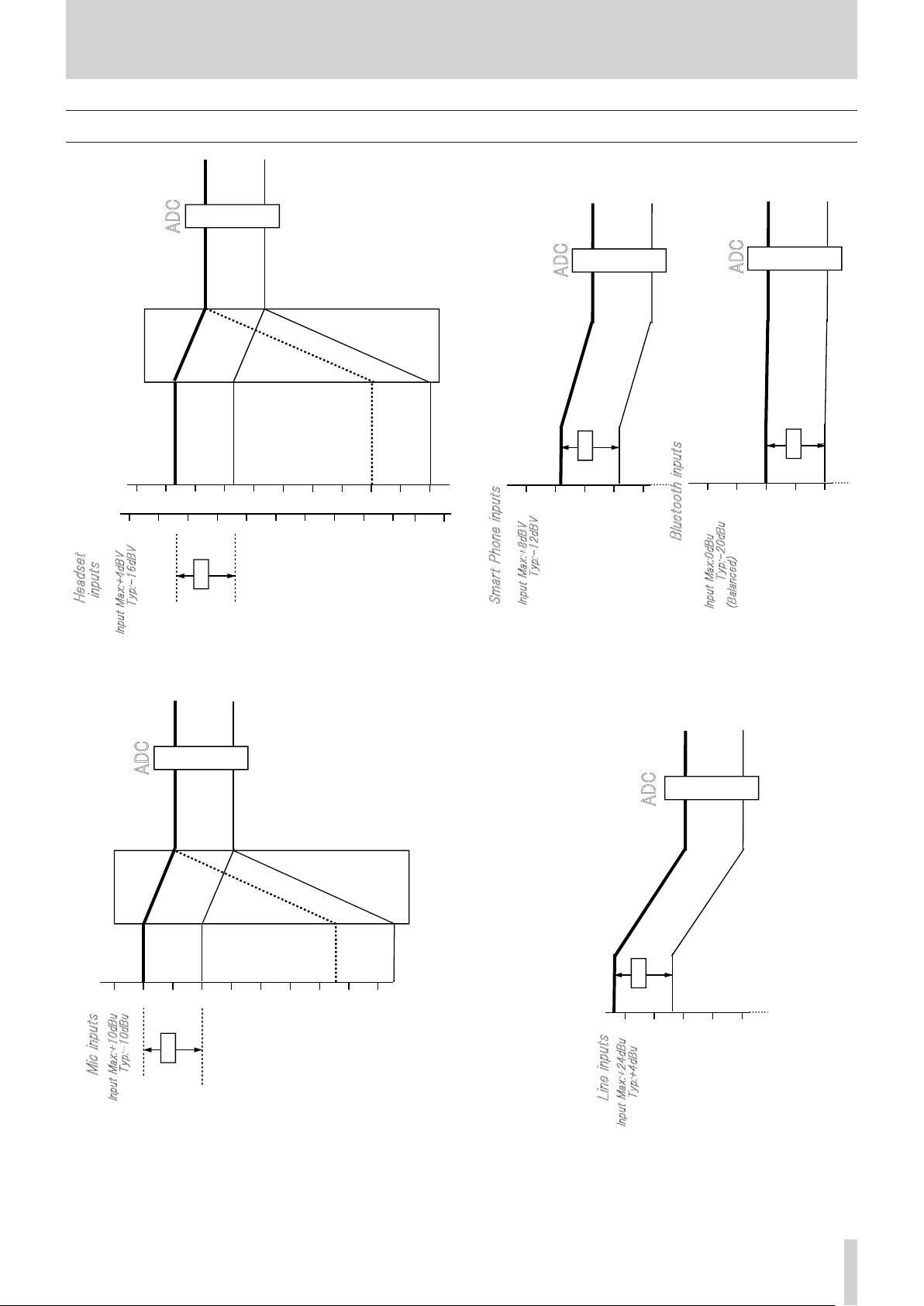

Level diagram
11 - Specifications and Ratings
-3.8dBFS
ADC
-4.5dBu
MIC GAIN
Gain: -10.7dB～+55.8dB
PAD ON_MAX
dBu
dBV
inputs
Headset
+4dBV(+6.2dBu)
+20
+20
0
+10
0
+10
20dB
Typ:-16dBV
-23.8dBFS
-24.5Bu
0dBFS
-20dBFS
ADC
-10
-20.8Bu
-12dBV(-9.8dBu)
dBu
-20
+20
Bluetooth inputs
-0.8dBu
-11dB
Headroom
20dB
(Reference Level)
-16dBV(-13.8dBu)
-10
-20
-10
-20
Headroom
-39.8dBu
-30
-40
-30
-40
PAD OFF
-60.6dBu
-60
-50
-60
-50
-70
-80.2dBu
-70
-80
-80
-90
+8dBV(10.2dBu)
dBV
+20
0
+10
Typ:-12dBV
Smart Phone inputs
Input Max:+8dBV
0dBFS
-20dBFS
ADC
20dB
-10
-21Bu
-1dB
-20ｄBu
-20
-1dBu
-1dB
+0dBu
0
+10
Typ:-20dBu
Input Max:0dBu
(Balanced)
Input Max:+4dBV
MIC GAIN
Gain: -10.7dB～+55.8dB
dBu
+20
Mic inputs
Input Max:+10dBu
INPUT
0dBFS
ADC
-0.7dBu
PAD ON_MAX
+10dBu(Bal)
0
+10
20dB
-20dBFS
0dBFS
-20.7Bu
(Reference Level)
-10dBu
-10
Headroom
-36dBu
-20
-30
-40
-60
-50
-70
-56.8dBu
-76.4dBu
ADC
-0.8dBu
-24.8dB
Headroom
20dB
+24dBu
dBu
+4dBu
+20
0
+10
-20dBFS
-20.8Bu
-10
-20
Typ:-10dBu
Typ:+4dBu
Line inputs
Input Max:+24dBu
Mixcast4 Level Diagram
TASCAM Mixcast 4 45
11 - Specifications and Ratings
Level diagram
dBu
+20
+10
0
-10
-20
-30
-40
20dB
-25dBu
-27dB
+2.2dBu(0dBV)
Single
-17.8dBu
-45dBu
+20
dBV
+10
Single
0
-8.8dBu(-11dBV)
-11dB
+2.2dBu(0dBV)
-10
20dB
-20
-30
-40
DAC
0dBFS
-20dBFS
Typ:-45dBu
SmartPhone output
Input Max:-25dBu
Bluetooth output
0dBFS
-20dBFS
Typ:-24.95dBV
Input Max:-4.95dBV
Line output
dBu
Line-OUT(Balanced)
/Speaker Out
DAC DAC
Balanced
+20
+20dBu
Output Max:+20dBu
0
-10
+10
20dB
+17.7dB
+2.2dBu
Single
-20
-17.8dBu
dBV
+20
+10
+6dBV
Line-OUT(Unbalanced)
Single
0
20dB
+6dB
+2.2dBu(0dBV)
-10
-20
-17.8dBu(-20dBV)
DAC
0dBFS
Typ: 0dBu
-20dBFS
0dBFS
-20dBFS
Typ:-14dBV
Line output
Unbalanced
Output Max:+6dBV
45mW + 45mW 32ohm
HeadPhone-OUT
dBV
+10
+1.6dBV
Single
0
Vol Margin
+2.2dBu(0dBV)
-10
20dB
-20
+21.6dB
DAC
0dBFS
Head Phone out
OUTPUT
46 TASCAM Mixcast 4
Mixcast4 Level Diagram
TASCAM Mixcast 4 47
TEAC CORPORATION
Phone: +81-42-356-9143
1-47 Ochiai, Tama-shi, Tokyo 206-8530 Japan
TEAC AMERICA, INC.
Phone: +1-323-726-0303
10410 Pioneer Blvd. Suite #1, Santa Fe Springs, California 90670, U.S.A.
TEAC UK Ltd.
Phone: +44-1923-797205
Luminous House, 300 South Row, Milton Keynes, Buckinghamshire, MK9 2FR, United Kingdom
TEAC EUROPE GmbH
Phone: +49-611-71580
Bahnstrasse 12, 65205 Wiesbaden-Erbenheim, Germany
TEAC SALES & TRADING(SHENZHEN) CO., LTD
Phone: +86-755-88311561~2
Room 817, Xinian Center A, Tairan Nine Road West, Shennan Road, Futian District, Shenzhen, Guangdong Province 518040, China
https://tascam.jp/jp/
https://tascam.com/us/
https://www.tascam.eu/en/
https://www.tascam.eu/de/
https://tascam.cn/cn
0821.MA-3230A
Loading...
