CD-200
Compact Disc Player
OWNER'S MANUAL
D01064220A
IMPORTANT SAFETY PRECAUTIONS
2 TASCAM CD-200
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within equilateral triangle, is intended
to alert the user to the presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
This appliance has a serial number located on the rear
pane l. Please reco rd the model num ber and serial
number and retain them for your records.
Model number
Serial number
For U.S.A.
TO THE USER
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provi de re asonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and,
if not installe d and used in acco rd ance with the
instruction manual, may cause harmful interference to
radio communications.
Operation of this equipment in a residential area is
likely to cause harmful interference in which case the
user will be required to correct the interference at his
own expense.
WARNING: TO PREVENT FIRE
OR SHOCK HAZARD, DO
NOT EXPOSE THIS
APPLIANCE TO RAIN OR
MOISTURE.
CE Marking Information
a) Applicable electromagnetic environment: E4
b) Peak inrush current: 2.0 A
In North America use only on 120V supply.
CAUTION
Changes or modi fication s to t his equipmen t not
expressly approved by TEAC CORPORATION for
compliance could void the user's authority to operate
this equipment.
IMPORTANT SAFETY INSTRUCTIONS
TASCAM CD-200 3
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8 Do not in s ta l l near any he a t sou rce s such
as r adiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9 Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
Do not expose this apparatus to drips or splashes.
•
Do not place any objects filled with liquids, such
•
as vases, on the apparatus.
Do not install this apparatus in a confined space
•
such as a book case or similar unit.
The appa r a tus draws no m i nal non-operat i ng
•
power from th e AC outl e t with it s POWER or
STANDBY/ON switch not in the ON position.
The apparatus should be located close enough
•
to the AC outlet so that you can easily grasp the
power cord plug at any time.
The mains plug is used as the disconnect device,
•
the di s conn e ct de vi ce shal l r e m ain re a d ily
operable.
An appar a tus with Cl a s s I co n structio n sh a ll
•
be connected to an AC outlet with a protective
grounding connection.
Ba t teri e s (batter y pac k or ba t teri es ins talle d )
•
should not be exposed to excessive heat such as
sunshine, fire or the like.
CAUTION: Danger of explosion if battery is incor-
•
rectly replaced. Replace only with the same or
equivalent type.
Excessive sound pressure from earphones and
•
headphones can cause hearing loss.
11 Only use attachments/accessories specified by
the manufacturer.
12 Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or
when unused for long periods of time.
14 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
For the customers in Europe
WARNING
This is a Class A product. In a domestic environment,
this product may cause radio interference in which
case the user may be requi red to take adequate
measures.
Pour les utilisateurs en Europe
AVERTISSEMENT
Il s' ag i t d' u n pro d uit de Cl a s se A. Da n s un
enviro n n e m e n t do m e s t i q u e , cet appareil peut
provoquer de s interf érences ra dio , dan s ce cas
l'utilisateur peut être amené à prendre des mesures
appropriées.
Für Kunden in Europa
Warnung
Dies ist eine Einrichtung, welche die Funk-Entstörung
nach Klasse A besitzt. Diese Einrichtung kann im
Wohnbereic h Funkstörunge n versursache n ; in
diesem Fal l kann vom Betriebe r verlang werden,
angemessene Maßnahmen durchzuführen und dafür
aufzukommen.
4 TASCAM CD-200
Safety Information
CAUTIONS ABOUT BATTERIES
This product u ses batteries. Misuse of batterie s
could cause a leak, rupture or other trouble. Always
abide by the following precautions when using batteries.
Never recharge non-rechargeable batteries. The
•
batteries could r upture or leak, causing fire or
injury.
When installing batteries, pay attention to the
•
polarity indications (plus/minus (+/– ) orientation),
and install them correctly in the battery compartment as indicated. Putting them in backward could
make the batteries rupture or leak, causing fire,
injury or stains around them.
When you store or dispose batteries, isolate their
•
terminals with insulation tape or something like that
to prevent them from contacting other batteries or
metallic objects.
When throwing used batteries away, follow the
•
disposal instructions indicated on the batteries
and the local disposal laws.
Do not use batteries other than those specified.
•
Do not mix and use new and old batteries or differ-
ent types of batteries together. The batteries could
rupture or leak, causing fire, injury or stains around
them.
Do not carry or store batteries together with small
•
metal objects. The batteries could short, causing
leak, rupture or other trouble.
Do not heat or disassemble batteries. Do not put
•
them in fire or water. Batteries could rupture or
leak, causing fire, injury or stains around them.
If the battery fluid leaks, wipe away any fluid on
•
the battery case before inserting new batteries. If
the battery fluid gets in an eye, it could cause loss
of eyesight. If fluid does enter an eye, wash it out
thoroughly with clean water without rubbing the
eye and then consult a doctor immediately. If the
fluid gets on a person’s body or clothing, it could
cause skin injuries or burns. If this should happen,
wash it off with clean water and then consult a
doctor immediately.
The unit power should be off when you install and
•
replace batteries.
Remove the batteries if you do not plan to use
•
the unit for a long time. Batteries could rupture or
leak, causing fire, injury or stains around them.
If the battery fluid leaks, wipe away any fluid on
the battery compartment before ins erting new
batteries.
CAUTIONS ABOUT LASER RADIATION
This product has been designed and manufactured
according to FDA regulations “title 21, CFR, chapter
1, subchapter J, based on the Radiation Control for
Health and Safety Act of 1968,” and is classified as
a class 1 laser product. There is no hazardous invisible laser radiation during operation because invisible
laser radiation emitted inside of this product is completely confined in the protective housings.
The label required in this regulation is shown at 1.
Cautions:
DO NOT REMOVE THE PROTECTIVE HOUSING
•
USING A SCREWDRIVER.
USE OF CONTROLS OR ADJUSTMENTS OR
•
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
IF TH I S PR O DU C T D E V E LO P S TR O U B LE ,
•
CONTACT YOUR NEAREST QUALIFIED SERVICE
PERSONNEL, AND DO NOT USE THE PRODUCT
IN ITS DAMAGED STATE.
CLASS 1M INVISIBLE LASER RADIATION WHEN
•
OPEN AND INTERLOCKS DEFEATED. DO NOT
VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
Optical pickup
Type : SF-P101VF
Manufacturer : SANYO Electric Co., Ltd.
Laser output : Less than 0.25 mW on the objective lens
Wavelength : 760 to 820 nm
RACK-MOUNTING THE UNIT
If you are mounting the unit in a rack, leave 1U of space
above it and 4 inch (10 cm) or more of space at the rear.
Use the rack-mounting kit to mount the unit in a standard
19-inch equipment rack, as shown below. Remove the feet
of the unit before mounting.
Do not disassemble a battery. The acid inside the
•
battery could harm skin or clothing.
TASCAM CD-200 5
Contents
1 − Introduction .........................................6
Main features ..................................................6
Included items .................................................6
About this manual .......................................... 6
Trademarks ...................................................... 6
Precautions and notes for
placement and use .......................................... 7
Beware of condensation ................................ 7
Cleaning the unit ............................................ 7
About discs ...................................................... 7
Handling of compact discs ........................ 7
2 − Names and Functions of Parts ............8
Front panel ...................................................... 8
Rear panel ....................................................... 9

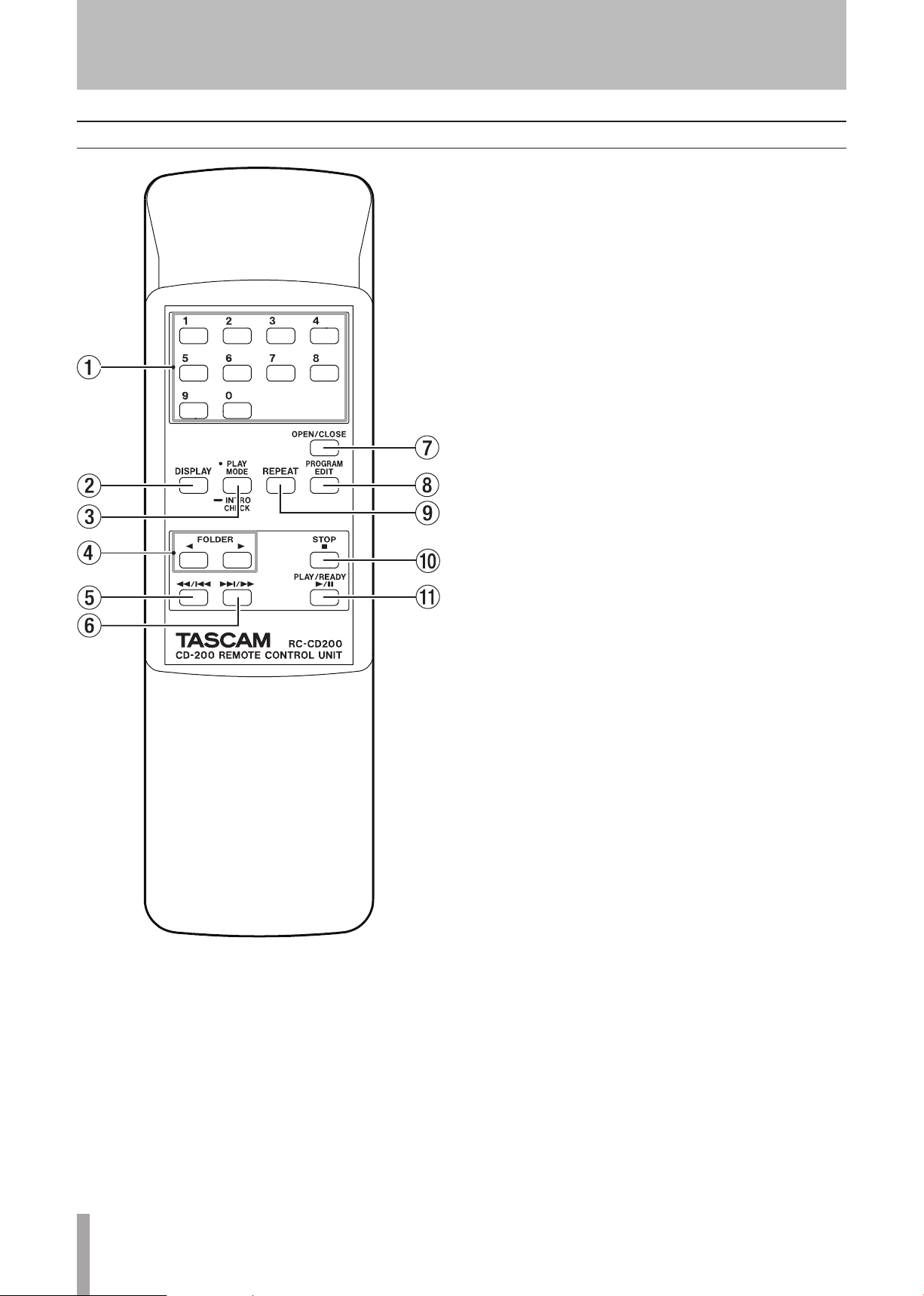

Remote control unit (RC-CD200) ................. 10
Display ........................................................... 11
3 − Preparation for Use ............................ 12
Connections................................................... 12
Connecting headphones ......................... 12
Connecting other audio equipment ...... 12
Preparing the remote control ...................... 13
Inserting batteries ................................... 13
Replacing the batteries ........................... 13
Cautions about the use of batteries ....... 13
Cautions about using the remote
control ...................................................... 13
Pitch control .................................................. 21
Intro Check ................................................... 22
5 − Message Lists .....................................23
Operation messages ..................................... 23
Warning messages ........................................ 23
Error messages .............................................. 23
6 − Troubleshooting .................................24
7 − Specifications ..................................... 25
Ratings ........................................................... 25
General .......................................................... 25
Dimensions .................................................... 26
4 − Playing back CDs ................................ 14
Discs that can be played .............................. 14

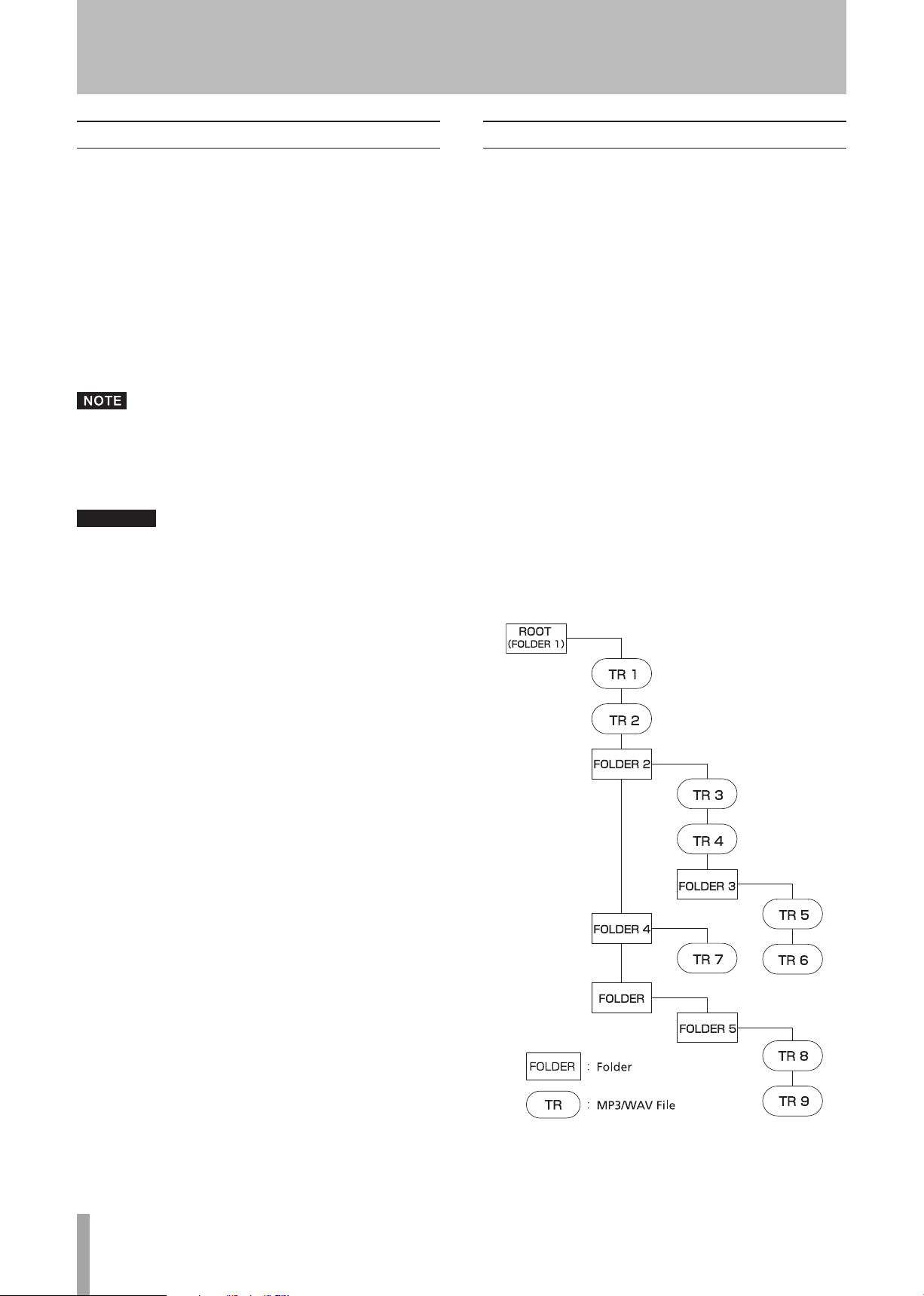

Folders and tracks on data CDs ................... 14
Loading a CD ................................................. 15
Playback ......................................................... 15
Selecting a track ............................................ 16
Skipping to the next or previous track .. 16
Selecting by track number ...................... 16
Search forward and backward .................... 16
Folder playback (with data CDs only) ......... 17
Selecting the folder ................................. 17
Playback modes ............................................. 17
Select the playback mode ....................... 17
Programmed playback ................................. 18
Setting the program ............................... 18
Checking the program ............................ 19
Replacing a program track ..................... 20
Adding more program tracks ................. 20
Clearing the program ............................. 20
Time and text information display ............. 20
Repeat playback ........................................... 21
6 TASCAM CD-200
1 − Introduction
CAUTION
Thank you for your purchase of the TASCAM CD-200
Compact Disc Player.
Before connecting and using the unit, please take time
to read this manual thoroughly to ensure you understand
how to properly set up and connect the unit, as well as the
operation of its many useful and convenient functions.
After you have finished reading this manual, please keep it
in a safe place for future reference.
You can also download the Owner's Manual from the
TASCAM web site (http://www.tascam.com).
Main features
In addition to audio CDs (CD-DA), plays data CDs
•
(CD-ROM) on which WAV and MP3 format files are
recorded.
CD-R/RW playback
•
2U EIA rack mount size
•
Analog output (RCA) and digital outputs (coaxial and
•
optical)
Headphone output with level control
•
10-key wireless remote control
•
Displays textual information (artist name, album name,
•
track name, etc.) including CD text and ID3 tags.
A rack-mounting screw kit• ..............................................1
A warranty card• ..............................................................1
Owner's manual (this manual)
•
The batteries are not supplied for Taiwan.
........................................1
About this manual
In this manual, we use the following conventions:
The names of keys and controls are given in the follow-
•
ing typeface: DIS PL AY.
When the alphanumeric portion of the display shows a
•
message, this is shown in the following typeface: OPEN.
If a preset indicator in the display (i.e. one which cannot
•
change) is shown, this is shown as follows: INTRO.
The CD-DA format may also be mentioned as • “audio
CD” format.
CDs on which MP3 or WAV audio files are recorded
•
may be mentioned as “data CDs”.
Additional information is introduced in the styles below
•
when needed:
Useful hints when using the unit.
Three types of play mode (continuous, shuffle, and pro-
•
gramed)
Repeat playback (single repeat, all repeat)
•
±12.5% pitch control
•
Intro check
•
Folder repeat for data CDs
•
Various time display (track elapsed time, track remain-
•
ing time and total remaining time for audio CDs, total
elapsed time for data CDs).
10-second shockproof memory built-in (protection
•
against skipping).
Included items
The included items are listed below.
Take care when opening the package not to damage the
items. Keep the package materials for transportation in the
future.
Please contact the store where you purchased this unit if
any of these items are missing or have been damaged during transportation.
Explanation of actions in special situation and supplement.
Instructions that should be followed to avoid injury,
damage to the unit or other equipment, and loss of
data.
Trademarks
TASCAM is a registered trademark of TEAC
•
Corporation.
MPEG Layer-3 audio coding technology licensed from
•
Fraunhofer IIS and Thomson.
Other company names, product names and logos in this
•
document are the trademarks or registered trademarks
of their respective owners.
Main unit• .........................................................................1
Wireless remote control unit (RC-CD200)• .....................1
AA batteries for the remote control unit• .........................2
TASCAM CD-200 7
1 − Introduction
Precautions and notes for placement and use
The operating temperature should be between 5°C and
•
35°C (41°F and 95°F).
Make sure that the unit is mounted in a level position for
•
correct operation.
Do not place any object on the unit for heat dissipation.
•
Avoid installing this unit on top of any heat-generating
•
electrical device such as a power amplifier.
Beware of condensation
If the unit (or a compact disc) is moved from a cold to a
warm place, or used after a sudden temperature change,
there is a danger of condensation; vapor in the air could
condense on the internal mechanism, making correct operation impossible. To prevent this, or if this occurs, let the
player sit for one or two hours at the new room temperature
before using.
Cleaning the unit
To clean the unit, wipe gently with a soft dry cloth. Do
not use any benzene, paint thinner, ethyl alcohol or other
chemical agents to clean the unit as they could damage the
surface.
About discs
and always store them in a clean state.
Do not use any record spray, anti-static solutions, ben-
•
zene, paint thinner or other chemical agents to clean
CDs as they could damage the delicate playing surface.
It may cause CDs to become unplayable.
Do not affix any labels or stickers to the label side of the
•
disc and do not use any protective coating spray. Do not
insert discs that have adhesive remaining from tape or
stickers that have been removed. If they are inserted into
the player, they could stick to the internal mechanism,
requiring removal by a technician.
Never use a commercially available CD stabilizer. Using
•
stabilizers with this player will damage the mechanism
and cause it to malfunction.
Do not use cracked discs.
•
Only use circular compact discs. Avoid using non-circu-
•
lar promotional, etc. discs.
When labeling CD-R and CD-RW discs, always use a
•
soft oil-based felt-tipped pen to write the information.
Never use a ball-point or hard-tipped pen, as this may
cause damage to the recorded side.
Music discs with copy control, a copy-protection sys-
•
tem, have been released form several record companies
in an attempt to protect the copyright. Since some of
these discs do not comply with the CD specifications,
they may not be playable on the CD-200.
In addition to audio CDs (CD-DA), the CD-200 can play
CD-R and CD-RW discs on which audio CD, MP3, or
WAV format files are recorded. The CD player can also
play 3-inch CDs
Handling of compact discs
Always place the compact discs in the trays with their
•
label facing upward.
To remove a disc from its case, press down on the center
•
of the disc holder, then lift the disc out, holding it carefully by the edges.
Avoid getting fingerprints on the signal side (the non-
•
label side). Grime and dust may cause skipping or malfunction.
To clean the signal side of a disc, wipe gently with a soft
•
dry cloth from the center towards the outside edge.
Dirt on discs can lower the sound quality, so clean them
8 TASCAM CD-200
2 − Names and Functions of Parts
Front panel
POWER
1
Press this switch to turn the unit on or off.
Disc tray
2
OPEN/CLOSE
3
Use this key to open and close the disc tray.
PLAY/READY (4¥/π)
Use this key to start or pause playback.
STOP (
5
Use this key to stop playback.
SEARCH
6
Press this key briefly to skip to the previous track.
Hold down this key to search for a part of a track in the
reverse direction.
SEARCH
7
Press this key briefly to skip to the next track. Hold
down this key to search for a part of a track in the forward direction.
PHONES jack and knob
8
For private listening, insert the headphones plug into this
standard 1/4” stereo phone jack, and adjust the volume by
turning the level knob.
ª)
Ô [Â]
[¯]
Press this key again while this is being shown to
change the type of information displayed. The type of
information that can be shown depends on the type of
disc loaded and the operation status. (See “Time and
text information display” on page 20.)
e PLAY MODE/INTRO CHECK
Press briefly to change the playback mode. The three
playback modes are continuous, shuff le and programmed. (See “Playback modes” on page 17.) Press
and hold this key to use the Intro Check function. (See
“Intro Check” on page 22.)
rREP E AT
Press this key to select single repeat or all repeat playback. Press this key again to stop repeat playback. (See
“Repeat playback” on page 21.)
t FOLDER (˙/¥)
Use these keys when a data CD is in the player to
change the playback folder. By selecting “ALL,” every
folder on the disc is made subject to playback. (See
“Folder playback (with data CDs only)” on page 17.)
PITCH CONTROL switch, indicator and knob
9
Use this switch to turn the pitch control function on or
off. When the function is on, the indicator will light.
Adjust the amount (±12.5%) by turning the knob. (See
“Pitch control” on page 21.)
0 Remote Sensor
When operating the remote control unit, point it
towards here.
q Display
Displays various information.
w DI S PLAY
Press this key to show for two seconds the type of
information (playback time or text information) that
currently appears in the main area of the display.
TASCAM CD-200 9
2 − Names and Functions of Parts
Rear panel
y ANALOG OUTPUT (UNBALANCED) jacks
The CD playback signal is output here as stereo analog
signals (–10 dBV).
u DIGITAL OUTPUT (COAXIAL) jack
The CD playback signal is output here as a digital
signal in S/PDIF format.
i DIGITAL OUTPUT (OPTICAL) jack
The CD playback signal is output here as a digital signal in S/PDIF format.
oVOLTAGE SELECTOR
Switches the voltage to either 230 V or 120 V.
The voltage selector is only available on units for
•
specific markets.
In North America, use only on 120V supply.
•
10 TASCAM CD-200
2 − Names and Functions of Parts
Remote control unit (RC-CD200)
1
Numeric keys
Use these keys to select tracks.
2
DIS PL AY
Press this key to show for two seconds the type of
information (playback time or text information) that
currently appears in the main area of the display.
Press this key again while this is being shown to
change the type of information displayed. The type of
information that can be shown depends on the type of
disc loaded and the operation status. (See “Time and
text information display” on page 20.)
3
PLAY MODE/INTRO CHECK
Press briefly to change the playback mode. The three
playback modes are continuous, shuff le and programmed. (See “Playback modes” on page 17.) Press
and hold this key to use the Intro Check function. (See
“Intro Check” on page 22.)
4
FOLDER ˙/¥
Use these keys when a data CD is in the player to
change the playback folder. By selecting “ALL,” every
folder on the disc is made subject to playback. (See
“Folder playback (with data CDs only)” on page 17.)
5Ô/
6¯/
7
8
9
Â
Press this key briefly to skip to the previous track.
Hold down this key to search for a part of a track in the
reverse direction.
Press this key briefly to skip to the next track. Hold
down this key to search for a part of a track in the forward direction.
OPEN/CLOSE
Use this key to open and close the disc tray.
PROGRAM EDIT
Use this to set, confirm and edit programs. (See
“Programmed playback” on page 18.)
REP E AT
Press this key to select single repeat or all repeat playback. Press this key again to stop repeat playback. (See
“Repeat playback” on page 21.)
0
STOP
Use this key to stop playback.
q
PL AY/READY
Use this key to start or pause playback.
TASCAM CD-200 11
2 − Names and Functions of Parts
Display
1 SHUFFLE
SHUFFLE lights when this function is on.
2 REPE AT
REPEAT ALL appears when it is set and REP EAT appears when
single repeat is set.
3 INTRO
INTRO lights when this function is on.
4MEMORY
MEMORY lights when programmed playback is on and
blinks while you are setting the program.
5 Folder number
When a data CD is in the unit, the folder number is
shown when set to folder playback, and ALL is shown
when set to disc playback (all folders). When an audio
CD is in the unit, cd is shown.
6 Main display
The track number and time or text information is
shown. The status of the unit (OPEN, CLOSE, TOC*
READ, etc.) and messages (NO DISC, etc.) are
also shown. Items with more than eight characters are
scrolled when shown.
* TOC means “Table Of Contents,” which is track information written on the disc
12 TASCAM CD-200
3 − Preparation for Use
Amplifier
CAUTION
3 − Preparation for Use
Connections
Connecting headphones
Connect stereo headphones to the PHONES jack on the
front panel. Use the knob to adjust the level.
Connecting other audio equipment
Sound from this unit can be output as an analog or digital
signal to, for example, an external amplifier or mixer.
Unbalanced analog signals are output from the ANALOG
OUTPUT jacks (RCA pin jacks), and digital signals are
output from the DIGITAL OUTPUT jacks in S/PDIF format.
The unit has two types of DIGITAL OUTPUT jacks—
coaxial and optical—allowing connection to equipment
with both types of inputs.
When making a digital connection, use either the •
coaxial or optical connector.
To dub a recording digitally, prepare the disc for •
playback in this unit before starting recording with
the recording device.
TASCAM CD-200 13
3 − Preparation for Use
Remote sensor
15°
15°
Preparing the remote control
Inserting batteries
1. Open the lid.
2. Confirm +/- polarity, and insert two AA batteries.
3. Close the lid.
The batteries are not supplied for Taiwan.
Replacing the batteries
Replace both batteries with new ones when the range of
the remote control becomes short or if the function keys
become unresponsive.
Cautions about using the remote control
When using other devices controlled by infrared rays,
•
use of this remote control might operate these devices
by mistake.
Use the remote control within the following range.
•
Cautions about the use of batteries
Misuse of batteries could cause them to leak, rupture or
otherwise be damaged. Please read and abide by the precautions on them when using batteries. Also see "Cautions
about batteries" on page 4.
Operation distance
Directly in front: Within 7 meters
15° left or right: Within 7 meters
14 TASCAM CD-200
4 − Playing back CDs
CAUTION
<An Example of Data CD Structure>
4 − Playing back CDs
Discs that can be played
This unit can play the following types of files and discs.
CD-DA (audio CD) format discs
ª
Music CDs that are commercially available and CD-R and
CD-RW discs that have been recorded as audio CD format
can be played. In this manual, these types of discs are
called “audio CDs.”
CD-ROM (data CD) format discs
ª
Discs with MP3 and WAV files recorded on them can be
played. In this manual, these types of discs are called “data
CD s.”
MP3 files that have a sampling frequency of 32, 44.1 or
48 kHz and a bit-rate of 32–320 kbps or a variable bitrate (VBR) can be played back. WAV files that have a
sampling frequency of 8–48 kHz and are 8-bit or 16-bit
can be played back.
Limitations of MP3 files that use VBR compression
Due to format limitations, positions cannot be accurately
detected in VBR files. For this reason, the point where
playback actually starts might differ slightly from the
point set in advance for functions of this player when
points must be set in the middle of a track.
Folders and tracks on data CDs
This unit treats all the audio files (WAV and MP3) on data
CDs as “tracks.” Some data CDs store files inside folders
in the same way that ordinary computers do. In addition,
multiple folders can be stored inside another folder creating
a multilevel structure.
This unit assigns a folder number to each folder to manage
them. Folder numbers and are assigned sequentially starting with the first folder at the highest level followed by the
folders (subfolders) inside it. Folders inside a higher-level
folder are numbered in order before the next folder in the
higher-level is numbered as shown in the illustration below.
If the root folder of a data CD contains one or more audio
files, it will be numbered as the first folder.
Each audio file is also assigned a track number. Track
numbers are assigned in order starting from those in the
lowest numbered folder.
During ordinary playback of data CDs, tracks are played
back just like an audio CD in the order of their assigned
numbers.
Folders that do not directly contain audio files are not
given numbers. For example, in the illustration below the
folder that contains folder 5 is not given a number.
TASCAM CD-200 15
4 − Playing back CDs
CAUTION
PLAY/READY key
PLAY/READY key
Loading a CD
To load a CD, press the OPEN/CLOSE key on the main
unit or on the remote control to open the disc tray, and put
the CD into the tray with the label facing up.
Press the OPEN/CLOSE key again to close the disc tray.
After loading the disc, the unit reads the disc’s information
and shows on the display the total number of tracks and
total playback time if it is an audio CD and the total number of tracks in the current folder if it is a data CD.
Playback
The following procedures assume that the necessary connections have been completed, the unit’s power has been
turned on and a CD (audio or data) has been loaded.
Press the PL AY/READY key on the main unit or
remote control to begin playback of a CD.
Instead of pressing the OPEN/CLOSE key to close the disc
tray, you can press the PLAY/READY key to close the disc
tray and begin playback immediately.
If you open the disc tray while this unit is in use, the
following settings are lost.
Program •
Current folder (for data CDs) •
Stopping playback:
ª
Press the STOP key on the main unit or the remote
control.
Pausing playback:
ª
Press the PL AY/READY key on the main unit or the
remote control.
In this manual, unless stated otherwise, explanations are
given assuming that continuous playback mode is set. (See
“Playback modes” on page 17.)
16 TASCAM CD-20 0
4 − Playing back CDs
SEARCH
Ô/
keys
Search Ô/ keys
Numeric
keys
(0 - 9)
Selecting a track
There are two ways to select a track. You can move (skip)
to the previous or next track, or you can select a track
directly by its track number.
Skipping to the next or previous track
Press a SEARCH Ô/ (Â/¯) key on the
main unit or a search (Ô/Â, ¯/) key on
the remote control.
After selecting the track, press the PL AY/ READY key
on the main unit or the remote control to start track
playback.
To select track 1:
ª
Press the “1” key one time.
Selecting by track number
Use the numeric keys (0–9) on the remote control to
directly set a track for playback by number.
Track numbers can have up to two digits for audio CDs and
up to three digits for data CDs.
1 Use the remote control numeric keys (0–9) to input
the track number. Input the track number starting
with the first digit as in the example below.
To select track 12:
ª
Press the “1” key followed by the “2” key.
2 Press the PLAY/READY key on the main unit or the
remote control.
The selected track begins to play.
If you press the STOP key on the main unit or the
remote control, the display stops showing the track
number input and the display returns to its previous
state.
The numeric keys cannot be used to select a track when
in program or shuffle mode.
Search forward and backward
You can search forward and backward in a track while
listening to it.
1 Play or pause the desired track.
2 Press and hold a SEARCH Ô/ (Â/¯) key
on the main unit or a search (Ô/Â, ¯/)
key on the remote control to start searching forward
or backward.
3 Release the key that you are holding to stop search-
ing and return the unit to the state it was in before
searching (playback or pause).
TASCAM CD-200 17
4 − Playing back CDs
FOLDER
˙/¥
keys
FOLDER ˙/¥ keys
PLAY MODE
INTRO CHECK key
Folder playback (with data CDs only)
When playing a data CD, you can set a designated folder
(the current folder) as the playback area. Follow the procedures below to set the playback folder. You can also set the
playback area to be the entire disc by selecting “ALL.”
Selecting the folder
Playback modes
This unit can play tracks using three types of playback
modes.
Continuous playback (default setting)
The tracks on a disc are played back in numerical order.
In folder playback mode, the tracks in the current playback folder on a data CD are played back in numerical
order. See “Folder playback (with data CDs only)” on
page 17 for details.
Shuffle playback
The tracks on the disc are played back in random order
regardless of their track numbers. Playback stops after all
tracks have been played once.
In folder playback mode, the tracks in the playback
folder on a data CD are played back in random order.
See “Folder playback (with data CDs only)” on page 17
for details.
Programmed playback
Tracks are played back in the programmed order. See
“Programmed playback” on page 18 for details.
When using a data CD, by pressing the FOLDER ˙/¥
keys on the main unit or the remote control, you can skip
to the previous or next folder. This will skip to the beginning of the first track in the previous or next folder. If you
hold down one of these keys, you can skip through folders
continually.
When you skip to a different folder, it becomes the current folder.
Select the playback mode
Press the PLAY MODE/INTRO CHECK key on the
main unit or the remote control to cycle through the
playback modes.
During playback, however, only continuous playback
and shuff le playback modes can be set.
To select programmed playback, press the PL AY
MODE/INTRO CHECK key when playback is stopped
or no CD is loaded.
An indicator for the current mode will appear on the
display as shown below.
18 TASCAM CD-200

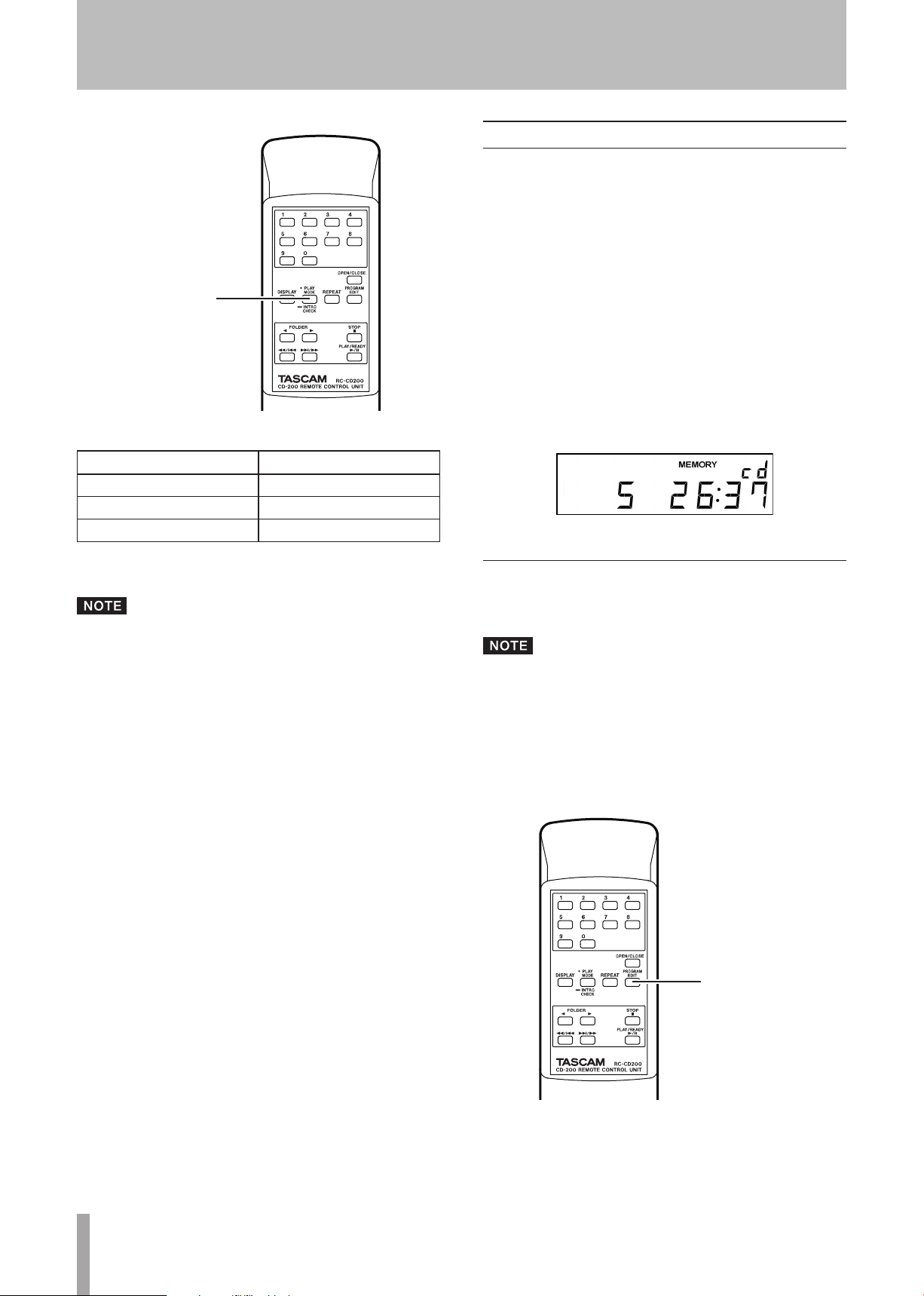

4 − Playing back CDs
PLAY MODE
INTRO CHECK key
PROGRAM
EDIT key
Display Playback mode
No indication Continuous playback
SHUFFLE
MEMORY
Shuffle playback
Programmed playback
Programmed playback
To use programmed playback, you must set a program
either before or after setting the playback mode to programmed playback mode. (See “Select the playback mode”
on page 17.)
When in programmed playback mode, press the P L AY/
READY key on the main unit or the remote control to start
playback of the set program in order from the first track
(program step 01). Press a SEARCH Ô/ (Â/¯)
key on the main unit or a search (Ô/Â, ¯/)
key on the remote control to skip to the previous or next
program step.
In programmed playback mode, when playback is stopped
the total number of tracks in the program and the total
program time are shown (total program time is not shown
when using a data CD).
The selected playback mode is retained even when the
power is turned off.
Immediately after pressing the PLAY MODE/INTRO
•
CHECK key, the selected mode is shown on the main
display area as follows.
Continuous playback mode set: CONTINUE
Shuffle playback mode set: SHUFFLE
Programmed playback mode set: PROGRAM
In this manual, unless stated otherwise, explanations
•
are given assuming that continuous playback mode is
set.
Setting the program
When no program is set, follow the procedures below to set
a program using the remote control.
The program cannot be set from the main unit.
•
You can set a program at any time regardless of the
•
current playback mode.
The program is cleared when the disc tray is opened.
•
1 Press the PROGRAM EDIT key while playback is
stopped.
TASCAM CD-200 19
4 − Playing back CDs
The unit enters program setting mode, and if no program
Program step
Playback time
Track number
Program step
Playback time
Track number
has been set, it will be possible to set a track to program
step 01 (MEMORY indicator blinks).
[Audio CD]
[Data CD]
If the program is already set, the track number and playback time of the track set as program step 01 is shown.
(See “Checking the program” on page 19.)
2 Use the numeric keys or search (Ô/Â, ¯/)
keys to select a track to set as program step 01. (The
MEMORY indicator and the track number blink.) When
using the numeric keys, input the number starting
with the leftmost digit.
4 By repeating steps two and three above, you can add
more tracks sequentially as desired.
5 If you are finished adding tracks to the program,
press the PROGRAM EDIT key when the empty
program step where it is possible to add a track
appears. The unit exits program setting mode.
The same track can be added to the program mul-
•
tiple times.
If you press the STOP key when the empty program
•
step where it is possible to add a track appears, all
steps in the program are cleared.
If you try to add more than 99 tracks, a “PGM FULL”
•
error message appears. Only 99 tracks can be added.
Checking the program
You can check the contents of the program.
1 Press the PROGRAM EDIT key on the remote control
to put the unit into program setting mode.
[Audio CD]
[Data CD]
When using a data CD, the screen switches to
•
file name display if more than a second passes
after pressing a numeric key or search (Ô/Â,
¯/) key, but it is still possible to add the track
to the program.
If you press the STOP key while a track is selected,
•
selection of that track is canceled, and the screen
returns to the state where you can select a track.
3 Press the PROGRAM EDIT key.
The selected track is added to program step 01. The unit
is now ready for you to add another track for the next
program step.
The track number and playback time of the track set as
program step 01 is shown on the screen (playback time
is not displayed if the loaded disc is a data CD) and
MEMORY blinks.
2 Press the PROGRAM EDIT key to show the track
information of the next program step.
3 If you press the PROGRAM EDIT key when the final
program step is shown, it becomes possible to add
another program step. (No track number is displayed and the MEMORY indicator blinks.)
4 Press the PROGRAM EDIT key again to exit the pro-
gram setting mode.
20 TASCAM CD-200
4 − Playing back CDs
DISPLAY key
DISPLAY key
Replacing a program track
You can replace a track that has already been added to the
program.
1 Press the PROGRAM EDIT key on the remote control
to put the unit into program mode.
2 Follow the steps in “Checking the program” above
and press the PROGRAM EDIT key to show the program step with the track that you want to replace.
3 Use the numeric keys or skip (Ô/Â, ¯/)
keys to select the desired track and press the
PROGRAM EDIT key.
After replacing a track, the display shows the empty
step at the end of the program and you can add
another track to the end of the program if desired.
4. Press the PROGRAM EDIT key again to exit pro-
gram setting mode.
Adding more program tracks
You can add tracks to the end of an already set program.
1. Press the PROGRAM EDIT key on the remote control
to put the unit into program setting mode.
Time and text information display
You can set what type of time and text information is
shown on the display.
Press the D ISPL AY key on the main unit or the
remote control to show for two seconds the type of
information (playback time or text information) that
is currently set to appear in the main area of the display. Press this key again while this is being shown
to change the type of information displayed.
The contents that can be displayed differ depending on the
type of disc loaded, its status and the operation state of the
unit.
2 Press the PROGRAM EDIT key until the empty
program step where it is possible to add a track
appears. (No track number is displayed and the
MEMORY indicator blinks.)
3 Use the numeric keys or skip (Ô/Â, ¯/)
keys to select a track and press the PROGRAM EDIT
key.
4 In this state, you can repeat step 3 to add more
tracks, or you can press the PROGRAM EDIT key to
exit program setting mode.
Clearing the program
You can clear the entire program that has been set.
1 Press the PROGRAM EDIT key on the remote control
to put this unit into program setting mode.
2 Press the PROGRAM EDIT key until the empty pro-
gram step appears. (No track number is displayed
and MEMORY blinks.)
3 Press the STOP key. “-CLEAR-” appears on the
display. After the program is cleared, program setting mode resumes without any tracks added to the
program.
Audio CDs with CD text
When stopped, the display cycles through total time, album
title and album artist. When playing back or paused, the
display cycles through track elapsed time, track remaining
time, total remaining time, track title and track artist.
Audio CDs without CD text
When stopped, playback time is displayed. When playing
back or paused, the display cycles through track elapsed
time, track remaining time and total remaining time.
Data CDs
When stopped, the display switches between total number
of tracks and album title (current folder). When playing
back or paused, the display cycles through track elapsed
time, title, artist and file.
In addition to the above procedure, opening the disc
tray also clears the program.
TASCAM CD-200 21
4 − Playing back CDs
After pressing the DISPLAY key, the currently se-
REPEAT key
REPEAT key
PITCH CONTROL knob
PITCH CONTROL key
PITCH CONTROL indicator
•
lected type of information to be shown on the main
display appears for two seconds as follows.
Track elapsed time: ELAPSED
Track remaining time: REMAIN
Total remaining time: T REMAIN
Album/track title: TITLE
Album/track artist: ARTIST
File name: FILENAME
The text information that can be shown on the
•
display is ID3 tag information for data CDs and CD
text information for audio CDs. When this information is not included for a disc or file or the information contains characters that cannot be displayed,
“NO TITLE” (title information) or “NO NAME” (artist
information) is shown.
When an audio CD is in programmed playback mode
•
the elapsed time and remaining time of the entire
program is shown.
The display contents setting is retained even when
•
the power is turned off.
Repeat playback
All repeat (R EPEAT and ALL indicators appear):
All tracks* are played back repeatedly.
When set to folder playback with a data CD, all tracks
*
in the folder are repeated. When using programmed
playback, all tracks in the program are repeated.
Off (no indicator on the display):
Repeat playback is OFF.
Turning repeat playback OFF:
Press the R EPEAT key on the main unit or the
remote control until the ALL and REP EAT indicators do
not appear.
If single repeat playback is turned ON during play-
•
back, the current track is played back repeatedly. If
all repeat playback is turned ON during playback,
playback continues as it is until the end of the disc or
current folder is reached. Then, playback continues
from the beginning of the disc or current folder.
If repeat playback is turned ON when stopped,
repeat playback begins when the PLAY/READY key is
pushed.
The repeat function’s ON/OFF state is retained even
•
when the power is turned OFF.
You can play a selected track or all tracks repeatedly.
Press the R EPEAT key on the main unit or the
remote control to select from one of the following
repeat modes.
Pitch control
Using pitch control playback, CDs can be played back at a
different pitch (sound frequency and playback speed).
Follow the procedures below to use pitch control playback.
1 Press the PITCH CONTROL key on the main unit to
turn pitch control playback ON.
The indicator above and to the left of the PITCH
CONTROL key lights.
2 Use the PITCH CONTROL knob to set the pitch.
Single repeat (R EPEAT indicator appears):
The selected track is played back repeatedly.
Pitch can be adjusted by ±12.5%.
To turn pitch control playback OFF, press the
PITCH CONTROL key on the main unit again.
The PITCH CONTROL indicator goes off and pitch
control playback turns OFF.
22 TASCAM CD-200
4 − Playing back CDs
CAUTION
PLAY MODE
INTRO CHECK key
PLAY MODE
INTRO CHECK key
During playback, turning pitch control playback •
ON or OFF might cause the playback sound to skip
momentarily.
Using pitch control playback with a data CD (MP3, •
WAV) sometimes causes the playback sound to skip.
Intro Check
During playback or when stopped, press and hold
the PLAY MODE/INTRO CHECK key on the main
unit or the remote control to playback only the first
10 seconds of each track.
The INTRO indicator lights when this function is ON.
When Intro Check is ON, press and hold the PL AY
MODE/INTRO CHECK key on the main unit or the
remote control again to return to the ordinary playback mode and turn the INTRO indicator OFF.
When using Intro Check, press the
•
Ô/ (Â/¯) keys on the main unit or the
search (Ô/Â, ¯/) keys on the remote con-
trol to skip to the preceding or next track.
Press the
•
SEARCH
STOP key to stop Intro Check.
IMPORTANT SAFETY INSTRUCTIONS
TASCAM CD-200 23
5 − Message Lists
6 − Troubleshooting
Operation messages
The following messages are shown on the main display according to the operation of the CD player.
Message
-CLEAR-
CLOSE
NO DISC
NO FILES
NO NAME
NO TITLE
OPEN
TOC READ
Message
lit or blinking
Lit All programs have been cleared.
Lit The disc tray is closing.
Lit There is no disc or the disc cannot be
verified.
Lit The disc has no files that can be played
back.
Lit There is no artist data or no file data that
can be displayed
Lit There is no title data that can be displayed. Text information must be 7-bit ASCII
Lit The disc tray is open.
Lit TOC information is being read.
Meaning Response
Load a disc that has MP3 or WAV
files.
Text information must be 7-bit ASCII
compatible text to be displayed.
compatible text to be displayed.
Warning messages
If an operation cannot be completed, one of the following messages is shown. It will appear for about two seconds before
disappearing automatically.
Message
NO PGM
PGM FULL
Message
lit or blinking
Lit No program has been created. Add tracks to the program.
Lit
You cannot add more than 99 tracks to the
program.
Meaning Response
Either stop trying to add to the
program, clear the program, or
replace one of the tracks in the
program.
Error messages
If one of the following error messages is shown, please refer to the Response column and try to resolve it. If this does not correct the problem, please contact a TEAC repair center.
Message
COMM ERR
COMM ERR
DEC ERR
DISC ER R
DRV ERR
READ ERR
Message
lit or blinking
Blinking Cannot communicate with the CD drive. Contact a TEAC repair center.
Lit
Lit
Lit
Lit The CD drive hardware is broken. Contact a TEAC repair center.
Lit The track cannot be accessed. Clean or change the disc.
An error occurred during communication
with the CD drive.
The file type is not supported or otherwise
could not be played
The TOC or file system could not be read,
or focus adjustment was not possible.
Meaning Response
Contact a TEAC repair center.
Change the disc
Clean or change the disc.
IMPORTANT SAFETY PRECAUTIONS
24 TASCAM CD -200
5 − Message Lists
If you have problems with your system, look through this
chart and see if you can solve the problem yourself before
calling your dealer or TEAC service center.
No power
ª
e Check the connection to the AC power supply.
Remote control doesn’t work.
ª
e Check to see if the batteries are properly installed in the
remote control.
e If the batteries are dead, change the batteries.
No sound
ª
e Check the connection to the monitor system again.
e Check the volume and settings of the amplifier.
There is unwanted noise.
ª
e Are the connecting cables all properly connected and
functioning?
6 − Troubleshooting
A CD cannot be played back.
ª
e If you are using a data CD with MP3 files, confirm that
the file bit-rates are compatible with this unit.
e Is the disc scratched or dirty?
The files on a data CD cannot all be played
ª
back.
e Is the unit in folder playback mode?
IMPORTANT SAFETY INSTRUCTIONS
TASCAM CD-200 25
7 − Specifications
Ratings
Compatible disc formats
ª
CD-DA (12-cm/8-cm), CD-ROM (12-cm/8-cm) ISO 9660
LEVEL 1/2/ROMEO/JOLIET format (CD-R/CD-RW
DISC compatible)
MP3 playback specifications
ª
Audio Mode: STEREO/JOINT STEREO/DUAL
CHANNEL/MONO/VBR
MPEG 1 Audio Layer III (MP3)
•
Sampling Frequency: 32 kHz/44.1 kHz/48 kHz
•
Bit Rate: 32 kbps - 320 kbps
•
WAV playback specifications
ª
Sampling Frequency: 8 kHz/11.025 kHz/12 kHz/16
kHz/22.05 kHz/24 kHz/32 kHz/44.1 kHz/48 kHz
Sampling Bit Rate: 8 bit/16 bit
7 − Specifications
PHONES Jack
ª
Headphone Output
Connector: Standard Stereo Jack
Rated Output: 20 mW + 20 mW min.
(When monitoring CD, THD + N 0.1% max., 32Ω
load)
DIGITAL OUTPUT [COAXIAL] Terminal
ª
Connector: RCA Pin Jack
Compatible Signal Format: IEC-60958-3 (S/PDIF)
Output Impedance: 75Ω
DIGITAL OUTPUT [OPTICA] Terminal
ª
Connector: Optical Jack
Compatible Signal Format: IEC-60958-3 (S/PDIF)
General
Audio CD Playback Specifications
ª
Sampling Frequency: 44.1 kHz
Sampling Bit Rate: 16 bit
Number of Channels: 2
Audio Performance
ª
Frequency Response: 20 Hz - 20 kHz ±1.5 dB
Signal-to-Noise Ratio (S/N): More than 90 dB (20 kHz
LPF + A-weighted)
Distortion (THD + N): Less than 0.01% (1 kHz: 20 kHz
LPF)
Dynamic Range: 90 dB min.
Channel Separation: 90 dB min. (1 kHz: 1 kHz BPF)
ANALOG OUTPUT [UNBALANCED] Terminal
ª
Connector: RCA pin jack
Reference Output Level: –10 dBV
Maximum Output Level: +6 dBV
Output Impedance: 200Ω
Power Requirement
ª
AC 120 V, 60 Hz (U.S.A./Canada)
AC 230 V, 50 Hz (U.K./Europe)
AC 240 V, 50 Hz (Australia)
Power Consumption
ª
11 W
Dimensions (W x H x D)
ª
481 x 94.5 x 298 (mm) / 18.94 x 3.72 x 11.73 (in)
Weight
ª
4.2 kg (9.259 lb)
Operating Temperature
ª
5 to 35°C
Inclination of installation
ª
5° or less
Illustrations and other depictions may differ in part
•
from the actual product.
Specifications and external appearance may be changed
•
without notification to improve the product.
IMPORTANT SAFETY PRECAUTIONS
26 TASCAM CD-200
7 − Specifications
Dimensions
Notes
TASCAM CD-200 27
