OPTICAL NOTEBOOK

Introduction

Congratulations on your purchase of a Targus Optical
Notebook Mouse. The scroll feature of this ergonomically
designed mouse enhances your Internet browsing capabilities
and enables you to quickly access program feature options

supported under the Windows® operating system.

NOTE: If you are running the Macintosh® operating system,
the Optical Notebook Mouse emulates a one button mouse.

The mouse connects directly to your computer’s USB port.

MOUSE

Alternatively, if you are using the Windows® operating system,
you can use the supplied PS/2 adapter to connect the mouse to
your computer’s PS/2 port.

This user’s guide describes how to connect the mouse to your
computer, install the default device drivers and personalize the
mouse features.

System Requirements

To use the mouse, your computer must meet the following
hardware requirements and run one of the operating systems
listed.

Hardware

• PC with a Intel® Pentium® processor or equivalent and a
hard disk drive

• 64 MB RAM or higher, depending on the operating system

• USB version 1.1 or PS/2 port

3

Optical Notebook Mouse

Operating System

• Windows® 98/Me/2000/XP

®

• Windows NT

(PS/2 only)

• Mac OS 9.2 and higher

Connecting the Mouse to Your Computer

Depending on the operating system you are running, you can
connect the mouse to either your computer’s USB port or,
using the supplied PS/2 adapter, you can connect the mouse to
your computer’s PS/2 port.

Connecting the Mouse to the USB Port

NOTE: If you are running the Windows NT
you must connect the mouse to your computer’s PS/2 port.
See “Connecting the Mouse to the PS/2 Port.”

To connect the mouse to an available USB port, plug the
standard USB end of the cable into an available USB port on
your computer.

You are now ready to install the device drivers for your
operating system.

Connecting the Mouse to the PS/2 Port

NOTE: If you are running the Macintosh operating system,
you must connect the mouse to your computer’s USB port.
See “Connecting the Mouse to the USB Port.”

®

operating system,

To connect the mouse to an available PS/2 port:

1 Turn off your computer.

2 Disconnect the existing mouse, if one is attached.

4

Optical Notebook Mouse

3 Plug the standard USB end of the cable into the USB

connector on the PS/2 adapter

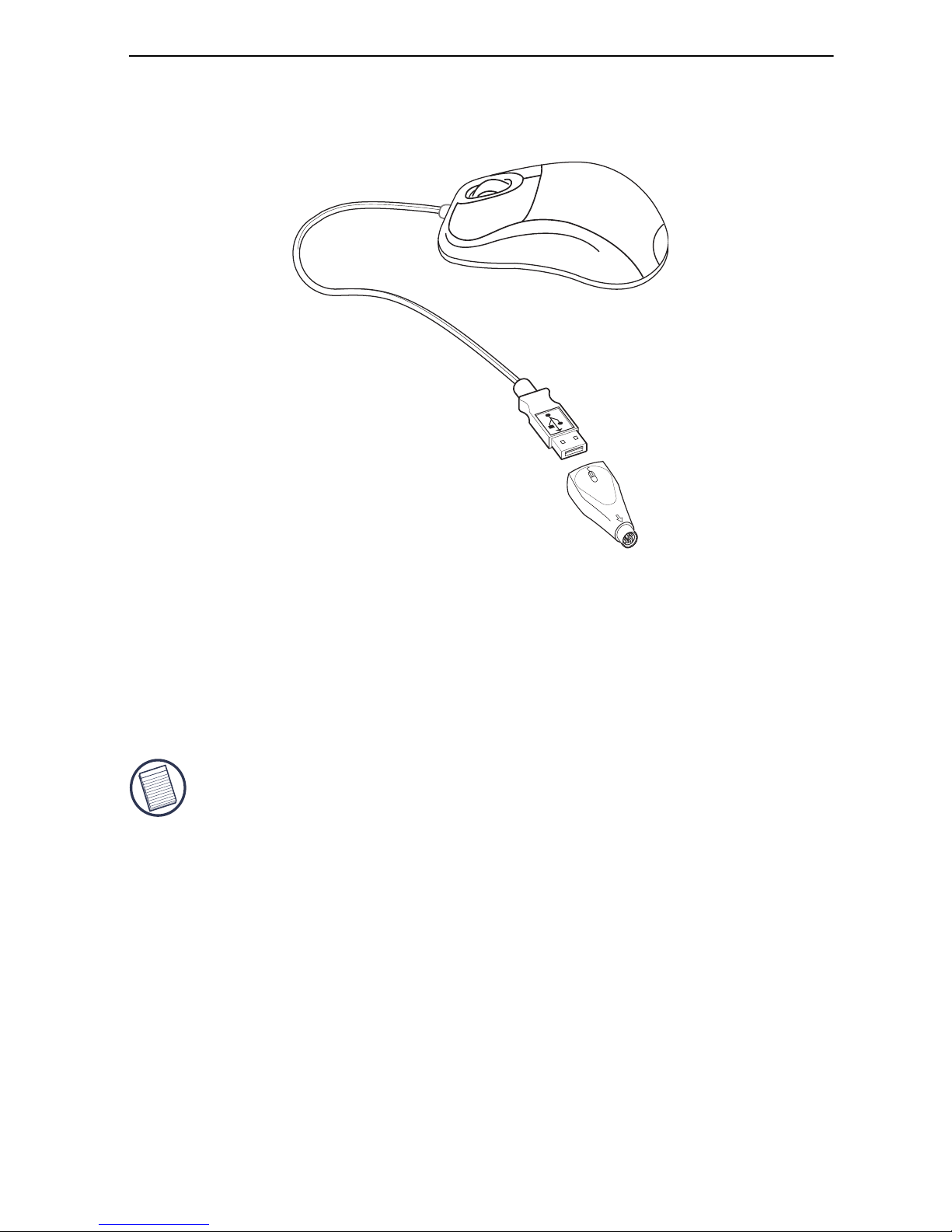

Mouse and PS/2 adapter

4 Plug the PS/2 adapter into an available PS/2 port on your

computer.

You are now ready to install the device drivers for your
operating system.

NOTE: Only the standard scrolling features are available when
the mouse is connected to the PS/2 port.

Installing the Device Drivers

If you are running the Windows NT® operating system or Mac
OS 9.2 (or higher), the operating system supports Plug and
Play operation and installs the default device drivers
automatically.

Use the following procedures to install the default device
driver for your operating system.

5

Optical Notebook Mouse

Windows® 98/Me Operating Systems

1 Turn on your computer (if it’s turned off).

The Add New Hardware Wizard appears.

If it does not, the operating system has installed the default
driver automatically. No other steps are necessary.

2Click Next.

The locate driver screen appears.

3Select Search for the best driver for your device.

(Recommended) and then click Next.

The wizard searches for the appropriate device driver.

4Click Next.

5Click Finish to complete the driver installation.

You are now ready to use the mouse.

Windows® 2000/XP Operating Systems

1 Turn on your computer (if it’s turned off).

The Found New Hardware Wizard appears.

If it does not, the operating system has installed the default
driver automatically. No other steps are necessary.

2Click Next.

The wizard searches for the appropriate device driver.

3Click Next.

4Click Finish to complete the driver installation

You are now ready to use the mouse.

6

Optical Notebook Mouse

Using the Mouse

The following mouse features are factory set and cannot be
personalized.

Feature Description

Screen scroller Moves the cursor when you roll the

wheel.

Right button Launches the context menu and

provides secondary drag functions.

Horizontal scrolling Moves the cursor along the horizontal

scroll bar when you press the Shift key
while rolling the wheel.

The left mouse button is preset as the primary button which
provides click, double-click and drag functions.

Cleaning the Optical Sensor

1 Unplug the USB connector from the computer or, if you are

using the PS/2 adapter, turn off the computer.

2 Using a cotton swab and mild soap and water, gently wipe

the optical sensor until it is clean.

Never scratch the surface of the sensor.

3 Plug the USB connector back into the computer’s USB port

or, if you are using the PS/2 adapter, turn on the computer.

Things to Remember

Safety Measures

If you are using an optical mouse, never point the optical
sensor toward the face, particularly the eyes, to avoid possible
injury.

7

Operating Hints

If you are using an optical mouse, for optimal performance:

• Never use the mouse on a glass or mirrored surface or on
black velvet as these surfaces will cause the mouse to fail
temporarily.

• Avoid using the mouse on surfaces with repetitive patterns,
such as printed magazine photographs, as this type of surface
may cause the mouse to respond slowly or fail temporarily.

Comfortable Usage

Research suggests that physical discomfort and injury to
nerves, tendons, and muscles may be related to repetitive

Optical Notebook Mouse

motion, an improperly set up work area, incorrect body
posture, or poor work habits.

To reduce the risk of injury, follow these precautions:

• Stand, stretch, and move around several times every hour.

• Switch hands while performing tasks. Use shortcut keys to
avoid repetitive or awkward mouse movements.

• Relax your shoulders and keep your elbows at your sides.
Adjust the keyboard’s position so that you don’t have to
stretch to reach it.

• Adjust your position so that you don’t have to bend your
wrists to type; avoid placing your wrists on a sharp edge.

If you feel discomfort or numbness in your hands, wrists, arms,
shoulders, neck, or back while typing, consult a qualified
medical professional.

8

Optical Notebook Mouse

Technical Support

For technical questions, please visit:

Internet: http://www.targus.com/support.asp

Australia

Internet: www.targus.com.au

Email: [e-mail]

Monday through Friday, 8:30 a.m. (08:30) to 5:30 p.m. (17:30)
Eastern time: 1-800-641-645

Canada

Monday through Friday, 9:00 a.m. (09:00) to 5:00 p.m. (17:00)
Eastern time: 888-827-4877

Europe

Belgium [phone]

Denmark [phone]

France [phone]

Germany [phone]

Italy [phone]

Netherlands [phone]

Spain [phone]

Switzerland [phone]

United Kingdom [phone]

Eastern Europe & others [phone]

Sweden [phone]

9

Optical Notebook Mouse

Product Registration

For more efficient customer service and to activate the product’s
warranty, Targus recommends that you register your Targus accessory
shortly after purchasing it.

To register your Targus accessory, go to:

http://www.targus.com/registration.asp

You will need to provide your full name, email address, phone number,
and company information (if applicable).

Warranty

Targus warrants this product to be free from defects in materials and
workmanship for one year. If your Targus accessory is found to be
defective within that time, we will promptly repair or replace it. This
warranty does not cover accidental damage, wear and tear, or
consequential or incidental loss. Under no conditions is Targus liable for
loss of, or damage to a computer; nor loss of, or damage to, programs,
records, or data; nor any consequential or incidental damages, even if
Targus has been informed of their possibility. This warranty does not
affect your statutory rights.

Warranty Registration at:

http://www.targus.com/registration.asp

Regulatory Compliance

This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.

FCC Statement

Tested to Comply

This equipment has been tested and found to comply with the limits of a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation.

10

Optical Notebook Mouse

If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Move the computer away from the receiver

• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
