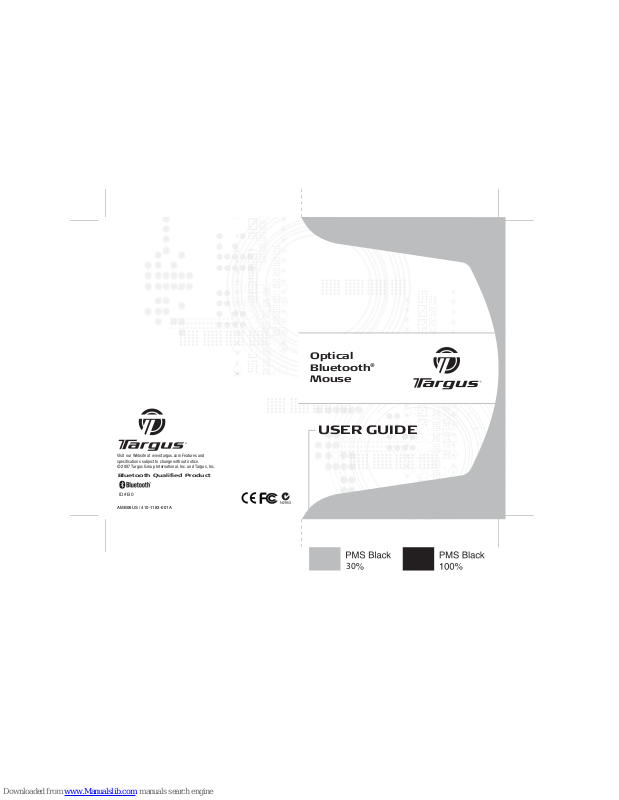

Targus Optical Bluetooth Mouse, OPTICAL User Manual

USER GUIDE

Visit our Website at www.targus.com Features and
specifications subject to change without notice.
© 2007 Targus Group International, Inc. and Targus, Inc.

AMB06US / 410-1183-001A

Optical
Bluetooth

®

Mouse

30

ID# B0

Bluetooth Qualified Product

TARGUS OPTICAL

BLUETOOTH®MOUSE

Introduction

Congratulations on your purchase of the Targus Optical Bluetooth
Mouse. This mouse uses Bluetooth wireless technology which
provides seamless connections up to 30ft (10M) in range.

System Requirements

Hardware

• Bluetooth-enabled notebook or desktop PC

Operating System

• Windows® 2000 / XP

• Windows Vista

TM

• Mac OS X 10.2.8 (or greater)

1

Installing the Batteries (Included)

• Use the two AAA-size rechargeable NIMH batteries (Included)

WARNINGS: WHEN REPLACING THE BATTERIES, ALWAYS REPLACE WITH NiMH
BATTERIES OR OTHER RECHARGEABLE BATTERIES. NEVER USE ALKALINE
BATTERIES IN A DEVICE. AVOID MIXING NEW AND USED BATTERIES IN A DEVICE.

• Turn on the mouse by sliding on/off switch on the bottom of the mouse
to the “on” position.

• Snap the battery cover back into position.

• Remove the battery cover from the top of the mouse by sliding off the
cover of the mouse.

• Insert the batteries, making sure that the positive (+) and negative (-)
ends of each battery match the polarity indicators inside the battery
housing

Targus Optical Bluetooth Mouse

2

Targus Optical Bluetooth Mouse

Mouse Power Management

• To power the mouse on and off, slide the on/off switch at the bottom
of the mouse to the desired position.

• During operation, the power saving feature puts the mouse into
"sleep mode" after 8 minutes of inactivity. Click any mouse button to
re-activate the mouse.

• To save battery power, turn off the mouse while traveling or while not
in use.

• The scroll wheel will glow when the batteries are low. To recharge the
mouse, plug in the USB Recharging Cable to the mouse, and plug USB
connector into any available USB port on the computer. While
charging, the mouse remains operational and connected via the
wireless Bluetooth technology.

For USB Recharging Cable
(Power Use ONLY)

Charging the Rechargeable Batteries

Charge the mouse for 8 hours before use. Plug in the USB charge
cable to the mouse and to an available USB port on the computer.

3

Targus Optical Bluetooth Mouse

1. Charge the mouse for at least 8 hours before using it. And please
make sure only rechargeable batteries (included) are used.

2. Your computer needs to stay powered on for the mouse to charge.
Follow these steps to prevent your computer from going in to Standby
or Hibernate:

a) Click “Start”
b) Click “Control Panel”
c) Click “Performance and Maintenance” (Skip in Classic View)
d) Click “Power Options”
e) Make sure “System Standby:” and “System Hibernates:” under
“Plugged in” are set to “Never”

3. If you use your notebook computer’s LCD monitor, please do not
close the lid. (Please ignore this step if you use an external monitor
with your notebook lid closed.)

4. If your mouse does not respond after a period of inactivity, please
wake it up by pressing one of the buttons on the mouse and moving the
mouse around.

4

Targus Optical Bluetooth Mouse

Establishing a Communications Link

Initial Configuration

Connecting with Bluetooth Software:
WIDCOMM or Microsoft (Windows XP & Windows Vista)

1. Go to the Bluetooth Places icon located on your desktop or in the
system tray and double click, then click Add a Bluetooth Device.

(Windows XP)

(Windows Vista)

Before you can begin using Bluetooth connectivity on your computer
and other Bluetooth devices, you must set up your Bluetooth connec­tion correctly. Please make sure this is performed before establishing
the connection with the Bluetooth device.

The Targus Optical Bluetooth Mouse is designed to work with the four
major software stack (protocol) standards: WIDCOMM, Toshiba and
Microsoft and Mac OS X. Please check your computer’s documentation
to see which software stack your computer has. Please contact your
system vendor if your system does not support one of the following
Bluetooth software standards.

NOTE: PLEASE USE THE LATEST BLUETOOTH DEVICE DRIVER. INSTRUCTION
SCREENS MIGHT VARY DEPENDING ON THE VERSION OF YOUR BLUETOOTH DEVICE
DRIVER.

5
