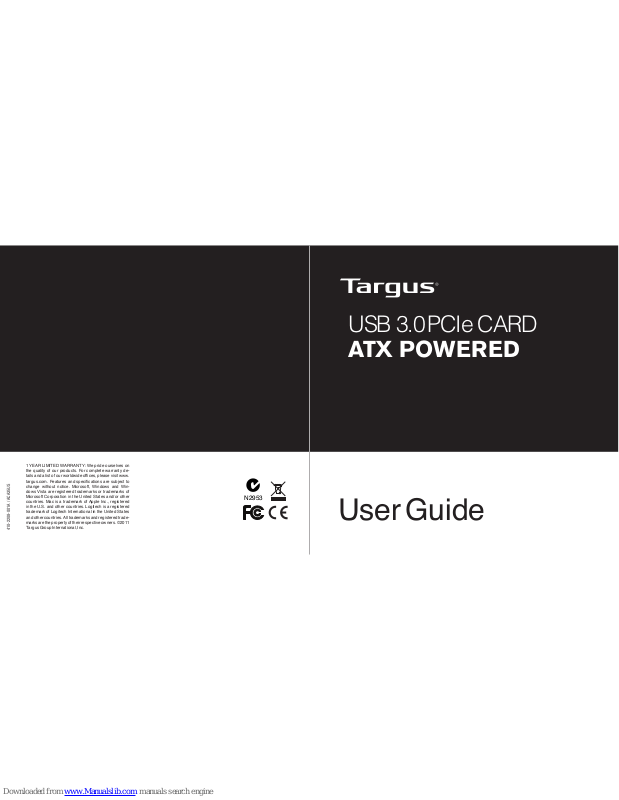

Targus ACA35US User Manual

User Guide

410-2208-001A / ACA35US

N2953

USB 3.0 PCIe CARD

ATX POWERED

1 YEAR LIMITED WARRANTY: We pride ourselves on
the quality of our products. For complete warranty de-

tails and a list of our worldwide ofces, please visit www.
targus.com. Features and specications are subject to
change without notice. Microsoft, Windows and Win-

dows Vista are registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other

countries. Mac is a trademark of Apple Inc., registered

in the U.S. and other countries. Logitech is a registered
trademark of Logitech International in the United States
and other countries. All trademarks and registered trade­marks are the property of their respective owners. ©2011

Targus Group International, Inc.

Targus USB 3.0 PCIe Card - ATX Powered

2

Targus USB 3.0 PCIe Card - ATX Powered

3

Introduction

Congratulations on your purchase of the Targus USB 3.0 PCle Card - ATX

Powered. The Card is compliant to USB 3.0 Standards and backward
compatible with USB 2.0 devices. It also allows you to connect multiple

peripherals to your PC at the same time. The Card enhances the performance
of transmission that excessively faster than existing USB 2.0 device. It is the
ideal interface for transferring extremely large amounts of data from USB

2.0/3.0 compliant products such as real-time video cameras, portable devices

and others.

Contents

• TargusUSB 3.0 PCIe Card

• Low Prole Bracket

• CD( Driver)

• User Guide

System Requirements

• Microsoft Windows ® 2000

• Microsoft Windows XP

®

• Microsoft Windows Vista

®

• Microsoft Windows® 7

Hardware Installation

1. Turn your computer off and any peripherals connected to the computer.

Unplug the power cable before installing the host card.

2. Remove the cover from the computer case.

3. Locate an available PCI Express slot and remove the bracket cover.

4. Insert the card into the open PCI Express slot and fasten the bracket to the

rear of the case.

5. Connect 4P power cable from the computer’s power supply to the card.

6. Place the cover back onto the computer.

7. Insert the power cable into the socket on the power supply.

USB 3.0 Ports

4-pin Power
Connector

Targus USB 3.0 PCIe Card - ATX Powered

4

Targus USB 3.0 PCIe Card - ATX Powered

5

Driver Installation

1. Insert the provided CD into CD-Rom locates and double-click the Setup.
exe le.

2. Click “Next” on the Welcome message.

3. After reading End-User License Agreement, please choose “I accept the

terms in the License Agreement” and click Next.

4. Please click Browse to choose the Destination Folder. After that, please

click Next.

5. Click “Install” to install NEC Electronics USB 3.0 Host Controller Driver.

6. It will take a while to install the driver.

7. Please click Finish to complete the NEC Electronics USB 3.0 Host
Controller Driver.

* Actual strings depend on your operation system. These screen shots are

from Windows 7 and might vary slightly for each operation system.

After nishing driver installation and plugging this Card to PC, the system

will detect the device. You can go to Device Manager to verify the entire
installation.

Installation Verication

Windows XP Windows Vista / 7

Targus USB 3.0 PCIe Card - ATX Powered

6

Targus USB 3.0 PCIe Card - ATX Powered

7

• Compliant with Universal Serial Bus 3.0 Specication Revision 1.0

• Supports the following speed data rate as follows; Low-speed (1.5 Mbps)/

Full-speed (12 Mbps)/ High-speed (480 Mbps)/ Super-speed (5 Gbps).

• Supports 2 downstream ports for all levels of speed.

• Supports all USB compliant data transfer type; Control/ Bulk/ Interrupt/

Isochronous transfer.

• Compliant with PCI Express

®

Base Specication 2.0.

• Supports PCI Express

®

Card Electromechanical Specication Revision 2.0.

• Supports PCI Bus Power Management Interface Specication Revision 1.2.

• Supports power each port up to 900 mA.

Specication

Regulatory Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) This
device must accept any interference received, including interference that may cause

undesired operation.

Technical Support

For technical questions, please visit:

Product Registration

Targus recommends that you register your Targus accessory shortly after purchasing
it. Go to:

http://www.targus.com/registration.asp

You will need to provide your full name, email address, country of residence and product

information.

Warranty

Targus warrants this product to be free from defects in materials and workmanship
for one year. If your Targus accessory is found to be defective within that time, we will
promptly repair or replace it. This warranty does not cover accidental damage, wear
and tear, or consequential or incidental loss. Under no conditions is Targus liable for
loss of, or damage to devices; nor loss of, or damage to, programs, records, or data; nor
any consequential or incidental damages, even if Targus has been informed of their
possibility. This warranty does not affect your statutory rights.

US Internet: www.targus.com/support.asp

Australia Internet: www.targus.com/au

Email: [e-mail]

Telephone: [phone]

New Zealand Telephone: [phone]

Targus USB 3.0 PCIe Card - ATX Powered

8

Targus USB 3.0 PCIe Card - ATX Powered

9

FCC Statement

Tested to Comply

This equipment has been tested and found to comply with the limits of a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna;

• Increase the separation between the equipment and receiver;

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected;

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modications not authorized by the party responsible for compliance could
void the user’s authority to operate this product.

Declaration of Conformity

Hereby, Targus, declares that this device is in compliance with the essential

requirements and other relevant provisions of Directive 1999/5/EC.

Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation

in the United States and/or other countries. All trademarks and registered trademarks are the property of their

respective owners. All rights reserved. Features and specications are subject to change without notice. © 2010.
Targus Group International, Inc. and Targus, Inc., Anaheim, CA 92806 USA
