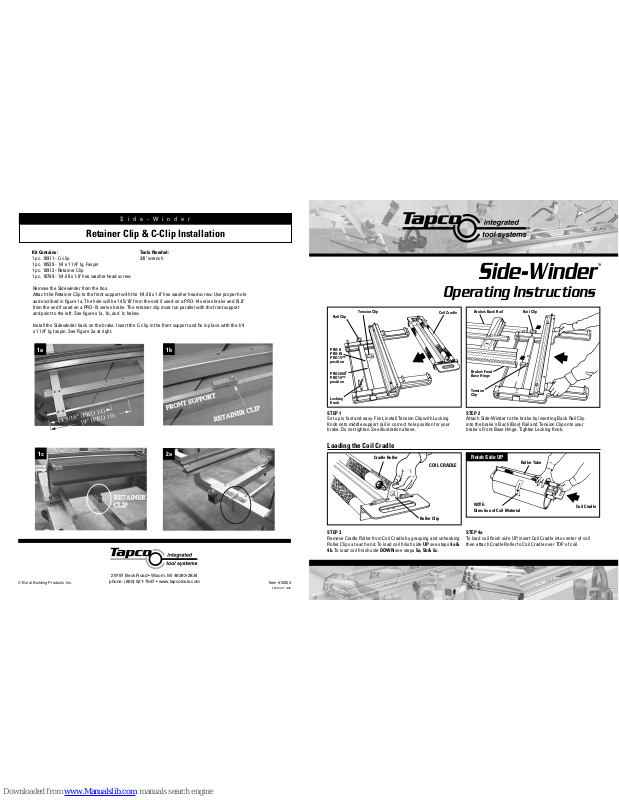

Tapco Side-Winder Operating Instructions Manual
Coil Cradle
Tension Clip
Locking
Knob
Rail Clip
PRO-II
PRO-III
PRO 14™
position
PRO 2000
®
PRO 19™
position
Rail Clip
Tension
Clip
Brake’s Back Rail
Brake’s Front
Base Hinge
STEP 1
Set up is fast and easy. First, install Tension Clip with Locking
Knob onto middle support rail in correct hole position for your
brake. Do not tighten. See illustration above.
STEP 2
Attach Side-Winder to the brake by inserting Back Rail Clip
into the brake's Back (Box) Rail and Tension Clip onto your
brake's Front Base Hinge. Tighten Locking Knob.
Side-Winder
™
Operating Instructions
Loading the Coil Cradle
STEP 3
Remove Cradle Roller from Coil Cradle by grasping and unhooking
Roller Clips at each end. To load coil finish side UP see steps 4a &
4b. To load coil finish side DOWN see steps 5a, 5b & 5c.
COIL CRADLE
Cradle Roller
Roller Clip
Coil Cradle
Roller Tube
NOTE:
Direction of Coil Material
STEP 4a
To load coil finish side UP, insert Coil Cradle into center of coil
then attach Cradle Roller to Coil Cradle over TOP of coil.
Finish Side UP
29797 Beck Road • Wixom, MI 48393-2834
phone: (800) 521-7567 • www.tapcotools.com
Item #12053
T5280-CT 3/06
Kit Contains:
1 pc. 10911 - C-clip
1 pc. 10539 - 1/4 x 1 1/4" lg. Faspin
1 pc. 10913 - Retainer Clip
1 pc. 10799 - 1/4-20 x 1.0" hex washer head screw
Tools Needed:
3/8" wrench
Snap StandSide-Winder
Retainer Clip & C-Clip Installation
Remove the Sidewinder from the box.
Attach the Retainer Clip to the front support with the 1/4-20 x 1.0" hex washer head screw. Use proper hole
as described in figure 1a. The hole will be 14 5/16" from the end if used on a PRO-14 series brake and 19.0"
from the end if used on a PRO-19 series brake. The retainer clip must run parallel with the front support
and point to the left. See figures 1a, 1b, and 1c below.
Install the Sidewinder back on the brake. Insert the C-clip in the front support and fix in place with the 1/4
x 1 1/4" lg. faspin. See Figure 2a at right.
1a
1c
1b
2a
© Boral Building Products Inc.
Item# DescriptionItem# Description
Feed coil through
Clamping Rail
STEP 4b
Place entire assembly on Side-Winder.
STEP 5a
To load coil finish side DOWN, place Coil Cradle onto Side-Winder
after removing Cradle Roller.
Remove Cradle Roller
Finish Side DOWN
STEP 5b
Place coil on top of Coil Cradle (Note direction of coil material).
Feed coil through
Clamping Rail
STEP 5c
Insert Cradle Roller through center of coil and attach to Roller
Clips at each end of Cradle.
Snap StandSide-Winder
Coil Holder System
™
STEP 3
Leave the brake open, cut-off coil to length
with PRO™ Cut-Off and you’re ready to bend!
STEP 1
Draw coil through Side-Winder and into
open jaws of your PRO Series Brake.
STEP 2
Dispense coil to your desired length
along the length of your brake.
Just roll out, cut off and in seconds you’re ready for bending!
Attach the Side-Winder to a Brake
Item# Description
10094 -20 Hex Flange Nut
10503 -20 X 2 " Socket Cap Screw
10519 -20 X " Hex Wash Hd Screw
10539 " X 1 " Faspin
10777 Coil Carriage*
10778 Sidewinder Arm
10780 Clamping Rail
10783 Middle Support
10784 Clamp Support
10787 Front Support
10788 1/8" Pop Rivet
10789 #10 X 5/8 Phil Fl Hd
10790 Rail Clip
10799 "-20 x 1" Hex Washer Head Screw
10801 Roller Tube Insert
10803 Nut
10805 Top Clamp/Support Vinyl
10809 Nylon Spacer
10812 Cut Off Stop
10911 C-Clip
Snap StandSide-Winder
Parts Diagram
*Coil Carriage
10782 Cradle Handle
10791 Cradle Rail
10798 10-24 x Phil Pan Hd Screw
11421 Replacement Roller Cover Kit
(3) Roller Covers 10796
11422 Roller Assembly Kit
(1) Cradle Roller 10786
(1) Roller Cover 10796
(2) Roller Tube Insert 10801
(2) 5/16-18 x 2 Hex Bolt 10802
(4) 5/16-18 Nylok Hex Nut 10803
10913 Retainer Clip
11401 Bolt Kit
(2) 5/16-18 x 1" Shoulder Bolt 10785
(2) Clamping Rail Bushing 10810
(2) Anvil Spring 10779
11403 Carriage Roller and Spring Kit
(2) Roller/Pivot Spring 10794
(2) Clip 10793
11406 Sidewinder Knob and Clip Kit
(1) Tension Clip 10792
(1) 5/16-18 x 2 Tee Handle Knob 10795
11533 Back Rail Clip
12044 Sidewinder Parts Bag
10058 - -20 x 1" Hex Slotted Wshr. HD Screw
10539 - " x 1 " Faspin
10792 - Tension Clip
10795 - 5/16-18 x 2 Tee Handle Knob
10911 - C-Clip
10913 - Retainer Clip
