Traffic Logix®

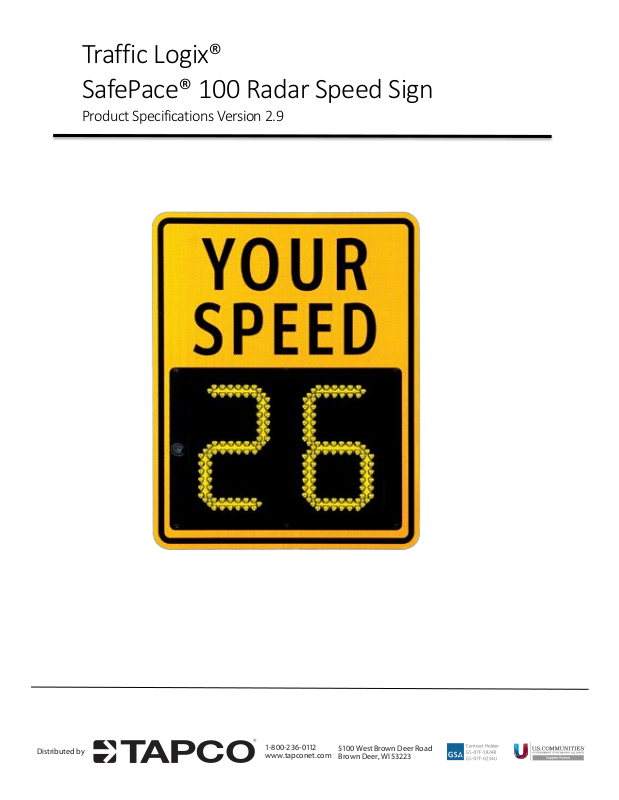

SafePace® 100 Radar Speed Sign
Product Specifications Version 2.9
1- 80 0-2 36 -0 112
www.tapconet.com
5100 West Brown Deer Road
Brown Deer, WI 53223
Distributed by
Table of Contents
Dimensions .............................................................................................................................................................................. 3
Dimensions of SafePace® 100 Radar Sign with Full “YOUR SPEED” Sign Face .................................................................... 4
Dimensions of SafePace® 100 Radar Sign unit alone .......................................................................................................... 4
Technical Specifications .......................................................................................................................................................... 5
Communication ....................................................................................................................................................................... 6
Programming .......................................................................................................................................................................... 6
Data Collection and Statistical Analysis & Reporting (optional feature) ................................................................................ 7
Mounting Options ................................................................................................................................................................... 8
Universal Mounting Bracket System ................................................................................................................................... 8
Inside View of Pole Bracket ................................................................................................................................................. 9
SafePace® 100 Solar Panel Specifications (p/n: SPS1500) .................................................................................................... 10
Warranty ............................................................................................................................................................................... 11
Warranty Replacement Procedure ................................................................................................................................... 13
1- 80 0-2 36 -0 112
www.tapconet.com
5100 West Brown Deer Road
Brown Deer, WI 53223
Distributed by
Dimensions
Digit: 11”(h) x 5.6”(w), 98 LEDs per digit
Unit alone: 15.8”(h) x 21.4”(w) x 3.5”(d)
Unit with “YOUR SPEED” sign mounted:
o Full size sign: 29.0”(h) x 23.0”(w) x 3.5”(d)
Sign Weight (includes “YOUR SPEED” sign (2 lbs) mounted)
o AC Powered Model: 21 lbs
o 3 Cell Battery Powered Model: 23 lbs
o 4 Cell Battery Powered Model: 25 lbs
o Solar Powered Model: 23 lbs (does not include solar panel or bracket)
Accessories
o 3 Cell Lithium Ion Battery: 2 lbs
o 4 Cell Lithium Ion Battery: 4 lbs
o Universal Mounting Bracket System
Sign Bracket: 2 lbs
Pole Bracket: 5 lbs
SafePace® 100 Full-size sign dimensions
1- 80 0-2 36 -0 112
www.tapconet.com
5100 West Brown Deer Road
Brown Deer, WI 53223
Distributed by
Dimensions of SafePace® 100 Radar Sign with Full “YOUR SPEED” Sign Face
Dimensions of SafePace® 100 Radar Sign unit alone
1- 80 0-2 36 -0 112
www.tapconet.com
5100 West Brown Deer Road
Brown Deer, WI 53223
Distributed by
Technical Specifications
Miles Per Hour (mph) or Kilometers Per Hour (km/h)
Aluminum protective cover: 0.25” (d)
High-Intensity prismatic reflective sheeting on “YOUR SPEED” signs with black colored text
MUTCD approved colors and format
Operating Temperatures F (C): -40° (-40°) to 185° (85°)
Conformal coating on all circuit boards
Power
o Power input:
AC 90~264 VAC
12 VDC
o Vcc: 5.5 VDC to 16 VDC (18V max)
o lcc@12 VDC (radar always on): Display blank- 9.5 mA
o Display at night: 21 mA
o Display max bright: 415 mA
o Radar RF out: 5 mW maximum
o Power Efficiency:
Best in class power efficiency
Low power SS300 radar drives display eliminate extra CPU
Built in ambient light sensing and automatic brightness control
Ambient temperature compensation of LED drive voltage
High efficiency boost regulator for LED drive voltage
With no traffic present, radar automatically powers down display, reducing power
consumption to 0.1W
o Power Options
AC power input: 90~264 VAC
DC power input: 12 VDC
Battery power option offers extended life:
3 Cell, 9.6V, 10Ah Lithium-Ion Phosphate battery with up to 2 weeks operation
between charges (under normal operating conditions)
4 Cell, 12.8V, 15Ah Lithium-Ion Phosphate battery with up to 4 weeks operation
between charges (under normal operating conditions)
Solar power
Compact, 20W solar panel (15.4” x 9.8” x 0.71”)
Radar
o Internal Radar: SS300 Doppler (FCC approved)
o Radar RF out: 5 mW maximum
1- 80 0-2 36 -0 112
www.tapconet.com
5100 West Brown Deer Road
Brown Deer, WI 53223
Distributed by
o Radar f-center: 24.125 GHz or 24.200 GHz
o Pickup distance: Up to 300 feet
o Beam angle: 38 x 45
o Beam polarization: Linear
o CE Mark (Radar): Yes
Display
o LEDs 208:
Digits: 196 Amber, 15°, 5 mm, luminous Intensity (4180 - 8200)
Speed Violator Strobe: 12 White, 15°, 5 mm , luminous intensity (4180 - 8200)
o Optical lenses: 208 lenses
o Display Brightness:
11,000 nits (cdm) maximum
550 nits (cdm) at night
o Ambient light sensor and automatic brightness adjustment
Enclosure
o 12 gauge aluminum, flat black powder coated front for reduced glare and maximum contrast;
light gray powder coated body to minimize heat absorption
o Weatherproof, NEMA 4X-12, IP65 level compliant
o Non-sealed and ventilated
Communication
Bluetooth 4.0 standard recommended configuration (“BlueFin” Bluetooth card installed on
“BackFin” sign controller card by default)
Wi-Fi optional configuration upon request (“Wi-Fin” Wi-Fi card optionally installed on
“BackFin” sign controller card – connect to radar sign configured as network access point)
GPRS optional configuration upon request (“SimFin” card optionally installed on “BackFin”
sign controller card to insert SIM (Subscriber Identity Module) card
Programming
SafePace® Pro Management Software application
Display Settings:
o Display On/Stealth Modes (In Stealth Mode, speed is not
displayed but data is collected)
o Display Minimum Speed, Display Maximum Speed
o Digit Flashing Speed Threshold (digits flash above selected
speed)
o Speed Violator Strobe (pulsing strobe flashes with digits or alone above Display Maximum
Speed)
1- 80 0-2 36 -0 112
www.tapconet.com
5100 West Brown Deer Road
Brown Deer, WI 53223
Distributed by
Data Collection and Statistical Analysis & Reporting (optional feature)
Traffic data collected and stored by location
Stealth Mode (capture baseline traffic data with speed display off)
Download through Serial Port connection
Statistical Reporting & Charts
o Summary Reports
o Weekly Reports
o Period Comparison Reports
o Reporting Parameters:
Average Vehicle Count
Total Vehicle Count
Average Speed
Average Number of Speed Violations
Total Number of Speed Violations
o Other Features:
Minimum and Maximum Speed
85% Speed
Counters by Speed Bins
5 MPH Bin Resolution
Reports print directly or can be exported into CSV format, MS Excel,
Adobe Acrobat PDF and HTML
Charts may be printed directly or converted into Adobe Acrobat PDF and picture
formats
1- 80 0-2 36 -0 112
www.tapconet.com
5100 West Brown Deer Road
Brown Deer, WI 53223
Distributed by
Mounting Options
Sign Bracket
Pole Bracket
Locking Key
Bottom View
Standard mounting bracket system (use banding brackets to fasten sign to steel or wooden
pole)
Universal Mounting Bracket System
o Universal mounting options: circular, square and telspar poles
o Theft resistant
o Promotes sign portability: sign locks into mounting bracket with a turn of a key
Sign dolly mounting system
o Battery-powered sign recommended
o Speed limit face plate not included
Sign mounted to/compatible with SafePace Cruiser LT Lightweight Trailer
o Battery box storage not included with trailer
o See web-site trailer specifications for more details
Universal Mounting Bracket System
1- 80 0-2 36 -0 112
www.tapconet.com
5100 West Brown Deer Road
Brown Deer, WI 53223
Distributed by
Inside View of Pole Bracket
1- 80 0-2 36 -0 112
www.tapconet.com
5100 West Brown Deer Road
Brown Deer, WI 53223
Distributed by
SafePace® 100 Solar Panel Specifications (p/n: SPS1500)
1- 80 0-2 36 -0 112
www.tapconet.com
5100 West Brown Deer Road
Brown Deer, WI 53223
Distributed by
Warranty
Subject to the following conditions, Traffic Logix Corporation (“Traffic Logix”) warrants that the SafePace® 100
Speed sign (the “Product”) is free from defects in materials and workmanship. This limited warranty begins on
the invoice date of your purchase of the Product and extends:
For TWO (2) calendar years on the radar sign, and
For ONE (1) calendar year on the batteries.
This limited warranty extends only to the original purchaser of the Product when purchased either directly
through Traffic Logix® or through an authorized Traffic Logix® distributor and is not assignable or transferable to
any subsequent purchaser or end-user. Traffic Logix’s® obligation and liability under this warranty are expressly
limited to repairing or replacing, at Traffic Logix’s® option, defective products. In no circumstances shall Traffic
Logix’s® liability, whether in contract or tort, under any warranty, in negligence, or otherwise, exceed the
amount of the purchase price of the product. Traffic Logix® shall not be liable for special, indirect, or
consequential damages of any kind. This warranty does not cover damages resulting from normal wear and tear,
incorrect installation or operation, use other than for the product’s intended purposes, vandalism, and
extraordinary environmental circumstances. Traffic Logix® reserves the right to charge for these damages to the
product at rates normally charged for repairing such products not covered under this warranty. Damages
resulting from any physical changes or alterations made to the product other than Traffic Logix® will render this
warranty VOID. Using any parts or accessories not supplied or approved by Traffic Logix®, such as battery
chargers, will further render the warranty VOID.
Traffic Logix® neither assumes, nor authorizes any person to assume for it, any other liability in connection with
the sale of the Product, and there are no agreements or warranties collateral to or affecting this limited
warranty.
THE LIMITED WARRANTY SET FORTH IN THIS AGREEMENT IS THE EXCLUSIVE AND SOLE WARRANTY APPLICABLE
TO THIS PURCHASE. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO THE
IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR
PURPOSE ARE EXPRESSLY DISCLAIMED.
Traffic Logix® does not warrant that any of its products will meet or comply with the requirements of any
applicable federal, state or local safety code, law, regulation or ordinance (“Applicable Safety Laws”). Buyer
acknowledges that Traffic Logix’s® products are to be used only in accordance with the attached Conditional
Terms of Use and any Applicable Safety Laws. Buyer agrees that there shall be no coverage or benefits of any
kind under this limited warranty if it is determined by Traffic Logix® that the Product was not installed or used in
accordance with the Conditional Terms of Use or Applicable Safety Laws, or if the Product has been altered in
any way by anyone other than Traffic Logix®, or if the Product has been subject to any misuse or accident. In
addition, Buyer assumes and agrees to indemnify Traffic Logix® for all risk, liability or expense that results from
any installation or use of the Product that is not in accordance with the Conditional Terms of Use or any
Applicable Safety Laws.
1- 80 0-2 36 -0 112
www.tapconet.com
5100 West Brown Deer Road
Brown Deer, WI 53223
Distributed by
1- 80 0-2 36 -0 112
www.tapconet.com
5100 West Brown Deer Road
Brown Deer, WI 53223
Distributed by
Warranty Replacement Procedure
In order to submit a claim for the repair or replacement of the Product under this limited warranty, you must do
the following:
1) Obtain a Return Materials Authorization number by contacting Customer Support. Do not ship your defective
product to Traffic Logix® prior to contacting Customer Support.
2) A Customer Support agent will evaluate the Product to determine if it is defective. If the product is defective,
then you will need to submit your contact information, and proof of purchase (including the date or purchase),
in order to obtain repair or replacement parts.
3) The Customer Service Agent will provide you with instructions on how to have defective parts repaired or
replaced.
