Tannoy CMS 403DCe, CMS 503DC BM, CMS 603DC BM, CMS 803DC BM Quick Start Manual

Quick Start Guide
CMS 3.0 SERIES
In-Ceiling loudspeakers
CMS 403DCe CMS 503DC BM CMS 603DC BM CMS 803DC BM
1 Introduction
This Quick Start Guide (QSG) provides the basic information required to install and connect the blind-mount (BM) versions of Tannoy CMS Series in-ceiling loudspeakers.
For additional information, including product
technology, photo identication of product features,
dimensional drawings, and complete technical
specications, please refer to the full CMS Series
Operation Manual.
For installation of CMS Series pre-install (PI) versions, please refer to either the CMS PI Quick Start Guide or the full CMS Operation Manual.
2 Safety Notices
Some regional construction codes require the use of a secondary method of securing loudspeakers in ceiling to provide security of a back-up support. A secondary support line should be attached from the safety loop on the rear of the product to a source point on the ceiling. For PI models, the secondary support line should be attached from the back of the driver chassis to a source point on the ceiling. Please consult the relevant construction codes in your region.
When using a power driver to install the product, it is essential to use the correct torque level settings to avoid over tightening and damage to the ceiling material or clamps. Recommended torque setting:
1.5 Nm. Tannoy will not be held responsible for any damages caused by the improper installation of these loudspeakers.
Electrical Safety Notice: to comply with the
standard UL1480, metal-clad exible conduit (BX)
is required for connection to the terminal block for proper earth grounding.
SAFETY NOTE: In order to comply with the
relevant re safety regulations (i.e. BS 5839:1998), it is required that in the event of re, that failure of
the circuit to which the loudspeaker is connected does not occur before evacuation of the building is complete. Suitable measures include:
Use of terminal blocks (for connection to primary)
with a melting point of not less than 650°C, for
example constructed from ceramic materials;
Use of terminal blocks of a lower melting point
but protected with thermal insulation;
Use of terminal blocks such that, on melting, an
open-circuit or a short-circuit does not occur.
3 Unpacking
Every Tannoy product is carefully inspected before shipment. After unpacking, please inspect your product to ensure no damage has occurred in transit. In the unlikely event of damage, please notify your dealer and retain all shipping materials as your dealer may require return shipment. All CMS loudspeakers are shipped in pairs and provided with the following accessories as standard: C-ring, tile-bridge kit, cut-out template and paint mask. A plaster (mud) ring is available as an optional accessory.
4 Installation in Suspended Ceilings

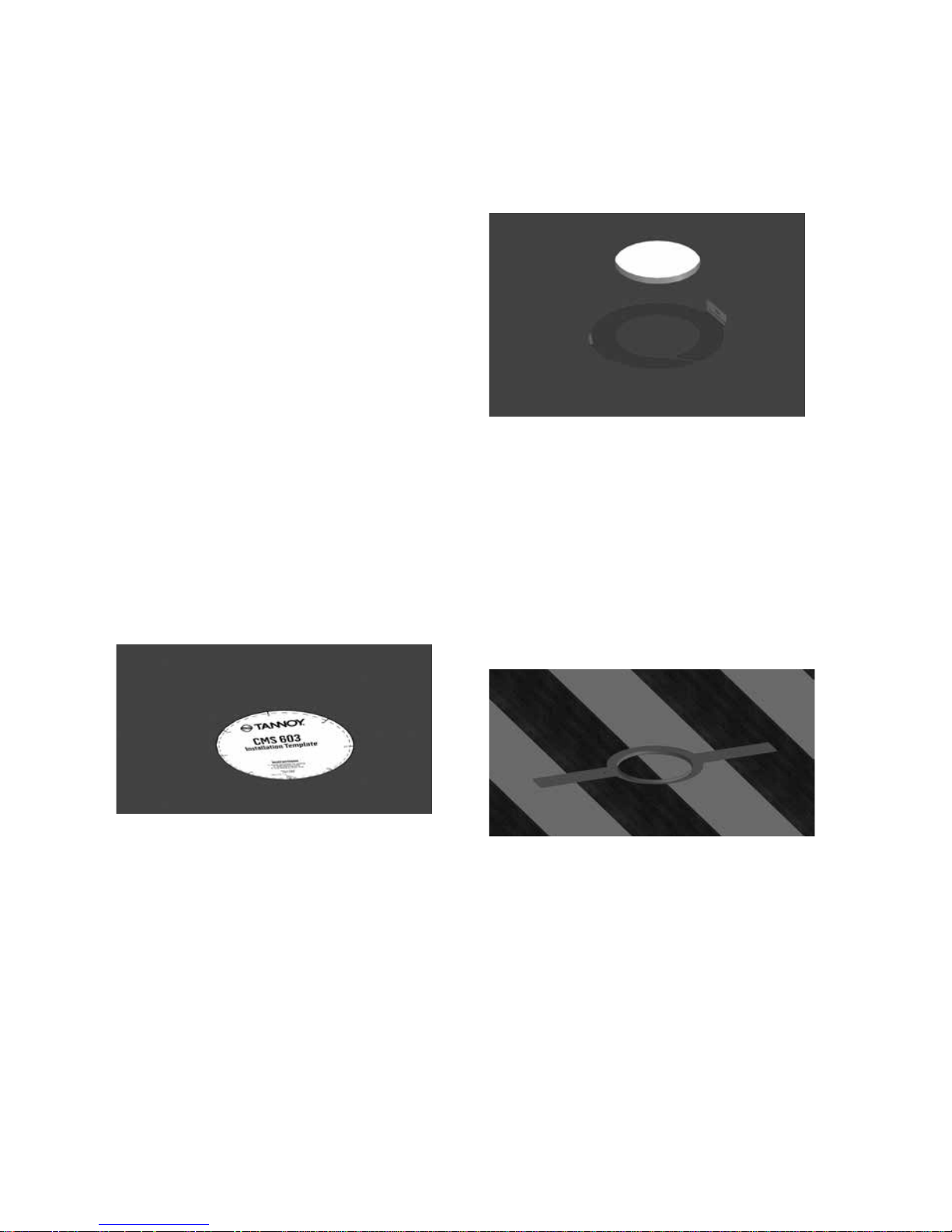

1. Remove the ceiling tile from its frame and place
it on a at surface. Position the cutout template
(self-adhesive backed) on the tile. (Fig.1)
2. Cut out the hole in the ceiling tile using a pad saw following the broken line indicated on the template.
3. Place the C-Ring and tile-bridge on top of the
ceiling panel, aligning the C-Ring over the hole, and screw the C-Ring to the tile bridge using the
xings provided. (Fig.2)
Fig.2
Fig.1
2. Cut out the hole in the ceiling using a pad saw following the broken line indicated on the template. Slide the C-ring into the ceiling, aligning it over the cut-out hole. (Fig. 2)
3. Follow steps 4 through 6 in section 4 above.
6 Installation of Optional Plaster Ring
The optional plaster (mud) ring is designed for pre-installation into newly constructed, non-suspended ceilings.
1. Nail or screw the plaster ring to the joists. (Fig. 1)
2. Lay the speaker wiring to where the speaker
will be tted. Complete the plastering work on
the ceiling.
3. Follow steps 4 through 6 in Section 4 above.
4. Go to Section 7 following for instructions on wiring and set-up instructions.
5. Slide the speaker assembly through the hole.
Turn the screws (denoted “Screw Fix”) clockwise on the front of the speaker to extend the mounting wings. Tighten the screws until a rm
grip is achieved.(NOTE: Screws have a PoziDriv
head; use of a PoziDriv driver is recommended).
If using a power driver, Tannoy recommends a torque setting of 1.5 Nm. (Fig.2)
DO NOT OVERTIGHTEN!
6. Attach the nylon safety to the hooks on the front
bae before attaching the grille by presenting it
to the speakers and allowing the magnets to pull
it into position. (With the CMS 403DCe, replace
the front trim to conceal mounting screws.)
NOTE ON INSTALLATION OF CMS 403DCe:
Before tightening the screws in step 5, swivel the speaker in the desired direction. When the screws are tightened, the speaker will lock into position.
5 Installation in Sheetrock Ceilings
1. Position the cutout template (self-adhesive backed) on the ceiling. (Fig. 1)
Fig.1
Fig.2
Fig.1
7 Wiring and Setting Up

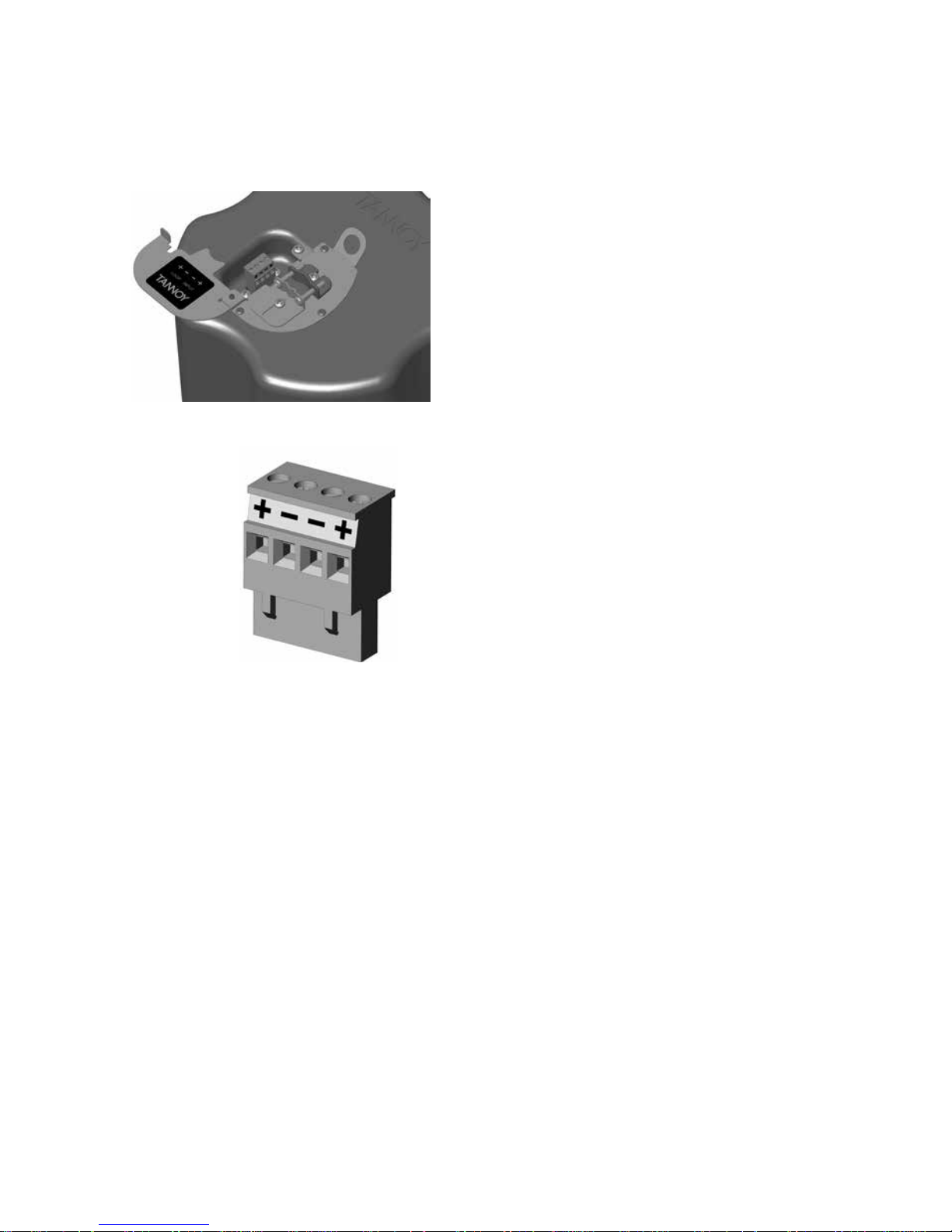

1. Open the wiring cover (if applicable) and locate the Euro-type connector plug and socket at the back of the speaker. (Fig.1)
2. For connection to an amplier, use Pins 1 and 2
(Fig.2)
3. Close the wiring cover and tighten both screws
on the cable clamp (if applicable).
4. Use the rotary switch on the front of the unit to select low impedance (LoZ) mode or high impedance (70 V or 100 V) for distributed applications.
The speaker is supplied in low impedance mode, Never connect the speaker to a
70 / 100 volt amplier while it is set for
low impedance.
CMS 403DCe and CMS 503DC models (all variants) use a 30 W transformer. In distributed
line applications, the transformer can be tapped
at 30 W, 15 W and 7.5 W, with an additional
3.75 W tap for 70 V line systems.
CMS 603DC and CMS 803DC models (all
variants) use a 60 W transformer. In distributed line applications, the transformer can be tapped
at 60 W, 30 W and 15 W with an additional
7.5 W tap for 70 V line systems.
8 CMS Series BM Dimensions
Please refer to the full CMS Series Operation Manual for dimensional drawings.
CMS 403DCe Hole cut-out: 187 mm Diameter1: 205 mm (8.07”) Height2: 147.6 mm (5.81”)
CMS 503DC BM
Hole cut-out: 190 mm Diameter1: 205.9 mm (8.11”)
Height2: 205.3 mm (8.08”)
CMS 603DC BM
Hole cut-out: 253 mm Diameter1: 274 mm (10.79”)
Height2: 273.3 mm (10.76”)
CMS 803DC BM and CMS 803DC Q
Hole cut-out: 295 mm Diameter1: 319.0 mm (12.56”)
Height2:327.7 mm (12.9”)
1
Maximum, including bezel ring
2
Maximum to top of connector, from lower
ceiling surface
Fig.1
• Pin 1 is positive
• Pin 2 is negative
For connection to additional speakers in a distributed line,
Pins 3 and 4 are in
parallel where:
• Pin 3 is negative
• Pin 4 is positive
Fig.2
tannoypro.com
Tannoy operates a policy of continuous research and development. The introduction of new materials or
manufacturing methods will always equal or exceed the published specications. All specications are
subject to change without notice. Copyright (c) 2014 Tannoy Limited. All rights reserved.
6481 0664 / 0414
