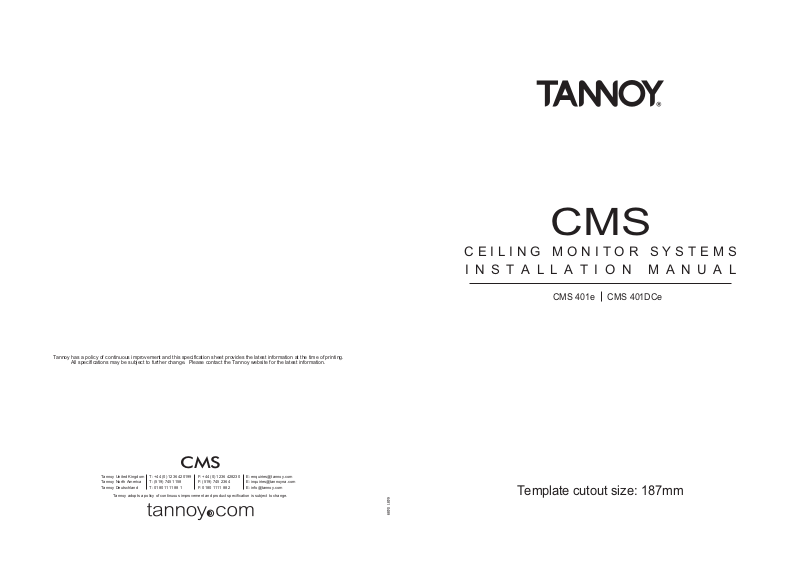

Tannoy CMS-401-DCE Owners manual

6481 0489

Tannoy has a policy of continuous improvement and this specification sheet provides the latest information at the time of printing.

All specifications may be subject to further change. Please contact the Tannoy website for the latest information.

Template cutout size: 187mm

CMS

Tannoy adopts a policy of continuous improvement and product specification is subject to change.

Tannoy United Kingdom T: [phone] F: [phone] E: [e-mail]
Tannoy North America T: [phone] F: [phone] E: [e-mail]
Tannoy Deutschland T: 0180 1111 88 1 F: 0180 1111 88 2 E: [e-mail]

CEILING MONITOR SYSTEMS

INSTALLATION MANUAL

CMS

CMS 401e CMS 401DCe

2

CONTENTS

3

INTRODUCTION

1

UNPACKING

2

SAFETY NOTICES

3

ALTERNATIVE INSTALLATION APPLICATIONS

4

INSTALLATION GUIDE

7

MECHANICAL INSTALLATION GUIDE FOR SUSPENDED CEILINGS

MECHANICAL INSTALLATION GUIDE FOR SHEET-ROCK CEILINGS

MECHANICAL INSTALLATION INSTRUCTIONS FOR OPTIONAL PLASTER RING

7.1

7.2

7.3

SAFETY NOTE:

In order to comply with relevant fire safety regulations (i.e. BS 5839:1998), it is required that in the event of fire,
that failure of the circuit to which the loudspeaker is connected does not occur before evacuation of the building is
complete. Suitable measures include: ­ a) use of terminal blocks (for connection to primary) with a melting point of not less than 650°C, for example
constructed from ceramic materials;
c) use of terminal blocks of a lower melting point but protected with thermal insulation;
d) use of terminal blocks such that, on melting, an open-circuit or a short-circuit does not occur.

1. INTRODUCTION

Thank you for purchasing this Tannoy Ceiling Monitor System product. This product range is suited
for music and speech reinforcement applications requiring exceptional sonic quality with uncompromised
reliability.

2. UNPACKING

Every Tannoy product and accessory is carefully inspected before packing. After unpacking, please
inspect your product to make sure no damage has occurred in transit. In the unlikely event of any
damage, would you please notify your dealer immediately and retain your shipping carton, as your
dealer may ask you to return the faulty unit to him for inspection.

Each CMS loudspeaker is packed in pairs and provided with the following accessories as standard;
C Ring, tile-bridge kit and cut-out template. A plaster (mud) ring is also available as an optional extra.

CMS

WIRING AND SETTING UP

DIMENSIONS

CMS 401e DIMENSIONS

CMS 401DCe DIMENSIONS

TECHNICAL SPECIFICATIONS

WARRANTY

DECLARATION OF CONFORMITY

8

9

9.1

9.2

10

12

13

PAINTING

11

PRODUCT FEATURE IDENTIFICATION

5

ACCESSORIES

6

3. SAFETY NOTICES

Some regional construction codes require the use of a secondary method of securing loudspeakers
in ceiling to provide security of a back up support. A secondary support line should be attached from
the safety loop on the rear of the product to a source point on the ceiling. Please consult the relevant
construction codes in your region.

When using a power driver to install the product it is essential to use the correct torque level settings
to avoid over tightening and damage to the ceiling material or clamps.

Recommended torque setting: 1.5Nm

Tannoy will not be held responsible for any damages caused by the improper installation of these
loudspeakers.

4. ALTERNATIVE INSTALLATION APPLICATIONS

The Tannoy CMS401 DCe and CMS401e speakers are primarily designed for in-ceiling applications.
However, the versatile design allows for installation into other applications such as boardroom tables
and museum display kiosks. The thickness of the installation surface must be between 1mm and
20mm. It is your responsibility to ensure that the installation surface is strong enough to support the
weight of the speaker. Please contact Tannoy customer services if you require further advice.

4

5

5. PRODUCT FEATURE IDENTIFICATION:

Euro Type Connector

Safety Tab

NOTE: Some construction codes
require use of this secondary
support tab, which should connect
to a separate secure support point
using a suitable support line. Consult
construction codes in your region.

6. ACCESSORIES:

Standard Accessories

C-Ring Tile bridge kit

Note: A tile bridge kit
must always be used
when installing into
suspended ceiling tiles

Cut-out
template

CMS

Optional Accessories

Rotary Switch

Black Mounting Wings

Grille

Front Trim

NOTE: Remove this trim to access
the mounting wing screws.

Screws for Black Mounting Wings

Plaster (Mud) Ring

Paint
mask

Grille

6

7.1 MECHANICAL INSTALLATION GUIDE FOR SUSPENDED CEILINGS

Slide the tile panel back into the suspended ceiling. The tile bridge ends will catch over
the railings, supporting the weight of the speaker.

5

Slide the speaker assembly through the hole and turn the screws on the front of the
speaker to extend the black mounting wings. Tighten the screws until a firm grip is
achieved.

4

DO NOT OVERTIGHTEN!

Place the C-ring and tile-bridge on top of the ceiling panel, aligning the C-ring over the
hole, and screw the C-ring to the tile bridge using the fixings provided.

3

Cut out the hole in the ceiling tile using a circular saw or pad saw.

2

Remove the ceiling tile from its frame and place it on a flat surface. Mark the
cut-out area on the ceiling tile by tracing around the template provided.

1

7.2 MECHANICAL INSTALLATION GUIDE FOR SHEET-ROCK (PLASTER BOARD) CEILINGS

Slide the speaker assembly through the hole then swivel the speaker to point in the
desired direction.

Tighten the black mounting wing screws until a firm grip is achieved. If using a power
driver, Tannoy recommends a torque setting of 1.5Nm.

DO NOT OVERTIGHTEN!

NOTE: When the screws are tightened the speaker will lock into position.

4

Go to section 6 for wiring and set-up instructions then return to point 4 below.

3

Cut out the hole in the ceiling using a circular saw or pad saw, then slide the
C-ring into the ceiling, aligning it over the cut-out hole).

2

Mark the cut-out area on the ceiling by tracing around the template provided.

1

7

Replace the front trim to conceal the mounting wing screws.

5

CMS

Swivel the speaker to point in the desired direction.

Tighten the black mounting wing screws until a firm grip is achieved. If using a power
driver, Tannoy recommends a torque setting of 1.5Nm.

DO NOT OVERTIGHTEN!

NOTE: When the screws are tightened the speaker will lock into position.

6

8

9

7.3 MECHANICAL INSTALLATION INSTRUCTIONS FOR OPTIONAL PLASTER RING:

Lay the speaker wiring to where the speaker will be fitted and complete the
plastering work on the ceiling.

2

Insert grille by pushing it onto the speaker.

6

Nail or screw the plaster ring to the joists.

1

An optional plaster (mud) ring bracket is available from Tannoy. This bracket is designed to be pre-installed into newly
constructed, non-suspended ceilings.

Cut out the hole in the ceiling using a circular saw or pad saw.

3

5

Go to section 6 for instructions on wiring then return to point 5 below.

4

CMS

8. WIRING AND SETTING UP:

Locate the euro socket at the back of the product.

1

For connection to an amplifier, use pins 1 and 2:

• Pin 1 is positive

• Pin 2 is negative

For connection to additional speakers in a distributed line,
pins 3 and 4 are in parallel where:

• Pin 3 is negative

• Pin 4 is positive

2

Use the rotary switch located on the front of the unit to select whether you wish to use
the speaker in a low-impedance or distributed-line application.

3

THE SPEAKER IS SUPPLIED IN LOW IMPEDANCE MODE. NEVER CONNECT THE
SPEAKER TO A 70/100 VOLT AMPLIFIER WHILE IT IS SET FOR LOW IMPEDANCE.

All CMS401e and CMS401 DCe models use a 30W transformer. When using distributed­line systems, the transformer can be tapped at 30W, 15W and 7.5W, with an additional

3.75W tapping for 70.7V line systems.

Slide the speaker assembly through the hole then swivel the speaker to point in the
desired direction.

Tighten the black mounting wing screws until a firm grip is achieved. If using a power
driver, Tannoy recommends a torque setting of 1.5Nm.

DO NOT OVERTIGHTEN!

NOTE: When the screws are tightened the speaker will lock into position.

10

11

CMS

10. TECHNICAL SPECIFICATIONS:

SYSTEM

Frequency Response (-3dB)

(1)

Frequency Range (-10dB)

(1)

System Sensitivity (1W @1m)

(2)

Nominal Coverage Angle

Coverage Angle (1kHz to 6kHz)

Directivity Factor (Q)

Directivity Index (DI)

Rated Maximum SPL

Power Handling

(3)

Average
Programme
Peak

Recommended Amplifier Power

Nominal Impedance

Transformer Taps
(via rear rotary switch)
70V
100V

Distortion
10% Full Power
250Hz
1kHz
10kHz

1% Full Power
250Hz
1kHz
10kHz

Crossover Point

Notes
(1) Average over stated Bandwidth. Measured in an IEC baffle in an Anechoic Chamber
(2) Unweighted Pink noise input, measured at 1m on axis
(3) Long term power handling capacity as defined in EIA - 426B test

TRANSDUCERS

Low Frequency

High frequency

PHYSICAL

Enclosure

Baffle/Enclosure

Grille

Safety Features

Clamping Design

Connectors

Hole Cutout Diameter

Dimensions

Bezel diameter

Front of ceiling to rear of pod

Net Weight (ea)

Included Accessories

Optional Accessories

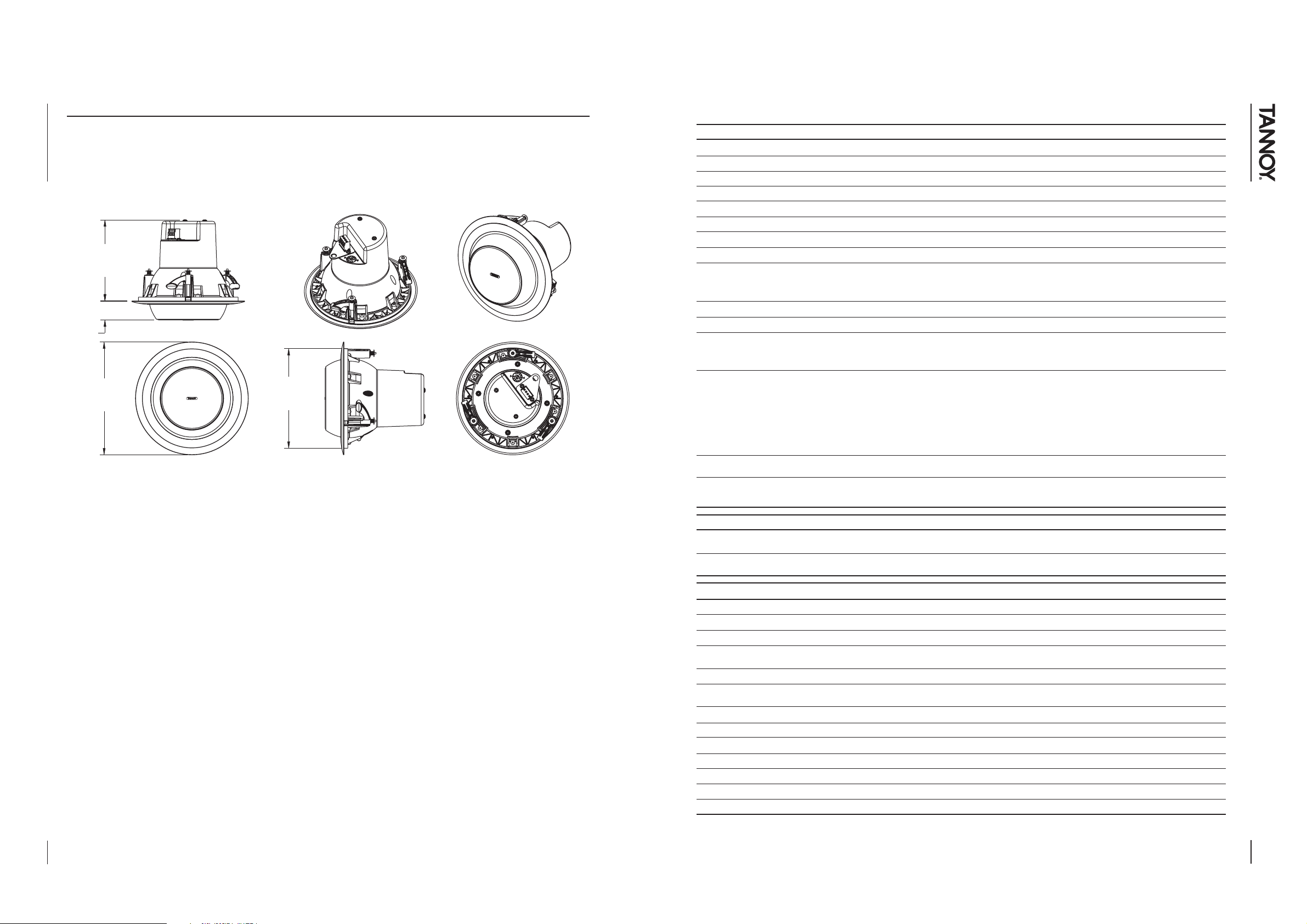

9.1 CMS 401e and CMS 401DCe DIMENSIONS:

Template cutout size: 187mm

181.1

[7.13"]

34.2

[1.35"]

147.6

[5.81"]

205.0

[8.07"]

CMS401DCe

100Hz - 50kHz

85Hz - 54kHz

88dB (1W = 2.83V for 8 Ohms)

90 degrees conical

120 degrees

5.1 averaged 1kHz to 6kHz

6.2 averaged 1kHz to 6kHz

106dB (average) 112dB (peak)

60W
120W
240W

120W @ 8 Ohms

8 Ohms

30W / 15W / 7.5W / 3.75W / OFF & low impedance operation
30W / 15W / 7.5W / OFF & low impedance operation

2nd Harmonic 3rd Harmonic

2.62% 0.50%

0.74% 0.53%

0.62% 0.09%

2nd Harmonic 3rd Harmonic

0.68% 0.22%

0.11% 0.32%

0.26% 0.06%

2kHz - 2nd order LF, 2nd Order HF
(with dynamic HF Protection)

100mm (4.00") Dual Concentric™ constant directivity driver
with a multi fibre paper pulp cone

19mm (0.75") titanium dome with neodymium magnet
system

Reflex loaded UL 94V-0 rated ABS

Steel, with weather resistant coating

Safety ring located at rear of enclosure for load bearing
safety bond

Security toggle clamp

Removable locking connector with screw terminals with
"loop through" facility

187mm (7.36")

205mm (8.07")

147.6mm (5.81")

2.96kg (6.36lbs)

C Ring, tile bridge, paint mask, cutout template, grille

Plaster (mud) ring

CMS401e

100Hz - 22kHz

85Hz - 24kHz

87dB (1W = 2.45V for 6 Ohms)

90 degrees conical

110 degrees

5.3 averaged 1kHz to 6kHz

6.3 averaged 1kHz to 6kHz

104dB (average) 110dB (peak)

50W
100W
200W

100W @ 6 Ohms

6 Ohms

30W / 15W / 7.5W / 3.75W / OFF & low impedance operation
30W / 15W / 7.5W / OFF & low impedance operation

2nd Harmonic 3rd Harmonic

1.37% 0.139%

0.92% 0.23%

1.33% 0.342%

2nd Harmonic 3rd Harmonic

0.42% 0.19%

0.34% 0.17%

0.46% 0.33%

7kHz Inductively Coupled

100mm (4.00") mineral loaded polypropylene ICT™

Reflex loaded UL 94V-0 rated ABS

Steel, with weather resistant coating

Safety ring located at rear of enclosure for load bearing
safety bond

Security toggle clamp

Removable locking connector with screw terminals with
"loop through" facility

187mm (7.36")

205mm (8.07")

147.6mm (5.81")

2.89kg (6.36lbs)

C Ring, tile bridge, paint mask, cutout template, grille

Plaster (mud) ring

12

13

CMS

13. DECLARATION OF CONFORMITY:

The following apparatus is/are manufactured in China for Tannoy
Ltd of Rosehall Industrial estate, Coatbridge, Scotland, ML5 4TF
and conform(s) to the protection requirements of the European
Electromagnetic Compatibility Standards and Directives relevant
to Domestic Electrical Equipment. The apparatus is designed
and constructed such that electromagnetic disturbances generated
do not exceed levels allowing radio and telecommunications
equipment and other apparatus to operate as intended, and, the
apparatus has an adequate level of intrinsic immunity to
electromagnetic disturbance to enable operation as specified
and intended. This equipment conforms to the requirements of
the EMC Directive 89/336/EEC, amended by 92/31/EEC and the
requirements of the Low Voltage Directive 73/23/EEC, amended
by 93/68/EEC.

Details of the Apparatus: Tannoy Contractor Loudspeaker

Model Numbers: CMS 401e

CMS 401DCe

Applicable Standards: EN55103-1 1996 Emission

EN55103-2 1996 Immunity

Electrical Safety: Electrical Safety EN 60065: 1993

Signed:

Position: Engineering Director - Professional Products

Tannoy Professional

Date: 01/06/2006

For Tannoy Ltd

11. PAINTING

If desired, the grille and baffle panel may be painted to match the surrounding décor.

Painting the baffle:

Carefully mask off the driver assembly using the paint-mask provided to ensure that the paint does not come into
contact with the cone and roll surround.

Painting the grille:

Carefully remove the acoustically transparent foam from the reverse side of the grille.
Paint the grille and then replace the foam.
Re-bond the foam to the grille over the entire area using a light spray-adhesive to avoid audible resonances.

Painting the trim:

The speaker must be aimed before painting.
The rubber trim should be left in place while painting.
Apply a vinyl emulsion to the trim.

12. WARRANTY

No maintenance of the CMS loudspeaker is necessary.

All Tannoy professional loudspeaker products are covered by a 5 year warranty from the date of manufacture
subject to the absence of misuse, overload or accidental damage. Claims will not be considered if the serial
number has been altered or removed. Work under warranty should only be carried out by a Tannoy Professional
dealer or service agent. This warranty in no way affects your statutory rights. For further information please
contact your dealer or distributor in your country. If you cannot locate your distributor please contact Customer
Services, Tannoy Ltd at the address given below.

Customer Services
Tannoy Ltd.
Rosehall Industrial Estate
Coatbridge
Strathclyde
ML5 4TF
Scotland

Tel: [phone] (National)
[phone] (International)
Fax: [phone] (National)
[phone] (International)
E-mail: [e-mail]

DO NOT SHIP ANY PRODUCT TO TANNOY WITHOUT PREVIOUS AUTHORISATION

Our policy commits us to incorporating improvements to our products through continuous research
and development. Please confirm current specifications for critical applications with your supplier.

14

15

CMS

NOTES NOTES
