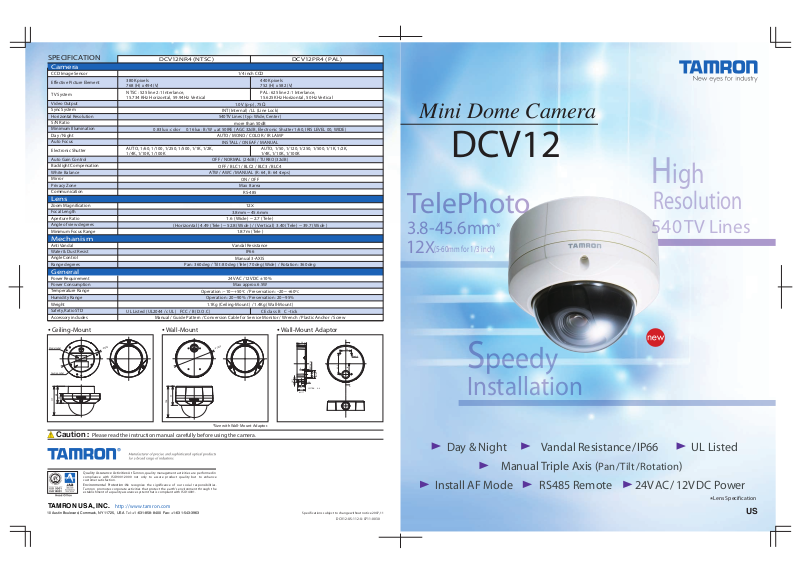

Tamron DCV12 Specsheet

Speedy

Installation

High

Resolution

540 TV Lines

TelePhoto

3.8-45.6mm

*

12X

(5-60mm for 1/3 inch)

SPECIFICATION

Camera

CCD Image Sensor

Effective Picture Element

TV System

Video Output
Sync System
Horizontal Resolution
S/N Ratio
Minimum Illumination
Day / Night
Auto Focus

Electronic Shutter

Auto Gain Control
Backlight Compensation
White Balance
Mirror
Privacy Zone
Communication

Lens

Zoom Magnification
Focal Length
Aperture Ratio
Angle of view degrees

Minimum Focus Range

Mechanism

Anti Vandal
Water & Dust Resist
Angle Control
Range degrees

General

Power Requirement
Power Consumption
Temperature Range
Humidity Range

Weight
Safety, Ratio STD
Accessory includes

DCV12 NR4 (NTSC) DCV12 PR4 ( PAL )

1/4 inch CCD

380K pixels
768 (H) x 494 (V)

NTSC :

525 line 2 :1 Interlance,

15.734 KHz Horizontal,

0.83 l

AUTO, 1/60, 1/100, 1/250, 1/500, 1/1K, 1/2K,
1/4K, 1/10K, 1/100K

UL Listed (UL2044 / cUL ) FCC / B (D.O.C ) CE class B C –tick

59.94 Hz Vertical

1.0V

INT (Internal) / LL (Line Lock)

540TV Lines ( typ: W

more than 50dB

ux : color 0.16 lux :B/ W *at 50IRE ( AGC 32dB, Electronic Shutter 1/60, IRIS LEVEL 00, WIDE )

AUTO / MONO / COLOR / IR LAMP

INSTALL / ONEAF / MANUAL

OFF / NORMAL ( 24dB)

OFF / BLC1 / BLC2 / BLC3 / BLC4

ATW / AWC / MANUAL (R :6

ON / OFF

Max 8 area

3.8mm ~ 45.6mm

1.6 ( W

ide ) ~ 2.7 (Tele)

(H

orizontal ) 4.49 (Tele )~ 52.8 ( Wide ) / (Vertical ) 3.40 (Tele ) ~ 39.7 ( Wide )

1.87m (Te

Vandal Resistance

Manual 3 -A

Pan :3

60 deg / Tilt :80 deg ( Tele ) 70 deg (Wide ) / Rotation :360 deg

24V

AC / 12VDC ± 10%

Max approx

Operation : –10~ +

Operation : 20~ 90% / Preservation : 20~ 95%

1.1Kg (Ceiling-Mount)

Manual / Guide Pattern / Conversion Cable for Service Monitor / Wrench / Plastic Anchor / Screw

50ºC / Preservation : –20~ +60ºC

440K pixels
752 (H) x 582 (V)

PAL :

625 line 2 :1 Interlance,

KHz Horizontal, 50 Hz Vertical

15.625

(p-p), 75Ω

ide, Center )

AUTO, 1/50, 1/120, 1/250, 1/500, 1/1K, 1/2K,
1/4K, 1/10K, 1/100K

/ TURBO (32dB)

4, B : 64 steps )

RS-485

12

X

le )

IP66

XIS

. 6.5W

/ 1.4Kg (Wall-Mount)

Mini Dome Camera

DCV12

Ceiling-Mount

•

Model Label

Caution Label

68

39

117

Caution :

Quali ty Ass urance Activit ies:

comp liance wi th I SO9001 :2000 not only to assur e p roduct qu ality but to enhanc e
custom er satis faction.

Environmental Protectio n:We re cognize the s ignifican ce of ou r socia l resp onsibili ties.

Tamron promotes cor porate activ ities that prote ct the earth's envi ronment throu gh the
estab lishment of a qua lity assu rance sys tem that is compl iant with ISO1400 1.

TAMRON USA, INC.

10 Austin Boul evard, Commack,

ø150.2

Please read the instruction manual carefully before using the camera.

At Tamron, qua lity m anagemen t act ivities are performe d in

http://www.tamron.com

NY 11725, USA Tel: [phone] Fax: [phone]

Wall-Mount

•

77

126

ø150.2

*Size with Wall-Mount Adaptor.

Wall-Mount Adaptor

•

38

8

NPT3/4"-14

ø31.63

20

10.17

NPT3/4"-14

SECTION

ø31.71

A-A

Specifi cations su bject to ch ange witho ut notice 2 007,11

A

46

4-ø4.5

43

83.5

A

DCV12- US-112-U-07 11-0030

Day & Night UL Listed

Vandal Resistance / IP66

Manual Triple Axis (Pan / Tilt / Rotation)

Install AF Mode

RS485 Remote

24VAC / 12V DC Power

Lens Specification

*

US

DCV12 Mini-Dome Camera with Built-In High-Performance Tamron Lens Provides
High Quality Images

Telephoto 3.8-45.6mm – 12X Zoom Power

Tamron DCV12 features a 12X zoom lens that offers the
world’s best magnification power on a mini dome camera.
Its versatile range covers a variety of scenes from 3.8mm
wide angle to 45.6mm telephoto, equivalent to 5-60mm in
the 1/3-inch format. This mini dome camera with a powerful
built-in zoom lens is essential for outdoor surveillance.

12X Zoom!

Wide: 3.8mm (1/3 inch:5mm)

High Resolution

Equipped with a 1/4-inch 380K CCD for NTSC model

(440K for PAL model)

Realizes 540

Advanced optical design for high resolution performance

Multiple-layer coatings to minimize ghosting and flare

TV lines horizontal resolution

Speedy Installation

Manual Triple-Axis Adjustment (Pan/Tilt/Rotation)

Manual Triple-Axis Adjustment mechanism that allows panning (+/- 360 degrees from right to
left and left to right), tilting (+/- 80 degrees up/down, +/- 70 degrees at the wide-end setting)
and rotation (+/- 360 degrees) ensures your ability to set the optimum viewing angle or angle
of view.

Lens specification

*

Tele: 45.6mm (1/3 inch: 60mm)

Rotation Mechanism for Ultimate Ease-of-Use
and Smooth Operation

The rotation mechanism has a grip for ultimate ease-of-use and
smooth operation. Markings on the rotating portion indicate
the correct screen position,
allowing you to precisely set
horizontal alignment on the
monitor.

Supports Gang-Box Installation

(For Wall-Mount)

Screw holes are provided
on the Wall-Mount for easy
installation of the camera
in a Gang-Box.

Three Screw Holes to Mount
Dome Cover

Quicker mounting of the cover
with three screw holes as
compared to other products
using four screw holes.

Outdoor Specifications

Vandal-Resistant design protects the camera
Watertight/Du

for installation outdoors such as under eaves
Supports Day/Night applications

for 24/7 surveillance
Ceiling-Mount for discreet installation
Wall-Mount for flush wall mounting

or when mounting in a Gang-Box

stproof design (IP66)

Service Monitor Output Terminal

A service monitor output terminal is provided near the operating
button so the camera can be connected to a monitor via the
conversion
as a standard accessory.
This simplifies confirming
a desired angle of view at
the installation site

cable supplied

.

Rubber Strap to Prevent
Dome Cover from Falling

Other Features

OSD (On Screen Display) Support
Backlight Compensation
Privacy Zone Masking (Max 8 area)
RS485 for remote control

24 VAC / 12 VDC Power ( Auto sensing dual voltage input)

•

Internal Sync / Line Lock ( at AC24, 60Hz )

•

ESC (Electronic Shutter Control, Auto / Fix )

•

AGC (Automatic Gain Control, OFF / 24dB / 32dB )

•

White Balance (ATW / AWC / MANUAL )

•

Camera Text function (Max 16 characters )

•

Detachable Inner Cover to hide camera direction

•

UL, FCC, CE, C-tick

•

Simple and Speedy Lens Adjustments

As the lens is motorized, lens adjustments can be made quickly with an operating button. In
addition, since the camera features an Install AF Mode designed to perform continuous auto­focusing for 30 seconds after dome cover installation, defocusing after installation can be
prevented.

STEP 1

Set Angle of Veiw

STEP 2

STEP 2

-

Auto

-

Manual

Speedy Installation

Push AF button and
put on the dome-cover.
During 30 seconds focusing
will be finished automatically.
Then screw the dome-cover
properly.

Adjust focus manually by
hand, holding on to the
dome-cover.

STEP 3

Installation Completed

On focus image

*

Images are for illustrative purpose only.

Mini Dome Camera Lineup

Ceiling-Mount

DCV12NR4 (NTSC)
DCV12PR4 (PAL )

Wall-Mount

Wall-Mount Adaptor sold separate.

DCV12NR4 (NT
DCV12PR4 (PAL

SC)

)

+

Model BTMDCV12

( Wall-Mount Adaptor )
