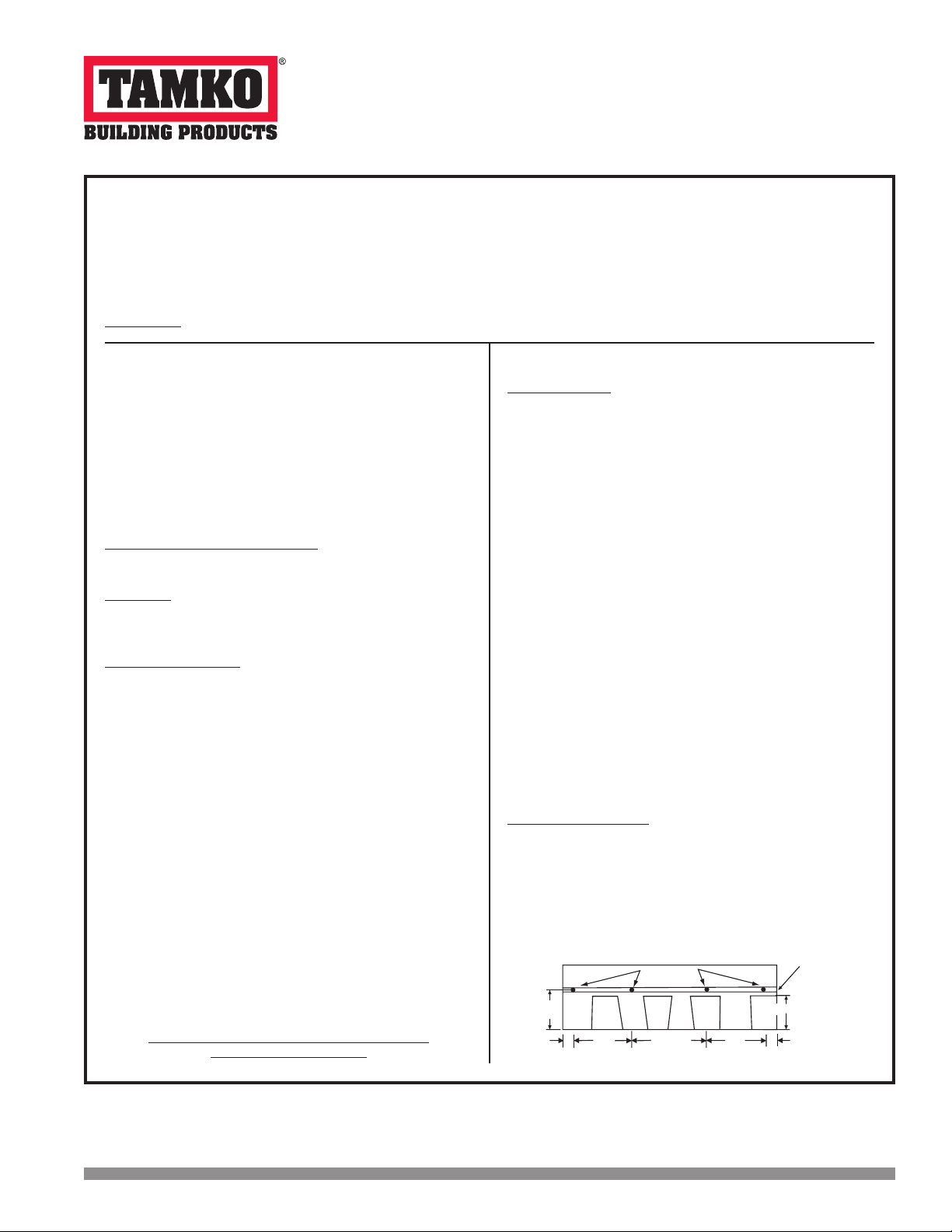

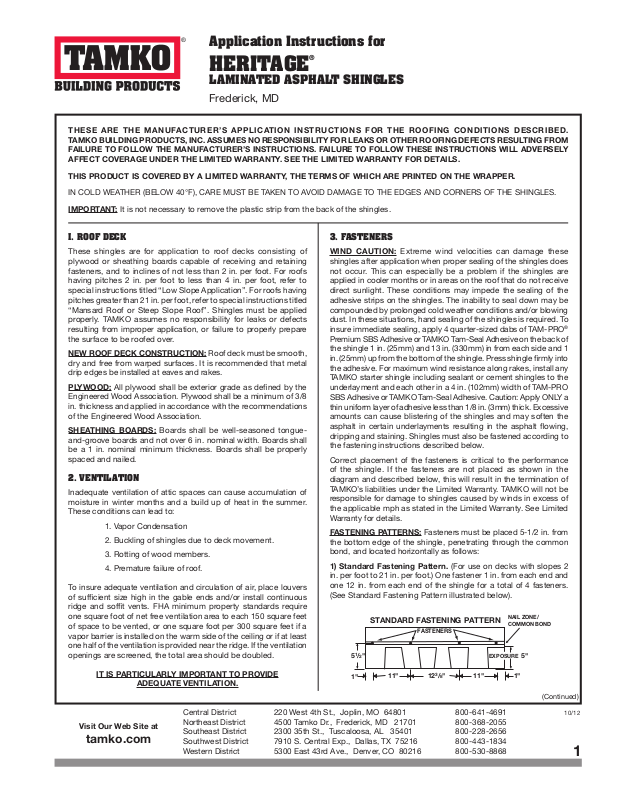

Page 1

STANDARD FASTENING PATTERN

51/2"

11" 12

/8" 11" 1"

FASTENERS

NAIL ZONE/ COMMON BOND

EXPOSURE

Application Instructions for

HERITAGE

LAMINATED ASPHALT SHINGLES

Frederick, MD

THESE ARE THE MANUFACTURER’S APPLICATION INSTRUCTIONS FOR THE ROOFING CONDITIONS DESCRIBED. TAMKO BUILDING PRODUCTS, INC. ASSUMES NO RESPONSIBILITY FOR LEAKS OR OTHER ROOFING DEFECTS RESULTING FROM FAILURE TO FOLLOW THE MANUFACTURER’S INSTRUCTIONS. FAILURE TO FOLLOW THESE INSTRUCTIONS WILL ADVERSELY AFFECT COVERAGE UNDER THE LIMITED WARRANTY. SEE THE LIMITED WARRANTY FOR DETAILS.

THIS PRODUCT IS COVERED BY A LIMITED WARRANTY, THE TERMS OF WHICH ARE PRINTED ON THE WRAPPER.

IN COLD WEATHER (BELOW 40°F), CARE MUST BE TAKEN TO AVOID DAMAGE TO THE EDGES AND CORNERS OF THE SHINGLES.

IMPORTANT: It is not necessary to remove the plastic strip from the back of the shingles.

I. ROOF DECK

These shingles are for application to roof decks consisting of plywood or sheathing boards capable of receiving and retaining fasteners, and to inclines of not less than 2 in. per foot. For roofs having pitches 2 in. per foot to less than 4 in. per foot, refer to special instructions titled “Low Slope Application”. For roofs having pitches greater than 21 in. per foot, refer to special instructions titled “Mansard Roof or Steep Slope Roof”. Shingles must be applied properly. TAMKO assumes no responsibility for leaks or defects resulting from improper application, or failure to properly prepare the surface to be roofed over.

NEW ROOF DECK CONSTRUCTION: Roof deck must be smooth, dry and free from warped surfaces. It is recommended that metal drip edges be installed at eaves and rakes.

PLYWOOD: All plywood shall be exterior grade as dened by the Engineered Wood Association. Plywood shall be a minimum of 3/8 in. thickness and applied in accordance with the recommendations of the Engineered Wood Association.

SHEATHING BOARDS: Boards shall be well-seasoned tongueand-groove boards and not over 6 in. nominal width. Boards shall be a 1 in. nominal minimum thickness. Boards shall be properly spaced and nailed.

2. VENTILATION

Inadequate ventilation of attic spaces can cause accumulation of moisture in winter months and a build up of heat in the summer. These conditions can lead to:

1. Vapor Condensation

2. Buckling of shingles due to deck movement.

3. Rotting of wood members.

4. Premature failure of roof.

To insure adequate ventilation and circulation of air, place louvers of sufcient size high in the gable ends and/or install continuous ridge and soft vents. FHA minimum property standards require one square foot of net free ventilation area to each 150 square feet of space to be vented, or one square foot per 300 square feet if a vapor barrier is installed on the warm side of the ceiling or if at least one half of the ventilation is provided near the ridge. If the ventilation openings are screened, the total area should be doubled.

3. FASTENERS

WIND CAUTION: Extreme wind velocities can damage these shingles after application when proper sealing of the shingles does not occur. This can especially be a problem if the shingles are applied in cooler months or in areas on the roof that do not receive direct sunlight. These conditions may impede the sealing of the adhesive strips on the shingles. The inability to seal down may be compounded by prolonged cold weather conditions and/or blowing dust. In these situations, hand sealing of the shingles is required. To insure immediate sealing, apply 4 quarter-sized dabs of TAM-PRO Premium SBS Adhesive or TAMKO Tam-Seal Adhesive on the back of the shingle 1 in. (25mm) and 13 in. (330mm) in from each side and 1 in. (25mm) up from the bottom of the shingle. Press shingle rmly into the adhesive. For maximum wind resistance along rakes, install any TAMKO starter shingle including sealant or cement shingles to the underlayment and each other in a 4 in. (102mm) width of TAM-PRO SBS Adhesive or TAMKO Tam-Seal Adhesive. Caution: Apply ONLY a thin uniform layer of adhesive less than 1/8 in. (3mm) thick. Excessive amounts can cause blistering of the shingles and may soften the asphalt in certain underlayments resulting in the asphalt owing, dripping and staining. Shingles must also be fastened according to the fastening instructions described below.

Correct placement of the fasteners is critical to the performance of the shingle. If the fasteners are not placed as shown in the diagram and described below, this will result in the termination of TAMKO’s liabilities under the Limited Warranty. TAMKO will not be responsible for damage to shingles caused by winds in excess of the applicable mph as stated in the Limited Warranty. See Limited Warranty for details.

FASTENING PATTERNS: Fasteners must be placed 5-1/2 in. from the bottom edge of the shingle, penetrating through the common bond, and located horizontally as follows:

1) Standard Fastening Pattern. (For use on decks with slopes 2 in. per foot to 21 in. per foot.) One fastener 1 in. from each end and one 12 in. from each end of the shingle for a total of 4 fasteners. (See Standard Fastening Pattern illustrated below).

IT IS PARTICULARLY IMPORTANT TO PROVIDE

Visit Our Web Site at

tamko.com

ADEQUATE VENTILATION.

Central District 220 West 4th St., Joplin, MO 64801 800-641-4691 10/12 Northeast District 4500 Tamko Dr., Frederick, MD 21701 800-368-2055 Southeast District 2300 35th St., Tuscaloosa, AL 35401 800-228-2656 Southwest District 7910 S. Central Exp., Dallas, TX 75216 800-443-1834 Western District 5300 East 43rd Ave., Denver, CO 80216 800-530-8868

(Continued)

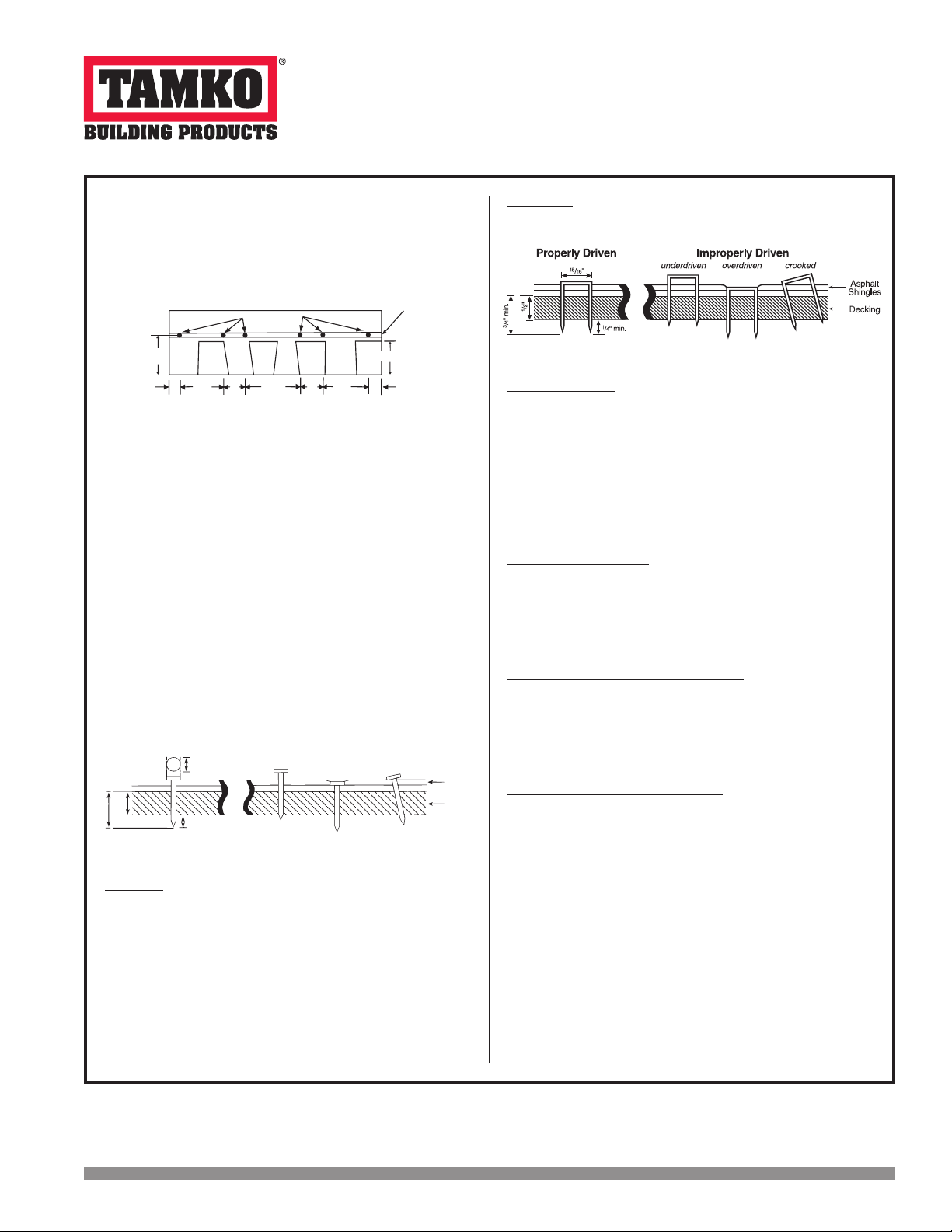

Page 2

(CONTINUED from page 1)

Properly Driven

3/8" min diameter

underdriven

overdriven

Improperly Driven

crooked

Asphalt Shingles

Decking

inadequate anchorage

too deep, cuts into shingle

inadequate penetration

straight, good penetration, and ﬂush with shingle surface

1/4" nominal

1/2"

3/4" min

51/2"

FASTENERS

91/2"9

/8"

91/2"

NAIL ZONE/ COMMON BOND

EXPOSURE

HERITAGE

LAMINATED ASPHALT SHINGLES

Frederick, MD

2) Mansard Fastening Pattern. (For use on decks with slopes greater than 21 in. per foot.) One fastener 1 in. from each end and one fastener 10-1/2 in. from each end and one fastener 13-1/2 in. back from each end for a total of 6 fasteners per shingle. (See Mansard and High Wind Fastening Pattern illustrated below.)

MANSARD AND HIGH WIND FASTENING PATTERN

3) High Wind Fastening Pattern. (For High Wind Application requirements) One fastener 1 in. from each end. One fastener 101/2 in. from each end and one fastener 13-1/2 in. from each end for a total of six (6) fasteners per shingle. In addition to this shingle fastening pattern requirement for High Wind Application, TAMKO also requires the use of TAMKO starter shingles including sealant strip at eaves and rakes. High Wind Application is offered on new construction or complete tear-off applications only. It is not offered for recover applications. If High Wind Application requirements are not followed, the High Wind Application Warranty MPH, as stated on Table I in the Limited Warranty, reverts to the Standard Application Wind Warranty MPH limit. (See Mansard and High Wind Fastening Pattern illustrated above.)

NAILS: TAMKO recommends the use of nails as the preferred method of application. Standard type roong nails should be used. Nail shanks should be made of minimum 12 gauge wire, and a minimum head diameter of 3/8 in. Nails should be long enough to penetrate 3/4 in. into the roof deck. Where the deck is less than 3/4 in. thick, the nails should be long enough to penetrate completely through plywood decking and extend at least 1/8 in. through the roof deck. Drive nail head ush with the shingle surface.

STAPLES: If staples are used in the attaching process, follow the above instructions for placement. All staples must be driven with pneumatic staplers. The staple must meet the following minimum dimensional requirements. Staples must be made from a minimum 16 gauge galvanized wire. Crown width must be at least 15/16 in. (staple crown width is measured outside the legs). Leg length should be a minimum of 1-1/4 in. for new construction and 1-1/2 in. for reroong thus allowing a minimum deck penetration of 3/4 in. The crown of the staple must be parallel to the length of the shingle. The staple crown should be driven ush with the shingle surface. Staples that are crooked, underdriven or overdriven are considered improperly applied.

Visit Our Web Site at

tamko.com

CAUTION: ALL FASTENERS MUST BE DRIVEN INTO THE NAIL ZONE/COMMON BOND AS SHOWN IN THE FASTENING

PATTERN DIAGRAMS.

4. UNDERLAYMENT

UNDERLAYMENT: An underlayment must be applied over the entire deck before the installation of TAMKO shingles. Failure to add underlayment can cause premature failure of the shingles which is not covered by TAMKO’s Limited Warranty.

Products which are acceptable for use as underlayment are:

Asphalt Saturated Felt Underlayments:

• TAMKO No. 15 Asphalt Saturated Organic Felt

• Any TAMKO non-perforated asphalt saturated organic felt

• A non-perforated asphalt saturated organic felt which meets

ASTM: D226, Type I or II or ASTM D4869

Specialty Underlayments:

• TAMKO Peel-N-Stick Felt

• Tam-Shield™ Synthetic Underlayment

• TAMKO TW Metal and Tile Underlayment, TW Underlayment

and Moisture Guard Plus® (additional ventilation may be required. Contact TAMKO’s Technical Services Department for more information.)

For Asphalt Saturated Felt Underlayments:

Apply the felt when the deck is dry. On roof decks with slopes 4 in. per foot and greater apply the felt parallel to the eaves lapping each course of the felt over the lower course at least 2 in. Where ends join, lap the felt 4 in. If left exposed, the felt may be adversely affected by moisture and weathering. Laying of the felt and the shingle application must be done together.

For All Other Specialty Underlayments:

On roof decks with slopes 4 in. per foot and greater apply the underlayment parallel to the eaves in accordance with underlayment written application instructions. The underlayment should not be left exposed for a longer period of time than is specied in the underlayments written application instructions. The nal roof covering must be installed before the structure is exposed to adverse weather conditions, such as wind driven rain, high wind, hail, ice storms, etc.

In areas where ice builds up along the eaves or a back-up of water from frozen or clogged gutters is a potential problem, TAMKO’s Moisture Guard Plus

, TW Metal and Tile Underlayment or TW Underlayment (or any specialty eaves ashing product) may be applied to eaves, rakes, ridges, valleys, around chimneys, skylights or dormers to help prevent water damage. Contact TAMKO’s Technical Services Department for more information.

Substitute products as shingle underlayment should not be used.

(Continued)

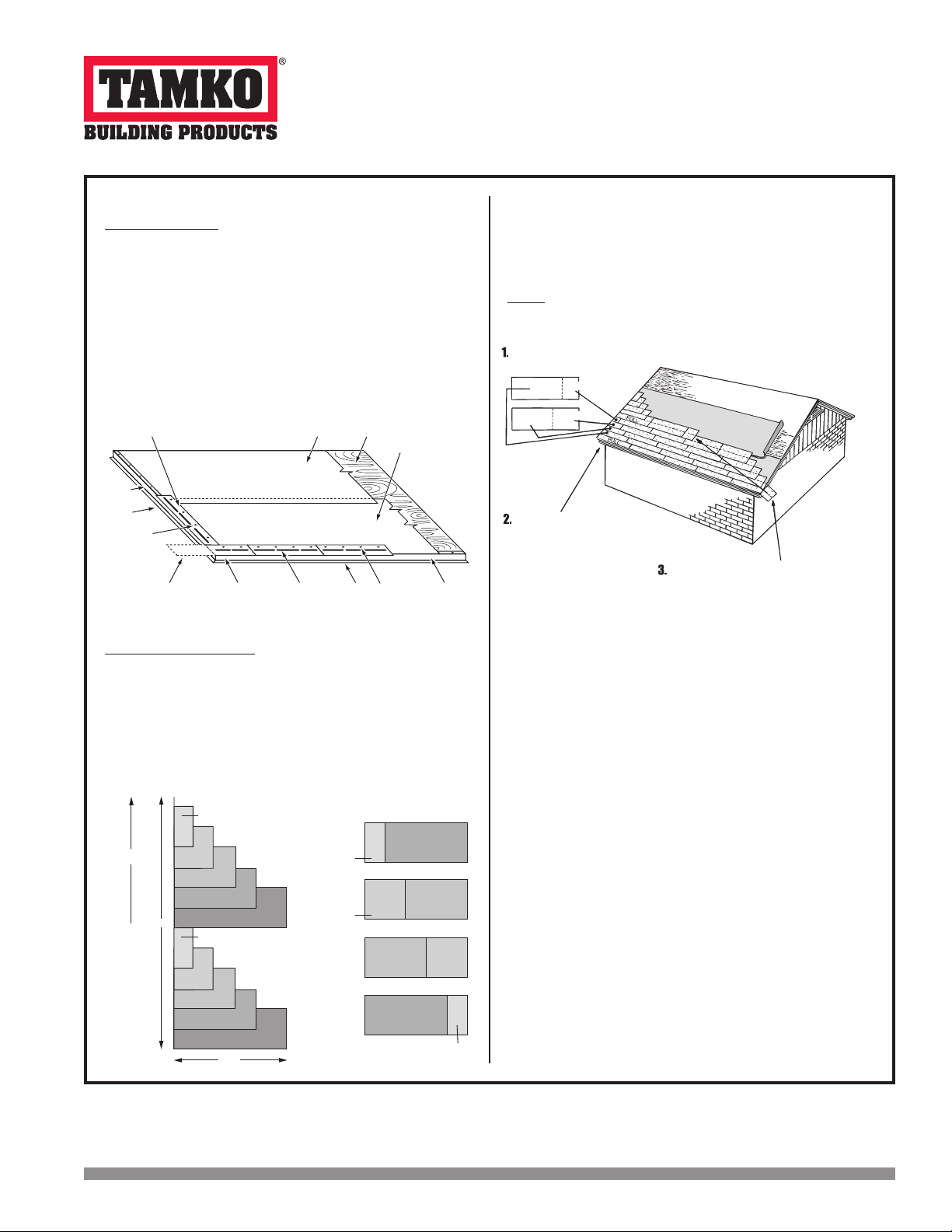

Page 3

Cut your rst course shingle to make 29" and a 7 3/8" length. Cut a second shingle to make a 22" and a 14 3/8" length.

29"

22"

Begin application with a full length shingle Then lay your 29", 22", 14 3/8" and 7 3/8" lengths. As you can see, three shingles with two cuts make ve courses.

Continue working your way across the roof. When you make your nal cut at the roof’s edge, ip any pieces that are 8" or longer back onto the roof. These pieces can be worked in anywhere without creating zippers or color variations.

NOTE: Do not align joints of shingle courses when working in cut pieces. Joints should be no closer than 4" from one another.

7 3/8"

14 3/8"

14-3/8"

22"

29"

Full

rake

repeat

courses

5th course

4th course

3rd course

2nd course

1st course

eave

14-3/8"

22"

29"

Full

22"

29"

14-3/8"

7-3/8"

22"

29"

7-3/8"

(CONTINUED from page 2)

HERITAGE

LAMINATED ASPHALT SHINGLES

Frederick, MD

5. APPLICATION INSTRUCTIONS

STARTER COURSE: A starter course may consist of TAMKO Shingle Starter, TAMKO 10-inch Starter or self-sealing 3-tab shingles. If selfsealing 3-tab shingles are used, remove the exposed tab portion and install with the factory applied adhesive adjacent to the eaves. Attach the starter course with approved fasteners along a line parallel to and 3 in. to 4 in. above the eaves edge. The starter course should overhang both the eaves and rake edges 1/4 in. to 3/8 in. If a roll roong is used, seal down the shingles in the rst course by applying TAM-PRO SBS Adhesive or TAMKO Tam-Seal Adhesive in four spots equally spaced to the surface of the starter strip and press the shingle down on the spots of adhesive. Adhesive should be used sparingly, as excessive amounts may cause blistering.

For maximum wind resistance along rakes, install any TAMKO starter shingle including sealant strip

Drip edge

Rake

Fasteners located 3" to 4" from rake edge

Start first strip with 1/2 shingle removed, then follow with full strips in order to offset with the first shingle course.

Starter strips overhang eaves and rakes 1/4" to 3/8"

Underlayment Deck

Self-sealing adhesive positioned along eaves or rake edge

Eave

Eave flashing or underlayment

Fasteners located 3" to 4" from eave edge

Drip edge

SHINGLE APPLICATION: Start the rst course with a full size shingle and overhang the rake edge 1/4 in. Cut 7-3/8 in. from a full shingle to form a shingle 29 in. long. Use this to start the second course (see diagram below). Cut a 22 in. long shingle to start the third course. Use the remaining 14-3/8 in. piece of shingle to start the fourth course and use the remaining 7-3/8 in. piece to begin the fth course. Continue up the rake in as many rows as necessary using the same formula as outlined above.

The butt of the shingle should be aligned with the top edge of the sawtooth of the underlying shingle for a 5 in. exposure (see shingle application drawing illustrated on this panel). When you make your nal cut at the roof’s edge, ip any pieces that are 8 in. or longer back onto the roof. These pieces can be worked in anywhere without creating zippers or color variations.

NOTE: Do not align joints of shingle courses when working in cut pieces. Joints should be no closer than 4 in. from one another.

6. LOW SLOPE APPLICATION

On pitches 2 in. per foot to 4 in. per foot cover the deck with two layers of underlayment. Begin by applying the underlayment in a 1/2-sheet width along the eaves and overhanging the drip edge by 1/4 to 3/4 in. Place a full-sheet width over the 1/2-sheet width starter piece, completely overlapping it. All succeeding courses will be positioned to overlap the preceding course by 1/2-sheet width. If winter temperatures average 25°F or less, thoroughly cement the laps of the entire underlayment to each other with TAM-PRO or TAMKO Plastic Roof Cement from eaves and rakes to a point of a least 24 in. inside the interior wall line of the building. As an alternative, TAMKO’s Moisture Guard Plus

self-adhering waterproong underlayment may

be used in lieu of the cemented felts.

Visit Our Web Site at

tamko.com

7. MANSARD ROOF OR STEEP SLOPE ROOF

If the slope exceeds 21 in. per foot (60˚), each shingle must be sealed with TAM-PRO SBS Adhesive or TAMKO Tam-Seal Adhesive immediately upon installation. Quarter-sized dabs of cement must be applied to shingles with a 5 in. exposure, use 6 fasteners per shingle. See Section 3 for the Mansard Fastening Pattern.

(Continued)

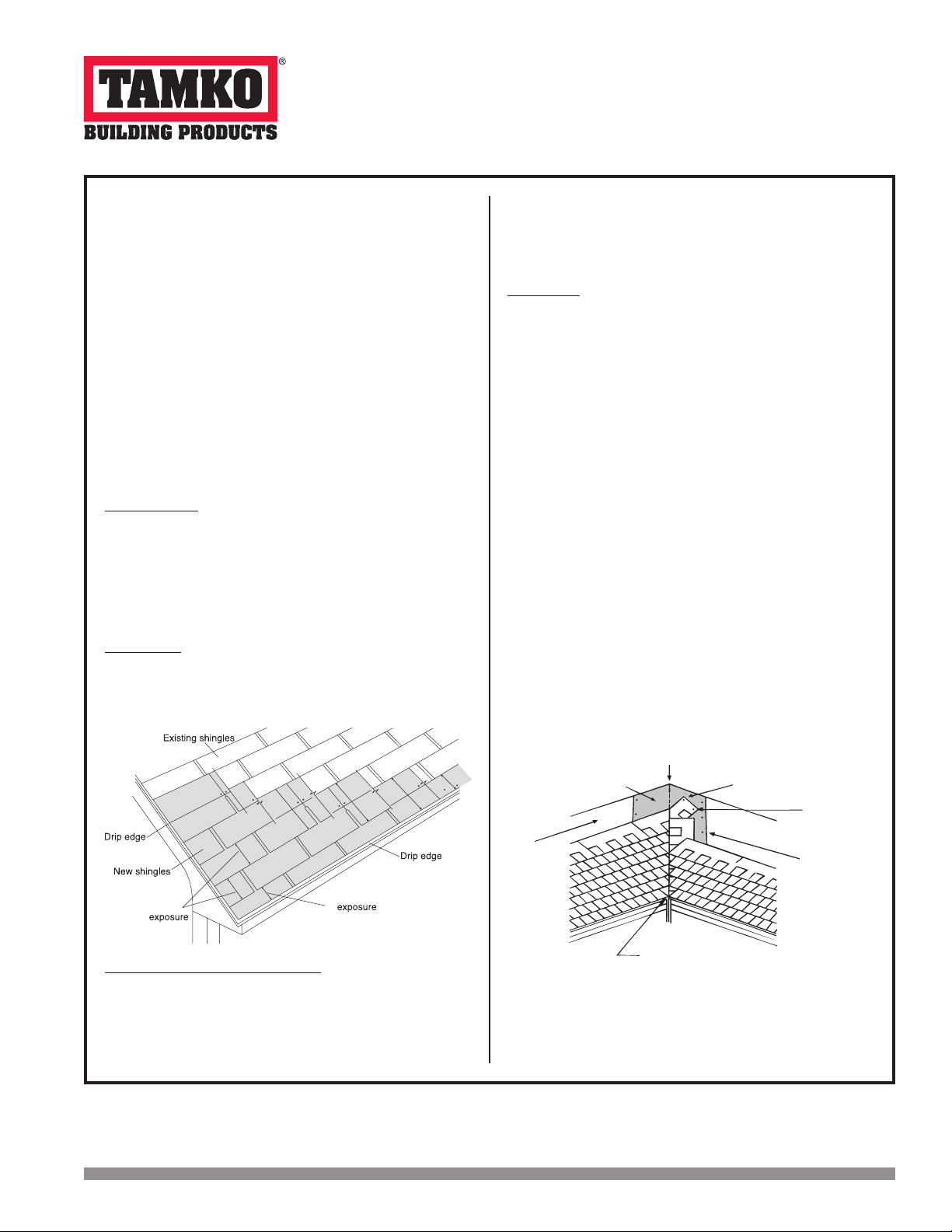

Page 4

(CONTINUED from page 3)

No fasteners within 6" of centerline

Extend end shingle 12"–18" beyond valley centerline

Extra nail in end of shingle

Valley centerline

Underlayment

Minimum 36" wide sheet of Nail Fast, Moisture Guard Plus or 50 lb. or heavier roll roong

Place tip of shingle on the edge of the vertical shingle, 2 inches back from valley centerline and covering the vertical shingle.

HERITAGE

LAMINATED ASPHALT SHINGLES

Frederick, MD

8. RE-ROOFING

Before re-roong, be certain to inspect the roof decks. All plywood shall meet the requirements listed in Section 1.

Nail down or remove curled or broken shingles from the existing roof. Replace all missing shingles with new ones to provide a smooth base. Shingles that are buckled usually indicate warped decking or protruding nails. Hammer down all protruding nails or remove them and refasten in a new location. Remove all drip edge metal and replace with new.

If re-roong over an existing roof where new ashing is required to protect against ice dams (freeze/thaw cycle of water and/or the backup of water in frozen or clogged gutters), remove the old roong to a point at least 24 in. beyond the interior wall line and apply TAMKO’s Moisture Guard Plus

waterproong underlayment. Contact TAMKO’s Technical Services Department for more information.

The nesting procedure described below is the preferred method for re-roong over square tab strip shingles with a 5 in. exposure.

Starter Course: Begin by cutting shingles into 5 × 36-3/8 inch strips. This is done by removing the 5 in. tabs from the bottom and approximately 2 in. from the top of the shingles so that the remaining portion is the same width as the exposure of the old shingles. Apply the starter piece so that the self-sealing adhesive lies along the eaves and is even with the existing roof. The starter strip should be wide enough to overhang the eaves and carry water into the gutter. Remove 3 in. from the length of the rst starter shingle to ensure that the joints from the old roof do not align with the new.

First Course: Cut off approximately 2 in. from the bottom edge of the shingles so that the shingles t beneath the existing third course and align with the edge of the starter strip. Start the rst course with a full 36 in. long shingle and fasten according to the instructions printed in Section 3.

9. VALLEY APPLICATION

Over the shingle underlayment, center a minimum 36 in. wide sheet of TAMKO Nail-Fast

, Moisture Guard Plus® or a minimum 50 lb. roll roong in the valley. Nail the underlayment only where necessary to hold it in place and then only nail the outside edges.

IMPORTANT: PRIOR TO INSTALLATION WARM SHINGLES TO PREVENT DAMAGE WHICH CAN OCCUR WHILE BENDING SHINGLES TO FORM VALLEY.

After valley ashing is in place:

• Applythe rstcourse ofshingles alongthe eavesof oneof

the intersecting roof planes and across the valley.

Note: For proper ow of water over the trimmed shingle, always start applying the shingles on the roof plane that has the lower slope or less height.

• Extendtheendshingleatleast12in.ontotheadjoiningroof.

Apply succeeding courses in the same manner, extending them across the valley and onto the adjoining roof.

• Presstheshinglestightlyintothevalley.

• Usenormalshinglefasteningmethods.

Note: No fastener should be within 6 in. of the valley centerline, and two fasteners should be placed at the end of each shingle crossing the valley.

• Totheadjoiningroofplane,applyonerowofshinglesvertically

facing the valley and 2 in. back from the valley centerline.

Note: For a neater installation, snap a chalkline over the shingles for guidance.

• Tocomplete thevalley,apply shingleson theadjoining roof

plane by positioning the tip of the rst shingle of each row at the 2 in. point from the centerline where the edge of the vertical shingle has been applied, covering the vertical shingle.

10"

12"

Second and Succeeding Courses: According to the off-set application method you choose to use, remove the appropriate length from the rake end of the rst shingle in each succeeding course. Place the top edge of the new shingle against the butt edge of the old shingles in the courses above. The full width shingle used on the second course will reduce the exposure of the rst course to 3 in. The remaining courses will automatically have a 5 in. exposure.

Visit Our Web Site at

tamko.com

FOR ALTERNATE VALLEY APPLICATION METHODS, PLEASE CONTACT TAMKO’S TECHNICAL SERVICES DEPARTMENT AT 800-641-4691.

(Continued)

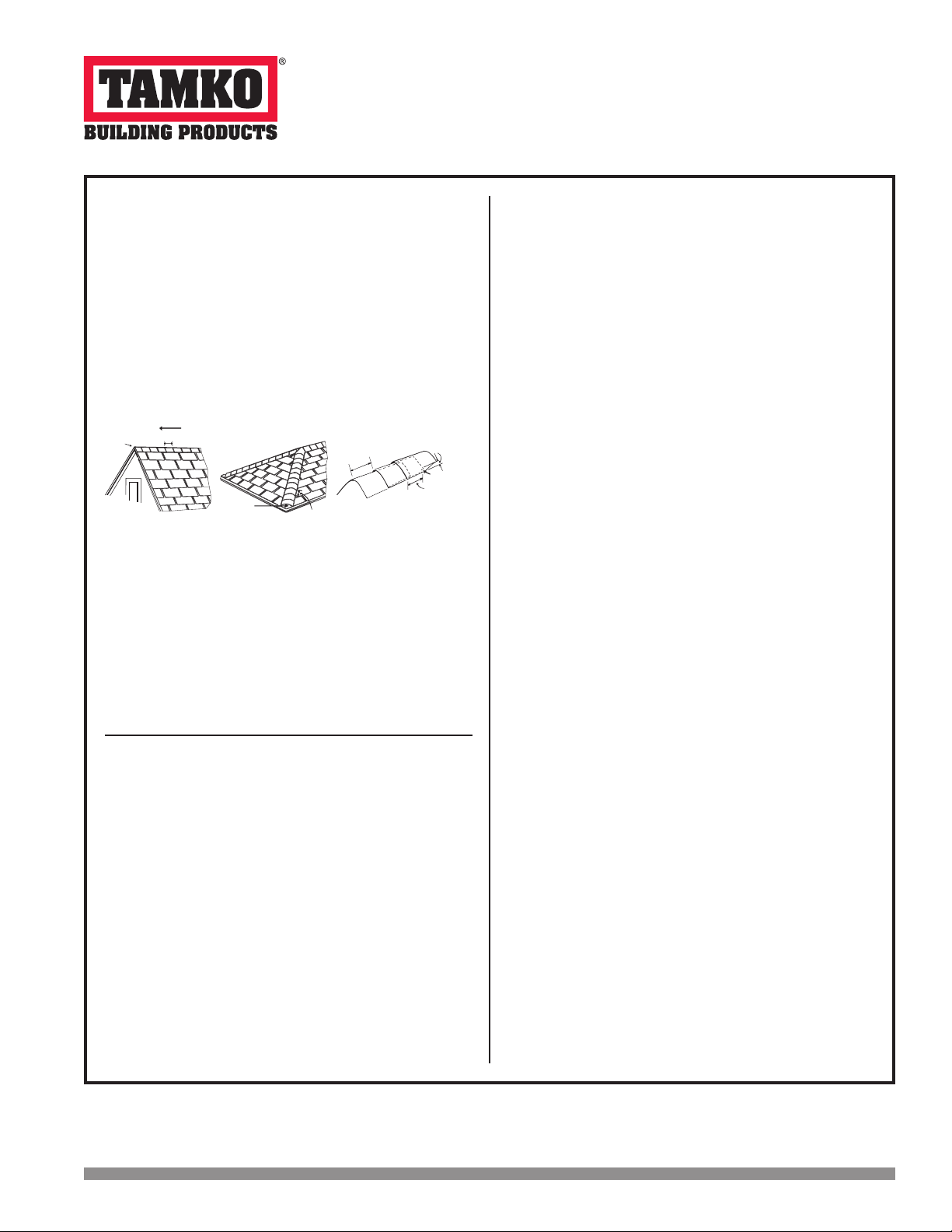

Page 5

Start here

5-1/8" exposure

Direction of prevailing wind

Start here

5-1/8" exposure

Fastener

5-5/8"

5-1/8"

(CONTINUED from page 4)

HERITAGE

LAMINATED ASPHALT SHINGLES

Frederick, MD

10. HIP AND RIDGE FASTENING DETAIL

Apply the shingles with a 5-1/8 in. exposure beginning at the bottom of the hip or from the end of the ridge opposite the direction of the prevailing winds. Secure each shingle with one fastener on each side, 5-1/2 in. back from the exposed end and 1 in. up from the edge.

TAMKO recommends the use of TAMKO Hip & Ridge shingle products. Where matching colors are available, it is acceptable to use TAMKO’s Elite Glass-Seal shingles cut down to 12 in. pieces.

Fasteners should be 1/4 in. longer than the one used for shingles

IMPORTANT: PRIOR TO INSTALLATION, CARE NEEDS TO BE TAKEN TO PREVENT DAMAGE WHICH CAN OCCUR WHILE BENDING SHINGLE IN COLD WEATHER.
