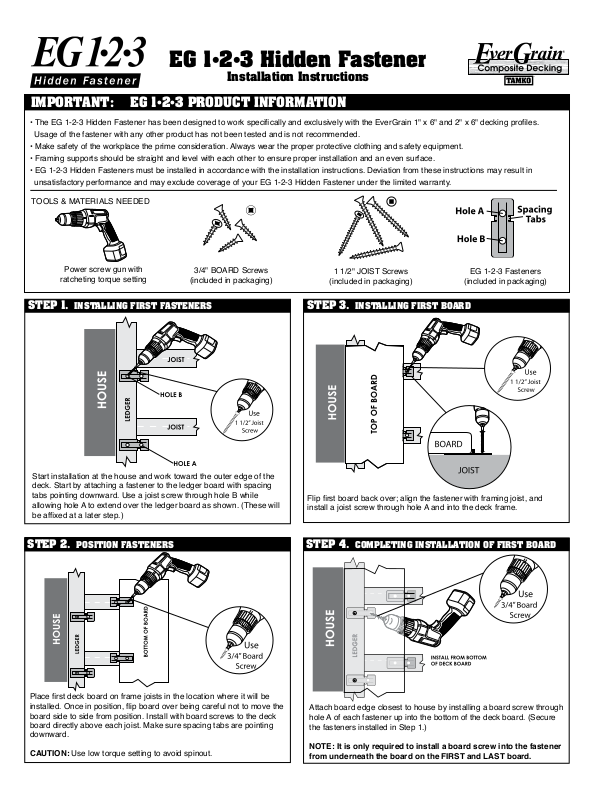

EG 1•2•3 Hidden Fastener
Installation Instructions
IMPORTANT: EG 1•2•3 PRODUCT INFORMATION
• The EG 1-2-3 Hidden Fastener has been designed to work specically and exclusively with the EverGrain 1" x 6" and 2" x 6" decking proles.
Usage of the fastener with any other product has not been tested and is not recommended.
• Make safety of the workplace the prime consideration. Always wear the proper protective clothing and safety equipment.
• Framing supports should be straight and level with each other to ensure proper installation and an even surface.
• EG 1-2-3 Hidden Fasteners must be installed in accordance with the installation instructions. Deviation from these instructions may result in
unsatisfactory performance and may exclude coverage of your EG 1-2-3 Hidden Fastener under the limited warranty.
TOOLS & MATERIALS NEEDED
Power screw gun with
ratcheting torque setting
STEP 1.
Start installation at the house and work toward the outer edge of the
deck. Start by attaching a fastener to the ledger board with spacing
tabs pointing downward. Use a joist screw through hole B while
allowing hole A to extend over the ledger board as shown. (These will
be afxed at a later step.)
STEP 2.
INSTALLING FIRST FASTENERS
POSITION FASTENERS
3/4" BOARD Screws
(included in packaging)
1 1/2" JOIST Screws
(included in packaging)
STEP 3.
Flip rst board back over; align the fastener with framing joist, and
install a joist screw through hole A and into the deck frame.
STEP 4.
INSTALLING FIRST BOARD
COMPLETING INSTALLATION OF FIRST BOARD
EG 1-2-3 Fasteners
(included in packaging)
Place rst deck board on frame joists in the location where it will be
installed. Once in position, ip board over being careful not to move the
board side to side from position. Install with board screws to the deck
board directly above each joist. Make sure spacing tabs are pointing
downward.
CAUTION: Use low torque setting to avoid spinout.
Attach board edge closest to house by installing a board screw through
hole A of each fastener up into the bottom of the deck board. (Secure
the fasteners installed in Step 1.)
NOTE: It is only required to install a board screw into the fastener
from underneath the board on the FIRST and LAST board.
EG 1•2•3 Hidden Fastener
Installation Instructions - continued
Installation Instructions
STEP 5.
Place deck board in desired location to be installed. Flip deck board
over being careful not to move the board side to side from position.
Place fastener along Edge 1 (closer to the 1st board) of deck board
directly over joist with spacing tabs pointing downward.
Place another fastener along Edge 2 (direction of install) of board
approximately 1" off to the side of joist with spacing tabs pointing
downward.
Secure fasteners to board using board screws through hole B.
Repeat this process at every joist along remainder of board.
CAUTION: Use low torque setting to avoid spinout.
STEP 6.
INSTALLING THE NEXT BOARD
POSITION DECKING BOARD
STEP 8.
Attach a fastener to the rim joist aligned with each deck joist, with
spacing tabs pointing downward. Use a joist screw through hole B
while allowing hole A to extend over the outer edge of the rim joist as
shown.
Place last deck board in desired location to be installed. Flip deck
board over being careful not to move the board side to side from
position. Place fasteners along Edge 2 (direction of install) of board
approximately 1" off to the side of the joist with spacing tabs pointing
downward.
DO NOT PLACE FASTENERS ON EDGE 1 OF THE BOARD.
Secure fasteners to board using board screws through hole B.
CAUTION: Use low torque setting to avoid spinout.
PREPARING LAST BOARD
Once fasteners are attached to full board length, ip deck board back
over. Position board so fasteners can slide beneath the lead edge of
the previous board and exposed fasteners are aligned over the deck
joists. Carefully move board into position.
STEP 7. SECURE DECKING BOARD
Once proper spacing is conrmed (1/8” spacing is integrated into the
fastener), attach deck board to frame using a joist screw through
hole A of each fastener.
Repeat steps (5-7) until reaching nal deck board.
NOTE: DO NOT install a board screw into the fastener from
underneath the board. This is only required for the FIRST and
LAST board.
STEP 9. POSITION AND INSTALL LAST BOARD
Flip last board back over and position board so fasteners can slide
beneath the lead edge of the previous board. Reach under the nal
board and install board screws up into the bottom of the board through
hole A of the fastener attached to rim joist. (Fastener installed in
Step 8.)
EG 1•2•3 Hidden Fastener
IMPORTANT EG 1•2•3 PRODUCT INFORMATION
• The EG 1-2-3 Hidden Fastener has been designed to work specically and exclusively with the EverGrain 1" x 6" and 2" x 6" decking proles.
Usage of the fastener with any other product has not been tested and is not recommended.
• Make safety of the workplace the prime consideration. Always wear the proper protective clothing and safety equipment.
• Framing supports should be straight and level with each other to ensure proper installation and an even surface.
• EG 1-2-3 Hidden Fastener must be installed in accordance with the installation instructions. Deviation from these instructions may result in
unsatisfactory performance and may exclude coverage of your EG 1-2-3 Hidden Fastener under the limited warranty.
TOOLS & MATERIALS NEEDED
Installation Instructions
45º Installation Instructions
®
tamko.com
TAMKO
Pencil
Power screw gun with
ratcheting torque setting
STEP 1.
Any framing up against a structure should be doubled for proper
installation. Always start installation in the structure corner and work
toward the outer edge of deck.
Framing blocks can be added for existing frames.
STEP 2. POSITION FIRST FASTENERS
PREPARING TO INSTALL
1/8" Drill Bit
Square
(Optional)
2 1/2" Deck
Screws
(not included)
STEP 3.
Flip rst board back over; pre-drill a 1/8" hole in the corner of the board
that will be against the wall. Attach board to the frame using a color
coordinating decking screw (not supplied).
To nish securing the board, install a joist screw through each fastener
and into the deck frame.
STEP 4. INSTALLING THE NEXT BOARD
3/4"
BOARD Screws
(included in packaging)
COMPLETING INSTALLATION OF FIRST BOARD
1 1/2"
JOIST Screws
(included in packaging)
EG 1-2-3 Fasteners
(included in packaging)
Place rst corner board in position where it will be installed. Vertically
mark the decking board at framing seams as shown.
Flip board over, and extend the vertical mark along the bottom of the
board. Hook fasteners on the edge of the board with spacing tabs tight
against board edge and pointing downward.
Slide fasteners along edge until the pencil mark runs through the
center of hole B while allowing hole A to extend over the board. Secure
fasteners on both ends of board using a board screw.
CAUTION: Use low torque setting to avoid spinout.
Place next board in desired position. Mark entire board from
underneath with a pencil on the *short side of each joist.
* Short Side of Joist: As a deck board crosses a joist or ledger at a
45º, one edge of the joist appears shorter than the other.
Flip deck board over. If needed use a 45º square to continue the angle
completely across the board.
EG 1•2•3 Hidden Fastener
41000281
45º Installation Instructions - continued
Installation Instructions
STEP 4.
Place fastener tight against board edge with spacing tabs pointing
downward. Slide fastener along edge of board until the pencil mark
runs through the center of hole B while allowing hole A to extend
over the board. Secure fasteners on both sides of board using board
screws.
CAUTION: Use low torque setting to avoid spinout.
STEP 5.
INSTALLING THE NEXT BOARD - continued
POSITION DECKING BOARD
STEP 7. INSTALLING FINAL BOARD
Depending on your deck design, completion of your 45º installation
can be achieved by following Steps 1 and 2.
Once fasteners are attached, ip deck board back over. Position board
so fasteners slide beneath the lead edge of the previous board.
STEP 6. SECURE DECKING BOARD
Once proper spacing is conrmed (1/8" spacing is integrated into the
fastener), attach deck board to frame using a joist screw through hole
A of each fastener.
Repeat steps 4-6 until reaching nal deck board.
LIMITED WARRANTY
TAMKO Building Products, Inc. provides a 20-year limited warranty
for the EG 1-2-3 Hidden Fastener installed in accordance with
these written instructions. For a copy of the limited warranty see
your EverGrain Dealer or visit evergrain.com. Returns of or claims
for the EG 1-2-3 Hidden Fastener due to any condition that was
clearly apparent prior to application/fastening of product, will not be
considered after the fasteners have been applied/fastened to deck
board, sub-structure, joist, etc.
TAMKO Building Products, Inc.
P.O. Box 1404, Joplin, Missouri 64802
• Technical Services: 800-641-4691
• Warranty Services: 800-441-7190
• Customer Service: 800-253-1401
These application instructions were current at the time of printing.
To obtain a copy of the most current version of the application instructions,
visit us online at evergrain.com or call us at 800-641-4691.
JP60855
09/20/12 ©2012 TAMKO Building Products, Inc. TAMKO and EverGrain are Registered
Trademarks of TAMKO Building Products, Inc.
