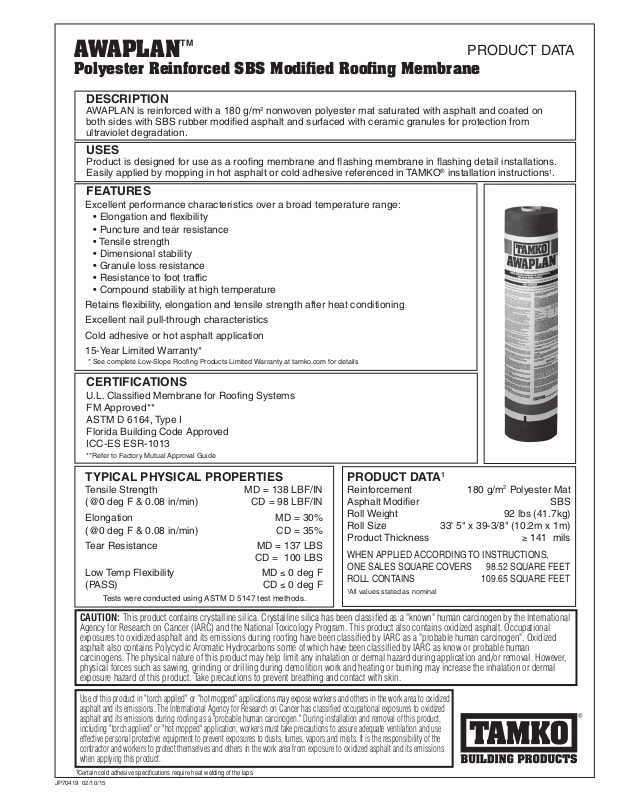

TM
AWAPLAN
PRODUCT DATA
Polyester Reinforced SBS Modified Roofing Membrane
DESCRIPTION
AWAPLAN is reinforced with a 180 g/m2 nonwoven polyester mat saturated with asphalt and coated on
both sides with SBS rubber modified asphalt and surfaced with ceramic granules for protection from
ultraviolet degradation.
USES
Product is designed for use as a roofing membrane and flashing membrane in flashing detail installations.
Easily applied by mopping in hot asphalt or cold adhesive referenced in TAMKO® installation instructions†.
FEATURES
Excellent performance characteristics over a broad temperature range:
• Elongation and flexibility
• Puncture and tear resistance
• Tensile strength
• Dimensional stability
• Granule loss resistance
• Resistance to foot traffic
• Compound stability at high temperature
Retains flexibility, elongation and tensile strength after heat conditioning
Excellent nail pull-through characteristics
Cold adhesive or hot asphalt application
15-Year Limited Warranty*
* See complete Low-Slope Roofing Products Limited Warranty at tamko.com for details
CERTIFICATIONS
U.L. Classified Membrane for Roofing Systems
FM Approved**
ASTM D 6164, Type I
Florida Building Code Approved
ICC-ES ESR-1013
**Refer to Factory Mutual Approval Guide
TYPICAL PHYSICAL PROPERTIES
Tensile Strength MD = 138 LBF/IN
(@0 deg F & 0.08 in/min) CD = 98 LBF/IN
Elongation MD = 30%
(@0 deg F & 0.08 in/min) CD = 35%
Tear Resistance MD = 137 LBS
CD = 100 LBS
Low Temp Flexibility MD ≤ 0 deg F
(PASS) CD ≤ 0 deg F
Tests were conducted using ASTM D 5147 test methods.
CAUTION:
This product contains crystalline silica. Crystalline silica has been classified as a "known" human carcinogen by the International
PRODUCT DATA
Reinforcement 180 g/m2 Polyester Mat
Asphalt Modifier SBS
Roll Weight 92 lbs (41.7kg)
Roll Size 33' 5" x 39-3/8" (10.2m x 1m)
Product Thickness ≥ 141 mils
WHEN APPLIED ACCORDING TO INSTRUCTIONS,
ONE SALES SQUARE COVERS 98.52 SQUARE FEET
ROLL CONTAINS 109.65 SQUARE FEET
1
All values stated as nominal
Agency for Research on Cancer (IARC) and the National Toxicology Program. This product also contains oxidized asphalt. Occupational
exposures to oxidized asphalt and its emissions during roofing have been classified by IARC as a "probable human carcinogen". Oxidized
asphalt also contains Polycyclic Aromatic Hydrocarbons some of which have been classified by IARC as know or probable human
carcinogens. The physical nature of this product may help limit any inhalation or dermal hazard during application and/or removal. However,
physical forces such as sawing, grinding or drilling during demolition work and heating or burning may increase the inhalation or dermal
exposure hazard of this product. Take precautions to prevent breathing and contact with skin.
1
Use of this product in "torch applied" or "hot mopped" applications may expose workers and others in the work area to oxidized
asphalt and its emissions. The International Agency for Research on Cancer has classified occupational exposures to oxidized
asphalt and its emissions during roofing as a "probable human carcinogen." During installation and removal of this product,
including "torch applied" or "hot mopped" application, workers must take precautions to assure adequate ventilation and use
effective personal protective equipment to prevent exposures to dusts, fumes, vapors and mists. It is the responsibility of the
contractor and workers to protect themselves and others in the work area from exposure to oxidized asphalt and its emissions
when applying this product.
†
Certain cold adhesive specifications require heat welding of the laps.
JP70419 02/10/15
TM
AWAPLAN
APPLICATION INSTRUCTIONS
STORAGE
All roong materials must be properly stored in a dry location prior to application. Store materials on platforms off the
ground or roof deck and covered with opaque waterproof tarps that have been properly tied down. During cold or damp
environmental conditions, place the rolls in a heated area. Wet or damp roong materials must never be used in the
construction of a TAMKO roof assembly. To prevent the rolls from becoming deformed, unroll the rolls on the roof and
allow the sun to relax them. Any areas where accidental damage occurs to the roll must be cut out before the material is
installed. All marked factory splices must be cut out and covered with like material.
ROOF DRAINAGE
Proper and adequate drainage of roof surfaces is critical, and a minimum slope of ¼ in. per ft. is recommended. Positive
drainage is required and is the responsibility of those involved in the design and construction of the roof deck and supporting
structure.
COLD WEATHER APPLICATION
Roof application below 40°F can result in problems. Special measures must be taken to insure proper performance of
the roong system. Store materials in a protected environment and limit the amount of time that they are exposed to cold
conditions on the roof.
Since moppings of asphalt tend to chill quickly on a cold deck or insulation, components of the roong system must be
installed rapidly, close to the mop, well embedded, and completely broomed. Asphalt must not be overheated to compensate
for rapid cooling. AWAPLAN should not be applied with asphalt that is below 400°F at the point of application. Do not
mop more than 4 ft. in front of the roll. Immediately press the roll into the hot asphalt by applying pressure to the factory
core in the roll.
The AWAPLAN may need to be unrolled and allowed to relax to atten and warm up prior to application. If this is
necessary, unroll the AWAPLAN and expose the back side of the sheet to the sun. The sun will warm and relax the sheet,
then the AWAPLAN can be rerolled and installed. You may choose to cut the AWAPLAN into lengths of 12 to 18 ft. before
you reroll them. Storage in a heated area immediately prior to application is recommended. Remember the “mop and op”
method of installation is not acceptable with AWAPLAN.
LAYING THE ROOF MEMBRANE
The roof deck must be smooth, dirt free, and moisture free. All exposed (open) edges must have wood nailers. In the case
of steel or masonry roof decks, wood nailers shall be provided around the perimeter of the roof and around all openings
so ashings may be securely fastened. All masonry and metal surfaces that are to receive a mopping of asphalt must rst
be primed with TAMKO’s Asphalt Primer. Begin all plies of roong membrane at the low points. Application will not be
acceptable if at any point the ow of water is against the laps.
TM
AWAPLAN
APPLICATION INSTRUCTIONS
BASE PLY
Install one or more base plies prior to the application of AWAPLAN. TAMKO Glass-Base®, Type 43 Organic Base
Sheet, Tam-Ply IV®, and Versa-Base® are the recommended base ply materials. Alternatively, base sheets that meet the
requirements of ASTM D4601, Type II; ASTM D2178, Type IV or Type VI; ASTM D2626; ASTM D6163, ASTM D6164
or ASTM D4897, Type II are acceptable. The base sheet shall have minimum side laps of 2 in. and end laps of 4 in.
Not all application methods apply to all base sheets. Certain base plies are limited in the manner in which they may be
applied. Consult the base ply manufacturer’s application instructions for the base ply used and the current National Roong
Contractor Association (NRCA) Manual - Membrane Roof Systems for installation instructions. See the chart below for
information regarding acceptable application methods of TAMKO base sheets.
Application Method
Product Name Hot Asphalt Mechanically Fastened Cold Process Adhesive
TAMKO Glass-Base® Yes Yes No
Tam-Ply IV® Yes No No
Type 43 Coated Organic Base Yes Yes No
Versa-Base® Yes Yes Yes
HOT ASPHALT APPLICATION
Interply moppings of asphalt shall consist of approximately 23 lbs. (±15%) per 100 sq. ft. of roof area. For any surfaces
including insulating materials which absorb asphalt, it may be necessary to apply the asphalt in greater quantities to assure
adequate adhesion. Avoid excessive interply moppings as slippage may result. The asphalt must meet ASTM D312,
Type III for slopes up to ¼ in. and Type IV for slopes up to 3 in. The asphalt must be a minimum of 400°F at the point of
application. MOP NO FURTHER THAN 4 FT. IN FRONT OF THE ROLL. Immediately press the roll into the hot asphalt
by applying pressure to the factory core in the roll. The AWAPLAN membrane shall have side laps of 4 in. and end laps
of 6 in. The entire sheet, including the side and end laps, must be totally adhered in asphalt with no void areas. A small
amount of asphalt protruding from the side and end laps is acceptable. However, care should be taken to avoid excessive
amounts of asphalt at the lap. All exposed asphalt in excess of ¼ in. width should be covered with granules.
COLD ADHESIVE APPLICATION
TAM-PRO® M3 Adhesive or TAM-PRO 856 Premium SBS Adhesive may be applied using a 3/16” V notched squeegee
or TAM-PRO M3 Adhesive may be applied using spray equipment designed for this purpose. The rate of application is
approximately 1-1/2 gallons per square for squeegee application and 1-1/2 to 2-1/2 gallons per square for spray application.
CAUTION: Using excessive amounts of cold adhesive may cause blistering or damage to the nished AWAPLAN
membrane.
For TAM-PRO 856 Premium SBS Adhesive, the side and end laps must be set in adhesive or heat welded.
For TAM-PRO M3 Adhesive, it is recommended that the side and end laps be heat welded.
Use same technique as outlined in HOT ASPHALT APPLICATION for side and end laps. Use adhesive only in wellventilated areas.
Alternatively, a cold process adhesive that meets the requirements of ASTM D3019, Type III may be used. Follow the
manufacturer’s application requirements.
TM
AWAPLAN
APPLICATION INSTRUCTIONS
FASTENING
For inclines of ¾ in. per ft. or greater, the AWAPLAN membrane shall be applied parallel (i.e. strap) to the slope of the roof
and fastened in all end laps. Fasten the membrane at intervals of 6 in. across the top of the sheet. All fastening shall be
done through at metal caps or with nails with attached caps of a minimum 1 in. in diameter.
For re resistance and wind uplift resistance rating information contact the Technical Services Department at
1-800-641-4691.
IMPORTANT
CAUTION: TAMKO MODIFIED ASPHALT PRODUCTS MUST NOT BE ALLOWED TO COME INTO
CONTACT WITH COAL TAR PITCH OR TARRED FELT AT ANY POINT.
These are TAMKO's application instructions for this product for the roong conditions described herein.
Additional information concerning the proper installation of modied bitumen roong systems is available in the
current NRCA Roong Manual – Membrane Roof Systems. If any variances are found, the TAMKO application
instructions prevail. Specic information concerning this product may be obtained from TAMKO upon request.
Questions concerning the use of this product which are not covered by these instructions or on the TAMKO web site
should be addressed to TAMKO’s Technical Services Department in Joplin, MO, 1-800-641-4691. These application
instructions were current at the time of printing. To obtain a copy of the most current version of the application
instructions, visit us online at tamko.com or call us at 1-800-641-4691.
TAMKO Building Products, Inc. is not liable or responsible for leaks or other matters which result in any way from
failure to follow these manufacturer’s instructions. AWAPLAN carries a 15-year product Limited Warranty. The Limited
Warranty printed on this wrapper was current at the time of printing. To obtain a copy of the most current version of
the Limited Warranty, visit us online at tamko.com or call us at 800-641-4691. The applicable Limited Warranty for
this Product is the Limited Warranty that was current at the time of purchase. Failure to follow TAMKO’s application
instructions terminates all obligations of TAMKO under the Limited Warranty and all applicable implied warranties.
TAMKO application recommendations represent our best judgment based on experience to date but are subject to change
and improvement as continued research and experience dictate. TAMKO reserves the right to alter, change or review the
application instructions to meet specic job or climatic conditions, or both. However, TAMKO shall have no liability with
respect to any supplemental advice or for variation from the recommended methods of application unless expressly set
forth in writing and signed by the Corporate Director of Technical Systems.
Information included in this product data sheet was current at time of printing. To obtain a copy of the most current version of this product data sheet, visit
us online at tamko.com or call us at 800-641-4691.
This product is covered by a 15-year Limited Warranty. For information regarding or a copy of TAMKO's Limited Warranty, contact your local TAMKO
representative, visit us online at tamko.com, or call us at 800-641-4691.
tamko.com
Corporate 220 West 4th Street, Joplin, Missouri 64801 800-641-4691
Central District 220 West 4th Street, Joplin, Missouri 64801 800-641-4691
Northeast District 4500 Tamko Drive, Frederick, Maryland 21701 800-368-2055
Southeast District 2300 35th Street, Tuscaloosa, Alabama 35401 800-228-2656
Southwest District 7910 South Central Expressway, Dallas, Texas 75216 800-443-1834
Western District 5300 East 43rd Avenue, Denver, Colorado 80216 800-530-8868
©
2015 TAMKO Building Products, Inc.
TAMKO®, TAMKO Glass-Base®, Tam-Ply IV® and Versa-Base® are registered trademarks and AWAPLAN is a trademark of TAMKO Building Products, Inc.
