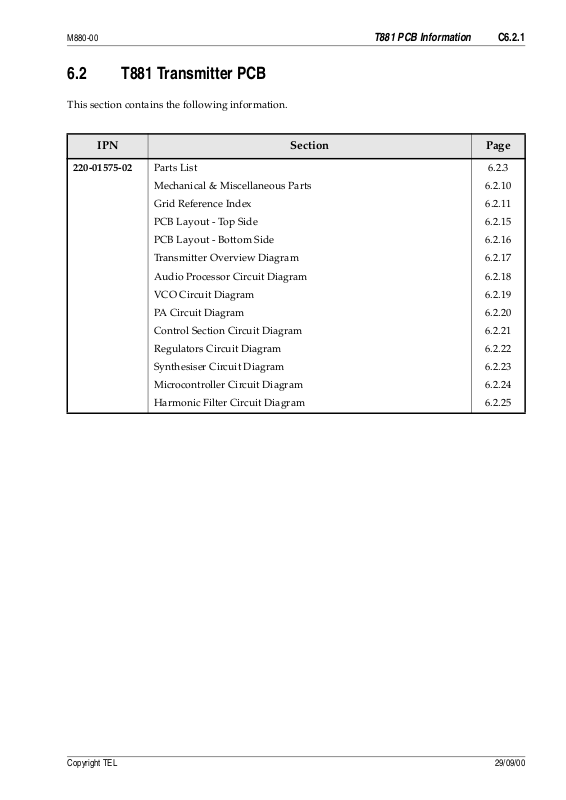

M880-00 T881 PCB Information C6.2.1

6.2 T881 Transmitter PCB

This section contains the following information.

IPN Section Page

220-01575-02

Parts List

Mechanical & Miscellaneous Parts

Grid Reference Index

PCB Layout - Top Side

PCB Layout - Bottom Side

Transmitter Overview Diagram

Audio Processor Circuit Diagram

VCO Circuit Diagram

PA Circuit Diagram

Control Section Circuit Diagram

Regulators Circuit Diagram

Synthesiser Circuit Diagram

Microcontroller Circuit Diagram

Harmonic Filter Circuit Diagram

6.2.3

6.2.10

6.2.11

6.2.15

6.2.16

6.2.17

6.2.18

6.2.19

6.2.20

6.2.21

6.2.22

6.2.23

6.2.24

6.2.25

Page 2

C6.2.2 T881 PCB Information M880-00

29/09/00 Copyright TEL

Page 3

IPN 220-01575-02

M880-00 T881 PCB Information

C6.2.3

T881 Parts List (IPN 220-01575-02)

How To Use This Parts List

The components listed in this parts list are divided into two main types: those with a circuit reference (e.g. C2, D1, R121, etc.) and those without (miscellaneous and mechanical).

Those with a circuit reference are grouped in alphabetical order and then in numerical order within each group. Each component entry comprises three or four columns: the circuit reference, variant (if applicable), IPN and description. A number in the var iant column indicates that this is a variant component which is fitted only to the product type listed. Static sensitive devices are indicated by an (S) at the start of the description column.

The miscellaneous and mechanical section lists the variant and common par ts in IPN order. Where possible, a number in the legend column indicates their position in the mechanical assembly drawing.

The Parts List Amendments box below lists component changes that took place af ter the parts list and diagrams in this section were compiled. These changes (e.g. value changes, added/deleted components, etc.) are listed by circuit reference in alphanumer ic order and supersede the information given in the parts list or diagrams . Components without circuit references are listed in IPN order.

Parts List Amendments

There were no amendments to the parts list at the time of publication.

Page 4

IPN 220-01575-02

C6.2.4

Parts List Amendments - Continued

This page is provided for entering future amendments to the parts list.

T881 PCB Information M880-00

29/09/00 Copyright TEL

Page 5

IPN 220-01575-02

M880-00 T881 PCB Information

Ref Var IPN Description Ref Var IPN Description

C318 015-22180-05 CAP 0805 18P 1% 200V

Note:

%D205 and %D210 are optional level limiting diodes for special applications.

=R705 (47 ohm) and =SK710 are fitted in place of =IC700 when an external frequency reference is used. These two components are supplied with the auxiliary D-range kits (T800-06-0000 & T800-06-0001).

C201 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20% C202 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20% C204 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20% C205 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20% C207 014-07470-00 CAP 4U7 SMD ’B’CASE 16V +-010% C209 015-25470-08 CAP CER 0805 47N 10% X7R 50V C210 015-26100-08 CAP CER 0805 100N 10% X7R 50V C211 015-26100-08 CAP CER 0805 100N 10% X7R 50V C213 014-08100-00 CAP TANT CHIP 10M 16VW +-20% C215 014-08220-01 (L)CAP TANT 22UF10V276MSER C217 015-24220-08 CAP CER 0805 2N2 10% X7R 50V C219 015-24100-08 CAP CER 0805 1N 10% X7R 50V C221 014-08220-01 (L)CAP TANT 22UF10V276MSER C223 015-26100-08 CAP CER 0805 100N 10% X7R 50V C225 015-26100-08 CAP CER 0805 100N 10% X7R 50V C227 015-26100-08 CAP CER 0805 100N 10% X7R 50V C229 015-22180-05 CAP 0805 18P 1% 200V C230 015-26100-08 CAP CER 0805 100N 10% X7R 50V C232 015-22180-05 CAP 0805 18P 1% 200V C233 016-08470-01 CAP EL SMD 6*4 47UF 16V C235 015-24100-08 CAP CER 0805 1N 10% X7R 50V C237 014-07100-02 CAP TANT CHIP 1U0 3.2 X 1.6MM C239 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20% C240 015-22180-05 CAP 0805 18P 1% 200V C241 015-26100-08 CAP CER 0805 100N 10% X7R 50V C242 014-08100-00 CAP TANT CHIP 10M 16VW +-20% C243 015-24100-08 CAP CER 0805 1N 10% X7R 50V C245 015-22180-05 CAP 0805 18P 1% 200V C247 015-22180-05 CAP 0805 18P 1% 200V C249 015-24100-08 CAP CER 0805 1N 10% X7R 50V C251 015-24100-08 CAP CER 0805 1N 10% X7R 50V C253 015-24100-08 CAP CER 0805 1N 10% X7R 50V C255 015-24100-08 CAP CER 0805 1N 10% X7R 50V C257 015-22470-01 CAP CER 0805 47P 5% NPO 50V C259 015-25470-08 CAP CER 0805 47N 10% X7R 50V C260 015-26100-08 CAP CER 0805 100N 10% X7R 50V C261 014-07470-00 CAP 4U7 SMD ’B’CASE 16V +-010% C263 016-09100-05 CAP SMD ELECT 100U 25V 20% C265 016-07470-06 CAP SMD ELECT BI-P 4U7 50V 20% C267 015-24470-08 CAP CER 0805 4N7 10% X7R 50V &C269 10 015-21150-05 CAP CER 0805 CHIP 1P5+0.1PF 2 &C269 15 015-21470-05 CAP CER 0805 4P7+-0.1PF 200V &C269 20 015-21150-05 CAP CER 0805 CHIP 1P5+0.1PF 2 &C269 25 015-21470-05 CAP CER 0805 4P7+-0.1PF 200V &C269 30 015-21150-05 CAP CER 0805 CHIP 1P5+0.1PF 2 &C269 35 015-21470-05 CAP CER 0805 4P7+-0.1PF 200V &C271 10 015-22470-01 CAP CER 0805 47P 5% NPO 50V &C271 15 015-22470-01 CAP CER 0805 47P 5% NPO 50V &C271 20 015-22470-01 CAP CER 0805 47P 5% NPO 50V &C271 25 015-22470-01 CAP CER 0805 47P 5% NPO 50V &C271 30 015-22470-01 CAP CER 0805 47P 5% NPO 50V &C271 35 015-22470-01 CAP CER 0805 47P 5% NPO 50V C273 015-25470-08 CAP CER 0805 47N 10% X7R 50V C275 015-22180-05 CAP 0805 18P 1% 200V C277 015-25100-08 CAP CER 0805 10N 10% X7R 50V C279 015-23820-08 CAP CER 0805 820P 10% X7R 50V C281 015-25220-08 CAP CER 0805 22N 10% X7R 50V C283 015-21470-05 CAP CER 0805 4P7+-0.1PF 200V C285 015-21470-05 CAP CER 0805 4P7+-0.1PF 200V C287 016-09100-05 CAP SMD ELECT 100U 25V 20% &C289 10 015-25470-08 CAP CER 0805 47N 10% X7R 50V &C289 15 015-25470-08 CAP CER 0805 47N 10% X7R 50V &C289 20 015-25470-08 CAP CER 0805 47N 10% X7R 50V &C289 25 015-25470-08 CAP CER 0805 47N 10% X7R 50V &C289 30 015-25470-08 CAP CER 0805 47N 10% X7R 50V &C289 35 015-25470-08 CAP CER 0805 47N 10% X7R 50V C291 014-08220-01 (L)CAP TANT 22UF10V276MSER C293 015-27100-10 CAP CER 0805 1M+80-20% Y5V 16V %C294 015-22470-01 CAP CER 0805 47P 5% NPO 50V %C295 013-06470-00 CAP SMD POLYESTER 470N 63V 10% C300 015-22180-05 CAP 0805 18P 1% 200V C301 015-22180-05 CAP 0805 18P 1% 200V C302 015-22180-05 CAP 0805 18P 1% 200V C303 015-22180-05 CAP 0805 18P 1% 200V C304 014-08220-01 (L)CAP TANT 22UF10V276MSER C305 015-22180-05 CAP 0805 18P 1% 200V C306 014-08220-01 (L)CAP TANT 22UF10V276MSER C307 015-22180-05 CAP 0805 18P 1% 200V %C308 014-08220-01 (L)CAP TANT 22UF10V276MSER C309 015-22180-05 CAP 0805 18P 1% 200V %C310 014-08220-01 (L)CAP TANT 22UF10V276MSER C311 015-24100-08 CAP CER 0805 1N 10% X7R 50V C315 015-22180-05 CAP 0805 18P 1% 200V C316 015-22180-05 CAP 0805 18P 1% 200V C317 015-22180-05 CAP 0805 18P 1% 200V

C319 015-22180-05 CAP 0805 18P 1% 200V C321 015-22180-05 CAP 0805 18P 1% 200V C322 015-22180-05 CAP 0805 18P 1% 200V C323 015-22180-05 CAP 0805 18P 1% 200V C324 015-22180-05 CAP 0805 18P 1% 200V C325 015-26100-08 CAP CER 0805 100N 10% X7R 50V C326 015-24100-08 CAP CER 0805 1N 10% X7R 50V C328 015-22180-05 CAP 0805 18P 1% 200V C329 014-08220-01 (L)CAP TANT 22UF10V276MSER C330 015-22330-01 CAP CER 0805 33P 5% NPO 50V C331 014-07470-01 CAP 4U7 ’B’CASE 25V +-10% 267 C332 015-22180-05 CAP 0805 18P 1% 200V C335 015-22180-05 CAP 0805 18P 1% 200V C336 015-25330-08 CAP CER 0805 CHIP 33NF C337 015-22180-05 CAP 0805 18P 1% 200V C338 015-22180-05 CAP 0805 18P 1% 200V C339 015-25330-08 CAP CER 0805 CHIP 33NF C340 015-22180-05 CAP 0805 18P 1% 200V C342 015-23330-08 CAP CER 0805 330P 10% X7R 50V C343 015-21180-05 CAP CER 0805 1P8 +-0.1 200V C345 015-22180-05 CAP 0805 18P 1% 200V C346 015-21100-05 CAP CER 0805 1P0 +-0.1PF 200V C347 015-20075-05 CAP CER 0805 CHIP OP75+-0.1PF C349 015-22180-05 CAP 0805 18P 1% 200V C350 015-22180-05 CAP 0805 18P 1% 200V C351 015-22180-05 CAP 0805 18P 1% 200V C352 015-22180-05 CAP 0805 18P 1% 200V C353 015-22180-05 CAP 0805 18P 1% 200V C356 015-26100-08 CAP CER 0805 100N 10% X7R 50V C357 015-21150-05 CAP CER 0805 CHIP 1P5+0.1PF 2 C359 015-22180-05 CAP 0805 18P 1% 200V C360 014-07470-01 CAP 4U7 ’B’CASE 25V +-10% 267 C361 015-25100-08 CAP CER 0805 10N 10% X7R 50V C363 015-22180-05 CAP 0805 18P 1% 200V C364 015-22180-05 CAP 0805 18P 1% 200V C365 014-08100-00 CAP TANT CHIP 10M 16VW +-20% C366 015-22180-05 CAP 0805 18P 1% 200V C367 015-22180-05 CAP 0805 18P 1% 200V C368 015-22180-05 CAP 0805 18P 1% 200V C370 015-22180-05 CAP 0805 18P 1% 200V C371 015-25100-08 CAP CER 0805 10N 10% X7R 50V C372 015-22180-05 CAP 0805 18P 1% 200V C373 015-26100-08 CAP CER 0805 100N 10% X7R 50V C374 015-21470-05 CAP CER 0805 4P7+-0.1PF 200V C375 015-21470-05 CAP CER 0805 4P7+-0.1PF 200V C377 015-22180-05 CAP 0805 18P 1% 200V C378 015-22180-05 CAP 0805 18P 1% 200V C379 015-22180-05 CAP 0805 18P 1% 200V C380 015-22180-05 CAP 0805 18P 1% 200V C381 015-21330-05 CAP CER 0805 3P3+-0.1PF 200V C382 015-22180-05 CAP 0805 18P 1% 200V C383 014-08220-01 (L)CAP TANT 22UF10V276MSER C384 015-22180-05 CAP 0805 18P 1% 200V C385 015-26100-08 CAP CER 0805 100N 10% X7R 50V C386 015-23100-01 CAP CER 0805 100P 5% NPO 50V C387 015-22120-05 CAP 0805 12P 1% 200V C388 015-22180-05 CAP 0805 18P 1% 200V C389 015-22180-05 CAP 0805 18P 1% 200V C390 015-21150-05 CAP CER 0805 CHIP 1P5+0.1PF 2 C391 015-23100-01 CAP CER 0805 100P 5% NPO 50V C392 015-26100-08 CAP CER 0805 100N 10% X7R 50V C393 015-24470-08 CAP CER 0805 4N7 10% X7R 50V C394 015-22180-05 CAP 0805 18P 1% 200V C395 015-22180-05 CAP 0805 18P 1% 200V C396 015-22180-05 CAP 0805 18P 1% 200V C397 015-21330-05 CAP CER 0805 3P3+-0.1PF 200V C398 015-22180-05 CAP 0805 18P 1% 200V C399 015-21150-05 CAP CER 0805 CHIP 1P5+0.1PF 2 C400 015-22180-05 CAP 0805 18P 1% 200V C401 015-22180-05 CAP 0805 18P 1% 200V C402 014-18220-02 L)CAP TANT SMD 22U 20% 35V C403 015-22180-05 CAP 0805 18P 1% 200V C404 015-22180-05 CAP 0805 18P 1% 200V C406 015-22180-05 CAP 0805 18P 1% 200V C407 015-22180-05 CAP 0805 18P 1% 200V C408 015-22180-05 CAP 0805 18P 1% 200V C409 015-22180-05 CAP 0805 18P 1% 200V C410 015-22180-05 CAP 0805 18P 1% 200V C411 015-26100-08 CAP CER 0805 100N 10% X7R 50V C412 015-22180-05 CAP 0805 18P 1% 200V C413 015-22180-05 CAP 0805 18P 1% 200V C415 015-22180-05 CAP 0805 18P 1% 200V C416 015-22180-05 CAP 0805 18P 1% 200V C417 015-22180-05 CAP 0805 18P 1% 200V C418 015-22180-05 CAP 0805 18P 1% 200V C419 015-22180-05 CAP 0805 18P 1% 200V C420 015-22180-05 CAP 0805 18P 1% 200V C421 015-22180-05 CAP 0805 18P 1% 200V C422 015-22180-05 CAP 0805 18P 1% 200V C423 015-22180-05 CAP 0805 18P 1% 200V C424 015-22180-05 CAP 0805 18P 1% 200V C425 015-22180-05 CAP 0805 18P 1% 200V C426 015-22180-05 CAP 0805 18P 1% 200V C427 015-22180-05 CAP 0805 18P 1% 200V C428 015-22180-05 CAP 0805 18P 1% 200V C430 015-02390-03 CAP CER 39P 5% 500V HIQ GRH111 C432 015-22180-05 CAP 0805 18P 1% 200V

C6.2.5

Page 6

IPN 220-01575-02

C6.2.6

Ref Var IPN Description Ref Var IPN Description

C450 015-22180-05 CAP 0805 18P 1% 200V C451 015-22180-05 CAP 0805 18P 1% 200V C452 015-22180-05 CAP 0805 18P 1% 200V C453 015-22180-05 CAP 0805 18P 1% 200V C500 015-22180-05 CAP 0805 18P 1% 200V C501 015-22180-05 CAP 0805 18P 1% 200V C502 015-26100-08 CAP CER 0805 100N 10% X7R 50V C503 015-22180-05 CAP 0805 18P 1% 200V C505 015-25220-08 CAP CER 0805 22N 10% X7R 50V C506 015-26100-08 CAP CER 0805 100N 10% X7R 50V C507 015-26100-08 CAP CER 0805 100N 10% X7R 50V C508 015-22180-05 CAP 0805 18P 1% 200V C510 015-25330-08 CAP CER 0805 CHIP 33NF C511 015-22180-05 CAP 0805 18P 1% 200V C512 015-22180-05 CAP 0805 18P 1% 200V C513 015-22180-05 CAP 0805 18P 1% 200V C515 015-22180-05 CAP 0805 18P 1% 200V C516 015-24100-08 CAP CER 0805 1N 10% X7R 50V %C517 015-26100-08 CAP CER 0805 100N 10% X7R 50V C518 015-22180-05 CAP 0805 18P 1% 200V C519 015-22180-05 CAP 0805 18P 1% 200V C520 015-22180-05 CAP 0805 18P 1% 200V C521 015-22180-05 CAP 0805 18P 1% 200V C523 014-08100-00 CAP TANT CHIP 10M 16VW +-20% C525 015-22180-05 CAP 0805 18P 1% 200V C526 015-25470-08 CAP CER 0805 47N 10% X7R 50V C527 015-22180-05 CAP 0805 18P 1% 200V C530 015-22180-05 CAP 0805 18P 1% 200V C531 015-22180-05 CAP 0805 18P 1% 200V C532 015-22180-05 CAP 0805 18P 1% 200V C535 015-22180-05 CAP 0805 18P 1% 200V C537 015-25470-08 CAP CER 0805 47N 10% X7R 50V C538 015-22180-05 CAP 0805 18P 1% 200V C541 015-22180-05 CAP 0805 18P 1% 200V C542 015-26100-08 CAP CER 0805 100N 10% X7R 50V C543 015-26100-08 CAP CER 0805 100N 10% X7R 50V C545 015-22180-05 CAP 0805 18P 1% 200V C546 015-26100-08 CAP CER 0805 100N 10% X7R 50V C547 015-22180-05 CAP 0805 18P 1% 200V C548 015-24100-08 CAP CER 0805 1N 10% X7R 50V C551 015-24100-08 CAP CER 0805 1N 10% X7R 50V C559 015-22180-05 CAP 0805 18P 1% 200V C605 015-22180-05 CAP 0805 18P 1% 200V C607 015-24100-08 CAP CER 0805 1N 10% X7R 50V C608 015-24100-08 CAP CER 0805 1N 10% X7R 50V C610A 015-25100-08 CAP CER 0805 10N 10% X7R 50V C610B 014-09100-00 CAP TANT SMD 100U 16V 20% C611A 014-09100-00 CAP TANT SMD 100U 16V 20% C611B 015-25100-08 CAP CER 0805 10N 10% X7R 50V C623 015-22180-05 CAP 0805 18P 1% 200V C625 020-09470-07 CAP ELEC RADL 470M 16V 20% 3.5 C626 015-24470-08 CAP CER 0805 4N7 10% X7R 50V C627 015-24100-08 CAP CER 0805 1N 10% X7R 50V C628 015-24100-08 CAP CER 0805 1N 10% X7R 50V C629 015-24100-08 CAP CER 0805 1N 10% X7R 50V C630 015-26100-08 CAP CER 0805 100N 10% X7R 50V C631A 015-26100-08 CAP CER 0805 100N 10% X7R 50V C634 014-08100-00 CAP TANT CHIP 10M 16VW +-20% C636 015-26100-08 CAP CER 0805 100N 10% X7R 50V C638 015-22180-05 CAP 0805 18P 1% 200V C640 015-24100-08 CAP CER 0805 1N 10% X7R 50V C655 015-24100-08 CAP CER 0805 1N 10% X7R 50V C660 015-26100-08 CAP CER 0805 100N 10% X7R 50V C665 014-08100-03 CAP TANT SMD 10U 35V 20% C670 014-07330-10 CAP TANT SMD 3U3 35V 10% C673 015-24100-08 CAP CER 0805 1N 10% X7R 50V C677 014-07100-02 CAP TANT CHIP 1U0 3.2 X 1.6MM C681 015-26100-08 CAP CER 0805 100N 10% X7R 50V C684 014-08100-00 CAP TANT CHIP 10M 16VW +-20% C687 015-22180-05 CAP 0805 18P 1% 200V C690 015-26100-08 CAP CER 0805 100N 10% X7R 50V C693 014-08100-00 CAP TANT CHIP 10M 16VW +-20% C700 015-26100-08 CAP CER 0805 100N 10% X7R 50V C703 015-24100-08 CAP CER 0805 1N 10% X7R 50V C706 015-22470-01 CAP CER 0805 47P 5% NPO 50V C708 014-07470-00 CAP 4U7 SMD ’B’CASE 16V +-010% C709 015-26100-08 CAP CER 0805 100N 10% X7R 50V C710 015-25100-08 CAP CER 0805 10N 10% X7R 50V C711 015-26100-08 CAP CER 0805 100N 10% X7R 50V C712 015-22470-01 CAP CER 0805 47P 5% NPO 50V C714 014-07470-00 CAP 4U7 SMD ’B’CASE 16V +-010% C719 014-07470-00 CAP 4U7 SMD ’B’CASE 16V +-010% C720 015-26100-08 CAP CER 0805 100N 10% X7R 50V C722 015-26100-08 CAP CER 0805 100N 10% X7R 50V C724 014-08220-01 (L)CAP TANT 22UF10V276MSER C725 014-08220-01 (L)CAP TANT 22UF10V276MSER C726 015-25100-08 CAP CER 0805 10N 10% X7R 50V C727 015-22470-01 CAP CER 0805 47P 5% NPO 50V C729 015-22470-01 CAP CER 0805 47P 5% NPO 50V %C733 015-23470-08 CAP CER 0805 470P 10% X7R 50V C735 015-22470-01 CAP CER 0805 47P 5% NPO 50V C736 015-22470-01 CAP CER 0805 47P 5% NPO 50V C740A 015-24100-08 CAP CER 0805 1N 10% X7R 50V C740B 015-25100-08 CAP CER 0805 10N 10% X7R 50V C741A 014-07470-00 CAP 4U7 SMD ’B’CASE 16V +-010% C741B 015-25100-08 CAP CER 0805 10N 10% X7R 50V C742A 015-26100-08 CAP CER 0805 100N 10% X7R 50V C742B 015-25100-08 CAP CER 0805 10N 10% X7R 50V

T881 PCB Information M880-00

C743 015-22470-01 CAP CER 0805 47P 5% NPO 50V C745 015-22180-05 CAP 0805 18P 1% 200V C750 014-08100-03 CAP TANT SMD 10U 35V 20% C757 015-25470-08 CAP CER 0805 47N 10% X7R 50V C759 015-25680-08 CAP CER 0805 68N 10% X7R 50V C761 015-25100-08 CAP CER 0805 10N 10% X7R 50V C762 014-08220-01 (L)CAP TANT 22UF10V276MSER C764 015-25100-08 CAP CER 0805 10N 10% X7R 50V C765 014-07470-00 CAP 4U7 SMD ’B’CASE 16V +-010% C767 015-24100-08 CAP CER 0805 1N 10% X7R 50V C769 015-24100-08 CAP CER 0805 1N 10% X7R 50V C770 014-08220-01 (L)CAP TANT 22UF10V276MSER C772 014-08220-01 (L)CAP TANT 22UF10V276MSER C774 013-06100-10 CAP SMD PPS 100N 100V 10% C776 015-24470-08 CAP CER 0805 4N7 10% X7R 50V C782 015-22180-05 CAP 0805 18P 1% 200V C784 015-22180-05 CAP 0805 18P 1% 200V C785 015-22180-05 CAP 0805 18P 1% 200V C786 015-26100-08 CAP CER 0805 100N 10% X7R 50V C788 015-22180-05 CAP 0805 18P 1% 200V C790 015-21330-05 CAP CER 0805 3P3+-0.1PF 200V C792 015-21560-05 CAP CER 0805 CHIP 5P6+0.1PF 2 C810 015-25470-08 CAP CER 0805 47N 10% X7R 50V C812 015-23100-01 CAP CER 0805 100P 5% NPO 50V C813 015-24100-08 CAP CER 0805 1N 10% X7R 50V C822 014-07470-00 CAP 4U7 SMD ’B’CASE 16V +-010% C823 015-25220-08 CAP CER 0805 22N 10% X7R 50V C824 015-25470-08 CAP CER 0805 47N 10% X7R 50V C826 015-23220-01 CAP CER 0805 220P 5% NPO 50V C827 015-22330-01 CAP CER 0805 33P 5% NPO 50V C828 015-25100-08 CAP CER 0805 10N 10% X7R 50V C830 015-25470-08 CAP CER 0805 47N 10% X7R 50V C838 014-09100-00 CAP TANT SMD 100U 16V 20% C841 014-09100-00 CAP TANT SMD 100U 16V 20% C844 015-25100-08 CAP CER 0805 10N 10% X7R 50V C880 015-22180-05 CAP 0805 18P 1% 200V C910 015-01270-06 CAP CER 1210 2P7 NPO200V GRM42 C920 015-01560-02 CAP CERHIQ1210 5P65%NPO200V C930 015-01560-02 CAP CERHIQ1210 5P65%NPO200V C940 015-01270-06 CAP CER 1210 2P7 NPO200V GRM42

CV300 028-11500-00 CAP TRIM 0.6/4.5 P SAPPHIRE %D111A 001-10015-50 DIODE SMD ZENER 1.5SMC22AT3

D211 008-00014-80 S)LED 3MM GREEN WITH WIRE D212 008-00014-79 S)LED 3MM RED WITH WIRE D220 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23 D230 001-10010-40 DIODE SMD ZENER 33V BZG03-C33 D240 001-10000-56 S) DIODE SMD BAW56 D-SW SOT23 D250 001-10000-56 S) DIODE SMD BAW56 D-SW SOT23 D260 001-10000-56 S) DIODE SMD BAW56 D-SW SOT23 D270 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23 D300 001-10005-35 S) DIODE SMD VCAP BB535 SOD323 D301 001-10005-35 S) DIODE SMD VCAP BB535 SOD323 D305 001-10005-35 S) DIODE SMD VCAP BB535 SOD323 D307 001-10005-35 S) DIODE SMD VCAP BB535 SOD323 D308 001-10063-05 DIODE SMD BAR63-05W SOT323 D400 001-10066-00 DIODE SCHOTTKY HSMS2815 D401 001-10066-00 DIODE SCHOTTKY HSMS2815 D610 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23 D620 001-10000-70 S) DIODE SMD BAV70 D-SW SOT23 D630 001-10000-70 S) DIODE SMD BAV70 D-SW SOT23 D635A 001-10165-00 DIODE BAT165 SCHOTTKY SOD-323 D640 001-10000-70 S) DIODE SMD BAV70 D-SW SOT23 D645 001-10010-40 DIODE SMD ZENER 33V BZG03-C33 D710 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23 D720 001-10000-99 S) DIODE SMD BAV99 D-SW SOT23 D730 001-10165-00 DIODE BAT165 SCHOTTKY SOD-323 D732 001-10165-00 DIODE BAT165 SCHOTTKY SOD-323 D810 001-10165-00 DIODE BAT165 SCHOTTKY SOD-323

IC210 002-10003-24 S) IC SMD 324 4X O-AMP SO14 IC220 002-10126-70 S) IC SMD DS1267S10K 2XDIG POT IC230 002-10003-24 S) IC SMD 324 4X O-AMP SO14 IC240 002-10040-53 S)MC14053B SMD BREAK B4 MAKE IC250 002-10020-50 IC SMD 4N25A OPTOCOUPLER IC260 002-10003-24 S) IC SMD 324 4X O-AMP SO14 #IC400 10 004-68701-00 MODULE M68701 806-870MHZ 6W #IC400 15 004-68701-00 MODULE M68701 806-870MHZ 6W #IC400 20 004-68701-01 MODULE M68701M 860-910MHZ 6W #IC400 25 004-68701-01 MODULE M68701M 860-910MHZ 6W #IC400 30 004-68701-02 MODULE M68701H 890-960MHZ 6W #IC400 35 004-68701-02 MODULE M68701H 890-960MHZ 6W IC500 002-10003-58 S) IC SMD LM358 DUAL O-AMP IC510 002-10006-60 S) IC SMD LMC660CM O-AMP 4X IC610 002-10078-05 S) IC SMD 78L05 5V REG IC630 002-12523-17 (S)IC LM317L REG TO-252 0.5A IC640 002-10003-58 S) IC SMD LM358 DUAL O-AMP IC650 002-10012-32 SMD DS1232LPS-2 LP RESET&W-DOG =IC700 539-00010-55 TCXO 12.8M 1PPM-20+70/2PPM -30 IC710 002-74904-00 IC SMD 74HC04A 6X INV BUFFD IC720 002-74910-04 S) IC SMD 74HCU04 6X INV IC730 002-10045-20 S) IC SMD 74HC4520T 2XCTR 4BIT IC740 002-14519-10 S) IC MC145191F SMD SYNTH IC750 002-10330-78 S) IC MC33078D 2X AMP LO NOISE IC820 002-12416-00 S)IC SMD AT24C16N-10SC EEPROM IC830 002-10003-24 S) IC SMD 324 4X O-AMP SO14

29/09/00 Copyright TEL

Page 7

IPN 220-01575-02

M880-00 T881 PCB Information

Ref Var IPN Description Ref Var IPN Description

L300 056-14150-02 (L) IND SMD 1.5UH SIMID02 L301 065-10004-20 BEAD FE SMD CBD 4.6/3/3-4S2 L302 056-10100-02 (L) IND SMD 100NH SIMID02 L303 056-10082-02 (L) IND SMD 82NH SIMID02 L304 056-10100-02 (L) IND SMD 100NH SIMID02 L305 065-10004-20 BEAD FE SMD CBD 4.6/3/3-4S2 L307 056-10015-03 IND SMD 0805 15NH 20% L308 056-10006-83 (LSH) IND SMD 0805 6.8NH 20% L309 056-10100-02 (L) IND SMD 100NH SIMID02 L310 065-10004-20 BEAD FE SMD CBD 4.6/3/3-4S2 L311 057-10120-03 IND 0805 EMI SUP 120E@100M 0.2 L312 056-10100-02 (L) IND SMD 100NH SIMID02 L314 056-10100-02 (L) IND SMD 100NH SIMID02 L315 056-10100-02 (L) IND SMD 100NH SIMID02 L316 059-14820-10 IND FXD 1008CT 8.2NH 5% L317 059-14820-10 IND FXD 1008CT 8.2NH 5% L318 059-14820-10 IND FXD 1008CT 8.2NH 5% L401 056-10100-02 (L) IND SMD 100NH SIMID02 L403 056-10100-02 (L) IND SMD 100NH SIMID02 L404 056-10100-02 (L) IND SMD 100NH SIMID02 L406 056-10100-02 (L) IND SMD 100NH SIMID02 L407 056-10100-02 (L) IND SMD 100NH SIMID02 L408 056-10100-02 (L) IND SMD 100NH SIMID02 L450 056-10100-02 (L) IND SMD 100NH SIMID02 L451 056-10100-02 (L) IND SMD 100NH SIMID02 L601 057-10120-03 IND 0805 EMI SUP 120E@100M 0.2 L602 057-10120-03 IND 0805 EMI SUP 120E@100M 0.2

PL201 240-00021-03 LIM) HEADER 2X7 WAY SMD PL202 240-00021-03 LIM) HEADER 2X7 WAY SMD

Q210 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q220 000-10008-17 S) XSTR SMD BC817-25 NPN SOT23 Q230 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q240 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q250 000-10008-17 S) XSTR SMD BC817-25 NPN SOT23 Q260 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS Q270 000-10004-10 S) XSTR SMD MJD41C NPN SW DPAK Q300 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q301 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q302 000-10009-41 S) XSTR SMD BR941L SOT23 Q303 000-10009-41 S) XSTR SMD BR941L SOT23 Q304 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q305 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q307 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q308 002-10003-18 IC BGA318 MMIC AMPLIFIER Q309 000-10009-30 XSTR SMD BFR93A NPN SOT23 Q310 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q311 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q312 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q313 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q314 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q316 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q317 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q318 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q319 000-10080-00 XSTR SMD BLT80 UHF PWR SOT223 Q321 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q322 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q500 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q501 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q502 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q503 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q505 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q506 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q507 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q508 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q510 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q511 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q512 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q513 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q515 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q516 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q517 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q610 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q620 000-00033-12 XSTR BD242 TO-220 PNP ISOLTD Q630 000-10003-00 S) XSTR BSR30 PNP AF SOT-89 Q660 000-10008-17 S) XSTR SMD BC817-25 NPN SOT23 Q670 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS Q710 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q720 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS Q730 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q740 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS Q750 000-10008-07 S) XSTR SMD BC807 PNP SOT23 AF Q760 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q770 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS Q775 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS Q780 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q785 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS Q790 000-10003-12 S) XSTR SMD BFR31 N JFET SOT23 Q795 000-10009-30 XSTR SMD BFR93A NPN SOT23 Q810 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q820 000-10008-17 S) XSTR SMD BC817-25 NPN SOT23 Q830 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS Q840 000-10008-57 S) XSTR SMD BCW70 PNP SOT23 SS Q850 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS Q860 000-10008-48 S) XSTR SMD BCW60 NPN SOT23 SS

R160 036-12100-00 RES M/F 0805 10E 5%

R201 036-13560-00 RES M/F 0805 560E 5% R202 036-14100-10 RES M/F 0805 1K 1% R204 036-14220-00 RES M/F 0805 2K2 5% R205 036-13220-10 RES 0805 220E 1% R206 036-14100-10 RES M/F 0805 1K 1% R207 036-14390-10 RES M/F 0805 3K9 1% R208 036-13560-00 RES M/F 0805 560E 5% R209 036-15100-10 RES M/F 0805 10K 1% R210 036-14220-00 RES M/F 0805 2K2 5% R211 036-13470-00 RES M/F 0805 470E 5% R212 036-16100-00 RES M/F 0805 100K 5% R213 036-15100-10 RES M/F 0805 10K 1% R214 036-14820-10 RES M/F 0805 8K2 1% R215 036-16100-00 RES M/F 0805 100K 5% R216 036-16100-00 RES M/F 0805 100K 5% R217 036-14100-10 RES M/F 0805 1K 1% R218 036-16150-00 RES M/F 0805 150K 5% R219 036-14220-00 RES M/F 0805 2K2 5% R220 036-13470-00 RES M/F 0805 470E 5% R221 036-14150-10 RES M/F 0805 1K5 1% R223 036-17100-10 RES M/F 0805 1M 1% R224 036-14680-10 RES M/F 0805 6K8 1% R225 036-17100-10 RES M/F 0805 1M 1% R226 036-15100-10 RES M/F 0805 10K 1% R227 036-14180-00 RES M/F 0805 1K8 5% R228 036-13120-00 RES M/F 0805 120E 5% R229 036-16470-00 RES M/F 0805 470K 5% R230 036-16100-00 RES M/F 0805 100K 5% R231 036-15100-10 RES M/F 0805 10K 1% R232 036-16330-00 RES M/F 0805 330K 5% R233 036-16100-00 RES M/F 0805 100K 5% R235 036-14470-10 RES M/F 0805 4K7 1% R237 036-15470-10 RES M/F 0805 47K 1% R238 036-15470-10 RES M/F 0805 47K 1% R239 036-14150-10 RES M/F 0805 1K5 1% R241 036-14470-10 RES M/F 0805 4K7 1% R242 036-14220-00 RES M/F 0805 2K2 5% R244 036-15100-10 RES M/F 0805 10K 1% R245 036-16100-00 RES M/F 0805 100K 5% R247 036-15100-10 RES M/F 0805 10K 1% R248 036-16100-00 RES M/F 0805 100K 5% R249 036-16100-00 RES M/F 0805 100K 5% R251 036-16100-00 RES M/F 0805 100K 5% R253 036-16100-00 RES M/F 0805 100K 5% R254 036-16100-00 RES M/F 0805 100K 5% R255 036-15100-10 RES M/F 0805 10K 1% R256 036-15560-10 RES MF 0805 56K 1% R257 036-16560-00 RES M/F 0805 560K 5% R258 036-16150-00 RES M/F 0805 150K 5% R259 036-15220-00 RES M/F 0805 22K 5% R260 036-15470-10 RES M/F 0805 47K 1% R262 036-15470-10 RES M/F 0805 47K 1% R263 036-14470-10 RES M/F 0805 4K7 1% &R264 10 036-15220-00 RES M/F 0805 22K 5% &R264 15 036-15270-10 RES M/F 0805 27K 1% &R264 20 036-15220-00 RES M/F 0805 22K 5% &R264 25 036-15270-10 RES M/F 0805 27K 1% &R264 30 036-15220-00 RES M/F 0805 22K 5% &R264 35 036-15270-10 RES M/F 0805 27K 1% &R265 10 036-15150-00 RES M/F 0805 15K 5% &R265 15 036-15180-00 RES M/F 0805 18K 5% &R265 20 036-15150-00 RES M/F 0805 15K 5% &R265 25 036-15180-00 RES M/F 0805 18K 5% &R265 30 036-15150-00 RES M/F 0805 15K 5% &R265 35 036-15180-00 RES M/F 0805 18K 5% &R266 10 036-15470-10 RES M/F 0805 47K 1% &R266 15 036-15560-10 RES MF 0805 56K 1% &R266 20 036-15470-10 RES M/F 0805 47K 1% &R266 25 036-15560-10 RES MF 0805 56K 1% &R266 30 036-15470-10 RES M/F 0805 47K 1% &R266 35 036-15560-10 RES MF 0805 56K 1% R267 036-14220-00 RES M/F 0805 2K2 5% R268 036-13100-10 RES M/F 0805 100E 1% R269 036-15100-10 RES M/F 0805 10K 1% R270 036-14120-00 RES M/F 0805 1K2 5% R271 036-17100-10 RES M/F 0805 1M 1% R272 036-13560-00 RES M/F 0805 560E 5% R273 036-15180-00 RES M/F 0805 18K 5% R274 036-15180-00 RES M/F 0805 18K 5% R275 036-14270-10 RES M/F 0805 2K7 1% R277 036-16100-00 RES M/F 0805 100K 5% R278 036-16120-00 RES M/F 0805 120K 5% R279 036-17100-10 RES M/F 0805 1M 1% R280 036-15100-10 RES M/F 0805 10K 1% R282 036-15560-10 RES MF 0805 56K 1% R283 036-15560-10 RES MF 0805 56K 1% R284 036-17100-10 RES M/F 0805 1M 1% R285 036-10000-00 RES M/F 0805 ZERO OHM R286 036-14220-00 RES M/F 0805 2K2 5% R287 036-15100-10 RES M/F 0805 10K 1% R288 036-15180-00 RES M/F 0805 18K 5% R289 036-16100-00 RES M/F 0805 100K 5% &R290 10 036-13560-00 RES M/F 0805 560E 5% &R290 15 036-13560-00 RES M/F 0805 560E 5% &R290 20 036-13560-00 RES M/F 0805 560E 5% &R290 25 036-13560-00 RES M/F 0805 560E 5% &R290 30 036-13560-00 RES M/F 0805 560E 5% &R290 35 036-13560-00 RES M/F 0805 560E 5%

C6.2.7

Page 8

IPN 220-01575-02

C6.2.8

Ref Var IPN Description Ref Var IPN Description

R291 036-10000-00 RES M/F 0805 ZERO OHM R292 036-14470-10 RES M/F 0805 4K7 1% R293 036-15470-10 RES M/F 0805 47K 1% R294 036-14470-10 RES M/F 0805 4K7 1% R295 036-14270-10 RES M/F 0805 2K7 1% R296 036-14100-10 RES M/F 0805 1K 1% R297 036-14560-00 RES M/F 0805 5K6 5% %R298 036-16100-00 RES M/F 0805 100K 5% R299 036-14270-10 RES M/F 0805 2K7 1% R300 036-12680-00 RES M/F 0805 68E 5% %R301 036-12100-00 RES M/F 0805 10E 5% R302 036-15390-00 RES M/F 0805 39K 5% R303 036-12330-00 RES M/F 0805 33E 5% R304 036-11470-00 RES M/F 0805 4E7 10% R305 036-11470-00 RES M/F 0805 4E7 10% R307 036-14180-00 RES M/F 0805 1K8 5% R308 036-14220-00 RES M/F 0805 2K2 5% R309 036-14100-10 RES M/F 0805 1K 1% R310 036-12270-00 RES M/F 0805 27E 5% R311 036-13330-00 RES M/F 0805 330E 5% R312 036-12680-00 RES M/F 0805 68E 5% R314 036-10000-00 RES M/F 0805 ZERO OHM R315 036-12120-00 RES M/F 0805 12E 5% R316 036-12560-00 RES M/F 0805 56E 5% R318 036-13220-10 RES 0805 220E 1% R321 036-13120-00 RES M/F 0805 120E 5% R322 036-12100-00 RES M/F 0805 10E 5% R323 036-13820-00 RES M/F 0805 820E 5% R324 036-12470-00 RES M/F 0805 47E 5% R326 036-12470-00 RES M/F 0805 47E 5% R328 036-11470-00 RES M/F 0805 4E7 10% R329 036-12100-00 RES M/F 0805 10E 5% R330 036-14180-00 RES M/F 0805 1K8 5% R331 036-11470-00 RES M/F 0805 4E7 10% R332 036-16120-00 RES M/F 0805 120K 5% R333 036-14330-10 RES M/F 0805 3K3 1% R335 036-15150-00 RES M/F 0805 15K 5% R336 036-15470-10 RES M/F 0805 47K 1% R337 036-15330-00 RES M/F 0805 33K 5% R338 036-12100-00 RES M/F 0805 10E 5% R339 036-13100-10 RES M/F 0805 100E 1% R340 036-12470-00 RES M/F 0805 47E 5% R342 036-16180-00 RES M/F 0805 180K 5% R343 036-15150-00 RES M/F 0805 15K 5% R344 036-12330-00 RES M/F 0805 33E 5% R346 036-11470-00 RES M/F 0805 4E7 10% R347 036-14220-00 RES M/F 0805 2K2 5% R349 036-13270-00 RES M/F 0805 270E 5% R350 036-12180-00 RES M/F 0805 18E 5% R351 036-14100-10 RES M/F 0805 1K 1% R352 036-13270-00 RES M/F 0805 270E 5% R353 036-14150-10 RES M/F 0805 1K5 1% R354 036-14680-10 RES M/F 0805 6K8 1% R356 036-15220-00 RES M/F 0805 22K 5% R357 036-14220-00 RES M/F 0805 2K2 5% R358 036-14220-00 RES M/F 0805 2K2 5% %R359 036-14220-00 RES M/F 0805 2K2 5% R363 036-12270-00 RES M/F 0805 27E 5% R364 036-14100-10 RES M/F 0805 1K 1% R365 036-14470-10 RES M/F 0805 4K7 1% R367 036-13470-00 RES M/F 0805 470E 5% R368 036-15150-00 RES M/F 0805 15K 5% R370 036-13180-00 RES M/F 0805 180E 5% R371 036-12120-00 RES M/F 0805 12E 5% R372 036-12330-00 RES M/F 0805 33E 5% R373 036-13180-00 RES M/F 0805 180E 5% R374 036-13680-00 RES M/F 0805 680E 5% R375 036-13330-00 RES M/F 0805 330E 5% R376 036-14220-00 RES M/F 0805 2K2 5% R377 036-13820-00 RES M/F 0805 820E 5% R378 036-15100-10 RES M/F 0805 10K 1% R379 036-12470-00 RES M/F 0805 47E 5% R380 036-15100-10 RES M/F 0805 10K 1% R381 036-10000-00 RES M/F 0805 ZERO OHM R390 036-13120-00 RES M/F 0805 120E 5% R391 036-12470-00 RES M/F 0805 47E 5% R392 036-13120-00 RES M/F 0805 120E 5% R399 036-12100-00 RES M/F 0805 10E 5% R400 036-13100-10 RES M/F 0805 100E 1% R401 036-13100-10 RES M/F 0805 100E 1% R410 036-14100-10 RES M/F 0805 1K 1% R450 045-05100-02 RES NTC 10K 2% Metal tagged R500 036-15150-00 RES M/F 0805 15K 5% R501 036-15150-00 RES M/F 0805 15K 5% R502 036-15150-00 RES M/F 0805 15K 5% R503 036-15100-10 RES M/F 0805 10K 1% R505 036-15470-10 RES M/F 0805 47K 1% R506 036-16120-00 RES M/F 0805 120K 5% R510 036-15470-10 RES M/F 0805 47K 1% R511 036-15470-10 RES M/F 0805 47K 1% R512 036-15220-00 RES M/F 0805 22K 5% R515 036-14100-10 RES M/F 0805 1K 1% R516 036-15470-10 RES M/F 0805 47K 1% R517 036-16120-00 RES M/F 0805 120K 5% R518 036-15100-10 RES M/F 0805 10K 1% R520 036-15470-10 RES M/F 0805 47K 1% R521 036-15220-00 RES M/F 0805 22K 5% R522 036-15470-10 RES M/F 0805 47K 1%

T881 PCB Information M880-00

R523 036-14820-10 RES M/F 0805 8K2 1% R525 036-14100-10 RES M/F 0805 1K 1% R526 036-14120-00 RES M/F 0805 1K2 5% R527 036-15150-00 RES M/F 0805 15K 5% R528 036-15100-10 RES M/F 0805 10K 1% R530 036-15100-10 RES M/F 0805 10K 1% R531 036-14820-10 RES M/F 0805 8K2 1% R532 036-15100-10 RES M/F 0805 10K 1% R533 036-14100-10 RES M/F 0805 1K 1% R535 036-14470-10 RES M/F 0805 4K7 1% R536 036-15470-10 RES M/F 0805 47K 1% R537 036-15100-10 RES M/F 0805 10K 1% R538 036-15100-10 RES M/F 0805 10K 1% R540 036-15220-00 RES M/F 0805 22K 5% R541 036-14100-10 RES M/F 0805 1K 1% R542 036-14470-10 RES M/F 0805 4K7 1% R543 036-14470-10 RES M/F 0805 4K7 1% R544 036-14100-10 RES M/F 0805 1K 1% R546 036-13100-10 RES M/F 0805 100E 1% R547 036-12100-00 RES M/F 0805 10E 5% R548 036-14820-10 RES M/F 0805 8K2 1% R550 036-14100-10 RES M/F 0805 1K 1% R551 036-14100-10 RES M/F 0805 1K 1% R552 036-15100-10 RES M/F 0805 10K 1% R553 036-15100-10 RES M/F 0805 10K 1% R555 036-15100-10 RES M/F 0805 10K 1% R556 036-14470-10 RES M/F 0805 4K7 1% R558 036-14470-10 RES M/F 0805 4K7 1% R559 036-16220-00 RES M/F 0805 220K 5% R560 036-14470-10 RES M/F 0805 4K7 1% R565 036-13220-10 RES 0805 220E 1% R566 036-10000-00 RES M/F 0805 ZERO OHM R567 036-15220-00 RES M/F 0805 22K 5% R568 036-15330-00 RES M/F 0805 33K 5% R569 036-10000-00 RES M/F 0805 ZERO OHM R570 036-15560-10 RES MF 0805 56K 1% R571 036-15390-00 RES M/F 0805 39K 5% R572 036-14220-00 RES M/F 0805 2K2 5% R573 036-13100-10 RES M/F 0805 100E 1% R575 036-14470-10 RES M/F 0805 4K7 1% R576 036-14100-10 RES M/F 0805 1K 1% R609 036-14100-10 RES M/F 0805 1K 1% R613 036-13560-00 RES M/F 0805 560E 5% R615 036-13100-10 RES M/F 0805 100E 1% R617 036-10000-00 RES M/F 0805 ZERO OHM R619 036-01100-10 RES 1 OHM 1 WATT 2512 CHIP R621 036-01100-10 RES 1 OHM 1 WATT 2512 CHIP R625 036-14100-10 RES M/F 0805 1K 1% R629 036-03270-10 RES 270 OHM 1 WATT 2512 CHIP R633 036-14680-10 RES M/F 0805 6K8 1% R637 036-12220-00 RES M/F 0805 22E 5% R638 036-12220-00 RES M/F 0805 22E 5% R640 036-12100-00 RES M/F 0805 10E 5% R641 036-14150-10 RES M/F 0805 1K5 1% R645 036-13470-00 RES M/F 0805 470E 5% R649 036-14470-10 RES M/F 0805 4K7 1% R651 036-10000-00 RES M/F 0805 ZERO OHM R652 036-10000-00 RES M/F 0805 ZERO OHM R653 036-15100-10 RES M/F 0805 10K 1% R657 036-15100-10 RES M/F 0805 10K 1% R661 036-15100-10 RES M/F 0805 10K 1% R665 036-16100-00 RES M/F 0805 100K 5% R669 036-15470-10 RES M/F 0805 47K 1% R673 036-16100-00 RES M/F 0805 100K 5% R677 036-15470-10 RES M/F 0805 47K 1% R681 036-13100-10 RES M/F 0805 100E 1% R685 036-15150-00 RES M/F 0805 15K 5% R689 036-12100-00 RES M/F 0805 10E 5% R693 036-16100-00 RES M/F 0805 100K 5% R696 036-15560-10 RES MF 0805 56K 1% R701 036-12220-00 RES M/F 0805 22E 5% R702 036-17100-10 RES M/F 0805 1M 1% R703 036-17100-10 RES M/F 0805 1M 1% R706 036-12100-00 RES M/F 0805 10E 5% R707 036-15100-10 RES M/F 0805 10K 1% R708 036-17100-10 RES M/F 0805 1M 1% R709 036-12100-00 RES M/F 0805 10E 5% R710 036-13100-10 RES M/F 0805 100E 1% R711 036-13100-10 RES M/F 0805 100E 1% R712 036-12100-00 RES M/F 0805 10E 5% R713 036-10000-00 RES M/F 0805 ZERO OHM %R715 036-14100-10 RES M/F 0805 1K 1% R717 036-14270-10 RES M/F 0805 2K7 1% R718 036-15270-10 RES M/F 0805 27K 1% R719 036-15270-10 RES M/F 0805 27K 1% R720 036-15390-00 RES M/F 0805 39K 5% R721 036-15100-10 RES M/F 0805 10K 1% R722 036-15100-10 RES M/F 0805 10K 1% R723 036-14270-10 RES M/F 0805 2K7 1% R725 036-15390-00 RES M/F 0805 39K 5% %R726 036-13100-10 RES M/F 0805 100E 1% R727 036-15100-10 RES M/F 0805 10K 1% R728 036-15100-10 RES M/F 0805 10K 1% R730 036-13470-00 RES M/F 0805 470E 5% R731 036-13470-00 RES M/F 0805 470E 5% R732 036-13470-00 RES M/F 0805 470E 5% R742 036-13150-10 RES M/F 0805 150E 1% R743 036-13150-10 RES M/F 0805 150E 1%

29/09/00 Copyright TEL

Page 9

IPN 220-01575-02

M880-00 T881 PCB Information

Ref Var IPN Description Ref Var IPN Description

R744 036-12220-00 RES M/F 0805 22E 5% R746 036-12220-00 RES M/F 0805 22E 5% R747 036-12220-00 RES M/F 0805 22E 5% R748 036-15470-10 RES M/F 0805 47K 1% R749 036-15470-10 RES M/F 0805 47K 1% R750 036-12220-00 RES M/F 0805 22E 5% R752 036-12220-00 RES M/F 0805 22E 5% R753 036-17100-10 RES M/F 0805 1M 1% R754 036-14100-10 RES M/F 0805 1K 1% R756 036-15120-00 RES M/F 0805 12K 5% R757 036-15120-00 RES M/F 0805 12K 5% R758 036-14120-00 RES M/F 0805 1K2 5% R759 036-13330-00 RES M/F 0805 330E 5% R760 036-13180-00 RES M/F 0805 180E 5% R762 036-13100-10 RES M/F 0805 100E 1% R763 036-13100-10 RES M/F 0805 100E 1% R765 036-13680-00 RES M/F 0805 680E 5% R766 036-14100-10 RES M/F 0805 1K 1% R767 036-13680-00 RES M/F 0805 680E 5% R769 036-13180-00 RES M/F 0805 180E 5% R771 036-14820-10 RES M/F 0805 8K2 1% R772 036-15220-00 RES M/F 0805 22K 5% R774 036-14820-10 RES M/F 0805 8K2 1% R775 036-15180-00 RES M/F 0805 18K 5% R780 036-12680-00 RES M/F 0805 68E 5% R782 036-12180-00 RES M/F 0805 18E 5% R784 036-13120-00 RES M/F 0805 120E 5% R785 036-14330-10 RES M/F 0805 3K3 1% R786 036-12100-00 RES M/F 0805 10E 5% R787 036-12100-00 RES M/F 0805 10E 5% R790 036-13390-10 RES M/F 0805 390E 1% R791 036-14100-10 RES M/F 0805 1K 1% R801 036-16150-00 RES M/F 0805 150K 5% R802 036-15470-10 RES M/F 0805 47K 1% R808 036-12100-00 RES M/F 0805 10E 5% R809 036-14470-10 RES M/F 0805 4K7 1% R810 036-14470-10 RES M/F 0805 4K7 1% R811 036-14470-10 RES M/F 0805 4K7 1% R812 036-14470-10 RES M/F 0805 4K7 1% R813 036-14470-10 RES M/F 0805 4K7 1% R815 036-15470-10 RES M/F 0805 47K 1% R816 036-16150-00 RES M/F 0805 150K 5% R818 036-14470-10 RES M/F 0805 4K7 1% R819 036-14470-10 RES M/F 0805 4K7 1% R821 036-15470-10 RES M/F 0805 47K 1% R822 036-15470-10 RES M/F 0805 47K 1% R824 036-14220-00 RES M/F 0805 2K2 5% R825 036-14220-00 RES M/F 0805 2K2 5% R826 036-14220-00 RES M/F 0805 2K2 5% R827 036-14220-00 RES M/F 0805 2K2 5% R828 036-14220-00 RES M/F 0805 2K2 5% R829 036-14220-00 RES M/F 0805 2K2 5% R830 036-14220-00 RES M/F 0805 2K2 5% R831 036-14220-00 RES M/F 0805 2K2 5% R832 036-14220-00 RES M/F 0805 2K2 5% R833 036-14220-00 RES M/F 0805 2K2 5% R835 036-14220-00 RES M/F 0805 2K2 5% R836 036-14220-00 RES M/F 0805 2K2 5% R837 036-14220-00 RES M/F 0805 2K2 5% R840 036-14220-00 RES M/F 0805 2K2 5% R841 036-14220-00 RES M/F 0805 2K2 5% R842 036-14220-00 RES M/F 0805 2K2 5% R843 036-14220-00 RES M/F 0805 2K2 5% R845 036-13470-00 RES M/F 0805 470E 5% R847 036-13470-00 RES M/F 0805 470E 5% R848 036-14470-10 RES M/F 0805 4K7 1% R849 036-13470-00 RES M/F 0805 470E 5% R850 036-13470-00 RES M/F 0805 470E 5% R853 036-14470-10 RES M/F 0805 4K7 1% R854 036-14470-10 RES M/F 0805 4K7 1% R855 036-14470-10 RES M/F 0805 4K7 1% R859 036-16150-00 RES M/F 0805 150K 5% R861 036-16150-00 RES M/F 0805 150K 5% R863 036-16150-00 RES M/F 0805 150K 5% R865 036-16100-00 RES M/F 0805 100K 5% R867 036-16100-00 RES M/F 0805 100K 5% R871 036-15470-10 RES M/F 0805 47K 1% R872 036-14470-10 RES M/F 0805 4K7 1% R873 036-15330-00 RES M/F 0805 33K 5% R874 036-14470-10 RES M/F 0805 4K7 1% R875 036-15470-10 RES M/F 0805 47K 1% R876 036-14470-10 RES M/F 0805 4K7 1% R877 036-14470-10 RES M/F 0805 4K7 1% R879 036-15100-10 RES M/F 0805 10K 1% R880 036-14470-10 RES M/F 0805 4K7 1% R881 036-14470-10 RES M/F 0805 4K7 1% R882 036-13470-00 RES M/F 0805 470E 5%

RV210 040-05100-23 POT 10K LOG PCB 15MM SLOT SFT RV220 042-05500-05 RES PRESET SMD 50K CER 4MM SQ RV501 042-05200-05 RES PRESET SMD 20K CER 4MM SQ RV502 042-05100-05 RES PRESET SMD 10K CER 4MM SQ RV805 042-05200-05 RES PRESET SMD 20K CER 4MM SQ

SK200 240-10000-05 CONN SMD SKT 8W 2R M-MATCH SK205 240-02020-05 SKT STEREO PHONE JACK PCB MTG SK805 240-10000-07 CONN SMD SKT 16W 2R M-MATCH SK810 240-04020-42 SKT 44 PIN SMD PLCC

SW230 232-00010-26 SWITCH PUSH SPDT R-ANG PCB MTG T210 053-00010-17 XFMR T4030 LINE MATCH POTCORE

T610 050-15119-52 COIL SMD 680uH XFMR 5119-T052 #TL300 10 051-11000-00 COAX RES 1000MHZ 6X6 SMD

#TL300 15 051-11000-00 COAX RES 1000MHZ 6X6 SMD #TL300 20 051-11050-00 COAX RES 1050MHz 6x6 SMD #TL300 25 051-11050-00 COAX RES 1050MHz 6x6 SMD #TL300 30 051-11100-00 COAX RES 1100MHZ 6X6 SMD #TL300 35 051-11100-00 COAX RES 1100MHZ 6X6 SMD

C6.2.9

Page 10

IPN 220-01575-02

C6.2.10

T881 PCB Information M880-00

T881 Mechanical & Miscellaneous Parts (220-01575-02)

IPN Legend Description IPN Legend Description

070-01001-00 D-RANGE 15 WA Y COMPL T800 220-01575-02 PCB T881 SERIES II 800-960M TX 232-00020-26 BUTTON 232-00010-26 SWITCH 240-02100-06 SKT COAX N TYPE PNL MTG OP-TER 240-04020-62 SKT 2 W RECEP SHORTING LINK 303-11169-04 CHASSIS PAINTED T800 SER II 303-23118-00 COVER A3M2247 D RANGE T855/7 303-50074-00 CLIP A3M2246 SPRING CLAMP T857 308-01007-01 HANDLE BS SII 2 WASHERS INC 308-13133-01 HEATSINK T881 MODULE 312-01052-02 LID TOP T800 SER II PTND 312-01053-02 LID BOTTOM T800 SER II PNTD 316-06621-00 PNL FRT TX T800 SERIES II 319-40015-00 STRAP EARTHING T881 349-00020-36 SCREW TT M3X8m PANTORX BLK 349-00020-43 SCRW T/T M4X12MM P/POZ BZ 349-00020-45 SCRW T/T M4X20MM P/POZ BZ 349-00020-55 SCRW M3*8 P/P T/T BLCKZNC CHRM 352-00010-04 NUT M2.5 MACH HEX ST BZ 352-00010-29 NUT M4 NYLOC HEX 353-00010-10 WSHR M3 FLAT 7MM*0.6MM ST BZ 353-00010-24 WSHR M4x8mm Flat 362-00010-33 GROMMET LED MTG 3MM 399-00010-51 BAG PLASTIC 75*100MM

29/09/00 Copyright TEL

Page 11

IPN 220-01575-02

M880-00 T881 PCB Information

C6.2.11

T881 Grid Reference Index (IPN 220-01575-02)

How To Use This Grid Reference Index

The first digit in the PCB layout reference is a "1" or "2", indicating the top or bottom side layout respectively, and the last two characters give the location of the component on that diagram.

The first digit in the circuit diagram reference is the sheet number, and the last two characters give the location of the component on that sheet.

Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit

C201 1:C1 2-B3 C202 1:C1 2-C3 C204 1:B3 2-F3 C205 1:A3 2-E3 C207 1:C7 2-G0 C209 1:C6 2-T0 C210 1:C7 2-J0 C211 1:B7 2-H3 C213 1:A6 2-C5 C215 1:A6 2-D5 C217 1:B6 2-C5 C219 1:B6 2-C5 C221 1:C5 2-L8 C223 1:D4 2-J6 C225 1:B3 2-N7 C227 1:B4 2-O6 C229 1:B4 2-O6 C230 1:B4 2-J0 C232 1:B4 2-P6 C233 1:B3 2-P7 C235 1:B5 2-N5 C237 1:B4 2-N5 C239 1:B4 2-O4 C240 1:D2 2-T6 C241 1:B4 2-P5 C242 1:B4 2-P5 C243 1:B4 2-R5 C245 1:C5 2-B5 C247 1:C5 2-B5 C249 1:D4 2-E6 C251 1:C4 2-C9 C253 1:D3 2-E8 C255 1:D3 2-E8 C257 1:D4 2-C8 C259 1:C7 2-J2 C260 1:C8 2-I0 C261 1:C7 2-K2 C263 1:D6 2-M2 C265 1:D8 2-M1 C267 1:C8 2-O2 &C269 1:C8 2-O2 &C271 1:C8 2-P2 C273 1:C8 2-P2 C275 1:C3 2-E7 C277 1:B4 2-I4 C279 1:B5 2-I4 C281 1:B5 2-I3 C283 1:B5 2-J2 C285 1:C7 2-K2 C287 1:C6 2-L3 &C289 1:C8 2-Q2 C291 1:C7 2-T2 C293 1:D7 2-T2 %C294 1:C7 2-U2 %C295 1:C7 2-U2 C300 1:F3 3-B9 C301 1:E4 3-B5 C302 1:E4 3-B4 C303 1:E4 3-B2

C304 1:E4 3-B4 C305 1:E4 3-B4 C306 1:F5 3-M1 C307 1:E4 3-B2 %C308 1:F3 3-C9 C309 1:E4 3-C4 %C310 1:F3 3-C9 C311 1:F3 3-D9 %C312 1:E4 3-D2 %C314 1:E4 3-D2 C315 1:E4 3-D1 C316 1:F4 3-D8 C317 1:E4 3-D4 C318 1:E4 3-D1 C319 1:E4 3-D1 C321 1:F4 3-E8 C322 1:E4 3-E7 C323 1:E4 3-E1 C324 1:F3 3-E8 C325 1:F4 3-E7 C326 1:E4 3-E7 C328 1:E4 3-F7 C329 1:E3 3-F7 C330 1:E3 3-F7 C331 1:F5 3-F5 C332 1:E5 3-F3 %C333 1:E3 3-G8 C335 1:E3 3-G7 C336 1:F6 3-G0 C337 1:F5 3-F5 C338 1:E5 3-F4 C339 1:F6 3-G1 C340 1:E3 3-G8 C342 1:E4 3-G6 C343 1:E3 3-G7 C345 1:F5 3-G5 C346 1:E3 3-H7 C347 1:E3 3-H7 C349 1:E5 3-G5 C350 1:E4 3-H7 C351 1:E5 3-H3 C352 1:F5 3-H1 C353 1:E5 3-H4 C356 1:E5 3-H4 C357 1:E3 3-J7 C359 1:F4 3-J2 C360 1:F6 3-H5 C361 1:F4 3-K2 C363 1:F5 3-K0 C364 1:F5 3-J5 C365 1:F5 3-K1 C366 1:F5 3-K0 C367 1:F4 3-K1 C368 1:F5 3-K0 C370 1:E5 3-J3 C371 1:F5 3-K0 C372 1:E6 3-J5 C373 1:E6 3-J4 C374 1:E5 3-J3

C375 1:E5 3-K3 C377 1:E5 3-K4 C378 1:F4 3-L1 C379 1:F4 3-L2 C380 1:E6 3-K5 C381 1:F7 3-P3 C382 1:F4 3-L1 C383 1:F5 3-M1 C384 1:F4 3-M0 C385 1:E4 3-M0 C386 1:E4 3-M0 C387 1:E6 3-L3 C388 1:F3 3-N7 C389 1:E6 3-L4 C390 1:F7 3-Q3 C391 1:E4 3-N0 C392 1:F3 3-N7 C393 1:F3 3-P8 C394 1:E6 3-M3 C395 1:F6 3-N4 C396 1:F6 3-N3 C397 1:F7 3-R3 C398 1:F7 3-P4 C399 1:F7 3-Q3 C400 1:N7 4-D3 C401 1:G8 4-E4 C402 1:J9 4-E3 C403 1:K9 4-E4 C404 1:J9 4-D3 C406 1:K7 4-D6 C407 1:G7 4-C4 C408 1:G7 4-D4 C409 1:J9 4-D4 C410 1:J7 4-C3 C411 1:N7 4-C3 C412 1:G8 4-D3 C413 1:L7 4-F3 C415 1:L8 4-F3 C416 1:M9 4-H3 C417 1:M8 4-H3 C418 1:N7 4-J5 C419 1:N7 4-K5 C420 1:N8 4-K5 C421 1:G8 4-L5 C422 1:L9 4-L5 C423 1:G7 4-M5 C424 1:G7 4-M5 C425 1:G8 4-J3 C426 1:L9 4-J3 C427 1:G7 4-K3 C428 1:G7 4-K3 C430 2:M8 4-G5 C432 1:M7 4-G6 C450 1:H8 4-N8 C451 1:H8 4-P8 C452 1:H7 4-P8 C453 1:G7 4-P8 C500 1:H5 5-C6 C501 1:H5 5-C5

C502 1:G6 5-D6 C503 1:H5 5-D6 C505 1:H5 5-E6 C506 1:G5 5-E5 C507 1:K5 5-L1 C508 1:J6 5-L3 C510 1:K5 5-M1 C511 1:H6 5-F6 C512 1:H6 5-N3 C513 1:G5 5-G6 C515 1:K5 5-O1 C516 1:K6 5-O0 %C517 1:J6 5-O2 C518 1:G5 5-H6 C519 1:K6 5-E4 C520 1:G6 5-I6 C521 1:K6 5-P1 C523 1:J5 5-N4 C525 1:J5 5-N4 C526 1:J5 5-P4 C527 1:J5 5-N4 %C528 1:J5 5-O2 C530 1:H6 5-O6 C531 1:H6 5-O5 C532 1:J5 5-P4 C535 1:K5 5-P5 C537 1:K5 5-R5 C538 1:K5 5-Q5 C541 1:K6 5-S5 C542 1:H6 5-U0 C543 1:J6 5-U5 C545 1:J6 5-U5 C546 1:J5 5-V0 C547 1:K5 5-R6 C548 1:G6 5-V5 C551 1:G6 5-V5 C559 1:J6 5-U5 C605 1:L6 6-C8 C607 1:L6 6-D8 C608 1:L6 6-D8 C610A 1:M5 6-F8 C610B 1:L5 6-F8 C611A 1:M6 6-H8 C611B 1:M5 6-H8 C623 1:N6 6-P7 C625 1:M6 6-Q6 C626 1:M6 6-Q6 C627 1:M6 6-R6 C628 1:M6 6-Q6 C629 1:M6 6-R6 C630 1:M5 6-J5 C631A 1:N5 6-L6 C634 1:N5 6-L5 C636 1:M5 6-M5 C638 1:M5 6-N5 C640 1:M5 6-R4 C655 1:M4 6-C1 C660 1:L5 6-Q1 C665 1:L5 6-P1

Page 12

IPN 220-01575-02

C6.2.12

Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit

C670 1:L5 6-N1 C673 1:L5 6-K2 C677 1:L6 6-K1 C681 1:L6 6-J2 C684 1:L6 6-H2 C687 1:L6 6-J1 C690 1:L6 6-J1 C693 1:L6 6-H1 C700 1:K4 7-A8 C703 1:J3 7-B7 C706 1:J2 7-B5 %C707 1:K4 7-B8 C708 1:J2 7-D9 C709 1:K4 7-D9 C710 1:J3 7-D8 C711 1:J3 7-B6 C712 1:H2 7-D7 %C713 1:H2 7-E6 C714 1:J2 7-E8 C719 1:J4 7-F8 C720 1:J4 7-F8 C722 1:J4 7-G8 C724 1:J4 7-H6 C725 1:J3 7-J6 C726 1:J4 7-J6 C727 1:J3 7-K8 C729 1:J3 7-M8 %C733 1:H2 7-E3 C735 1:J2 7-A1 C736 1:J2 7-B1 C740A 1:H2 7-B4 C740B 1:H2 7-B3 C741A 1:H2 7-C4 C741B 1:G2 7-C3 C742A 1:H2 7-D4 C742B 1:H3 7-D3 C743 1:H2 7-B1 C745 1:G3 7-D1 C750 1:G4 7-K0 C757 1:G4 7-F4 C759 1:G4 7-F5 C761 1:G3 7-K4 C762 1:G3 7-K4 C764 1:H3 7-K2 C765 1:G3 7-K2 C767 1:H3 7-L3 C769 1:H4 7-M4 C770 1:H4 7-N4 C772 1:G4 7-M2 C774 1:H4 7-N2 C776 1:H4 7-N2 C782 1:G2 7-P1 C784 1:G2 7-Q1 C785 1:G3 7-P1 C786 1:G2 7-R1 C788 1:G3 7-P0 C790 1:G3 7-Q0 C792 1:G4 7-R0 C810 1:L3 8-H8 C812 1:L2 8-D5 C813 1:K2 8-G5 C822 1:N2 8-Q1 C823 1:M3 8-Q1 C824 1:M2 8-Q1 C826 1:N3 8-P0 C827 1:N3 8-P1 C828 1:N3 8-P0 C830 1:N3 8-J0 C838 1:N4 8-N0 C841 1:N2 8-K2 C844 1:M2 8-K2 C880 1:M2 8-K3 C910 1:P8 9-D5 C920 1:P7 9-E5 C930 1:P7 9-F5 C940 1:P6 9-G5

T881 PCB Information M880-00

CV300 1:E3 3-J7

%D111 1:P5 1-M0 %D111A 1:P5 1-R1 %D205 1:B2 2-D3 %D210 1:B2 2-D3 D220 1:B4 2-R7 D220 1:B4 2-R5 D230 1:B7 2-U5 D240 1:D4 2-E7 D240 1:D4 2-E7 D250 1:D3 2-E8 D250 1:D3 2-E8 D260 1:C2 2-B8 D260 1:C2 2-C8 D270 1:C2 2-C7 D270 1:C2 2-B7 D300 1:E3 3-L8 D301 1:E3 3-L7 %D302 1:E3 3-L7 %D303 1:E3 3-L7 D305 1:E3 3-M7 D307 1:E3 3-M7 D308 1:E6 3-N3 D308 1:E6 3-P3 D400 1:M8 4-H4 D401 1:N8 4-J5 D610 1:N6 6-N7 D610 1:N6 6-N7 D620 1:N4 6-B1 D620 1:N4 6-B1 D630 1:M5 6-E2 D630 1:M5 6-E2 D635A 1:M5 6-F2 D640 1:L5 6-N1 D640 1:L5 6-N1 D645 1:M5 6-R4 D710 1:J3 7-L8 D710 1:J3 7-L8 D720 1:J3 7-N8 D720 1:J3 7-N8 D730 1:H3 7-J1 D732 1:H3 7-K2 D810 1:M2 8-B2 D811 1:B7 2-U6 D812 1:B7 2-T5

IC210 1:C7 2-J0 IC210 1:C7 2-U2 IC210 1:C7 2-G0 IC210 1:C7 2-K1 IC210 1:C7 2-K2 IC220 1:C6 2-T2 IC220 1:C6 2-L3 IC220 1:C6 2-T0 IC230 1:B4 2-O5 IC230 1:B4 2-I0 IC230 1:B4 2-Q5 IC230 1:B4 2-I2 IC230 1:B4 2-I4 IC240 1:C4 2-J5 IC250 1:D3 2-D7 IC260 1:C8 2-T3 IC260 1:C8 2-H0 IC260 1:C8 2-S2 IC260 1:C8 2-P2 IC260 1:C8 2-N2 #IC400 2:K8 4-E4 IC500 1:H6 5-O6 IC500 1:H6 5-U0 IC500 1:H6 5-O5 IC510 1:J5 5-V0 IC510 1:J5 5-O3 IC510 1:J5 5-N4 IC510 1:J5 5-Q5 IC510 1:J5 5-T5

IC610 1:L5 6-G8 IC630 1:N5 6-K5 IC640 1:M5 6-M5 IC640 1:M5 6-Q4 IC640 1:M5 6-E1 IC650 1:L5 6-C4 =IC700 1:K3 7-A8 IC710 1:J2 7-C6 IC710 1:J2 7-D8 IC710 1:J2 7-D5 IC710 1:J2 7-D7 IC710 1:J2 7-D6 IC710 1:J2 7-C5 IC710 1:J2 7-C6 IC720 1:H3 7-L7 IC720 1:H3 7-H0 IC720 1:H3 7-K7 IC720 1:H3 7-E8 IC720 1:H3 7-M7 IC720 1:H3 7-N6 IC720 1:H3 7-J0 IC730 1:J4 7-H8 IC730 1:J4 7-G7 IC740 1:H2 7-D1 IC750 1:H4 7-M3 IC750 1:H4 7-G5 IC750 1:H4 7-K0 IC820 1:L4 8-K5 IC830 1:N3 8-L0 IC830 1:N3 8-H0 IC830 1:N3 8-L0 IC830 1:N3 8-L1 IC830 1:N3 8-Q0

L300 1:F6 3-F0 L301 1:E3 3-H8 L302 1:E3 3-H8 L303 1:E5 3-H4 L304 1:F3 3-K7 L305 1:F3 3-K7 L307 1:E5 3-J3 L308 1:E6 3-K4 L309 1:F3 3-M7 L310 1:F3 3-N7 L311 1:E4 3-N0 L312 1:E6 3-N3 L314 1:F6 3-N4 L315 1:F7 3-P4 L316 1:E7 3-P3 L317 1:E7 3-Q3 L318 1:E7 3-Q3 L401 1:J8 4-E4 L403 1:M8 4-H4 L404 1:N7 4-J6 %L405 1:M7 4-G5 L406 1:G7 4-C4 L407 1:G7 4-M6 L408 1:G7 4-K4 L450 1:H8 4-N8 L451 1:G7 4-P8 L601 1:L6 6-D8 L602 1:M6 6-R6 L910 1:P8 9-E6 L920 1:P7 9-E6 L930 1:P6 9-F6

LINK1 2:B2 2-E3 LINK2 2:A2 2-E3

P100 1:Q6 1-R8 P150 1:P2 1 -Q4 P160 1:P2 1 -Q4 P170 1:P2 1 -Q3 P204 1:D1 2-A3 P208 1:D1 2-A3 P215 1:D4 2-A7

P217 1:D4 2-A7 P219 1:D2 2-A8 P225 1:D2 2-A7 P230 1:B5 2-M9 P231 1:D7 2-M9 P233 1:C1 2-F3 P235 1:C1 2-F3 P237 1:B7 2-G3 P239 1:B6 2-M9 P240 1:B7 2-M9 P245 1:B8 2-S5 P249 1:B7 2-V5 P251 1:B7 2-V5 P255 1:C4 2-L1 P257 1:C2 2-L1 P259 1:B8 2-L0 P261 1:B8 2-L0 P263 1:B1 2-L0 P267 1:C9 2-Q2 P269 1:C9 2-S3 P271 1:C9 2-R2 P273 1:C9 2-S3 P275 1:C7 2-U2 P290 1:D5 2-R1 P291 1:D5 2-S1 P805 1:M2 8-A2 P810 1:L3 8-B6 P820 1:L4 8-J8 P825 1:L4 8-J8 P830 1:L4 8-J8 P835 1:L4 8-J7 P840 1:L4 8-J7

PL100 1:P3 1-F0 PL201 1:C4 2-K5 PL202 1:C3 2-K4

Q210 1:B6 2-D5 Q220 1:B4 2-O6 Q230 1:B4 2-P7 Q240 1:B7 2-U6 Q250 1:B7 2-U5 Q260 1:C4 2-C9 Q270 1:D2 2-D7 Q300 1:F4 3-C7 Q301 1:F4 3-C7 Q302 1:E4 3-C3 Q303 1:E4 3-C2 Q304 1:F4 3-D8 Q305 1:F4 3-E8 Q307 1:F5 3-F4 Q308 1:E5 3-F3 Q309 1:E3 3-H7 Q310 1:F5 3-H1 Q311 1:E5 3-G4 Q312 1:F5 3-J0 Q313 1:E6 3-J4 Q314 1:F5 3-K0 Q316 1:F4 3-L1 Q317 1:F4 3-L2 Q318 1:E6 3-K4 Q319 1:E6 3-K3 Q321 1:F4 3-M0 Q322 1:F4 3-L1 Q500 1:H5 5-C5 Q501 1:H5 5-D6 Q502 1:H6 5-E6 Q503 1:G5 5-E5 Q505 1:H6 5-M2 Q506 1:G6 5-G6 Q507 1:K5 5-N1 Q508 1:J6 5-N2 Q510 1:G5 5-H5 Q511 1:K6 5-O1 Q512 1:G5 5-I5 Q513 1:G6 5-I5

29/09/00 Copyright TEL

Page 13

IPN 220-01575-02

M880-00 T881 PCB Information

Device PCB Circuit Device PCB Circuit Device PCB CircuitDevice PCB Circuit

Q515 1:K6 5-Q0 Q516 1:J5 5-Q4 Q517 1:J6 5-U5 Q610 1:L6 6-D8 Q620 1:N6 6-P6 Q630 1:M6 6-N5 Q660 1:L5 6-M1 Q670 1:L6 6-K1 Q710 1:J3 7-K8 Q720 1:J4 7-K8 Q730 1:J3 7-M8 Q740 1:J3 7-M8 Q750 1:G4 7-F4 Q760 1:H3 7-J3 Q770 1:H3 7-J1 Q775 1:H3 7-K3 Q780 1:H3 7-K3 Q785 1:H3 7-K2 Q790 1:H3 7-M3 Q795 1:G3 7-P0 Q810 1:M2 8-C3 Q820 1:L2 8-C5 Q830 1:L2 8-C6 Q840 1:L2 8-E5 Q850 1:M2 8-E5 Q860 1:L4 8-B3

%R150 1:P2 1-R4 R160 1:P2 1-R3 %R200 1:B2 2-C3 R201 1:B3 2-E3 R202 1:C1 2-F3 %R203 1:B3 2-C2 R204 1:C7 2-F0 R205 1:C7 2-H0 R206 1:B6 2-D6 R207 1:B6 2-D5 R208 1:B6 2-C5 R209 1:B6 2-C5 R210 1:B6 2-D5 R211 1:B2 2-E3 R212 1:C4 2-I6 R213 1:D4 2-L8 R214 1:D4 2-L8 R215 1:C4 2-J6 R216 1:B4 2-N7 R217 1:B4 2-P7 R218 1:B3 2-P7 R219 1:B3 2-Q7 R220 1:B2 2-E3 R221 1:B7 2-U6 R223 1:B4 2-N5 R224 1:B4 2-N5 R225 1:B4 2-O5 R226 1:B4 2-O4 R227 1:B4 2-O4 R228 1:A2 2-E3 R229 1:A4 2-P6 R230 1:B4 2-P6 R231 1:B4 2-P5 R232 1:B4 2-P5 R233 1:B4 2-P5 R235 1:B4 2-Q5 R237 1:B7 2-U6 R238 1:B7 2-U6 R239 1:B8 2-T5 R241 1:B8 2-T5 R242 1:B7 2-T5 R244 1:C6 2-B5 R245 1:D4 2-J6 R247 1:C3 2-B9 R248 1:C3 2-C9 R249 1:D4 2-C9 R251 1:C4 2-K6 R253 1:C7 2-K2 R254 1:C6 2-K2

R255 1:C7 2-L1 R256 1:D8 2-M2 R257 1:D8 2-M1 R258 1:D8 2-M1 R259 1:D8 2-M1 R260 1:C8 2-M2 R262 1:D8 2-N2 R263 1:D8 2-N2 &R264 1:C8 2-O2 &R265 1:C8 2-O2 &R266 1:C8 2-P2 R267 1:C8 2-Q2 R268 1:C2 2-C7 R269 1:C2 2-C8 R270 1:C3 2-D8 R271 1:C3 2-D7 R272 1:C4 2-I4 R273 1:B4 2-I5 R274 1:B5 2-I4 R275 1:B5 2-J5 R277 1:B5 2-I3 R278 1:B5 2-I2 R279 1:B5 2-J2 R280 1:B5 2-J2 R282 1:D7 2-J3 R283 1:C7 2-J3 R284 1:C7 2-K2 R285 1:C9 2-R2 R286 1:C7 2-K3 R287 1:C8 2-S2 R288 1:C6 2-L3 R289 1:C9 2-R2 &R290 1:C8 2-Q2 R291 1:C9 2-R2 R292 1:C9 2-S3 R293 1:C9 2-S3 R294 1:D8 2-T3 R295 1:D8 2-U3 R296 1:D6 2-T2 R297 1:C7 2-T2 %R298 1:C7 2-U2 R299 1:C6 2-V2 R300 1:E5 3-B5 %R301 1:F3 3-B9 R302 1:F4 3-C8 R303 1:E4 3-B2 R304 1:E4 3-C5 R305 1:E4 3-C4 R307 1:E5 3-C4 R308 1:E4 3-C2 R309 1:E4 3-C1 R310 1:E4 3-C3 R311 1:F4 3-C7 R312 1:E4 3-C4 R314 1:E4 3-C3 R315 1:E4 3-C2 R316 1:E5 3-C1 %R317 1:E4 3-D4 R318 1:F3 3-D9 R321 1:E4 3-D4 R322 1:E4 3-E3 R323 1:E4 3-E7 R324 1:F3 3-E9 %R325 1:E4 3-E4 R326 1:F3 3-E9 R328 1:F3 3-F8 R329 1:E4 3-F7 R330 1:E4 3-E7 R331 1:F5 3-F6 R332 1:F5 3-G1 R333 1:F5 3-F5 R335 1:F5 3-F4 R336 1:F5 3-G1 R337 1:F6 3-G0 R338 1:E3 3-H7 R339 1:E3 3-H7

R340 1:E3 3-H6 R342 1:E5 3-G4 R343 1:F5 3-H1 R344 1:E5 3-G5 R346 1:E6 3-H6 R347 1:F5 3-J0 R349 1:E5 3-H3 R350 1:E5 3-J3 R351 1:F4 3-K2 R352 1:E5 3-J3 R353 1:E5 3-J5 R354 1:E6 3-J4 R356 1:F4 3-L2 R357 1:F4 3-L1 R358 1:F4 3-L0 %R359 1:F4 3-L0 %R360 1:F4 3-L0 %R361 1:E5 3-K3 R363 1:E6 3-K5 R364 1:E5 3-K4 R365 1:F4 3-M1 %R366 1:E6 3-K5 R367 1:E6 3-L4 R368 1:F3 3-N8 R370 1:E6 3-M3 R371 1:F3 3-N7 R372 1:E6 3-M3 R373 1:E6 3-M3 R374 1:F3 3-P7 R375 1:F3 3-P8 R376 1:F3 3-Q7 R377 1:E6 3-N3 R378 1:F6 3-N4 R379 1:F6 3-N2 R380 1:F7 3-P4 R381 1:E5 3-K3 R390 1:E8 3-R3 R391 1:F8 3-R3 R392 1:E8 3-R3 R399 1:F4 3-M1 R400 1:M8 4-H5 R401 1:N8 4-J4 R410 1:M7 4-F6 R450 2:J7 4-N8 R500 1:H5 5-B5 R501 1:H5 5-B5 R502 1:H5 5-C6 R503 1:H5 5-D5 R505 1:H6 5-K2 R506 1:H6 5-E6 %R508 1:H5 5-E5 R510 1:H6 5-L3 R511 1:H5 5-E6 R512 1:H5 5-E6 %R513 1:H5 5-E5 R515 1:G5 5-E5 R516 1:H6 5-M2 R517 1:K5 5-M1 R518 1:H6 5-F6 R520 1:K5 5-M1 R521 1:K5 5-M1 R522 1:J6 5-M3 R523 1:G6 5-G5 R525 1:G5 5-G5 R526 1:J6 5-N2 R527 1:K5 5-N1 R528 1:J6 5-N2 R530 1:J6 5-N3 R531 1:G5 5-H5 R532 1:J6 5-O3 R533 1:G5 5-H5 R535 1:J6 5-O3 R536 1:K6 5-O0 R537 1:J6 5-P3 R538 1:J6 5-P2 R540 1:K6 5-P0

R541 1:G6 5-I5 R542 1:J5 5-L5 R543 1:J5 5-M5 R544 1:J5 5-M4 %R545 1:J5 5-M4 R546 1:J5 5-L4 R547 1:J5 5-N5 R548 1:J5 5-N4 R550 1:H6 5-N6 R551 1:H6 5-N5 R552 1:H6 5-N6 R553 1:H6 5-N5 R555 1:J5 5-O4 R556 1:J5 5-P4 R558 1:K6 5-P6 R559 1:K5 5-P6 R560 1:K5 5-P5 R565 1:K5 5-Q5 R566 1:K5 5-Q5 R567 1:K5 5-P2 R568 1:J5 5-S5 R569 1:J5 5-R5 R570 1:K6 5-S5 R571 1:K6 5-S5 R572 1:J6 5-T5 R573 1:J6 5-U5 R575 1:J6 5-U5 R576 1:G6 5-V5 R609 1:L6 6-B8 R613 1:L6 6-C8 R615 1:M5 6-F9 R617 1:M5 6-H8 R619 1:N6 6-P7 R621 1:N6 6-P7 R625 1:N6 6-P7 R629 1:M6 6-N6 R633 1:M5 6-P5 R637 1:M5 6-J6 R638 1:M5 6-J6 R640 1:M5 6-Q4 R641 1:N5 6-K5 R645 1:N5 6-L5 R649 1:M5 6-M5 R651 1:L4 6-B4 R652 1:L4 6-B4 R653 1:M5 6-P5 R657 1:M5 6-C1 R661 1:M5 6-D2 R665 1:M5 6-D1 R669 1:M5 6-D2 R673 1:M5 6-D0 R677 1:M4 6-F2 R681 1:L5 6-P1 R685 1:L5 6-L2 R689 1:L6 6-J3 R693 1:L5 6-N1 R696 1:L5 6-N0 R701 1:K4 7-A9 R702 1:K4 7-B9 R703 1:J3 7-B8 =R705 1:K3 7-A7 R706 1:H3 7-B6 R707 1:J3 7-B6 R708 1:J3 7-B6 R709 1:J3 7-D9 R710 1:H2 7-D7 R711 1:J2 7-C5 R712 1:K4 7-E9 R713 1:J4 7-F8 %R715 1:J4 7-H6 R717 1:H4 7-H7 R718 1:J4 7-H7 R719 1:J3 7-J6 R720 1:H3 7-K7 R721 1:J3 7-K9 R722 1:J4 7-K8

C6.2.13

Page 14

IPN 220-01575-02

C6.2.14

Device PCB Circuit Device PCB CircuitDevice PCB Circuit Device PCB Circuit

R723 1:J3 7-L7 R725 1:J3 7-M7 %R726 1:H3 7-M6 R727 1:J3 7-M9 R728 1:J3 7-M8 R730 1:K2 7-A2 R731 1:K2 7-A2 R732 1:K2 7-A2 R742 1:H2 7-C4 R743 1:H2 7-C4 R744 1:G2 7-D4 R746 1:H3 7-D4 R747 1:H3 7-D4 R748 1:J2 7-A1 R749 1:J2 7-B1 R750 1:H4 7-K0 R752 1:G4 7-F4 R753 1:G4 7-F4 R754 1:G3 7-F4 R756 1:G3 7-F5 R757 1:G4 7-F5 R758 1:H3 7-J4 R759 1:H3 7-J4 R760 1:H3 7-K4 R762 1:H3 7-L4 R763 1:H3 7-L4 R765 1:H3 7-J2 R766 1:G3 7-K3 R767 1:H3 7-K2 R769 1:H3 7-L3 R771 1:H4 7-M3 R772 1:G4 7-M2 R774 1:H4 7-M3 R775 1:H4 7-N2 R780 1:G2 7-P1 R782 1:G3 7-P1 R784 1:G3 7-P1 R785 1:G3 7-Q1 R786 1:G2 7-Q1 R787 1:G2 7-R2 R790 1:G3 7-P0 R791 1:G3 7-Q0 R801 1:M2 8-C3 R802 1:M2 8-C2 R808 1:M2 8-B5 R809 1:L2 8-C6 R810 1:L3 8-C6 R811 1:L2 8-D6 R812 1:L2 8-C5 R813 1:L2 8-C5 R815 1:L2 8-D5 R816 1:L2 8-D5 R818 1:M2 8-E5 R819 1:M2 8-E4 R821 1:L4 8-B3 R822 1:M4 8-C3 R824 1:L4 8-J8 R825 1:L4 8-J8 R826 1:L4 8-J8 R827 1:L4 8-J7 R828 1:L4 8-J7 R829 1:L4 8-Q9 R830 1:L3 8-Q9 R831 1:L3 8-Q9 R832 1:L3 8-Q8 R833 1:L3 8-Q8 R835 1:L3 8-Q8 R836 1:L3 8-Q8 R837 1:L3 8-Q7 R840 1:L3 8-Q7 R841 1:L3 8-Q7 R842 1:L3 8-Q6 R843 1:L3 8-Q6 R845 1:M4 8-R4 R847 1:L2 8-R3 R848 1:L2 8-K3

T881 PCB Information M880-00

R849 1:L2 8-R3 R850 1:K2 8-R3 R853 1:M4 8-L6 R854 1:M4 8-L6 R855 1:M2 8-Q0 R859 1:N2 8-P1 R861 1:N2 8-P1 R863 1:N3 8-N1 R865 1:N4 8-N0 R867 1:N3 8-N1 R871 1:N3 8-M2 R872 1:M4 8-L1 R873 1:N3 8-M1 R874 1:N3 8-L0 R875 1:N3 8-M0 R876 1:N3 8-L0 R877 1:N2 8-K2 R879 1:N2 8-K2 R880 1:M4 8-J6 R881 1:M4 8-L6 R882 1:M2 8-K3

RV210 1:B7 2-G3 RV220 1:A4 2-P6 RV501 1:K5 5-Q4 RV502 1:K5 5-Q2 RV805 1:N4 8-N1

SK200 1:C5 2-R1 SK205 1:B5 2-A5 =SK710 1:K3 7-A7 SK805 1:K3 8-Q9 SK805 1:K3 8-Q7 SK805 1:K3 8-Q5 SK805 1:K3 8-Q7 SK805 1:K3 8-Q8 SK805 1:K3 8-Q7 SK805 1:K3 8-Q8 SK805 1:K3 8-Q6 SK805 1:K3 8-Q8 SK805 1:K3 8-Q6 SK805 1:K3 8-Q6 SK805 1:K3 8-Q9 SK805 1:K3 8-Q6 SK805 1:K3 8-Q9 SK805 1:K3 8-Q7 SK805 1:K3 8-Q8 SK810 1:M3 8-G5

SL201 2:D1 2-B3 SL202 2:D1 2-B3 SL203 2:D2 2-B8 SL204 2:D2 2-B7 SL345 1:F5 3-J1 SL506 1:G5 5-E5 SL810 1:M2 8-B3

SW230 1:B8 2-B9

T210 1:B2 2-C3 T610 1:L6 6-M2

#TL300 1:E3 3-H7

TP206 1:B5 2-M8 TP300 1:F3 3-R8 TP500 1:H5 5-B5 TP501 1:H5 5-B6 TP502 1:H6 5-C6 TP503 1:J6 5-P3 TP505 1:J5 5-M4 TP506 1:J5 5-O4 TP508 1:J6 5-V5 TP601 1:N5 6-J6 TP602 1:M6 6-Q6 TP603 1:L5 6-Q1

TP604 1:L4 6-L6 TP607 1:L5 6-J9 TP710 1:G4 7-G5 TP715 1:J2 7-C5
