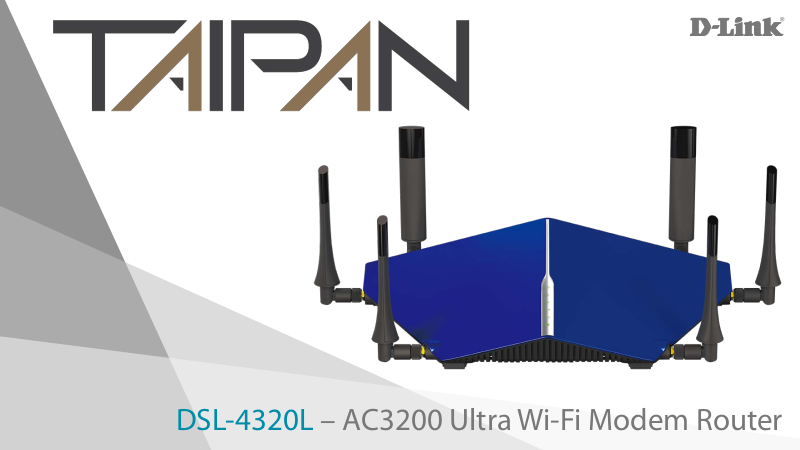

TAIPAN DSL-4320L Quick Install Manual

DSL-4320L – AC3200 Ultra Wi-Fi Modem Router

Key Selling Features

• World’s First Wireless AC3200 VDSL/ADSL enabled router

• Simultaneous Tri Band AC3200 (N600+AC1300+AC1300)

• High Performance 1 GHz ARM® Cortex™ - A9 Dual-Core CPU

• High Power Wireless Performance

• VDSL2+/ADSL2+ Modem built-in

• 4 x Gigabit LAN Ports

• 1 x USB 2.0 and 1x USB 3.0 Port

 Storage / printer sharing

• Share USB Storage with mydlink SharePort, SharePort Web Access or SAMBA

• mydlink enabled

• WPS button design for easy & secure wireless setup

• Intelligent QoS Prioritization Technology

• Advanced AC SmartBeam Technology with 6 external antennas

• Intelligent QoS Prioritization Technology

• Advanced Parentals Controls – Website filtering and time of day scheduling

• New Smart Connect Feature: Optimize Wi-Fi Connection & Performance

• New ID to revolutionise the Home Router

• DLNA support

• L2TP VPN Server & Client

• VPN pass-through / Multi-session PPTP/L2TP/IPSec

• Wireless Guest Zone

• NBN/UFB Ready with Configurable LAN/WAN port

• IPv6 Ready

• New Web UI

Hardware Details

1

3

5

1. Power LED

2. USB 3.0 and USB 2.0 LED

2

4

6

3. 2.4Ghz Wi-Fi Status LED

4. 5Ghz Wi-Fi Status LED

5. DSL LED

6. Internet LED

7. DSL WAN Port

8. USB 3.0 Port

9. USB 2.0 Port

10. Reset Button

11. WPS Button

12. Gigabit LAN Ports

13. Power ON/OFF Button

14. Power Connector

7 9

8

10

11

12

13

14

Maximum Performance

Tri-Band Wi-Fi

The AC3200 ULTRA Wi-Fi Modem Router is like
three wireless routers in one. It has a 2.4GHz
wireless band offering speeds up to 600Mbps
and two separate 5GHz wireless bands
delivering speeds up to 1,300Mbps that all
operate at the same time. That means more lag
free online gaming, 4k media streaming, and
Facetime on more devices throughout your
home

SmartConnect

Not all Wi-Fi bands are the same, but
you don’t need to worry about that.
With Smart Connect Technology, the
ULTRA Wi-Fi Modem Router chooses
from the three Wi-Fi bands and
automatically connects each device
on your network to the best, clearest
band available for the best
connection every time

Advanced AC SmartBeam

Advanced AC SmartBeam technology
brings you the future of high-bandwidth
Wi-Fi connectivity, vastly increasing the
speed and coverage of your network. This
allows you to stream HD video, make
Internet calls, provide lag-free online
gaming and surf the Internet from every
corner of your home without interruption.

The high-power external antennas send
the signal into the furthest corners of your
home, giving you a strong connection
wherever you are.

More and More Devices

Today's households are connecting more
devices to the Internet than ever before –
with more and more iPhones, Androids,
tablets, and laptops laying around in any
given home, it's important that each device
gets the speed and coverage it deserves.

Delivering Tri-Band AC3200 Wi-Fi with
Advanced AC SmartBeam technology to your
home network, the DSL-4320L is the perfect
solution for those looking to enjoy multiple
HD video streams, fast file transfers, and lag­free gaming/video chatting – all with less
wireless interference for maximum
throughput.

Anywhere, Anytime Access

The mydlink service offers you a simple and
easy solution to access your mydlink enabled
router from anywhere around the world via the
Internet.

The mydlink service gives you a single place to
view what’s happening at home in an instant
while you’re away. Monitor and control your
home network remotely while on the go.

Simply log into your account via mydlink.com
or download the mydlink enabled apps.

New Web User Interface

The redesigned user interface is not only easy
to use but also displays your router’s most
important information in an intuitive network
map so that you can see at a glance what is
happening on your network via a PC or on your
mobile device.

mydlink Lite/Plus

Quickly and easily manage your Cloud Routers from anywhere

Free mobile app for monitoring and controlling your network

Control and monitor your network from anywhere. Access
security and network information and view web browsing
history all through the free mydlink™ Lite app.

iOS, Android & Windows Phone

mydlink SharePort

Lets you access and play media stored on a USB drive

Free mobile app for accessing and sharing media stored on
any connected USB drive

Enjoy your videos, music and photos from your Smartphone
or Tablet. Just plug your storage into any mydlink SharePort­enabled D-Link router and easily access your files from any
device connected to the router, or over the Internet via your
mydlink account.

iOS & Android

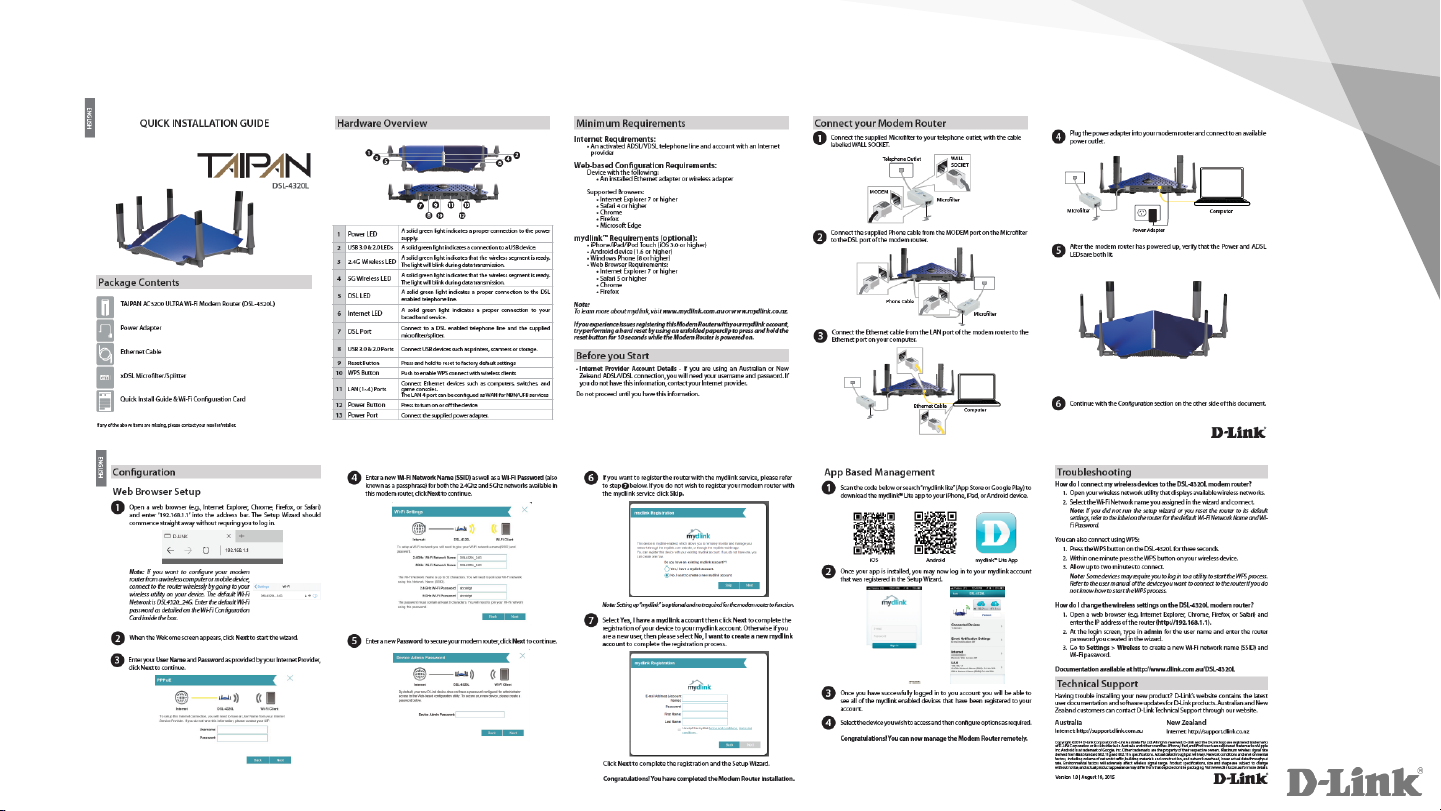

Simple Quick Install Guide (QIG)

Packaging

Thanks

www.dlink.com.au/DSL-4320L
