INSTALLATION AND MAINTENANCE INSTRUCTIONS

1451 Plug-in Ionization
Smoke Detector

Specifications

Size

Height: 2.4 inches (6.1 cm)
Diameter: 4.0 inches (10.1 cm)

Weight: 0.6 lb. (277 g)
Operating Temperature Range: 0° to +49°C (32° to 120°F)
Operating Humidity Range: 10% to 93% Relative Humidity Non-condensing
Latching Alarm: Reset by momentary power interruption.

Before installing

Please thoroughly read the System Sensor manual I56-407,
Applications Manual for System Smoke Detectors, which
provides detailed information on detector spacing, place­ment, zoning, wiring, and special applications. Copies of
this manual are available at no charge from System Sensor.
(For installation in Canada refer to CAN/ULC-S524, Stan-
dard for the Installation of Fire Alarm Systems, and CEC
Part 1, Sec. 32.)

Model 1451 has been approved for marine use in dry loca­tions by Underwriters Laboratory, Inc. The detector is to be
used in dry interior locations only.

Spacing

Spacing of 30 ft. on a smooth ceiling as per NFPA 72E.
Where conditions or response requirements vary, other
spacing may apply.

A Division of Pittway

3825 Ohio Avenue, St. Charles, Illinois 60174

1-800-SENSOR2, FAX: [phone]

NOTICE: This manual should be left with the owner/user
of this equipment.

IMPORTANT: This sensor must be tested and maintained
regularly following NFPA 72 requirements. This sensor
should be cleaned at least once a year.

General Description

Model 1451 dual chamber ionization detectors utilize state-of­the-art, unipolar sensing chambers. These detectors are de­signed to provide open area protection, and to be used with
compatible UL-listed control panels only. The capability of
plugging these detectors into a variety of special bases makes
them more versatile than equivalent direct-wired models.

Two LEDs on each detector light to provide a local 360° vis­ible alarm indication. Remote LED annunciator capability
is available as an optional accessory. These detectors also
have the latching alarm feature. The alarm can be reset
only by a momentary power interruption. For testing, these
detectors have an internal magnetically activated reed
switch.

Base Selection And Wiring Guide

Refer to the installation instructions for the plug-in detector
bases for wiring instructions. System Sensor has available a
variety of detector bases for this smoke detector, including 2­wire applications with and without relays and/or current lim­iting resistors, 4-wire and 120VAC applications. (Note: the
120VAC detector base is not available in Canada.)

All bases are provided with screw terminals for power,
ground, remote annunciator connections, and relay contact
connections, if applicable. The electrical ratings for each
detector-base combination are also included in the base in­stallation instructions.

D400-01-01 1 I56-278-05

Technical Manuals Online! - http://www.tech-man.com

Installation

NOTE: All wiring must conform to applicable local codes,

ordinances, and regulations.

NOTE: Verify that all detector bases are installed, that the

initiating-device circuits have been tested, and that
the wiring is correct.

CAUTION

Dust covers can be used to help limit dust entry to the de­tector, but they are not a substitute for removing the detec­tor during building construction. Remove any dust covers
before placing system in service.

WARNING

Remove power from initiating-device circuits before install­ing detectors.

1. Install Detectors:
a. Place the detector into the detector base.
b. Turn the detector clockwise until the detector drops

into place.

c. Continue turning detector clockwise to lock it in

place.

2. Tamper-proof Feature
The detector bases include a feature that, when acti­vated, prevents removal of the detector without the use
of a tool. See the installation instruction manual of the
detector base for details in using this feature.

3. After all detectors have been installed, apply power to
the control unit.

4. Test the detector as described under TESTING.

5. Reset the detector at the system control panel.

Testing

Before testing, notify the proper authorities that the smoke
detector system is undergoing maintenance and will tem­porarily be out of service. Disable the zone or system un­dergoing maintenance to prevent unwanted alarms.

Detectors must be tested after installation and periodic
maintenance. The 1451 may be tested as follows:

Before testing the detector, look for the presence of the
flashing LEDs. If they do not flash, either power has been
lost to the detector (check the wiring), or it is defective (re­turn for repair).

A. Test Magnet (System Sensor Model No. M02-04-00)

1. Place the magnet against the cover opposite the test
module socket. (See Figure 1.)

2. The LEDs on the detector should latch on within 30
seconds.

3. Reset the detector at the system control panel.

6. Notify the proper authorities that the system is in
operation.

Figure 1. Botom and side views showing test magnet position:

LED

TEST MODULE

SOCKET

LED

TEST

MAGNET

PAINTED

SURFACE

TEST

MAGNET

A78-1161-00

D400-01-01 2 I56-278-05

Technical Manuals Online! - http://www.tech-man.com

B. Test Module (System Sensor Model No. MOD400R)

The MOD400 or MOD400R is used with a digital or ana­log voltmeter to check the detector sensitivity as de­scribed in the test module’s manual.

4. After cleaning, snap the screen into the cover, then place
the cover and screen assembly on the detector, turning
clockwise until it is locked in place.

5. Reinstall the detector.

C. Aerosol Generator (Gemini 501)

Set the generator to represent 4%/ft. to 5%/ft. obscura­tion as described in the Gemini 501 manual. Using the
bowl shaped applicator, apply aerosol until unit alarms.

Notify the proper authorities that the system is back on
line.

Detectors that fail these tests should be cleaned as de­scribed under MAINTENANCE and retested. If the detec­tors still fail these tests they should be returned for repair.

Maintenance

It is recommended that the detector be removed from its
mounting base to facilitate easier cleaning. The detector is
cleaned as follows:

NOTE: Before removing the detector, notify the proper au-

thorities that the smoke detector system is under­going maintenance, and will temporarily be out of
service. Disable the zone or system undergoing
maintenance to prevent unwanted alarms.

6. Test the detector as described under TESTING.

7. Notify the proper authorities that the system is back on
line.

Figure 2:

REMOVABLE 
COVER
FOR
CLEANING

REMOVABLE SCREEN
(P/N RS14)

1. Remove the detector screen and cover assembly by de­pressing the three lock prongs on the top of the cover,
rotating the cover counterclockwise, and pulling the
screen and cover assembly away from the detector. (See
Figure 2.) Usage of a System Sensor CRT400 cover re­moval tool is recommended.

2. Remove the screen from the cover.

3. Use a vacuum cleaner to remove dust from the screen,
the cover, and the sensing chamber.

LOCK PRONG

SENSING CHAMBER

A78-2340-00

D400-01-01 3 I56-278-05

Technical Manuals Online! - http://www.tech-man.com

WARNING

The Limitations of Property Protection Smoke Detectors

This smoke detector is designed to activate and initiate emergency ac­tion, but will do so only when it is used in conjunction with an authorized
fire alarm system. This detector must be installed in accordance with
NFPA standard 72.

Smoke detectors will not work without power. AC or DC powered
smoke detectors will not work if the power supply is cut off.

Smoke detectors will not sense fires which start where smoke does not
reach the detectors. Smoldering fires typically do not generate a lot of

heat which is needed to drive the smoke up to the ceiling where the
smoke detector is usually located. For this reason, there may be large de­lays in detecting a smoldering fire with either an ionization type detector
or a photoelectric type detector. Either one of them may alarm only after
flaming has initiated which will generate the heat needed to drive the
smoke to the ceiling.

Smoke from fires in chimneys, in walls, on roofs or on the other side of a
closed door(s) may not reach the smoke detector and alarm it. A detector
cannot detect a fire developing on another level of a building quickly or at
all. For these reasons, detectors shall be located on every level and in

every bedroom within a building.

Smoke detectors have sensing limitations, too. Ionization detectors and

photoelectric detectors are required to pass fire tests of the flaming and

smoldering type. This is to ensure that both can detect a wide range of
types of fires. Ionization detectors offer a broad range of fire sensing capa­bility but they are somewhat better at detecting fast flaming fires than
slow smoldering fires. Photoelectric detectors sense smoldering fires better
than flaming fires which have little, if any, visible smoke. Because fires de­velop in different ways and are often unpredictable in their growth, nei­ther type of detector is always best, and a given detector may not always
provide early warning of a specific type of fire.

In general, detectors cannot be expected to provide warnings for fires re­sulting from inadequate fire protection practices, violent explosions, es­caping gases which ignite, improper storage of flammable liquids like
cleaning solvents which ignite, other similar safety hazards, arson, smok­ing in bed, children playing with matches or lighters, etc. Smoke detectors
used in high air velocity conditions may have a delay in alarm due to dilu­tion of smoke densities created by frequent and rapid air exchanges. Addi­tionally, high air velocity environments may create increased dust
contamination, demanding more frequent maintenance.

Smoke detectors cannot last forever. Smoke detectors contain electronic
parts. Even though smoke detectors are made to last over 10 years, any
part can fail at any time. Therefore, smoke detectors shall be replaced after
being in service for 10 years. The smoke detector system that this detector
is used in must be tested regularly per NFPA 72. This smoke detector
should be cleaned regularly per NFPA 72 or at least once a year.

Three-Year Limited Warranty

System Sensor warrants its enclosed smoke detector to be free from de­fects in materials and workmanship under normal use and service for a
period of three years from date of manufacture. System Sensor makes no
other express warranty for this smoke detector. No agent, representative,
dealer, or employee of the Company has the authority to increase or alter
the obligations or limitations of this Warranty. The Company’s obligation
of this Warranty shall be limited to the repair or replacement of any part of
the smoke detector which is found to be defective in materials or work­manship under normal use and service during the three year period com­mencing with the date of manufacture. After phoning System Sensor’s toll
free number 800-SENSOR2 (736-7672) for a Return Authorization number,
send defective units postage prepaid to: System Sensor, Repair Depart-

D400-01-01 4 I56-278-05

Technical Manuals Online! - http://www.tech-man.com

ment, RA #__________, 3825 Ohio Avenue, St. Charles, IL 60174. Please
include a note describing the malfunction and suspected cause of failure.
The Company shall not be obligated to repair or replace units which are
found to be defective because of damage, unreasonable use, modifica­tions, or alterations occurring after the date of manufacture. In no case
shall the Company be liable for any consequential or incidental damages
for breach of this or any other Warranty, expressed or implied whatsoever,
even if the loss or damage is caused by the Company’s negligence or fault.
Some states do not allow the exclusion or limitation of incidental or conse­quential damages, so the above limitation or exclusion may not apply to
you. This Warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.

© System Sensor 1996

INSTALLATION AND MAINTENANCE INSTRUCTIONS

2451 and 2451TH Photoelectronic
Plug-in Smoke Detectors

Specifications

Size

Height: 2.4 inches (61 cm)

Add 0.5 inches (13 cm) for thermal model 2451TH

Diameter: 4.0 inches (101 cm)

Weight: 0.5 lb. (277 g)
Operating Temperature Range: 0° to 49°C (32° to 120°F)
Operating Humidity Range: 10% to 93% Relative Humidity
Maximum Air Velocity: 3000 Ft./Min. (15 M/S)
Locking Alarm: Reset by momentary power interruption
Fixed Temperature Thermal: 135°F (57°C)

Before Installing

Please thoroughly read the System Sensor publication, I56­407, Applications Guide for System Smoke Detectors, which
provides detailed information on detector spacing, place­ment, zoning, wiring, and special applications. Copies of
this guide are available at no charge from System Sensor.
(For installations in Canada, refer to CAN4-S524, Standard
for the Installation of Fire Alarm Systems and CEC Part 1,
Sec. 32.)

NOTICE: This manual should be left with the owner/user
of this equipment.

Two LEDs on each detector light to provide a local 360° vis­ible alarm indication. They flash every ten seconds indicat­ing that power is applied and the detector is operating
properly. The LEDs light continuously in alarm. Remote
LED annunciator capability is available as an optional ac­cessory. These detectors also have the Latching Alarm fea­ture. The alarm can be reset only by a momentary power
interruption. These detectors may be tested by activating
the internal reed switch with a magnet, or by inserting a
calibrated test card in a test slot after removing the detector
cover.

A Division of Pittway

3825 Ohio Avenue, St. Charles, Illinois 60174

1-800-SENSOR2, FAX: [phone]

IMPORTANT: This sensor must be tested and maintained
regularly following NFPA 72 requirements. This sensor
should be cleaned at least once a year.

General Description

The 2451 photoelectronic detectors utilize state-of-the-art,
optical sensing chambers. These detectors are designed to
provide open area protection, and to be used with compat­ible UL-listed control panels only. Model 2451TH has the
same specifications as Model 2451, with the addition of a
built-in fixed temperature (135°F - 57°C) thermal detection
unit. The capability of plugging these detectors into a vari­ety of special bases makes them more versatile than
equivalent direct-wired models.

D400-02-01 1 I56-277-08

Technical Manuals Online! - http://www.tech-man.com

The 2451 has been approved for marine use in dry locations
by Underwriters Laboratory, Inc. The detector is to be used
in dry interior locations only.

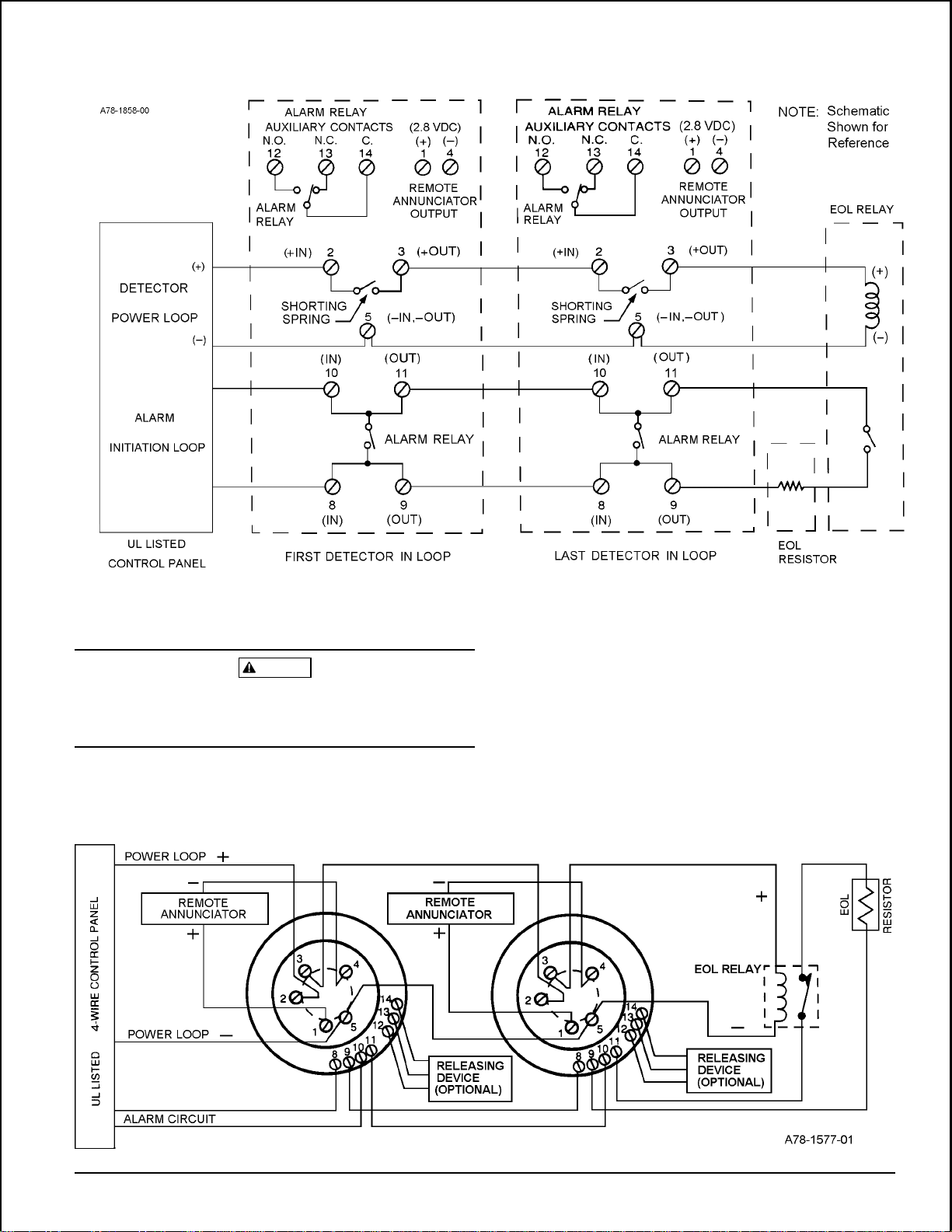

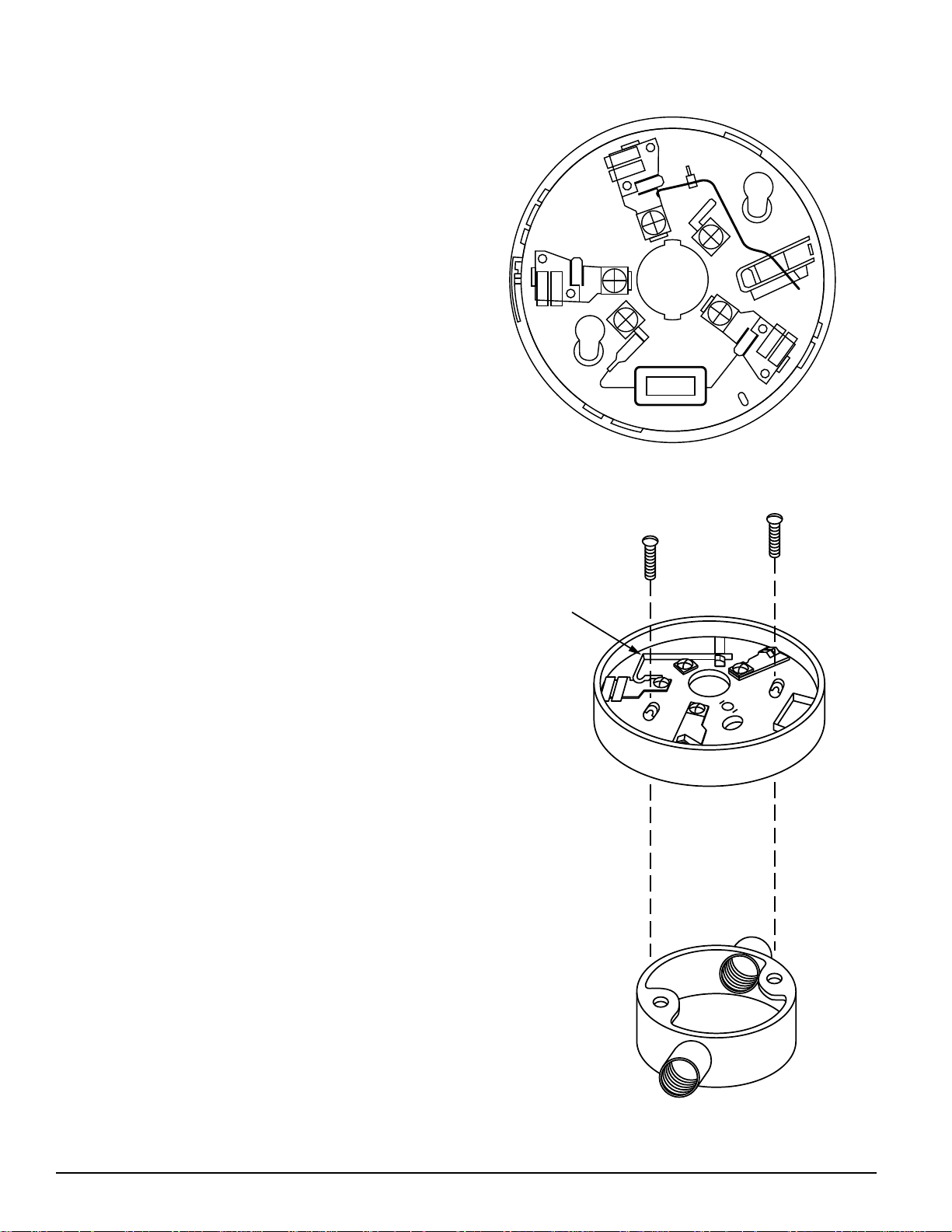

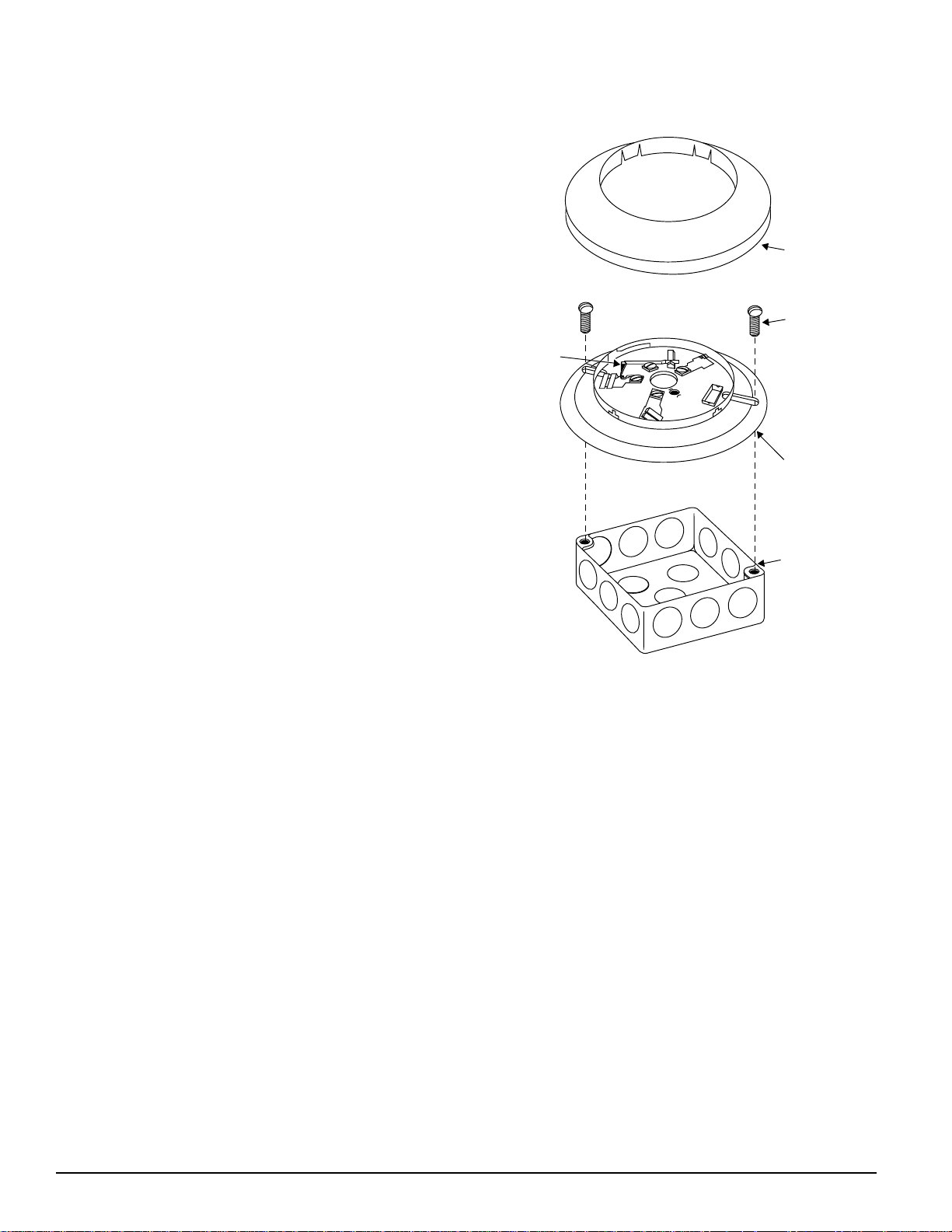

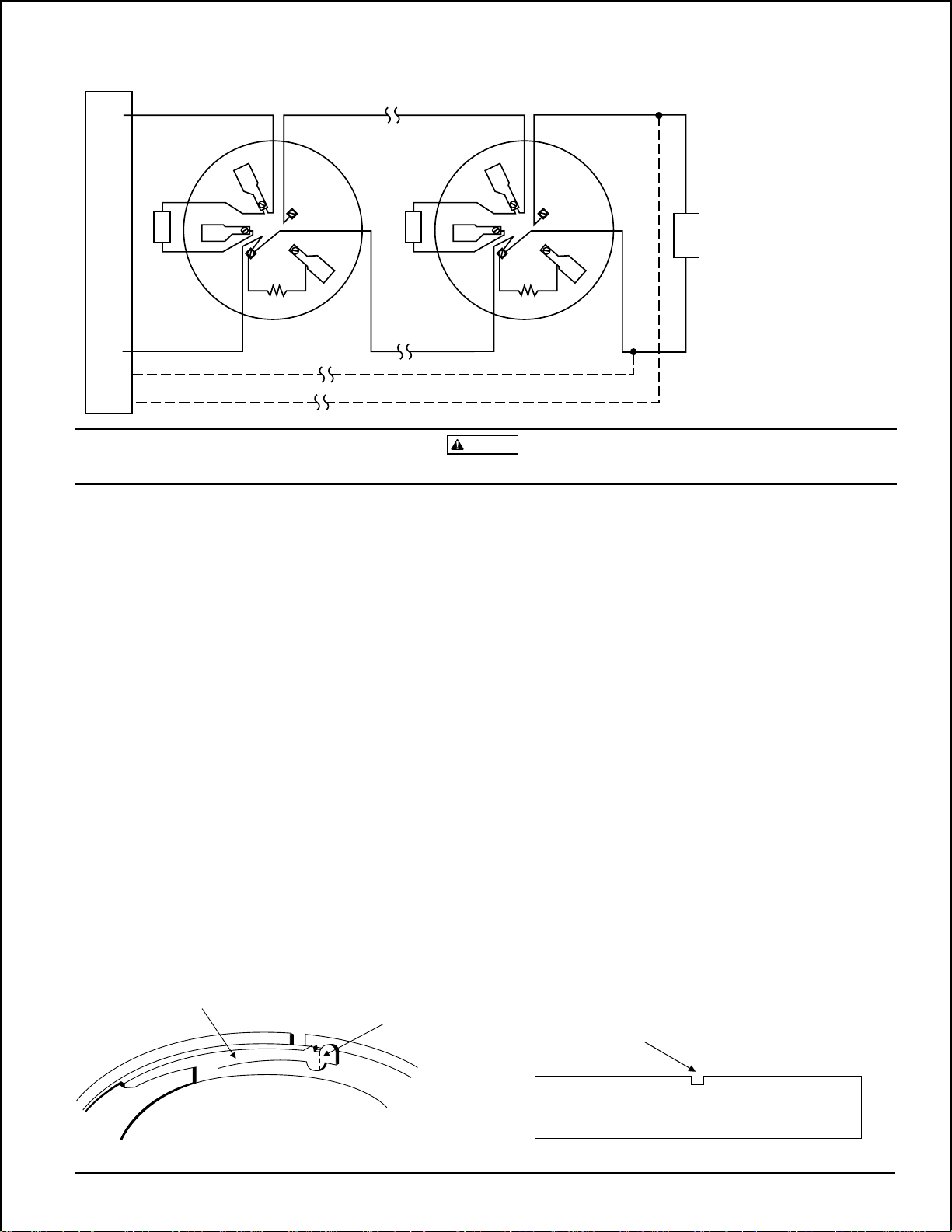

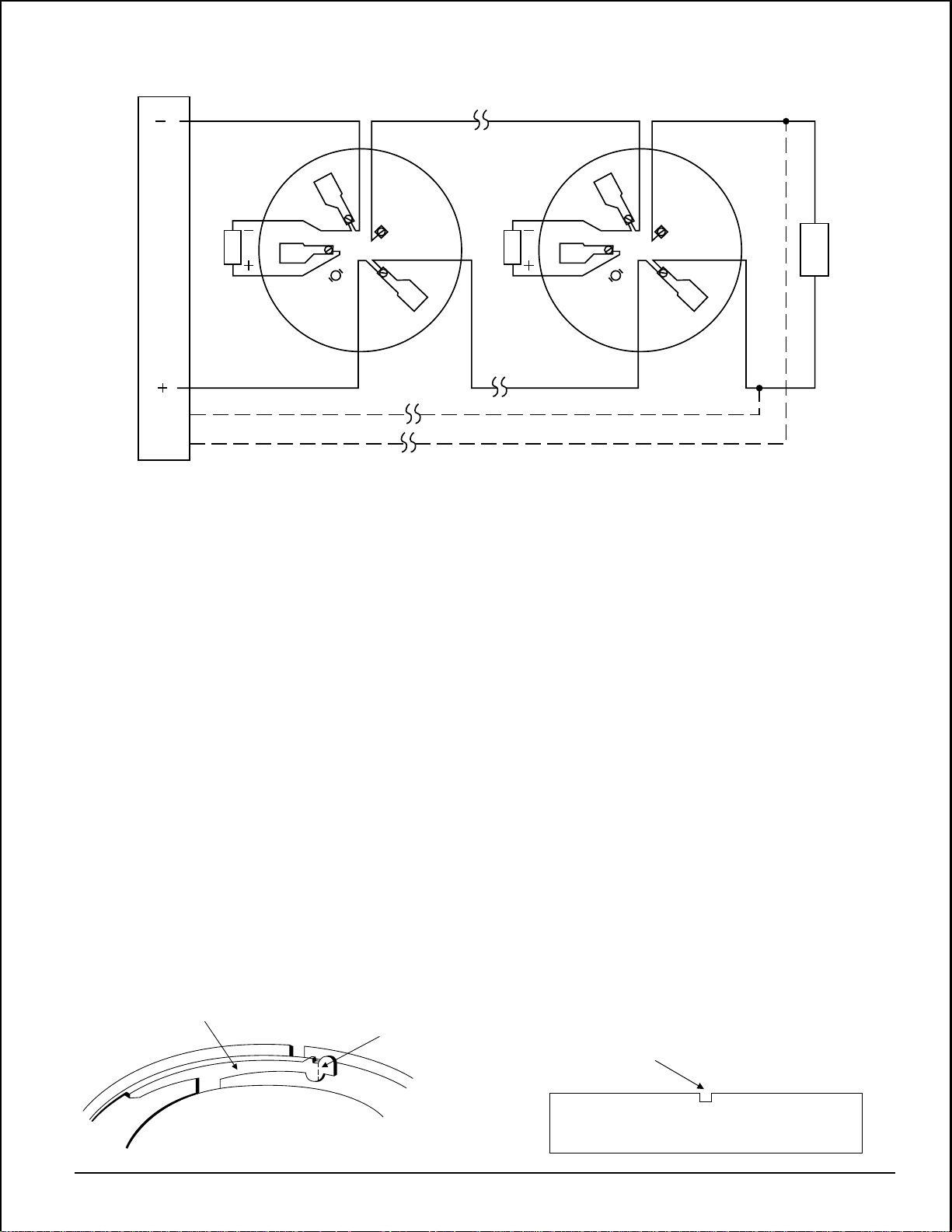

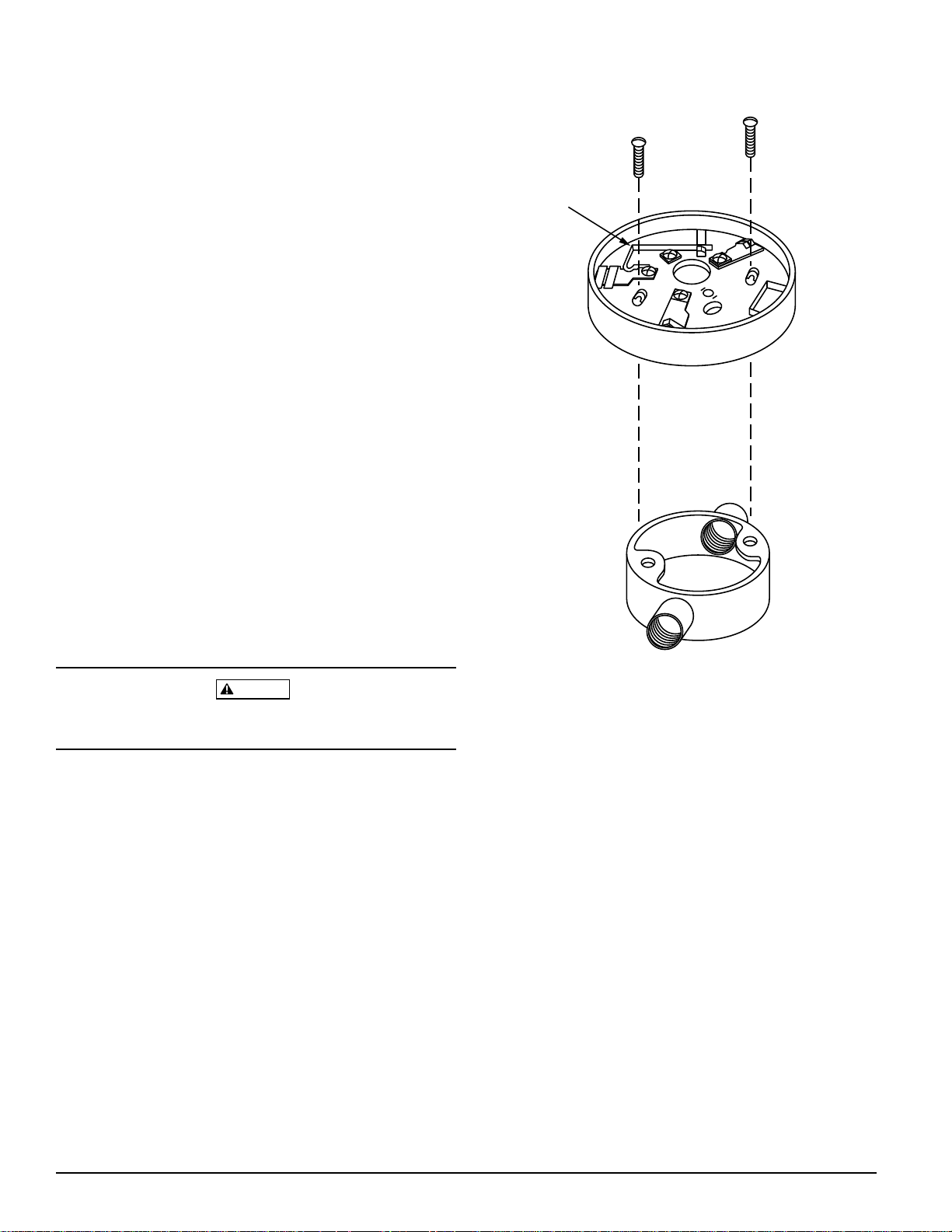

Base Selection and Wiring Guide

Refer to the installation instructions for the Plug-in Detec­tor Bases for base selection and wiring instructions. System
Sensor has a variety of detector bases available for this
smoke detector. This includes 2-wire applications with and
without relays and/or current limiting resistors, 4-wire and
120VAC applications. (Note: the 120VAC detector base is
not available in Canada.)

All bases are provided with screw terminals for power,
ground, remote annunciator connections and relay contact
connections, if applicable. The electrical ratings for each
detector-base combination are also included in the base
installation instructions.

Installation

NOTE: Wiring must conform to applicable local codes, or-

dinances, and regulations.

3. Afer all detectors have been installed, apply power to the
control unit.

NOTE: Verify that all detector bases are installed, that the

initiating-device circuits have been tested, and that
the wiring is correct. (Refer to detector base
manual for testing procedure.)

WARNING

Disconnect power from initiating-device circuits before in­stalling detectors.

1. Install detectors:
a. Place the detector into the detector base
b. Turn the detector clockwise until the detector drops

into place.

c. Continue turning detector clockwise to lock it in

place.

2. Tamper-Resistance: This detector includes a tamper-re­sistant feature that prevents removal of the detector
without the use of a tool. To make the detector tamper­resistant, break off the smaller tab at the scribed line on
the tamper-resistant tab, on the detector mounting
bracket, then install the detector. To remove the detector
from the bracket once it has been made tamper-resis­tant, use a pocket screwdriver, or similar tool, to depress
the tamper-resistant tab located in the slot on the
mounting bracket. Then, turn the detector counterclock­wise until it separates from the base.

4. Test the detector using the magnet or the test card as de­scribed under TESTING.

5. Reset the detector at the system control panel.

6. Notify the proper authorities that the system is back on
line.

CAUTION

Dust covers can be used to help limit dust entry to the de­tector, but they are not a substitute for removing the detec­tor during building construction. Remove any dust covers
before placing system in service.

Figure 1. Bottom and side views showing position of test magnet:

LED

PAINTED

TEST MODULE

SOCKET

TEST

MAGNET

SURFACE

TEST

MAGNET

LED

D400-02-01 2 I56-277-08

Technical Manuals Online! - http://www.tech-man.com

A78-1213-00

Testing

Before testing, notify the proper authorities that the smoke
detector system is undergoing maintenance and will tem­porarily be out of service. Disable the zone or system un­dergoing maintenance to prevent unwanted alarms.

Detectors must be tested after installation and periodic
maintenance. To test the 2451:

NOTE: Before testing the detector, check to ensure that the

LEDs are blinking. If they are not, the detector has
lost power (check the wiring) or it is defective (re­turn for repair).

E. Direct Heat Test (2451TH only)

To test the bi-metallic thermal collector, aim a heat
source, such as a low powered heat gun or blow dryer,
across the detector. Hold the heat source about 12 inches
(30 cm) from the detector to avoid damaging the plastic.

When the temperature rises to greater than 135°F
(57°C), the detector should latch into the alarm. The bi­metallic collector automatically resets after the test.

Notify the proper authorities that the detection system is
back on line.

A. Test Magnet (System Sensor model no. M02-04-00)

1. Place the magnet against the cover opposite the test
module slot to activate the test feature (see Figure 1).

2. The LEDs should latch on within 5 seconds indicating
alarm and annunciating the panel.

B. Calibrated Test Card (System Sensor no. R59-18-00)

1. Remove the detector cover by placing a small bladed
screwdriver in the side slot of the detector cover,
twisting it slightly until the cover can be turned coun­terclockwise for removal.

2. Insert the NO ALARM end of the test card fully into
the test slot (see Figure 2) then slide it counterclock­wise until it stops.

3. Wait for at least 20 seconds. The detector should NOT
alarm.

4. Remove the test card by sliding it clockwise before re­moving, then insert the ALARM end.

5. The LEDs should latch on within 20 seconds indicat­ing alarm and annunciating the panel.

6. Put the cover back by gently rotating it clockwise un­til it locks in place.

C. Test Module (System Sensor no. MOD400R)

The MOD400R is used with your DMM or voltmeter to
check the detector sensitivity as described in the
MOD400R’s manual.

Detectors that fail these tests should be cleaned as de­scribed under MAINTENANCE and retested. If the detec­tors still fail these tests they should be returned for repair.

Figure 2:

REMOVABLE HEAD COVER

TEST SLOT

CLEANABLE SCREEN

P/N RS24 (W/O THERMAL)

HEAD COVER
REMOVAL SLOT

VANED CHAMBER

D. Aerosol Generator (Gemini 501)

Set the generator to represent 4% to 5%/Ft. obscuration
as described in the Gemini 501 Manual. Using the bowl
shaped applicator, apply aerosol until the unit alarms.

D400-02-01 3 I56-277-08

Technical Manuals Online! - http://www.tech-man.com

A78-1213-01

Maintenance

It is recommended that the detector be removed from its
mounting base to facilitate easier cleaning. The detector is
cleaned as follows:

NOTE: Before removing the detector, notify the proper

authorities that the smoke detector system is un­dergoing maintenance and will temporarily be out
of service. Disable the zone or system undergoing
maintenance to prevent unwanted alarms.

1. Remove the detector cover by placing a small bladed
screwdriver in the side slot of the detector cover, twist­ing it slightly until the cover can be turned counterclock­wise for removal.

2. Vacuum the screen carefully without removing it. If fur­ther cleaning is required continue with Step 3, otherwise
skip to Step 6.

The Limitations of Property Protection Smoke Detectors

This smoke detector is designed to activate and initiate emergency ac­tion, but will do so only when it is used in conjunction with an authorized
fire alarm system. This detector must be installed in accordance with
NFPA standard 72.

Smoke detectors will not work without power. AC or DC powered
smoke detectors will not work if the power supply is cut off.

Smoke detectors will not sense fires which start where smoke does not
reach the detectors. Smoldering fires typically do not generate a lot of

heat which is needed to drive the smoke up to the ceiling where the
smoke detector is usually located. For this reason, there may be large de­lays in detecting a smoldering fire with either an ionization type detector
or a photoelectric type detector. Either one of them may alarm only after
flaming has initiated which will generate the heat needed to drive the
smoke to the ceiling.

Smoke from fires in chimneys, in walls, on roofs or on the other side of a
closed door(s) may not reach the smoke detector and alarm it. A detector
cannot detect a fire developing on another level of a building quickly or at
all. For these reasons, detectors shall be located on every level and in

every bedroom within a building.

Smoke detectors have sensing limitations, too. Ionization detectors and

photoelectric detectors are required to pass fire tests of the flaming and

3. Remove the screen by pulling it straight out (see Figure

2). Vacuum the inside.

4. Clean the vaned chamber piece by vacuuming or blow­ing out dust and particles.

5. To replace the screen, orient it so that the arrow on top
aligns with the test module socket of the detector. Care­fully push the screen onto the base making sure it fits
tightly to the chamber.

6. Replace the cover by gently rotating it clockwise until it
locks in place.

7. Reinstall the detector.

8. Notify the proper authorities that the system is back on
line.

WARNING

smoldering type. This is to ensure that both can detect a wide range of
types of fires. Ionization detectors offer a broad range of fire sensing capa­bility but they are somewhat better at detecting fast flaming fires than
slow smoldering fires. Photoelectric detectors sense smoldering fires better
than flaming fires which have little, if any, visible smoke. Because fires de­velop in different ways and are often unpredictable in their growth, nei­ther type of detector is always best, and a given detector may not always
provide early warning of a specific type of fire.

In general, detectors cannot be expected to provide warnings for fires re­sulting from inadequate fire protection practices, violent explosions, es­caping gases which ignite, improper storage of flammable liquids like
cleaning solvents which ignite, other similar safety hazards, arson, smok­ing in bed, children playing with matches or lighters, etc. Smoke detectors
used in high air velocity conditions may have a delay in alarm due to dilu­tion of smoke densities created by frequent and rapid air exchanges. Addi­tionally, high air velocity environments may create increased dust
contamination, demanding more frequent maintenance.

Smoke detectors cannot last forever. Smoke detectors contain electronic
parts. Even though smoke detectors are made to last over 10 years, any
part can fail at any time. Therefore, smoke detectors shall be replaced after
being in service for 10 years. The smoke detector system that this detector
is used in must be tested regularly per NFPA 72. This smoke detector
should be cleaned regularly per NFPA 72 or at least once a year.

Three-Year Limited Warranty

System Sensor warrants its enclosed smoke detector to be free from de­fects in materials and workmanship under normal use and service for a
period of three years from date of manufacture. System Sensor makes no
other express warranty for this smoke detector. No agent, representative,
dealer, or employee of the Company has the authority to increase or alter
the obligations or limitations of this Warranty. The Company’s obligation
of this Warranty shall be limited to the repair or replacement of any part of
the smoke detector which is found to be defective in materials or work­manship under normal use and service during the three year period com­mencing with the date of manufacture. After phoning System Sensor’s toll
free number 800-SENSOR2 (736-7672) for a Return Authorization number,
send defective units postage prepaid to: System Sensor, Repair Depart-

D400-02-01 4 I56-277-08

Technical Manuals Online! - http://www.tech-man.com

ment, RA #__________, 3825 Ohio Avenue, St. Charles, IL 60174. Please
include a note describing the malfunction and suspected cause of failure.
The Company shall not be obligated to repair or replace units which are
found to be defective because of damage, unreasonable use, modifica­tions, or alterations occurring after the date of manufacture. In no case
shall the Company be liable for any consequential or incidental damages
for breach of this or any other Warranty, expressed or implied whatsoever,
even if the loss or damage is caused by the Company’s negligence or fault.
Some states do not allow the exclusion or limitation of incidental or conse­quential damages, so the above limitation or exclusion may not apply to
you. This Warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.

© System Sensor 1996

INSTALLATION AND MAINTENANCE INSTRUCTIONS

4451HT and 4451HTA Plug-in
Fixed Intermediate Temperature
Thermal Detectors

Specifications

Diameter: 4.1 inches (104 mm)
Height: 2.1 inches (53 mm)
Weight: 5 ounces (150 g)
Installation Temperatures: 32° to 150°F (0° to 66°C)
Operating Humidity Range: 10% to 93% Relative Humidity
Latching Alarm: Reset by momentary power interruption
Sensitivity: 190°F (88°C)
Operating Voltage: 15-35 VDC
Standby Current: 100 µA

Before Installing

This detector must be installed in compliance with the con­trol panel installation manual and meet the requirements of
the authority having jurisdiction. In addition, the National
Fire Protection Association has published codes, standards,
and recommended practices for the installation and use of
the above appliances (NFPA 72). For installation in Canada,
refer to CAN/ULC-S524 and CEC Part 1, Sec. 32. Therefore,
the installer must be familiar with these requirements, with
local codes, and any special requirements of the authority
having jurisdiction.

NOTICE: This manual should be left with the owner/user
of this equipment.

IMPORTANT: This detector must be tested and maintained
regularly following NFPA 72 requirements. The detector
should be cleaned at least once a year.

General Description

The 4451HT and 4451HTA detectors are fixed intermediate
temperature alarm thermal detectors utilizing a state-of­the-art dual thermistor sensing circuit. These detectors are
designed to be used with compatible control panels only.

Two LEDs on each detector light to provide 360° visibility
of the detector indication. Remote LED annunciator capa­bility is provided as standard, and the RA400Z remote LED
annunciator is available as an optional accessory.

Base Selection And Wiring Guide

Refer to the installation instructions for the plug-in detector
bases for base selection and wiring instructions. System
Sensor has available a variety of detector bases for these
heat detectors, including 2-wire applications with and
without relays and/or current limiting resistors for use with
control panels that require one. These detectors are only to
be used with 400 and 400B series bases.

A Division of Pittway

3825 Ohio Avenue, St. Charles, Illinois 60174

1-800-SENSOR2, FAX: [phone]

D400-54-00 1 I56-690-04

Technical Manuals Online! - http://www.tech-man.com

Install the System Sensor plug-in base to be used with the
detector following the instructions in the base manual.

Installation

NOTE: All wiring must conform to applicable installation

codes and regulations.

NOTE: Verify that all detector bases are installed, that the

initiating-device circuits have been tested, and that
the wiring is correct. (Refer to detector base
manual for testing procedure.)

Tamper-Resistance Feature

The detector bases include a feature that, when activated,
prevents removal of the detector without the use of a tool.
Refer to the installation instruction manual of the detector
base to make use of this capability.

2. After all detectors have been installed, apply power to
the control unit.

CAUTION

Disconnect the power from initiating-device circuits before
installing detectors.

1. Install Detectors:

a. Insert the detector into the detector base.
b. Turn the detector clockwise until the detector drops

into place.

c. Continue turning detector clockwise to lock it in place.

Figure 1. Test magnet position:

3. Test the detector using the magnet as described under
TESTING.

4. Reset the detector at the system control panel.

5. Notify the proper authorities the system is in operation.

D400-54-00 2 I56-690-04

Technical Manuals Online! - http://www.tech-man.com

Testing

Before testing, notify the proper authorities that the heat
detector system is undergoing maintenance, and therefore
the system will temporarily be out of service. Disable the
zone or system undergoing maintenance to prevent un­wanted alarms.

Detectors must be tested after installation and periodic
maintenance. Test the detector as follows:

Maintenance

The 4451HT and 4451HTA detectors have been designed to
be as maintenance-free as possible. Normal air-borne dust,
however, can accumulate on the detector’s sensing ele­ments and cause them to become less sensitive. All detec­tors should be tested and cleaned at least once a year, and
those in dustier areas should be tested and cleaned more
often. Detectors must also be cleaned and tested immedi­ately after a fire.

A. Test Magnet (System Sensor Model M02-04)

1. Position the magnet against the cover opposite the
test module socket. (See Figure 1.)

2. The LEDs on the detector should light within 10 sec­onds. If the LEDs fail to light, check the power to the
detector and the wiring in the detector base.

3. Reset the detector at the system control panel.

B. Test Module (System Sensor Model MOD400R)

The MOD400R is used with a DMM or voltmeter to
check the detector sensitivity as described in the
module’s manual.

C. Direct Heat Method (Heat Gun)

1. From the side of the detector, direct the heat toward
the sensor. Hold the heat source about 15 cm away to
prevent damage to the cover during testing.

Before cleaning, notify the proper authorities that the sys­tem is undergoing maintenance and therefore the system
will temporarily be out of service. Disable the loop or sys­tem undergoing maintenance to prevent unwanted alarms.

1. Remove detector from mounting base.

2. Use a vacuum cleaner to remove dust from the sensing
chamber.

3. Reinstall the detector.

4. Test the detector as described under TESTING.

CAUTION

Avoid exposing the detector cover to the heat source for
more than 15 seconds. Extended periods of extreme heat
can melt the plastic and damage the cover.

NOTE: If a detector goes into alarm, it will reset only if the

detector has cooled and if its power is momentarily
interrupted. Check the control panel being used to
determine whether the RESET switch (or some
other auxiliary device or control) momentarily cuts
off power to the detector loop.

Detectors that fail these tests should be cleaned as de­scribed under MAINTENANCE and retested. If the detec­tors still fail these tests they should be returned for repair.

D400-54-00 3 I56-690-04

Technical Manuals Online! - http://www.tech-man.com

The Limitations of Property Protection Heat Detectors

This heat detector is designed to activate and initiate emergency action,
but will do so only when it is used in conjunction with an authorized fire
alarm system. This detector must be installed in accordance with NFPA
Standard 72.

Heat detectors will not work without power. AC or DC-powered smoke
detectors will not work if the power supply is cut off for any reason.

Heat detectors are designed to protect property, not life. They do not
provide early warning of fire and cannot detect smoke, gas, combustion
particles, or flame. They alarm when temperatures at the heat detector
reach 57°C (135°F). Given the rapid growth of certain types of fires, heat
detectors cannot be expected to provide adequate warning of fires
resulting from smoking in bed, inadequate fire protection practices,
violent explosions, escaping gas, improper storage of flammable liquids
like cleaning solvents, other safety hazards, or arson.

Three-Year Limited Warranty

System Sensor warrants its enclosed heat detector to be free from defects
in materials and workmanship under normal use and service for a period
of three years from date of manufacture. System Sensor makes no other
express warranty for this heat detector. No agent, representative, dealer, or
employee of the Company has the authority to increase or alter the obliga­tions or limitations of this Warranty. The Company’s obligation of this
Warranty shall be limited to the repair or replacement of any part of the
heat detector which is found to be defective in materials or workmanship
under normal use and service during the three year period commencing
with the date of manufacture. After phoning System Sensor’s toll free
number 800-SENSOR2 (736-7672) for a Return Authorization number,
send defective units postage prepaid to: System Sensor, Repair Depart-

WARNING

Heat detectors do not always detect fires because the fire may be a
slow-smoldering, low-heat type (producing smoke), or because they
may not be near where the fire occurs, or because the heat of the fire
may bypass them. Heat detectors will not detect smoke, gas, flames, or

combustion particles.

Heat detectors are components in professionally-installed fire alarm
systems. They will not function if they have been improperly wired

into the fire alarm system or if power to them is cut off for any reason.

Heat detectors cannot last forever. They should be tested and maintained

following the instructions in this manual. To be safe, they should be
replaced 15 years after installation.

Refer to NFPA 72 for application.

ment, RA #__________, 3825 Ohio Avenue, St. Charles, IL 60174. Please
include a note describing the malfunction and suspected cause of failure.
The Company shall not be obligated to repair or replace units which are
found to be defective because of damage, unreasonable use, modifica­tions, or alterations occurring after the date of manufacture. In no case
shall the Company be liable for any consequential or incidental damages
for breach of this or any other Warranty, expressed or implied whatsoever,
even if the loss or damage is caused by the Company’s negligence or fault.
Some states do not allow the exclusion or limitation of incidental or conse­quential damages, so the above limitation or exclusion may not apply to
you. This Warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.

D400-54-00 4 I56-690-04

Technical Manuals Online! - http://www.tech-man.com

© System Sensor 1996

INSTALLATION AND MAINTENANCE INSTRUCTIONS

5451 Plug-in Rate-of-Rise
Thermal Detector with
Fixed Temperature Alarm

Specifications

Diameter: 4.1 inches (104 mm)
Height: 2.1 inches (53 mm)
Weight: 5 ounces (150 g)
Installation Temperatures: 32° to 100°F (0° to 38°C)
Operating Humidity Range: 10% to 93% Relative Humidity
Latching Alarm: Reset by momentary power interruption
Sensitivity 135°F (57°C) Fixed or 15°F/min rate-of-rise
Operating Voltage: 15-35 VDC
Standby Current: 100 µA

Before Installing

This detector must be installed in compliance with the
control panel installation manual and meet the require­ments of the authority having jurisdiction. In addition, the
National Fire Protection Association has published codes,
standards, and recommended practices for the installation
and use of detectors, NFPA 72.

(For installation in Canada, refer to CAN/ULC-S524, Stan­dard for the Installation of Fire Alarm Systems and CEC
Part 1, Sec. 32.)

General Description

Model 5451 is a rate-of-rise with fixed temperature alarm
thermal detector utilizing a state-of-the-art dual thermistor
sensing circuit. These detectors are designed to provide
open area protection with 50-foot spacing capability, and
are to be used with compatible control panels only.

Two LEDs on each detector light to provide 360° visibility
of the detector indication. Remote LED annunciator capa­bility is provided as standard, and the RA400Z remote LED
annunciator is available as an optional accessory.

A Division of Pittway

3825 Ohio Avenue, St. Charles, Illinois 60174

1-800-SENSOR2, FAX: [phone]

Therefore, the installer must be familiar with these re­quirements, with local codes, and any special require­ments of the authority having jurisdiction.

NOTICE: This manual should be left with the owner/user
of this equipment.

IMPORTANT: This detector must be tested and main­tained regularly following NFPA 72 requirements. The de­tector should be cleaned at least once a year.

Base Selection and Wiring Guide

Refer to the installation instructions for the plug-in detector
bases for base selection and wiring instructions. System
Sensor has available a variety of detector bases for these
heat detectors, including 2-wire applications with and
without relays and/or current limiting resistors for use with
control panels that require one. This detector is only to be
used with 400 and 400B series bases.

Install the System Sensor plug-in base to be used with the
detector following the instructions in the base manual.

D400-29-00 1 I56-580-03

Technical Manuals Online! - http://www.tech-man.com

Installation

NOTE: All wiring must conform to applicable installation

codes and regulations.

NOTE: Verify that all detector bases are installed, that the

initiating-device circuits have been tested, and that
the wiring is correct. (Refer to detector base
manual for testing procedure.)

WARNING

Disconnect the power from initiating-device circuits before
installing detectors.

Tamper Resistance

The detector bases include a feature that, when activated,
prevents removal of the detector without the use of a tool.
Refer to the installation instruction manual of the detector
base to make use of this capability.

Testing

Before testing, notify the proper authorities that the heat
detector system is undergoing maintenance, and therefore
the system will temporarily be out of service. Disable the
zone or system undergoing maintenance to prevent un­wanted alarms.

1. Install Detectors:

Detectors must be tested after installation and periodic

maintenance. The 5451 may be tested as follows:
a. Insert the detector into the detector base.
b. Turn the detector clockwise until the detector drops

A. Test Magnet (System Sensor Model No. M02-04)

into place.

c. Continue turning detector clockwise to lock it in

place.

2. After all detectors have been installed, apply power to
the control unit.

1. Position the magnet against the cover opposite the
test module socket. (See Figure 1.)

2. The LEDs on the detector should light within 10 sec­onds. If the LEDs fail to light, check the power to the
detector and the wiring in the detector base.

3. Test the detector using the magnet as described under
TESTING.

3. Reset the detector at the system control panel.

4. Reset the detector at the system control panel.

5. Notify the proper authorities that the system is in opera­tion.

Figure 1. Bottom and Side Views Showing Position of Test Magnet:

D400-29-00 2 I56-580-03

Technical Manuals Online! - http://www.tech-man.com

B. Test Module (System Sensor Model No. MOD400 or

MOD400R)

The MOD400 or MOD400R is used with a DMM or volt
meter to check the detector sensitivity as described in
the module’s manual.

C. Direct Heat Method (Hair dryer of 1000 - 1500 watts)

Maintenance

The 5451 detector has been designed to be as maintenance­free as possible. Normal air-borne dust, however, can accu­mulate on the detector’s sensing elements and cause them
to become less sensitive. All detectors should be tested and
cleaned at least once a year, and those in dustier areas
should be tested and cleaned more often. Detectors must
also be cleaned and tested immediately after a fire.

From the side of the detector, direct the heat toward the
sensor. Hold the heat source about 15 cm away to pre­vent damage to the cover during testing.

NOTE: If a detector goes into alarm, it will reset only if the

detector has cooled and if its power is momentarily
interrupted. Check the control panel being used to
determine whether the RESET switch (or some
other auxiliary device or control) momentarily cuts
off power to the detector loop.

Detectors that fail these tests should be cleaned as de­scribed under MAINTENANCE and retested. If the detec­tors still fail these tests they should be returned for repair.

Before cleaning, notify the proper authorities that the sys­tem is undergoing maintenance and therefore the system
will temporarily be out of service. Disable the loop or sys­tem undergoing maintenance to prevent unwanted alarms.

1. Remove detector from mounting base.

2. Use a vacuum cleaner to remove dust from the sensing
chamber.

3. Reinstall the detector.

4. Test detector as described under TESTING.

D400-29-00 3 I56-580-03

Technical Manuals Online! - http://www.tech-man.com

WARNING

The Limitations of Property Protection Heat Detectors

This heat detector is designed to activate and initiate emergency action,
but will do so only when it is used in conjunction with an authorized fire
alarm system. This detector must be installed in accordance with NFPA
Standard 72.

Heat detectors will not work without power. AC or DC-powered smoke
detectors will not work if the power supply is cut off for any reason.

Heat detectors are designed to protect property, not life. They do not
provide early warning of fire and cannot detect smoke, gas, combustion
particles, or flame. They alarm when temperatures at the heat detector
reach 57°C (135°F). Given the rapid growth of certain types of fires, heat
detectors cannot be expected to provide adequate warning of fires
resulting from smoking in bed, inadequate fire protection practices,
violent explosions, escaping gas, improper storage of flammable liquids
like cleaning solvents, other safety hazards, or arson.

Three-Year Limited Warranty

System Sensor warrants its enclosed heat detector to be free from defects
in materials and workmanship under normal use and service for a period
of three years from date of manufacture. System Sensor makes no other
express warranty for this heat detector. No agent, representative, dealer, or
employee of the Company has the authority to increase or alter the obliga­tions or limitations of this Warranty. The Company’s obligation of this
Warranty shall be limited to the repair or replacement of any part of the
heat detector which is found to be defective in materials or workmanship
under normal use and service during the three year period commencing
with the date of manufacture. After phoning System Sensor’s toll free
number 800-SENSOR2 (736-7672) for a Return Authorization number,
send defective units postage prepaid to: System Sensor, Repair Depart-

Heat detectors do not always detect fires because the fire may be a
slow-smoldering, low-heat type (producing smoke), or because they
may not be near where the fire occurs, or because the heat of the fire
may bypass them. Heat detectors will not detect smoke, gas, flames, or

combustion particles.

Heat detectors are components in professionally installed fire alarm
systems. They will not function if they have been improperly wired

into the fire alarm system or if power to them is cut off for any reason.

Heat detectors cannot last forever. They should be tested and maintained

following the instructions in this manual. To be safe, they should be
replaced after they have been installed for 15 years.

Refer to NFPA 72 for application.

ment, RA #__________, 3825 Ohio Avenue, St. Charles, IL 60174. Please
include a note describing the malfunction and suspected cause of failure.
The Company shall not be obligated to repair or replace units which are
found to be defective because of damage, unreasonable use, modifica­tions, or alterations occurring after the date of manufacture. In no case
shall the Company be liable for any consequential or incidental damages
for breach of this or any other Warranty, expressed or implied whatsoever,
even if the loss or damage is caused by the Company’s negligence or fault.
Some states do not allow the exclusion or limitation of incidental or conse­quential damages, so the above limitation or exclusion may not apply to
you. This Warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.

D400-29-00 4 I56-580-03

Technical Manuals Online! - http://www.tech-man.com

© System Sensor 1996

INSTALLATION AND MAINTENANCE INSTRUCTIONS

B401B Plug-in Detector Base

For use with the following smoke detectors:
1451, 2451, and 2451TH

Specifications

Base Diameter: 6.2 inches (15.7 cm)
Base Height: 1.1 inches (2.8 cm)
Weight: 0.3 lb. (130 g)
Mounting: 4-inch square box with or without plaster ring. Min. Depth–1.5 inches

4-inch octagon box. Min. Depth–1.5 inches
3-1/2 inch octagon box. Min. Depth–1.5 inches

Operating Temperature Range: 0° to +49°C (32° to 120°F)
Operating Humidity Range: 10% to 93% Relative Humidity, noncondensing
Electrical Ratings — includes base and detector
System Voltage: 12/24 VDC
Maximum Ripple Voltage: 4 Volts peak to peak
Start-up Capacitance: 0.02 µF Maximum
Standby Ratings: 8.5 VDC Minimum; 35 VDC Maximum

120 µA Maximum

Alarm Ratings: 4.2 VDC Minimum at 10 mA; 6.6 VDC Maximum at 100 mA

(Alarm current must be limited to 100 mA by the control panel. If used, the RA400

remote lamp operates within specified detector alarm currents.)
Reset Voltage: 2.5 VDC Minimum
Reset Time: 0.3 Seconds Maximum
Start-up Time: 34.0 Seconds Maximum

3825 Ohio Avenue, St. Charles, Illinois 60174

1-800-SENSOR2, FAX: [phone]

A Division of Pittway

Before Installing

Please thoroughly read the System Sensor manual I56-407,
Guide for Proper Use of System Smoke Detectors, which
provides detailed information on detector spacing, place­ment, zoning, wiring, and special applications. Copies of
this manual are available at no charge from System Sensor.
(For installations in Canada, refer to CAN4-S524, Standard
for the Installation of Fire Alarm Systems, and CEC Part 1,
Sec. 32.)

NOTICE: This manual should be left with the owner/user
of this equipment.

IMPORTANT: The detector used with this base must be
tested and maintained regularly following NFPA 72 require­ments. The detector used with this base should be cleaned
at least once a year.

General Description

The B401B plug-in detector base is used with System Sen­sor model 2451 and 2451TH photoelectronic detector heads
and model 1451A ionization detector heads. The capability
of plugging these detectors into a variety of special bases
makes them more versatile than equivalent direct-wired
models. Refer to the System Sensor catalog for other avail­able plug-in detector bases.

This base is intended for use in 2-wire systems, with screw
terminals provided for power, ground, and remote annun­ciator connections.

D450-01-01 1 I56-298-08

Technical Manuals Online! - http://www.tech-man.com

Mounting

This detector base mounts directly to 3-1/2-inch and 4-inch
octagon boxes, and 4-inch square boxes (with or without
plaster rings). To mount, remove the decorative ring by
turning it in either direction to unhook the snaps, then
separate the ring from the base.

Install the base to the box using the screws supplied with
the junction box and the appropriate mounting slots in the
base (see Figure 1). Place decorative ring onto base, then
turn in either direction until the ring snaps in place.

Installation Guidelines

All wiring must be installed in compliance with the Na­tional Electrical Code and the local codes having jurisdic­tion. Proper wire gauges should be used. The conductors
used to connect smoke detectors to control panels and ac­cessory devices should be color-coded to reduce the likeli­hood of wiring errors. Improper connections can prevent a
system from responding properly in the event of a fire.

For signal wiring (the wiring between interconnected de­tectors), it is recommended that the wire be no smaller
than 18 gauge (1.0 square mm). Wire sizes up to 12 gauge
wire (2.5 square mm) may be used with the base. For best
system performance, the power (+) and (–) loop wires
should be twisted pair and installed in separate grounded
conduit to protect the loop from extraneous electrical inter­ference.

Smoke detectors and alarm system control panels have
specifications for allowable loop resistance. Consult the
control panel manufacturer’s specifications for the total

Figure 1. Mounting base to box:

SNAP ON
DECORATIVE
RING

SCREWS (NOT

SHORTING
SPRING

SUPPLIED)

DETECTOR
BASE

BOX (NOT
SUPPLIED)

A78-1175-01

loop resistance allowed for the particular model control
panel being used before wiring the detector loops.

Locate installations where the normal ambient tempera­tures do not exceed 100° F.

Figure 2. Typical wiring diagram for 2-wire detector systems:

2

1

REMOTE

ANNUNCIATOR

2-WIRE CONTROL PANEL

D450-01-01 2 I56-298-08

3

4

REMOTE

ANNUNCIATOR

CLASS A OPTIONAL WIRING

2

1

3

4

E
O
L

Technical Manuals Online! - http://www.tech-man.com

A78-1175-04

Wiring Instructions

Tamper-resistance Feature

CAUTION

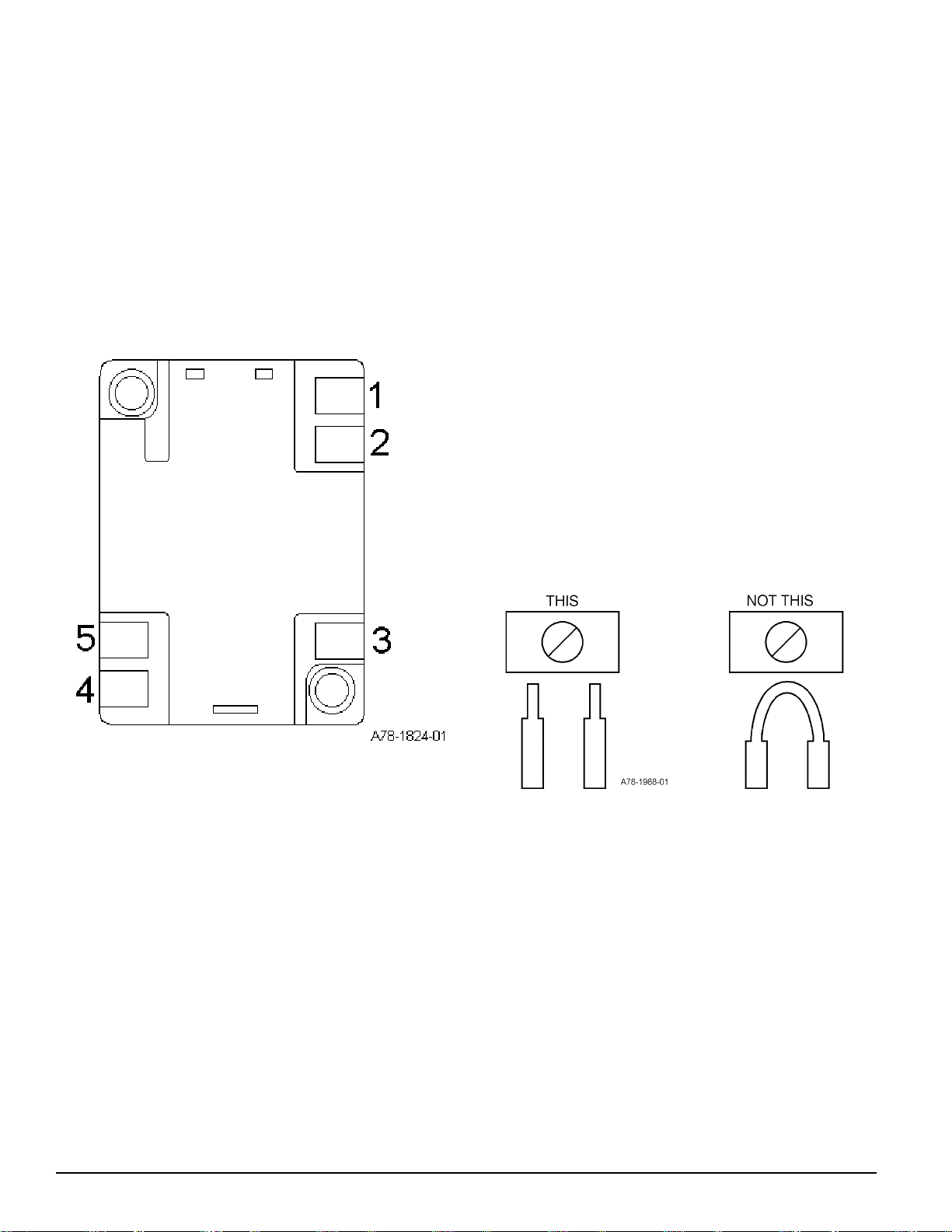

For system supervision — For terminals 2, 3, and 4 do not
use looped wire under terminals. Break wire run to provide
system supervision of connections.

Wire connections are made by simply stripping insulation
from the end of the wire, sliding the bare end of the wire
under the clamping plate, and tightening the clamping
plate screw. Use the strip gauge molded into the base for
ease of wiring to terminals 1 through 4.

System Sensor smoke detectors and mounting bases are
marked with a compatibility identifier located as the last
digit of a five digit code stamped on the back of the prod­uct. Connect detectors/mounting bases only to compatible
control units as indicated in System Sensor’s compatibility
chart which contains a current list of UL listed control units
and detector head/base combinations. A copy of this list is
available from System Sensor upon request.

The zone wiring of the detector base should be checked
before the detector heads are installed in them. To make
this possible, this base contains a special spring-type short­ing jumper. After a detector base is properly wired and
mounted on an electrical box, make sure that the jumper
spring is in contact with the base of Terminal 3. This tem­porary connection shorts the negative-in and negative-out
leads and permits the wiring of the loop to be checked for
continuity.

CAUTION

Do not use the tamper-resistance feature if the XR2 removal
tool is to be used.

The tamper-resistant tab, in the detector mounting bracket,
can make the detector tamper-resistant by making it neces­sary to use a small screwdriver or similar tool to detach the
detector from the bracket.

To make the detector tamper-resistant, use needle-nose pli­ers to break the smaller tab at the scribed line on the
tamper- resistance tab. Figure 3A shows the location of this
tab on the detector mounting bracket. To remove a detector
from the bracket after it has been made tamper resistant,
use a small screwdriver or other similar tool, to depress the
tamper-resistance tab in the slot on the mounting bracket,
and rotate the detector counterclockwise (see Figure 3B).

NOTE: The decorative ring must be removed before the

smoke detector can be detached from the base af­ter the tamper-resistant capability is enabled.

The tamper-resistance feature can be defeated by breaking
and removing the plastic lever from the base. However, this
prevents ever using the feature again.

Once all the detector bases have been wired and mounted,
and the loop wiring has been checked, the detector heads
may be installed in the bases. The shorting spring in the
base will disengage automatically when the detector head
is removed from the base. DO NOT remove the shorting
spring since it reengages as the detector head is turned into
the base, completing the circuit.

Figure 3A. Activating the tamper-resistance feature:

BREAK TAB AT

PLASTIC LEVER

D450-01-01 3 I56-298-08

DOTTED LINE BY
TWISTING TOWARD
CENTER OF BASE.

Technical Manuals Online! - http://www.tech-man.com

Figure 3B. Removing detector head from the base:

USE SMALL-BLADED
SCREWDRIVER TO
PUSH PLASTIC LEVER
IN DIRECTION OF
ARROW.

A78-1175-03

The Limitations of Property Protection Smoke Detectors

The smoke detector used with this base is designed to activate and ini­tiate emergency action, but will do so only when it is used in conjunction

with an authorized fire alarm system. This detector must be installed in
accordance with NFPA standard 72.

Smoke detectors will not work without power. AC or DC powered
smoke detectors will not work if the power supply is cut off.

Smoke detectors will not sense fires which start where smoke does not
reach the detectors. Smoldering fires typically do not generate a lot of

heat which is needed to drive the smoke up to the ceiling where the
smoke detector is usually located. For this reason, there may be large de­lays in detecting a smoldering fire with either an ionization type detector
or a photoelectric type detector. Either one of them may alarm only after
flaming has initiated which will generate the heat needed to drive the
smoke to the ceiling.

Smoke from fires in chimneys, in walls, on roofs or on the other side of a
closed door(s) may not reach the smoke detector and alarm it. A detector
cannot detect a fire developing on another level of a building quickly or at
all. For these reasons, detectors shall be located on every level and in

every bedroom within a building.

Smoke detectors have sensing limitations, too. Ionization detectors and

photoelectric detectors are required to pass fire tests of the flaming and

WARNING

smoldering type. This is to ensure that both can detect a wide range of
types of fires. Ionization detectors offer a broad range of fire sensing capa­bility but they are somewhat better at detecting fast flaming fires than
slow smoldering fires. Photoelectric detectors sense smoldering fires better
than flaming fires which have little, if any, visible smoke. Because fires de­velop in different ways and are often unpredictable in their growth, nei­ther type of detector is always best, and a given detector may not always
provide early warning of a specific type of fire.

In general, detectors cannot be expected to provide warnings for fires re­sulting from inadequate fire protection practices, violent explosions, es­caping gases which ignite, improper storage of flammable liquids like
cleaning solvents which ignite, other similar safety hazards, arson, smok­ing in bed, children playing with matches or lighters, etc. Smoke detectors
used in high air velocity conditions may have a delay in alarm due to dilu­tion of smoke densities created by frequent and rapid air exchanges. Addi­tionally, high air velocity environments may create increased dust
contamination, demanding more frequent maintenance.

Smoke detectors cannot last forever. Smoke detectors contain electronic
parts. Even though smoke detectors are made to last over 10 years, any
part can fail at any time. Therefore, smoke detectors shall be replaced after
being in service for 10 years. The smoke detector system that this detector
is used in must be tested regularly per NFPA 72. This smoke detector
should be cleaned regularly per NFPA 72 or at least once a year.

Three-Year Limited Warranty

System Sensor warrants its enclosed smoke detector base to be free from
defects in materials and workmanship under normal use and service for a
period of three years from date of manufacture. System Sensor makes no
other express warranty for this smoke detector base. No agent, representa­tive, dealer, or employee of the Company has the authority to increase or
alter the obligations or limitations of this Warranty. The Company’s obli­gation of this Warranty shall be limited to the repair or replacement of any
part of the smoke detector base which is found to be defective in materials
or workmanship under normal use and service during the three year pe­riod commencing with the date of manufacture. After phoning System
Sensor’s toll free number 800-SENSOR2 (736-7672) for a Return Authori­zation number, send defective units postage prepaid to: System Sensor,

D450-01-01 4 I56-298-08

Technical Manuals Online! - http://www.tech-man.com

Repair Department, RA #__________, 3825 Ohio Avenue, St. Charles, IL

60174. Please include a note describing the malfunction and suspected
cause of failure. The Company shall not be obligated to repair or replace
units which are found to be defective because of damage, unreasonable
use, modifications, or alterations occurring after the date of manufacture.
In no case shall the Company be liable for any consequential or incidental
damages for breach of this or any other Warranty, expressed or implied
whatsoever, even if the loss or damage is caused by the Company’s negli­gence or fault. Some states do not allow the exclusion or limitation of inci­dental or consequential damages, so the above limitation or exclusion may
not apply to you. This Warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.

© System Sensor 1996

INSTALLATION AND MAINTENANCE INSTRUCTIONS

B401BR Plug-in Detector Base

For use with the following detectors: 1451, 2451, and 2451TH

Specifications

Base Diameter: 6.2 inches (157 mm) typical
Base Height: 1.1 inches (29 mm) typical
Weight: 0.3 lb. (130 g) typical
Mounting: 4 inch square box with or without plaster ring. Min. Depth: 1.5 inches

4 inch octagon box. Min. Depth: 1.5 inches

3-1/2 inch octagon box. Min. Depth: 1.5 inches
Operating Temperature Range: –10° to 60°C (14° to 140°F)

Note: Do not install where normal ambient temperature extends beyond 0° to 49°

(32° to 120°F)
Operating Humidity Range: 10% to 93% Relative Humidity

Electrical Ratings — includes base and detector

System Voltage: 24 VDC
Maximum Ripple Voltage: 4 Volts peak to peak
Start-up Capacitance: 0.02 µF Maximum
Standby Ratings: 17 VDC Minimum

32 VDC Maximum

120 µA Maximum
Alarm Ratings: 10 mA Minimum at 10.5 VDC

62 mA Maximum at 32 VDC

The optional RA400Z Remote Annunciator operates within the specified detector

alarm currents.
Reset Voltage: 2.50 VDC Minimum
Reset Time: 0.3 Sec Maximum
Start-up Time: 34.0 Sec Maximum

3825 Ohio Avenue, St. Charles, Illinois 60174

1-800-SENSOR2, FAX: [phone]

A Division of Pittway

Before Installing

Please thoroughly read the System Sensor manual I56-407,
Guide for Proper Use of System Smoke Detectors, which
provides detailed information on detector spacing,
placement, zoning, wiring, and special applications. Copies
of this manual are available at no charge from System
Sensor. (For installations in Canada, refer to CAN4-S524,
Standard for the Installation of Fire Alarm Systems, and
CEC Part 1, Sec. 32.)

NOTICE: This manual should be left with the owner/user
of this equipment.

IMPORTANT: The detector used with this base must be
tested and maintained regularly following NFPA 72 require­ments. The detector used with this base should be cleaned
at least once a year.

D450-02-00 1 I56-352-05

Technical Manuals Online! - http://www.tech-man.com

General Description

The plug-in detector base B401BR is used with System Sen­sor 400 Series photoelectronic, ionization, and heat detec­tor heads. The ability to accept a variety of detector heads
makes this base more versatile than equivalent direct-wired
models. Refer to the System Sensor catalog for other avail­able plug-in detector bases.

This B401BR base is intended for use in 2-wire systems,
with screw terminals provided for power, ground, and re­mote annunciator connections. The B401BR base also con­tains a resistor to provide current limiting in the alarm
state.

Mounting

This detector base mounts directly to 3-1/2 inch and 4 inch
octagon boxes, and 4 inch square boxes (with or without
plaster rings). To mount, remove decorative ring by turning
it in either direction to unhook the snaps, then separate the
ring from the base.

Figure 1. Mounting detector to box:

Install the base to the box using the screws supplied with
the junction box and the appropriate mounting slots in the
base. Place decorative ring onto base, then turn in either di­rection until the ring snaps in place (see Figure 1).

Installation Guidelines

All wiring must be installed in compliance with the Na­tional Electrical Code and the local codes having jurisdic­tion. Proper wire gauges should be used. The conductors
used to connect smoke detectors to control panels and ac­cessory devices should be color-coded to prevent wiring
mistakes. Improper connections can prevent a system from
responding properly in the event of a fire.

For signal wiring (the wiring between interconnected de­tectors), it is recommended that the wire be no smaller
than 18 gauge (1.0 square mm). Wire sizes up to 12 gauge
wire (2.5 square mm) may be used with the base. For best
system performance, the power (+ and –) loop wires
should be twisted pair and installed in separate grounded
conduit to protect the loop from electrical interference.

Smoke detectors and alarm system control panels have
specifications for allowable loop resistance. Consult the
control panel manufacturer’s specifications for the total
loop resistance allowed for the particular model control
panel being used before wiring the detector loops.

SNAP ON
DECORATIVE
RING

SCREWS (NOT
SUPPLIED)

SHORTING
SPRING

DETECTOR
BASE

BOX (NOT
SUPPLIED)

A78-1175-01

CAUTION

For system supervision — For terminals 2, 3, and 5 do not
use looped wire under terminals. Break wire run to provide
system supervision of connections.

available from System Sensor upon request.

The zone wiring of the detector base should be checked
before the detector heads are installed in them. To make
this possible, this base contains a special spring-type short-

ing jumper. After a detector base is properly wired and
Wire connections are made by simply stripping insulation
from the end of the wire, sliding the bare end of the wire
under the clamping plate, and tightening the clamping
plate screw. Use the strip gauge molded into the base for
ease of wiring to terminals.

System Sensor smoke detectors and mounting bases are
marked with a compatibility identifier located as the last
digit of a five digit code stamped on the back of the prod­uct. Connect detectors/mounting bases only to compatible
control units as indicated in System Sensor’s compatibility

mounted on an electrical box, make sure that the jumper

spring is in contact with the base of Terminal 3. This tem-

porary connection shorts the negative-in and negative-out

leads and permits the wiring of the loop to be checked for

continuity.

Once all the detector bases have been wired and mounted,

and the loop wiring has been checked, the detector heads

may be installed in the bases. The shorting spring in the

base will disengage when the detector head is turned into

place.
chart which contains a current list of UL listed control units
and detector head/base combinations. A copy of this list is

D450-02-00 2 I56-352-05

Technical Manuals Online! - http://www.tech-man.com

Figure 2. Typical wiring diagram for 2-wire detector systems:

–

NOTE: For system supervision - Do not loop wire under
 terminals 2, 3, and 5. Break wire run to ensure
system supervision of connections.

–

+

2

1

3

5

4

REMOTE

ANNUNCIATOR

2-WIRE CONTROL PANEL

+
+

–

Tamper-resist Feature

CAUTION

Do not use the tamper resist feature if the XR5 removal tool
is to be used.

This detector base also includes an optional tamper resist
feature that, when activated, prevents removal of the detec­tor without the use of a tool.

2

–

+

1

3

5

4

E
O
L

REMOTE

ANNUNCIATOR

OPTIONAL FAULT TOLERANT WIRING

A78-1175-10

Note: Head removal after the tamper resist feature has

been activated first requires removal of the decora­tive ring.

The tamper resist feature can be defeated by breaking and
removing the plastic lever from the base. However, this per­manently defeats the tamper resist feature.

To activate this feature, break the tab from the detector
base, as shown in Figure 3A, and install the detector. To re­move the detector from the base once the tamper resist fea­ture has been activated, insert a small-bladed screwdriver
into the slot in the side of the base and press the plastic le­ver away from the detector head (see Figure 3B). This al­lows the detector to be rotated counterclockwise and
removed.

BREAK TAB AT

PLASTIC LEVER

DOTTED LINE BY
TWISTING TOWARD
CENTER OF BASE.

Figure 3B. Removing detector head from base:Figure 3A. Activating tamperproof feature:

USE SMALL-BLADED
SCREWDRIVER TO
PUSH PLASTIC LEVER
IN DIRECTION OF
ARROW.

A78-1175-03

D450-02-00 3 I56-352-05

Technical Manuals Online! - http://www.tech-man.com

WARNING

The Limitations of Property Protection Smoke Detectors

The smoke detector used with this base is designed to activate and ini­tiate emergency action, but will do so only when it is used in conjunction

with an authorized fire alarm system. This detector must be installed in
accordance with NFPA standard 72.

Smoke detectors will not work without power. AC or DC powered
smoke detectors will not work if the power supply is cut off.

Smoke detectors will not sense fires which start where smoke does not
reach the detectors. Smoldering fires typically do not generate a lot of

heat which is needed to drive the smoke up to the ceiling where the
smoke detector is usually located. For this reason, there may be large de­lays in detecting a smoldering fire with either an ionization type detector
or a photoelectric type detector. Either one of them may alarm only after
flaming has initiated which will generate the heat needed to drive the
smoke to the ceiling.

Smoke from fires in chimneys, in walls, on roofs or on the other side of a
closed door(s) may not reach the smoke detector and alarm it. A detector
cannot detect a fire developing on another level of a building quickly or at
all. For these reasons, detectors shall be located on every level and in

every bedroom within a building.

Smoke detectors have sensing limitations, too. Ionization detectors and

photoelectric detectors are required to pass fire tests of the flaming and

smoldering type. This is to ensure that both can detect a wide range of

types of fires. Ionization detectors offer a broad range of fire sensing capa-

bility but they are somewhat better at detecting fast flaming fires than

slow smoldering fires. Photoelectric detectors sense smoldering fires better

than flaming fires which have little, if any, visible smoke. Because fires de-

velop in different ways and are often unpredictable in their growth, nei-

ther type of detector is always best, and a given detector may not always

provide early warning of a specific type of fire.

In general, detectors cannot be expected to provide warnings for fires re-

sulting from inadequate fire protection practices, violent explosions, es-

caping gases which ignite, improper storage of flammable liquids like

cleaning solvents which ignite, other similar safety hazards, arson, smok-

ing in bed, children playing with matches or lighters, etc. Smoke detectors

used in high air velocity conditions may have a delay in alarm due to dilu-

tion of smoke densities created by frequent and rapid air exchanges. Addi-

tionally, high air velocity environments may create increased dust

contamination, demanding more frequent maintenance.

Smoke detectors cannot last forever. Smoke detectors contain electronic

parts. Even though smoke detectors are made to last over 10 years, any

part can fail at any time. Therefore, smoke detectors shall be replaced after

being in service for 10 years. The smoke detector system that this detector

is used in must be tested regularly per NFPA 72. This smoke detector

should be cleaned regularly per NFPA 72 or at least once a year.

Three-Year Limited Warranty

System Sensor warrants its enclosed smoke detector base to be free from
defects in materials and workmanship under normal use and service for a
period of three years from date of manufacture. System Sensor makes no
other express warranty for this smoke detector base. No agent, representa­tive, dealer, or employee of the Company has the authority to increase or
alter the obligations or limitations of this Warranty. The Company’s obli­gation of this Warranty shall be limited to the repair or replacement of any
part of the smoke detector base which is found to be defective in materials
or workmanship under normal use and service during the three year pe­riod commencing with the date of manufacture. After phoning System
Sensor’s toll free number 800-SENSOR2 (736-7672) for a Return Authori­zation number, send defective units postage prepaid to: System Sensor,

D450-02-00 4 I56-352-05

Technical Manuals Online! - http://www.tech-man.com

Repair Department, RA #__________, 3825 Ohio Avenue, St. Charles, IL

60174. Please include a note describing the malfunction and suspected

cause of failure. The Company shall not be obligated to repair or replace

units which are found to be defective because of damage, unreasonable

use, modifications, or alterations occurring after the date of manufacture.

In no case shall the Company be liable for any consequential or incidental

damages for breach of this or any other Warranty, expressed or implied

whatsoever, even if the loss or damage is caused by the Company’s negli-

gence or fault. Some states do not allow the exclusion or limitation of inci-

dental or consequential damages, so the above limitation or exclusion may

not apply to you. This Warranty gives you specific legal rights, and you

may also have other rights which vary from state to state.

© System Sensor 1996

INSTALLATION AND MAINTENANCE INSTRUCTIONS

B401 PLUG-IN DETECTOR BASE

For use with the following smoke detectors:
US Models: 1151, 1451, 2151, 2451, 2451TH, 5451
European Models: 1151E, 1451E, 2151E, 2451E, 5451E
Australian Models: 1151AUS, 1451AUS, 2151AUS, 2451AUS,4451AUS, 5451AUS

Specifications

Base Diameter: 10.2 cm (4.0 inches)
Base Height: 2.0 cm (0.8 inches)
Weight: 152 g (0.32 lb.)
Mounting: 50 mm box

60 mm box

Operating Temperature Range: –10° to +60°C (14° to 140°F) — European Installation

0° to 49°C (32° to 120°F) — US/Australian Installation

Operating Humidity Range: 10% to 93% Relative Humidity

Electrical Ratings — includes base and detector

Base And Smoke Detector Base And Heat Detector

System Voltage: 12/24 VDC 24 VDC
Maximum Ripple Voltage: 4 Volts peak to peak 4 Volts peak to peak
Start-up Capacitance: 0.02 µF Maximum 0.02 µF Maximum
Standby Ratings:* 8.5 VDC Minimum 15 VDC Minimum

35 VDC Maximum 35 VDC Maximum
120 µA Maximum 100 µA Maximum

Alarm Ratings: 4.2 VDC Minimum at 10 mA** 4.2 VDC Minimum at 10 mA**

6.6 VDC Maximum at 100 mA** 6.6 VDC Maximum at 100 mA**
Reset Voltage: 2.5 VDC Minimum 2.5 VDC Minimum
Reset Time: 0.3 Seconds Maximum 0.3 Seconds Maximum
Start-up Time: 34 Seconds Maximum 34 Seconds Maximum
* 1151E: 30 µA Maximum.
** Alarm current MUST be limited to 100 mA maximum by the control panel.

If used, the RA400Z Remote Annunciator operates within the specified
detector alarm currents.

3825 Ohio Avenue, St. Charles, Illinois 60174

1-800-SENSOR2, FAX: [phone]

A Division of Pittway

Before Installing

Please thoroughly read System Sensor manual I56-407,
Guide for Proper Use of System Smoke Detectors, which pro­vides detailed information on detector spacing, placement,
zoning, wiring, and special applications. Copies of this
manual are available at no charge from System Sensor.

NOTICE: This manual should be left with the owner/user
of this equipment.

IMPORTANT: The detector used with this base must be
tested and maintained regularly following NFPA 72 require­ments. The detector used with this base should be cleaned
at least once a year.

D450-08-00 1 I56-338-07

Technical Manuals Online! - http://www.tech-man.com

General Description

This B401 plug-in detector base is used with System Sensor
smoke and heat detector heads. The capability of plugging
these detectors into a variety of special bases makes them
more versatile than equivalent direct-wired models. Refer
to the System Sensor catalog for other available plug-in de­tector bases.

The B401 base is intended for use in 2-wire systems, with
screw terminals provided for power and remote annuncia­tor connections.

Mounting

Figure 1 shows mechanical mounting details. These detec­tor bases mount to typical junction boxes. Attach the base
to the box using the screws supplied with the junction box.

Installation Guidelines

All wiring must be installed in compliance with applicable
codes and the authority having jurisdiction. Proper wire
gauges should be used. The conductors used to connect
smoke detectors to control panels and accessory devices
should be color-coded to reduce the likelihood of wiring er­rors. Improper connections can prevent a system from re­sponding properly in the event of a fire.

For signal wiring (the wiring between interconnected de­tectors), it is recommended that the wire be no smaller
than 18 gauge. Wire sizes up to 12 gauge may be used with
the base. For best system performance, the power (+) and
(–) loop wires should be twisted pair and installed in sepa­rate grounded conduit to protect the loop from extraneous
electrical interference.

Smoke detectors and alarm system control panels have
specifications for allowable loop resistance. Consult the
control panel manufacturer’s specifications for the total
loop resistance allowed for the control panel being used be­fore wiring the detector loops.

Figure 1. Mounting base to box:

SHORTING
SPRING

Wiring Instructions

CAUTION

Do not loop wire under terminals. Break wire run to ensure
supervision of connections.

Wire connections are made by stripping about 3/8" of insu-
lation from the end of the wire (use strip gauge molded in
base), sliding the bare end of the wire under the clamping
plate, and tightening the clamping plate screw.

Two-wire initiating devices receive their power from the
initiating circuit of a control panel. Electrical specifications
of the control panel and the detector-base combination
must be compatible for the system to function properly.

System Sensor maintains a list of two-wire detectors and
control panels that are listed as compatible. The 2-Wire
Compatibility Chart is available from System Sensor at no
charge.

A78-1468-01

D450-08-00 2 I56-338-07

Technical Manuals Online! - http://www.tech-man.com

Figure 2. Typical 2-wire detector wiring configuration:

2

3

4

REMOTE

ANNUNCIATOR

2-WIRE CONTROL PANEL

1

5

The zone wiring of the detector bases should be checked
before the detector heads are installed. To make this
possible, this base contains a special spring-type shorting
jumper (shown in Figure 1). After a detector base is
properly wired and mounted to an electrical box, make
sure that the shorting spring is in contact with terminal 3.
This temporary connection permits the wiring of the loop
to be checked for continuity before installation of the
detector heads. The shorting spring in the base
automatically disengages when the detector head is
removed from the base. DO NOT remove the shorting
spring since it reengages as the detector head is turned in
the base, completing the circuit.

2

REMOTE

ANNUNCIATOR

CLASS A OPTIONAL WIRING

1

5

3

4

E
O
L

To make the detector tamper-resistant, remove the smaller
tab by breaking it at the scribed line on the tamper-resistant
tab before installing the detector (see Figure 3A). The
tamper-resistant tab is on the detector mounting base.
To remove a tamper-resistant detector from the base, use a
pocket screwdriver, or similar tool, to depress the tamper­resistant tab and turn the detector counterclockwise. The
tab is accessible through the slot on the mounting base (see
Figure 3B).

The tamper-resistance feature can be defeated by breaking
and removing the plastic lever from the base. However, this
permanently disables the tamper-resistance feature.

A78-1175-04

Tamper-resistance Feature

This detector includes an optional tamper-resistance fea­ture that prevents its removal from the base without the
use of a tool.

NOTE: DO NOT use the tamper-resistant feature if the XR-

5 removal tool is to be used.

Figure 3A. Activating tamper-resistance feature: Figure 3B. Removing detector head from base:

BREAK TAB AT

PLASTIC LEVER

D450-08-00 3 I56-338-07

DOTTED LINE BY
TWISTING TOWARD
CENTER OF BASE.

Technical Manuals Online! - http://www.tech-man.com

Optional Remote Annunciator Units

The model RA400Z remote LED annunciator is available as
an optional accessory. This unit has a rectangular plate that
fits U.S. single-gang light switch boxes. If a different type of
remote annunciator is used, it must be rated for the appro­priate voltage, which is 2.75 to 3.0V.

USE SMALL-BLADED
SCREWDRIVER TO
PUSH PLASTIC LEVER
IN DIRECTION OF
ARROW.

A78-1468-02

WARNING

The Limitations of Property Protection Smoke Detectors

The smoke detector used with this base is designed to activate and ini­tiate emergency action, but will do so only when it is used in conjunction

with an authorized fire alarm system. This detector must be installed in
accordance with NFPA standard 72.

Smoke detectors will not work without power. AC or DC powered
smoke detectors will not work if the power supply is cut off.

Smoke detectors will not sense fires which start where smoke does not
reach the detectors. Smoldering fires typically do not generate a lot of

heat which is needed to drive the smoke up to the ceiling where the
smoke detector is usually located. For this reason, there may be large de­lays in detecting a smoldering fire with either an ionization type detector
or a photoelectric type detector. Either one of them may alarm only after
flaming has initiated which will generate the heat needed to drive the
smoke to the ceiling.

Smoke from fires in chimneys, in walls, on roofs or on the other side of a
closed door(s) may not reach the smoke detector and alarm it. A detector
cannot detect a fire developing on another level of a building quickly or at
all. For these reasons, detectors shall be located on every level and in

every bedroom within a building.

Smoke detectors have sensing limitations, too. Ionization detectors and

photoelectric detectors are required to pass fire tests of the flaming and

smoldering type. This is to ensure that both can detect a wide range of
types of fires. Ionization detectors offer a broad range of fire sensing capa­bility, but they are somewhat better at detecting fast flaming fires than
slow smoldering fires. Photoelectric detectors sense smoldering fires better
than flaming fires which have little, if any, visible smoke. Because fires de­velop in different ways and are often unpredictable in their growth, nei­ther type of detector is always best, and a given detector may not always
provide early warning of a specific type of fire.

In general, detectors cannot be expected to provide warnings for fires re­sulting from inadequate fire protection practices, violent explosions, es­caping gases which ignite, improper storage of flammable liquids like
cleaning solvents which ignite, other similar safety hazards, arson, smok­ing in bed, children playing with matches or lighters, etc. Smoke detectors
used in high air velocity conditions may have a delay in alarm due to dilu­tion of smoke densities created by frequent and rapid air exchanges. Addi­tionally, high air velocity environments may create increased dust
contamination, demanding more frequent maintenance.

Smoke detectors cannot last forever. Smoke detectors contain electronic
parts. Even though smoke detectors are made to last over 10 years, any
part can fail at any time. Therefore, smoke detectors shall be replaced after
being in service for 10 years. The smoke detector system that this detector
is used in must be tested regularly per NFPA 72. This smoke detector
should be cleaned regularly per NFPA 72 or at least once a year.

Three-Year Limited Warranty

System Sensor warrants its enclosed smoke detector base to be free from
defects in materials and workmanship under normal use and service for a
period of three years from date of manufacture. System Sensor makes no
other express warranty for this smoke detector base. No agent, representa­tive, dealer, or employee of the Company has the authority to increase or
alter the obligations or limitations of this Warranty. The Company’s obli­gation of this Warranty shall be limited to the repair or replacement of any
part of the smoke detector base which is found to be defective in materials
or workmanship under normal use and service during the three year pe­riod commencing with the date of manufacture. After phoning System
Sensor’s toll free number 800-SENSOR2 (736-7672) for a Return Authori­zation number, send defective units postage prepaid to: System Sensor,

D450-08-00 4 I56-338-07

Technical Manuals Online! - http://www.tech-man.com

Repair Department, RA #__________, 3825 Ohio Avenue, St. Charles, IL

60174. Please include a note describing the malfunction and suspected
cause of failure. The Company shall not be obligated to repair or replace
units which are found to be defective because of damage, unreasonable
use, modifications, or alterations occurring after the date of manufacture.
In no case shall the Company be liable for any consequential or incidental
damages for breach of this or any other Warranty, expressed or implied
whatsoever, even if the loss or damage is caused by the Company’s negli­gence or fault. Some states do not allow the exclusion or limitation of inci­dental or consequential damages, so the above limitation or exclusion may
not apply to you. This Warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.

© System Sensor 1996

INSTALLATION AND MAINTENANCE INSTRUCTIONS

B402B Plug-in Detector Base

For use with the following smoke detectors:
1451, 2451, and 2451TH

Specifications

Base Diameter: 6.2 inches (15.7 cm)
Base Height: 1.1 inches (2.8 cm)
Weight: 0.3 lb. (130 g)
Mounting: 4 inch square box with or without plaster ring. Min. Depth: 1.5 inches

4 inch octagon box. Min. Depth: 1.5 inches
3-1/2 inch octagon box. Min. Depth: 1.5 inches

Operating Temperature Range: 0° to +49°C (32° to 120°F)
Operating Humidity Range: 10% to 93 % Relative Humidity, Non-condensing

Electrical Ratings — includes base and detector

System Voltage: 24 VDC
Maximum Ripple Voltage: 4 Volts peak to peak
Start-up Capacitance: 0.02 µF Maximum
Standby Ratings: 20 VDC Minimum

29 VDC Maximum
120 µA Maximum

Alarm Ratings: 17 mA Minimum

36 mA Maximum
Reset Voltage: 1.4 VDC Minimum
Reset Time: 0.3 Seconds Maximum

(If used, the RA400 remote lamp operates within the specified

detector alarm currents.)
Start-up Time: 34.0 Seconds Maximum
Relay Contact Ratings
Resistive or Inductive (60% Power Factor):
Form A: 2.0A @ 30 VAC/DC
Form C: 2.0A @ 30 VAC/DC

0.6A @ 110 VDC

1.0A @ 125 VAC

3825 Ohio Avenue, St. Charles, Illinois 60174

1-800-SENSOR2, FAX: [phone]

A Division of Pittway

Before Installing

Please read the System Sensor manual I56-407, Guide for
Proper Use of System Smoke Detectors, which provides de-

tailed information on detector spacing, placement, zoning,
wiring, and special applications. Copies of this manual are
available at no charge from System Sensor. (For installa­tions in Canada, refer to CAN4-S524, Standard for the In-
stallation of Fire Alarm Systems, and CEC Part 1, Sec. 32.)

NOTICE: This manual should be left with the owner/user
of this equipment.

IMPORTANT: The detector used with this base must be
tested and maintained regularly following NFPA 72 require­ments. The detector used with this base should be cleaned
at least once a year.

D450-03-00 1 I56-374-04

Technical Manuals Online! - http://www.tech-man.com

General Description

The plug-in detector base B402B is used with System Sen­sor model 2451 and 2451TH photoelectronic detector
heads, and model 1451 ionization detector head. The capa­bility of plugging these detectors into a variety of special
bases makes them more versatile than equivalent direct­wired models. Refer to the System Sensor catalog for other
available plug-in detector bases.

This B402B base is intended for use in 4-wire systems, with
screw terminals provided for power, remote annunciator,
and relay contact connections. These bases also contain a
resistor to provide current limiting in the alarm state.

Mounting

This detector base mounts directly to 3-1/2-inch and 4-inch
octagon boxes, and 4-inch square boxes (with or without
plaster). To mount the base, remove the decorative ring by
rotating it in either direction to unhook the snaps before
separating the ring from the base. Use the screws supplied
with the junction box to attach the base to the box through
the appropriate slots in the base (see Figure 1). Position the
decorative ring around the base and rotate it in either direc­tion until the ring snaps into place.

Installation Guidelines

All wiring must be installed in compliance with the Na­tional Electrical Code, all applicable local codes, and any
special requirements of the authority having jurisdiction,
using the proper wire size. The conductors used to connect
smoke detectors to control panels and accessory devices
should be color-coded to reduce the likelihood of wiring er­rors. Improper connections can prevent a system from re­sponding properly in the event of a fire.

For signal wiring (the wiring between interconnected de­tectors), it is recommended that the wire be no smaller
than 18 gauge (1.0 square mm). The screws and clamping
plate in the base can accommodate wire sizes up to 12
gauge (2.5 square mm). For best system performance, the
power (+ and -) loop wire should be twisted pair and in­stalled in separate grounded conduit to minimize the ef­fects of electrical interference.

Figure 1. Mounting base to box:

SHORTING
SPRING

SNAP ON 
DECORATIVE
RING

SCREWS (NOT
SUPPLIED)

DETECTOR
BASE

BOX (NOT
SUPPLIED)

Smoke detectors and alarm system control panels have
specifications for allowable loop resistance. Read the
manual for the control to determine the total loop resis­tance allowed before wiring the detector loops.

Locate installations where normal ambient temperature
does not exceed 100° F.

Wiring Instructions

Wire connections are made by stripping approximately 3/
8" (1 cm) insulation from the end of each wire, sliding the
bare end of the wire under the clamp plate, and tightening
the clamping plate screw. Use the strip gauges molded into
the inside and underside of the base for ease of wiring to
terminals 1 through 5 and to terminals 12 through 14, re­spectively.

The zone wiring of the detector base should be checked
before installing the smoke detector head. To make this
possible, this base contains a special-type shorting jumper.
After the detector base is wired and attached to the electri­cal box, make sure that the shorting spring is in contact
with the base of terminal 3. This temporary connection

A78-1175-01

shorts the positive-in and positive-out leads and permits
the wiring of the loop to be checked for continuity.

Once all the detector bases have been wired and mounted,
and the loop wiring has been checked, the detector heads
may be installed in the bases. The shorting spring in the
base will disengage automatically when the detector head
is removed from the base. DO NOT remove the shorting
spring since it reengages as the detector head is turned into
the base, completing the circuit.

D450-03-00 2 I56-374-04

Technical Manuals Online! - http://www.tech-man.com

NOTE: For wiring or releasing device, refer to

manufacturer's installation instructions.

CAUTION

For system supervision–DO NOT use looped wire under ter­minals 2, 3, and 5. Break wire run to provide supervision of
system.

Figure 2. Typical wiring diagram:

D450-03-00 3 I56-374-04

Technical Manuals Online! - http://www.tech-man.com

Tamperproof Feature

USE SMALL-BLADED
SCREWDRIVER TO
PUSH PLASTIC LEVER
IN DIRECTION OF
ARROW.

the small hole on the side of the base and push the plastic
lever away from the detector head (see Figure 3B). This

CAUTION

will allow the detector to be rotated counterclockwise for
removal.

Do not use the tamperproof feature if the XR5 removal tool
is to be used.

NOTE: Head removal after the tamperproof feature has

been activated first requires removal of the decora-

This detector base can be made tamperproof to prevent the

tive ring.

removal of the detector head without the use of a tool. To
activate this feature, break off the tab on the detector base
as shown in Figure 3A, then install the detector. To remove
the detector from the base once the tamperproof feature

The tamperproof feature may be defeated by breaking and
removing the plastic lever from the base; however, this pre­vents ever using the feature again.

has been activated, place a small-bladed screwdriver into

Figure 3A. Activating tamperproof feature: Figure 3B. Removing detector head from base:

BREAK TAB AT

PLASTIC LEVER

DOTTED LINE BY
TWISTING TOWARD
CENTER OF BASE.

A78-1175-03A

WARNING

The Limitations of Property Protection Smoke Detectors

The smoke detector used with this base is designed to activate and ini­tiate emergency action, but will do so only when it is used in conjunction

with an authorized fire alarm system. This detector must be installed in
accordance with NFPA standard 72.
Smoke detectors will not work without power. AC or DC powered
smoke detectors will not work if the power supply is cut off.

Smoke detectors will not sense fires which start where smoke does not
reach the detectors. Smoldering fires typically do not generate a lot of

heat which is needed to drive the smoke up to the ceiling where the
smoke detector is usually located. For this reason, there may be large de­lays in detecting a smoldering fire with either an ionization type detector
or a photoelectric type detector. Either one of them may alarm only after
flaming has initiated which will generate the heat needed to drive the
smoke to the ceiling.
Smoke from fires in chimneys, in walls, on roofs or on the other side of a
closed door(s) may not reach the smoke detector and alarm it. A detector
cannot detect a fire developing on another level of a building quickly or at
all. For these reasons, detectors shall be located on every level and in

every bedroom within a building.
Smoke detectors have sensing limitations, too. Ionization detectors and

photoelectric detectors are required to pass fire tests of the flaming and
smoldering type. This is to ensure that both can detect a wide range of

Three-Year Limited Warranty

System Sensor warrants its enclosed smoke detector base to be free from
defects in materials and workmanship under normal use and service for a
period of three years from date of manufacture. System Sensor makes no
other express warranty for this smoke detector base. No agent, representa­tive, dealer, or employee of the Company has the authority to increase or
alter the obligations or limitations of this Warranty. The Company’s obli­gation of this Warranty shall be limited to the repair or replacement of any
part of the smoke detector base which is found to be defective in materials
or workmanship under normal use and service during the three year pe­riod commencing with the date of manufacture. After phoning System
Sensor’s toll free number 800-SENSOR2 (736-7672) for a Return Authori­zation number, send defective units postage prepaid to: System Sensor,

D450-03-00 4 I56-374-04

Technical Manuals Online! - http://www.tech-man.com

types of fires. Ionization detectors offer a broad range of fire sensing capa­bility but they are somewhat better at detecting fast flaming fires than
slow smoldering fires. Photoelectric detectors sense smoldering fires better
than flaming fires which have little, if any, visible smoke. Because fires de­velop in different ways and are often unpredictable in their growth, nei­ther type of detector is always best, and a given detector may not always
provide early warning of a specific type of fire.
In general, detectors cannot be expected to provide warnings for fires re­sulting from inadequate fire protection practices, violent explosions, es­caping gases which ignite, improper storage of flammable liquids like
cleaning solvents which ignite, other similar safety hazards, arson, smok­ing in bed, children playing with matches or lighters, etc. Smoke detectors
used in high air velocity conditions may have a delay in alarm due to dilu­tion of smoke densities created by frequent and rapid air exchanges. Addi­tionally, high air velocity environments may create increased dust
contamination, demanding more frequent maintenance.
Smoke detectors cannot last forever. Smoke detectors contain electronic
parts. Even though smoke detectors are made to last over 10 years, any
part can fail at any time. Therefore, smoke detectors shall be replaced after
being in service for 10 years. The smoke detector system that this detector
is used in must be tested regularly per NFPA 72. This smoke detector
should be cleaned regularly per NFPA 72 or at least once a year.

Repair Department, RA #__________, 3825 Ohio Avenue, St. Charles, IL

60174. Please include a note describing the malfunction and suspected
cause of failure. The Company shall not be obligated to repair or replace
units which are found to be defective because of damage, unreasonable
use, modifications, or alterations occurring after the date of manufacture.
In no case shall the Company be liable for any consequential or incidental
damages for breach of this or any other Warranty, expressed or implied
whatsoever, even if the loss or damage is caused by the Company’s negli­gence or fault. Some states do not allow the exclusion or limitation of inci­dental or consequential damages, so the above limitation or exclusion may
not apply to you. This Warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.

© System Sensor 1996

A78-1175-03B

INSTALLATION AND MAINTENANCE INSTRUCTIONS

B404B Plug-in Detector Base

For use with 1451, 2451, AND 2451TH detectors

Specifications

Base Diameter: 6.2 inches (15.7 cm)
Base Height: 0.95 inches (2.9cm)
Weight: 0.6 lb. (260 g)
Mounting: 4-inch square box with or without plaster ring. Min. depth–1.5 inches

4-inch octagon box. Min. depth–1.5 inches

3-1/2-inch octagon box. Min. depth–1.5 inches
Operating Temperature Range: 0° to 49°C (32° to 120°F)
Operating Humidity Range: 10% to 93% Relative Humidity

Electrical Ratings - includes base and detector

System Voltage: 120 VAC, 60 Hz
Relay Contact Ratings
Resistive or Inductive (60% power factor) load
Form A: 2.0A @ 30VAC/DC
Form C: 2.0A @ 30VAC/DC

0.6A @ 110VDC

1.0A @ 125VAC
(If used, the RA400 Remote Lamp operates within the specified detector system voltage.)
Start-up Time: 36.0 Seconds maximum
(After 60 second reset)

3825 Ohio Avenue, St. Charles, Illinois 60174

1-800-SENSOR2, FAX: [phone]

A Division of Pittway

Before Installing

Please thoroughly read the System Sensor manual I56-407,
Guide for Proper Use of System Smoke Detectors. This
manual provides detailed information on detector spacing,
placement, zoning, wiring, and special applications, and is
available at no charge from System Sensor. (For installation
in Canada, refer to CAN/ULC-S524, Standard for the Instal-
lation of Fire Alarm Systems and CEC Part 1, Sec. 32.)

NOTICE: This manual should be left with the owner/user
of this equipment.

IMPORTANT: The detector used with this base must be
tested and maintained regularly following NFPA 72 require­ments. The detector should be cleaned at least once a year.

General Description

The B404B detector base is designed for use with System
Sensor model 2451 and 2451TH photoelectronic and 1451
ionization detector heads. The capability of plugging these
detectors into a variety of special bases makes them more
versatile than equivalent direct-wired models. Refer to the
System Sensor catalog for other available plug-in bases.

The B404B base is intended for use in 4-wire systems with
terminals provided for power, remote annunicator, and re­lay connections. This base also contains a resistor to pro­vide current limiting in the alarm state.

D450-04-00 1 I56-375-03

Technical Manuals Online! - http://www.tech-man.com

Base Terminals

No. Function

1 Remote Annunciator (+)
2 Test Coil (+)
3 Not used
4 Remote Annunciator (–)
5 RTC (–)
6 N.O. Supervisory Relay
7 N.O Form A Contacts
8 N.O. Alarm Relay
9 N.O. Form A
10 C. Initiation
11 C. Contacts
12 N.O. Alarm Relay
13 N.C. Form C
14 C. Auxiliary Contacts

Mounting

The detector base mounts directly to 3-1/2 inch and 4-inch
octagon boxes and 4-inch square boxes, with or without
plaster rings. To mount the base, remove the decorative
ring by rotating it in either direction to unhook the snaps
before separating the ring from the base. Use the screws
supplied with the junction box to attach the base to the box
through the appropriate mounting slots in the base.

}

}

}

Figure 1. Base terminals:

Figure 2. Mounting base to box:

Position the decorative ring around the base and rotate it in
either direction until the ring snaps into place (please see
Figure 2).

Installation Guidelines

All wiring must be installed in compliance with the Na­tional Electrical Code, all applicable local codes, and any
special requirements of the authority having jurisdiction,
using the proper wire size. The conductors used to connect
smoke detectors to control panels and accessory devices
should be color-coded to reduce the likelihood of wiring er­rors. Improper connections can prevent a system from re­sponding properly in the event of a fire.

For signal wiring (the wiring between interconnected de­tectors), it is recommended that the wire be no smaller
than 16 gauge (1.5 square mm), and that two- or three-con­ductor wire be no smaller than 18 gauge (1.0 square mm).
For best performance, alarm loop conductors should be in­stalled in separate grounded conduit or shielded cable to
protect the alarm loop from extraneous electrical interfer­ence.

SNAP ON
DECORATIVE
RING

SCREWS (NOT
SUPPLIED)

SHORTING
SPRING

DETECTOR
BASE

BOX (NOT
SUPPLIED)

Smoke detectors and alarm systems control panels have
specifications for allowable loop resistance. Consult the
control panel manufacturer’s specifications for the total
loop resistance allowed for the particular model control
panel being used before wiring the detector loops.

D450-04-00 2 I56-375-03

Technical Manuals Online! - http://www.tech-man.com

A78-1175-01

Figure 3. Typical wiring diagram for 120VAC detector systems:

Locate installations where normal ambient temperatures do
not exceed 100°F.

Wiring Instructions

NOTE: Refer to the manufacturer’s instructions for releas-

ing device wiring.

NOTE: To ensure that electrical connections are super-

vised, do NOT loop wires under terminals 8, 9, 10,
and 11. Cut the wire at each terminal.

To make electrical connections, strip approximately 3/8" (1
cm) insulation from the end of each wire, slide the bare
wire end under the clamping plate, and tighten the clamp­ing plate screw. Use the strip gauges molded into the in­side and underside of the base for ease of wiring to
terminals 1 and 4, and to terminals 6 through 14, respec­tively.

The zone wiring of the detector base should be checked
before installing the smoke detector heads. The base con-

tains a built-in shorting spring to make this possible. After
the detector base is wired and mounted to an electrical box,
position the shorting spring against terminal 3. This tem­porary connection energizes the supervisory relay and per­mits the wiring of the loop to checked for continuity.

After all detector bases have been mounted, wired, and the
wiring checked, install the detector heads. The shorting
spring in the base automatically disengages when the de­tector head is removed from the base. DO NOT remove the
shorting spring since it reengages as the detector head is
turned into the base, completing the circuit.

Tamper-resistance Feature

This detector base can be made tamper resistant so it can­not be removed without the use of a tool. To make the base
tamper resistant, simply break off the tab on the base (see
Figure 4A), before installing the detector.

D450-04-00 3 I56-375-03

Technical Manuals Online! - http://www.tech-man.com

To remove the detector from the base after it has been made
tamper resistant, insert a small screwdriver (please see Fig­ure 4B) into the small hole and press the plastic lever away

NOTE: Head removal after activating the tamper-resis-

tance feature first requires removal of the decora-

tive ring.
from the detector. Rotate the detector counterclockwise
and remove.

Figure 4A. Activating tamper-resistance feature: Figure 4B. Removing detector head from base:

BREAK TAB AT

PLASTIC LEVER

The smoke detector used with this base is designed to activate and ini­tiate emergency action, but will do so only when it is used in conjunction

with an authorized fire alarm system. This detector must be installed in
accordance with NFPA standard 72.

Smoke detectors will not work without power. AC or DC powered
smoke detectors will not work if the power supply is cut off.

Smoke detectors will not sense fires which start where smoke does not
reach the detectors. Smoldering fires typically do not generate a lot of

heat which is needed to drive the smoke up to the ceiling where the
smoke detector is usually located. For this reason, there may be large de­lays in detecting a smoldering fire with either an ionization type detector
or a photoelectric type detector. Either one of them may alarm only after
flaming has initiated which will generate the heat needed to drive the
smoke to the ceiling.

Smoke from fires in chimneys, in walls, on roofs or on the other side of a
closed door(s) may not reach the smoke detector and alarm it. A detector
cannot detect a fire developing on another level of a building quickly or at
all. For these reasons, detectors shall be located on every level and in

every bedroom within a building.

Smoke detectors have sensing limitations, too. Ionization detectors and

photoelectric detectors are required to pass fire tests of the flaming and

DOTTED LINE BY
TWISTING TOWARD
CENTER OF BASE.

The Limitations of Property Protection Smoke Detectors

USE SMALL-BLADED
SCREWDRIVER TO
PUSH PLASTIC LEVER
IN DIRECTION OF
ARROW.

WARNING

smoldering type. This is to ensure that both can detect a wide range of
types of fires. Ionization detectors offer a broad range of fire sensing capa­bility, but they are somewhat better at detecting fast flaming fires than
slow smoldering fires. Photoelectric detectors sense smoldering fires better
than flaming fires which have little, if any, visible smoke. Because fires de­velop in different ways and are often unpredictable in their growth, nei­ther type of detector is always best, and a given detector may not always
provide early warning of a specific type of fire.

In general, detectors cannot be expected to provide warnings for fires re­sulting from inadequate fire protection practices, violent explosions, es­caping gases which ignite, improper storage of flammable liquids like
cleaning solvents which ignite, other similar safety hazards, arson, smok­ing in bed, children playing with matches or lighters, etc. Smoke detectors
used in high air velocity conditions may have a delay in alarm due to dilu­tion of smoke densities created by frequent and rapid air exchanges. Addi­tionally, high air velocity environments may create increased dust
contamination, demanding more frequent maintenance.

Smoke detectors cannot last forever. Smoke detectors contain electronic
parts. Even though smoke detectors are made to last over 10 years, any
part can fail at any time. Therefore, smoke detectors shall be replaced after
being in service for 10 years. The smoke detector system that this detector
is used in must be tested regularly per NFPA 72. This smoke detector
should be cleaned regularly per NFPA 72 or at least once a year.

A78-1175-03

Three-Year Limited Warranty

System Sensor warrants its enclosed smoke detector base to be free from
defects in materials and workmanship under normal use and service for a
period of three years from date of manufacture. System Sensor makes no
other express warranty for this smoke detector base. No agent, representa­tive, dealer, or employee of the Company has the authority to increase or
alter the obligations or limitations of this Warranty. The Company’s obli­gation of this Warranty shall be limited to the repair or replacement of any
part of the smoke detector base which is found to be defective in materials
or workmanship under normal use and service during the three year pe­riod commencing with the date of manufacture. After phoning System
Sensor’s toll free number 800-SENSOR2 (736-7672) for a Return Authori­zation number, send defective units postage prepaid to: System Sensor,

D450-04-00 4 I56-375-03

Technical Manuals Online! - http://www.tech-man.com

Repair Department, RA #__________, 3825 Ohio Avenue, St. Charles, IL

60174. Please include a note describing the malfunction and suspected
cause of failure. The Company shall not be obligated to repair or replace
units which are found to be defective because of damage, unreasonable
use, modifications, or alterations occurring after the date of manufacture.
In no case shall the Company be liable for any consequential or incidental
damages for breach of this or any other Warranty, expressed or implied
whatsoever, even if the loss or damage is caused by the Company’s negli­gence or fault. Some states do not allow the exclusion or limitation of inci­dental or consequential damages, so the above limitation or exclusion may
not apply to you. This Warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.

© System Sensor 1996

INSTALLATION AND MAINTENANCE INSTRUCTIONS

B406B Plug-in Detector Base

For use with the following smoke detectors:
In US: 1451, 2451, 2451TH, 4451HT, 5451
In Canada: 1451A, 2451A, 2451THA, 4451HTA, 5451A
In Europe: 1451E, 2451E, 4451E, 5451E

Specifications

Base Diameter: 6.2 inches (15.7 cm)
Base Height: 1.1 inches (2.9 cm)
Weight: 0.3 lb. (130 g)
Mounting: 4-inch square box with or without plaster ring. Min. Depth–1.5 inches

4-inch octagon box. Min. Depth–1.5 inches
3-1/2-inch octagon box. Min. Depth–1.5 inches
50 mm box; 60 mm box; 70 mm box

Operating Temperature Range: -10° to 60°C (14° to 140°F)

Note: Do not install in locations where normal ambient temperature
exceeds 50°C (120°F)

Operating Humidity Range: 10% to 93% Relative Humidity

Electrical Ratings – includes base and detector

System Voltage: 24 VDC
Maximum Ripple Voltage: 4 Volts peak to peak
Start-up Capacitance: 0.02µF Maximum
Standby Ratings: 15 VDC Minimum

35 VDC Maximum
120 µA Maximum

Alarm Ratings: 8 V Minimum at 16 mA

12 V Maximum at 100 mA

(Alarm current MUST be limited to 100 mA maximum by the control panel.)
Relay Contact Ratings:
Resistive or Inductive (60% power factor) Load
Form C*: 2.0A @ 30 VAC/DC

0.6A @ 110 VDC

1.0A @ 125 VAC
Reset Voltage: 1.4 VDC Minimum
Reset Time: 0.3 Seconds Maximum
Start-up Time: 34.0 Seconds Maximum
*For Canadian installations relay contact ratings are 2.0A @ 30 VAC/DC.

3825 Ohio Avenue, St. Charles, Illinois 60174

1-800-SENSOR2, FAX: [phone]

A Division of Pittway

Before Installing

Please thoroughly read the System Sensor manual I56-407,
Guide for Proper Use of System Smoke Detectors, which pro­vides detailed information on detector spacing, placement,
zoning, wiring, and special applications. Copies of this
manual are available at no charge from System Sensor. (For
installations in Canada, please refer to CAN4-S524, Stan­dard for the Installation of Fire Alarm Systems and CEC
Part 1, Sec. 32.)

NOTICE: This manual should be left with the owner/user
of this equipment.

IMPORTANT: The detector used with this base must be
tested and maintained regularly following NFPA 72 require-

D450-05-00 1 I56-376-06

Technical Manuals Online! - http://www.tech-man.com

ments. The detector used with this base should be cleaned
at least once a year.

General Description

The B406B plug-in detector base is used with a variety of
System Sensor conventional detector heads. They are ca­pable of accepting a variety of detector heads, which makes
them more versatile than equivalent direct-wired models.
Refer to the System Sensor catalog for other available plug­in detector bases.

The B406B base is intended for use in 2-wire systems, with
screw terminals provided for power and relay contact con­nections. These bases MUST be current limited by the sys­tem control panel in the alarm state.

Mounting

This detector base mounts directly to 3-1/2-inch and 4­inch octagon boxes, and 4-inch square boxes (with or with­out plaster rings). To mount, remove decorative ring by
turning it in either direction to unhook the snaps, then
separate the ring from the base. Install the base to the box
using the screws supplied with the junction box and the ap­propriate mounting slots in the base. Place decorative ring
onto base, then turn in either direction until the ring snaps
in place (see Figure 1).

Installation Guidelines

All wiring must be installed in compliance with the Nation­al Electrical Code and the local codes having jurisdiction.
Proper wire gauges should be used. The conductors used to
connect smoke detectors to control panels and accessory
devices should be color-coded to prevent wiring mistakes.
Improper connections can prevent a system from respond­ing properly in the event of a fire.

Figure 1. Mounting base to box:

SHORTING
SPRING

SNAP ON
DECORATIVE
RING

SCREWS (NOT
SUPPLIED)

For signal wiring (the wiring between interconnected de­tectors), it is recommended that the wire be no smaller
than 18 gauge. Wire sizes up to 12 gauge may be used with
the base. For best system performance, the power (+) and
(–) loop wires should be twisted pair and installed in sepa­rate grounded conduit to protect the loop from extraneous
electrical interference.

Smoke detectors and alarm system control panels have
specifications for allowable loop resistance. Consult the
control panel manufacturer’s specifications for the total
loop resistance of the particular model control panel being
used before wiring the detector loops.

Wiring Instructions

CAUTION

For system supervision — For terminals 2, 3, and 5 do not
use looped wire under terminals. Break wire run to provide
system supervision of connections.

Wire connections are made by simply stripping insulation
from the end of the wire, sliding the bare end of the wire
under the clamping plate, and tightening the clamping
plate screw. Use the strip gauges molded into the inside
and underside of the base for ease of wiring to terminals 1
through 5, and to terminals 12 through 14, respectively.

System Sensor smoke detectors and mounting bases are
marked with a compatibility identifier located as the last
digit of a five digit code stamped on the back of the prod­uct. Connect detectors/mounting bases only to compatible
control units as indicated in System Sensor’s compatibility
chart which contains a current list of UL listed control units

DETECTOR
BASE

BOX (NOT
SUPPLIED)

A78-1175-01

and detector head/base combinations. A copy of this list is
available from System Sensor upon request.

The zone wiring of the detector base should be checked
before the detector heads are installed in them. To make
this possible, this base contains a special spring-type short­ing jumper. After a detector base is properly wired and
mounted on an electrical box, make sure that the jumper
spring is in contact with the base of Terminal 3. This tem­porary connection shorts the positive-in and positive-out
leads and permits the wiring of the loop to be checked for
continuity.

Once all the detector bases have been wired and mounted,
and the loop wiring has been checked, the detector heads
may be installed in the bases. The shorting spring in the
base will disengage automatically when the detector head
is removed from the base. DO NOT remove the shorting
spring since it reengages as the detector head is turned into
the base, completing the circuit.

D450-05-00 2 I56-376-06

Technical Manuals Online! - http://www.tech-man.com

Figure 2. Typical wiring diagram:

(+) POWER LOOP

3

2

2-WIRE CONTROL PANEL

(–) POWER LOOP

CLASS A OPTIONAL WIRING

Tamper-resistance Feature

CAUTION

Do not use the tamper-resistance feature if the XR5 removal
tool is to be used.

This detector base includes an optional tamper-resistance
feature that, when activated, prevents removal of the detec­tor without the use of a tool.
To activate this feature, simply break off the tab on the de­tector base shown in Figure 3A, then install the detector. To
remove the detector from the base once the tamper-resis­tance feature has been activated, place a small-bladed
screwdriver into the small hole on the side of the base and

4

E
O

14

COM CONTACT
N.C. AUXILIARY

12

13

N.O. FORM C

5

1

L

push plastic lever away from the detector head (see Figure
3B). This will allow the detector to be rotated counterclock­wise for removal.

NOTE: Head removal after the tamper-resistance feature

has been activated first requires removal of the
decorative ring.

The tamper-resistance feature may be defeated by breaking
and removing the plastic lever from the base, however this
prevents ever using the feature again.

A78-1577-00

Figure 3A. Activating tamper-resistance feature: Figure 3B. Removing detector head from base:

BREAK TAB AT

PLASTIC LEVER

D450-05-00 3 I56-376-06

DOTTED LINE BY
TWISTING TOWARD
CENTER OF BASE.

Technical Manuals Online! - http://www.tech-man.com

USE SMALL-BLADED
SCREWDRIVER TO
PUSH PLASTIC LEVER
IN DIRECTION OF
ARROW.

A78-1175-03

WARNING

The Limitations of Property Protection Smoke Detectors

The smoke detector used with this base is designed to activate and ini­tiate emergency action, but will do so only when it is used in conjunction

with an authorized fire alarm system. This detector must be installed in
accordance with NFPA standard 72.

Smoke detectors will not work without power. AC or DC powered
smoke detectors will not work if the power supply is cut off.

Smoke detectors will not sense fires which start where smoke does not
reach the detectors. Smoldering fires typically do not generate a lot of

heat which is needed to drive the smoke up to the ceiling where the
smoke detector is usually located. For this reason, there may be large de­lays in detecting a smoldering fire with either an ionization type detector
or a photoelectric type detector. Either one of them may alarm only after
flaming has initiated which will generate the heat needed to drive the
smoke to the ceiling.

Smoke from fires in chimneys, in walls, on roofs or on the other side of a
closed door(s) may not reach the smoke detector and alarm it. A detector
cannot detect a fire developing on another level of a building quickly or at
all. For these reasons, detectors shall be located on every level and in

every bedroom within a building.

Smoke detectors have sensing limitations, too. Ionization detectors and

photoelectric detectors are required to pass fire tests of the flaming and

smoldering type. This is to ensure that both can detect a wide range of
types of fires. Ionization detectors offer a broad range of fire sensing capa­bility but they are somewhat better at detecting fast flaming fires than
slow smoldering fires. Photoelectric detectors sense smoldering fires better
than flaming fires which have little, if any, visible smoke. Because fires de­velop in different ways and are often unpredictable in their growth, nei­ther type of detector is always best, and a given detector may not always
provide early warning of a specific type of fire.

In general, detectors cannot be expected to provide warnings for fires re­sulting from inadequate fire protection practices, violent explosions, es­caping gases which ignite, improper storage of flammable liquids like
cleaning solvents which ignite, other similar safety hazards, arson, smok­ing in bed, children playing with matches or lighters, etc. Smoke detectors
used in high air velocity conditions may have a delay in alarm due to dilu­tion of smoke densities created by frequent and rapid air exchanges. Addi­tionally, high air velocity environments may create increased dust
contamination, demanding more frequent maintenance.

Smoke detectors cannot last forever. Smoke detectors contain electronic
parts. Even though smoke detectors are made to last over 10 years, any
part can fail at any time. Therefore, smoke detectors shall be replaced after
being in service for 10 years. The smoke detector system that this detector
is used in must be tested regularly per NFPA 72. This smoke detector
should be cleaned regularly per NFPA 72 or at least once a year.

Three-Year Limited Warranty

System Sensor warrants its enclosed smoke detector base to be free from
defects in materials and workmanship under normal use and service for a
period of three years from date of manufacture. System Sensor makes no
other express warranty for this smoke detector base. No agent, representa­tive, dealer, or employee of the Company has the authority to increase or
alter the obligations or limitations of this Warranty. The Company’s obli­gation of this Warranty shall be limited to the repair or replacement of any
part of the smoke detector base which is found to be defective in materials
or workmanship under normal use and service during the three year pe­riod commencing with the date of manufacture. After phoning System
Sensor’s toll free number 800-SENSOR2 (736-7672) for a Return Authori­zation number, send defective units postage prepaid to: System Sensor,

D450-05-00 4 I56-376-06

Technical Manuals Online! - http://www.tech-man.com

Repair Department, RA #__________, 3825 Ohio Avenue, St. Charles, IL

60174. Please include a note describing the malfunction and suspected
cause of failure. The Company shall not be obligated to repair or replace
units which are found to be defective because of damage, unreasonable
use, modifications, or alterations occurring after the date of manufacture.
In no case shall the Company be liable for any consequential or incidental
damages for breach of this or any other Warranty, expressed or implied
whatsoever, even if the loss or damage is caused by the Company’s negli­gence or fault. Some states do not allow the exclusion or limitation of inci­dental or consequential damages, so the above limitation or exclusion may
not apply to you. This Warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.

© System Sensor 1996

INSTALLATION AND MAINTENANCE INSTRUCTIONS

B401R Plug-in Detector Base

For use with the following smoke detectors: 1451E and 2451E

Specifications

Diameter: 10.2 cm (4.0 inches)
Height: 2.0 cm (0.8 inches)
Weight: 152 g (0.34 lb.)
Operating Temperature: –10° to +60°C (14° to 140°F)
Operating Humidity: 10% to 93% Relative Humidity

Electrical Ratings — includes base and detector

Voltage: 24 VDC
Maximum Ripple Voltage: 4 Volts peak to peak
Start-up Capacitance: 0.02 µF Maximum
Standby Ratings: 15 VDC Minimum

32 VDC Maximum
120 µA Maximum

Alarm Ratings: 10 mA Minimum at 10.5 VDC

62mA Maximum at 32 VDC
(If used, the RA400Z Remote Annunciator operates within the specified
detector alarm currents.)

Reset Voltage: 2.5 VDC Minimum

A Division of Pittway

System Sensor Europe

Via Caboto 19, 34143, Trieste, Italy

Before Installing

Please thoroughly read the System Sensor Manual I56-407,
Guide For Proper Use of System Smoke Detectors, which pro­vides detailed information on detector spacing, placement,
zoning, wiring, and special applications. Copies of this
manual are available at no charge from System Sensor.

NOTICE: This manual should be left with the owner/user
of this equipment.

IMPORTANT: The detector used with this base must be
tested and maintained regularly following NFPA 72 require­ments. The detector used with this base should be cleaned
at least once a year.

General Description

The B401R plug-in detector base is used with System Sen­sor model 2451E photoelectronic detector head and model
1451E ionization detector head. The capability of plugging
these detectors into a variety of special bases makes them
more versatile than equivalent direct-wired models. Refer
to the System Sensor catalog for other plug-in detector
bases.

The B401R base is intended for use in 2-wire systems, with
screw terminals provided for power, ground, and remote
annunciator connections. The B401R base also contains a
resistor to provide current limiting in the alarm state.

Technical Manuals Online! - http://www.tech-man.com

1 I56-351-03

Base Terminals

NO. FUNCTION

1 REMOTE ANNUNCIATOR (+)
2 NEGATIVE (–) V IN, REMOTE ANNUNCIATOR (–)
3 NEGATIVE (–) V OUT
4 NOT USED
5 POSITIVE (+) V IN AND V OUT

NOTE: If remote annunciator is not used, polarity to these

terminals may be reversed.

Mounting

These detector bases mount to typical junction boxes. In­stall the base to the box using the screws supplied with the
junction box. Figure 2 shows mechanical mounting details.

Wiring Installation Guidelines

All wiring must be installed in compliance with the Na­tional Electrical Code and the local codes having jurisdic­tion. Proper wire gauges should be used. The conductors
used to connect smoke detectors to control panels and ac­cessory devices should be color-coded to prevent wiring
mistakes. Improper connections can prevent a system from
responding properly in the event of a fire.

For signal wiring, (the wiring between interconnected de­tectors or from detectors to auxiliary devices), it is recom­mended that single-conductor wire be no smaller than

1.5mm2, and that two- or three-conductor wire be no
smaller than 1.0mm2. For best system performance, alarm
loop conductors should be installed in separate grounded
conduit or shielded cable to protect the alarm loop from ex­traneous electrical interference.

Figure 1. Terminal layout:

3

2

1

5

4

Figure 2. Mounting base to box:

SHORTING
SPRING

A78-1468-03

Smoke detectors and alarm system control panels have
specifications for allowable loop resistance. Consult the
control panel manufacturer’s specifications for the total
loop resistance allowed for the particular model control
panel being used before wiring the detector loops.

Wiring Instructions

Wire connections are made by stripping about 1 cm (3/8")
of insulation from the end of the wire (use strip gauge
molded in base), sliding the bare end of the wire under the
clamping plate, and tightening the clamping plate screw.

The zone wiring of the detector bases should be checked
before the detector heads are installed. To make this
possible, this base contains a special spring-type shorting
jumper (shown in Figure 2). After a detector base is
properly wired and mounted to an electrical box, make
sure that the shorting spring is in contact with terminal 3.

Technical Manuals Online! - http://www.tech-man.com

A78-1468-01

2 I56-351-03

REMOTE

ANNUNCIATOR

2

1

3

5

4

+

–

2-WIRE CONTROL PANEL

+

–

REMOTE

ANNUNCIATOR

2

1

3

5

4

+

–

E
O
L

CLASS A OPTIONAL WIRING

NOTE: IF REMOTE ANNUNCIATOR

IS NOT USED, POLARITY TO
THESE TERMINALS MAY BE
REVERSED.

Figure 3. Typical wiring diagram for 2-wire detector system:

CAUTION

Do not loop wire under terminals. Break wire run to provide supervision of connections.

A78-1175-05

This temporary connection permits the wiring of the loop
to be checked for continuity before installation of the
detector heads.

To activate this feature, break off the tab on the detector
base (see Figure 4), then install the detector. To remove the
detector from the base after the tamper-resistance feature

has been activated, place a small standard screwdriver into
The shorting spring in the base will automatically
disengage when the detector head is removed from the
base. DO NOT remove the shorting spring, since it
reengages as the detector head is turned into the base,

the small hole on the side of the base, and push the plastic

lever away from the detector head (see Figure 5). This will

allow the detector to be rotated counterclockwise for

removal.
completing the circuit.

The tamper-resistance feature may be defeated by breaking
Once all the detector bases have been wired and mounted,
and the loop wiring has been checked, the detector heads

and removing the plastic lever from the base, however this

prevents ever using the feature again.
may be installed in the bases.

Optional Remote Annunciator Units
Tamper-resistance Feature

This detector base also includes an optional tamper-resis­tance feature that, when activated, prevents removal of the
detector without the use of a tool.

The model RA400Z Remote Annunciator LED is available

as an optional accessory. This unit has a rectangular plate

that fits U.S. single-gang light switch boxes. If a different

type of remote annunciator is used, it must use less than

5ma at 3.0 V.

Figure 4. Activating tamper-resistance feature: Figure 5. Removing detector head from base:

PLASTIC LEVER

BREAK TAB AT
DOTTED LINE BY
TWISTING TOWARD
CENTER OF BASE.

USE SMALL-BLADED
SCREWDRIVER TO
PUSH PLASTIC LEVER
IN DIRECTION OF
ARROW.

Technical Manuals Online! - http://www.tech-man.com

A78-1468-02

3 I56-351-03

WARNING

The Limitations of Property Protection Smoke Detectors

The smoke detector used with this base is designed to activate and ini­tiate emergency action, but will do so only when it is used in conjunction

with an authorized fire alarm system. This detector must be installed in
accordance with NFPA standard 72.

Smoke detectors will not work without power. AC or DC powered
smoke detectors will not work if the power supply is cut off.

Smoke detectors will not sense fires which start where smoke does not
reach the detectors. Smoldering fires typically do not generate a lot of

heat which is needed to drive the smoke up to the ceiling where the
smoke detector is usually located. For this reason, there may be large de­lays in detecting a smoldering fire with either an ionization type detector
or a photoelectric type detector. Either one of them may alarm only after
flaming has initiated which will generate the heat needed to drive the
smoke to the ceiling.

Smoke from fires in chimneys, in walls, on roofs or on the other side of a
closed door(s) may not reach the smoke detector and alarm it. A detector
cannot detect a fire developing on another level of a building quickly or at
all. For these reasons, detectors shall be located on every level and in

every bedroom within a building.

Smoke detectors have sensing limitations, too. Ionization detectors and

photoelectric detectors are required to pass fire tests of the flaming and

smoldering type. This is to ensure that both can detect a wide range of
types of fires. Ionization detectors offer a broad range of fire sensing capa­bility but they are somewhat better at detecting fast flaming fires than
slow smoldering fires. Photoelectric detectors sense smoldering fires better
than flaming fires which have little, if any, visible smoke. Because fires de­velop in different ways and are often unpredictable in their growth, nei­ther type of detector is always best, and a given detector may not always
provide early warning of a specific type of fire.

In general, detectors cannot be expected to provide warnings for fires re­sulting from inadequate fire protection practices, violent explosions, es­caping gases which ignite, improper storage of flammable liquids like
cleaning solvents which ignite, other similar safety hazards, arson, smok­ing in bed, children playing with matches or lighters, etc. Smoke detectors
used in high air velocity conditions may have a delay in alarm due to dilu­tion of smoke densities created by frequent and rapid air exchanges. Addi­tionally, high air velocity environments may create increased dust
contamination, demanding more frequent maintenance.

Smoke detectors cannot last forever. Smoke detectors contain electronic
parts. Even though smoke detectors are made to last over 10 years, any
part can fail at any time. Therefore, smoke detectors shall be replaced after
being in service for 10 years. The smoke detector system that this detector
is used in must be tested regularly per NFPA 72. This smoke detector
should be cleaned regularly per NFPA 72 or at least once a year.

Three-Year Limited Warranty

System Sensor warrants its enclosed smoke detector base to be free from
defects in materials and workmanship under normal use and service for a
period of three years from date of manufacture. System Sensor makes no
other express warranty for this smoke detector base. No agent, representa­tive, dealer, or employee of the Company has the authority to increase or
alter the obligations or limitations of this Warranty. The Company’s obli­gation of this Warranty shall be limited to the repair or replacement of any
part of the smoke detector base which is found to be defective in materials
or workmanship under normal use and service during the three year pe­riod commencing with the date of manufacture. After phoning System
Sensor’s toll free number 800-SENSOR2 (736-7672) for a Return Authori­zation number, send defective units postage prepaid to: System Sensor,

Technical Manuals Online! - http://www.tech-man.com

Repair Department, RA #__________, 3825 Ohio Avenue, St. Charles, IL

60174. Please include a note describing the malfunction and suspected
cause of failure. The Company shall not be obligated to repair or replace
units which are found to be defective because of damage, unreasonable
use, modifications, or alterations occurring after the date of manufacture.
In no case shall the Company be liable for any consequential or incidental
damages for breach of this or any other Warranty, expressed or implied
whatsoever, even if the loss or damage is caused by the Company’s negli­gence or fault. Some states do not allow the exclusion or limitation of inci­dental or consequential damages, so the above limitation or exclusion may
not apply to you. This Warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.

4 I56-351-03

© System Sensor 1996

INSTALLATION AND MAINTENANCE INSTRUCTIONS

B401BH and B401BHA

3825 Ohio Avenue, St. Charles, Illinois 60174

Sounder Bases

Specifications

Base Diameter: 6 inches (152 mm)
Base Height (less base and sensor): 0.75 inches (19mm)
Weight: 0.3 lb. (140 g)
Operating Temperature Range: 14o to 140oF (–10o to +60oC)
Operating Humidity Range: 10% to 95%, noncondensing

Electrical Ratings

Voltage: 17 to 32 VDC
Standby Current: 1.0 mA maximum
Alarm Current: 15 mA maximum
Maximum Ripple Voltage: 10% of supply voltage
Start-up Capacitance: 200 µF
Horn Input Current Requirement: 600 µA maximum
Sound Output: Greater than 90 dBa measured in anechoic room at 10 feet (3 meters), 24 volts.

85 dBa minimum measured in UL reverberant room.

Before Installing

Please thoroughly read the System Sensor manual I56-407,
Guide for Proper Use of System Smoke Detectors, which pro­vides detailed information on detector spacing, placement,
zoning, wiring, and special applications. Copies of this
manual are available at no charge from System Sensor.
NFPA 72 and NEMA should be observed. (For installation
in Canada, refer to CAN/ULC-S524, Standard for the Instal-
lation of Fire Alarm Systems and CEC Part 1, Sec. 32.)

NOTICE: This manual should be left with the owner/user
of this equipment.

IMPORTANT: The detector used with these bases must be
tested and maintained regularly following NFPA 72 require­ments. The detector used with these bases should be
cleaned at least once a year.

General Description

Models B401BH and B401BHA sounder bases are intended

for use with System Sensor 400 Series plug-in sensor heads

in conventional 2-wire plug-in systems. Refer to systems

manuals for the maximum allowable number of units per

loop. The B401BH requires an external 24VDC (nominal)

supply with reverse polarity capability. The connections of

the external supply (terminals 1 and 2) and the initiating

loop (terminals 3, 4, and 5) are isolated in the B401BH to

prevent electrical interaction between them.

When the detector head’s visible LEDs are latched on for

approximately 10 seconds, the associated horn sounds. A

loop of horns can be made to sound by reversing the polar-

ity of the external supply.

NOTE: When the associated system is NOT used as a

supplementary evacuation system, the external
24VDC supply must be treated as a component of
the main power supply system with the result that
it falls under the requirements of NFPA 72.

1-800-SENSOR2, FAX: [phone]

A Division of Pittway

D400-50-00 1 I56-612-03

Technical Manuals Online! - http://www.tech-man.com

B401BH and B401BHA Terminals

No. Function

1 External Supply Positive (+)
2 External Supply Negative (–)
3 Negative (–) V in
4 Positive (+) V In and V Out
5 Negative (–) V Out
Terminals 3, 4, and 5 are used for the communication/initi­ating circuit.

Figure 1. Terminal Layout:

Installation Wiring Guidelines

All wiring must be installed in compliance with the Na­tional Electrical Code and all applicable local codes and
any special requirements of the authority having jurisdic­tion, using the proper wire size. The conductors used to
connect smoke detectors to control panels and accessory
devices should be color-coded to reduce the likelihood of
wiring errors. Improper connections can prevent a system
from responding properly in the event of a fire.

For signal wiring (the wiring between interconnected de­tectors), it is recommended that the wire be no smaller
than AWG 18. However, the screws and clamping plate in
the base can accommodate wire sizes up to AWG 12. The
use of twisted pair wiring or shielded cable for the power
(+ and –) loop is recommended to minimize the effects of
electrical interference on the initiating loop.

Begin electrical connections by stripping about 3/8" insula­tion from the end of the wire. Then, slide the bare end of
thewire under the clamping plate and tighten the clamping
plate screw. Break the wire at each terminal to ensure that
the connections are supervised, as shown in Figure 2.

Figure 2.

DO NOT loop the wire under the clamping plate.

Check the zone wiring of the detector base before the de­tector heads are installed. Perform continuity, base polarity,
and dielectric tests on the wiring.

Smoke detectors and alarm system control panels have
specifications for allowable supervision current. Consult
the control panel manufacturer’s specifications for the total
loop current supervision allowed for the control panel be­ing used before wiring the detector loops.

D400-50-00 2 I56-612-03

Technical Manuals Online! - http://www.tech-man.com

Figure 3. Typical wiring layout:

Wiring Instructions

The shorting spring in the base will disengage automati­cally when the detector head is removed from the base.

DO NOT remove the shorting spring since it reengages as
the detector head is turned into the base, completing the
circuit.

A typical wiring for a two-wire conventional system is
shown in Figure 3. Refer to this diagram as needed while
wiring the base into the system.

NOTE: Figure 3 shows external 24V supply polarity when

the loop system is in standby (NOT alarming).

Mounting

NOTE: It is recommended that the base be completely

wired before mounting.

See Figure 4. Attach the base directly to an electrical box
using the screws supplied with the box. Then, use the plas­tic screw covers, supplied with the base, to cover the
screws.

The sounder base is 1.1 inches (28 mm) deep. Electrical
boxes must be 4 inches (102 mm) square by at least 1-1/2
inches (38 mm) deep; 2-1/8 inches (54 mm) is recom­mended.

Figure 4. Mounting to an electrical box:

SHORTING
SPRING

SNAP ON 
DECORATIVE
RING

SCREWS (NOT
SUPPLIED)

DETECTOR
BASE

BOX (NOT
SUPPLIED)

D400-50-00 3 I56-612-03

Technical Manuals Online! - http://www.tech-man.com

A78-1175-01

Testing

Before testing, notify the proper authorities that the smoke
detector system is undergoing maintenance and that the
system will be temporarily out of service. Disable the zone
or system undergoing maintenance to prevent unwanted
alarms.

Detectors and bases must be tested after installation and
following periodic maintenance.

The Limitations of Property Protection Smoke Detectors

The sounder in this base will not operate if the power is cut off for any
reason.

The sounder may not be heard. The loudness of the sounder meets or
exceeds the current standards. However, the sounder may not alert a
sound sleeper or one who has recently used drugs or has been drinking
alcoholic beverages. This sounder may not be heard if it is placed in an
area which is separated by a closed door, or if it is located on a different
floor from the person in a hazardous situation, or if it is placed too far
away to be heard over the ambient noise such as traffic, air conditioners,
machinery, or musical appliances that may prevent alert persons from
hearing the alarm.

The sounder may not be heard by persons who are hearing impaired.

In this case, a visual indicator shall also be used.

Test the B401BH/B401BHA as follows:

1. Test the conventional detector head following the proce­dure in its manual. The B401BH/B401BHA should sound
approximately 10 seconds after the detector alarms.

2. Reverse the polarity of the external 24 VDC supply. This
should cause every base in the loop to sound after ap­proximately 10 seconds.

WARNING

closed door may not reach the smoke detector and alarm it. A detector
cannot quickly detect, or sense at all, a fire developing on another level of
a building. For this reason, detectors shall be located on every level and

in every bedroom within a building.

Smoke detectors have sensing limitations, too. Ionization detectors and

photoelectronic detectors are required to pass fire tests of the flaming and
smoldering types. This is to ensure that both can detect a wide range of
fires. Ionization detectors offer a broad range of fire-sensing capability, but
they are somewhat better at detecting fast-flaming fires than slow-smol­dering fires. Photoelectronic detectors sense smoldering fires better than
flaming fires, which have little, if any, visible smoke. Because fires develop
in different ways, and are often unpredictable in their growth, neither type
of detector is always best, and a given detector may not always provide
early warning of a specific type of fire.

This smoke detector used with this base is designed to activate and ini-
tiate emergency action, but will do so only when used in conjunction with
an authorized fire alarm system. This detector must be installed in accor­dance with NFPA standard 72.

Smoke detectors will not work without power. AC or DC powered
smoke detectors will not work if the power supply is cut off .

Smoke detectors will not sense fires which start where smoke does not
reach the detectors. Smoldering fires typically do not generate a lot of

heat which is needed to drive smoke up to the ceiling where the smoke
detector is usually located. For this reason, there may be large delays in
detecting a smoldering fire with either an ionization-type detector or a
photoelectronic-type detector. Either one of them may alarm only after
flaming has initiated, which will generate the heat needed to drive the
smoke to the ceiling.

Smoke from fires in chimneys, in walls, on roofs, or on the other side of a

Three-Year Limited Warranty

System Sensor warrants its enclosed base to be free from defects in materi­als and workmanship under normal use and service for a period of three
years from date of manufacture. System Sensor makes no other express
warranty for this base. No agent, representative, dealer, or employee of the
Company has the authority to increase or alter the obligations or limita­tions of this Warranty. The Company’s obligation of this Warranty shall be
limited to the repair or replacement of any part of the base which is found
to be defective in materials or workmanship under normal use and service
during the three year period commencing with the date of manufacture.
After phoning System Sensor’s toll free number 800-SENSOR2 (736-7672)
for a Return Authorization number, send defective units postage prepaid
to: System Sensor, Repair Department, RA #__________, 3825 Ohio Av-

In general, detectors cannot be expected to provide warnings for fires re­sulting from inadequate fire protection practices, violent explosions, es­caping gases that ignite, improper storage of flammable liquids like
cleaning solvents that ignite, other similar safety hazards, arson, smoking
in bed, children playing with matches or lighters, etc. Smoke detectors
used in high air velocity conditions may have a delay in alarm due to dilu­tion of smoke densities created by frequent and rapid air exchanges. Addi­tionally, high air velocity environments may create increased dust
contamination, demanding more frequent detector maintenance.

Smoke detectors cannot last forever. Smoke detectors contain electronic
parts. Even though detectors are made to last over 10 years, any part can
fail at any time. Therefore, smoke detectors shall be replaced after being in
service for 10 years. The smoke detector system that this detector is used
in must be tested regularly per NFPA 72. This smoke detector should be
cleaned regularly per NFPA 72 or at least once a year.

enue, St. Charles, IL 60174. Please include a note describing the malfunc­tion and suspected cause of failure. The Company shall not be obligated to
repair or replace units which are found to be defective because of damage,
unreasonable use, modifications, or alterations occurring after the date of
manufacture. In no case shall the Company be liable for any consequential
or incidental damages for breach of this or any other Warranty, expressed
or implied whatsoever, even if the loss or damage is caused by the
Company’s negligence or fault. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation
or exclusion may not apply to you. This Warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.

D400-50-00 4 I56-612-03

Technical Manuals Online! - http://www.tech-man.com

© System Sensor 1996

INSTALLATION AND MAINTENANCE INSTRUCTIONS

B401BR750 Plug-in Detector Base

For use with the following smoke detectors:
1451, 2451, and 2451TH

Specifications

Base Diameter: 6.2 inches (157 mm)
Base Height: 1.1 inches (29 mm)
Weight: 0.3 lb. (130 g)
Mounting: 4-inch square box with or without plaster ring. Min. Depth–1.5 inches

4-inch octagon box. Min. Depth–1.5 inches
3-1/2 inch octagon box. Min. Depth–1.5 inches

Operating Temperature Range: 0° to +49°C (32° to 120°F)
Operating Humidity Range: 10% to 93% Relative Humidity, noncondensing

Electrical Ratings — includes base and detector

System Voltage: 12/24 VDC
Maximum Ripple Voltage: 4 Volts peak to peak
Start-up Capacitance: 0.02 µF Maximum
Standby Ratings: 17 VDC Minimum; 32 VDC Maximum

120 µA Maximum

Alarm Ratings: 10mA Minimum at 13.5 VDC; 39mA Maximum at 32 VDC

(If used, the RA400 remote lamp operates within specified detector alarm currents.)
Reset Voltage: 2.5 VDC Minimum
Reset Time: 0.3 Seconds Maximum
Start-up Time: 34.0 Seconds Maximum

3825 Ohio Avenue, St. Charles, Illinois 60174

1-800-SENSOR2, FAX: [phone]

A Division of Pittway

Before Installing

Please thoroughly read the System Sensor manual I56-407,
Guide for Proper Use of System Smoke Detectors, which
provides detailed information on detector spacing, place­ment, zoning, wiring, and special applications. Copies of
this manual are available at no charge from System Sensor.
(For installations in Canada, refer to CAN4-S524, Standard
for the Installation of Fire Alarm Systems, and CEC Part 1,
Sec. 32.)

NOTICE: This manual should be left with the owner/user
of this equipment.

IMPORTANT: The detector used with this base must be
tested and maintained regularly following NFPA 72 require­ments. The detector used with this base should be cleaned
at least once a year.

General Description

The B401BR750 plug-in detector base is used with System
Sensor model 2451 and 2451TH photoelectronic detector
heads and model 1451A ionization detector heads. The ca­pability of plugging these detectors into a variety of special
bases makes them more versatile than equivalent direct­wired models. Refer to the System Sensor catalog for other
available plug-in detector bases.

This base is intended for use in 2-wire systems, with screw
terminals provided for power, ground, and remote annun­ciator connections. It also contains a resistor to provide
current limiting in the alarm state.

D450-09-00 1 I56-451-02

Technical Manuals Online! - http://www.tech-man.com

Mounting

This detector base mounts directly to 3-1/2-inch and 4-inch
octagon boxes, and 4-inch square boxes (with or without
plaster rings). To mount, remove the decorative ring by
turning it in either direction to unhook the snaps, then
separate the ring from the base.

Install the base to the box using the screws supplied with
the junction box and the appropriate mounting slots in the
base (see Figure 1). Place decorative ring onto base, then
turn in either direction until the ring snaps in place.

Installation Guidelines

All wiring must be installed in compliance with the Na­tional Electrical Code and the local codes having jurisdic­tion. Proper wire gauges should be used. The conductors
used to connect smoke detectors to control panels and ac­cessory devices should be color-coded to reduce the likeli­hood of wiring errors. Improper connections can prevent a
system from responding properly in the event of a fire.

Figure 1. Mounting base to box:

SHORTING
SPRING

SNAP ON 
DECORATIVE
RING

SCREWS (NOT
SUPPLIED)

DETECTOR
BASE

For signal wiring (the wiring between interconnected de­tectors), it is recommended that the wire be no smaller
than 18 gauge (1.0 square mm). Wire sizes up to 12 gauge
wire (2.5 square mm) may be used with the base. For best
system performance, the power (+) and (–) loop wires
should be twisted pair and installed in separate grounded
conduit to protect the loop from extraneous electrical inter­ference.

Smoke detectors and alarm system control panels have
specifications for allowable loop resistance. Consult the
control panel manufacturer’s specifications for the total
loop resistance allowed for the particular model control
panel being used before wiring the detector loops.

Locate installations where the normal ambient tempera­tures do not exceed 100° F.

BOX (NOT
SUPPLIED)

A78-1175-01

D450-09-00 2 I56-451-02

Technical Manuals Online! - http://www.tech-man.com

Wiring Instructions

leads and permits the wiring of the loop to be checked for
continuity.

CAUTION

For system supervision — For terminals 2, 3, and 5 do not
use looped wire under terminals. Break wire run to provide
system supervision of connections.

Wire connections are made by simply stripping insulation
from the end of the wire, sliding the bare end of the wire
under the clamping plate, and tightening the clamping
plate screw. Use the strip gauge molded into the base for
ease of wiring to terminals 1 through 5.

System Sensor smoke detectors and mounting bases are
marked with a compatibility identifier located as the last
digit of a five digit code stamped on the back of the prod­uct. Connect detectors/mounting bases only to compatible
control units as indicated in System Sensor’s compatibility
chart which contains a current list of UL listed control units
and detector head/base combinations. A copy of this list is
available from System Sensor upon request.

The zone wiring of the detector base should be checked
before the detector heads are installed in them. To make
this possible, this base contains a special spring-type short­ing jumper. After a detector base is properly wired and
mounted on an electrical box, make sure that the jumper
spring is in contact with the base of Terminal 3. This tem­porary connection shorts the negative-in and negative-out

Once all the detector bases have been wired and mounted,
and the loop wiring has been checked, the detector heads
may be installed in the bases. The shorting spring in the
base will disengage automatically when the detector head
is removed from the base. DO NOT remove the shorting
spring since it reengages as the detector head is turned into
the base, completing the circuit.

Tamper-resistance Feature

CAUTION

Do not use the tamper-resistance feature if the XR5 removal
tool is to be used.

The tamper-resistant tab, in the detector mounting bracket,
can make the detector tamper-resistant by making it neces­sary to use a small screwdriver or similar tool to detach the
detector from the bracket.

To make the detector tamper-resistant, use needle-nose pli­ers to break the smaller tab at the scribed line on the
tamper- resistance tab. Figure 3A (on page 4) shows the lo­cation of this tab on the detector mounting bracket. To re­move a detector from the bracket after it has been made
tamper resistant, use a small screwdriver or other similar
tool, to depress the tamper-resistance tab in the slot on the

Figure 2. Typical wiring diagram for 2-wire detector systems:

–

2

–

+

REMOTE

ANNUNCIATOR

2-WIRE CONTROL PANEL

1

3

4

5

–

+

REMOTE

ANNUNCIATOR

+

CLASS A OPTIONAL WIRING

D450-09-00 3 I56-451-02

Technical Manuals Online! - http://www.tech-man.com

NOTE: IF REMOTE ANNUNCIATOR

IS NOT USED, POLARITY TO
THESE TERMINALS MAY BE

2

1

3

4

5

E
O
L

REVERSED.

A78-1175-05

mounting bracket, and rotate the detector counterclockwise
(see Figure 3B).

The tamper-resistance feature can be defeated by breaking
and removing the plastic lever from the base. However, this
prevents ever using the feature again.

NOTE: The decorative ring must be removed before the

smoke detector can be detached from the base af­ter the tamper-resistant capability is enabled.

Figure 3A. Activating the tamper-resistance feature: Figure 3B. Removing detector head from base:

BREAK TAB AT

PLASTIC LEVER

The smoke detector used with this base is designed to activate and ini­tiate emergency action, but will do so only when it is used in conjunction

with an authorized fire alarm system. This detector must be installed in
accordance with NFPA standard 72.

Smoke detectors will not work without power. AC or DC powered
smoke detectors will not work if the power supply is cut off.

Smoke detectors will not sense fires which start where smoke does not
reach the detectors. Smoldering fires typically do not generate a lot of

heat which is needed to drive the smoke up to the ceiling where the
smoke detector is usually located. For this reason, there may be large de­lays in detecting a smoldering fire with either an ionization type detector
or a photoelectric type detector. Either one of them may alarm only after
flaming has initiated which will generate the heat needed to drive the
smoke to the ceiling.

Smoke from fires in chimneys, in walls, on roofs or on the other side of a
closed door(s) may not reach the smoke detector and alarm it. A detector
cannot detect a fire developing on another level of a building quickly or at
all. For these reasons, detectors shall be located on every level and in

every bedroom within a building.

Smoke detectors have sensing limitations, too. Ionization detectors and

photoelectric detectors are required to pass fire tests of the flaming and

DOTTED LINE BY
TWISTING TOWARD
CENTER OF BASE.

The Limitations of Property Protection Smoke Detectors

USE SMALL-BLADED
SCREWDRIVER TO
PUSH PLASTIC LEVER
IN DIRECTION OF
ARROW.

WARNING

smoldering type. This is to ensure that both can detect a wide range of
types of fires. Ionization detectors offer a broad range of fire sensing capa­bility but they are somewhat better at detecting fast flaming fires than
slow smoldering fires. Photoelectric detectors sense smoldering fires better
than flaming fires which have little, if any, visible smoke. Because fires de­velop in different ways and are often unpredictable in their growth, nei­ther type of detector is always best, and a given detector may not always
provide early warning of a specific type of fire.

In general, detectors cannot be expected to provide warnings for fires re­sulting from inadequate fire protection practices, violent explosions, es­caping gases which ignite, improper storage of flammable liquids like
cleaning solvents which ignite, other similar safety hazards, arson, smok­ing in bed, children playing with matches or lighters, etc. Smoke detectors
used in high air velocity conditions may have a delay in alarm due to dilu­tion of smoke densities created by frequent and rapid air exchanges. Addi­tionally, high air velocity environments may create increased dust
contamination, demanding more frequent maintenance.

Smoke detectors cannot last forever. Smoke detectors contain electronic
parts. Even though smoke detectors are made to last over 10 years, any
part can fail at any time. Therefore, smoke detectors shall be replaced after
being in service for 10 years. The smoke detector system that this detector
is used in must be tested regularly per NFPA 72. This smoke detector
should be cleaned regularly per NFPA 72 or at least once a year.

A78-1175-03

Three-Year Limited Warranty

System Sensor warrants its enclosed smoke detector base to be free from
defects in materials and workmanship under normal use and service for a
period of three years from date of manufacture. System Sensor makes no
other express warranty for this smoke detector base. No agent, representa­tive, dealer, or employee of the Company has the authority to increase or
alter the obligations or limitations of this Warranty. The Company’s obli­gation of this Warranty shall be limited to the repair or replacement of any
part of the smoke detector base which is found to be defective in materials
or workmanship under normal use and service during the three year pe­riod commencing with the date of manufacture. After phoning System
Sensor’s toll free number 800-SENSOR2 (736-7672) for a Return Authori­zation number, send defective units postage prepaid to: System Sensor,

D450-09-00 4 I56-451-02

Technical Manuals Online! - http://www.tech-man.com

Repair Department, RA #__________, 3825 Ohio Avenue, St. Charles, IL

60174. Please include a note describing the malfunction and suspected
cause of failure. The Company shall not be obligated to repair or replace
units which are found to be defective because of damage, unreasonable
use, modifications, or alterations occurring after the date of manufacture.
In no case shall the Company be liable for any consequential or incidental
damages for breach of this or any other Warranty, expressed or implied
whatsoever, even if the loss or damage is caused by the Company’s negli­gence or fault. Some states do not allow the exclusion or limitation of inci­dental or consequential damages, so the above limitation or exclusion may
not apply to you. This Warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.

© System Sensor 1996
