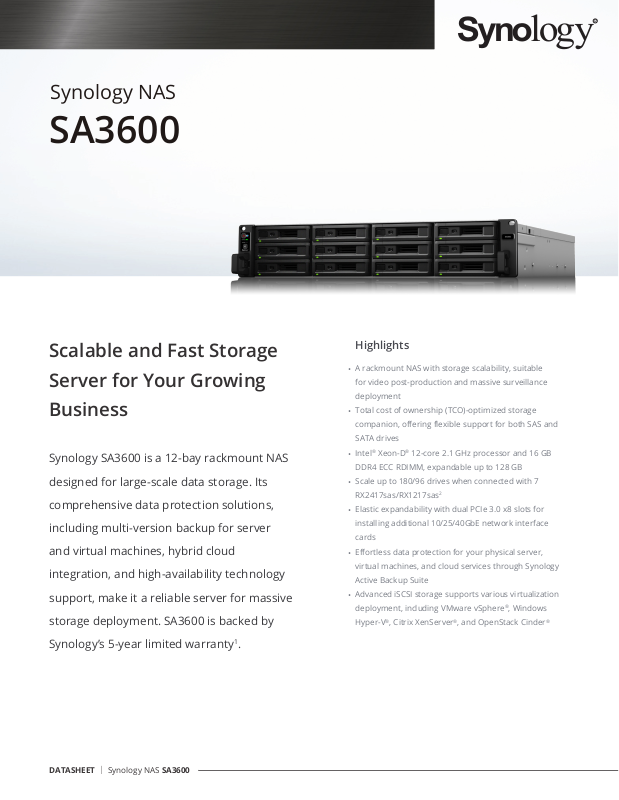

Page 1
Synology NAS
SA3600
Scalable and Fast Storage
Server for Your Growing
Business
Synology SA3600 is a 12-bay rackmount NAS
designed for large-scale data storage. Its
comprehensive data protection solutions,
including multi-version backup for server
and virtual machines, hybrid cloud
integration, and high-availability technology
support, make it a reliable server for massive
storage deployment. SA3600 is backed by
Highlights
A rackmount NAS with storage scalability, suitable
•
for video post-production and massive surveillance
deployment
Total cost of ownership (TCO)-optimized storage
•
companion, offering flexible support for both SAS and
SATA drives
Intel® Xeon-D® 12-core 2.1 GHz processor and 16 GB
•
DDR4 ECC RDIMM, expandable up to 128 GB
Scale up to 180/96 drives when connected with 7
•
RX2417sas/RX1217sas
Elastic expandability with dual PCIe 3.0 x8 slots for
•
installing additional 10/25/40GbE network interface
cards
Effortless data protection for your physical server,
•
virtual machines, and cloud services through Synology
Active Backup Suite
Advanced iSCSI storage supports various virtualization
•
deployment, including VMware vSphere®, Windows
Hyper-V®, Citrix XenServer®, and OpenStack Cinder
2
®
Synology’s 5-year limited warranty1.
DATASHEET | Synology NAS SA3600
Page 2
Next-Generation File System
A modern le system designed to address obstacles
often encountered in enterprise storage systems,
and safeguard data integrity through metadata
mirroring, self-healing, and snapshot replication.
Expandable Storage with Outstanding
Performance
SA3600 is equipped with an Intel® Xeon® D-1567 12-core CPU and 16 GB
ECC RDIMM (upgradable to 128 GB) to ensure system performance and
data integrity. Offering dual built-in 10GBASE-T Ethernet and dual PCIe
3.0 slots for expansion of 10/25/40GbE network interface cards, SA3600
delivers over 5,561 MB/s sequential throughput via aggregated 10Gb
Ethernet3.
With the ability to scale up its storage to 180 drives2 and deliver raw
capacity at petabyte scale, SA3600 can easily fulfill the need for video
post-production and massive surveillance deployment. Supporting SAS
and SATA drives without vendor lock-in, SA3600 provides an elastic
and expandable storage solution with optimized total cost of ownership
(TCO).
Btrfs: Next Generation Storage Efficiency
SA3600 introduces the Btrfs file system, bringing the most advanced
storage technologies to meet the management needs of modern
businesses:
• Advanced snapshot technology provides schedulable,
near-instantaneous data protection of shared folders and iSCSI LUNs.
• File and folder level data restoration brings huge convenience and
saves time for users who wish to restore only a specific file or folder.
• Flexible Shared Folder and User Quota System provide
comprehensive quota control on all user accounts and shared
folders.
• File self-healing allows Btrfs file system to auto-detect corrupted
files with mirrored metadata, and to recover broken data using the
supported RAID volumes including RAID1, 5, 6, 10, and RAID F1.
DATASHEET | Synology NAS SA3600
Page 3
Synology Active Backup Suite
Integrated, modern, and license-free backup &
instant recovery solution for business workloads in
physical, virtual, and cloud environments.
Ultimate Backup Solution
SA3600 integrates various backup applications to safeguard your
important data on any device with an intuitive user interface and durable
storage technologies.
• Workstation/Server/Virtual Machine/SaaS backup: Active Backup
for Business centralizes backup tasks for virtual machines, Windows
PC, servers, and rsync/SMB file servers and offers various recovery
options to ensure lowest RTO. Active Backup for Office 365/G
Suite is an on-premises backup solution for public clouds with a
centralized dashboard, optimizing storage efficiency through the
single instancing and block-level deduplication technology.
• NAS backup: Hyper Backup comprehensively backs up your data
to a local shared folder, an external device, another Synology NAS,
an rsync server, or Synology public cloud service, Synology C2
Backup, to ensure data safety and availability can be achieved when
a disaster happens
• Computer backup: Synology Drive Client backs up your Windows,
Mac, and Linux desktop devices to safeguard important computer
files. SA3600 is also compatible with Time Machine, allowing you to
effortlessly back up your Mac to Synology NAS.
Virtual Machine Manager
Virtual Machine Manager implements various
virtualization solutions, allowing you to manage
multiple virtual machines on your SA3600, including
Windows, Linux, and Virtual DSM.
Effortless Virtualization Deployment
Synology’s Virtual Machine Manager adds boundless capabilities to
your NAS. You can set up and run various virtual machines including
Windows, Linux, and Virtual DSM on your NAS to test new software
versions in a sandbox environment, isolate your customers' machines,
and increase the flexibility of your SA3600 with reduced hardware
deployment and maintenance costs. Synology iSCSI storage fully
supports most virtualization solutions to enhance work efficiency
with a simple management interface. VMware vSphere™ 6.5 and
VAAI integration helps offload storage operations and optimizes
computational efficiency. While Windows Offloaded Data Transfer
(ODX) speeds up data transfer and migration rates, the support for
OpenStack Cinder transforms your SA3600 into a block-based storage
component.
DATASHEET | Synology NAS SA3600
Page 4
Front
Rear
5
Hardware Overview
1
342
7
6
1 Power button and indicator 2 Beep o button 3 Drive tray 4 Drive status indicator
5 Power port 6 PSU indicator and beep o button 7 PSU fan 8 Console port
9 1GbE RJ-45 port 10 10GbE RJ-45 (10GBase-T) port 11 USB 3.0 port 12 PCIe expansion slot
13 Expansion port 14 Reset button
8
9 10 11
12 13
Technical Specifications
Hardware
CPU Intel® Xeon® D-1567 12-core 2.1 GHz, Turbo Boost up to 2.7 GHz
Hardware encryption engine Yes (AES-NI)
Memory 16 GB DDR4 ECC RDIMM (expandable up to 128 GB)
Compatible drive type 12 x 3.5" or 2.5" SAS/SATA HDD/SSD (drives not included)
Hot swappable drive Yes
External port
Dimensions (HxWxD)
Weight 14.5 kg
LAN
Wake on LAN/WAN Yes
PCIe 3.0 slot
Scheduled power on/o Yes
System fan 4 (80 x 80 x 32 mm)
AC input power voltage 100 V to 240 V AC
Power frequency 50/60 Hz, single phase
Operating temperature 0°C to 35°C (32°F to 95°F)
Storage temperature -20°C to 60°C (-5°F to 140°F)
Relative humidity 5% to 95% RH
Maximum operating altitude 5,000 m (16,400 ft)
• 2 x USB 3.0 port
• 1 x Expansion port
• 88 x 430.5 x 692 mm
• 88 x 482 x 724 mm (with server ears)
• 2 x 10GbE RJ-45 (10GBASE-T)
• 4 x Gigabit RJ-45
• 2 x 8-lane x8 slot
• High-performance network interface card support
14
General DSM Specication
Networking protocol SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™ , L2TP)
File system
• Internal: Btrfs, ext4
• External: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT
4
DATASHEET | Synology NAS SA3600
Page 5
Supported RAID type Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, Synology RAID F1
English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Русский, Polski, Magyar,
Português do Brasil, Português Europeu, Türkçe, Český,
Storage management
• Maximum single volume size: 108 TB/200 TB (at least 32 GB RAM required, for RAID 5 or RAID 6 groups only)
• Maximum system snapshots: 65,536
5
• Maximum internal volume: 256
SSD cache Read/write cache support
• Maximum local user accounts: 16,000
File sharing capability
• Maximum local groups: 512
• Maximum shared folders: 512
• Maximum concurrent SMB/NFS/AFP/FTP connections: 4,000
Privilege Windows Access Control List (ACL), application privilege
Directory service Windows® AD integration: Domain users login via SMB/NFS/AFP/FTP/File Station, LDAP integration
Virtualization VMware vSphere® 6.5, Microsoft Hyper-V® , Citrix®, OpenStack
Security
Firewall, encryption shared folder, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let's Encrypt
support, HTTPS (customizable cipher suite)
®
Supported client Windows 7 onwards, Mac OS X® 10.11 onwards
Supported browser
Chrome®, Firefox®, Edge®, Internet Explorer® 10 onwards, Safari® 10 onwards; Safari (iOS 10 onwards), Chrome (Android™ 6.0
onwards) on tablets
Interface language
Packages and Applications
File Server & Synchronization
Synology Drive
File Station
FTP Server
Presto File Server
6
Cloud Sync
Universal Search Oers global searches for applications and les
iSCSI Storage & Virtualization
iSCSI Manager
Virtual Machine Manager Deploy and run various virtual machines on Synology NAS, including Windows, Linux, or Virtual DSM
Data Protection & Backup Solution
Hyper Backup Supports local backup, network backup, and backup data to public clouds
Backup tools
Snapshot Replication
Synology High Availability Reduces service downtime by setting up two identical NAS into one high-availability cluster
Active Backup for G Suite Supports G Suite My Drive and Team Drive backup and restoration
Active Backup for Oce 365 Supports Oce 365 OneDrive for Business, mail, contacts, and calendar backup and restoration
Active Backup for Business
Provides a universal portal to synchronize les across various platforms, including Windows, macOS, Linux, Android and iOS.
• Maximum number of hosted files: 5,000,000
• Maximum number of concurrent connections for PC clients: 2,000
Virtual drive, remote folder, Windows ACL editor, compressing/extracting archived les, bandwidth control for specic users
or groups, creating sharing links, transfer logs
Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocol,
boot over the network with TFTP and PXE support, transfer logs
High-speed data transfer over WAN with exclusive SITA technology between Synology NAS and desktop
One or two-way synchronization with public cloud storage providers, including Alibaba Cloud OSS, Amazon Drive, Amazon
S3-compatible storage, Backblaze B2, Baidu Cloud, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, MegaDisk,
Microsoft OneDrive, OpenStack Swift-compatible storage, Tencent COS, WebDAV servers, Yandex Disk
• Maximum iSCSI targets: 256
• Maximum iSCSI LUNs: 512
• iSCSI LUN clone/snapshot support
DSM conguration backup, macOS Time Machine support, Synology Drive Client desktop application
Shared Folder Sync - maximum task numbers: 32
• Maximum shared folder snapshots: 1,024
• Maximum replications: 64
All-in-one backup solution designed for heterogeneous business IT environments, enabling IT admins to remotely manage
and monitor protection over PC, servers, and VM on one centralized console
DATASHEET | Synology NAS SA3600
Page 6
Productivity & Collaboration
Supports collaboration with instant message service Synology Chat, online editor Synology Oce, and scheduling assistant
Synology Calendar
Collaboration tools
• Maximum Chat users: 6,000
• Maximum Office users: 3,400
• Calender: Supports CalDAV and access via mobile devices
Note Station Rich-text note organization and versioning, encryption, sharing, media embedding and attachments
Synology MailPlus Server
Secure, reliable, and private mail solution with high-availability, load balancing, security and ltering design (Including 5 free
email account licenses. Additional accounts require the purchasing of additional licenses)
Synology MailPlus Intuitive webmail interface for MailPlus Server, customizable mail labels, lters, and user interface
Multimedia
Moments
Other packages Video Station, Photo Station, Audio Station, iTunes® Server
Supports smart AI album with facial and subject recognition, photo editing and sharing features, similar photo detection,
auto-editing functions such as color correction and angle adjustments, and AI selection of the best photos. Mobile
applications are available on iOS and Android devices
Surveillance
Surveillance Station
Maximum IP cameras: 128 (total of 3,840 FPS at 720p, H.264) (Including two free camera licenses. Additional cameras require
the purchasing of additional licenses)
All-in-One Server
Synology Directory Server Provides a exible and cost-eective domain controller solution
Central Management System Provides a single interface to manage and monitor multiple Synology NAS models
VPN Server Maximum connections: 40, supported VPN protocol: PPTP, OpenVPN™, L2TP/IPSec
Mail Server Supported Mail Server Protocols: POP3, SMTP, IMAP, Support LDAP/AD account
Mail Station Webmail interface for Mail Server to receive emails from multiple POP3 mailboxes, customizable SMTP server
Web Station Virtual host (up to 30 websites), PHP/MariaDB®, third-party applications support
Other packages DNS Server, RADIUS Server, Log Center
Others
Storage Analyzer
Antivirus Essential Full system scan, scheduled scan, white list customization, virus denition auto update
Security Advisor Malware detection/removal, user account/password, network, system-related security scan
Other packages Additional 3rd-party packages available in Package Center
Volume and quota usage, total size of les, volume usage and trends based on past usage, size of shared folders, large les,
most recently modied les, least recently accessed les
Environment and Packaging
Environment safety RoHS compliant
• SA3600 main unit x 1
Package content
Optional accessories
7
Warranty 5 years
*Model specications are subject to change without notice. Please refer to www.synology.com for latest information.
• Quick Installation Guide x 1
• Accessory pack x 1
• AC power cord x 2
• 16GB/32GB DDR4-2666 ECC RDIMM (D4RD-2666-16G8/D4RD-2666-32G)
• Synology E10G17-F2/E10G18-T1/E10G18-T2 10Gbps Ethernet adapters
• Synology Expansion Unit RX1217sas/RX2417sas
2
• VisualStation VS360HD, VS960HD
• Surveillance Device License Pack
• Synology MailPlus License Pack
• Virtual DSM License Pack
1
DATASHEET | Synology NAS SA3600
Page 7
China
Synology Shanghai
200070, Room 201, No. 511 Tianmu W.
Rd., Jingan Dist. Shanghai, China
United Kingdom
Synology UK Ltd.
U
Mil
France
North & South America
1. The warranty period starts from the purchase date as stated on your purchase receipt. Visit https://www.synology.com/company/legal/warranty for more
information.
2. SA3600 can scale up to 96 drives with 7 x RX1217sas or 180 drives with 7 x RX2417sas. The Expansion Units are sold separately.
3. Performance gures may vary depending on the environment, usage, and conguration.
4. exFAT Access is sold separately in Package Center.
5. System snapshot includes snapshots taken by iSCSI Manager, Snapshot Replication, and Virtual Machine Manager. The availability of the listed packages may
vary by model.
6. Presto File Server License is sold separately in Package Center.
7. Please refer to www.synology.com/compatibility for the latest optional accessory list.
8. It is required to use D4RD-2666-16G with identical memory modules of the same capacity and frequency.
SYNOLOGY INC.
Synology creates network-attached storage, IP surveillance solutions, and network equipment that transform the way users manage data, conduct surveillance,
and manage networks in the cloud era. By taking full advantage of the latest technologies, Synology aims to help users centralize data storage and backup,
share les on-the-go, implement professional surveillance solutions, and manage networks in reliable and aordable ways. Synology is committed to delivering
products with forward-thinking features and the best in class customer services.
Copyright © 2020, Synology Inc. All rights reserved. Synology, the Synology logo are trademarks or registered trademarks of Synology Inc. Other product and
company names mentioned herein may be trademarks of their respective companies. Synology may make changes to specication and product descriptions at
anytime, without notice.
SA3600-2020-ENU-REV001
Headquarters
Synology Inc. 9F., No.1, Yuandong Rd., Banqiao Dist., New Taipei City 220, Taiwan Tel: +886 2 2955 1814 Fax: +886 2 2955 1884
nit 5 Danbury Court, Linford Wood,
ton Keynes, MK14 6PL, United Kingdom
Synology France SARL
102 Terrasse Boieldieu (TOUR W)
92800 Puteaux, France
Tel: +33 147 176288
Germany
Synology GmbH
Grafenberger Allee 295
40237 Düsseldorf, Deutschland
Tel: +49 211 9666 9666
Synology America Corp.
3535 Factoria Blvd SE #200 Bellevue,
WA98006, USA
Tel: +1 425 818 1587
Japan
Synology Japan Co., Ltd
4F, 3-1-2, Higashikanda, Chiyoda-ku,
Tokyo, 101-0031, Japan
DATASHEET | Synology NAS SA3600
Loading...
