NAS Server
User’s Guide
Applied Model:
DS108j, DS107, DS107+, DS207, DS207+, CS407e, CS407,
DS408, RS407, RS408, RS408-RP, DS508
Document ID:
Synology _UserGuide_NASeries_20080616_enu
Based on Version:
DSM 2.0-063x
COPYRIGHT NOTICE
All title, copyright and other intellectual property rights in and to any Synology
Products, the “Products” or “Product” (including but not limited to product design
and appearance, firmware, and any relevant media, images, photographs,
animations, video, audio, music, text, and applets incorporated into the
Products), the accompanying manuals and other documents, and on-line or
electronic documents, if any, are owned by Synology Inc. Unless otherwise
expressly licensed by Synology Inc. in writing, any provision of the Products
does not represent any license of any of the above rights.
Copyright © 2004-2008 Synology Inc.; All rights reserved.
TRADEMARK NOTICE
Synology and other names of Synology Products are proprietary marks or
registered trademarks of Synology Inc. Microsoft, Windows series, and Internet
Explorer are trademarks of Microsoft Corporation. Apple, Mac, Mac OS series
are trademarks of Apple Computer, Inc., registered in the U.S. and other
countries. Other products and company names mentioned herein are
trademarks of their respective holders.
LIMITED WARRANTY AND LIABILITY
Synology provides a limited warranty for its Products only to the initial person or
entity that originally purchased the Products from Synology or its authorized
distributor or retailer. Synology warrants that every hardware portion of the
Products will be free from physical defects in material and workmanship for two
years from the date of purchase, or the Product will be repaired or replaced as
determined solely by Synology. If the Product proves defective during this
warranty period, you can contact the local dealer in order to obtain assistance.
You must provide proof of purchase and a bar code number from the Product’s
packaging when asking for assistance. Synology Products are barebones
devices so Synology makes no warranty of the hard disk installed, or warranty
on compatibility of all hard disks.
SYNOLOGY SHALL HAVE NO LIABILITY TO YOU UNDER THIS LIMITED
WARRANTY IF THE PRODUCT IS INSTALLED AND USED IN A MANNER
NOT SPECIFIED OR DESCRIBED IN THE PRODUCT SPECIFICATIONS OR
DESCRIPTION, THE PRODUCT HAS BEEN MODIFIED OR ALTERED IN ANY
WAY BY ANY PARTY OTHER THAN SYNOLOGY, OR THE FAILURE OF THE
PRODUCT TO CONFORM TO ITS SPECIFICATIONS CAN BE ATTRIBUTED
TO CAUSES THAT NOT THE RESPONSIBILITY OF SYNOLOGY.
SYNOLOGY MAKES NO WARRANTY OR REPRESENTATION, EXPRESSED,
IMPLIED, OR STATUTORY, WITH RESPECT TO ITS PRODUCTS OR THE
CONTENTS OR USE OF THIS DOCUMENTATION AND ALL ACCOMPANYIN G
SOFTWARE, AND PARTICULARLY DISCLAIMS ITS QUALITY OR
PERFORMANCE FOR ANY PARTICULAR PURP OSE.
SYNOLOGY MAKES NO GUARANTEE THAT ALL DATA STORED ON
SYNOLOGY PRODUCTS IS ALWAYS SECURE WITHOUT ANY RISKS OF
DATA LOSS. SYNOLOGY REMINDS YOU TO BACK UP THE DATA
PERIODICALLY. UNDER NO CIRCUMSTANCES SHALL SYNOLOGY BE
LIABLE IN ANY WAY TO THE USER FOR DAMAGES, INCLUDING ANY
SAVINGS, LOST PROFITS OR OTHER INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OF, OR INABILITY TO USE
SYNOLOGY PRODUCTS OR RESULTING LOSS OF DATA FROM SUCH USE.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE (OR
JURISDICTION TO JURISDICTION). SYNOLOGY'S RESPONSIBILITY FOR
1
MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPAIR OR
REPLACEMENT AS SET FOR IN THIS WARRANTY STATEMENT. FOR
CUSTOMERS, EXCEPT FOR THE EXPRESS WARRANTIES CONTAINED IN
THIS WARRANTY STATEMENT, SYNOLOGY DISCLAIMS ALL OTHER
WARRANTIES AND CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR
OTHERWISE, FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY
IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. NO OTHER WARRANTIES,
WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE LIMITED
WARRANTY PERIOD HAS EXPIRED. SOME STATES OR JURISDICTIONS
DO NOT ALLOW THE EXCLUSION OF CERTAIN IMPLIED WARRANTIES OR
CONDITIONS, OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
OR CONDITION LASTS, SO THIS LIMITATION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY COVERAGE TERMINATES IF YOU SELL OR
OTHERWISE TRANSFER THIS PRODUCT T O AN OTHER PARTY.
SYNOLOGY DOES NOT ACCEPT LIABILITY BEYOND THE REMEDIES
PROVIDED FOR IN THIS LIMITED WARRANTY OR FOR SPECIAL, INDIRECT,
CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT
LIMIT ATION, ANY LIABILITY FOR THI RD-PARTY CLAIMS AGAINST YOU FOR
DAMAGES, FOR PRODUCTS NOT BEING AVAILABLE FOR USE, OR FOR
LOST DATA OR LOST SOFTWARE. SYNOLOGY'S LIABILITY SHALL NOT
EXCEED THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE
SUBJECT OF A CLAIM. THIS IS THE MAXIMUM AMOUNT FOR WHICH
SYNOLOGY IS RESPONSIBLE.
SYNOLOGY INC. PRODUCTS ARE NOT INTENDED FOR USE IN MEDICAL,
LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS.
DISPUTE RESOLUTION
For the purposes of this provision, the term “Dispute” means any dispute,
controversy, or claim arising out of or relating to (i) this Agreement, its
interpretation, or the breach, termination, applicability or validity thereof, (ii) the
related order for, purchase, delivery, receipt or use of any product or service
from Synology, or iii) any other dispute arising out of or relating to the
relationship between You and Synology; the term “Synology” means Synology,
Inc, its parents, subsidiaries, affiliates, directors, officers, employees,
beneficiaries, agents, assigns, component suppliers (both hardware and
software), and/or any third party who provides products or services purchased
from or distributed by Synology; and the term “You” means the owner or
purchaser of the Synology product, or those in privity with you, such as family
members or beneficiaries. For US customers, you and Synology agree that any
Dispute between You and Synology will be resolved exclusively and finally by
arbitration under the current commercial rules of the American Arbitration
Association, except as otherwise provided below. The arbitration will be
conducted before a single arbitrator, and will be limited solely to the dispute
between You and Synology. The arbitration, or any portion of it, will not be
consolidated with any other arbitration and will not be conducted on a class-wide
or class action basis. The arbitration shall be held in King County, Washington
State, United States of America by submission of documents, by telephone,
online or in person as determin ed by the arbitrator at the request of the parties.
The prevailing party in any U.S. or non-U.S. arbitration or other legal action shall
receive all costs and reasonable attorneys’ fees, including any arbitration fee
paid by the prevailing party. Any decision rendered in such arbitration
proceedings will be final and binding on the parties, and judgment may be
entered thereon in any court of competent jurisdiction. You understand that, in
the absence of this provision, You would have had a right to litigate Disputes
through a court, including the right to litigate claims on a class-wide or
class-action basis, and that You have expressly and knowingly waived those
rights and agreed to resolve any disputes through binding arbitration in
2
accordance with the provisions of this paragraph. For non-US customers, any
Dispute shall be finally resolved by arbitration conducted by three neutral
arbitrators in accordance with the procedures of the R.O.C. Arbitration Law and
related enforcement rules. The arbitration shall take place in Taipei, Taiwan,
R.O.C., and the arbitration proceedings shall be conducted in English or, if both
parties so agree, in Mandarin Chinese. The arbitration award shall be final and
binding on the parties and may be enforced in any court having jurisdiction.
REVISIONS
Synology reserves all rights to revise or update its Products, other products,
software, or related documentation without further notice.
Synology Inc. reserves the right to revise this publication and to make changes
in the content hereof without the obligation to notify any person of such revision
or changes.
3
Index
About this User’s Guide...................................................................................................................................... 6
Getting to know your Synology Server...................................................................................................7
Introduction ......................................................................................................................... 7
Storing and Sharing Files via Internet ..................................................................................7

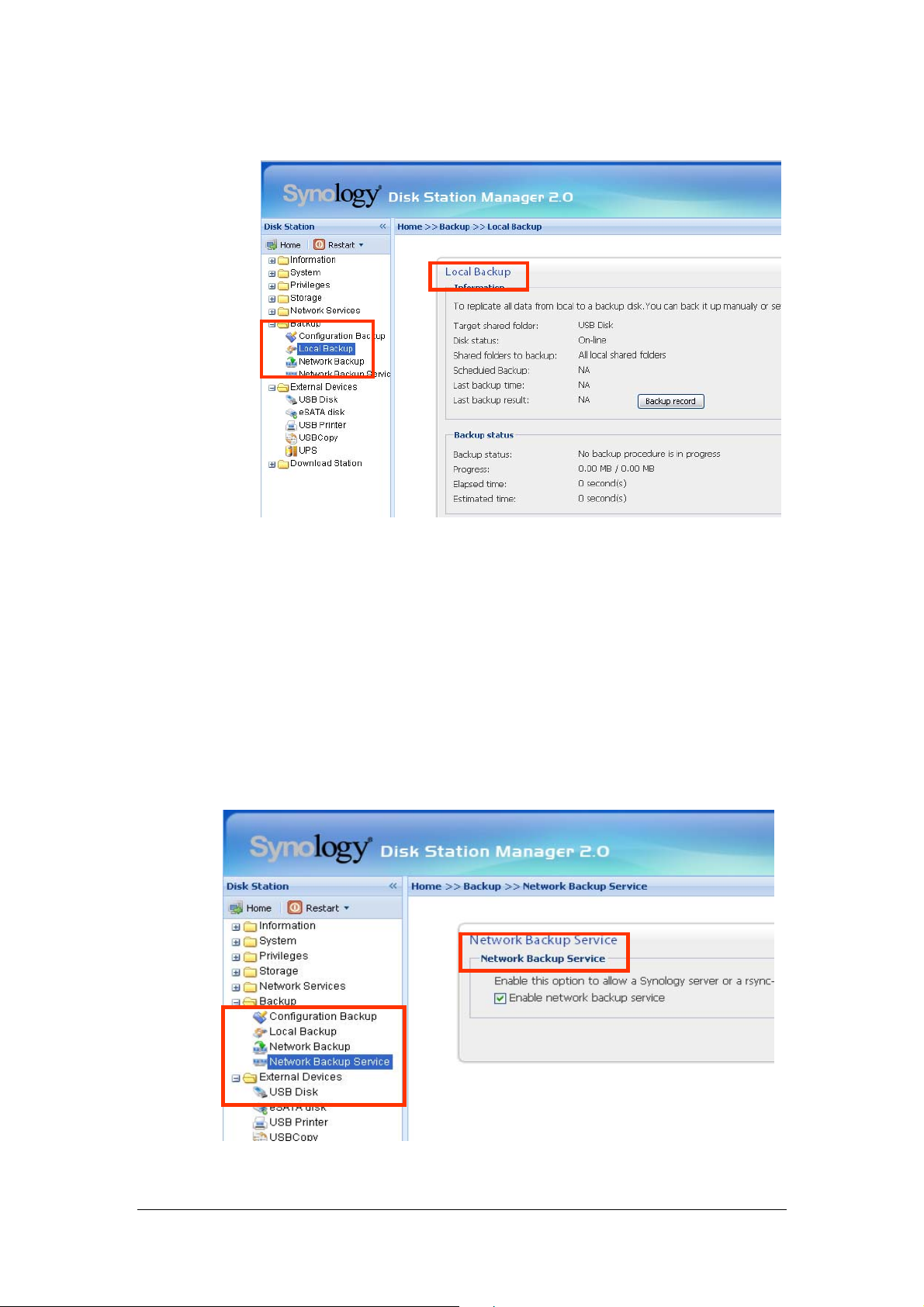

PC Data and Server Data Backup........................................................................................7

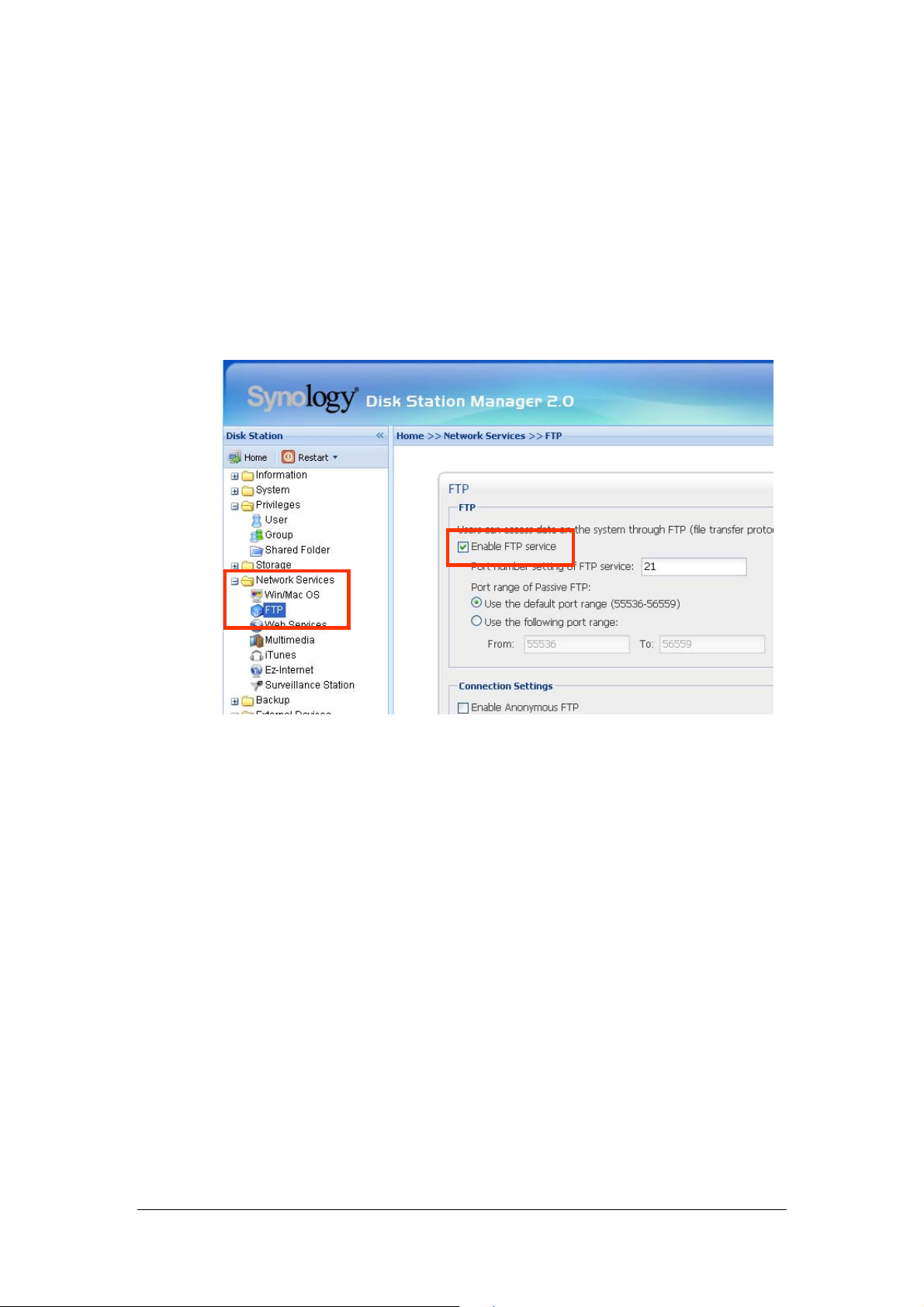

Transferring Data via FTP......................................................................................................7
Managing Files through Web Browsers...............................................................................7
Sharing Photos, Videos and Blogs with Photo Station 3...................................................7
Enjoying Entertainment Data Stored on Server..................................................................8
Enjoying Music instantly with USB Speakers......................................................................8
Programming your Own Web Site ........................................................................................8
Video Recording with IP Cameras........................................................................................8
USB Printer Server..................................................................................................................8
Specification........................................................................................................................ 9
1-bay Models............................................................................................................................9
2-bay Models..........................................................................................................................10
4-bay Models..........................................................................................................................11
5-bay Models..........................................................................................................................12
Limitations.........................................................................................................................13
Appearance....................................................................................................................... 14

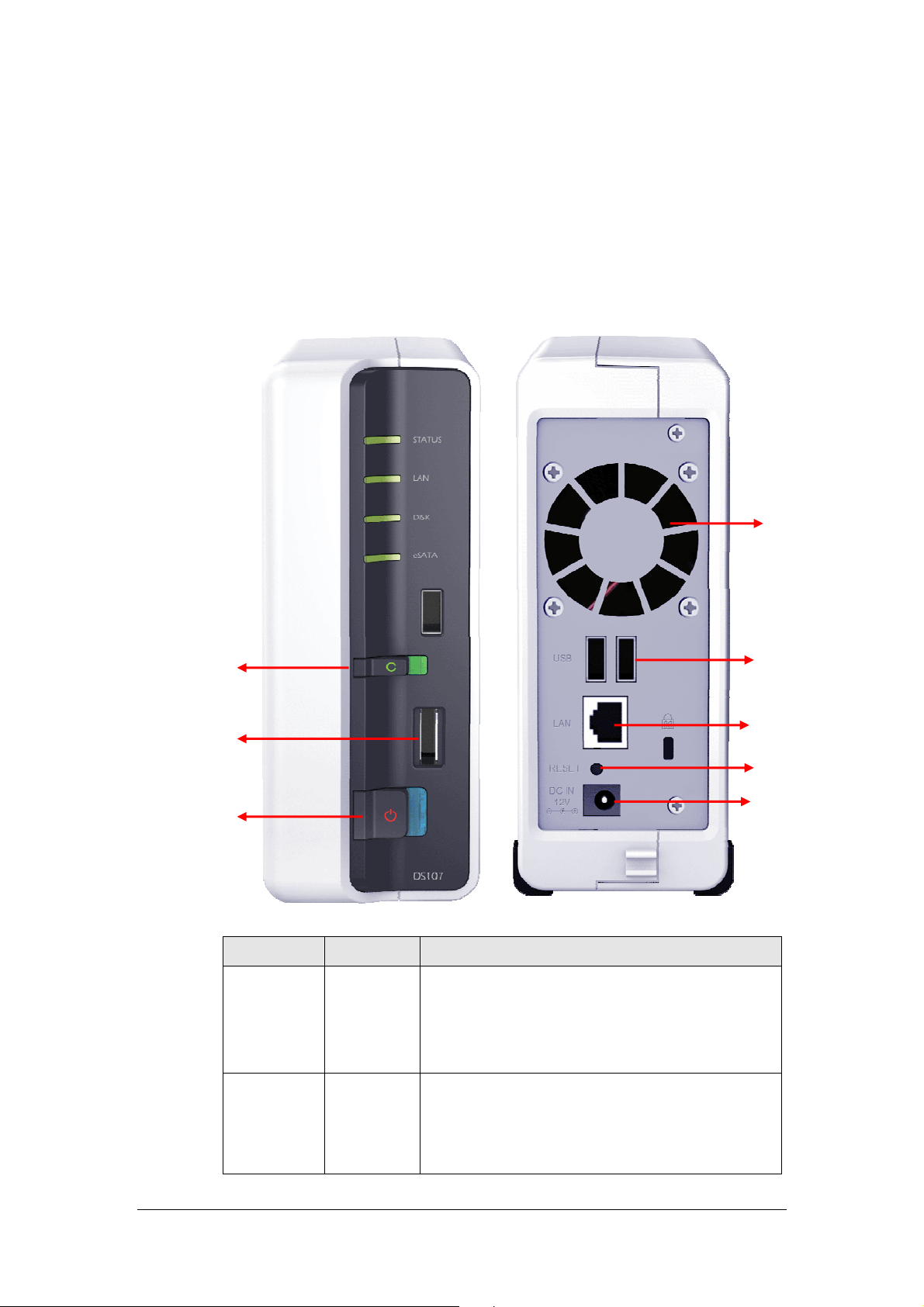

1-bay & 2-bay Disk Station...................................................................................................14

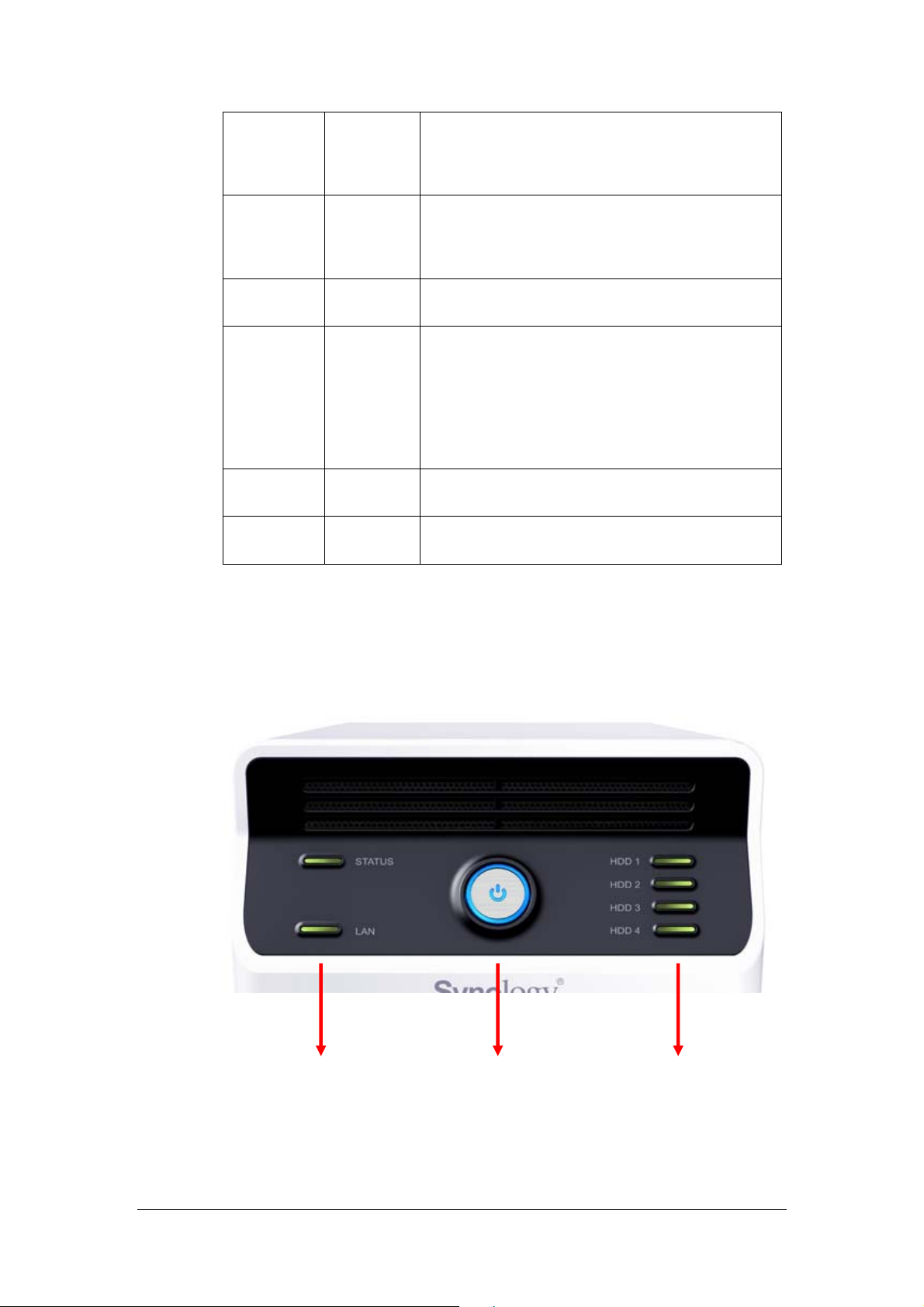

4-bay Cube/Disk Station.......................................................................................................15
4-bay 1U Rack Station..........................................................................................................17
5-bay Disk Station..................................................................................................................18
LED Indication Descriptions Table.................................................................................... 21
1-bay & 2-bay Models...........................................................................................................21
4-bay Models..........................................................................................................................22
5-bay Models..........................................................................................................................23
Managing Synology Server............................................................................................................................24
Entering Web Management UI.......................................................................................... 24
Using Setup Utility.................................................................................................................24
Accessing Web Management UI Manually........................................................................26
Managing Synology Server............................................................................................... 26
Connecting from Two Different Network*.......................................................................... 27
Managing Volume*............................................................................................................ 27
Managing Volume* ................................................................................................................27
Repairing Volume by Hot Swapping*..................................................................................28
Joining Windows Domain*................................................................................................ 28
Accessing Synology Server via Telnet/SSH...................................................................... 29
Resetting Administrator Password.................................................................................... 30
Reinstalling Synology Server............................................................................................ 30
Accessing Synology Server Data............................................................................................................... 31
Shared Folders.................................................................................................................. 31
System Built-in.......................................................................................................................31
Administrator-Created...........................................................................................................33
Setting Access Control......................................................................................................33
Using Network Recycle Bin............................................................................................... 34
Setting Encoding............................................................................................................... 34
Accessing Shared Folders................................................................................................ 35
From the same network........................................................................................................35
From different network..........................................................................................................38
4
Server Backup and PC Backup Solutions.......................................................................................... 39
Local Backup..................................................................................................................... 39
Network Backup................................................................................................................ 40
Backing up Personal Data................................................................................................. 41
Before starting........................................................................................................................41
Minimum System Requirement...........................................................................................41

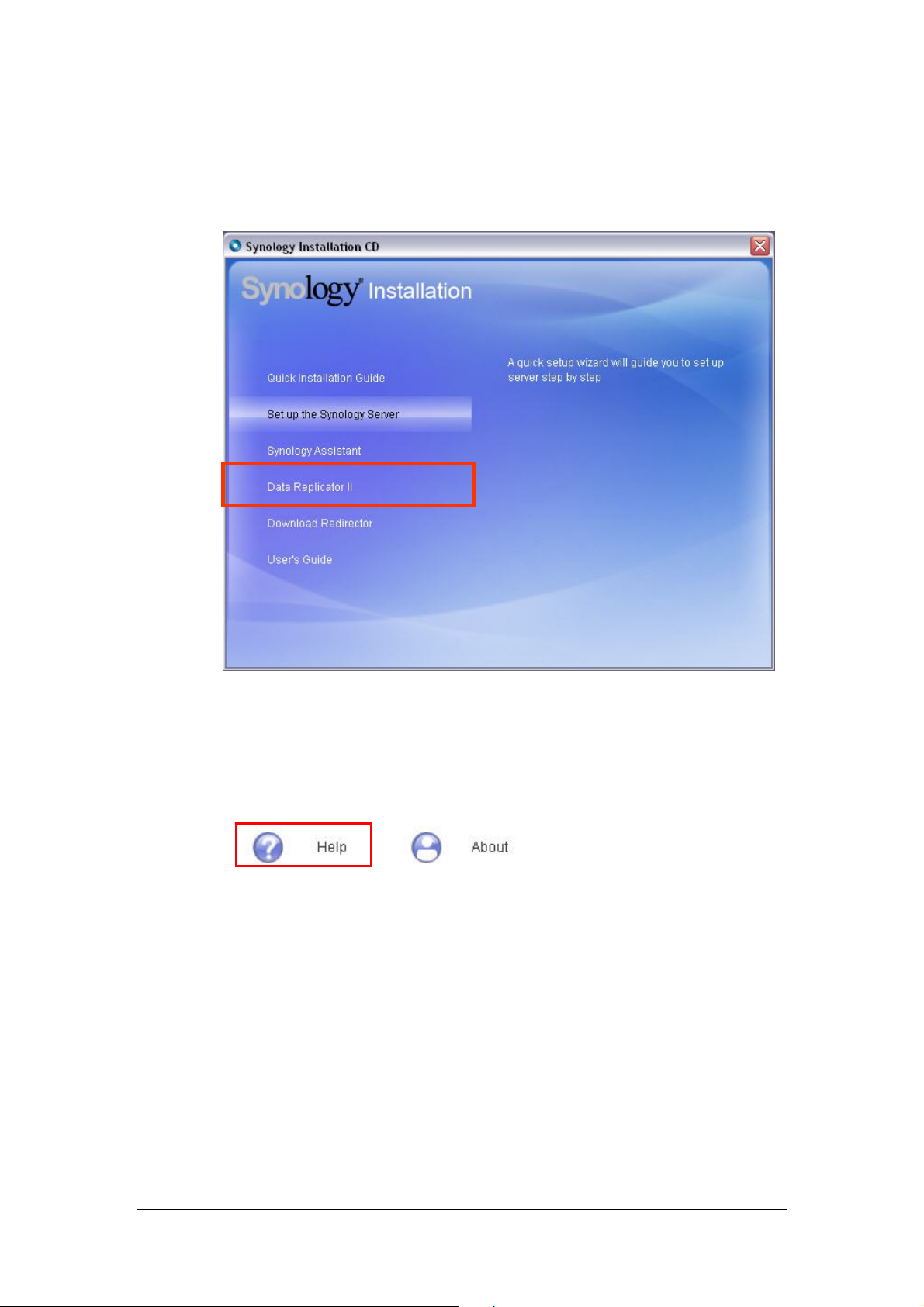

Installing Synology Data Replicator 3.................................................................................42
Using Synology Data Replicator 3......................................................................................42
Backing up Synology Server Settings............................................................................... 43
Synology Server to PC Client..............................................................................................43
Synology Server to another Synology Server...................................................................43
Sharing USB Printer.............................................................................................................................................44
Extra Features...........................................................................................................................................................45
Audio Station..................................................................................................................... 45
iTunes Service...................................................................................................................46
Multimedia Service............................................................................................................ 47
Download Station .............................................................................................................. 48
Enabling Download St atio n..................................................................................................48
Installing Download Redirector............................................................................................48
Web Station.......................................................................................................................49
Enabling Web Station and MySQL......................................................................................49
Web Station’s detail description...........................................................................................49
Photo Station 3..................................................................................................................50
Enabling Photo Station 3......................................................................................................50
Photo Station 3’s detail description.....................................................................................50
Surveillance Station...........................................................................................................51
Enabling Surveillance Station..............................................................................................51
Surveillance Station’s detailed description........................................................................51
USBCopy*.........................................................................................................................52
Setting USBCopy Target Location ......................................................................................52
Mail Notification................................................................................................................. 53
Firmware Update............................................................................................................... 54
Expanding Storage Capacity......................................................................................................................... 55
External HDD.................................................................................................................... 55
External USB HDD................................................................................................................55
External SATA HDD*.............................................................................................................55
Replacing Larger Internal HDD......................................................................................... 55
Replacing Larger Internal HDD......................................................................................... 56
Basic and RAID 0* Volume ..................................................................................................56
RAID 1 and RAID 5 Volume*...............................................................................................56
Adding a HDD to a RAID 5 Volume*................................................................................. 56
Troubleshooting.......................................................................................................................................................57
Appendix........................................................................................................................................................................ 58
Recommended Peripherals .............................................................................................. 58
Recommended NTP Server.............................................................................................. 58
5
About this User’s Guide
This user's guide covers all the functions of Synology NAS Server. Some of the
functions may only be available on specific models. Please refer to product
specification
for further details.
6
Getting to know your Synology Server
Introduction
Congratulations on your pur c hase of Sy nology NAS Server (“Synology Server”).
Synology Server is specially designed for the following purposes:
Storing and Sharing Files via Internet
Windows users and Mac users can easily share files within Intranet or through
Internet. Unicode language support makes sharing different language files from
Synology Server smoothly.
PC Data and Server Data Backup
Synology Server provides various backup solutions to back up PC data to
Synology Server, back up Synology Server data to an external hard disk, or
another Synology Server, or a rsyn c-compatible server.
Transferring Data via FTP
Synology Server provides FTP service with bandwidth restriction and
anonymous login. To transfer data safely, “FTP over SSL” or “FTP over TLS” is
also available on advanced models.
Managing Files through Web Browsers
File Station makes it possible for users to manage their files on the Synology
Server easily through a web interface. Simply point the web browser to Synology
File Station, and you have one more access to your files.
Sharing Photos, Videos and Blogs with Photo Station 3
Photo Station 3 gives you the freedom to share photos and videos over the
Internet without complicated upload steps. Album control ensures the content is
shared with the right persons. Visitors can even leave comments for your photos.
Furthermore, a brand new blogging system is integrated for you to easily share
your living and thoughts over the Internet.
7
Enjoying Entertainment Data Stored on Server
“Download St ation” allo ws you to download files from Internet through BitTorrent,
FTP, and HTTP to Synology Server. Moreover, if you have UPnP DMA
connected in the LAN, you can enable “Multimedia Service” and share the
multimedia files on Synology server. If you just want to share and play mp3 files
stored on Synology Server, you can enable “iTunes Service”, and enjoy the
music through any iTunes clients on LAN.
The build-in “Copy” button on the device allows instant copy of photos from the
camera to Synology Server.
Enjoying Music instantly with USB Speakers
“Audio Station” allows users to collate music stored in Synology Server into
playlist, play music stored on the Synology Server or from the connected iPod,
or even stream internet Radio Stations. With USB speakers connected to the
Synology Server, you’re able to bathe in music at anytime you want.
Programming your Own Web Site
Personal or corporate website can be easily setup using “Web Station” function.
By integrating with PHP and MySQL, user can also set up blog or even online
shop.
Video Recording with IP Cameras
"Surveillance Station" allows you to manage, view, and record videos from
multiple* IP cameras on the Internet, By accessing the Surveillance Station’s
web-based management interface, you can watch the real-time image the
camera is monitoring, and record videos continuously as well as in the
motion-detection mode.
USB Printer Server
You can share USB 2.0 Printer through Local Area Network.
* Supported on specific models only. Please refer to the product Specification table.
8
Specification
1-bay Models
Item DS107 DS107+ DS108j
Internal HDD 3.5 SATA (II) x 1 3.5 SATA (II) x 1 3.5 SATA (II) x 1
Max. Capacity 1 TB 1 TB 1 TB
Hot Swappable HDD No No No
External HDD Interface
LAN Port Gigabit X 1 Gigabit X 1 Gigabit X 1
USBCopy Yes Yes Yes
System Fan
Size (HxWxD) (mm) 160 X 63 X 218 160 X 63 X 218 160 X 63 X 218
Weight 0.81Kg 0.81Kg 0.81Kg
Supported Clients
Max. User Accounts 128 128 128
Max. Group Accounts 64 64 64
Max. Shared Folder 100 100 100
Max. Concurrent Connections 32 32 32
Max. Supported IP Cameras 2
File System
Volume T y pe Basic
Agency Certifications
HDD Hibernation Yes Yes Yes
Event Notification Yes Yes Yes
NTP Yes Yes Yes
FTP over SSL/TLS Yes Yes Yes
HTTPS Connection Yes Yes Yes
Windows ADS Domain Y es Yes No
Encrypted Network Backup Yes Yes Yes
Scheduled Power On/Off No No Yes
Language Localization
Power Consumption
And
Environment Requirements
USB x 3
eSATA x 1
X 1
(50mmX50mm)
y Windows 2000 Onward
y Mac OS X 10.3 Onward
‧EXT3 ‧FAT (External Disk Only)
‧NTFS (External Disk Read Only)
‧FCC Class B ‧CE Class B
‧BSMI Class B ‧VCCI Class B
‧English ‧German ‧French ‧Italian ‧Spanish
‧Danish ‧Norwegian‧Polish‧Swedish ‧Dutch
‧Russian ‧Japanese ‧Korean ‧Traditional Chinese
‧Simplified Chinese
y Line voltage: 90V to 230V AC
y Frequency: 50Hz to 60Hz
y Operating Temperature: 40 to 95∘F (5 to 35∘C)
y Storage Temperature: 15 to 155∘F (-10 to 70∘C)
y Relative Humidity: 5% to 95% RH
y Maximum Operating Altitude: 10,000 feet
USB x 3
eSATA x 1
X 1
(50mmX50mm)
2(64MB)/
5(128MB)
USB x 3
X 1
(50mmX50mm)
1
Note: For the most recent product specification, please visit www.synology.com
9
2-bay Models
Item DS207 DS207+
Internal HDD 3.5 SATA (II) x 2 3.5 SATA (II) x 2
Max. Capacity 2 TB 2 TB
Hot Swappable HDD No No
External HDD Interface USB x 3
LAN Port Gigabit X 1 Gigabit X 1
USBCopy Yes Yes
System Fan X 1 (60mmX60mm) X 1 (60mmX60mm)
Size (HxWxD) (mm) 160 X 88 X 218 160 X 88 X 218
Weight 0.98Kg 0.98Kg
Supported Clients
Max. User Accounts 128 128
Max. Group Accounts 64 64
Max. Shared Folder 100 100
Max. Concurrent Connections 32 32
Max. Supported IP Cameras 2 5
File System
Volume T y pe ‧Basic ‧RAID 0 ‧RAID 1
Agency Certifications
HDD Hibernation Yes Yes
Event Notification Yes Yes
NTP Yes Yes
FTP over SSL/TLS Yes Yes
HTTPS Connection Yes Yes
Windows ADS Domain Y es Yes
Encrypted Network Backup Yes Yes
Scheduled Power On/Off No No
Language Localization
Power Consumption
And
Environment Requirements
‧FCC Class B ‧CE Class B
‧BSMI Class B ‧VCCI Class B
‧English ‧German ‧French ‧Italian ‧Spanish
‧Danish ‧Norwegian‧Polish‧Swedish ‧Dutch
‧Russian ‧Japanese ‧Korean ‧Traditional Chinese
‧Simplified Chinese
y Line voltage: 90V to 230V AC
y Frequency: 50Hz to 60Hz
y Operating Temperature: 40 to 95∘F (5 to 35∘C)
y Storage Temperature: 15 to 155∘F (-10 to 70∘C)
y Relative Humidity: 5% to 95% RH
y Maximum Operating Altitude: 10,000 feet
y Windows 2000 Onward
y Mac OS X 10.3 Onward
‧EXT3 ‧FAT (External Disk Only)
‧NTFS (External Disk Read Only)
USB x 3
eSATA x 1
‧FCC Class B
‧CE Class B
Note: For the most recent product specification, please visit www.synology.com
10
4-bay Models
Item CS407e/CS407 DS408 RS407 RS408 RS408-RP
Internal HDD 3.5 SATA (II) x 4 3.5 SATA (II) x 4 3.5 SATA (II) x 4 3.5 SATA (II) x 4 3.5 SATA (II) x 4
Max. Capacity 4 TB 4 TB 4 TB 4 TB 4 TB
Hot Swappable HDD No No Yes Yes Yes
External HDD
Interface
LAN Port Gigabit X 1 Gigabit X 1 Gigabit X 1 Gigabit X2 Gigabit X2
USBCopy No No No No No
System Fan
Power Fan No No No
Size (HxWxD) (mm) 168 X 184 X 230 168 X 184 X 230
Weight 2.23Kg 2.23Kg 7.2Kg 7.1Kg 9.68Kg
Supported Clients
Max. User Accounts 2,048 2,048 2,048 2,048 2,048
Max. Group Accounts 256 256 256 256 256
Max. Shared Folder 200 200 200 200 200
Max. Concurrent
Connections
Max. Supported IP
Cameras
File System
Volume T y pe ‧Basic ‧RAID 0 ‧RAID 1 ‧RAID 5
Agency Certifications
HDD Hibernation Yes Yes Yes Yes Yes
Event Notification Yes Yes Yes Yes Yes
NTP Yes Yes Yes Yes Yes
FTP over SSL/TLS Yes Yes Yes Yes Yes
HTTPS Connection Yes Yes Yes Yes Yes
Windows ADS
Domain
Encrypted Network
Backup
Scheduled Power
On/Off
Language
Localization
Power Consumption
And
Environment
Requirements
USB x 2 USB x 2 USB x 2 USB x 2 USB x 2
X 1
(80mmX80mm)
128 128 128 128 128
2/5 10 5 10 10
‧FCC Class B
‧CE Class B
‧BSMI Class B
‧VCCI Class B
Yes Yes Yes Yes Yes
Yes Yes Yes Yes Yes
No Yes No Yes Yes
‧English ‧German ‧French ‧Italian ‧Spanish‧Danish ‧Norwegian
‧Polish‧Swedish ‧Dutch ‧Russian ‧Japanese ‧Korean
‧Traditional Chinese ‧Simplified Chinese
y Line voltage: 90V to 230V AC
y Frequency: 50Hz to 60Hz
y Operating Temperature: 40 to 95∘F (5 to 35∘C)
y Storage Temperature: 15 to 155∘F (-10 to 70∘C)
y Relative Humidity: 5% to 95% RH
y Maximum Operating Altitude: 10,000 feet
X 1
(80mmX80mm)
y Windows 2000 Onward
y Mac OS X 10.3 Onward
‧EXT3 ‧FAT (External Disk Only)
‧NTFS (External Disk Read Only)
‧FCC Class B
‧CE Class B
‧BSMI Class B
X 3
(40mmX40mm)
44 X 430.5 X
457.5
‧FCC Class A
‧CE Class A
‧VCCI Class A
X 3
(40mmX40mm)
X 1
(40mmX40mm)
44 X 430.5 X
457.5
‧FCC Class A ‧CE Class A
‧BSMI Class A ‧VCCI Class A
X 4
(40mmX40mm)
X 2
(40mmX40mm)
44 X 430.5 X
570.5
y
11
5-bay Models
Item DS508
Internal HDD 3.5 SATA (II) x 5
Max. Capacity 5 TB
Hot Swappable HDD Yes
External HDD Interface USB X2, eSATA X1
LAN Port Gigabit X 2
USBCopy No
System Fan X 2(80mmX80mm)
Power Fan X 1(40mmX40mm)
Size (HxWxD) (mm) 177 X 203 X 242
Weight 4.75Kg
Supported Clients
Max. User Accounts 2,048
Max. Group Accounts 256
Max. Shared Folder 200
Max. Concurrent Connections 128
Max. Supported IP Cameras 10
File System
Volume T y pe ‧Basic ‧RAID 0 ‧RAID 1 ‧RAID 5
Agency Certifications
HDD Hibernation Yes
Event Notification Yes
NTP Yes
FTP over SSL/TLS Yes
HTTPS Connection Yes
Windows ADS Domain Y es
Encrypted Network Backup Yes
Scheduled Power On/Off Yes
‧English ‧German ‧French ‧Italian ‧Spanish
Language Localization
Power Consumption
And
Environment Requirements
‧Danish ‧Norwegian‧Polish‧Swedish ‧Dutch
‧Russian ‧Japanese ‧Korean ‧T raditional Chinese
‧Simplified Chinese
y Line voltage: 100V to 240V AC
y Frequency: 50Hz to 60Hz
y Operating Temperature: 40 to 95∘F (5 to 35∘C)
y Storage Temperature: 15 to 155∘F (-10 to 70∘
C)
y Relative Humidity: 5% to 95% RH
y Maximum Operating Altitude: 10,000 feet
y Windows 2000 Onward
y Mac OS X 10.3 Onward
‧EXT3 ‧FAT (External Disk Only)
‧NTFS (External Disk Read Only)
‧FCC Class B
‧CE Class B
‧BSMI Class B
‧VCCI Class B
Note: For the most recent product specification, please visit www.synology.com
12
Limitations
1. Supports up to 1 USB printer.
2. USBCopy function only supports USB disks with FAT32 file system.
3. Some digital cameras are defined as a Still Image Device, such as Canon.
For such devices, Synology Server only supports USB Copy function (No
USB share function).
4. For Mac users, Synology Server supports only USB printers with
PostScript.
13
Appearance
1-bay & 2-bay Disk Station
Front View Rear View
Fan
USBCopy
button
eSATA
port
POWER
button
USB
port
LAN port
RESET
DC in 12V
port
Article Name Location Description
Power Button Front Panel The Power Button is used to turn the Synology
Server On or Off.
To turn Off Synology Server , press the Power Button
and hold it until you hear a "beep" sound and the
Power LED starts blinking.
COPY Button Front Panel The COPY Button lights up when you connect a
USB Device (for example: digital camera, USB flash
disk). Pressing the button will copy the data from the
connected USB device to the Synology Server's
internal HDD.
14
USB Port Front & Back
Panel
The Synology Server offers 3 USB ports for adding
additional external hard drives, USB printers, or
other USB devices. One at the front, and other two
at the back.
Smart Fan
Ventilation
eSATA Port Front Panel The eSATA port is for connecting with an external
RESET
Button
LAN Port Back Panel The LAN port is where you connect RJ-45 cable to
DC IN 12V
Port
Back Panel The fan is to exhaust waste heat out of Synology
Server. It will start automatically when the server
starts. If the fan is malfunctioning, system will "beep"
every 1 second.
SATA HDD.
Back Panel 1. To restore IP, DNS, passwords for the "admin"
account to default value, and reset the “guest”
account to the “enabled” status. (Please refer
to “Resetting Administrator Password”
chapter.)
2. To reinstall the Synology Server. (Please refer
to “Reinstalling Synology Server” chapter.)
Synology Server.
Back Panel The DC IN 12V Port is where you connect the AC
Power Adapter .
4-bay Cube/Disk Station
Front View
LED Indicators Power Button LED Indicators
15
Rear View
DC in LAN USB Fan
RESET
Article Name Location Description
Power Button Front Panel The Power Button is used to turn Synology Server
On or Off.
To turn Off Synology Server , press the Power Button
until you hear a "beep" and the Power LED begins
blinking. The shutdown process will complete in 30
seconds.
LED
Indicators
USB Port Back Panel Synology Server offers 2 USB ports for adding
Fan
Ventilation
RESET
Button
Front Panel The LED indicator is used to display the status of
the internal disk and the system.
additional external hard drives, USB printers, or
other USB devices.
Back Panel The fan is to exhaust waste heat out of Synology
Server. It will start automatically when the server
starts. If the fan is malfunctioning, system will "beep"
every 1 second.
Back Panel 3. To restore IP, DNS, passwords for the "admin"
account to default value, and reset the “guest”
account to the “enabled” status. (Please refer
to “Resetting Administrator Password”
chapter.)
4. To reinstall the Synology Server. (Please refer
to “Reinstalling Synology Server” chapter.)
LAN Port Back Panel The LAN port is where you connect RJ-45 cable to
Synology Server.
DC IN Port Back Panel The DC IN Port is where you connect the AC Power
Adapter.
16
4-bay 1U Rack Station
Front View
Power Button LED Indicators
Rear View
Power Fan LAN USB Console
Article Name Location Description
Power Button Back Panel The Power Button is used to turn Synology Server
On or Off.
To turn Off Synology Server , press the Power Button
until you hear a "beep" and the Power LED begins
blinking. The shutdown process will complete in 30
seconds.
LED
indicators
USB Port Back Panel Synology Server offers 2 USB ports for adding
Front Panel The LED Indicator is used to display the status of
the internal disk and the system.
additional external hard drives or other USB
devices.
Fan Back Panel There are 3 fans on the back panel. The fans are
used to exhaust waste heat out of Synology Server.
The fans will start automatically when Synology
Server starts. If the fan is malfunctioning, system will
"beep" every 1 second.
17
Console port Back Panel The console port is where you connect Synology
y
k
Server directly to a computer.
RESET
Button
LAN Port Back Panel The LAN port is where you connect RJ-45 cable to
Power Port Back Panel The power port is where you connect the AC power
Back Panel 1. To restore IP, DNS, passwords for the
"admin" account to default value, and reset
the “guest” account to the “enabled” status.
(Please refer to “Resetting Administrator
Password” chapter.)
2. To reinstall the Synology Server. (Please
refer to “Reinstalling Synology Server”
chapter.)
RS407.
cord.
5-bay Disk Station
Front View
LED
Indicators
Activity
Indicator
Status
Indicator
POWER
Button
Hard Disk
Tra
Loc
Hard Disk
Tray
18
Rear View
Power
Fan
Console
USB
eSATA
RESET
LAN
Article Name Location Description
Power Button Front Panel The Power Button is used to turn Synology Server
On or Off.
To turn Off Synology Server , press the Power Button
until you hear a "beep" and the Power LED begins
blinking. The shutdown process will complete in 30
seconds.
LED Indicator Front Panel The LED Indicator is used to display the status of
the internal disk and the system.
Hard Disk
Tray
Hard Disk
Tray Lock
USB Port Back Panel Synology Server offers 2 USB ports for adding
Fan Back Panel There are 2 fans on the back panel. The fans are
Console port Back Panel The console port is where you connect Synology
RESET
Button
Front Panel There are 5 hard disk trays on the front panel. Each
tray is designed to hold a hard disk vertically.
Front Panel Each of the 5 hard disk trays is equipped with one
tray lock. Use the tubular key in the package to
lock/unlock the trays to the system.
additional external hard drives or other USB
devices.
used to exhaust waste heat out of Synology Server.
The fans will start automatically when Synology
Server starts. If the fan is malfunctioning, system will
"beep" every 1 second.
Server directly to a computer.
Back Panel 1. To restore IP, DNS, passwords for the
"admin" account to default value, and reset
the “guest” account to the “enabled” status.
19
(Please refer to “Resetting Administrator
Password” chapter.)
2. To reinstall the Synology Server. (Please
refer to “Reinstalling Synology Server”
chapter.)
LAN Port Back Panel There are 2 LAN ports on the back panel. The LAN
port is where you connect RJ-45 cable to your
Synology Server.
Power Port Back Panel The power port is where you connect the AC power
cord.
eSATA Back Panel The eSATA port is for connecting with an external
SATA HDD.
20
LED Indication Descriptions Table
1-bay & 2-bay Models
LED Indication Color Status Description
Green Solid Volume normal
Solid
STATUS Orange
Blinking
Green/Orange Blinking Checking memory
Solid Network is up
LAN Green
DISK / eSATA
USBCopy Green
Power Blue
Green
Orange Blinking Cannot Read/Write
Blinking Network is active
Off Network is down
Solid Disk ready
Blinking Disk is being accessed
Off No internal disk
Solid USB disk detected
Blinking Copying data
Off No USB disk attached
Solid System ready
Blinking
Off Power off
Available volume space < 1GB
System firmware not installed
Volume degraded or crashed
No volume
Booting up
Shutting down
21
4-bay Models
LED Indication Color Status Descri ption
Green Solid Volume normal
STATUS Orange
Green/Orange Blinking Checking memory
LAN Green
DISK 1~4
Power Blue
RPS-STATUS*
Solid
Blinking
Solid Network is up
Blinking Network is active
Off Network is down
Solid Disk ready
Green
Orange Blinking Cannot Read/Write
Green
Blinking Disk is being accessed
Off No internal disk
Solid System ready
Blinking
Off Power off
Solid
Blinking 1 RPS not working
Available volume space < 1GB
System firmware not installed
Volume degraded or crashed
No volume
Booting up
Shutting down
Two redundant power supply
are working
* RS408-RP only
22
5-bay Models
LED Indication Color Status Description
Green Solid Volume Normal
STATUS
Orange
LAN1 & LAN2 Green
ALERT Orange
Power Blue
Solid
Available volume size < 1GB
System firmware not installed
Volume degraded or cra sh ed
Blinking
No volume
Solid Network is up
Blinking Network is active
Off Network is down
Blinking Hardware Error
Off System is healthy
Solid System ready
Booting up
Blinking
Shutting down
Status Indicator
(on tray)
(on tray)
Off System off
Solid Disk ready
Green
Off No disk
Orange Blinking Volume crash
Blinking Disk being accessed Activity Indicator
Green
Off No disk or disk idle
23
Managing Synology Server
Entering Web Management UI
System administrator can manage the Synology Server by entering the web
management UI. There are two options for you to enter the management UI:
Using Setup Utility
[Windows User]
1. Insert the Installation CD into CD/DV D- Rom Drive.
2. Choose “Synology Assistant” at the Autoup Menu.
3. Follow the steps to complete installation.
24
4. After installation, double click on the desktop icon to execute the program.
5. Choose the server you want to manage and click “Manage” to enter the
Web Management UI.
6. Click on “Management”. Choose “login as system administrator (admin)”,
input password and click “Enter”.
[Mac OSX User]
1. Insert the Installation CD into CD/DV D- Rom Drive.
2. Double-Click CD-Rom Drive thumbnail.
25
3. Double-Click "MacOSX" thumbnail.
4. Double-Click "Synology Assistant-SYNOLOGY.dmg" thumbnail.
5. Double-Click "Synology Assistant" thumbnail to run setup wizard.
6. Choose a Synology Server and click "Manage" to enter the Web
Management UI.
7. Choose "login as system administrator (admin)", input password and click
"Enter".
Please note:
To ensure flawless management process, please use the following browsers:
Browser Version
Internet Explorer 6.0 and onward
Firefox 2.0
Safari (Mac only) 3.0 and onward
Accessing Web Management UI Manually
1. Open a web browser window.
2. At the address line input “http://Synology_Server_Name:5000/", where
“Synology_Server_Name” should be replaced with the name you set up for
Synology Server during the setup process. If you choose "One-step Setup"
during the setup process, the "Synology_Server_Name" will be
"DiskStation", "CubeStation", or "RackStation".
3. Press “Enter” key on the keyboard.
4. Choose "login as system administrator (admin)".
5. Input password for admin.
6. Click “Enter” to access W eb Management UI.
Managing Synology Server
You can start managing Synology Server in Web Management UI. Synology
Server Web Management UI provides distinctive and straight forward design for
easy management. You will find an online “Help” button
corner of every page of the Web Management UI. Click on the “Help” button for
further information whenever you encounter any problem.
at the upper right
26
Connecting from Two Different Network*
V
A
Synology Server supports dual LAN that allows you to connect to the network
with two LAN cables at the same time, or to set the Synology Server using two IP
addresses under different subnets. Please go to the "System > Network" p age of
the Web Management UI for setup.
Managing Volume*
You can combine hard disks on Synology Server to create different types of
volumes, and find the data protection level of your need. The Synology Server
provides you various volume types as follows:
olume
Type
Basic 1 A Basic (non-RAID) volume must be created with one hard
RAID 0 >2 Combining multiple disks to build a volume, RAID 0 offers
RAID 1 2 One of the composed disks is used for backup purposes; the
RAID 5 >3 This configuration includes a backup option. It uses parity
mount of
composed
hard disk
Functionality
disk as an independent unit. When creating a Basic volume,
you can select only one hard disk at a time.
Striping, a process of dividing data into blocks and spreading
the data blocks across several hard di sks, but without safety
measures.
content of disk A is mirrored to disk B to assure data integrity.
Therefore the actual available storage capacity equals to
only the capacity of one hard disk.
mode to store redundant data on space equal to the size of
one disk for later data recovery. Therefore the actual
available storage capacity equals to the capacity of n-1 hard
disks.
Managing Volume*
You can create, remove, and repair volume. For the detailed description, please
refer to Help on “Stora ge > Volume” page.
* Supported on specific models only. Please refer to the product Specification table.
27
Repairing Volume by Hot Swapping*
Synology Server provides hot swapping function. When you need to replace
crashed disks in Synology Server, you don’t need to turn off the server. You can
refer to the disk status on the management UI, or the front panel LED indicators
to identify crashed disks, and directly pull out the hard disk tray to replace the
crashed disk with a new one. Then follow the steps on management UI to repair
the degraded volume right after replacing the hard disk.
Joining Windows Domain*
You can add Synology Server to Windows domain and let the domain users
access the Synology Server. Synology Server supports Active Directory Service
(ADS) domain. After adding the Synology Server to a Windows domain, you can
go to the "Privileges > Shared Folder" page to assign the domain users’
privileges of shared folders on the server. When domain users access the
Synology Server, they only need to enter their domain account and p asswo rd,for
authentication.
For the detailed description, please refer to Help on “Network Services >
Win/Mac OS” page.
* Supported on specific models only. Please refer to the product Specification table.
28
Accessing Synology Server via Telnet/SSH
To be able to access Synology Server via Telnet/SSH, go to "Network Services >
Terminal" and enable the terminal service.
29 29
Resetting Administrator Password
Pressing the “RESET” button and hold it for about 4 seconds before you heard a
beep sound will restore IP, DNS, passwords for the "admin" account to default
value, and reset the “guest” account to the “enabled” status. The default
password of the “admin” account is blank.
Reinstalling Synology Server
If for any reason you have to reinstall the Synology Server, you can press the
RESET button on the back panel twice, and the Synology Server will be
reinstalled. The data saved on the Synology Server will not be erased during the
reinstallation. However, for security’s reason, we strongly recommend that you
back up the data on the server .
To reinstall the server:
1. Press the “RESET” button and hold it for about 4 seconds. Release the
button when the Synology Server emits a beep sound.
2. Within the next 10 se conds, press the “RESET” button and hold it for about 4
seconds again. Release the button when the Synology Server emits a beep
sound.
3. Run Synology Assistant, and set up the Synology Server again.
Note: The version of Synology Assistant should be identical to the version of the
firmware patch file you install.
30
Accessing Synology Server Data
File sharing service is one of the Synology Server's major functions.
Administrator can setup access rights for users either with Windows or Mac to
access shared folders.
Shared Folders
System Built-in
Below are system built-in shared folders.
Name Description
public The "public" shared folder will be created automatically
after the first-time setup on Synology 1-bay models.
web The shared folder “web” is for storing web pages. When
Web Station is enabled, the "web" shared folder will be
created automatically. You can upload web pages to the
"web" shared folder to build your website. For detailed
information, please refer to “Extra Features > Web
Station” section.
photo The shared folder “photo” is for storing image and video
files you want to share on Photo Station 3. It will be
created automatically when Photo Station or UPnP
Support is enabled.
Image files in “photo” shared folder can be browsed when
Photo Station or UPnP Service is enabled. For detailed
information, please refer to descriptions of Photo Station
3 and Multimedia Service.
music You can store music files in the “music” shared folder.
When iTunes Service is enabled, you can browse the
music files on iTunes. For more d etails on the iTunes
Service, refer to the "Extra Features > iTunes Service"
section. In addition, when UPnP Support is enabled, you
can be browsed through UPnP DMA. For detailed
information, please refer to descriptions of Multimedia
Service.
video Video files in the “video” shared folder can be browsed
through UPnP DMA when Multimedia Service is enabled.
For detailed information, please refer to descriptions of
Multimedia Service.
surveillance The shared folder "surveillance" is for storing the video
files recorded by Surveillance Station. It will be created
automatically when Surveillance Station is enabled. This
shared folder is read-only and can only be accessed with
31
Name Description
the "admin" account. For more details, please refer to the
"Extra Features > Surveillance Station" section.
usbbackup After you connect external USB HDD to Synology
Server’s USB port and format it for the backup purpose,
system will automatically create a shared folder called
“usbbackup”. Refer to “Server Backup and PC Backup
Solutions> Local Backup” section for details.
satabackup After you connect external SATA HDD to Synology
Server’s eSATA port and format it for the backup purpose,
system will automatically create a shared folder called
“satabackup”. Refer to “Server Backup and PC Backup
Solutions> Local Backup” section for details.
NetBackup The shared folder “NetBackup” is for saving backed up
files using Network Backup. Please refer to the “Backup >
Network Backup" page of the Web Management UI.
usbshare After you connect external USB HDD to Synology
Server’s USB port, system will automatically create a
shared folder with the prefix “usbshare”. Refer to
“Expanding Storage Capacity> External HDD” section for
details.
satashare After you connect external SATA HDD to Synology
Server’s eSATA port, system will automatically create a
shared folder with the prefix “satashare”. Refer to
“Expanding Storage Capacity> External HDD” section for
details.
32
Administrator-Created
Apart from the above system built-in shared folders, Administrator can create
shared folders on the page “Privileges > Shared Folder” of the Web
Management UI. Shared folders created by Administrator can be deleted or
renamed at any time.
Setting Access Control
For security reasons, Administrator can go to the “Privileges > Shared Folder”
page of the Web Management UI and assign user privileges of accessing the
shared folders.
33
Using Network Recycle Bin
When users delete files in the shared folders via the SMB/CIFS protocol (ex: on
Windows), the deleted files will be moved into the automatically-created folder
"#recycle" in the same shared folder to avoid files being unintentionally deleted.
To enable the recycle bins, going to the page “Network Service s > Win/Ma c OS”,
and check the “Enable CIFS Recycle Bin” option.
To permanently deleted files in a shared folder, just delete the “#recycle” folder;
to permanently delete files in all shared folder, click the “Empty CIFS Recycle
Bin” button.
Setting Encoding
Synology Server uses Unicode to manage files. The benefit of using Unicode is
to avoid file inaccessibility between users who use different languages. However,
for users without Unicode support on their PC, Administrator can set the
encoding method of the files to overcome the problem. Please go to the page
“System > Language” of the Web Management UI for setup.
34
Accessing Shared Folders
From the same network
Windows User
Windows users can access the Synology Server’s shared folders by using Setup
Utility to map Network Drive
Synology Assistant, which is included in the Installation CD, not only helps
Administrator manage Synology Server, but also provides users with the
following steps to map Network Drive:
1. Run Synology Assistant.
2. Choose the server to map network drive.
3. Click on the “Map Drive” button on the left.
35
4. Follow the on-screen steps to finish the setup.
36
5. Upon completion, user can access the mapped shared folder in Windows
Explorer.
Mac User
Mac user can use ”Go > Connect to Server” to choose a Synology Server and
access the shared folder on the server.
37
From different network
Through FTP
Synology server provides FTP service. Administrator can enable FTP service on
the “Network Service > FTP” page of the Web Management UI. Windows users
and Mac users can thus access data in Synology Server by FTP Protocol.
Synology server supports Secure FTP b y default when administrat or enables the
FTP service. To prevent data from being access while transferring, users can
also use “FTP over SSL” or “FTP over TLS” on the FTP client to make the data
more secure. For the detailed information of using FTP and its limitation, please
refer to Help on “Network Services > FTP” page.
Please note:
1. Administrator has the option to adjust FTP Bandwidth or enable
Anonymous login.
2. FTP Service does not support Unicode. Before enabling FTP Service,
please go to “System > Language” page and setup codepage according to
user’s client PC.
Through File Station
Synology File Station is a web-based file management tool. In the user interface
of the File Station, users ca n upload, downlo ad, copy, move, and delete files and
folders. For detailed function descriptions, please refer to the online Help in the
File Station user interface.
38
Server Backup and PC Backup Solutions
Synology Server provides complete backup solutions:
1. By using “Local Backup”, Administrator can back up Synology Server’s
data to external USB or SATA HDD.
2. By using “Network Backup”, Administrator can back up Synology Server’s
data to another Synology Server or an rsync compatible server.
3. By installing Synology Data Replicator II software on the client PC,
Windows users can back up data from PC to Synology Server.
4. Administrator can also back up Synology Server’s User, Group, and
Shared folders (see details below).
Local Backup
Please use the Backup Wizard or follow the below steps to perform Local
Backup:
1. Connect an external USB HDD or SATA HDD to the corresponding port on
Synology Server.
2. Go to the page “External Devices > USB Disk” or “External Devices >
eSATA Disk” of the Web Management UI, and format the HDD as “backup
purpose”.
39 39
3. Go to the page “Backup > Local Backup” to set up your backup task.
Network Backup
Synology Server provides bidirectional Network backup. Network Backup allows
Administrator to back up Synology Server’s data to another Synology Server or
an rsync-compatible server through network. Users can also allow other
Synology server or a rsync-compatible server to perform network backup to
your Synology Server. To activate this function, please go to Network Backup
Service and click Enable network backup service. Please ensure Network
Backup is enabled on the target server before performing the task. Go to the
Help on “Backup > Network Backup Service” page for detail information.
40
Backing up Personal Data
Windows users can install “Synology Data Replicator 3” backup software which
can be found on the installation CD. They can back up client PC data to
Synology Server to maintain a good copy of data whenever needed.
Using Synology Data Replicator 3, users can:
1. Monitor selected folders on client PC and perform real-time backup when
any modification to the file is made.
2. Adjust backup versions and restore points.
3. Restore backup data on Synology Server to client PC at user’s preference.
Before starting
Before using Synology Data Replicator 3, please ensure:
1. Client PC and Synology Server uses the same encoding for backup to
perform adequately.
2. Synology Data Replicator 3 is the next generation of Synology Data
Replicator. It can only restore backup data on Synology Server generated
by itself. If users have backed up data on Synology Server using Synology
Data Replicator, we recommend restoring data on Synology Server to PC
first before using Synology Data Replicator 3.
Minimum System Requirement
1. Free HDD Space: 5MB
2. Operating System: Windows 2000 and onward
3. Best Screen Resolution: 1024*768 and above
4. Microsoft Networking over TCP/IP enabled and has network connection
with Synology Server.
41
Installing Synology Data Replicator 3
Insert Installation CD into Windows user CD/DVD-Rom drive. Click on “Syn ology
Data Replicator 3”, and follow on-screen instructions.
Using Synology Data Replicator 3
After installation, double click on the software icon to execute the program. Click
on “Help” for detail description.
42
Backing up Synology Server Settings
There are two options for you to back up Synology Server’s “User”, “Group”,
“Shared Folder” settings for easy maintenance and restoration.
Synology Server to PC Client
Go to the page “Backup > Configuration Backup” of the Web Management UI to
back up settings from Synology Server to PC Client.
Synology Server to another Synology Server
The data backed up to another Synology Server or an rsync compatible server
using “Network Backup” automatically includes the “User”, “Group”, “Shared
Folder” settings. When you recover the data, you can choose if you want to
recover these settings.
43
Sharing USB Printer
Synology Server helps users to share the USB Printer. Please refer to Help on
the“External Devices > USB Printer” page of the Web Management UI for the
detailed settings on different platforms.
44 44
Extra Features
Audio Station
By connecting a set of verified USB speakers and the Synology Remote
receptor to the USB ports on the Synology Server, users will be able to enjoy the
music stored on the Synology Server with the music player in the Audio Station
web interface, or by the direction-free remote control. Besides music on the
Synology Server, users can also listen to Internet radio stations, or play music
from the connected iPod. For detailed function descriptions, please refer to the
online Help in the Audio Station web interface.
45
iTunes Service
When “iTunes Service” is enabled, users can play music files stored on
Synology Server with any iTunes clients on the same subnet. For the detailed
information and its limitation, please refer to Help on “Network Services >
iTunes” page of the Web Management UI.
46 46
Multimedia Service
When “UPnP Service” is enabled, users who have UPnP DMA (Digital Media
Adapter) can browse multimedia files on Synology server . Please go to “Network
Services > Multimedia” page for further setup.
47 47
Download Station
Synology server can download files from Internet through BitTorrent, FTP, and
HTTP. PC users and Mac users can either install Download Redirector or go to
the “Download Station” section of the Web Management UI to add download
tasks and manage the download queue.
Before start adding download tasks, you should enable Download Station on the
server and install Download Redirector on PC or Mac.
Enabling Download Station
Go to the “Download Station> Settings” page.
Installing Download Redirector
Insert Installation CD into the CD/DVD-Rom drive. Click on “Download
Redirector”, and follow on-screen instructions to complete installation.
For the detailed description of Download Redirector, please refer to Help on
Download Redirector program window, or hit Help on “Download Station>
Settings” page of the Web Management UI.
48 48
Web Station
Personal or corporate website can be easily setup using “Web Station.” By
integrating with PHP and MySQL, users can also setup online shop. PHP
support is turned on by default, MySQL requires manually enabling.
Enabling Web Station and MySQL
Go to the “Network Services > Web Services” page.
Web Station’s detail description
Please click on “Read Tutorial” link next to “Enable Web Station”.
49 49
Photo Station 3
“Photo Station 3” is the new online albu m function integrating a blogging syste m.
After uploading the folder which contains photos and videos to the "photo"
shared folder, Photo Station 3 will start to create thumbnails automatically.
Administrator can then sign in to Photo Station 3 to manage the album and
create blogs.
Enabling Photo Station 3
Go to the “Network Services > Web Services” page.
Photo Station 3’s detail description
Please click on “Read Tutorial” link next to “Enable Photo Station 3”.
50 50
Surveillance Station
By using "Surveillance Station", you can monitor the live image of various IP
cameras attached on the network, flexibly control the video recording options
and record the videos.
The supported camera number varies from different models for the best
performance. For the supported camera number, please refer to the product
specification table.
Enabling Surveillance Station
Go to the "Network Services > Surveillance Station" page.
Surveillance Station’s detailed description
For detailed function descriptions, please click Help on the Surveillance Station
Web Management UI.
51
USBCopy*
When a USB Device is connected to the USB port at the front panel, by pressing
the “COPY” button all the data in the USB Device will be copied to Synology
Server’s internal HDD.
Setting USBCopy Target Location
You can setup USBCopy target location on the “External Devices > USBCopy”
page of the Web Management UI. When pressing the “Copy” b utton from now on,
data will be copied to the target location.
* Supported on specific models only. Please refer to the product Specification table.
52
Mail Notification
Administrator can enter email address on the page “System > Notification”.
Synology Server will send email to the address whenever an important event
occurs to notify Administrator.
53 53
Firmware Update
To keep your Synology Server up to date, Administrator can go to “System >
Firmware Update” page to upgrade firmware.
Note: Normally, upgrading the firmware of the Synology server will not affect
data on the Synology server. However, to ensure data security, it is
recommended that you back up your data before update.
54
Expanding Storage Capacity
Administrator can expand the storage capacity by connecting external hard disks,
replacing the internal hard disk with a larger one, or adding a hard disk to the
volume.
External HDD
External USB HDD
When connecting an external USB HDD to Synology Server’s USB port,
“usbshare1” shared folder will be created automatically. Upon disconnecting
external USB HDD, the shared folder will be removed. For more than 1 external
USB HDD is connected, “usbshare2”, “usbshare3” will be created accordingly.
To Eject or Format external USB HDD, go to the page “External Devices > USB
Disk” of the Web Management UI.
External SATA HDD*
When connecting an external SATA HDD to Synology Server’s eSATA port,
“satashare” shared folder will be created automatically. Upon disconnecting
External SATA HDD, shared folder will be removed.
To Eject or Format external SATA HDD, go to the page “External Devices >
eSATA Disk” of the Web Management UI.
* Supported on specific models only. Please refer to the product Specification table.
55
Replacing Larger Internal HDD
When the internal HDD storage is run out, Administrator can follow the steps to
replace a larger HDD and keep using the original data:
Basic and RAID 0* Volume
1. Replace the original internal HDD with a larger one.
2. Connect the original HDD to the USB/eSATA port.
3. Copy the data from the original HDD to the new HDD.
4. Remove the original HDD.
RAID 1 and RAID 5 Volume*
1. Replace the smallest hard disk of the volume with a larger one.
2. After system has detected the new hard disk, click “Expand” on the
“Storage > Volume” page of the Web management UI.
3. Repeat steps above until you finish replacing all hard disks you want to
change.
Adding a HDD to a RAID 5 Volume*
You can expand the storage capacity of the RAID 5 volume by adding a spare
HDD to the RAID 5 volume., Please refer to the online Help on the "Storage >
Volume" page of the Web Management UI for detailed instructions.
* Supported on specific models only. Please refer to the product Specification table.
56
Troubleshooting
For any questions about managing your Synology Server, please refer to the
“Help” button at every page of the Web Manag ement UI. For any questions other
than that, please visit Synology Inc. website (www.synology.com
assistant.
) for further
57
Appendix
Recommended Peripherals
For recommended peripheral models, including hard drive, USB printer, DMA,
and UPS, please visit www.synology.com.
Recommended NTP Server
The main purpose of Network Time Prot ocol (NTP ) is for synchronizing clo cks of
computer system over data network. We have provided a few recommended
NTP servers. For more information about NTP Server, please visit
http://www.eecis.udel.edu/~mills/ntp/servers.html
Below are few recommended NTP server:
1. time.apple.com
2. time.asia.apple.com
3. time.euro.apple.com
4. time.nist.gov
5. time.windows.com
For more information, please refer to:
http://ntp.isc.org/bin/view/Servers/WebHome
