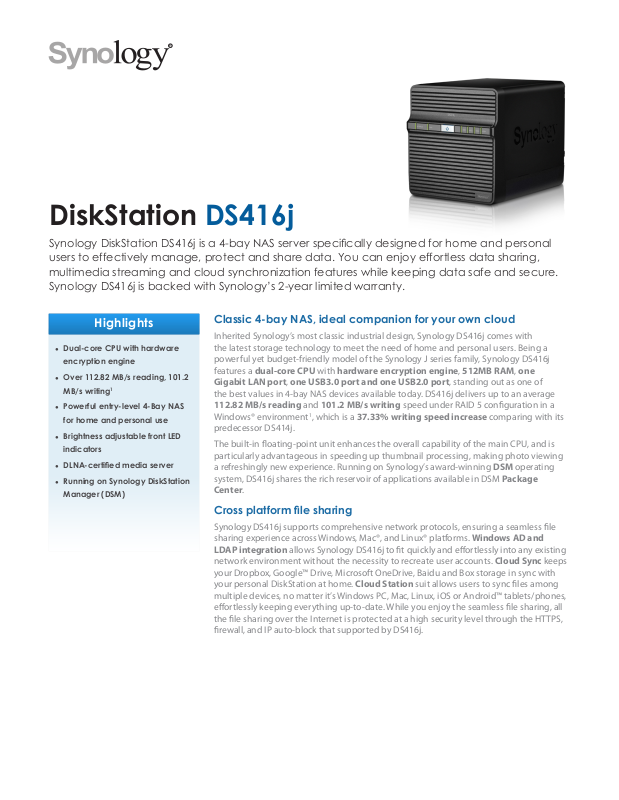

DiskStation DS416j

Synology DiskStation DS416j is a 4-bay NAS server specically designed for home and personal
users to effectively manage, protect and share data. You can enjoy effortless data sharing,
multimedia streaming and cloud synchronization features while keeping data safe and secure.
Synology DS416j is backed with Synology’s 2-year limited warranty.

Highlights

● Dual-core CPU with hardware

encryption engine

● Over 112.82 MB/s reading, 101.2

MB/s writing

● Powerful entry-level 4-Bay NAS

for home and personal use

● Brightness adjustable front LED

indicators

● DLNA-certied media server

● Running on Synology DiskStation

Manager (DSM)

1

Classic 4-bay NAS, ideal companion for your own cloud

Inherited Synology’s most classic industrial design, Synology DS416j comes with
the latest storage technology to meet the need of home and personal users. Being a
powerful yet budget-friendly model of the Synology J series family, Synology DS416j
features a dual-core CPU with hardware encryption engine, 512MB RAM, one
Gigabit LAN port, one USB3.0 port and one USB2.0 port, standing out as one of
the best values in 4-bay NAS devices available today. DS416j delivers up to an average

112.82 MB/s reading and 101.2 MB/s writing speed under RAID 5 conguration in a
Windows® environment1, which is a 37.33% writing speed increase comparing with its
predecessor DS414j.

The built-in oating-point unit enhances the overall capability of the main CPU, and is
particularly advantageous in speeding up thumbnail processing, making photo viewing
a refreshingly new experience. Running on Synology’s award-winning DSM operating
system, DS416j shares the rich reservoir of applications available in DSM Package
Center.

Cross platform le sharing

Synology DS416j supports comprehensive network protocols, ensuring a seamless le
sharing experience across Windows, Mac®, and Linux® platforms. Windows AD and
LDAP integration allows Synology DS416j to t quickly and eortlessly into any existing
network environment without the necessity to recreate user accounts. Cloud Sync keeps
your Dropbox, Google™ Drive, Microsoft OneDrive, Baidu and Box storage in sync with
your personal DiskStation at home. Cloud Station suit allows users to sync les among
multiple devices, no matter it’s Windows PC, Mac, Linux, iOS or Android™ tablets/phones,
eortlessly keeping everything up-to-date. While you enjoy the seamless le sharing, all
the le sharing over the Internet is protected at a high security level through the HTTPS,
rewall, and IP auto-block that supported by DS416j.

Cross-platform File Synchronization

Auto-synchronize your les among
DiskStation, PC and mobile devices using
Synology Cloud Station suit.

Wireless Multimedia Streaming

DS416j turns your living room into a
multimedia entertainment center.

Easy backup solutions

To protect your valuable data, DS416j can become a centralized backup destination for
consolidating fragmented and unstructured information across your network through a
range of options. Advanced backup privilege management makes network backup tasks
safer and more ecient. Backup & Restore is a complete backup solution to minimize
the impact of disasters, keeping your valuable data safe and secure.

DLNA compliant media server

As a DLNA compliant DMS (Digital Media Server), DS416j comes with the capability
to host digital multimedia contents for remote playback, bringing you a brand new
experience for your home entertainments. Once congured in your network, DS416j is
able to stream music, photos and videos to DLNA compliant devices, enabling users to
enjoy their collection on larger screens or with quality speakers. Synology even makes it
possible for users to browse and select DiskStation contents using DS audio to designate
a DLNA player within the same local network for audio playback.

Anywhere/anytime availability

QuickConnect and EZ-Internet congure your DS416j for accessing over the Internet
with minimal eort. Combined with Synology’s mobile apps for every popular feature,
including DS photo, DS audio, and DS video for anywhere multimedia access, DS
download, DS le, and DS cloud for seamless le download/access/synchronization,
you can enjoy your NAS anywhere, any time.

Energy efcient with eco-friendly design

All Synology NAS is designed with energy eciency in mind. The two 80 x 80 mm fans
with the smart airow functions keep the system running cool 24/7. Synology DS416j
consumes relatively little power at 21.6 watts while accessing and 12.75 watts when hard
drive hibernation is enabled. The noise dampening design makes DS416j quiet compared
to PC counterparts. The support of Wake on LAN/WAN, multiple scheduled power on/o
can further reduce power consumption and operation cost.

All Synology products are produced with RoHS compliant parts and packed with
recyclable packing materials. Synology acknowledges the responsibility as a global
citizen to continually work to reduce the environmental impact of every product
produced.

Anytime Availability

Access your DiskStation anywhere using
Synology mobile apps.

English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Русский, Polski, Magyar,
Português do Brasil, Português Europeu, Türkçe, Český,

Connections & Buttons

12 765 82 4 9

Technical Specications

Hardware

CPU

Floating point unit

Hardware encryption engine

RAM size

Compatible drive type

Max internal raw capacity

Max single volume size

External ports

Size (HxWxD)

Weight

LAN

Wireless support

Wake on LAN/WAN

Scheduled power on/o

AC input power voltage

Power frequency

Operating temperature

Storage temperature

Relative humidity

Marvell Armada 88F6828 dual-core 1.3GHz

Yes

Yes

DDR3 512 MB

3.5” or 2.5” SATA(II) x 4 (hard drives not included)

32TB (4 x 8TB hard drive) (the actual capacity will dier according to volume types)

16TB

USB 3.0 port x 1, USB 2.0 port x 1

184mm x 168mm x 230mm

2.21 kg

Gigabit (RJ-45) x 1

Yes (wireless dongles not included)

Yes

Yes

100V to 240V

50Hz to 60Hz, single phase

5°C to 40°C (40°F to 104°F)

-20°C to 60°C (-5°F to 140°F)

5% to 95% RH

Power button

1

LED indicator

2

Power port

3

Gigabit (RJ-45) LAN port

4

USB 2.0 port

5

USB 3.0 port

6

Reset button

7

Fan

8

Kensington security slot

3

9

General

Networking protocols

File system

Storage management

Supported RAID type

File sharing capability

Privilege

Directory service

Security

Utilities

Supported clients

Supported browsers

Language

CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™ , L2TP)

Internal: ext4
External: ext4, ext3, FAT, NTFS, HFS+ (read only)

Maximum single volume size: 16TB, Maximum internal volume: 256, Maximum iSCSI Target: 10, Maximum iSCSI LUN: 10

Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

Maximum user account: 1024, Maximum group: 256, Maximum shared folder: 256,
Maximum concurrent CIFS/AFP/FTP/File Station connection: 128

Windows Access Control List (ACL)

Windows AD Integration: Domain Users login via Samba (CIFS)/AFP/FTP/File Station, LDAP integration

FTP over SSL/TLS, IP auto-block, rewall, encrypted network backup over Rsync, HTTPS connection

Synology Web Assistant, Synology Assistant, Cloud Station, Synology Cloud Sync Decryption Tool, Photo Station Uploader, Evidence Integrity
Authenticator

Windows XP onwards, Mac OS X® 10.7 onwards, Ubuntu 12 onwards

Chrome™, Firefox®, Internet Explorer® 8 onwards, Safari® 7 onwards, Safari (iOS® 7 onwards on iPad®), Chrome (Android 4.0 onwards on tablets)

Applications

File Station

Backup Solutions

Mail Server

FTP Server

Web Station

Printer Server

Storage Analyzer

Security Advisor

Log Center

iOS/Android™ Applications

Windows Phone® Applications

Add-on Packages

Surveillance Station

VPN Server

Mail Station

Antivirus Essential

Cloud Station

Cloud Sync

DLNA/UPnP® Media Server

Note Station

Download Station

Other Packages

Virtual drive, remote folder, Windows ACL editor, compress/extract archived les, bandwidth control for specic users or groups, create sharing links,
transfer logs

Network backup; local backup; desktop backup; conguration backup; OS X Time Machine; backup data to public cloud;
shared folder sync - maximum task number: 2

Supported Mail Server protocols: POP3, SMTP, IMAP, suppor t LDAP/AD account

Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocols, boot over the network with
TFTP and PXE support, transfer logs

Virtual host (up to 30 websites), PHP/MariaDB®, 3rd-party applications support

Maximum printer: 2, printing protocols: LPR, CIFS, IPP, iOS printing, Google Cloud Print™, multi functional print server (MFP functions are for Windows
PC only)

Volume and quota usage, total size of les, volume usage and trends based on past usage, size of shared folders, largest/most/least frequently
modied les

Malware detection/removal, user account/password, network, system-related security scan

SSL connection, log rotation: 6 months, 1 year, 2 years, 3 years, email notication

DS cloud, DS le, DS nder, DS cam, DS note, DS audio, DS download, DS photo, DS video

DS le, DS nder, DS audio, DS download, DS photo, DS video

Maximum IP camera: 16 (total of 480 FPS at 720p, H.264)
(Including two free camera licenses. Procurement of additional licenses is required.)

Maximum connections: 5; supported VPN protocols: PPTP, OpenVPN™, L2TP

Webmail interface for Mail Server; receiving mails from multiple POP3 mailboxes, customizable SMTP server

Full system scan, scheduled scan, white list customization, virus denition auto update

Maximum concurrent le transfers: 128, retain historical and deleted le versions

One or two-way synchronization with public cloud storage providers including Amazon Cloud Drive, Amazon S3-compatible storage, Baiduyun, Box,
Dropbox, Google Cloud Storage, Google Drive, hubiC, Megafon Disk, Microsoft OneDrive, OpenStack Swift-compatible storage, WebDAV servers,
Yandex Disk

DLNA compliant, PS3®/PS4®/Xbox 360®/Xbox One® support

Rich-text note organization with versioning, encryption, sharing, media embedding and attachments

Supported download protocols: BT/HTTP/FTP/NZB/eMule
Maximum concurrent download task: 30

Photo Station, Audio Station, iTunes® Server, 3rd-party packages

Environment and Packaging

Environment

Package content

Optional accessories

Warranty

*Model specications are subject to change without notice. Please refer to www.synology.com for the latest information.

1. The performance gures vary on dierent environments. Synology is dedicated to continual performance enhancement. Please nd the latest gures on www.synology.com.

SYNOLOGY INC.

Synology is dedicated to taking full advantage of the latest technologies to bring businesses and home users reliable and affordable ways to centralize data storage, simplify data

backup, share and sync les across different platforms, and access data on-the-go. Synology aims to deliver products with forward-thinking features and the best in class customer
services.

Copyright © 2015, Synology Inc. All rights reserved. Synology, the Synology logo are trademarks or registered trademarks of Synology Inc. Other product and company names
mentioned herein may be trademarks of their respective companies. Synology may make changes to specication and product descriptions at anytime, without notice. Printed in
Taiwan.

DS416j-2015-ENU-REV001

Headquarters

Synology Inc. 3F-3, No. 106, Chang An W. Rd., Taipei, Taiwan Tel: [phone] Fax: [phone]

China

Synology Shanghai
20070, Room 516, No. 638,
Hengfeng Rd., Zhabei Dist.,
Shanghai, China

France

Synology France SARL
39 rue Louis Blanc,
92400 Courbevoie, France
Tel: [phone]

RoHS Compliant

DS416j main unit, Welcome note, accessory pack, AC Power Cord, AC power adapter, RJ-45 LAN cable

Camera License Pack, VS360HD

2 Years
