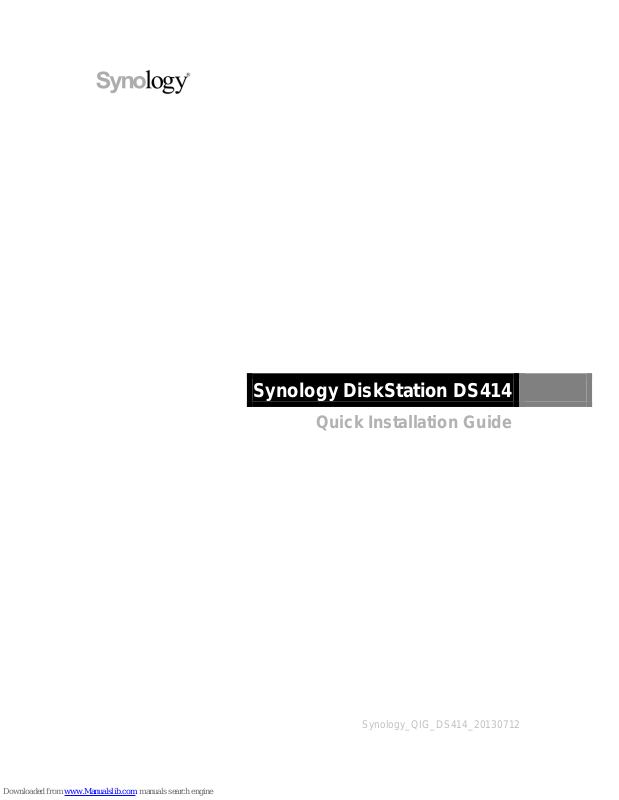

Synology DiskStation DS414 Quick Installation Manual
Synology DiskStation DS414
Quick Installation Guide
Synology_QIG_DS414_20130712
2
Table of Contents
Chapter 1: Before You Start
Package Contents .............................................................................................................................................................. 3
Synology DiskStation at a Glance .................................................................................................................................... 4
Safety Instructions .............................................................................................................................................................. 5
Chapter 2: Hardware Setup
Tools and Parts for Hard Disk Installation ....................................................................................................................... 6
Install Hard Disks ................................................................................................................................................................ 6
Start Up Your DiskStation .................................................................................................................................................. 8
Chapter 3: Install DSM on DiskStation

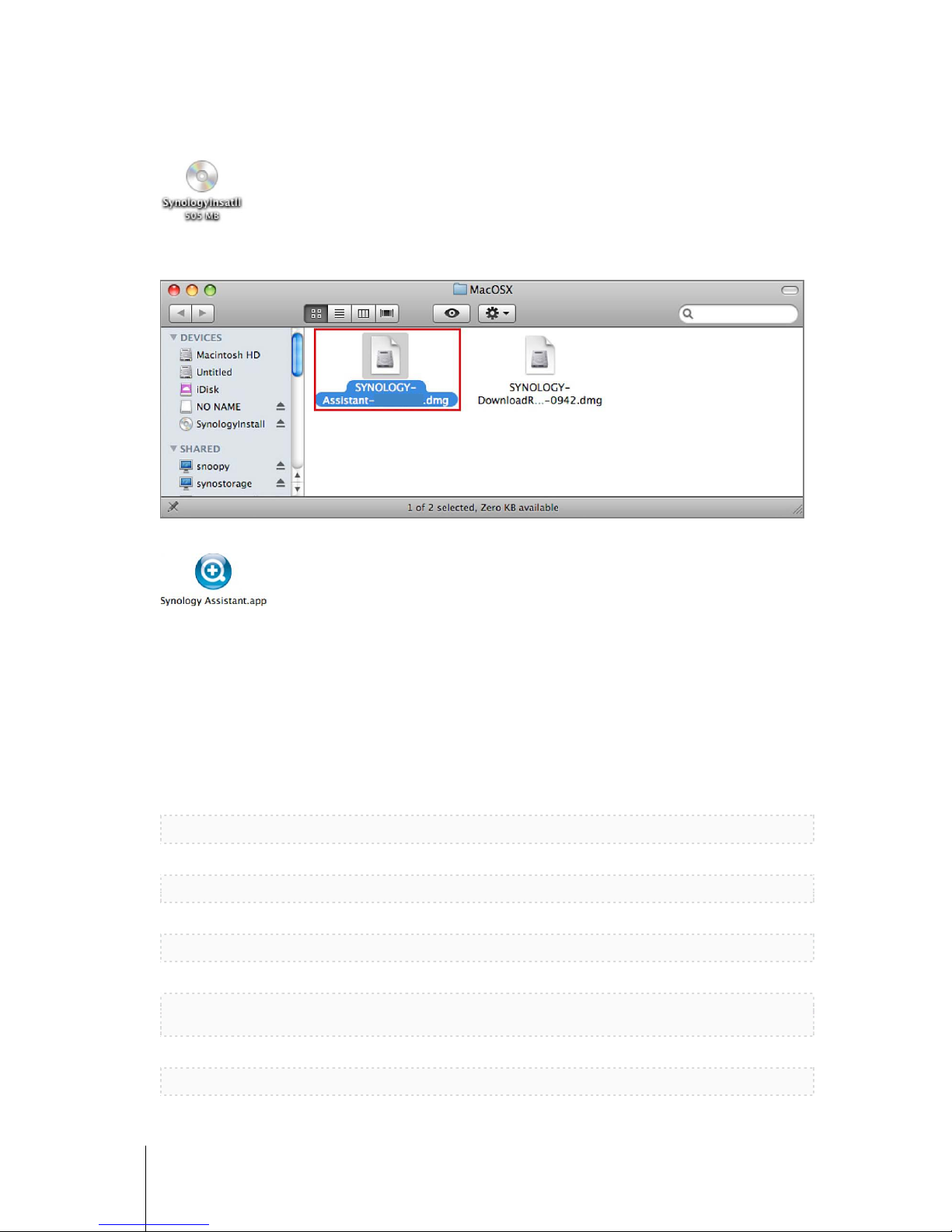

Install DSM with Web Assistant ...................................................................................................................................... 10
Install DSM from the Installation Disc ............................................................................................................................ 11
For Windows...................................................................................................................................................................... 11
For Mac OS X .................................................................................................................................................................... 13
For Linux ............................................................................................................................................................................ 13
Learn More ........................................................................................................................................................................ 15
Appendix A: Specifications
Appendix B: LED Indication Table
3
Chapter
1
Chapter 1: Before You Start
Thank you for purchasing this Synology product! Before setting up your new DiskStation, please check the
package contents to verify that you have received the items below. Also, make sure to read the safety
instructions carefully to avoid harming yourself or damaging your DiskStation.
Package Contents
Main uni t x 1 AC power cord x 1
AC power adapter x 1
RJ-45 LAN cable x 2
Installation disc x 1
Screws for 2.5” hard drives x 18
4 Chapter 1: Before You Start
Synology DiskStation at a Glance
No. Article Name Location Description
1)
LED Indicators Front Panel
Displays the status of the internal hard disks and the system. For more
information, see "Appendix B: LED Indication Table."
2)
USB 2.0 Port Front Panel
Connect external hard drives, USB printers, or other USB devices to your
DiskStation here.
3)

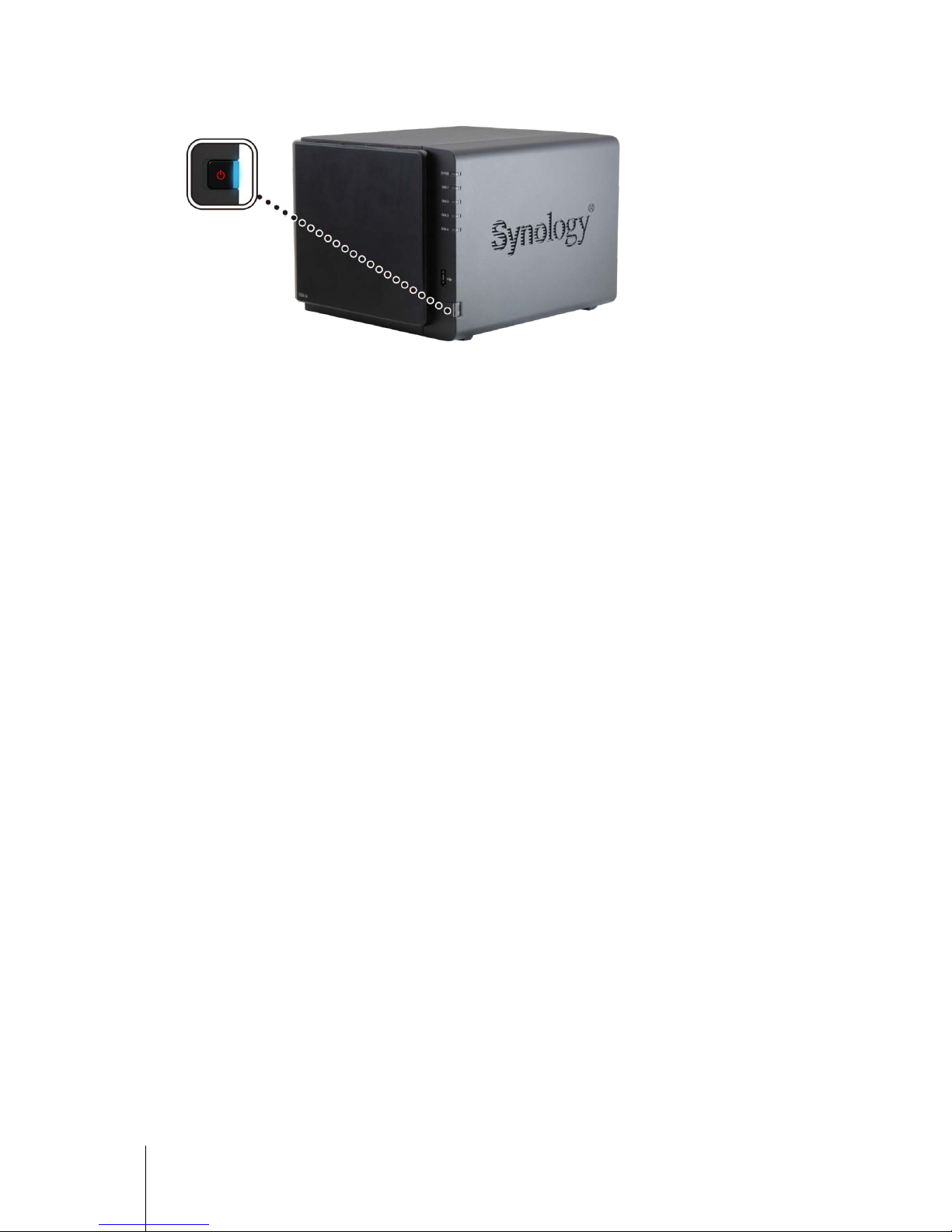

Power Button Front Panel
1. Press to power on the DiskStation.
2. To power off the DiskStation, press and hold until you hear a beep sound and
the Power LED starts blinking.
4)
Fan Back Panel
Disposes of excess heat and cools the system. If the fan malfunctions, the
DiskStation will emit a beeping sound.
5)
LAN Ports Back Panel
Connect network cables here.
6)
RESET Button Back Panel
1. Press and hold until you hear a beep sound to restore the default IP address,
DNS server, and passwords for users belonging to the administrators group.
2. Press and hold until you hear a beep sound, then press and hold again until
you hear three beep sounds to return the DiskStation to “Not Installed” status
so that DiskStation Manager can be reinstalled.
7)
USB 3.0 Ports Back Panel
Connect external hard drives, USB printers, or other USB devices to your
DiskStation here.
8)
Power Port Back Panel
Connect the AC adapter to the DiskStation here.
5 Chapter 1: Before You Start
Safety Instructions
Keep away from direct sunlight and from chemicals. Make sure the environment does not
experience abrupt changes in temperature or humidity.
Do not place near any liquids.
Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemic al or
aerosol cleaners.
To prevent the unit from falling over, do not place on carts or any unstable surfaces.
The power cord must plug in to the correct
supply voltage. Make sure that the supplied AC
voltage is correct and stable.
To remove all electrical current from the device, ensure that all power cords are disconnected
from the power source.
Risk of explosion if battery is replaced with an incorrect type. Dispose of used batteries
appropriately.
6
Chapter
2
Chapter 2: Hardware Setup
Tools and Parts for Hard Disk Installation
A screwdriver
At least one 3.5” or 2.5” SATA hard disk (please visit www.synology.com for compatible hard disk models)
Warning: If you install a hard disk that already contains data, the system will f ormat the hard disk and erase all data.
If you need the data in the future, please back it up before inst allation.
Install Hard Disks
Please follow the steps below to install hard disks.

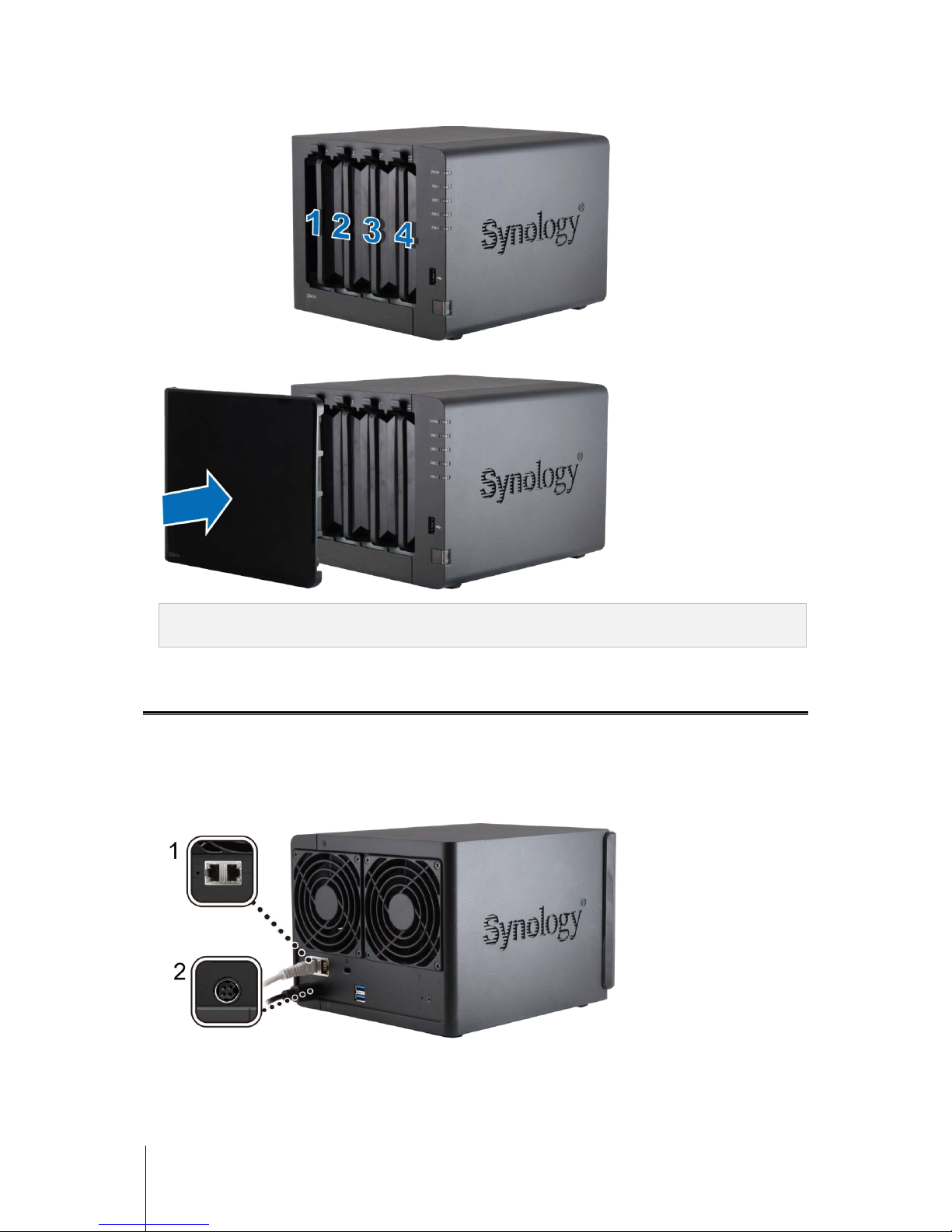

1 Remove the hard drive bay cover from the front panel.
2 Push the latch upward and pull the handle to remove the hard drive tray.
7 Chapter 2: Hardware Setup
3 Load hard disks in the hard drive trays.
For 3.5” Hard Disks: Remove the fastening panels from the sides of the hard drive tray. Place the hard disk
in the hard drive tray. Then insert the fastening panels to secure the hard disk in place.
For 2.5” Hard Disks: Remove the fastening panels from the sides of the hard drive tray and put them in a
safe place. Place the hard disk in the blue area (shown below) of the hard drive tray, turn the tray upside
down, and then tighten the screws to secure the hard disk.
4 Make sure the side marked with "UP" is facing up, and insert the hard drive tray into the empty hard drive bay.
You should hear a click when the tray is locked into place.
5 Repeat the above steps to install any other hard disks you have prepared.
