NAS Server
User’s Guide
Applied Model:
DS108j, DS107, DS107+, DS207, DS207+, CS407e, CS407, RS407, RS408, RS408-RP
Document ID:
Synology _UserGuide_NASeries_20080306_enu Based on Version:
DSM 2.0-0585
COPYRIGHT NOTICE
All title, copyright and other intellectual property rights in and to any Synology Products, the “Products” or “Product” (including but not limited to product design and appearance, firmware, and any relevant media, images, photographs, animations, video, audio, music, text, and applets incorporated into the Products), the accompanying manuals and other documents, and on-line or electronic documents, if any, are owned by Synology Inc. Unless otherwise expressly licensed by Synology Inc. in writing, any provision of the Products does not represent any license of any of the above rights.
Copyright © 2004-2008 Synology Inc.; All rights reserved.
TRADEMARK NOTICE
Synology and other names of Synology Products are proprietary marks or registered trademarks of Synology Inc. Microsoft, Windows series, and Internet Explorer are trademarks of Microsoft Corporation. Apple, Mac, Mac OS series are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. Other products and company names mentioned herein are trademarks of their respective holders.
LIMITED WARRANTY AND LIABILITY
Synology provides a limited warranty for its Products only to the initial person or entity that originally purchased the Products from Synology or its authorized distributor or retailer. Synology warrants that every hardware portion of the Products will be free from physical defects in material and workmanship for two years from the date of purchase, or the Product will be repaired or replaced as determined solely by Synology. If the Product proves defective during this warranty period, you can contact the local dealer in order to obtain assistance. You must provide proof of purchase and a bar code number from the Product’s packaging when asking for assistance. Synology Products are barebones devices so Synology makes no warranty of the hard disk installed, or warranty on compatibility of all hard disks.
SYNOLOGY SHALL HAVE NO LIABILITY TO YOU UNDER THIS LIMITED WARRANTY IF THE PRODUCT IS INSTALLED AND USED IN A MANNER NOT SPECIFIED OR DESCRIBED IN THE PRODUCT SPECIFICATIONS OR DESCRIPTION, THE PRODUCT HAS BEEN MODIFIED OR ALTERED IN ANY WAY BY ANY PARTY OTHER THAN SYNOLOGY, OR THE FAILURE OF THE PRODUCT TO CONFORM TO ITS SPECIFICATIONS CAN BE ATTRIBUTED TO CAUSES THAT NOT THE RESPONSIBILITY OF SYNOLOGY.
SYNOLOGY MAKES NO WARRANTY OR REPRESENTATION, EXPRESSED, IMPLIED, OR STATUTORY, WITH RESPECT TO ITS PRODUCTS OR THE CONTENTS OR USE OF THIS DOCUMENTATION AND ALL ACCOMPANYING SOFTWARE, AND PARTICULARLY DISCLAIMS ITS QUALITY OR PERFORMANCE FOR ANY PARTICULAR PURPOSE.
SYNOLOGY MAKES NO GUARANTEE THAT ALL DATA STORED ON SYNOLOGY PRODUCTS IS ALWAYS SECURE WITHOUT ANY RISKS OF DATA LOSS. SYNOLOGY REMINDS YOU TO BACK UP THE DATA PERIODICALLY. UNDER NO CIRCUMSTANCES SHALL SYNOLOGY BE LIABLE IN ANY WAY TO THE USER FOR DAMAGES, INCLUDING ANY SAVINGS, LOST PROFITS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF, OR INABILITY TO USE SYNOLOGY PRODUCTS OR RESULTING LOSS OF DATA FROM SUCH USE.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE (OR JURISDICTION TO JURISDICTION). SYNOLOGY'S RESPONSIBILITY FOR
1
MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPAIR OR REPLACEMENT AS SET FOR IN THIS WARRANTY STATEMENT. FOR CUSTOMERS, EXCEPT FOR THE EXPRESS WARRANTIES CONTAINED IN THIS WARRANTY STATEMENT, SNOLOGY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. NO OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE LIMITED WARRANTY PERIOD HAS EXPIRED. SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF CERTAIN IMPLIED WARRANTIES OR CONDITIONS, OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THIS LIMITATION MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY COVERAGE TERMINATES IF YOU SELL OR OTHERWISE TRANSFER THIS PRODUCT TO ANOTHER PARTY.
SYNOLOGY DOES NOT ACCEPT LIABILITY BEYOND THE REMEDIES PROVIDED FOR IN THIS LIMITED WARRANTY OR FOR SPECIAL, INDIRECT, CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, ANY LIABILITY FOR THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES, FOR PRODUCTS NOT BEING AVAILABLE FOR USE, OR FOR LOST DATA OR LOST SOFTWARE. SYNOLOGY'S LIABILITY SHALL NOT EXCEED THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE SUBJECT OF A CLAIM. THIS IS THE MAXIMUM AMOUNT FOR WHICH SYNOLOGY IS RESPONSIBLE.
SYNOLOGY INC. PRODUCTS ARE NOT INTENDED FOR USE IN MEDICAL, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS.
DISPUTE RESOLUTION
For the purposes of this provision, the term “Dispute” means any dispute, controversy, or claim arising out of or relating to (i) this Agreement, its interpretation, or the breach, termination, applicability or validity thereof, (ii) the related order for, purchase, delivery, receipt or use of any product or service from Synology, or iii) any other dispute arising out of or relating to the relationship between You and Synology; the term “Synology” means Synology, Inc, its parents, subsidiaries, affiliates, directors, officers, employees, beneficiaries, agents, assigns, component suppliers (both hardware and software), and/or any third party who provides products or services purchased from or distributed by Synology; and the term “You” means you, or those in privity with you, such as family members or beneficiaries. For US customers, you and Synology agree that any Dispute between You and Synology will be resolved exclusively and finally by arbitration under the current commercial rules of the American Arbitration Association, except as otherwise provided below. The arbitration will be conducted before a single arbitrator, and will be limited solely to the dispute between You and Synology. The arbitration, or any portion of it, will not be consolidated with any other arbitration and will not be conducted on a class-wide or class action basis. The arbitration shall be held in King County, Washington by submission of documents, by telephone, online or in person as determined by the arbitrator at the request of the parties. The prevailing party in any U.S. or non-U.S. arbitration or other legal action shall receive all costs and reasonable attorneys’ fees, including any arbitration fee paid by the prevailing party. Any decision rendered in such arbitration proceedings will be final and binding on the parties, and judgment may be entered thereon in any court of competent jurisdiction. You understand that, in the absence of this provision, You would have had a right to litigate Disputes through a court, including the right to litigate claims on a class-wide or class-action basis, and that You have expressly and knowingly waived those rights and agreed to resolve any disputes through binding arbitration in accordance with the provisions of this paragraph. For non-US customers, any Dispute shall be finally resolved by arbitration
2
conducted by three neutral arbitrators in accordance with the procedures of the R.O.C. Arbitration Law and related enforcement rules. The arbitration shall take place in Taipei, Taiwan, R.O.C., and the arbitration proceedings shall be conducted in English or, if both parties so agree, in Mandarin Chinese. The arbitration award shall be final and binding on the parties and may be enforced in any court having jurisdiction.
REVISIONS
Synology reserves all rights to revise or update its Products, other products, software, or related documentation without further notice.
Synology Inc. reserves the right to revise this publication and to make changes in the content hereof without the obligation to notify any person of such revision or changes.
3
Index |
|
About this User’s Guide.............................................................................................. |
6 |
Getting to know your Synology Server..................................................................... |
7 |
Introduction ......................................................................................................................... |
7 |
Storing and Sharing Files via Internet .................................................................................. |
7 |
PC Data and Server Data Backup ........................................................................................ |
7 |
Transferring Data via FTP ...................................................................................................... |
7 |
Managing Files through Web Browsers ............................................................................... |
7 |
Sharing Photos, Videos and Blogs with Photo Station 3 ................................................... |
7 |
Enjoying Entertainment Data Stored on Server .................................................................. |
7 |
Enjoying Music instantly with USB Speakers ...................................................................... |
8 |
Programming your Own Web Site ........................................................................................ |
8 |
Video Recording with IP Cameras ........................................................................................ |
8 |
USB Printer Server.................................................................................................................. |
8 |
Specification ........................................................................................................................ |
8 |
Specification ........................................................................................................................ |
9 |
1-bay Models............................................................................................................................ |
9 |
2-bay Models.......................................................................................................................... |
10 |
4-bay Models.......................................................................................................................... |
11 |
Limitations ......................................................................................................................... |
12 |
Appearance....................................................................................................................... |
13 |
1-bay & 2-bay Disk Station................................................................................................... |
13 |
4-bay Cube Station................................................................................................................ |
14 |
4-bay 1U Rack Station .......................................................................................................... |
16 |
LED Indication Descriptions Table .................................................................................... |
18 |
1-bay & 2-bay Models........................................................................................................... |
18 |
4-bay Models.......................................................................................................................... |
19 |
Managing Synology Server ...................................................................................... |
20 |
Entering Web Management UI.......................................................................................... |
20 |
Using Setup Utility ................................................................................................................. |
20 |
Accessing Web Management UI Manually........................................................................ |
22 |
Managing Synology Server............................................................................................... |
22 |
Connecting from Two Different Network*.......................................................................... |
23 |
Managing Volume* ............................................................................................................ |
23 |
Managing Volume* ................................................................................................................ |
23 |
Repairing Volume by Hot Swapping*.................................................................................. |
24 |
Joining Windows Domain* ................................................................................................ |
24 |
Resetting Administrator Password .................................................................................... |
25 |
Reinstalling Synology Server ............................................................................................ |
25 |
Accessing Synology Server Data ............................................................................ |
26 |
Shared Folders.................................................................................................................. |
26 |
System Built-in ....................................................................................................................... |
26 |
Administrator-Created........................................................................................................... |
28 |
Setting Access Control...................................................................................................... |
28 |
Setting Encoding ............................................................................................................... |
29 |
Accessing Shared Folders ................................................................................................ |
29 |
From the same network........................................................................................................ |
29 |
From different network.......................................................................................................... |
32 |
Server Backup and PC Backup Solutions .............................................................. |
33 |
Local Backup..................................................................................................................... |
33 |
Network Backup ................................................................................................................ |
34 |
Backing up Personal Data................................................................................................. |
35 |
Before starting........................................................................................................................ |
35 |
4
Minimum System Requirement ........................................................................................... |
35 |
Installing Synology Data Replicator 3................................................................................. |
36 |
Using Synology Data Replicator 3 ...................................................................................... |
36 |
Backing up Synology Server Settings............................................................................... |
37 |
Synology Server to PC Client .............................................................................................. |
37 |
Synology Server to another Synology Server ................................................................... |
37 |
Sharing USB Printer .................................................................................................. |
38 |
Extra Features ............................................................................................................ |
39 |
Audio Station ..................................................................................................................... |
39 |
iTunes Service................................................................................................................... |
40 |
Multimedia Service............................................................................................................ |
41 |
Download Station .............................................................................................................. |
42 |
Enabling Download Station .................................................................................................. |
42 |
Installing Download Redirector............................................................................................ |
42 |
Web Station....................................................................................................................... |
43 |
Enabling Web Station and MySQL...................................................................................... |
43 |
Web Station’s detail description........................................................................................... |
43 |
Photo Station 3.................................................................................................................. |
44 |
Enabling Photo Station 3 ...................................................................................................... |
44 |
Photo Station 3’s detail description ..................................................................................... |
44 |
Surveillance Station........................................................................................................... |
45 |
Enabling Surveillance Station.............................................................................................. |
45 |
Surveillance Station’s detailed description ........................................................................ |
45 |
USBCopy* ......................................................................................................................... |
46 |
Setting USBCopy Target Location ...................................................................................... |
46 |
Mail Notification................................................................................................................. |
47 |
Firmware Update............................................................................................................... |
48 |
Expanding Storage Capacity .................................................................................... |
49 |
External HDD .................................................................................................................... |
49 |
External USB HDD ................................................................................................................ |
49 |
External SATA HDD* ............................................................................................................. |
49 |
Replacing Larger Internal HDD......................................................................................... |
49 |
Replacing Larger Internal HDD......................................................................................... |
50 |
Basic and RAID 0* Volume .................................................................................................. |
50 |
RAID 1 and RAID 5 Volume* ............................................................................................... |
50 |
Adding a HDD to a RAID 5 Volume* ................................................................................. |
50 |
Troubleshooting......................................................................................................... |
51 |
Appendix..................................................................................................................... |
52 |
Recommended Peripherals .............................................................................................. |
52 |
Recommended NTP Server.............................................................................................. |
52 |
5
This user's guide covers all the functions of Synology NAS Server. Some of the functions may only be available on specific models. Please refer to product specification for further details.
6
Congratulations on your purchase of Synology NAS Server (“Synology Server”). Synology Server is specially designed for the following purposes:
Windows users and Mac users can easily share files within Intranet or through Internet. Unicode language support makes sharing different language files from Synology Server smoothly.
Synology Server provides various backup solutions to back up PC data to Synology Server, back up Synology Server data to an external hard disk, or another Synology Server, or a rsync-compatible server.
Synology Server provides FTP service with bandwidth restriction and anonymous login. To transfer data safely, “FTP over SSL” or “FTP over TLS” is also available on advanced models.
File Station makes it possible for users to manage their files on the Synology Server easily through a web interface. Simply point the web browser to Synology File Station, and you have one more access to your files.
Photo Station 3 gives you the freedom to share photos and videos over the Internet without complicated upload steps. Album control ensures the content is shared with the right persons. Visitors can even leave comments for your photos. Furthermore, a brand new blogging system is integrated for you to easily share your living and thoughts over the Internet.
“Download Station” allows you to download files from Internet through BitTorrent, FTP, and HTTP to Synology Server. Moreover, if you have UPnP DMA connected in the LAN, you can enable “Multimedia Service” and share the multimedia files on Synology server. If you just want to share and play mp3 files stored on Synology Server, you can enable “iTunes Service”, and enjoy the music through any iTunes clients on LAN.
7
The build-in “Copy” button on the device allows instant copy of photos from the camera to Synology Server.
“Audio Station” allows users to collate music stored in Synology Server into playlist, play music stored on the Synology Server or from the connected iPod, or even stream internet Radio Stations. With USB speakers connected to the Synology Server, you’re able to bathe in music at anytime you want.
Personal or corporate website can be easily setup using “Web Station” function. By integrating with PHP and MySQL, user can also set up blog or even online shop.
"Surveillance Station" allows you to manage, view, and record videos from multiple* IP cameras on the Internet, By accessing the Surveillance Station’s web-based management interface, you can watch the real-time image the camera is monitoring, and record videos continuously as well as in the motion-detection mode.
You can share USB 2.0 Printer through Local Area Network.
* Supported on specific models only. Please refer to the product
8
1-bay Models 2-bay Models 4-bay Models
|
Item |
|
|
DS107 |
|
DS107+ |
|
DS108j |
|
|
Internal HDD |
|
|
3.5 SATA (II) x 1 |
|
3.5 SATA (II) x 1 |
|
3.5 SATA (II) x 1 |
|
|
Max. Capacity |
|
|
1 TB |
|
|
1 TB |
|
1 TB |
|
Hot Swappable HDD |
|
|
No |
|
|
No |
|
No |
|
External HDD Interface |
|
|
USB x 3 |
|
USB x 3 |
|
USB x 3 |
|
|
|
|
eSATA x 1 |
|
eSATA x 1 |
|
|||
|
|
|
|
|
|
|
|||
|
LAN Port |
|
|
Gigabit X 1 |
|
Gigabit X 1 |
|
Gigabit X 1 |
|
|
USBCopy |
|
|
Yes |
|
|
Yes |
|
Yes |
|
System Fan |
|
|
X 1 |
|
|
X 1 |
|
X 1 |
|
|
|
(50mmX50mm) |
|
(50mmX50mm) |
|
(50mmX50mm) |
||
|
|
|
|
|
|
||||
|
Size (HxWxD) (mm) |
|
|
160 X 63 X 218 |
|
160 X 63 X 218 |
|
160 X 63 X 218 |
|
|
Weight |
|
|
0.81Kg |
|
0.81Kg |
|
0.81Kg |
|
|
Supported Clients |
|
|
y |
Windows 2000 Onward |
|
|||
|
|
|
y |
Mac OS X 10.3 Onward |
|
||||
|
|
|
|
|
|||||
|
Max. User Accounts |
|
128 |
|
|
128 |
|
128 |
|
|
Max. Group Accounts |
|
64 |
|
|
64 |
|
64 |
|
|
Max. Shared Folder |
|
100 |
|
|
100 |
|
100 |
|
|
Max. Concurrent Connections |
|
32 |
|
|
32 |
|
32 |
|
|
Max. Supported IP Cameras |
|
2 |
|
|
2 |
|
1 |
|
|
File System |
|
|
|
EXT3 FAT (External Disk Only) |
||||
|
|
|
|
NTFS (External Disk Read Only) |
|||||
|
|
|
|
|
|||||
|
Volume Type |
|
|
|
|
|
Basic |
|
|
|
Agency Certifications |
|
|
|
FCC Class B CE Class B |
||||
|
|
|
|
BSMI Class B VCCI Class B |
|||||
|
|
|
|
|
|||||
|
HDD Hibernation |
|
|
Yes |
|
|
Yes |
|
Yes |
|
Event Notification |
|
|
Yes |
|
|
Yes |
|
Yes |
|
NTP |
|
|
Yes |
|
|
Yes |
|
Yes |
|
FTP over SSL/TLS |
|
|
Yes |
|
|
Yes |
|
Yes |
|
HTTPS Connection |
|
|
Yes |
|
|
Yes |
|
Yes |
|
Windows ADS Domain |
|
|
Yes |
|
|
Yes |
|
No |
|
Encrypted Network Backup |
|
|
Yes |
|
|
Yes |
|
Yes |
|
Scheduled Power On/Off |
|
|
No |
|
|
No |
|
Yes |
|
|
|
|
English German French Italian Spanish |
|||||
|
Language Localization |
|
Danish Norwegian Swedish Dutch Russian |
||||||
|
|
Japanese Korean Traditional Chinese |
|||||||
|
|
|
|||||||
|
|
|
Simplified Chinese |
|
|
|
|||
|
|
|
|
y Line voltage: 90V to 230V AC |
|
||||
|
Power Consumption |
|
|
y Frequency: 50Hz to 60Hz |
|
||||
|
|
|
y Operating Temperature: 50 to 95 F (10 to 35 C) |
||||||
|
And |
|
|
||||||
|
|
|
y Storage Temperature: -40 to 185 F (-10 to 70 C) |
||||||
|
Environment Requirements |
|
|
||||||
|
|
|
y Relative Humidity: 5% to 95% RH |
|
|||||
|
|
|
|
|
|||||
|
|
|
|
y Maximum Operating Altitude: 10,000 feet |
|||||
Note: For the most recent product specification, please visit www.synology.com |
9
|
Item |
|
|
|
DS207 |
|
DS207+ |
|
Internal HDD |
|
|
|
3.5 SATA (II) x 2 |
|
3.5 SATA (II) x 2 |
|
Max. Capacity |
|
|
|
2 TB |
|
2 TB |
|
Hot Swappable HDD |
|
|
|
No |
|
No |
|
External HDD Interface |
|
|
|
USB x 3 |
|
USB x 3 |
|
|
|
|
|
eSATA x 1 |
||
|
|
|
|
|
|
|
|
|
LAN Port |
|
|
|
Gigabit X 1 |
|
Gigabit X 1 |
|
USBCopy |
|
|
|
Yes |
|
Yes |
|
System Fan |
|
|
|
X 1 (60mmX60mm) |
|
X 1 (60mmX60mm) |
|
Size (HxWxD) (mm) |
|
|
|
160 X 88 X 218 |
|
160 X 88 X 218 |
|
Weight |
|
|
|
0.98Kg |
|
0.98Kg |
|
Supported Clients |
|
|
|
y Windows 2000 Onward |
||
|
|
|
|
y Mac OS X 10.3 Onward |
|||
|
|
|
|
|
|||
|
Max. User Accounts |
|
|
|
128 |
|
128 |
|
Max. Group Accounts |
|
|
|
64 |
|
64 |
|
Max. Shared Folder |
|
|
|
100 |
|
100 |
|
Max. Concurrent Connections |
|
|
|
32 |
|
32 |
|
Max. Supported IP Cameras |
|
|
|
2 |
|
5 |
|
File System |
|
|
|
EXT3 FAT (External Disk Only) |
||
|
|
|
|
NTFS (External Disk Read Only) |
|||
|
|
|
|
|
|||
|
Volume Type |
|
|
|
Basic RAID 0 RAID 1 |
||
|
Agency Certifications |
|
|
FCC Class B CE Class B |
|
FCC Class B |
|
|
|
BSMI Class B VCCI Class B |
|
CE Class B |
|||
|
|
|
|
||||
|
HDD Hibernation |
|
|
|
Yes |
|
Yes |
|
Event Notification |
|
|
|
Yes |
|
Yes |
|
NTP |
|
|
|
Yes |
|
Yes |
|
FTP over SSL/TLS |
|
|
|
Yes |
|
Yes |
|
HTTPS Connection |
|
|
|
Yes |
|
Yes |
|
Windows ADS Domain |
|
|
|
Yes |
|
Yes |
|
Encrypted Network Backup |
|
|
|
Yes |
|
Yes |
|
Scheduled Power On/Off |
|
|
|
No |
|
No |
|
|
|
|
English German French Italian Spanish |
|||
|
Language Localization |
|
Danish Norwegian Swedish Dutch Russian |
||||
|
|
Japanese Korean Traditional Chinese |
|||||
|
|
|
|||||
|
|
|
Simplified Chinese |
|
|||
|
|
|
|
y Line voltage: 90V to 230V AC |
|
||
|
Power Consumption |
|
|
y Frequency: 50Hz to 60Hz |
|
||
|
|
|
y |
Operating Temperature: 50 to 95 F (10 to 35 C) |
|||
|
And |
|
|
||||
|
|
|
y |
Storage Temperature: -40 to 185 F (-10 to 70 C) |
|||
|
Environment Requirements |
|
|
||||
|
|
|
y |
Relative Humidity: 5% to 95% RH |
|||
|
|
|
|
||||
|
|
|
|
y Maximum Operating Altitude: 10,000 feet |
|||
Note: For the most recent product specification, please visit www.synology.com |
10
|
Item |
|
|
CS407e/CS407 |
|
RS407 |
|
|
RS408 |
|
RS408-RP |
|
|
|
Internal HDD |
|
|
3.5 SATA (II) x 4 |
|
3.5 SATA (II) x 4 |
|
3.5 SATA (II) x 4 |
|
3.5 SATA (II) x 4 |
|||
|
Max. Capacity |
|
|
4 TB |
|
|
4 TB |
|
4 TB |
|
4 TB |
||
|
Hot Swappable HDD |
|
|
No |
|
|
Yes |
|
Yes |
|
Yes |
||
|
External HDD Interface |
|
|
USB x 2 |
|
USB x 2 |
|
USB x 2 |
|
USB x 2 |
|||
|
LAN Port |
|
|
Gigabit X 1 |
|
Gigabit X 1 |
|
Gigabit X2 |
|
Gigabit X2 |
|||
|
USBCopy |
|
|
No |
|
|
No |
|
No |
|
No |
||
|
System Fan |
|
|
X 1 |
|
|
X 3 |
|
X 3 |
|
X 4 |
||
|
|
|
(80mmX80mm) |
|
(40mmX40mm) |
|
(40mmX40mm) |
|
(40mmX40mm) |
||||
|
|
|
|
|
|
|
|||||||
|
Power Fan |
|
|
No |
|
|
No |
|
X 1 |
|
X 2 |
||
|
|
|
|
|
|
(40mmX40mm) |
|
(40mmX40mm) |
|||||
|
|
|
|
|
|
|
|
|
|
|
|||
|
Size (HxWxD) (mm) |
|
|
168 X 184 X 230 |
|
44 X 430.5 X |
|
44 X 430.5 X |
|
44 X 430.5 X |
|||
|
|
|
457.5 |
|
|
457.5 |
570.5 |
|
|||||
|
|
|
|
|
|
|
|
|
|||||
|
Weight |
|
|
2.23Kg |
|
7.2Kg |
|
7.1Kg |
|
9.68Kg |
|||
|
Supported Clients |
|
|
y |
Windows 2000 Onward |
|
|
|
|
||||
|
|
|
y |
Mac OS X 10.3 Onward |
|
|
|
|
|||||
|
|
|
|
|
|
|
|
||||||
|
Max. User Accounts |
|
2,048 |
|
2,048 |
|
|
2,048 |
2,048 |
|
|||
|
Max. Group Accounts |
|
256 |
|
256 |
|
|
256 |
256 |
|
|||
|
Max. Shared Folder |
|
200 |
|
200 |
|
|
200 |
200 |
|
|||
|
Max. Concurrent Connections |
|
128 |
|
128 |
|
|
128 |
128 |
|
|||
|
Max. Supported IP Cameras |
|
2 |
|
5 |
|
|
10 |
10 |
|
|||
|
File System |
|
|
|
|
|
EXT3 FAT (External Disk Only) |
|
|
|
|||
|
|
|
|
|
|
NTFS (External Disk Read Only) |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
||||
|
Volume Type |
|
|
|
|
Basic RAID 0 RAID 1 RAID 5 |
|
|
|
||||
|
|
|
|
FCC Class B |
|
FCC Class A |
|
|
|
|
|
||
|
|
|
|
CE Class B |
|
|
FCC Class A CE Class A |
||||||
|
Agency Certifications |
|
|
|
CE Class A |
|
|||||||
|
|
|
BSMI Class B |
|
|
BSMI Class A VCCI Class A |
|||||||
|
|
|
|
||||||||||
|
|
|
|
VCCI Class B |
|
VCCI Class A |
|
|
|
|
|
||
|
HDD Hibernation |
|
|
Yes |
|
|
Yes |
|
Yes |
|
Yes |
||
|
Event Notification |
|
|
Yes |
|
|
Yes |
|
Yes |
|
Yes |
||
|
NTP |
|
|
Yes |
|
|
Yes |
|
Yes |
|
Yes |
||
|
FTP over SSL/TLS |
|
|
Yes |
|
|
Yes |
|
Yes |
|
Yes |
||
|
HTTPS Connection |
|
|
Yes |
|
|
Yes |
|
Yes |
|
Yes |
||
|
Windows ADS Domain |
|
|
Yes |
|
|
Yes |
|
Yes |
|
Yes |
||
|
Encrypted Network Backup |
|
|
Yes |
|
|
Yes |
|
Yes |
|
Yes |
||
|
Scheduled Power On/Off |
|
|
No |
|
|
No |
|
Yes |
|
Yes |
||
|
|
|
|
English German French Italian Spanish Danish Norwegian |
|||||||||
|
Language Localization |
|
|
Swedish Dutch Russian Japanese Korean Traditional Chinese |
|||||||||
|
|
|
|
Simplified Chinese |
|
|
|
|
|||||
|
|
|
|
y Line voltage: 90V to 230V AC |
|
|
|
|
|||||
|
Power Consumption |
|
|
y Frequency: 50Hz to 60Hz |
|
|
|
|
|||||
|
|
|
y Operating Temperature: 50 to 95 F (10 to 35 C) |
|
|
|
|||||||
|
And |
|
|
|
|
|
|||||||
|
|
|
y Storage Temperature: -40 to 185 F (-10 to 70 C) |
|
|
|
|||||||
|
Environment Requirements |
|
|
|
|
|
|||||||
|
|
|
y Relative Humidity: 5% to 95% RH |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
||||||
|
|
|
|
y Maximum Operating Altitude: 10,000 feet |
|
|
|
Note: For the most recent product specification, please visit www.synology.com
11
1.Supports up to 1 USB printer.
2.USBCopy function only supports USB disks with FAT32 file system.
3.Some digital cameras are defined as a Still Image Device, such as Canon. For such devices, Synology Server only supports USB Copy function (No USB share function).
4.For Mac users, Synology Server supports only USB printers with PostScript.
12
1-bay & 2-bay Disk Station 4-bay Cube Station 4-bay 1U Rack Station
Front View Rear View
Fan
USBCopy |
USB |
button |
port |
eSATA |
LAN port |
port |
RESET |
|
|
POWER |
DC in 12V |
button |
port |
Article Name |
Location |
Description |
Power Button |
Front Panel |
The Power Button is used to turn the Synology |
|
|
Server On or Off. |
|
|
To turn Off Synology Server, press the Power Button |
|
|
and hold it until you hear a "beep" sound and the |
|
|
Power LED starts blinking. |
|
|
|
COPY Button |
Front Panel |
The COPY Button lights up when you connect a |
|
|
USB Device (for example: digital camera, USB flash |
|
|
disk). Pressing the button will copy the data from the |
|
|
connected USB device to the Synology Server's |
|
|
internal HDD. |
|
|
|
13
USB Port |
Front & Back |
The Synology Server offers 3 USB ports for adding |
|
Panel |
additional external hard drives, USB printers, or |
|
|
other USB devices. One at the front, and other two |
|
|
at the back. |
|
|
|
Smart Fan |
Back Panel |
The fan is to exhaust waste heat out of Synology |
Ventilation |
|
Server. It will start automatically when the server |
|
|
starts. If the fan is malfunctioning, system will "beep" |
|
|
every 1 second. |
|
|
|
eSATA Port |
Front Panel |
The eSATA port is for connecting with an external |
|
|
SATA HDD. |
|
|
|
RESET |
Back Panel |
1. To restore IP, DNS, passwords for the "admin" |
Button |
|
account to default value, and reset the “guest” |
|
|
account to the “enabled” status. (Please refer |
|
|
to “Resetting Administrator Password” |
|
|
chapter.) |
|
|
2. To reinstall the Synology Server. (Please refer |
|
|
to “Reinstalling Synology Server” chapter.) |
|
|
|
LAN Port |
Back Panel |
The LAN port is where you connect RJ-45 cable to |
|
|
Synology Server. |
|
|
|
DC IN 12V |
Back Panel |
The DC IN 12V Port is where you connect the AC |
Port |
|
Power Adapter. |
|
|
|

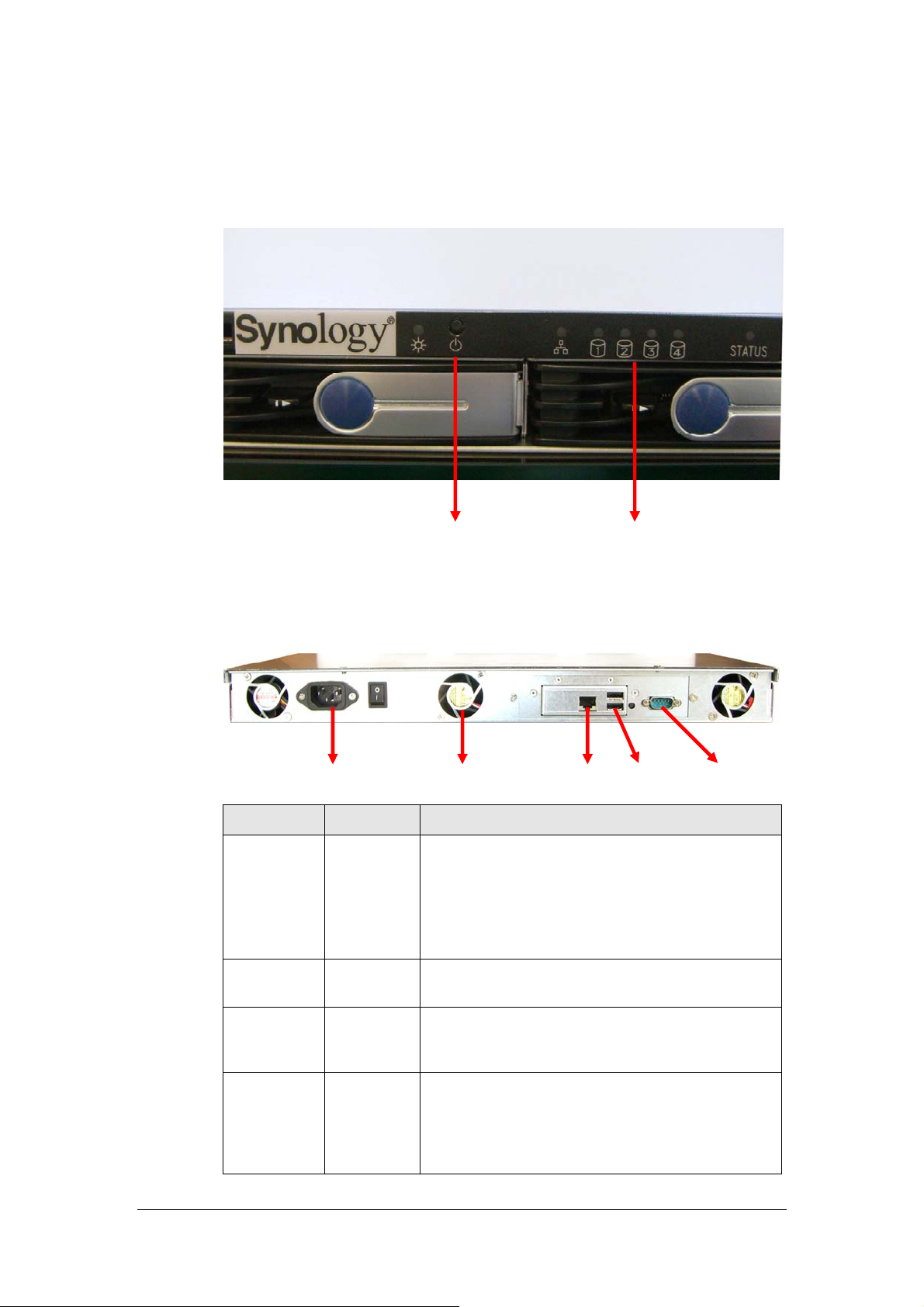

Front View
LED Indicators Power Button LED Indicators
14
Rear View
|
DC in |
LAN |
USB |
Fan |
|
|
|
|
|
RESET |
|
|
|
|
|
||
Article Name |
Location |
Description |
|
||
Power Button |
Front Panel |
The Power Button is used to turn Synology Server |
|||
|
|
|
On or Off. |
|
|
|
|
|
To turn Off Synology Server, press the Power Button |
||
|
|
|
until you hear a "beep" and the Power LED begins |
||
|
|
|
blinking. The shutdown process will complete in 30 |
||
|
|
|
seconds. |
|
|
|
|
|
|
||
LED |
|
Front Panel |
The LED indicator is used to display the status of |
||
indicators |
|
|
the internal disk and the system. |
||
|
|
|
|
||
USB Port |
|
Back Panel |
Synology Server offers 2 USB ports for adding |
||
|
|
|
additional external hard drives, USB printers, or |
||
|
|
|
other USB devices. |
|
|
|
|
|
|
||
Fan |
|
Back Panel |
The fan is to exhaust waste heat out of Synology |
||
Ventilation |
|
|
Server. It will start automatically when the server |
||
|
|
|
starts. If the fan is malfunctioning, system will "beep" |
||
|
|
|
every 1 second. |
|
|
|
|
|
|
||
RESET |
|
Back Panel |
3. To restore IP, DNS, passwords for the "admin" |
||
Button |
|
|
account to default value, and reset the “guest” |
||
|
|
|
account to the “enabled” status. (Please refer |
||
|
|
|
to |
“Resetting |
Administrator Password” |
|
|
|
chapter.) |
|
|
|
|
|
4. To reinstall the Synology Server. (Please refer |
||
|
|
|
to “Reinstalling Synology Server” chapter.) |
||
|
|
|
|
||
LAN Port |
|
Back Panel |
The LAN port is where you connect RJ-45 cable to |
||
|
|
|
Synology Server. |
|
|
|
|
|
|
||
DC IN Port |
|
Back Panel |
The DC IN Port is where you connect the AC Power |
||
|
|
|
Adapter. |
|
|
|
|
|
|
|
|
15
