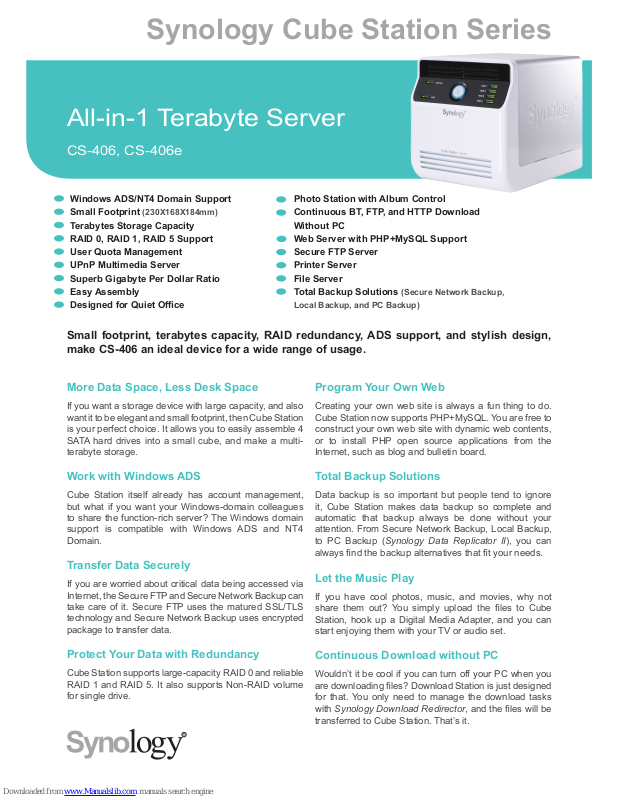

Synology CS-406, CS-406e Specifications
Windows ADS/NT4 Domain Support
Small Footprint (230X168X184mm)
Terabytes Storage Capacity
RAID 0, RAID 1, RAID 5 Support
User Quota Management
UPnP Multimedia Server
Superb Gigabyte Per Dollar Ratio
Easy Assembly
Designed for Quiet Ofce
Photo Station with Album Control
Continuous BT, FTP, and HTTP Download
Without PC
Web Server with PHP+MySQL Support
Secure FTP Server
Printer Server
File Server
Total Backup Solutions (Secure Network Backup,
Local Backup, and PC Backup)
Small footprint, terabytes capacity, RAID redundancy, ADS support, and stylish design,
make CS-406 an ideal device for a wide range of usage.
Synology Cube Station Series
All-in-1 Terabyte Server
CS-406, CS-406e
More Data Space, Less Desk Space
If you want a storage device with large capacity, and also
want it to be elegant and small footprint, then Cube Station
is your perfect choice. It allows you to easily assemble 4
SATA hard drives into a small cube, and make a multiterabyte storage.
Work with Windows ADS
Cube Station itself already has account management,
but what if you want your Windows-domain colleagues
to share the function-rich server? The Windows domain
support is compatible with Windows ADS and NT4
Domain.
Transfer Data Securely
If you are worried about critical data being accessed via
Internet, the Secure FTP and Secure Network Backup can
take care of it. Secure FTP uses the matured SSL/TLS
technology and Secure Network Backup uses encrypted
package to transfer data.
Protect Your Data with Redundancy
Cube Station supports large-capacity RAID 0 and reliable
RAID 1 and RAID 5. It also supports Non-RAID volume
for single drive.
Program Your Own Web
Creating your own web site is always a fun thing to do.
Cube Station now supports PHP+MySQL. You are free to
construct your own web site with dynamic web contents,
or to install PHP open source applications from the
Internet, such as blog and bulletin board.
Total Backup Solutions
Data backup is so important but people tend to ignore
it, Cube Station makes data backup so complete and
automatic that backup always be done without your
attention. From Secure Network Backup, Local Backup,
to PC Backup (Synology Data Replicator II), you can
always nd the backup alternatives that t your needs.
Let the Music Play
If you have cool photos, music, and movies, why not
share them out? You simply upload the les to Cube
Station, hook up a Digital Media Adapter, and you can
start enjoying them with your TV or audio set.
Continuous Download without PC
Wouldn’t it be cool if you can turn off your PC when you
are downloading les? Download Station is just designed
for that. You only need to manage the download tasks
with Synology Download Redirector, and the les will be
transferred to Cube Station. That’s it.
Synology was founded in April 2000. We devote ourselves to design and manufacture advanced and innovative storage products for both SOHO and mission critical environments. By combining
the best of software and hardware experience, Synology Inc. is committed to delivering a series of world-class storage products and solutions based on the products. Synology’s storage products
have been adopted by thousands of companies worldwide. From Japan to Chile and from SOHO to mid-size enterprises, Synology has been building up its core competence and is ready to
serve worldwide customers.
Copyright © 2006, Synology Inc. All rights reserved. Synology, the Synology logo are trademarks or registered trademarks of Synology Inc. Other product and company names mentioned herein
may be trademarks of their respective companies. Synology may make changes to specication and product descriptions at anytime, without notice.
Printed in Taiwan, 06-CS406-E001
Synology Cube Station Series
6F-2, No. 106, Chang An W. Rd., Taipei, Taiwan
Tel: 886 2 2552 1814 Fax: 886 2 2552 1824
http://www.synology.com
SYNOLOGY INC.
Total Backup Solutions
External
USB Drive
Router
PC
Local Backup
Secure
Network Backup
PC Backup
(Using Data Replicator II)
Cube Station
Cube Station
Networking Diagram
USB Flash/
Card Reader
External
USB Drive
USB Printer
Digital Media
Adapter
Stereo System
TV Set
PC/Mac
Router
Windows
AD Server
Cube Station
Cube Station
Hardware
Internal HDD 3.5” SATA or SATA II X 4
External HDD via USB
USB 2.0 port X 2
Size (mm) 230x 168 x 184
Weight 2.23kg
LAN Gigabit X1
Fan X1
AC Power Voltage 100V to 240V AC
Power Frequency 50Hz to 60Hz, Single Phase
Operating Temperature 50 to 95∘F (10 to 35∘C)
Storage Temperature -40 to 185∘F (-10 to 70∘C)
Relative Humidity 5% to 95% RH
Maximum Operating Altitude 10,000 feet
UPS over USB 2.0 X1
Networking
CIFS V
Apple Talk V
FTP V
Security
Windows ADS/ NT4 Domain V
Secure FTP over SSL/TLS V
Secure Network Backup V
File System
EXT3 V
FAT (External Disk Only) V
File Sharing
Max User Accounts 1,024
Max Groups 128
Max Shared Folder 100
Max Concurrent Connections 64
Applications
Web Station V
PHP/MySQL V
Download Station V
Multimedia Server V
Photo Station V
Backup Solution
Network Backup V
Local Backup V
PC Backup (DR II) V
Management
RAID: Non-RAID, RAID 0, RAID1, RAID5 V
User Quota V
Hidden Shared Folder V
Movable Shared Folder V
Removable Default Shared Folder V
Firmware Upgrade V
Web-based Management V
Email Alert Message V
UPS Management V
Certication
FCC Class B V
CE V
BSMI V
C-Tick V
Supported Clients
Windows 98 onward V
Mac OS9 V
Mac OSX V
Language
English V
Germany V
French V
Italian V
Spanish V
Korean V
Traditional Chinese V
Simplied Chinese V
Environment
RoHS Compliant V
* CS-406 is the high end model of this product
series, it provides better performance than
CS-406e.
