SERVICE MANUAL

32" COLOR TELEVISION

SST4323

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and de­scribed in this service manual are effective methods of performing service
operations. Some of these service special tools should be used when and
as recommended.

It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk of
personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to under­stand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai
could not possibly know, evaluate and advice the service trade of all con­ceivable ways in which service might be done or of the possible hazardous
consequences of each way. Consequently, Funai has not undertaken any
such broad evaluation. Accordingly, a servicer who uses a service proce­dure or tool which is not recommended by Funai must first use all precau­tions thoroughly so that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.

TABLE OF CONTENTS

Specifications ........................................................ 1-1

Important Safety Precautions................................ 2-1

Standard Notes for Servicing ................................ 3-1

Disassembly Instructions ...................................... 4-1

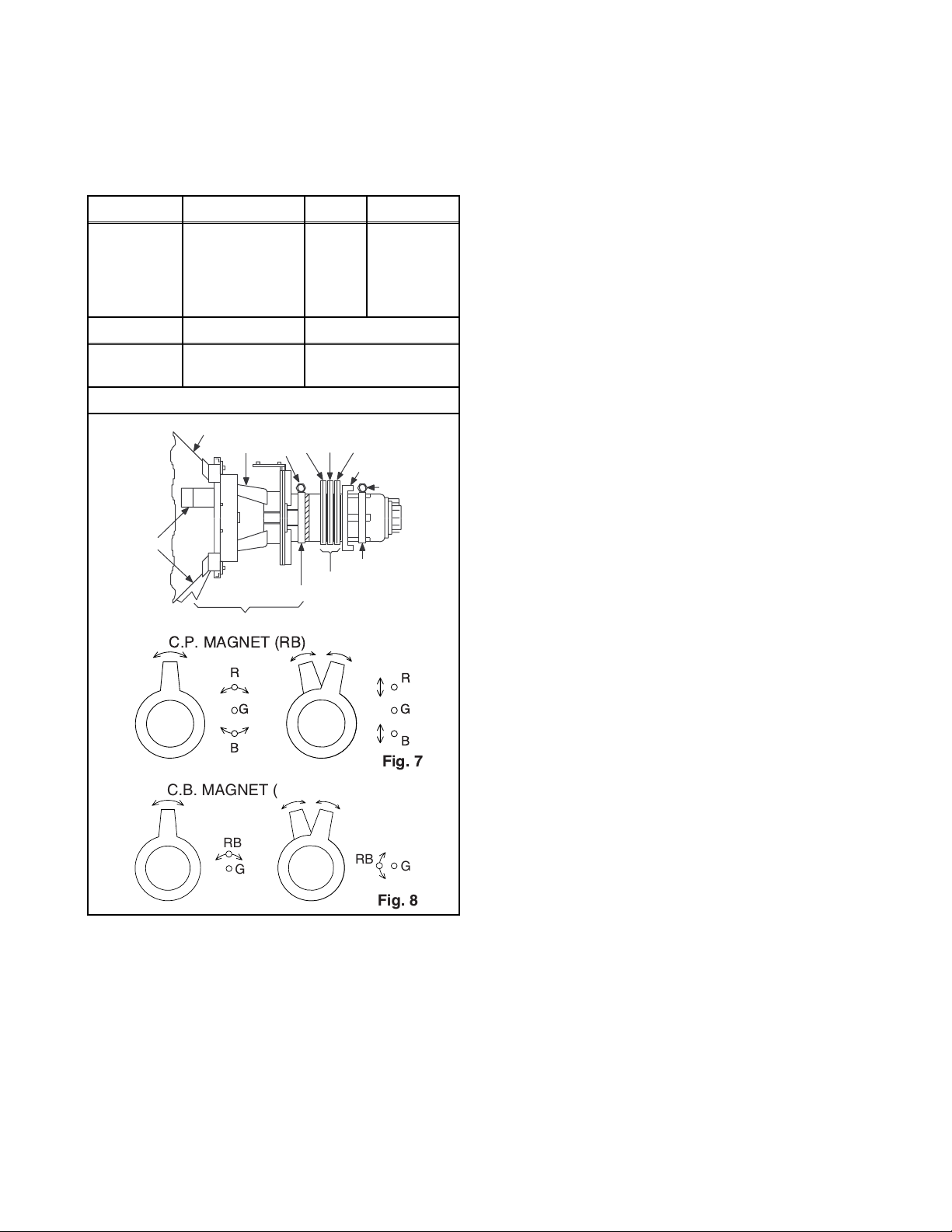

Electrical Adjustment Instructions ......................... 5-1

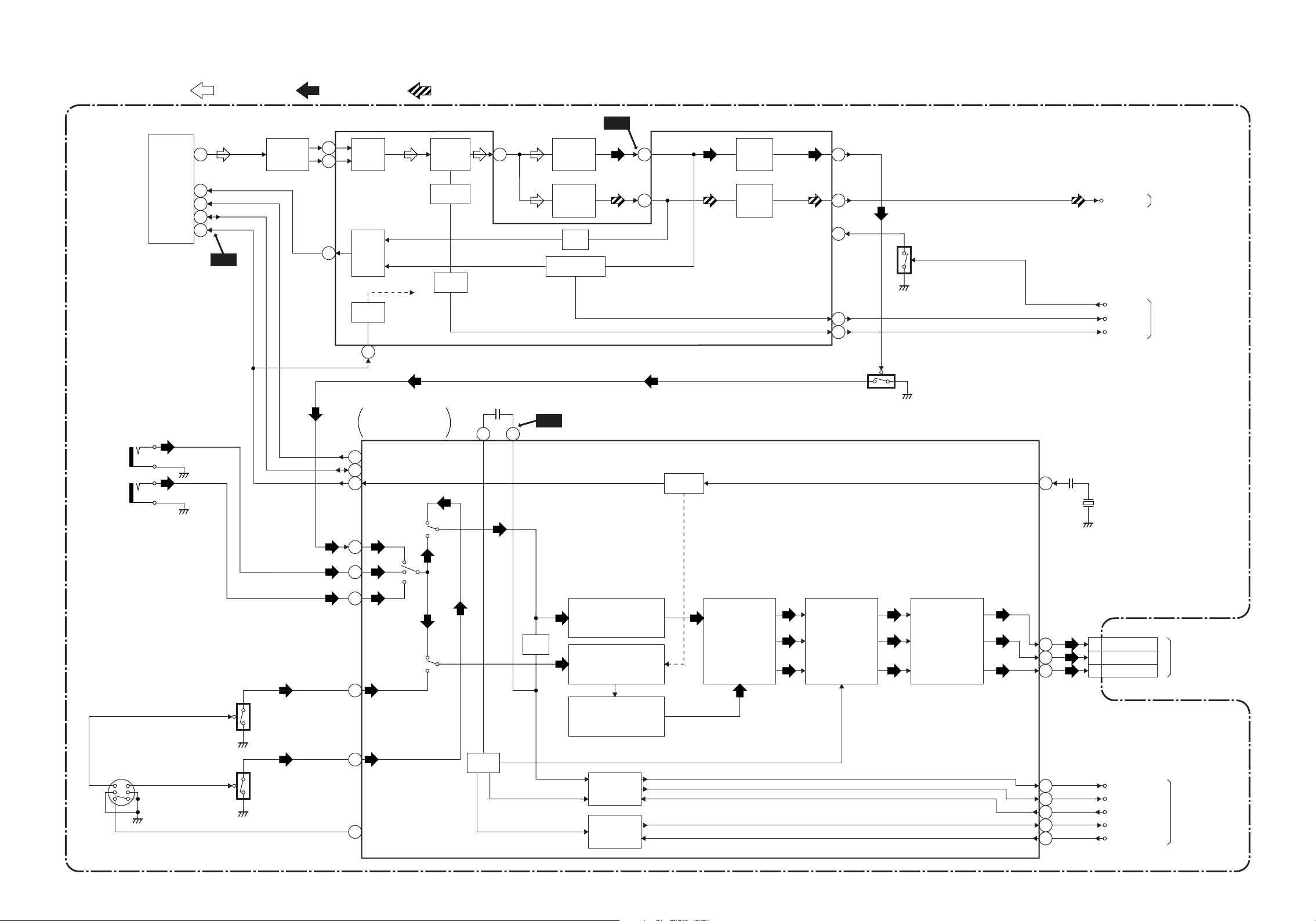

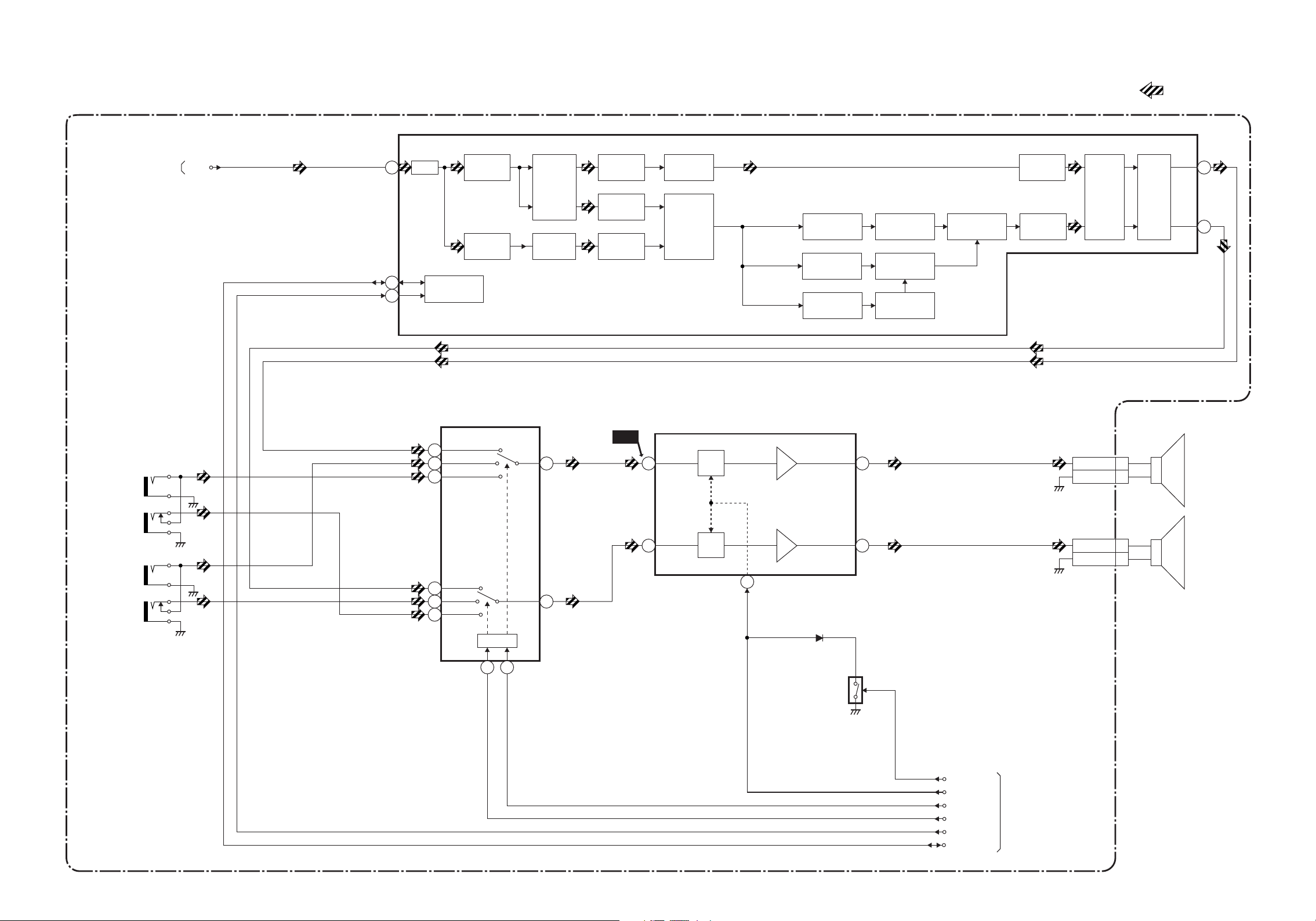

Block Diagram....................................................... 6-1

Schematic Diagram / CBA's and Test Points ....... 7-1

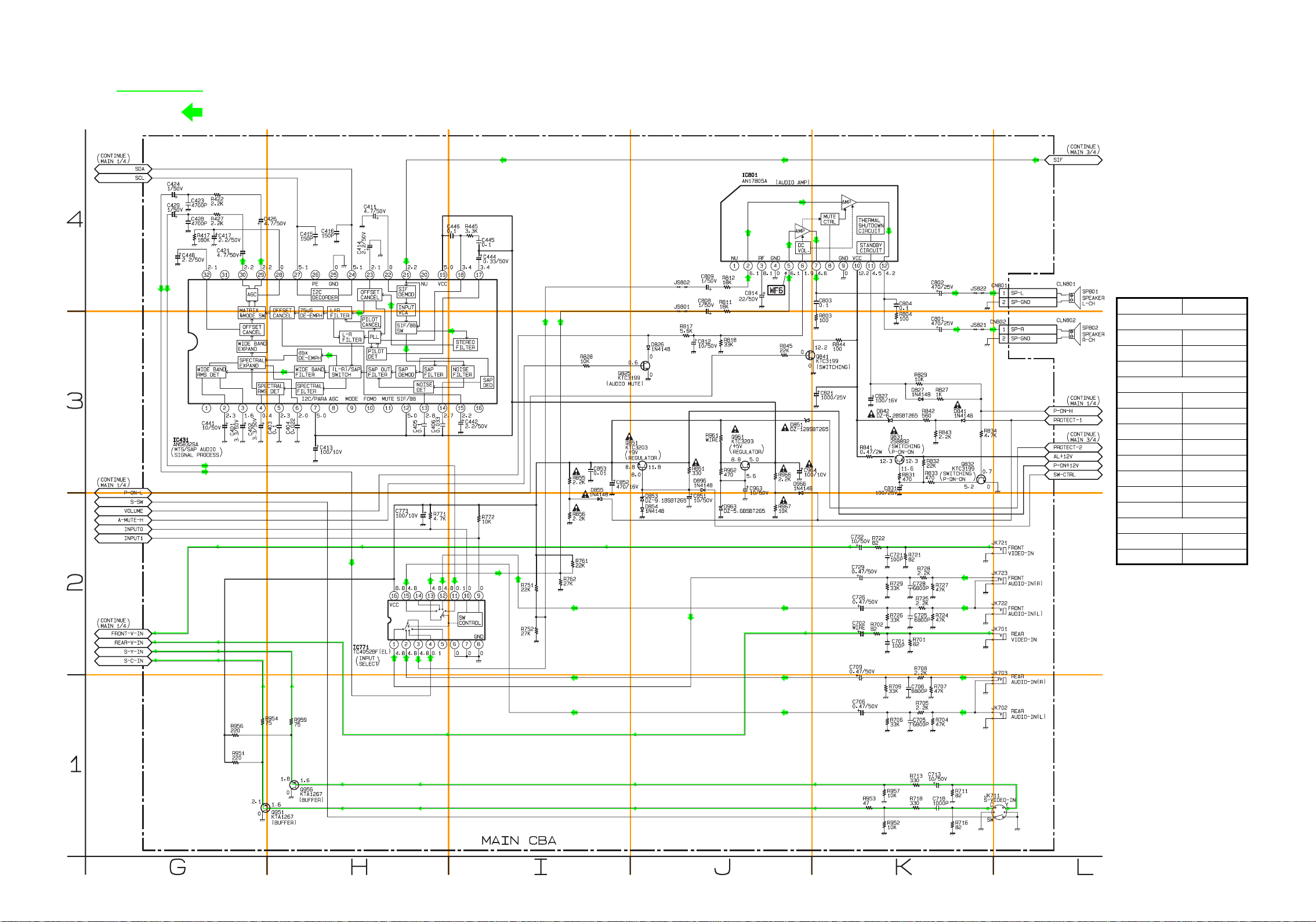

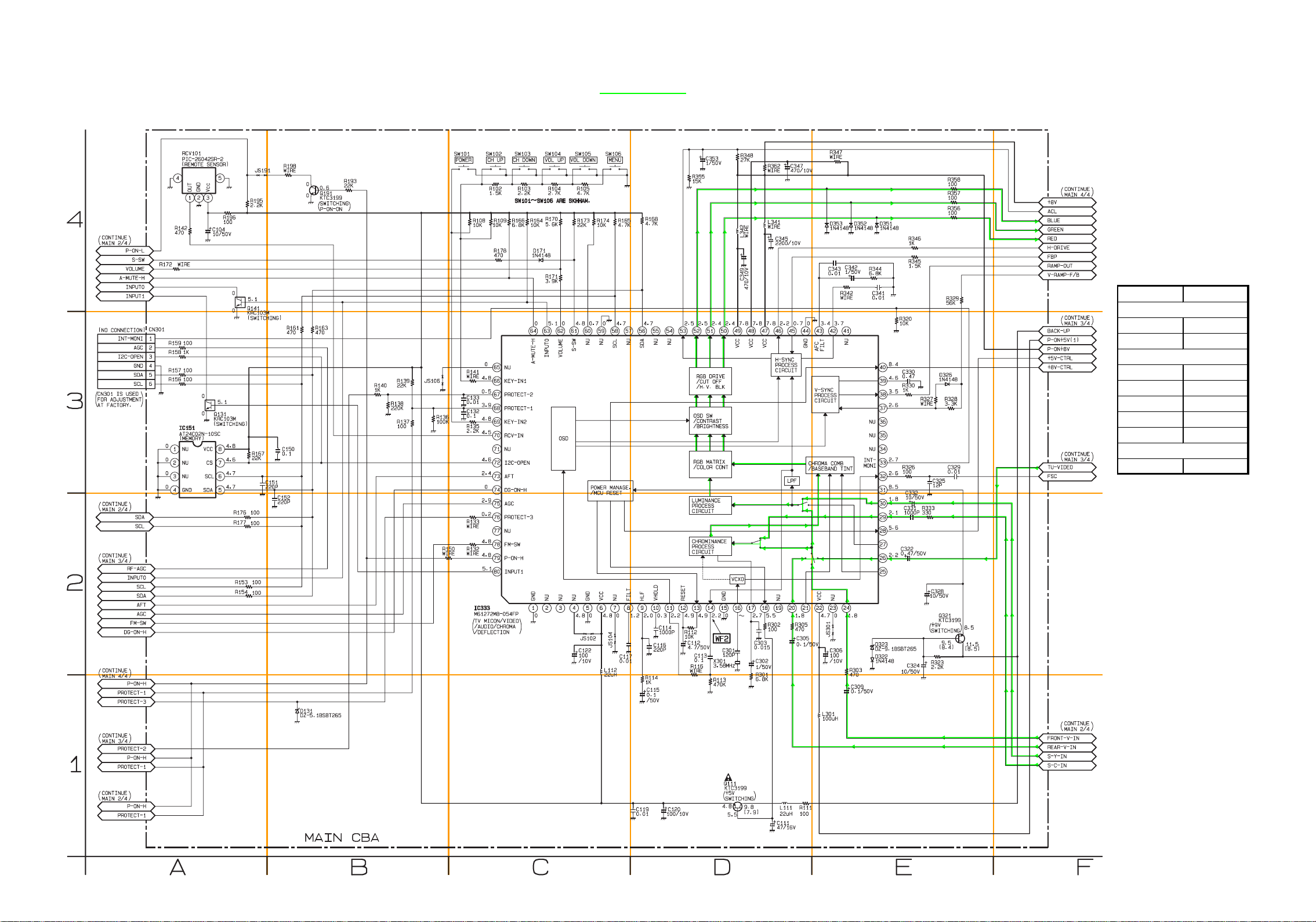

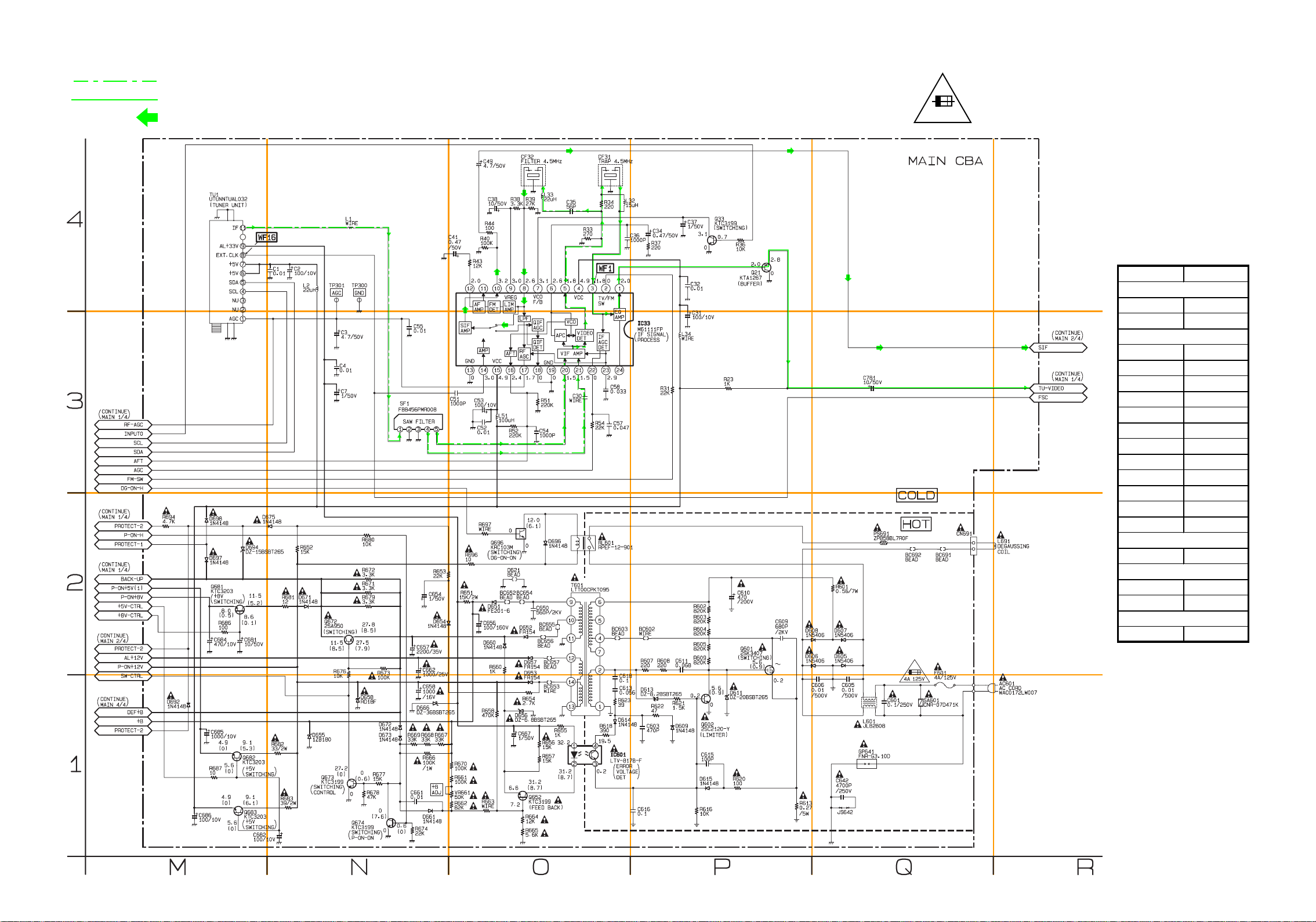

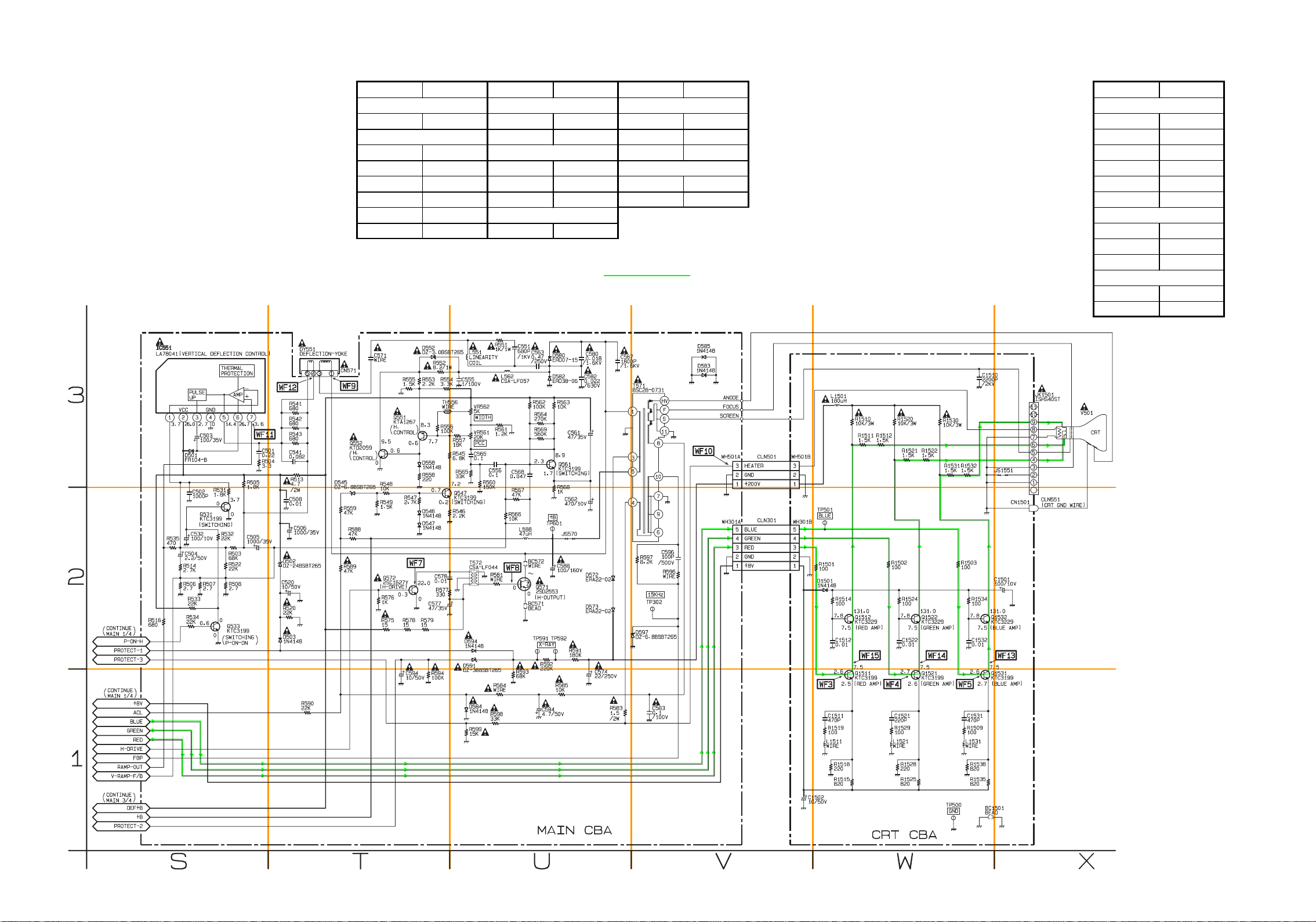

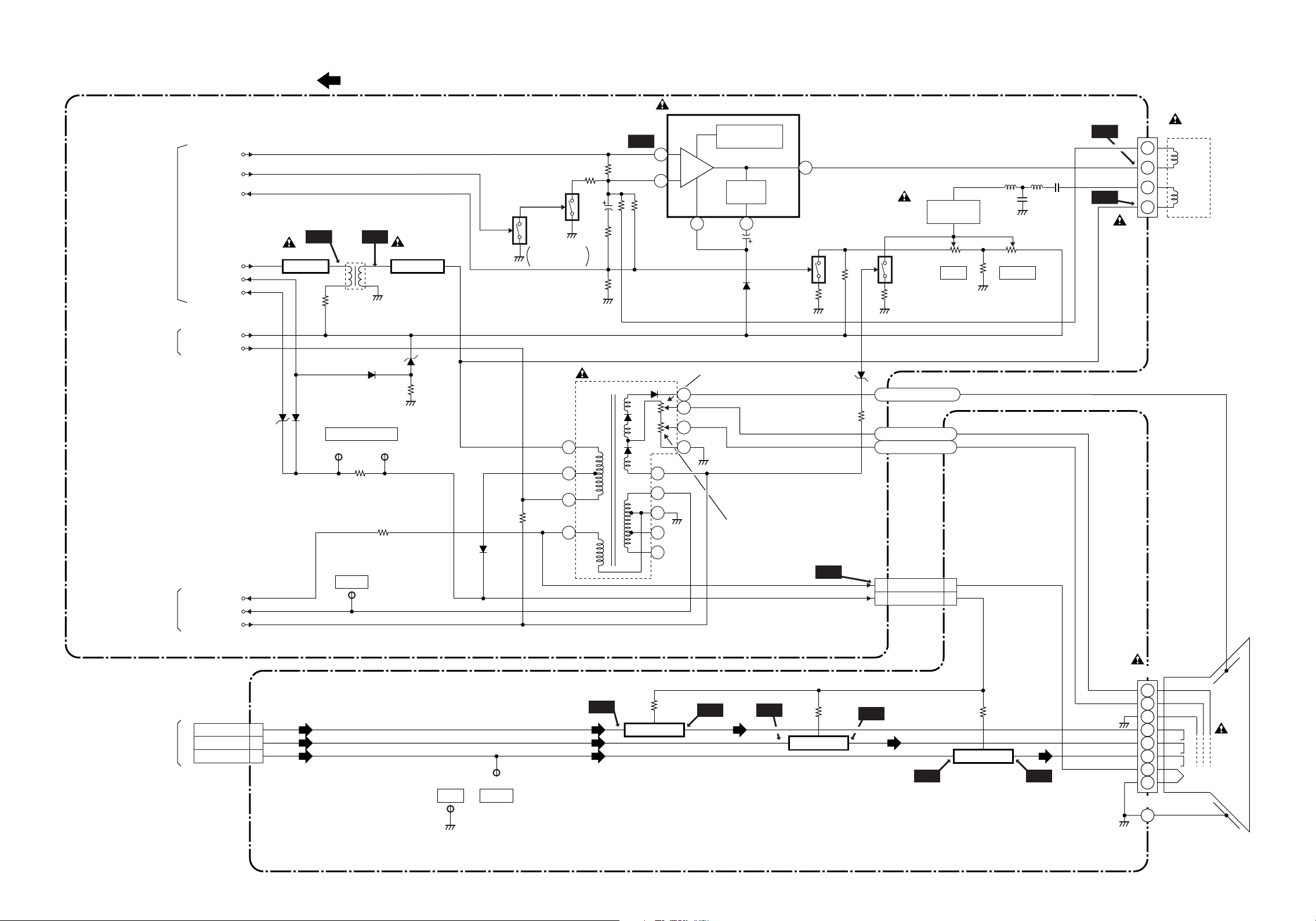

Schematic Diagram .............................................. 7-3

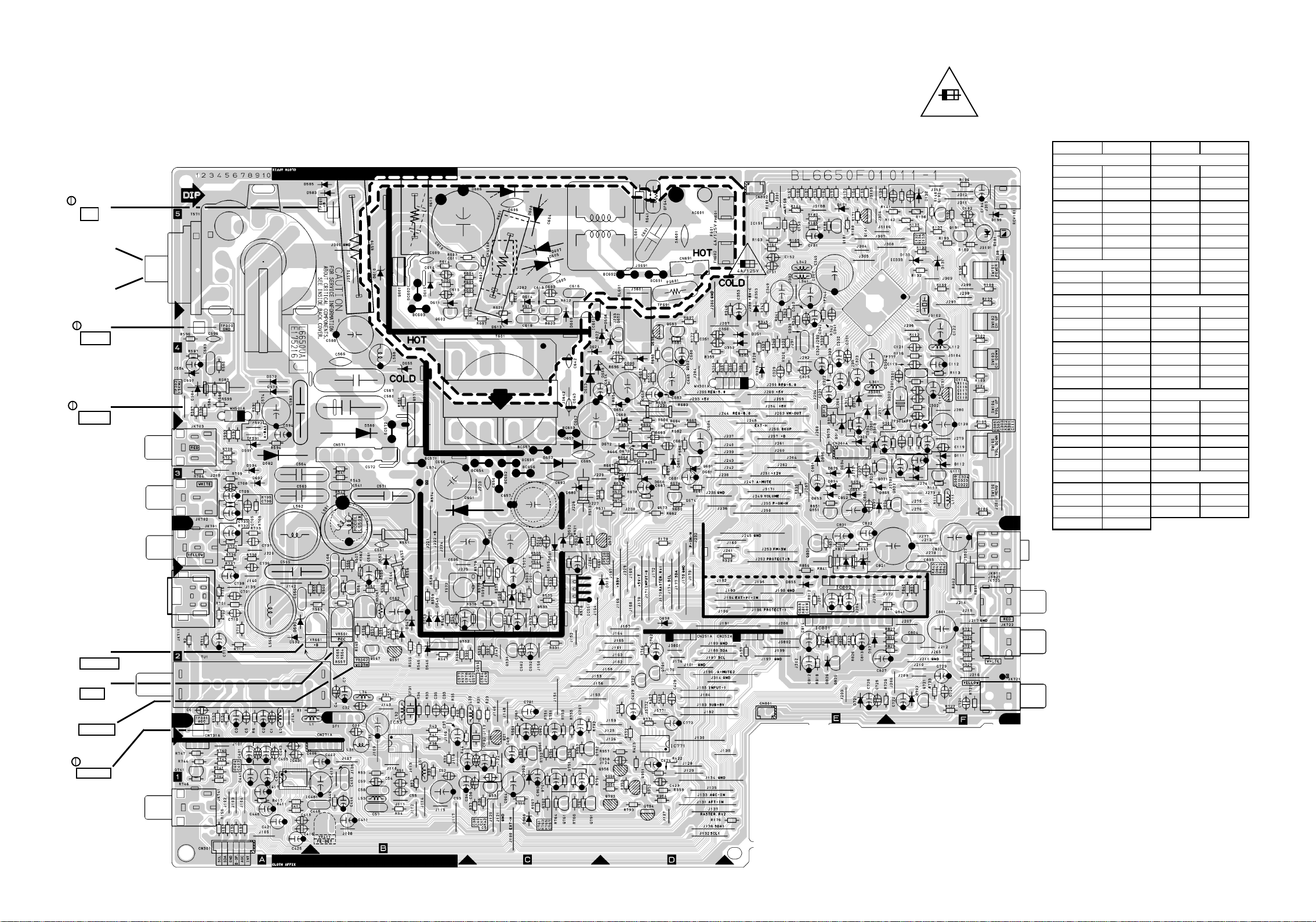

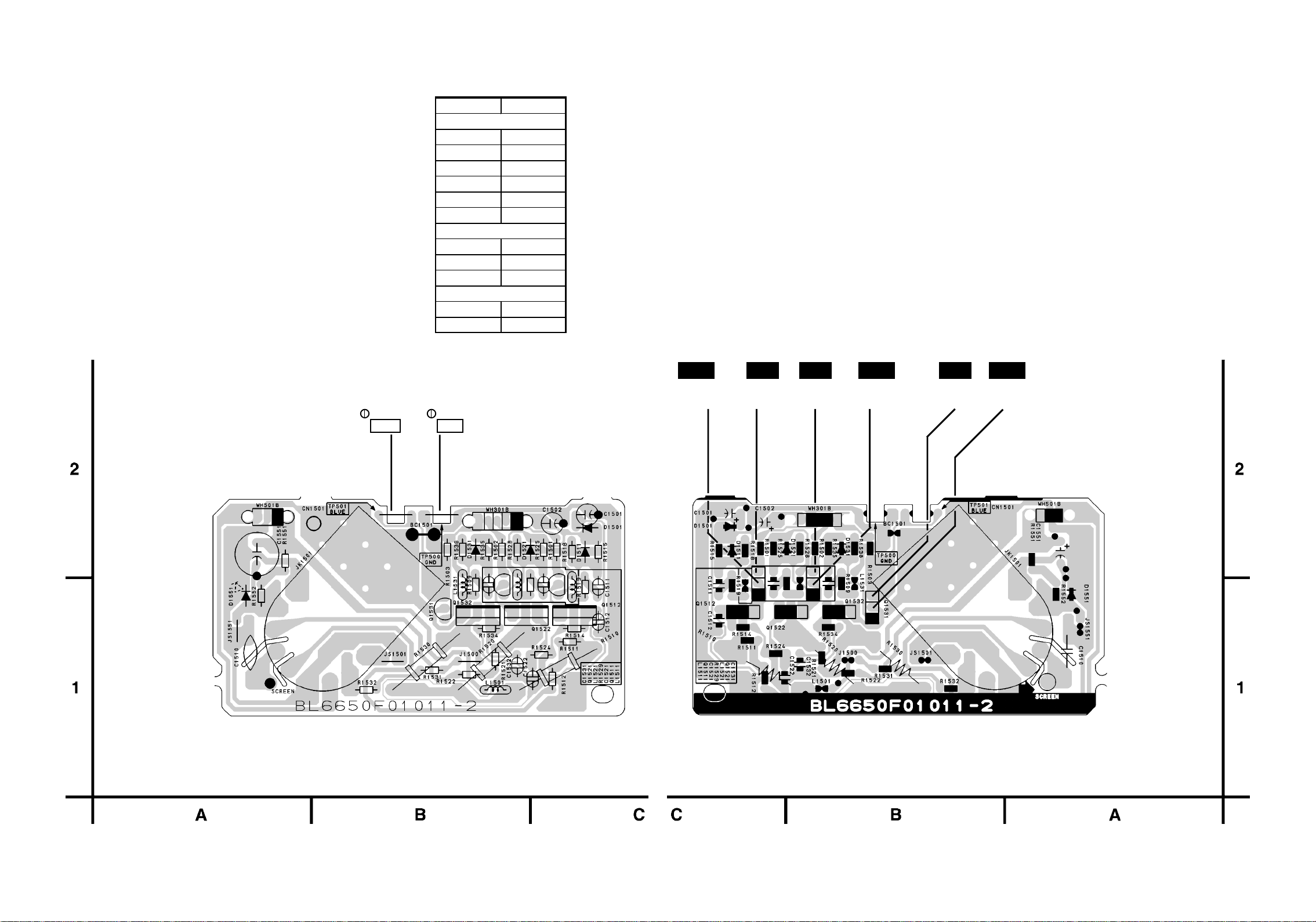

CBA Views and Test Points.................................. 7-11

Wave Forms .......................................................... 8-1

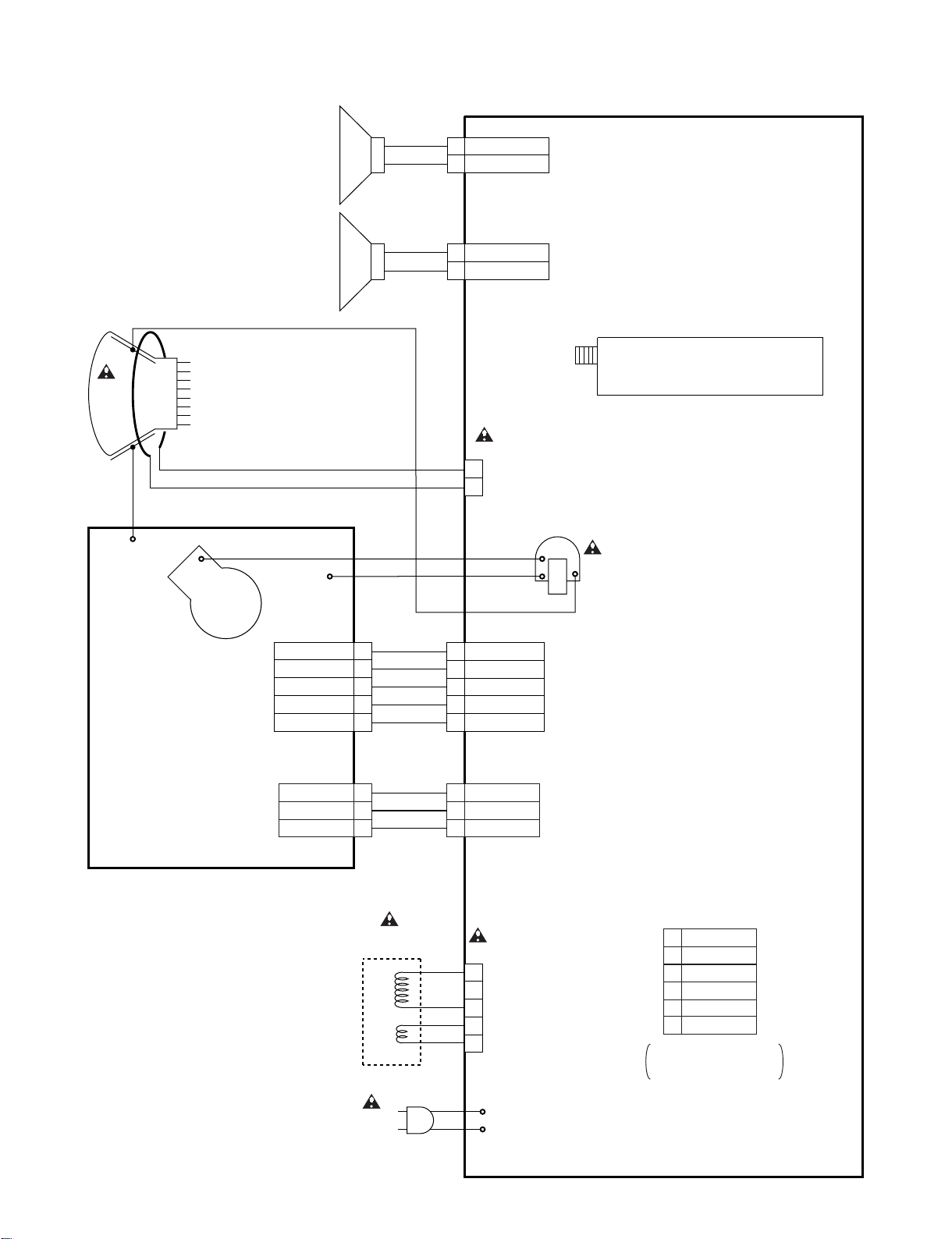

Wiring Diagram...................................................... 9-1

IC Pin Function .................................................... 10-1

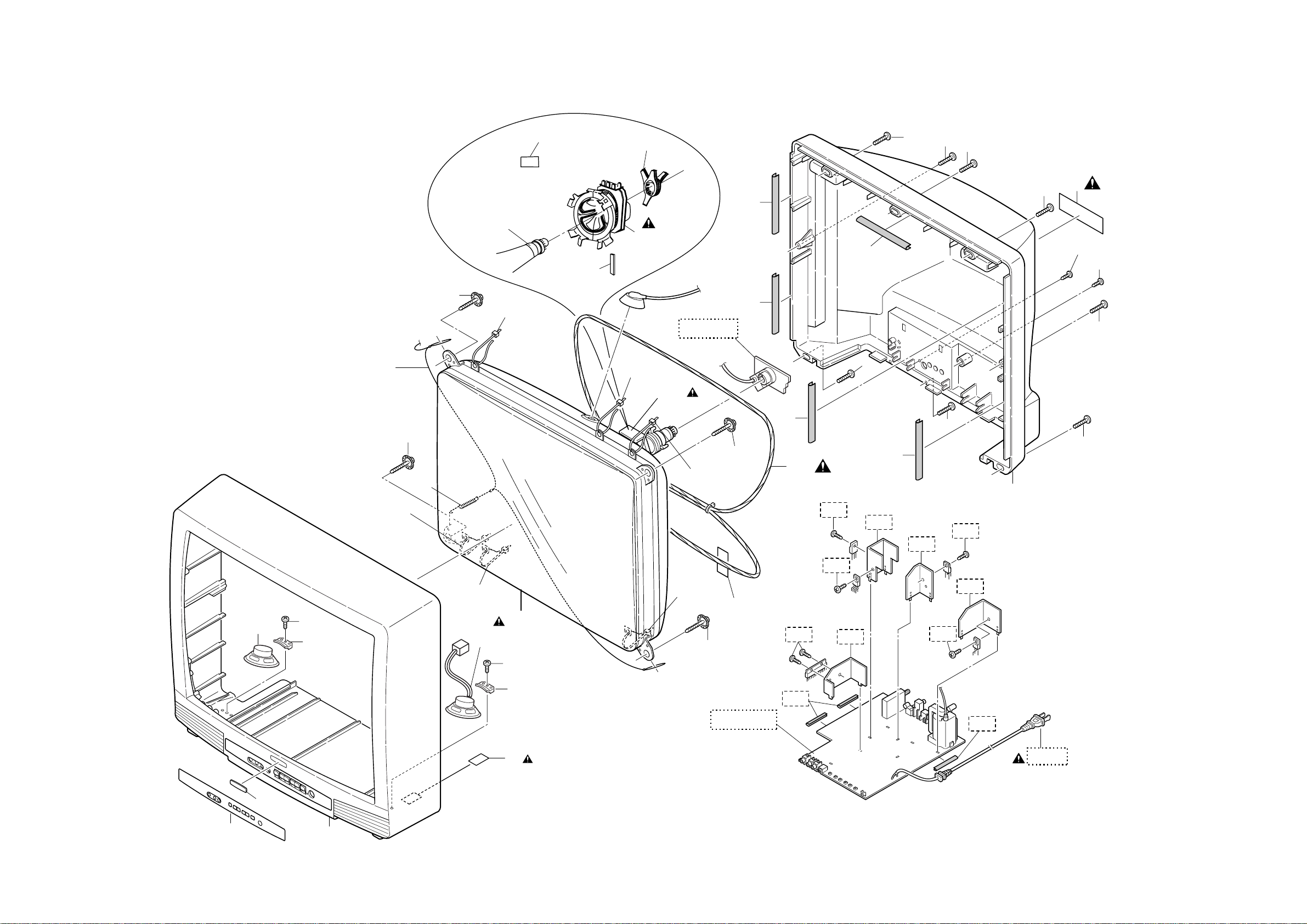

Cabinet Exploded View ....................................... 11-1

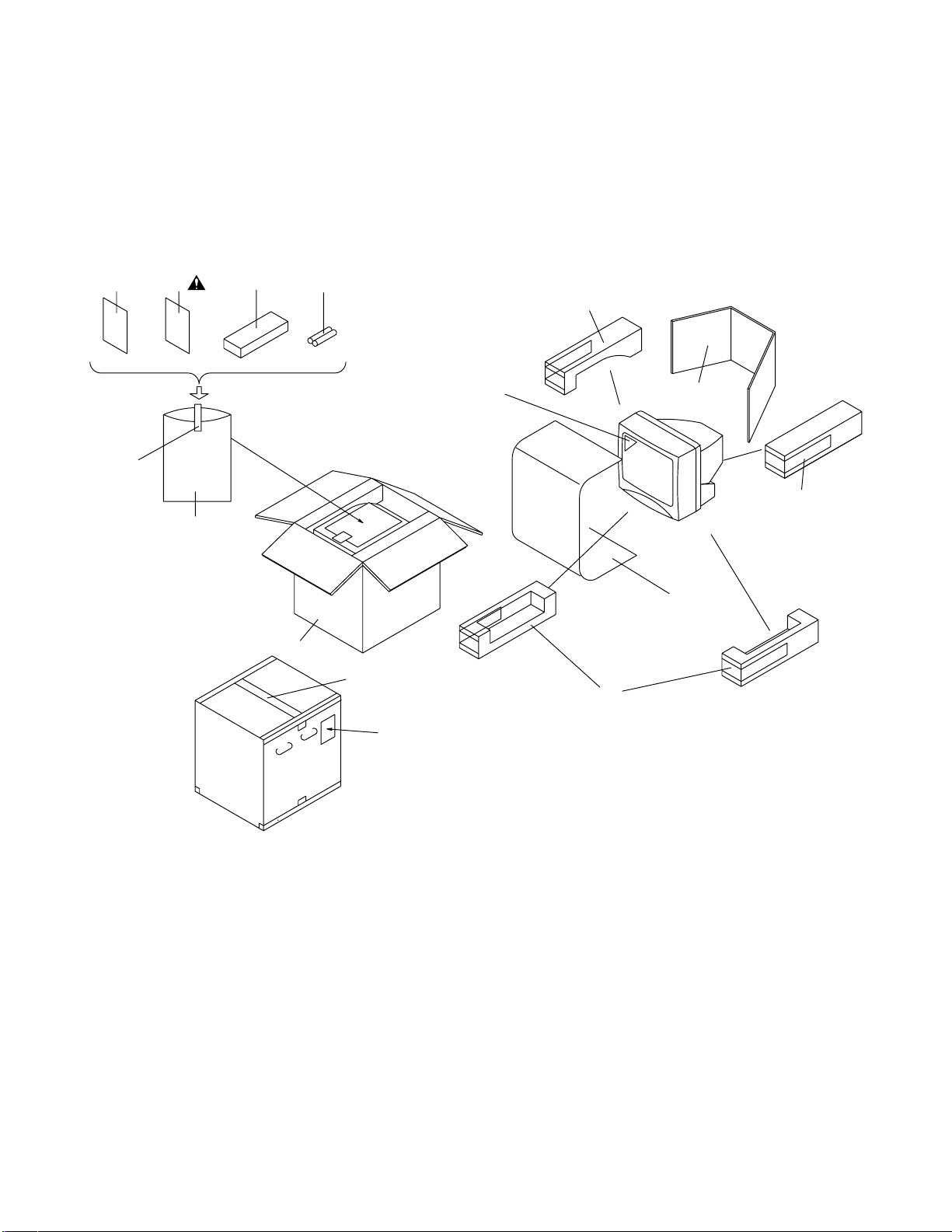

Packing Exploded View ....................................... 11-3

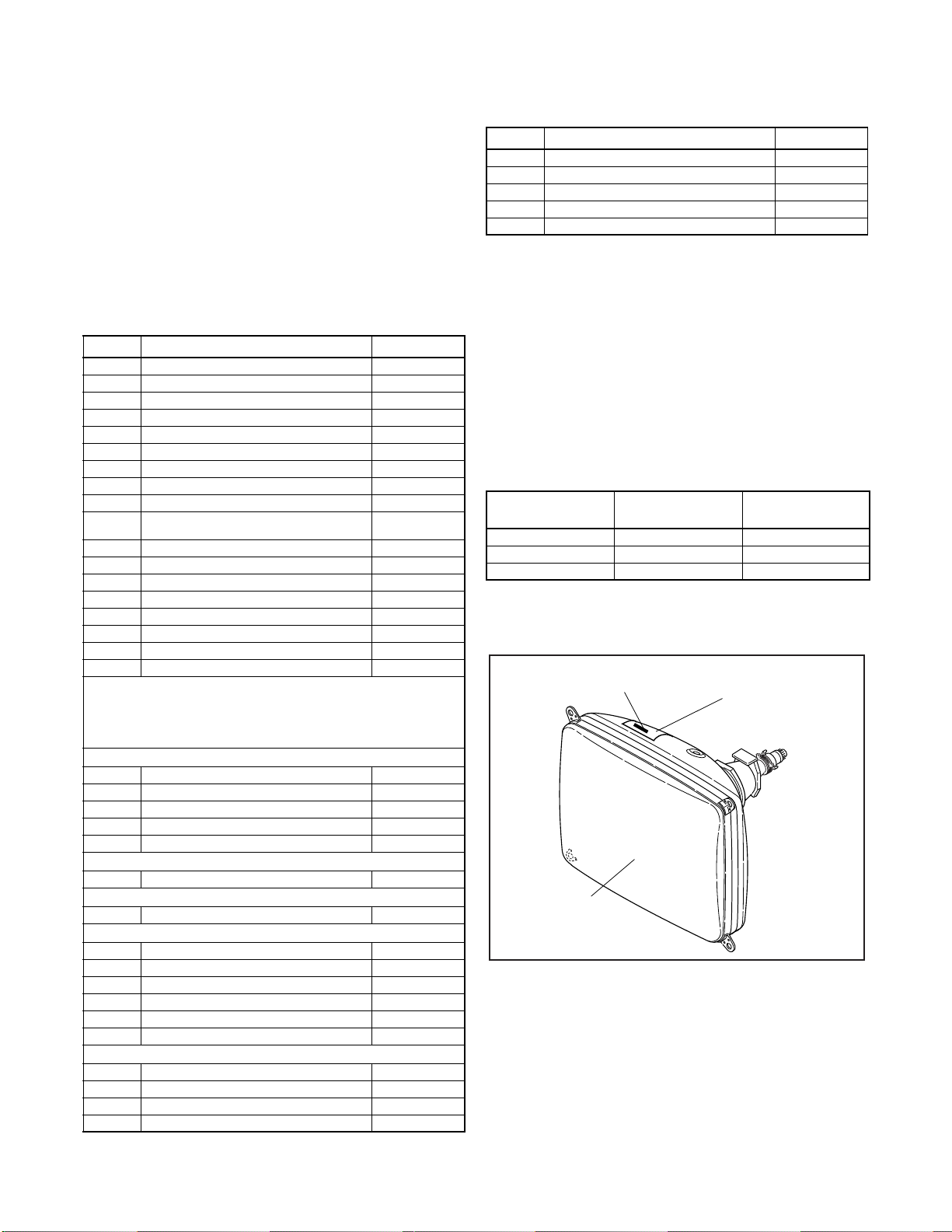

Mechanical Parts List .......................................... 12-1

Electrical Parts List.............................................. 13-1

SPECIFICATIONS

<TUNER> ANT. Input ------------------- 75ohm Unbal., F type

Reference Level ----------- 20Vp-p (CRT Green Cathode)
Test Input Signal ---------- 400Hz 30% modulation

Description Condition Unit Nominal Limit

1. Intermediate Freq. Picture
Sound

2. Peak Picture Sens VHF

CATV

UHF

3. AFT Pull In Range (10mV input)

-

<DEFLECTION>

Description Condition Unit Nominal Limit

1. Deflection Freq. Horizontal

Vert ical

2. Linearity Horizontal

Vert ical

3. Over Scan

4. High Voltage

-

-

<VIDEO & CHROMA>

Description Condition Unit Nominal Limit

MHz
MHz

dBµV
dBµV
dBµV

MHz ±2.2 ±0.7

KHz

Hz

%
%

%10

KV 29

45.75

41.25
15

15
15

15.734
60

-

-

-

­30

30
40

-

-

±15
±10

-

-

1. Misconvergence Center
Side

Corner

2. Brightness APL 100% Ft-L 20 15

3. Color Temperature

4. Resolution Horizontal

<AUDIO>

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD W 3 2.4

2. Audio Distortion (w/LPF) 500mW % 2 7

3. Audio Freq. Response -3dB Hz 90~11K

Note:

Nominal specifications represent the design specifications. All units should be able to approximate
these. Some will exceed and some may drop slightly below these specifications. Limit specifications
represent the absolute worst condition that still might be considered acceptable. In no case should
a unit fail to meet limit specifications.

All items are measured across 8Ω load at speaker output terminal.

-

Vert ical

mm
mm
mm

°K 9200°K

Line
Line

-

-

-

250
300

0.4

1.5

2.1

-

-

-

-

1-1 L6652SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.

Safety Precautions for TV Circuit

1. Before returning an instrument to the custom-

er, always make a safety check of the entire instru-

ment, including, but not limited to, the following
items:

a. Be sure that no built-in protective devices are de-

fective and have been defeated during servicing.
(1) Protective shields are provided on this chassis
to protect both the technician and the customer.
Correctly replace all missing protective shields, in­cluding any removed for servicing convenience.
(2) When reinstalling the chassis and/or other as­sembly in the cabinet, be sure to put back in place
all protective devices, including but not limited to,
nonmetallic control knobs, insulating fishpapers,
adjustment and compartment covers/shields, and
isolation resistor/capacitor networks. Do not oper-

ate this instrument or permit it to be operated
without all protective devices correctly in­stalled and functioning. Servicers who defeat
safety features or fail to perform safety checks
may be liable for any resulting damage.

b. Be sure that there are no cabinet openings through

which an adult or child might be able to insert their
fingers and contact a hazardous voltage. Such
openings include, but are not limited to, (1) spac­ing between the picture tube and the cabinet
mask, (2) excessively wide cabinet ventilation
slots, and (3) an improperly fitted and/or incorrectly
secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an
electrical jumper across the two AC plug prongs.
Place the instrument AC switch in the on position.
Connect one lead of an ohmmeter to the AC plug
prongs tied together and touch the other ohmme­ter lead in turn to each tuner antenna input ex­posed terminal screw and, if applicable, to the
coaxial connector. If the measured resistance is
less than 1.0 megohm or greater than 5.2 mego­hm, an abnormality exists that must be corrected
before the instrument is returned to the customer.
Repeat this test with the instrument AC switch in
the off position.

d. Leakage Current Hot Check - With the instru-

ment completely reassembled, plug the AC line
cord directly into a 120V AC outlet. (Do not use an
isolation transformer during this test.) Use a leak-

age current tester or a metering system that com­plies with American National Standards Institute
(ANSI) C101.1 Leakage Current for Appliances
and Underwriters Laboratories (UL) 1410, (50.7).
With the instrument AC switch first in the on posi­tion and then in the off position, measure from a
known earth ground (metal water pipe, conduit,
etc.) to all exposed metal parts of the instrument
(antennas, handle brackets, metal cabinet, screw
heads, metallic overlays, control shafts, etc.), es­pecially any exposed metal parts that offer an elec­trical return path to the chassis. Any current
measured must not exceed 0.5 milli-ampere. Re­verse the instrument power cord plug in the outlet
and repeat the test.

READING SHOULD
NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED

METAL SURFACES

ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG
AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS
SPECIFIED HEREIN INDICATE A POTENTIAL
SHOCK HAZARD THAT MUST BE ELIMINATED
BEFORE RETURNING THE INSTRUMENT TO
THE CUSTOMER OR BEFORE CONNECTING
THE ANTENNA OR ACCESSORIES.

e. X-Radiation and High Voltage Limits - Because

the picture tube is the primary potential source of
X-radiation in solid-state TV receivers, it is special­ly constructed to prohibit X-radiation emissions.
For continued X-radiation protection, the replace­ment picture tube must be the same type as the
original. Also, because the picture tube shields
and mounting hardware perform an X-radiation
protection function, they must be correctly in place.
High voltage must be measured each time servic-

CURRENT

TESTER

+

EARTH
GROUND

_

2-1 L6115IMP

ing is performed that involves B+, horizontal de­flection or high voltage. Correct operation of the X­radiation protection circuits also must be recon­firmed each time they are serviced. (X-radiation
protection circuits also may be called "horizontal
disable" or "hold down.") Read and apply the high
voltage limits and, if the chassis is so equipped,
the X-radiation protection circuit specifications giv­en on instrument labels and in the Product Safety
& X-Radiation Warning note on the service data
chassis schematic. High voltage is maintained
within specified limits by close tolerance safety-re­lated components/adjustments in the high-voltage
circuit. If high voltage exceeds specified limits,
check each component specified on the chassis
schematic and take corrective action.

2. Read and comply with all caution and safety-relat­ed notes on or inside the receiver cabinet, on the
receiver chassis, or on the picture tube.

3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this TV re­ceiver. Design alterations and additions, including,
but not limited to circuit modifications and the ad­dition of items such as auxiliary audio and/or video
output connections, might alter the safety charac­teristics of this receiver and create a hazard to the
user. Any design alterations or additions will void
the manufacturer's warranty and may make you,
the servicer, responsible for personal injury or
property damage resulting therefrom.

4. Picture Tube Implosion Protection Warning -
The picture tube in this receiver employs integral
implosion protection. For continued implosion pro­tection, replace the picture tube only with one of
the same type number. Do not remove, install, or
otherwise handle the picture tube in any manner
without first putting on shatterproof goggles
equipped with side shields. People not so
equipped must be kept safely away while picture
tubes are handled. Keep the picture tube away
from your body. Do not handle the picture tube by
its neck. Some "in-line" picture tubes are equipped
with a permanently attached deflection yoke; be­cause of potential hazard, do not try to remove
such "permanently attached" yokes from the pic­ture tube.

5. Hot Chassis Warning -

a. Some TV receiver chassis are electrically connect-

ed directly to one conductor of the AC power cord
and maybe safety-serviced without an isolation
transformer only if the AC power plug is inserted
so that the chassis is connected to the ground side
of the AC power source. To confirm that the AC
power plug is inserted correctly, with an AC volt­meter, measure between the chassis and a known

earth ground. If a voltage reading in excess of 1.0V
is obtained, remove and reinsert the AC power
plug in the opposite polarity and again measure
the voltage potential between the chassis and a
known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground re­gardless of the AC plug polarity. This chassis can
be safety-serviced only with an isolation transform­er inserted in the power line between the receiver
and the AC power source, for both personnel and
test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis
ground. This secondary ground system is not iso­lated from the AC power line. The two ground sys­tems are electrically separated by insulation
material that must not be defeated or altered.

6. Observe original lead dress. Take extra care to as­sure correct lead dress in the following areas:a.
near sharp edges,b. near thermally hot parts-be
sure that leads and components do not touch ther­mally hot parts,c. the AC supply,d. high voltage,
and,e. antenna wiring. Always inspect in all areas
for pinched, out of place, or frayed wiring. Check
AC power cord for damage.

7. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or wir­ing that meet original specifications. Additionally,
determine the cause of overheating and/or dam­age and, if necessary, take corrective action to re­move any potential safety hazard.

8. Product Safety Notice - Some electrical and me­chanical parts have special safety-related charac­teristics which are often not evident from visual
inspection, nor can the protection they give neces­sarily be obtained by replacing them with compo­nents rated for higher voltage, wattage, etc.. Parts
that have special safety characteristics are identi­fied by a ( # ) on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or
other hazards. The product's safety is under re­view continuously and new instructions are issued
whenever appropriate. Prior to shipment from the
factory, our products are strictly inspected to con­firm they comply with the recognized product safe­ty and electrical codes of the countries in which
they are to be sold. However, in order to maintain
such compliance, it is equally important to imple­ment the following precautions when a set is being
serviced.

2-2 L6115IMP

Precautions during Servicing

A. Parts identified by the ( # ) symbol are critical for

safety.
Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations ap­plying to spurious radiation. These must also be
replaced only with specified replacements.

Examples: RF converters, RF cables, noise block­ing capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads
D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.
E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder­ing.

F. Observe that the wires do not contact heat produc-

ing parts (heatsinks, oxide metal film resistors, fus­ible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Use care that foreign objects (screws, solder drop-

lets, etc.) do not remain inside the set.
K. Crimp type wire connector

The power transformer uses crimp type connec-

tors which connect the power cord and the primary

side of the transformer. When replacing the trans-

former, follow these steps carefully and precisely

to prevent shock hazards.

Replacement procedure

1) Remove the old connector by cutting the wires at

a point close to the connector.

Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the insulation from the ends

of the wires. If the wires are stranded, twist the

strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. In­sert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at
the center position. Be sure to crimp fully to the
complete closure of the tool.

L. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC supply outlet.

2-3 L6115IMP

Safety Check after Servicing

Examine the area surrounding the repaired location
for damage or deterioration. Observe that screws,
parts and wires have been returned to original posi­tions. Afterwards, perform the following tests and con­firm the specified values in order to verify compliance
with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between sol­dered terminals, and between terminals and surround­ing metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be
sure to confirm the precise values.

USA or

CANADA

Clearance

Distance (d) (d')

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current be­tween B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals, an­tenna terminals, video and audio input and output ter­minals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across both terminals of
load Z. See Fig. 2 and following table.

Z

1.5kΩ

Chassis or Secondary Conductor

Primary Circuit Terminals

dd'

Exposed Accessible Part

AC Voltmeter

0.15µF

Earth Ground

B

Power Cord Plug Prongs

(High Impedance)

Fig. 1

Fig. 2

Table 2 : Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

0.15µF CAP. & 1.5kΩ

110 to 130 V USA

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

RES. connected in

parallel

2-4 L6115IMP

i≤0.5mA rms

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

Circuit Board Indications

a. The output pin of the 3 pin Regulator ICs is indicat-

ed as shown.

Top View

Out

b. For other ICs, pin 1 and every fifth pin are indicat-

ed as shown.

Pin 1

c. The 1st pin of every male connector is indicated as

shown.

Pin 1

Input

In

Bottom View

5

10

(2) Remove the flat pack-IC with tweezers while ap-

plying the hot air.

(3) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Caution:

1. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)

2. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when remov­ing it.

Hot-air
Flat Pack-IC
Desoldering
Machine

CBA

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

(1) Prepare the hot-air flat pack-IC desoldering ma-

chine, then apply hot air to the Flat Pack-IC (about
5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

Masking
Tape

Tweezers

Flat Pack-IC

Fig. S-1-2

3-1 L6115STA

With Soldering Iron:

(1) Using desoldering braid, remove the solder from

all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

(2) Lift each lead of the flat pack-IC upward one by

one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering ma­chine.(Fig. S-1-4)

soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(5) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Note:

When using a soldering iron, care must be taken to
ensure that the flat pack-IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.

Hot Air Blower

or

Iron Wire

Soldering Iron

To Solid
Mounting Point

Fig. S-1-5

Sharp
Pin

Fine Tip
Soldering Iron

Fig. S-1-4

(3) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

With Iron Wire:

(1) Using desoldering braid, remove the solder from

all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

(2) Affix the wire to a workbench or solid mounting

point, as shown in Fig. S-1-5.

(3) While heating the pins using a fine tip soldering

iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA con­tact pads as shown in Fig. S-1-5.

(4) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply

CBA

Tweezers

Fine Tip
Soldering Iron

Flat Pack-IC

Fig. S-1-6

3-2 L6115STA

2. Installation

(1) Using desoldering braid, remove the solder from

the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.

(2) The "I" mark on the flat pack-IC indicates pin 1.

(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
pre- solder the four corners of the flat pack-IC.
(See Fig. S-1-8.)

(3) Solder all pins of the flat pack-IC. Be sure that

none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

Instructions for Handling
Semiconductors

Electrostatic breakdown of the semiconductors may
occur due to a potential difference caused by electro­static charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1MΩ) that is prop­erly grounded to remove any static electricity that may
be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1MΩ) on the workbench or
other surface, where the semiconductors are to be
placed. Because the static electricity charge on cloth­ing will not escape through the body grounding band,
be careful to avoid contacting semiconductors with
your clothing.

<Incorrect>

CBA

Presolder

Flat Pack-IC

Fig. S-1-8

<Correct>

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or
Copper Plate

3-3 L6115STA

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the
cabinet parts, and the CBA in order to gain access to
item(s) to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.

Caution !

When removing the CRT, be sure to discharge the
Anode Lead of the CRT with the CRT Ground Wire
before removing the Anode Cap.

[1] Rear Cabinet

[2] CRT CBA

[3] Main CBA

[4] CRT

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order.These numbers
are also used as the Identification (location) No. of
parts in figures.

(2) Parts to be removed or installed.
(3) Fig. No. showing procedure of part location
(4) Identification of part to be removed, unhooked, un-

locked, released, unplugged, unclamped, or des­oldered.

S=Screw, P=Spring, L=Locking Tab, CN=Con­nector, *=Unhook, Unlock, Release, Unplug, or
Desolder

2(S-2) = two Screws (S-2)

(5) Refer to the following "Reference Notes in the

Table."

Reference Notes in the Table

1. Removal of the Rear Cabinet. Remove screws
8(S-1), 1(S-2) and 1(S-4) then slide the Rear Cab­inet backward.

2. Removal of the CRT CBA. Disconnect CN1501
then pull the CRT CBA backward.

2. Disassembly Method

Removal

Step/

Loc. No.

[1]

[2] CRT CBA 4,5 CN1501 2

[3] Main CBA 3,5

[4] CRT 4 4(S-3) 4

Part

Rear
Cabinet

Fig.

No

1,2

↓↓↓↓↓

(1) (2) (3) (4) (5)

Remove/*unlock/

release/unplug/

unclamp/desolder

8(S-1), 1(S-2),
1(S-4)

CN571, CN801,
CN802, CN691,
Anode Cap

Note

1

3

Caution !

Discharge the Anode Lead of the CRT with the CRT
Ground Wire before removing the Anode Cap.

3. Removal of the Main CBA. First, disconnect
CN571, CN801, CN802, and CN691 on the Main
CBA. Second, remove Anode Cap. then slide the
Main CBA backward.

4. Removal of the CRT. Remove screws 4(S-3) then
slide the CRT backward.

4-1 L6652DC

S-1

S-1

S-2

S-4

S-1

[1] Rear Cabinet

S-1

S-1

S-1

Fig. 1

S-1

S-1

S-3

[3] Main CBA

Fig. 3

Anode Cap

S-1

S-1

[1] Rear Cabinet

S-4

S-1

Fig. 2

S-2

S-3

S-1

[4] CRT

4-2 L6652DC

S-3

S-3

Fig. 4

TV Cable Wiring Diagram

L691 DEGAUSSING COIL

SP802

CN802

CN691

FLYBACK
TRANSFORMER

CLN802

MAIN CBA

WH301A

CN571

SP801

CLN801

CN801

TU1
TUNER

AC601
AC CORD

T571

FOCUS

SCREEN

ANODE

WH501A

JK1501

CN1501

TO CRT GROUND

WH301B

WH501B

Fig. 5

4-3 L6652DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note:
"CBA" is abbreviation for "Circuit Board Assem­bly."

NOTE:

Electrical adjustments are required after replacing
circuit components and certain mechanical parts.
It is important to perform these adjustments only
after all repairs and replacements have been com­pleted.
Also, do not attempt these adjustments unless the
proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White
Window, Red Color, Dot Pattern, Gray Scale,
Monoscope, Multi-Burst)

2. DC Voltmeter

3. Oscilloscope: Dual-trace with 10:1 probe,
V-Range:0.001~50V/Div,
F-Range: DC~AC-60MHz

4. Plastic Tip Driver

5. Remote control unit: Part No. N0138UD or N0139UD

6. DC power supply 13.2V/5A

How to make Service remote control unit:

1.

Prepare normal remote control unit. (Part No.
N0138UD or N0139UD) Remove 3 Screws from
the back lid. (Fig. 1-1)

2. Add J1 (Jumper Wire) to the remote control CBA.
(Fig. 1-2)

How to set up the service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on. (Use main power on the TV
unit.)

3. Press "SLEEP" button on the service remote con­trol unit. Version of micro computer will display on
the CRT. (Ex: 054-0.05)

4. Check the display on the lower left is "2815" and if
it is not "2815," set it at "2815" according to "2. Ini­tial Setting."

1. +B Adjustment

Purpose: To obtain correct operation.
Symptom of Misadjustment: The picture is dark and

the unit does not operate correctly.

Test Point Adj. Point Mode Input

TP601(+B)

TP300(GND)

Tape M. EQ. Spec.

--- DC Voltmeter +132±0.5V DC.

Note:TP601, TP300(GND), VR661 --- Main CBA

1. Connect DC Volt Meter to TP601 and TP300(GND).

2. Adjust VR661 so that the voltage of TP601 becomes
+132±0.5V DC.

VR661 --- ---

SCREWS

REMOTE CONTROL UNIT

J 1

REMOTE CONTROL CBA

Note:

The attached remote control unit can not be used as
service remote control unit.

Fig. 1-1

Fig. 1-2

5-1 L6652EA

2. Initial Setting

3. AV Memory setting data

General

1. Enter the Service mode. (See page 5-1)

2. Press "VOL p" button on the service remote control
unit. Display changes "C/D," "7F," "LANGUAGE,"
"ACCESS CODE," "SOUND TYPE," "VIDEO
TONE," "FM MODE," "V-OUT," "VIDEO," "AV
MEMO," "STABLE SOUND," "FILTER," "500," and
"YUV MEMORY" cyclically when "VOL p" button is
pressed.

3. To set the following each data value, press "CH o
/ p" buttons on the service remote control unit.

7F --- Set to "FF."

LANGUAGE --- Set to "SPA."

ACCESS CODE --- Set to "OFF."

SOUND TYPE --- Set to "MTS."

VIDEO TONE --- Set to "ON."

FM-MODE --- Set to "OFF."

V-OUT --- Set to "OFF."

VIDEO --- Set to "V1/V2."

AV MEMO --- Set to "ON."

STABLE SOUND --- Set to "OFF."

General

1. Enter the Service mode. (See page 5-1)

2. When “AV MEMORY” setting to “ON” (refer to “2 Ini­tial Setting”), press "VOL o" button on the service
remote control unit. Display changes "SPORT
CNT," "SPORT CLR," "SPORT SRP," "NEWS
CNT," "NEWS CLR," "NEWS SRP," "MOVIE CNT,"
"MOVIE CLR," and "MOVIE SRP" cyclically when
"VOL o" button is pressed.

3. To set the following each data value, press "CH o
/ p" buttons on the service remote control unit.

SPORT CNT--- Set to "48."

SPORT CLR--- Set to "30."

SPORT SRP--- Set to "34."

NEWS CNT--- Set to "39."

NEWS CLR--- Set to "30."

NEWS SRP--- Set to "28"

MOVIE CNT--- Set to "43."

MOVIE CLR--- Set to "26."

MOVIE SRP--- Set to "24."

FILTER --- Set to "ON."

Adjusting the monitoring time --- Set to "500."

YUV MEMORY --- Set to "OFF."

5-2 L6652EA

4. Setting for BRIGHT, CONTRAST,
COLOR, TINT, and SHARPNESS
data Values

General

1. Enter the Service mode. (See page 5-1)

2. Press "MENU" button on the service remote control

unit. Display changes "BRT," "CNT," "CLR," "S­CLR," "TNT," "V-TNT," "S-TNT," "SHARP," and
"S-SRP" cyclically when "MENU" button is
pressed.

CNT

1. Press "MENU" button on the service remote control

unit. Then select "CONTRAST" (CNT) display.

2. Press "CH o/p" buttons on the service remote

control unit so that the value of "CONTRAS" (CNT)
becomes 84.

CLR

1. Press "MENU" button on the service remote con-

trol unit. Then select "COLOR" (CLR) display.

2. Press "CH o/p" buttons on the service remote

control unit so that the value of "COLOR" (CLR)
becomes 56.

SHARP

1. Press "MENU" button on the service remote con­trol unit. Then select "SHARPNESS" (SHARP) dis­play.

2. Press "CH o/p" buttons on the service remote
control unit and select "47."

S-SRP

1. Press "MENU" button on the service remote con­trol unit. Then select "S-SHARPNESS" (S-SRP)
display.

2. Press "CH o/p" buttons on the service remote
control unit and select "47."

Note: BRIGHT data value does not need to be adjust-

ed at this moment.

S-CLR

1. Press "MENU" button on the service remote con­trol unit. Then select "S-COLOR" (S-CLR) display.

2. Press "CH o/p" buttons on the service remote
control unit so that the value of "S-COLOR" (S­CLR) becomes 56.

TNT

1. Press "MENU" button on the service remote con­trol unit. Then select "TINT" (TNT) display.

2. Press "CH o/p" buttons on the service remote
control unit so that the value of "TINT" (TNT) be­comes 62.

V-TNT

1. Press "MENU" button on the service remote con­trol unit. Then select "V-TINT" (V-TNT) display.

2. Press "CH o/p" buttons on the service remote
control unit so that the value of "V-TINT" (V-TNT)
becomes 62.

S-TNT

1. Press "MENU" button on the service remote con­trol unit. Then select "S-TINT" (S-TNT) display.

2. Press "CH o/p" buttons on the service remote
control unit so that the value of "S-TINT" (S-TNT)
becomes 59.

5-3 L6652EA

5. Black Stretch Control Adjustment

Purpose: To show the fine black color.
Symptom of Misadjustment: Black color will not

appear correctly.
Note: Use service remote control unit.

1. Enter the Service mode. (See page 5-1)

2. Press "6" button on the service remote control unit.
"B-S" is indicated.

3. Press "CH o / p" buttons on the service remote con­trol unit so that display will change "OFF," "0," and
"1." Then choose "B-S OFF."

4. Press "6" button on the service remote control unit.
"B-S2" is indicated.

5. Press "CH o / p" buttons on the service remote
control unit so that display will change "0" and "1."
Then choose "B-S2 0."

6. Turn the power off and on again, using the main
power button on the TV unit.

6. Purity Check

1. Enter the Service mode. (See page 5-1)

2. Press "7" button on the remote control unit. Each
time pressing 7" button on the remote control unit,
display changes Red mode, Green mode, Blue
mode, and White mode cyclically.

3. Select White mode.

4. Turn the power off and on again. (Main power but­ton on the TV unit.)

7. SD Check Mode

1. Enter the Service mode. (See page 5-1)

2. Press "1" button on the remote control unit. The
unit enter the SD-Check mode.

3. The unit starts selecting the added channel from
first channel according to the memorized CH ADD/
DELL data and CATV/TV data in RAM.

SD Check mode (Factory mode)

Press "1" buton.

7
Please wait

OSD color:
Magenta

13
Please wait

There are SD
in all channel.

When SD-Check starting,
there is no ADD channel.

OSD color:
Magenta

26
OK

OSD color:
Magenta

ADD nothing

OSD color:
Magenta

There is no SD after
selecting channel.

30
NG

OSD color:
Magenta

5-4 L6652EA

8. H. Position Adjustment

Purpose: To obtain correct horizontal position of

screen image.
Symptom of Misadjustment: If H. Position is incor-

rect, horizontal position of image on the screen may
not be properly displayed.

10. V. Position Adjustment

Purpose: To obtain correct vertical width of screen

image.
Symptom of misadjustment: If V. Position is incor-

rect, vertical height of image on the screen may not be
properly displayed.

Test Point Adj. Point Mode Input

---

Tape M. E Q. Spec .

--- Monoscope 90±5%

Note: Use service remote control unit

1. Operate the unit for at least 20 minutes.

2. Enter the Service mode. (See page 5-1)

3. Receive the monoscope pattern.

4. Press "8" button on the remote control unit.
"H-P" is indicated.

5. Press "CH o/p" buttons on the service remote
control unit so that the monoscope pattern will be
90±5% of display size and the circle is round.

6. Turn the power off and on again. (Main power but­ton on the TV unit.)

CH o / p

buttons

RF

Mono-

scope

9. V. Size Adjustment

Purpose: To obtain correct vertical width of screen image.
Symptom of Misadjustment: If V. Size is incorrect, vertical

size of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

---

Tape M. E Q. Spec .

--- Monoscope 90±5%

Note: Use service remote control unit.

1. Operate the unit for at least 20 minutes.

2. Enter the Service mode. (See page 5-1)

3. Receive the monoscope pattern.

4. Press "9" button on the service remote control unit
and select "V-S" mode. (Display changes "V-S" and
"V-P" cyclically when "9" button is pressed).

5. Press "CH o/p" buttons on the service remote
control unit so that the monoscope pattern will be
90±5% of display size and the circle is round.

6. Turn the power off and on again. (Main power but­ton on the TV unit.)

CH o / p

buttons

RF

Mono-

scope

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Monoscope See below.

Note: Use service remote control unit

1. Operate the unit for at least 20 minutes.

2. Enter the Service Mode. (See page 5-1)

3. Receive the monoscope pattern.

4. Press "9" button on the service remote control unit
and select "V-P" mode. (Display change "V-S" and
"V-P" cyclically when "9" button is pressed).

5. Press "CH o/p" buttons on the service remote
control unit so that the top and bottom of the mono­scope pattern will be equal of each other.

6. Turn the power off and on again. (Main power but­ton on the TV unit.)

CH o / p

buttons

RF

Mono-

scope

11. U-Pedestal Adjustment

1. In VIDEO mode of V1/V2/YUV, press "3" button on
the service remote control unit and select "U-PED"
mode. (Display changes "U-PED" and "V-PED" cy­clically when "3" button is pressed).

2. Switch the VIDEO mode to YUV. (Refer to “2. Initial
Setting.”)

3. To select one appropriate value in "0" to "15,"
press "CH o / p" buttons on the remote control
unit.

4. Switch the VIDEO mode to previous mode.

5. Turn the power off and on again. (Main power but­ton on the TV unit.)

5-5 L6652EA

12. V-Pedestal Adjustment

1. In VIDEO mode of V1/V2/YUV, press "3" button on
the service remote control unit and select "V-PED"
mode. (Display changes "U-PED" and "V-PED" cy­clically when "3" button is pressed).

2. Switch the VIDEO mode to YUV. (Refer to “2. Initial
Setting”)

3. To select one appropriate value in "0" to "15,"
press "CH o / p" buttons on the remote control
unit.

4. Switch the input mode to previous mode.

5. Turn the power off and on again. (Main power but­ton on the TV unit.)

13. Software Reset

To reset software, press “5” button on the remote con­trol unit for at least 5 seconds after pressing “CH
RETURN” button on the remote control unit.

14. H. Size Adjustment

Purpose: To obtain correct horizontal size of screen

image.
Symptom of Misadjustment: If H. Size is incorrect,
horizontal size of image on the screen may not be
properly displayed.

15. PIN Cushion Adjustment

Purpose: To obtain correct straight vertical line of

screen image.
Symptom of Misadjustment: If H.Pin cushion is incor­rect, vertical line of image on the screen may not be
properly displayed.

Test Point Adj. Point Mode Input

--- VR561 RF

Tape M. EQ. Spec.

--- Cross hatch

Note: Use service remote control unit

1. Operate the unit for at least 20 minutes.

2. Receive the Cross hatch Pattern.

3. Adjust VR561 so that the cross hatch pattern will
be straight line of display.

4. Turn the Power off and on again. (Main power but­ton on the TV unit.)

Cross

hatch

Test Point Adj. Point Mode Input

--- VR562 RF

Tape M. E Q. Spec .

--- Monoscope 90±5%

Note: Use service remote control unit

1. Operate the unit for at least 20 minutes.

2. Receive the Monoscope Pattern.

3. Adjust VR562 so that the monoscope pattern will
be 90±5% of display size and circle is round.

4. Turn the Power off and on again. (Main power but­ton on the TV unit.)

Mono-

scope

5-6 L6652EA

16. Cut-off Adjustment

Purpose: To adjust the beam current of R, G, B, and

screen voltage.
Symptom of Misadjustment: White color may be

reddish, greenish or bluish.

17. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white.
Symptom of Misadjustment: White becomes bluish

or reddish.

Test Point Adj. Point Mode Input

Screen-Control

---

Tape M. E Q. Spec .

---

Note: Screen Control FBT --- Main CBA

F.B.T= Fly Back Transformer
Use service remote control unit

1. Degauss the CRT and allow CRT to operate for 20
minutes before starting the alignment.

2. Input the Black Raster Signal from RF Input.

3. Enter the Service mode. (See page 5-1)

4. Press "VOL p" button on the service remote con­trol unit and select "C/D" mode. (Display changes
"C/D," "7F," "LANGUAGE," "ACCESS CODE,"
"SOUND TYPE," "VIDEO TONE," "FM MODE,"
"V-OUT," "VIDEO," "AV MEMO," "STABLE
SOUND," "FILTER," "500," and "YUV MEMORY"
cyclically when "VOL p button is pressed.) then
press "1." The display will momentarily show "CUT
OFF R" (R= Red). Now there should be a horizon­tal line across the center of the picture tube. If
needed gradually turn the screen control on the fly­back, clockwise until the horizontal line appears.
Adjust the Red Cut off by pressing the "CH o/p"
buttons. Proceed to Step 5 when the Red Cut off
adjustment is done.

5. Press the "2" button. The display will momentarily
show "CUT OFF G" (G=Green). Adjust the Green
Cut off by pressing the "CH o/p" buttons. Proceed
to step 6 when the Green Cut off adjustment is done.

6. Press the "3" button. The display will momentarily
show "CUT OFF B" (B=Blue). Adjust the Blue cut
off by pressing the "CH o/p" buttons. When done
with steps 4, 5 and 6 the horizontal line should be
pure white if not, then attempt the Cut off adjust­ment again.

CH o / p

buttons

Pattern

Generator

Figure

PATTERN GENERATOR

EXT. INPUT

RF

See Reference

Notes below.

Fig. 2

Black

Raster

Test Point Adj. Point Mode Input

White

Screen

Tape M. EQ. Spec.

---

Note: Use service remote control unit

1. Operate the unit more than 20 minutes.

2. Face the unit to east. Degauss the CRT using De­gaussing Coil.

3. Input the White Raster (APL 100%).

4. Set the color analyzer to the CHROMA mode and
after zero point calibration, bring the optical recep­tor to the center on the tube surface (CRT).

5. Enter the Service mode. Press "VOL p" button on the
service remote control unit and select "C/D" mode.
(Display changes "C/D," "7F," "LANGUAGE," "AC­CESS CODE," "SOUND TYPE," "VIDEO TONE,"
"FM MODE," "V-OUT," "VIDEO," "AV MEMO,"
"STABLE SOUND," "FILTER," "500," and "YUV
MEMORY" cyclically when "VOL p" button is
pressed.) then Press No. 8 button on the service re­mote control Unit.

6. Press No. 4 button on the service remote control
unit for Red adjustment. Press N0. 5 button on the
service remote control unit for Blue adjustment.

7. In each color mode, Press "CH o/p" button to adjust
the values of color.

8. Adjusting Red and Blue color so that the temperature
becomes 9200K (x: 286 / y: 294)±3%.

9. At this time, Re-check that Horizontal line is white.
If not, Re-adjust Cut-off Adjustment until the Hori­zontal Line becomes pure white.

10. Turn off and on again to return to normal mode. Re­ceive APL 100% white signal and Check Chroma
temperatures become 9200K (x: 286 / y: 294)±3%.

Note: Confirm that Cut Off Adj. is correct after this
adjustment, and attempt Cut Off Adj. if needed.

CH o / p

buttons

Pattern

Generator,

Color analyzer

Figure

Color Analyzer

RF

Raster

(APL

100%)

See below

Fig. 3

5-7 L6652EA

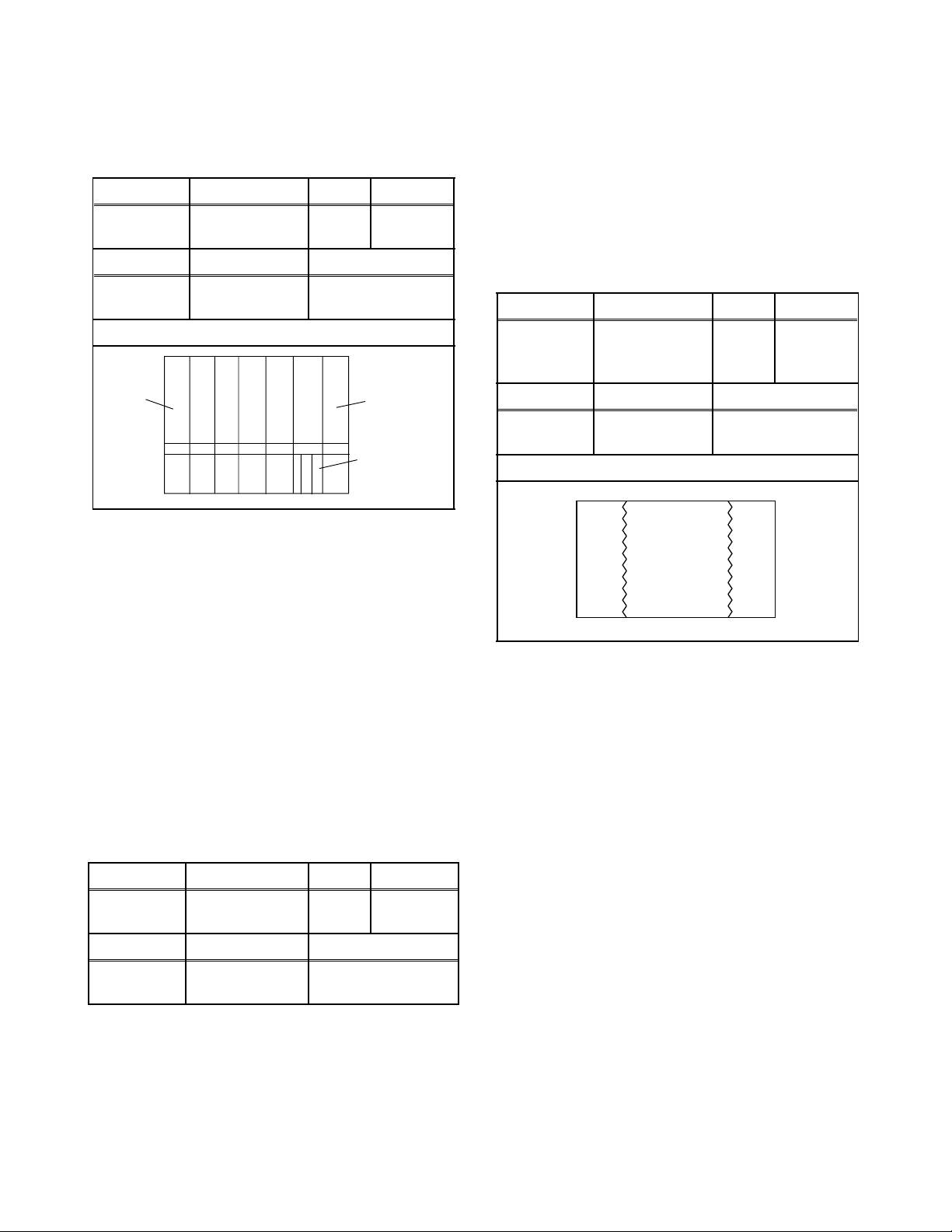

18. Sub-Brightness Adjustment

Purpose: To get proper brightness.
Symptom of Misadjustment: If Sub-Brightness is

incorrect, proper brightness cannot be obtained by
adjusting the Brightness Control.

4. Adjust the Focus Control on the FBT to obtain
clear picture.

The following adjustments normally are not
attempted in the field. Only when replacing the
CRT then adjust as a preparation.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

---

White

Note: IQW Setup level --- 7.5 IRE

Use service remote control unit

1. Enter the Service mode. (See page 5-1)
Then input IQW signal from RF Input.

2. Press "MENU" button on the service remote control
unit and Select "BRT" mode. (Display changes
"BRT," "CNT," "CLR," "S-CLR," "TNT," "V-TNT," "S­TNT," "SHARP," and "S-SRP" cyclically when
"MENU" button is pressed). Press "CH o/p" buttons
so that the bar is just visible (See above figure).

3. Turn the power off and on again. (Main power but­ton on the TV unit.)

CH o / p

buttons

Pattern

Generator

Figure

RF IQW

See below

Black

This bar
just
visible

Fig. 4

19. Focus Adjustment

Purpose: Set the optimum Focus.
Symptom of Misadjustment: If Focus Adjustment is

incorrect, blurred images are shown on the display.

Test Point Adj. Point Mode Input

--- Focus Control ---

Tape M. EQ. Spec.

Mono-

scope

20. Purity Adjustment

Purpose: To obtain pure color.
Symptom of Misadjustment: If Color Purity Adjust-

ment is incorrect, large areas of color may not be
properly displayed.

Test Point Adj. Point Mode Input

Deflection

---

Tape M. EQ. Spec.

---

GREEN RED BLUE

1. Set the unit facing east.

2. Operate the unit for over 30 minutes before adjust­ing.

3. Fully degauss the unit using an external degauss­ing coil.

4. Loosen the screw on the Deflection Yoke Clamper
and pull the Deflection Yoke back away from the
screen. (See Fig. 6)

5. Loosen the Ring Lock and adjust the Purity Mag­nets so that a red field is obtained at the center of
the screen. Tighten Ring Lock. (See Fig. 5,6)

6. Slowly push the Deflection Yoke toward bell of
CRT and set it where a uniform red field is ob­tained.

7. Tighten the clamp screw on the Deflection Yoke.

Yoke Purity

Magnet

Pattern

Generator

Figure

---

See below.

Red

Color

Fig. 5

---

Note: Focus VR (FBT) - Main CBA,

FBT=Fly Back Transformer

1. Operate the unit more than 30 minutes.

2. Face the unit to the East and Degauss the CRT
using Degaussing Coil.

3. Input the Monoscope Pattern.

Pattern

Generator

See below

5-8 L6652EA

21. Convergence Adjustment

Purpose: To obtain proper convergence of red, green

and blue beams.
Symptom of Misadjustment: If Convergence Adjust-

ment is incorrect, the edge of white letters may have
color edges.

Test Point Adj. Point Mode Input

C.P. Magnet

(RB),

---

C.P. Magnet

---

(RB-G),

Deflection Yoke

Tape M. EQ . Spec .

Dot Pattern

or

Crosshatch

1. Loosen the Ring Lock and align red with blue dots
or Crosshatch at the center of the screen by rotat­ing (RB) C.P. Magnets. (See Fig. 7)

2. Align red / blue with green dots at the center of the
screen by rotating (RB-G) C.P. Magnet. (See Fig. 8)

3. Fix the C.P. Magnets by tightening the Ring Lock.

4. Remove the DY Wedges and slightly tilt the De­flection Yoke horizontally and vertically to obtain
the best overall convergence.

5. Fix the Deflection Yoke by carefully inserting the
DY Wedges between CRT and Deflection Yoke.

---

DY WEDGE

Pattern

Generator

CRT

DEFLECTION YOKE

  

C.B. MAGNET (RB-G)

Figures

COIL







PURITY

SCREW

COIL CLAMPER

See below.

RB-GRB

RING LOCK

SCREW

C.P. MAGNET CLAMPER

C.P. MAGNET

Fig. 6







 

RB

RB

G

G

Fig. 8

5-9 L6652EA

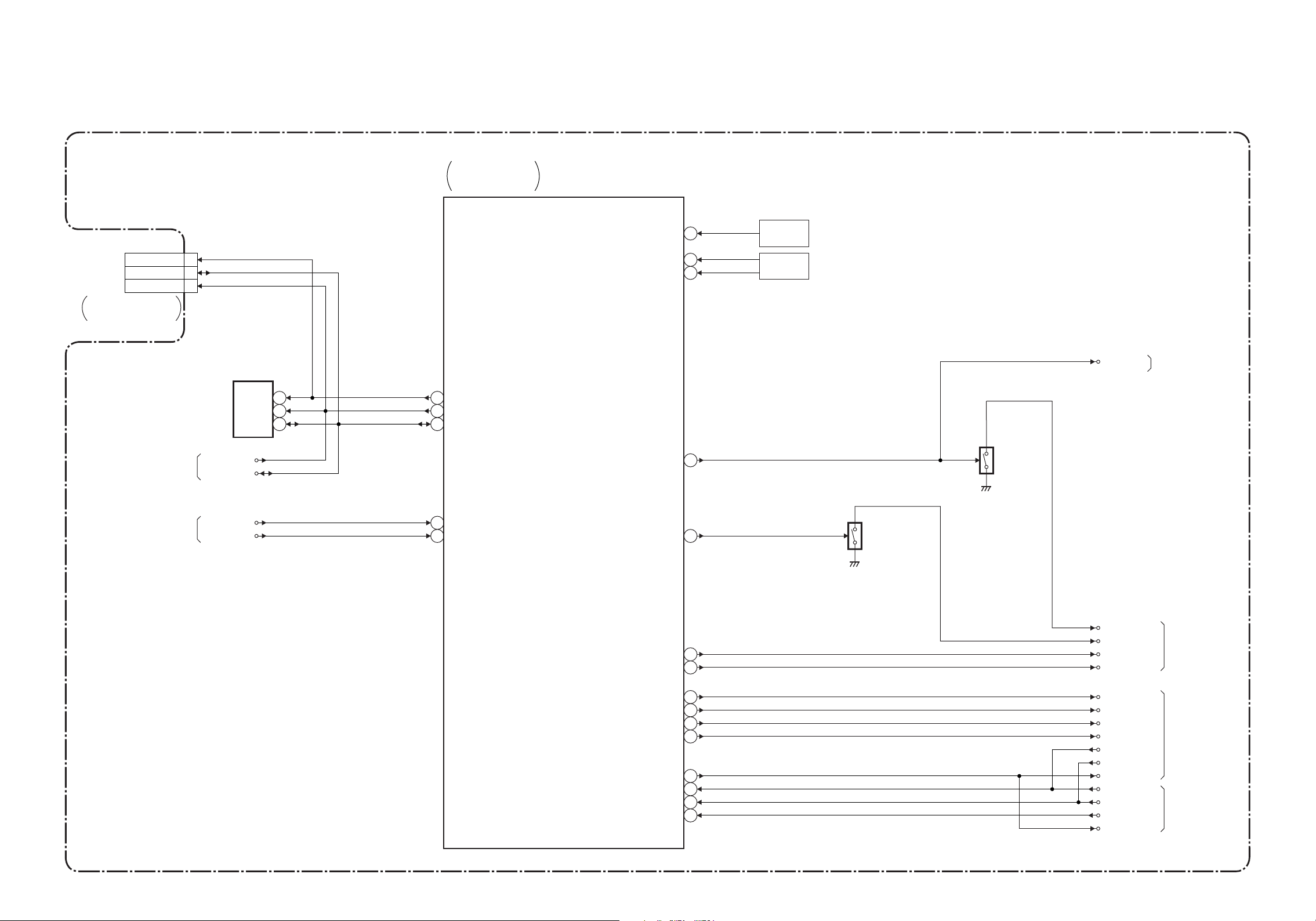

System Control Block Diagram

(NO CONNECTION)

I2C-OPEN 3
SDA 5
SCL 6

CN301 is used for
adjustment at factory

CN301

IC333

TV MICON/VIDEO
/AUDIO/CHROMA
/DEFLECTION

BLOCK DIAGRAMS

RCV-IN

KEY-IN1
KEY-IN2

70

66
69

RCV101

REMOTE
SENSOR

KEY
SWITCH

FROM/TO
AUDIO BLOCK

FROM
IF/VIDEO BLOCK

IC151

(MEMORY)

CS

SCL

SDA 5

SCL
SDA

AFT

AGC

INPUT0

7
6

72 I2C-OPEN
58

SCL

56

SDA

73

AFT

75

AGC

INPUT0

INPUT1

VOLUME

63

80

62
64A-MUTE-H

Q141

Q131

INPUT0
INPUT1
VOLUME
A-MUTE-H

TO
IF/VIDEO BLOCK

TO
AUDIO BLOCK

MAIN CBA

DG-ON-H

+5V CTRL

+5V CTRL2

+8V CTRL

P-ON-H
PROTECT-1
PROTECT-2
PROTECT-3

74
28
18
40

79
68
67
76

6-1 6-2

DG-ON-H
+5V CTRL
+5V CTRL2
+8V CTRL
PROTECT-1
PROTECT-2
P-ON-H
PROTECT-1
PROTECT-2
PROTECT-3
P-ON-H

FROM/TO
POWER
SUPPLY BLOCK

FROM/TO
CRT/H.V. BLOCK

L6652BLS

IF/Video Block Diagram

JK721
VIDEO-IN
(FRONT)

JK701
VIDEO-IN
(REAR)

TU1

AGC

EXT.CLK

SCL
SDA

VIDEO SIGNALRF/IF SIGNAL

SF1

IF

11

1
4
5
8

WF16

SAW
FILTER

IC33 (IF SIGNAL PROCESS)

20
21

17

VIF
AMP

RF
AGC

AMP

14

IC333

TV MICON/VIDEO
/AUDIO/CHROMA
/DEFLECTION

58

SCL

56

SDA

32

AUDIO SIGNAL

VIDEO
DET

VCO

AFT

5

11

14

CF31

4.5MHz
TRAP

CF32

4.5MHz
FILTER

LPF

IF AGC DET

WF2

WF1

MAIN CBA

3

8

VCXO

EQ
AMP

SIF
AMP

VCO F/B

10

22
16

1

SIF

7

Q21

Q33

INPUT0

AGC

AFT

16

X301

3.58MHz

TO
AUDIO BLOCK

FROM/TO
SYSTEM
CONTROL
BLOCK

JK711
S-VIDEO-IN

C Y

Q951

Q956

26

24

20

29

30

61

S-SW

OSD

LPF

LUMINANCE
PROCESS
CIRCUIT

CHROMINANCE
PROCESS
CIRCUIT

CHROMA COMB
BASEBAND TINT

H-SYNC
PROCESS
CIRCUIT

V-SYNC
PROCESS
CIRCUIT

RGB MATRIX
/COLOR CONT

OSD SW
CONTRAST
BRIGHTNESS

RGB DRIVE
/CUT OFF
/H.V. BLK

52
51
50

53
46
45
38
37

WH301A

BLUE5
GREEN4
RED3

ACL
H-DRIVE
FBP
RAMP-OUT
V-RAMP-F/B

TO
CRT/H.V. BLOCK
WH301B

FROM/TO
CRT/H.V. BLOCK

L6652BLIF6-3 6-4

Audio Block Diagram

AUDIO SIGNAL

MAIN CBA

FROM
IF/VIDEO BLOCK

JK722

AUDIO-IN(L)
(FRONT)

JK723

AUDIO-IN(R)
(FRONT)

JK702
AUDIO-IN(L)
(REAR)

JK703

AUDIO-IN(R)
(REAR)

SIF

IC431 (MTS/SAP AUDIO SIGNAL PROCESS)

21

24
27

VCA

I2C
DECORDER

11
15
12

4
2
1

STEREO
FILTER

SAP
FILTER

IC771 (INPUT SELECT)

TUNER
REAR
FRONT

(L-CH)

(R-CH)

TUNER
REAR
FRONT

OFFSET
CANCEL

SAP
DEMOD

13

3

L+R
FILTER

L-R
FILTER

SAP OUT
FILTER

WF6

IC801

5

2

75uS
DE-EMPH

(L-R)/SAP
SW

(AUDIO AMP)

DC
VOL.

DC
VOL.

OFFSET
CANCEL

MATRIX AGC

WIDE BAND
FILTER

dBX
DE-EMPH

SPECTRAL
FILTER

6

WIDE BAND
RMS DET

SPECTRAL
EXPAND

SPECTRAL
RMS DET

7

12

WIDE BAND
EXPAND

OFFSET
CANCEL

CN801

SP-L 1

SP-GND 2

CN802

SP-R 1

SP-GND 2

L-CH

R-CH

SP801
SPEAKER
L-CH

SP802
SPEAKER
R-CH

30

29

SW CTL

9 10

Q825

A-MUTE-H
VOLUME

INPUT 0
INPUT 1
SCL
SDA

FROM/TO
SYSTEM CONTROL
BLOCK

6-5 6-6 L6652BLA

CRT/H.V. Block Diagram

RAMP-OUT

P-ON-H

V-RAMP-F/B

FROM/TO
IF/VIDEO BLOCK

H-DRIVE
PROTECT-1
PROTECT-2

VIDEO SIGNAL

MAIN CBA

WF7 WF8

Q572 Q571

H.DRIVE

T572

H.OUTPUT

Q531

(SWITCHING)

Q533

SWITCHING
P-ON-ON

WF11

IC551 (V-DEFLECTION CONTROL)

THERMAL
PROTECTION

7

AMP

1

6 3

PULSE
UP

Q561

(SWITCHING)

5

4

3

1

DY551 D.Y.

V­DRIVE

H­DRIVE

WF12

5

Q551,

H.

Q552

CONTROL

Q547

(SWITCHING)

PCC WIDTH

VR562VR561

WF9

CN551

FROM POWER
SUPPLY BLOCK

FROM/TO
SYSTEM CONTROL
BLOCK

FROM IF/VIDEO
BLOCK

DEF+B

+B

PROTECT-3

FBP
ACL

RED

GREEN 4

BLUE 5

T571 F.B.T. FOCUS VR

HV

F

10

S

11

8

7

9

6

WF15

SCREEN VR

WF4

WF10

Q1521,
Q1522

GREEN AMP

WF14

X-RAY CHECK

TP591 TP592

TP302
15kHz

WH301BTO WH301A

3

TP500

GND

TP501

BLUE

1

3

5

4

WF3

Q1511,
Q1512

RED AMP

ANODE

FOCUS
SCREEN

HEATER3 3

1 1

+200V

WF5 WF13

WH501BWH501A

BLUE AMP

Q1531,
Q1532

JK1501

7
4
8

6
11
10

9

CN1501

ANODE

FOCUS
SCREEN
GND

R
G
B

HEATER

GND

V501
CRT

CRT CBA

6-7 6-8

L6652BLCRT

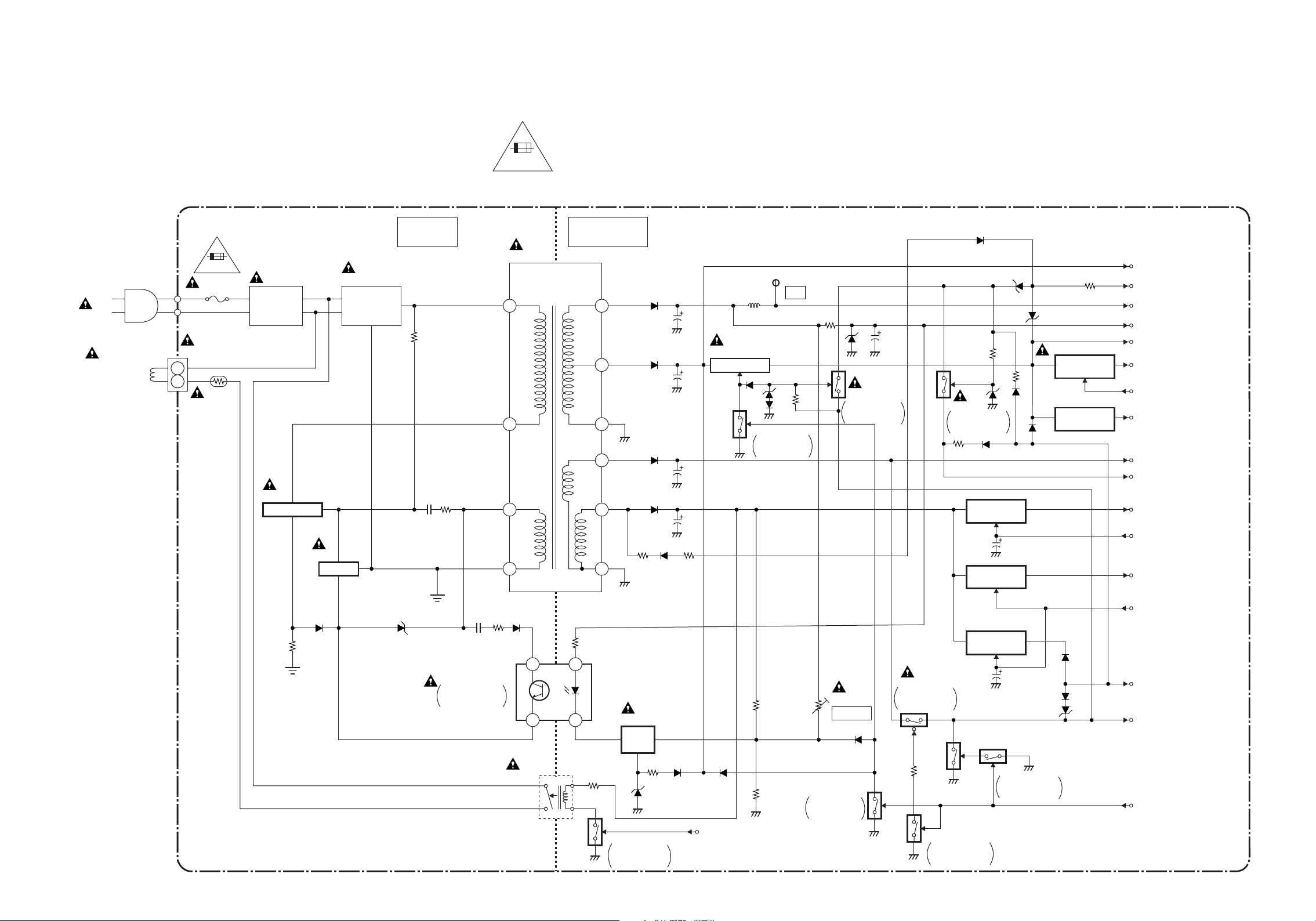

Power Supply Block Diagram

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

HOT CIRCUIT. BE CAREFUL.

HOT COLD

4A/125V

CAUTION:

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,
REPLACE ONLY WITH SAME TYPE 4 A, 125V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

AC601
AC CORD

L691
DEGAUSSING

COIL

CN691

4A/125V

F601
4A/125V

PS691

L601

LINE
FILTER

Q601

SWITCHING

Q602

LIMITER

D605 - D608

BRIDGE
RECTIFIER

T601

6

10

4

2

1 13

11

12

14

DEF +B

TP601

+B

9

Q672

SWITCHING

Q673
SWITCHING

CONTROL

Q851

+9V
REGULATOR

Q961
+5V

REGULATOR

Q681

+8V
SWITCHING

Q682

+5V
SWITCHING

Q111

+5V
SWITCHING

Q321

+9V
SWITCHING

PROTECT-2
(TO PIN 67 OF IC333)

+B

AL+33V
BACK-UP

P-ON+5V

+5V CTRL2
(FROM PIN 18 OF IC333)

AL+9V

AL+12V
P-ON+5V

P-ON+8V

+8V CTRL
(FROM PIN40 OF IC333)

P-ON+5V

Q683

+5V
SWITCHING

4

IC601

ERROR
VOLTAGE DET

3

RL601

1

Q831

VR661

2

Q652

FEED
BACK

Q696

SWITCHING
DG-ON-ON

DG-ON-H
(FROM PIN74 OF IC333)

+B ADJ

Q674
SWITCHING

P-ON-ON

SWITCHING
P-ON-ON

Q841
(SWITCHING)

Q191

SWITCHING
P-ON-ON

Q832

SWITCHING
P-ON-ON

6-9 6-10

MAIN CBA

+5V CTRL
(FROM PIN28 OF IC333)

PROTECT-1
(TO PIN68 OF IC333)

P-ON+12V

P-ON-H
(FROM PIN79 OF IC333)

L6652BLP

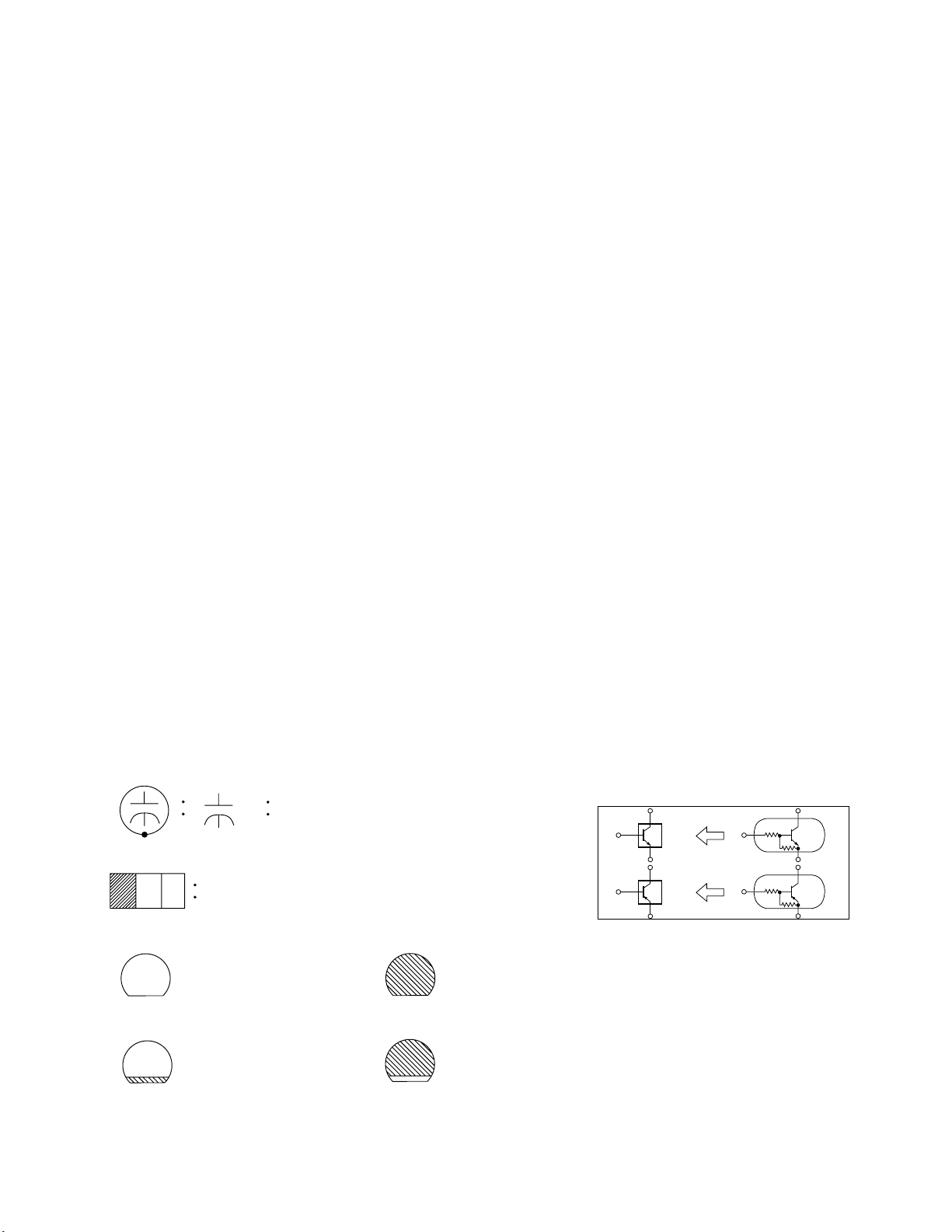

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

Standard Notes

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often
pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement compo­nents rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are
identified in this manual and its supplements; electrical components having such features are identified by the
mark " # " in the schematic diagram and the parts list. Before replacing any of these components, read the parts
list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteris­tics as specified in the parts list may create shock, fire, or other hazards.

Note:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K=10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P=10

5. All voltages are DC voltages unless otherwise specified.

Note of Capacitors:

ML --- Mylar Cap. PP --- Metallized Film Cap. SC --- Semiconductor Cap. L --- Low Leakage type

3

, M=106).

-6

µF).

Temperature Characteristics of Capacitors are noted with the following:

B --- ±10% CH --- 0±60ppm/°C CSL --- +350~-1000ppm/°C

Tolerance of Capacitors are noted with the following:

Z --- +80~-20%

Note of Resistors:

CEM --- Cement Res. MTL --- Metal Res. F --- Fuse Res.

Capacitors and transistors are represented by the following symbols.

CBA Symbols

(Top View) (Bottom View)

+

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

Electrolytic Capacitor

(Top View)

PNP Transistor

Schematic Diagram Symbols

Digital Transistor

E C B

(Top View)

E C B

NPN Digital Transistor

E C B

(Top View)

PNP Digital Transistor

E C B

7-1 L13SC

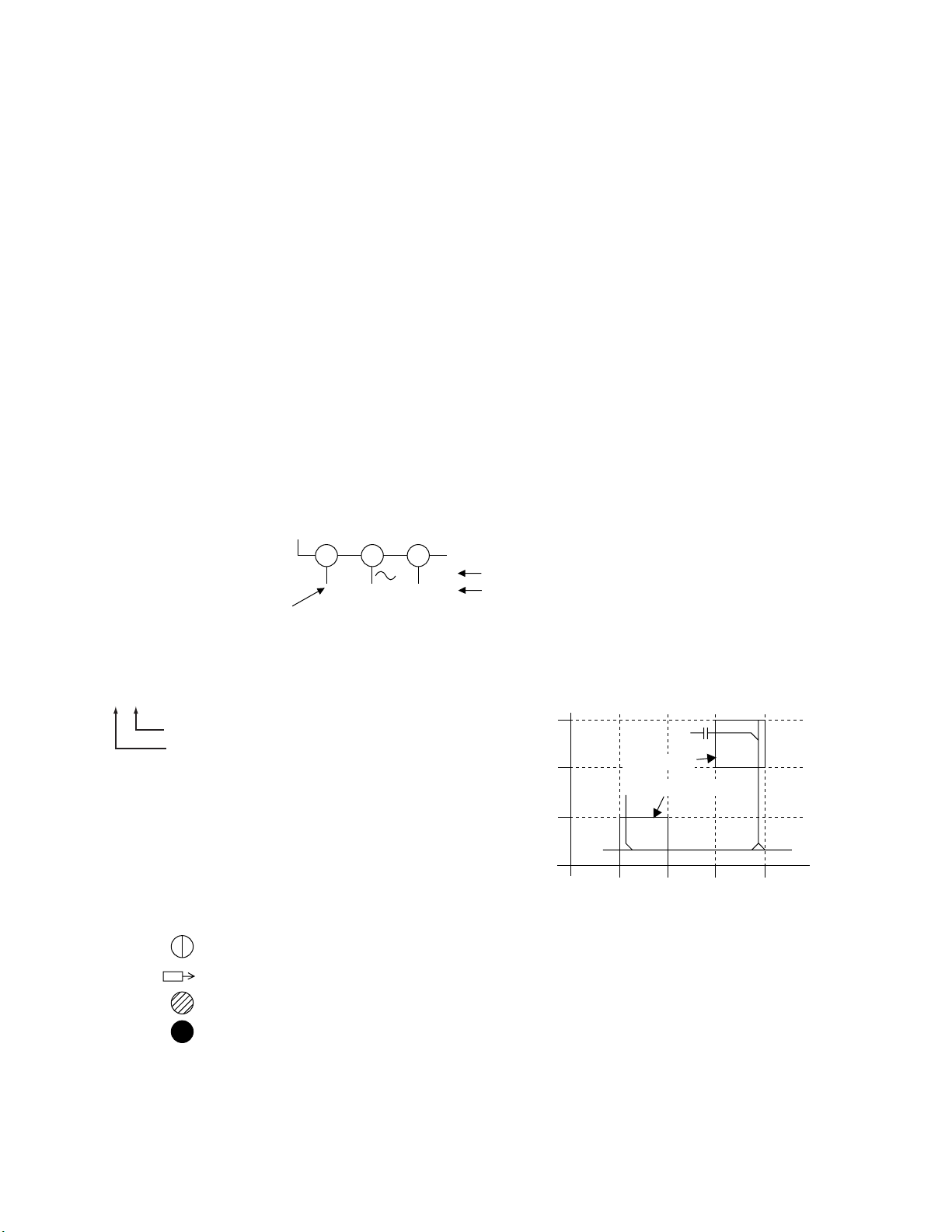

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:

1. CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:
Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective
before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the pow­er supply circuit to fail.

3. Note:

(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the

parts list, and may be slightly different or amended since the drawings were prepared.

(2) To maintain original function and reliability of repaired units, use only original replacement parts which are

listed with their part numbers in the parts list section of the service manual.

4. Wire Connectors

(1) Prefix symbol "CN" means "connector" (can disconnect and reconnect).
(2) Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).

5. Note: Mark "I" is a leadless (chip) component.

6. Voltage indications on the schematics are as shown below:
Plug the TV power cord into a standard AC outlet.:

Voltage

7. How to read converged lines

1-D3

Distinction Area
Line Number
(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to area "D3".

2. "1-B1" means that line number "1" goes to area "B1".

8. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

5.0

(3.0)

231

5.0
(3.0)

Indicates that the voltage
is not consistent here.

Power on mode

Power off mode

Unit: Volts

3

AREA D3

2

1

ABCD

AREA B1

1-D3

1-B1

: Used to indicate a test point with a test pin.

7-2 L13SC

Main 1/4 Schematic Diagram

VIDEO SIGNAL

A4

A3

B4

B3

C4

C3

D4

D3

E4

E3

F4

F3

MAIN 1/4

Ref No. Posit i o n

ICS
IC151
IC333

TR ANSISTOR S
Q111 D-1
Q131 A-3
Q141 A-4
Q191 B-4
Q321 E-2

CONNECTO R

CN301 A-3

A-3

C-2

A2

A1

B2

B1

7-3 7-4

C2

C1

D2

D1

E2

E1

F2

F1

L6652SCM1

Main 2/4 Schematic Diagram

VIDEO SIGNAL
AUDIO SIGNAL

G4

G3

H4

H3

I4

I3

J4

J3

K4

K3

L4

L3

MAIN 2/4

Ref No. Posit i o n

ICS
IC431
IC771
IC801

TR ANSISTOR S
Q825 J-3
Q831 K-3
Q832 K-3
Q841 K-3
Q851 J-3
Q951
Q956
Q961 J-3

CONNECTO RS

CN801 L-4
CN802 L-3

G-3
H-2

J-4

H-1
H-1

G2

G1

7-5

H2

H1

I2

I1

J2

J1

K2

K1

7-6

L2

L1

L6652SCM2

Main 3/4 Schematic Diagram

IF SIGNAL
VIDEO SIGNAL

AUDIO SIGNAL

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK
OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE
MÊME TYPE DE 4A, 125V.

M4

M3

M2

N4

N3

N2

O4

O3

O2

P4

P3

P2

Q4

Q3

Q2

R4

R3

R2

MAIN 3/4

Ref No. Posit i o n

ICS

IC33

IC601

TR ANSISTOR S
Q21 P-4
Q33

Q601
Q602 P-1

Q652
Q672
Q673
Q674
Q681
Q682
Q683
Q696

CONNECTO R

CN691 Q-2

TEST PO INTS
TP300
TP301

VARIABLE R ESISTO R

VR661 O -1

P-3

O-1

P-4
P-2

O-1
N-2
N-1
N-1
M-2
M-1
M-1
O-2

N-4
N-4

M1

N1

7-7

O1

P1

Q1

7-8

R1

L6652SCM3

Main 4/4 & CRT Schematic Diagram

MAIN 4/4

Ref No. Position Ref No. Position Ref No. Position

IC

IC551

TR AN SISTO RS
Q531
Q533
Q547

Q551 T-3 WH501A V-3 VR562 U-3
Q552

Q561 U-3 TP302 V-2

S-3

S-2
S-2

U-2 WH301A V-2 VR561 U-3

T-3

TR AN SISTO RS TEST POINTS
Q571
Q572

CONNECTO RS

CN571

TEST PO INTS

U-2
T-2 TP592 U-2

T-3

TP591

TP601

VARIABLE R ESISTO R S

VIDEO SIGNAL

U-2

U-2

CRT

Ref No. Posi ti o n

TR ANSIST ORS
Q1511 W-1
Q1512
Q1521
Q1522 W-2
Q1531
Q1532

CONNECTO RS

CN1501 X-2
WH301B V-2
WH501B V-3

TEST PO IN TS

TP500
TP501 W-2

W-2
W-1

W-1
W-2

W-1

S3

S2

T3

T2

U3

U2

V3

V2

W3

W2

X3

X2

S1

7-9

T1

U1

V1

W1

7-10

X1

L6652SCM4

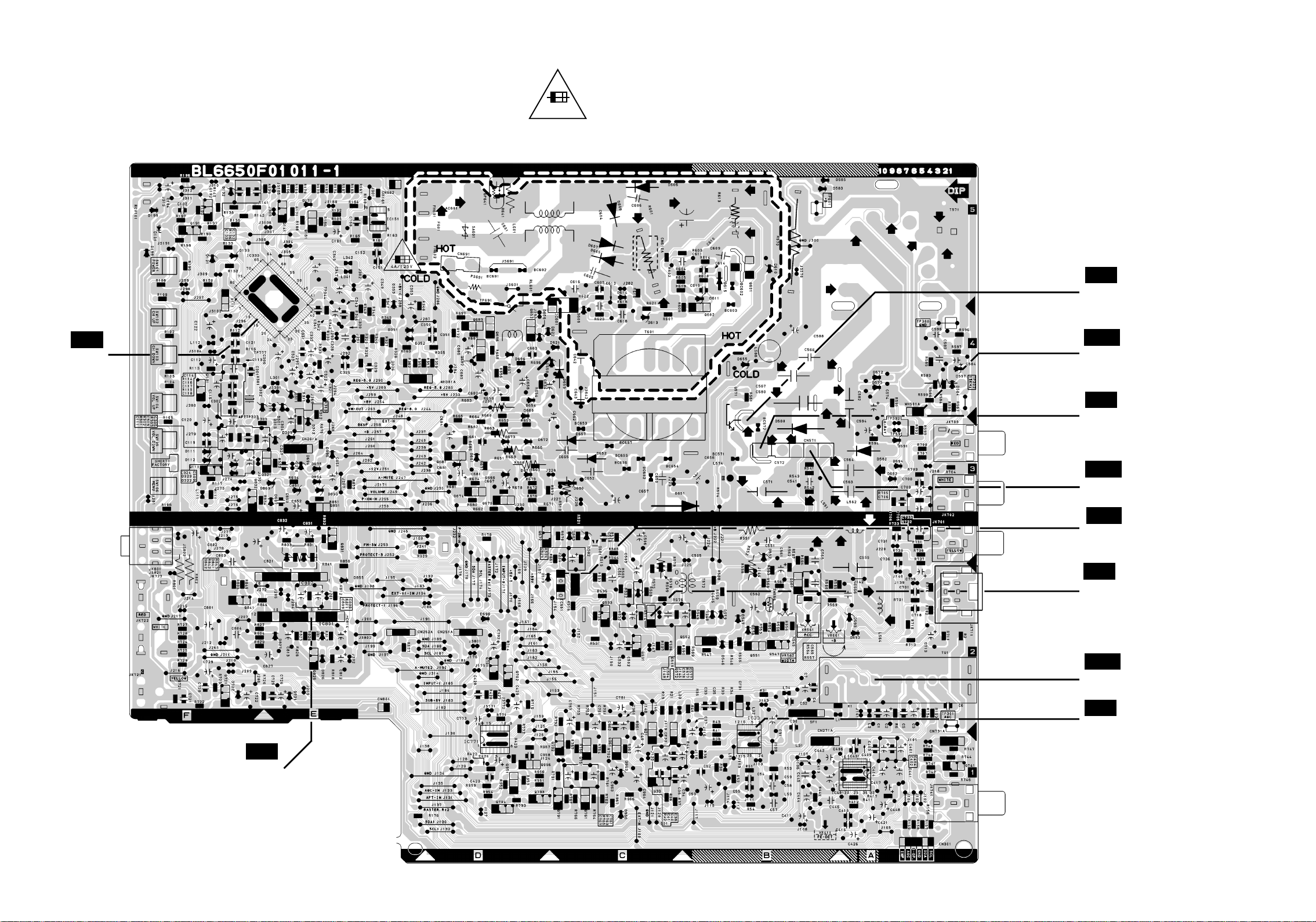

Main CBA Top View

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power
supply circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

TP601

+B

FOCUS-VR
(UPPER SIDE)

SCREEN-VR
(LOWER SIDE)

TP300

GND

TP302

15kHz

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.
ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWL Y , WHEN TROUBLESHOO TING THIS TYPE POWER SUPPL Y
CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK
OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE
MÊME TYPE DE 4A, 125V.

MAIN CBA

Ref No . Posit i o n Ref No. Position

ICS

IC33
IC151
IC333
IC431
IC551
IC601
IC771
IC801 E-2

TRANSISTORS
Q21 C-1 Q956 D-1
Q33

Q111 F -3
Q131 F -4 CN301 A-1
Q141 E-5
Q191 F -5
Q321 E-3
Q531 C-2
Q533 C-2 WH301A D-4
Q547 B-2 WH501A A-4
Q551
Q552
Q561
Q571
Q572
Q601
Q602
Q652
Q672
Q673
Q674 D-3 VR661 B-2
Q681 D-3

B-2
E-5
F-5
A-1
C-2
C-4
D-1

C-1 Q961 C-1

B-2
B-2
B-2
B-4 TP30 2 A- 4
C-2 TP5 9 1 A- 3
B-1 TP59 2 A- 3
B-4
D-4
D-3
D-3

TRANSISTORS
Q682
Q683
Q696
Q825
Q831
Q832
Q841
Q851

Q951 D-1

CONNECTORS

CN571
CN691
CN801
CN802

TEST POINTS
TP300
TP301

TP601

VARIABL E R ESISTO R

VR561
VR562

D-4
D-4
D-4
E-2
E-3
F-3
F-2
E-3

B-3
D-5
E-2
E-5

A-4
A-2

B-5

B-2
B-2

VR661

+B ADJ

VR561

PCC

VR562

WIDTH

TP301

AGC

7-11

7-12

BL6650F01011-1

Main CBA Bottom View

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK
OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE
MÊME TYPE DE 4A, 125V.

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.
ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWL Y , WHEN TROUBLESHOO TING THIS TYPE POWER SUPPL Y
CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

WF8

Q571
Base

WF2

PIN 14
OF IC333

WF10

PIN 3
OF WH501A

WF9

PIN 1
OF CN571

WF12

PIN 4
OF CN571

WF11

PIN 7
OF IC551

WF7

Q572
Collector

WF16

PIN 8
OF TU1

WF1

PIN 3
OF IC33

WF6

PIN 5
OF IC801

7-13 7-14

BL6650F01011-1

CRT CBA Top View CRT CBA Bottom View

CRT CBA

Ref No. Posi ti on

TR ANSIST ORS
Q1511 C-1
Q1512 C-1
Q1521
Q1522
Q1531
Q1532

CONNECTO RS

CN1501 A-2
WH301B B-2
WH501B A-2

TEST PO IN TS
TP500 B-2
TP501 B-2

C-1
C-1

B-1
B-1

TP501

BLUE

TP500

GND

WF15

Q1511
Collector

WF3 WF14

Q1511
Base

WF4 WF13

Q1521
Base

Q1521
Collector

WF5

Q1531
Base

Q1531
Collector

7-15 BL6650F01011-2

7-16

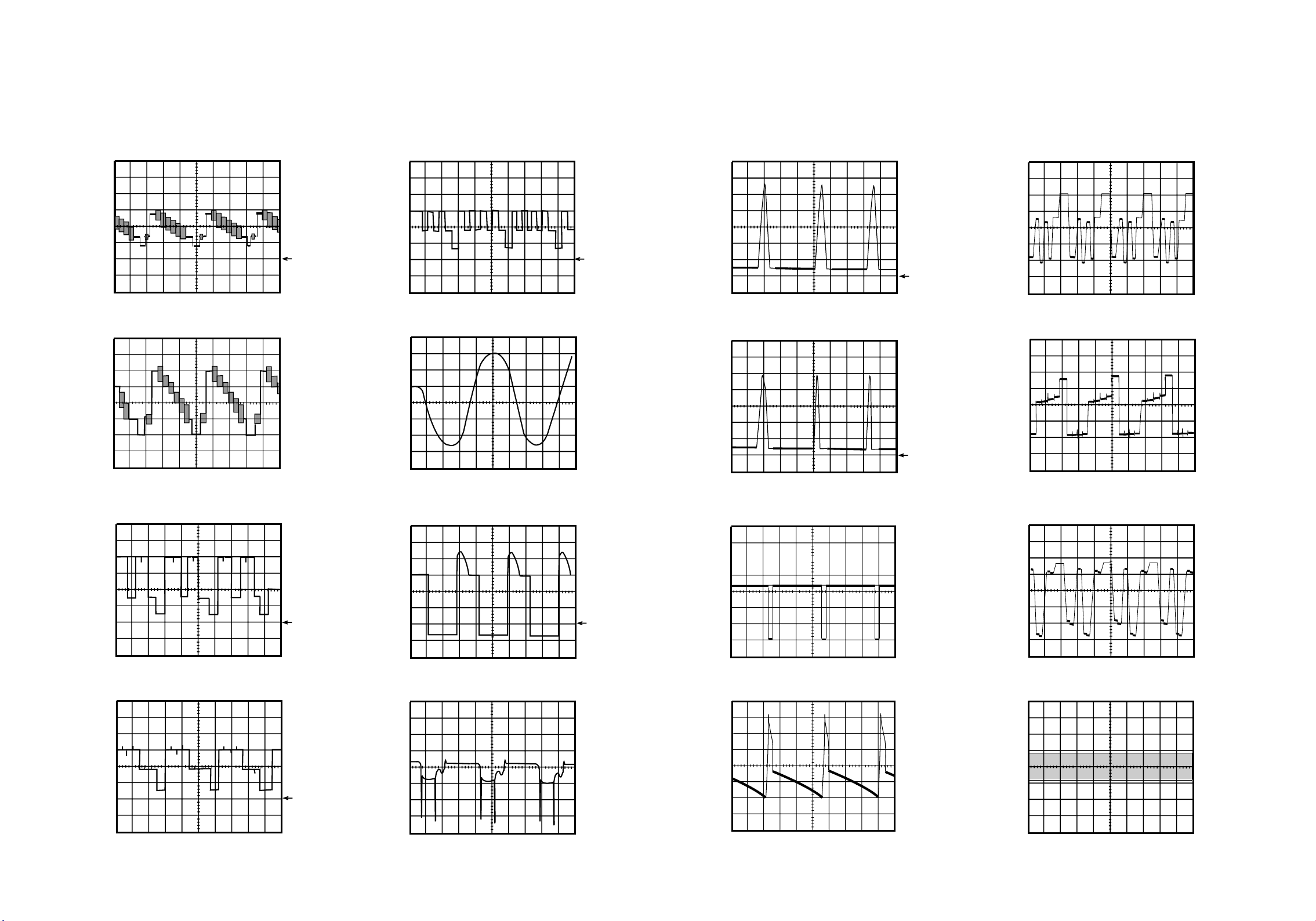

WF1 ~ WF16 = Waveforms to be observed at
  Waveform check points.
  (Shown in Schematic Diagram.)

WAVEFORMS

Input:  NTSC Color Bar Signal (with 1kHz Audio Signal)
INITIAL POSITION: Unplug unit from AC outlet for at least 5 minutes.

reconnect to AC outlet and then turn power on.

(Brightness---Center Color---Center Tint --- Center Contrast---Approx 70%)

WF1

WF2

1DIV: 0.5V 20µsec
IC 33 Pin 3

1DIV: 0.5V 20µsec
IC 333 Pin 14

GND

WF5

WF6

1DIV: 2V 20µsec
Q 1531 Base

1DIV: 0.2V 20msec
IC 801 Pin 5

GND

WF9

WF10

1DIV: 200V 20µsec
CN 571 Pin 1

1DIV: 5V 20µsec
WH501A Pin 3

GND

GND

WF13

WF14

1DIV: 20V 20µsec
Q 1531 Collector

1DIV: 20V 20µsec
Q 1521 Collector

WF3

WF4

1DIV: 2V 20µsec
Q 1511 Base

1DIV: 2V 20µsec
Q 1521 Base

GND

WF7

1DIV: 10V 20µsec
Q 572 Collector

GND

WF8

1DIV: 5V 20µsec
Q 571 Base

8-1 8-2

GND

WF11

1DIV: 2V 5msec
IC 551 Pin 7

10 V 5 ms

WF12

1DIV: 10V 5msec
CN 571 Pin 4

WF15

WF16

1DIV: 20V 20µsec
Q 1511 Collector

1DIV: 0.2V 20µsec
TU 1 Pin 8

L6650WF

WIRING DIAGRAM

V501

CRT

GND

CN1501

ANODE

FOCUS

SP801
SPEAKER

L-CH

SP802
SPEAKER

R-CH

SCREEN

CLN801

CLN802

CN801

SP-L

1

SP-GND

2

CN802

SP-R

1

SP-GND

2

CN691

1
2

TU1 TUNER UNIT

MAIN CBA
BL6650F01011-1

T571
FBT

CRT CBA
BL6650F01011-2

WH301B

BLUE

GREEN

RED
GND

+8V

HEATER 3

GND 2

+200V 1

5
4
3
2
1

CLN301

CLN501

DY551
D.Y.

HD

VD

5
4
3
2
1

WH301A

BLUE
GREEN
RED
GND
+8V

WH501AWH501B

HEATER3
GND2
+200V1

CN571

1
2
3
4
5

(NO CONNECTION)

CN301
1

INT-MONI
AGC2
I2C-OPEN3

4

GND
SDA5

6

SCL

CN301 IS USED FOR
ADJUSTMENT AT
FACTORY.

AC601

9-1 L6652WI

IC PIN FUNCTIONS

IC333 (TV Micro Computer)

Pin

Signal Name Function

No.

1GND GND
2 N.U. Not Used
3 N.U. Not Used
4 N.U. Not Used
5GND GND
6VCC AL+5V
7 N.U. Not Used
8 FILT FILT

9 HLF Filter for CCD
10 VHOLD VHOLD
11 CVIN Input for Video Signal
12 RESET RESET

MCU RESET

13

OUT
14 Y-SW OUT Composite Signal Output
15 GND GND
16 3.58 X'TAL 3.58MHz Crystal
17 C-APC CHROMINANCE APC

MCU 5.7REG
18

OUT
19 N.U. Not Used
20 CVBS IN 3 Composite Signal Input 3
21 N.U. Not Used
22 VCC VCC
23 N.U. (GND)
24 CVBS IN2 Composite Signal Input 2
25 N.U. Not Used
26 CVBS IN1 Composite Signal Input 1
27 N.U. Not Used
28 5.7V REG OUT 5.7V Output
29 C(Y/C) IN Chrominance Signal Input
30 Y(Y/C) IN Luminance Signal Input
31 V REG VCC DC 8.7V Input
32 FSC OUT Clock Output 3.58MHz
33 MONITOR OUT Monitor Out
34 N.U. Not Used

RESET Signal Output

Micro controller Control
Voltage Output

Pin

Signal Name Function

No.

35 N.U. Not Used
36 N.U. Not Used
37 V RAMP F/B V Ramp Feed Back
38 V RAMP OUT Vertical Output
39 V RAMP CAP V Ramp OSC Capacitor
40 8.7 VREG OUT DC 8.7V Output
41 N.U. Not Used
42 H VCO F/B H Vco Feed Back
43 AFC FILT Horizontal AFC Filter
44 GND GND
45 FBP IN Flyback Pulse Input
46 H-OUT H Pulse Output
47 VCC Vcc
48 VCC Vcc
49 VCC Vcc
50 R OUT Red Output
51 G OUT Green Output
52 B OUT Blue Output
53 ACL IB-Input
54 N.U. Not Used
55 A-O-MUTE Mute Signal of Audio Output

56 SDA

57 N.U. Not Used

58 SCL

59 N.U. (GND)
60 N.U. Not Used

61 S-SW

62 VOLUME Volume
63 INPUTO Input Select 0
64 A-MUTE-H Audio Mute
65 N.U. Not Used
66 KEY-IN 1 Key Input 1 (Main)
67 PROTECT-2 Power Supply Protection
68 PROTECT-1 Power Supply Protection
69 KEY-IN 2 Key Input 2 (Main)

I2C-BUS Controller Interface
(Data)

I2C-BUS Controller Interface
(Clock)

Detecting S-VIDEO Jack
Connection

10-1 L6650PIN

Pin

Signal Name Function

No.

70 RCV-IN Input For Remote Control
71 N.U. Not Used

72 I2C OPEN

73 AFT AFT Voltage Input
74 DG-ON-H Degaussing Coil Control
75 AGC AGC Voltage Input
76 PROTECT 3 Power Supply Protection
77 N.U. Not Used
78 FM-SW Switching IF IC VCO
79 P-ON-H Output for P-ON-H
80 INPUT 1 Input Select 1

White Balance Adjustment
Judgement

10-2 L6650PIN

Cabinet

Details for DY551
and surrounding parts

SHINWHA
TAPE SGT-730
(WHITE)

EXPLODED VIEWS

SHINWHA
TAPE SGT-730
(BLACK)

V501-2

V501-1

DY551

B5

B5

L2

L2

L2

L2

A5

L4

L3

SP801

L1

B4

CLN551

Lead Clamper

B2

B1

B2

Lead
Clamper

Lead Clamper

V501

SP802

L1

Lead
Clamper

DY551

CRT CBA

Lead
Clamper

Lead
Clamper

B2

B5

B5

B2

L691

Scotch Tape #880

L-1

L-1

L-1

B-9

L2

L2

L2

L2

B5

A4

B-8

L-1

B-7

B-6

L-1

A2

A3

B4

PB6

MAIN CBA

B7

A1

11-1 11-2 L6652CEX

PB6

AC601

Packing

X5

TAPE

X2

X1

S1

X4X3

PACKING TAPE

POP LABEL

S2

S6

S2

S4

S3

FRONT

S5

11-3 L6651PEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a #

have special characteristics important to safety. Before
replacing any of these components, read carefully the
product safety notice in this service manual. Don't
degrade the safety of the product through improper ser­vicing.

NOTE:
Parts that are not assigned part numbers (---------) are
not available.

Ref. No. Description Part No.

A1 FRONT CABINET L6251UB 0EM000689
A2 CONTROL PLATE L6652UC 0EM301853
A3 BRAND PLATE L6251UB:SYLVANIA 0EM407592
A4 REAR CABINET L6652UC 0EM101271
A5# RATING LABEL L6652UC ---------­B1 TENSION SPRING B0080B0:EM40808 26WH006
B2 M7 CRT SCREW(D22) T7205UF 0EM406573
B4 SPEAKER HOLDER L1200UA 0EM405691
B5 CLOTH 190X15XT0.5 TS7623
B7# CRITICAL PARTS WARNING LABEL

CLN551 CRT GND WIRE CRT GND WIRE WX1L6250-005
L1 SCREW, P-TIGHT 3X12 BIND HEAD+ GBMP3120
L2 SCREW, P-TIGHT 4X18 BIND HEAD + GBMP4180
L3 SCREW TAPPING M4X14 DBU14140
L4 SCREW, P-TIGHT 3X10 BIND HEAD+ GBKP3100
L691# DEGAUSSING COIL F-047 LLBH00ZTM047
SP801 SPEAKER S08F16-J DSD0808XQ009
SP802 SPEAKER S08F26-J DSD0808XQ008

Note:

1. V501 (CRT) HAS COUPLE OF SUBSTITUTIONAL PARTS AND EACH PARTS
ALSO HAS MATCHING COMBINATION WITH DY551.
PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

2. DY551 (DEFLECTION YOKE) HAS MATCHING COMBINATION WITH V501.
PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

DY5 5 1# DEFLECTION YOKE 6150Z-1050M LLBY00ZGS006
V501# CRT A80QCF340X TCRT190GS041
V501-1 PCM 325LT-022 XM04000BV014
V501-2 WEDGE FT-00110W or XV10000T4001

V501# CRT A80QCF340X33 TCRT190GS042

V501# CRT A80LJF30X11(CT) TCRT190SEG01

S1 CARTON L6652UC 0EM408145
S2 STYROFOAM TOP ASSEMBLY L6250UA 0EM407000
S3 STYROFOAM BOTTOM ASSEMBLY L6250UA 0EM407001
S4 SET SHEET PCEC:003502019816 0EM403887
S5 SERIAL NO. LABEL L6652UC ---------­S6 HOLD PAD L6250UA 0EM407005

X1 POLYETHYLENE BAG F8626B5 Z325350
X2# OWNER'S MANUAL L6652UC 0EMN02168
X3 REMOTE CONTROL NE122UD NE122UD
X4 DRY BATTERY R6P UM3 or XB0M451GH001

B8007C3:EM41210

CRT TYPE A

WEDGE DB25SR XV10000D9001

CRT TYPE B

CRT TYPE C

PAC KI NG

ACCESSORIES

24LH199

Ref. No. Description Part No.

DRY BATTERY R6P/2S or XB0M451T0001
DRY BATTERY(SUNRISE) R6SSE/2S or XB0M451MS002
DRY BATTERY R6P(AR)2PX or XB0M451HU002
DRY BATTERY R6P(AR)2P X ICI XB0M451HU003

X5 RETURN STOP SHEET L6101UB 0EM407077

Table 1 (V501 and DY551 Combination)

Note 1: Purity and Convergence Adjustments must be

performed following CRT replacement. Refer to Electri­cal Adjustment Instructions.

Note 2: Please confirm CRT Type No. on the CRT
Warning Label which is located on the CRT. Then See
the Table 1 for V501 and DY551 combination chart.
Please refer this CRT, Deflection Yoke combination
chart for parts order.

V501: CRT Type No. V501: CRT Part No.

CRT A80QCF340X TCRT190GS041 LLBY00ZGS006

CRT A80QCF340X33 TCRT190GS042 ----------

CRT A80LJF30X11(CT) TCRT190SEG01 ----------

DY551: Deflection

Yoke Par t N o .

CRT Warning Label Location

CRT Type No.

CRT Warning
Label

CRT

20030318 12-1 L6652CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read care­fully the product safety notice in this service manual.
Don't degrade the safety of the product through
improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

MMA CBA

Ref. No. Description Part No.

MMA-413 CBA 0ESA05474
Consists of the following
MAIN CBA -------------­CRT CBA --------------

MAIN CBA

Ref. No. Description Part No.

MAIN CBA

Consists of the following

CAPACITORS

C1 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C2 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C3 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7
C4 CERAMIC CAP.(AX) F Z 0.01µF/50V CA1J103TU014
C7 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C30 PCB JUMPER D0.6-P5.0 JW5.0T
C31 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C32 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C34 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C35 CERAMIC CAP.(AX) CH J 56pF/50V CA1J560TU008
C36 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102
C37 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C38 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C41 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

------------

Ref. No. Description Part No.

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47

C49 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7
C51 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102
C52 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C53 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C54 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102
C55 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C57 FILM CAP.(P) 0.047µF/50V J or CMA1JJS00473

FILM CAP.(P) 0.047µF/50V J or CA1J473MS029

FILM CAP.(P) 0.047µF/50V J TV or CMB1JJS00473

MYLAR CAP. 0.047µF/50V K 2250473S
C58 FILM CAP.(P) 0.033µF/50V J or CMA1JJS00333

FILM CAP.(P) 0.033µF/50V J or CA1J333MS029

FILM CAP.(P) 0.033µF/50V J TV CMB1JJS00333
C104 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C111 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C112 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7
C113 CERAMIC CAP. F Z 0.1µF/25V CDA1EZT0F104
C114 FILM CAP.(P) 0.001µF/50V J or CMA1JJS00102

FILM CAP.(P) 0.001µF/50V J or CA1J102MS029

FILM CAP.(P) 0.001µF/50V J TV or CMB1JJS00102

MYLAR CAP. 0.001µF/50V K 2250102S
C115 ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASTLR10

ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDLR10
C116 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221
C117 CERAMIC CAP.(AX) Y K 0.01µF/16V CDA1CKT0Y103
C119 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C120 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C122 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C132 CERAMIC CAP. F Z 0.1µF/25V CDA1EZT0F104
C133 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C150 CERAMIC CAP. F Z 0.1µF/25V CDA1EZT0F104
C151 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221
C152 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221
C301 CERAMIC CAP.(AX) CH J 120pF/50V CA1J121TU008
C302 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C303 CERAMIC CAP.(AX) B K 0.015µF/50V CA1J153TU011
C305 ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASTLR10

ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDLR10
C306 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C309 ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASTLR10

ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDLR10
C322 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C324 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

20030318 13-1 L6652EL

Ref. No. Description Part No.

C325 CERAMIC CAP.(AX) SL J 12pF/50V CCA1JJTSL120
C328 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C329 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C330 STACKED FILM CAP. 0.47µF/50V J CMA1JJS00474
C331 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102
C332 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C341 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011
C342 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C343 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011
C345 ELECTROLYTIC CAP. 2200µF/10V M or CE1AMZNTL222

ELECTROLYTIC CAP. 2200µF/10V M CE1AMZNDL222
C347 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASTL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471
C349 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASTL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471
C353 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C401 ELECTROLYTIC CAP. 3.3µF/50V M or CE1JMASTL3R3

ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3
C402 ELECTROLYTIC CAP. 3.3µF/50V M or CE1JMASTL3R3

ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3
C403 CERAMIC CAP.(AX) F Z 0.1µF/50V or CA1J104TU014

CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZT0F104
C404 CERAMIC CAP.(AX) B K 0.022µF/50V CA1J223TU011
C405 CERAMIC CAP. F Z 0.1µF/25V CDA1EZT0F104
C406 CERAMIC CAP.(AX) B K 0.033µF/50V CA1J333TU011
C411 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7
C413 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C414 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASTL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2
C415 CERAMIC CAP.(AX) B K 150pF/50V CCA1JKT0B151
C416 CERAMIC CAP.(AX) B K 150pF/50V CCA1JKT0B151
C417 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASTL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2
C421 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7
C423 CERAMIC CAP.(AX) X K 4700pF/16V CDA1CKT0X472
C424 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C426 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7
C428 CERAMIC CAP.(AX) X K 4700pF/16V CDA1CKT0X472
C429 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C441 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C442 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASTL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2

Ref. No. Description Part No.

C444 ELECTROLYTIC CAP. 0.33µF/50V M or CE1JMASTLR33

ELECTROLYTIC CAP. 0.33µF/50V M CE1JMASDLR33

C445 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029
FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104
MYLAR CAP. 0.1µF/50V K 2250104S

C446 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029
FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104
MYLAR CAP. 0.1µF/50V K 2250104S

C448 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASTL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2

C501 FILM CAP. 0.22µF/50V J or 122Z313S

TF CAP. 0.22µF/50V J CT1J224MS045
C502 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102
C503 ELECTROLYTIC CAP. 100µF/35V M or CE1GMASTL101

ELECTROLYTIC CAP. 100µF/35V M CE1GMASDL101
C504 ELECTROLYTIC CAP. 2.2µF/50V M LL or CE1JMASLL2R2

ELECTROLYTIC CAP. 2.2µF/50V LL CE1JMASLH2R2
C505 ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZNTL102

ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZNDL102

ELECTROLYTIC CAP. 1000µF/35V M CE1GMZADL102
C506 ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZNTL102

ELECTROLYTIC CAP. 1000µF/35V M or CE1GMZNDL102

ELECTROLYTIC CAP. 1000µF/35V M CE1GMZADL102
C508 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C520 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C532 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C541 FILM CAP.(P) 0.082µF/50V J or CMA1JJS00823

FILM CAP.(P) 0.082µF/50V J CA1J823MS029
C551 CERAMIC CAP. B K 680pF/1KV or CCD3AKD0B681

CERAMIC CAP. B K 680pF/1KV or CCD3AKP0B681

CERAMIC CAP. B K 680pF/1KV CA3A681MR028
C555 METALIZED PLYESTER CAP. 1µF/100V J CT2A105MS065
C556 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S
C561 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASTL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470
C562 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASTL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471
C563# P. P. CA P 0 .4 7 µF/200 J or CA2D474VC012
# PP CAP. 0.47µF/250V J CT2E474MS041
C565 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S
C567# PP CAP. 0.0018µF/1.6KV J or CA3C182VC010
# PP CAP. 0.0018µF/1.6KV J CT3C182MS039
C568 FILM CAP.(P) 0.047µF/50V J or CMA1JJS00473

FILM CAP.(P) 0.047µF/50V J or CA1J473MS029

FILM CAP.(P) 0.047µF/50V J TV or CMB1JJS00473

MYLAR CAP. 0.047µF/50V K 2250473S
C571# PCB JUMPER D0.6-P10.0 JW10.0T
C574# ELECTROLYTIC CAP. 22µF/250V M or CE2EMZPTL220
# ELECTROLYTIC CAP. 22µF/250V M CE2EMZNDL220
C577 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASTL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470

20030318 13-2 L6652EL

Ref. No. Description Part No.

C578 FILM CAP.(P) 0.01µF/50V J or CMA1JJS00103

FILM CAP.(P) 0.01µF/50V J or CA1J103MS029
FILM CAP.(P) 0.01µF/50V J TV or CMB1JJS00103

MYLAR CAP. 0.01µF/50V K 2250103S
C580# PP CAP. 0.018µF/1.6KV J or CA3C183VC010
# PP CAP. 0.018µF/1.6KV J CT3C183MS039
C582# P.P. CAPACITOR 0.022µF/630V J or CBP2KJD00223

# P.P. CAPACITOR 0.022µF/630V J or CT2K223KF011
# P.P. CAPACITOR 0.022µF/630V J CBP2KKD00223
C583# FILM CAP.(P) 0.1µF/100V J or CMA2AJS00104
# FILM CAP.(P) 0.1µF/100V J TV CMB2AJS00104
C584# ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7
# ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7
C588# ELECTROLYTIC CAP. 100µF/160V M W/F or CE2CMZNTL101
# ELECTROLYTIC CAP. 100µF/160V M CE2CMZPDL101
C594# ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100
# ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C596 CERAMIC CAP. B K 100pF/500V CCD2JKS0B101
C601# METALLIZED FILM CAP. 0.1µF/250V or CT2E104MS037

# METALLIZED FILM CAP. 0.1µF/275V K or CT2E104HJE06
# FILM CAP.(MP) 0.1µF/250V K or CT2E104DC011
# METALLIZED FILM CAP. 0.1µF/275V K CT2E104HJE06

C603 CERAMIC CAP.(AX) B K 470pF/50V CCA1JKT0B471
C605 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP. 0.01µF/AC250V CCD2EZA0F103
C606 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP. 0.01µF/AC250V CCD2EZA0F103
C609 CERAMIC CAP. B K 680pF/2KV or CCD3DKD0B681

CERAMIC CAP. B K 680pF/2KV CCD3DKP0B681
C610# ELECTROLYTIC CAP. 470µF/200V M or CE2DMZNTL471

# ELECTROLYTIC CAP. 470µF/200V M or CE2DMZNDL471
# ELECTROLYTIC CAP. 470µF/200V CA2D471NC013

C611 FILM CAP.(P) 0.068µF/50V J or CMA1JJS00683

FILM CAP.(P) 0.068µF/50V J or CA1J683MS029

FILM CAP.(P) 0.068µF/50V J TV or CMB1JJS00683

MYLAR CAP. 0.068µF/50V K 2250683S
C613 FILM CAP.(P) 0.056µF/50V J or CMA1JJS00563

FILM CAP.(P) 0.056µF/50V J or CA1J563MS029

FILM CAP.(P) 0.056µF/50V J TV or CMB1JJS00563

MYLAR CAP. 0.056µF/50V KT 2250563S
C615 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101
C616 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S
C618 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S
C642# SAFETY CAP. 4700pF/250V or CCG2EMA0F472

# SAFETY CAP. E M 4700pF/250V KH or CCG2EMP0E472
# CERAMIC CAP. 0.0047µF F CS CCG2HMN0F472

C650 CERAMIC CAP. LB 560pF/2KV or CA3D561KG004

CERAMIC CAP. BN 560pF/2KV or CCD3DKA0B561

CERAMIC CAP. 560pF/2KV CA3D561PAN04
C654 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C656 ELECTROLYTIC CAP. 100µF/160V M W/F or CE2CMZNTL101

ELECTROLYTIC CAP. 100µF/160V M CE2CMZPDL101

Ref. No. Description Part No.

C657# ELECTROLYTIC CAP. 2200µF/35V M or CE1GMZNTL222
# ELECTROLYTIC CAP. 2200µF/35V M CE1GMZNDL222
C658# ELECTROLYTIC CAP. 1000µF/16V M(VR/HC) or CE1CMZNTL102
# ELECTROLYTIC CAP. 1000µF/16V M or CE1CMZNDL102
# ELECTROLYTIC CAP. 1000µF/16V M CE1CMZADL102

C661 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C662# ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZNTL102
# ELECTROLYTIC CAP. 1000µF/25V M CE1EMZPDL102
C667 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010
ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C681 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C682 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C684 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASTL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471

C685 ELECTROLYTIC CAP. 1000µF/10V M or CE1AMASTL102

ELECTROLYTIC CAP. 1000µF/10V M CE1AMASDL102

C686 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C701 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101
C702 PCB JUMPER D0.6-P5.0 JW5.0T
C705 CERAMIC CAP.(AX) X K 6800pF/16V CDA1CKT0X682
C706 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C708 CERAMIC CAP.(AX) X K 6800pF/16V CDA1CKT0X682
C709 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C713 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C718 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102
C721 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101
C722 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C725 CERAMIC CAP.(AX) X K 6800pF/16V CDA1CKT0X682
C726 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C728 CERAMIC CAP.(AX) X K 6800pF/16V CDA1CKT0X682
C729 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C773 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C781 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C801 ELECTROLYTIC CAP. 470µF/25V M or CE1EMASTL471

ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471
C802 ELECTROLYTIC CAP. 470µF/25V M or CE1EMASTL471

ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471
C803 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S
C804 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J or CA1J104MS029

FILM CAP.(P) 0.1µF/50V J TV or CMB1JJS00104

MYLAR CAP. 0.1µF/50V K 2250104S
C808 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

20030318 13-3 L6652EL

Ref. No. Description Part No.

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C809 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL010
ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C812 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C814 ELECTROLYTIC CAP. 22µF/50V M or CE1JMASTL220

ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220

C821 ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZNTL102

ELECTROLYTIC CAP. 1000µF/25V M CE1EMZPDL102

C827 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASTL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101

C831 ELECTROLYTIC CAP. 100µF/25V M or CE1EMASTL101

ELECTROLYTIC CAP. 100µF/25V M CE1EMASDL101

C851 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100

C852 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASTL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471
C853 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C963 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C964# ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101
# ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

CONNECTORS

CN301 CONNECTOR BASE, 6P TUC-P06P-B1 J3TUA06TG001
CN571# CONNECTOR BASE, 5P TV-50P-05-V3 or J3TVC05TG002

# CONNECTOR BASE, 5P RTB-1.5-5P or J3RTC05JG001
# CONNECTOR BASE, 5P W-P3005-02 1730812
CN691# CONNECTOR BASE, 2P TV-50P-02-V3 or J3TVC02TG002
# CONNECTOR BASE, 2P RTB-1.5-2P J3RTC02JG001

CN801 STRAIGHT CONNECTOR BASE 00 8283 0212 00

CN802 STRAIGHT CONNECTOR BASE 00 8283 0212 00

000 or

STRAIGHT PIN HEADER, 2P 173981-2 1770258

000 or

STRAIGHT PIN HEADER, 2P 173981-2 1770258

J383C02UG002

J383C02UG002

DIODES

D131 ZENER DIODE MTZJT-775.1B or QDTB0MTZJ5R1

ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS
D171 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D322 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D323 ZENER DIODE MTZJT-779.1B or QDTB0MTZJ9R1

ZENER DIODE DZ-9.1BSBT265 NDTB0DZ9R1BS
D326 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D351 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D352 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D353 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D501 DIODE FR104-B or NDLZ000FR104

Ref. No. Description Part No.

RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202

RECTIFIER DIODE 10ELS2 QDQZ0010ELS2
D502# ZENER DIODE MTZJT-7724B or QDTB00MTZJ24
# ZENER DIODE DZ-24BSBT265 NDTB00DZ24BS
D503# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148
# DIODE 1SS176TPA7 1SS176T

D545 ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS
D546 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D547 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D552# ZENER DIODE MTZJT-773.0B or QDTB0MTZJ3R0
# ZENER DIODE DZ-3.0BSBT265 NDTB0DZ3R0BS
D558 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D572 RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202

RECTIFIER DIODE 10ELS2 QDQZ0010ELS2
D573 RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202

RECTIFIER DIODE 10ELS2 QDQZ0010ELS2
D580# DIODE ERD07-15 QDLZ0ERD0715
D582 FAST RECOVERY DIODE ERD38-06 QDQZ0ERD3806
D583 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D584# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148
# DIODE 1SS176TPA7 1SS176T

D585 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D591# ZENER DIODE MTZJT-7736B or QDTB00MTZJ36
# ZENER DIODE DZ-36BSBT265 NDTB00DZ36BS
D594# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148
# DIODE 1SS176TPA7 1SS176T

D597 ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS
D605# DIODE 1N5406 NDLZ001N5406
D606# DIODE 1N5406 NDLZ001N5406
D607# DIODE 1N5406 NDLZ001N5406
D608# DIODE 1N5406 NDLZ001N5406
D609 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D611# ZENER DIODE MTZJT-7720B or QDTB00MTZJ20
# ZENER DIODE DZ-20BSBT265 NDTB00DZ20BS
D613 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS
D614 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D615 SWITCHING DIODE 1N4148 T-77 QDTZ001N4148
D621 BEAD INDUCTORS FBA04HA600VB-00 LLBF00STU026
D651# FAST RECOVERY DIODE 30DF6 or QDWZ00030DF6

# DIODE ERD29-06J or QD4Z0ERD2906
# FAST RECOVERY DIODE FE201-6 QDLZ00FE2016

20030318 13-4 L6652EL

Ref. No. Description Part No.

D652# DIODE FR154 or NDLZ000FR154
# FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402
D653# DIODE FR154 or NDLZ000FR154
# FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402
D654# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 or NDTZ001N4148
# DIODE 1SS176TPA7 1SS176T

D655 ZENER DIODE 1ZB180 QDQZ001ZB180
D656# ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8
# ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS
D657# DIODE FR154 or NDLZ000FR154
# FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402
D658# DIODE 1ZC18 or QDQZ0001ZC18
# ZENER DIODE RD18F QDQZ000RD18F
D660 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148
DIODE 1SS176TPA7 1SS176T

D661 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148
DIODE 1SS176TPA7 1SS176T

D666 ZENER DIODE MTZJT-7736B or QDTB00MTZJ36

ZENER DIODE DZ-36BSBT265 NDTB00DZ36BS

D671# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148
# DIODE 1SS176TPA7 1SS176T

D672 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148
DIODE 1SS176TPA7 1SS176T

D673 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148
DIODE 1SS176TPA7 1SS176T

D675# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148
# DIODE 1SS176TPA7 1SS176T
D692# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 or NDTZ001N4148
# DIODE 1SS176TPA7 1SS176T
D694# ZENER DIODE MTZJT-7715B or QDTB00MTZJ15
# ZENER DIODE DZ-15BSBT265 NDTB00DZ15BS

D696 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148
DIODE 1SS176TPA7 1SS176T

D697# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148
# DIODE 1SS176TPA7 1SS176T
D698# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 or NDTZ001N4148
# DIODE 1SS176TPA7 1SS176T

D826 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148
DIODE 1SS176TPA7 1SS176T

D827 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148
DIODE 1SS176TPA7 1SS176T

D841# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148
# DIODE 1SS176TPA7 1SS176T
D842# ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2
# ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS
D851# ZENER DIODE MTZJT-7712B or QDTB00MTZJ12
# ZENER DIODE DZ-12BSBT265 NDTB00DZ12BS

Ref. No. Description Part No.

D853 ZENER DIODE MTZJT-779.1B or QDTB0MTZJ9R1

ZENER DIODE DZ-9.1BSBT265 NDTB0DZ9R1BS
D854 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D855# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

# SWITCHING DIODE 1N4148 or NDTZ001N4148
# DIODE 1SS176TPA7 1SS176T

D896 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T
D963 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS
D966 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

ICS

IC33 IC:VIF/SIF DETECTOR M61111FP QSZBA0SMB010
IC151 IC:MEMORY AT24C02N-10SC or NSMMA0SAZ012

IC(EEPROM) M24C02-MN6 or NSMMA0SSS028

IC:MEMORY BR24C02F-W or QSMBA0SRM003

IC:MEMORY BR24C02F or QSMMA0SRM003

IC:MEMORY S524C20D21 or NSZBA0SSM028

IC(EEP-ROM) M24C02-WMN6 NSZAA0SSS004
IC333 IC M61272M8-054FP QSZAA0RMB130
IC431 IC:MTS DECORDER AN5832SA QSZBA0TMS003
IC551# IC:VERTICAL OUTPUT LA78041 QSZBA0SSY006
IC601# PHOTOCOUPLER LTV-817B-F or NPEB0LTV817F
# PHOTOCOUPLER LTV-817C-F NPEC0LTV817F
IC771 IC:SWITCHING TC4052BF(EL) or QSZBA0TTS096

IC:SWITCHING CD4052BCSJX NSZBA0TF3079
IC801 AUDIO POWER IC AN17805A QSZBA0SMS007

COILS

L1 PCB JUMPER D0.6-P5.0 JW5.0T
L2 INDUCTOR 22µH-K-5FT or LLARKBSTU220

INDUCTOR 22µH-K LLARKDQKA220
L32 INDUCTOR 15µH-J-26T or LLAXJATTU150

INDUCTOR 15µH-K-26T LLAXKDTKA150
L33 INDUCTOR 22µH-J-26T or LLAXJATTU220

INDUCTOR 22µH-K-26T LLAXKDTKA220
L34 PCB JUMPER D0.6-P5.0 JW5.0T
L51 INDUCTOR 100µH-J-5FT or LLARJCSTU101

INDUCTOR 100µH-K LLARKDQKA101
L111 INDUCTOR 22µH-K-5FT or LLARKBSTU220

INDUCTOR 22µH-K LLARKDQKA220
L112 INDUCTOR 22µH-K-5FT or LLARKBSTU220

INDUCTOR 22µH-K LLARKDQKA220
L301 INDUCTOR 100µH-J-5FT or LLARJCSTU101

INDUCTOR 100µH-K LLARKDQKA101
L341 PCB JUMPER D0.6-P5.0 JW5.0T
L342 PCB JUMPER D0.6-P5.0 JW5.0T
L551# LINEARITY COIL ELH5L6136N LLBD00PMS008
L562# CHOKE COIL ELC18B681LK or LLC681KMS001
# CHOKE COIL CSA-LF057 LLBD00ZSA001
L588 CHOKE COIL 47µH-K or LLBD00PKV007

POT COIL 47µH K LLBD**DMM001
L601# LINE FILTER MS036 or LLBG00ZY2009
# LINE FILTER JLB2808 LLBG00ZXB004

TRANSISTORS

Q21 TRANSISTOR 2SA1175(F) or QQSF02SA1175

20030318 13-5 L6652EL

Ref. No. Description Part No.

TRANSISTOR KTA1267(GR) or NQS10KTA1267
TRANSISTOR KTA1266(GR) or NQS40KTA1266
TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ
TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ
TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q33 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q111# TRANSISTOR 2SC2785(F) or QQSF02SC2785

# TRANSISTOR 2SC2785(H) or QQSH02SC2785
# TRANSISTOR 2SC2785(J) or QQSJ02SC2785
# TRANSISTOR KTC3199(GR) or NQS10KTC3199
# TRANSISTOR KTC3198(GR) or NQS40KTC3198
# TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
# TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
# TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q131 RES. BUILT-IN TRANSISTOR BA1F4M-T or QQSZ00BA1F4M

RES. BUILT-IN TRANSISTOR KRC103M NQSZ0KRC103M

Q141 RES. BUILT-IN TRANSISTOR BA1F4M-T or QQSZ00BA1F4M

RES. BUILT-IN TRANSISTOR KRC103M NQSZ0KRC103M

Q191 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q321 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q531 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q533 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q547 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199

Ref. No. Description Part No.

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q551# TRANSISTOR 2SA1175(F) or QQSF02SA1175

# TRANSISTOR KTA1267(GR) or NQS10KTA1267
# TRANSISTOR KTA1266(GR) or NQS40KTA1266
# TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ
# TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ
# TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015
Q552# TRANSISTOR KTD2059(O) or NQ400KTD2059
# TRANSISTOR KTD2059(Y) or NQ4Y0KTD2059
# TRANSISTOR 2SD1666S QQES02SD1666

Q561 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q571# TRANSISTOR 2SD2553 or QQWZ02SD2553
# TRANSISTOR 2SC5902 QQWZ02SC5902
Q572# TRANSISTOR 2SC1627Y-TPE2 QQSY02SC1627
Q601# FET 2SK3407 QFFZ02SK3407
Q602# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120
# TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120
Q652# TRANSISTOR 2SC2785(F) or QQSF02SC2785

# TRANSISTOR 2SC2785(H) or QQSH02SC2785
# TRANSISTOR 2SC2785(J) or QQSJ02SC2785
# TRANSISTOR KTC3199(GR) or NQS10KTC3199
# TRANSISTOR KTC3198(GR) or NQS40KTC3198
# TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
# TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
# TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q672# TRANSISTOR 2SA950(O) Q2SA9500TPE2
Q673 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q674 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q681 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

TRANSISTOR KTC3203(Y) NQSY0KTC3203
Q682 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

TRANSISTOR KTC3203(Y) NQSY0KTC3203
Q683 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

TRANSISTOR KTC3203(Y) NQSY0KTC3203

20030318 13-6 L6652EL

Ref. No. Description Part No.

Q696 RES. BUILT-IN TRANSISTOR BA1F4M-T or QQSZ00BA1F4M

RES. BUILT-IN TRANSISTOR KRC103M NQSZ0KRC103M

Q825 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q831# TRANSISTOR 2SB892(S) or QQSS002SB892
# TRANSISTOR 2SB892(T) QQST002SB892
Q832 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q841 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q851# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

# TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120
# TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q951 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015
Q956 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015
Q961# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

# TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120
# TRANSISTOR KTC3203(Y) NQSY0KTC3203

RESISTORS

R23 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R31 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R33 CARBON RES. 1/4W J 270 Ω or RCX4JATZ0271

CARBON RES. 1/6W J 270 Ω RCX6JATZ0271
R34 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R36 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R37 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R38 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R39 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273
R40 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104

Ref. No. Description Part No.

R43 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123
R44 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R51 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224
R52 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224
R54 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R102 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R103 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R104 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R105 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R108 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R109 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R111 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R112 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R113 CARBON RES. 1/4W J 470k Ω RCX4JATZ0474
R114 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R116 PCB JUMPER D0.6-P5.0 JW5.0T
R132 PCB JUMPER D0.6-P5.0 JW5.0T
R133 PCB JUMPER D0.6-P5.0 JW5.0T
R135 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R136 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R137 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R138 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224
R139 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R140 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R141 PCB JUMPER D0.6-P5.0 JW5.0T
R142 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R150 PCB JUMPER D0.6-P5.0 JW5.0T
R153 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R154 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R156 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R157 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R158 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R159 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R161 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R163 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R164 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R165 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R166 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R167 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R168 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R170 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562
R171 CARBON RES. 1/4W J 3.9k Ω RCX4JATZ0392
R172 PCB JUMPER D0.6-P5.0 JW5.0T
R173 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R174 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R176 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

20030318 13-7 L6652EL

Ref. No. Description Part No.

R177 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R178 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R193 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R195 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R196 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R198 PCB JUMPER D0.6-P5.0 JW5.0T
R301 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R302 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R303 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R305 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R320 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R323 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R326 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R327 PCB JUMPER D0.6-P5.0 JW5.0T
R328 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R329 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563
R330 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R333 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331
R342 PCB JUMPER D0.6-P5.0 JW5.0T
R344 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R345 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R346 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R347 PCB JUMPER D0.6-P5.0 JW5.0T
R348 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273
R355 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R356 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R357 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R358 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R362 PCB JUMPER D0.6-P5.0 JW5.0T
R417 CARBON RES. 1/4W J 180k Ω RCX4JATZ0184
R422 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R427 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R445 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R503 CARBON RES. 1/4W J 68k Ω RCX4JATZ0683
R504 CARBON RES. 1/4W J 3.3 Ω or RCX4JATZ03R3

CARBON RES. 1/6W J 3.3 Ω RCX6JATZ03R3
R505 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R506 CARBON RES. 1/4W J 2.7 Ω or RCX4JATZ02R7

CARBON RES. 1/6W J 2.7 Ω RCX6JATZ02R7
R507 CARBON RES. 1/4W J 2.7 Ω or RCX4JATZ02R7

CARBON RES. 1/6W J 2.7 Ω RCX6JATZ02R7
R508 CARBON RES. 1/4W J 2.7 Ω or RCX4JATZ02R7

CARBON RES. 1/6W J 2.7 Ω RCX6JATZ02R7
R513# METAL OXIDE FILM RES. 2W J 4.7 Ω or RN024R7ZU001
# METAL OXIDE FILM RES. 2W J 4.7 Ω RN024R7DP004
R514 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R516 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681

Ref. No. Description Part No.

R520# CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R522 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R531 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R532 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R533 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R534 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R535 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R541 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681

R542 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681

R543 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681
R545 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R546 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R547 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R548 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R549 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R551 METAL OXIDE FILM RES. 1W J 1k Ω or RN01102ZU001

METAL OXIDE FILM RES. 1W J 1k Ω RN01102DP003
R552# METAL OXIDE FILM RES. 1W J 8.2 Ω or RN018R2ZU001
# METAL OXIDE FILM RES. 1W J 8.2 Ω RN018R2DP003
R553 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R554 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R555 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R556 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R557 CARBON RES. 1/4W J 18k Ω RCX4JATZ0183
R558 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R559 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R560 CARBON RES. 1/4W J 150k Ω RCX4JATZ0154
R561 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R562 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R563 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R564 CARBON RES. 1/4W J 270k Ω RCX4JATZ0274
R565 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333
R566 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R567 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R568 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R569 CARBON RES. 1/4W J 560k Ω RCX4JATZ0564
R575# CARBON RES. 1/4W J 15 Ω or RCX4JATZ0150
# CARBON RES. 1/6W J 15 Ω RCX6JATZ0150
R576 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R577 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331
R578 CARBON RES. 1/4W J 15 Ω or RCX4JATZ0150

CARBON RES. 1/6W J 15 Ω RCX6JATZ0150
R579 CARBON RES. 1/4W J 15 Ω or RCX4JATZ0150

CARBON RES. 1/6W J 15 Ω RCX6JATZ0150
R581 PCB JUMPER D0.6-P5.0 JW5.0T
R583# METAL OXIDE FILM RES. 2W J 1.5 Ω or RN021R5ZU001
# METAL OXIDE FILM RES. 2W J 1.5 Ω RN021R5DP004
R584# PCB JUMPER D0.6-P5.0 JW5.0T
R585# CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R588 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R589# CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R590 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R591# CARBON RES. 1/4W J 180k Ω RCX4JATZ0184

20030318 13-8 L6652EL

Ref. No. Description Part No.

R592# CARBON RES. 1/4W J 220k Ω RCX4JATZ0224
R593# CARBON RES. 1/4W J 68k Ω RCX4JATZ0683
R594# CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R596 PCB JUMPER D0.6-P5.0 JW5.0T
R597 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822
R598 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333
R599# CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R601# CEMENT RES. 7W K 0.56 Ω or RW07R56DP007
# CEMENT RESISTOR 7W K 0.56 Ω H=10MM RW07R56PG001
R602 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824
R603 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824
R604 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824
R605 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824
R607 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

R608 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R609 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824
R613# CEMENT RES. 5W K 0.27 Ω or RW05R27DP005
# CEMENT RESISTOR 5W K 0.27 Ω RW05R27PG001
R616 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R618 CARBON RES. 1/4W J 390 Ω or RCX4JATZ0391

CARBON RES. 1/6W J 390 Ω RCX6JATZ0391
R620# CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101
# CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R621 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R622 CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470

CARBON RES. 1/6W J 47 Ω RCX6JATZ0470
R623 CARBON RES. 1/4W J 39 Ω or RCX4JATZ0390

CARBON RES. 1/6W J 39 Ω RCX6JATZ0390
R651# METAL OXIDE FILM RES. 2W J 15k Ω or RN02153ZU001
# METAL OXIDE FILM RES. 2W J 15k Ω RN02153DP004
R652 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R653 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R654# CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R655 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R656# CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R657 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R658 CARBON RES. 1/4W J 470k Ω RCX4JATZ0474
R660 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R661# CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R662# CARBON RES. 1/4W J 82k Ω RCX4JATZ0823
R663 PCB JUMPER D0.6-P5.0 JW5.0T
R664# CARBON RES. 1/4W J 12k Ω RCX4JATZ0123
R665# CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562
R666# METAL OXIDE FILM RES. 1W J 100k Ω or RN01104ZU001
# METAL OXIDE FILM RES. 1W J 100k Ω RN01104DP003
R667# CARBON RES. 1/4W J 33k Ω RCX4JATZ0333
R668# CARBON RES. 1/4W J 33k Ω RCX4JATZ0333
R669# CARBON RES. 1/4W J 33k Ω RCX4JATZ0333
R670# CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R671# CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R672# CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R673# CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R674 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R676 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R677 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R678 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R679# CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

Ref. No. Description Part No.

R680 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R681# CARBON RES. 1/4W J 12 Ω or RCX4JATZ0120
# CARBON RES. 1/6W J 12 Ω RCX6JATZ0120
R682# METAL OXIDE FILM RES. 2W J 33 Ω or RN02330ZU001
# METAL OXIDE FILM RES. 2W J 33 Ω RN02330DP004
R683# METAL RESISTOR 2W J 39 Ω or RN02390ZU001
# METAL OXIDE FILM RES. 2W J 39 Ω RN02390DP004
R686 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R687 CARBON RES. 1/4W J 10 Ω or RCX4JATZ0100

CARBON RES. 1/6W J 10 Ω RCX6JATZ0100
R694# CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R696# CARBON RES. 1/4W J 10 Ω or RCX4JATZ0100
# CARBON RES. 1/6W J 10 Ω RCX6JATZ0100
R697 PCB JUMPER D0.6-P5.0 JW5.0T
R701 CARBON RES. 1/4W J 82 Ω or RCX4JATZ0820

CARBON RES. 1/6W J 82 Ω RCX6JATZ0820
R702 CARBON RES. 1/4W J 82 Ω or RCX4JATZ0820

CARBON RES. 1/6W J 82 Ω RCX6JATZ0820
R704 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R705 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R706 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333
R707 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R708 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R709 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333
R711 CARBON RES. 1/4W J 82 Ω or RCX4JATZ0820

CARBON RES. 1/6W J 82 Ω RCX6JATZ0820
R713 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331
R716 CARBON RES. 1/4W J 82 Ω or RCX4JATZ0820

CARBON RES. 1/6W J 82 Ω RCX6JATZ0820
R718 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331
R721 CARBON RES. 1/4W J 82 Ω or RCX4JATZ0820

CARBON RES. 1/6W J 82 Ω RCX6JATZ0820
R722 CARBON RES. 1/4W J 82 Ω or RCX4JATZ0820

CARBON RES. 1/6W J 82 Ω RCX6JATZ0820
R724 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R725 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R726 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333
R727 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R728 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R729 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333
R751 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R752 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273
R761 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R762 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273
R771 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R772 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R803 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R804 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R811 CARBON RES. 1/4W J 18k Ω RCX4JATZ0183
R812 CARBON RES. 1/4W J 18k Ω RCX4JATZ0183
R817 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562
R818 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333
R827 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R828 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R829 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

20030318 13-9 L6652EL

Ref. No. Description Part No.

R831 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R832 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R833 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R834 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R841 METAL OXIDE FILM RES. 2W J 0.47 Ω or RN02R47ZU001

METAL OXIDE FILM RES. 2W J 0.47 Ω RN02R47DP004
R842 CARBON RES. 1/4W J 560 Ω or RCX4JATZ0561

CARBON RES. 1/6W J 560 Ω RCX6JATZ0561
R843 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R844 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R845 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R851# CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331
# CARBON RES. 1/6W J 330 Ω RCX6JATZ0331
R855# CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R856# CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R951 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R952 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R953 CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470

CARBON RES. 1/6W J 47 Ω RCX6JATZ0470
R954 CARBON RES. 1/4W J 75 Ω or RCX4JATZ0750

CARBON RES. 1/6W J 75 Ω RCX6JATZ0750
R956 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R957 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R959 CARBON RES. 1/4W J 75 Ω or RCX4JATZ0750

CARBON RES. 1/6W J 75 Ω RCX6JATZ0750
R961 PCB JUMPER D0.6-P5.0 JW5.0T
R962 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R966# CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R967# CARBON RES. 1/4W J 10k Ω RCX4JATZ0103

SWITCHES

SW101 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029
SW102 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029
SW103 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029
SW104 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029
SW105 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029
SW106 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029

MISCELLANEOUS

AC601# AC CORD LA-2413 WAC0172LW007
B-6 HEAT SINK(PGM)ASSEMBLY L6250UA 0EM407156
B-7 HEAT SINK(PFN)ASSEMBLY L1520UZ 0EM406353
B-8 HEAT SINK(PGN)ASSEMBLY L6250UA 0EM407158
B-9 HEAT SINK(PGO) L6250UA 0EM407159

Ref. No. Description Part No.

BC571 BEAD INDUCTORS FBA04HA600VB-00 LLBF00STU026
BC572 PCB JUMPER D0.6-P5.0 JW5.0T
BC602 PCB JUMPER D0.6-P5.0 JW5.0T
BC603 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC652 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC653 PCB JUMPER D0.6-P5.0 JW5.0T
BC654 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC655 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC656 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC657 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC691 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC692 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
CF31 CERAMIC TRAP 4.5MHz or FBE455PMR003

CERAMIC TRAP 4.5MHz FBE455PMS001

CF32 CERAMIC FILTER SFSRA4M50CF00-B0 or FBB455PMR004

CERAMIC FILTER 4.5MHz FBB455PMS001
CLN1 LEAD WIRE UL1007 AWG22 BLACK 140MM WX3001A2FF14
CLN301 WIRE ASSEMBLY WX1L1520-103 WX1L1520-103
CLN501 WIRE ASSEMBLY WX1L1520-101 WX1L1520-101
F601# FUSE 4A/125V 237 TYPE or PAGJ20CAG402

# FUSE TDS4A125VU/C or PAGD20CW3402
# FUSE STC4A125V U/CT or PAGE20CW3402
# FUSE 4.00A/125V PAGG20CNG402

FH601 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 or XH01Z00DK001

HOLDER, FUSE CNT41-0014 1790424
FH602 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 or XH01Z00DK001

HOLDER, FUSE CNT41-0014 1790424
GP641# GAP. FNR-G3.10D FAZ000LD6005
JK701 RCA JACK(YELLOW) MSP-281V4-B JXRL010LY003
JK702 RCA JACK(WHITE) MSP-281V1-B JXRL010LY005
JK703 RCA JACK(RED) MSP-281V3-A JYRL010LY002
JK711 Y/C JACK 1P(SW) MDC-070V1-A JYEL040LY002
JK721 RCA JACK(YELLOW) MTJ-032-06B-20 or JXRL010LY050

RCA JACK 1P AV-8.4-9Y JXRL010RP010
JK722 RCA JACK(WHITE) MTJ-032-06B-22 or JXRL010LY052

RCA JACK 1P AV-8.4-9W JXRL010RP011
JK723 RCA JACK(RED) MTJ-032-06A-21 or JYRL010LY014

RCA JACK 1P(RED)WITH SW ITCH AV1-09S-2 JYRL010RP008
JS102 PCB JUMPER D0.6-P5.0 JW5.0T
JS104 PCB JUMPER D0.6-P5.0 JW5.0T
JS106 PCB JUMPER D0.6-P5.0 JW5.0T
JS171 PCB JUMPER D0.6-P15.0 JW15.0T
JS191 PCB JUMPER D0.6-P5.0 JW5.0T
JS301 PCB JUMPER D0.6-P5.0 JW5.0T
JS570 PCB JUMPER D0.6-P5.0 JW5.0T
JS642 PCB JUMPER D0.6-P10.0 JW10.0T
JS801 PCB JUMPER D0.6-P5.0 JW5.0T
JS802 PCB JUMPER D0.6-P10.0 JW10.0T
JS821 PCB JUMPER D0.6-P5.0 JW5.0T
JS822 PCB JUMPER D0.6-P7.5 JW7.5T
L-1 SCREW, B-TIGHT M3X8 BIND HEAD+ or GBMB3080

SCREW, B-TIGHT M3X8 BIND HEAD+ or GBMB3080

SCREW, B-TIGHT M3X8 BIND HEAD+ or GBMB3080

SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080
PB6 CLOTH(65) L7735TR:65X10X0.5T 0EM402149
PS691# THERMISTOR ZPB58BL7R0F QNQZ58BL7R0F
RCV101 REMOCON RECEIVE UNIT MIM-93M8DKL or USESJRSUNT02

REMOCON RECEIVE UNIT PIC-37042SR or USESJRSKK034

REMOCON RECEIVE UNIT PIC-26042SR-2 USESJRSKK032

20030318 13-10 L6652EL

Ref. No. Description Part No.

RL601# POWER RELAY SDT-S-112LMR or MRNDC12QN014
# POWER RELAY RPEF-12-901 or MRNDC12KB002
# RELAY DG12D1-O(M)-II or MRNDC12DEC02
# RELAY ALKS321 MRNDC12MS013
SA601# SURGE ABSORBER AVR-S07D471KAAS or QVQZ0AVRS07D
# SURGE ABSORBER JVR-07N471K or NVQZVR07N471
# SURGE ABSORBER CNR-10D471K or NVQZR10D471K
# SURGE ABSORBER CNR-07D471K or NVQZR07D471K
# SURGE ABSORBER PVR-07D471KB NVQZ07D471KB

SF1 SAW FILTER SAFGM45M7VHHzC0B03 FBB456PMR008
T571# FLYBACK TRANS BSC28-0731 or LTF00CPP1019
# FLYBACK TRANSFORMER JF0501-2189 LTF00CPXB038
T572 HORIZONTAL DRAIVE TRANS Y2004 or LTH00CPY2004

HORIZONTAL DRAIVE TRANS CSA-LF044 LTH00CPSA002
T601# SWITCHING TRANS KD-02707 LTT00CPKT095
TH556 PCB JUMPER D0.6-P5.0 JW5.0T
TP300 PCB JUMPER D0.6-P10.0 JW10.0T
TP301 PCB JUMPER D0.6-P7.5 JW7.5T
TP302 PCB JUMPER D0.6-P7.5 JW7.5T
TP500 PCB JUMPER D0.6-P7.5 JW7.5T
TP501 PCB JUMPER D0.6-P7.5 JW7.5T
TP591 PCB JUMPER D0.6-P5.0 JW5.0T
TP592 PCB JUMPER D0.6-P5.0 JW5.0T
TP601 PCB JUMPER D0.6-P7.5 JW7.5T
TU1 TUNER UNIT TEQH9-001A UTUNNTUAL032
VR561 CARBON P.O.T. 20k Ω B or VRCB203KA011

CARBON P.O.T. 20k Ω B VRCB203HH014
VR562 CARBON P.O.T. 5k Ω B or VRCB502KA011

CARBON P.O.T. 5k Ω B VRCB502HH014
VR661# CARBON P.O.T. 50k Ω B or VRCB503KA011

CARBON P.O.T. 50k Ω B VRCB503HH014
X301 X'TAL 3.579545 MHz FXD355LLN003

CRT CBA

Ref. No. Description Part No.

CRT CBA

Consists of the following

CAPACITORS

C1501 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C1502 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C1510 CERAMIC CAP. B K 2200pF/2KV or CCD3DKD0B222

CERAMIC CAP. B K 2200pF/2KV or CCD3DKP0B222

CERAMIC CAP. B K 2200pF/2KV CA3D222MR030
C1511 CERAMIC CAP.(AX) B K 470pF/50V CCA1JKT0B471
C1512 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011
C1521 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221
C1522 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011
C1531 CERAMIC CAP.(AX) B K 470pF/50V CCA1JKT0B471
C1532 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011

CONNECTOR

CN1501 PIN CONNECTOR 005P-5100 JTEA001TG001

DIODES

D1501 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 or NDTZ001N4148

DIODE 1SS176TPA7 1SS176T

COILS

L1501# INDUCTOR 180µH-J-5FT or LLARJCSTU181

------------

Ref. No. Description Part No.

# INDUCTOR 180µH-K-5FT LLARKDSKA181
L1511 PCB JUMPER D0.6-P5.0 JW5.0T
L1521 PCB JUMPER D0.6-P5.0 JW5.0T
L1531 PCB JUMPER D0.6-P5.0 JW5.0T

TRANSISTORS

Q1511 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1512 TRANSISTOR 2SC5360 or QQ9Z02SC5360

TRANSISTOR 2SC4544 or QQ9Z02SC4544
TRANSISTOR KTC3229 NQ5Z0KTC3229

Q1521 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1522 TRANSISTOR 2SC5360 or QQ9Z02SC5360

TRANSISTOR 2SC4544 or QQ9Z02SC4544
TRANSISTOR KTC3229 NQ5Z0KTC3229

Q1531 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q1532 TRANSISTOR 2SC5360 or QQ9Z02SC5360

TRANSISTOR 2SC4544 or QQ9Z02SC4544
TRANSISTOR KTC3229 NQ5Z0KTC3229

RESISTORS

R1501 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R1502 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R1503 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R1509 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R1510# METAL RESISTOR 3W J 10k Ω or RN03103ZU001
# FIXED METAL OXIDE FILM RES. 3W J 10k Ω RN03103DP005
R1511 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R1512 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R1514 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R1515 CARBON RES. 1/4W J 820 Ω or RCX4JATZ0821

CARBON RES. 1/6W J 820 Ω RCX6JATZ0821
R1518 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R1519 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R1520# METAL RESISTOR 3W J 10k Ω or RN03103ZU001

20030318 13-11 L6652EL

Ref. No. Description Part No.

# FIXED METAL OXIDE FILM RES. 3W J 10k Ω RN03103DP005
R1521 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R1522 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R1524 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R1525 CARBON RES. 1/4W J 820 Ω or RCX4JATZ0821

CARBON RES. 1/6W J 820 Ω RCX6JATZ0821

R1528 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

R1529 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R1530# METAL RESISTOR 3W J 10k Ω or RN03103ZU001
# FIXED METAL OXIDE FILM RES. 3W J 10k Ω RN03103DP005
R1531 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R1532 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R1534 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R1535 CARBON RES. 1/4W J 820 Ω or RCX4JATZ0821

CARBON RES. 1/6W J 820 Ω RCX6JATZ0821
R1538 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221

MISCELLANEOUS

BC1501 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
JK1501# CRT SOCKET ISHS40ST or JSCC290PK006
# CRT SOCKET HPS0521-012212 JSCC290HD012
JS1551 PCB JUMPER D0.6-P5.0 JW5.0T

20030318 13-12 L6652EL

SST4323 L6652UC

Printed in Japan

2003-04-17 HO
