Symphonic SRT2227X Schematic

SERVICE MANUAL

27" COLOR TELEVISION

SRT2227X

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and de­scribed in this service manual are effective methods of performing service
operations. Some of these service special tools should be used when and
as recommended.

It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk of
personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to under­stand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai
could not possibly know, evaluate and advice the service trade of all con­ceivable ways in which service might be done or of the possible hazardous
consequences of each way. Consequently, Funai has not undertaken any
such broad evaluation. Accordingly, a servicer who uses a service proce­dure or tool which is not recommended by Funai must first use all precau­tions thoroughly so that neither his safety nor the safe operation of the
equipment will be jeopardized by the service method selected.

TABLE OF CONTENTS

Specifications ........................................................ 1-1

Important Safety Precautions................................ 2-1

Standard Notes for Servicing ................................ 3-1

Disassembly Instructions ...................................... 4-1

Electrical Adjustment Instructions ......................... 5-1

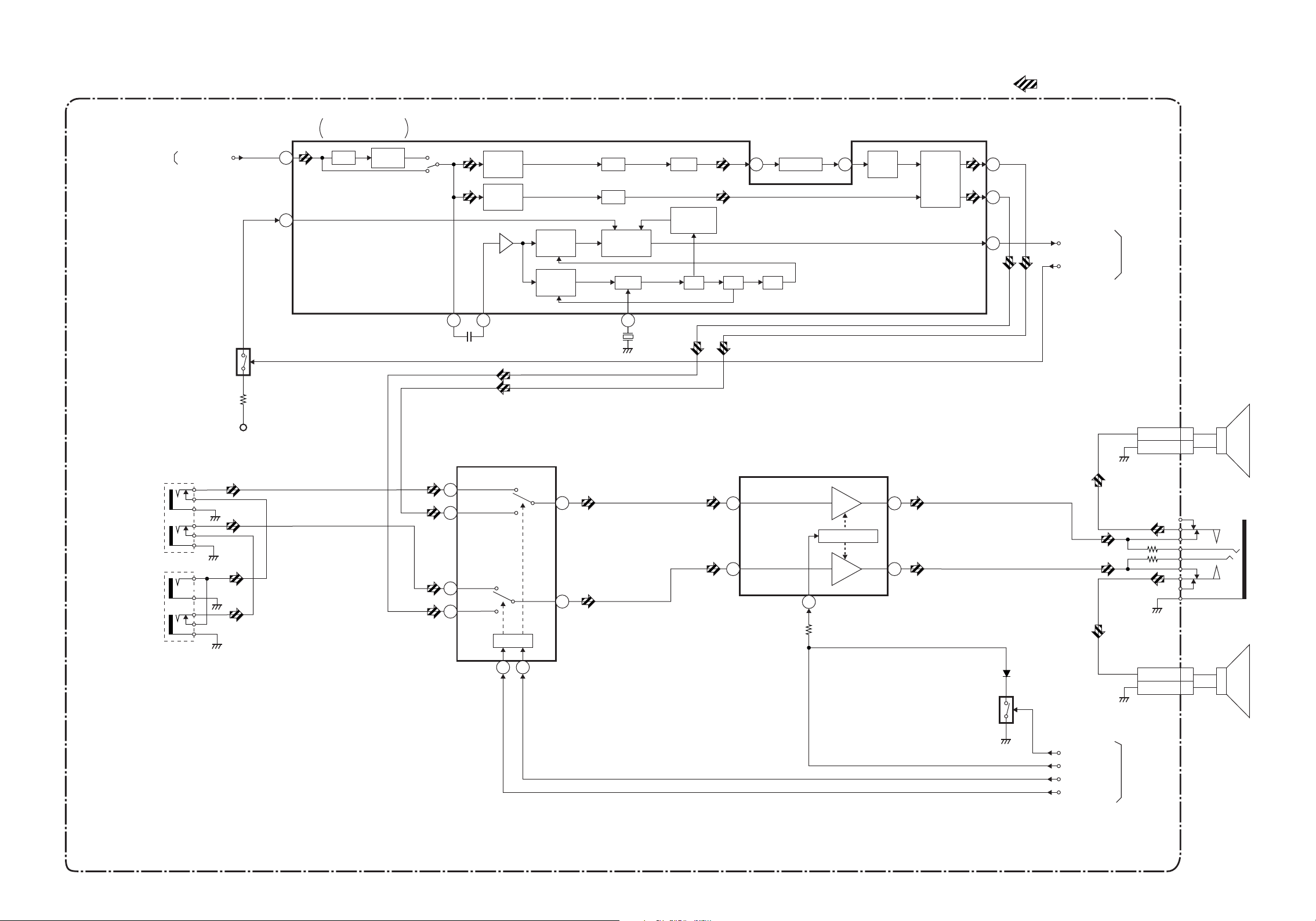

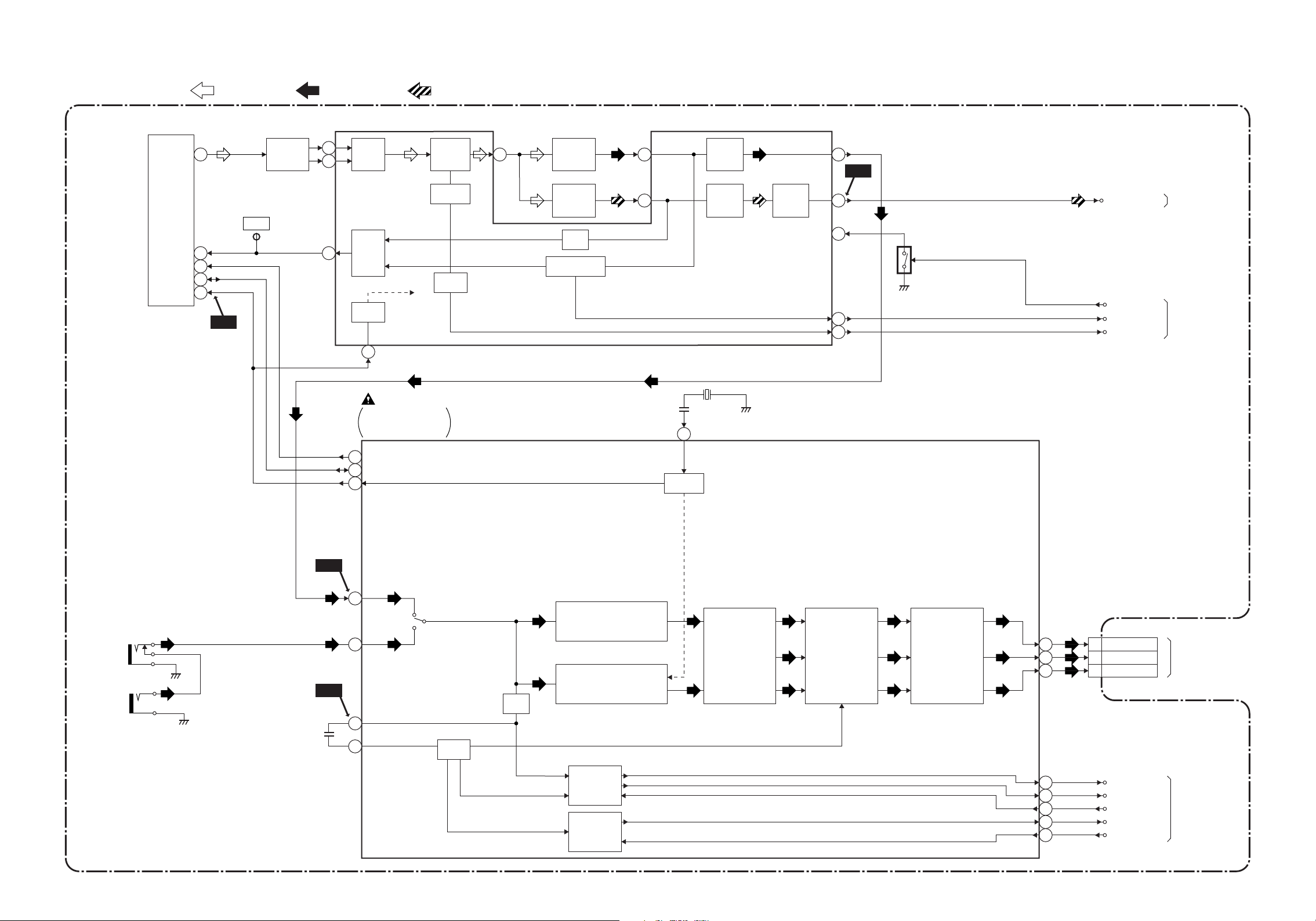

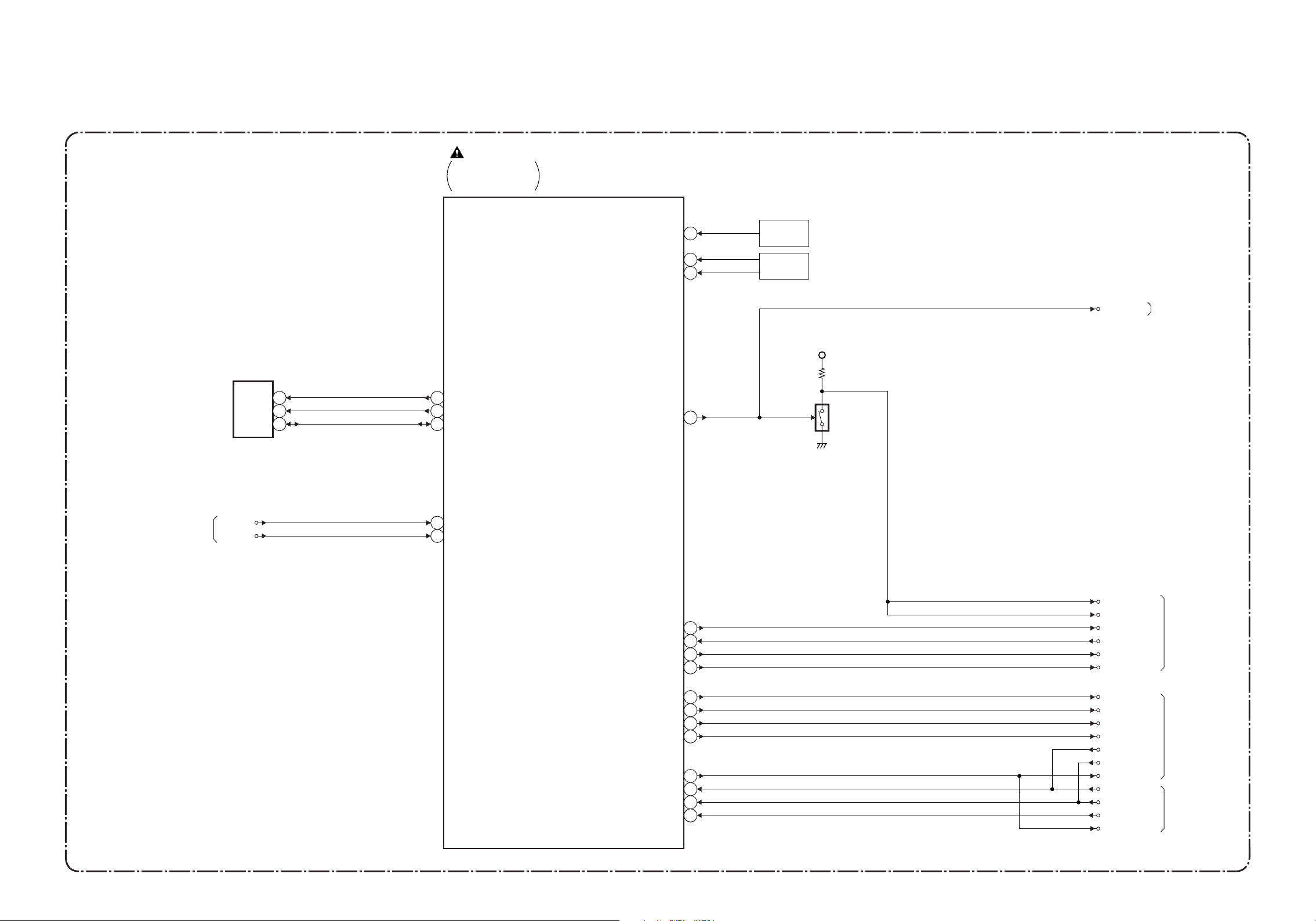

Block Diagram....................................................... 6-1

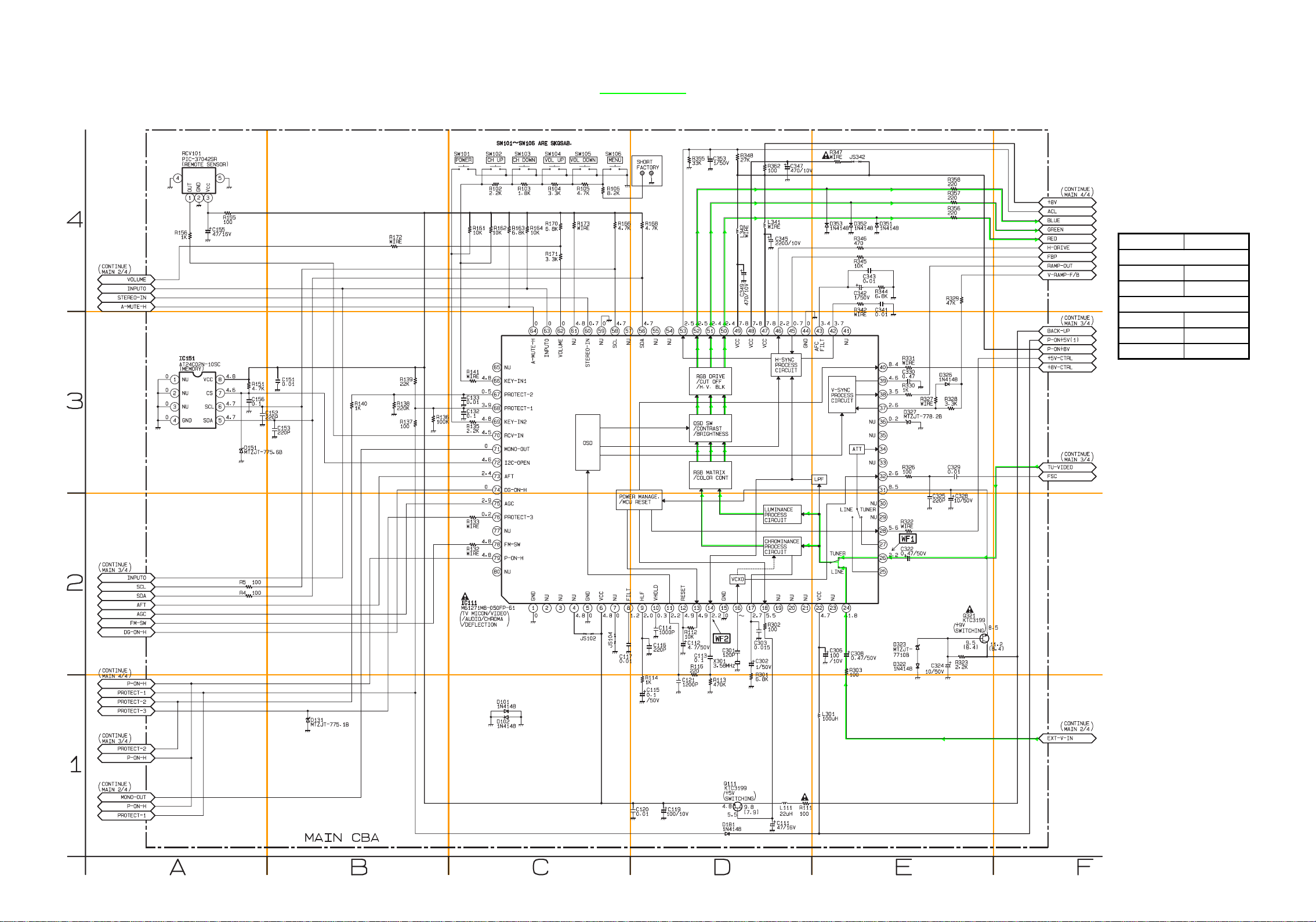

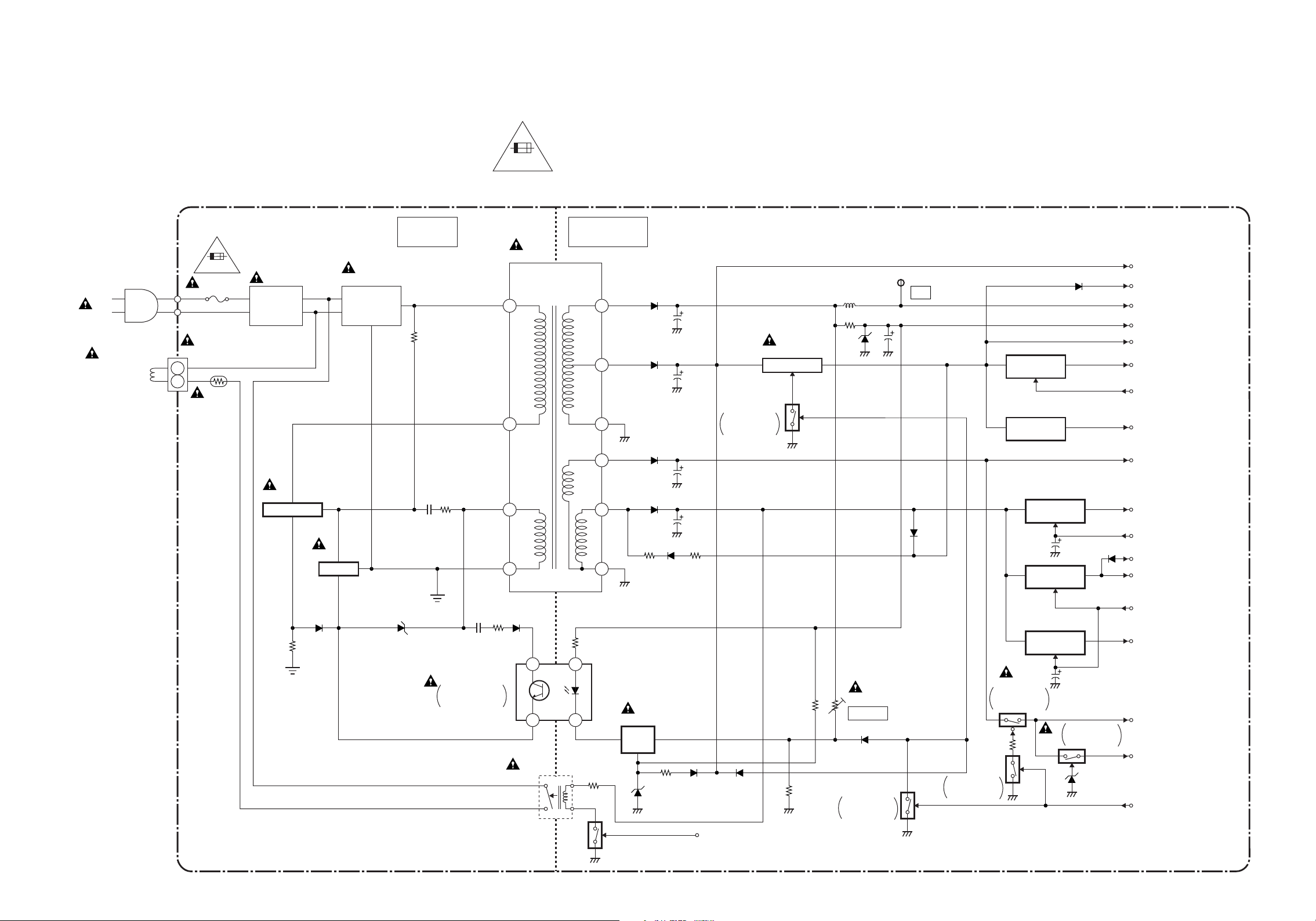

Schematic Diagram / CBA's and Test Points ....... 7-1

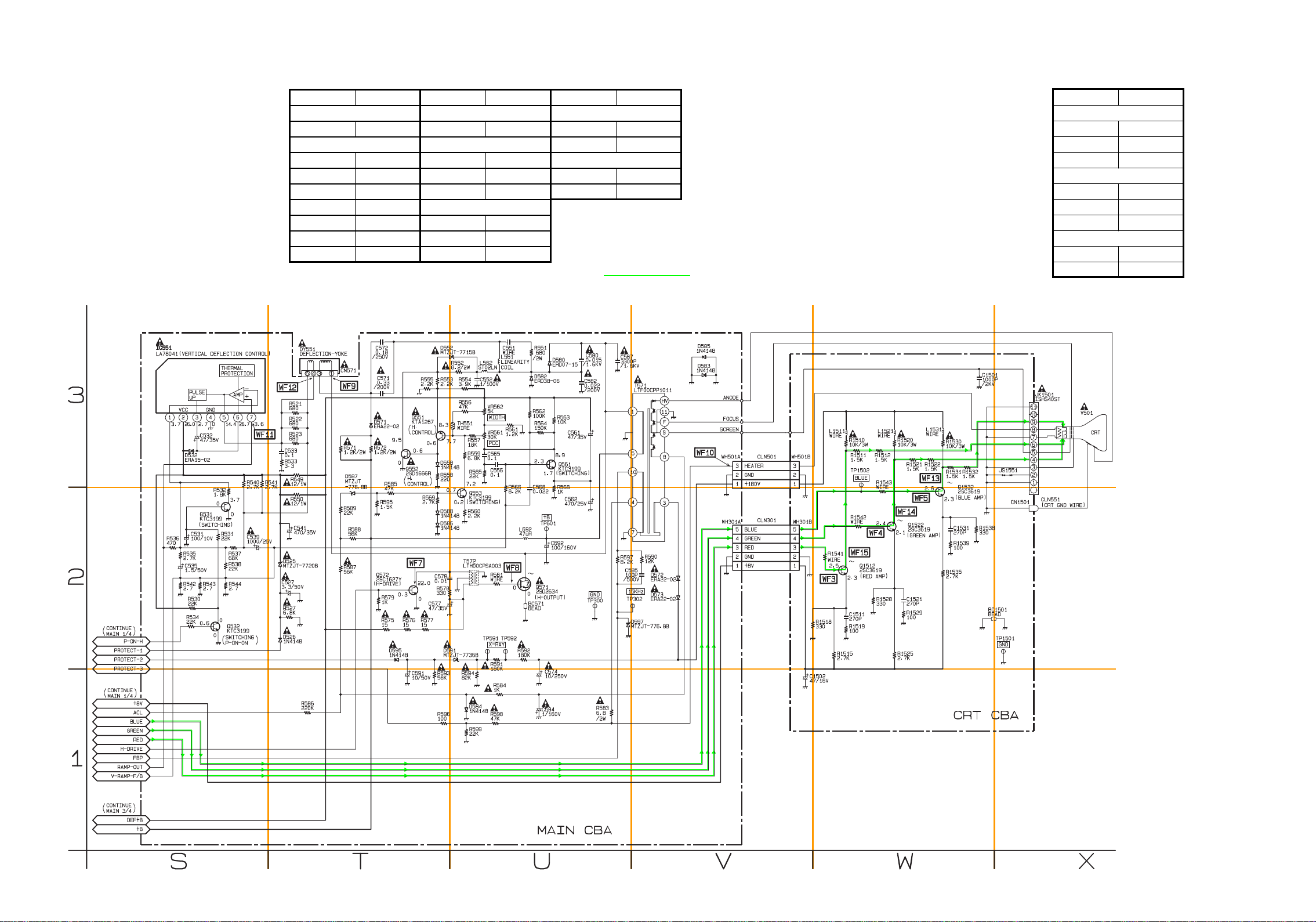

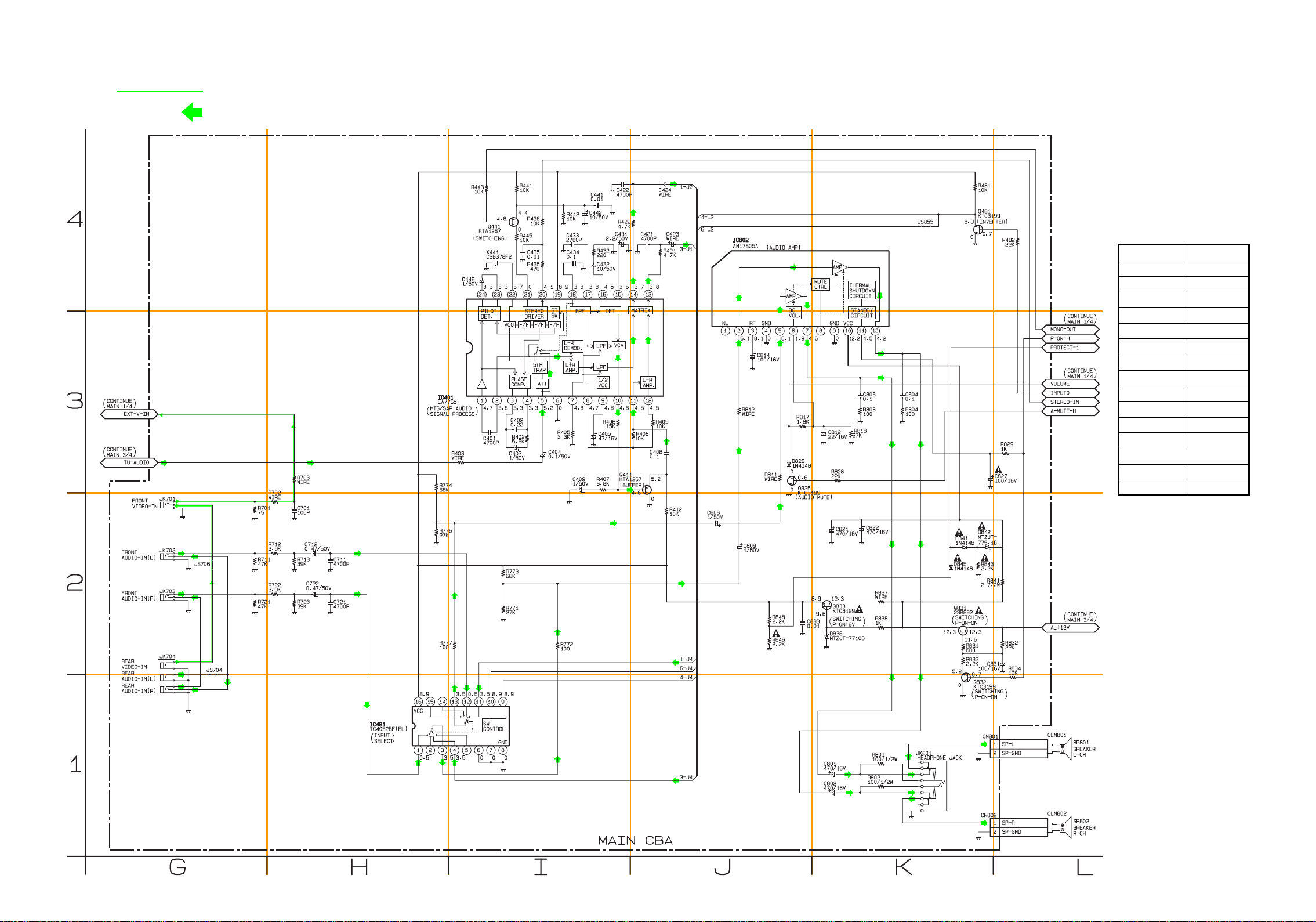

Schematic Diagram .............................................. 7-3

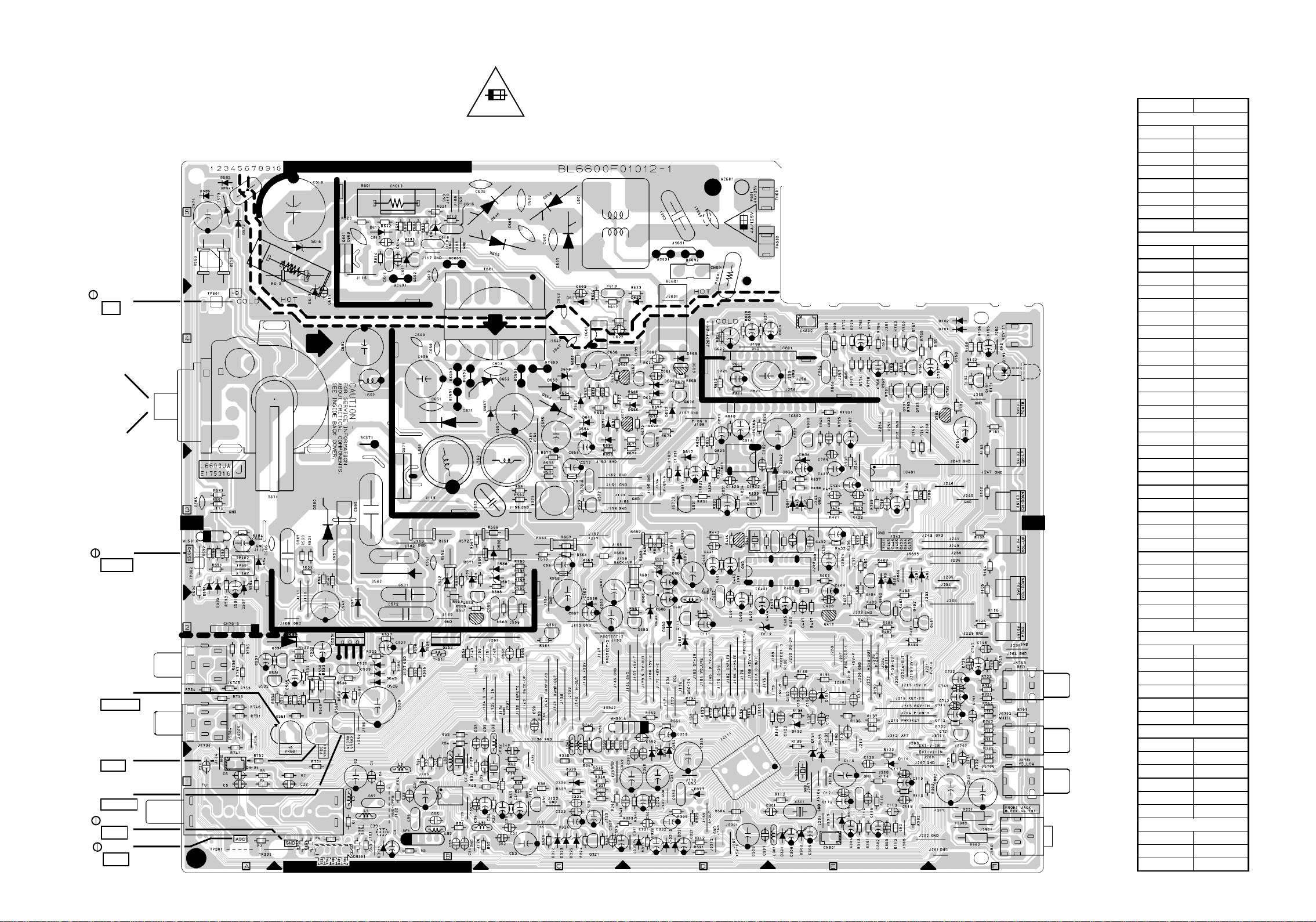

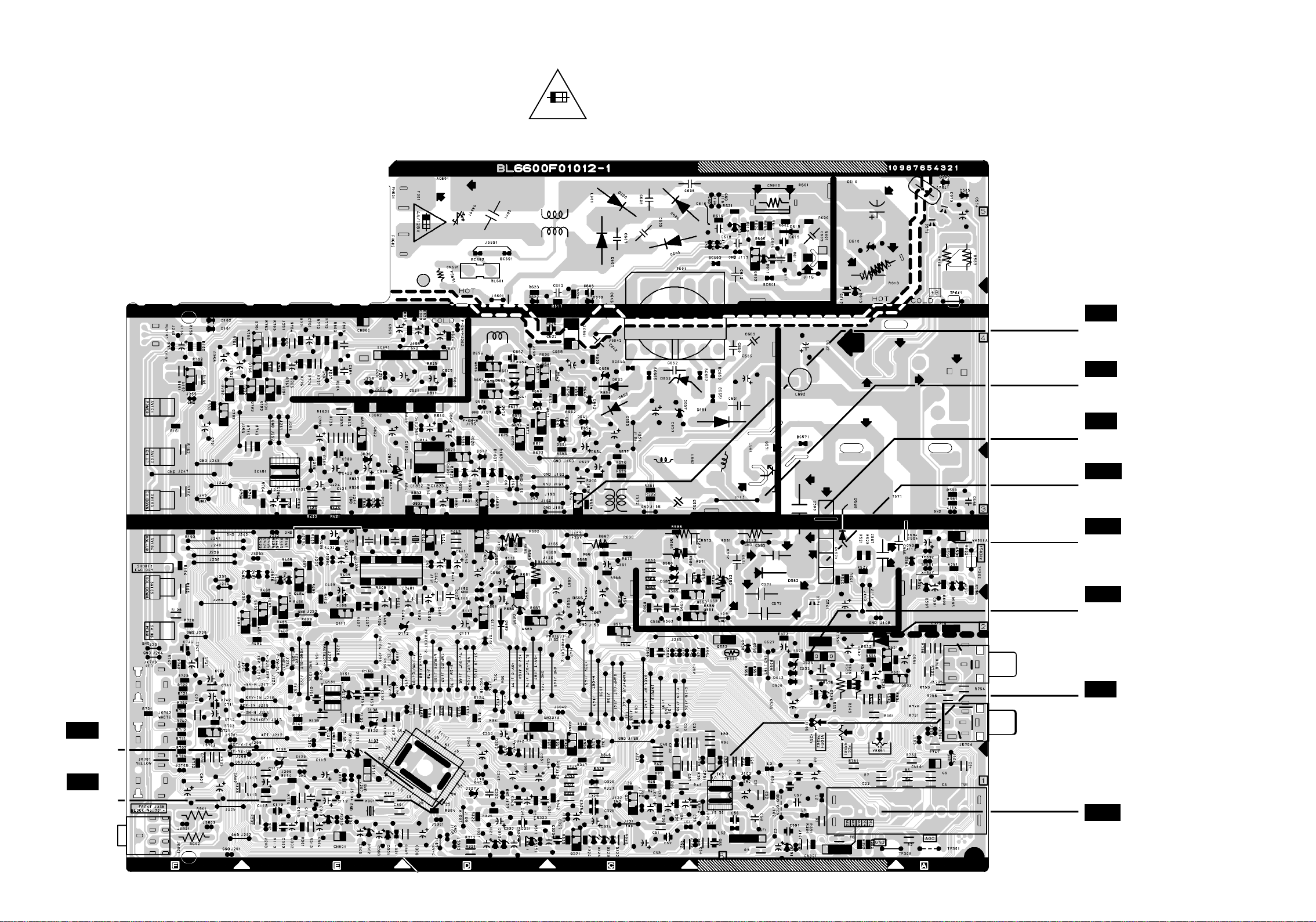

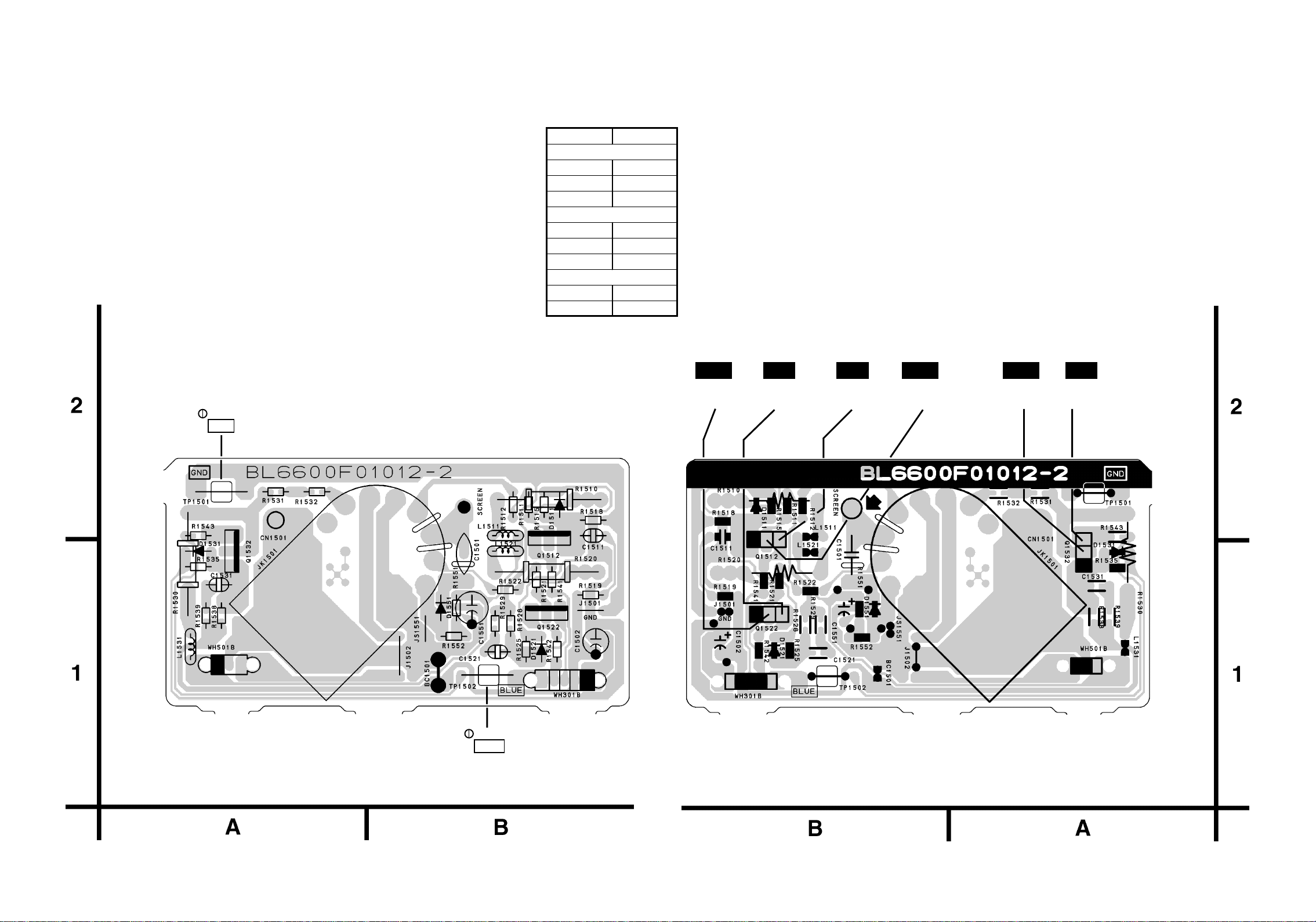

CBA Views and Test Points.................................. 7-11

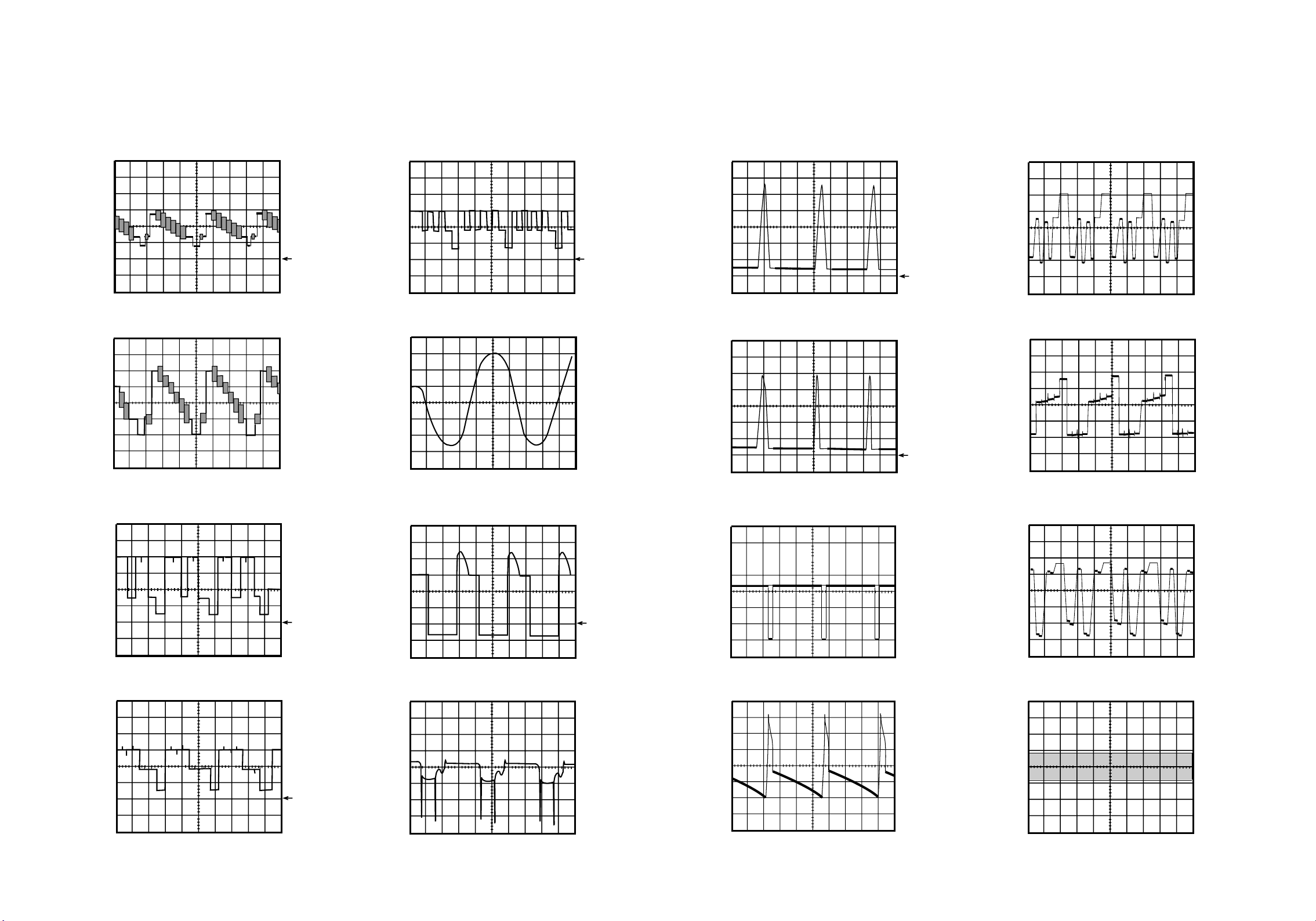

Wave Forms .......................................................... 8-1

Wiring Diagram...................................................... 9-1

IC Pin Function .................................................... 10-1

Cabinet Exploded View ....................................... 11-1

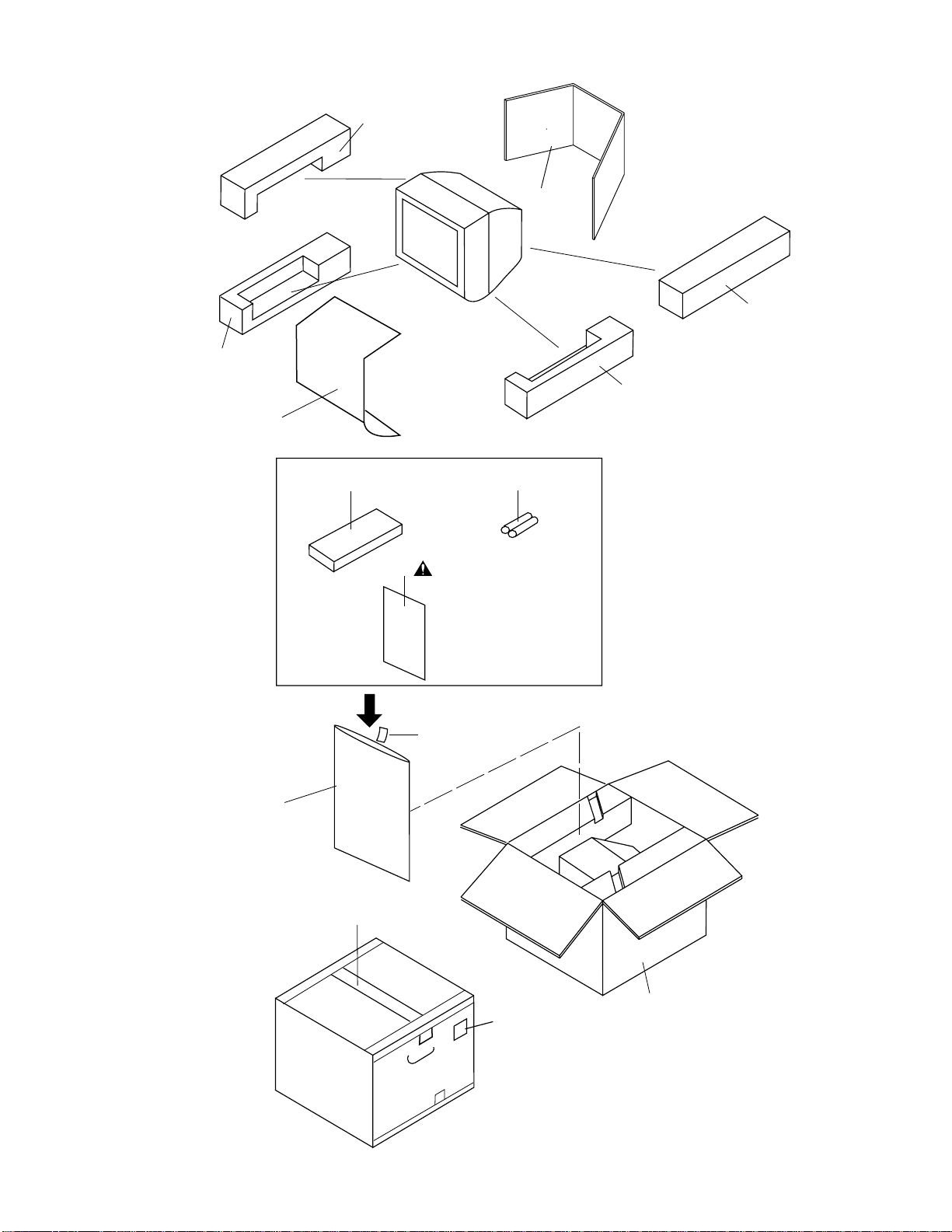

Packing Exploded View ....................................... 11-3

Mechanical Parts List .......................................... 12-1

Electrical Parts List.............................................. 13-1

SPECIFICATIONS

<TUNER> ANT. Input ------------------- 75ohm Unbal., F type

Reference Level ----------- 20Vp-p (CRT Green Cathode)
Test Input Signal ---------- 400Hz 30% modulation

Description Condition Unit Nominal Limit

1. Intermediate Freq. Picture
Sound

2. Peak Picture Sens VHF

CATV

UHF

3. AFT Pull In Range (10mV input)

-

<DEFLECTION>

Description Condition Unit Nominal Limit

1. Deflection Freq. Horizontal

Vert ical

2. Linearity Horizontal

Vert ical

3. Over Scan

4. High Voltage

-

-

<VIDEO & CHROMA>

Description Condition Unit Nominal Limit

MHz
MHz

dBµv
dBµv
dBµv

MHz ±2.0 ±0.7

KHz

Hz

%
%

%10

KV 28

45.75

41.25
15

15
15

15.734
60

-

-

-

­30

30
40

-

-

±15
±10

-

-

1. Misconvergence Center
Side

Corner

2. Brightness APL 100% Ft-L 25 15

3. Color Temperature

4. Resolution Horizontal

<AUDIO>

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD W 1 0.8

2. Audio Distortion (w/LPF) 500mW % 2 7

3. Audio Freq. Response -3dB Hz 70~11K

Note:

Nominal specifications represent the design specifications. All units should be able to approximate
these. Some will exceed and some may drop slightly below these specifications. Limit specifications
represent the absolute worst condition that still might be considered acceptable. In no case should
a unit fail to meet limit specifications.

All items are measured across 8Ω load at speaker output terminal.

-

Vert ical

mm
mm
mm

°K 9200°K

Line
Line

-

-

-

250
300

0.4

1.5

2.1

-

-

-

-

1-1 L6600SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.

Safety Precautions for TV Circuit

1. Before returning an instrument to the custom-

er, always make a safety check of the entire instru-

ment, including, but not limited to, the following
items:

a. Be sure that no built-in protective devices are de-

fective and have been defeated during servicing.
(1) Protective shields are provided on this chassis
to protect both the technician and the customer.
Correctly replace all missing protective shields, in­cluding any removed for servicing convenience.
(2) When reinstalling the chassis and/or other as­sembly in the cabinet, be sure to put back in place
all protective devices, including but not limited to,
nonmetallic control knobs, insulating fishpapers,
adjustment and compartment covers/shields, and
isolation resistor/capacitor networks. Do not oper-

ate this instrument or permit it to be operated
without all protective devices correctly in­stalled and functioning. Servicers who defeat
safety features or fail to perform safety checks
may be liable for any resulting damage.

b. Be sure that there are no cabinet openings through

which an adult or child might be able to insert their
fingers and contact a hazardous voltage. Such
openings include, but are not limited to, (1) spac­ing between the picture tube and the cabinet
mask, (2) excessively wide cabinet ventilation
slots, and (3) an improperly fitted and/or incorrectly
secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an
electrical jumper across the two AC plug prongs.
Place the instrument AC switch in the on position.
Connect one lead of an ohmmeter to the AC plug
prongs tied together and touch the other ohmme­ter lead in turn to each tuner antenna input ex­posed terminal screw and, if applicable, to the
coaxial connector. If the measured resistance is
less than 1.0 megohm or greater than 5.2 mego­hm, an abnormality exists that must be corrected
before the instrument is returned to the customer.
Repeat this test with the instrument AC switch in
the off position.

d. Leakage Current Hot Check - With the instru-

ment completely reassembled, plug the AC line
cord directly into a 120V AC outlet. (Do not use an
isolation transformer during this test.) Use a leak-

age current tester or a metering system that com­plies with American National Standards Institute
(ANSI) C101.1 Leakage Current for Appliances
and Underwriters Laboratories (UL) 1410, (50.7).
With the instrument AC switch first in the on posi­tion and then in the off position, measure from a
known earth ground (metal water pipe, conduit,
etc.) to all exposed metal parts of the instrument
(antennas, handle brackets, metal cabinet, screw
heads, metallic overlays, control shafts, etc.), es­pecially any exposed metal parts that offer an elec­trical return path to the chassis. Any current
measured must not exceed 0.5 milli-ampere. Re­verse the instrument power cord plug in the outlet
and repeat the test.

READING SHOULD
NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED

METAL SURFACES

ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG
AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS
SPECIFIED HEREIN INDICATE A POTENTIAL
SHOCK HAZARD THAT MUST BE ELIMINATED
BEFORE RETURNING THE INSTRUMENT TO
THE CUSTOMER OR BEFORE CONNECTING
THE ANTENNA OR ACCESSORIES.

e. X-Radiation and High Voltage Limits - Because

the picture tube is the primary potential source of
X-radiation in solid-state TV receivers, it is special­ly constructed to prohibit X-radiation emissions.
For continued X-radiation protection, the replace­ment picture tube must be the same type as the
original. Also, because the picture tube shields
and mounting hardware perform an X-radiation
protection function, they must be correctly in place.
High voltage must be measured each time servic-

CURRENT

TESTER

+

EARTH
GROUND

_

2-1 L6115IMP

ing is performed that involves B+, horizontal de­flection or high voltage. Correct operation of the X­radiation protection circuits also must be recon­firmed each time they are serviced. (X-radiation
protection circuits also may be called "horizontal
disable" or "hold down.") Read and apply the high
voltage limits and, if the chassis is so equipped,
the X-radiation protection circuit specifications giv­en on instrument labels and in the Product Safety
& X-Radiation Warning note on the service data
chassis schematic. High voltage is maintained
within specified limits by close tolerance safety-re­lated components/adjustments in the high-voltage
circuit. If high voltage exceeds specified limits,
check each component specified on the chassis
schematic and take corrective action.

2. Read and comply with all caution and safety-relat­ed notes on or inside the receiver cabinet, on the
receiver chassis, or on the picture tube.

3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this TV re­ceiver. Design alterations and additions, including,
but not limited to circuit modifications and the ad­dition of items such as auxiliary audio and/or video
output connections, might alter the safety charac­teristics of this receiver and create a hazard to the
user. Any design alterations or additions will void
the manufacturer's warranty and may make you,
the servicer, responsible for personal injury or
property damage resulting therefrom.

4. Picture Tube Implosion Protection Warning -
The picture tube in this receiver employs integral
implosion protection. For continued implosion pro­tection, replace the picture tube only with one of
the same type number. Do not remove, install, or
otherwise handle the picture tube in any manner
without first putting on shatterproof goggles
equipped with side shields. People not so
equipped must be kept safely away while picture
tubes are handled. Keep the picture tube away
from your body. Do not handle the picture tube by
its neck. Some "in-line" picture tubes are equipped
with a permanently attached deflection yoke; be­cause of potential hazard, do not try to remove
such "permanently attached" yokes from the pic­ture tube.

5. Hot Chassis Warning -

a. Some TV receiver chassis are electrically connect-

ed directly to one conductor of the AC power cord
and maybe safety-serviced without an isolation
transformer only if the AC power plug is inserted
so that the chassis is connected to the ground side
of the AC power source. To confirm that the AC
power plug is inserted correctly, with an AC volt­meter, measure between the chassis and a known

earth ground. If a voltage reading in excess of 1.0V
is obtained, remove and reinsert the AC power
plug in the opposite polarity and again measure
the voltage potential between the chassis and a
known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground re­gardless of the AC plug polarity. This chassis can
be safety-serviced only with an isolation transform­er inserted in the power line between the receiver
and the AC power source, for both personnel and
test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis
ground. This secondary ground system is not iso­lated from the AC power line. The two ground sys­tems are electrically separated by insulation
material that must not be defeated or altered.

6. Observe original lead dress. Take extra care to as­sure correct lead dress in the following areas:a.
near sharp edges,b. near thermally hot parts-be
sure that leads and components do not touch ther­mally hot parts,c. the AC supply,d. high voltage,
and,e. antenna wiring. Always inspect in all areas
for pinched, out of place, or frayed wiring. Check
AC power cord for damage.

7. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or wir­ing that meet original specifications. Additionally,
determine the cause of overheating and/or dam­age and, if necessary, take corrective action to re­move any potential safety hazard.

8. Product Safety Notice - Some electrical and me­chanical parts have special safety-related charac­teristics which are often not evident from visual
inspection, nor can the protection they give neces­sarily be obtained by replacing them with compo­nents rated for higher voltage, wattage, etc.. Parts
that have special safety characteristics are identi­fied by a ( # ) on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or
other hazards. The product's safety is under re­view continuously and new instructions are issued
whenever appropriate. Prior to shipment from the
factory, our products are strictly inspected to con­firm they comply with the recognized product safe­ty and electrical codes of the countries in which
they are to be sold. However, in order to maintain
such compliance, it is equally important to imple­ment the following precautions when a set is being
serviced.

2-2 L6115IMP

Precautions during Servicing

A. Parts identified by the ( # ) symbol are critical for

safety.
Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations ap­plying to spurious radiation. These must also be
replaced only with specified replacements.

Examples: RF converters, RF cables, noise block­ing capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads
D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.
E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder­ing.

F. Observe that the wires do not contact heat produc-

ing parts (heatsinks, oxide metal film resistors, fus­ible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Use care that foreign objects (screws, solder drop-

lets, etc.) do not remain inside the set.
K. Crimp type wire connector

The power transformer uses crimp type connec-

tors which connect the power cord and the primary

side of the transformer. When replacing the trans-

former, follow these steps carefully and precisely

to prevent shock hazards.

Replacement procedure

1) Remove the old connector by cutting the wires at

a point close to the connector.

Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the insulation from the ends

of the wires. If the wires are stranded, twist the

strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. In­sert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at
the center position. Be sure to crimp fully to the
complete closure of the tool.

L. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC supply outlet.

2-3 L6115IMP

Safety Check after Servicing

Examine the area surrounding the repaired location
for damage or deterioration. Observe that screws,
parts and wires have been returned to original posi­tions. Afterwards, perform the following tests and con­firm the specified values in order to verify compliance
with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between sol­dered terminals, and between terminals and surround­ing metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only.
Be sure to confirm the precise values.

USA or

CANADA

Clearance

Distance (d) (d')

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current be­tween B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across both terminals of
load Z. See Fig. 2 and following table.

Z

1.5kΩ

Chassis or Secondary Conductor

Primary Circuit Terminals

dd'

Exposed Accessible Part

AC Voltmeter

0.15µF

Earth Ground

B

Power Cord Plug Prongs

(High Impedance)

Fig. 1

Fig. 2

Table 2 : Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

0.15µF CAP. & 1.5kΩ

110 to 130 V USA

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

RES. connected in

parallel

2-4 L6115IMP

i≤0.5mA rms

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

Circuit Board Indications

a. The output pin of the 3 pin Regulator ICs is indicat-

ed as shown.

Top View

Out

b. For other ICs, pin 1 and every fifth pin are indicat-

ed as shown.

Pin 1

c. The 1st pin of every male connector is indicated as

shown.

Pin 1

Input

In

Bottom View

5

10

(2) Remove the flat pack-IC with tweezers while ap-

plying the hot air.

(3) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Caution:

1. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)

2. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when remov­ing it.

Hot-air
Flat Pack-IC
Desoldering
Machine

CBA

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

(1) Prepare the hot-air flat pack-IC desoldering ma-

chine, then apply hot air to the Flat Pack-IC (about
5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

Masking
Tape

Tweezers

Flat Pack-IC

Fig. S-1-2

3-1 L6115STA

With Soldering Iron:

(1) Using desoldering braid, remove the solder from

all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

(2) Lift each lead of the flat pack-IC upward one by

one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering ma­chine.(Fig. S-1-4)

soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(5) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Note:

When using a soldering iron, care must be taken to
ensure that the flat pack-IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.

Hot Air Blower

or

Iron Wire

Soldering Iron

To Solid
Mounting Point

Fig. S-1-5

Sharp
Pin

Fine Tip
Soldering Iron

Fig. S-1-4

(3) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

With Iron Wire:

(1) Using desoldering braid, remove the solder from

all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

(2) Affix the wire to a workbench or solid mounting

point, as shown in Fig. S-1-5.

(3) While heating the pins using a fine tip soldering

iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA con­tact pads as shown in Fig. S-1-5.

(4) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply

CBA

Tweezers

Fine Tip
Soldering Iron

Flat Pack-IC

Fig. S-1-6

3-2 L6115STA

2. Installation

(1) Using desoldering braid, remove the solder from

the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.

(2) The "I" mark on the flat pack-IC indicates pin 1.

(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
pre- solder the four corners of the flat pack-IC.
(See Fig. S-1-8.)

(3) Solder all pins of the flat pack-IC. Be sure that

none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

Instructions for Handling
Semiconductors

Electrostatic breakdown of the semiconductors may
occur due to a potential difference caused by electro­static charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1MΩ) that is prop­erly grounded to remove any static electricity that may
be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1MΩ) on the workbench or
other surface, where the semiconductors are to be
placed. Because the static electricity charge on cloth­ing will not escape through the body grounding band,
be careful to avoid contacting semiconductors with
your clothing.

<Incorrect>

CBA

Presolder

Flat Pack-IC

Fig. S-1-8

<Correct>

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or
Copper Plate

3-3 L6115STA

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the
cabinet parts, and the CBA in order to gain access to
item(s) to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.

Caution !

When removing the CRT, be sure to discharge the
Anode Lead of the CRT with the CRT Ground Wire
before removing the Anode Cap.

[1] Rear Cabinet

[2] CRT CBA

[3] Main CBA

[4] CRT

2. Disassembly Method

Removal

Step/

Loc. No.

[1]

[2] CRT CBA 4,5 CN501 2

[3] Main CBA 3,5 CN571 3

[4] CRT 4 4(S-4), Anode Cap 4

Part

Rear
Cabinet

Fig.

No

1,2

Remove/*unlock/

release/unplug/

unclamp/desolder

7(S-1), 1(S-2),
1(S-3)

Note

1

Note :

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order.These numbers
are also used as the Identification (location) No. of
parts in figures.

(2) Parts to be removed or installed.
(3) Fig. No. showing procedure of part location
(4) Identification of part to be removed, unhooked, un-

locked, released, unplugged, unclamped, or
desoldered.

S=Screw, P=Spring, L=Locking Tab, CN=Con­nector, *=Unhook, Unlock, Release, Unplug, or
Desolder

2(S-2) = two Screws (S-2)

(5) Refer to the following "Reference Notes in the

Table."

Reference Notes in the Table

1. Removal of the Rear Cabinet. Remove screws
7(S-1), 1(S-2) and 1(S-3) then slide the Rear Cab­inet backward.

2. Removal of the CRT CBA. Disconnect CN501 then
pull the CRT CBA backward.

3. Removal of the Main CBA. Disconnect CN571 on
the Main CBA then slide the Main CBA backward.

Caution !

Discharge the Anode Lead of the CRT with the CRT
Ground Wire before removing the Anode Cap.

4. Removal of the CRT. Remove screws 4(S-4) and
Anode Cap. then slide the CRT backward.

↓↓↓↓↓

(1) (2) (3) (4) (5)

4-1 L6600DC

S-1

S-1

S-3

S-1

S-2

[1] Rear Cabinet

S-1

S-1

Fig. 1

S-1

S-2

S-1

S-3

S-4

[3] Main CBA

Fig. 3

[2] CRT CBA

Anode Cap

S-4

S-4

S-1

S-1

[1] Rear Cabinet

S-1

Fig. 2

S-1

[4] CRT

S-4

Fig. 4

4-2 L6600DC

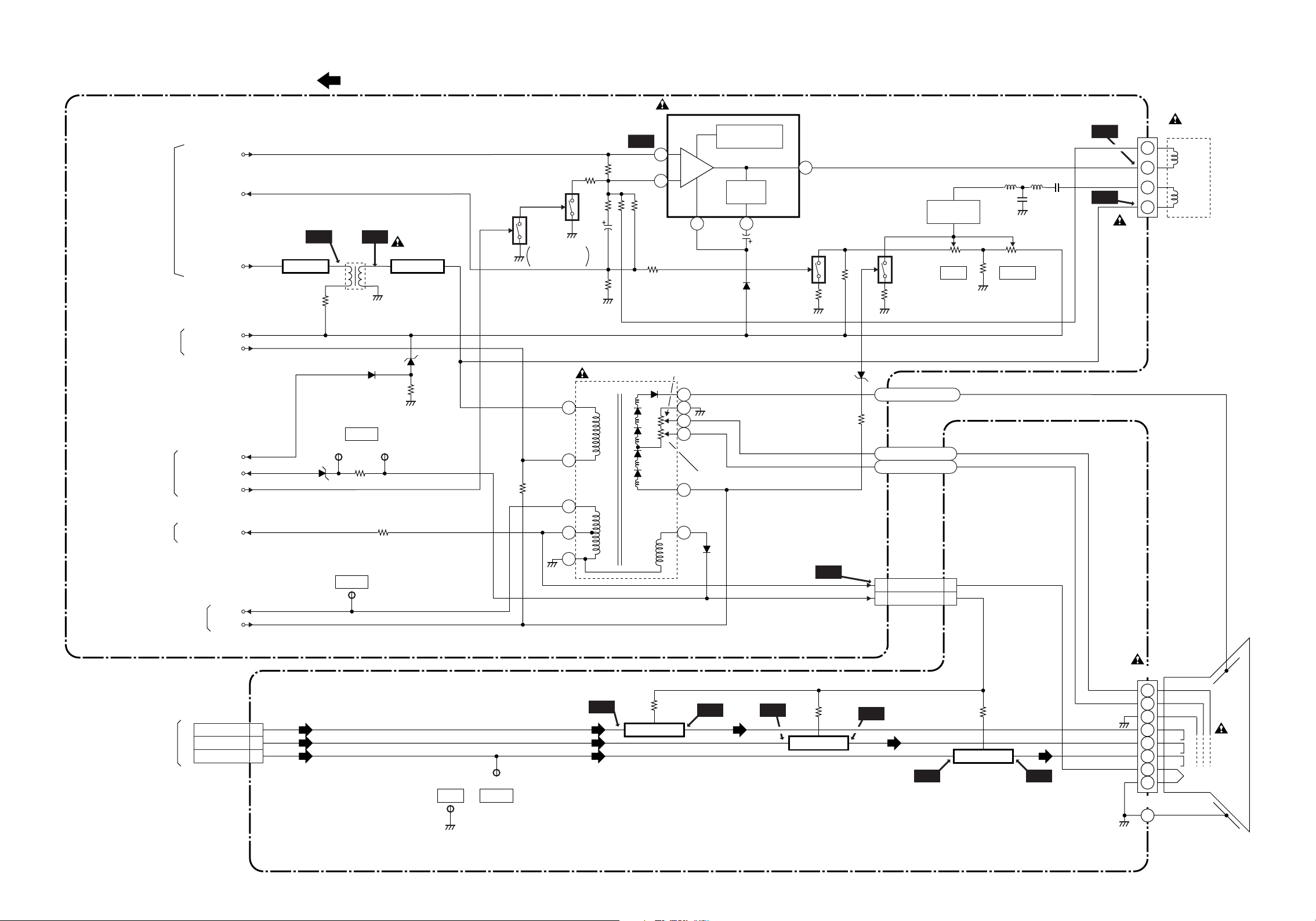

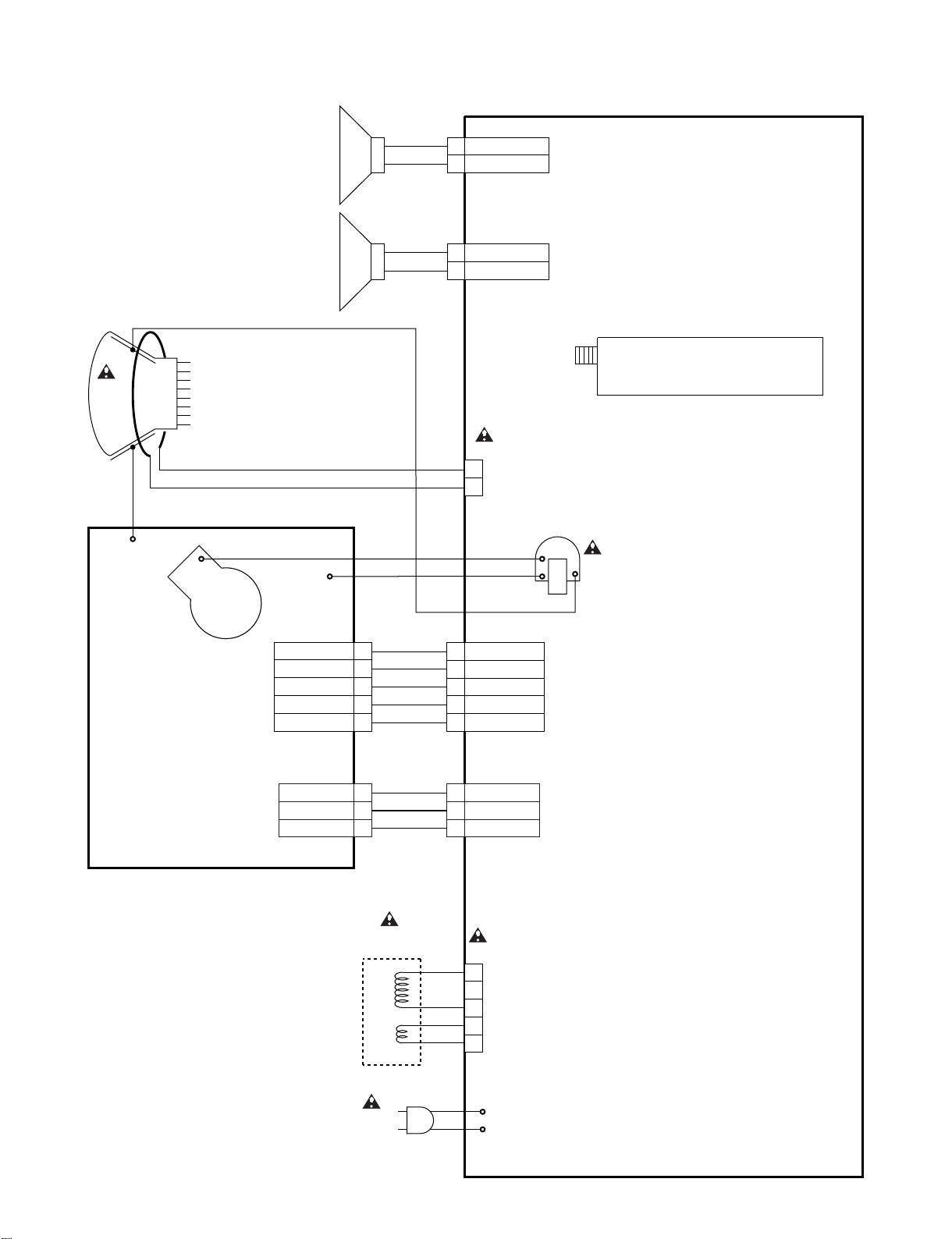

TV Cable Wiring Diagram

SP802

SP801

DG691 DEGAUSSING COIL

MAIN CBA

CN691

FLYBACK TRANSFORMER

T571

CLN802

CLN801

CN801

CN802

WH301A

TU1
TUNER

AC601
AC CORD

CN571

FOCUS

SCREEN

ANODE

WH501A

JK1501

CN1501

TO CRT GROUND

WH301B

WH501B

Fig. 5

4-3 L6600DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note:
"CBA" is abbreviation for "Circuit Board Assem­bly".

NOTE:

Electrical adjustments are required after replacing
circuit components and certain mechanical parts.
It is important to perform these adjustments only
after all repairs and replacements have been com­pleted.
Also, do not attempt these adjustments unless the
proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White
Window, Red Color, Dot Pattern, Gray Scale,
Monoscope, Multi-Burst)

2. DC Voltmeter

3. Oscilloscope: Dual-trace with 10:1 probe,
V-Range:0.001~50V/Div,
F-Range:DC~AC-60MHz

4. Plastic Tip Driver

5. Remote control unit:Part No. N0138UD or N0139UD
or N0105UD or N0108UD

6. DC power supply 13.2V/5A

How to make Service remote control unit:

1.

Prepare normal remote control unit. (Part No.
N0138UD or N0139UD) Remove 3 Screws from
the back lid. (Fig. 1-1)

2. Added J1 (Jumper Wire) to the remote control CBA.
(Fig. 1-2)

SCREWS

REMOTE CONTROL UNIT

Fig. 1-1

1. DC 120V Adjustment

Purpose: To obtain correct operation.
Symptom of Misadjustment: The picture is dark and

the unit does not operate correctly.

Test Point Adj. Point Mode Input

TP601(+120)
TP300(GND)

Tape M. EQ. Spec.

--- DC Voltmeter +120±0.5V DC.

Note:TP601, TP300(GND), VR661 --- Main CBA

1. Connect DC Volt Meter to TP601 and TP300(GND).

2. Adjust VR661 so that the voltage of TP601 becomes
+120±0.5V DC.

VR661 --- ---

2. Black Strech Control Adjustment

Purpose: To show the fine black color.
Symptom of Misadjustment: Black color will not

appear correctly.
Note: Use Service remote control unit.

1. Enter the Service mode. (See page 5-1)

2. Press " 6 " button on the Service remote control
unit. " B-S " is indicated.

3. Press " CH o / p " buttons on the Service remote
control unit so that display will change " OFF ", " 0
", " 1 ", " 2 " and " 3 ". Then choose " B-S OFF ".

4. Press " 6 " button on the Service remote control
unit. " B-S*2 " is indicated.

5. Press " CH o / p " buttons on the Service remote
control unit so that display will change " 0 " and
" 1 ". Then choose " B-S*2 0".

6. Turn the power off and on again. (Main power but­ton on the TV unit.)

J 1

REMOTE CONTROL CBA

Notes:

1. The service remote control unit that be made in
above method is usable in the electrical adjust­ment of the following models.
SRT2313/2319, SRT2213B/2219B, SRT2227X,
SRT2223X, SRT2223B, SRT2232X, SRT2220P
SRT4127P

2. The attached remote control unit can not be used
as service remote control unit.

Fig. 1-2

5-1 L6600EA

3-1. Setting for 7F and FRENCH

data Values

General

1. Enter the Service mode. (See page 5-1)

2. Press " VOL p " button on the Service remote con-

trol unit. Display changes " C/D ", " 7F ", " FRENCH
", " ACCESS CODE ", " STEREO ", " VIDEO TONE
", " FM-MODE ", and " V-OUT " cyclically when "
VOL p " button is pressed.

7F

1. Press " VOL p " button on the Service remote con-

trol unit. Then select 7F display.

2. Press " CH o / p " buttons on the Service remote

control unit. Then choose 7F=FF.

FRENCH

1. Press " VOL p " button on the Service remote con-

trol unit. Then select FRENCH display.

2. Press " CH o / p " buttons on the Service remote

control unit. Then choose FRENCH=OFF.

TINT (TNT)

1. Press " MENU " button on the Service remote con­trol unit. Then select " TINT " (TNT) display.

2. Press " CH o / p " buttons on the Service remote
control unit so that the value of " TINT " (TNT) be­comes 62.

V-TINT (V-TNT)

1. Press " MENU " button on the Service remote con­trol unit. Then select " V-TINT " (V-TNT) display.

2. Press " CH o / p " buttons on the Service remote
control unit so that the value of " V-TINT " (V-TNT)
becomes 59.

SHARP (SHARP)

1. Press " MENU " button on the Service remote con­trol unit. Then select " SHARP " (SHARP) display.

2. Press " CH o / p " buttons on the Service remote
control unit so that the value of “ SHARP "
(SHARP) becomes 47.

Note: BRIGHT data value does not need to be adjust-

ed at this moment.

ACCESS CODE ---- set to ON
VIDEO TONE ---- set to ON
FM-MODE ---- set to OFF
V-OUT ---- set to OFF
STEREO ---- set to ON

Note: C/D and VCO data values do not need to be

adjusted at this moment.

3-2. Setting for CONTRAST,

COLOR, TINT, V-TINT and
SHARP data Values

General

1. Enter the Service mode. (See page 5-1)

2. Press " MENU " button on the Service remote control
unit. Display changes " BRIGHT ", " CONTRAST ",
" COLOR ", " TINT ", " V-TINT " and " SHARP "
cyclically when " MENU " button is pressed.

CONTRAST (CNT)

1. Press " MENU " button on the Service remote con­trol unit. Then select " CONTRAST " (CNT) display.

2. Press " CH o / p " buttons on the Service remote
control unit so that the value of " CONTRAST "
(CNT) becomes 84.

4. Black Level Adjustment

Purpose: Set Black Level
Symptom of Misadjustment: If black level is incor-

rect, Proper brightness can not be obtained by adjust­ing the Brightness Control.

1. Enter the Service mode. (See page 5-1).

2. Press " MENU " button on the Service remote con­trol unit and select " BRT "mode. (Display changes
" BRT ", " CNT ", " CLR ", " TNT ", " V-TINT ", and
" SHRAP " cyclically when MENU button is
pressed).

3. Press " CH o / p " buttons on the Service remote
control unit so that the value of " BRT " becomes

128.

4. Turn the power off and on again. (Main power but­ton on the TV unit.)

COLOR (CLR)

1. Press " MENU " button on the Service remote con­trol unit. Then select " COLOR " (CLR) display.

2. Press " CH o / p " buttons on the Service remote
control unit so that the value of " COLOR " (CLR)
becomes 58.

5-2 L6600EA

5. V. Size Adjustment

Purpose: To obtain correct vertical width of screen image.
Symptom of Misadjustment: If V. Size is incorrect, vertical

size of image on the screen may not be properly displayed.

Test Point Adj. Point Mode Input

Screen Control

---

Tape M. E Q. Spec .

--- Monoscope 90±5%

Note: Use service remote control unit.

1. Operate the unit for at least 20 minutes.

2. Enter the Service mode. (See page 5-1)

3. Receive the Monoscope Pattern.

4. Press " 9 " button on the Service remote control unit
and select " V-S " mode. (Display changes " V-S "
and " V-P " cyclically when " 9 " button is pressed).

5. Press " CH o / p " buttons on the Service remote
control unit so that the monoscope pattern will be
90±5% of display size and the circle is round.

6. Turn the power off and on again. (Main power but­ton on the TV unit.)

CH o / p

buttons [ V-S ]

Mode

RF

Mono-

scope

6. V. Position Adjustment

Purpose: To obtain correct vertical width of screen

image.
Symptom of misadjustment: If V. Position is incor-

rect, vertical height of image on the screen may not be
properly displayed.

Test Point Adj. Point Mode Input

Screen Control

---

Tape M. E Q. Spec .

--- Monoscope 90±5%

CH o / p

buttons [ V-P ]

Mode

RF

Mono-

scope

7. H. Position Adjustment

Purpose: To obtain correct horizontal position of

screen image.
Symptom of Misadjustment: If H. Position is incor-

rect, horizontal position of image on the screen may
not be properly displayed.

Test Point Adj. Point Mode Input

Screen Control

---

Tape M. EQ. Spec.

--- Monoscope 90±5%

Note: Use Service remote control unit

1. Operate the unit for at least 20 minutes.

2. Enter the Service mode. (See page 5-1)

3. Receive the Monoscope Pattern.

4. Press " 8 " button on the remote control unit and
select " H-P "mode.

5. Press " CH o / p " buttons on the Service remote
control unit so that the monoscope pattern will be
90±5% of display size and the circle is round.

6. Turn the Power off and on again. (Main power but­ton on the TV unit.)

CH o / p

buttons [ H-P ]

Mode

RF

Mono-

scope

8. H. Size Adjustment

Purpose: To obtain correct horizontal size of screen

image.
Symptom of Misadjustment: If H. Size is incorrect,
horizontal size of image on the screen may not be
properly displayed.

Test Point Adj. Point Mode Input

--- VR562 RF

Tape M. EQ. Spec.

--- Monoscope 90±5%

Mono-

scope

Note: Use Service remote control unit

1. Operate the unit for at least 20 minutes.

2. Enter the Service Mode. (See page 5-1)

3. Receive the Monoscope Pattern.

4. Press " 9 " button on the Service remote control unit
and select " V-P "mode. (Display change " V-S " and
" V-P " cyclically when " 9 " button is pressed).

5. Press " CH o / p " buttons on the Service remote
control unit so that the top and bottom of the mono­scope pattern will be equal of each other.

6. Turn the Power off and on again. (Main power but­ton on the TV unit.)

Note: Use Service remote control unit

1. Operate the unit for at least 20 minutes.

2. Receive the Monoscope Pattern.

3. Adjust VR562 so that the monoscope pattern will
be 90±5% of display size and circle is round.

4. Turn the Power off and on again. (Main power but­ton on the TV unit.)

5-3 L6600EA

9. PIN Cushion Adjustment

Purpose: To obtain correct straight vertical line of

screen image.
Symptom of Misadjustment: If H.Pin cushion is incor­rect, vertical line of image on the screen may not be
properly displayed.

Test Point Adj. Point Mode Input

--- VR561 RF

Tape M. E Q. Spec .

--- Cross hatch

Note: Use Service remote control unit

1. Operate the unit for at least 20 minutes.

2. Receive the Cross hatch Pattern.

3. Adjust VR561 so that the cross hatch pattern will
be straight line of display.

4. Turn the Power off and on again. (Main power but­ton on the TV unit.)

Cross

hatch

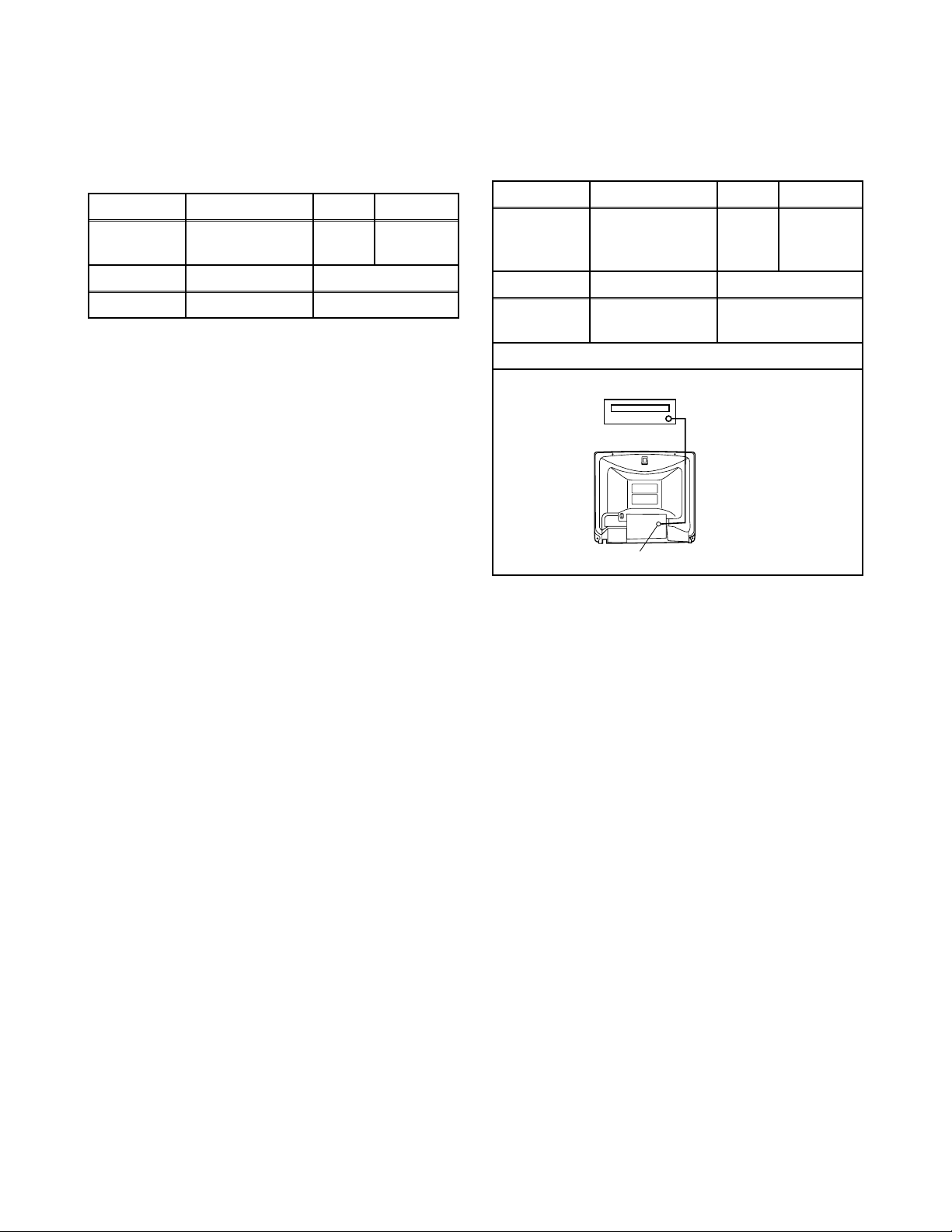

10. Cut-off Adjustment

Purpose: To adjust the beam current of R, G, B, and

screen voltage.
Symptom of Misadjustment: White color may be

reddish, greenish or bluish.

Test Point Adj. Point Mode Input

Screen-Control

---

Tape M. EQ. Spec.

---

CH o / p

buttons

Pattern

Generator

Figure

PATTERN GENERATOR

RF

See Reference

Notes below.

Black

Raster

EXT. INPUT

Note: Screen Control FBT --- Main CBA

F.B.T= Fly Back Transformer
Use Service remote control unit

1. Degauss the CRT and allow CRT to operate for 20
minutes before starting the alignment.

2. Input the Black Raster Signal from RF Input.

3. Enter the Service mode. (See page 5-1)

4. Press " VOL p " button on the Service remote con­trol unit and select " C/D " mode. (Display changes
" C/D ", " 7F ", " FRENCH ", " ACCESS CODE ", "
STEREO ", " VIDEO TONE ", " FM-MODE ", and "
V-OUT " cyclically when " VOL p " button is
pressed.) then press " 1 ". The display will momen­tarily show " CUT OFF R " (R= Red). Now there
should be a horizontal line across the center of the
picture tube. If needed gradually turn the screen
control on the flyback, clockwise until the horizon­tal line appears. Adjust the Red Cut off by pressing
the " CH o / p " buttons. Proceed to Step 5 when
the Red Cut off adjustment is done.

5. Press the " 2 "button. The display will momentarily
show " CUT OFF G " (G=Green). Adjust the Green
Cut off by pressing the " CH o / p " buttons. Proceed
to step 6 when the Green Cut off adjustment is done.

6. Press the " 3 " button. The display will momentarily
show " CUT OFF B " (B=Blue). Adjust the Blue cut
off by pressing the " CH o / p " buttons. When
done with steps 4, 5 and 6 the horizontal line
should be pure white if not, then attempt the Cut off
adjustment again.

Fig. 2

5-4 L6600EA

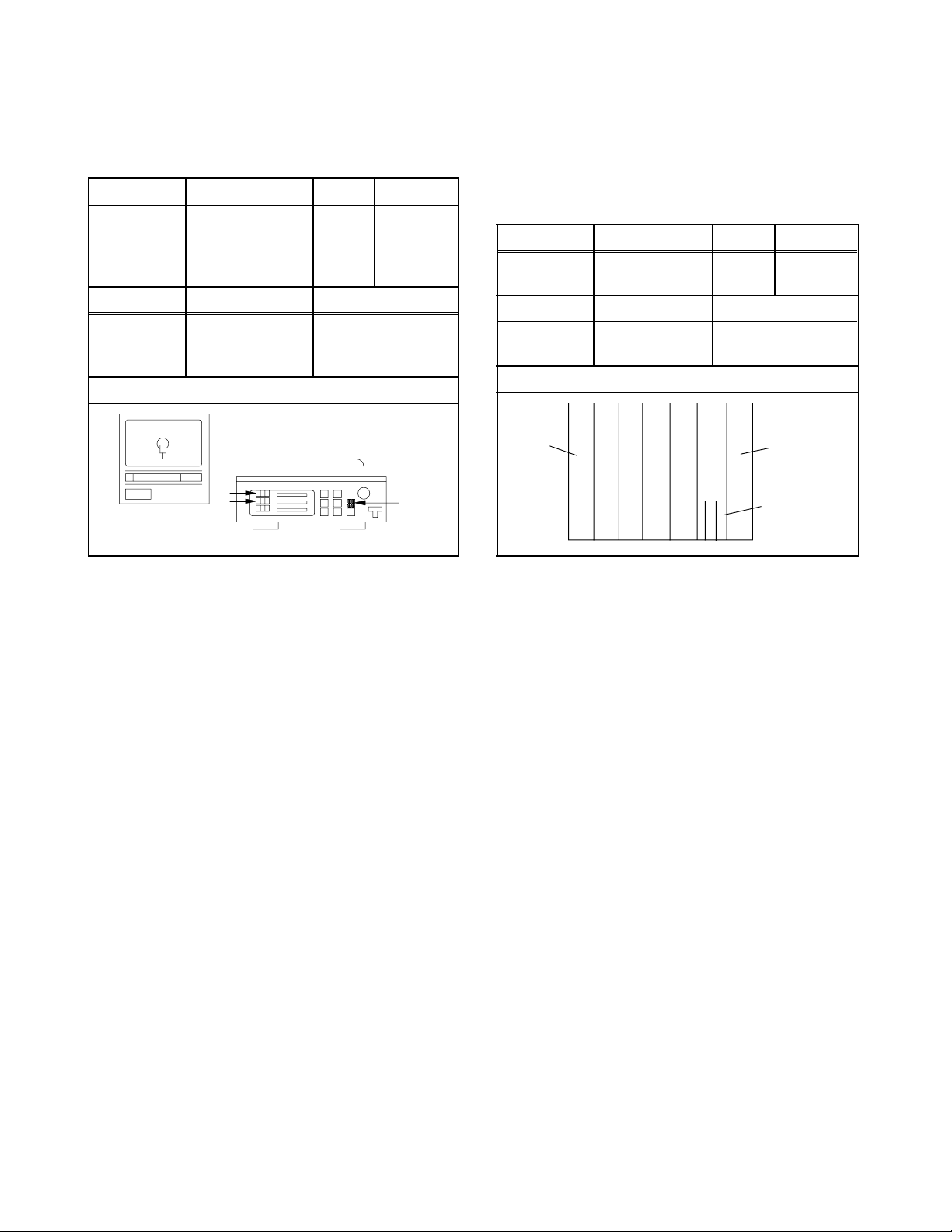

11. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white.
Symptom of Misadjustment: White becomes bluish

or reddish.

Test Point Adj. Point Mode Input

White

Screen

Tape M. E Q. Spec .

CH o / p

buttons

Pattern

Generator,

Color analyzer

Figure

RF

Raster

(APL

100%)

See below

Note: Confirm that Cut Off Adj. is correct after this
adjustment, and attempt Cut Off Adj. if needed.

12. Sub-Brightness Adjustment

Purpose: To get proper brightness.
Symptom of Misadjustment: If Sub-Brightness is

incorrect, proper brightness cannot be obtained by
adjusting the Brightness Control.

Test Point Adj. Point Mode Input

---

Tape M. EQ. Spec.

---

CH o / p

buttons

Pattern

Generator

Figure

RF IQW

See below

Color Analyzer

Note: Use Service remote control unit

1. Operate the unit more than 20 minutes.

2. Face the unit to east. Degauss the CRT using De­gaussing Coil.

3. Input the White Raster (APL 100%).

4. Set the color analyzer to the CHROMA mode and af­ter zero point calibration, bring the optical receptor to
the center on the tube surface (CRT).

5. Enter the Service mode. Press " VOL p " button on
the Service remote control unit and select " C/D "
mode. (Display changes " C/D ", " 7F ", " FRENCH ",
" ACCESS CODE ", " STEREO ", " VIDEO TONE
", " FM-MODE ", and " V-OUT " cyclically when "
VOL p " button is pressed.) then Press No. 8 button
on the Service remote control Unit.

6. Press No. 4 button on the service remote control unit
for Red adjustment. Press N0. 5 button on the Ser­vice remote control unit for Blue adjustment.

7. In each color mode, Press " CH o / p " button to ad­just the values of color.

8. Adjusting Red and Blue color so that the temperature
becomes 9200K (x : 286 / y : 294)±3%.

9. At this time, Re-check that Horizontal line is white. If
not, Re-adjust Cut-off Adjustment until the Horizontal
Line becomes pure white.

10. Turn off and on again to return to normal mode. Re­ceive APL 100% white signal and Check Chroma
temperatures become 9200K (x : 286 / y : 294)±3%.

Fig. 3

White

Note: IQW Setup level --- 7.5 IRE

Use Service remote control unit

1. Enter the Service mode. (See page 5-1)
Then input IQW signal from RF Input.

2. Press " MENU " button on the Service remote control
unit and Select " BRT " mode. (Display changes
" BRT ", " CNT ", " CLR ", " TNT ", " V-TINT ", and
" SHRAP " cyclically when MENU button is pressed).
Press " CH o / p " buttons so that the bar is just vis­ible (See above figure).

3. Turn the power off and on again. (Main power but­ton on the TV unit.)

Black

This bar
just
visible

Fig. 4

5-5 L6600EA

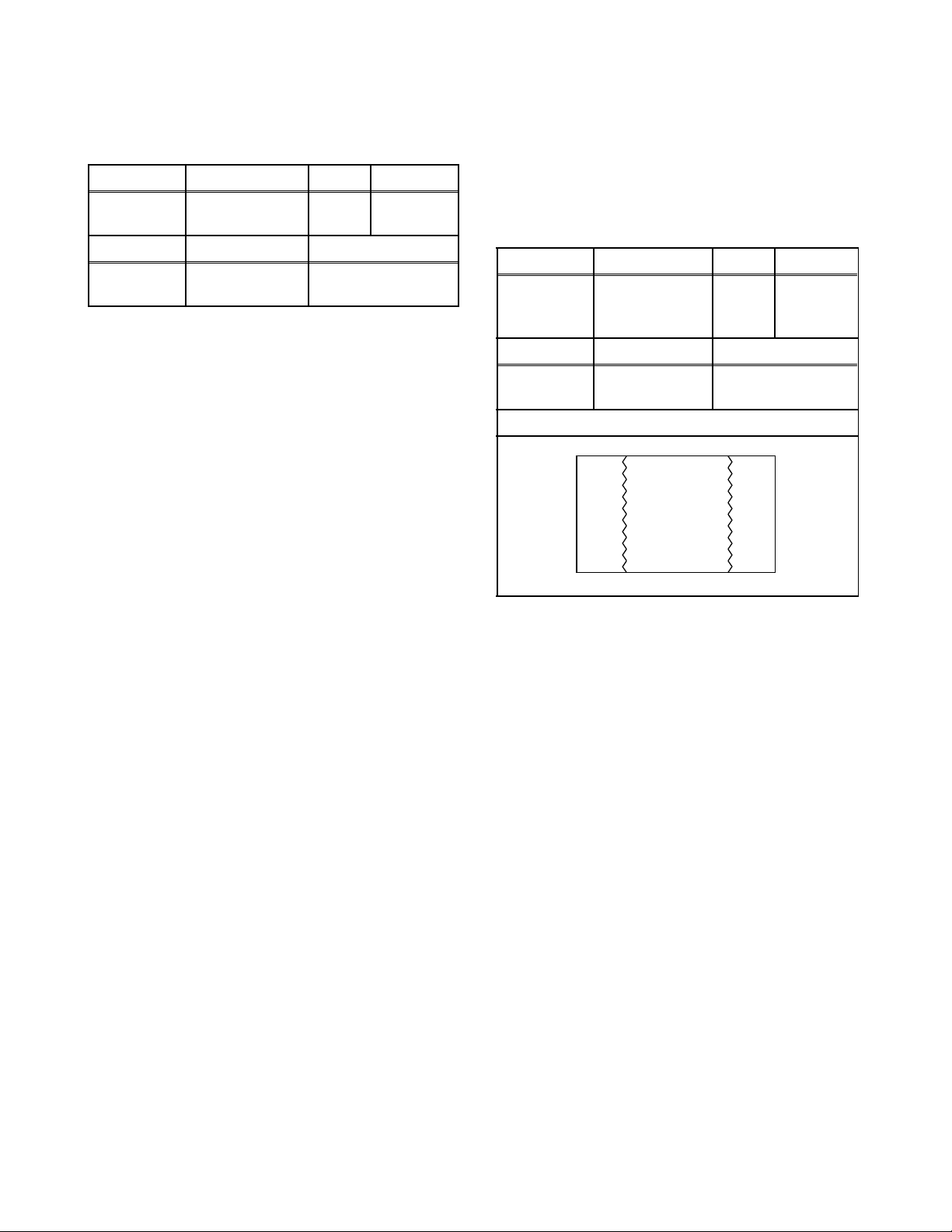

13. Focus Adjustment

Purpose: Set the optimum Focus.
Symptom of Misadjustment: If Focus Adjustment is

incorrect, blurred images are shown on the display.

Test Point Adj. Point Mode Input

--- Focus Control ---

Tape M. EQ. Spec.

---

Note:

Focus VR (FBT) - Main CBA FBT=Fly Back Transformer

1. Operate the unit more than 30 minutes

2. Face the unit to the East and Degauss the CRT
using Degaussing Coil.

3. Input the Monoscope Pattern.

4. Adjust the Focus Control on the FBT to obtain
clear picture.

Pattern

Generator

Mono-

scope

See below

The following 2 adjustments normally are not
attempted in the field. Only when replacing the
CRT then adjust as a preparation.

14. Purity Adjustment

Purpose: To obtain pure color.
Symptom of Misadjustment: If Color Purity Adjust-

ment is incorrect, large areas of color may not be
properly displayed.

Test Point Adj. Point Mode Input

Deflection

---

Tape M. EQ. Spec.

---

GREEN RED BLUE

Yoke Purity

Magnet

Pattern

Generator

Figure

---

See below.

Red

Color

Fig. 5

1. Set the unit facing east.

2. Operate the unit for over 30 minutes before adjust­ing.

3. Fully degauss the unit using an external degauss­ing coil.

4. Loosen the screw on the Deflection Yoke Clamper
and pull the Deflection Yoke back away from the
screen. (See Fig. 6)

5. Loosen the Ring Lock and adjust the Purity Mag­nets so that a red field is obtained at the center of
the screen. Tighten Ring Lock. (See Fig. 5,6)

6. Slowly push the Deflection Yoke toward bell of
CRT and set it where a uniform red field is ob­tained.

7. Tighten the clamp screw on the Deflection Yoke.

5-6 L6600EA

15. Convergence Adjustment

Purpose: To obtain proper convergence of red, green

and blue beams.
Symptom of Misadjustment: If Convergence Adjust-

ment is incorrect, the edge of white letters may have
color edges.

Test Point Adj. Point Mode Input

C.P. Magnet

(RB),

---

C.P. Magnet

---

(RB-G),

Deflection Yoke

Tape M. EQ . Spec .

Dot Pattern

or

Crosshatch

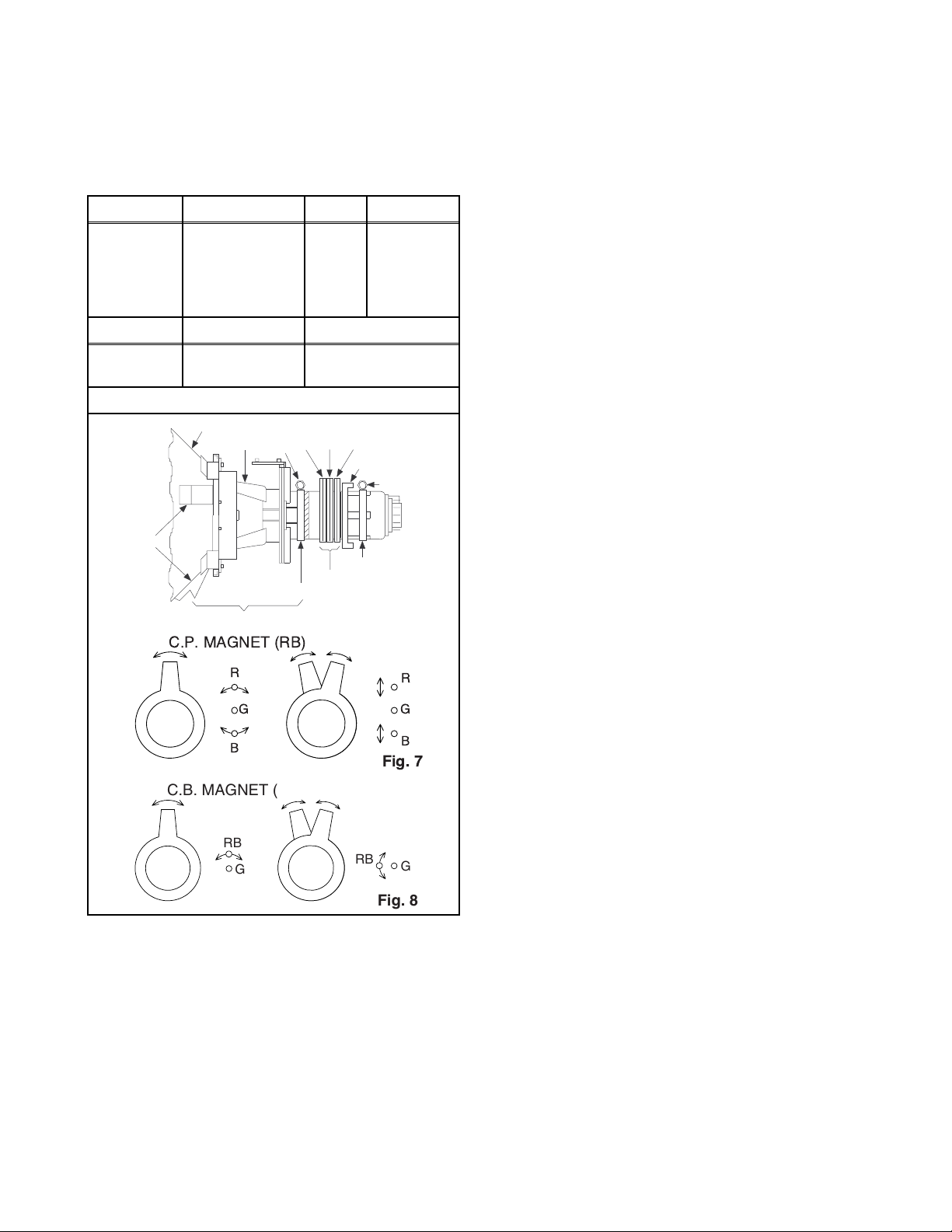

1. Loosen the Ring Lock and align red with blue dots
or Crosshatch at the center of the screen by rotat­ing (RB) C.P. Magnets. (See Fig. 7)

2. Align red / blue with green dots at the center of the
screen by rotating (RB-G) C.P. Magnet. (See Fig. 8)

3. Fix the C.P. Magnets by tightening the Ring Lock.

4. Remove the DY Wedges and slightly tilt the De­flection Yoke horizontally and vertically to obtain
the best overall convergence.

5. Fix the Deflection Yoke by carefully inserting the
DY Wedges between CRT and Deflection Yoke.

---

DY WEDGE

Pattern

Generator

CRT

DEFLECTION YOKE

  

C.B. MAGNET (RB-G)

Figures

COIL







PURITY

SCREW

COIL CLAMPER

See below.

RB-GRB

RING LOCK

SCREW

C.P. MAGNET CLAMPER

C.P. MAGNET

Fig. 6







 

RB

RB

G

G

Fig. 8

5-7 L6600EA

System Control Block Diagram

IC111

TV MICON/VIDEO
/AUDIO/CHROMA
/DEFLECTION

BLOCK DIAGRAMS

RCV-IN

70

RCV101

REMOTE
SENSOR

FROM/TO
IF/VIDEO BLOCK

IC151

(MEMORY)

CS

SCL

SDA 5

AFT

AGC

KEY-IN1
KEY-IN2

7
6

72 I2C-OPEN
58

SCL

56

SDA

73

AFT

75

AGC-IN

INPUT0

66
69

63

KEY
SWITCH

+8V

Q481

INPUT0

TO
IF/VIDEO BLOCK

MAIN CBA

MONO-OUT

STEREO-IN

VOLUME

DG-ON-H

+5V-CTRL

+5V-CTRL2

+8V-CTRL

P-ON-H
PROTECT-1
PROTECT-2
PROTECT-3

71
60
62
64A-MUTE-H

74
28
18
40

79
68
67
76

6-1 6-2

INSEL1
INSEL2

MONO-OUT
STEREO-IN
VOLUME
A-MUTE-H

DG-ON-H
+5V-CTRL
+5V-CTRL2
+8V-CTRL
PROTECT-1
PROTECT-2
P-ON-H
PROTECT-1
PROTECT-2
PROTECT-3
P-ON-H

FROM/TO
AUDIO BLOCK

FROM/TO
POWER
SUPPLY BLOCK

FROM/TO
CRT/H.V. BLOCK

L6600BLS

IF/Video Block Diagram

TU1

EXT.CLK

AGC

SCL
SDA

VIDEO SIGNALRF/IF SIGNAL

SF1

IF

11

1
4
5
8

WF16

SAW
FILTER

TP301

AGC

IC31 (IF SIGNAL PROCESS)

20
21

17

VIF
AMP

RF
AGC

AMP

14

IC111

TV MICON/VIDEO
/AUDIO/CHROMA
/DEFLECTION

AUDIO SIGNAL

VIDEO
DET

VCO

AFT

5

CF31

4.5MHz
TRAP

CF32

4.5MHz
FILTER

LPF

IF AGC DET

MAIN CBA

16

EQ
AMP

FM
DET

X301

3.58MHz

AF
AMP

VCO F/B

11

22
16

1

WF6

TU-AUDIO

7

Q31

INPUT0
AGC

AFT

TO
AUDIO BLOCK

FROM/TO
SYSTEM
CONTROL
BLOCK

3

8

JK701
VIDEO-IN
(FRONT)

JK704
VIDEO-IN
(REAR)

WF1

WF2

58
56
32

26

24

14

11

SCL
SDA

TUNER

LINE

OSD

LPF

LUMINANCE
PROCESS
CIRCUIT

CHROMINANCE
PROCESS
CIRCUIT

H-SYNC
PROCESS
CIRCUIT

V-SYNC
PROCESS
CIRCUIT

VCXO

RGB MATRIX
/COLOR CONT

OSD SW
CONTRAST
BRIGHTNESS

RGB DRIVE
/CUT OFF
/H.V. BLK

52
51
50

53
46
45
38
37

WH301A

BLUE5
GREEN4
RED3

ACL
H-DRIVE
FBP
RAMP-OUT
V-RAMP-F/B

TO
CRT/H.V. BLOCK
WH301B

FROM/TO
CRT/H.V. BLOCK

L6600BLIF6-3 6-4

Audio Block Diagram

AUDIO SIGNAL

FROM
IF/VIDEO BLOCK

JK702
AUDIO-IN-(L)
(FRONT)

JK703
AUDIO-IN-(R)
(FRONT)

TU-AUDIO

+8V

Q441

5

21

MTS/SAP AUDIO
SIGNAL PROCESS

IC401

ATT

5fH
TRAP

L-R
DEMOD

L+R
AMP

1

2

IC481 (INPUT SELECT)

FRONT

12

TUNER

11

(L-CH)

MAIN CBA

PILOT
DET

PHASE
COMP

13

LPF

LPF

STEREO
DRIVER

VCO F/F

22

X441

VCA

STEREO
SW

Q411

BUFFER

F/F F/F

IC802 (AUDIO AMP)

5

DC VOL.

L-R
AMP

141110

MATRIX

13

20

7

STEREO-IN

MONO-OUT

FROM/TO
SYSTEM
CONTROL
BLOCK

CN801

SP-L

SP-GND

SP801
SPEAKER
L-CH

2
1

JK801
HEADPHONE
JACK

JK704
AUDIO-IN-(L)
(REAR)

JK704
AUDIO-IN-(R)
(REAR)

12

1

4

(R-CH)

FRONT

TUNER

SW CTL

9 10

2

3

6

6-5 6-6

Q825

A-MUTE-H
VOLUME
INSEL1
INSEL2

SP802
SPEAKER
R-CH

CN802

SP-R 2

SP-GND 1

FROM
SYSTEM
CONTROL
BLOCK

L6600BLA

CRT/H.V. Block Diagram

RAMP-OUT

FROM/TO
IF/VIDEO BLOCK

V-RAMP-F/B

H-DRIVE

VIDEO SIGNAL

MAIN CBA

WF7 WF8

Q572 Q571

H.DRIVE

T572

H.OUTPUT

Q531

(SWITCHING)

Q532

SWITCHING
P-ON-ON

WF11

IC551 V-DEFLECTION CONTROL

THERMAL
PROTECTION

7

AMP

1

6 3

PULSE
UP

Q561

(SWITCHING)

5

4

3

1

DY551 D.Y.

V­DRIVE

H­DRIVE

WF12

5

Q551,

H.

Q552

CONTROL

Q553

(SWITCHING)

PCC WIDTH

VR562VR561

WF9

CN571

FROM POWER
SUPPLY BLOCK

FROM/TO
SYSTEM CONTROL
BLOCK

TO
SYSTEM CONTROL
BLOCK

FROM/TO
IF/VIDEO BLOCK

FROM
IF/VIDEO BLOCK

DEF+B

+B

PROTECT-1
PROTECT-2

P-ON-H

PROTECT-3

FBP
ACL

RED

GREEN 4

BLUE 5

RED AMP

FOCUS VR

HV

11

F
S

SCREEN VR

8

3

WF15

WF4

WF10

Q1522

GREEN AMP

ANODE

FOCUS
SCREEN

HEATER3 3

1 1

+180V

WF14

WH501BWH501A

Q1532

BLUE AMP

WF5 WF13

JK1501

7
4
8

6
11
10

9

CN1501

ANODE

FOCUS
SCREEN
GND

R
G
B

HEATER

GND

V501
CRT

T571 F.B.T.

1

X-RAY

TP591 TP592

5

10

4

TP302
15kHz

WH301BTO WH301A

3

TP1501

GND

TP1502

BLUE

7

WF3

Q1512

CRT CBA

6-7 6-8

L6600BLCRT

Power Supply Block Diagram

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

HOT CIRCUIT. BE CAREFUL.

HOT COLD

4A/125V

CAUTION:

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,
REPLACE ONLY WITH SAME TYPE 4 A, 125V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

AC601
AC CORD

DG691
DEGAUSSING

COIL

CN691

4A/125V

F601
4A/125V

PS691

L601

LINE
FILTER

Q601

SWITCHING

Q602

LIMITER

D605 - D608

BRIDGE
RECTIFIER

T601

6

10

4

2

1 13

11

12

14

DEF +B

TP601

+B

9

Q671

SWITCHING

Q676
SWITCHING

CONTROL

Q111

+5V
SWITCHING

Q321

+9V
SWITCHING

Q681

+8V
SWITCHING

Q682

+5V
SWITCHING

PROTECT-2
(TO PIN 67 OF IC111)

+B

AL+33V
BACK-UP

P-ON+5V

+5V CTRL2
(FROM PIN 18 OF IC111)

AL+9V

AL+12V

P-ON+8V

+8V CTRL
(FROM PIN40 OF IC111)

PROTECT-1
(TO PIN68 OF IC111)

P-ON+5V

4

IC601

ERROR
VOLTAGE DET

3

RL601

1

Q831

VR661

2

Q662

FEED
BACK

Q696
(SWITCHING)

DG-ON-H
(FROM PIN74 OF IC111)

+B ADJ

Q675
SWITCHING

P-ON-ON

SWITCHING
P-ON-ON

SWITCHING
P-ON-ON

Q832

MAIN CBA

6-9 6-10

Q683

+5V
SWITCHING

SWITCHING

Q833

P-ON+8V

+5V CTRL
(FROM PIN28 OF IC111)

P-ON+5V

P-ON+12V

P-ON+8V

P-ON-H
(FROM PIN79 OF IC111)

L6600BLP

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

Standard Notes

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often
pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement compo­nents rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are
identified in this manual and its supplements; electrical components having such features are identified by the
mark " # " in the schematic diagram and the parts list. Before replacing any of these components, read the parts
list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteris­tics as specified in the parts list may create shock, fire, or other hazards.

Note:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K=10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P=10

5. All voltages are DC voltages unless otherwise specified.

Note of Capacitors:

ML --- Mylar Cap. PP --- Metallized Film Cap. SC --- Semiconductor Cap. L --- Low Leakage type

3

, M=106).

-6

µF).

Temperature Characteristics of Capacitors are noted with the following:

B --- ±10% CH --- 0±60ppm/°C CSL --- +350~-1000ppm/°C

Tolerance of Capacitors are noted with the following:

Z --- +80~-20%

Note of Resistors:

CEM --- Cement Res. MTL --- Metal Res. F --- Fuse Res.

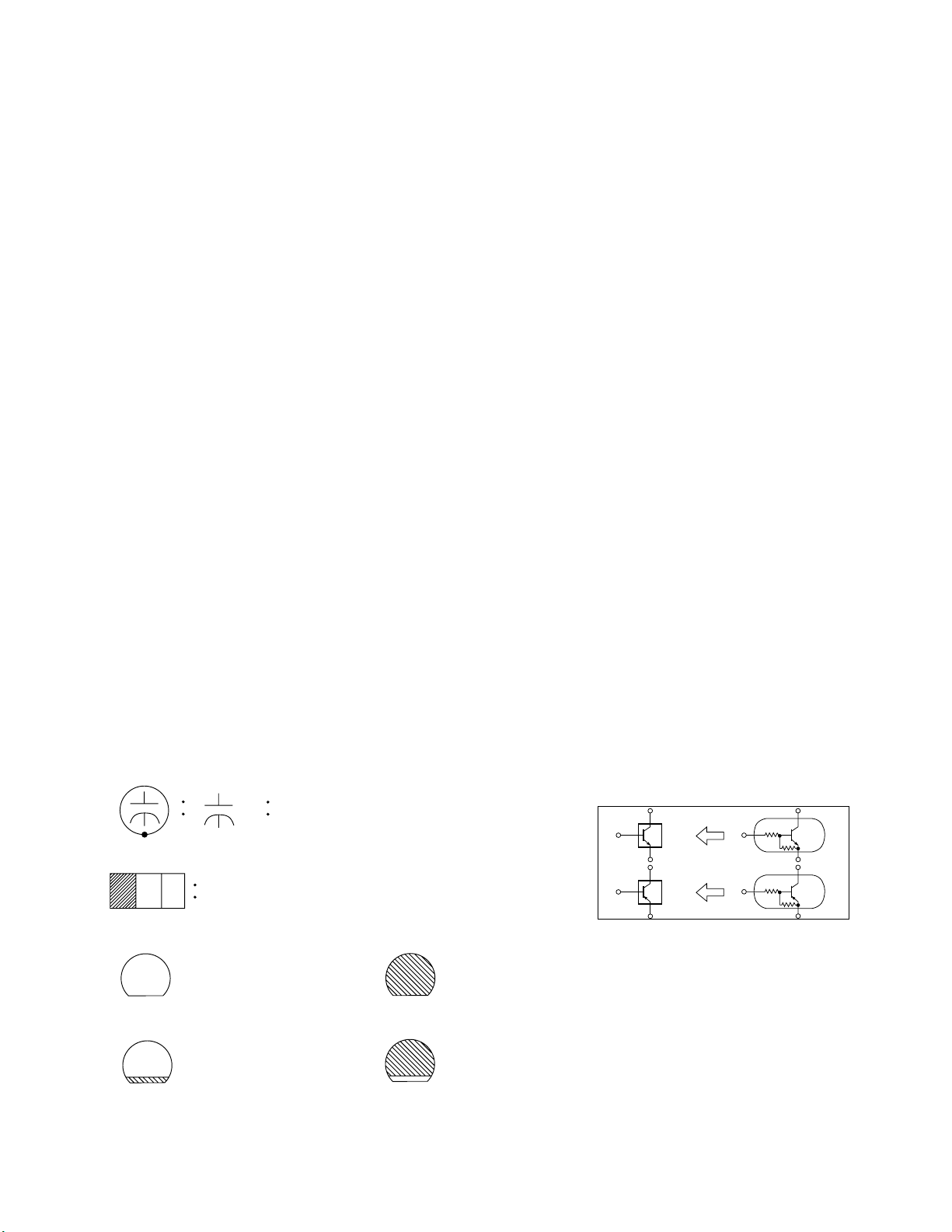

Capacitors and transistors are represented by the following symbols.

CBA Symbols

(Top View) (Bottom View)

+

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

Electrolytic Capacitor

(Top View)

PNP Transistor

Schematic Diagram Symbols

Digital Transistor

E C B

(Top View)

E C B

NPN Digital Transistor

E C B

(Top View)

PNP Digital Transistor

E C B

7-1 L13SC

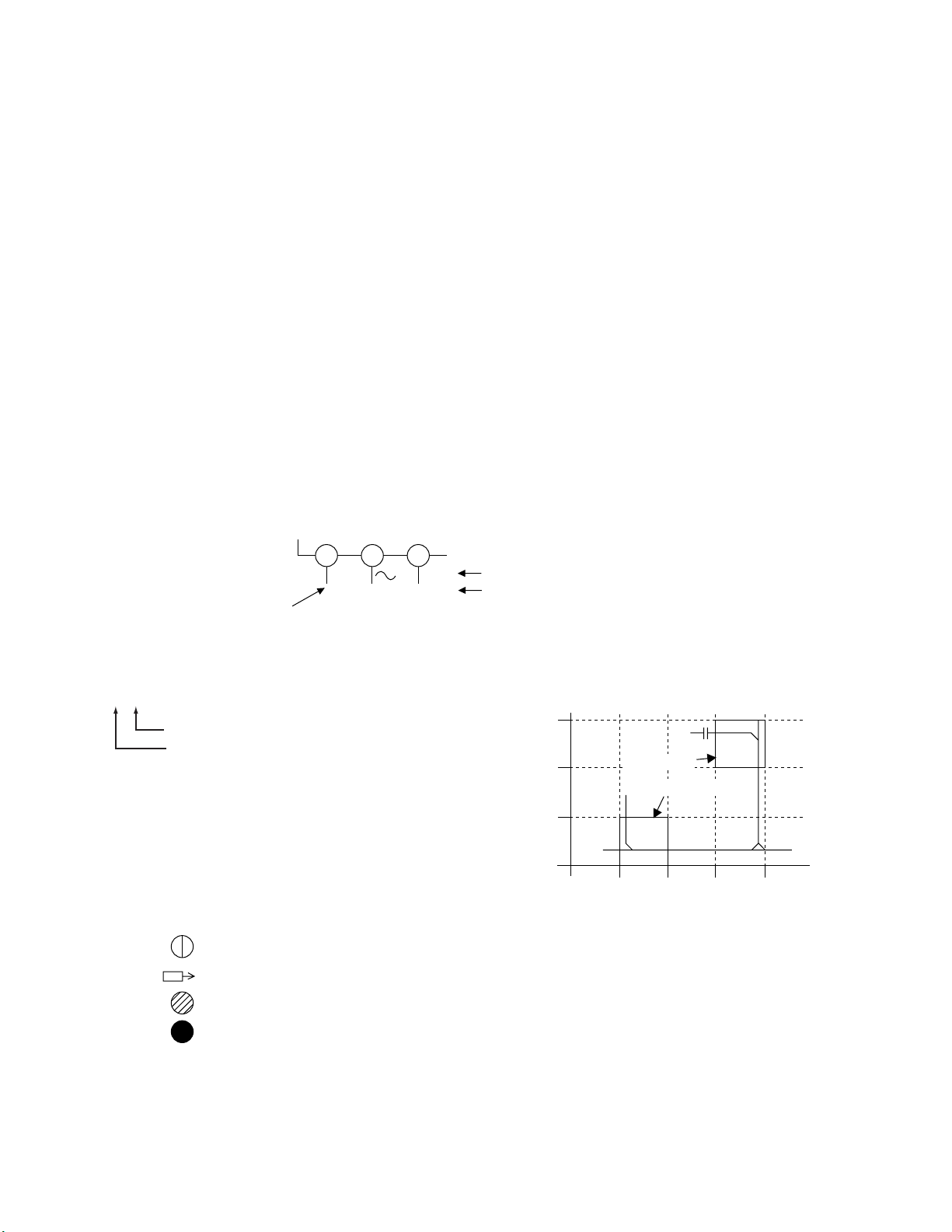

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:

1. CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:
Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective
before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the pow­er supply circuit to fail.

3. Note:

(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the

parts list, and may be slightly different or amended since the drawings were prepared.

(2) To maintain original function and reliability of repaired units, use only original replacement parts which are

listed with their part numbers in the parts list section of the service manual.

4. Wire Connectors

(1) Prefix symbol "CN" means "connector" (can disconnect and reconnect).
(2) Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).

5. Note: Mark "I" is a leadless (chip) component.

6. Voltage indications on the schematics are as shown below:
Plug the TV power cord into a standard AC outlet.:

Voltage

7. How to read converged lines

1-D3

Distinction Area
Line Number
(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to area "D3".

2. "1-B1" means that line number "1" goes to area "B1".

8. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

5.0

(3.0)

231

5.0
(3.0)

Indicates that the voltage
is not consistent here.

Power on mode

Power off mode

Unit: Volts

3

AREA D3

2

1

ABCD

AREA B1

1-D3

1-B1

: Used to indicate a test point with a test pin.

7-2 L13SC

Main 1/4 Schematic Diagram

VIDEO SIGNAL

A4

A3

B4

B3

C4

C3

D4

D3

E4

E3

F4

F3

MAIN 1/4

Ref No. Posit i o n

ICS
IC111
IC151

TR ANSISTOR S
Q111 D-1
Q321 E-2
Q361 D-4

C-2

A-3

A2

A1

B2

B1

7-3 7-4

C2

C1

D2

D1

E2

E1

F2

F1

L6600SCM1

Main 2/4 Schematic Diagram

VIDEO SIGNAL
AUDIO SIGNAL

G4

G3

H4

H3

I4

I3

J4

J3

K4

K3

L4

L3

MAIN 2/4

Ref No. Posit i o n

ICS
IC401
IC481
IC802

TR ANSISTOR S
Q411
Q441
Q481
Q825
Q831
Q832
Q833

CONNECTO RS

CN801 K-1
CN802 K-1

H-3
H-1

J-4

I-3
I-4

K-4

J-3
K-2
K-1
K-2

G2

G1

7-5

H2

H1

I2

I1

J2

J1

K2

K1

7-6

L2

L1

L6600SCM2

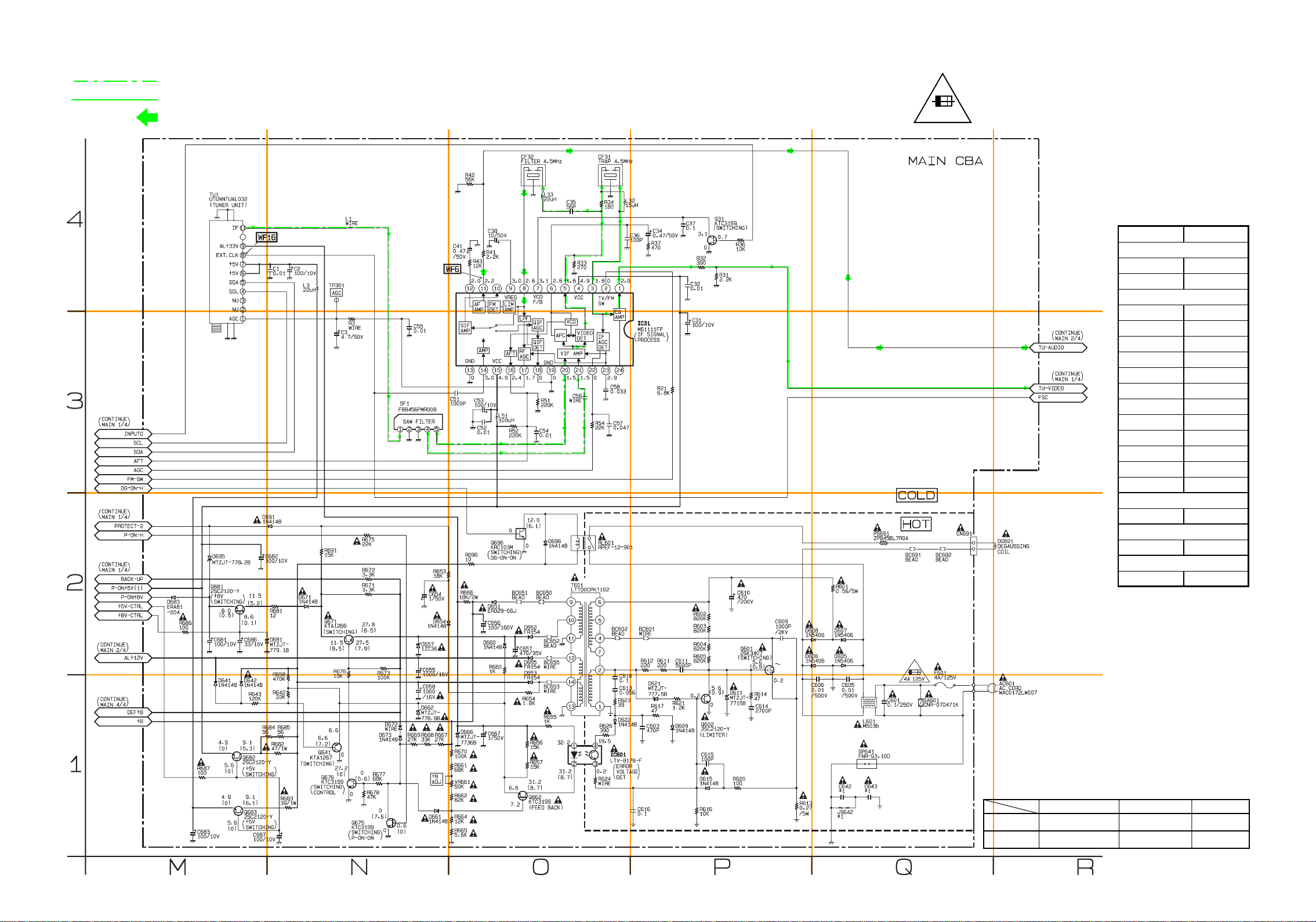

Main 3/4 Schematic Diagram

IF SIGNAL
VIDEO SIGNAL

AUDIO SIGNAL

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK
OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE
MÊME TYPE DE 4A, 125V.

M4

M3

M2

N4

N3

N2

O4

O3

O2

P4

P3

P2

Q4

Q3

Q2

R4

R3

R2

MAIN 3 /4

Ref No. Position

ICS

IC31

IC601

TR ANSIST ORS

Q31
Q601
Q602
Q641
Q662
Q671
Q675 N-1
Q676
Q681
Q682
Q683
Q696

CONNECTO R

CN691 Q-2

TEST PO IN T

TP301

VARIABLE R ESISTO R

VR661 O-1

P-3
O-1

P-4
P-2
P-1
N-1
O-1
N-2

N-1
M-1
M-1
M-1
O-2

N-4

M1

N1

7-7

O1

P1

Q1

1 NOTE:

*

The Capacitor ( C643 ) is either type A or type B.

These two types are exchangeable and can be
equally used whichever the model is . The difference
between type A and type B is shown in the table below.

Type A
Type B

7-8

R1

C643 C642 JS642

0.01/250V
4700P/250V

0.01/250V
Not Used

Not Used

WIRE

L6600SCM3

Main 4/4 & CRT Schematic Diagram

S3

MAIN 4/4

Ref No. Position Ref No. Position Ref No. Position

IC

IC551

TR AN SISTO RS C O N N EC TOR S
Q531
Q532

Q551 T-3 WH501A V-3 VR562 U-3
Q552 T-3
Q553
Q561 U-3 TP302 V-2
Q571 U-2 TP591 U-2

S-3

S-2
S-2 WH301A V-2 VR561 U-3

U-2

T3

TR AN SISTO RS TEST POINTS

Q572

CN571

TEST PO INTS

TP300

T-2

T-3

U-2

TP592
TP601

VARIABLE R ESISTO R S

U3

U-2
U-2

VIDEO SIGNAL

V3

W3

CRT

Ref No. Positio n

TRA NSISTORS
Q1512
Q1522
Q1532

CONNE CTORS

CN1501 X -2
WH301B V-2
WH501B V-3

TEST POI NTS

TP1501
TP1502 W-3

X3

W-2
W-2
W-2

X-2

S2

S1

7-9

T2

T1

U2

U1

V2

V1

W2

W1

7-10

X2

X1

L6600SCM4

Main CBA Top View

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power
supply circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

TP601

+B

FOCUS-VR
(UPPER SIDE)

SCREEN-VR
(LOWER SIDE)

TP302

15kHz

VR661

+B ADJ

VR561

PCC

VR562

WIDTH

TP300

GND
TP301

AGC

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK
OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE
MÊME TYPE DE 4A, 125V.

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.
ALSO, IN ORDER TO HAVE THE ABILITY T O INCREASE THE INPUT
SLOWL Y , WHEN TR OUBLESHOOTING THIS TYPE POWER SUPPL Y
CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

MAIN CBA

Ref No. Posi ti on

ICS

IC31
IC111
IC151
IC401
IC481
IC551
IC601
IC802

TRANSISTORS

Q31 C-1
Q111 D-2
Q321 C-1
Q411 E-2
Q441 D-3
Q481 F-2
Q531
Q532
Q551
Q552
Q553
Q561
Q571
Q572
Q601
Q602
Q641
Q662
Q671
Q675
Q676
Q681
Q682
Q683
Q696
Q825
Q831
Q832
Q833

CONNECTORS
CN571
CN691
CN801
CN802

WH301A C-2
WH501A A-3

TEST POINTS
TP300
TP301

TP302 A-3
TP591 A-3
TP592 A-3
TP601

VARIABLE RESISTOR

VR561
VR562
VR661 B-2

B-1
D-2
E-2
D-3
E-3
B-2
C-4
E-4

B-2
A-2
B-2
B-2
B-2
C-2
B-4
C-3
B-5
B-5
D-4
D-4
D-4
D-4
D-4
D-2
D-3
D-2
D-4
D-4
D-3
D-3
E-4

B-3
D-5
E-1
E-4

A-1
A-1

A-4

B-2
B-2

7-11

7-12

BL6600F01012-1

Main CBA Bottom View

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK
OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE
MÊME TYPE DE 4A, 125V.

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.
ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWL Y , WHEN TROUBLESHOO TING THIS TYPE POWER SUPPL Y
CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

WF7

Q572
Collector

WF8

Q571
Base

WF2

PIN 14
OF IC111

WF9

PIN 1
OF CN571

WF12

PIN 4
OF CN571

WF10

PIN 3
OF WH501A

WF11

PIN 7
OF IC551

WF6

PIN 11
OF IC31

WF1

PIN 26
OF IC111

7-13 7-14

WF16

PIN 8
OF TU1

BL6600F01012-1

CRT CBA Top View CRT CBA Bottom View

CRT CBA

Ref No. Posit i o n

TR ANSISTOR S
Q1512 B-1
Q1522
Q1532

CONNECTO RS

CN1501 A-2
WH301B B-1
WH501B A-1

TEST PO INTS

TP1501
TP1502 B-1

B-1
A-1

A-2

TP1501

GND

Q1522
Collector

WF4 WF13

Q1522
Base

WF3WF14

Q1512
Base

WF15

Q1512
Collector

Q1532
Collector

WF5

Q1532
Base

TP1502

BLUE

7-15 BL6600F01012-27-16

WF1 ~ WF16 = Waveforms to be observed at
  Waveform check points.
  (Shown in Schematic Diagram.)

WAVEFORMS

Input:  NTSC Color Bar Signal (with 1kHz Audio Signal)
INITIAL POSITION: Unplug unit from AC outlet for at least 5 minutes.

reconnect to AC outlet and then turn power on.

(Brightness---Center Color---Center Tint --- Center Contrast---Approx 70%)

WF1

WF2

1DIV: 0.5V 20µsec
IC 111 Pin 26

1DIV: 0.5V 20µsec
IC 111 Pin 14

GND

WF5

WF6

1DIV: 2V 20µsec
Q 1532 Base

1DIV: 0.2V 20msec
IC 31 Pin 11

GND

WF9

WF10

1DIV: 200V 20µsec
CN 571 Pin 1

1DIV: 5V 20µsec
WH501A Pin 3

GND

GND

WF13

WF14

1DIV: 20V 20µsec
Q1532 Collector

1DIV: 20V 20µsec
Q 1522 Collector

WF3

WF4

1DIV: 2V 20µsec
Q1512 Base

1DIV: 2V 20µsec
Q 1522 Base

GND

GND

WF7

WF8

1DIV: 10V 20µsec
Q 572 Collector

1DIV: 5V 20µsec
Q 571 Base

GND

WF11

1DIV: 2V 5msec
IC 551 Pin 7

10 V 5 ms

WF12

1DIV: 10V 5msec
CN 571 Pin 4

WF15

WF16

1DIV: 20V 20µsec
Q 1512 Collector

1DIV: 0.2V 20µsec
TU 1 Pin 8

L6600WF8-1 8-2

WIRING DIAGRAM

V501

CRT

GND

CN1501

ANODE

FOCUS

SP801
SPEAKER

L-CH

SP802
SPEAKER

R-CH

SCREEN

CLN801

CLN802

CN801

SP-L

1

SP-GND

2

CN802

SP-R

1

SP-GND

2

CN691

1
2

TU1 TUNER UNIT

MAIN CBA
BL6600F01012-1

T571
FBT

CRT CBA
BL6600F01012-2

WH301B

BLUE

GREEN

RED
GND

+8V

HEATER 3

GND 2

+180V 1

5
4
3
2
1

CLN301

CLN501

DY571
D.Y.

HD

VD

5
4
3
2
1

WH301A
BLUE
GREEN
RED
GND
+8V

WH501AWH501B

HEATER3
GND2
+180V1

CN571
1

2
3
4
5

AC601

9-1 L6600WI

IC PIN FUNCTIONS

IC111(TV Micro Computer)

Pin

Signal Name Function

No.

1GND GND
2 N.U. Not Used
3 N.U. Not Used
4 N.U. Not Used
5GND GND
6VCC AL+5V
7 N.U. Not Used
8 FILT FILT

9 HLF Filter for CCD
10 VHOLD VHOLD
11 CVIN Input for Video Signal
12 RESET RESET

MCU RESET

13

OUT
14 Y-SW OUT Composite Signal Output
15 GND GND
16 3.58 X'TAL 3.58MHz Crystal
17 C-APC CHROMINANCE APC

MCU 5.7REG
18

OUT
19 N.U. Not Used
20 N.U. Not Used
21 N.U. Not Used
22 VCC VCC
23 N.U. (GND)
24 CVBS IN2 Composite Signal Input 2
25 N.U. Not Used
26 CVBS IN1 Composite Signal Input 1
27 N.U. Not Used
28 5.7V REG OUT 5.7V Output
29 N.U. Not Used
30 N.U. Not Used
31 V REG VCC DC 8.7V Input
32 FSC OUT Clock Output 3.58MHz
33 N.U. Not Used
34 N.U. Not Used

RESET Signal Output

Micro controller Control
Voltage Output

Pin

Signal Name Function

No.

35 N.U. Not Used
36 N.U. Not Used
37 V RAMP F/B V Ramp Feed Back
38 V RAMP OUT Vertical Output
39 V RAMP CAP V Ramp OSC Capacitor
40 8.7 VREG OUT DC 8.7V Output
41 N.U. Not Used
42 H VCO F/B H Vco Feed Back
43 AFC FILT Horizontal AFC Filter
44 GND GND
45 FBP IN Flyback Pulse Input
46 H-OUT H Pulse Output
47 VCC Vcc
48 VCC Vcc
49 VCC Vcc
50 R OUT Red Output
51 G OUT Green Output
52 B OUT Blue Output
53 ACL IB-Input
54 N.U. Not Used
55 N.U. Not Used

56 SDA

57 N.U. Not Used

58 SCL

59 N.U. (GND)
60 STEREO-IN STEREO-IN
61 N.U. Not Used
62 VOLUME Volume
63 INPUTO EXT-H
64 A-MUTE-H Audio Mute
65 N.U. Not Used
66 KEY-IN 1 Key Input 1 (Main)
67 PROTECT-2 Power Supply Protection
68 PROTECT-1 Power Supply Protection
69 KEY-IN 2 Key Input 2 (Main)
70 RCV-IN Input For Remote Control

I2C-BUS Controller Interface
(Data)

I2C-BUS Controller Interface
(Clock)

10-1 L6601PIN

Pin

Signal Name Function

No.

71 MONO-OUT MONO-OUT

72 I2C OPEN

73 AFT AFT Voltage Input
74 DG-ON-H Degaussing Coil Control
75 AGC AGC Voltage Input
76 PROTECT 3 Power Supply Protection
77 N.U. Not Used
78 FM-SW Switching IF IC VCO
79 P-ON-H Output for P-ON-H
80 N.U. Not Used

White Balance Adjustment
Judgement

10-2 L6601PIN

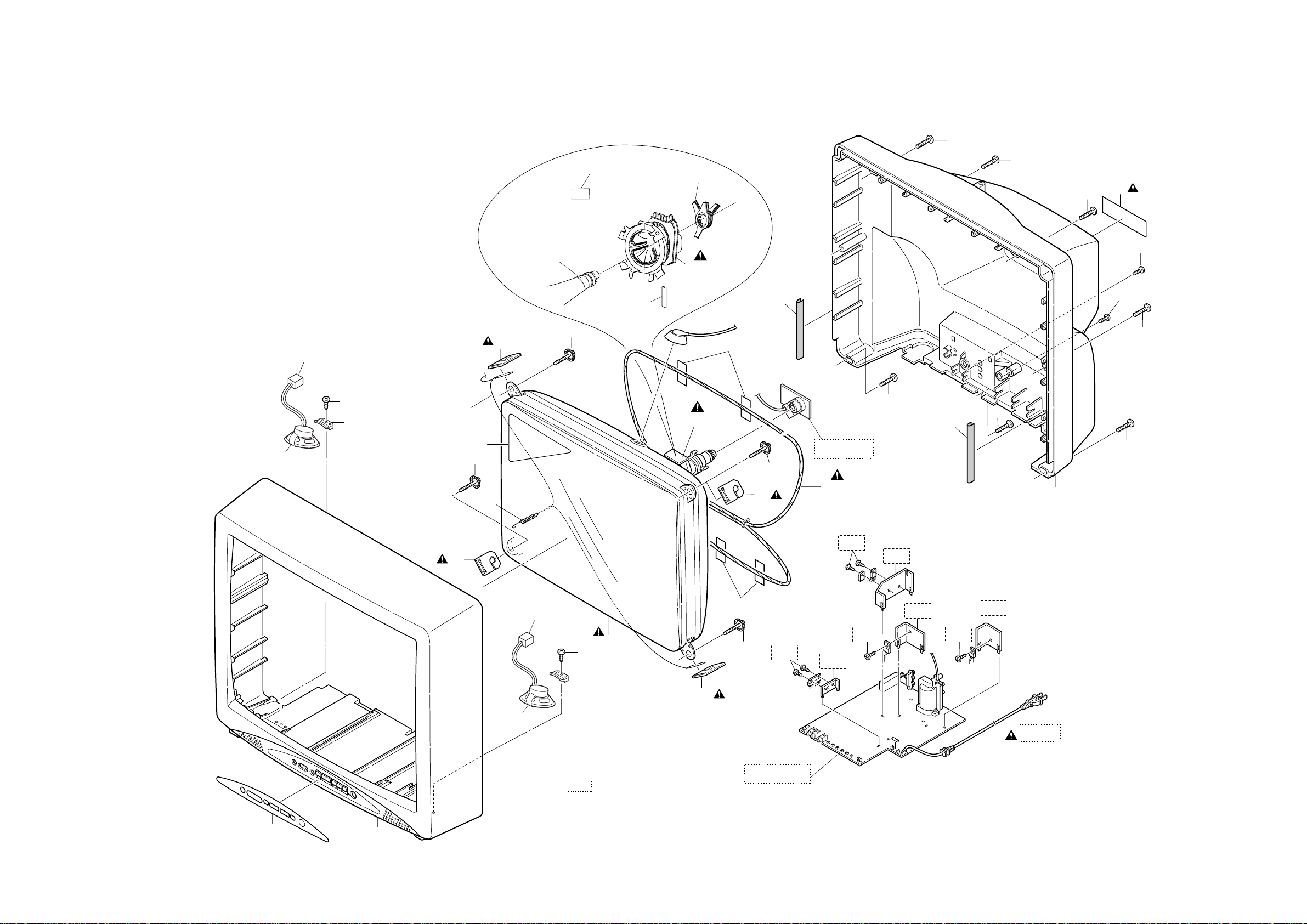

Cabinet

EXPLODED VIEWS

L2

SP801

B6

CLN801

Details for DY551
and surrounding parts

L1

B4

CLN551

A6
B2

SHINWHA
TAPE SGT-730
(WHITE)

B3

SHINWHA
TAPE SGT-730
(BLACK)

B2

V501-2

V501-1

DY551

Scotch Tape #880

DY551

B2

B5

CRT CBA

L2

B5

L2

L2

L2

A5

L4

L3

L2

L2

B3

B1

CLN802

B6

V501

L1

B4

SP802

See Electrical Parts List
for parts with this mark.

B3

Scotch Tape #880

B2

B3

MAIN CBA

L1

DG691

L1

B1

L1

B4

B3

A4

B2

L1

AC601

A2

A1

11-1 11-2 L6600CEX

Packing

S2

S6

S2

S3

S3

S4

X1

X3

X2

PACKING TAPE

X4

TAPE

FRONT

S1

S5

11-3 L6600PEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read care­fully the product safety notice in this service manual.
Don't degrade the safety of the product through
improper servicing.

NOTE:
Parts that are not assigned part numbers (---------) are
not available.

Ref. No. Description Part No.

A1 FRONT CABINET L1200UA 0EM000443
A2 CONTROL PLATE L6200UA 0EM301604
A4 REAR CABINET L6600UA or 0EM000690

REAR CABINET L6600UA 0EM101235
A5# RATING LABEL L6600UA ---------­A6 POP LABEL L6200UA ---------­B1 TENSION SPRING B0080B0:EM40808 26WH006
B2 M7 CRT SCREW(D22) T7205UF 0EM406573
B3# DEGAUSS HOLDER L1200UA 0EM405869
B4 SPEAKER HOLDER L1200UA 0EM405691
B5 CLOTH L9800UA:95X15XT:0.5 0EM405041
B6 CLOTH(10X30XT1.0) L9814UQ 0EM405137
CLN551 CRT GND WIRE CRT GND WX1L1200-007
CLN801 WIRE ASSEMBLY SPEAKER WIRE(180MM) WX1L9800-001
CLN802 WIRE ASSEMBLY SPEAKER WIRE(180MM) WX1L1131-001
DG691# DEGAUSSING COIL F-029 or LLBH00ZTM029
# DEGAUSSING COIL AVDG122 LLBH00ZWR043
SP801 SPEAKER S08N04 DSD0808XQ013
SP802 SPEAKER S08N04 DSD0808XQ013
L1 SCREW, P-TIGHT 3X12 BIND HEAD+ GBMP3120
L2 SCREW, P-TIGHT 4X18 BIND HEAD + GBMP4180
L3 SCREW TAPPING M4X14 DBU14140
L4 SCREW, P-TIGHT 3X10 BIND HEAD+ GBKP3100

Note:

1. V501 (CRT) HAS COUPLE OF SUBSTITUTIONAL PARTS AND EACH PARTS
ALSO HAS MATCHING COMBINATION WITH DY551.
PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

2. DY551 (DEFLECTION YOKE) HAS MATCHING COMBINATION WITH V501.
PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

CRT TYPE A

DY5 5 1# DEFLECTION YOKE ODY-C29029 LLBY00ZQS006
V501# CRT A68KTB359X(B) or TCRT190QS024

# CRT A68KTB359X(PB) or TCRT190QS025
# CRT A68KTB259X2 or TCRT190QS021
# CRT A68KTB259X(P) TCRT190QS023

V501-1 PCM JH88DTA XM04000BV010
V501-2 WEDGE FT-00110W or XV10000T4001

WEDGE DB25SR XV10000D9001

CRT TYPE B

DY5 5 1# DEFLECTION YOKE CDY-F2927H LLBY00ZQS014
V501# CRT A68QBT892X TCRT190SM028
V501-1 PCM JH88DTA XM04000BV010
V501-2 WEDGE FT-00110W or XV10000T4001

WEDGE DB25SR XV10000D9001

CRT TYPE C

DY5 5 1# DEFLECTION YOKE 6150Z-1046A or LLBY00ZGS008
# DEFLECTION YOKE KDY4UWE21X LLBY00ZMS026

Ref. No. Description Part No.

V501# CRT A68QBC230X TCRT190GS043
V501-1 PCM JH88DTA XM04000BV010
V501-2 WEDGE FT-00110W or XV10000T4001

WEDGE DB25SR XV10000D9001

PACKING

S1 CARTON L6600UA 0EM407596
S2 STYROFOAM TOP ASSEMBLY L6600UA 0EM407820
S3 STYROFOAM BOTTOM ASSEMBLY L6600UA 0EM407821
S4 SET SHEET PCEC:003502019816 0EM403887
S5 SERIAL NO. LABEL L6600UA ---------­S6 HOLD PAD L6201UB 0EM407287

ACCESSORIES

X1 POLYETHYLENE BAG F8626B5 Z325350
X2# OWNER'S MANUAL L6600UA:ENGLISH/SPAN-

X3 REMOTE CONTROL 130/ERC001/N0136UD or N0136UD

X4 DRY BATTERY R6P UM3 or XB0M451GH001

ISH

REMOTE CONTROL 130/ERC001/N0110UD N0110UD

DRY BATTERY R6P/2S or XB0M451T0001
DRY BATTERY(SUNRISE) R6SSE/2S or XB0M451MS002
DRY BATTERY R6P(AR)2PX or XB0M451HU002
DRY BATTERY R6P(AR)2P X ICI XB0M451HU003

0EMN02054

Table 1 (V501 and DY551 Combination)

Note 1: Purity and Convergence Adjustments must be

performed following CRT replacement. Refer to Electri­cal Adjustment Instructions.

Note 2: Please confirm CRT Type No. on the CRT
Warning Label which is located on the CRT. Then See
the Table 1 for V501 and DY551 combination chart.
Please refer this CRT, Deflection Yoke combination
chart for parts order.

V501: CRT Type No. V501: CRT Part No.

CRT A68KTB359X(B) TCRT190QS024 LLBY00ZQS006

CRT A68KTB359X(PB) TCRT190QS025 LLBY00ZQS006

CRT A68KTB259X2 TCRT190QS021 LLBY00ZQS006

CRT A68KTB259X(P) TCRT190QS023 LLBY00ZQS006

CRT A68QBT892X TCRT190SM028 LLBY00ZQS014

CRT A68QBC230X TCRT190GS043

DY551: Deflection

Yoke Par t N o .

LLBY00ZGS008

LLBY00ZMS026

20030318 12-1 L6600CA

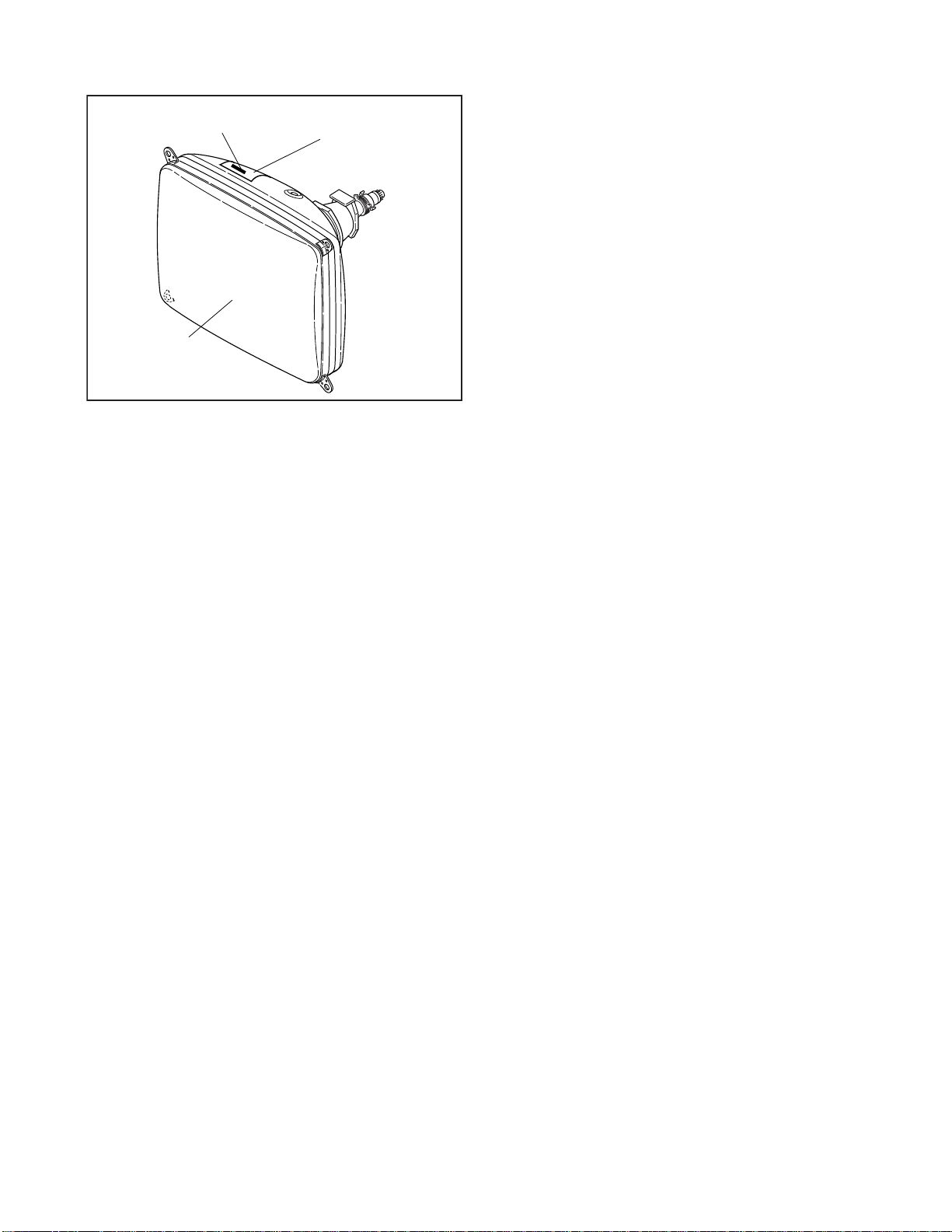

CRT Warning Label Location

CRT Type No.

CRT

CRT Warning
Label

20030318 12-2 L6600CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read care­fully the product safety notice in this service manual.
Don't degrade the safety of the product through
improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

MMA-393 CBA

Ref. No. Description Part No.

MMA-393 CBA 0ESA05083
Consists of the following
MAIN CBA -------------­CRT CBA --------------

MAIN CBA

Ref. No. Description Part No.

MAIN CBA

Consists of the following

CAPACITORS

C1 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C2 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C3 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7

C31 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C32 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C34 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C35 CERAMIC CAP.(AX) CH J 56pF/50V CA1J560TU008
C36 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101
C37 CERAMIC CAP.(AX) F Z 0.1µF/50V or CA1J104TU014

CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZT0F104
C38 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C41 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C51 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102
C52 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C53 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C54 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011
C55 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C56 PCB JUMPER D0.6-P5.0 JW5.0T

------------

Ref. No. Description Part No.

C57 FILM CAP.(P) 0.047µF/50V J or CMA1JJS00473

FILM CAP.(P) 0.047µF/50V J CA1J473MS029

C58 FILM CAP.(P) 0.033µF/50V J or CMA1JJS00333

FILM CAP.(P) 0.033µF/50V J CA1J333MS029

C111 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470

C112 ELECTROLYTIC CAP. 4.7µF/50V M or CE1JMASTL4R7

ELECTROLYTIC CAP. 4.7µF/50V M CE1JMASDL4R7

C113 CERAMIC CAP.(AX) F Z 0.1µF/50V or CA1J104TU014

CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZT0F104

C114 FILM CAP.(P) 0.001µF/50V J or CMA1JJS00102

FILM CAP.(P) 0.001µF/50V J CA1J102MS029

C115 ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASTLR10

ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASDLR10

ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDL0R1
C116 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221
C117 CERAMIC CAP.(AX) Y K 0.01µF/16V CDA1CKT0Y103
C119 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C120 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C121 CERAMIC CAP.(AX) X K 1200pF/16V CDA1CKT0X122
C132 CERAMIC CAP.(AX) F Z 0.1µF/50V or CA1J104TU014

CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZT0F104
C133 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C151 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C152 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221
C153 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221
C155 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C156 CERAMIC CAP.(AX) F Z 0.1µF/50V or CA1J104TU014

CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZT0F104
C301 CERAMIC CAP.(AX) CH J 120pF/50V CA1J121TU008
C302 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C303 CERAMIC CAP.(AX) B K 0.015µF/50V CA1J153TU011
C306 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C308 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C322 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C324 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C325 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221
C328 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C329 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C330 STACKED FILM CAP. 0.47µF/50V J or CMA1JJS00474

FILM CAP.(P) 0.47µF/50V J CA1J474MS029
C341 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011
C342 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C343 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011
C345 ELECTROLYTIC CAP. 2200µF/10V M or CE1AMZNTL222

ELECTROLYTIC CAP. 2200µF/10V M CE1AMZNDL222

20030318 13-1 L6600EL

Ref. No. Description Part No.

C347 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASTL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471

C349 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASTL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471

C353 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C401 CERAMIC CAP.(AX) X K 4700pF/16V CDA1CKT0X472
C402 MYLAR CAP. 0.22µF/50V J or CMA1JJS00224

FILM CAP.(P) 0.22µF/50V J CA1J224MS029
C403 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C404 ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASTLR10

ELECTROLYTIC CAP. 0.1µF/50V M or CE1JMASDLR10

ELECTROLYTIC CAP. 0.1µF/50V M CE1JMASDL0R1
C405 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C408 CERAMIC CAP.(AX) F Z 0.1µF/50V or CA1J104TU014

CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZT0F104
C409 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C421 CERAMIC CAP.(AX) X K 4700pF/16V CDA1CKT0X472
C422 CERAMIC CAP.(AX) X K 4700pF/16V CDA1CKT0X472
C423 PCB JUMPER D0.6-P5.0 JW5.0T
C424 PCB JUMPER D0.6-P5.0 JW5.0T
C431 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASTL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2
C432 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C433 CERAMIC CAP.(AX) X K 2700pF/16V CDA1CKT0X272
C434 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029
C435 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C441 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103
C442 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C446 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C527# ELECTROLYTIC CAP. 3.3µF/50V M or CE1JMASTL3R3
# ELECTROLYTIC CAP. 3.3µF/50V M CE1JMASDL3R3
C531 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C532 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASTL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470
C533 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029
C535 ELECTROLYTIC CAP. 1.5µF/50V M LL CE1JMASLL1R5
C539# ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZNTL102

# ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZPDL102
# ELECTROLYTIC CAP. 1000µF/25V M CE1EMZADL102

C541 ELECTROLYTIC CAP. 470µF/35V M(VR) or CE1GMZNTL471

ELECTROLYTIC CAP. 470µF/35V M or CE1GMZADL471

ELECTROLYTIC CAP. 470µF/35V M CE1GMZNDL471
C551 PCB JUMPER D0.6-P5.0 JW5.0T
C552# METALIZED PLYESTER CAP. 1µF/100V J CT2A105MS065
C556 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029
C561 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASTL470

Ref. No. Description Part No.

ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470

C562 ELECTROLYTIC CAP. 470µF/25V M or CE1EMZNTL471

ELECTROLYTIC CAP. 470µF/25V M or CE1EMZNDL471
ELECTROLYTIC CAP. 470µF/25V M CE1EMZADL471

C565 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029

C567# PP CAP. 0.0033µF/1.6KV J or CA3C332VC010

# PP CAP. 0.0033µF/1.6KV J or CT3C332MS039
# PP CAP. 0.0033µF/1.6KV J CBH3CJQ00332

C568 CERAMIC CAP.(AX) B K 0.022µF/50V CA1J223TU011
C571# P. P. C A P 0 .3 3µF/200V J or CA2D334VC012

# PP CAP. 0.33µF/250V J or CT2E334MS041
# METALLIZED FILM CAP. 0.33µF/200V J CT2D334F7001

C 57 2 P. P. CA P 0 . 1 8µF/200V J or CA2D184VC012

PP CAP. 0.18µF/250V J or CT2E184MS041

METALLIZED FILM CAP. 0.18µF/200V J CT2D184F7001
C574# ELECTROLYTIC CAP. 10µF/250V M CE2EMASDL100
C577 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASTL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470
C578 FILM CAP.(P) 0.01µF/50V J or CMA1JJS00103

FILM CAP.(P) 0.01µF/50V J CA1J103MS029
C580# PP CAP. 0.015µF/1.6KV J or CA3C153VC010

# PP CAP. 0.015µF/1.6KV J or CT3C153MS039
# PP CAP. 0.015µF/1.6KV J CBH3CJQ00153
C582# P. P. C A P. 0 .0 2 2µF/200V J or CA2D223VC013
# P. P. C AP. 0 .0 22 µF/200V K or CBP2DKD00223
# METALLIZED FILM CAP. 0.022µF/200V J CT2D223F7002
C584# ELECTROLYTIC CAP. 1µF/160V M or CE2CMASTL1R0
# ELECTROLYTIC CAP. 1µF/160V M CE2CMASDL1R0

C585 CERAMIC CAP. B K 100pF/500V CCD2JKS0B101
C591 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASTL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C601# METALLIZED FILM CAP. 0.1µF/250V or CT2E104MS037

# FILM CAP.(MP) 0.1µF/250V K or CT2E104DC011
# METALLIZED FILM CAP. 0.1µF/275V K CT2E104HJE06

C603 CERAMIC CAP.(AX) B K 470pF/50V CCA1JKT0B471
C605 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP. 0.01µF/AC250V CCD2EZA0F103
C606 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP. 0.01µF/AC250V CCD2EZA0F103
C609 CERAMIC CAP. B K 1000pF/2KV or CCD3DKD0B102

CERAMIC CAP. B K 1000pF/2KV or CCD3DKP0B102

CERAMIC CAP. 1000pF/2KV CA3D102PAN04
C610# ELECTROLYTIC CAP. 470µF/200V or CA2D471NC013
# ELECTROLYTIC CAP. 470µF/200V M CE2DMZNDL471
C611 FILM CAP.(P) 0.0056µF/50V J or CMA1JJS00562

FILM CAP.(P) 0.0056µF/50V J CA1J562MS029
C613 FILM CAP.(P) 0.056µF/50V J or CMA1JJS00563

FILM CAP.(P) 0.056µF/50V J CA1J563MS029
C614 CERAMIC CAP.(AX) X K 2700pF/16V CDA1CKT0X272
C615 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101
C616 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029
C618 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029

If C643 is 4700pF, then JS642 (PCB JUMPER) is used.

C643# SAFETY CAP. 4700pF/250V KX CA2E472MR050
JS642 PCB JUMPER D0.6-P10.0 JW10.0T

If C642 is 0.01µF, then C643 is 0.01µF.

C642# SAFETY CAP. 10000pF/250V or CCG2EMA0F103
# SAFETY CAP. F M 0.01µF/250V or CCG2EMP0F103

20030318 13-2 L6600EL

Ref. No. Description Part No.

# CERAMIC CAP. 0.01µF F CS CCG2HMN0F103
C643# SAFETY CAP. 10000pF/250V or CCG2EMA0F103

# SAFETY CAP. F M 0.01µF/250V or CCG2EMP0F103
# CERAMIC CAP. 0.01µF F CS CCG2HMN0F103
C654# ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0
# ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
# ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C655 ELECTROLYTIC CAP. 1000µF/16V M(VR/HC) or CE1CMZNTL102

ELECTROLYTIC CAP. 1000µF/16V M or CE1CMZPDL102
ELECTROLYTIC CAP. 1000µF/16V M CE1CMZADL102

C656 ELECTROLYTIC CAP. 100µF/160V M or CE2CMZPTL101

ELECTROLYTIC CAP. 100µF/160V M CE2CMZNDL101

C657 ELECTROLYTIC CAP. 470µF/35V M(VR) or CE1GMZNTL471

ELECTROLYTIC CAP. 470µF/35V M or CE1GMZADL471
ELECTROLYTIC CAP. 470µF/35V M CE1GMZNDL471

C658# ELECTROLYTIC CAP. 1000µF/16V M(VR/HC) or CE1CMZNTL102

# ELECTROLYTIC CAP. 1000µF/16V M or CE1CMZPDL102
# ELECTROLYTIC CAP. 1000µF/16V M CE1CMZADL102

C667 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0
ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010

C681 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C682 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C683 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C686 ELECTROLYTIC CAP. 33µF/16V M or CE1CMASTL330

ELECTROLYTIC CAP. 33µF/16V M CE1CMASDL330

C687 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASTL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101

C692 ELECTROLYTIC CAP. 100µF/160V M or CE2CMZPTL101

ELECTROLYTIC CAP. 100µF/160V M CE2CMZNDL101
C701 CERAMIC CAP.(AX) B K 100pF/50V CCA1JKT0B101
C711 CERAMIC CAP.(AX) X K 4700pF/16V CDA1CKT0X472
C712 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C721 CERAMIC CAP.(AX) X K 4700pF/16V CDA1CKT0X472
C722 ELECTROLYTIC CAP. 0.47µF/50V M or CE1JMASTLR47

ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C801 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASTL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471
C802 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASTL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471
C803 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029
C804 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029
C808 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C809 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASTL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C812 ELECTROLYTIC CAP. 22µF/16V M or CE1CMASTL220

ELECTROLYTIC CAP. 22µF/16V M CE1CMASDL220
C814 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASTL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C821 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASTL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471
C822 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASTL471

Ref. No. Description Part No.

ELECTROLYTIC CAP. 470µF/16V M CE1CMASDL471
C827# ELECTROLYTIC CAP. 100µF/16V M or CE1CMASTL101
# ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C831 ELECTROLYTIC CAP. 100µF/16V M or CE1CMASTL101

ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C833 CERAMIC CAP.(AX) F Z 0.01µF/25V CDA1EZT0F103

CONNECTORS

CN571# CONNECTOR BASE, 5P TV-50P-05-V3 or J3TVC05TG002
# CONNECTOR BASE, 5P RTB-1.5-5P or J3RTC05JG001
# CONNECTOR BASE, 5P W-P3005-02 1730812
CN691# CONNECTOR BASE, 2P TV-50P-02-V3 or J3TVC02TG002
# CONNECTOR BASE, 2P RTB-1.5-2P J3RTC02JG001

CN801 STRAIGHT CONNECTOR BASE 00 8283 0212 00

CN802 STRAIGHT CONNECTOR BASE 00 8283 0212 00

000 or

STRAIGHT PIN HEADER, 2P 173981-2 1770258

000 or

STRAIGHT PIN HEADER, 2P 173981-2 1770258

J383C02UG002

J383C02UG002

DIODES

D101 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D102 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D131 ZENER DIODE MTZJT-775.1B or QDTB0MTZJ5R1

ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS
D151 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS
D181 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D322 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D323 ZENER DIODE MTZJT-7710B or QDTB00MTZJ10

ZENER DIODE DZ-10BSBT265 NDTB00DZ10BS
D326 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D327 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS
D351 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D352 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D353 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D525# ZENER DIODE MTZJT-7720B or QDTB00MTZJ20
# ZENER DIODE DZ-20BSBT265 NDTB00DZ20BS
D526# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D532 DIODE 1N5397-B or NDLZ001N5397

RECTIFIER DIODE ERA15-02 AERA1502****
D552# ZENER DIODE MTZJT-7715B or QDTB00MTZJ15
# ZENER DIODE DZ-15BSBT265 NDTB00DZ15BS
D558 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D571# DIODE FR104-B or NDLZ000FR104

# RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202
# RECTIFIER DIODE 10ELS2 QDQZ0010ELS2
D572# RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202
# RECTIFIER DIODE 10ELS2 QDQZ0010ELS2
D573# RECTIFIER DIODE ERA22-02 or QDPZ0ERA2202
# RECTIFIER DIODE 10ELS2 QDQZ0010ELS2

D580 DIODE ERD07-15 QDLZ0ERD0715

20030318 13-3 L6600EL

Ref. No. Description Part No.

D582 FAST RECOVERY DIODE ERD38-06 QDQZ0ERD3806
D583 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D584# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D585 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D586 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D587 ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS
D588 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D591# ZENER DIODE MTZJT-7736B or QDTB00MTZJ36
# ZENER DIODE DZ-36BSBT265 NDTB00DZ36BS
D595# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D597 ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS
D605# DIODE 1N5406 or NDLZ001N5406
# DIODE ERC04-06L3 QD4Z0ERC0406
D606# DIODE 1N5406 or NDLZ001N5406
# DIODE ERC04-06L3 QD4Z0ERC0406
D607# DIODE 1N5406 or NDLZ001N5406
# DIODE ERC04-06L3 QD4Z0ERC0406
D608# DIODE 1N5406 or NDLZ001N5406
# DIODE ERC04-06L3 QD4Z0ERC0406
D609 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D611# ZENER DIODE MTZJT-7715B or QDTB00MTZJ15
# ZENER DIODE DZ-15BSBT265 NDTB00DZ15BS
D615# SWITCHING DIODE 1N4148 T-77 QDTZ001N4148
D621 ZENER DIODE MTZJT-777.5B or QDTB0MTZJ7R5

ZENER DIODE DZ-7.5BSBT265 NDTB0DZ7R5BS
D622 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D641 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D642# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D651# FAST RECOVERY DIODE 30DF6 or QDWZ00030DF6

# DIODE ERD29-06J or QD4Z0ERD2906
# FAST RECOVERY DIODE FE201-6 QDLZ00FE2016
D652# DIODE FR154 or NDLZ000FR154
# FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402

D653 DIODE FR154 or NDLZ000FR154

FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402
D654# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D655# DIODE FR154 or NDLZ000FR154
# FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402
D657# DIODE 1ZC36 QDQZ0001ZC36
D660 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D661# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D662# ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8
# ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS
D666 ZENER DIODE MTZJT-7736B or QDTB00MTZJ36

ZENER DIODE DZ-36BSBT265 NDTB00DZ36BS
D671# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

Ref. No. Description Part No.

# SWITCHING DIODE 1N4148 NDTZ001N4148
D672 PCB JUMPER D0.6-P5.0 JW5.0T
D673 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D681 ZENER DIODE MTZJT-779.1B or QDTB0MTZJ9R1

ZENER DIODE DZ-9.1BSBT265 NDTB0DZ9R1BS
D683 SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004
D691# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D695 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS
D696 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D826 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D838 ZENER DIODE MTZJT-7710B or QDTB00MTZJ10

ZENER DIODE DZ-10BSBT265 NDTB00DZ10BS
D841# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148
D842# ZENER DIODE MTZJT-775.1B or QDTB0MTZJ5R1
# ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS
D845# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133
# SWITCHING DIODE 1N4148 NDTZ001N4148

ICS

IC31 IC:VIF/SIF DETECTOR M61111FP QSZBA0SMB010
IC111# IC M61271M8-050FP-61 QSZAB0RMB127
IC151 IC:MEMORY S524C20D21 or NSZBA0SSM028

IC:MEMORY AT24C02N-10SC or NSMMA0SAZ012

IC(EEPROM) M24C02-MN6 or NSMMA0SSS028

IC:MEMORY BR24C02F-W or QSMBA0SRM003

IC:MEMORY BR24C02F or QSMMA0SRM003

IC:EEPROM CAT24WC02JI or NSZBA0SBG001

IC(EEP-ROM) M24C02-WMN6 NSZAA0SSS004
IC401 IC:USA STEREO DECODER LA7765 QSZBA0SSY003
IC481 IC:SWITCHING TC4052BF(EL) or QSZBA0TTS096

IC:SWITCHING CD4052BCSJX NSZBA0TF3079
IC551# IC:VERTICAL OUTPUT LA78041 or QSZBA0SSY006
# IC:VERTICAL OUTPUT LA78045 QSZBA0SSY004
IC601# PHOTOCOUPLER PS2501-1W or QPEW0PS25011

# PHOTO COUPLER PS2501-1L or QPEL0PS25011
# PHOTOCOUPLER LTV-817B-F or NPEB0LTV817F
# PHOTOCOUPLER LTV-817C-F NPEC0LTV817F

IC802 AUDIO POWER IC AN17805A QSZBA0SMS007

COILS

L1 PCB JUMPER D0.6-P5.0 JW5.0T
L3 INDUCTOR 22µH-K-5FT or LLARKBSTU220

INDUCTOR 22µH-K LLARKDQKA220
L32 INDUCTOR 15µH-J-26T or LLAXJATTU150

INDUCTOR 15µH-K-26T LLAXKDTKA150
L33 INDUCTOR 22µH-J-26T or LLAXJATTU220

INDUCTOR 22µH-K-26T LLAXKDTKA220
L51 INDUCTOR 100µH-K-5FT or LLARKBSTU101

INDUCTOR 100µH-K LLARKDQKA101
L111 INDUCTOR 22µH-K-5FT or LLARKBSTU220

INDUCTOR 22µH-K LLARKDQKA220
L301 INDUCTOR 100µH-K-5FT or LLARKBSTU101

INDUCTOR 100µH-K LLARKDQKA101
L341 PCB JUMPER D0.6-P5.0 JW5.0T
L342 PCB JUMPER D0.6-P5.0 JW5.0T
L561 LINEARITY COIL ELH5L6136N LLBD00PMS008

20030318 13-4 L6600EL

Ref. No. Description Part No.

L562 LINEARITY COIL ST02LN or LLBD00ZY2003

CHOKE COIL ELC13B102L or LLC102KMS001
CHOKE COIL CSA-LF048 LLBD00ZSA003

L601# LINE FILTER JLB2808 or LLBG00ZXB004

# LINE FILTER MS036 or LLBG00ZY2009
# LINE FILTER CSA-LF032 LLBG00ZSA007

L692 CHOKE COIL 47µH-K or LLBD00PKV007

POT COIL 47µH K or LLBD**DMM001
POT COIL 47µH K LLBD00DQE001

TRANSISTORS

Q31 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q111 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q321# TRANSISTOR 2SC2785(F) or QQSF02SC2785

# TRANSISTOR 2SC2785(H) or QQSH02SC2785
# TRANSISTOR 2SC2785(J) or QQSJ02SC2785
# TRANSISTOR KTC3199(GR) or NQS10KTC3199
# TRANSISTOR KTC3198(GR) or NQS40KTC3198
# TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
# TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
# TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q411 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267
TRANSISTOR KTA1266(GR) or NQS40KTA1266
TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ
TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ
TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q441 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267
TRANSISTOR KTA1266(GR) or NQS40KTA1266
TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ
TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ
TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q481 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q531 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

Ref. No. Description Part No.

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q532 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q551# TRANSISTOR 2SA1175(F) or QQSF02SA1175

# TRANSISTOR KTA1267(GR) or NQS10KTA1267
# TRANSISTOR KTA1266(GR) or NQS40KTA1266
# TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ
# TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ
# TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015
Q552# TRANSISTOR 2SD1666R or QQER02SD1666
# TRANSISTOR 2SD1666S or QQES02SD1666
# TRANSISTOR KTD2059(O) or NQ400KTD2059
# TRANSISTOR KTD2059(Y) or NQ4Y0KTD2059
# TRANSISTOR 2SD1825 Q2SD1825****

Q553 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q561 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q571# TRANSISTOR 2SD2634 or QQZZ02SD2634
# TRANSISTOR TT2142 QQZZ00TT2142
Q572 TRANSISTOR 2SC1627Y-TPE2 QQSY02SC1627
Q601# FET 2SK3407 QFFZ02SK3407
Q602# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120
# TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120
Q641 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015
Q662# TRANSISTOR 2SC2785(F) or QQSF02SC2785

# TRANSISTOR 2SC2785(H) or QQSH02SC2785
# TRANSISTOR 2SC2785(J) or QQSJ02SC2785
# TRANSISTOR KTC3199(GR) or NQS10KTC3199
# TRANSISTOR KTC3198(GR) or NQS40KTC3198
# TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
# TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
# TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q671# TRANSISTOR 2SA1175(F) or QQSF02SA1175
# TRANSISTOR KTA1267(GR) or NQS10KTA1267
# TRANSISTOR KTA1266(GR) or NQS40KTA1266
# TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

20030318 13-5 L6600EL

Ref. No. Description Part No.

# TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ
# TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q675 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q676 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q681 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120
TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q682 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120
TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q683 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120
TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q696 RES. BUILT-IN TRANSISTOR BA1F4M-T or QQSZ00BA1F4M

RES. BUILT-IN TRANSISTOR KRC103M NQSZ0KRC103M

Q825 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198
TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q831# TRANSISTOR 2SB892(S) or QQSS002SB892
# TRANSISTOR 2SB892(T) QQST002SB892
Q832 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q833# TRANSISTOR 2SC2785(F) or QQSF02SC2785

# TRANSISTOR 2SC2785(H) or QQSH02SC2785
# TRANSISTOR 2SC2785(J) or QQSJ02SC2785
# TRANSISTOR KTC3199(GR) or NQS10KTC3199
# TRANSISTOR KTC3198(GR) or NQS40KTC3198
# TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ
# TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ
# TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

RESISTORS

R3 PCB JUMPER D0.6-P5.0 JW5.0T
R4 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R5 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

Ref. No. Description Part No.

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R21 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R31 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R32 CARBON RES. 1/4W J 390 Ω or RCX4JATZ0391

CARBON RES. 1/6W J 390 Ω RCX6JATZ0391
R33 CARBON RES. 1/4W J 270 Ω or RCX4JATZ0271

CARBON RES. 1/6W J 270 Ω RCX6JATZ0271
R34 CARBON RES. 1/4W J 180 Ω or RCX4JATZ0181

CARBON RES. 1/6W J 180 Ω RCX6JATZ0181
R36 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R37 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R41 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R42 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563
R43 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123
R51 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224
R52 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224
R54 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R102 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R103 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R104 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R105 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R106 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822
R111# CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R112 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R113 CARBON RES. 1/4W J 470k Ω RCX4JATZ0474
R114 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R116 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R132 PCB JUMPER D0.6-P5.0 JW5.0T
R133 PCB JUMPER D0.6-P5.0 JW5.0T
R135 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R136 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R137 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R138 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224
R139 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R140 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R141 PCB JUMPER D0.6-P5.0 JW5.0T
R151 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R155 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R156 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R161 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R162 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R163 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R164 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R166 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R168 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R170 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R171 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R172 PCB JUMPER D0.6-P5.0 JW5.0T
R173 PCB JUMPER D0.6-P5.0 JW5.0T
R301 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R302 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R303 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

20030318 13-6 L6600EL

Ref. No. Description Part No.

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R322 PCB JUMPER D0.6-P5.0 JW5.0T
R323 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R326 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R327 PCB JUMPER D0.6-P5.0 JW5.0T
R328 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R329 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R330 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R331 PCB JUMPER D0.6-P5.0 JW5.0T
R342 PCB JUMPER D0.6-P5.0 JW5.0T
R344 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R345 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R346 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R347# PCB JUMPER D0.6-P5.0 JW5.0T
R348 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273
R355 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333
R356 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R357 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R358 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R362 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R402 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562
R403 PCB JUMPER D0.6-P5.0 JW5.0T
R405 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R406 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R407 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R408 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R409 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R412 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R421 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R422 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R432 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R435 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R436 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R441 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R442 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R443 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R445 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R481 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R482 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R521 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681
R522 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681
R523 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681
R527# CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R530 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R531 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R532 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R533 CARBON RES. 1/4W J 3.3 Ω or RCX4JATZ03R3

CARBON RES. 1/6W J 3.3 Ω RCX6JATZ03R3
R534 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223

Ref. No. Description Part No.

R535 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R536 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R537 CARBON RES. 1/4W J 68k Ω RCX4JATZ0683
R538 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R540 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R541 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R542 CARBON RES. 1/4W J 2.7 Ω or RCX4JATZ02R7

CARBON RES. 1/6W J 2.7 Ω RCX6JATZ02R7
R543 CARBON RES. 1/4W J 2.7 Ω or RCX4JATZ02R7

CARBON RES. 1/6W J 2.7 Ω RCX6JATZ02R7
R544 CARBON RES. 1/4W J 2.7 Ω or RCX4JATZ02R7

CARBON RES. 1/6W J 2.7 Ω RCX6JATZ02R7
R549# METAL OXIDE FILM RES. 1W J 12 Ω or RN01120ZU001
# METAL OXIDE FILM RES. 1W J 12 Ω RN01200DP003
R550# METAL OXIDE FILM RES. 1W J 12 Ω or RN01120ZU001
# METAL OXIDE FILM RES. 1W J 12 Ω RN01200DP003
R551 METAL OXIDE FILM RES. 2W J 680 Ω or RN02681ZU001

METAL OXIDE FILM RES. 2W J 680 Ω RN02681DP004
R552# METAL OXIDE FILM RES. 2W J 8.2 Ω or RN028R2ZU001
# METAL OXIDE FILM RES. 2W J 8.2 Ω RN028R2DP004
R553 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R554 CARBON RES. 1/4W J 3.9k Ω RCX4JATZ0392
R555 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R556 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R557 CARBON RES. 1/4W J 18k Ω RCX4JATZ0183
R558 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R559 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R560 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R561 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R562 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R563 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R564 CARBON RES. 1/4W J 150k Ω RCX4JATZ0154
R565 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R566 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822
R568 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R569 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R571# METAL OXIDE FILM RES. 2W J 1.2k Ω or RN02122ZU001
# METAL OXIDE FILM RES. 2W J 1.2k Ω RN02122DP004
R572# METAL OXIDE FILM RES. 2W J 1.2k Ω or RN02122ZU001
# METAL OXIDE FILM RES. 2W J 1.2k Ω RN02122DP004
R575# CARBON RES. 1/4W J 15 Ω or RCX4JATZ0150
# CARBON RES. 1/6W J 15 Ω RCX6JATZ0150
R576# CARBON RES. 1/4W J 15 Ω or RCX4JATZ0150
# CARBON RES. 1/6W J 15 Ω RCX6JATZ0150
R577# CARBON RES. 1/4W J 15 Ω or RCX4JATZ0150
# CARBON RES. 1/6W J 15 Ω RCX6JATZ0150
R578 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331
R579 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R581 PCB JUMPER D0.6-P5.0 JW5.0T
R583# METAL OXIDE FILM RES. 2W J 6.8 Ω or RN026R8ZU001
# METAL OXIDE FILM RES. 2W J 6.8 Ω RN026R8DP004
R584# CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102
# CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R585 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R586 CARBON RES. 1/4W J 220k Ω RCX4JATZ0224
R587# CARBON RES. 1/4W J 56k Ω RCX4JATZ0563

20030318 13-7 L6600EL

Ref. No. Description Part No.

R588 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563
R589 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R590 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123
R591# CARBON RES. 1/4W J 180k Ω RCX4JATZ0184
R592# CARBON RES. 1/4W J 180k Ω RCX4JATZ0184
R593# CARBON RES. 1/4W J 56k Ω RCX4JATZ0563
R594# CARBON RES. 1/4W J 82k Ω RCX4JATZ0823
R595 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R596 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R597 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822
R598# CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R599 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R601# CEMENT RES. 5W K 0.56 Ω or RW05R56DP007
# CEMENT RES. 5W K 0.56 Ω RW05R56PG001
R602# CARBON RES. 1/4W J 820k Ω RCX4JATZ0824
R603 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824
R604 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824
R605 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824
R611 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R612 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R613# CEMENT RES. 5W K 0.27 Ω or RW05R27DP005
# CEMENT RESISTOR 5W K 0.27 Ω RW05R27PG001
R614 CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470

CARBON RES. 1/6W J 47 Ω RCX6JATZ0470
R616 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R617 CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470

CARBON RES. 1/6W J 47 Ω RCX6JATZ0470
R620 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R621 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R623 CARBON RES. 1/4W J 39 Ω or RCX4JATZ0390

CARBON RES. 1/6W J 39 Ω RCX6JATZ0390
R624 PCB JUMPER D0.6-P5.0 JW5.0T
R626 CARBON RES. 1/4W J 390 Ω or RCX4JATZ0391

CARBON RES. 1/6W J 390 Ω RCX6JATZ0391
R642 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R643 CARBON RES. 1/4W J 120k Ω RCX4JATZ0124
R653 CARBON RES. 1/4W J 18k Ω RCX4JATZ0183
R654# CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R655# CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102
# CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R656# CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R657# CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R658 CARBON RES. 1/4W J 470k Ω RCX4JATZ0474
R660 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R661# CARBON RES. 1/4W J 68k Ω RCX4JATZ0683
R662# CARBON RES. 1/4W J 82k Ω RCX4JATZ0823
R664# CARBON RES. 1/4W J 12k Ω RCX4JATZ0123
R665# CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562
R666# METAL RESISTOR 2W J 18k Ω or RN02183ZU001
# METAL OXIDE FILM RES. 2W J 18k Ω RN02183DP004
R667# CARBON RES. 1/4W J 27k Ω RCX4JATZ0273
R668# CARBON RES. 1/4W J 33k Ω RCX4JATZ0333
R669# CARBON RES. 1/4W J 27k Ω RCX4JATZ0273
R670# CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R671 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R672 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332

Ref. No. Description Part No.

R673 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R675# CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R676 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R677 CARBON RES. 1/4W J 68k Ω RCX4JATZ0683
R678 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R681 CARBON RES. 1/4W J 12 Ω or RCX4JATZ0120

CARBON RES. 1/6W J 12 Ω RCX6JATZ0120
R682# METAL OXIDE FILM RES. 1W J 47 Ω or RN01470ZU001
# METAL OXIDE FILM RES. 1W J 47 Ω RN01470DP003
R683# METAL OXIDE FILM RES. 1W J 39 Ω or RN01390ZU001
# METAL OXIDE FILM RES. 1W J 39 Ω RN01390DP003
R684 CARBON RES. 1/4W J 56 Ω or RCX4JATZ0560

CARBON RES. 1/6W J 56 Ω RCX6JATZ0560
R685 CARBON RES. 1/4W J 56 Ω or RCX4JATZ0560

CARBON RES. 1/6W J 56 Ω RCX6JATZ0560
R686# CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101
# CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R687# CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101
# CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R691 CARBON RES. 1/4W J 15k Ω RCX4JATZ0153
R696 CARBON RES. 1/4W J 10 Ω or RCX4JATZ0100

CARBON RES. 1/6W J 10 Ω RCX6JATZ0100
R701 CARBON RES. 1/4W J 75 Ω or RCX4JATZ0750

CARBON RES. 1/6W J 75 Ω RCX6JATZ0750
R702 PCB JUMPER D0.6-P5.0 JW5.0T
R703 PCB JUMPER D0.6-P5.0 JW5.0T
R711 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R712 CARBON RES. 1/4W J 3.9k Ω RCX4JATZ0392
R713 CARBON RES. 1/4W J 39k Ω RCX4JATZ0393
R721 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R722 CARBON RES. 1/4W J 3.9k Ω RCX4JATZ0392
R723 CARBON RES. 1/4W J 39k Ω RCX4JATZ0393
R771 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273
R772 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R773 CARBON RES. 1/4W J 68k Ω RCX4JATZ0683
R774 CARBON RES. 1/4W J 68k Ω RCX4JATZ0683
R776 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273
R777 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R801 CARBON RES. 1/2W J 100 Ω or RCX2JZQZ0101

CARBON RES. 1/2W J 100 Ω or RCX2101KA013

CARBON RES. 1/2W J 100 Ω RCX2JZPZ0101
R802 CARBON RES. 1/2W J 100 Ω or RCX2JZQZ0101

CARBON RES. 1/2W J 100 Ω or RCX2101KA013

CARBON RES. 1/2W J 100 Ω RCX2JZPZ0101
R803 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R804 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R811 PCB JUMPER D0.6-P5.0 JW5.0T
R812 PCB JUMPER D0.6-P5.0 JW5.0T
R817 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R818 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273
R828 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R829 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R831 CARBON RES. 1/4W J 680 Ω or RCX4JATZ0681

CARBON RES. 1/6W J 680 Ω RCX6JATZ0681
R832 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R833 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

20030318 13-8 L6600EL

Ref. No. Description Part No.

R834 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R837 PCB JUMPER D0.6-P5.0 JW5.0T
R838 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

R841 METAL RESISTER. 2W J 2.7 Ω or RN022R7ZU001

METAL OXIDE FILM RES. 2W J 2.7 Ω RN022R7DP004
R843# CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R845 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R846# CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222

SWITCHES

SW101 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029
SW102 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029
SW103 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029
SW104 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029
SW105 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029
SW106 TACT SWITCH SKQSAB or SST0101AL038

TACT SWITCH KSM0612B or SST0101HH003

TACT SWITCH SKHHAM SST0101AL029

MISCELLANEOUS

AC601# AC CORD LA-2413 WAC0172LW007
B1 HEAT SINK(PHI) L6600UZ 0EM407654
B2 HEAT SINK(PHH)ASSEMBLY L6600UZ 0EM407653
B3 HEAT SINK(PHF)ASSEMBLY L6600UZ 0EM407649
B4 HEAT SINK(PHG)ASSEMBLY L6600UZ 0EM407651
BC571 BEAD INDUCTORS FBA04HA600VB-00 LLBF00STU026
BC601 PCB JUMPER D0.6-P5.0 JW5.0T
BC602 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC650 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC651 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC652 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC653 PCB JUMPER D0.6-P5.0 JW5.0T
BC655 PCB JUMPER D0.6-P5.0 JW5.0T
BC691 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC692 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
CF31 CERAMIC TRAP 4.5MHz or FBE455PMR003

CERAMIC TRAP 4.5MHz FBE455PMS002
CF32 CERAMIC FILTER SFSRA4M50CF00-B0 or FBB455PMR004

CERAMIC FILTER 4.5MHz FBB455PMS001
CLN301 WIRE ASSEMBLY WX1L1200-102 WX1L1200-102
CLN501 WIRE ASSEMBLY WX1L1200-103 WX1L1200-103
F601# FUSE 4A/125V 237 TYPE or PAGJ20CAG402

# FUSE STC4A125V U/CT or PAGE20CW3402
# FUSE 4.00A/125V PAGG20CNG402

FH601 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 or XH01Z00DK001

HOLDER, FUSE CNT41-0014 1790424
FH602 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 or XH01Z00DK001

HOLDER, FUSE CNT41-0014 1790424
GP641# GAP. FNR-G3.10D FAZ000LD6005

Ref. No. Description Part No.

JK701 RCA JACK 1P(YELLOW)WITH SWITCH AV1-09S-

JK702 RCA JACK 1P(WHITE)WITH SWITCH AV1-09S-4 orJYRL010RP010

JK703 RCA JACK 1P(RED)WITH SW ITCH AV1-09S-2 or JYRL010RP008

JK704 RCA JACK 3P (SW) MSP-213-V2-432 JYRL030LY008
JK801 HEADPHONE JACK MSJ-035-10A B JYSL020LY002
JS102 PCB JUMPER D0.6-P5.0 JW5.0T
JS104 PCB JUMPER D0.6-P5.0 JW5.0T
JS342 PCB JUMPER D0.6-P5.0 JW5.0T
JS642 PCB JUMPER D0.6-P10.0 JW10.0T
JS704 PCB JUMPER D0.6-P5.0 JW5.0T
JS706 PCB JUMPER D0.6-P5.0 JW5.0T
JS855 PCB JUMPER D0.6-P5.0 JW5.0T
L1 SCREW, B-TIGHT M3X8 BIND HEAD+ or GBMB3080

PS691# THERMISTOR ZPB45BL7R0A QNZZ45BL7R0A
RCV101 REMOCON RECEIVE UNIT MIM-93M8DKL or USESJRSUNT02

RL601# POWER RELAY SDT-S-112LMR or MRNDC12QN014

# POWER RELAY RPEF-12-901 or MRNDC12KB002
# RELAY ALKS321 MRNDC12MS013
SA601# SURGE ABSORBER PVR-07D471KB or NVQZ07D471KB
# SURGE ABSORBER CNR-07D471K or NVQZR07D471K
# SURGE ABSORBER AVR-S07D471KAAS or QVQZ0AVRS07D
# SURGE ABSORBER JVR-07N471K or NVQZVR07N471
# VARISTOR ENC471D-07A QVQZ0471D07A

SF1 SAW FILTER SAFGM45M7VHHzC0B03 FBB456PMR008
T571# FLYBACK TRANS BSC25-2096S or LTF00CPS2028

# FLYBACK TRANS BSC28-0730 or LTF00CPP1011
# FLYBACK TRANSFORMER JF0501-2167 LTF00CPXB030

T572 HORIZONTAL DRAIVE TRANS CSA-LF161 LTH00CPSA003
T601# SWITCHING TRANS 02711 or LTT00CPKT102
# SWITCHING TRANS CSA-SW0197 LTT00CPSA134
TH551 PCB JUMPER D0.6-P5.0 JW5.0T
TP300 PCB JUMPER D0.6-P12.5 JW12.5T
TP301 PCB JUMPER D0.6-P10.0 JW10.0T
TP302 PCB JUMPER D0.6-P10.0 JW10.0T
TP591 PCB JUMPER D0.6-P5.0 JW5.0T
TP592 PCB JUMPER D0.6-P5.0 JW5.0T
TP601 PCB JUMPER D0.6-P10.0 JW10.0T
TU1 TUNER UNIT TEQH9-001A UTUNNTUAL032
VR561 CARBON P.O.T. 30k Ω B or VRCB303KA011

VR562 CARBON P.O.T. 5k Ω B or VRCB502KA011

VR661 CARBON P.O.T. 50k Ω B or VRCB503KA011

X301 X'TAL 3.579545 MHz or FXD355LLN003

X441 CERAMIC RESONATOR ZTB378F2 or FY0374PLN001

3 or
RCA JACK(YELLOW) MTJ-032-06A-20 JYRL010LY013

RCA JACK(WHITE) MTJ-032-06A-22 JYRL010LY015

RCA JACK(RED) MTJ-032-06A-21 JYRL010LY014

SCREW, B-TIGHT M3X8 BIND HEAD+ or GBMB3080
SCREW, B-TIGHT M3X8 BIND HEAD+ or GBMB3080
SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080

REMOCON RECEIVE UNIT PIC-26042SR-2 or USESJRSKK032
REMOCON RECEIVE UNIT PIC-37042SR USESJRSKK034

CARBON P.O.T. 30k Ω B VRCB303HH014

CARBON P.O.T. 5k Ω B VRCB502HH014

CARBON P.O.T. 50k Ω B VRCB503HH014

X'TAL 3.579545MHz(30PPM) FXD355LCHE01

CERAMIC RESONATOR CSB378F2 FY0374PMR001

JYRL010RP009

CRT CBA

20030318 13-9 L6600EL

Ref. No. Description Part No.

CRT CBA

Consists of the following

------------

CAPACITORS

C1501 CERAMIC CAP. B K 1000pF/2KV or CCD3DKD0B102

CERAMIC CAP. B K 1000pF/2KV or CCD3DKP0B102

CERAMIC CAP. 1000pF/2KV CA3D102PAN04
C1502 ELECTROLYTIC CAP. 47µF/16V M or CE1CMASTL470

ELECTROLYTIC CAP. 47µF/16V M CE1CMASDL470
C1511 CERAMIC CAP.(AX) B K 270pF/50V CCA1JKT0B271
C1521 CERAMIC CAP.(AX) B K 270pF/50V CCA1JKT0B271
C1531 CERAMIC CAP.(AX) B K 270pF/50V CCA1JKT0B271

CONNECTOR

CN1501 PIN CONNECTOR 005P-5100 JTEA001TG001

COILS

L1511 PCB JUMPER D0.6-P5.0 JW5.0T
L1521 PCB JUMPER D0.6-P5.0 JW5.0T
L1531 PCB JUMPER D0.6-P5.0 JW5.0T

TRANSISTORS

Q1512 TRANSISTOR KTC3503Y or NQWY0KTC3503

TRANSISTOR 2SC3619 QQ9Z02SC3619
Q1522 TRANSISTOR KTC3503Y or NQWY0KTC3503

TRANSISTOR 2SC3619 QQ9Z02SC3619
Q1532 TRANSISTOR KTC3503Y or NQWY0KTC3503

TRANSISTOR 2SC3619 QQ9Z02SC3619

RESISTORS

R1510# METAL RESISTOR 3W J 10k Ω or RN03103ZU001
# FIXED METAL OXIDE FILM RES. 3W J 10k Ω RN03103DP005

R1511 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R1512 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R1515 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R1518 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331
R1519 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R1520# METAL RESISTOR 3W J 10k Ω or RN03103ZU001
# FIXED METAL OXIDE FILM RES. 3W J 10k Ω RN03103DP005
R1521 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R1522 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R1525 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R1528 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331
R1529 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R1530# METAL RESISTOR 3W J 10k Ω or RN03103ZU001
# FIXED METAL OXIDE FILM RES. 3W J 10k Ω RN03103DP005
R1531 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R1532 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R1535 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R1538 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331
R1539 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R1541 PCB JUMPER D0.6-P5.0 JW5.0T
R1542 PCB JUMPER D0.6-P5.0 JW5.0T
R1543 PCB JUMPER D0.6-P5.0 JW5.0T

MISCELLANEOUS

BC1501 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
JK1501# CRT SOCKET ISHS40ST or JSCC290PK006
# CRT SOCKET HPS0521-012212 JSCC290HD012
JS1551 PCB JUMPER D0.6-P5.0 JW5.0T

Ref. No. Description Part No.

TP1501 PCB JUMPER D0.6-P10.0 JW10.0T
TP1502 PCB JUMPER D0.6-P10.0 JW10.0T

20030318 13-10 L6600EL

SRT2227X L6600UA

Printed in Japan

2003-04-05 HO
