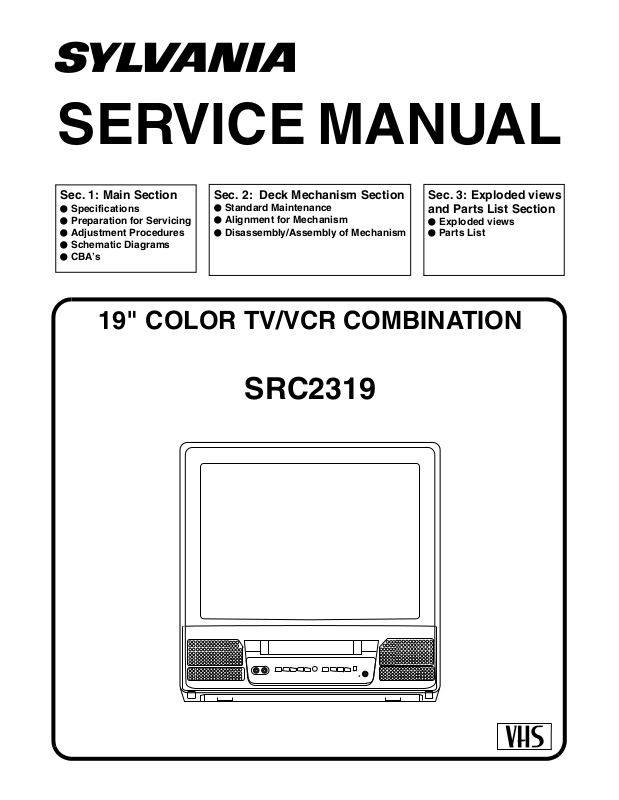

Symphonic SRC2319 Schematic

SERVICE MANUAL

Sec. 1: Main Section

I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA’s

19" COLOR TV/VCR COMBINATION

Sec. 2: Deck Mechanism Section

I Standard Maintenance
I Alignment for Mechanism
I Disassembly/Assembly of Mechanism

SRC2319

Sec. 3: Exploded views
and Parts List Section

I Exploded views
I Parts List

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing service
operations. Some of these service special tools should be used when and as
recommended.

It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk of
personal injury to service personnel. The possibility exists that improper ser­vice methods may damage the equipment. It also is important to understand
that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not
possibly know, evaluate and advice the service trade of all conceivable ways
in which service might be done or of the possible hazardous consequences of
each way. Consequently, Funai has not undertaken any such broad evalua­tion. Accordingly, a servicer who uses a service procedure or tool which is not
recommended by Funai must first use all precautions thoroughly so that nei­ther his safety nor the safe operation of the equipment will be jeopardized by
the service method selected.

MAIN SECTION

19" COLOR TV/VCR COMBINATION

SRC2319

Sec. 1: Main Section

I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA’s

TABLE OF CONTENTS

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1

Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1

Preparation for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1

Operating Controls and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5-1

Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1

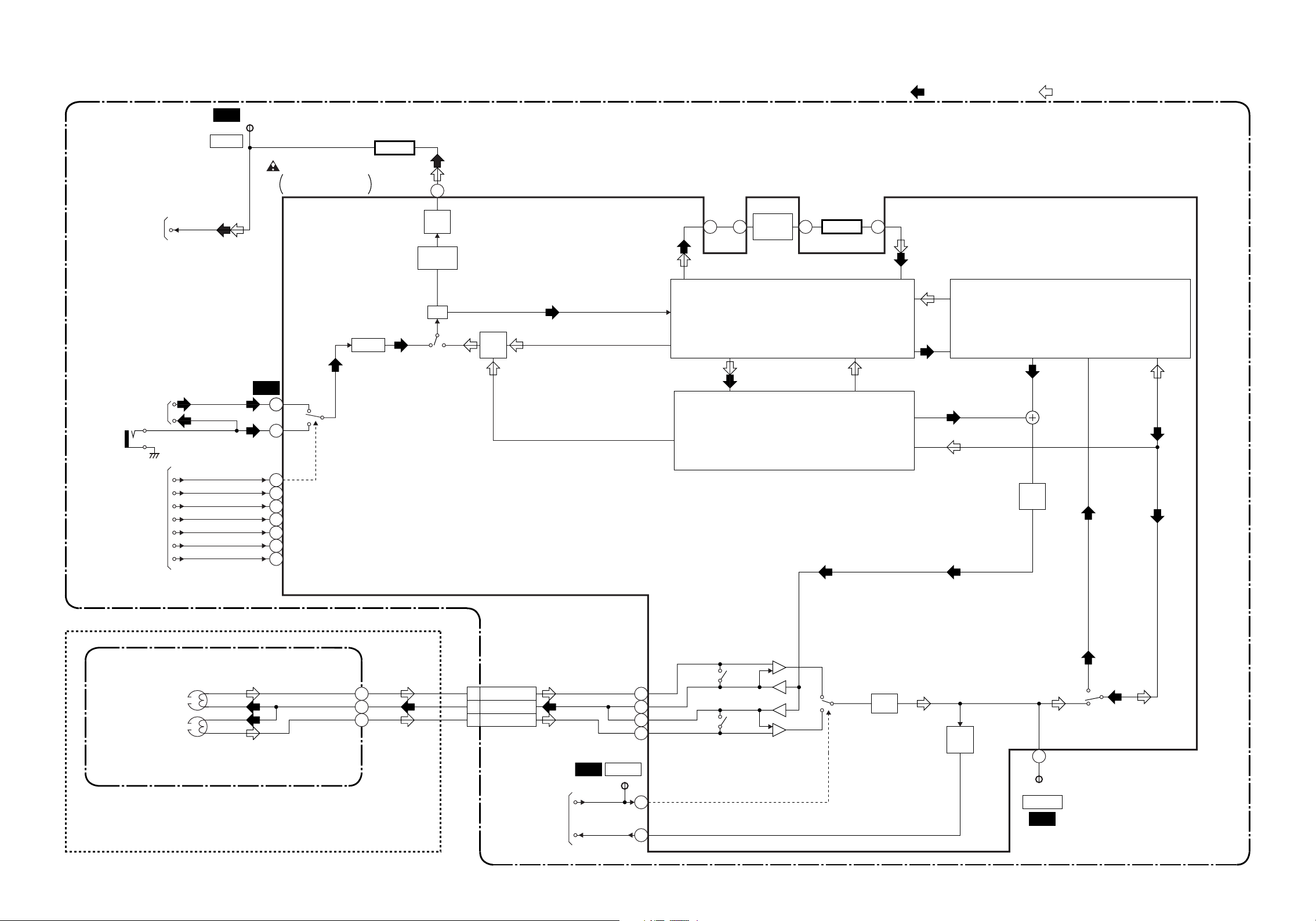

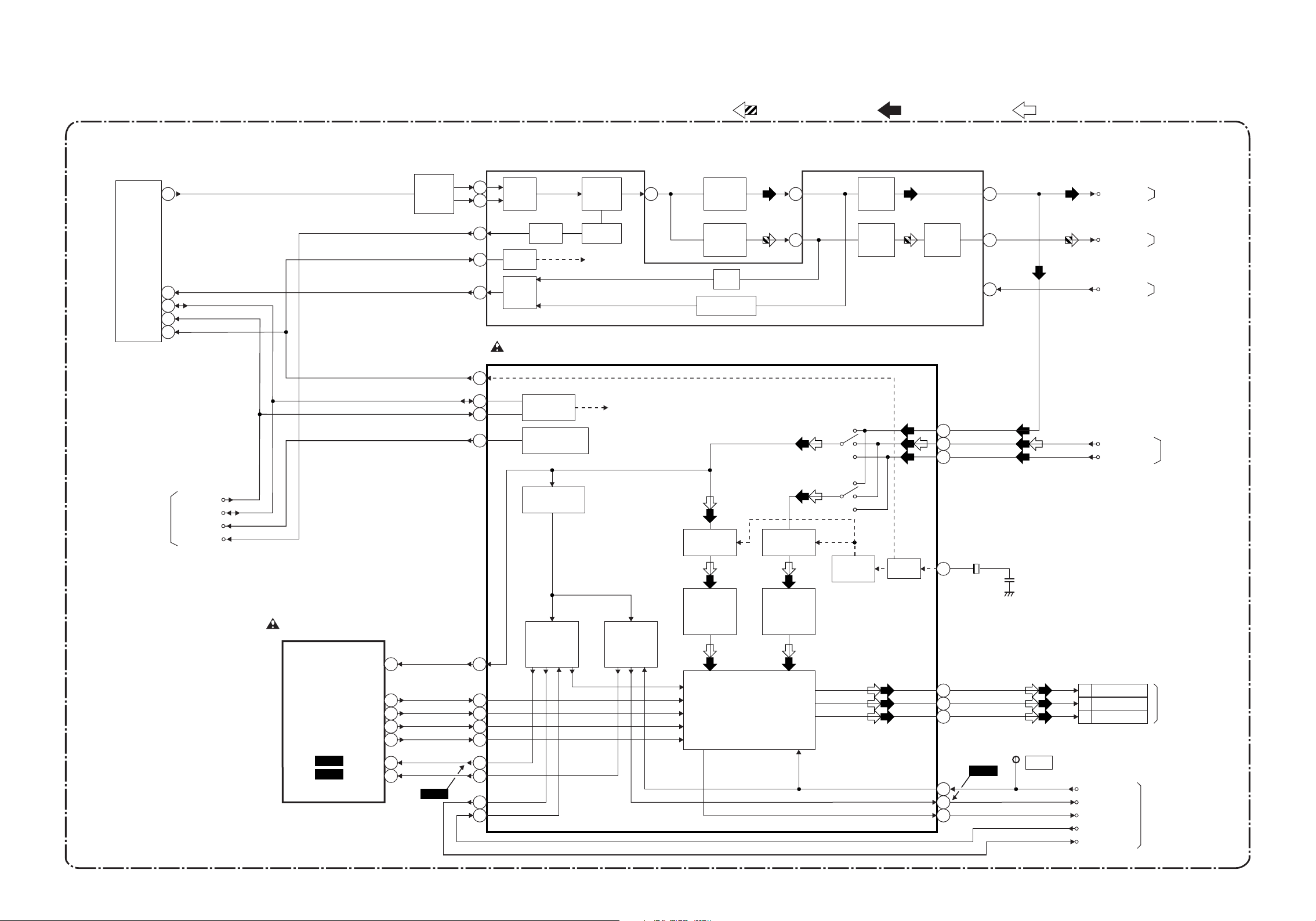

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1

Mechanical Trouble Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-13

Power Supply Trouble Shooting Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-15

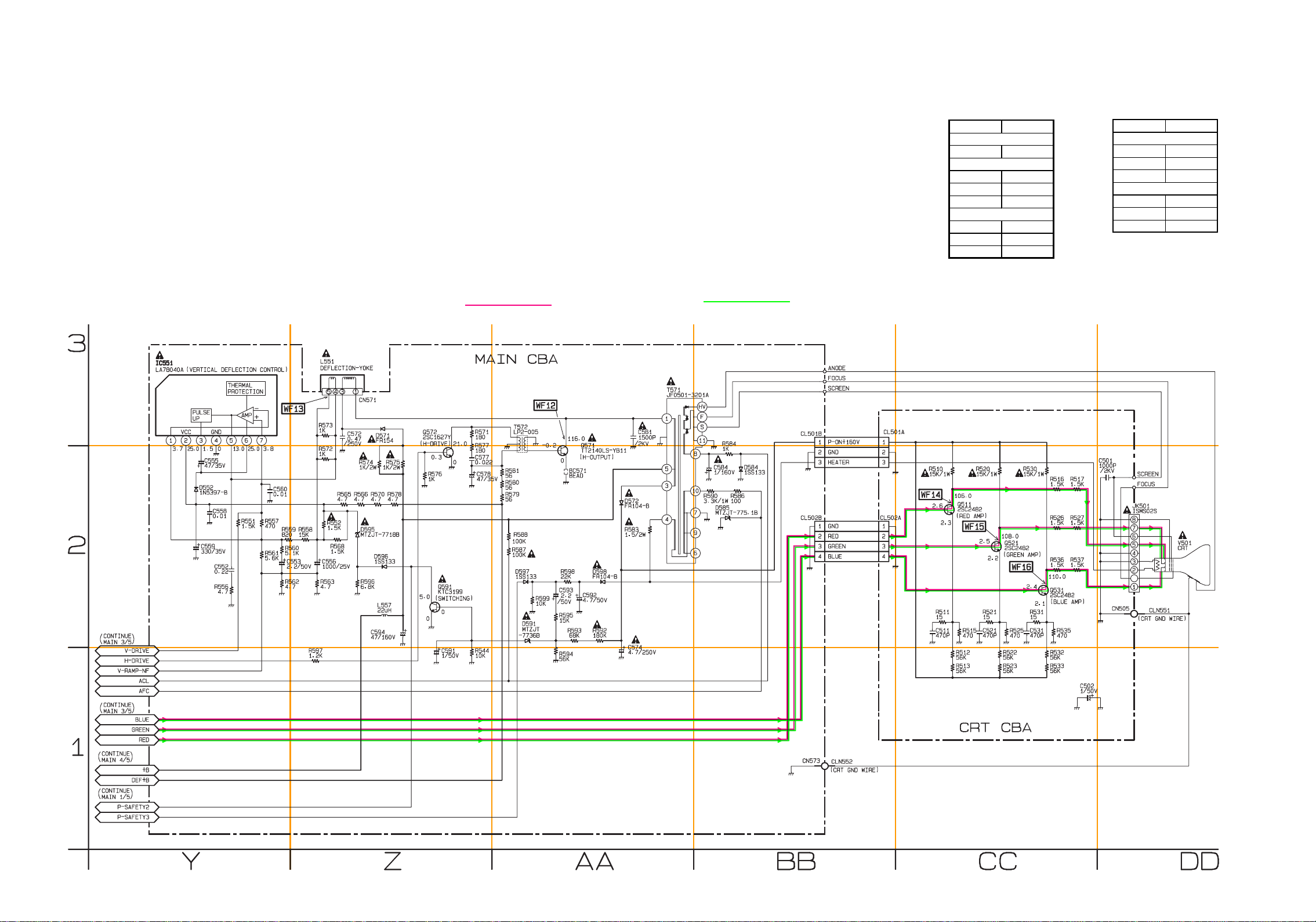

Schematic Diagrams / CBA’s and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10-1

Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1

System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12-1

IC Pin Function Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1

Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1

SPECIFICATIONS

*ˆMode---------SP mode unless otherwise specified
*Test input terminal

<Except Tuner>-------------Video input (1Vp-p)
Audio input (-10dB)
<Tuner>-----------------------Ant. input (80dBµV) Video: 87.5%
Audio: 25kHz dev (1kHz Sin)

<DEFLECTION>

Description Condition Unit Nominal Limit

1. Over Scan — % 90 —

2. Linearity Horizontal % — 15

Vertical % — 10

3. High Voltage — kV 25 —

<VIDEO & CHROMA>

Description Condition Unit Nominal Limit

1. Misconvergence Center m/m — 0.4

Corner m/m — 2.1

Side m/m — 1.4

2. Tint Control Range — deg ±30 —

3. Contrast Control Range — dB 6 —

4. Brightness APL 100% ft-L 35 24

5. Color Temperature — K 9200 —

<VCR>

Description Condition Unit Nominal Limit

1. Horizontal Resolution (R/P) Line 230 200

2. Jitter (Low) (R/P) µS 0.05 0.2

3. S/N Chroma AM(SP) (R/P) dB 38 33

PM(SP) (R/P) dB 36 33

4. Wow & Flutter (RMS) (R/P) % 0.25 0.5

<TUNER>

Description Condition Unit Nominal Limit

1. Video S/N — dB 45 40

2. Audio S/N (W/LPF) — dB 43 40

1-1-1 T7300SP

<AUDIO>

All items are measured across 8Ω resistor at speaker output terminal.

Description Condition Unit Nominal Limit

1. Audio Output Power (Max.) (R/P) W 1.0 0.8

2. Audio S/N (W/LPF) (R/P) dB 40 36

3. Audio Distortion (W/LPF) (R/P) % 3.0 5.0

4. Audio Freq. Response
(-10dB Ref. 1KHz)

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.
Some will exceed and some may drop slightly below these specifications. Limit specifications represent the abso­lute worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifica­tions.

200Hz (R/P)

8kHz (R/P)

dB
dB

-2.0
0

-2.0 ± 5.0
0 ± 6.0

1-1-2 T7300SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.

Safety Precautions for TV Circuit

1. Before returning an instrument to the custom-

er, always make a safety check of the entire instru-

ment, including, but not limited to, the following
items:

a. Be sure that no built-in protective devices are de-

fective and have been defeated during servicing.
(1) Protective shields are provided on this chassis
to protect both the technician and the customer.
Correctly replace all missing protective shields, in­cluding any removed for servicing convenience. (2)
When reinstalling the chassis and/or other assem­bly in the cabinet, be sure to put back in place all
protective devices, including but not limited to,
nonmetallic control knobs, insulating fishpapers,
adjustment and compartment covers/shields, and
isolation resistor/capacitor networks. Do not oper-

ate this instrument or permit it to be operated
without all protective devices correctly in­stalled and functioning. Servicers who defeat
safety features or fail to perform safety checks
may be liable for any resulting damage.

b. Be sure that there are no cabinet openings through

which an adult or child might be able to insert their
fingers and contact a hazardous voltage. Such
openings include, but are not limited to, (1) spacing
between the picture tube and the cabinet mask, (2)
excessively wide cabinet ventilation slots, and (3)
an improperly fitted and/or incorrectly secured
cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an
electrical jumper across the two AC plug prongs.
Place the instrument AC switch in the on position.
Connect one lead of an ohmmeter to the AC plug
prongs tied together and touch the other ohmme­ter lead in turn to each tuner antenna input ex­posed terminal screw and, if applicable, to the
coaxial connector. If the measured resistance is
less than 1.0 megohm or greater than 5.2 mego­hm, an abnormality exists that must be corrected
before the instrument is returned to the customer.
Repeat this test with the instrument AC switch in
the off position.

d. Leakage Current Hot Check - With the instru-

ment completely reassembled, plug the AC line
cord directly into a 120V AC outlet. (Do not use an
isolation transformer during this test.) Use a leak-

age current tester or a metering system that com­plies with American National Standards Institute
(ANSI) C101.1 Leakage Current for Appliances
and Underwriters Laboratories (UL) 1410, (50.7).
With the instrument AC switch first in the on posi­tion and then in the off position, measure from a
known earth ground (metal water pipe, conduit,
etc.) to all exposed metal parts of the instrument
(antennas, handle brackets, metal cabinet, screw
heads, metallic overlays, control shafts, etc.), es­pecially any exposed metal parts that offer an elec­trical return path to the chassis. Any current
measured must not exceed 0.5 milli-ampere. Re­verse the instrument power cord plug in the outlet
and repeat the test.

READING SHOULD
NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED

METAL SURFACES

ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG

AS REQUIRED

CURRENT

TESTER

EARTH
GROUND

ANY MEASUREMENTS NOT WITHIN THE LIMITS
SPECIFIED HEREIN INDICATE A POTENTIAL
SHOCK HAZARD THAT MUST BE ELIMINATED
BEFORE RETURNING THE INSTRUMENT TO
THE CUSTOMER OR BEFORE CONNECTING
THE ANTENNA OR ACCESSORIES.

e. X-Radiation and High Voltage Limits - Because

the picture tube is the primary potential source of
X-radiation in solid-state TV receivers, it is special­ly constructed to prohibit X-radiation emissions.
For continued X-radiation protection, the replace­ment picture tube must be the same type as the
original. Also, because the picture tube shields
and mounting hardware perform an X-radiation
protection function, they must be correctly in place.
High voltage must be measured each time servic-

1-2-1 SFTY_2

ing is performed that involves B+, horizontal de­flection or high voltage. Correct operation of the
X-radiation protection circuits also must be recon­firmed each time they are serviced. (X-radiation
protection circuits also may be called "horizontal
disable" or "hold down.") Read and apply the high
voltage limits and, if the chassis is so equipped,
the X-radiation protection circuit specifications giv­en on instrument labels and in the Product Safety
& X-Radiation Warning note on the service data
chassis schematic. High voltage is maintained
within specified limits by close tolerance safety-re­lated components/adjustments in the high-voltage
circuit. If high voltage exceeds specified limits,
check each component specified on the chassis
schematic and take corrective action.

2. Read and comply with all caution and safety-relat­ed notes on or inside the receiver cabinet, on the
receiver chassis, or on the picture tube.

3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this TV re­ceiver. Design alterations and additions, including,
but not limited to circuit modifications and the ad­dition of items such as auxiliary audio and/or video
output connections, might alter the safety charac­teristics of this receiver and create a hazard to the
user. Any design alterations or additions will void
the manufacturer's warranty and may make you,
the servicer, responsible for personal injury or
property damage resulting therefrom.

4. Picture Tube Implosion Protection Warning -

The picture tube in this receiver employs integral
implosion protection. For continued implosion pro­tection, replace the picture tube only with one of
the same type number. Do not remove, install, or
otherwise handle the picture tube in any manner
without first putting on shatterproof goggles
equipped with side shields. People not so
equipped must be kept safely away while picture
tubes are handled. Keep the picture tube away
from your body. Do not handle the picture tube by
its neck. Some "in-line" picture tubes are equipped
with a permanently attached deflection yoke; be­cause of potential hazard, do not try to remove
such "permanently attached" yokes from the pic­ture tube.

5. Hot Chassis Warning -

a. Some TV receiver chassis are electrically connect-

ed directly to one conductor of the AC power cord
and maybe safety-serviced without an isolation
transformer only if the AC power plug is inserted
so that the chassis is connected to the ground side
of the AC power source. To confirm that the AC
power plug is inserted correctly, with an AC volt­meter, measure between the chassis and a known

earth ground. If a voltage reading in excess of 1.0V
is obtained, remove and reinsert the AC power
plug in the opposite polarity and again measure
the voltage potential between the chassis and a
known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground re­gardless of the AC plug polarity. This chassis can
be safety-serviced only with an isolation transform­er inserted in the power line between the receiver
and the AC power source, for both personnel and
test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis
ground. This secondary ground system is not iso­lated from the AC power line. The two ground sys­tems are electrically separated by insulation
material that must not be defeated or altered.

6. Observe original lead dress. Take extra care to as­sure correct lead dress in the following areas: a.
near sharp edges, b. near thermally hot parts-be
sure that leads and components do not touch ther­mally hot parts, c. the AC supply, d. high voltage,
and e. antenna wiring. Always inspect in all areas
for pinched, out of place, or frayed wiring. Check
AC power cord for damage.

7. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or wir­ing that meet original specifications. Additionally,
determine the cause of overheating and/or dam­age and, if necessary, take corrective action to re­move any potential safety hazard.

8. Product Safety Notice - Some electrical and me­chanical parts have special safety-related charac­teristics which are often not evident from visual
inspection, nor can the protection they give neces­sarily be obtained by replacing them with compo­nents rated for higher voltage, wattage, etc.. Parts
that have special safety characteristics are identi­fied by a ( # ) on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or
other hazards. The Product's Safety is under re­view continuously and new instructions are issued
whenever appropriate. Prior to shipment from the
factory, our products are strictly inspected to con­firm with the recognized product safety and electri­cal codes of the countries in which they are to be
sold. However, in order to maintain such compli­ance, it is equally important to implement the fol­lowing precautions when a set is being serviced.

1-2-2 SFTY_2

Precautions during Servicing

A. Parts identified by the ( # ) symbol are critical for

safety.
Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations ap­plying to spurious radiation. These must also be
replaced only with specified replacements.

Examples: RF converters, RF cables, noise block­ing capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads
D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.
E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder­ing.

F. Observe that the wires do not contact heat produc-

ing parts (heatsinks, oxide metal film resistors, fus­ible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.
J. Use care that foreign objects (screws, solder drop-

lets, etc.) do not remain inside the set.

K. Crimp type wire connector

When replacing the power transformer in sets
where the connections between the power cord
and power transformer primary lead wires are per­formed using crimp type connectors, in order to
prevent shock hazards, perform carefully and pre­cisely the following steps.

Replacement procedure

1) Remove the old connector by cutting the wires at
a point close to the connector.

Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. In­sert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at
the center position. Be sure to crimp fully to the
complete closure of the tool.

L. When connecting or disconnecting the VCR con-

nectors, first, disconnect the AC plug from AC sup­ply socket.

1-2-3 SFTY_2

Safety Check after Servicing

Examine the area surrounding the repaired location
for damage or deterioration. Observe that screws,
parts and wires have been returned to original posi­tions. Afterwards, perform the following tests and con­firm the specified values in order to verify compliance
with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between sol­dered terminals, and between terminals and surround­ing metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit Terminals

dd'

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only.
Be sure to confirm the precise values.

USA or

CANADA

Clearance

Distance (d) (d')

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current be­tween B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.).

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across both terminals of load
Z. See Fig. 2 and following table.

Table 2 : Leakage current ratings for selected areas

Exposed Accessible Part

Z

One side of

B

Power Cord Plug Prongs

Fig. 1

AC Voltmeter
(High Impedance)

Fig. 2

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

USA or

CANADA

0.15µF CAP. & 1.5kΩ
RES. connected in

parallel

1-2-4 SFTY_2

i≤0.5mA rms

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is indi­cated as shown:

Top View

Out

2. For other ICs, pin 1 and every 5th pin is indicated
as shown:

Pin 1

3. The 1st pin of every pin connector are indicated as
shown:

Pin 1

Input

In

Bottom View

5

10

How to Read the Values of the Rect­angular Type Chip Components

Example:
(a) Resistor

473

= 473 = 47 [kΩ]

(b) Capacitor

= Not Shown

Caution:

Once chip parts (Resistors, Capacitors, Transistors,
etc.) are removed, they must not be reused. Always
use a new part.

Replacement Procedures for

(Top View)

(Top View)

Instructions for Connectors

1. When you connect or disconnect FFC cable (con­nector), be sure to disconnect the AC cord.

2. FFC cable (connector) should be inserted parallel
into the connector, not at an angle.

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

[ CBA= Circuit Board Assembly ]

Leadless (Chip) Components

The Following Procedures are Recom­mended for the Replacement of the Lead­less Components Used in this Unit.

1. Preparation for replacement

a. Soldering Iron

Use a pencil-type soldering iron (less than 30
watts).

b. Solder

Eutectic solder (Tin 63%, Lead 37%) is recom­mended.

c. Soldering time

Do not apply heat for more than 4 seconds.

d. Preheating

Leadless capacitor must be preheated before
installation. (130°C~150°C, for about two minutes.)

Notes:

a. Leadless components must not be reused after

removal.

b. Excessive mechanical stress and rubbing for the

component electrode must be avoided.

2. Removing the leadless component

Grasp the leadless component body with tweezers
and alternately apply heat to both electrodes. When
the solder on both electrodes has melted, remove
leadless component with a twisting motion.

1-3-1 SFTY_5

Notes:

a. Do not attempt to lift the component off the board

until the component is completely disconnected
from the board by the twisting action.

b. Take care not to break the copper foil on the

printed board

3. Installing the leadless component

a. Presolder the contact points of the circuit board.
b. Press the part downward with tweezers and solder

both electrodes as shown below.

Note:

Do not glue the replacement leadless component to
the circuit board.

Tweezers

Chip

Soldering Iron

Soldering Iron

Tweezers

Solder

Soldering Iron

2. The Flat Pack-IC on the CBA is affixed with glue,
so be careful not to break or damage the foil of
each pin or solder lands under the IC when remov­ing it.

1. Removal

With Hot - Air Flat Pack - IC Desoldering Machine:

a. Prepare the Hot - Air Flat Pack - IC Desoldering

Machine, then apply hot air to Flat Pack - IC (about
5~6 seconds). (Fig. S-1-1)

b. Remove the Flat Pack- IC with tweezers while

applying the hot air.

With Soldering Iron:

a. Using desoldering braid, remove the solder from all

pins of the Flat Pack - IC. When you use solder flux
which is applied to all pins of the Flat Pack - IC, you
can remove it easily. (Fig. S-1-3)

b. Lift each lead of the Flat Pack - IC upward one by

one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air Desoldering
Machine. (Fig. S-1-4)

With Iron Wire:

a. Using desoldering braid, remove the solder from all

pins of the Flat Pack - IC. When you use solder flux
which is applied to all pins of the Flat Pack - IC, you
can remove it easily. (Fig. S-1-3)

b. Affix the wire to a workbench or solid mounting

point, as shown in Fig. S-1-5.

c. Pull up on the wire as the solder melts so as to lift

the IC leads from the CBA contact pads, while
heating the pins using a fine tip soldering iron or
hot air blower.

Note:

When using a soldering iron, care must be taken
to ensure that the Flat Pack - IC is not being held
by glue, or when it is removed from the CBA, it
may be damaged if force is used.

Presolder

How to Remove / Install Flat Pack IC

Caution:

1. Do not apply the hot air to the chip parts around the
Flat Pack-IC for over 6 seconds as damage may
occur to the chip parts. Put Masking Tape around
the Flat Pack-IC to protect other parts from dam­age. (Fig. S-1-2)

2. Installation

a. Using desoldering braid, remove the solder from

the foil of each pin of the Flat Pack - IC on the CBA,
so you can install a replacement Flat Pack - IC
more easily.

b. The "I" mark on the Flat Pack - IC indicates pin 1

(See Fig. S-1-6). Make sure this mark matches the
1 on the CBA when positioning for installation.
Then pre - solder the four corners of the Flat Pack­IC (See Fig. S-1-7).

c. Solder all pins of the Flat Pack - IC. Make sure that

none of the pins have solder bridges.

1-3-2 SFTY_5

Hot Air Blower

Iron Wire

or

CBA

Masking
Tape

Tweezers

Flat Pack-IC

Fig. S-1-1

Hot-air
Flat Pack-IC
Desoldering
Machine

Flat Pack-IC

Fig. S-1-2

Desoldering Braid

To Solid
Mounting Point

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Presolder

Soldering Iron

Fig. S-1-5

Fig. S-1-6

Fine Tip
Soldering Iron

Soldering Iron

Fig. S-1-3

Flat Pack-IC

CBA

Fig. S-1-7

Sharp
Pin

Fig. S-1-4

1-3-3 SFTY_5

Instructions for Handling
Semiconductors

Electrostatic breakdown of the semiconductors may
occur due to a potential difference caused by electro­static charge during unpacking or repair work.

Ground for Human Body

Be sure to wear a grounding band (1MΩ) that is prop­erly grounded to remove any static electricity that may
be charged on the body.

Ground for Work Bench

Be sure to place a conductive sheet or copper plate
with proper grounding (1MΩ) on the work bench or
other surface, where the semiconductors are to be
placed. Because the static electricity charge on the
clothing will not escape through the body grounding
band, be careful to avoid contacting semiconductors to
clothing.

<Incorrect>

<Correct>

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or
Copper Plate

1-3-4 SFTY_5

PREPARATION FOR SERVICING

How to Enter the Service Mode

Caution: 1

1. Optical sensors system are used for Tape Start and
End Sensor on this equipment. Read this page
carefully and prepare as described on this page
before starting to service; otherwise, the unit may
operate unexpectedly.

Preparing: 1

1. Cover Q202 (START SENSOR) and Q201 (END
SENSOR) with Insulation Tape or enter the service
mode to activate Sensor Inhibition automatically.

Note: Avoid playing, rewinding or fast forwarding the
tape to its beginning or end, because both Tape End
Sensors are not active.

How to Enter the Service Mode

1. Turn power on.

2. Use service remote control unit and press WAKE­UP/SLEEP key. (See page1-7-1)

3. When entering the service mode, one of the num­ber (1, 2 or 4) will display at corners of the screen.

4. During the service mode, electrical adjustment
mode can be selected by remote control key. (Ser­vice remote control unit).

Details are as follows.

Key Adjustment Mode

Picture adjustment mode: Press the
MENU button to change from BRT
(Bright), *CNT (Contrast), *CLR

MENU

0

1 No need to use.

2

3 No need to use.

4

5

(Color), *TNT(Tint) and *V-T. Press
CH UP/DOWN key to display Initial
Value. *Marked items are not neces­sary to adjust normally.

C-Trap and Y DL Time/Y SW LPF
adjustment mode: See adjustment
instructions page 1-7-2.

H adjustment mode: See adjust­mentinstructions page 1-7-1.

Auto record mode: Perform recording
(15 Sec.)-->Stop-->Rewind (Zero
return) automatically.

Head switching point adjustment
mode: See adjustment instructions
page 1-7-5.

Key Adjustment Mode

6 No need to use.

Purity check mode: Shows Red,

7

8

9

Caution: 2

1. The deck mechanism assembly is mounted on the
Main CBA directly, and SW211 (REC-SAFETY
SW) is mounted on the Main CBA. When deck
mechanism assembly is removed from the Main
CBA due to servicing, this switch can not be oper­ated automatically.

Green, Blue or White cyclically on the
screen each time the “7” key is
pressed.

H. Shift adjustment mode: See adjust­ment instructions page 1-7-3.

V.size/V. shift adjustment: See adjust­ment instructions page 1-7-3.

Preparing: 2

1. To eject the tape, press the STOP/EJECT button
on the unit (or Remote Control).

2. When you want to record during the Service mode,
press the Rec button while depressing SW211
(REC-SAFETY SW) on the Main CBA.

Q201
(END SENSOR)

SW211
(REC-SAFETY SW)

Q202
(START SENSOR)

MAIN CBA

1-4-1 T7400PFS

OPERATING CONTROLS AND FUNCTIONS

N

•

X

Y

n

e

1 92 3 4 5 6 7 8 1310 11 1412

AUDIO EARPHONEVIDEO STOP/EJECT REW PLAY F.FWD REC/OTRCHANNELVOLUMEPOWER

POWER

WAKE-UP

/SLEEP

123

456

789

+100

0

EJECT

CHANNEL

RETURN

REW

PLAY

STOP

F.FWD

GAME

RECORD

PAUSE/STILL

SPEED

TIME SEARCH

CHANNEL

T-PROG.

CLEAR

COUNTER

RESET

DISPLAY MUTE

MENU

VOLUME

3

15

5

7

16

8

11
18

19
20

7

24

4

10

9

22

21

23

17

25

This manual covers 13" and 19". The operation of the two models are exactly the same except
the appearance. 13" model is illustrated in this manual.

OTE:

We do not recommend the use of universal remote controls. Not all of the functions may be controlled with
a universal remote control.

If you decide to use a universal remote control with this unit, please be aware that the code number given
may not operate this unit. In this case, please call the manufacturer of the universal remote control.

- TV/VCR FRONT PANEL

- REMOTE CONTROL -

VIDEO input jack–

1

Connect to the video output

jack of your video camera or another VCR.

2

AUDIO input jack–

Connect to the audio output
jack of your audio equipment, video camera or
another VCR.

3

POWER button–

Press to turn TV/VCR on and

off. Press to activate timer recording.

X

VOLUME

4

Y

/

buttons–

Adjust the volume

level.

CHANNELK/ Lbuttons–

5

Press to select the

desired channels for viewing or recording.
You may display the main menu on the TV scree

by pressing repeatedly this button on the
TV/VCR.

TRACKING function–

Press to minimize video
‘noise’ (lines or dots on screen) during playback
mode.

Remote Sensor Window–

6

signals from the remote control.

STOP button–

7

EJECT button–

Press to stop the tape motion.

Press in the Stop mode to remov

Receives the infrared

tape from TV/VCR.

button–

L

Press to select setting modes from the on screen

•

menu.
Press to enter digits when setting program.

•

(for example: setting clock or timer program)

1-5-1 T5407IB

- REAR VIEW -

ANT.

2726

1

1

1

1

1
1

n

-

r

c-

to

-

8 REW button– Press to rewind the tape, or to view

the picture rapidly in reverse during playback
mode. (Rewind Search)

s

button–

Press to select a mode from a particular menu.

•

(for example: LANGUAGE or USER’S SET UP)

PLAY button– Press to begin playback.

9

K button–

Press to select setting modes from the on screen

•

menu.
Press to enter digits when setting program.

•

(for example: setting clock or timer program)

0 F.FWD button– Press to rapidly advance the tape,

or to view the picture rapidly in forward during
playback mode. (Forward Search)

button–

B

When setting program (for example: setting clock

•

or timer program), press to determine your selec­tion and proceed to the next step you want to
input.

Press to determine setting modes from on screen

•

menu.
Press to select a mode from a particular menu.

•

(for example: LANGUAGE or USER’S SET UP)

1 REC button– Press for manual recording.

OTR button– Activates One Touch Recording.

(only on the TV/VCR)

2 RECORD indicator– Flashes during recording.

Lights up in the Stand-by mode for Timer
Recording.

3 EARPHONE jack– Connects to earphones (not

supplied) for personal listening. The size of jack is
1/8” monaural (3.5mm).

4 Cassette compartment
5 Number buttons– Press to select desired channels

for viewing or recording. To select channels from
1 to 9, first press the 0 button and then 1 to 9.

+100 button– When selecting cable channels

which are higher than 99, press this button first,
then press the last two digits. (To select channel
125, first press the “+100” button then press “2”
and “5”).

MENU button– Press to display the main menu o

16

the TV screen.

DISPLAY button– Display the counter or the cur

17

rent channel number and current time on the TV
screen.

SPEED button– Press to choose the desired

18

recording speed:SP/SLP.

T-PROG. CLEAR button–

19

ting of timer program.

COUNTER RESET button– Press to reset counte

to 0:00:00.

GAME button– Set the game mode and external

20

input mode at the same time.

21

TIME SEARCH button– Press to activate Time

Search mode.

PAUSE/STILL button– Press to temporarily stop

22

the tape during the recording or to view a still pi
ture during playback.

MUTE button– Mutes the sound. Press it again

23

resume sound.

CHANNEL RETURN button– Press to go back to

24

the previously viewed channel. For example,
pressing this button once will change channel dis
play from 3 (present channel) to 10 (previously
viewed channel), and pressing it a second time
will return from 10 to 3.

25

WAKE UP/SLEEP button– Sets the Wake up or

Sleep Timer.

Power cord– Connect to a standard

26

(120V/60Hz).

ANT. terminal– Connect to an antenna or cable

27

system.

Press to cancel a set-

AC outlet

1-5-2 T5407IB

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the
cabinet parts and the CBA in order to gain access to
item(s) to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.

Caution !

When removing the CRT, be sure to discharge the
Anode Lead of the CRT with the CRT Ground Wire
before removing the Anode Cap.

[1] Rear Cabinet

[2] Tray Chassis

[3] Deck Unit

[4] Main CBA

[5] CRT

2. Disassembly Method

REMOVAL

ID/

LOC.

No.

[1]

[2]

PART

Rear
Cabinet

Tr ay
Chassis

REMOVE/
*UNHOOK/

Fig.

UNLOCK/RELEASE/

No.

UNPLUG/DESOL­DER

1, 2 4(S-1), (S-2) 1

Anode Cap, CN505,

3, 5

CRT CBA, CN601,
CN801, CN571

Note

2

(1): Order of steps in Procedure. When reassembling,

follow the steps in reverse order.These numbers
are also used as the Identification (location) No. of

parts in Figures.
(2): Parts to be removed or installed.
(3): Fig. No. showing Procedure of Part Location.
(4): Identification of part to be removed, unhooked,

unlocked, released, unplugged, unclamped, or

desoldered.

S=Screw, P=Spring, L=Locking Tab, CN=Connec-

tor, *=Unhook, Unlock, Release, Unplug, or Desol-

der

2(S-2) = two screws (S-2)
(5): Refer to the following Reference Notes in the

Table.

Reference Notes in the Table

1. Removal of the Rear Cabinet.

Remove screws 4(S-1) and (S-2).

Caution !

Discharge the Anode Lead of the CRT with the CRT
Ground Wire before removing the Anode Cap.

2. Removal of the Tray Chassis.

Discharge the Anode Lead of the CRT with the
CRT Ground Wire before removing the Anode Cap.
Disconnect the following: Anode Cap, CN505, CRT
CBA, CN601, CN571 and CN801. Then, pull the
Tray Chassis backward.

3. Removal of the Deck Unit.

Remove screws 7(S-3) and 2(S-4). Then, desolder
connectors (CL201, CL401, CL402, CL403) and lift
up the Deck Unit.

4. Removal of the Main CBA.

Remove screws 6(S-5) and pull up the Main CBA.

5. Removal of the CRT.

Remove screws 4(S-6) and pull the CRT backward.

7(S-3), 2(S-4),

[3] Deck Unit 3, 5

[4] Main CBA 3, 5 6(S-5) 4

[5] CRT 4 4(S-6) 5

↓

(1)

↓

(2)

Desolder (CL201,
CL401, CL402,
CL403)

↓

(3)

↓

(4)

3

↓

(5)

1-6-1 T7408DC

S-1

ANT.

S-1 S-1

S-2

[1] REAR CABINET

S-1

Fig. 1

S-1

S-2

S-1

S-1

[1] REAR CABINET

Fig. 2

1-6-2 T7408DC

[2] TRAY CHASSIS

S-3

[4] MAIN CBA

S-5

S-3

[3] DECK UNIT

S-3

S-5

S-5

S-5

S-4

S-4

S-5

Fig. 3

1-6-3 T7408DC

S-6

ANODE CAP

S-6

CRT CBA

S-6

[5] CRT

S-6

Fig. 4

1-6-4 T7408DC

ANODE

CRT

GND

MAIN CBA

CN505

SCREEN

TO SPEAKER

CN801

CL401

CL501A

FOCUS

CL403

CL502A

CRT CBA

TO DEGAUSS
COIL

CL502B

CN601

AC CORD

FE HEAD

CL201

CYLINDER
ASSEMBLY

CL402

AC HEAD
ASSEMBLY

CN573

CN571

CL501B

CAPSTAN
MOTOR

DECK UNIT

Fig. 5

1-6-5 T7408DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note:
"CBA" is abbreviation for "Circuit Board

Assembly."

NOTE:

Electrical adjustments are required after replacing cir­cuit components and certain mechanical parts.
It is important to perform these adjustments only after
all repairs and replacements have been completed.
Also, do not attempt these adjustments unless the
proper equipment is available.

Test Equipment Required

1. NTSC Pattern Generator (Color Bar W/White Win­dow, Red Color, Dot Pattern, Gray Scale, Mono­scope, Multi-Burst)

2. AC Milli Voltmeter (RMS)

3. Alignment Tape (FL8A, FL8N), Blank Tape

4. DC Voltmeter

5. Oscilloscope: Dual-trace with 10:1 probe,

V-Range: 0.001~50V/Div,
F-Range: DC~AC-60MHz

6. Frequency Counter

7. Plastic Tip Driver

How to make service remote control
unit:

How to make service remote control unit:

- Remote control unit: Part No. N0123UD
Add J1 (Jumper Wire) to the remote control CBA.
(Fig. 1-2)

- Remote control unit: Part No. N0154UD
Cut off pin 10 of the remote control microprocessor
and short circuit pins 10 and 17 of the microproces­sor with a jumper wire.
Note: When above method is so difficult, prepare
the remote control unit Part No. N0123UD as sub­stitute for Part No. N0154UD.

How to Set up the Service mode:

Service Mode:

1. Use the service remote control unit.

2. Turn the power on.

3. Press "WAKE-UP/SLEEP" button on the service

remote control unit.

1. DC 114V (+B) Adjustment

Purpose: To obtain correct operation.
Symptom of Misadjustment: The picture is dark and

unit does not operate correctly.

Test point Adj. Point Mode Input

Note:

The service remote control unit is made by remodeling
the attached remote control unit (Part No. N0123UD or
N0154UD).

How to distinguish between Part No. N0123UD and
Part No. N0154UD:

Remove 3 screws from the back lid. (Fig. 1-1)

SCREW

Remote control unit (Bottom)

Part No. N0123UD --- There are holes installing J1
(Jumper Wire) on the PCB. (Fig. 1-2)

Part No. N0154UD --- There is no hole installing J1
(Jumper Wire) on the PCB. (Fig. 1-2)

J 1

J 1

Remote control CBA

Remote control CBA

Fig. 1-1

Fig. 1-2

Fig. 1-2

D613

Cathode

(+B)

C613(-)

(GND)

Tape M. EQ. Spec.

---

Note: D613 Cathode (+B), C613(-) (GND),

VR601 --- Main CBA

1. Connect the unit to AC Power Outlet.

2. Connect DC Volt Meter to D613 Cathode (+B) and

C613(-) (GND).

3. Adjust VR601 so that the voltage of D613 Cathode

(+B) becomes +114±0.5V DC.

VR601 --- -----

DC Voltmeter

Plastic Tip Driver

+114±0.5V DC

1-7-1 T7408EA

2-1. H Adjustment

Purpose: To get correct horizontal position and size of

screen image.
Symptom of Misadjustment: Horizontal position and

size of screen image may not be properly displayed.

Test point Adj. Point Mode Input

R583

Tape M. EQ. Spec.

--- Frequency Counter 15.734kHz±300Hz

Note: R583 --- Main CBA

1. Connect Frequency Counter to R583.

2. Set the unit to the VIDEO mode and no input is
necessary. Enter the Service mode.
(See page 1-4-1.)

3. Operate the unit for at least 20 minutes.

4. Press "2" button on the remote control unit and
select H-Adj Mode. (Press "2" button, then display
will change H-Adj and AGC.)

5. Press CH o / p buttons on the remote control unit
so that the display will change "0" to "7."
At this moment, choose display "0" to "7" when the
Frequency counter display is closest to

15.734kHz±300Hz.

6. Turn the power off and on again.

CH o / p

buttons

Video ---

Note: J271 (B-Out)--- Main CBA

1. Connect Oscilloscope to J271.

2. Input a color bar signal from RF input.
Enter the Service mode. (See page 1-4-1.)

3. Press "0" button on the remote control unit and
select C-TRAP Mode.

4. Press "CH o / p" buttons on the remote control
unit so that the carrier leakage B-Out (3.58MHz)
value becomes minimum on the oscilloscope.

5. Turn the power off and on again.

2-2. C-Trap Adjustment

Purpose: To get minimum leakage of the color signal

carrier.
Symptom of Misadjustment: If C-Trap Adjustment is

incorrect, stripes will appear on the screen.

Test point Adj. Point Mode Input

J271

(B-OUT)

Tape M. E Q. Spe c .

---

minimum

CH o / p

buttons

Oscilloscope

Pattern Generator

Figure

--- Color Bar

---

Fig. 2

1-7-2 T7408EA

2-3. Y DL Time/Y SW LPF

3. V. Size Adjustment

Adjustment

Purpose: To get minimum leakage of the color signal

carrier.
Symptom of Misadjustment: If Y DL Time Adjust-

ment is incorrect, stripes will appear on the screen.

1. Enter the Service Mode. (See page 1-4-1.)

2. Y DL Time Adjustment: Press "0" button on the
service remote control unit twice to show "D-T" on
the display.
Y SW LPF Adjustment: Press "0" button on the
service remote control unit four times to show
"Y SW" on the display.

3. Y DL Time Adjustment: Select "2" by pressing
"CH o / p" buttons on the service remote control
to enter Y DL Time Adjustment mode.
Y SW LPF Adjustment: Select "1" by pressing
"CH o / p" buttons on the service remote control
to enter Y SW LPF Adjustment mode.

4. If needed, perform the following.

C-TRAP Adjustment (Factory mode)

"0"
button

C-TRP 0 C-TRP 1

"0" button

Y DL Time Adj TV Adjustment

D-T TV 0 D-T TV 1

"0" button

Y DL Time Adj EXT/PB Adjustment

D-T EXT 0 D-T EXT 1

"0" button

Y SW LPF Adjustment

Y SW

CH
button

CH
button

CH

button

CH
button

CH
button

CH
button

CH
button

0 Y SW 1

Purpose: To obtain correct vertical height of screen
image.

Symptom of Misadjustment: If V. Size is incorrect,
vertical height of image on the screen may not be
properly displayed.

Test point Adj. Point Mode Input

---

CH o / p

buttons

--- Monoscope

Tape M. EQ. Spec.

--- Pattern Generator 90±5%

1. Enter the Service mode. (See page 1-4-1.)
Press "9" button on the remote control unit and
select V-S Mode. (Press "9" button then display will
change to V-P and V-S).

2. Input monoscope pattern.

3. Press "CH o / p" buttons on the remote control
unit so that the monoscope pattern is 90±5% of dis­play size and the circle is round.

4. V. Shift Adjustment

Purpose: To obtain correct vertical position of screen

image.
Symptom of Misadjustment: If V. position is incor-

rect, vertical position of image on the screen may not
be properly displayed.

Test point Adj. Point Mode Input

---

Tap e M . E Q. Sp ec .

--- Pattern Generator 90±5%

1. Enter the Service mode. (See page 1-4-1.)
Press "9" button on the remote control unit and
select V-P Mode. (Press "9" button then display will
change to V-P and V-S).

2. Input monoscope pattern.

3. Press "CH o / p" buttons on the remote control
unit so that the top and bottom of the monoscope
pattern are equal to each other.

CH o / p

buttons

--- Monoscope

CH
button

1-7-3 T7408EA

5. H. Shift Adjustment

Purpose: To obtain correct horizontal position and

size of screen image.
Symptom of Misadjustment: Horizontal position and

size of screen image may not be properly displayed.

Test point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Pattern Generator 90±5%

1. Enter the Service mode. (See page 1-4-1.)
Press "8" button on the remote control unit and
select H-P Mode.

2. Input monoscope pattern.

3. Press "CH o / p" buttons on the remote control
unit so that the left and right side of the monoscope
pattern are equal to each other.

4. Turn the power off and on again.

CH o / p

buttons

--- Monoscope

6. Cut-off Adjustment

Purpose: To adjust the beam current of R, G, B, and

screen voltage.
Symptom of Misadjustment: White color may be

reddish, greenish or bluish.

Test point Adj. Point Mode Input

Black

--- Screen-Control Ext.

Raster /

White

Raster

Notes: Screen Control FBT --- MAIN CBA
F.B.T= Fly Back Transformer
Use the Remote Control Unit

1. Degauss the CRT and allow CRT to operate for 20
minutes before starting the alignment.

2. Set the screen control to minimum position. Input
the Black raster signal from RF input.

3. Enter the Service Mode. (See page 1-4-1.)
Dimmed horizontal line appears on the CRT.

4. Press the "VOL p" button.
(Press "VOL p" then display will change CUT OFF/
DRIVE, VCO adjustment, Analog OSD adjust­ment).

5. Choose CUT OFF/DRIVE Mode then press "1" but­ton. This adjustment mode is CUT OFF (R).

6. Press the "CH o / p" button until the horizontal line
becomes white.

7. Choose CUT OFF/DRIVE mode then press "2" but­ton. This adjustment mode is CUT OFF (G). Press
"CH o / p" until the horizontal line becomes white.

8. Choose CUT OFF/DRIVE Mode then press "3" but­ton. This adjustment mode is CUT OFF (B). Press
"CH o / p" until the horizontal line becomes white.

9. Input the White Raster Signal from Video In.

10.Choose CUT OFF/DRIVE mode then press "4."
Adjust the RED DRIVE as needed with the "CH o /
p" buttons to get the following value, X= 286, Y=

294.

11.Choose CUT OFF/DRIVE mode then press "5."
Adjust the BLUE DRIVE as needed with the "CH o
/ p" buttons to get the following value, X= 286.

12.Turn the power off and on again.

Tape M. EQ. Spec.

--- Pattern Generator

Figure

PATTERN GENERATOR

EXT. INPUT

See Reference

Notes below

Fig. 3

1-7-4 T7408EA

7. Sub-Brightness Adjustment

8. Focus Adjustment

Purpose: To get proper brightness.
Symptom of Misadjustment: If Sub-Brightness is

incorrect, proper brightness cannot be obtained by
adjusting the Brightness Control.

Test point Adj. Point Mode Input

---

Tape M. EQ. Spec.

---

White

Note: SYMPTE Setup level --- 7 IRE

1. Enter the Service Mode. (See page 1-4-1.)
Then input SYMPTE signal from RF input.

2. Press "MENU" button. (Press "MENU" button then
display will change B R T, C N T, C O L, T N T, V-T
and SHP). Select BRT and press "CH o / p" but­tons so that the bar is just visible (See above fig­ure).

3. Turn the power off and on again.

CH o / p

buttons

Pattern

Generator

Figure

---

SYMPTE

7.5IRE

See below

Black

This bar
just
visible

Fig. 4

Purpose: Set the optimum Focus.
Symptom of Misadjustment: If Focus Adjustment is

incorrect, blurred images are shown on the display.

Test point Adj. Point Mode Input

--- Focus Control --- Monoscope

Tap e M. E Q. S pe c.

--- Pattern Generator See below.

Note: Focus VR (FBT) --- MAIN CBA
FBT= Fly Back Transformer

1. Operate the unit more than 30 minutes.

2. Face the unit to the East and degauss the CRT
using a Degaussing Coil.

3. Input the monoscope pattern.

4. Adjust the Focus Control on the FBT to obtain clear
picture.

9. Head Switching Position Adjustment

Purpose: Determine the Head Switching Point during

Playback.
Symptom of Misadjustment: May cause Head

Switching Noise or Vertical Jitter in the picture.
Note: Unit reads Head Switching Position automati-

cally and displays it on the screen (Upper Left Corner).

1. Playback test tape (FL8A, FL8N).

2. Enter the Service Mode. (See page 1-4-1.)
Then press the "5" button on the remote control
unit.

3. The Head Switching position will display on the
screen; if adjustment is necessary follow step 4.

6.5H(412.7µs) is preferable.

4. Press "CH o" or "CH p" button on the remote con­trol unit if necessary. The value will be changed in

0.5H steps up or down. Adjustable range is up to

9.5H. If the value is beyond adjustable range, the
display will change as:

Lower out of range: 0.0H
Upper out of range: -.-H

5. Turn the power off and on again.

10. CCS Text Box Location

When replacing the CRT, the CCS Box might not stay
in appropriate position. Then, replace micro computer.

Note: This adjustment automatically done by the
microcomputer.

1-7-5 T7408EA

The following 2 adjustments normally are not
attempted in the field. They should be done
only when replacing the CRT then adjust as a
preparation.

11.Purity Adjustment

Purpose: To obtain pure color.
Symptom of Misadjustment: If Color Purity Adjust-

ment is incorrect, large areas of color may not be
properly displayed.

Test point Adj. Point Mode Input

---

Tape M. EQ. Spec.

--- Pattern Generator See below.

Deflection Yoke

Purity Magnet

Figure

--- *Red Color

12. Convergence Adjustment

Purpose: To obtain proper convergence of red, green

and blue beams.
Symptom of Misadjustment: If Convergence Adjust-

ment is incorrect, the edge of white letters may have
color edges.

Test point Adj. Point Mode Input

C.P. Magnet (RB),

---

C.P. Magnet (RB-G),

Deflection Yoke

Tape M. EQ. Spec.

--- Pattern Generator See below.

Figure

CRT

COIL

PURITY

SCREW

RB

---

RB-G

RING LOCK

Dot Pattern

or

Crosshatch

SCREW

GREEN

RED

BLUE

Fig. 5

* This becomes RED COLOR if push 7KEY with a

service mode.

1. Set the unit facing east.

2. Operate the unit for over 30 minutes before adjust­ing.

3. Fully degauss the unit using an external degauss­ing coil.

4. Set the unit to the AUX Mode which is located
before CH2 then input a red raster from video in.

5. Loosen the screw on the Deflection Yoke Clamper
and pull the Deflection Yoke back away from the
screen. (See Fig. 6.)

6. Loosen the Ring Lock and adjust the Purity Mag­nets so that a red field is obtained at the center of
the screen. Tighten Ring Lock. (See Fig. 5,6.)

7. Slowly push the Deflection Yoke toward the bell of
the CRT and set it where a uniform red field is
obtained.

8. Tighten the clamp screw on the Deflection Yoke.

DY WEDGE

COIL CLAMPER

DEFLECTION YOKE

C.P. MAGNET (RB)

R

G

B

C.P. MAGNET (RB-G)

RB

G

C.P. MAGNET
CLAMPER

C.P. MAGNET

RB

Fig. 6

R

G

B

Fig. 7

G

Fig. 8

1-7-6 T7408EA

1. Set the unit to the AUX Mode which is located
before CH2 then input a Dot or crosshatch pattern.

2. Loosen the Ring Lock and align red with blue dots
or Crosshatch at the center of the screen by rotat­ing (RB) C.P. Magnets. (See Fig. 7.)

3. Align red / blue with green dots at the center of the
screen by rotating (RB-G) C.P. Magnet.
(See Fig. 8.)

4. Fix the C.P. Magnets by tightening the Ring Lock.

5. Remove the DY Wedges and slightly tilt the Deflec­tion Yoke horizontally and vertically to obtain the
best overall convergence.

6. Fix the Deflection Yoke by carefully inserting the
DY Wedges between CRT and Deflection Yoke.

1-7-7 T7408EA

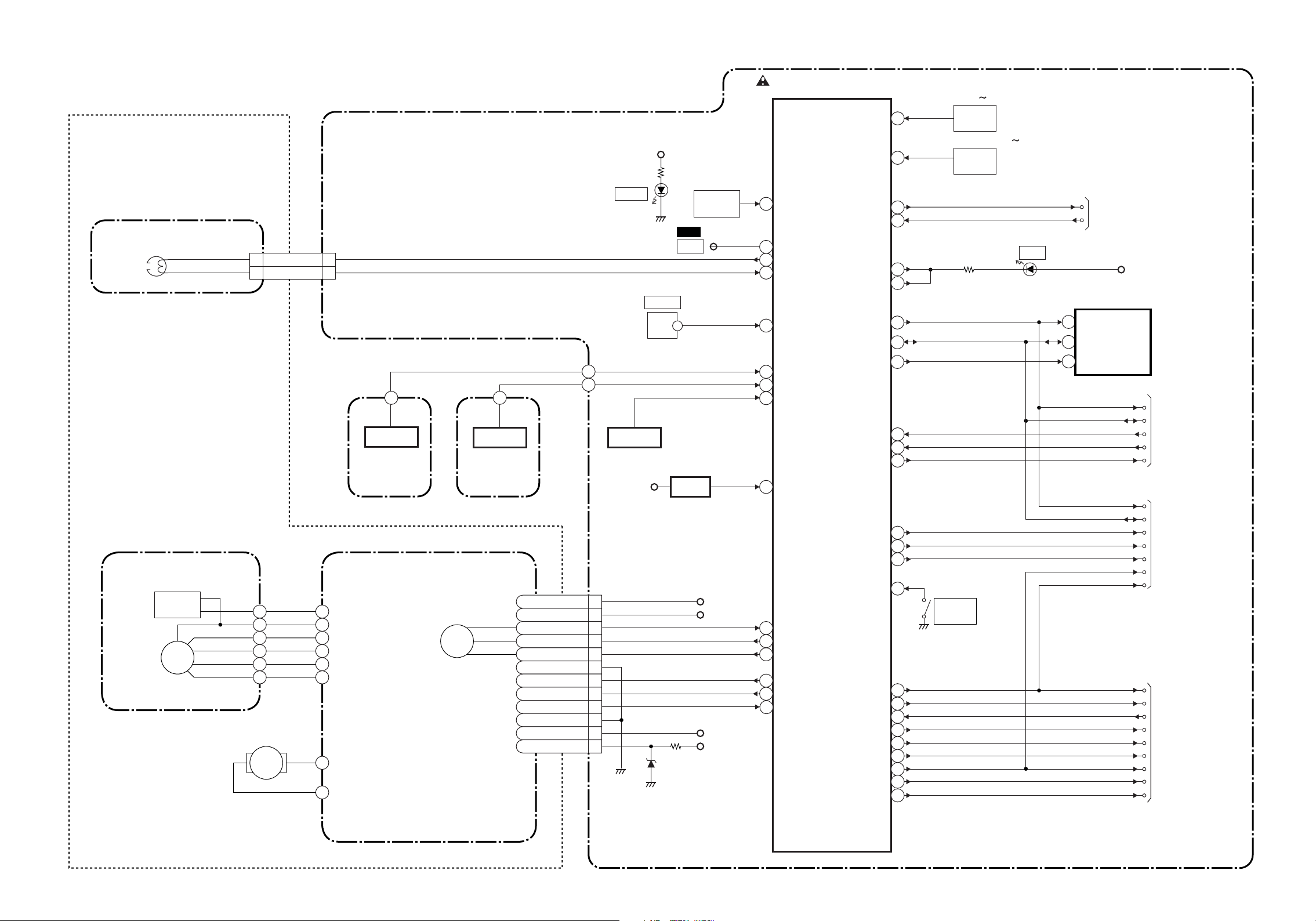

Servo/System Control Block Diagram

(DECK ASSEMBLY)

AC HEAD ASSEMBLY

CL402

CONTROL
HEAD

CYLINDER ASSEMBLY

PG
SENSOR

DRUM
MOTOR

M

LOADING
MOTOR

5 5CTL(+)
6 6CTL(-)

M

BLOCK DIAGRAMS

MAIN CBA

Q202 Q206

SENSOR CBA
(ST-SENSOR)

CAPSTAN MOTOR

CAPSTAN
MOTOR

Q201

END-SENS.

SENSOR CBA
(END-SENSOR)

M

C-CONT

D-CONT

CL201
1P-ON+12V
2P-ON+5V(2)
3C-FG
4C-F/R
5
6FG-GND
7LD-CONT
8

9D-PFG
10M-GND
11D/L+12V
12D/L+15V

D203
S-LED

T-REELST-SENS.

TIMER+5V

AL+5V

SW212
LD-SW

RS201

WF3

CTL

Q205

RESET

REMOTE
SENSOR

TP201

P-ON+12V
P-ON+5V

D/L+12V
DEF+B

IC201

(SERVO/SYSTEM CONTROL)

KEY 0

KEY 1

REMOTE

14

CTL AMP-OUT

97
95

CTL(+)
CTL(-)

94

LD-SW1

ST-SENS.

9
7

END-SENS.
T-REEL

80

34

RESET

C-FG

87

C-F/R66
C-CONT

76

LD-CONT82
D-CONT77
D-PFG

90

P-ON-H

P-DOWN

REC LED

REC LED 22

I2C-OPEN

C-SYNC

EXT-L

SP-MUTE

A-MUTE

D-REC-H

REC-SAFETY

REC/EE/PB

DV-SYNC

V-ENV

ROTA

RF-SW

SP/LP/SLP 28

EXT-H/INSEL 29

RENTAL 30

SPL-PLAY

SCL

SDA

AFT

31
84

23

71

72

45

74

20

12

65
44

33

27

13
10
15
18

32

SW201 SW204,SW206

5

6

8

KEY
SWITCH

SW205,SW207 SW210

KEY
SWITCH

D204 REC

SW211

REC
SAFETY

P-ON-H

P-DOWN

FROM/TO
POWER SUPPLY
BLOCK

(MEMORY)

IC202

SCL

6

5

SDA

CS

7

C-SYNC

EXT-L

SP-MUTE

A-MUTE

D-REC-H

EXT-H/INSEL

REC/EE/PB

REC/EE/PB

DV-SYNC

V-ENV

ROTA

RF-SW

SP/LP/SLP

EXT-H/INSEL

RENTAL

SPL-PLAY

SCL

SDA

AFT

SCL

SDA

AL+5V

FROM/TO
CHROMA /TUNER
BLOCK

FROM/TO
AUDIO BLOCK

FROM/TO
VIDEO BLOCK

1-8-1 1-8-2 T7408BLS

Video Block Diagram

REC VIDEO SIGNAL PB VIDEO SIGNAL MODE: SP/REC

TO
CHROMA/TUNER
BLOCK

FROM/TO
CHROMA/TUNER
BLOCK

JK701
REAR V-IN

VIDEO

TU-VIDEO

LINE-VIDEO

WF5

TP301

V-OUT

IC401

VIDEO/AUDIO
SIGNAL PROCESS

WF4

42

42

38

TUNER

LINE

V-AGC

Q401

BUFFER

35

6dB

AMP

CHARA

MIX

FBC

R P

Y/C

MIX

MAIN CBA

45 47 49 44

CCD 1H

DELAY

DOC YNR Y/C COMB

CHROMINANCE

SIGNAL PROCESS

Q402

BUFFER

LUMINANCE

SIGNAL PROCESS

FROM
SERVO/SYSTEM
CONTROL BLOCK

(DECK ASSEMBLY)

CYLINDER ASSEMBLY

VIDEO (L) HEAD

VIDEO (R) HEAD

EXT-H/INSEL
RENTAL
REC/EE/PB
SPL-PLAY
ROTA
D-V SYNC
SP/LP/SLP

71
36

RENTAL
REC/EE/PB

16

TRICK

73

ROTA

14

D-V SYNC

39

SP/LP/SLP

59

CL401

V(L)

3

V-COM

2

V(R)

1

FROM/TO
SERVO/SYSTEM
CONTROL BLOCK

WF1

RF-SW

V-ENV

J274

RF-SW

88
89
90
91

13

93

AGC
AMP

R
L
R

HPF

P

ENV
DET

74

TP402

V-ENV

WF6

1-8-3 1-8-4 T7408BLV

Audio Block Diagram

FROM
CHROMA/TUNER
BLOCK

FROM/TO
SERVO/SYSTEM
CONTROL BLOCK

JK702
A-IN

TU-AUDIO

SDA
SCL

WF7

BLOCK DIAGRAM FOR SECTION 2 (DECK MECHANISM)

IC301(VIDEO/AUDIO SIGNAL PROCESS)

24

14
15

26

21

SERIAL

I/F

TUNER

LINEVCR

AUDIO
ATT

32

WF8

TP401

A-OUT

PB-AUDIO SIGNAL REC-AUDIO SIGNAL

MAIN CBA

IC801 (AMP)

7

OUTPUT

AMP

MUTE

5

IC401

(AUDIO PROCESS)

1

SP-MUTE
FROM PIN 12
OF IC201

80 76

Mode : SP/REC

TUNER

LINE

CN801
SPEAKER
SP-GND 2

CL802
1

JK801
EARPHONE JACK

SP801
SPEAKER

AC HEAD ASSEMBLY

AUDIO
HEAD

AUDIO
ERASE
HEAD

FE HEAD UNIT

FULL
ERASE
HEAD

CN287

A-PB/REC

AE-H
AE-H/FE-H

ALC

REC
AMP

LINE
AMP

D-REC-H

11 12 71 16

MUTE

REC/EE/PB

EXT-H/INSEL

A-MUTE

D-REC-H

96

98

FROM
SERVO/
SYSTEM
CONTROL
BLOCK

R

CL402
4
3A-COM
1
2

A-PB/REC

4

A-COM

3

AE-H

1

AE-H/FE-H

2

CL403

FE-H

2

FE-H GND

1

Q873

Q874

Q872

BIAS
OSC

Q871

P-ON+5V

Q875

P-ON+5V

4

99

EQ
AMP

SP/LP-ON

3

AUTO
BIAS

1

2

6 7

100

WF9

P

1-8-5

T7408BLA1-8-6

Chroma/Tuner Block Diagram

TU001

AGC

SDA
SCL
FSC

REC-AUDIO SIGNAL

SF001

IF

11

1
5
4
8

SAW
FILTER

IC100 (IF SIGNAL PROCESS)

20

VIF
AMP

21

16

14

17

IC301 (VIDEO/AUDIO/CHROMA/DEFLECTION)

31

14
15

6

AFT

AMP

RF
AGC

SERIAL
I/F

INTELLIGENT
MONITORING

VIDEO
DET

VCO

5

CF031

4.5MHz
TRAP

CF032

4.5MHz
FILTER

LPF

IF AGC DET

3

8

TUNER

VCR

EQ
AMP

FM
DET

LINE

REC VIDEO SIGNAL PB VIDEO SIGNAL Mode : SP/REC

MAIN CBA

TU VIDEO TO VIDEO BLOCK

TU AUDIO

EXT-L

VIDEO
LINE-VIDEO

TO AUDIO BLOCK

FROM
SERVO/ SYSTEM
CONTROL BLOCK

FROM
VIDEO BLOCK

AF
AMP

VCO F/B

23
25
20

1

11

7

FROM/TO
SERVO/SYSTEM
CONTROL BLOCK

SCL

SDA

C-SYNC

AFT

IC201

(SYSTEM CONTROL/OSD)

56

CV-IN

OSD-R

64
63

OSD-G
OSD-B

62
60

59
58

WF18
WF17

OSDT-BLK

V-SYNC

H-SYNC

WF10

16

12
11
10
13

35
34

SYNC
SEPARATION

CHROMA
TRAP

LUMA
SIGNAL
PROCESS

V-SYNC
PROCESS
CIRCUIT

9
8

H-SYNC
PROCESS
CIRCUIT

CIRCUIT

OSD MIX/RBG MATRIX/
BLIGHT/DRIVE AMP/
HV BLANKING

CHROMA
BPF

CHROMA
SIGNAL
PROCESS
CIRCUIT

TUNER

VCR

LINE

FILTER
TUNING

VXCO

18

40
41

2
3
4

5

X301

3.58MHz

WF11

TP302

AFC

CL502B

RED

2

GREEN3
BLUE

4

AFC
H-DRIVE
ACL
V-RAMP-NF
V-DRIVE

TO
CRT/H.V. BLOCK
CL502A

FROM/TO
CRT/H.V. BLOCK

T7408BLC1-8-7 1-8-8

CRT/H.V. Block Diagram

FROM
POWER SUPPLY BLOCK

+B

DEF+B

Q572

H.DRIVE

WF12

Q571

H.OUTPUT

T572

T571 F.B.T.

HV

F

S

FOCUS VR

REC VIDEO SIGNAL PB VIDEO SIGNAL

IC551 (V-DEFLECTION CONTROL)

THERMAL

7

AMP

1

6

PROTECTION

PUMP
UP

VCC

3 2

CN573

ANODE

GND

Mode : SP/REC

L551

WF13

5

CN571

DEFLECTION-YOKE

5

4

3

1

V­DRIVE

H­DRIVE

FROM/TO
CHROMA/TUNER BLOCK

FROM
CHROMA/TUNER
BLOCK CL504

V-DRIVE
H-DRIVE

AFC
ACL
V-RAMP-NF

CL502A

2RED
3GREEN
4BLUE

1

5

3

4

10

11

8

7

9

6

SCREEN VR

FOCUS
SCREEN

ANODE

CL501ACL501B

3 3HEATER
1 1P-ON+160V

MAIN CBA

JK501

FOCUS
SCREEN

Q511

RED AMP

Q521

GREEN AMP

WF15WF14

BLUE AMP

Q531

WF16

GND

V501

R

CRT

G

B
HEATER

CRT CBA

CN505

1-8-101-8-9

GND

T7408BLCRT

Power Supply Block Diagram

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

HOT CIRCUIT. BE CAREFUL.

4A/125V

CAUTION:

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,
REPLACE ONLY WITH SAME TYPE 4 A, 125V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

W601

DG601
DEGAUSSING
COIL

F601
4A/125V

CN601

4A/125V

SWITCHING

LINE
FILTER

Q601

L601

PS601

Q602

LIMITER

D603 - D606

BRIDGE
RECTIFIER

HOT COLD

T601

6

4

2

1

IC601

ERROR
VOLTAGE DET

4 1

12

11

10

9

7

8

IC602

Q608

Q611

Q610

+5V REG.
+5V REG.

+5V REG.

+8V REG.

Q607

Q606

Q609

+5V REG.

+B

AL+33V

DEF+B

TIMER+5V

P-ON+5V
P-ON+5V

P-ON+5V

AL+12V

P-ON+8V

AL+5V
P-ON+12V

Q612

P-DOWN
(TO PIN84 OF IC201)

1-8-11

3 2

Q604
FEED

BACK

VR601
+B ADJ.

Q605

MAIN CBA

IC301

P-ON-ON

1-8-12

+5.7V
REGULATOR

P-ON-H
(FROM PIN31 OF IC201)

3027

T7408BLP

MECHANICAL TROUBLE INDICATOR

1, Each Malfunction Indication

If the MONITOR is turned ON right after the Mechani­cal Malfunction occurs or POWER SAFETY/X-RAY is
turned ON, display the following character to show
Malfunction after the EJECT display.

Immediately preceding

Malfunction
REEL Malfunction R
DRUM Malfunction D
CASSETTE LOADING Mal-

function
TAPE LOADING Malfunction T
P-SAFETY 2 2
P-SAFETY 3 3
X-RAY X

Example: If REEL Malfunction

EJECT R

Display character

C

2, Each Malfunction evaluation
method

X-RAY protect

If X-RAY port becomes continuously 2.5V or more for
120 msec. (4 times 40 msec. interval), the unit shall
immediately turn OFF the POWER/MONITOR and
switch over to the Mechanical Malfunction mode with
POWER OFF.

(To return from this mode shall become possible only
by POWER Key as in the case of the Mechanical Mal­function).

POWER SAFETY

1) POWER SAFETY 2
If P-SAFETY 2 port becomes continuously 2.5V or

less for 120 msec. (4 times 40 msec. interval) when
P-ON-H port is ON, the unit shall be assumed to be
the Power Malfunction 2 and immediately turn OFF
the POWER/MONITOR and switch over the
Mechanical Malfunction mode with POWER OFF.

(Shall not unload)
(To return from this mode shall become possible

only by POWER Key as in the case of the Mechan­ical Malfunction).

* However the POWER SAFETY 2 function shall
be disabled during 500 msec. right after the P-ON­H turns ON.

2) POWER SAFETY 3
If P-SAFETY 3 port becomes continuously 2.5V or

over for 120 msec. (4 times 40 msec. interval)
when MONITOR is ON, P-SAFETY 3 function is
available. After that, if P-SAFETY 3 port becomes
continuously 2.5V or less for 120 msec. (4 times 40
msec. interval), the unit shall be assumed to be the
Power Malfunction 3 and immediately turn OFF the
POWER/MONITOR and switch over the Mechani­cal Malfunction mode with POWER OFF.

(Shall not unload)
(To return from this mode shall become possible

only by POWER Key as in the case of the Mechan­ical Malfunction).

1-8-13 T5407MTI

Mechanical Malfunction determination

1) REEL Malfunction detection
Countermeasure for REEL and CAPSTAN motor

rotation malfunction (Except CASSETTE LOAD­ING function)

After the Malfunction detection with REEL/CAP­STAN sensor, the unit shall switch over to STOP
(B) and be REEL Mechanical Malfunction.

a) If the T-REEL pulse is not impressed after a lapse

of 5 sec. at SP, 10 sec. at LP, 14 sec. at SLP, or
more in the REEL Rotation Mode like PLAY/REC,
FS/RS Mode, and the T-REEL or S-REEL pulse is
not impress after a lapse of 4 sec. or more in REEL
Rotation Mode of FF/REW, it shall be assumed to
stop the rotation and switch over to STOP (B) posi­tion, then POWER be turned OFF and the unit be
REEL Mechanical Malfunction. (T-REEL and S­REEL for the models on S-REEL and only T-REEL
for other models)

b) If the C-FG pulse is not impressed for a lapse of 1

sec. or more during the CAPSTAN MOTOR rota­tion, it shall be MOTOR Rotation Malfunction
(REEL Malfunction).

2) DRUM Malfunction detection
Detect the DRUM rotation at the D-FG input termi-

nal.
If the variation of D-FG input level is not detected

for a lapse of 1 sec. or more when D-CONT is "H",
it shall be assumed to be Rotation Malfunction and
be DRUM Malfunction.

When detect Drum Malfunction, POWER shall be
turned OFF after the unit switches over to STOP
(B) Mode.

3) Countermeasure for TAPE LOADING Malfunction
Detect the Malfunction with the LOADING Switch.

a) TAPE LOADING Malfunction

If LD-SW does not go to the established position
after a lapse of 7 sec. or more from TAPE LOAD­ING or TAPE UNLOADING start, the LOADING
function shall immediately be stopped and POWER
be turned OFF, and inform the Timer about the
LOADING Mechanical Malfunction.

b) LD-SW Position Malfunction at each mode

When the unit operates at each mode, even if the
LD-SW position changes from the established one
in its mode, it keeps the function according to its
mode.

4) Countermeasure for CASSETTE LOADING Mal­function

a) CASSETTE IN operating Malfunction

If LD-SW does not go to SB position after a lapse of
5 sec. or more from the CASSETTE insertion start,
the unit starts the CASSETTE OUT operation.

After switch over to CASSETTE OUT operation
and then a laps of 5 sec. or more from the CAS­SETTE OUT operation start, if LD-SW does not go
to the EJ position or if START Sensor and END
Sensor does not turn "ON" at the EJ position, the
unit starts again to insert CASSETTE.

(However in S-INH state, the START/END Sensor
shall be disabled).

b) CASSETTE OUT operating Malfunction

After a lapse of 5 sec. or more from CASSETTE
OUT operation start, if LD-SW does not go to the
EJ position or if START Sensor and END Sensor
does not turn "ON" at the EJ position, the unit starts
to insert CASSETTE.

(However in S-INH state, the START/END Sensor
shall be disabled).

When the unit switches over to CASSETTE inser­tion at CASSETTE IN or CASSETTE OUT Mal­function, if LD-SW does not go to the SB position
after a lapse of 5 sec. or more from CASSETTE
insertion start, the function shall immediately be
stopped and POWER be turned OFF, and the unit
be CASSETTE LOADING Malfunction.

c) When POWER is turned ON, if the CL position or

GC position cannot be detected after 5 sec. LD­REV operation and 5 sec. LD-FWD operation, the
function shall immediately be stopped and POWER
be turned OFF, and the unit be CASSETTE LOAD­ING Malfunction.

d) When POWER is turned ON without CASSETTE

(EJ position) and LD-SW is monitored all the time,
if the CL or GC position is detected continuously for
1 sec. or more, the POWER shall be turned OFF
and the unit be CASSETTE LOADING Malfunction.

Countermeasure for Mechanical
Malfunction

If the unit detects Mechanical Malfunction, turn the
POWER OFF. If the unit is Mechanical Malfunction,
Key input except POWER key shall be disabled and
CASSETTE insertion disabled. When POWER Key is
entered, the POWER is turned ON and the unit
switches over the EJECT Mode. (Return with POWER
ON)

1-8-14 T5407MTI

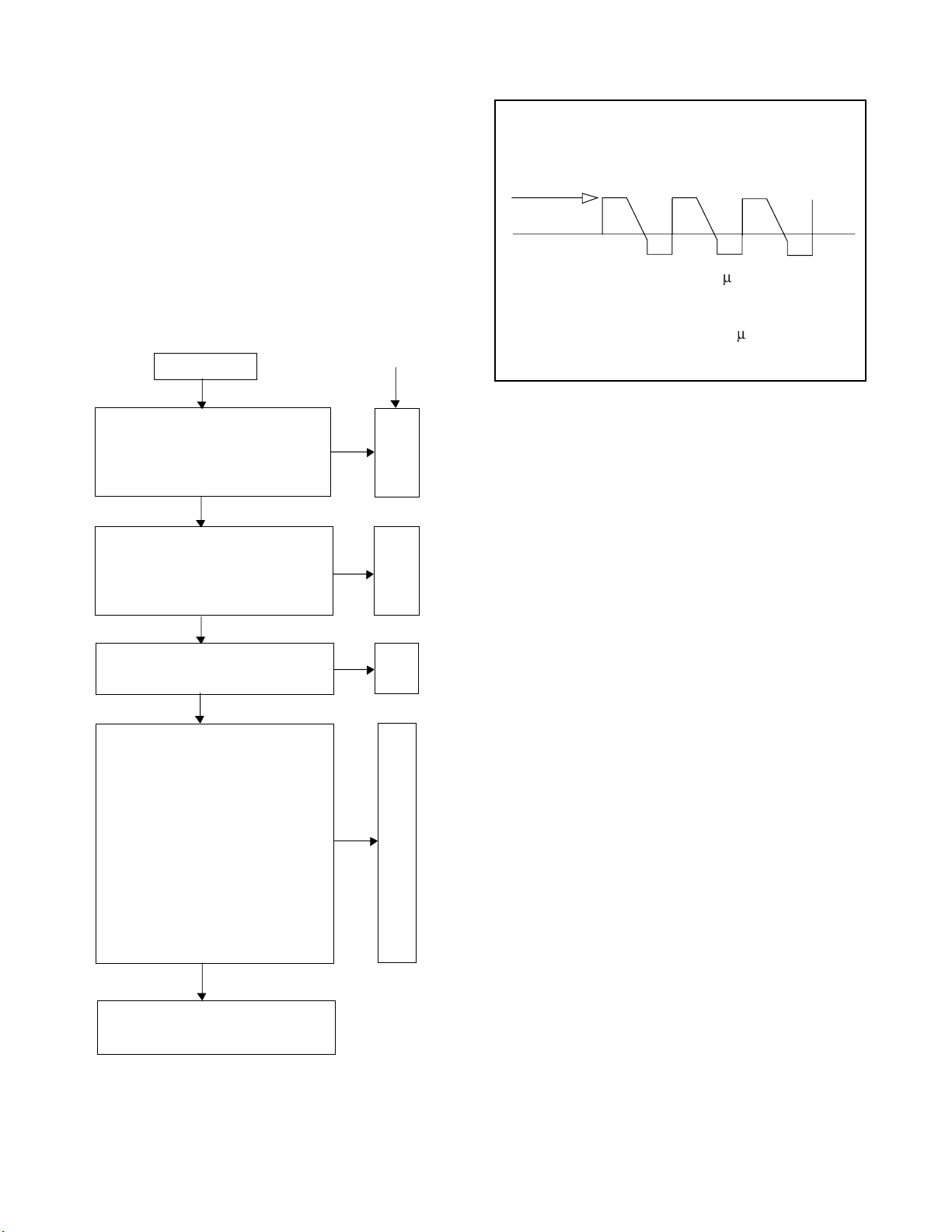

Power Supply Trouble Shooting Guide

It is highly recommended that a variable isolation
transformer which can monitor current be used.
(Alternatively a variable AC source which monitors
current will do). Read directions below before
power is added!

CHECK

Repair method

Check Fuse (F601) is blown
out or not.
If fuse is blown out,

YES

#1

do repair method #1

NO

Check whether the primary
rectifying DC of the Switching
power supply has an output.

NO

#2

(Reading should be about 168V.

YES

Voltage of the 105V line
higher than normal?

YES

#3

NO

The transformer of the power
supply makes a higher sound
or the oscillation wave form is
abnormal.
(E.g. intermittent oscillation)
Connect the positive probe of
oscilloscope to the pin 16 of

YES

#4

T601, then connect the negative
probe to the pin 12. Observe the
waveform and check to see if
the waveform is out of limit of
value shown in Fig.1.

Voltage approx. 5Vp-p

0V

T=Approx. 6 to 14 sec

Oscilloscope setting: 1V/DIV.

2 sec./DIV

Fig.1

Repair method #1

(Power must be off)
Short circuit in the secondary side. check diode D613,

D614, D616, D617 and D618, switching transistor
(Q601), control transistor (Q602), diode and resistor
replace as necessary.

Disconnect 105V diode (D613), 25V diode (D614), 8V
diode (D616), 12V diode (D617), 12V diode (D618)
and Check the load continuity of 105V line, 25V line,
8V line, 12V line through a tester (resistance range).

If the tester indicates a lower resistance value around
0 ohm, the line is short-circuited.

Before repairing the switching power supply, find out
the short-circuited area of such line and repair it.

If the tester does not indicate any low resistance value
(around 0 ohm), no load is short-circuited and there is
no problem.

Check for any defective parts while the secondary rec­tifying diodes are disconnected (D613, D614, D616,
D617 and D618) perform a diode check in both for­ward and reverse directions through a tester.

NO

There is no problem on the
SW power supply

1-8-15 T5300TR1

Repair method #2

Check the primary rectifying diodes (D603-D606) as
possible problems. Remove the above mentioned
parts and check them. Perform check according to the
step 1 and 2 of repair method #1 and check for defects
following parts, then if necessary replace with factory
originals.

R602 is open or not.
Q601, Q602, D607, D608 and D611 are short or not.

Repair method #3

The feedback circuit which is monitored by the output
of D613 105V may not work and this may be regarded
as a possible cause, remove IC601 (Photo Coupler),
diode (D620) and transistor (Q604) check for defects.

Repair method #4

Check control circuitly which is connecting to Pin 2
and 1 of Switching Transformer T601.

1-8-16 T5300TR1

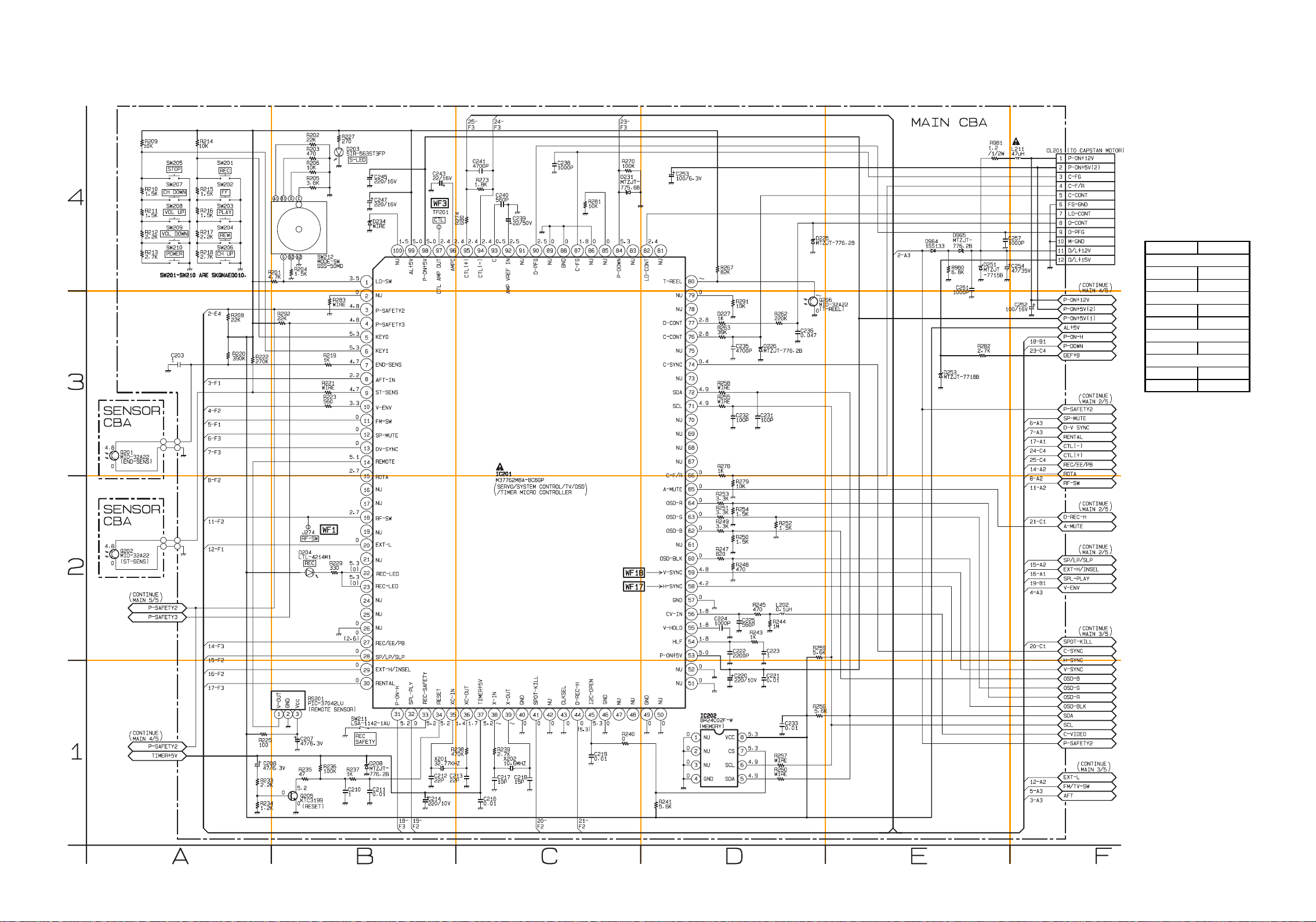

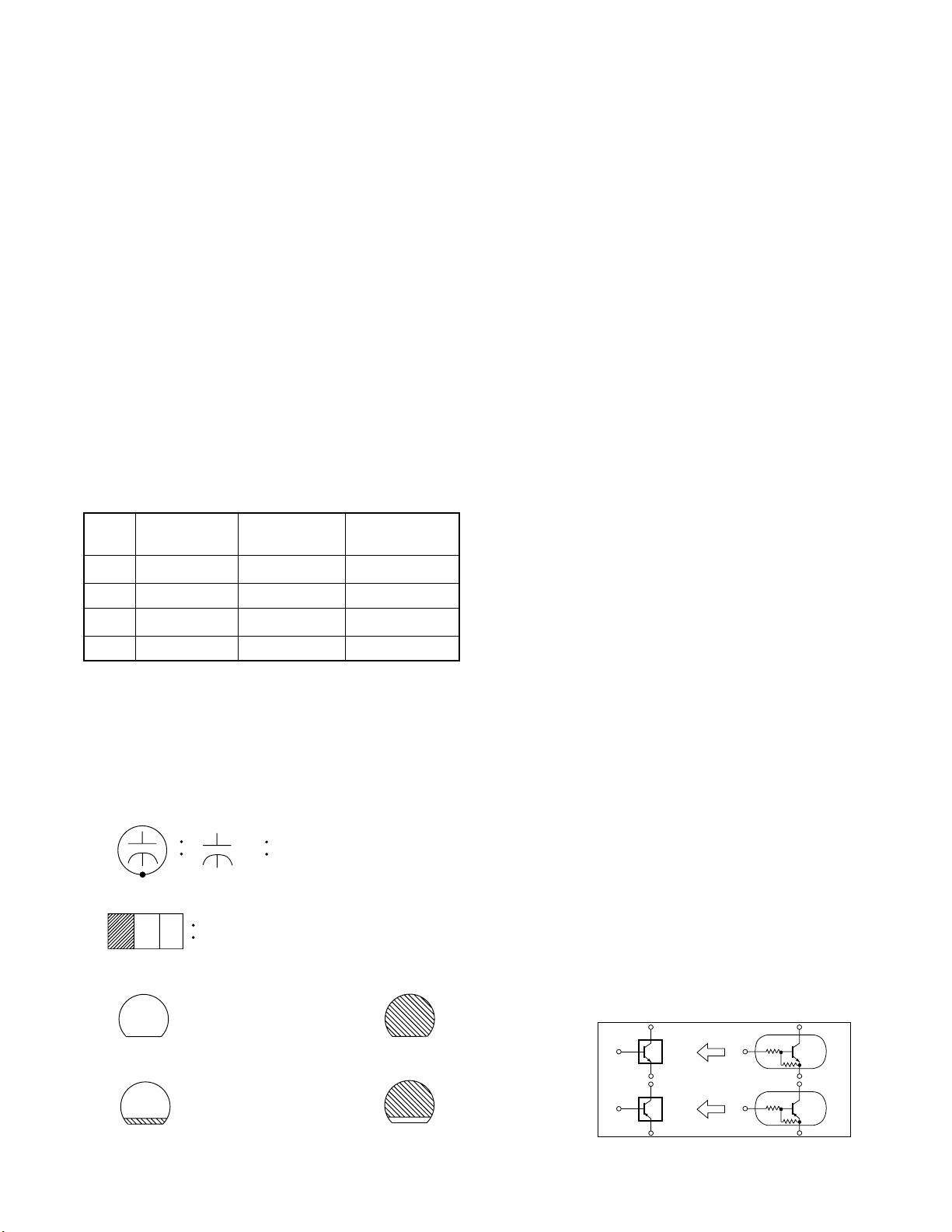

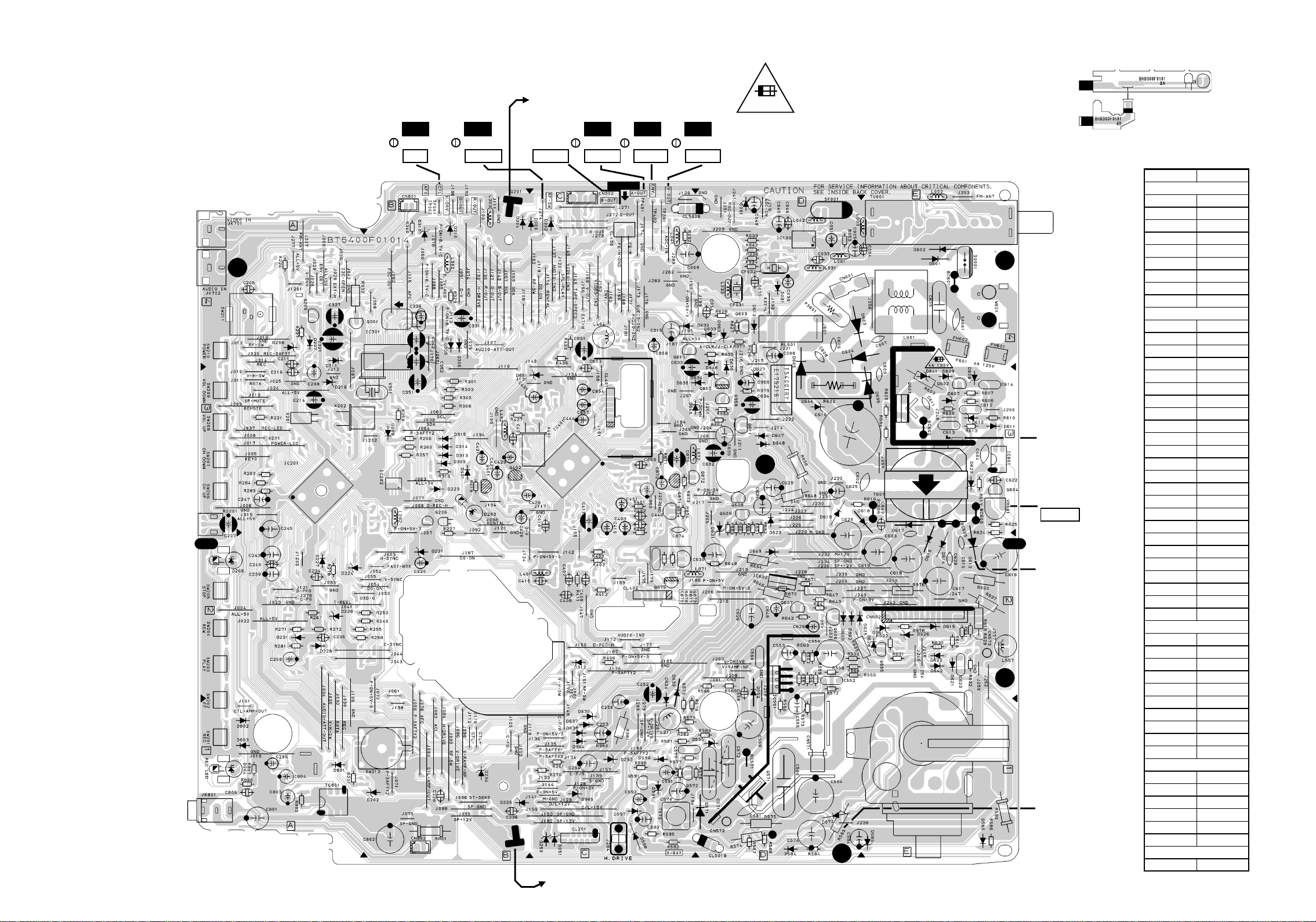

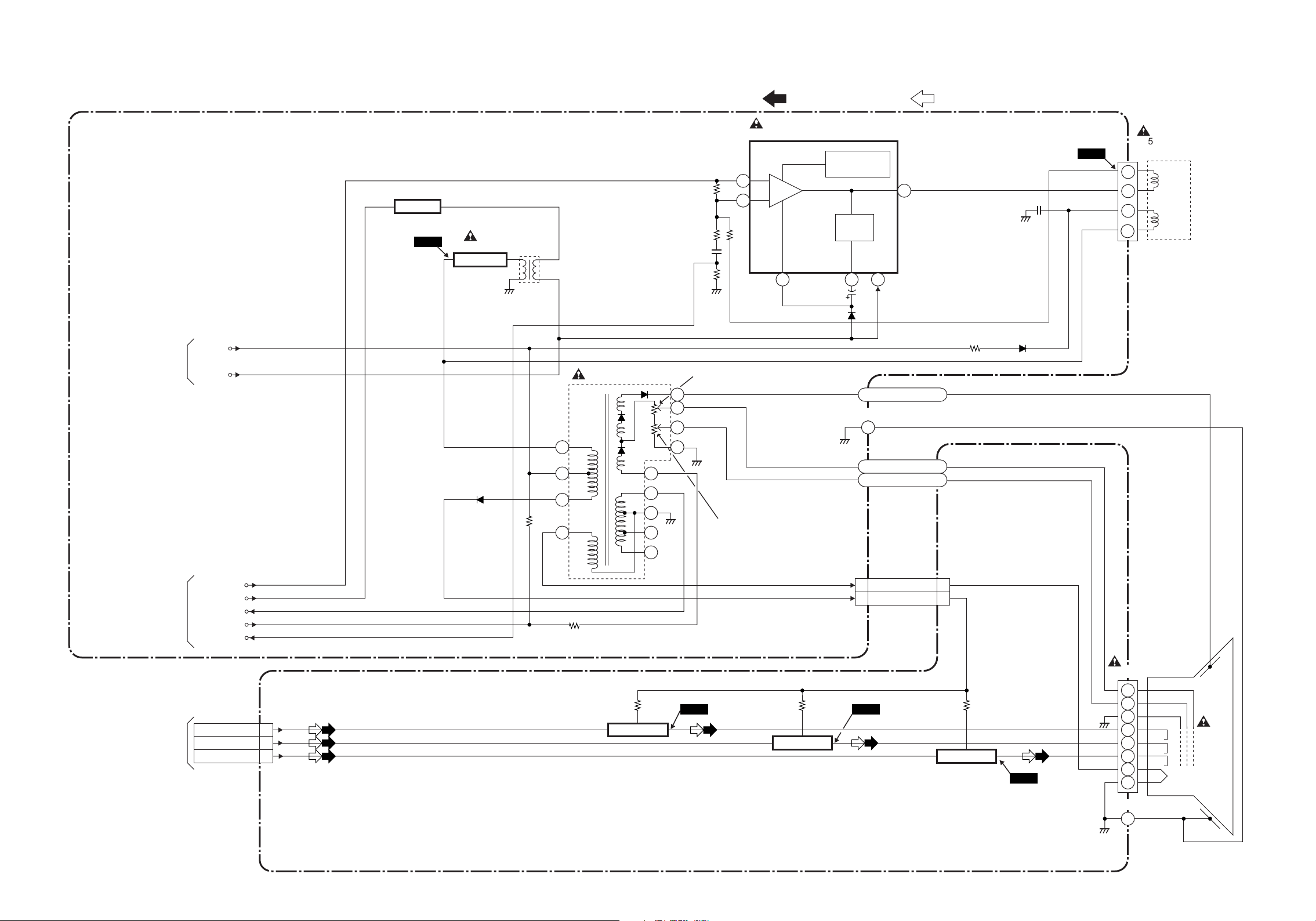

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

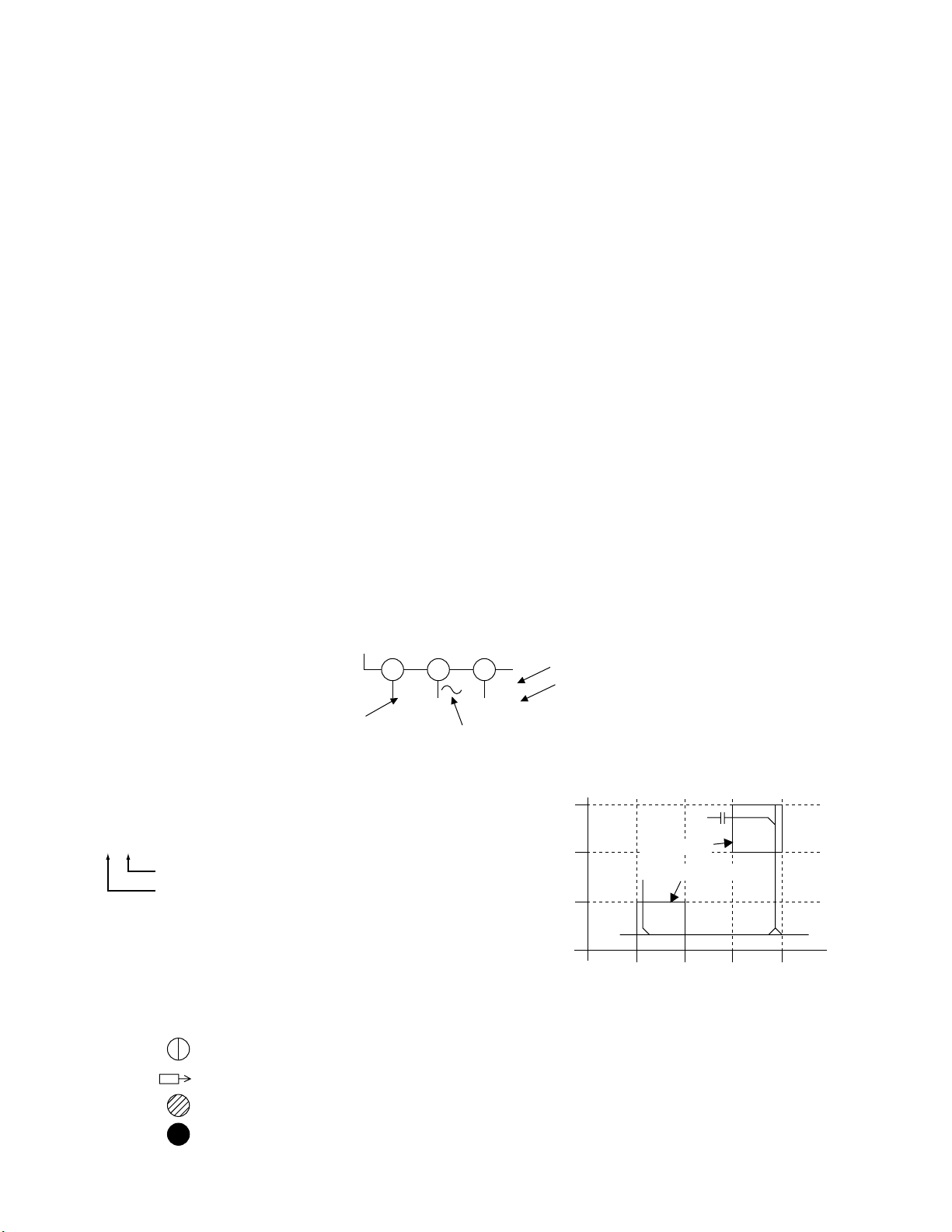

Standard Notes

Warning

Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using replace­ment components rated for higher voltage, wattage,
etc. Replacement parts that have these special safety
characteristics are identified in this manual and its
supplements; electrical components having such fea­tures are identified by the mark " # " in the schematic
diagram and the parts list. Before replacing any of
these components, read the parts list in this manual
carefully. The use of substitute replacement parts that
do not have the same safety characteristics as speci­fied in the parts list may create shock, fire, or other
hazards.

Capacitor Temperature Markings

Mark

(B)

(F) +30 -80% 20°C -25~+85°C

Capacity

change rate

±10%

Standard

temperature

20°C -25~+85°C

Temperature

range

Note:

1. Do not use the part number shown on these draw­ings for ordering. The correct part number is shown
in the parts list, and may be slightly different or
amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K=10

6

).

M=10

3. Resistor wattages are 1/4W or 1/6W unless other­wise specified.

4. All capacitance values are indicated in µF

-6

(P=10

5. All voltages are DC voltages unless otherwise
specified.

µF).

3

,

(SR)

(Z) +30 -80% 20°C -10~+70°C

Capacitors and transistors are represented by the fol­lowing symbols.

±15%

20°C -25~+85°C

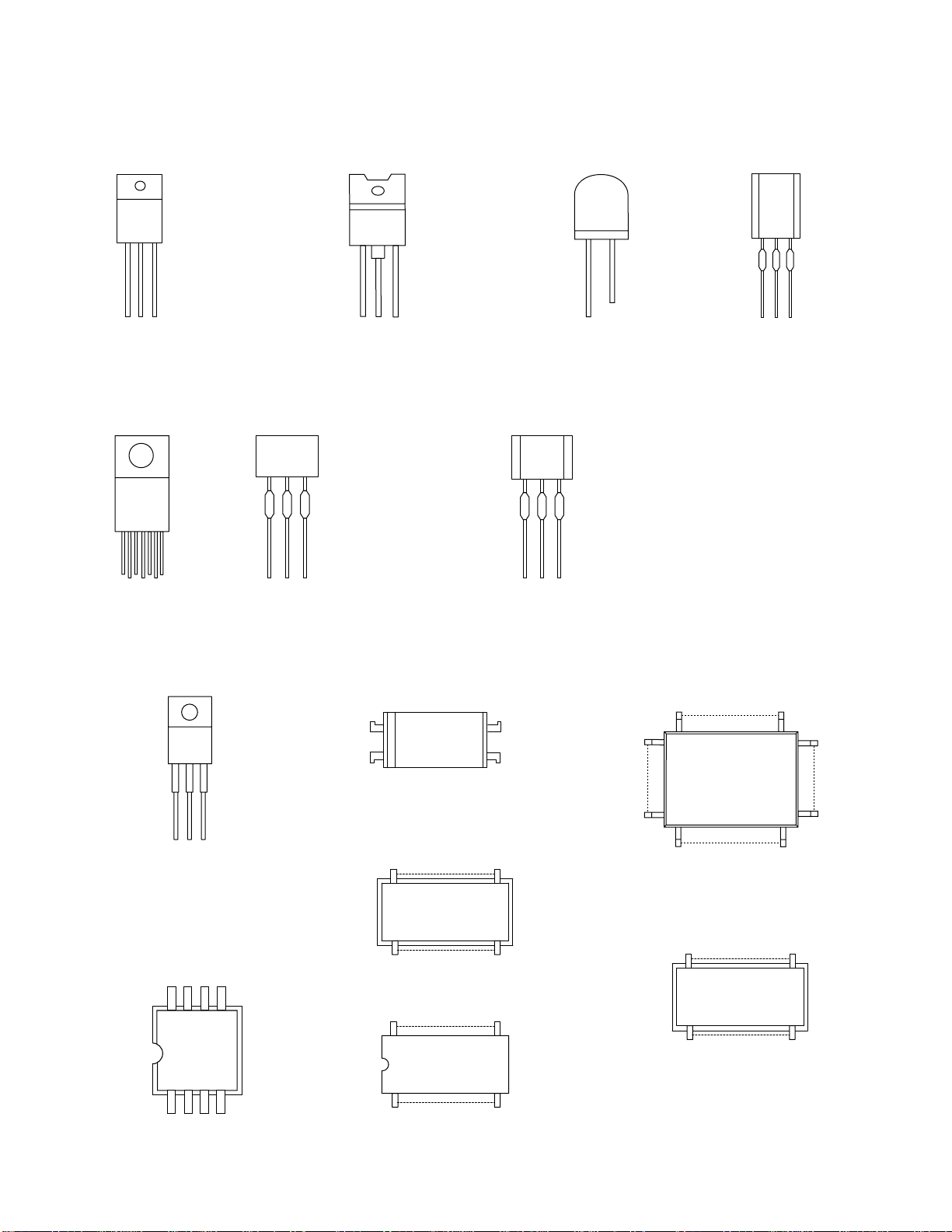

CBA Symbols

(Top View) (Bottom View)

+

Electrolytic Capacitor

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

E C B

(Top View)

E C B

PNP Transistor

Schematic Diagram Symbols

Digital Transistor

(Top View)

E C B

NPN Digital Transistor

(Top View)

PNP Digital
Transistor

E C B

1-9-1 SC_1

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:

1. CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME
TYPE_A,_V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective
before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the
power supply circuit to fail.

3. Note:

(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts

list, and may be slightly different or amended since the drawings were prepared.

(2) To maintain original function and reliability of repaired units, use only original replacement parts which are listed

with their part numbers in the parts list section of the service manual.

4. Wire Connectors

(1) Prefix symbol "CN" means "connector" (can disconnect and reconnect).
(2) Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).

5. Note: Mark "•" is a leadless (chip) component.

6. Mode: SP/REC

7. Voltage indications for PLAY and REC modes on the schematics are as shown below:

PLAY mode
REC mode

3

2

1

ABCD

AREA D3

1-D3

The same voltage for
both PLAY & REC modes

8. How to read converged lines

1-D3

Distinction Area
Line Number
(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to area "D3".

2. "1-B1" means that line number "1" goes to area "B1".

5.0

231

5.0
(2.5)

Indicates that the voltage
is not consistent here.

Unit: Volts

1-B1

AREA B1

9. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

: Used to indicate a test point with a test pin.

1-9-2 SC_2

Main 1/5 Schematic Diagram

A4

A3

B4

B3

C4

C3

D4

D3

E4

E3

F4

F3

MAIN 1/5

Ref No. Po si tio n

ICS
IC201
IC202

TRANSISTORS
Q205
Q206

CONNECTOR

CL201

TEST POINT S

J274 B-2

TP201 B-4

C-3
D-1

B-1
D-3

F-4

A2

A1

B2

B1

1-9-3 1-9-4

C2

C1

D2

D1

E2

E1

F2

F1

T7408SCM1

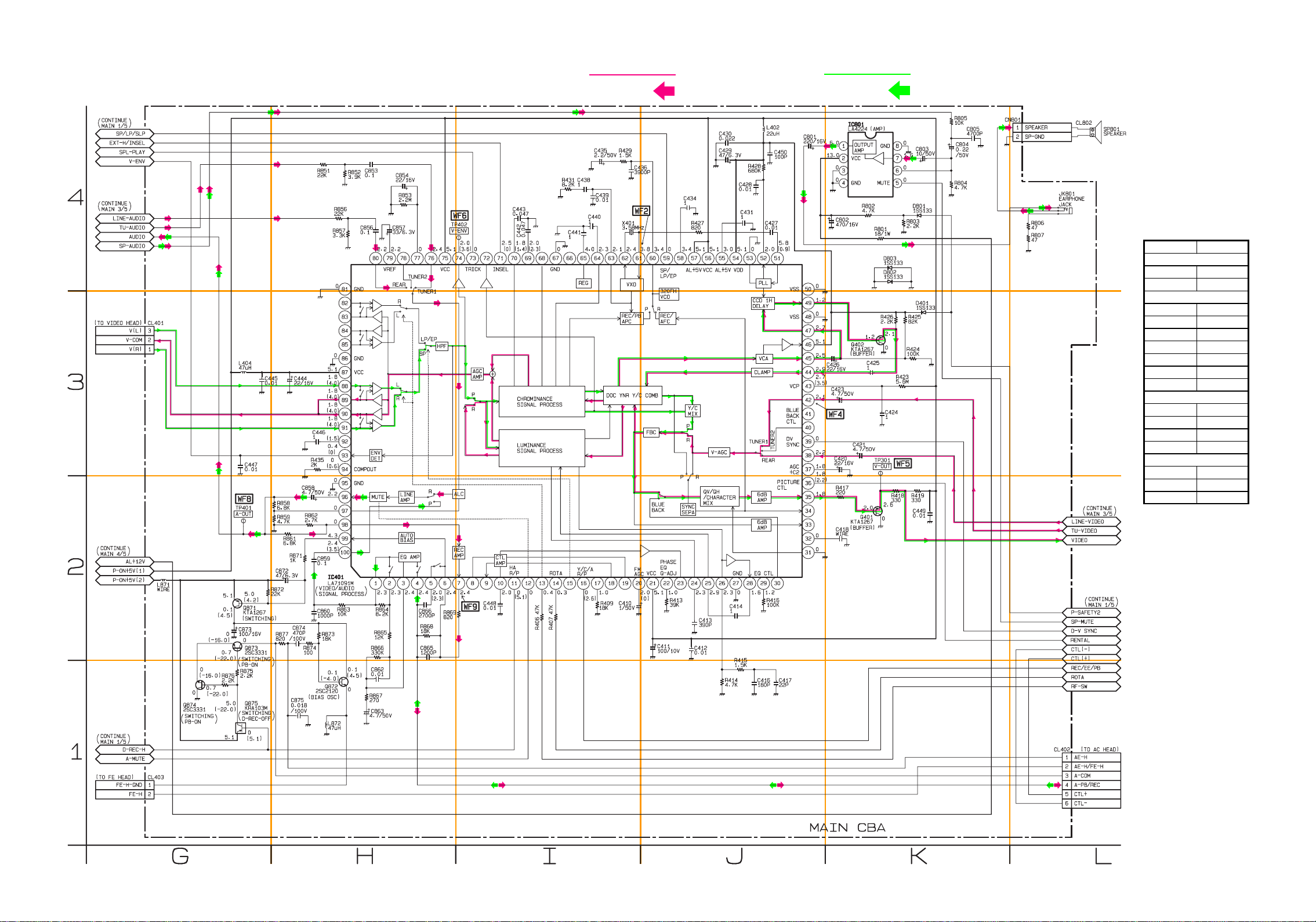

Main 2/5 Schematic Diagram

CL401

CL402

CL403

REC Video Signal

REC Audio Signal

PB Video Signal

PB Audio Signal

G4

G3

H4

H3

I4

I3

J4

J3

K4

K3

L4

L3

MAIN 2/5

Ref No. Po si tio n

ICS
IC401
IC801

TRANSISTORS
Q401
Q402
Q871

Q872 H-1
Q873

Q874 G-1
Q875

CONNECTOR

CN801

TEST POINT S
TP301
TP401

TP402 I-4

H-2
K-4

K-2
K-3
G-2

G-2

G-1

G-3
L-1
G-1
L-4

K-3
G-2

G2

G1

1-9-5

H2

H1

I2

I1

J2

J1

K2

K1

1-9-6

L2

L1

T7408SCM2

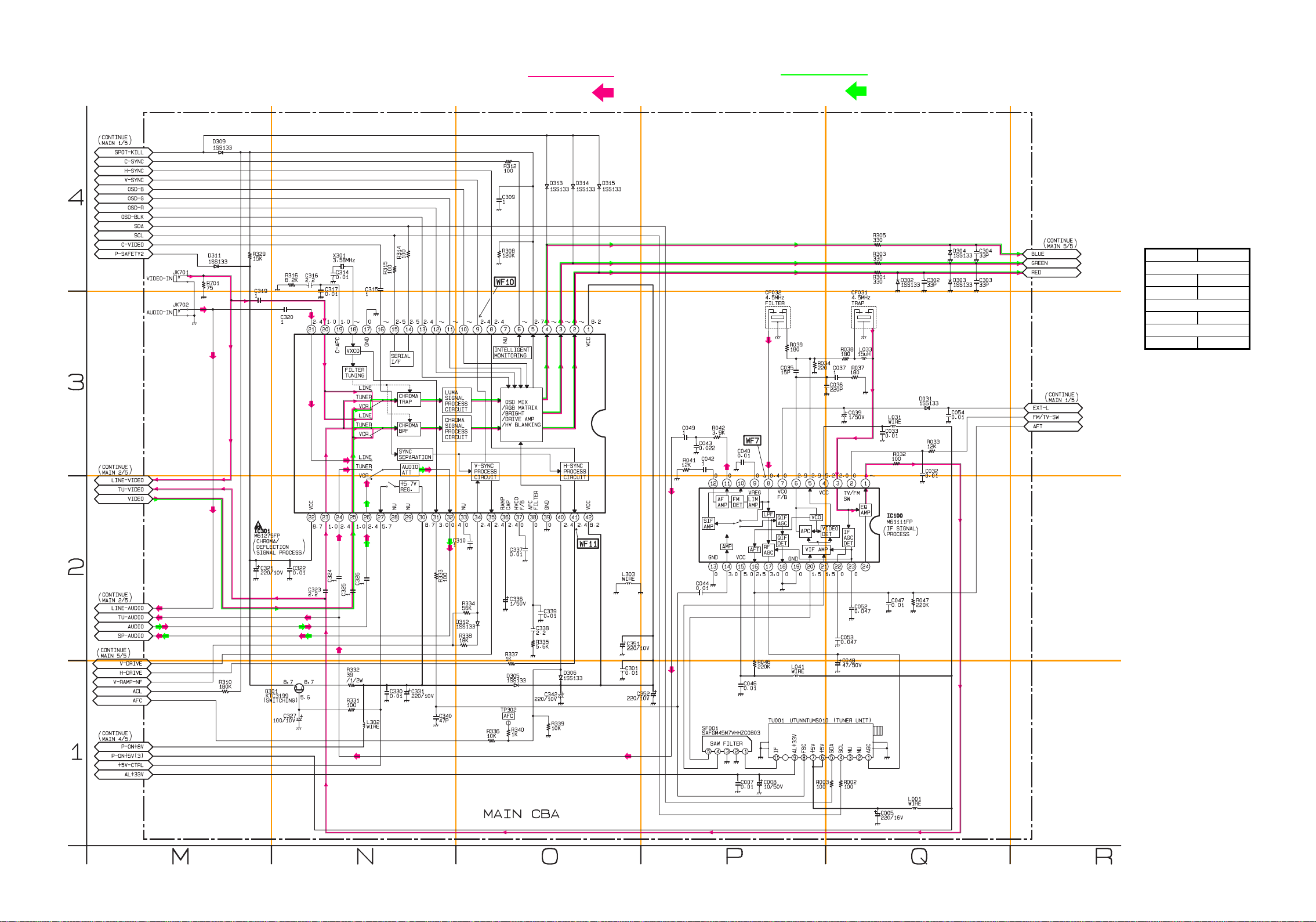

Main 3/5 Schematic Diagram

REC Video Signal

REC Audio Signal

PB Video Signal

PB Audio Signal

M4

M3

N4

N3

O4

O3

P4

P3

Q4

Q3

R4

R3

MAIN 3/5

Ref No. Po si tio n

ICS
IC100
IC301

TRANSISTOR

Q301

TEST POINT

TP302 O-1

Q-2
M-2

N-1

M2

M1

N2

N1

1-9-7 1-9-8

O2

O1

P2

P1

Q2

Q1

R2

R1

T7408SCM3

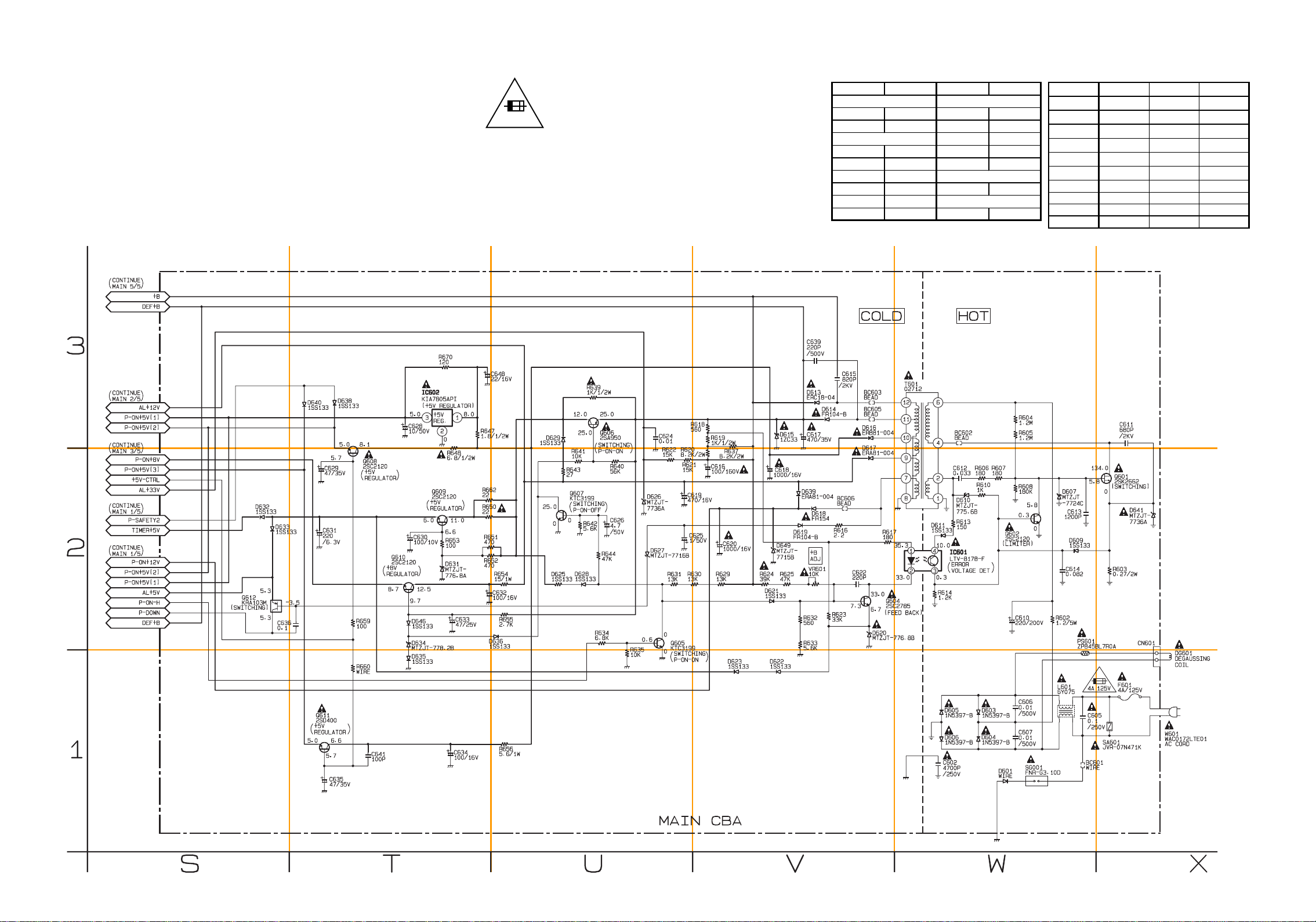

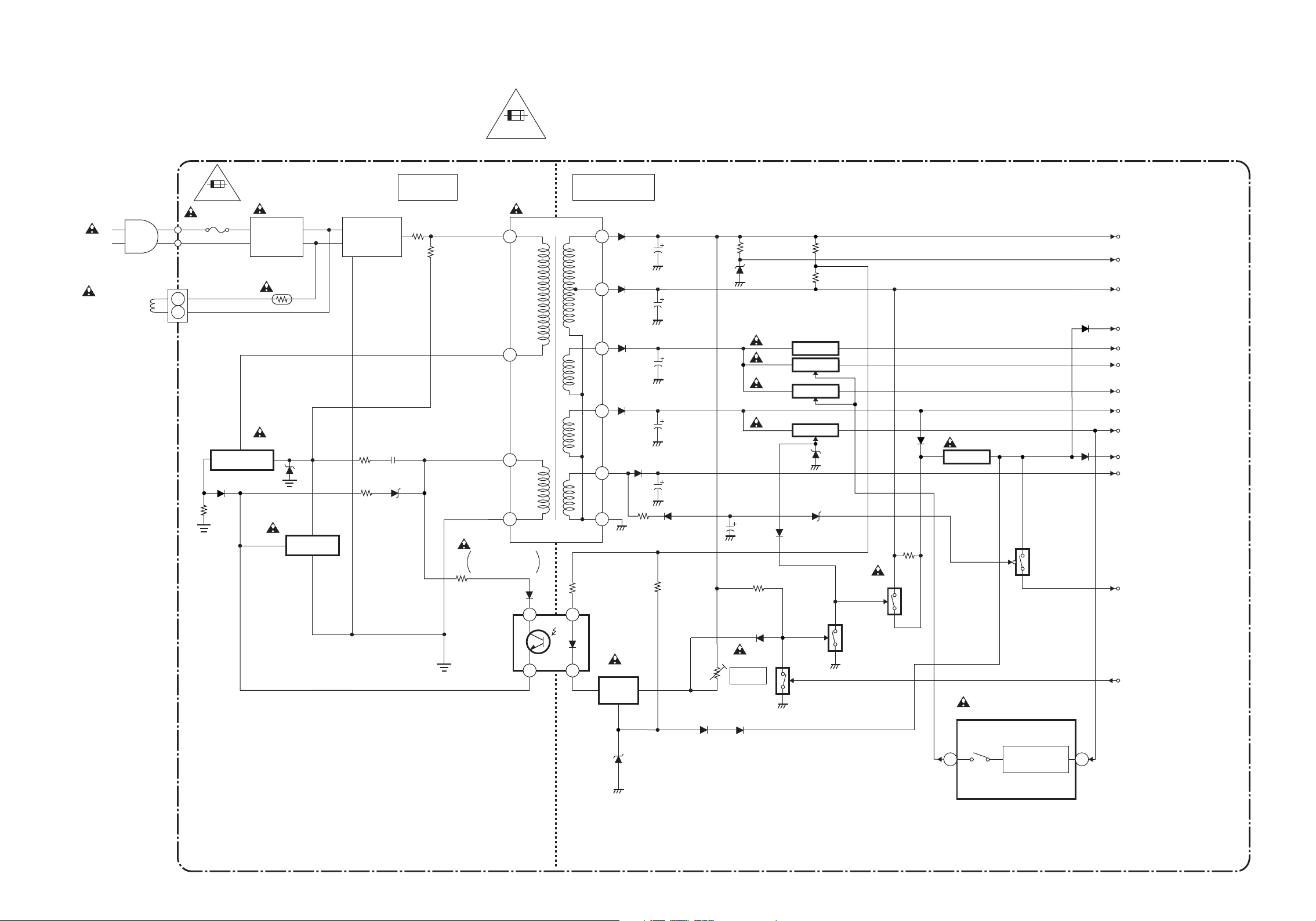

Main 4/5 Schematic Diagram

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK
OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE
MÊME TYPE DE 4A, 125V.

MAIN 4/5

Ref No. Position Ref No. Position

ICS
IC601
IC602

TRANSISTORS
Q601
Q602
Q604

Q605 U-2 CN601 X-2
Q606

Q607 U-2 VR601 V-2

W-2

T-3

X-2

W-2

V-2

U-3

TRANSISTORS
Q608
Q609
Q610
Q611
Q612

CONNECTOR

VARI ABL E R ESISTOR

T-2
T-2
T-2
T-1
S-2

VOLTAGE CHART (Power off mode)

Ref. No. S D G

Q601 0.0 137.0 1.8

Ref. No. E C B

Q602 0 3.2 0.5
Q605 0 7.0 0
Q606 7.0 7.0 7.0
Q608 5.0 7.5 5.7
Q609 6.0 6.5 6.6

Q610 0.7 4.7 1.3
Q611 0 2.4 0
Q612 5.3 5.3 0.8

S3

S2

T3

T2

U3

U2

V3

V2

W3

W2

X3

X2

S1

1-9-9

T1

U1

V1

1-9-10

W1

X1

T7408SCM4

Main 5/5 & CRT Schematic Diagram

Y3

Z3

REC Video Signal

AA3

PB Video Signal

BB3

MAIN 5/5

Ref No. Po si tio n

IC

IC551

TRANSISTORS
Q571
Q572
Q591

CONNECTORS

CL501B
CL502B

CN571 Z-3

CC3

Y-3

AA-2

Z-3
Z-2

BB-3
BB-2

CRT

Ref No. Po si tio n

TRANSISTORS
Q511
Q521
Q531

CONNECTORS

CL501A
CL502A

CN505 DD-2

DD3

CC-2
CC-2
CC-2

BB-3
BB-2

Y2

Y1

Z2

Z1

1-9-11 1-9-12

AA2

AA1

BB2

BB1

CC2

CC1

DD2

DD1

T7408SCM5

Main CBA Top View

CL401

CL402

CL403

CN573

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply circuit
are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply
circuit to fail.

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

1-9-13

WF3

TP201

CTL

WF1

J274

RF-SW

TO SENSOR CBA
(END-SENSOR)

WF8

J271
B-OUT

TP401

A-OUT

TO SENSOR CBA
(START-SENSOR)

WF6

TP402

V-ENV

WF5

TP301

V-OUT

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK

OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE.

4A/125V

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE
MÊME TYPE DE 4A, 125V.

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.
ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWL Y , WHEN TROUBLESHOO TING THIS TYPE POWER SUPPL Y
CIRCUIT , A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

C613 GND
(+B Adjustment)

VR601

+B ADJ

D613 Cathode
(+B Adjustment)

R583
(H Adjustment)

1-9-14

Sensor CBA Top View

BHB300F01014-A

BHB300F01014-B

MAIN CBA

Ref No. Po si tio n

ICS
IC100
IC201
IC202
IC301
IC401
IC551

IC601 E-3
IC602
IC801

TRANSISTORS
Q205
Q206
Q301
Q401
Q402
Q571
Q572
Q591
Q601
Q602
Q604
Q605
Q606
Q607
Q608
Q609
Q610
Q611
Q612
Q871
Q872
Q873
Q874
Q875

CONNECTORS

CL201

CL501B
CL502B

CN571

CN601
CN801

TEST POINT S

J274 C-4
TP201
TP301
TP302
TP401
TP402

VARI ABL E R ESISTOR

VR601 E-3

BT5400F01014

D-4

A-3
B-3

B-4
C-3
D-2

D-2

A-1

A-4

B-3

B-4

B-3

B-3
D-1
C-1
C-1

E-3

E-3

E-3

E-2
D-2
D-2
D-3
D-3
D-3
D-3
D-3
C-3
D-3
C-2
C-3
C-2

C-1
C-3
C-2
C-4
D-1
C-4
D-1

E-2
D-4

B-4

B-4
C-4

B-4
C-4
C-4

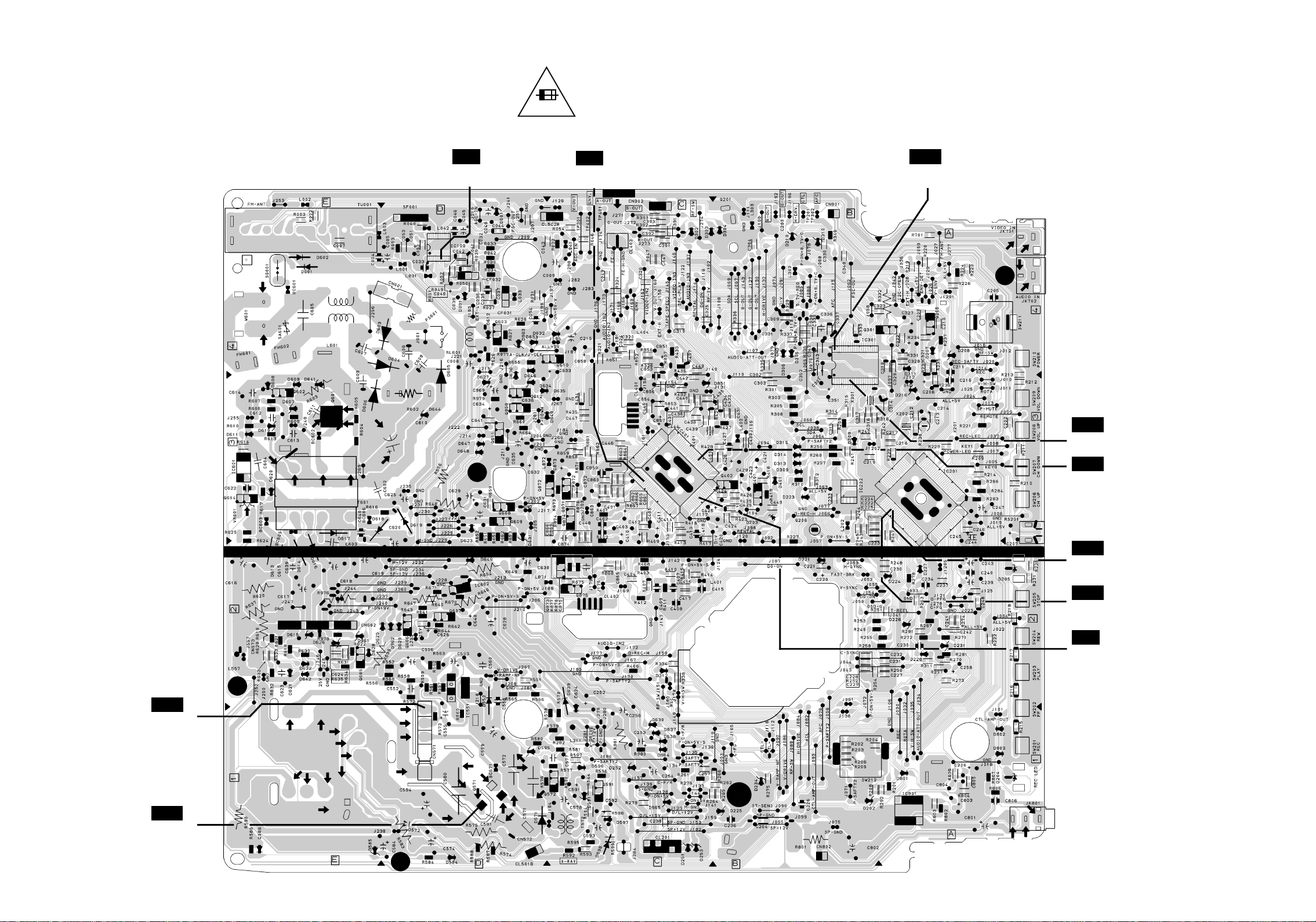

Main CBA Bottom View

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F601) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.

PIN 8
OF IC100

WF7

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK
OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE
MÊME TYPE DE 4A, 125V.

WF9

PIN 7
OF IC401

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.
ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWL Y , WHEN TROUBLESHOOTING THIS TYPE POWER SUPPL Y
CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

WF11

PIN 41
OF IC301

WF13

PIN 5
OF CN571

WF10

PIN 9
OF IC301

WF2

PIN 61
OF IC401

WF18

PIN 59
OF IC201

WF17

PIN 58
OF IC201

WF4

PIN 42
OF IC401

WF12

Q571
Collector

1-9-15

1-9-16

BT5400F01014

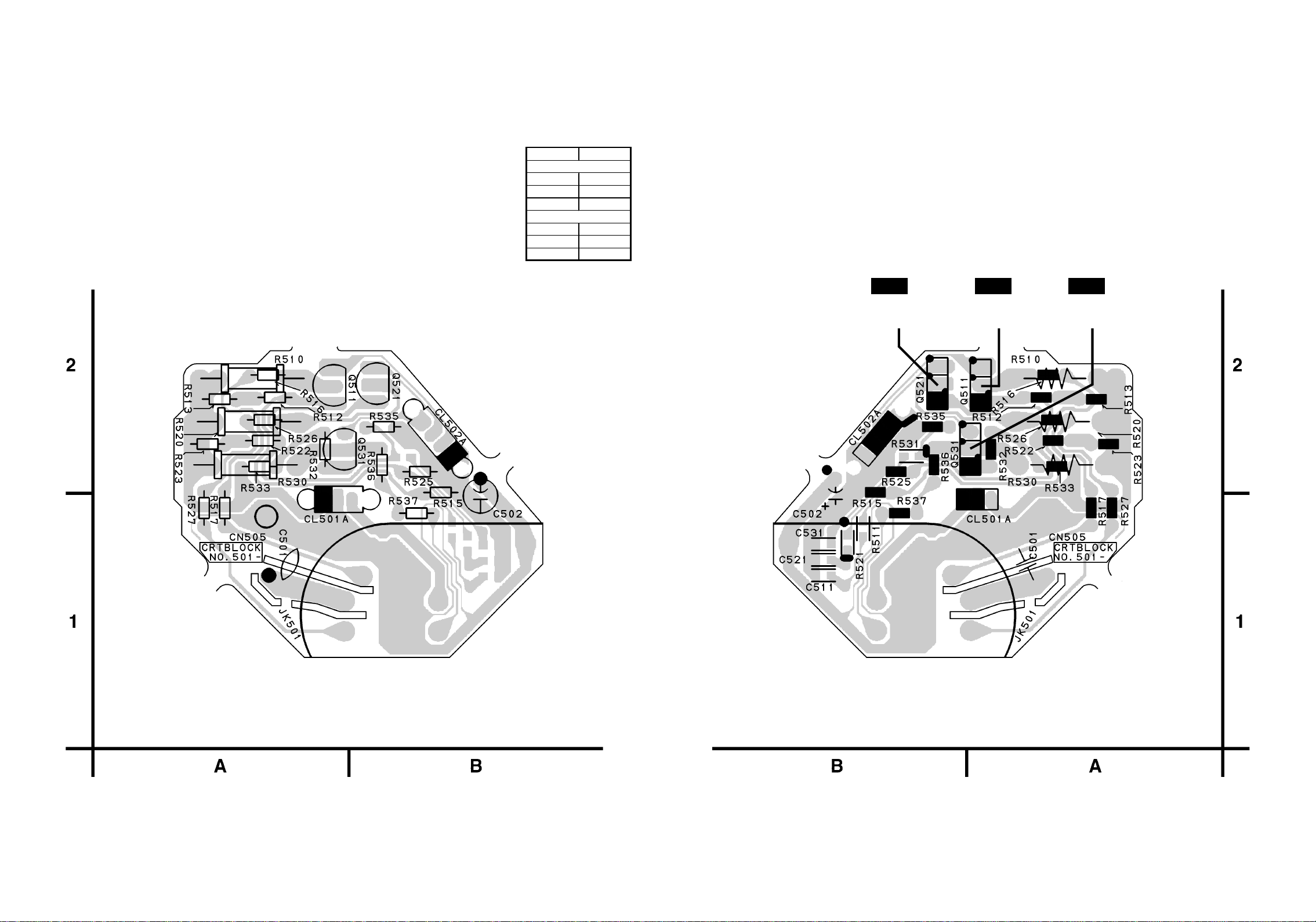

CRT CBA Top View CRT CBA Bottom View

CRT CBA

Ref No. Po si tio n

TRANSISTORS
Q511
Q521
Q531

CONNECTORS

CL501A
CL502A

CN505 A-1

B-2
B-2
B-2

A-1
B-2

WF15

Q521
Collector

WF14

Q511
Collector

WF16

Q531
Collector

1-9-17

1-9-18

BT5400F01014

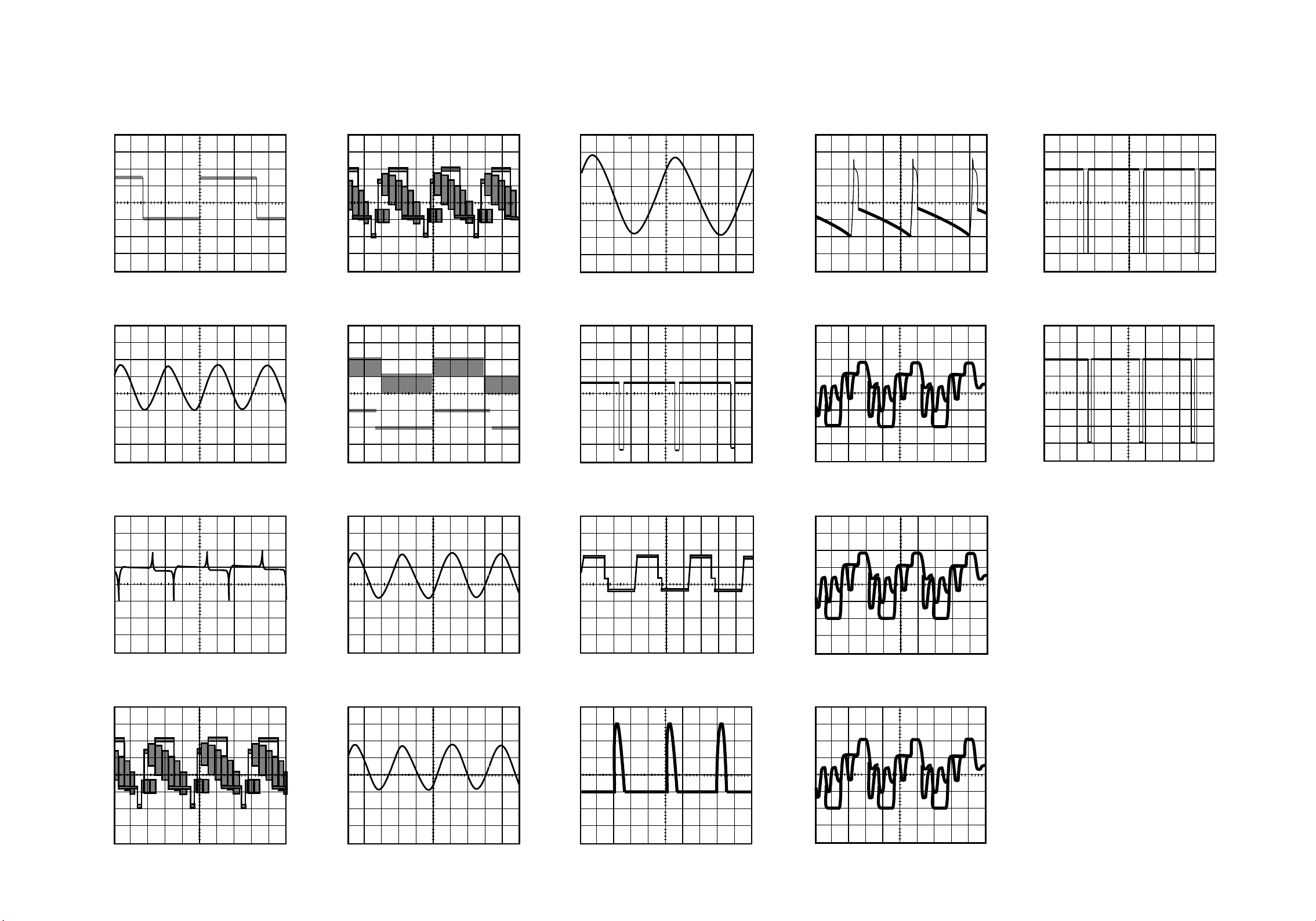

WAVEFORMS

WAVEFORM NOTES

INPUT: NTSC COLOR BAR SIGNAL (WITH 1kHz AUDIO SIGNAL)
BRIGHTNESS, COLOR AND TINT CONTROLS: CENTER POSITION
CONTRAST CONTROL: APPROX 70%
VOLTAGES SHOWN ARE RANGE OF OSCILLOSCOPE SETTING.

2 V 5 ms

WF1 MAIN 1/5 SCHEMATIC DIAGRAM
J274 RF-SW

0.2 V 0.1 µs

WF2 MAIN 2/5 SCHEMATIC DIAGRAM
IC401 PIN 61

0.5 V 20 µs

WF5 MAIN 2/5 SCHEMATIC DIAGRAM
TP301 V-OUT

0.2 V 5 V 5 ms

Upper: WF6 Lower: WF1
MAIN 2/5 SCHEMATIC DIAGRAM
TP402 V-ENV

0.5 V

WF9 MAIN 2/5 SCHEMATIC DIAGRAM
IC401 PIN 7

2 V

WF10 MAIN 3/5 SCHEMATIC DIAGRAM
IC301 PIN 9

0.5 ms

5 ms

10 V 5 ms

WF13 MAIN 5/5 & CRT SCHEMATIC
DIAGRAM
CN571 PIN 5

20 V 20 µs

WF14 MAIN 5/5 & CRT SCHEMATIC
DIAGRAM
Q511 COLLECTOR

1 V

WF17 MAIN 1/5 SCHEMATIC DIAGRAM
IC201 PIN 58

1 V 5 ms

WF18 MAIN 1/5 SCHEMATIC DIAGRAM
IC201 PIN 59

20 µs

1 V 10 ms

WF3 MAIN 1/5 SCHEMATIC DIAGRAM
TP201 CTL

0.25 V 20 µs

WF4 MAIN 2/5 SCHEMATIC DIAGRAM
IC401 PIN 42

0.2 V 0.5 ms

WF7 MAIN 3/5 SCHEMATIC DIAGRAM
IC100 PIN 8

0.5 V 0.5 ms

WF8 MAIN 2/5 SCHEMATIC DIAGRAM
TP401 A-OUT

1 V 20 µs

WF11 MAIN 3/5 SCHEMATIC DIAGRAM
IC301 PIN 41

20 µs200 V

WF12 MAIN 5/5 & CRT SCHEMATIC
DIAGRAM
Q571 COLLECTOR

20 V 20 µs

WF15 MAIN 5/5 & CRT SCHEMATIC
DIAGRAM
Q521 COLLECTOR

20 V 20 µs

WF16 MAIN 5/5 & CRT SCHEMATIC
DIAGRAM
Q531 COLLECTOR

Z12WF1-10-1 1-10-2

ANODE

SP801
SPEAKER

CL802

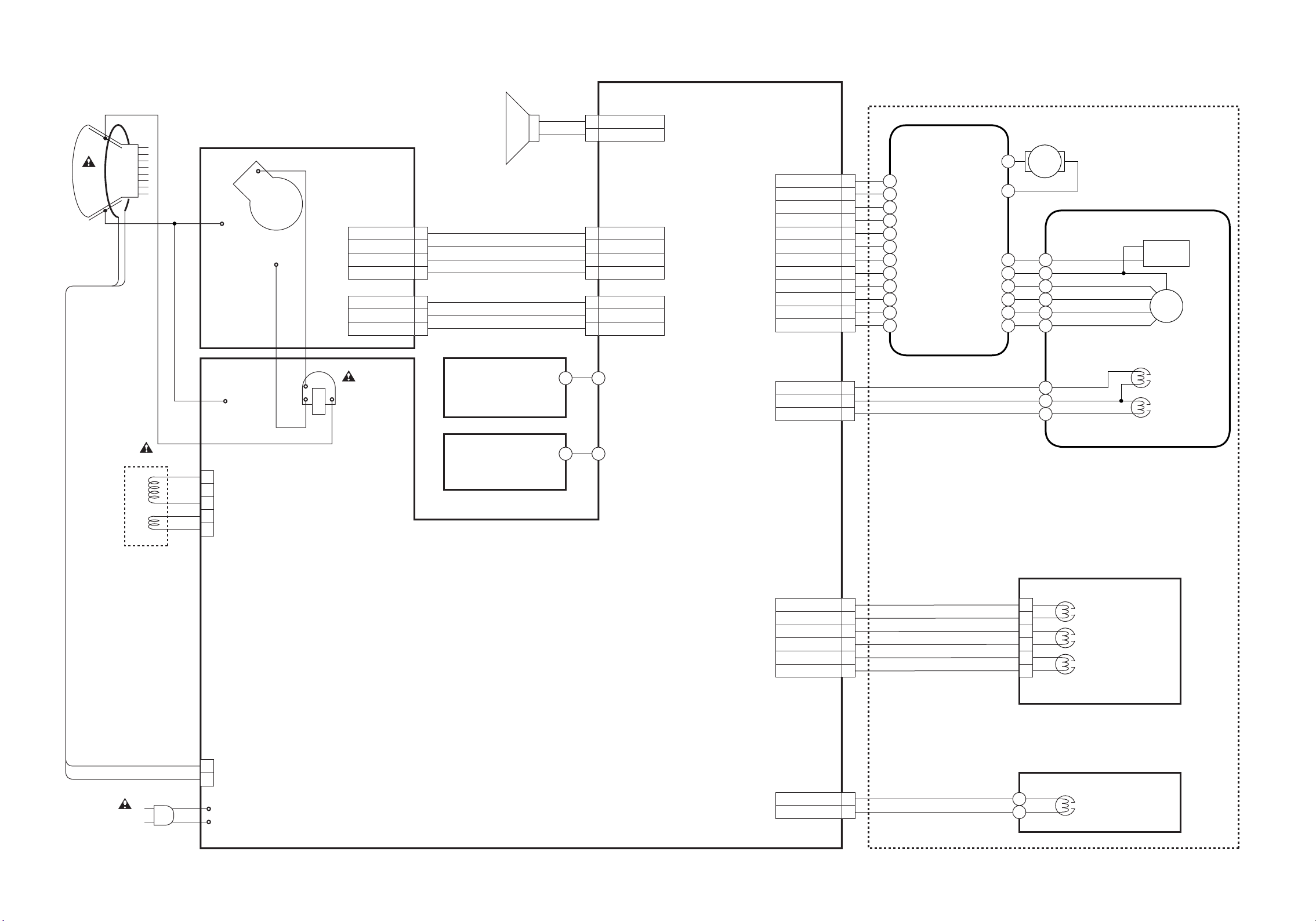

WIRING DIAGRAM

CN801

1 SPEAKER
2 SP-GND

WIRING DIAGRAM FOR SECTION 2
(DECK MECHANISM)

CAPSTAN MOTOR

CRT

HD

VD

D.Y.

GND

GND

CN505

CN573

CN571
1
2
3
4
5

SCREEN

FOCUS

CRT CBA
BT5400F01014

CL502A

CL501A CL501B

T571
FBT

CL201

1P-ON+12V
2P-ON+5V(2)
3C-FG

CL502B

1GND
2RED
3GREEN
4BULE

1P-ON+160V
2GND
3HEATER

SENSOR CBA

1 GND
2 RED
3 GREEN
4 BLUE

1 P-ON+160V
2 GND
3 HEATER

CL401

(END-SENSOR)
BHB300F01014A,B

4C-F/R
5C-CONT
6FG-GND
7LD-CONT
8D-CONT

9D-PFG
10M-GND
11D/L+12V
12D/L+15V

1V(R)

2V-COM

3V(L)

M LOADING

MOTOR

CYLINDER ASSEMBLY

PG
SENSOR

M

VIDEO
(R) HEAD

VIDEO
(L) HEAD

DRUM
MOTOR

SENSOR CBA
(ST-SENSOR)
BHB300F01014A,B

W601

CN601

1
2

1-11-1

MAIN CBA
BT5400F01014

CL402

CL403

CN287

1AE-H

2AE-H/FE-H

3A-COM

4A-PB/REC

5CTL(+)

6CTL(-)

1
2
3
4
5
6

AUDIO ERASE
HEAD

AUDIO HEAD

CONTROL HEAD

AC HEAD ASSEMBLY

FE HEAD

1FE-H GND

2FE-H

1-11-2

FULL ERASE HEAD

T7408WI

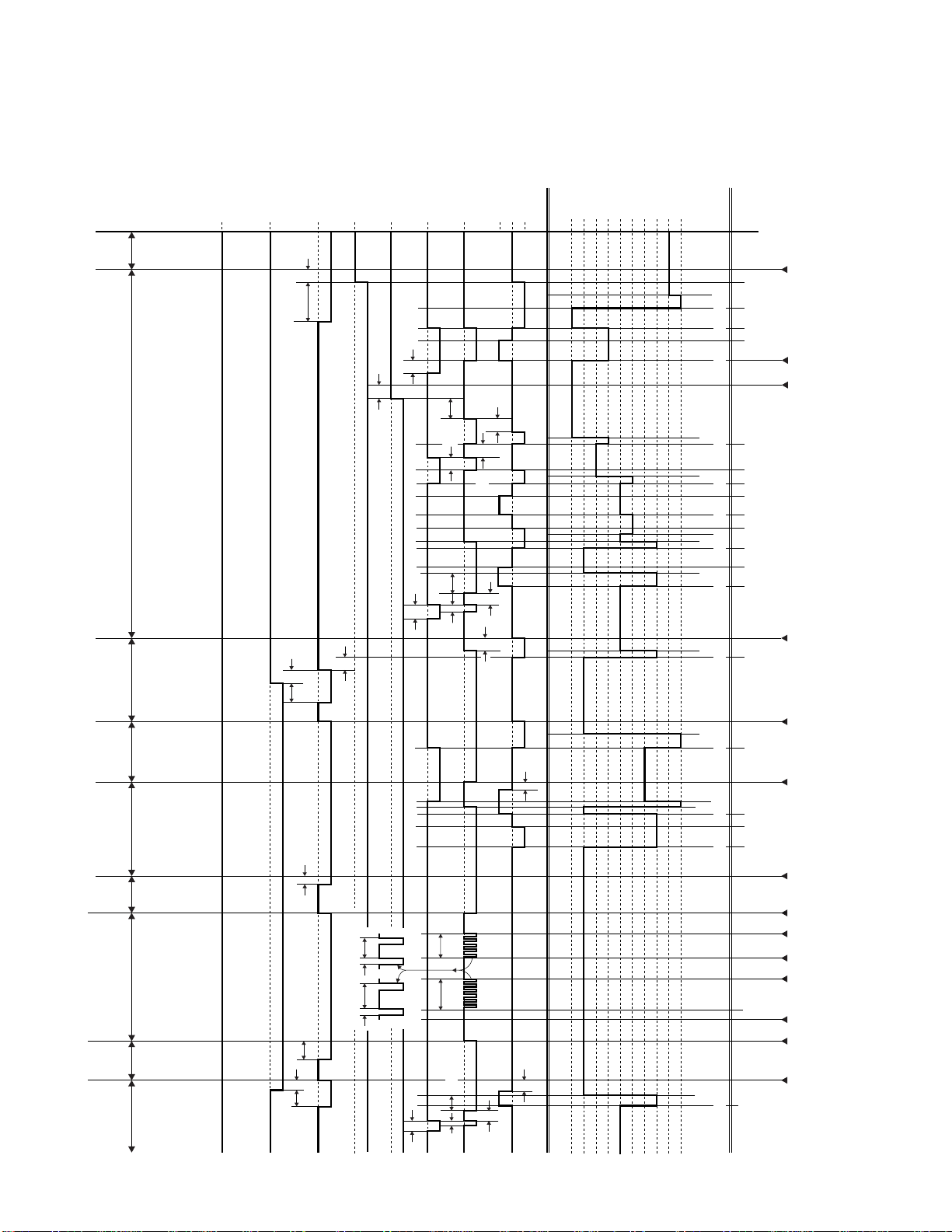

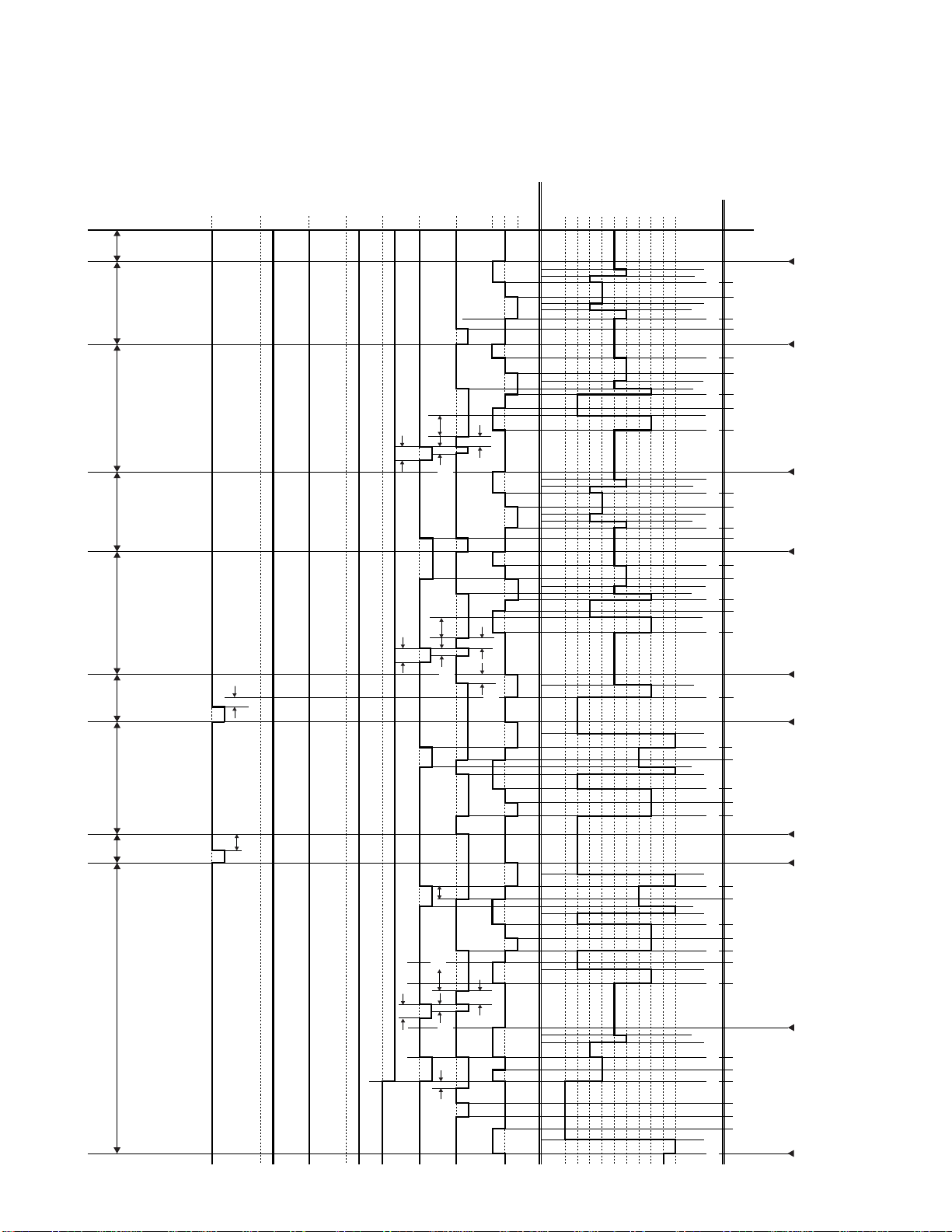

Chart 1

DISPLAY

SYSTEM CONTROL TIMING CHARTS

LD-CONT

44

D-REC-H

D-PB-H

65

A-MUTE-H

31

P-ON

ROTATION

DRUM

66

C-F/R

C-DRIVE

82

CL/SS

EJ

AU

RS

SF

SM

TL

FB

AL

SB

1

LD-SW

PIN NO.

1. EJECT (POWER OFF) -> CASSETTE IN (POWER ON) -> STOP(B) -> STOP(A) -> PLAY -> RS -> FS -> PLAY -> STILL(N-CANCEL) -> PLAY -> STOP(A)

-OFF

POWER

STOP

PLAY RS

0.2S

+100mS(NTSC)

+620mS(PAL)

0.2S

0.8S

0.3S

ON

0.2S

ON

0.2S

40mS

1.2S

0.2S

0.4S

20mS

"Z"

0.2S

0.2S

0.2S

0.2S

TL

SF

AU

AU

AU

CLEJ
SB

TL SB

FB

SM

SM

SMSF AL AL RS AU AL SM

EJECT

CASS.LOAD

LD-FWD

0.2S

LD-REV

STOP(B)

LD-FWD

0.4S

LD-FWD

0.2S

LD-REV

0.2S

LD-FWD

0.5S

LD-REV

STOP(A)

LD-FWD

PLAY

ST-S
"OFF"

REC
SFT-SW

POWER

PLAY

SS

LD-FWD

0.3S

FS

1.0S

PLAY STILL STOPPLAY

SP MODE

>5.0S 5.0S

6mS 6mS160mS80mSPA L

6mS 6mS240mS80mSNTSC

1.0S

0.12S

0.8S

LP/SLP MODE

40mS

20mS0.4S

0.3S

0.2S

RS1(RS2)

SS

LD-REV

AL AU

0.2S

LD-FWD

FS1(FS2)

PLAY

STILL

NOISE
CANCEL

STILL

NOISE
CANCEL

STILL

PLAY

LD-REV

STOP(A)

REW

FF

PLAY

PAUSE

PAUSE
ON

PAUSE
OFF

PAUSE
ON

PAUSE
OFF

PLAY

STOP
/EJECT

1-12-1 T5407TI

Chart 2

DISPLAY

44

D-REC-H

D-PB-H

31

65

P-ON

A-MUTE-H

DRUM

ROTATION

66

C-F/R

C-DRIVE

LD-CONT

82

SB

AL

FB

PIN NO.

1

LD-SW

CL/SS

EJ

AU

RS

SF

SM

TL

2. STOP(A) -> FF -> STOP(A) -> REW -> STOP(A) -> REC -> PAUSE -> PAUSE or REC -> STOP(A) -> EJECT

STOP

STOPFF

REW STOP

REC

RECREC PAUSE STOP

1.0S

1.2S

ON

ON

40mS

40mS

40mS

0.4S

20mS

0.4S

20mS

1.5S(NTSC)

1.0S(PAL)

0.4S

"Z"

0.2S

0.2S

0.2S

SM SF FB SM AU AU SS

FB SF AU AUFB SF

TL TL SMSM SF SFAL AL SM AL AL ALAU AU SM TL SB EJRS RSSM

SF FB SM

AU

SS SS SF

AL AL AUSS FB CL

STOP(A)

LD-REV

0.2S

LD-FWD

0.2S
FF

REV

1.0S

LD-FWD

0.5S

LD-REV

STOP(A)

LD-REV

0.2S

LD-FWD

0.2S
REW
LD-REV

1.0S

LD-FWD

0.5S

LD-REV

STOP(A)

LD-FWD

REC

LD-FWD

2.5S Short REV

LD-REV

0.2S

LD-FWD

REC PAUSE

REC

LD-FWD

1.5S

LD-REV

0.2S
LD-FWD

0.5S

LD-REV

FF

STOP
/EJECT

REW

STOP
/EJECT

REC

PAUSE

REC or
PAUSE

STOP
/EJECT

20mS

0.1S

0.2S

STOP(A)

LD-REV

0.2S
LD-REV

0.5S

0.2S

0.5S

CASS. UNLD

EJECT

STOP
/EJECT

ST-S
"ON"

1-12-2 T5407TI

IC PIN FUNCTION DESCRIPTIONS

IC 201 (TV/VCR Micro Computer)

“H” ≥ 4.5V, “L” ≤ 1.0V

Pin

IN/

No.

OUT
1 IN LD-SW Loading Switch Input
2 - NU Not Used

3 IN P-SAFETY 2

4 IN P-SAFETY 3

5 IN KEY0 Key 0 Input
6 IN KEY1 Key 1 Input
7 IN END-SENS End-Sensor
8 IN AFT-IN AFT Input
9 IN ST-SENS Start-Sensor

10 IN V-ENV Video Envelope Input
11 OUT FM-SW Switching IF IC VCO
12 OUT SP-MUTE Speaker Mute Output
13 OUT D-V SYNC Artificial V-Sync Output
14 IN REMOTE Remote Signal Input

15 OUT ROTA

16 - NU Not Used
17 - NU Not Used

18 OUT RF-SW

19 - NU Not Used

20 OUT EXT-L

21 - NU Not Used

22 OUT REC-LED

23 OUT REC-LED

24 - NU Not Used
25 - NU Not Used
26 - NU Not Used
27 OUT REC/EE/PB YCA IC Mode Output

IN/

28

OUT

29 OUT

Signal
Name

Power Supply Failure
Detection 2

Power Supply Failure
Detection 3

Color Phase Rotary
Changeover SIgnal

Video Head Switching
Pulse

External Input or
Playback = Output

Recording LED Control
Signal

Recording LED Control
Signal

SP/LP/SLP Tape Speed Control Output

EXT-H/
INSEL

External Input or Playback
Signal Input Selector
Control Signal

Function

Pin

IN/

No.

OUT

30 OUT RENTAL

31 OUT P-ON-H Power On Signal at High

32 OUT SPL-PLAY

33 IN

34 IN RESET

35 IN XC-IN Sub Clock 32 kHz
36 OUT XC-OUT Sub Clock 32 kHz
37 - TIMER+5V Vcc
38 IN X-IN Main Clock Input
39 OUT X-OUT Main Clock Output
40 - GND GND
41 OUT SPOT-KILL Counter-measure for Spot
42 - NU Not Used
43 IN CLKSEL Clock Select (GND)
44 OUT D-REC-H Delayed Record Signal

45 IN I2C-OPEN

46 - GND GND
47 - NU Not Used
48 - NU Not Used
49 - GND OSD GND
50 - NU Not Used
51 - NU Not Used
52 - NU Not Used
53 - P-ON+5V OSD Vcc
54 - HLF HLF
55 IN V-HOLD VHOLD
56 IN CV-IN Video Signal Input
57 - GND GND
58 IN H-SYNC H-SYNC Input
59 IN V-SYNC V-SYNC Input
60 OUT OSD-BLK Output for Picture Cut off
61 - NU Not Used
62 OUT OSD-B Blue Output
63 OUT OSD-G Green Output

Signal
Name

REC­SAFETY

Function

Rental Position Control
Signal

Special Playback Control
Signal

Record Protection Tab
Detection

System Reset Signal
(Reset=”L”)

White Balance Adjust
Mode Judgment

1-13-1 Z12PIN

Pin
No.

IN/

OUT

Signal
Name

Function

Pin
No.

IN/

OUT

Signal
Name

Function

64 OUT OSD-R Red Output
65 OUT A-MUTE Audio Mute Output

66 OUT C-F/R

67 - NU Not Used
68 - NU Not Used
69 - NU Not Used
70 - NU Not Used

71 OUT SCL

IN/

72

73 - NU Not Used
74 IN C-SYNC C-Sync Input
75 - NU Not Used

76 OUT C-CONT

77 OUT D-CONT Drum Motor Control Signal
78 - NU Not Used

OUT

SDA

Capstan Motor FWD/REV
Control Signal

E2PROM/CHROMA IC
Tuner Communication
Clock

E2PROM/CHROMA IC
Tuner Communication Data

Capstan Motor Control
Signal

IN/

95

96 - AMPC AMPC

97 OUT

98 - P-ON+5V Power Supply for AMP
99 - AL+5V A/D, D/A Standard Voltage

100 - NU Not Used

CTL (+) CTL (+)

OUT

CTL AMP
OUT

Control Amp Output

79 - NU Not Used

80 IN T-REEL

81 - NU Not Used

82 OUT LD-CONT

83 - NU Not Used

84 IN P-DOWN

85 - NU Not Used
86 - NU Not Used

87 IN C-FG

88 - GND GND (AMP)
89 - NU Not Used

90 IN D-PFG

91 - NU Not Used

92 OUT

AMP VREF
IN

Take Up Reel Rotation
Signal

Loading Motor Control
Signal

Power Voltage Down
Detector Signal

Capstan Motor Rotation
Detection Pulse

Drum Motor Pulse
Generator

Standard Voltage Input

93 - C C

IN/

94

CTL (-) CTL (-)

OUT

1-13-2 Z12PIN

LEAD IDENTIFICATIONS

2SK2662

S D G

LA78040A
AN5522

S: Souce
D: Drain
G: Gate

TT2140LS-YB11
2SC5885000RF

E: Emitter
C: Collector
B: Base

B C E

KRA103M
2SC1815-GR(TPE2)
2SC3331(T,U)
2SC2120-(O,Y)(TPE2)
KTC3203(Y)
KTA1266(GR)

MID-32A22

C

E

2SC1627Y-TPE2
2SA950(Y,O)
KTA1271(Y)
2SC2482 TPE6
2SC3468(E,D)-AE
KTC3207
2SA1175(F)
KTA1267(GR)
KTC3198(GR)

2SD400(F)

E C B

BN1F4M-T
KTC3199(GR)
2SC2785(J,H,F)
2SA1015-GR(TPE2)

IN G OUT

KIA7805API
KA7805A
AN7805F

IN G OUT

M24C02-WMN6
BR24C02F-W
BR24C02F
AT24C02-10SC
M24C02-MN6
CAT24WC02JI

8

E C B

LTV-817(B,C)-F
PC817X6

AC

KE

LA4224

8

1

5

M61275FP

42 22

E C B

M37762M8A-8B2GP
LA71091M

80

81

100

1

5

4

M61111FP

24

1

51

50

31

30

13

12

1

4

1

21

1-14-1 T7408LE

DECK MECHANISM

SECTION

19" COLOR TV/VCR COMBINATION

SRC2319

Sec. 2: Deck Mechanism Section

I Standard Maintenance
I Alignment for Mechanism
I Disassembly/Assembly of Mechanism
I Alignment Procedures of Mechanism

TABLE OF CONTENTS

Standard Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1-1

Service Fixtures and Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2-1

Mechanical Alignment Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3-1

Disassembly / Assemly Procedures of Deck Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4-1

Alignment Procedures of Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4-9

STANDARD MAINTENANCE

Service Schedule of Components

H: Hours : Check I: Change

Deck Periodic Service Schedule

Ref.No. Part Name 1,000 H 2,000 H 3,000 H 4,000 H

B2 Cylinder Assembly

B3

B8 Pulley Assembly

B587

B31

B573,B574 Reel (SP)(D2), Reel (TU)(D2)

B37

B52

*B73 FE Head

B133,B134

B410

B414 M Brake (SP) Assembly II

B416

Loading Motor Assembly

Tension Lever Assembly

AC Head Assembly

Capstan Motor

Cap Belt

Idler Gear, Idler Arm

Pinch Arm Assembly

M Brake (TU) Assembly

II

I

II

II

I

I

II

II

I

II

II

II

B525

B569

(2 head only)

B593

(4 head,

4 head HiFi

only)

Notes:

1.Clean all parts for the tape transport (Upper Drum with Video Head / Pinch Roller / Audio Control Head / Full

Erase Head) using 90% lsopropyl Alcohol.

2.After cleaning the parts, do all DECK ADJUSTMENTS.

3.For the reference numbers listed above, refer to Deck Exploded Views.

* B73 ------ Recording Model only

LDG Belt

Cam Holder (F)

Cam Holder (F) Assembly

II

II

II

2-1-1 U27MEN

Cleaning

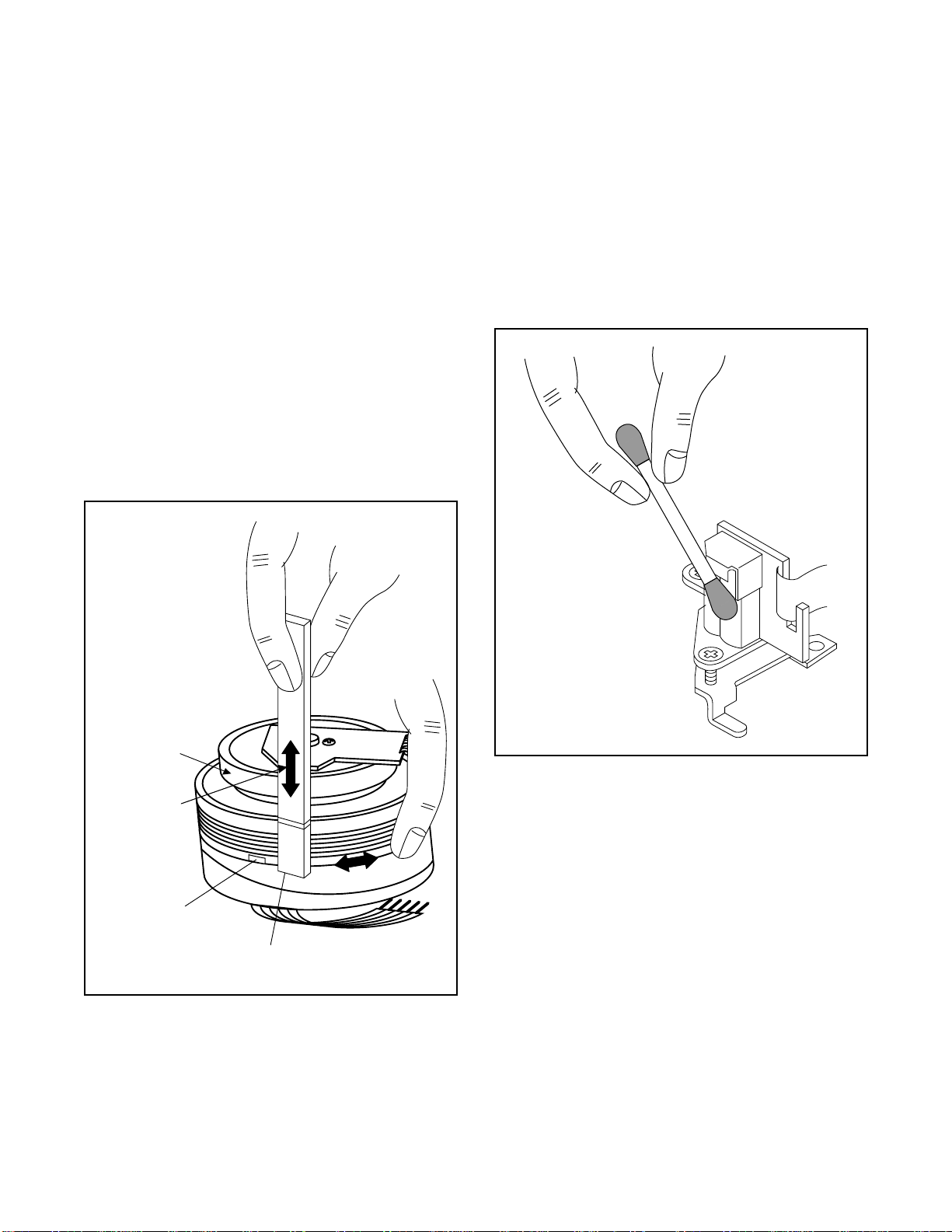

Cleaning of Video Head

Clean the head with a head cleaning stick or chamois
cloth.

Procedure

1.Remove the top cabinet.

2.Put on a glove (thin type) to avoid touching the

upper and lower drum with your bare hand.

3.Put a few drops of 90% Isopropyl alcohol on the

head cleaning stick or on the chamois cloth and,
by slightly pressing it against the head tip, turn the
upper drum to the right and to the left.

Notes:

1.The video head surface is made of very hard

material, but since it is very thin, avoid cleaning it
vertically.

2.Wait for the cleaned part to dry thoroughly before

operating the unit.

3.Do not reuse a stained head cleaning stick or a

stained chamois cloth.

Cleaning of Audio Control Head

Clean the head with a cotton swab.

Procedure

1.Remove the top cabinet.

2.Dip the cotton swab in 90% isopropyl alcohol and
clean the audio control head. Be careful not to
damage the upper drum and other tape running
parts.

Notes:

1.Avoid cleaning the audio control head vertically.

2.Wait for the cleaned part to dry thoroughly before
operating the unit or damage may occur.

ACE Head

Upper
Cylinder

Do Not !

Video Head

Cleaning Stick

2-1-2 U27MEN

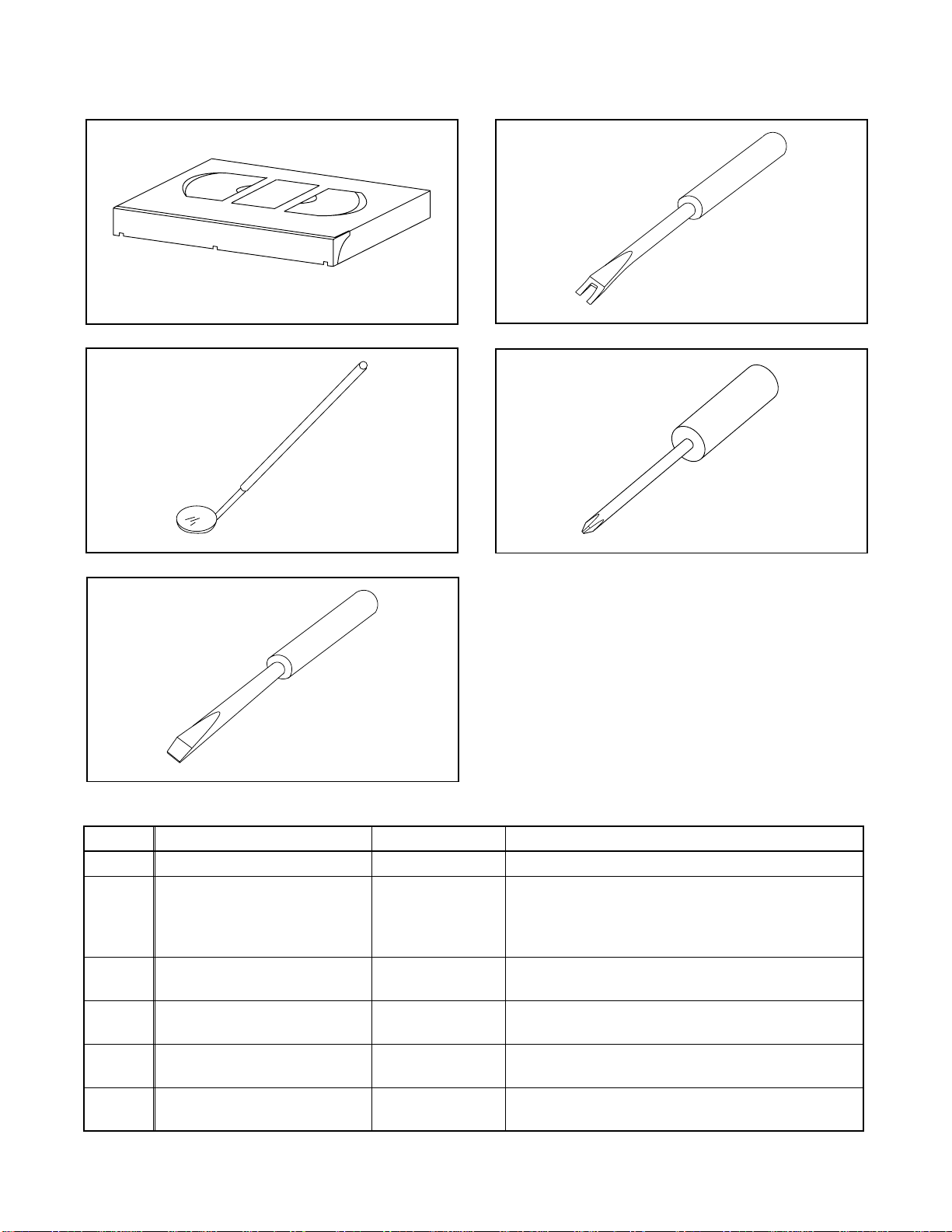

SERVICE FIXTURE AND TOOLS

J-1-1, J-1-2

J-3

J-2

J-4

J-5

Ref. No. Name Part No. Adjustment

J-1-1 Alignment Tape FL8A Head Adjustment of Audio Control Head
J-1-2 Alignment Tape FL8N

(2Head only)
FL8NW
(4Head only)

J-2 Guide Roller Adj.Screwdriver Available

Locally

J-3 Mirror Available

Locally

J-4 Azimuth Adj.Screwdriver + Available

Locally

J-5 X Value Adj.Screwdriver - Available

Locally

2-2-1 U25NFIX

Azimuth and X Value Adjustment of Audio Control
Head / Adjustment of Envelope Waveform

Guide Roller

Tape Transportation Check

A/C Head Height

X Value

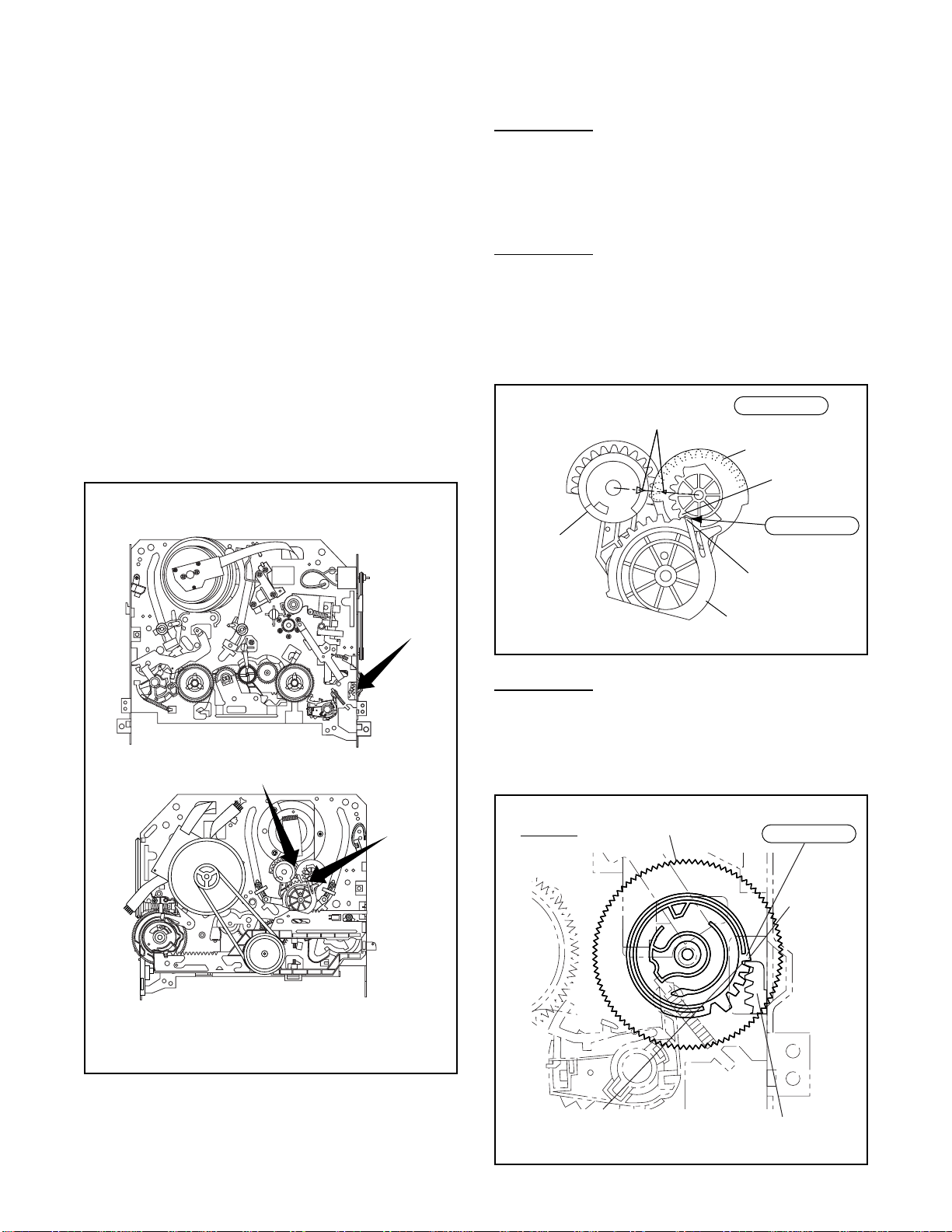

MECHANICAL ALIGNMENT PROCEDURES

Explanation of alignment for the tape to correctly run
starts on the next page. Refer to the information below
on this page if a tape gets stuck, for example, in the
mechanism due to some electrical trouble of the unit.

Service Information

A. Method for Manual Tape Loading/Unloading

To load a cassette tape manually:

1. Disconnect the AC plug.

2. Remove the Top Case and Front Assembly.

3. Insert a cassette tape. Though the tape will not be
automatically loaded, make sure that the cassette
tape is all the way in at the inlet of the Cassette
Holder. To confirm this, lightly push the cassette
tape further in and see if the tape comes back out,
by a spring motion, just as much as you have
pushed in.

4. Turn the LDG Belt in the appropriate direction
shown in Fig. M1 for a minute or two to complete
this task.

To unload a cassette tape manually:

1. Disconnect the AC plug.

2. Remove the Top Case and Front Assembly.

3. Make sure that the Moving guide preparations are
in the Eject Position.

4. Turn the LDG Belt in the appropriate direction
shown in Fig. M1 until the Moving guide prepara­tions come to the Eject Position. Stop turning when
the preparations begin clicking or can not be
moved further. However, the tape will be left wound
around the cylinder.

5. Turn the LDG Belt in the appropriate direction con­tinuously, and the cassette tape will be ejected.
Allow a minute or two to complete this task.

B. Method to place the Cassette Holder in the tape-

loaded position without a cassette tape

1. Disconnect the AC Plug.

2. Remove the Top Case and Front Assembly.

3. Turn the LDG Belt in the appropriate direction
shown in Fig. M1. Release the locking tabs shown
in Fig. M1 and continue turning the LDG Belt until
the Cassette Holder comes to the tape-loaded
position. Allow a minute or two to complete this
task.

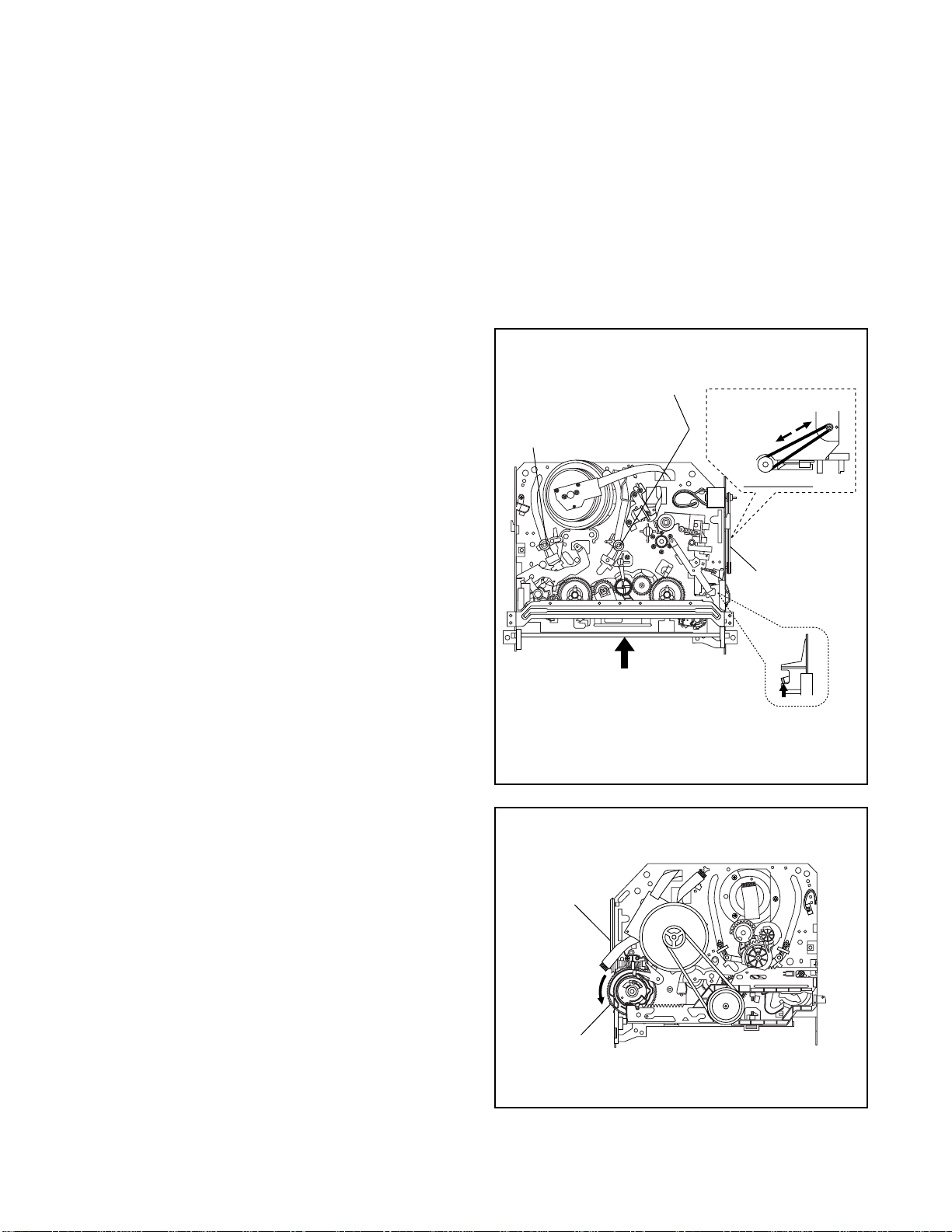

Top View

Moving guide T preparation
(Eject Position)

Moving guide S preparation
(Eject Position)

Push the tape
to load it.

Push the locking tab gently to unlock
when loading without a cassette.

UNLOAD
/EJECT

LOAD

Side View

LDG Belt

Fig. M1

Bottom View

LDG Belt (B)

UNLOAD
/EJECT

Cam Gear

Fig. M2

2-3-1 Z12NMA

1.Tape Interchangeability Alignment

Note:
To do these alignment procedures, make sure that the
Tracking Control Circuit is set to the center position
every time a tape is loaded or unloaded. (Refer to
page 2-3-4, procedure 1-C, step 2.)

Equipment required:

Dual Trace Oscilloscope
VHS Alignment Tape (FL8N)
Guide Roller Adj. Screwdriver
X-Value Adj. Screwdriver

Note: Before starting this Mechanical Alignment, do all
Electrical Adjustment procedures.

Flowchart of Alignment for tape traveling

Loading (Use a blank tape.)

Adjust the height of the Guide Rollers
(Supply side and take-up side).
(Use a blank tape.) (pg. 2-3-3)

1-A

Check to see that the tape is not creasing
and that there is no slack on the supply
and take-up side Guide Rollers.
(Use a blank tape.)

Adjust the X Value for maximum envelope.
(pg. 2-3-3) (Use Alignment Tape.)

Adjust the envelope. (pg. 2-3-4)

Check the envelope.

OK

Adjust the Audio Section.
(Azimuth Alignment) (pg. 2-3-4)

Check the audio output.

OK

1-A

1-B

1-C

1-C

1-D

1-D

Not good

Not good

Not good

Do the final tape-traveling test to see that
the tape runs normally in play mode with­out creasing or slacking.

OK

Completion

1-A

Check the following:

1. X Value (pg. 2-3-3)

2. Envelope (pg. 2-3-4)

OK

1-B, 1-C

Not good

2-3-2 Z12NMA

Adjust the X value and envelope.

1-B, 1-C

1-A. Preliminary/Final Checking and

Alignment of Tape Path

Purpose:

To make sure that the tape path is well stabilized.

Symptom of Misalignment:

If the tape path is unstable, the tape will be damaged.
Note: Do not use an Alignment Tape for this proce-

dure. If the unit is not correctly aligned, the tape may
be damaged.

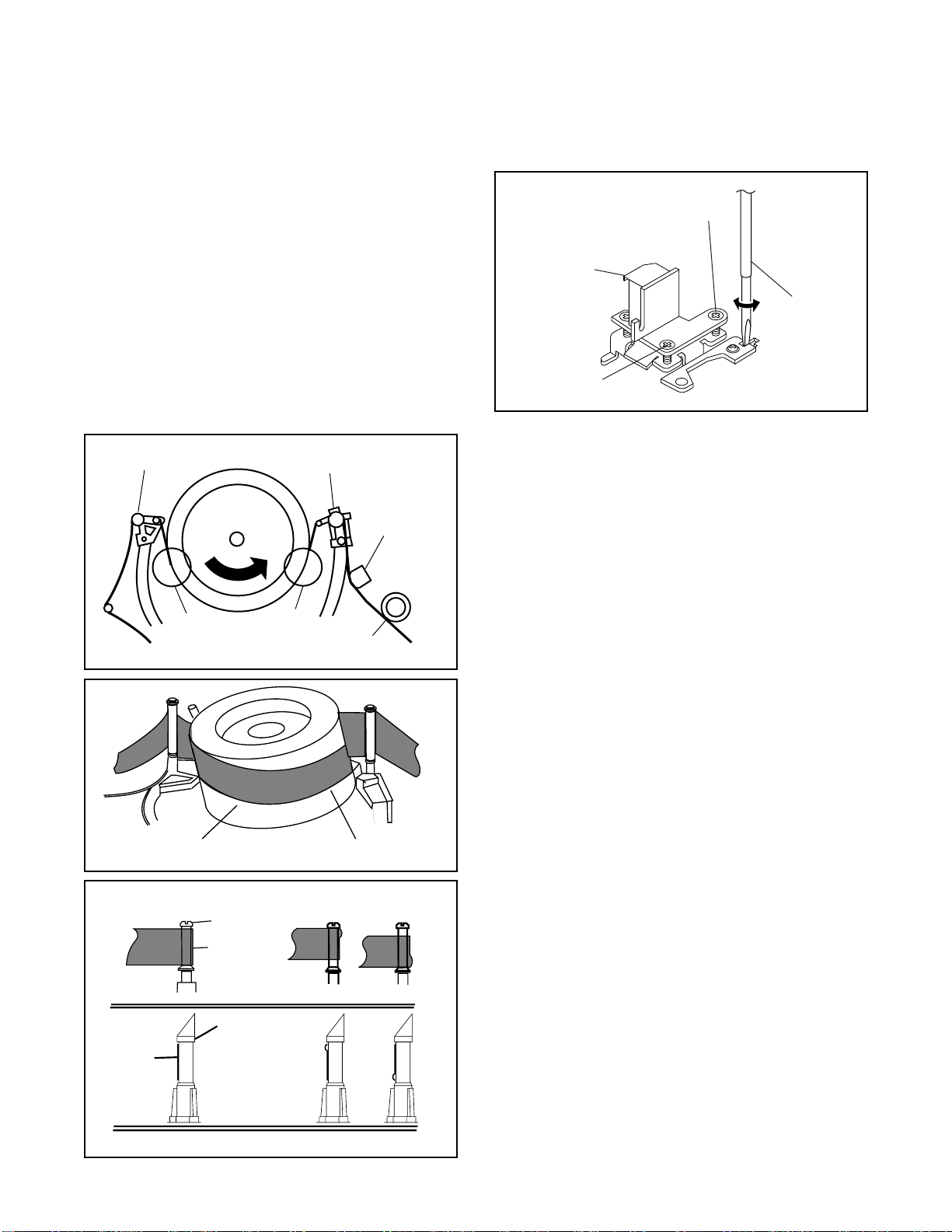

1. Playback a blank cassette tape and check to see
that the tape runs without creasing at Guide Rollers
[2] and [3], and at points A and B on the lead sur­face. (Refer to Fig. M3 and M4.)

2. If creasing is apparent, align the height of the guide
rollers by turning the top of Guide Rollers [2] and
[3] with a Guide Roller Adj. Screwdriver. (Refer to
Fig. M3 and M5.)

Guide Roller [2]

A

Take-up Guide Post [4]

Lead Surface of Cylinder

Correct

Guide Roller

Tape

Guide Roller [3]

B

Tape

Incorrect

ACE Head

Fig. M3

Fig. M4

3. Check to see that the tape runs without creasing at
Take-up Guide Post [4] or without snaking between
Guide Roller [3] and AC Head. (Fig. M3 and M5)

4. If creasing or snaking is apparent, adjust the Tilt
Adj. Screw of the AC Head. (Fig. M6)

Azimuth Adj. Screw

AC Head

X-Value Adj.
Screwdriver

Tilt Adj. Screw

Fig. M6

1-B. X Value Alignment

Purpose:

To align the Horizontal Position of the Audio/Control/
Erase Head.

Symptom of Misalignment:

If the Horizontal Position of the Audio/Control/Erase
Head is not properly aligned, maximum envelope can­not be obtained at the Neutral position of the Tracking
Control Circuit.

1. Connect the oscilloscope to TP402 (ENV.) and
TP201 (CTL) on the Main CBA. Use J274 (RF-SW)
as a trigger.

2. Playback the Gray Scale of the Alignment Tape
(FL8N) and confirm that the PB FM signal is
present.

3. Set the Tracking Control Circuit to the center posi­tion by pressing CH UP button then “ PLAY ” button
on the unit. (Refer to note on bottom of page
2-3-4.)

4. Use the X-Value Adj. Screwdriver so that the PB
FM signal at TP402 (ENV.) is maximum. (Fig. M6)

5. Press CH UP button on the unit until the CTL wave­form has shifted by approx. +2msec. Make sure
that the envelope is simply attenuated (shrinks in
height) during this process so that you will know the
envelope has been at its peak.

Tape

Take-up Guide
Post

Fig. M5

2-3-3 Z12NMA

6. Press CH DOWN button on the unit until the CTL
waveform has shifted from its original position (not
the position achieved in step 5, but the position of
CTL waveform in step 4) by approximately -2msec.
Make sure that the envelope is simply attenuated
(shrinks in height) once CTL waveform passes its
original position and is further brought in the minus
direction.

7. Set the Tracking Control Circuit to the center posi­tion by pressing CH UP button and then “ PLAY ”
button.

1-C. Checking/Adjustment of Envelope

Waveform

Purpose:

To achieve a satisfactory picture and precise tracking.

Symptom of Misalignment:

If the envelope output is poor, noise will appear in the
picture. The tracking will then lose precision and the
playback picture will be distorted by any slight varia­tion of the Tracking Control Circuit.

1. Connect the oscilloscope to TP402 (ENV.) on the
Main CBA. Use J274 (RF-SW) as a trigger.

2. Playback the Gray Scale on the Alignment Tape
(FL8N). Set the Tracking Control Circuit to the cen­ter position by pressing CH UP button and then “
PLAY ” button on the unit. Adjust the height of
Guide Rollers [2] and [3] (Fig. M3, Page 2-3-3)
watching the oscilloscope display so that the enve­lope becomes as flat as possible. To do this adjust­ment, turn the top of the Guide Roller with the
Guide Roller Adj. Screwdriver.

3. If the envelope is as shown in Fig. M7, adjust the
height of Guide Roller [2] (Refer to Fig. M3) so that
the waveform looks like the one shown in Fig. M9.

4. If the envelope is as shown in Fig. M8, adjust the
height of Guide Roller [3] (Refer to Fig. M3) so that
the waveform looks like the one shown in Fig. M9.

5. When Guide Rollers [2] and [3] (Refer to Fig.M3)
are aligned properly, there is no envelope drop
either at the beginning or end of track as shown in
Fig. M9.

Note: Upon completion of the adjustment of Guide
Rollers [2] and [3] (Refer to Fig. M3), check the X
Value by pushing the CH UP or DOWN buttons alter­nately, to check the symmetry of the envelope. Check
the number of pushes to ensure center position. The
number of pushes CH UP button to achieve 1/2 level of
envelope should match the number of pushes CH
DOWN button from center. If required, redo the “X
Value Alignment.”

1-D. Azimuth Alignment of Audio/Con-

trol/ Erase Head

Purpose:

To correct the Azimuth alignment so that the Audio/
Control/Erase Head meets tape tracks properly.

Symptom of Misalignment:

If the position of the Audio/Control/Erase Head is not
properly aligned, the Audio S/N Ratio or Frequency
Response will be poor.

1. Connect the oscilloscope to the audio output jack
on the rear side of the deck.

2. Playback the alignment tape (FL8N) and confirm
that the audio signal output level is 8kHz.

3. Adjust Azimuth Adj. Screw so that the output level
on the AC Voltmeter or the waveform on the oscillo­scope is at maximum. (Fig. M6)

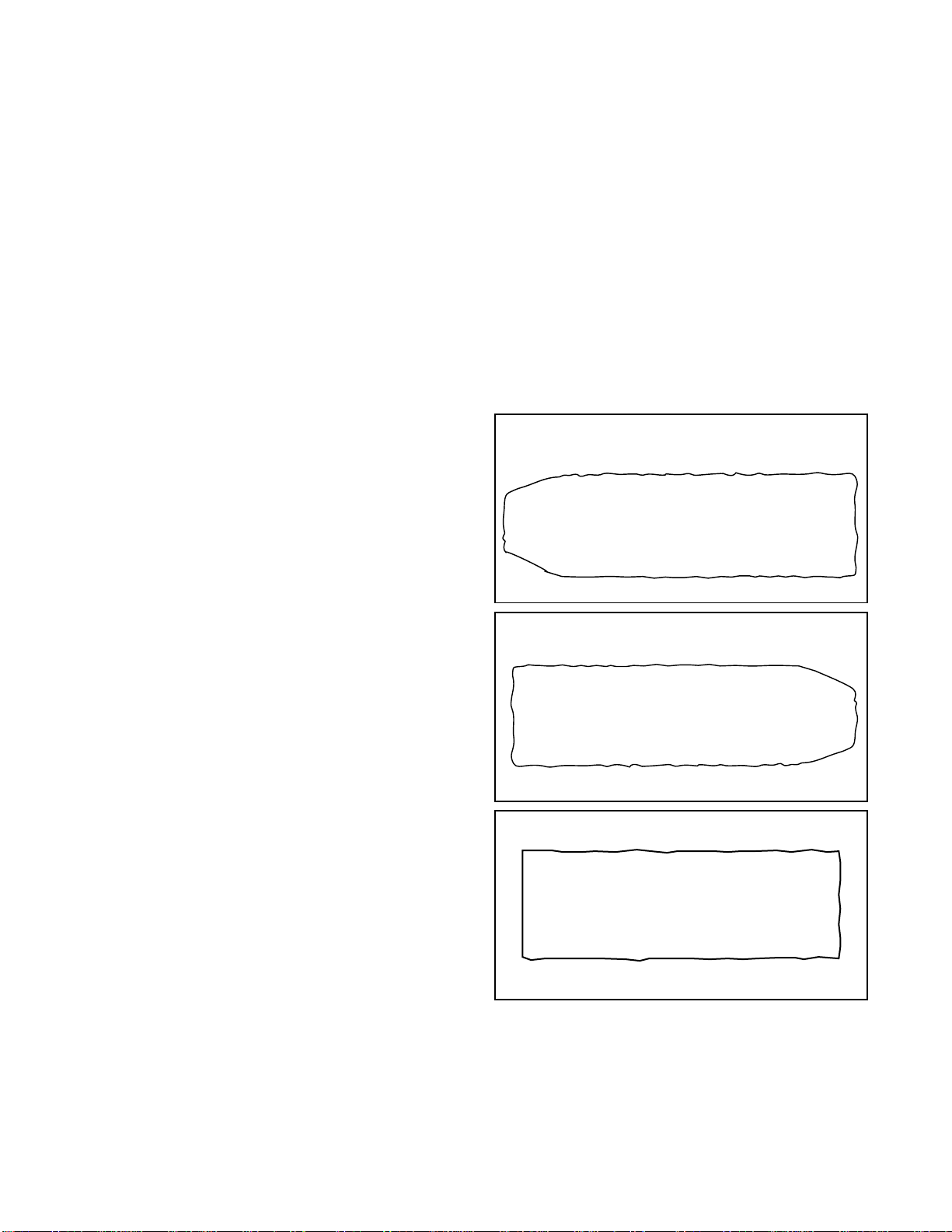

Dropping envelope level at the beginning of track.

Fig. M7

Dropping envelope level at the end of track.

Fig. M8

Envelope is adjusted properly. (No envelope drop)

Fig. M9

2-3-4 Z12NMA

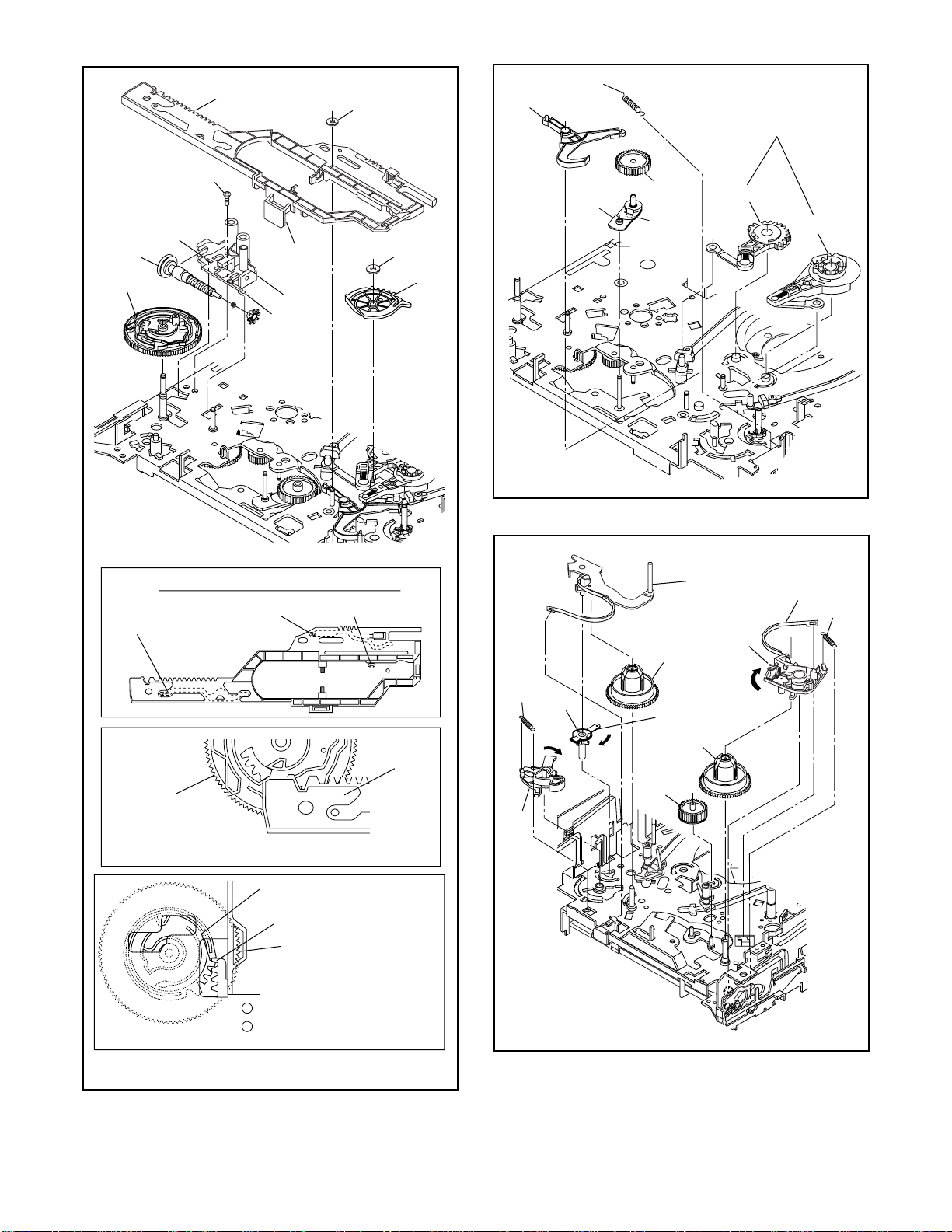

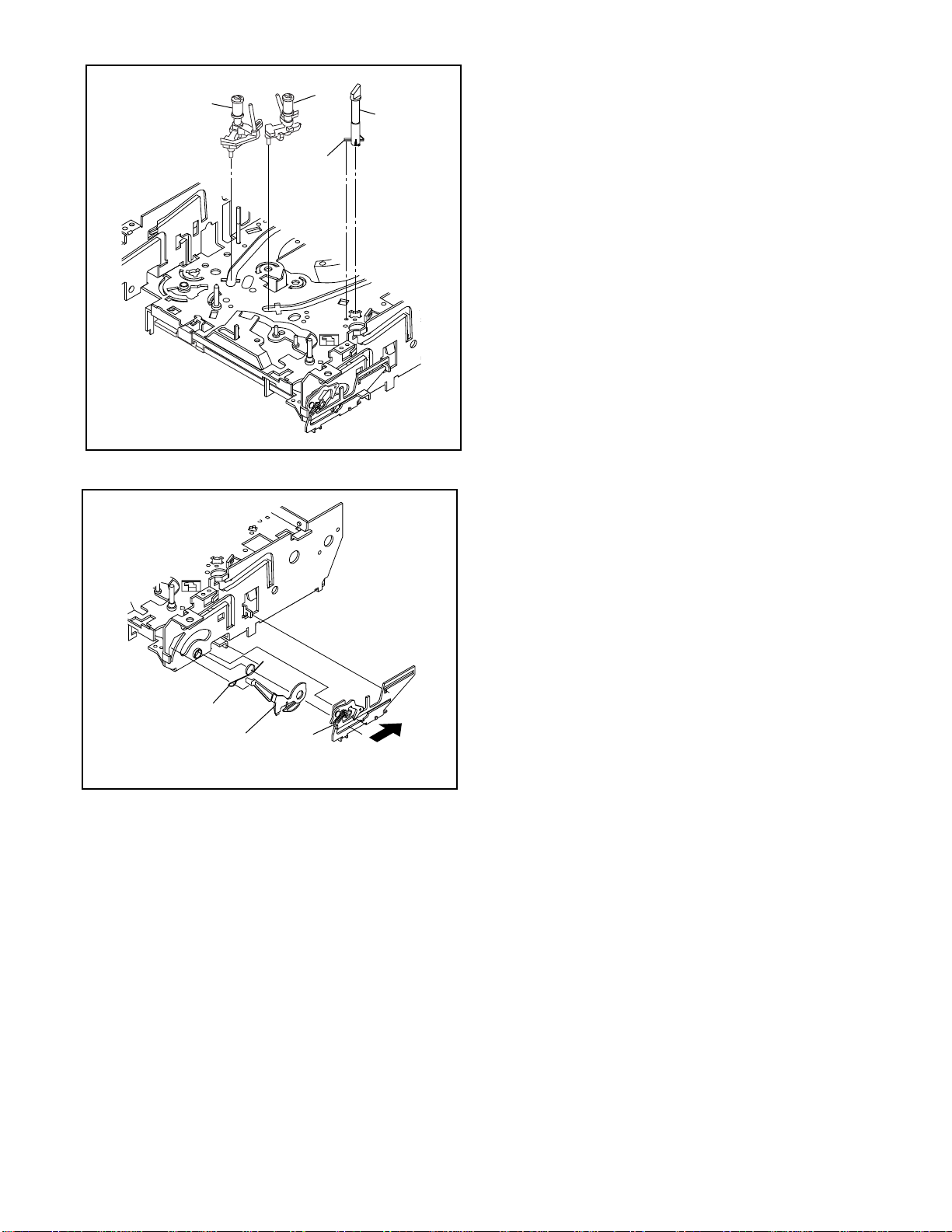

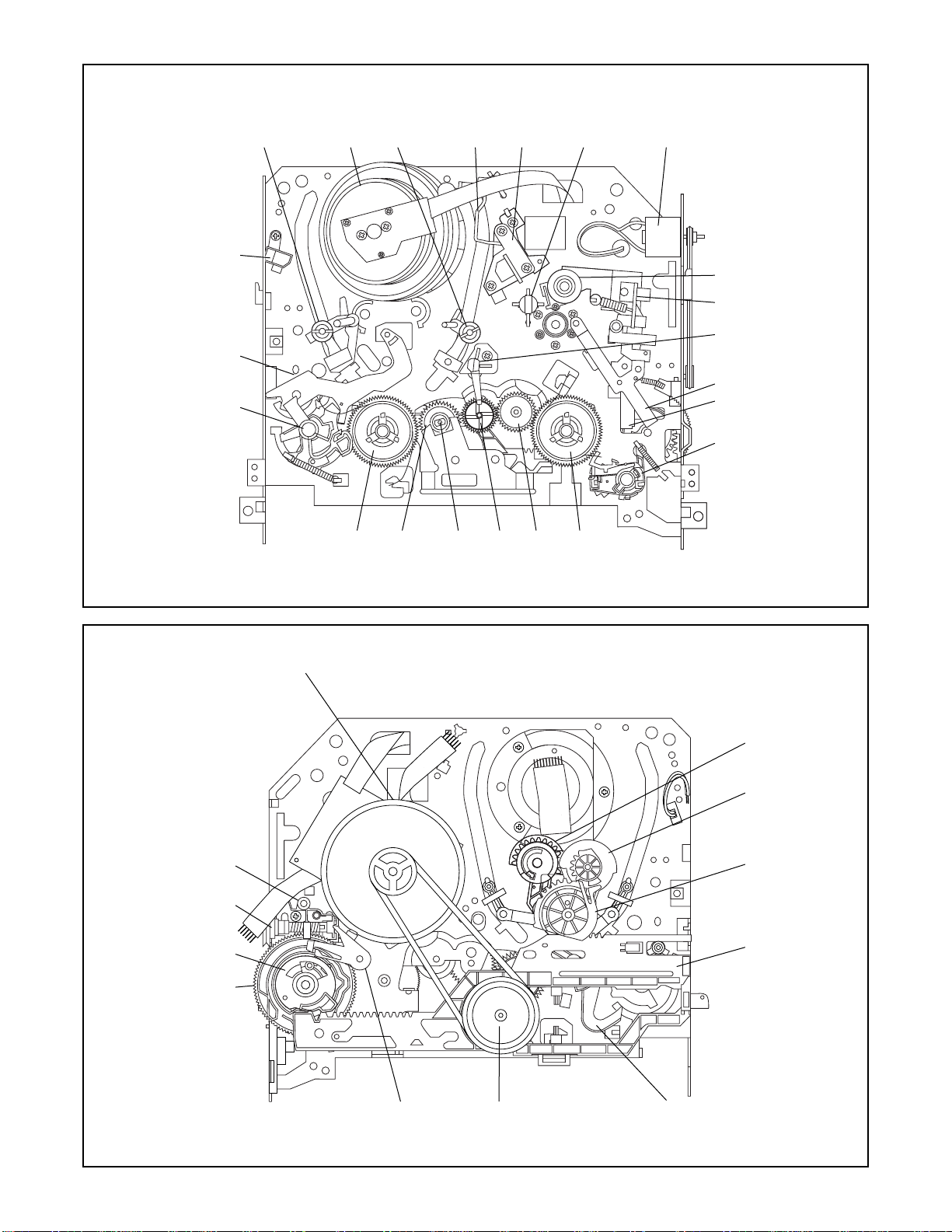

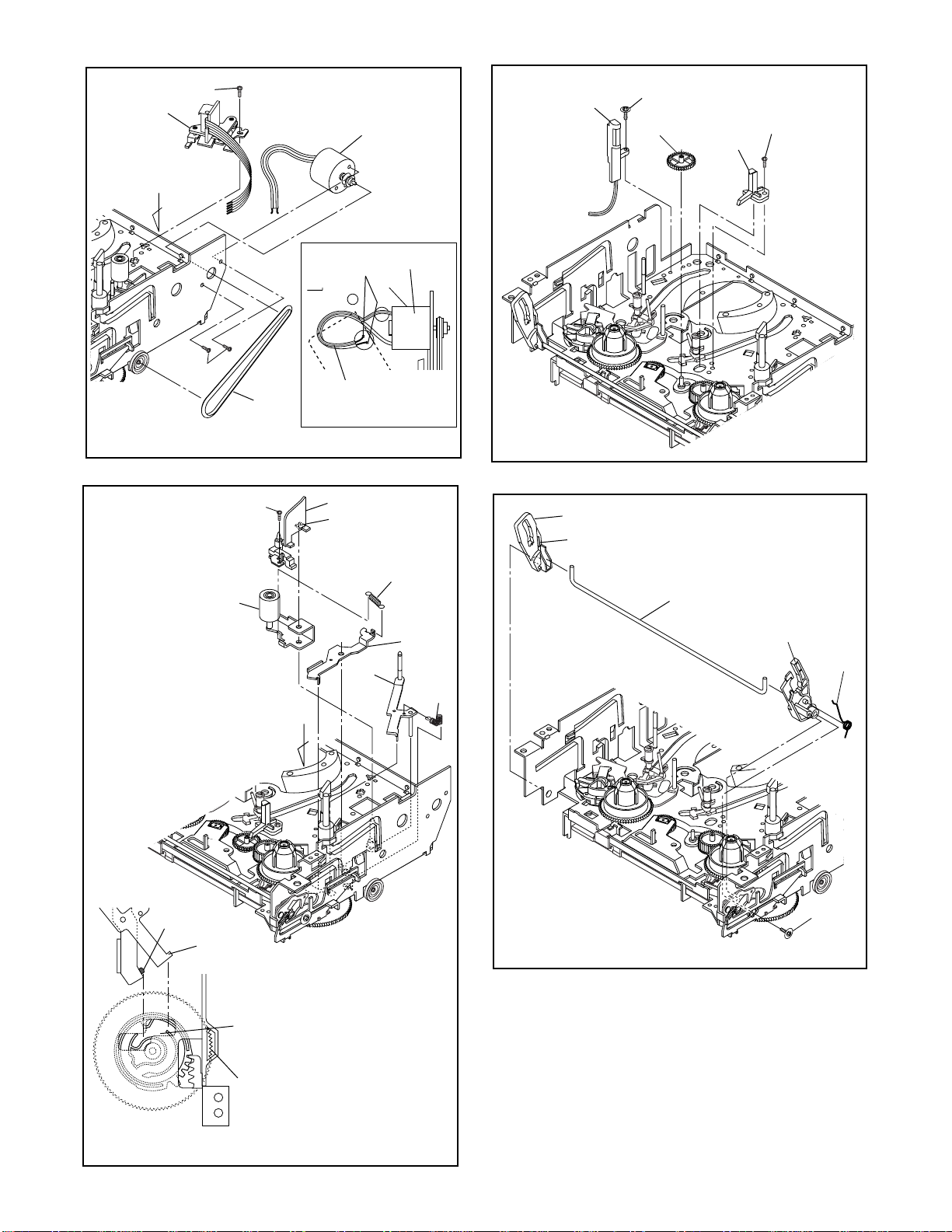

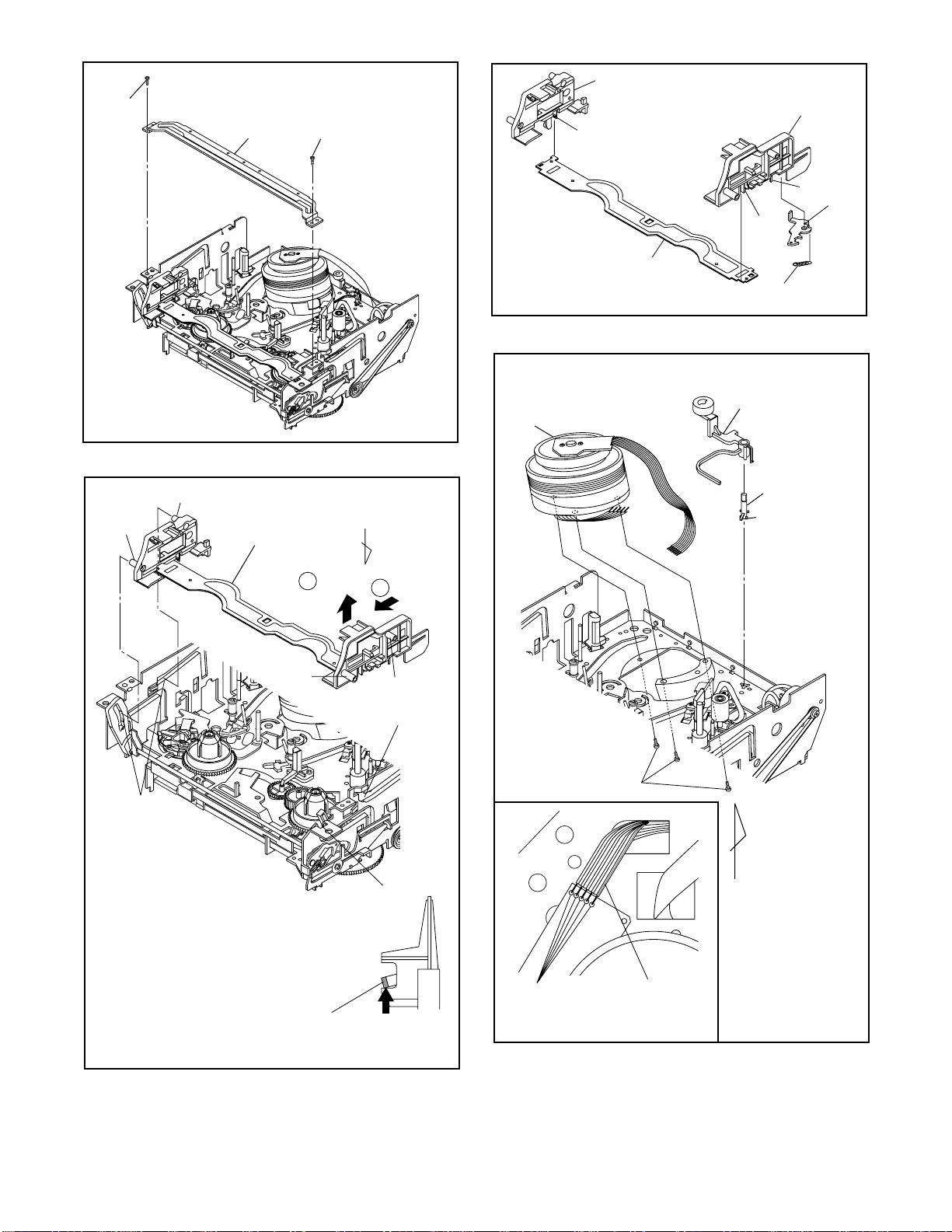

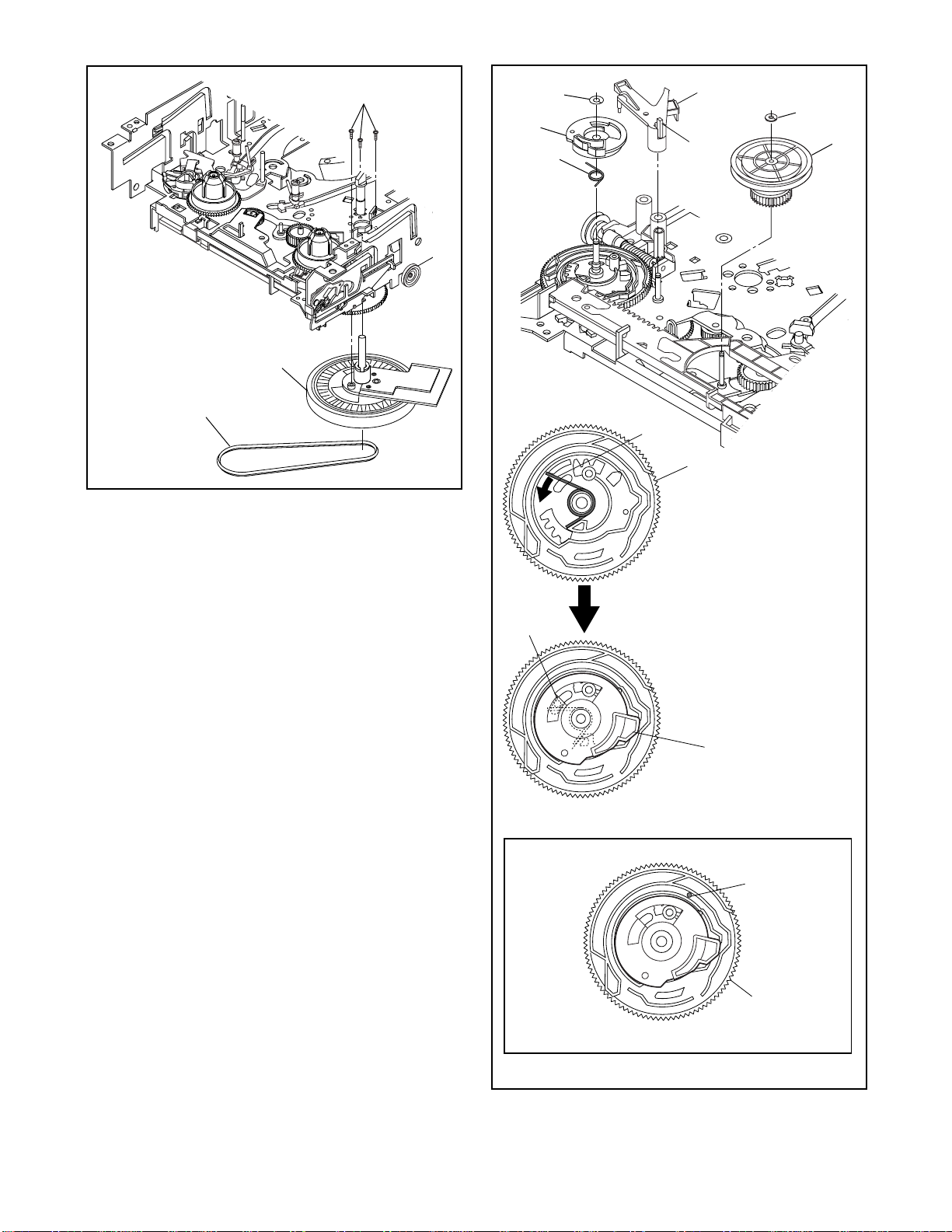

DISASSEMBLY/ASSEMBLY PROCEDURES

OF DECK MECHANISM

Before following the procedures described below, be sure to remove the deck assembly from the cabinet. (Refer to
CABINET DISASSEMBLY INSTRUCTIONS on page 1-6-1.)
All the following procedures, including those for adjustment and replacement of parts, should be done in Eject
mode; see the positions of [41] and [42] in Fig.DM1 on page 2-4-3. When reassembling, follow the steps in reverse
order.

STEP

/LOC.

[10] [2] Tape Guide Arm Assembly T DM1,DM8 *(P-2)
[11] [10] C Door Opener T DM1,DM8 *(L-4)
[12] [11] Pinch Arm (B) T DM1,DM8 *(P-3)
[13] [12] Pinch Arm Assembly T DM1,DM8
[14] [14] FE Head Assembly T DM1,DM9 (S-5)
[15] [15] Prism T DM1,DM9 (S-6)
[16] [2],[15] Sensor Gear T DM1,DM15
[17] [2] Slider Shaft T DM10 *(L-5)
[18] [17] C Drive Lever (SP) T DM10
[19] [17] C Drive Lever (TU) T DM10 (S-7),*(P-4)

[20]

[21] [21] Clutch Assembly B DM2,DM12 (C-1)
[22] [22] Cam Holder (F) B DM2,DM12 *(L-6)
[23] [23] Cam Gear (B) B DM2,DM12 (C-4), *(P-5)
[24] [24] Mode Gear B DM2,DM13 (C-2)

[25]

[26] [22] Worm Holder B DM2,DM13 (S-9),*(L-9),*(L-10)
[27] [26] Pulley Assembly B DM2,DM13
[28] [25],[26] Cam Gear (A) B DM2,DM13
[29] [25] Idler Gear B DM1,DM14
[30] [29] Idler Arm B DM1,DM14 *(L-11)
[31] [25] BT Arm B DM2,DM14 *(P-6)

[32] [25]

START-

ING

No.

[1] [1] Guide Holder A T DM3 2(S-1)
[2] [1] Cassette Holder Assembly T DM4
[3] [2] Slider (SP) T DM5 *(L-1)
[4] [2] Slider (TU) T DM5 *(L-2)
[5] [4] Lock Lever T DM5 *(L-3),*(P-1)
[6] [2] Cassette Plate T DM5
[7] [7] Cylinder Assembly T DM1,DM6 Desolder, 3(S-2)

[8] [8] Loading Motor Assembly T DM1,DM7

[9] [9] AC Head Assembly T DM1,DM7 (S-4)

No.

[7],[8],

[10]

[21],[23],

[24]

Capstan Motor B DM2,DM11 3(S-8), Cap Belt

Mode Lever B DM2,DM13 (C-3), *(L-8)

Loading Arm (SP)
Assembly

PART

Fig. No.

B DM2,DM14

REMOVAL INSTALLATION

REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER

Desolder, LDG Belt,
2(S-3)

ADJUSTMENT

CONDITION

(+)Refer to Alignment
Sec.Pg.2-4-9

2-4-1 Z12NDA

REMOVAL INSTALLATION

REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER

↓

(6)

No.

↓

(1)

START-

ING

No.

[32]

↓

(2)

PART

Loading Arm (TU)
Assembly

Moving Guide S
Preparation

Moving Guide T
Preparation

↓

(3)

Fig. No.

B DM2,DM14

T DM1,DM16

T DM1,DM16

↓

(4)

↓

(5)

STEP

/LOC.

[33]

[34] [2],[25] M Brake (TU) Assembly T DM1,DM15 *(P-7), Brake Belt
[35] [2],[25] M Brake (SP) Assembly T DM1,DM15 *(P-8)
[36] [35] Tension Lever Assembly T DM1,DM15
[37] [36] T Lever Holder T DM15 *(L-12)
[38] [34] Reel (TU)(D2) T DM1,DM15
[39] [38] M Gear T DM1,DM15
[40] [36] Reel (SP)(D2) T DM1,DM15

[41] [32],[36]

[42] [33]

[43] [19] TG Post Assembly T DM1,DM16 *(L-13)

[44] [28] Rack Assembly R DM17

[45] [44] F Door Opener R DM17 *(P-9)
[46] [46] Cleaner Assembly T DM1,DM6
[47] [46] CL Post T DM6 *(L-14)

ADJUSTMENT

CONDITION

(+)Refer to Alignment
Sec.Pg.2-4-9

(+)Refer to Alignment
Sec.Pg.2-4-9

↓

(7)

(1): Follow steps in sequence. When reassembling, follow the steps in reverse order.

These numbers are also used as identification (location) No. of parts in the figures.
(2): Indicates the part to start disassembling with in order to disassemble the part in column (1).
(3): Name of the part
(4): Location of the part: T=Top B=Bottom R=Right L=Left
(5): Figure Number
(6): Identification of parts to be removed, unhooked, unlocked, released, unplugged, unclamped, or desoldered.

P=Spring, W=Washer, C=Cut Washer, S=Screw, *=Unhook, Unlock, Release, Unplug, or Desolder

e.g., 2(L-2) = two Locking Tabs (L-2).
(7): Adjustment Information for Installation

(+):Refer to Deck Exploded Views for lubrication.

.

2-4-2 Z12NDA

Top View

[14]

[36]

[35]

[42][41] [43][9]

[7] [46] [8]

[13]

[11]

[15]

[10]
[12]

[34]

Bottom View

[26]

[27]

[23]

[28]

[20]

[29]

[30][40] [16] [39] [38]

Fig. DM1

[33]

[32]

[24]

[25]

[31][21][22]

Fig. DM2

2-4-3 Z12NDA

(S-1)

[1]

(S-1)

Fig. DM3

[7]

(L-1)

[3]

[6]

(L-2)

(P-1)

[46]

[4]

(L-3)

[5]

Fig. DM5

Pin D

Pin C

Slots B

First, while pushing the locking tab as
shown at right, slide and pull up the right
side on [2] to release Pin A and Pin B from
the slots A.
Then, remove Pin C and Pin D on [2] from
the slots B as shown.

[2]

Pin A

Locking tab

2

Pull up

A

1

Slide

Pin B

Slot A

Slot A

View for A

Fig. DM4

Desolder
from bottom

(S-2)

View for A

[47]

(L-14)

A

Lead with
Red Stripe

Fig. DM6

2-4-4 Z12NDA

[9]

A

(S-4)

[8]

[14]

(S-5)

[16]

(S-6)

[15]

(S-3)

Adj. Screw

[13]

LDG
Belt

Desolder
from bottom

Lead with White Stripe

View for A

[8]

Fig. DM7

[11]

(L-4)

(P-3)

[12]

[10]

Fig. DM9

[18]

(L-5)

[17]

[19]

(P-4)

(P-2)

Pin of [12]

View for A

Pin of [10]

Groove of [28]

[28]

A

(S-7)

Fig. DM10

When reassembling [10] and
[12], confirm that pin of [10]
and pin of [12] are in the
groove of [28] as shown.

Fig. DM8

2-4-5 Z12NDA

Cap Belt

[20]

(S-8)

[23]

(C-4)

(P-5)

(P-5)

[22]

(L-6)

(C-1)

[21]

Fig. DM11

Pin on
bottom
of [23]

[28]

When installing [23], install
the spring (P-5) to [28] as
shown in the left figure, and
then install [23] while
pressing the spring (P-5) to
the direction of the arrow in
the left figure and confirming
that the position of the
spring (P-5) is placed as
shown in the left figure.

[23]

Top View

Pin on [22]

[28]

Position of pin on [22]

Fig. DM12

2-4-6 Z12NDA

[25]

(C-3)

[31]

(P-6)

Refer to the Alignment
Section, Page 2-4-9.

(L-10)

[27]

[28]

Pin of [34]

(S-9)

(L-8)

[26]

(L-9)

Position of Mode Lever when installed

Pin of [31]

Pin of [35]

(C-2)

[24]

[30]

[29]

(L-11)

[40]

[36]

[33]

[32]

Fig. DM14

Break belt

(P-7)

[34]

Bottom View

[28]

Top View

Align [25] and [28] as shown.

First groove on [28]

First tooth on [44]

[28]

When reassembling [28],
align the first groove on
[28] to the first tooth on
[44] as shown.

[25]

Fig. DM13

(P-8)

[35]

[37]

turn

turn

(L-12)

[39]

turn

[38]

Fig. DM15

2-4-7 Z12NDA

[41]

[42]

[43]

(L-13)

Fig. DM16

(P-9)

[45]

[44]

Slide

Fig. DM17

2-4-8 Z12NDA

ALIGNMENT PROCEDURES OF MECHANISM

The following procedures describe how to align the
individual gears and levers that make up the tape
loading/unloading mechanism. Since information
about the state of the mechanism is provided to the
System Control Circuit only through the Mode Switch,
it is essential that the correct relationship between
individual gears and levers be maintained.

All alignments are to be performed with the mech­anism in Eject mode, in the sequence given. Each

procedure assumes that all previous procedures have
been completed.

IMPORTANT:

If any one of these alignments is not performed

properly, even if off by only one tooth, the unit will

unload or stop and it may result in damage to the

mechanical or electrical parts.

Alignment points in Eject Position

Top View

Alignment 3

Alignment 1

Loading Arm (SP) and (TU) Assembly

Install Loading Arm (SP) and (TU) Assembly so
that their triangle marks point to each other as
shown in Fig. AL2.

Alignment 2

Mode Gear

Keeping the two triangles pointing at each other,

install the Loading Arm (TU) Assembly so that the
last tooth of the gear meets the most inside teeth
of the Mode Gear. See Fig. AL2.

Alignment 1

Triangle Marks

Loading Arm
(SP) Assembly

Last Tooth

Alignment 2

Loading Arm
(TU) Assembly

Most inside teeth
of Mode Gear

Mode Gear

Fig. AL2

Bottom View

Alignment 1

Alignment 2

Fig. AL1

Alignment 3

Cam Gear (A), Rack Assembly

Install the Rack Assembly so that the first tooth on
the gear of the Rack Assembly meets the first
groove on the Cam Gear (A) as shown in Fig. AL3.

Top View

First groove
on the Cam Gear (A)

Cam Gear (A)

Alignment 3

First tooth

Gear on Rack Assembly

Fig. AL3

2-4-9 U27NAPM

EXPLODED VIEWS AND

PARTS LIST SECTION

19" COLOR TV/VCR COMBINATION

SRC2319

Sec. 3: Exploded views
and Parts List Section

I Exploded views
I Parts List

TABLE OF CONTENTS

Cabinet Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1-1

Packing Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1-3

Deck Exploded Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1-4

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3-1

Deck Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4-1

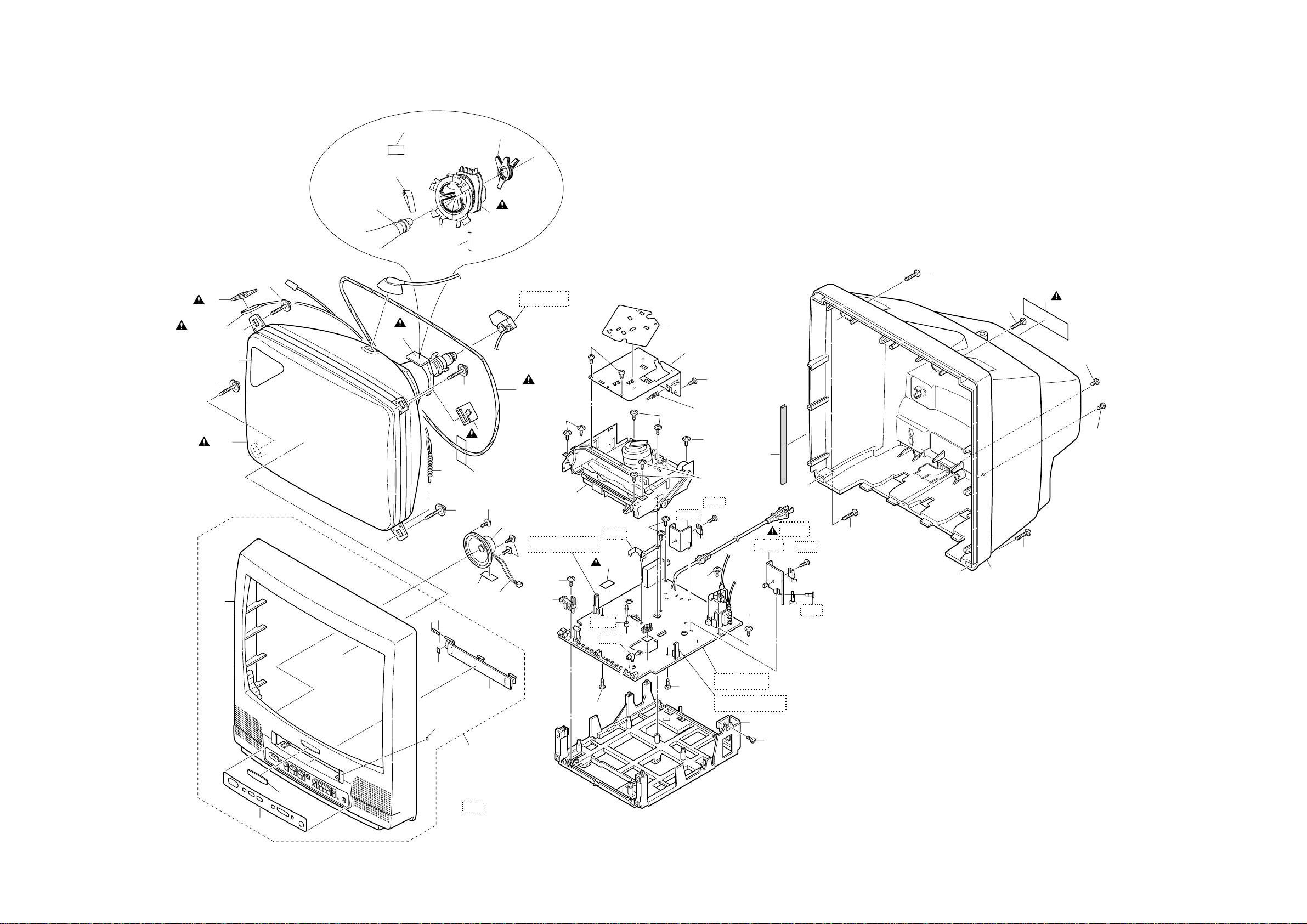

EXPLODED VIEWS

7

Cabinet

B4

CLN551

B2

A4

B2

V501-2

SHINWHA
TAPE SGT-730
(WHITE)

SHINWHA
TAPE SGT-730
(BLACK)

V501-3

L551

B2

V501-1

L551

CRT CBA

DG601

Details for L551
and surrounding parts

TL3

TL1

TL1

B3

TB2

TB24

L1

A3

L1

L7

TL3

V501

A1-1

A1-5

A1-6

B13

B1

B4

SCOTCH
TAPE #880

B2

B11

A1-4

A1X

L4

SP801

CL802

1B1

SENSOR CBA

L4

TL1

TB10

TL14

TB3

TB22

TB21

TB7

TL1

TB9

TL18

TL1

TL1

TL2

TL1

MAIN CBA
SENSOR CBA

TL1

B5

TB26

TB1

L2

W601

TL2

L

L1

L1

A2

TL2

A1-2

A1-3

See Electrical Parts List
for parts with this mark.

3-1-1 3-1-2 T7408CEX

Packing

3

T

X3

X2

APE

X4

S2

X1

S14

FRONT

S

S6

TAPE

S3

S4

S1

3-1-3 T7408PEX

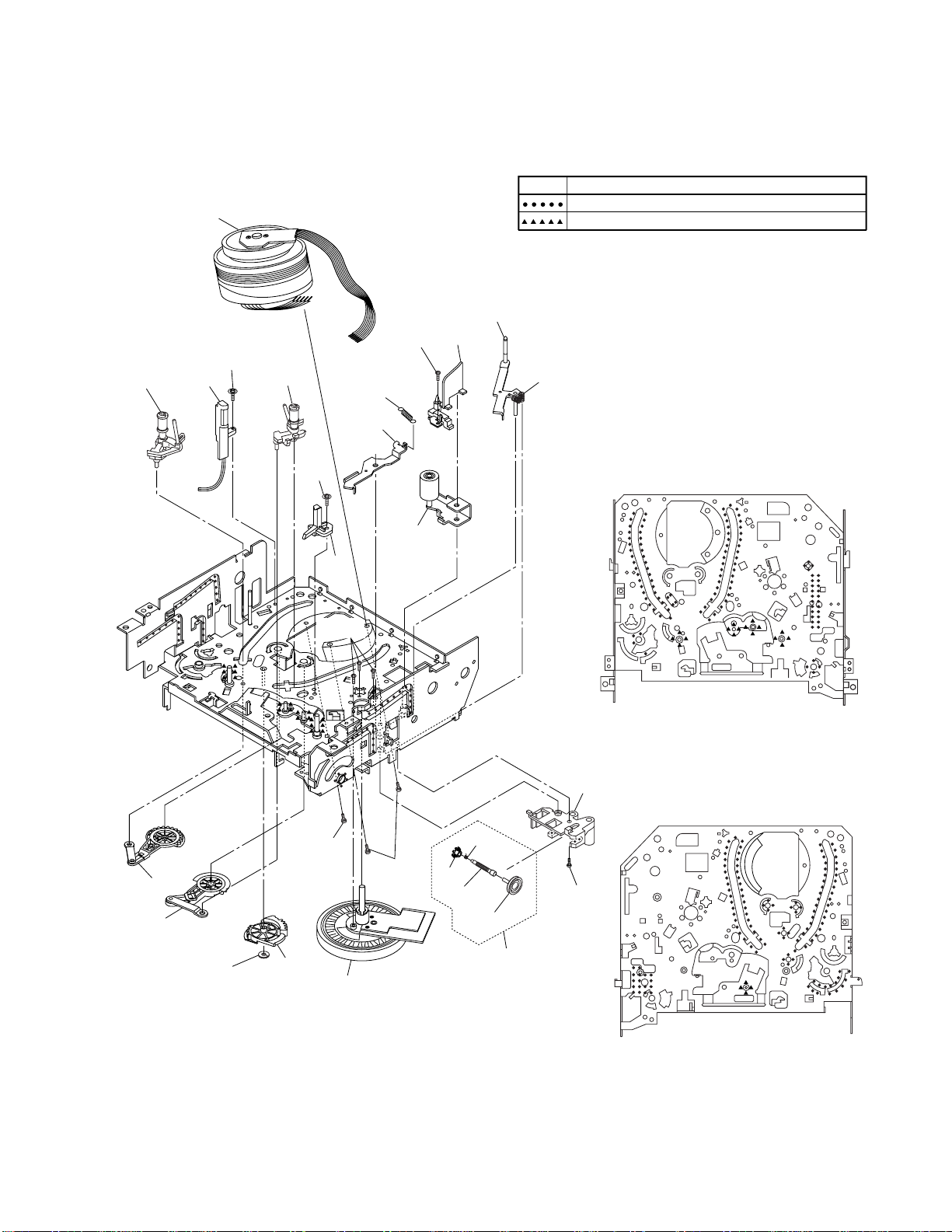

DECK EXPLODED VIEWS

Deck Mechanism View 1

B2

B9

L1191

B73

B10

L1053

B411

B567

L1467

B494

Mark Description

Floil G-684G or Multemp MH-D
SLIDUS OIL #150

B35

B553

(Blue grease)

B11

B12

B571

L1450

B492

B74

L1051

B37

B410

L1450

B426

B121

Chassis Assembly
Top View (Lubricating Point)

B501

B560

L1466

B126

B8

Some Ref. Numbers are not in sequence.

Chassis Assembly
Bottom View (Lubricating Point)

3-1-4 Z12NDEX

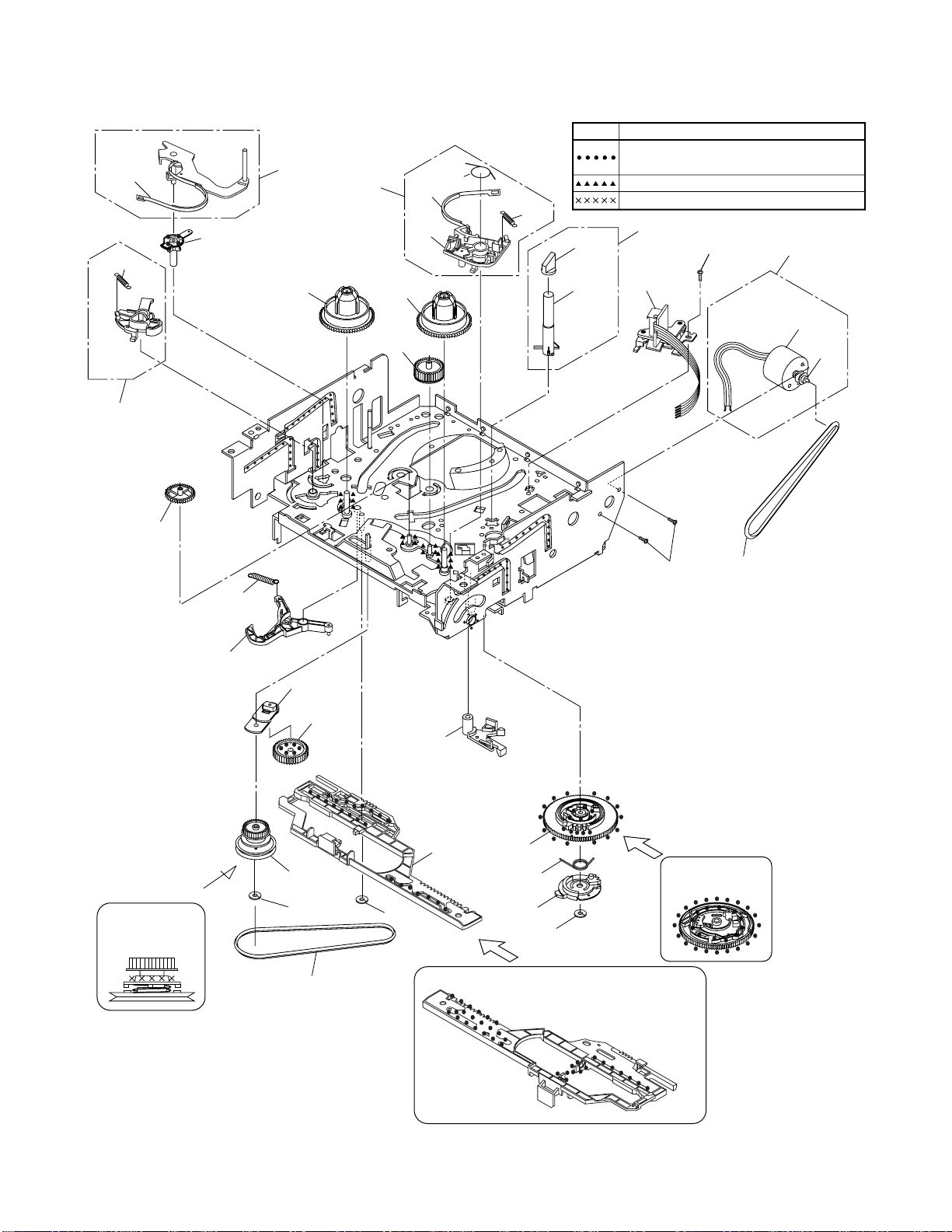

Deck Mechanism View 2

B487

B499

B508

B414

B587

B573

B416

B574

B564

B591

B590

B521

B520

Mark Description

Floil G-684G or Multemp MH-D
(Blue grease)

SLIDUS OIL #150
SANKOUL FG84M (Yellow grease)

B148

B592

B522

B31

L1406

B3

B558

B557

B565

View for A

(Grease point)

B568

A

B417

B134

B559

B516

B133

B507

B569

B488

B491

B570

B502

B513

L1151

Bottom Side
(Grease point)

B525

B52

Some Ref. Numbers are not in sequence.

Bottom Side (Grease point)

3-1-5 Z12NDEX

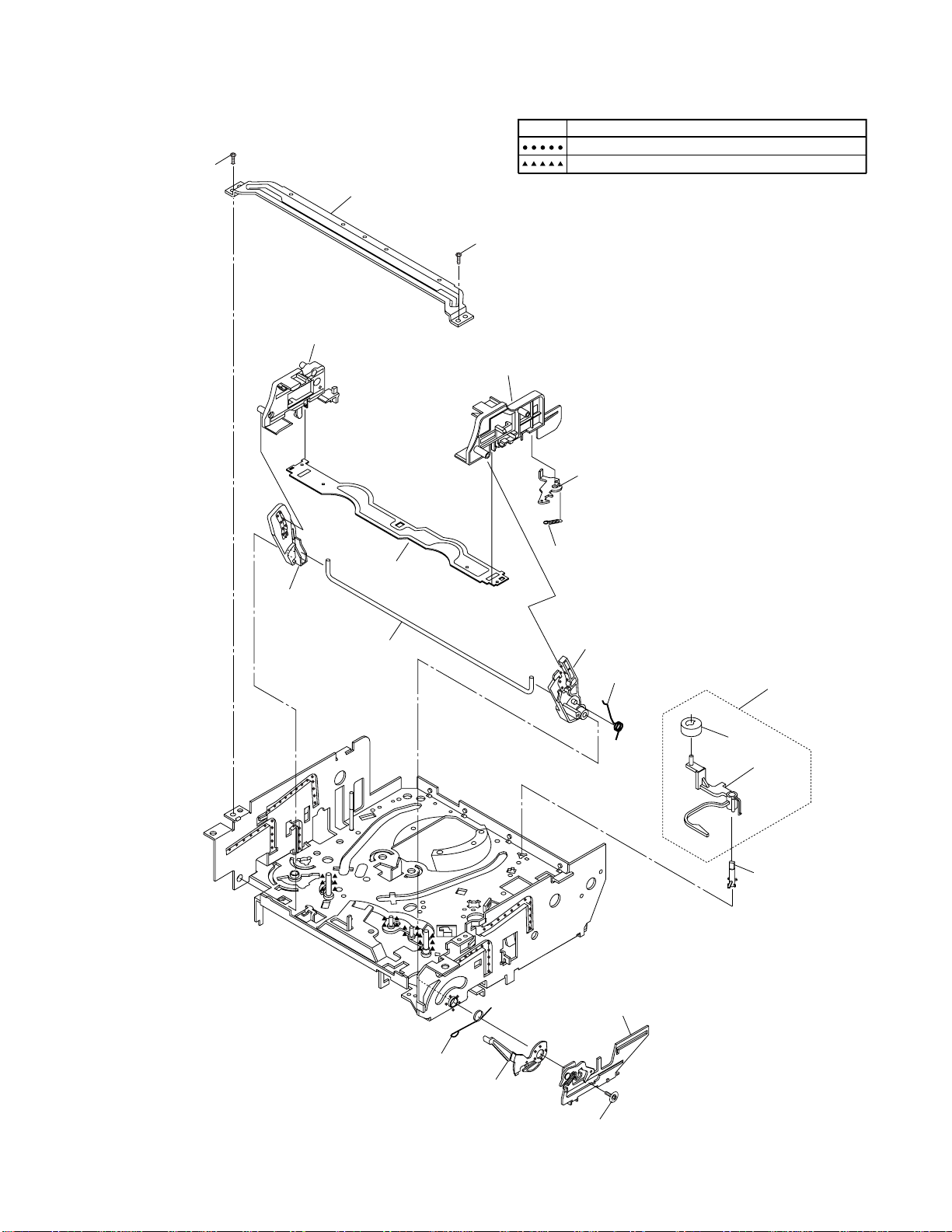

Deck Mechanism View 3

L1321

B355

B347

Mark Description

Floil G-684G or Multemp MH-D
SLIDUS OIL #150

L1321

B354

B483

(Blue grease)

B562

B482

B563

B425

B300

B313

B529

B360

B359

B361

B561

Some Ref. Numbers are not in sequence.

B555

B303

B514

3-1-6 Z12NDEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read care­fully the product safety notice in this service manual.
Don't degrade the safety of the product through
improper servicing.

NOTE:
Parts that are not assigned part numbers (---------) are
not available.

Ref. No. Description Part No.

A1X FRONT CABINET ASSEMBLY T7408UJ 0EM101283
A1-1 FRONT CABINET T7300UA 0EM000616
A1-2 CONTROL PLATE T7408UJ 0EM301813
A1-3 BRAND PLATE T5307UH:SYLVANIA 0EM407053
A1-4 CASSETTE DOOR T5303UD 0EM406915
A1-5 DOOR SPRING B5000UA or 0VM403773

DOOR SPRING(Z10) T5200UA 0EM406687
A1-6 CLOTH(4X7XT0.7) T5000UA 0EM404974
A2 REAR CABINET T7400UA 0EM000692
A3# RATING LABEL T7408UJ ---------­A4 POP LABEL T7408UJ ---------­1B1 DECK ASSEMBLY N1626FT
B1 TENSION SPRING B0080B0:EM40808 26WH006
B2 CRT MOUNTING SCREW B0030U1:K42419 8A00083
B3 SHIELD PLATE (Z11 13V) T5300UA 0EM406843
B4# DEGAUSS HOLDER L9800UA 0EM404845
B5 CLOTH 190X15XT0.5 TS7623
B11 CLOTH(10X30XT0.5) B5900UA 0EM404486
B13 CLOTH(15X10XT0.5) L9700UA 0EM405038
CL802 WIRE ASSEMBLY 2P/150 WX1B5900-001
CLN551# CRT GNDWIRE WX1T7400-006 WX1T7400-006
DG601# DEGAUSSING COIL F-020 or LLBH00ZTM020
# DEGAUSSING COIL AVDG077 LLBH00ZWR015
L1 SCREW, P-TIGHT 4X18 BIND HEAD + GBMP4180
L2 SCREW TAPPING M4X14 DBU14140
L4 SCREW, ASSEMBLED 12:M3X12 0EM406746
L7 SCREW, P-TIGHT 3X10 BIND HEAD+ GBKP3100
SP801 SPEAKER S08F02B or DSD0808XQ010

SPEAKER J-F097-C5 DSD0808DCP01
TB1 TRAY CHASSIS T5400UA 0EM000688
TB2 TOP SHIELD T5400UA 0EM201663
TB10 RCA HOLDER T5400UA 0EM407677
TB22# 19V CHASSIS NO. LABEL TJ T7400UA ---------­TB24 WIRE HOLDER T5400UA 0EM407678
TL1 SCREW, P-TIGHT 3X12 WASHER HEAD+ GCMP3120
TL3 SCREW, S-TIGHT 3X4 BIND HEAD+ GBMS3040
TL14 SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080
TL18 SCREW, P-TIGHT M3X8 BIND HEAD+ GBCP3080

PACKING

S1 CARTON T7408UJ 0EM407872
S2 STYROFOAM TOP ASSEMBLY T7400UA 0EM407699
S3 STYROFOAM BOTTOM ASSEMBLY T7400UA 0EM407700
S4 SERIAL NO. LABEL T7408UJ ---------­S6 SET SHEET B7500UA:1000X1700 0EM402178
S14 TVCR HOLD PAD T7300UA 0EM406849

Ref. No. Description Part No.

ACCESSORIES

X1 POLYETHYLENE BAG B5310UL Z223380
X2# OWNERS MANUAL T5407UH 0EMN02083
X3 REMOTE CONTROL 512/ERC001/N0154UD or N0154UD

REMOTE CONTROL 512/ERC001/N0123UD N0123UD

X4 DRY BATTERY R6P UM3 or XB0M451GH001

DRY BATTERY R6P(AR)2PX or XB0M451HU002
DRY BATTERY R6P(AR)2P X ICI or XB0M451HU003
DRY BATTERY(SUNRISE) R6SSE/2S or XB0M451MS002
DRY BATTERY R6P/2S XB0M451T0001

Note:

1. V501 (CRT) HAS COUPLE OF SUBSTITUTIONAL PARTS AND EACH PARTS
ALSO HAS MATCHING COMBINATION WITH L551.
PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

2. L551 (DEFLECTION YOKE) HAS MATCHING COMBINATION WITH V501.
PLEASE SEE TABLE 1 FOR DETAILS OF MATCHING COMBINATION.

CRT TYPE A

V501# CRT A48AKH13X01 K TCRT190CP043

CRT TYPE B

L551# DEFLECTION YOKE KDY3MDD74X LLBY00ZMS024
V501# CRT A48AKH13X TCRT190CP044
V501-1 C.P.MAGNET JH225-014 or XM04000BV009

CPM E-225-F01 XM04000ETC01
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001

CRT TYPE C

L551# DEFLECTION YOKE LLBY00ZSY008 or LLBY00ZSY008
# DEFLECTION YOKE KDY3MDD18X LLBY00ZMS019

V501# CRT A48LVL095X TCRT190MS011
V501-1 C.P.MAGNET JH225-014 or XM04000BV009

CPM E-225-F01 XM04000ETC01
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001

CRT TYPE D

L551# DEFLECTION YOKE LLBY00ZSY006 or LLBY00ZSY006
# DEFLECTION YOKE CDY-M2019F LLBY00ZQS004

V501# CRT A48JLL90X TCRT190QS009
V501-1 C.P.MAGNET JH225-014 or XM04000BV009

CPM E-225-F01 XM04000ETC01
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001

CRT TYPE E

L551# DEFLECTION YOKE LLBY00ZSY007 or LLBY00ZSY007
# DEFLECTION YOKE CDY-M2023F or LLBY00ZQS005
# DEFLECTION YOKE DSE-1922FU(T) LLBY00ZSM007

V501# CRT A48LRH93X(W) TCRT190P7002
V501-1 C.P.MAGNET JH225-014 or XM04000BV009

CPM E-225-F01 XM04000ETC01
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001

CRT TYPE F

L551# DEFLECTION YOKE 330P510A37 LLBY00ZTHA01
V501# CRT A48LGS30X TCRT190THA01
V501-1 C.P.MAGNET JH225-014 or XM04000BV009

CPM E-225-F01 XM04000ETC01
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001

CRT TYPE G

20030318 3-2-1 T7408CA

Ref. No. Description Part No.

L551# DEFLECTION YOKE LLBY00ZSY007 or LLBY00ZSY007
# DEFLECTION YOKE CDY-M2023F or LLBY00ZQS005
# DEFLECTION YOKE DSE-1922FU(T) LLBY00ZSM007

V501# CRT A48LRH93X(W)D TCRT190PTD01
V501-1 C.P.MAGNET JH225-014 or XM04000BV009

CPM E-225-F01 XM04000ETC01
V501-2 WEDGE FT-00110W XV10000T4001
V501-3 RUBBER MAGNET 20X10X1.2 XM05000BV001

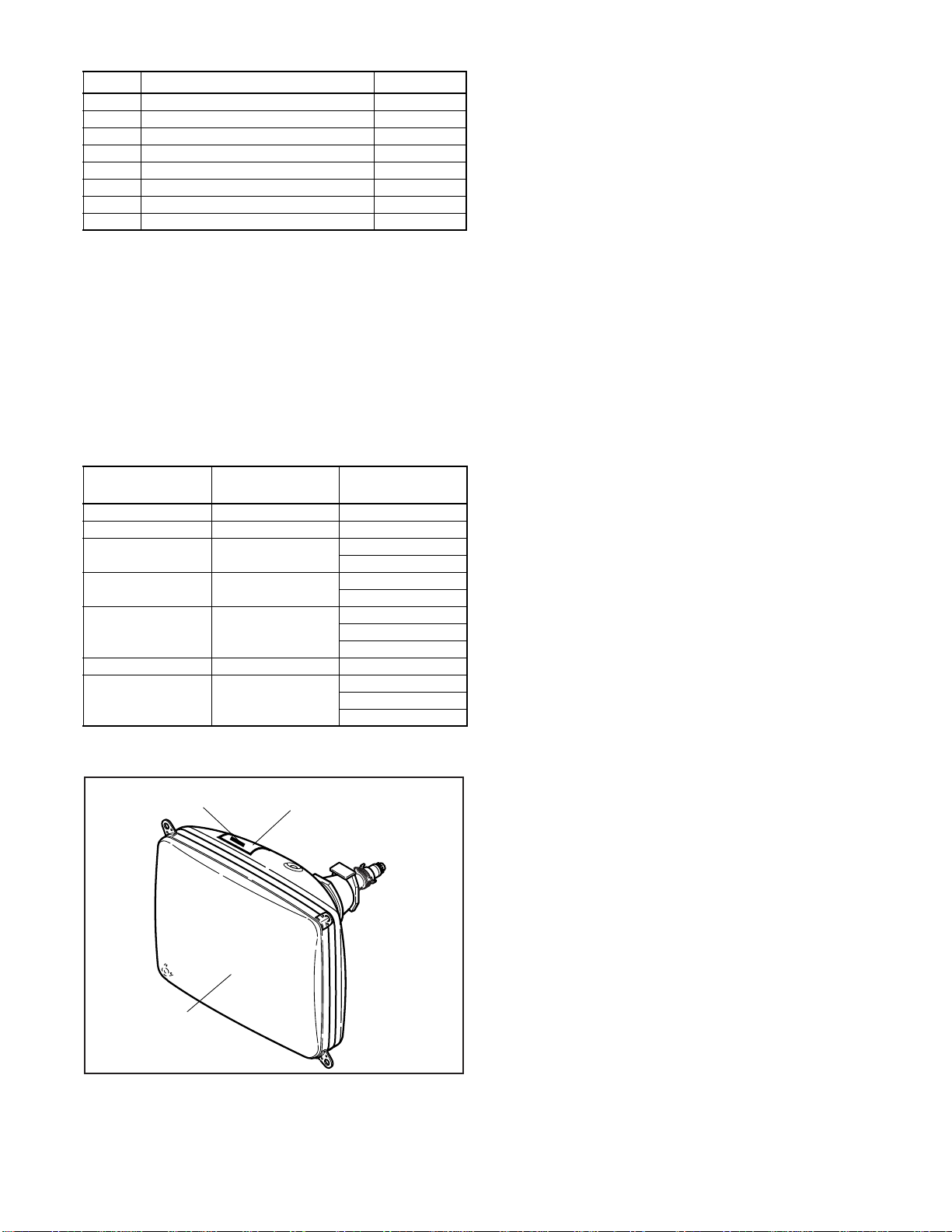

Table 1 (V501 and L551 Combination)

Note 1: Purity and Convergence Adjustments must be

performed following CRT replacement. Refer to Electri­cal Adjustment Instructions.

Note 2: Please confirm CRT Type No. on the CRT
Warning Label which is located on the CRT. Then See
the Table 1 for V501 and L551 combination chart.
Please refer this CRT, Deflection Yoke combination
chart for parts order.

V501: CRT Type No. V501: CRT Part No.

CRT A48AKH13X01 K TCRT190CP043 ----------

CRT A48AKH13X TCRT190CP044 LLBY00ZMS024

CRT A48LVL095X TCRT190MS011

CRT A48JLL90X TCRT190QS009

CRT A48LRH93X(W) TCRT190P7002

CRT A48LGS30X TCRT190THA01 LLBY00ZTHA01

CRT A48LRH93X(W)D TCRT190PTD01

L551: Deflection

Yoke Part No.

LLBY00ZSY008

LLBY00ZMS019

LLBY00ZSY006

LLBY00ZQS004

LLBY00ZSY007
LLBY00ZQS005
LLBY00ZSM007

LLBY00ZSY007
LLBY00ZQS005
LLBY00ZSM007

CRT Warning Label Location

CRT Type No.

CRT Warning Label

CRT

20030318 3-2-2 T7408CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read care­fully the product safety notice in this service manual.
Don't degrade the safety of the product through
improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

MMA CBA

Ref. No. Description Part No.

MMA CBA 0ESA05294
Consists of the following
MAIN CBA

CRT CBA
SENSOR CBA

MAIN CBA

Ref. No. Description Part No.

MAIN CBA

C005 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

C007 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103
C008 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

C032 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZB0F103
C033 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103
C035 CERAMIC CAP.(AX) CH J 15pF/50V CCA1JJTCH150
C036 CHIP CERAMIC CAP. B K 220pF/50V CHD1JKB0B221
C037 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C039 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C040 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103
C042 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C043 CHIP CERAMIC CAP. F Z 0.022µF/50V CHD1JZB0F223
C044 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZB0F103
C046 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103
C047 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103
C048 ELECTROLYTIC CAP. 47µF/50V M or CE1JMASDL470

C049 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C052 CHIP CERAMIC CAP. B K 0.047µF/50V CHD1JKB0B473
C053 CHIP CERAMIC CAP. B K 0.047µF/50V CHD1JKB0B473
C054 CERAMIC CAP.(AX) Y M 0.01µF/16V CCA1CMT0Y103
C203 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C207 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C208 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470

Consists of the following

CAPACITORS

ELECTROLYTIC CAP. 220µF/16V M CE1CMASTL221

ELECTROLYTIC CAP. 10µF/50V M CE1JMASTL100

ELECTROLYTIC CAP. 47µF/50V M CE1JMASTL470

------------

-----------­0ESA04524

------------

Ref. No. Description Part No.

C210 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C211 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103
C212 CHIP CERAMIC CAP.(MELF) SL J 22pF/50V CZM1JJBSL220
C213 CHIP CERAMIC CAP.(MELF) SL J 22pF/50V CZM1JJBSL220
C214 ELECTROLYTIC CAP.(SS.T) 220µF/10V M H7 CA1A221S6028
C216 CERAMIC CAP.(AX) Y M 0.01µF/16V CCA1CMT0Y103
C217 CHIP CERAMIC CAP.(MELF) SL D 10pF/50V CZM1JDBSL100
C218 CHIP CERAMIC CAP.(MELF) SL J 15pF/50V CZM1JJBSL150
C219 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103
C220 ELECTROLYTIC CAP.(SS.T) 220µF/10V M H7 CA1A221S6028
C221 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZB0F103
C222 CHIP CERAMIC CAP.(MELF) Y K 2200pF/35V CZM1GKB0Y222
C223 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C224 CHIP CERAMIC CAP.(MELF) Y K 1000pF/35V CZM1GKB0Y102
C225 CHIP CERAMIC CAP.(MELF) W K 560pF/50V CZM1JKB0B561
C231 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101
C232 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101
C233 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103
C235 CERAMIC CAP.(AX) X K 4700pF/16V CCA1CKT0X472
C236 CERAMIC CAP.(AX) F Z 0.047µF/16V CCA1CZTFZ473
C238 CHIP CERAMIC CAP.(MELF) Y K 1000pF/35V CZM1GKB0Y102
C239 ELECTROLYTIC CAP. 22µF/50V M or CE1JMASDL220

ELECTROLYTIC CAP. 22µF/50V M CE1JMASTL220
C240 CERAMIC CAP.(AX) B J 560pF/50V CCA1JJT0B561
C241 CHIP CERAMIC CAP. B K 4700pF/50V CHD1JKB0B472
C243 ELECTROLYTIC CAP. 22µF/16V M LL or CE1CMASLL220

ELECTROLYTIC CAP. 22µF/16V M LL CE1CMASLH220
C245 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

ELECTROLYTIC CAP. 220µF/16V M CE1CMASTL221
C247 ELECTROLYTIC CAP. 220µF/16V M or CE1CMASDL221

ELECTROLYTIC CAP. 220µF/16V M CE1CMASTL221
C251 CERAMIC CAP.(AX) B K 1000pF/50V CCA1JKT0B102
C252 ELECTROLYTIC CAP.(SS.T) 100µF/16V M H7 CA1C101S6028
C253 ELECTROLYTIC CAP. 100µF/6.3V M or CE0KMASDL101

ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASTL101
C254 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASDL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASTL470
C257 CHIP CERAMIC CAP.(MELF) Y K 1000pF/35V CZM1GKB0Y102
C301 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZB0F103
C302 CHIP CERAMIC CAP. CH J 33pF/50V CHD1JJBCH330
C303 CHIP CERAMIC CAP. CH J 33pF/50V CHD1JJBCH330
C304 CHIP CERAMIC CAP. CH J 33pF/50V CHD1JJBCH330
C309 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C310 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C314 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103
C315 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C316 CHIP CERAMIC CAP. F Z 2.2µF/10V or CHD1AZB0F225

CHIP CERAMIC CAP. F Z 2.2µF/6.3V CHD1KZB0F225
C317 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZB0F103
C319 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C320 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C321 ELECTROLYTIC CAP.(SS.T) 220µF/10V M H7 CA1A221S6028
C322 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZB0F103
C323 CHIP CERAMIC CAP. F Z 2.2µF/10V or CHD1AZB0F225

CHIP CERAMIC CAP. F Z 2.2µF/6.3V CHD1KZB0F225
C324 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C325 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105

20030318 3-3-1 T7408EL

Ref. No. Description Part No.

C326 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C327 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMAVSL101
C330 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZB0F103
C331 ELECTROLYTIC CAP.(SS.T) 220µF/10V M H7 CA1A221S6028
C336 ELECTROLYTIC CAP. 1µF/50V H7(P=2.5MM) CA1J1R0S6023
C337 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103

C338 CHIP CERAMIC CAP. F Z 2.2µF/10V or CHD1AZB0F225

CHIP CERAMIC CAP. F Z 2.2µF/6.3V CHD1KZB0F225
C339 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103
C340 CHIP CERAMIC CAP. CH J 47pF/50V CHD1JJBCH470
C342 ELECTROLYTIC CAP.(SS.T) 220µF/10V M H7 CA1A221S6028
C351 ELECTROLYTIC CAP.(SS.T) 220µF/10V M H7 CA1A221S6028
C352 ELECTROLYTIC CAP.(SS.T) 220µF/10V M H7 CA1A221S6028
C410 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C411 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMAVSL101
C412 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZB0F103
C413 CHIP CERAMIC CAP.(MELF) W K 390pF/50V CZM1JKB0B391
C414 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C416 CHIP CERAMIC CAP.(MELF) B K 180pF/50V CZM1JKB0B181
C417 CHIP CERAMIC CAP.(MELF) SL J 22pF/50V CZM1JJBSL220
C418 PCB JUMPER D0.6-P5.0 JW5.0T
C420 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220
C421 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7
C423 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7
C424 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C425 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C426 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220
C427 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011
C428 CHIP CERAMIC CAP.(MELF) F Z 0.01µF/16V CZM1CZB0F103
C429 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C430 CHIP CERAMIC CAP. F Z 0.022µF/50V CHD1JZB0F223
C431 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C434 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C435 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMAVSL2R2
C436 CHIP CERAMIC CAP. B K 3900pF/50V CHD1JKB0B392
C438 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C439 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103
C440 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C441 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C442 CHIP CERAMIC CAP. B K 0.047µF/50V CHD1JKB0B473
C443 CHIP CERAMIC CAP. B K 0.047µF/50V CHD1JKB0B473
C444 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220
C445 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103
C446 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZB0F105
C447 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103
C448 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011
C449 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103
C450 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101
C552 MYLAR CAP. 0.22µF/50V J or CMA1JJS00224

FILM CAP.(P) 0.22µF/50V J CA1J224MS029
C553 ELECTROLYTIC CAP. 2.2µF/50V M LL or CE1JMASLL2R2

ELECTROLYTIC CAP. 2.2µF/50V LL CE1JMASLH2R2
C555 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASDL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASTL470
C556 ELECTROLYTIC CAP. 1000µF/25V M or CE1EMZPDL102

ELECTROLYTIC CAP. 1000µF/25V M CE1EMZPTL102
C558 CERAMIC CAP.(AX) B K 0.01µF/50V CA1J103TU011
C559 ELECTROLYTIC CAP. 330µF/35V M or CE1GMZPDL331

ELECTROLYTIC CAP. 330µF/35V M CE1GMZPTL331
C560 FILM CAP.(P) 0.01µF/50V J or CMA1JJS00103

FILM CAP.(P) 0.01µF/50V J CA1J103MS029

Ref. No. Description Part No.

C 57 2 P. P.C A P 0 .4 7 µF/200 J or CA2D474VC012

PP CAP. 0.47µF/250V J CT2E474MS041
C574# ELECTROLYTIC CAP. 4.7µF/250V M or CE2EMASDL4R7
# ELECTROLYTIC CAP. 4.7µF/250V M CE2EMASTL4R7
C577 FILM CAP.(P) 0.022µF/50V J or CMA1JJS00223

FILM CAP.(P) 0.022µF/50V J CA1J223MS029
C578 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASDL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASTL470
C580# P. P. CA P 0 . 01 µF/1.6KV J or CA3C103VC011

# PP CAP. 0.01µF/1.6KV J or CT3C103MS039
# PP CAP. 0.01µF/1.6KV J or CBH3CJQ00103
# METALLIZED FILM CAP. 0.01µF/1.6KV J CT3C103F7004
C581# CERAMIC CAP. BN 1500pF/2KV or CCD3DKA0B152
# CERAMIC CAP. 1500pF/2KV CA3D152PAN04
C584# ELECTROLYTIC CAP. 1µF/160V M or CE2CMASDL1R0
# ELECTROLYTIC CAP. 1µF/160V M CE2CMASTL010

C591 ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMAVSL1R0
C592 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7
C593 ELECTROLYTIC CAP. 2.2µF/50V M or CE1JMASDL2R2

ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASTL2R2
C594 ELECTROLYTIC CAP. 47µF/160V M W/F or CE2CMZNDL470

ELECTROLYTIC CAP. 47µF/160V M W/F CE2CMZNTL470
C602# SAFETY CAP. 4700pF/250V KX CA2E472MR050
C605# METALLIZED FILM CAP. 0.1µF/250V or CT2E104MS037

# FILM CAP.(MP) 0.1µF/250V K or CT2E104DC011
# METALLIZED FILM CAP. 0.1µF/275V K CT2E104HJE06

C606 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP. 0.01µF/AC250V CCD2EZA0F103
C607 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP. 0.01µF/AC250V CCD2EZA0F103
C610 ELECTROLYTIC CAP. 220µF/200V SL X or CA2D221S6003

ELECTROLYTIC CAP. 220µF/200V CA2D221NC088
C611 CERAMIC CAP. BN 680pF/2KV or CCD3DKA0B681

CERAMIC CAP. 680pF/2KV CA3D681PAN04
C612 FILM CAP.(P) 0.033µF/50V J or CMA1JJS00333

FILM CAP.(P) 0.033µF/50V J CA1J333MS029
C613 FILM CAP.(P) 0.0012µF/50V J or CMA1JJS00122

FILM CAP.(P) 0.0012µF/50V J CA1J122MS029
C614 FILM CAP.(P) 0.082µF/50V J or CMA1JJS00823

FILM CAP.(P) 0.082µF/50V J CA1J823MS029
C615 CERAMIC CAP. BN 820pF/2KV or CCD3DKA0B821

CERAMIC CAP. 820pF/2KV CA3D821PAN04
C616# ELECTROLYTIC CAP. 100µF/160V M or CE2CMZPDL101

# ELECTROLYTIC CAP. 100µF/160V M or CE2CMZPTL101
# ELECTROLYTIC CAP. 100µF/160V M W/F CE2CMZNTL101
C617# ELECTROLYTIC CAP. 470µF/35V M or CE1GMZPDL471
# ELECTROLYTIC CAP. 470µF/35V M CE1GMZPTL471
C618# ELECTROLYTIC CAP. 1000µF/16V M or CE1CMZPDL102
# ELECTROLYTIC CAP. 1000µF/16V M CE1CMZPTL102

C619 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471
C620# ELECTROLYTIC CAP. 1000µF/16V M or CE1CMZPDL102
# ELECTROLYTIC CAP. 1000µF/16V M CE1CMZPTL102
C622 CERAMIC CAP.(AX) B K 220pF/50V CCA1JKT0B221
C624 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103
C625 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0
C626 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7
C628 ELECTROLYTIC CAP. 10µF/50V M or CE1JMASDL100

ELECTROLYTIC CAP. 10µF/50V M CE1JMASTL100

20030318 3-3-2 T7408EL

Ref. No. Description Part No.

C629 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASDL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASTL470

C630 ELECTROLYTIC CAP. 100µF/10V M or CE1AMASDL101

ELECTROLYTIC CAP. 100µF/10V M CE1AMASTL101

C631 ELECTROLYTIC CAP. 220µF/6.3V M or CE0KMASDL221

ELECTROLYTIC CAP. 220µF/6.3V M CE0KMASTL221
C632 ELECTROLYTIC CAP.(SS.T) 100µF/16V M H7 CA1C101S6028
C633 ELECTROLYTIC CAP.(SS.T) 47µF/25V M H7 CA1E470S6028
C634 ELECTROLYTIC CAP.(SS.T) 100µF/16V M H7 CA1C101S6028
C635 ELECTROLYTIC CAP. 47µF/35V M or CE1GMASDL470

ELECTROLYTIC CAP. 47µF/35V M CE1GMASTL470
C636 CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104
C639 CERAMIC CAP. B K 220pF/500V CCD2JKS0B221
C641 CHIP CERAMIC CAP. CH J 100pF/50V CHD1JJBCH101
C648 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220
C801 ELECTROLYTIC CAP. 220µF/16V M H7 CE1CMASSL221
C802 ELECTROLYTIC CAP. 470µF/16V M or CE1CMASDL471

ELECTROLYTIC CAP. 470µF/16V M CE1CMASTL471
C803 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMAVSL100
C804 ELECTROLYTIC CAP. 0.22µF/50V M H7 CE1JMAVSLR22
C805 CHIP CERAMIC CAP. B K 4700pF/50V CHD1JKB0B472
C853 CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZTFZ104

C854 ELECTROLYTIC CAP. 22µF/16V M H7 CE1CMAVSL220
C856 CHIP CERAMIC CAP. F Z 0.1µF/50V CHD1JZB0F104
C857 ELECTROLYTIC CAP. 33µF/6.3V M H7 CE0KMAVSL330
C858 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7
C859 CERAMIC CAP.(AX) F Z 0.1µF/50V CCA1JZTFZ104
C860 CHIP CERAMIC CAP.(MELF) Y K 1000pF/35V CZM1GKB0Y102
C862 CHIP CERAMIC CAP. B K 0.01µF/50V CHD1JKB0B103
C863 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMAVSL4R7
C865 CHIP CERAMIC CAP. B K 1200pF/50V CHD1JKB0B122
C866 CHIP CERAMIC CAP. B K 2700pF/50V CHD1JKB0B272
C872 ELECTROLYTIC CAP. 47µF/6.3V M H7 CE0KMAVSL470
C873 ELECTROLYTIC CAP.(SS.T) 100µF/16V M H7 CA1C101S6028
C874 CERAMIC CAP. B K 470pF/100V or CCD2AKS0B471

CERAMIC CAP. B K 470pF/500V CCD2JKS0B471

C875 FILM CAP.(P) 0.018µF/100V J or CMA2AJS00183

FILM CAP.(P) 0.018µF/50V J CA1J183MS029

CONNECTORS

CN571 CONNECTOR BASE, 5P TV-50P-05-V3 or J3TVC05TG002

CONNECTOR BASE, 5P RTB-1.5-5P J3RTC05JG001
CN573 PIN CONNECTOR 005P-5100 or JTEA001TG001

CONNECTOR PIN, 1P LV or 1700576

CONNECTOR PIN, 1P RT-01N-2.3A 1730688
CN601 CONNECTOR BASE, 2P TV-50P-02-V3 or J3TVC02TG002

CONNECTOR BASE, 2P RTB-1.5-2P J3RTC02JG001
CN801 STRAIGHT CONNECTOR BASE 00 8283 0212 00

000 or

STRAIGHT PIN HEADER, 2P 173981-2 1770258

J383C02UG002

DIODES

D031 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D203 LED SIR-563ST3F P or QPQPS1R563ST

LED SIR-563ST3F Q QPQQS1R563ST
D204 LED LTL-4214M1 or NPQZLTL4214M

LED(RED)L-FORMING LT1814G-81-FL or NP4Z0LT1814G

LED L-53HT or NP4Z000L53HT

LED LAMP 333HT/F45-50K or NPWK333HTF45

LED LAMP 333HT/F45-50L or NPWL333HTF45

LED LAMP 333HT/F45-50M NPWM333HTF45
D208 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

Ref. No. Description Part No.

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D225 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D226 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

D227 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

D231 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS
D234 PCB JUMPER D0.6-P5.0 JW5.0T
D251 ZENER DIODE MTZJT-7715B or QDTB00MTZJ15

ZENER DIODE DZ-15BSBT265 NDTB00DZ15BS
D253 ZENER DIODE MTZJT-7718B or QDTB00MTZJ18

ZENER DIODE DZ-18BSBT265 NDTB00DZ18BS
D302 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D303 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D304 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D305 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D306 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D309 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D311 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D312 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D313 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D314 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D315 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D401 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D552 DIODE 1N5397-B or NDLZ001N5397

RECTIFIER DIODE ERB12-06 QDQZ0ERB1206
D571# DIODE FR154 or NDLZ000FR154
# FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402
D572# DIODE FR104-B NDLZ000FR104
D584 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D585 ZENER DIODE MTZJT-775.1B or QDTB0MTZJ5R1

ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS
D591# ZENER DIODE MTZJT-7736B or QDTB00MTZJ36
# ZENER DIODE DZ-36BSBT265 NDTB00DZ36BS
D595# ZENER DIODE MTZJT-7718B or QDTB00MTZJ18
# ZENER DIODE DZ-18BSBT265 NDTB00DZ18BS
D596 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D597 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D598# DIODE FR104-B NDLZ000FR104
D601 PCB JUMPER D0.6-P10.0 JW10.0T
D603# DIODE 1N5397-B or NDLZ001N5397
# RECTIFIER DIODE ERB12-06 QDQZ0ERB1206
D604# DIODE 1N5397-B or NDLZ001N5397
# RECTIFIER DIODE ERB12-06 QDQZ0ERB1206

20030318 3-3-3 T7408EL

Ref. No. Description Part No.

D605# DIODE 1N5397-B or NDLZ001N5397
# RECTIFIER DIODE ERB12-06 QDQZ0ERB1206
D606# DIODE 1N5397-B or NDLZ001N5397
# RECTIFIER DIODE ERB12-06 QDQZ0ERB1206

D607 ZENER DIODE MTZJT-7724C or QDTC00MTZJ24

ZENER DIODE DZ-24BSCT265 NDTC00DZ24BS

D609 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D610 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS

D611 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D613# RECOVERY DIODE ERC18-04 QDZZ0ERC1804
D614# DIODE FR104-B NDLZ000FR104
D615# DIODE 1ZC33 or QDQZ0001ZC33
# ZENER DIODE RD33FB QDQZ000RD33F
D616# SCHOTTKY BARRIER DIODE 21DQ04 or QDQZ0021DQ04
# SCHOTTKY BARRIER DIODE ERB81-004 AERB81004***
D617# SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04
# SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004
D618 DIODE FR154 or NDLZ000FR154

FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402
D619 DIODE FR104-B NDLZ000FR104
D620# ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8
# ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS
D621 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D622 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D623 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D625 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D626 ZENER DIODE MTZJT-7736A or QDTA00MTZJ36

ZENER DIODE DZ-36BSAT265 NDTA00DZ36BS
D627 ZENER DIODE MTZJT-7716B or QDTB00MTZJ16

ZENER DIODE DZ-16BSBT265 NDTB00DZ16BS
D628 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D629 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D631 ZENER DIODE MTZJT-776.8A or QDTA0MTZJ6R8

ZENER DIODE DZ-6.8BSAT265 NDTA0DZ6R8BS
D632 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D633 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D634 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS
D635 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D636 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D638 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D639 SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004
D640 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148
D641# ZENER DIODE MTZJT-7736A or QDTA00MTZJ36
# ZENER DIODE DZ-36BSAT265 NDTA00DZ36BS

Ref. No. Description Part No.

D646 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D649 ZENER DIODE MTZJT-7715B or QDTB00MTZJ15

ZENER DIODE DZ-15BSBT265 NDTB00DZ15BS

D801 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D802 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D803 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D964 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D965 ZENER DIODE MTZJT-776.2B or QDTB0MTZJ6R2

ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS

ICS

IC100 IC:VIF/SIF DETECTOR M61111FP QSZBA0SMB010
IC201# MICRO COMPUTER M37762M8A-8C8GP QSZAB0RMB148
IC202 IC:MEMORY BR24C02F-W or QSMBA0SRM003

IC:MEMORY AT24C02N-10SC or NSMMA0SAZ012
IC(EEPROM) M24C02-MN6 or NSMMA0SSS028
IC:MEMORY BR24C02F or QSMMA0SRM003
IC:EEPROM CAT24WC02JI or NSZBA0SBG001

IC(EEP-ROM) M24C02-WMN6 NSZAA0SSS004
IC301# VCD IC M61275FP or QSZAA0RMB133
# MICRO-COMPUTER/VCD M61275FP-61 QSZAB0RMB133
IC401 IC:Y/C/A LA71091M QSZBA0RSY012
IC551# VERTICAL OUTPUT IC AN5522 or QSZBA0SMS002
# VERTICAL OUTPUT IC LA78040A QSBBA0SSY003
IC601# PHOTOCOUPLER LTV-817B-F or NPEB0LTV817F

# PHOTOCOUPLER LTV-817C-F or NPEC0LTV817F
# PHOTO COUPLER PC817X6 QPE600PC817X
IC602# VOLTAGE REGULATOR KIA7805API or NSBBA0SJY011
# VOLTAGE REGULATOR KA7805A or NSZBA0SF3052
# IC:VOLTAGE REGULATOR AN7805F AN7805F

IC801 AUDIO AMP LA4224 QSZAA0SSY005

COILS

L001 PCB JUMPER D0.6-P5.0 JW5.0T
L031 PCB JUMPER D0.6-P5.0 JW5.0T
L033 INDUCTOR 15µH-J-26T or LLAXJATTU150

INDUCTOR 15µH-K-26T LLAXKDTKA150
L041 PCB JUMPER D0.6-P5.0 JW5.0T
L202 INDUCTOR 0.10µH-K-26T LLAXKATTUR10
L211# CHOKE COIL 47µH-K or LLBD00PKV007
# CHOKE COIL 47µH-K LLBD00PKV005
L302 PCB JUMPER D0.6-P5.0 JW5.0T
L303 PCB JUMPER D0.6-P5.0 JW5.0T
L402 INDUCTOR 22µH-J-26T or LLAXJATTU220

INDUCTOR 22µH-K-26T LLAXKDTKA220
L404 CHOKE COIL 47µH-K or LLBD00PKV007

CHOKE COIL 47µH-K LLBD00PKV005
L557 CHOKE COIL 22µH-K LLBD00PKV006
L601# LINE FILTER SA-91213B or LLBG00ZSA002

# LINE FILTER TLF12UA302W1R0 or LLBG00ZTU025
# LINE FILTER 5.0MH 6Y075 LLBG00ZKT004

L601 LINE FILTER UU10.5-A LLBG00ZY2008
L601# LINE FILTER TLF14CB3321R0 or LLBG00ZTU012
# LINE FILTER 6.35MH UU10-002 LLBG00ZKV001
L871 PCB JUMPER D0.6-P5.0 JW5.0T
L872 INDUCTOR 47µH-K-5FT or LLARKBSTU470

INDUCTOR 47µH-K-5FT LLARKDSKA470

20030318 3-3-4 T7408EL

Ref. No. Description Part No.

TRANSISTORS

Q205 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785
TRANSISTOR 2SC2785(J) or QQSJ02SC2785
TRANSISTOR KTC3199(GR) or NQS10KTC3199
TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q206 PHOTO TRANSISTOR MID-32A22 NPWZM1D32A22
Q301 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q401 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015
Q402 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015
Q571# TRANSISTOR TT2140LS-YB11 or QQZZ00TT2140
# TRANSISTOR 2SC5885000RF QQZZ02SC5885
Q572 TRANSISTOR 2SC1627Y-TPE2 QQSY02SC1627
Q591# TRANSISTOR 2SC2785(F) or QQSF02SC2785

# TRANSISTOR 2SC2785(H) or QQSH02SC2785
# TRANSISTOR 2SC2785(J) or QQSJ02SC2785
# TRANSISTOR KTC3199(GR) or NQS10KTC3199
# TRANSISTOR KTC3198(GR) or NQS40KTC3198
# TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q601# MOS FET 2SK2662 QF5Z02SK2662
Q602# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120
# TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120
Q604# TRANSISTOR 2SC2785(F) or QQSF02SC2785

# TRANSISTOR 2SC2785(H) or QQSH02SC2785
# TRANSISTOR 2SC2785(J) or QQSJ02SC2785
# TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q605 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q606# TRANSISTOR 2SA950(O) or Q2SA9500TPE2

# TRANSISTOR 2SA950(Y) or Q2SA950YTPE2
# TRANSISTOR KTA1271(Y) NQSY0KTA1271

Q607 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q608# TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

# TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120
# TRANSISTOR KTC3203(Y) NQSY0KTC3203

Q609 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

TRANSISTOR KTC3203(Y) NQSY0KTC3203
Q610 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

Ref. No. Description Part No.

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

TRANSISTOR KTC3203(Y) NQSY0KTC3203
Q611# TRANSISTOR 2SD400(F) QQUF002SD400
Q612 RES. BUILT-IN TRANSISTOR KRA103M or NQSZ0KRA103M

RES. BUILT-IN TRANSISTOR BN1F4M-T QQSZ00BN1F4M
Q871 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015
Q872 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) or QQSY02SC2120

TRANSISTOR KTC3203(Y) NQSY0KTC3203
Q873 TRANSISTOR 2SC3331(T) or QSC3331TNPAA

TRANSISTOR 2SC3331(U) or QSC3331UNPAA

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q874 TRANSISTOR 2SC3331(T) or QSC3331TNPAA

TRANSISTOR 2SC3331(U) or QSC3331UNPAA

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815
Q875 RES. BUILT-IN TRANSISTOR KRA103M or NQSZ0KRA103M

RES. BUILT-IN TRANSISTOR BN1F4M-T QQSZ00BN1F4M

RESISTORS

R002 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R003 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R032 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R033 CARBON RES. 1/4W J 12k Ω or RCX4JATZ0123

CARBON RES. 1/6W J 12k Ω RCX6JATZ0123
R034 CARBON RES. 1/4W J 220 Ω or RCX4JATZ0221

CARBON RES. 1/6W J 220 Ω RCX6JATZ0221
R037 CHIP RES.(1608) 1/10W J 180 Ω RRXAJB5Z0181
R038 CARBON RES. 1/4W J 180 Ω or RCX4JATZ0181

CARBON RES. 1/6W J 180 Ω RCX6JATZ0181
R039 CHIP RES.(1608) 1/10W J 180 Ω RRXAJB5Z0181
R041 CHIP RES.(1608) 1/10W J 12k Ω RRXAJB5Z0123
R042 CARBON RES. 1/4W J 3.9k Ω or RCX4JATZ0392

CARBON RES. 1/6W J 3.9k Ω RCX6JATZ0392
R046 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224
R047 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224
R053 CARBON RES. 1/4W J 220k Ω or RCX4JATZ0224

CARBON RES. 1/6W J 220k Ω RCX6JATZ0224
R201 CARBON RES. 1/4W G 4.7k Ω or RCX4GATZ0472

CARBON RES. 1/6W G 4.7k Ω RCX6GATZ0472
R202 CHIP RES. 1/10W F 22k Ω RRXAFB5J2202
R203 CHIP RES. 1/10W F 470 Ω RRXAFB5J4700
R204 CHIP RES. 1/10W F 1.5k Ω RRXAFB5J1501
R205 CHIP RES. 1/10W F 3.6k Ω RRXAFB5J3601
R206 CHIP RES. 1/10W F 10k Ω RRXAFB5J1002
R208 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223
R209 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103
R210 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152
R211 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152
R212 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222
R213 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272
R214 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103
R215 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152
R216 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152
R217 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222
R218 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272
R219 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102
R220 CHIP RES.(1608) 1/10W J 390k Ω RRXAJB5Z0394

20030318 3-3-5 T7408EL

Ref. No. Description Part No.

R221 PCB JUMPER D0.6-P5.0 JW5.0T
R222 CHIP RES.(1608) 1/10W J 270k Ω RRXAJB5Z0274
R223 CHIP RES.(1608) 1/10W J 560 Ω RRXAJB5Z0561
R225 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R227 CARBON RES. 1/4W J 270 Ω or RCX4JATZ0271

CARBON RES. 1/6W J 270 Ω RCX6JATZ0271
R229 CHIP RES.(1608) 1/10W J 330 Ω RRXAJB5Z0331
R233 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222
R234 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJB5Z0122
R235 CHIP RES.(1608) 1/10W J 47 Ω RRXAJB5Z0470
R236 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104
R237 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R238 CHIP RES.(1608) 1/10W J 470k Ω RRXAJB5Z0474
R239 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272
R240 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000
R241 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJB5Z0562
R243 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102
R244 CHIP RES.(1608) 1/10W J 1M Ω RRXAJB5Z0105
R245 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471
R247 CHIP RES.(1608) 1/10W J 820 Ω RRXAJB5Z0821
R248 CHIP RES.(1608) 1/10W J 470 Ω RRXAJB5Z0471
R249 CARBON RES. 1/4W J 3.3k Ω or RCX4JATZ0332

CARBON RES. 1/6W J 3.3k Ω RCX6JATZ0332
R250 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152
R251 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJB5Z0332
R252 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152
R253 CARBON RES. 1/4W J 3.3k Ω or RCX4JATZ0332

CARBON RES. 1/6W J 3.3k Ω RCX6JATZ0332
R254 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152
R255 PCB JUMPER D0.6-P5.0 JW5.0T
R256 CARBON RES. 1/4W J 5.6k Ω or RCX4JATZ0562

CARBON RES. 1/6W J 5.6k Ω RCX6JATZ0562
R257 PCB JUMPER D0.6-P5.0 JW5.0T
R258 PCB JUMPER D0.6-P5.0 JW5.0T
R259 CARBON RES. 1/4W J 5.6k Ω or RCX4JATZ0562

CARBON RES. 1/6W J 5.6k Ω RCX6JATZ0562
R260 PCB JUMPER D0.6-P5.0 JW5.0T
R262 CHIP RES.(1608) 1/10W J 220k Ω RRXAJB5Z0224
R263 CHIP RES.(1608) 1/10W J 39k Ω RRXAJB5Z0393
R267 CARBON RES. 1/4W J 82k Ω or RCX4JATZ0823

CARBON RES. 1/6W J 82k Ω RCX6JATZ0823
R270 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104
R273 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJB5Z0182
R274 CHIP RES.(1608) 1/10W J 680 Ω RRXAJB5Z0681
R278 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R279 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103
R281 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103
R282 CARBON RES. 1/4W J 2.7k Ω or RCX4JATZ0272

CARBON RES. 1/6W J 2.7k Ω RCX6JATZ0272
R283 PCB JUMPER D0.6-P5.0 JW5.0T
R291 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103
R292 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223
R301 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331
R303 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331
R305 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331

Ref. No. Description Part No.

R308 CARBON RES. 1/4W J 120k Ω or RCX4JATZ0124

CARBON RES. 1/6W J 120k Ω RCX6JATZ0124

R310 CARBON RES. 1/4W J 180k Ω or RCX4JATZ0184

CARBON RES. 1/6W J 180k Ω RCX6JATZ0184
R312 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R314 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R315 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R316 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJB5Z0822
R329 CARBON RES. 1/4W J 15k Ω or RCX4JATZ0153

CARBON RES. 1/6W J 15k Ω RCX6JATZ0153
R331 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R332 CARBON RES. 1/2W J 39 Ω or RCX2JZQZ0390

CARBON RES. 1/2W J 39 Ω or RCX2390KA013

CARBON RES. 1/2W J 39 Ω RCX2JZPZ0390
R333 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R334 CHIP RES.(1608) 1/10W J 56k Ω RRXAJB5Z0563
R335 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJB5Z0562
R336 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103
R337 CHIP RES.(1608) 1/10W J 1k Ω RRXAJB5Z0102
R338 CHIP RES.(1608) 1/10W J 18k Ω RRXAJB5Z0183
R339 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103
R340 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R406 CARBON RES. 1/4W J 47k Ω or RCX4JATZ0473

CARBON RES. 1/6W J 47k Ω RCX6JATZ0473
R407 CHIP RES.(1608) 1/10W J 47k Ω RRXAJB5Z0473
R409 CHIP RES.(1608) 1/10W J 18k Ω RRXAJB5Z0183
R413 CHIP RES.(1608) 1/10W J 39k Ω RRXAJB5Z0393
R414 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472
R415 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152
R416 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104
R417 CHIP RES.(1608) 1/10W J 220 Ω RRXAJB5Z0221
R418 CHIP RES.(1608) 1/10W J 330 Ω RRXAJB5Z0331
R419 CARBON RES. 1/4W J 330 Ω or RCX4JATZ0331

CARBON RES. 1/6W J 330 Ω RCX6JATZ0331
R423 CHIP RES.(1608) 1/10W J 5.6M Ω RRXAJB5Z0565
R424 CHIP RES.(1608) 1/10W J 100k Ω RRXAJB5Z0104
R425 CHIP RES.(1608) 1/10W J 82k Ω RRXAJB5Z0823
R426 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222
R427 CARBON RES. 1/4W J 820 Ω or RCX4JATZ0821

CARBON RES. 1/6W J 820 Ω RCX6JATZ0821
R428 CHIP RES.(1608) 1/10W J 680k Ω RRXAJB5Z0684
R429 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152
R431 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJB5Z0822
R435 CHIP RES.(1608) 1/10W J 2k Ω RRXAJB5Z0202
R544 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103
R551 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJB5Z0152
R552# CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R556 CARBON RES. 1/4W J 4.7 Ω or RCX4JATZ04R7

CARBON RES. 1/6W J 4.7 Ω RCX6JATZ04R7

R557 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R558 CARBON RES. 1/4W J 15k Ω or RCX4JATZ0153

CARBON RES. 1/6W J 15k Ω RCX6JATZ0153

R559 CARBON RES. 1/4W J 820 Ω or RCX4JATZ0821

CARBON RES. 1/6W J 820 Ω RCX6JATZ0821

R560 CARBON RES. 1/4W J 5.1k Ω or RCX4JATZ0512

CARBON RES. 1/6W J 5.1k Ω RCX6JATZ0512

R561 CARBON RES. 1/4W J 5.6k Ω or RCX4JATZ0562

CARBON RES. 1/6W J 5.6k Ω RCX6JATZ0562

R562 CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7

20030318 3-3-6 T7408EL

Ref. No. Description Part No.

R563 CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7
R565 CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7
R566 CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7
R568 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R570 CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7
R571 CARBON RES. 1/4W J 180 Ω or RCX4JATZ0181

CARBON RES. 1/6W J 180 Ω RCX6JATZ0181

R572 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

R573 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R574# METAL OXIDE FILM RES. 2W J 1k Ω or RN02102ZU001
# METAL OXIDE FILM RES. 2W J 1k Ω RN02102DP004
R575# METAL OXIDE FILM RES. 2W J 1k Ω or RN02102ZU001
# METAL OXIDE FILM RES. 2W J 1k Ω RN02102DP004
R576 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R577 CARBON RES. 1/4W J 180 Ω or RCX4JATZ0181

CARBON RES. 1/6W J 180 Ω RCX6JATZ0181
R578 CARBON RES. 1/4W J 4.7 Ω RCX4JATZ04R7
R579 CARBON RES. 1/4W J 56 Ω or RCX4JATZ0560

CARBON RES. 1/6W J 56 Ω RCX6JATZ0560
R580 CARBON RES. 1/4W J 56 Ω or RCX4JATZ0560

CARBON RES. 1/6W J 56 Ω RCX6JATZ0560
R581 CARBON RES. 1/4W J 56 Ω or RCX4JATZ0560

CARBON RES. 1/6W J 56 Ω RCX6JATZ0560
R583 METAL OXIDE FILM RES. 2W J 1.5 Ω or RN021R5ZU001

METAL OXIDE FILM RES. 2W J 1.5 Ω RN021R5DP004
R584 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R586 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R587# CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R588 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R590 METAL OXIDE FILM RES. 1W J 3.3k Ω or RN01332ZU001

METAL OXIDE FILM RES. 1W J 3.3k Ω RN01332DP003
R592# CARBON RES. 1/4W J 180k Ω RCX4JATZ0184
R593 CHIP RES.(1608) 1/10W J 68k Ω RRXAJB5Z0683
R594 CHIP RES.(1608) 1/10W J 56k Ω RRXAJB5Z0563
R595 CARBON RES. 1/4W J 15k Ω or RCX4JATZ0153

CARBON RES. 1/6W J 15k Ω RCX6JATZ0153
R596 CARBON RES. 1/4W J 6.8k Ω or RCX4JATZ0682

CARBON RES. 1/6W J 6.8k Ω RCX6JATZ0682
R597 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJB5Z0122
R598 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223
R599 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103
R602# CEMENT RES. 5W K 1.2 Ω or RW051R2DP005

# CEMENT RESISTOR 5W K 1.2 Ω or RW051R2PG001
# CEMENT RESISTOR 5W J 1.2 Ω RW051R2Y4001

R603 METAL OXIDE FILM RES. 2W J 0.27 Ω or RN02R27ZU001

METAL OXIDE FILM RES. 2W J 0.27 Ω RN02R27DP004
R604 CARBON RES. 1/4W J 1.2M Ω or RCX4JATZ0125

CARBON RES. 1/6W J 1.2M Ω RCX6JATZ0125
R605 CARBON RES. 1/4W J 1.2M Ω or RCX4JATZ0125

CARBON RES. 1/6W J 1.2M Ω RCX6JATZ0125
R606 CARBON RES. 1/4W J 180 Ω or RCX4JATZ0181

CARBON RES. 1/6W J 180 Ω RCX6JATZ0181
R607 CARBON RES. 1/4W J 180 Ω or RCX4JATZ0181

CARBON RES. 1/6W J 180 Ω RCX6JATZ0181
R608 CARBON RES. 1/4W J 180k Ω or RCX4JATZ0184

CARBON RES. 1/6W J 180k Ω RCX6JATZ0184

Ref. No. Description Part No.

R610 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102

R613 CARBON RES. 1/4W J 150 Ω or RCX4JATZ0151

CARBON RES. 1/6W J 150 Ω RCX6JATZ0151
R614 CHIP RES.(1608) 1/10W J 1.2k Ω RRXAJB5Z0122
R616 CARBON RES. 1/4W J 2.2 Ω or RCX4JATZ02R2

CARBON RES. 1/6W J 2.2 Ω RCX6JATZ02R2
R617 CARBON RES. 1/4W J 180 Ω or RCX4JATZ0181

CARBON RES. 1/6W J 180 Ω RCX6JATZ0181
R618 CARBON RES. 1/4W J 560 Ω or RCX4JATZ0561

CARBON RES. 1/6W J 560 Ω RCX6JATZ0561
R619 CARBON RES. 1/2W J 1k Ω or RCX2JZQZ0102

CARBON RES. 1/2W J 1k Ω or RCX2102KA013

CARBON RES. 1/2W J 1k Ω RCX2JZPZ0102
R620 METAL OXIDE FILM RES. 2W J 8.2k Ω or RN02822ZU001

METAL OXIDE FILM RES. 2W J 8.2k Ω RN02822DP004
R621 CARBON RES. 1/4W J 15k Ω or RCX4JATZ0153

CARBON RES. 1/6W J 15k Ω RCX6JATZ0153
R622 CARBON RES. 1/4W J 15k Ω or RCX4JATZ0153

CARBON RES. 1/6W J 15k Ω RCX6JATZ0153
R623 CHIP RES.(1608) 1/10W J 33k Ω RRXAJB5Z0333
R624# CARBON RES. 1/4W J 39k Ω or RCX4JATZ0393
# CARBON RES. 1/6W J 39k Ω RCX6JATZ0393
R625 CARBON RES. 1/4W J 47k Ω or RCX4JATZ0473

CARBON RES. 1/6W J 47k Ω RCX6JATZ0473
R629 CARBON RES. 1/4W J 13k Ω or RCX4JATZ0133

CARBON RES. 1/6W J 13k Ω RCX6JATZ0133
R630 CARBON RES. 1/4W J 13k Ω or RCX4JATZ0133

CARBON RES. 1/6W J 13k Ω RCX6JATZ0133
R631 CARBON RES. 1/4W J 13k Ω or RCX4JATZ0133

CARBON RES. 1/6W J 13k Ω RCX6JATZ0133
R632 CARBON RES. 1/4W J 560 Ω or RCX4JATZ0561

CARBON RES. 1/6W J 560 Ω RCX6JATZ0561
R633 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJB5Z0562
R634 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682
R635 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103
R637 METAL OXIDE FILM RES. 2W J 8.2k Ω or RN02822ZU001

METAL OXIDE FILM RES. 2W J 8.2k Ω RN02822DP004
R639# CARBON RES. 1/2W J 1k Ω or RCX2JZQZ0102

# CARBON RES. 1/2W J 1k Ω or RCX2102KA013
# CARBON RES. 1/2W J 1k Ω RCX2JZPZ0102

R640 CHIP RES.(1608) 1/10W J 56k Ω RRXAJB5Z0563
R641 CARBON RES. 1/4W J 10k Ω or RCX4JATZ0103

CARBON RES. 1/6W J 10k Ω RCX6JATZ0103
R642 CARBON RES. 1/4W J 5.6k Ω or RCX4JATZ0562

CARBON RES. 1/6W J 5.6k Ω RCX6JATZ0562
R643 CARBON RES. 1/4W J 27 Ω or RCX4JATZ0270

CARBON RES. 1/6W J 27 Ω RCX6JATZ0270
R644 CHIP RES.(1608) 1/10W J 47k Ω RRXAJB5Z0473
R647 CARBON RES. 1/2W J 1.8 Ω or RCX2JZQZ01R8

CARBON RES. 1/2W J 1.8 Ω RCX21R8ZU002
R648 CARBON RES. 1/2W J 6.8 Ω or RCX2JZQZ06R8

CARBON RES. 1/2W J 6.8 Ω or RCX26R8KA013

CARBON RES. 1/2W J 6.8 Ω RCX2JZPZ06R8
R650# CARBON RES. 1/4W J 22 Ω or RCX4JATZ0220
# CARBON RES. 1/6W J 22 Ω RCX6JATZ0220
R651 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R652 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R653 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

20030318 3-3-7 T7408EL

Ref. No. Description Part No.

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101

R654 METAL OXIDE FILM RES. 1W J 15 Ω or RN01150ZU001

METAL OXIDE FILM RES. 1W J 15 Ω RN01150DP003

R655 CARBON RES. 1/4W J 2.7k Ω or RCX4JATZ0272

CARBON RES. 1/6W J 2.7k Ω RCX6JATZ0272

R656 METAL OXIDE FILM RES. 1W J 5.6 Ω or RN015R6ZU001

METAL OXIDE FILM RES. 1W J 5.6 Ω RN015R6DP003
R659 CHIP RES.(1608) 1/10W J 100 Ω RRXAJB5Z0101
R660 PCB JUMPER D0.6-P5.0 JW5.0T
R662 CARBON RES. 1/4W J 22 Ω or RCX4JATZ0220

CARBON RES. 1/6W J 22 Ω RCX6JATZ0220
R670 CARBON RES. 1/4W J 120 Ω or RCX4JATZ0121

CARBON RES. 1/6W J 120 Ω RCX6JATZ0121
R701 CHIP RES.(1608) 1/10W J 75 Ω RRXAJB5Z0750
R801 METAL OXIDE FILM RES. 1W J 18 Ω or RN01180ZU001

METAL OXIDE FILM RES. 1W J 18 Ω RN01180DP003
R802 CARBON RES. 1/4W J 4.7k Ω or RCX4JATZ0472

CARBON RES. 1/6W J 4.7k Ω RCX6JATZ0472
R803 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222
R804 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472
R805 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103
R806 CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470

CARBON RES. 1/6W J 47 Ω RCX6JATZ0470
R807 CARBON RES. 1/4W J 47 Ω or RCX4JATZ0470

CARBON RES. 1/6W J 47 Ω RCX6JATZ0470
R851 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223
R852 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJB5Z0392
R853 CHIP RES.(1608) 1/10W J 2.2M Ω RRXAJB5Z0225
R856 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223
R857 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJB5Z0332
R858 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682
R859 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJB5Z0472
R861 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJB5Z0682
R862 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJB5Z0272
R863 CHIP RES.(1608) 1/10W J 10k Ω RRXAJB5Z0103
R864 CHIP RES.(1608) 1/10W J 8.2k Ω RRXAJB5Z0822
R865 CHIP RES.(1608) 1/10W J 12k Ω RRXAJB5Z0123
R866 CHIP RES.(1608) 1/10W J 330k Ω RRXAJB5Z0334
R867 CHIP RES.(1608) 1/10W J 270 Ω RRXAJB5Z0271
R868 CHIP RES.(1608) 1/10W J 18k Ω RRXAJB5Z0183
R869 CHIP RES.(1608) 1/10W J 820 Ω RRXAJB5Z0821
R871 CARBON RES. 1/4W J 1k Ω or RCX4JATZ0102

CARBON RES. 1/6W J 1k Ω RCX6JATZ0102
R872 CHIP RES.(1608) 1/10W J 22k Ω RRXAJB5Z0223
R873 CARBON RES. 1/4W J 18k Ω or RCX4JATZ0183

CARBON RES. 1/6W J 18k Ω RCX6JATZ0183
R874 CARBON RES. 1/4W J 100 Ω or RCX4JATZ0101

CARBON RES. 1/6W J 100 Ω RCX6JATZ0101
R875 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222
R876 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJB5Z0222
R877 CARBON RES. 1/4W J 820 Ω or RCX4JATZ0821

CARBON RES. 1/6W J 820 Ω RCX6JATZ0821
R980 CARBON RES. 1/4W J 6.8k Ω or RCX4JATZ0682

CARBON RES. 1/6W J 6.8k Ω RCX6JATZ0682
R981 CARBON RES. 1/2W J 1.2 Ω or RCX2JZQZ01R2

CARBON RES. 1/2W J 1.2 Ω RCX21R2ZU002

SWITCHES

SW201 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027
SW202 TACT SWITCH SKQNAED010 or SST0101AL055

Ref. No. Description Part No.

TACTILE SWITCH KSHG612BT SST0101HH027

SW203 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW204 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW205 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW206 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW207 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW208 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW209 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW210 TACT SWITCH SKQNAED010 or SST0101AL055

TACTILE SWITCH KSHG612BT SST0101HH027

SW211 LEAF SWITCH LSA-1142-1AU or SSC0101KB014

LEAF SWITCH MXS00052MPP0 or SSC0101MCE01
LEAF SWITCH MXS00981MPP0 SSC0101MCE02

SW212 ROTARY MODE SWITCH SSS-50MD or SSR0106KB002

ROTARY MODE SWITCH R8100245 SSR0106U3002

MISCELLANEOUS

BC571 BEAD INDUCTORS FBA04HA600VB-00 LLBF00STU026
BC601 PCB JUMPER D0.6-P5.0 JW5.0T
BC602 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC603 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC605 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
BC606 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021
CF031 CERAMIC TRAP 4.5MHz or FBE455PMR003

4.5M TRAP XT4.5MB2 FBE455PLN001

CF032 CERAMIC FILTER SFSRA4M50CF00-B0 or FBB455PMR004

4.5M FILTER LTH4.5MCB FBB455PLN001
CL201 FMN CONNECTOR, TOP 12P 12FMN-BTRK JCFNG12JG002
F601# FUSE 4.00A/125V or PAGU20CAG402

# FUSE 51MS040L or PAFC20CHV402
# FUSE STC4A125V U/CT or PAGE20CW3402
# FUSE 4.00A/125V PAGG20CNG402

FH601 FUSE HOLDER MSF-015 XH01Z00LY001
FH601# FUSE HOLDER FH-V-03078 XH01Z00DK001
FH602 FUSE HOLDER MSF-015 XH01Z00LY001
FH602# FUSE HOLDER FH-V-03078 XH01Z00DK001
J125 CHIP RES.(1608) 1/10W 0 Ω RRXAZB5Z0000
JK701 RCA JACK(YELLOW) MSP-281V4-B or JXRL010LY003

RCA JACK(YELLOW) AV1-15-3 JXRL010RP013

JK702 RCA JACK(WHITE) MSP-281V1-B or JXRL010LY005

RCA JACK(WHITE) AV1-15-4 JXRL010RP014

JK801 EARPHONE JACK MSJ-035-12APC or JYSL030LY001

EARPHONE JACK HTJ-035-1ZEBTZ or JYSL030GE001

EARPHONE JACK HSJ1403-01-010 JYSL030HD002
PS601# THERMISTOR ZPB45BL7R0A QNZZ45BL7R0A
RS201 REMOCON RESEVER MIM-93M6DKF-C or USESJRSUNT04

REMOTE RECEIVER PIC-37042LU USESJRSKK033
SA601# SURGE ABSORBER JVR-07N471K or NVQZVR07N471

# SURGE ABSORBER CNR-10D471K or NVQZR10D471K
# SURGE ABSORBER CNR-07D471K or NVQZR07D471K
# SURGE ABSORBER PVR-07D471KB NVQZ07D471KB

SF001 SAW FILTER SAFGM45M7VHHzC0B03 FBB456PMR008
SG001# GAP. FNR-G3.10D FAZ000LD6005
T572 H0RIZONTAL DRIVE TRANS LP2-005 LTH00CPA5005

20030318 3-3-8 T7408EL

Ref. No. Description Part No.

T601# SWITCHING TRANS 02712 LTT00CPKT101
TB3 HEAD SHIELD(DC) T5400UA 0EM301721
TB7 LED HOLDER T5400UA 0EM407679
TB9 19VPOW HEAT SINK PHB ASSEMBLYT7400UA 0EM407685
TB21 BUSH, LED(F) H3700UD 0VM409508
TB26 13V H/V HEAT SINK PGZ T5400UA 0EM301720
TL2 SCREW, B-TIGHT M3X8 BIND HEAD+ or GBMB3080

SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080
TP201 PCB JUMPER D0.6-P5.0 JW5.0T
TP301 PCB JUMPER D0.6-P17.5 JW17.5T
TP302 PCB JUMPER D0.6-P5.0 JW5.0T
TP401 PCB JUMPER D0.6-P20.0 JW20.0T
TP402 PCB JUMPER D0.6-P17.5 JW17.5T
TU001# TUNER B8135AP or UTUNNTUSP023
# TUNER ENV56DC9G3 UTUNNTUMS010
VR601# CARBON P.O.T. 10k Ω B or VRCB103KA011
# CARBON P.O.T. 10k Ω B VRCB103HH014
W601# AC CORD PB8K9F9110A-057 or WAC0172LW008

# AC CORD WAC0172LTE01 or WAC0172LTE01
# AC CORD WAC0172AS006 or WAC0172AS006
# AC CORD LA-2366 or WAC0172LW006
# AC CORD A0A0280-007 WAC0172LTE04

X201 X'TAL 32.768kHz(20PPM) or FXC323LJNY01

X'TAL 32.768kHz(20PPM) or FXC323LCT001

X'TAL 32.768kHz(20PPM) or FXC323LDS002

X'TAL 32.768kHz(20PPM) or FXC323LQUA01

X'TAL 32.768kHz(20PPM) FXC323LCHE01
X202 X'TAL HC-49/U 10.6MHz or FXD106LLN001

X'TAL AT49-10.6 or FXD106LDS002

X'TAL :10.6MHz S8562 FXD106LCT001
X301 X'TAL 3.579545 MHz or FXD355LLN003

X'TAL 3.579545MHz(30PPM) FXD355LCHE01
X401 X'TAL 3.579545MHz(20PPM) or FXC355LJNY01

X'TAL 3.579545MHz(20PPM) or FXC355LLN003

X'TAL 3.579545MHz(20PPM) or FXC355LDS001

X'TAL 3.579545MHz or FXC355LLN001

X'TAL 3.579545MHz(20PPM) FXC355LCHE01

CRT CBA

Ref. No. Description Part No.

CRT CBA

Consists of the following

CAPACITORS

C501 CERAMIC CAP. B K 1000pF/2KV or CCD3DKP0B102

CERAMIC CAP. B K 1000pF/2KV or CA3D102MR030

CERAMIC CAP. B K 1000pF/2KV CCD3DKD0B102
C502 ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL1R0

ELECTROLYTIC CAP. 1µF/50V M or CE1JMASDL010

ELECTROLYTIC CAP. 1µF/50V M CE1JMASTL1R0
C511 CHIP CERAMIC CAP. B K 470pF/50V CHD1JKB0B471
C521 CHIP CERAMIC CAP. B K 470pF/50V CHD1JKB0B471
C531 CHIP CERAMIC CAP. B K 470pF/50V CHD1JKB0B471

CONNECTORS

CN505 PIN CONNECTOR 005P-5100 or JTEA001TG001

CONNECTOR PIN, 1P LV or 1700576

CONNECTOR PIN, 1P RT-01N-2.3A 1730688

TRANSISTORS

Q511 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468

TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468

------------

Ref. No. Description Part No.

TRANSISTOR KTC3207 NQSZ0KTC3207

Q521 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468
TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468
TRANSISTOR KTC3207 NQSZ0KTC3207

Q531 TRANSISTOR 2SC2482 TPE6 or QQSZ02SC2482

TRANSISTOR 2SC3468(E)-AE or QQSE02SC3468
TRANSISTOR 2SC3468(D)-AE or QQSD02SC3468
TRANSISTOR KTC3207 NQSZ0KTC3207

RESISTORS

R510# METAL OXIDE FILM RES. 1W J 15k Ω or RN01153ZU001
# METAL OXIDE FILM RES. 1W J 15k Ω RN01153DP003

R511 CHIP RES.(1608) 1/10W J 15 Ω RRXAJB5Z0150
R512 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563
R513 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563
R515 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471

R516 CARBON RES. 1/4W J 1.5k Ω or RCX4JATZ0152

CARBON RES. 1/6W J 1.5k Ω RCX6JATZ0152

R517 CARBON RES. 1/4W J 1.5k Ω or RCX4JATZ0152

CARBON RES. 1/6W J 1.5k Ω RCX6JATZ0152
R520# METAL OXIDE FILM RES. 1W J 15k Ω or RN01153ZU001
# METAL OXIDE FILM RES. 1W J 15k Ω RN01153DP003
R521 CHIP RES.(1608) 1/10W J 15 Ω RRXAJB5Z0150
R522 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563
R523 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563
R525 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R526 CARBON RES. 1/4W J 1.5k Ω or RCX4JATZ0152

CARBON RES. 1/6W J 1.5k Ω RCX6JATZ0152
R527 CARBON RES. 1/4W J 1.5k Ω or RCX4JATZ0152

CARBON RES. 1/6W J 1.5k Ω RCX6JATZ0152
R530# METAL OXIDE FILM RES. 1W J 15k Ω or RN01153ZU001
# METAL OXIDE FILM RES. 1W J 15k Ω RN01153DP003
R531 CHIP RES.(1608) 1/10W J 15 Ω RRXAJB5Z0150
R532 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563
R533 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563
R535 CARBON RES. 1/4W J 470 Ω or RCX4JATZ0471

CARBON RES. 1/6W J 470 Ω RCX6JATZ0471
R536 CARBON RES. 1/4W J 1.5k Ω or RCX4JATZ0152

CARBON RES. 1/6W J 1.5k Ω RCX6JATZ0152
R537 CARBON RES. 1/4W J 1.5k Ω or RCX4JATZ0152

CARBON RES. 1/6W J 1.5k Ω RCX6JATZ0152

MISCELLANEOUS

CL501A LEAD WIRE 3P/410MM WX1T7400-001
CL502A LEAD WIRE 4P/480MM WX1T7400-002
JK501# CRT SOCKET ISMS02S JSCC220PK003

SENSOR CBA

Ref. No. Description Part No.

SENSOR CBA

Consists of the following

TRANSISTORS

Q201 PHOTO TRANSISTOR MID-32A22 NPWZM1D32A22
Q202 PHOTO TRANSISTOR MID-32A22 NPWZM1D32A22

0ESA04524

20030318 3-3-9 T7408EL

DECK PARTS LIST

Ref. No Description Part No.

B2 CYLINDER ASSEMBLY MK12 NTSC 2HD N1628CYL
B3 LOADING MOTOR ASSEMBLY MK11 TVCR 0VSA13465
B8 PULLEY ASSEMBLY MK12 0VSA13500
B9 MOVING GUIDE S PREPARATION MK12 0VSA13560
B10 MOVING GUIDE T PREPARATION MK12 0VSA13562
B11 LOADING ARM(TU) ASSEMBLY MK12 0VSA13300
B12 LOADING ARM(SP) ASSEMBLY MK12 0VSA13299
B31 AC HEAD ASSEMBLY MK12(TVCR) 0VSA13517
B35 TAPE GUIDE ARM ASSEMBLY MK12 0VSA13277
B37 CAPSTAN MOTOR 288/VCCM012 N9670CML
B52 CAP BELT MK10 0VM411138
B73 FE HEAD ASSEMBLY MK11 or N9742FEL

FE HEAD ASSEMBLY MK11 or N9743FEL
FE HEAD(MK11) MH-131SF11 or DHVEC01Z0005
FE HEAD(MK11) VTR-1X2ERS11-148 or DHVEC01TE004
FE HEAD(MK12) VTR-1X2ERS11-155 or DHVEC01TE005

FE HEAD(MK12) HVFHP0047A DHVEC01AL007
B74 PRISM MK10 0VM202870
B121 WORM MK12 0VM414091
B126 PULLEY MK12 0VM414330
B133 IDLER GEAR MK12 0VM305738
B134 IDLER ARM MK12 0VM305739
B148 TG CAP MK11 0VM412972
B300 C DRIVE LEVER(TU) MK12 0VM203773
B303 F DOOR OPENER MK12 0VM203751
B313 C DRIVE SPRING MK12 0VM414145
B347 GUIDE HOLDER A MK10 0VM304920
B354 SLIDER(TU) MK12 0VM101172
B355 SLIDER(SP) MK12 0VM101182
B359 CLEANER LEVER MK10 0VM304413
B360 CLEANER ROLLER MK9 0VM410032C
B361 CL POST MK10 0VM411114
B410 PINCH ARM ASSEMBLY(1) MK12 or 0VSA13285

PINCH ARM ASSEMBLY(3) MK12 or 0VSA13288

PINCH ARM(A) ASSEMBLY(4) MK12 0VSA13572
B411 PINCH SPRING MK12 0VM414644
B414 M BRAKE(SP) ASSEMBLY MK12 0VSA13282
B416 M BRAKE(TU) ASSEMBLY MK12 0VSA13283
B417 TENSION SPG(360261) MK12 0VM414221
B425 LOCK LEVER SPRING MK10 0VM411110
B426 KICK PULLEY MK10 0VM411095
B482 CASSETTE PLATE MK12 0VM203749
B483 LOCK LEVER MK12 0VM414095
B487 BAND BRAKE(SP) MK12 0VM305723
B488 MODE LEVER MK12 0VM101173
B491 CAM GEAR(A) MK12 0VM101174
B492 MODE GEAR MK12 0VM203769
B494 C DOOR OPENER MK12 0VM305719
B499 T LEVER HOLDER MK12 0VM305729
B501 WORM HOLDER MK12 0VM203767
B502 CAM GEAR(B) MK12 0VM305721
B507 REEL WASHER MK9 5*2.1*0.5 0VM410058
B508 S BRAKE SPRING MK10 0VM411121
B514 SCREW RACK MK10 0VM411535
B516 REEL WASHER MK9 5*2.1*0.5 0VM410058
B520 TU BRAKE SPRING MK12 0VM414285

Ref. No Description Part No.

B521 REV BRAKE SPRING MK12 0VM414222
B522 TG POST ASSEMBLY MK11 0VSA12080
B525 LDG BELT MK11 0VM412804
B529 CLEANER ASSEMBLY MK10 0VSA11161
B553 REV SPRING MK11 0VM412555
B555 RACK ASSEMBLY MK12 0VSA13289
B557 MOTOR PULLEY U5 0VM403205A
B558 LOADING MOTOR MDB2B82 or MMDZB10SJ001

LOADING MOTOR MDB2B80 MMDZB12SJ008
B559 CLUTCH ASSEMBLY MK12 0VSA13284
B560 KICK SPRING MK10 0VM411475A
B561 F DOOR SPRING MK10 0VM411430
B562 C DRIVE LEVER(SP) MK12 0VM203772
B563 SLIDER SHAFT MK12 0VM305762
B564 M GEAR MK12 0VM305735
B565 SENSOR GEAR MK12 0VM305736
B567 PINCH ARM(B) MK12 0VM305718
B568 BT ARM MK12 0VM305728
B569 CAM HOLDER(F) MK12 0VM305722
B570 CAM RACK SPRING(HI) MK11 0VM412923
B571 P.S.W CUT 1.6X4.0X0.5T 0VM408485A
B573 REEL(SP)(D2) MK12 0VM203755
B574 REEL(TU)(D2) MK12 0VM203756
B587 TENSION LEVER ASSEMBLY MK12 0VSA13279
B590 BRAKE ARM(TU) MK12 0VM203752
B591 BAND BRAKE(TU) MK12 0VM305724
B592 TG POST MK11 0VM412550
L1051 SCREW, B-TIGHT M2.6X6 PAN HEAD+ GPMB9060
L1053 SCREW, S-TIGHT M2.6X8 WASHER HEAD+ GCMS9080
L1151 SCREW, SEMS M3X4 PAN HEAD + CPM33040
L1191 SCREW, S-TIGHT M2.6X8 WASHER HEAD+ GCMS9080
L1321 SCREW, S-TIGHT M3X6 BIND HEAD+ GBMS3060
L1406 AC HEAD SCREW MK9 0VM410964
L1450 SCREW, SEMS M2.6X5 PAN HEAD+ CPM39050
L1466 SCREW, S-TIGHT M2.6X6 BIND HEAD+ GBMS9060
L1467 SCREW, S-TIGHT M2.6X5 WASHER HEAD+ GCMS9050

20030318 3-4-1 T7408DPL

SRC2319 T7408UJ

Printed in Japan

2003-04-04 HO
